Document Metadata

Format: PDF Title: Cisco Catalyst 9200 Series Switches Data Sheet Author: RR Donnelley Creator: Microsoft® Word for Microsoft 365

Page 1

© 2025 Cisco and/or its affiliates. All rights reserved. Page 1 of 55 Cisco Catalyst 9200 Series Switches Data sheet Cisco public

Image 1 from page 1

Page 2

© 2025 Cisco and/or its affiliates. All rights reserved. Page 2 of 55

Contents Introduction 4 Product overview 4 Product highlights 4 Features and benefits platform details 5 Switch models and configurations 5 Network modules 8 Platform resiliency 9 Performance and scalability 14 Performance specifications 14 Bandwidth specifications 15 Software 17 Platform software benefits 17 Secure Segmentation with SD-Access 18 Software-Defined Access 18 Smart operation 19 Licensing 21 Introduction to Smart Licensing 21 Network licensing 22 Cisco Catalyst Software licensing 23 Managing licenses with Smart Accounts 24 Specifications 24 Dimensions, weight, acoustic, mean time between failures 24 Connectors 29 Management and standards support 30 Power supply specifications 32 Power consumption of Standalone 9200 Series switches 35 Safety and compliance 39

Page 3

© 2025 Cisco and/or its affiliates. All rights reserved. Page 3 of 55

Ordering 40 Ordering information 40 Switch Models 40 Software licenses 43 Stacking Cables 48 Power supplies 49 Mounting Accessories 51 Warranty 51 Cisco enhanced limited lifetime hardware warranty 51 Cisco services for next-generation Cisco Catalyst switches 52 Optics online reference 52 Product sustainability 53 Cisco Services 54 CSR/Social Responsibility 54 Cisco Capital 54 Document history 55

Page 4

© 2025 Cisco and/or its affiliates. All rights reserved. Page 4 of 55

Introduction Extend intent-based networking everywhere Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified. As foundational building blocks for the Cisco Networking Cloud, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey. Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE® and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations. With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access. Catalyst 9200 Series switches also provide operational choice of CLI, Cisco Catalyst Center (formerly Cisco DNA Center) on-premises management, or cloud monitoring for Catalyst on Meraki dashboard. Product overview Product highlights ● Full Power over Ethernet Plus (PoE+) capability for up to 48 ports for C9200. Power over Ethernet Plus (PoE+) capability for up to 12 ports, IEEE 802.3bt class 6 and Cisco UPOE capability for up to 8 ports for C9200CX.
● Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks for C9200 models. C9200CX models are fanless and are powered by internal fixed power supply or optional power adapters, when not powered by upstream IEEE 802.3bt class 6 60W PSE. ● Flexible power source options from line voltage AC, low voltage DC to High Voltage DC (HVDC) in C9200CX models provide the choices for customers to migrate to efficient DC micro grid powered by renewable energy sources for a sustainable future. ● Flexible downlink options with data, PoE+, UPOE, UPOE with mGig for Wi-Fi 6/6E. ● Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps. ● UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure. ● Enhanced security with AES-128 MACsec encryption on C9200 and AES-256 MACsec encryption for C9200CX models, policy-based segmentation, and trustworthy solutions for the whole Catalyst 9200 Series. ● Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access. C9200CX also supports basic BGP from IOS-XE 17.13.1 for more versatile deployments.

Page 5

© 2025 Cisco and/or its affiliates. All rights reserved. Page 5 of 55

● Cisco Software-Defined Access (SD-Access). ◦ Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE). ◦ Network assurance and improved resolution time through Cisco Catalyst Center. ● Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network. ● Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry. ● Cloud management: Migrate Catalyst 9200 switches to the Meraki dashboard to unlock centralized management and monitoring of devices while retaining advanced features like CLI. Learn more.
● ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries. ● Precision Time Protocol (PTP; IEEE 1588v2) supported on C9200CX models provides accurate clock synchronization with sub-microsecond accuracy making it suitable for distribution and synchronization of time and frequency over network. ● ENERGY STAR® certified models (C9200L models). Features and benefits platform details Switch models and configurations Table 1. Catalyst 9200 Series models and configurations Models FRU Power Supply FRU Fans Modular Uplinks Stacking Bandwidth Support SD-Access Support1 Modular uplink models (C9200 Enhanced VN SKUs) Yes Yes Yes 160 Gbps Yes (32 Virtual Networks)2 Modular uplink models (C9200 SKUs) Yes Yes Yes 160 Gbps Yes (4 Virtual Networks) Fixed uplink Models (C9200L SKUs) Yes No No 80 Gbps Limited (1 Virtual Network) Compact Models (C9200CX SKUs) Fixed internal power supply Fanless No No Yes (16 Virtual Networks) 1 Catalyst 9200 standalone and stack can support 25 Access Tunnels for fabric enabled APs. Catalyst 9200CX can support 25 Access Tunnels for fabric enabled APs with IOS-XE 17.9.5 and above. Catalyst 9200L is not supported as Fabric Edge for SD-Access Wireless. Catalyst 9200, 9200L and 9200CX do not support SD-Access Embedded Wireless Controller. Note: Over the top fabric deployments eventually migrating to fabric wireless architecture should consider this limit during design/deployment. 2 C9200-24PB-A, C9200-48PB-A SKUs supports 32 Virtual Networks. These SKUs cannot be stacked with C9200 SKUs with 4VNs.

Page 6

© 2025 Cisco and/or its affiliates. All rights reserved. Page 6 of 55

The Cisco Catalyst 9200 Series is made up of modular (C9200), fixed (C9200L) and compact (C9200CX) switch models.

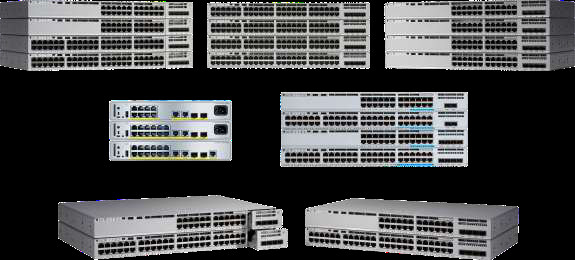

Cisco Catalyst 9200 Series switches Table 2. Cisco Catalyst 9200 Series Switch configurations Switch model Downlinks total 10/100/1000 or PoE+ copper ports Uplink configuration Default primary power supply Fans Modular uplink models C9200-24T 24 ports data Modular uplink options PWR-C6-125WAC FRU redundant C9200-24P 24 ports full PoE+ Modular uplink options PWR-C6-600WAC FRU redundant C9200-24PB 24 ports full PoE+ Modular uplink options PWR-C6-600WAC FRU redundant C9200-24PXG 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) Modular uplink options PWR-C6-600WAC FRU redundant C9200-48T 48 ports data Modular uplink options PWR-C6-125WAC FRU redundant C9200-48P 48 ports full PoE+ Modular uplink options PWR-C6-1KWAC FRU redundant C9200-48PL 48 Ports partial PoE+ Modular uplink options PWR-C6-600WAC FRU redundant C9200-48PB 48 ports full PoE+ Modular uplink options PWR-C6-1KWAC FRU redundant C9200-48PXG 48 ports full PoE+ (8 mGig ports up to 10G, 40 ports up to 1G) Modular uplink options PWR-C6-1KWAC FRU redundant

Image 1 from page 6

Image 2 from page 6

Page 7

© 2025 Cisco and/or its affiliates. All rights reserved. Page 7 of 55

Switch model Downlinks total 10/100/1000 or PoE+ copper ports Uplink configuration Default primary power supply Fans Fixed uplink models C9200L-24T-4G 24 ports data 4x 1G fixed uplinks PWR-C5-125WAC Fixed redundant C9200L-24P-4G 24 ports full PoE+ 4x 1G fixed uplinks PWR-C5-600WAC Fixed redundant C9200L-48T-4G 48 ports data 4x 1G fixed uplinks PWR-C5-125WAC Fixed redundant C9200L-48P-4G 48 ports full POE+ 4x 1G fixed uplinks PWR-C5-1KWAC Fixed redundant C9200L-48PL-4G 48 Ports partial PoE+ 4X 1G Fixed uplinks PWR-C5-600WAC Fixed redundant C9200L-24T-4X 24 ports data 4x 1/10G fixed uplinks PWR-C5-125WAC Fixed redundant C9200L-24P-4X 24 ports full PoE+ 4x 1/10G fixed uplinks PWR-C5-600WAC Fixed redundant C9200L-48T-4X 48 ports data 4x 1/10G fixed uplinks PWR-C5-125WAC Fixed redundant C9200L-48P-4X 48 ports full PoE+ ENERGY STAR® certified 4x 1/10G fixed uplinks PWR-C5-1KWAC Fixed redundant C9200L-48PL-4X 48 Port partial PoE+ 4X 1/10G Fixed uplinks PWR-C5-600WAC Fixed redundant C9200L-24PXG-4X 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) 4x 1/10G fixed uplinks PWR-C5-600WAC Fixed redundant C9200L-48PXG-4X 48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G) 4x 1/10G fixed uplinks PWR-C5-1KWAC Fixed redundant C9200L-24PXG-2Y 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) 2x 1/10/25G fixed uplinks PWR-C5-600WAC Fixed redundant C9200L-48PXG-2Y 48 ports full POE+ (8 mGig ports up to 10G, 40 ports up to 1G) 2x 1/10/25G fixed uplinks PWR-C5-1KWAC Fixed redundant All Catalyst 9200L models are available for out-of-box cloud management with the Meraki dashboard. Learn more about the Cisco Catalyst 9200L-M.
Compact models C9200CX-12T-2X2G 12 ports data 2x 1G copper, 1x 1G CU PD 802.3bt Class 6, 2x 10G SFP+ fixed uplinks Powered by 802.3bt class 6 PoE Optional auxiliary 80W AC or DC power adaptor Fanless C9200CX-12P-2X2G 12 ports PoE+ 2x 1G copper, 2x 10G SFP+ fixed uplinks 315W AC internal Fanless C9200CX-8P-2X2G 8 ports full PoE+ 2x 1G copper, 2x 10G SFP+ fixed uplinks 315W AC internal Fanless

Page 8

© 2025 Cisco and/or its affiliates. All rights reserved. Page 8 of 55

Switch model Downlinks total 10/100/1000 or PoE+ copper ports Uplink configuration Default primary power supply Fans C9200CX-8UXG-2X 8 ports UPOE (4 mGig ports up to 10G, 4 ports up to 1G) 2x 10G SFP+ fixed uplinks 315W AC internal Fanless C9200CX-12P-2XGH 12 ports PoE+ 2x 1G copper, 2x 10G SFP+ fixed uplinks 315W HVDC/AC internal Fanless C9200CX-8P-2XGH 8 ports full PoE+ 2x 1G copper, 2x 10G SFP+ fixed uplinks 315W HVDC/AC internal Fanless C9200CX-8UXG-2XH 8 ports UPOE (4 mGig ports up to 10G, 4 ports up to 1G) 2x 10G SFP+ fixed uplinks 315W HVDC/AC internal Fanless C9200CX-8PT-2G 8 ports full PoE+ 2x 1G copper & UPOE+ uplinks Powered by UPOE+ ULs AND External 80W/150W PS (LVDC support) Fanless Network modules Cisco Catalyst 9200 Series switches come with modular or fixed uplinks as indicated in Table 1. With modular SKUs, the field-replaceable network modules provide infrastructure investment protection by allowing a nondisruptive migration from 1G to 10G and beyond. When you purchase the switch, you can choose from the network modules described in Table 3.

Cisco Catalyst 9200 Series Switch network modules Table 3. Network module part numbers and descriptions Network module Description C9200-NM-2Y1 2 x 25G network module C9200-NM-2Q1 2 x 40G network module C9200-NM-4G2 4x 1G network module

Image 1 from page 8

Image 2 from page 8

Page 9

© 2025 Cisco and/or its affiliates. All rights reserved. Page 9 of 55

Network module Description C9200-NM-4X 4x 1G/10G network module C9200-NM-BLANK No network module 1 Supported only on C9200-24PXG, C9200-48PXG 2 Not supported on C9200-24PXG, C9200-48PXG For additional details, please read our FAQ:
https://www.cisco.com/c/dam/en/us/products/collateral/switches/catalyst-9000/nb-09-cat-9k-faq-cte- en.pdf.
Platform resiliency Power supplies Cisco Catalyst 9200 Series switches support dual field-replaceable power supplies (Figure 3). Each switch ships with one default power supply, and a second identical power supply can be purchased with the initial order or can be added later. The second power supply can provide redundancy or additional power to PoE+ ports as needed. Cisco Catalyst 9200CX Series HVDC models can be powered by high voltage DC as well as line voltage AC with its default power supply. These switches support high efficiency and low energy consumption when connected to DC micro grid by avoiding multiple AC-DC conversions. The compatibility with AC also provides flexibility and investment protection for moving to DC power in the future. Intelligent PoE+ ● IEEE 802.3at PoE+ (up to 30W per port) is supported on Cisco Catalyst 9200 Series switches to lower the total cost of ownership for deployments that incorporate Cisco IP phones, Cisco Aironet wireless access points, or other standards-compliant PoE+ end devices. PoE+ removes the need to supply wall power to PoE-enabled devices and eliminates the cost of adding electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments. With Cisco Catalyst 9200 Series switches, PoE+ power allocation is dynamic, and power mapping scales up to a maximum of 1440W of PoE+ power. ● IEEE 802.3bt Class 6 and Cisco UPOE (up to 60W per port) is supported on Catalyst 9200CX Series mGig model. This facilitates delivery of network power to devices requiring higher power.
● PoE Powered Device (PD) - Catalyst 9200CX-12T-2X2G can be powered through the uplink with IEEE 802.3bt class 6 or UPOE power from upstream switch. Catalyst 9200CX-12PT-2G can be powered through redundant uplinks with IEEE 802.3bt class 8 or UPOE+ power from upstream switch. ● Perpetual PoE is supported on Cisco Catalyst 9200 Series switches, and maintains the PoE+ power during a switch reload. This is important for critical endpoints such as medical devices and for Internet of Things (IoT) endpoints such as PoE-powered lights, so that there is no disruption during a switch reboot. ● Fast PoE: When power is restored to a switch, Fast PoE starts delivering power to endpoints without waiting for the operating system to fully load, thereby speeding up the time for the endpoint to start up.

Page 10

© 2025 Cisco and/or its affiliates. All rights reserved. Page 10 of 55

Cisco Catalyst 9200 Series Switch dual redundant power supplies Table 4 lists the PoE power availability for each model. Table 4. PoE+ Power with primary and secondary power supplies Model Primary power supply Available PoE power with single primary power supply only1 Optional secondary power supply Available PoE power with additional secondary power supply1 C9200-24P PWR-C6-600WAC 370W PWR-C6-600WAC 740W PWR-C6-715WDC=2 485W PWR-C6-715WDC= 740W C9200-24PB PWR-C6-600WAC 370W PWR-C6-600WAC 740W PWR-C6-715WDC= 485W PWR-C6-715WDC= 740W C9200-24PXG PWR-C6-600WAC 370W PWR-C6-600WAC 740W PWR-C6-715WDC= 485W PWR-C6-715WDC= 740W C9200-48P PWR-C6-1KWAC 740W PWR-C6-1KWAC 1440W PWR-C6-715WDC= 485W PWR-C6-715WDC= 970W C9200-48PL PWR-C6-600WAC 370W PWR-C6-600WAC 740W PWR-C6-715WDC= 485W PWR-C6-715WDC= 970W C9200-48PB PWR-C6-1KWAC 740W PWR-C6-1KWAC 1440W PWR-C6-715WDC= 485W PWR-C6-715WDC= 970W

Image 1 from page 10

Image 2 from page 10

Page 11

© 2025 Cisco and/or its affiliates. All rights reserved. Page 11 of 55

Model Primary power supply Available PoE power with single primary power supply only1 Optional secondary power supply Available PoE power with additional secondary power supply1 C9200-48PXG PWR-C6-1KWAC 740W PWR-C6-1KWAC 1440W PWR-C6-715WDC= 485W PWR-C6-715WDC= 970W C9200L-24P-4G PWR-C5-600WAC 370W PWR-C5-600WAC 740W PWR-C5-715WDC=2 485W PWR-C5-715WDC= 740W C9200L-24P-4X PWR-C5-600WAC 370W PWR-C5-600WAC 740W PWR-C5-715WDC= 485W PWR-C5-715WDC= 740W C9200L-48P-4G PWR-C5-1KWAC 740W PWR-C5-1KWAC 1440W PWR-C5-715WDC= 485W PWR-C5-715WDC= 970W C9200L-48PL-4G PWR-C5-600WAC 370W PWR-C5-600WAC 740W PWR-C5-715WDC= 485W PWR-C5-715WDC= 970W C9200L-48P-4X3 PWR-C5-1KWAC 740W PWR-C5-1KWAC 1440W PWR-C5-715WDC= 485W PWR-C5-715WDC= 970W C9200L-48PL-4X PWR-C5-600WAC 370W PWR-C5-600WAC 740W PWR-C5-715WDC= 485W PWR-C5-715WDC= 970W C9200L-24PXG-4X PWR-C5-600WAC 370W PWR-C5-600WAC 740W PWR-C5-715WDC= 485W PWR-C5-715WDC= 740W C9200L-48PXG-4X PWR-C5-1KWAC 740W PWR-C5-1KWAC 1440W PWR-C5-715WDC= 485W PWR-C5-715WDC= 970W C9200L-24PXG-2Y PWR-C5-600WAC 370W PWR-C5-600WAC 740W PWR-C5-715WDC= 485W PWR-C5-715WDC= 740W C9200L-48PXG-2Y PWR-C5-1KWAC 740W PWR-C5-1KWAC 1440W PWR-C5-715WDC= 485W PWR-C5-715WDC= 970W C9200CX-12P-2X2G 315W AC Internal 240W N/A N/A C9200CX-8P-2X2G 315W AC internal 240W N/A N/A C9200CX-8UXG-2X 315W AC internal 240W N/A N/A C9200CX-12P-2XGH 315W HVDC/AC internal 240W N/A N/A

Page 12

© 2025 Cisco and/or its affiliates. All rights reserved. Page 12 of 55

Model Primary power supply Available PoE power with single primary power supply only1 Optional secondary power supply Available PoE power with additional secondary power supply1 C9200CX-8P-2XGH 315W HVDC/AC internal 240W N/A N/A C9200CX-8UXG-2XH 315W HVDC/AC internal 240W N/A N/A C9200CX-8PT-2G External power adapter (80W) [LVDC support] and 802.3bt UPOE+ ULs 180W External power adapter (150W) [LVDC support] and 802.3bt UPOE+ ULs 240W 1 Limited by port number and port rating (for example, 24 PoE+ 30W ports = 720W) 2 PWR-C5-715WDC= and PWR-C6-715WDC= are available to order as spare only and supported in IOS-XE 17.8.1 and above PWR-C5-715WDC= and PWR-C6-715WDC= are only supported on C9200L and C9200 PoE models. PWR-C5-715WDC= and PWR-C6-715WDC= can mix with AC power supplies as primary/secondary on the same device for C9200L and C9200. 3 ENERGY STAR® certified model Stacking Cisco Catalyst 9200 Series switch models are designed for stacking switches as a single virtual switch, enabling customers to have a single management plane and control plane for up to 384 access ports. Table 5 lists the supported stacking options. Table 5. Supported stacking options Model Stacking support Stacking bandwidth support Stacking hardware Number of members Supported stack members Modular models (C9200 SKUs) StackWise-160 160 Gbps C9200-STACK-KIT 8 Other C9200 models with same license level Fixed models (C9200L SKUs) StackWise-80 80 Gbps C9200L-STACK-KIT 8 Other C9200L models with same license level Mixed stacking is not supported. You cannot stack fixed (C9200L SKUs) with modular (C9200 SKUs) models, or other Catalyst switches, e.g. Cisco Catalyst 2960-X and 2960-XR Series. Stacking not available on C9200CX switches. The optional StackWise-160 and StackWise-80 kits consist of two adapters and a stacking cable. The default stacking cable is 0.5 m, but options of 1 m and 3 m are also available.

Page 13

© 2025 Cisco and/or its affiliates. All rights reserved. Page 13 of 55

Table 6 lists the stacking accessories. Table 6. Stacking accessories Model Description C9200-STACK-KIT Stack kit for C9200 SKUs only: Two data stack adapters and one data stack cable C9200L-STACK-KIT Stack kit for C9200L SKUs only: Two data stack adapters and one data stack cable STACK-T4-50CM Data stack 50 cm cable (default cable with Stack Kit) STACK-T4-1M Data stack 1 m cable STACK T4-3M Data stack 3 m cable

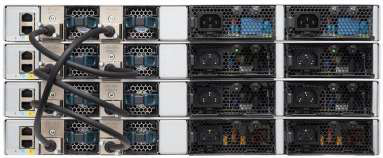

Cisco Catalyst 9200 Series Switch stacked units Fan Cisco Catalyst 9200 Series switches also come with dual fans and support redundancy. Cisco Catalyst 9200 Series switches support redundancy with dual fans. On the C9200 SKUs, the fan units are field-replaceable, whereas on the fixed C9200L SKUs, the fan units are fixed. C9200CX SKUs are fanless. Table 7 lists the fan module part number. Table 7. Fan modules Model Description FAN-T2= Fan module

Image 1 from page 13

Image 2 from page 13

Page 14

© 2025 Cisco and/or its affiliates. All rights reserved. Page 14 of 55

Performance and scalability Table 8 lists performance and scalability metrics for Cisco Catalyst 9200 Series switches. Table 9 lists the bandwidth specifications. Performance specifications Table 8. Performance specifications Description C9200 SKUs C9200L SKUs C9200CX SKUs Virtual Networks 4 for C9200-24T, C9200-24P, C9200-48T, C9200-48P, C9200- 24PXG, C9200-48PXG, C9200-48PL 32 for C9200-24PB, C9200-48PB 1 16 Stacking bandwidth 160 Gbps 80 Gbps N/A Total number of MAC addresses 32,000 16,000 32,000 Total number of IPv4 routes (ARP plus learned routes) 14,000 (10,000 direct routes and 4,000 indirect routes) 11,000 (8,000 direct routes and 3,000 indirect routes) 14,000 (10,000 direct routes and 4,000 indirect routes) IPv4 routing entries 4,000 3,000 4,000 IPv6 routing entries 2,000 1,500 2,000 Multicast routing scale 1,000 1,000 1,000 QoS scale entries 1,000 1,000 1,000 ACL scale entries 1,600 1,500 1,600 Packet buffer per SKU 6 MB buffers for 24- or 48-port Gigabit Ethernet models, 12MB buffers for 24 or 48 port multigigabit models 6 MB buffers for 24- or 48- port Gigabit Ethernet models, 12 MB buffers for 24 or 48 port multigigabit models 6 MB buffers Flexible NetFlow (FNF) entries 16,000 flows on 24- and 48-port Gigabit Ethernet models 16,000 flows on 24- and 48- port Gigabit Ethernet models, 32,000 flows on 24 or 48 port multigigabit models 16,000 flows DRAM 4 GB 2 GB 4 GB Flash 4 GB 4 GB 8 GB VLAN IDs 4094 4094 4094 PVST Instances 128 128 128

Page 15

© 2025 Cisco and/or its affiliates. All rights reserved. Page 15 of 55

Description C9200 SKUs C9200L SKUs C9200CX SKUs STP Virtual Ports (Port *VLANs) for PVST 13,000 13,000 13,000 STP Virtual Ports (Port *VLANs) for MST 13,000 13,000 13,000 Total Switched Virtual Interfaces (SVIs) 512 512 512 Jumbo frames 9198 bytes 9198 bytes 9198 bytes Wireless bandwidth per switch Up to 48 Gbps on 24- port and 48-port Gigabit Ethernet model N/A N/A IP SGT binding scale 8K 10K 8K Number of IPv4 bindings 8K 10K 8K Number of SGT/DGT policies 2K 2K 2K Number of SXP Sessions 200 200 200 Bandwidth specifications Table 9. Bandwidth specifications Description Switching capacity Switch capacity with Stacking Forwarding rate Forwarding rate with Stacking C9200-24T 128 Gbps 288 Gbps 95.23 Mpps 214 Mpps C9200-24P 128 Gbps 288 Gbps 95.23 Mpps 214 Mpps C9200-24PB 128 Gbps 288 Gbps 95.23 Mpps 214 Mpps C9200-24PXG 352 Gbps 532 Gbps 261.90 Mpps 395 Mpps C9200-48T 176 Gbps 336 Gbps 130.95 Mpps 250 Mpps C9200-48P 176 Gbps 336 Gbps 130.95 Mpps 250 Mpps C9200-48PL 176 Gbps 336 Gbps 130.95 Mpps 250 Mpps C9200-48PB 176 Gbps 336 Gbps 130.95 Mpps 250 Mpps C9200-48PXG 400 Gbps 580 Gbps 297.61 Mpps 431 Mpps C9200L-24T-4G 56 Gbps 136 Gbps 41.67 Mpps 101 Mpps C9200L-24P-4G 56 Gbps 136 Gbps 41.67 Mpps 101 Mpps C9200L-48T-4G 104 Gbps 184 Gbps 77.38 Mpps 137 Mpps

Page 16

© 2025 Cisco and/or its affiliates. All rights reserved. Page 16 of 55

Description Switching capacity Switch capacity with Stacking Forwarding rate Forwarding rate with Stacking C9200L-48P-4G 104 Gbps 184 Gbps 77.38 Mpps 137 Mpps C9200L-48PL-4G 104 Gbps 184 Gbps 77.38 Mpps 137 Mpps C9200L-24T-4X 128 Gbps 208 Gbps 95.23 Mpps 155 Mpps C9200L-24P-4X 128 Gbps 208 Gbps 95.23 Mpps 155 Mpps C9200L-48T-4X 176 Gbps 256 Gbps 130.95 Mpps 190 Mpps C9200L-48P-4X 176 Gbps 256 Gbps 130.95 Mpps 190 Mpps C9200L-48PL-4X 176 Gbps 256 Gbps 130.95 Mpps 190 Mpps C9200L-24PXG-4X 272 Gbps 352 Gbps 214.28 Mpps 262 Mpps C9200L-24PXG-2Y 292 Gbps 372 Gbps 229.16 Mpps 277 Mpps C9200L-48PXG-4X 392 Gbps 472 Gbps 291.66 Mpps 351 Mpps C9200L-48PXG-2Y 340 Gbps 420 Gbps 252.97 Mpps 313 Mpps C9200CX-12T-2X2G 70 Gbps N/A 52.08 Mpps N/A C9200CX-12P-2X2G 68 Gbps N/A 50.59 Mpps N/A C9200CX-8P-2X2G 60 Gbps N/A 44.64 Mpps N/A C9200CX-8UXG-2X 128 Gbps N/A 95.23 Mbps N/A C9200CX-12P-2XGH 68 Gbps N/A 50.59 Mpps N/A C9200CX-8P-2XGH 60 Gbps N/A 44.64 Mpps N/A C9200CX-8UXG-2XH 128 Gbps N/A 95.23 Mbps N/A C9200CX-8PT-2G 20 Gbps N/A 14.88 Mbps N/A *Measured with 64 byte packets

Page 17

© 2025 Cisco and/or its affiliates. All rights reserved. Page 17 of 55

Software Platform software benefits Cisco IOS XE Cisco IOS XE Software opens a completely new paradigm in network configuration, operation, and monitoring through network automation. Cisco’s automation solution is open, standards-based, and extensible across the entire lifecycle of a network device. The various automation mechanisms are outlined below. ● Automated device provisioning is the ability to automate the process of upgrading software images and installing configuration files on Cisco Catalyst switches when they are being deployed in the network for the first time. Cisco provides turnkey solutions such as Plug and Play and Preboot Execution Environment (PXE) that enable an effortless and automated deployment. ● API-driven configuration is available with modern network switches such as Cisco Catalyst 9200 Series switches. It supports a wide range of automation features and provides robust open APIs over NETCONF and RESTCONF using YANG data models for external tools, both off the shelf and custom built, to automatically provision network resources. ● Granular visibility enables model-driven telemetry to stream data from a switch to a destination. The data to be streamed is identified through subscription to a data set in a YANG model. The subscribed data set is streamed to the destination at specified intervals. Additionally, Cisco IOS XE enables the push model. It provides near-real-time monitoring of the network, leading to quick detection and rectification of failures. Cloud monitoring for Catalyst is also available. ● Seamless software upgrades and patching supports OS resilience. On Cisco Catalyst 9200 Series switches Cisco IOS XE supports cold patching with reboot, which provides fixes for critical bugs and security vulnerabilities between regular maintenance releases. This support lets you add patches without having to wait for the next maintenance release. Cold patching requires the switch to be rebooted after patching to allow the changes to take effect. ● Trustworthy solutions built with Cisco Trust Anchor Technologies provide a highly secure foundation for Cisco products. With Cisco Catalyst 9200 Series switches, these technologies enable hardware and software authenticity assurance for supply chain trust and strong mitigation against man-in-the-middle attacks that compromise software and firmware. Trust Anchor capabilities include image signing, Secure Boot, and Cisco Trust Anchor module. ● High availability: Cisco Catalyst 9200 Series switches support high-availability features, including the following: ◦ Cross-stack EtherChannel provides the ability to configure Cisco EtherChannel technology across different members of the stack for high resiliency. ◦ IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) provides rapid spanning tree convergence independent of spanning tree timers and also offers the benefit of Layer 2 load balancing and distributed processing. ◦ Per-VLAN Rapid Spanning Tree (PVRST+) allows rapid spanning tree (IEEE 802.1w) reconvergence on a per-VLAN spanning tree basis, providing simpler configuration than MSTP. In both MSTP and PVRST+ modes, stacked units behave as a single spanning tree node.

Page 18

© 2025 Cisco and/or its affiliates. All rights reserved. Page 18 of 55

◦ Switch-port auto-recovery (“err-disable” recovery) automatically attempts to reactivate a link that is disabled because of a network error. ◦ The Catalyst 9200 Series platform delivers the best SSO resiliency architecture in a stackable solution with sub-50-ms failover. The Foundation of Software-Defined Access Secure Segmentation with SD-Access Software-Defined Access The enterprise network lies at the heart of digital transformation. A network that is open, programmable, integrated, and secure maximizes business agility, allowing new business opportunities to be pursued and captured. Cisco DNA with SD-Access is the network fabric that powers business. It is an open and extensible software- driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time-consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities. These include: ● Simplified device deployment ● Unified management of wired and wireless networks ● Network virtualization and segmentation ● Group-based policies ● Context-based analytics ● SD-Access: Cisco Catalyst 9200 Series switches are the entry-level devices for SD-Access, Cisco’s lead enterprise architecture, with policy-based automation from edge to cloud. ◦ Simplified segmentation and micro-segmentation, with predictable performance and scalability ◦ Automation through Cisco Catalyst Center ◦ Policy handled through the Cisco Identity Services Engine (ISE) ◦ Faster launch of new business services and significantly improved issue resolution time Assurance ◦ Full network visibility and monitoring ◦ End-to-end Quality of Experience (QoE) ◦ Fast issue resolution and network remediation ● Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network

Page 19

© 2025 Cisco and/or its affiliates. All rights reserved. Page 19 of 55

Cloud Security Umbrella Integration ● Umbrella Integration: Small to midsize networks reliant on managed service providers can now host Cisco Umbrella agent directly on their Catalyst 9200 series switches. This allows the business to easily customize their DNS filtering policies to prevent BYOD or IoT guest or corporate users from accessing malicious or inappropriate websites, without having to rely on the MSP to push the policies out. It also lets them optimize use of bandwidth by allowing direct cloud access for trusted apps. Requires Cisco DNA-Advantage License and Umbrella License per device. Full Flexible NetFlow ● Full Flexible NetFlow (FNF): Cisco IOS FNF is the next generation in flow visibility technology. It enables optimization of the network infrastructure, reduces operation costs, and improves capacity planning and security incident detection with increased flexibility and scalability. Catalyst 9200 Series switches are capable of up to 16,000 flow entries on 48-port,24, 12 and 8 port models. QoS ● Superior QoS: Cisco Catalyst 9200 Series switches offer Gigabit Ethernet speeds with intelligent services that keep traffic flowing smoothly, even at 10 times the normal network speed. Industry-leading mechanisms for cross-stack marking, classification, and scheduling deliver superior performance for data, voice, and video traffic at wire speed. Superior QoS includes granular wireless bandwidth management and fair sharing, 802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification, Shaped Round Robin (SRR) scheduling, Committed Information Rate (CIR), and eight egress queues per port. Smart operation Simplified Campus Automation Simplified Campus Automation is designed to optimize the discovery and configuration of devices in your network with a more streamlined simple and easy-to-use automation tool. With features such as simplified discovery, IT can discover devices within the network within just a few steps. Also available is a more streamlined GUI that provides a better simplified view of switch configurations and software details on a port- by-port basis. Cloud management with IOS XE Cloud management with IOS XE simplifies network operations by providing a centralized, intuitive dashboard that enables IT teams to manage, configure, and monitor all devices in real time. With features like zero-touch provisioning, automated firmware updates, and port-level visibility, cloud management reduces manual effort, minimizes errors, and delivers end-to-end visibility across the network. The Cisco Catalyst 9200 Series Switches provide operational flexibility in cloud management by offering the ability to choose the configuration source for each device managed from the Meraki dashboard. Configuration Source: Cloud: This operating mode offers full cloud management experience. Device configurations are managed via the Meraki user interface and delivered entirely from the cloud. This capability also offers a read-only Cloud CLI terminal to view the entire running configuration or perform advanced troubleshooting using IOS XE show commands.

Page 20

© 2025 Cisco and/or its affiliates. All rights reserved. Page 20 of 55

Configuration Source: Device: This capability is an evolution of Cloud Monitoring. With device configuration, users can onboard their device to the cloud to access central monitoring and troubleshooting tools, as well as a Cloud CLI terminal to execute read/write commands. Configurations are managed via local console, SSH, or CLI and remain local to the device. To learn more about cloud management with IOS XE, click here. WebUI WebUI is an embedded GUI-based device-management tool that provides the ability to provision the device, to simplify device deployment and manageability, and to enhance the user experience. It comes with the default image, so there is no need to enable anything or install any license on the device. You can use WebUI to build configurations, and to monitor and troubleshoot the device without having CLI expertise. RFID tags Cisco Catalyst 9200 Series switches have an embedded RFID tag that facilitates easy asset and inventory management using commercial RFID readers. Blue beacon Cisco Catalyst 9200 Series switches support blue beacon LEDs for easy identification of the switch being accessed. C9200L and C9200 models support both front and back blue beacon LEDs. C9200CX models support front blue beacon LED. Efficient switch operation Cisco Catalyst 9200 Series switches provide optimum power saving with Energy Efficient Ethernet (EEE) on the RJ-45 ports and low-power operations for industry best-in-class power management and power consumption capabilities. The ports support reduced power modes so that ports not in use can move into a lower power utilization state. Other efficient switch operation features are as follows: ● Per-port power consumption command allows customers to specify a maximum power setting on an individual port.
● Per-port PoE power sensing measures actual power being drawn, enabling more intelligent control of powered devices. The PoE MIB provides proactive visibility into power usage and allows you to set different power-level thresholds. Bluetooth Cisco Catalyst 9200 Series switches have support to connect a Bluetooth dongle to your switch, enabling you to use this wireless interface as an IP management port interface. The port can be used for configuration and troubleshooting using WebUI or the Command-Line Interface (CLI), and to transfer images and configurations. Storage Cisco Catalyst 9200CX switches have support for up to 4G Micro-SD card storage.

Page 21

© 2025 Cisco and/or its affiliates. All rights reserved. Page 21 of 55

High-performance IP routing The Cisco Express Forwarding hardware routing architecture delivers extremely high-performance IP routing in Cisco Catalyst 9200 Series switches, based on: ● IP unicast routing protocols (including static, Routing Information Protocol Version 1 [RIPv1], RIPv2, RIPng, and Open Shortest Path First [OSPF], Routed Access) are supported for small network routing applications with the Network Essentials stack. Equal-cost routing facilitates Layer 3 load balancing and redundancy across the stack. ● Advanced IP unicast routing protocols (including Full [OSPF], Enhanced Interior Gateway Routing Protocol [EIGRP], and Intermediate System-to-Intermediate System Version 4 [IS-ISv4]) are supported for load balancing and for constructing scalable LANs. Ipv6 routing (using OSPFv3 and EIGRPv6) is supported in hardware for maximum performance. ● Protocol-Independent Multicast (PIM) for IP multicast routing is supported, including PIM sparse mode (PIM SM), and Source-Specific Multicast (SSM). ● IPv6 addressing is supported on interfaces with appropriate show commands for monitoring and troubleshooting. Licensing Introduction to Smart Licensing Cisco Smart Licensing is a flexible licensing model that provides you with an easier, faster, and more consistent way to purchase and manage software across the Cisco portfolio and across your organization. And it’s secure – you control what users can access. With Smart Licensing you get: ● Easy Activation: Smart Licensing establishes a pool of software licenses that can be used across the entire organization—no more PAKs (Product Activation Keys). ● Unified Management: My Cisco Entitlements (MCE) provides a complete view into all of your Cisco products and services in an easy-to-use portal, so you always know what you have and what you are using. ● License Flexibility: Your software is not node-locked to your hardware, so you can easily use, and transfer licenses as needed. To use Smart Licensing, you must first set up a Smart Account on Cisco Software Central (software.cisco.com). For a more detailed overview on Cisco Licensing, go to cisco.com/go/licensingguide

Page 22

© 2025 Cisco and/or its affiliates. All rights reserved. Page 22 of 55

Software licenses Table 10. License matrix

Cisco Catalyst Software Subscription new Cisco DNA subscription Network Stack Packages1 3, 5 or 7 Year Terms 3, 5 or 7 Year Terms Perpetual Tiers Advantage, Essentials Advantage, Essentials Advantage, Essentials Portability2 ✓ ✓ ✓ Management options
Catalyst Center, Meraki Dashboard Catalyst Center, Meraki Dashboard CLI, Web UI Included support Base product-level support for Hardware, Software and OS
Software support (SWSS) X Included3 add-ons: Common ISE policy, Thousand Eyes network and application assurance, Cisco Spaces X X X 1 For all new orders, subscription licenses are mandatory and must be of the same tier as network licenses 2 Portability within the same Catalyst 9K series of hardware 3 Only available with Advantage tier Network licensing Table 11. Network Essentials and Advantage (Perpetual) features Features on Cisco Catalyst uplink switches Network Essentials Network Advantage Switch fundamentals Layer 2, Static Routing, Routed Access (RIP, EIGRP Stub, OSPF -– 1000 routes), PBR, PIM Stub Multicast (1000 routes), PVLAN, VRRP, PBR, CDP, QoS, FHS, 802.1X, MACsec-128, CoPP, SXP, IP SLA Responder, SSO Yes Yes Advanced switch capabilities and scale EIGRP, HSRP, IS-IS, BSR, MSDP, IP SLA, OSPF BGP on C9200CX SKUs No Yes Network segmentation VRF, VXLAN, LISP, SGT No Yes Automation NETCONF, RESTCONF, YANG, PnP Agent, PnP Yes Yes Telemetry and visibility Model-driven telemetry, sampled NetFlow, SPAN, RSPAN Yes Yes

Page 23

© 2025 Cisco and/or its affiliates. All rights reserved. Page 23 of 55

Features on Cisco Catalyst uplink switches Network Essentials Network Advantage IoT integration PTP on C9200CX SKUs No Yes Advanced security MACsec-256 on C9200CX SKUs No Yes Cisco Catalyst Software licensing Table 12. Cisco Catalyst Essentials and Advantage Package Features Features Cisco Catalyst Essentials Cisco Catalyst Advantage Cisco DNA Essentials Cisco DNA Advantage Simplified Campus Automation Simplified Campus Automation optimizes the discovery and configuration of devices in your network with a more streamlined simple and easy-to-use automation tool. Yes Yes Yes Yes Advanced telemetry and visibility Full Flexible NetFlow, EEM Yes Yes Yes Yes Optimized telemetry and visibility AVC (NBAR2) No Yes No Yes Day-0 network bring-up automation Cisco Network Plug-and-Play application, network settings, device credentials, LAN automation, host onboarding Yes Yes Yes Yes Element management Discovery, inventory, topology, software image, licensing, and configuration management Yes Yes Yes Yes Element management Patch management No Yes No Yes Basic Assurance Health dashboards – Network, Client, Application; switch and wired client health monitoring Yes Yes Yes Yes SD-Access Policy-based automation and assurance for wired and wireless No Yes No Yes

Page 24

© 2025 Cisco and/or its affiliates. All rights reserved. Page 24 of 55

Features Cisco Catalyst Essentials Cisco Catalyst Advantage Cisco DNA Essentials Cisco DNA Advantage Network assurance and analytics Global insights, trends, compliance, custom reports; switch 360, wired client 360; fabric and non-fabric insights; app health, app 360, app performance (loss, latency, jitter) No Yes No Yes Cloud monitoring for Catalyst Yes* Yes Yes* Yes

Limited device visibility For a full list of features, please refer to Cisco Feature Navigatorcfnng.cisco.com
Cisco Catalyst 9200 Series switches run on Cisco IOS XE Release 16.9.2 or later. This software release includes all the features listed earlier in the Platform Software Benefits section. Managing licenses with Smart Accounts Creating Smart Accounts by using the Cisco Smart Software Manager (Cisco SSM) enables you to order devices and licensing packages and also manage your software licenses from a centralized website. You can set up Cisco SSM to receive daily email alerts and to be notified of expiring add-on licenses that you want to renew. You must order an add-on license in order to purchase a switch. When the license term expires, you can either renew the add-on license to continue using it or deactivate the add-on license and then reload the switch to continue operating with the base license capabilities. Both the base and add-on licenses are also available for a 90-day evaluation period. An evaluation license is activated temporarily, without purchase. An expired evaluation license cannot be reactivated after reload. Note: It is not required to deploy Cisco Catalyst Center, just to use one of the above packages. Table 11 shows the features included in the Network Essentials and Advantage packages. Table 12 shows the features included in the Cisco DNA Essentials and Advantage packages. Specifications Dimensions, weight, acoustic, mean time between failures Table 13-16 show the dimensions, weights, acoustic, and mean time between failures of all models of Cisco Catalyst 9200 Series switches.

Page 25

© 2025 Cisco and/or its affiliates. All rights reserved. Page 25 of 55

Table 13. Model Dimensions Platform Physical Specifications

Chassis Dimensions Chassis + FEP + Fan Dimensions (HxWxD) Model Inches Centimeters Inches Centimeters C9200-24T 1.73 x 17.5 x 13.8 4.4 x 44.5 x 35.0 1.73 x 17.5 x 15.4 4.4 x 44.5 x 39.1 C9200-24P 1.73 x 17.5 x 13.8 4.4 x 44.5 x 35.0 1.73 x 17.5 x 15.4 4.4 x 44.5 x 39.1 C9200-24PB 1.73 x 17.5 x 13.8 4.4 x 44.5 x 35.0 1.73 x 17.5 x 15.4 4.4 x 44.5 x 39.1 C9200-24PXG 1.73 x 17.5 x 13.8 4.4 x 44.5 x 35.0 1.73 x 17.5 x 15.4 4.4 x 44.5 x 39.1 C9200-48T 1.73 x 17.5 x 13.8 4.4 x 44.5 x 35.0 1.73 x 17.5 x 15.4 4.4 x 44.5 x 39.1 C9200-48P 1.73 x 17.5 x 13.8 4.4 x 44.5 x 35.0 1.73 x 17.5 x 15.4 4.4 x 44.5 x 39.1 C9200-48PL 1.73 x 17.5 x 13.8 4.4 x 44.5 x 35.0 1.73 x 17.5 x 15.4 4.4 x 44.5 x 39.1 C9200-48PB 1.73 x 17.5 x 13.8 4.4 x 44.5 x 35.0 1.73 x 17.5 x 15.4 4.4 x 44.5 x 39.1 C9200-48PXG 1.73 x 17.5 x 13.8 4.4 x 44.5 x 35.0 1.73 x 17.5 x 15.4 4.4 x 44.5 x 39.1 C9200L-24T-4G 1.73 x 17.5 x 11.3 4.4 x 44.5 x 28.8 1.73 x 17.5 x 12.9 4.4 x 44.5 x 32.9 C9200L-24P-4G 1.73 x 17.5 x 11.3 4.4 x 44.5 x 28.8 1.73 x 17.5 x 12.9 4.4 x 44.5 x 32.9 C9200L-48T-4G 1.73 x 17.5 x 11.3 4.4 x 44.5 x 28.8 1.73 x 17.5 x 12.9 4.4 x 44.5 x 32.9 C9200L-48P-4G 1.73 x 17.5 x 11.3 4.4 x 44.5 x 28.8 1.73 x 17.5 x 12.9 4.4 x 44.5 x 32.9 C9200L-48PL-4G 1.73 x 17.5 x 11.3 4.4 x 44.5 x 28.8 1.73 x 17.5 x 12.9 4.4 x 44.5 x 32.9 C9200L-24T-4X 1.73 x 17.5 x 11.3 4.4 x 44.5 x 28.8 1.73 x 17.5 x 12.9 4.4 x 44.5 x 32.9 C9200L-24P-4X 1.73 x 17.5 x 11.3 4.4 x 44.5 x 28.8 1.73 x 17.5 x 12.9 4.4 x 44.5 x 32.9 C9200L-48T-4X 1.73 x 17.5 x 11.3 4.4 x 44.5 x 28.8 1.73 x 17.5 x 12.9 4.4 x 44.5 x 32.9 C9200L-48P-4X 1.73 x 17.5 x 11.3 4.4 x 44.5 x 28.8 1.73 x 17.5 x 12.9 4.4 x 44.5 x 32.9 C9200L-48PL-4X 1.73 x 17.5 x 11.3 4.4 x 44.5 x 28.8 1.73 x 17.5 x 12.9 4.4 x 44.5 x 32.9 C9200L-24PXG-4X 1.73 x 17.5 x 13.8 4.4 x 44.5 x 35.0 1.73 x 17.5 x 15.4 4.4 x 44.5 x 39.1 C9200L-24PXG-2Y 1.73 x 17.5 x 13.8 4.4 x 44.5 x 35.0 1.73 x 17.5 x 15.4 4.4 x 44.5 x 39.1 C9200L-48PXG-4X 1.73 x 17.5 x 13.8 4.4 x 44.5 x 35.0 1.73 x 17.5 x 15.4 4.4 x 44.5 x 39.1 C9200L-48PXG-2Y 1.73 x 17.5 x 13.8 4.4 x 44.5 x 35.0 1.73 x 17.5 x 15.4 4.4 x 44.5 x 39.1 C9200CX-12T-2X2G 1.73 x 10.6 x 6.5 4.4 x 26.9 x 16.5 1.73 x 10.6 x 6.5 4.4 x 26.9 x 16.5

Page 26

© 2025 Cisco and/or its affiliates. All rights reserved. Page 26 of 55

Platform Physical Specifications

Chassis Dimensions Chassis + FEP + Fan Dimensions (HxWxD) Model Inches Centimeters Inches Centimeters C9200CX-12P-2X2G 1.73 x 10.6 x 9.6 4.4 x 26.9 x 24.4 1.73 x 10.6 x 9.6 4.4 x 26.9 x 24.4 C9200CX-8P-2X2G 1.73 x 10.6 x 9.6 4.4 x 26.9 x 24.4 1.73 x 10.6 x 9.6 4.4 x 26.9 x 24.4 C9200CX-8UXG-2X 1.73 x 10.6 x 9.6 4.4 x 26.9 x 24.4 1.73 x 10.6 x 9.6 4.4 x 26.9 x 24.4 C9200CX-12P-2XGH 1.73 x 10.6 x 9.6 4.4 x 26.9 x 24.4 1.73 x 10.6 x 9.6 4.4 x 26.9 x 24.4 C9200CX-8P-2XGH 1.73 x 10.6 x 9.6 4.4 x 26.9 x 24.4 1.73 x 10.6 x 9.6 4.4 x 26.9 x 24.4 C9200CX-8UXG-2XH 1.73 x 10.6 x 9.6 4.4 x 26.9 x 24.4 1.73 x 10.6 x 9.6 4.4 x 26.9 x 24.4 C9200CX-8PT-2G 1.73 x 10.6 x 6.5 4.4 x 26.9 x 16.5 1.73 x 10.6 x 6.5 4.4 x 26.9 x 16.5 Table 14. Model Weights Model Pounds Kilograms C9200-24T 11.02 5.0 C9200-24P 12.12 5.5 C9200-24PB 12.12 5.0 C9200-24PXG 11.33 5.1 C9200-48T 11.02 5.0 C9200-48P 12.12 5.5 C9200-48PL 12.12 5.5 C9200-48PB 12.12 5.5 C9200-48PXG 11.98 5.45 C9200L-24T-4G 9.59 4.35 C9200L-24P-4G 10.38 4.71 C9200L-48T-4G 9.97 4.53 C9200L-48P-4G 10.58 4.80 C9200L-48PL-4G 10.58 4.80 C9200L-24T-4X 9.59 4.35 C9200L-24P-4X 10.38 4.71

Page 27

© 2025 Cisco and/or its affiliates. All rights reserved. Page 27 of 55

Model Pounds Kilograms C9200L-48T-4X 9.97 4.53 C9200L-48P-4X 10.58 4.80 C9200L-48PL-4X 10.58 4.80 C9200L-24PXG-4X 12 5.44 C9200L-24PXG-2Y 12 5.44 C9200L-48PXG-4X 12.6 5.71 C9200L-48PXG-2Y 12.6 5.71 C9200CX-12T-2X2G 4.0 1.81 C9200CX-12P-2X2G 6.6 2.99 C9200CX-8P-2X2G 6.6 2.99 C9200CX-8UXG-2X 7.0 3.18 C9200CX-12P-2XGH 6.6 2.99 C9200CX-8P-2XGH 6.6 2.99 C9200CX-8UXG-2XH 7.0 3.18 C9200CX-8PT-2G 4.3 1.95 Table 15. Model Mean time between failures metrics Mean time between failures (hours) C9200-24T 587,800 C9200-24P 422,310 C9200-24PB 434,220 C9200-24PXG 353,960 C9200-48T 571,440 C9200-48P 375,570 C9200-48PL 375,570 C9200-48PB 384,980 C9200-48PXG 320,440 C9200L-24T-4G 531,030

Page 28

© 2025 Cisco and/or its affiliates. All rights reserved. Page 28 of 55

Mean time between failures (hours) C9200L-24P-4G 392,210 C9200L-48T-4G 508,700 C9200L-48P-4G 347,760 C9200L-48PL-4G 347,760 C9200L-24T-4X 525,990 C9200L-24P-4X 390,310 C9200L-48T-4X 503,400 C9200L-48P-4X 346,270 C9200L-48PL-4X 346,270 C9200L-24PXG-4X 379,410 C9200L-24PXG-2Y 374,730 C9200L-48PXG-4X 337,360 C9200L-48PXG-2Y 337,260 C9200CX-12T-2X2G 960,180 C9200CX-12P-2X2G 704,430 C9200CX-8P-2X2G 736,000 C9200CX-8UXG-2X 711,500 C9200CX-12P-2XGH 702,630 C9200CX-8P-2XGH 734,030 C9200CX-8UXG-2XH 709,660 C9200CX-8PT-2G 746,530 PWR-C5-125WAC 3,332,120 PWR-C5-600WAC 1,600,060 PWR-C5-1KWAC 1,600,060 PWR-C6-125WAC 3,332,120 PWR-C6-600WAC 1,600,060 PWR-C6-1KWAC 1,600,060

Page 29

© 2025 Cisco and/or its affiliates. All rights reserved. Page 29 of 55

Table 16. Model Environmental Ranges Environmental ranges Acoustic noise Measured per ISO 7779 and declared per ISO 9296 Bystander positions operating to an ambient temperature of 25°C. 9200L/9200 With AC power supply (with 48 PoE+ ports loaded): ● LpA: 42dB typical, 45 dB max ● LwA: 5.3B typical, 5.6B max With AC power supply (with 24 PoE+ ports loaded): ● LpA: 42dB typical, 45 dB max ● LwA: 5.3B typical, 5.6B max Typical: Noise emission for a typical configuration Maximum: Statistical maximum to account for variation in production Connectors Table 17 shows the supported connectors for Cisco Catalyst 9200 Series switches. Table 17. Connectors Power Connectors and cabling ● 1000BASE-T ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling ● 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling ● 100BASE-FX, 1000BASE-SX, -LX/LH, -ZX, -BX10, Dense Wavelength-Division Multiplexing (DWDM) and Coarse Wavelength-Division Multiplexing (CWDM) SFP transceivers: LC fiber connectors (single- mode or multimode fiber) ● 10GBASE-SR, LR, LRM (only C9200), ER, ZR, DWDM SFP+ transceivers: LC fiber connectors (single- mode or multimode fiber) ● SFP+ connector ● Cisco StackWise-160/80 stacking ports: copper-based Cisco StackWise cabling ● Ethernet management port: RJ-45 connectors, 4-pair Cat 5 UTP cabling ● Management console port: 9200/9200L – RJ45 or mini USB connectors.-RJ-45-to-DB9 cable for PC connections, USB-C adaptor, USB adaptor; 9200CX - Micro USB connector, with option to convert to RJ45 with CAB-CON-USBRJ45 Power connectors ● Internal power supply connector: The internal power supply is an auto-ranging unit. It supports input voltages between 100 and 240 VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet. For the latest Cisco transceiver module compatibility information, refer to https://www.cisco.com/c/en/us/td/docs/interfaces_modules/transceiver_modules/compatibility/matrix/TMG_C M_Tool_User_Manual.html.

Page 30

© 2025 Cisco and/or its affiliates. All rights reserved. Page 30 of 55

Management and standards support Table 18 shows management and standards support for Cisco Catalyst 9200 Series switches. Table 18. Management and standards support* Description Specification Management BRIDGE-MIB CISCO-NHRP-EXT-MIB CISCO-BRIDGE-EXT-MIB CISCO-NTP-MIB CISCO-BULK-FILE-MIB CISCO-PAGP-MIB CISCO-CABLE-DIAG-MIB CISCO-PORT-SECURITY-MIB CISCO-CALLHOME-MIB CISCO-PORT-STORM-CONTROL-MIB CISCO-CEF-MIB CISCO-POWER-ETHERNET-EXT-MIB CISCO-CIRCUIT-INTERFACE-MIB CISCO-PRIVATE-VLAN-MIB CISCO-CONFIG-COPY-MIB CISCO-PROCESS-MIB CISCO-CONFIG-MAN-MIB CISCO-PRODUCTS-MIB CISCO-DEVICE-LOCATION-MIB CISCO-RF-MIB CISCO-DHCP-SNOOPING-MIB CISCO-RTP-METRICS-MIB CISCO-EIGRP-MIB CISCO-RTTMON-ICMP-MIB CISCO-EMBEDDED-EVENT-MGR-MIB CISCO-STACKWISE-MIB CISCO-ENTITY-FRU-CONTROL-MIB CISCO-STP-EXTENSIONS-MIB CISCO-ENTITY-SENSOR-MIB CISCO-SYSLOG-MIB CISCO-ENTITY-VENDORTYPE-OID-MIB CISCO-TCP-MIB CISCO-ERR-DISABLE-MIB CISCO-UDLDP-MIB CISCO-FLASH-MIB CISCO-VLAN-IFTABLE-RELATIONSHIP- MIB CISCO-FLOW-MONITOR-MIB ENTITY-MIB CISCO-FTP-CLIENT-MIB HC-ALARM-MIB CISCO-HSRP-EXT-MIB HC-RMON-MIB CISCO-HSRP-MIB IEEE8023-LAG-MIB CISCO-IETF-BFD-MIB IF-MIB CISCO-IETF-PPVPN-MPLS-VPN-MIB IP-FORWARD-MIB CISCO-IETF-PW-MPLS-MIB IP-MIB

Page 31

© 2025 Cisco and/or its affiliates. All rights reserved. Page 31 of 55

Description Specification CISCO-IF-EXTENSION-MIB LLDP-EXT-MED-MIB CISCO-IGMP-FILTER-MIB LLDP-MIB CISCO-IMAGE-LICENSE-MGMT-MIB MAU-MIB CISCO-IMAGE-MIB MPLS-L3VPN-STD-MIB CISCO-IP-CBR-METRICS-MIB MPLS-LSR-STD-MIB CISCO-IP-STAT-MIB MPLS-VPN-MIB CISCO-IP-TAP-MIB OLD-CISCO-CHASSIS-MIB CISCO-IP-URPF-MIB OLD-CISCO-CPU-MIB CISCO-IPSEC-FLOW-MONITOR-MIB OLD-CISCO-INTERFACES-MIB CISCO-IPSEC-MIB OLD-CISCO-IP-MIB CISCO-IPSEC-PROVISIONING-MIB OLD-CISCO-MEMORY-MIB CISCO-IPSLA-AUTOMEASURE-MIB OLD-CISCO-SYS-MIB CISCO-IPSLA-ECHO-MIB OLD-CISCO-TCP-MIB CISCO-IPSLA-JITTER-MIB OLD-CISCO-TS-MIB CISCO-L2-CONTROL-MIB POWER-ETHERNET-MIB CISCO-L2L3-INTERFACE-CONFIG-MIB RFC1213-MIB CISCO-LAG-MIB RMON-MIB CISCO-LICENSE-MGMT-MIB RMON2-MIB CISCO-LOCAL-AUTH-USER-MIB SMON-MIB CISCO-MAC-NOTIFICATION-MIB SNMPv2-MIB CISCO-MDI-METRICS-MIB SONET-MIB CISCO-MEDIA-METRICS-MIB TCP-MIB CISCO-MEMORY-POOL-MIB UDP-MIB CISCO-MPLS-LSR-EXT-STD-MIB CISCO-NBAR-PROTOCOL-DISCOVERY-MIB

Page 32

© 2025 Cisco and/or its affiliates. All rights reserved. Page 32 of 55

Description Specification Standards EEE 802.1s RMON I and II standards IEEE 802.1w SNMPv1, v2c, and v3 IEEE 802.1x IEEE 802.1Q VLAN IEEE 802.1x-Rev IEEE 802.3 10BASE-T specification IEEE 802.3ad IEEE 802.3u 100BASE-TX specification IEEE 802.3af IEEE 802.3ab 1000BASE-T specification IEEE 802.3at IEEE 802.3z 1000BASE-X specification IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports IEEE 802.1AE - 128-bit AES MACsec inter network device encryption with MACsec Key Agreement (MKA) IEEE 802.1D Spanning Tree Protocol IEEE 802.3bz (for mGig PKG SKU’s only) IEEE 802.1p CoS prioritization IEEE 802.3an (10GBase-T) (for mGig PKG SKU’s only) Power supply specifications Table 19 lists the power specifications for Cisco Catalyst 9200 Series switches based on the kind of power supply used. Table 19. Power supply specifications Description Specification PWR-C5- 125WAC PWR-C6- 125WAC PWR-C5- 600WAC PWR-C6- 600WAC PWR-C5- 1KWAC PWR-C6- 1KWAC PWR-C5- 715WDC PWR-C6- 715WDC C9200CX Internal 315W AC C9200CX Internal 315W HVDC/AC C9K-80W- ADPT C9K-ADPT- DC C9K-150W- ADPT Power supply rated maximum 125 W 125W 600W 600W 1000W 1000W 715W 715W 315W 315W 80W 80W 150W Total output BTU (note: 1000 BTU/hr = 293W) 426. 5 BTU/ hr, 125 W 426.5 BTU/hr, 125W 2047.3 BTU/hr, 600W 2047.3 BTU/hr, 600W 3412 BTU/hr, 1000W 3412 BTU/hr, 1000W 2440 BTU/hr, 715W 2440 BTU/hr, 715W 1057.1 BTU/hr, 315W 1057.1 BTU/hr, 315W 273 BTU/hr , 80W 273 BTU/hr , 80W 511.8 BTU/hr 150W Input-voltage range and frequency 100 to 240 VAC, 50 to 60 Hz 100 to 240 VAC, 50 to 60 Hz 100 to 240 VAC, 50 to 60 Hz 100 to 240 VAC, 50 to 60 Hz 100 to 240 VAC, 50 to 60 Hz 100 to 240 VAC, 50 to 60 Hz -40 to -72 VDC -40 to -72 VDC 100 to 240 VAC, 50 to 60 Hz 120–418 VDC 100 to 277 VAC,
50 to 60 Hz 100 to 240 VAC, 50 to 60 Hz 18 to 60 VDC 100 to 240 VAC, 50 to 60 Hz

Page 33

© 2025 Cisco and/or its affiliates. All rights reserved. Page 33 of 55

Description Specification PWR-C5- 125WAC PWR-C6- 125WAC PWR-C5- 600WAC PWR-C6- 600WAC PWR-C5- 1KWAC PWR-C6- 1KWAC PWR-C5- 715WDC PWR-C6- 715WDC C9200CX Internal 315W AC C9200CX Internal 315W HVDC/AC C9K-80W- ADPT C9K-ADPT- DC C9K-150W- ADPT Input current 1.6- 0.7A 1.6- 0.7A 7-2.8A 7-2.8A 12-6A 12-6A 20- 11.3A 20- 11.3A 3.95- 1.5A 3.95- 0.92A 1.8A 6A – 1.6A 2A Output ratings 12V at 10.5 A 12V at 10.5A 54V at 11.1A 54V at 11.1A 54V at 16.5A 54V at 16.5A 55V at 13.25A 5V at 0.3A 55V at 13.25A 5V at 0.3A -55V at 4.5A 5V at 14A -55V at 4.5A 5V at 14A 53V at 1.5A 53V at 1.5A 54V at 2.78A Output holdup time 20 ms mini mum at 100 VAC 20 ms minimu m at 100 VAC 20 ms minimu m at 100 VAC 20 ms minimu m at 100 VAC 20 ms minimu m at 100 VAC 20 ms minimu m at 100 VAC 2 ms minimu m at - 40 VDC 2 ms minimu m at - 40 VDC 20 ms minimu m at 100 VAC 20 ms minimum at 100 VAC and 380 VDC 20 ms minimu m at 100 VAC 0.5 ms minimu m at 18 VDC 10ms Power-supply input receptacles IEC 320- C14 (IEC6 0320

C14) IEC 320- C14 (IEC60 320- C14) IEC 320- C16 (IEC60 320- C16) IEC 320- C16 (IEC60 320- C16) IEC 320- C16 (IEC60 320- C16) IEC 320- C16 (IEC60 320- C16) Termin al block Termin al block IEC 320- C14 (IEC60 320- C14) Saf-D- Grid IEC 320- C8 (IEC60 320- C8) Termin al block IEC 320- C14 (IEC603 20- C14) Power cord rating 10A 10A 15A 15A 15A 15A 25A 25A 10A 10A 7A 10A 10A Physical specifications (H x W x D): 1.58 ” x 4.0” x 7.6” Weig ht: 1.5 lb (0.68 kg) (H x W x D): 1.58” x 4.0” x 7.6” Weight: 1.5 lb (0.68 kg) (H x W x D): 1.58” x 4.0” x 7.6” Weight: 1.7 lb (0.77 kg) (H x W x D): 1.58” x 4.0” x 7.6” Weight: 1.7 lb (0.77 kg) (H x W x D): 1.58” x 4.0” x 7.6” Weight: 2 lb (0.9 kg) (H x W x D): 1.58” x 4.0” x 7.6” Weight:
2 lb (0.9 kg) (H x W x D): 1.6” x 4.0” x 7.1” Weight: 3.5 lb (1.59 kg) (H x W x D): 1.6” x 4.0” x 7.1” Weight: 3.5 lb (1.59 kg) N/A N/A (H x W x D): 1.18” x 1.73” x 5.1” Weight : 0.6 lb (0.27 kg) (H x W x D): 1.4” x 2.6” x 6.2” Weight : 0.8 lb (0.36 kg) (H x W x D): 1.3” x 3.4” x 6.9” Weight: 1.3 lb (0.59 kg) Supported Product Family C92 00, C92 00L C9200 C9200, C9200 L C9200 C9200, C9200 L C9200 C9200, C9200 L C9200 C9200 CX C9200C X C9200 CX C9200 CX C9200C X-8PT- 2G

Page 34

© 2025 Cisco and/or its affiliates. All rights reserved. Page 34 of 55

Description Specification PWR-C5- 125WAC PWR-C6- 125WAC PWR-C5- 600WAC PWR-C6- 600WAC PWR-C5- 1KWAC PWR-C6- 1KWAC PWR-C5- 715WDC PWR-C6- 715WDC C9200CX Internal 315W AC C9200CX Internal 315W HVDC/AC C9K-80W- ADPT C9K-ADPT- DC C9K-150W- ADPT Operating temperature Normal operating temperature* and altitudes: ● -5°C to +45°C, up to 5000 feet (1500m) (-5°C to +40°C for C9200CX-8UXG-2X and C9200CX-8UXG-2XH) ● -5°C to +40°C, up to 10,000 feet (3000m) Minimum ambient temperature for cold start is 32°F (0°C) Short-term exceptional conditions: (9200L/9200 only) ● -5°C to +50°C, up to 5000 feet (1500m) ● -5°C to +45°C, up to 10,000 feet (3000m) ● -5°C to +45°C, at sea level with single fan failure Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences Storage temperature -40° to 158°F (-40° to 70°C) Relative humidity operating and nonoperating noncondensing 5% to 90% noncondensing Altitude 10,000 ft. (3000 meters), up to 45°C EMC compliance FCC Part 15 (CFR 47) Class A
ICES-003 Class A EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A VCCI Class A
CISPR 35 EN 55035, EN300 386, EN 61000-3-2, EN 61000-3-3 Safety compliance UL 60950-1/62368-1, CAN/CSA-C22.2 No. 60950-1/62368-1, EN 60950-1/62368-1,
IEC 60950-1/62368-1, CCC, CE Marking LED indicators “AC OK”: Input power to the power supply is OK
“PS OK”: Output power from the power supply is OK

Use shielded cables for locations other than telecom centers

Page 35

© 2025 Cisco and/or its affiliates. All rights reserved. Page 35 of 55

Power consumption of Standalone 9200 Series switches Table 20 shows the power consumption of standalone Cisco Catalyst 9200 Series switches based on Alliance for Telecommunications Industry Solutions (ATIS) testing using Internet Mix (IMIX) distribution stream traffic, with input voltage of 115VAC at 60 Hz and no PoE loading. The values given are the maximum possible power consumption numbers under the respective test scenarios. Table 20. Power consumption of standalone Catalyst 9200 Series switches

Measured P(W) Half port traffic Full port traffic Weighted average Pw No link PoE test (no traffic) SKU FEP Uplink Input 0.01%/ EEE 10% 30% 50% 100% 0.01%/ EEE 10% 30% 50% 100%

25% 50% 90% 100% C9200- 24T 125W (C5/C6) C9200- NM- 4X1G 115VAC 33.09 36.08 36.15 36.20 36.34 35.51 41.78 41.89 42.00 42.27 41.20 30.65 TBD TBD TBD TBD 230VAC 33.15 35.95 36.00 36.06 36.19 35.36 41.50 41.62 41.74 42.01 40.94 30.53 TBD TBD TBD TBD C9200- 24T 125W C9200- NM— 4X10G 115VAC 33.62 36.99 37.29 37.58 38.26 35.41 42.00 42.55 43.11 44.49 41.588 32.20 TBD TBD TBD TBD 230VAC 33.70 36.85 37.13 37.41 38.10 35.40 41.75 42.30 42.85 44.22 41.364 31.90 TBD TBD TBD TBD C9200- 24P 600W (C5/C6) C9200- NM- 4X1G 115VAC 43.57 47.37 47.42 47.47 47.68 46.82 53.79 53.91 54.02 54.30 53.14 40.75 150.71 251.67 416.85 457.98 230VAC 43.38 46.92 46.95 47.03 47.18 46.35 53.23 53.34 53.45 53.76 52.59 40.43 148.14 247.03 406.62 446.27 C9200- 24P 600W (C5/C6) C9200- NM- 4X10G 115VAC 44.62 48.49 48.79 49.11 49.88 47.02 54.18 54.77 55.34 56.77 53.72 42.55 144.60 245.42 410.22 451.45 230VAC 44.32 48.06 48.37 48.66 49.40 46.41 53.38 53.99 54.51 55.96 52.94 42.26 142.29 241.14 400.76 440.37 C9200- 24PXG 600W (C6) C9200- NM- 4X10G 115VAC 84.30 90.90 91.00 92.30 94.20 95.00 110.60 111.60 112.60 115.20 109.5 72.8 296.8 506.3 858.3 941.5 230VAC 84.10 90.50 91.10 91.60 92.90 94.30 108.80 109.90 111.00 113.60 107.83 72.24 287.8 492.4 826.7 909.1 C9200- 24PXG 600W (C6) C9200- NM- 2X25G 115VAC 83.41 87.59 88.56 89.19 90.85 93.96 101.38 103.32 104.89 107.22 101.22 72.52 187.94 290.47 452.61 494.88 230VAC 81.90 86.97 87.68 88.38 90.03 92.21 99.79 101.14 102.45 105.65 99.62 71.74 185.45 283.86 441.83 480.86 C9200- 24PXG 600W (C6) C9200- NM- 2X40G 115VAC 82.34 86.78 87.91 88.90 91.64 92.97 100.93 103.00 104.89 108.81 100.92 71.72 188.86 289.2 448.52 496.28 230VAC 80.05 84.53 85.64 86.69 89.29 90.26 99.20 101.41 103.56 108.70 99.26 71.72 185.29 282.86 441.33 480.95 C9200- 48T 125W (C5/C6) C9200- NM- 4X1G 115VAC 36.57 45.09 45.45 45.63 45.70 36.98 53.95 55.36 53.91 55.87 52.445 36.98 TBD TBD TBD TBD 230VAC 36.99 45.58 45.65 45.71 45.86 36.48 54.51 54.64 54.7 55.04 52.76 36.48 TBD TBD TBD TBD

Page 36

© 2025 Cisco and/or its affiliates. All rights reserved. Page 36 of 55

Measured P(W) Half port traffic Full port traffic Weighted average Pw No link PoE test (no traffic) SKU FEP Uplink Input 0.01%/ EEE 10% 30% 50% 100% 0.01%/ EEE 10% 30% 50% 100%

25% 50% 90% 100% C9200- 48T 125W (C5/C6) C9200- NM- 4X10G 115VAC 38.84 47.07 48.67 48.71 50.41 39.20 56.33 58.36 58.75 61.80 55.164 38.38 TBD TBD TBD TBD 230VAC 39.1 47.11 47.91 48.37 49.65 39.46 56.32 57.25 58.19 60.72 55.074 38.67 TBD TBD TBD TBD C9200- 48P 1000W (C5/C6) C9200- NM- 4X1G 115VAC 56.07 60.25 60.31 60.36 60.55 56.45 69.33 69.46 69.56 69.87 68.10 50.42 262.61 467.50 812.39 899.99 230VAC 55.66 59.98 60.05 60.05 60.27 56.09 69.07 69.20 69.30 69.58 67.83 50.04 258.08 457.61 785.35 867.75 C9200- 48P 1000W (C5/C6) C9200- NM- 4X10G 115VAC 54.27 61.71 62.20 62.68 63.88 56.114 70.93 70.95 71.92 74.39 69.79 52.26 262.38 467.41 812.23 899.40 230VAC 53.89 61.09 61.60 62.07 63.24 55.79 69.52 70.47 71.43 73.89 68.58 51.34 257.97 457.30 785.03 867.35 C9200- 48PL 600W (C6) C9200- NM- 4X1G 115VAC 43.57 47.37 47.42 47.47 47.68 46.82 53.79 53.91 54.02 54.30 53.14 40.75 150.71 251.67 416.85 457.98 230VAC 43.38 46.92 46.95 47.03 47.18 46.35 53.23 53.34 53.45 53.76 52.59 40.43 148.14 247.03 406.62 446.27 C9200- 48PL 600W (C6) C9200- NM- 4X10G 115VAC 44.62 48.49 48.79 49.11 49.88 47.02 54.18 54.77 55.34 56.77 53.72 42.55 144.60 245.42 410.22 451.45 230VAC 44.32 48.06 48.37 48.66 49.40 46.41 53.38 53.99 54.51 55.96 52.94 42.26 142.29 241.14 400.76 440.37 C9200- 48PXG 1000W (C6) C9200- NM- 4X10G 115VAC 84.26 90.86 91.02 92.26 94.18 95.01 110.55 111.62 112.62 115.2 109.46 72.3 296.81 506.33 858.27 941.49 230VAC 84.14 90.52 91.05 91.57 92.85 94.25 108.84 109.94 111 113.6 107.86 73.2 287.79 492.42 826.74 909.07 C9200- 48PXG 1000W (C6) C9200- NM- 2X25G 115VAC 87.84 95.23 95.98 96.69 98.34 99.25 113.66 115.37 116.7 120.91 112.94 77.57 300.71 513.82 872.63 957.36 230VAC 87.12 94.14 94.79 95.42 96.99 97.59 111.99 113.52 114.86 117.82 111.13 76.53 290.61 492.91 826.5 910.08 C9200- 48PXG 1000W (C6) C9200- NM- 2X40G 115VAC 88.01 94.35 95.5 96.48 99.36 98.72 113.2 115.13 117.08 121.84 112.61 76.84 296.86 503.87 861.87 957.4 230VAC 87.02 93.09 94.15 95.16 97.79 97.28 111.43 113.57 115.66 120.67 110.94 75.84 291.54 491.67 824.85 909.78 C9200 L-24T- 4G 125W (C5) Fixed 115VAC 30.03 32.15 32.17 32.2 32.33 32.03 35.90 35.98 36.06 36.23 35.546 27.39 no PoE no PoE no PoE no PoE 230VAC 29.81 32.26 32.23 32.22 32.35 31.86 35.86 35.94 36.03 36.28 35.502 27.50 no PoE no PoE no PoE no PoE C9200 L- 24P- 4G 600W (C5) Fixed 115VAC 39.28 43.98 44.04 44.08 44.22 38.95 48.47 48.6 48.74 49.00 47.571 39.59 153.06 256.56 423.44 466.34 230VAC 38.88 43.6 43.66 43.69 43.83 38.57 48.09 48.22 48.35 48.62 47.191 39.20 150.51 252.10 413.89 455.15 C9200 L-24T- 4X 125W (C5) Fixed 115VAC 30.99 31.98 32.21 32.43 33.04 33.29 36.62 37.02 37.47 38.6 36.485 27.82 no PoE no PoE no PoE no PoE 230VAC 30.98 32.02 32.24 32.46 33.02 33.24 36.59 36.96 37.41 38.52 36.448 27.90 no PoE no PoE no PoE no PoE

Page 37

© 2025 Cisco and/or its affiliates. All rights reserved. Page 37 of 55

Measured P(W) Half port traffic Full port traffic Weighted average Pw No link PoE test (no traffic) SKU FEP Uplink Input 0.01%/ EEE 10% 30% 50% 100% 0.01%/ EEE 10% 30% 50% 100%

25% 50% 90% 100% C9200 L-24P- 4X 600W (C5) Fixed 115VAC 42.83 44.15 44.62 44.72 45.39 45.45 51.08 51.52 52.2 53.49 50.758 40.17 144.82 241.99 401.32 445.35 230VAC 42.36 44.19 44.47 44.61 45.28 44.6 49.33 49.91 50.36 51.51 49.075 39.48 142.32 237.52 392.77 434.06 C9200 L-48T- 4G 125W (C5) Fixed 115VAC 33.85 40.11 40.20 40.24 40.34 32.74 46.65 46.88 46.96 47.33 45.327 33.85 no PoE no PoE no PoE no PoE 230VAC 33.62 40.5 40.57 40.63 40.74 33.06 46.8 46.91 47.05 47.49 45.495 34.16 no PoE no PoE no PoE no PoE C9200 L-48P- 4G 1000W (C5) Fixed 115VAC 45.07 52.15 52.22 52.28 52.44 44.6 58.59 58.7 58.81 59.1 57.242 45.82 270.96 484.59 842.07 933.03 230VAC 44.55 51.5 51.55 51.6 51.77 44.08 57.82 57.91 58.04 58.29 56.493 45.17 266.35 474.24 814.85 899.58 C9200 L- 48PL- 4G 600W (C5) Fixed 115VAC 39.28 43.98 44.04 44.08 44.22 38.95 48.47 48.6 48.74 49.00 47.571 39.59 153.06 256.56 423.44 466.34 230VAC 38.88 43.6 43.66 43.69 43.83 38.57 48.09 48.22 48.35 48.62 47.191 39.20 150.51 252.10 413.89 455.15 C9200 L-48T- 4X 125W (C5) Fixed 115VAC 35.52 42.36 42.9 43.35 43.69 35.06 49.27 50.24 51.19 53.60 48.282 36.08 no PoE no PoE no PoE no PoE 230VAC 35.84 42.60 43.09 43.58 44.81 35.27 49.41 50.36 51.33 53.67 48.422 36.38 no PoE no PoE no PoE no PoE C9200 L-48P- 4X 1000W (C5) Fixed 115VAC 53.12 56.89 57.34 57.80 57.81 55.22 63.92 64.86 65.84 68.36 63.494 50.31 262.59 463.36 789.46 872.6 230VAC 52.63 56.37 56.82 57.3 58.47 54.71 63.41 64.32 65.27 67.64 62.963 50.02 258.64 453.81 766.04 843.89 C9200 L- 48PL- 4X 600W (C5) Fixed 115VAC 42.83 44.15 44.62 44.72 45.39 45.45 51.08 51.52 52.2 53.49 50.758 40.17 144.82 241.99 401.32 445.35 230VAC 42.36 44.19 44.47 44.61 45.28 44.6 49.33 49.91 50.36 51.51 49.075 39.48 142.32 237.52 392.77 434.06 C9200 L- 48PXG -4X 1000W (C5) Fixed 115VAC 82.60 87.80 88.28 88.76 89.95 92.56 103.53 104.55 105.57 108.19 102.90 72.14 291.62 496.85 842.43 930.11 230VAC 81.77 86.62 87.11 87.60 88.82 91.87 102.05 103.02 103.98 106.40 101.47 72.50 286.71 486.25 814.71 898.24 C9200 L- 24PXG -4X 600W (C5) Fixed 115VAC 70.94 73.88 74.37 74.84 76.02 77.37 84.12 85.06 86.00 88.32 83.86 64.54 173.05 271.04 431.68 472.39 230VAC 70.10 73.04 73.62 74.07 75.15 76.74 82.96 83.86 84.78 87.09 82.75 64.04 170.02 265.51 420.96 459.88 C9200 L- 48PXG -2Y 1000W (C5) Fixed 115VAC 81.81 85.14 85.81 86.49 88.08 89.40 96.32 97.51 98.71 101.76 96.17 71.45 294.56 500.25 846.33 934.08 230VAC 79.59 82.94 83.64 84.28 85.81 88.20 95.17 96.36 97.52 100.40 95.00 70.28 283.88 483.54 812.20 894.11

Page 38

© 2025 Cisco and/or its affiliates. All rights reserved. Page 38 of 55

Measured P(W) Half port traffic Full port traffic Weighted average Pw No link PoE test (no traffic) SKU FEP Uplink Input 0.01%/ EEE 10% 30% 50% 100% 0.01%/ EEE 10% 30% 50% 100%

25% 50% 90% 100% C9200 L- 24PXG -2Y 600W (C5) Fixed 115VAC 70.54 73.04 73.78 74.46 76.10 76.25 83.50 84.78 86.09 89.26 83.35 65.58 178.82 280.13 446.82 489.62 230VAC 68.89 72.02 72.66 73.35 74.93 75.32 82.00 83.34 84.64 87.87 81.92 65.01 175.55 274.59 434.38 475.39 C9200 CX- 8P- 2X2G 315W AC Fixed 115VAC 34.5 35.6 35.7 35.8 35.9 35.1 37.8 37.9 38.0 38.3 37.6 33.3 86.9 150.9 254.3 280.2 230VAC 34.3 35.4 35.5 35.5 35.7 35.0 37.5 37.6 37.8 38.0 37.3 33.1 85.9 148.8 249.4 274.5 C9200 CX- 8P- 2XGH 315W HVDC/AC Fixed 277VAC 34.0 35.3 35.3 35.4 35.5 34.8 37.5 37.6 37.7 37.9 37.2 32.8 89.6 153.1 254.4 279.4 380VDC 34.0 35.1 35.1 35.2 35.4 34.6 37.3 37.4 37.5 37.7 37.0 32.8 89.8 153.0 253.4 278.7 C9200 CX- 12P- 2X2G 315W AC Fixed 115VAC 34.9 37.0 37.1 37.2 37.4 35.7 39.5 39.6 39.8 40.2 39.2 33.8 88.0 152.3 256.2 281.9 230VAC 34.6 36.7 36.7 36.8 37.0 35.5 39.2 39.4 39.5 39.8 38.9 33.5 87.1 150.4 251.1 276.7 C9200 CX- 12P- 2XGH 315W HVDC/AC Fixed 277VAC 34.6 36.7 36.8 36.9 37.0 35.3 39.1 39.3 39.4 39.7 38.7 33.4 92.3 155.1 255.9 281.4 380VDC 34.5 36.5 36.5 36.6 36.8 35.2 38.9 39.0 39.2 39.6 38.6 33.3 92.7 155.0 256.5 281.8 C9200 CX- 12T- 2X2G 80W AC Fixed 115VAC 20.0 21.9 22.0 22.1 22.3 21.1 25.1 25.3 25.4 25.9 24.7 18.7 no PoE no PoE no PoE no PoE 230VAC 20.1 22.0 22.1 22.2 22.4 21.1 25.1 25.3 25.4 25.9 24.8 18.8 no PoE no PoE no PoE no PoE C9200 CX- 8UXG- 2X 315W AC Fixed 115VAC 43.4 45.1 45.3 45.3 45.5 46.7 50.3 50.5 50.6 50.9 50.0 40.1 105.5 170.5 275.7 301.9 230VAC 43.1 44.7 44.8 44.9 45.0 46.5 49.9 50.1 50.2 50.5 49.6 39.9 103.5 166.8 268.7 293.9 C9200 CX- 8UXG- 2XH 315W HVDC/AC Fixed 277VAC 43.2 45.0 45.0 45.1 45.3 46.4 50.4 50.5 50.7 51.0 50.0 40.1 103.1 166.1 267.4 292.3 380VDC 43.1 44.9 44.9 45.0 45.1 46.5 50.0 50.1 50.3 50.5 49.7 39.6 103.7 166.4 267.3 292.2 C9200 CX- 8PT- 2G NA Fixed 115VAC 18.1 19.6 19.6 19.6 19.7 18.2 21.2 21.2 21.3 21.4 20.9 18.0 52.5 87.3 143.7 158.0 230VAC 18.2 19.7 19.7 19.8 19.8 18.3 21.3 21.4 21.4 21.5 21.0 18.1 52.5 86.9 142.5 156.5

C9200CX HVDC models can also operate at 115V or 230V AC, the power consumption is the same as the corresponding AC models.

Page 39

Safety and compliance Table 21 lists the safety and compliance information for Cisco Catalyst 9200 Series switches. Table 21. Safety and compliance information Description Specification Safety certifications ● IEC 60950-1/62368-1 ● UL 60950-1/62368-1 ● CAN/CSA C22.2 No. 60950-1/62368-1 ● EN 60950-1/62368-1 ● AS/NZS 60950.1, AS/NZS 62368.1 ● Class I Equipment Electromagnetic compatibility certifications ● 47 CFR Part 15 ● CISPR 32 Class A ● CNS 13438 ● EN 300 386* ● EN 55032 Class A ● EN61000-3-2 ● EN61000-3-3 ● ICES-003 Class A ● KN 32 ● TCVN 7189 Class A ● V-3 Class A ● CISPR 35 ● EN 300 386* ● EN 55035 ● KN 35 ● TCVN 7317 Environmental Reduction of Hazardous Substances (ROHS) 5

Use shielded cables for locations other than telecom centers

Page 40

Ordering Ordering information Table 22 lists ordering information for Cisco Catalyst 9200 Series switches. To place an order, visit the Cisco Ordering home page at: https://www.cisco.com/en/US/ordering/or13/or8/order_customer_help_how_to_order_listing.html. Switch Models C9200 models Table 22. C9200 Models Ordering information Product number Product description C9200-24T-A Catalyst 9200 24-port Data Switch, Network Advantage C9200-24T-E Catalyst 9200 24-port Data Switch, Network Essentials C9200-24P-A Catalyst 9200 24-port PoE+ Switch, Network Advantage C9200-24P-E Catalyst 9200 24-port PoE+ Switch. Network Essentials C9200-24PB-A Catalyst 9200 24-port PoE+, enhanced VRF, Network Advantage C9200-24PXG-E Catalyst 9200 24-port 8xmGig, 16x1G, PoE+, Network Essentials C9200-24PXG-A Catalyst 9200 24-port 8xmGig, 16x1G, PoE+, Network Advantage C9200-48T-A Catalyst 9200 48-port Data Switch, Network Advantage C9200-48T-E Catalyst 9200 48-port Data Switch, Network Essentials C9200-48P-A Catalyst 9200 48-port PoE+ Switch, Network Advantage C9200-48P-E Catalyst 9200 48-port PoE+ Switch, Network Essentials C9200-48PL-A Catalyst 9200 48-Port partial PoE+ Switch, Network Advantage C9200-48PL-E Catalyst 9200 48-Port partial PoE+ Switch, Network Essentials C9200-48PB-A Catalyst 9200 48-port PoE+, enhanced VRF, Network Advantage C9200-48PXG-E Catalyst 9200 48-port 8xmGig, 40x1G, PoE+, Network Essentials C9200-48PXG-A Catalyst 9200 48-port 8xmGig, 40x1G, PoE+, Network Advantage

Page 41

Network modules Table 23. C9200 Models Ordering information – network modules Modular uplink network modules for C9200 Models Product number Product description C9200-NM-2Y (=) Catalyst 9200 2 x 25 GE Network Module, spare C9200-NM-2Q (=) Catalyst 9200 2 x 40GE Network Module, spare C9200-NM-4G (=) Catalyst 9200 4 x 1GE Network Module, spare C9200-NM-4X (=) Catalyst 9200 4 x 10GE Network Module, spare C9200-NM-BLANK (=) Catalyst 9200 BLANK Network Module, spare C9200L models Table 24. C9200L Models Ordering information Product number Product description C9200L-24T-4G-A Catalyst 9200L 24-port Data 4x1G uplink Switch, Network Advantage C9200L-24T-4G-E Catalyst 9200L 24-port Data 4x1G uplink Switch, Network Essentials C9200L-24P-4G-A Catalyst 9200L 24-port PoE+ 4x1G uplink Switch, Network Advantage C9200L-24P-4G-E Catalyst 9200L 24-port PoE+ 4x1G uplink Switch, Network Essentials C9200L-48T-4G-A Catalyst 9200L 48-port Data 4x1G uplink Switch, Network Advantage C9200L-48T-4G-E Catalyst 9200L 48-port Data 4x1G uplink Switch, Network Essentials C9200L-48P-4G-A Catalyst 9200L 48-port PoE+ 4x1G uplink Switch, Network Advantage C9200L-48P-4G-E Catalyst 9200L 48-port PoE+ 4x1G uplink Switch, Network Essentials C9200L-48PL-4G-A Catalyst 9200L 48-port partial PoE+ 4x1G uplink Switch, Network Advantage C9200L-48PL-4G-E Catalyst 9200L 48-port partial PoE+ 4x1G uplink Switch, Network Essentials C9200L-24T-4X-A Catalyst 9200L 24-port Data 4x10G uplink Switch, Network Advantage C9200L-24T-4X-E Catalyst 9200L 24-port Data 4x10G uplink Switch, Network Essentials C9200L-24P-4X-A Catalyst 9200L 24-port PoE+ 4x10G uplink Switch, Network Advantage C9200L-24P-4X-E Catalyst 9200L 24-port PoE+ 4x10G uplink Switch, Network Essentials C9200L-48T-4X-A Catalyst 9200L 48-port Data 4x10G uplink Switch, Network Advantage C9200L-48T-4X-E Catalyst 9200L 48-port Data 4x10G uplink Switch, Network Essentials

Page 42

Product number Product description C9200L-48P-4X-A Catalyst 9200L 48-port PoE+ 4x10G uplink Switch, Network Advantage C9200L-48P-4X-E Catalyst 9200L 48-port PoE+ 4x10G uplink Switch, Network Essentials C9200L-48PL-4X-A Catalyst 9200L 48-port partial PoE+ 4x10G uplink Switch, Network Advantage C9200L-48PL-4X-E Catalyst 9200L 48-port partial PoE+ 4x10G uplink Switch, Network Essentials C9200L-24PXG-4X-E Catalyst 9200L 24-port 8xmGig, 16x1G, 4x10G, PoE+, Network Essentials C9200L-24PXG-4X-A Catalyst 9200L 24-port 8xmGig, 16x1G, 4x10G, PoE+, Network Advantage C9200L-48PXG-4X-E Catalyst 9200L 48-port 12xmGig, 36x1G, 4x10G PoE+, Network Essentials C9200L-48PXG-4X-A Catalyst 9200L 48-port 12xmGig, 36x1G, 4x10G PoE+, Network Advantage C9200L-24PXG-2Y-E Catalyst 9200L 24-port 8xmGig, 16x1G, 2x25G, PoE+, Network Essentials C9200L-24PXG-2Y-A Catalyst 9200L 24-port 8xmGig, 16x1G, 2x25G, PoE+, Network Advantage C9200L-48PXG-2Y-E Catalyst 9200L 48-port 8xmGig, 40x1G, 2x25G PoE+, Network Essentials C9200L-48PXG-2Y-A Catalyst 9200L 48-port 8xmGig, 40x1G, 2x25G PoE+, Network Advantage C9200CX models Table 25. C9200CX Models Ordering information Product number Product description C9200CX-12T-2X2G-E Catalyst 9200CX 12-port 1G, 2x10G and 3x1G, data, Network Essentials C9200CX-12T-2X2G-A Catalyst 9200CX 12-port 1G, 2x10G and 3x1G, data, Network Advantage C9200CX-12P-2X2G-E Catalyst 9200CX 12-port 1G, 2x10G and 2x1G, PoE+, Network Essentials C9200CX-12P-2X2G-A Catalyst 9200CX 12-port 1G, 2x10G and 2x1G, PoE+, Network Advantage C9200CX-8P-2X2G-E Catalyst 9200CX 8-port 1G, 2x10G and 2x1G, PoE+, Network Essentials C9200CX-8P-2X2G-A Catalyst 9200CX 8-port 1G, 2x10G and 2x1G, PoE+, Network Advantage C9200CX-8UXG-2X-E Catalyst 9200CX 4-port mGig and 4-port 1G, 2x10G, UPOE, Network Essentials C9200CX-8UXG-2X-A Catalyst 9200CX 4-port mGig and 4-port 1G, 2x10G, UPOE, Network Advantage C9200CX-12P-2XGH-E Catalyst 9200CX 12-port 1G, 2x10G and 2x1G, PoE+, HVDC, Network Essentials C9200CX-12P-2XGH-A Catalyst 9200CX 12-port 1G, 2x10G and 2x1G, PoE+, HVDC, Network Advantage C9200CX-8P-2XGH-E Catalyst 9200CX 8-port 1G, 2x10G and 2x1G, PoE+, HVDC, Network Essentials C9200CX-8P-2XGH-A Catalyst 9200CX 8-port 1G, 2x10G and 2x1G, PoE+, HVDC, Network Advantage

Page 43

Product number Product description C9200CX-8UXG-2XH-E Catalyst 9200CX 4-port mGig and 4-port 1G, 2x10G, UPOE, HVDC, Network Essentials C9200CX-8UXG-2XH-A Catalyst 9200CX 4-port mGig and 4-port 1G, 2x10G, UPOE, HVDC, Network Advantage C9200CX-8PT-2G-E Catalyst 9200CX 8-port 1G, 2x1G, Pass-through, Network Essentials C9200CX-8PT-2G-A Catalyst 9200CX 8-port 1G, 2x1G, Pass-through, Network Advantage Software licenses C9200 software licenses Table 26. C9200 Models Ordering information – software licenses C9200 Cisco DNA software licenses Product number Product description C9200-DNA-E-24 C9200 Cisco DNA Essentials Term 24-port C9200-DNA-E-24-3Y C9200 Cisco DNA Essentials, 24-port, 3 Year Term license C9200-DNA-E-24-5Y C9200 Cisco DNA Essentials, 24-port, 5 Year Term license C9200-DNA-E-24-7Y C9200 Cisco DNA Essentials, 24-port, 7 Year Term license C9200-DNA-E-48 C9200 Cisco DNA Essentials Term 48-port C9200-DNA-E-48-3Y C9200 Cisco DNA Essentials, 48-port, 3 Year Term license C9200-DNA-E-48-5Y C9200 Cisco DNA Essentials, 48-port, 5 Year Term license C9200-DNA-E-48-7Y C9200 Cisco DNA Essentials, 48-port, 7 Year Term license C9200-DNA-A-24 C9200 Cisco DNA Advantage Term 24-port C9200-DNA-A-24-3Y C9200 Cisco DNA Advantage, 24-port, 3 Year Term license C9200-DNA-A-24-5Y C9200 Cisco DNA Advantage, 24-port, 5 Year Term license C9200-DNA-A-24-7Y C9200 Cisco DNA Advantage, 24-port, 7 Year Term license C9200-DNA-A-48 C9200 Cisco DNA Advantage Term 48-port C9200-DNA-A-48-3Y C9200 Cisco DNA Advantage, 48-port, 3 Year Term license C9200-DNA-A-48-5Y C9200 Cisco DNA Advantage, 48-port, 5 Year Term license C9200-DNA-A-48-7Y C9200 Cisco DNA Advantage, 48-port, 7 Year Term license C9200-LIC= Electronic Cisco DNA Upgrade License for C9200 switches. Note: when upgrading from Cisco DNA Essentials to Cisco DNA Advantage, Network Essentials is upgraded to Network Advantage

Page 44

C9200 Cisco DNA software licenses Product number Product description C9200-24-E-A C9200 24-port NW and Cisco DNA Essentials to NW and Cisco DNA Advantage Upgrade C9200-24-E-A-3 24-port NW and Cisco DNA Ess to NW and Cisco DNA Adv Upgrade License 3Y C9200-24-E-A-5 24-port NW and Cisco DNA Ess to NW and Cisco DNA Adv Upgrade License 5Y C9200-24-E-A-7 24-port NW and Cisco DNA Ess to NW and Cisco DNA Adv Upgrade License 7Y C9200-48-E-A C9200 48-port NW and Cisco DNA Essentials to NW and Cisco DNA Advantage Upgrade C9200-48-E-A-3 48-port NW and Cisco DNA Ess to NW and Cisco DNA Adv Upgrade License 3Y C9200-48-E-A-5 48-port NW and Cisco DNA Ess to NW and Cisco DNA Adv Upgrade License 5Y C9200-48-E-A-7 48-port NW and Cisco DNA Ess to NW and Cisco DNA Adv Upgrade License 7Y

C9200 Cisco Catalyst software licenses Product number Product description C9200-DNX-E-24-3Y C9200 Cisco Catalyst Essentials, 24-port, 3 Year Term license C9200-DNX-E-24-5Y C9200 Cisco Catalyst Essentials, 24-port, 5 Year Term license C9200-DNX-E-24-7Y C9200 Cisco Catalyst Essentials, 24-port, 7 Year Term license C9200-DNX-E-48-3Y C9200 Cisco Catalyst Essentials, 48-port, 3 Year Term license C9200-DNX-E-48-5Y C9200 Cisco Catalyst Essentials, 48-port, 5 Year Term license C9200-DNX-E-48-7Y C9200 Cisco Catalyst Essentials, 48-port, 7 Year Term license C9200-DNX-A-24-3Y C9200 Cisco Catalyst Advantage, 24-port, 3 Year Term license C9200-DNX-A-24-5Y C9200 Cisco Catalyst Advantage, 24-port, 5 Year Term license C9200-DNX-A-24-7Y C9200 Cisco Catalyst Advantage, 24-port, 7 Year Term license C9200-DNX-A-48-3Y C9200 Cisco Catalyst Advantage, 48-port, 3 Year Term license C9200-DNX-A-48-5Y C9200 Cisco Catalyst Advantage, 48-port, 5 Year Term license C9200-DNX-A-48-7Y C9200 Cisco Catalyst Advantage, 48-port, 7 Year Term license

Page 45

C9200L software licenses Table 27. C9200L Models Ordering information – software licenses C9200L Cisco DNA software licenses Product Number Product Description C9200L-DNA-E-24 C9200L Cisco DNA Essentials Term 24-port C9200L-DNA-E-24-3Y C9200L Cisco DNA Essentials, 24-port, 3 Year Term license C9200L-DNA-E-24-5Y C9200L Cisco DNA Essentials, 24-port, 5 Year Term license C9200L-DNA-E-24-7Y C9200L Cisco DNA Essentials, 24-port, 7 Year Term license C9200L-DNA-E-48 C9200L Cisco DNA Essentials Term 48-port C9200L-DNA-E-48-3Y C9200L Cisco DNA Essentials, 48-port, 3 Year Term license C9200L-DNA-E-48-5Y C9200L Cisco DNA Essentials, 48-port, 5 Year Term license C9200L-DNA-E-48-7Y C9200L Cisco DNA Essentials, 48-port, 7 Year Term license C9200L-DNA-A-24 C9200L Cisco DNA Advantage Term 24-port C9200L-DNA-A-24-3Y C9200L Cisco DNA Advantage, 24-port, 3 Year Term license C9200L-DNA-A-24-5Y C9200L Cisco DNA Advantage, 24-port, 5 Year Term license C9200L-DNA-A-24-7Y C9200L Cisco DNA Advantage, 24-port, 7 Year Term license C9200L-DNA-A-48 C9200L Cisco DNA Advantage Term 48-port C9200L-DNA-A-48-3Y C9200L Cisco DNA Advantage, 48-port, 3 Year Term license C9200L-DNA-A-48-5Y C9200L Cisco DNA Advantage, 48-port, 5 Year Term license C9200L-DNA-A-48-7Y C9200L Cisco DNA Advantage, 48-port, 7 Year Term license C9200L-LIC= Electronic Cisco DNA Upgrade License for C9200L switches. Note: when upgrading from Cisco DNA Essentials to Cisco DNA Advantage, Network Essentials is upgraded to Network Advantage C9200L-24-E-A C9200L 24-port NW and Cisco DNA Essentials to NW and Cisco DNA Advantage Upgrade C9200L-24-E-A-3 24-port NW and Cisco DNA Ess to NW and Cisco DNA Adv Upgrade License 3Y C9200L-24-E-A-5 24-port NW and Cisco DNA Ess to NW and Cisco DNA Adv Upgrade License 5Y C9200L-24-E-A-7 24-port NW and Cisco DNA Ess to NW and Cisco DNA Adv Upgrade License 7Y C9200L-48-E-A C9200L 48-port NW and Cisco DNA Essentials to NW and Cisco DNA Advantage Upgrade C9200L-48-E-A-3 48-port NW and Cisco DNA Ess to NW and Cisco DNA Adv Upgrade License 3Y

Page 46

C9200L Cisco DNA software licenses Product Number Product Description C9200L-48-E-A-5 48-port NW and Cisco DNA Ess to NW and Cisco DNA Adv Upgrade License 5Y C9200L-48-E-A-7 48-port NW and Cisco DNA Ess to NW and DNA Adv Upgrade License 7Y

C9200L Cisco Catalyst software licenses Product number Product description C9200L-DNX-E-24-3Y C9200L Cisco Catalyst Essentials, 24-port, 3 Year Term license C9200L-DNX-E-24-5Y C9200L Cisco Catalyst Essentials, 24-port, 5 Year Term license C9200L-DNX-E-24-7Y C9200L Cisco Catalyst Essentials, 24-port, 7 Year Term license C9200L-DNX-E-48-3Y C9200L Cisco Catalyst Essentials, 48-port, 3 Year Term license C9200L-DNX-E-48-5Y C9200L Cisco Catalyst Essentials, 48-port, 5 Year Term license C9200L-DNX-E-48-7Y C9200L Cisco Catalyst Essentials, 48-port, 7 Year Term license C9200L-DNX-A-24-3Y C9200L Cisco Catalyst Advantage, 24-port, 3 Year Term license C9200L-DNX-A-24-5Y C9200L Cisco Catalyst Advantage, 24-port, 5 Year Term license C9200L-DNX-A-24-7Y C9200L Cisco Catalyst Advantage, 24-port, 7 Year Term license C9200L-DNX-A-48-3Y C9200L Cisco Catalyst Advantage, 48-port, 3 Year Term license C9200L-DNX-A-48-5Y C9200L Cisco Catalyst Advantage, 48-port, 5 Year Term license C9200L-DNX-A-48-7Y C9200L Cisco Catalyst Advantage, 48-port, 7 Year Term license C9200CX software licenses Table 28. C9200CX Models Ordering information – software licenses C9200CX Cisco DNA software licenses Product Number Product Description C9200CX-DNA-E-8 C9200CX Cisco DNA Essentials Term 8-port C9200CX-DNAE-8-3Y C9200CX Cisco DNA Essentials, 8-port, 3 Year Term license C9200CX-DNAE-8-5Y C9200CX Cisco DNA Essentials, 8-port, 5 Year Term license C9200CX-DNAE-8-7Y C9200CX Cisco DNA Essentials, 8-port, 7 Year Term license C9200CX-DNA-A-8 C9200CX Cisco DNA Advantage Term 8-port

Page 47

C9200CX Cisco DNA software licenses Product Number Product Description C9200CX-DNAA-8-3Y C9200CX Cisco DNA Advantage, 8-port, 3 Year Term license C9200CX-DNAA-8-5Y C9200CX Cisco DNA Advantage, 8-port, 5 Year Term license C9200CX-DNAA-8-7Y C9200CX Cisco DNA Advantage, 8-port, 7 Year Term license C9200CX-DNA-E-12 C9200CX Cisco DNA Essentials Term 12-port C9200CX-DNAE-12-3Y C9200CX Cisco DNA Essentials, 12-port, 3 Year Term license C9200CX-DNAE-12-5Y C9200CX Cisco DNA Essentials, 12-port, 5 Year Term license C9200CX-DNAE-12-7Y C9200CX Cisco DNA Essentials, 12-port, 7 Year Term license C9200CX-DNA-A-12 C9200CX Cisco DNA Advantage Term 12-port C9200CX-DNAA-12-3Y C9200CX Cisco DNA Advantage, 12-port, 3 Year Term license C9200CX-DNAA-12-5Y C9200CX Cisco DNA Advantage, 12-port, 5 Year Term license C9200CX-DNAA-12-7Y C9200CX Cisco DNA Advantage, 12-port, 7 Year Term license C9200CX-LIC= Electronic Cisco DNA Upgrade License for C9200CX switches. Note: when upgrading from Cisco DNA Essentials to Cisco DNA Advantage, Network Essentials is upgraded to Network Advantage C9200CX-8-E-A C9200CX 8-port NW and Cisco DNA Essentials to NW and Cisco DNA Advantage Upgrade C9200CX-8-E-A-3 C9200CX 8-port NW and Cisco DNA Ess to NW and Cisco DNA Adv Upgrade License 3Y C9200CX-8-E-A-5 C9200CX 8-port NW and Cisco DNA Ess to NW and Cisco DNA Adv Upgrade License 5Y C9200CX-8-E-A-7 C9200CX 8-port NW and Cisco DNA Ess to NW and DNA Adv Upgrade License 7Y C9200CX-12-E-A C9200CX 12-port NW and Cisco DNA Essentials to NW and Cisco DNA Advantage Upgrade C9200CX-12-E-A-3 C9200CX 12-port NW and Cisco DNA Ess to NW and Cisco DNA Adv Upgrade License 3Y C9200CX-12-E-A-5 C9200CX 12-port NW and Cisco DNA Ess to NW and Cisco DNA Adv Upgrade License 5Y C9200CX-12-E-A-7 C9200CX 12-port NW and Cisco DNA Ess to NW and Cisco DNA Adv Upgrade License 7Y

Page 48

C9200CX Cisco Catalyst software licenses Product Number Product Description C9200CX-DNXE-12-3Y C9200CX Cisco Catalyst Essentials software subscription, 12P, 3 Yr Lic C9200CX-DNXE-12-5Y C9200CX Cisco Catalyst Essentials software subscription, 12P, 5 Yr Lic C9200CX-DNXE-12-7Y C9200CX Cisco Catalyst Essentials software subscription, 12P, 7 Yr Lic C9200CX-DNXE-8-3Y C9200CX Cisco Catalyst Essentials software subscription, 8P, 3 Yr Lic C9200CX-DNXE-8-5Y C9200CX Cisco Catalyst Essentials software subscription, 8P, 5 Yr Lic C9200CX-DNXE-8-7Y C9200CX Cisco Catalyst Essentials software subscription, 8P, 7 Yr Lic C9200CX-DNXA-12-3Y C9200CX Cisco Catalyst Advantage software subscription, 12P, 3 Yr Lic C9200CX-DNXA-12-5Y C9200CX Cisco Catalyst Advantage software subscription, 12P, 5 Yr Lic C9200CX-DNXA-12-7Y C9200CX Cisco Catalyst Advantage software subscription, 12P, 7 Yr Lic C9200CX-DNXA-8-3Y C9200CX Cisco Catalyst Advantage software subscription, 8P, 3 Yr Lic C9200CX-DNXA-8-5Y C9200CX Cisco Catalyst Advantage software subscription, 8P, 5 Yr Lic C9200CX-DNXA-8-7Y C9200CX Cisco Catalyst Advantage software subscription, 8P, 7 Yr Lic Stacking Cables Table 29. StackWise Cable Ordering information StackWise-80 and StackWise-160 Kit and cables Product number Product description C9200-STACK-KIT= C9200 Stack Kit Spare C9200L-STACK-KIT= C9200L Stack Kit Spare STACK-T4-50CM 50CM Type 3 Stacking Cable STACK-T4-50CM= 50CM Type 3 Stacking Cable, spare STACK-T4-1M 1M Type 3 Stacking Cable STACK-T4-1M= 1M Type 3 Stacking Cable, spare STACK-T4-3M 3M Type 3 Stacking Cable STACK-T4-3M= 3M Type 3 Stacking Cable, spare

Page 49

Power supplies Table 30. Power Supply Ordering information Power supplies Product Number Product Description PWR-C5-125WAC (=) 125W AC Config 5 Power Supply PWR-C5-125WAC/2 125W AC Config 5 Power Supply - Secondary Power Supply PWR-C5-600WAC (=) 600W AC Config 5 Power Supply PWR-C5-600WAC/2 600W AC Config 5 Power Supply - Secondary Power Supply PWR-C5-1KWAC (=) 1KW AC Config 5 Power Supply PWR-C5-1KWAC/2 1KW AC Config 5 Power Supply - Secondary Power Supply PWR-C5-715WDC= 715W DC Config 5 Power Supply PWR-C6-125WAC (=) 125W AC Config 6 Power Supply PWR-C6-125WAC/2 125W AC Config 6 Power Supply - Secondary Power Supply PWR-C6-600WAC (=) 600W AC Config 6 Power Supply PWR-C6-600WAC/2 600W AC Config 6 Power Supply - Secondary Power Supply PWR-C6-1KWAC (=) 1KW AC Config 6 Power Supply PWR-C6-1KWAC/2 1KW AC Config 6 Power Supply - Secondary Power Supply PWR-C6-715WDC= 715W DC Config 6 Power Supply PWR-C5-BLANK= Blank Module PWR-ADPT AC-DC power adapter for the C9200CX-12T-2X2G compact switch (80W) C9K-80W-ADPT AC-DC slim power adapter for the C9200CX-12T-2X2G compact switch (80W) C9K-150W-ADPT AC-DC slim power adapter for the C9200CX-8PT-2G compact switch (150W) C9K-ADPT-DC DC-DC power adapter for the C9200CX-12T-2X2G compact switch (80W) C9K-ADPT-BRKT-12T Power adaptor bracket for C9200CX-12T-2X2G C9K-ADPT-BRKT-8PT Power adaptor bracket for C9200CX-8PT-2G C9K-CMPCT-PWR-CLP Power clip for the C9200CX compact switches (not compatible with HVDC SKUs)

Page 50

Table 31. Spare power cords Ordering information Spare power cords Product Number Product Description CAB-TA-NA= AC power cord for Cisco Catalyst (North America) CAB-TA-AP= AC power cord for Cisco Catalyst (Australia) CAB-TA-AR= AC power cord for Cisco Catalyst (Argentina) CAB-TA-SW= AC power cord for Cisco Catalyst (Switzerland) CAB-TA-UK= AC power cord for Cisco Catalyst (United Kingdom) CAB-TA-JP= AC power cord for Cisco Catalyst (Japan) CAB-TA-250V-JP= Japan 250VAC power cord for Cisco Catalyst (Japan) CAB-TA-125V-JP= Japan 125V AC Type A Power Cable (Japan – 48 port only) CAB-TA-EU= AC power cord for Cisco Catalyst (Europe) CAB-TA-IT= AC power cord for Cisco Catalyst (Italy) CAB-TA-IN= AC power cord for Cisco Catalyst (India) CAB-TA-CN= AC power cord for Cisco Catalyst (China) CAB-TA-DN= AC power cord for Cisco Catalyst (Denmark) CAB-TA-IS= AC power cord for Cisco Catalyst (Israel) CAB-ACBZ-12A= AC power cord for Cisco Catalyst (Brazil), 12A/125V BR-3-20 plug up to 12A CAB-ACBZ-10A= AC power cord for Cisco Catalyst (Brazil), 10A/250V BR-3-10 plug up to 10A CAB-C15-CBN Cabinet jumper power cord, 250VAC 13A, C14 -C15 connectors

For 9200CX switch models with internal HVDC power supply, customer or system integrator is responsible for the power cable as HVDC switches are usually installed in DC micro grid with customized cables and connectors. For more information, please consult with your Cisco sales representative.

Page 51

Mounting Accessories Table 32. Mounting Accessories Ordering information Product Number Product Description ACC-KIT-T1= Accessory kit with 19 inch Type 1 rack mount RACK-KIT-T1= 19, 23, 24 inch and ETSI Type 1 rack mount kit 4PT-KIT-T2= 4 Point rack mount kit New REC-KIT-T1= Recessed 1RU rack mount for 9200L and 9200 switches C9K-MGNT-TRAY Magnet and Mounting Tray for compact switches C9K-CMPCT-DIN-MNT DIN Rail Mount for compact switches RACKMNT-19-CMPACT 19-Inch Rack Mounting Brackets for compact switches C9K-CMPCT-CBLE-GRD Cable guard for compact switches (for C9K-WALL-TRAY) C9K-WALL-TRAY Wall mount bracket for compact switches C9K-CMPCT-DESK-MNT Under desk mount for compact switches C9K-ACC-RBFT Rubber Feet For Table Top Setup 9200 and 9300 C9K-ACC-SCR-4 12-24 and 10-32 Screws For Rack Installation, Qty 4 CAB-GUIDE-1RU 1RU Cable Management Guides 9200 and 9300 Warranty Cisco enhanced limited lifetime hardware warranty Cisco Catalyst 9200 Series switches come with a Cisco Enhanced Limited Lifetime Warranty (E-LLW) that includes Next-Business-Day (NBD) delivery of replacement hardware where available and 90 days of 8x5 Cisco Technical Assistance Center (TAC) support. Your formal warranty statement, including the warranty applicable to Cisco software, appears in the information packet that accompanies your Cisco product. We encourage you to review the warranty statement shipped with your specific product carefully before use. Cisco reserves the right to refund the purchase price as its exclusive warranty remedy. For further information about warranty terms, visit https://www.cisco.com/go/warranty.

Page 52

Table 33 provides information about the E-LLW. Table 33. Warranty information

Cisco E-LLW Devices covered Applies to Cisco Catalyst 9200 Series switches. Warranty duration As long as the original customer owns the product. End-of-life policy In the event of discontinuance of product manufacture, Cisco warranty support is limited to 5 years from the announcement of discontinuance. Hardware replacement Cisco or its service center will use commercially reasonable efforts to ship a replacement for NBD delivery, where available. Otherwise, a replacement will be shipped within 10 working days after receipt of the Return Materials Authorization (RMA) request. Actual delivery times might vary depending on customer location. Effective date Hardware warranty commences from the date of shipment to customer (and in case of resale by a Cisco reseller, not more than 90 days after original shipment by Cisco). TAC support Cisco will provide during business hours, 8 hours per day, 5 days per week, basic configuration, diagnosis, and troubleshooting of device-level problems for up to a 90-day period from the date of shipment of the originally purchased Cisco Catalyst 9200 Series product. This support does not include solution or network-level support beyond the specific device under consideration. Cisco.com access Warranty allows guest access only to Cisco.com. Cisco services for next-generation Cisco Catalyst switches Achieve infrastructure excellence faster and with less risk. Cisco Catalyst 9000 Switch Services provide expert guidance to help you successfully deploy, manage and support the Cisco Catalyst 9000 switches. With unmatched networking expertise, best practices and innovative tools, we can help you reduce overall upgrade, refresh, and migration costs as you introduce new hardware, software and protocols into the network. Offering a comprehensive lifecycle of services – from implementation, optimization, technical and managed services – Cisco experts help you minimize disruption and achieve operational excellence to extract maximum value from your Cisco Networking cloud ready infrastructure. Learn more about Cisco Services for Enterprise Networks. Optics online reference Cisco Catalyst 9200 Series switches support a wide range of optics. Because the list of supported optics is updated on a regular basis, consult the tables available here for the latest SFP+ and SFP compatibility information: https://tmgmatrix.cisco.com

Page 53

Product sustainability Refer to the CSR/Social Responsibility section for more information on Cisco’s environmental sustainability policies and initiatives. ENERGY STAR Certification Cisco is driving long term value and market advantage by continuing to embed energy efficiency through hardware, software and by providing customers visibility into their energy consumption to help them baseline, identify trends and anomalies and take corrective actions.
With the ENERGY STAR certification of Catalyst 9200 Series models, Cisco is one of the first networking company to have third party-approved Campus Switches. Ecolabel certifications like ENERGY STAR help customers identify “environmentally preferable” products to help maximize energy efficiency, reduce GHG emissions and lower energy costs.
ENERGY STAR certification reinforces Cisco’s ongoing commitment to deliver energy efficient products including top-rated power supplies, active power management and monitoring capabilities, alignment to ISO 14000 Environmental Management systems standards, and all designed with circularity principles in mind.
Learn more: ENERGY STAR Certified Product Finder
https://www.energystar.gov/productfinder/product/certified-large-network-equipment/results Table 34. Sustainability References Sustainability Topic Reference General Information on product-material-content laws and regulations Materials Information on electronic waste laws and regulations, including our products, batteries, and packaging WEEE Compliance Sustainability Inquiries Contact: csr_inquiries@cisco.com Safety and compliance Safety and compliance information Information on product takeback and reuse program Cisco Takeback and Reuse Program Power IEEE 802.3at PoE+ Intelligent PoE+ Section IEEE 802.3bt / Cisco UPOE Intelligent PoE+ Section IEEE 802.3bt class 6 PD Intelligent PoE+ Section PoE power availability PoE Power with Primary and secondary power supplies High efficiency with HVDC power options Power supply specifications Fan Fan Section Power connectors Connectors

Page 54

Sustainability Topic Reference Power supply specifications Power supply specifications
Power consumption (ATIS) Power consumption of standalone Catalyst 9200 Series switches ENERGY STAR® certified models ENERGY STAR Certified Large Network Equipment Material Product packaging weight and materials Contact: environment@cisco.com Chassis Dimension, weight, MTBF Model dimensions, weight, and mean time between failure metrics
Elimination of wet paint on plastic bezel 2019 Cisco Corporate Social Responsibility Report, Pg. 19 Stepping up our work on circularity Cisco Services Accelerate your journey to intent-based networking With Cisco Services, you can achieve infrastructure excellence faster with less risk. Our services for Cisco Catalyst 9200 Series switches provide expert guidance to help you successfully plan, deploy, manage, and support your new switches. With unmatched networking expertise, best practices, and innovative tools, Cisco Services can help you reduce overall upgrade, refresh, and migration costs as you introduce new hardware, software, and protocols into the network. With a comprehensive lifecycle of services, Cisco experts will help you minimize disruption and improve operational efficiency to extract maximum value from your Cisco Networking infrastructure. Learn more. CSR/Social Responsibility Information about Cisco’s Environmental, Social and Governance (ESG) policies and initiatives can be found in Cisco’s Corporate Social Responsibility (CSR) Report. Cisco Capital Flexible payment solutions to help you achieve your objectives Cisco Capital makes it easier to get the right technology to achieve your objectives, enable business transformation and help you stay competitive. We can help you reduce the total cost of ownership, conserve capital, and accelerate growth. In more than 100 countries, our flexible payment solutions can help you acquire hardware, software, services and complementary third-party equipment in easy, predictable payments. Learn more.

Page 55

Document history New or revised topic Described In Date Added C9200CX Pass-through SKU information Various locations

Added Catalyst 9200L-M-1 models
Various locations Aug 19, 2025 Added BGP and PTP support for 9200CX models Various locations June 19, 2024 Added Simplified Campus Automation All relevant sections June 4, 2024 Added ENERGY Start certification Various locations April 12, 2024 Added recessed mounting kit and DC power supply for 9200L and 9200. Various locations Jun 26, 2023 Added new Catalyst 9200CX mGig and HVDC SKUs Various locations Feb 6, 2023 Added new Catalyst 9200CX models, Cloud Monitoring for Catalyst support Various locations June 14, 2022 Added New C9200/L partial PoE Information Table 1, 3, 7, 8, 12, 17, 19, 22 September 22, 2020 Added correct images for module uplinks Network Modules February 21, 2020 Added New C9200 mGig and C9200 32 VN information Table 1, 3, 7, 8, 12, 33 January 28, 2020 Added New C9200 Network Modules Table 2, 33 January 28, 2020 Added New Power Supply information PWR-C6- 600WAC Table 3, 16, 19, 33 October 09, 2019 Forwarding rate with Stacking Table 8 October 09, 2019 Cloud Security Information General Information October 09, 2019 Adding C9200L mGig SKUs Table 1, 3, 8, 12, 19 May 14, 2019 Revisions of Weight, addition of LIC upgrade and other minor edits Software licenses table and weights table April 01, 2019 Revised Table of Contents Headings Specifications (was “Dimensions, eight, acoustic, mean time between failures”), added Document History January 03, 2019

Printed in USA C78-741344-25 10/25
