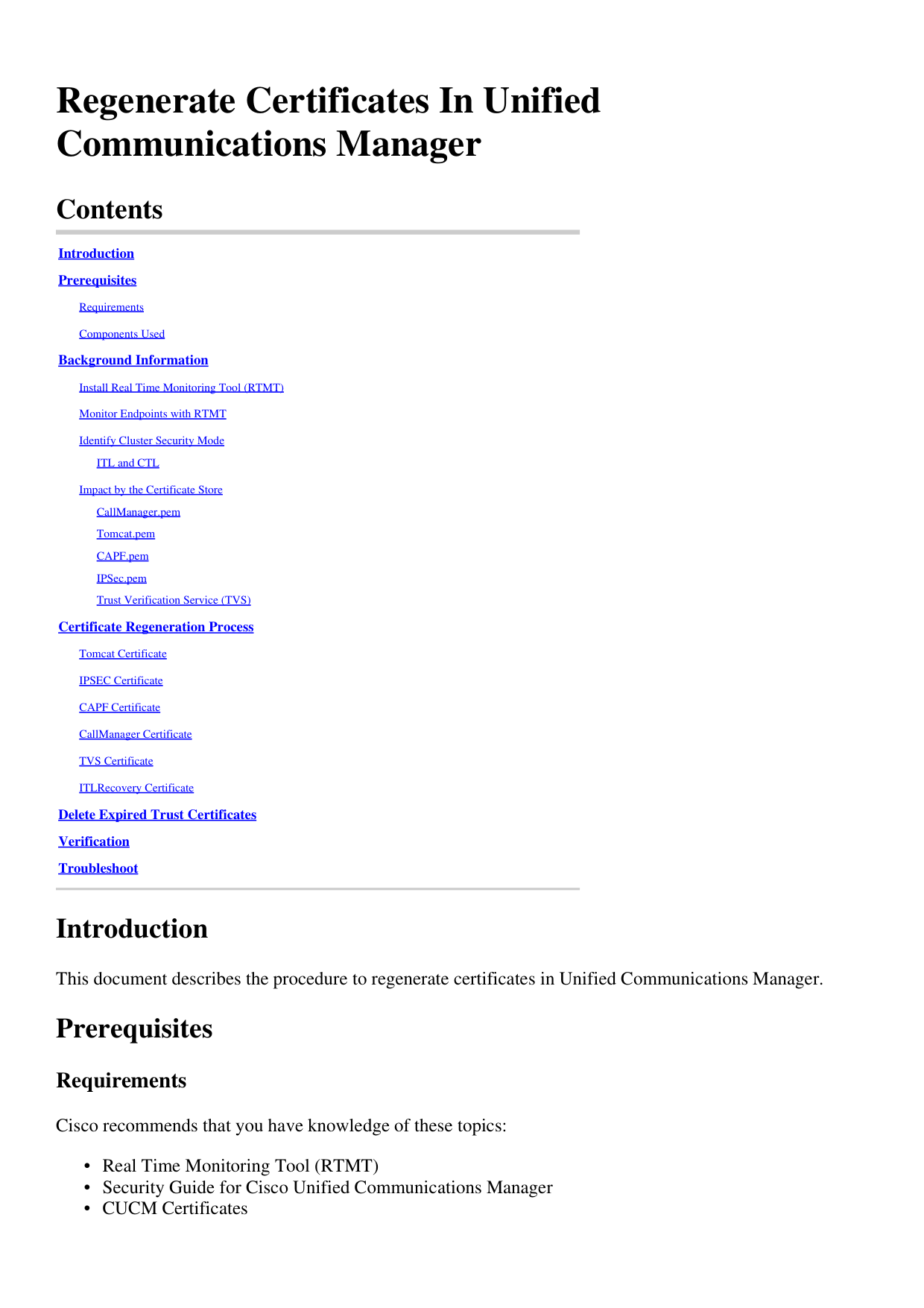

Regenerate Certificates In Unified
Communications Manager
Contents
Introduction
Prerequisites
Requirements
Components Used
Background Information
Install Real Time Monitoring Tool (RTMT)
Monitor Endpoints with RTMT
Identify Cluster Security Mode
ITL and CTL
Impact by the Certificate Store
CallManager.pem
Tomcat.pem
CAPF.pem
IPSec.pem
Trust Verification Service (TVS)
Certificate Regeneration Process
Tomcat Certificate
IPSEC Certificate
CAPF Certificate
CallManager Certificate
TVS Certificate
ITLRecovery Certificate
Delete Expired Trust Certificates
Verification
Troubleshoot
Introduction
This document describes the procedure to regenerate certificates in Unified Communications Manager.
Prerequisites
Requirements
Cisco recommends that you have knowledge of these topics:
Real Time Monitoring Tool (RTMT)
•
Security Guide for Cisco Unified Communications Manager
•
CUCM Certificates
•
Page 2
Certificate Authority Proxy Function
•
Components Used
Cisco Recommends that you have these tools installed:
Real Time Monitoring Tool (RTMT)
•
Information based on Cisco Unified Communications Manager (CUCM) releases 10.5, 12.0, 14.0,
15.0.
•
The information in this document was created from the devices in a specific lab environment. All of the
devices used in this document started with a cleared (default) configuration. If your network is live, ensure
that you understand the potential impact of any command.
Background Information
This document describes the step-by-step procedure on how to regenerate certificates in Cisco Unified
Communications Manager (CUCM) release 8.X and newer. Reference the Security Guide for your specific
release.
Communications Manager (CUCM) release 8.X – 11.5.X the ITL is signed by the Call Manager Certificate.
Communications Manager (CUCM) release 12.0+ the ITL is signed by the ITLRecovery Certificate.
ITL and CTL File Interaction
The Cisco IP Phone relies on the CTL file to know about the cluster security mode (non-secure or mixed
mode). The CTL File tracks the cluster security mode by including the Unified Communications Manager
certificate in the Unified Communications Manager record. The ITL File also contains the cluster security
mode indication.

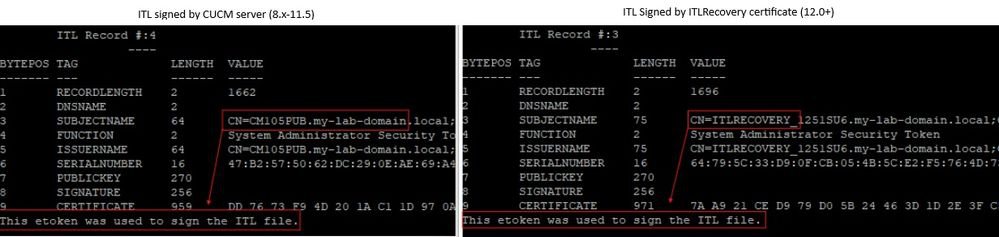

ITL Signer Comparison
Install Real Time Monitoring Tool (RTMT)
Download and install RTMT Tool from Call Manager.
Navigate to Call Manager (CM) Administration: Application > Plugins > Find > Cisco
Unified Real-Time Monitoring Tool - Windows > Download. Install and launch.
○
•
Monitor Endpoints with RTMT
Launch RTMT and enter the IP address or Fully Qualified Domain Name (FQDN), then username
and password to access the tool:
Select the Voice/Video Tab.
○
•
Page 3

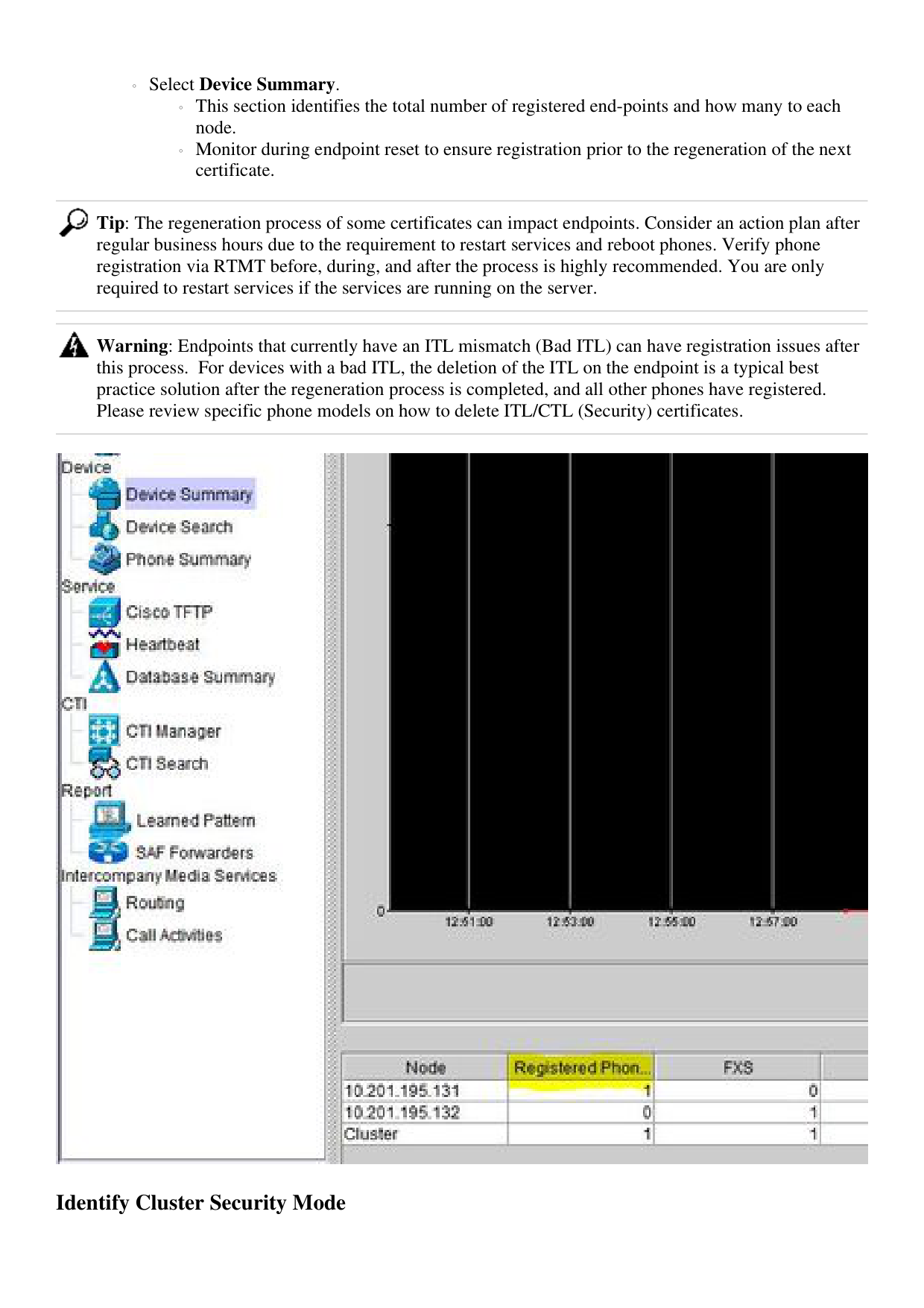

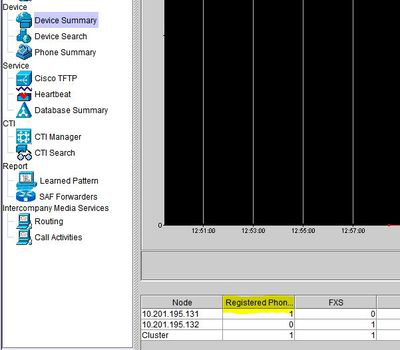

Select Device Summary.
This section identifies the total number of registered end-points and how many to each
node.
○
Monitor during endpoint reset to ensure registration prior to the regeneration of the next
certificate.
○
○
Tip: The regeneration process of some certificates can impact endpoints. Consider an action plan after
regular business hours due to the requirement to restart services and reboot phones. Verify phone
registration via RTMT before, during, and after the process is highly recommended. You are only
required to restart services if the services are running on the server.
Warning: Endpoints that currently have an ITL mismatch (Bad ITL) can have registration issues after
this process. For devices with a bad ITL, the deletion of the ITL on the endpoint is a typical best
practice solution after the regeneration process is completed, and all other phones have registered.
Please review specific phone models on how to delete ITL/CTL (Security) certificates.
Identify Cluster Security Mode
Page 4
Navigate to CM Administration: System > Enterprise Parameters > Security Parameters >
Cluster Security Mode.
•
ITL and CTL
Initial Trust List (ITL) contains the certificate role for Call Manager TFTP, ITLRecovery, and all TVS
certificates in the cluster. It also contains the Certificate Authority Proxy Function (CAPF) if the
service is running. Beginning in version 12.0, the ITL is signed by the ITLRecovery certificate. You
can see this by logging into CLI and entering the command show itl. Prior to version 12.0, the ITL
was signed by the Call Manager certificate.
•
CTL contains entries for System Administrator Security Token (SAST), Cisco CallManager and Cisco
TFTP services that are run on the same server, CAPF, ITLRecovery, TFTP server(s), and Adaptive
Security Appliance (ASA) firewall. TVS is not referenced in CTL. The CTL is provided to endpoints
if the service, Cisco CTL Provider, is running.
•
As of CUCM 14SU(3), Cisco CTL Provider service no longer supports CTL Tokens, and Tokenless is
the default supported method.
•
Impact by the Certificate Store
It is critical for successful system functionality to have all certificates updated across the CUCM cluster. If
certificates are expired or invalid, they can significantly affect normal functionality of the system. The
impact can differ dependent upon your system setup. A list of services for the specific certificates that are
invalid or expired is shown here:
CallManager.pem
Encrypted/authenticated phones do not register.
•
Trivial File Transfer Protocol (TFTP) is not trusted (phones do not accept signed configuration files
and/or ITL files).
•
Phone services can be affected.
•
Secure Session Initiation Protocol (SIP) trunks or media resources (Conference bridges, Media
Termination Point (MTP), Xcoders, and so on) do not register or work.
•
The AXL request fails.
•
Page 5
Tomcat.pem
Phones are not able to access HTTPs services hosted on the CUCM node, such as Corporate
Directory.
•
CUCM can have various web issues, such as unable to access service pages from other nodes in the
cluster.
•
Extension Mobility (EM) or Extension Mobility Cross Cluster issues.
•
Single Sign-On (SSO)
•
Expressway Traversal Zone down (TLS Verify is enabled).
•
If Unified Contact Center Express (UCCX) is integrated, due to security change from CCX 12.5, it is
required to have uploaded CUCM Tomcat certificate (self-signed) or the Tomcat root and
intermediate certificate (for CA signed) in UCCX tomcat-trust store since it effects Finesse desktop
logins.
•
CAPF.pem
This certificate is used to issue LSC to the endpoints (except online and offline CAPF mode), Phone
VPN, 802.1x, and Phone Proxy.
•
Beginning from Unified Communications Manager Release 11.5(1) SU1, all the LSC certificates
issued by CAPF service are signed with SHA-256 algorithm.
•
Authentication and Encryption setup for CTI, JTAPI, and TAPI.
•
IPSec.pem
Disaster Recovery System (DRS)/Disaster Recovery Framework (DRF) is unable to function
properly.
•
IPsec tunnels to Gateway (GW) or to other CUCM clusters do not work.
•
Trust Verification Service (TVS)
Trust Verification Service (TVS) is the main component of Security by Default. TVS enables Cisco Unified
IP Phones to authenticate application servers, such as EM services, directory, and MIDlet, when HTTPS is
established.
TVS provides these features:
Scalability - Cisco Unified IP Phone resources are not impacted by the number of certificates to trust.
•
Flexibility - Addition or removal of trust certificates are automatically reflected in the system.
•
Security by Default - Non-media and signal security features are part of the default installation and do
not require user intervention.
•
ITLRecovery (Trust Verification Service)
8.X – 11.5 Recovery of phones with mismatched ITL, Phone migration and EMCC to CUCM 12.0+.
•
12.0+ Used in SSO, EMCC and primary signer of ITL/CTL.
•
12.5+ ITL Recovery is only generated by the Publisher.
•
Certificate Manager ECDSA Support
In Unified Communications Manager Release 11.0, the certificate manager supports both generation of self-
signed ECDSA certificates and the ECDSA certificate signing request (CSR). Earlier releases of Unified
Communications Manager supported RSA certificate only. However, Unified Communications Manager
Release 11.0 onwards, CallManager-ECDSA certificate has been added along with the existing RSA
Page 6
certificate.
Both the CallManager and CallManager-ECDSA certificates share the common certificate trust
store—CallManager-Trust. Unified Communications Manager uploads these certificates to this trust store.
Third-Party CA Signed Identity Certificate
Note: Third-party can mean internal Certificate Authority (CA) or external sources like Go-Daddy,
Verisign, and others. Identity certificate is the server certificate for the specific roll (Tomcat, Call
Manager, and so on).
Navigate to each server in your cluster (in separate tabs of your web browser unless you are creating
Multi-SAN CSR) begin with the publisher, succeeded by each subscriber. Navigate to Cisco Unified
OS Administration > Security > Certificate Management.
1.
Select Generate CSR.
2.
Select Certificate Purpose drop-down and select the certificate.
3.
Select Distribution type. Single Server or Multi-sever (SAN).
Multi-server (SAN) includes all CUCM and CUPs nodes in the SANs section.
•
4.
Select Generate.
5.
Download the CSR and provide to your Certificate Authority.
6.
After receiving the signed certificate, upload the certificates by chain order.
Upload the ROOT as a trust certificate.
•
Upload the Intermediate as a trust certificate.
•
Upload the Signed Certificate as the certificate type.
•
Restart the appropriate services identified in the pop-up.
•
7.
Certificate Regeneration Process
Note: All the endpoints need to be powered on and registered before the certificates regeneration.
Otherwise, the not connected phones require the removal of the ITL.
Tomcat Certificate
The process of regenerating Tomcat and Tomcat-ECDSA are identical, including service restarts.
Identify if third party certificates are in use:
Navigate to each server in your cluster (in separate tabs of your web browser) begin with the
publisher, proceeded by each subscriber. Navigate to Cisco Unified OS Administration > Security
Certificate Management > Find.
Observe from the Description column if Tomcat states Self-signed certificate generated by
system. If Tomcat is third party signed, use the link provided and perform those steps after the
Tomcat regeneration.
•
Third-Party Signed certificates, refer to CUCM Uploading CCMAdmin Web GUI Certificates.
•
Select Find to show all the certificates:
Select the Find Tomcat Pem.
•
Once open, select Regenerate and wait until you see the Success pop-up, then close pop-up or
go back and select Find/List.
•
2.
Continue with each subsequent Subscriber, perform the same procedure in step 2 and complete on all
Subscribers in your cluster.
3.
After all Nodes have regenerated the Tomcat certificate, restart the tomcat service on all the nodes.
4.
Page 7

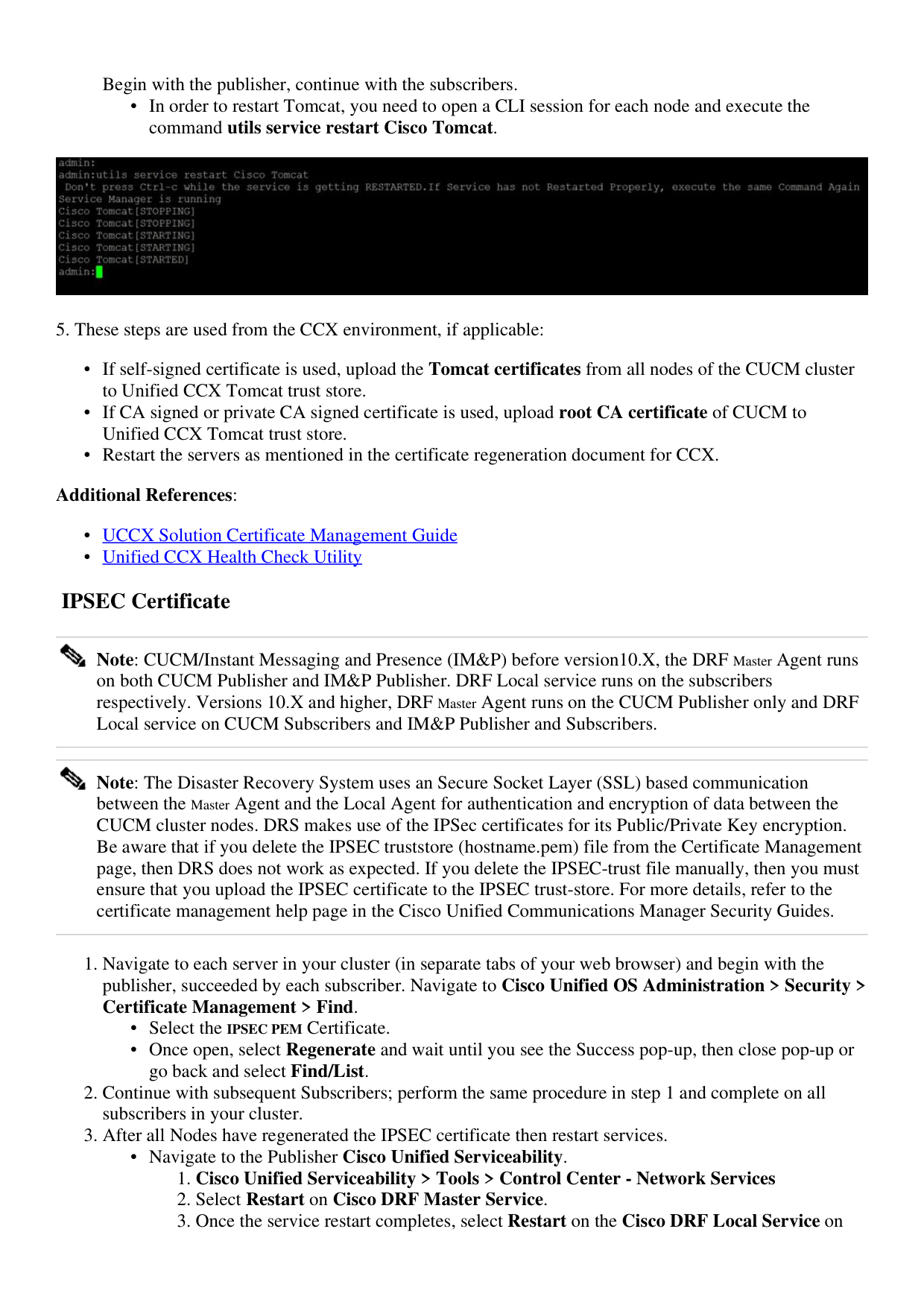

Begin with the publisher, continue with the subscribers.

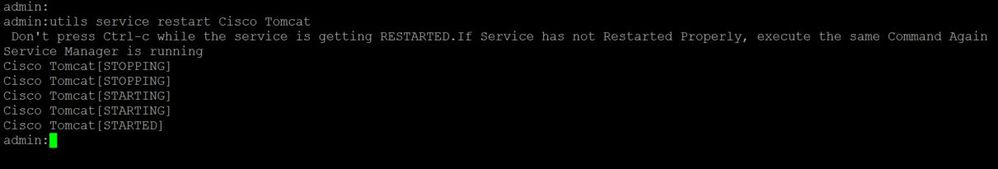

In order to restart Tomcat, you need to open a CLI session for each node and execute the
command utils service restart Cisco Tomcat.
•
5. These steps are used from the CCX environment, if applicable:
If self-signed certificate is used, upload the Tomcat certificates from all nodes of the CUCM cluster
to Unified CCX Tomcat trust store.
•
If CA signed or private CA signed certificate is used, upload root CA certificate of CUCM to
Unified CCX Tomcat trust store.
•
Restart the servers as mentioned in the certificate regeneration document for CCX.
•
Additional References:
UCCX Solution Certificate Management Guide
•
Unified CCX Health Check Utility
•
IPSEC Certificate
Note: CUCM/Instant Messaging and Presence (IM&P) before version10.X, the DRF Master Agent runs
on both CUCM Publisher and IM&P Publisher. DRF Local service runs on the subscribers
respectively. Versions 10.X and higher, DRF Master Agent runs on the CUCM Publisher only and DRF
Local service on CUCM Subscribers and IM&P Publisher and Subscribers.
Note: The Disaster Recovery System uses an Secure Socket Layer (SSL) based communication
between the Master Agent and the Local Agent for authentication and encryption of data between the
CUCM cluster nodes. DRS makes use of the IPSec certificates for its Public/Private Key encryption.
Be aware that if you delete the IPSEC truststore (hostname.pem) file from the Certificate Management
page, then DRS does not work as expected. If you delete the IPSEC-trust file manually, then you must
ensure that you upload the IPSEC certificate to the IPSEC trust-store. For more details, refer to the
certificate management help page in the Cisco Unified Communications Manager Security Guides.
Navigate to each server in your cluster (in separate tabs of your web browser) and begin with the
publisher, succeeded by each subscriber. Navigate to Cisco Unified OS Administration > Security >
Certificate Management > Find.
Select the IPSEC PEM Certificate.
•
Once open, select Regenerate and wait until you see the Success pop-up, then close pop-up or
go back and select Find/List.
•
1.
Continue with subsequent Subscribers; perform the same procedure in step 1 and complete on all
subscribers in your cluster.
2.
After all Nodes have regenerated the IPSEC certificate then restart services.
Navigate to the Publisher Cisco Unified Serviceability.
Cisco Unified Serviceability > Tools > Control Center - Network Services
1.
Select Restart on Cisco DRF Master Service.
2.
Once the service restart completes, select Restart on the Cisco DRF Local Service on
3.
•
3.
Page 8
the publisher, then continue with the subscribers and select Restart on the Cisco DRF
Local.
The IPSEC.pem certificate in the publisher must be valid and must be present in all subscribers as IPSEC
truststores. The subscriber's IPSEC.pem certificate is not present in the publisher as IPSEC-trust in a
standard deployment. In order to verify the validity compare the serial numbers in the IPSEC.pem certificate
from the PUB with the IPSEC-trust in the SUBs. They must match.
CAPF Certificate
Note: Beginning in CUCM 14, the CAPF certificate can only be found on the Publisher.
Warning: Ensure you have identified if your Cluster is in Mixed-Mode before you proceed. Refer to
section Identify Cluster Security Mode.
Navigate to the Cisco Unified CM Administration > System > Enterprise Parameters.
Check the section Security Parameters and verify if the Cluster Security Mode is set to 0 or
- If the value if 0, then the cluster is in Non-Secure Mode. If it is 1, then the cluster is in
mixed-mode and you need to update the CTL file prior to the restart of services. See Token and
Tokenless links.
•
Navigate to each server in your cluster (in separate tabs of your web browser) begin with the
publisher, then each subscriber. Navigate to Cisco Unified OS Administration > Security >
Certificate Management > Find.
Select theCAPF PEM Certificate.
•
Once open, select Regenerate and wait until you see the Success pop-up then close pop-up or
go back and select Find/List.
•
2.
Continue with subsequent subscribers; perform the same procedure in step 2, and complete on all
subscribers in your cluster.
If cluster is in Mixed-Mode or the CTL is being used for 802.1X, you must update the CTL
before you proceed further.
Log into the CLI of the Publisher and enter the command utils ctl update CTLFile.
○
Reset all encrypted and authenticated phones for the CTL file update to take affect.
○
•
3.
After all Nodes have regenerated the CAPF certificate, restart services.
Navigate to publisher Cisco Unified Serviceabillity.
Cisco Unified Serviceability > Tools > Control Center - Feature Services.
1.
Select the publisher and select Restart on the Cisco Certificate Authority Proxy
Function Service, only if active.
2.
•
4.
Navigate to Cisco Unified Serviceability > Tools > Control Centr - Network Services.
Begin with the publisher, then continue with the subscribers, select Restart on Cisco Trust
Verification Service.
•
Navigate to Cisco Unified Serviceability > Tools > Control Center - Feature Services.
•
Begin with the publisher then continue with the subscribers, restart Cisco TFTP Service where
status shows Started.
•
5.
Reboot all Phones:
Option 1
•
Cisco Unified CM Administration > System > Enterprise Parameters
•
Select Reset, then you see a pop-up with the statement "You are about to reset all devices in the
system. This action cannot be undone. Continue?",select OK, and then select Reset.
This method resets ALL components in Call Manager.
○
•
Option 2
•
Cisco Unified CM Administration > Bulk Administration > Phones > Update Phones >
Query
•
6.
Page 9
Search for Device Name begins with SEP > Next > Reset Phones > Run Immediately.
○
The phones now reset. Monitor their actions via RTMT tool to ensure the reset was successful and that
devices register back to CUCM. Wait for the phone registration to complete before you proceed to next
certificate. This process of phones registration can take some time. Be advised, devices that had bad ITLs
prior to regeneration process do not register back to the cluster until it is remove.
CallManager Certificate
The process of regenerating CallManager and CallManager-ECDSA are identical including service restarts.
Warning: Ensure you have identified if your Cluster is in Mixed-Mode before you proceed. Refer to
section Identify Cluster Security Mode.
Warning: Do not regenerate CallManager.PEM and TVS.PEM certificates at the same time in
versions 8.x-11.5, or if the ITL is signed by the Call Manager Certificate. This causes an
unrecoverable mismatch to the installed ITL on endpoints which require the removal the ITL from
ALL endpoints in the cluster, or restore from DRS to begin the certificate updates again.
Navigate to the Cisco Unified CM Administration > System > Enterprise Parameters:
Check the section Security Parameters and verify if the Cluster Security Mode is set to 0 or
- If the value if 0, then the cluster is in Non-Secure Mode. If it is 1, then the cluster is in
mixed-mode and you need to update the CTL file prior to the restart of services. See Token and
Tokenless links.
•
Navigate to each server in your cluster (in separate tabs of your web browser) begin with the
publisher, then each subscriber. Navigate to Cisco Unified OS Administration > Security >
Certificate Management > Find.
Select the CallManager pem Certificate.
•
Once open, select Regenerate and wait until you see the Success pop-up, then close pop-up or
go back and select Find/List.
•
2.
Continue with subsequent subscribers; perform the same procedure in step 2, and complete on all
subscribers in your cluster.
If cluster is in Mixed-Mode, or the CTL is being used for 802.1X, you must update the CTL
before you proceed further.
Log into the CLI of the Publisher and enter the command utils ctl update CTLFile.
○
Reset all encrypted and authenticated phones for the CTL file update to take affect.
○
•
3.
Log into Publisher Cisco Unified Serviceability:
Navigate to Cisco Unified Serviceability > Tools > Control Center - Feature Services.
•
Begin with the publisher, then continue with the subscribers, only restart Cisco CallManager
Service where status shows Started.
•
4.
Navigate to Cisco Unified Serviceability > Tools > Control Center - Feature Services.
Begin with the Publisher, then continue with the subscribers, restart Cisco CTIManager
Service where status shows Started.
•
5.
Navigate to Cisco Unified Serviceability > Tools > Control Center - Network Service.
Begin with the Publisher, then continue with the subscribers, restart Cisco Trust Verification
Service.
•
6.
Navigate to Cisco Unified Serviceability > Tools > Control Center - Feature Services.
Begin with the Publisher, then continue with the subscribers, restart Cisco TFTP Service where
status shows Started.
•
7.
Reboot all Phones:
Option 1
•
Cisco Unified CM Administration > System > Enterprise Parameters
•
8.
Page 10
Select Reset, then you see a pop-up with the statement "You are about to reset all devices
in the system. This action cannot be undone. Continue?",select OK, and then select
Reset.
○
This method resets ALL components in Call Manager.
○
Option 2
•
Cisco Unified CM Administration > Bulk Administration > Phones > Update Phones >
Query
Search for Device Name begins with SEP > Next > Reset Phones > Run Immediately
○
•
The phones now reset. Monitor their actions via RTMT tool to ensure the reset was successful and that
devices register back to CUCM. Wait for the phone registration to complete before you proceed to next
certificate. This process of phones registration can take some time. Be advised, devices that had bad ITLs
prior to regeneration process do not register back to the cluster until ITL is remove.
TVS Certificate
Warning: Do not regenerate CallManager.PEM and TVS.PEM certificates at the same time in
versions 8.x-11.5, or if the ITL is signed by the Call Manager Certificate. This causes an
unrecoverable mismatch to the installed ITL on endpoints which require the removal the ITL from
ALL endpoints in the cluster, or restore from DRS to begin the certificate updates again.
Note: TVS authenticates certificates on behalf of Call Manager. Regenerate this certificate last.
Navigate to each server in your cluster (in separate tabs of your web browser) begin with the publisher, then
each subscriber. Navigate to Cisco Unified OS Administration > Security > Certificate Management >
Find.
Select the TVS pem Certificate.
•
Once open, select Regenerate and wait until you see the Success pop-up then close pop-up or go
back and select Find/List.
•
Continue with subsequent subscribers; perform the same procedure in step 1 and complete on all
subscribers in your cluster.
After all Nodes have regenerated the TVS certificate, restart the services:
Log into Publisher Cisco Unified Serviceabililty.
Navigate to Cisco Unified Serviceability > Tools > Control Center - Network
Services
○
On the publisher select Restart on Cisco Trust Verification Service.
○
○
Once the service restart completes, continue with the subscribers and restart the Cisco
Trust Verification Service.
○
•
1.
Begin with the Publishe,r then continue with the subscribers, restart Cisco TFTP Service where status
shows Started.
2.
Reboot all Phones:
Option 1
•
Cisco Unified CM Administration > System > Enterprise Parameters
Select Reset, then you see a pop-up with the statement "You are about to reset all devices
in the system. This action cannot be undone. Continue?",select OK, and then select
Reset.
○
This method resets ALL components in Call Manager.
○
•
Option 2
•
Cisco Unified CM Administration > Bulk Administration > Phones > Update Phones >
Query
•
3.
Page 11
Search for Device Name begins with SEP > Next > Reset Phones > Run Immediately.
○
The phones now reset. Monitor their actions via RTMT tool to ensure the reset was successful and that
devices register back to CUCM. Wait for the phone registration to complete before you proceed to next
certificate. This process of phones registration can take some time. Be advised, devices that had bad ITLs
prior to regeneration process do not register back to the cluster until ITL is remove.
ITLRecovery Certificate
Note: The ITLRecovery Certificate is used when devices lose their trusted status. The certificate
appears in both the ITL and CTL (when CTL provider is active, Cisco bug IDCSCwf85275).
Beginning in 12.5+, the ITLRecovery is a single certificate generated by the publisher and distributed
to the subscribers.
If devices lose their trust status, you can use the command utils itl reset localkey for non-secure
clusters and the command utils ctl reset localkey for mix-mode clusters. Read the security guide for
your Call Manager version to become familiar with how the ITLRecovery certificate is used and the
process required to recover trusted status.
If the cluster has been upgraded to a version that supports a key length of 2048, and the clusters server
certificates have been regenerated to 2048, and the ITLRecovery has not been regenerated and is
currently 1024 key length, the ITL recovery command fails and the ITLRecovery method is not used.
Navigate to each server in your cluster (in separate tabs of your web browser) begin with the
publisher, then each subscriber. Navigate to Cisco Unified OS Administration > Security >
Certificate Management > Find.
Select the ITLRecovery pem Certificate.
•
Once open, select Regenerate and wait until you see the Success pop-up then close pop-up or
go back and select Find/List.
•
1.
After ITLRecovery has been regenerated the ITLRecovery certificate, services need to be restarted.
If cluster is in Mixed-Mode or the CTL is being used for 802.1X, you must update the CTL
before you proceed further.
Log into the CLI of the Publisher and enter the command utils ctl update CTLFile.
○
Reset all encrypted and authenticated phones for the CTL file update to take affect.
○
•
Log into Publisher Cisco Unified Serviceability.
Navigate to Cisco Unified Serviceability > Tools > Control Center - Network
Services.
○
On the publisher, select Restart on Cisco Trust Verification Service.
○
•
Once the service restart completes, continue with the subscribers and restart the Cisco Trust
Verification Service.
•
2.
Begin with the Publisher, then continue with the subscribers, restart Cisco TFTP Service where status
shows Started.
3.
Reboot all Phones:
Option 1
•
Cisco Unified CM Administration > System > Enterprise Parameters
Select Reset, then you see a pop-up with the statement "You are about to reset all devices
in the system. This action cannot be undone. Continue?",select OK, and then select
Reset.
○
This method resets ALL components in Call Manager.
○
•
Option 2
•
Cisco Unified CM Administration > Bulk Administration > Phones > Update Phones >
Query
Search for Device Name begins with SEP > Next > Reset Phones > Run Immediately.
○
•
4.
Page 12
Delete Expired Trust Certificates
Warning: Deleting a certificate can affect your system operations. It can also break a certificate chain
if the certificate is part of an existing chain. Verify this relationship from the username and subject
name of the relevant certificates in the Certificate List window.
Note: A trusted certificate is the only type of certificate that you can delete. You cannot delete a self-
signed certificate that is generated by your system. Identify the trust certificates that need to be
deleted, no longer required, or have expired. Do not delete the five base certificates which include the
CallManager.pem, tomcat.pem, ipsec.pem, CAPF.pem and TVS.pem. Trust certificates can be deleted
when appropriate. The next service that restarts is designed to clear information of legacy certificates
within those services.
Navigate to Cisco Unified Serviceability > Tools > Control Center - Network Services.
From the drop-down select the CUCM Publisher.
For CUCM 11.5 and lower,
○
Select Stop Certificate Change Notification. This requirement is not needed for CUCM
version 12.0 and higher.
○
Repeat for every Call Manager node in your cluster.
○
•
If you have an IMP Server:
From the drop-down menu select your IMP servers one at a time and Select Stop
Platform Administration Web Services and Cisco Intercluster Sync Agent. This
requirement is not needed for IMP version 12.0 and higher.
○
•
1.
Navigate to Cisco Unified OS Administration > Security > Certificate Management > Find.
Find the expired trust certificates. (For versions 10.X and higher you can filter by Expiration.
For versions lower than 10.0, manually identify the certificates or use the RTMT alerts if
received.)
•
The same trust certificate can appear in multiple nodes. It must be deleted individually from
each node.
•
Select the trust certificate to be deleted (dependent on your version, you either get a pop-up or
you navigated to the certificate on same page)
Select Delete. (You get a pop-up that begins with "you are about to permanently delete
this certificate".)
○
Select OK.
○
•
2.
Repeat the process for every trust certificate to be deleted.
3.
Upon Completion, services need to be restarted that are directly related to the certificates deleted. You
do not need to reboot phones in this section. Call Manager and CAPF be endpoint impacting.
Tomcat-trust: restart Tomcat Service via command line (See Tomcat Section).
•
CAPF-trust: restart Cisco Certificate Authority Proxy Function (see CAPF Section). Do not
reboot endpoints.
•
CallManager-trust: CallManager Service/CTIManager (See CallManager Section). Do not
reboot endpoints.
Impacts endpoints and causes restarts.
○
•
IPSEC-trust: DRF Master/DRF Local (See IPSEC Section).
•
TVS (Self-Signed) does not have trust certificates.
•
4.
Restart Services Previously Stopped in Step 1.
5.
Verification
Verification procedure are not available for this configuration.
Page 13
Troubleshoot
Troubleshoot procedures are not available for this configuration.
