Page 1
Cisco Small Business
IP Telephony Devices
Voice System, Voice Gateways, and IP Telephones
PROVISIONING
GUIDE
Page 2
Cisco Small Business IP Telephony Devices Provisioning Guide
2
Contents
About This Document
5
Purpose
5
Document Audience
6
Organization
6
Document Conventions
7
Chapter 1: Deployment and Provisioning
8
Deployment
9
Bulk Distribution
9
Retail Distribution
10
Provisioning Overview
11
NPS
11
TR-069
12
Provisioning States
13
Configuration Access Control
15
Communication Encryption
16
Chapter 2: Creating Provisioning Scripts for Configuration Profile
17
Configuration Profile Formats
18
Element Tags, Attributes, Parameters, and Formatting
19
Open Profile (XML-style) Compression and Encryption
24
Open Profile Compression
24
Open Profile Encryption by using AES
24
Plain-Text Profile Format
26
Plain–Text Syntax
26
Optional Resync Arguments
33
Applying a Profile to the IP Telephony Device
36
Using Provisioning Parameters
37
General Purpose Parameters
37
Enables
38
Triggers
39
Page 3
Cisco Small Business IP Telephony Devices Provisioning Guide
3
Contents
Configurable Schedules
40
Profile Rules
41
Report Rule
43
Upgrade Rule
45
Data Types
46
SPA Profile Compiler
51
Downloading the SPC
51
Generating Sample Configuration Files
52
Compiling Profiles by using SPC
54
Status Messages
56
Chapter 3: In-House Preprovisioning and Provisioning Servers
57
Server Preparation and Software Tools
57
In-House Device Preprovisioning
58
Provisioning Server Setup
59
TFTP Provisioning
59
HTTP Provisioning
60
HTTPS Provisioning
63
Chapter 4: Provisioning Examples
67
Basic Resync
67
TFTP Resync
67
Unique Profiles, Macro Expansion, and HTTP
71
Secure HTTPS Resync
75
Basic HTTPS Resync
75
HTTPS With Client Certificate Authentication
77
HTTPS Client Filtering and Dynamic Content
78
HTTPS Certificates
80
Profile Management
83
Open Profile gzip Compression
83
Profile Encryption by using OpenSSL
84
Partitioned Profiles
85
Page 4
Cisco Small Business IP Telephony Devices Provisioning Guide
4
Contents
Parameter Name Aliases
86
Plain-Text Profile Resync
87
Chapter 5: Provisioning Parameters
89
Configuration Report
89
Deltas Report
90
Digest Authentication Support in Profile and Report Rule
90
Status.xml Report
91
Report Content
91
Configuration Profile Parameters
92
Firmware Upgrade Parameters
98
General Purpose Parameters
99
Digest Authentication Support in Profile and Report Rule
100
Macro Expansion Variables
100
Internal Error Codes
103
Appendix A: Sample Configuration Profiles
105
XML Open Format Sample
105
Plain Text Sample One
119
Plain Text Sample Two
169
Appendix B: Acronyms
183
Appendix C: Where to Go From Here
187
Page 5
Preface
Cisco Small Business IP Telephony Devices Provisioning Guide
5
About This Document
This guide describes the provisioning of the Cisco Small Business Voice over IP
(VoIP) products:
•
Purpose, page 5
•
Document Audience, page 6
•
Organization, page 6
•
Document Conventions, page 7
Purpose
The following Cisco Small Business VoIP products can be remotely provisioned or
preprovisioned by using the information in this document:
Cisco Small Business Analog Telephone Adapters (ATAs):
•
PAP2T
•
SPA2102
•
SPA3102
•
SPA8000
•
WRP400
Cisco Small Business IP phones:
•
SPA301
•
SPA303
•
SPA501
•
SPA502
•
SPA504
•
SPA508
Page 6
Preface
Cisco Small Business IP Telephony Devices Provisioning Guide
6
•
SPA509
•
SPA512
•
SPA514
•
SPA525G/G2
Document Audience
This document is written for service providers who offer services by using the
Cisco Small Business VoIP products and specifically for administrative staff
responsible for remote provisioning and preprovisioning Cisco Small Business
devices.
Organization
This document is divided into the following chapters and appendices.
Chapter
Contents
Chapter 1, “Deployment
and Provisioning”
Introduces Cisco Small Business VoIP products.
Chapter 2, “Creating
Provisioning Scripts for
Configuration Profile”
Describes how to work with Cisco Small Business
provisioning scripts and configuration profiles.
Chapter 3, “In-House
Preprovisioning and
Provisioning Servers”
Describes the features and functionality available
when preprovisioning Cisco Small Business IP
Telephony devices in-house and provisioning them
remotely.
Chapter 4, “Provisioning
Examples”
Step-by-step procedures for using the scripting
language to create a configuration profile.
Chapter 5, “Provisioning
Parameters”
A systematic reference for each parameter on the
Provisioning tab of the administration web server.
Appendix A, “Sample
Configuration Profiles”
A sample profile that you might find helpful.
Appendix B, “Acronyms”
The expansions for the acronyms used in this
document.
Page 7
Preface
Cisco Small Business IP Telephony Devices Provisioning Guide
7
Document Conventions
The following typographic conventions are used in this document.
Appendix C, “Where to
Go From Here”
Links to resources for information and support.
Chapter
Contents
Typographic
Element
Meaning
Boldface
An option on a menu or a literal value to be entered in a
field.
<parameter>
Angle brackets (<>) identify parameters that appear on
the configuration pages of the administration web server.
Italic
A variable that should be replaced with a literal value.
Monospaced
Font
A code sample or system output.
Page 8
1
Cisco Small Business IP Telephony Devices Provisioning Guide
Deployment and Provisioning
Cisco Small Business IP Telephony devices are intended for high-volume
deployments by VoIP service providers to residential and small business
customers. In business or enterprise environments, IP Telephony devices can
serve as terminal nodes. These devices are widely distributed across the Internet,
connected through routers and firewalls at the customer premises.
The IP Telephony device can be used as a remote extension of the service
provider back-end equipment. Remote management and configuration ensures
the proper operation of the IP Telephony device at the customer premises.
This customized, ongoing configuration is supported by the following features:
•
Reliable remote control of the endpoint
•
Encryption of the communication controlling the endpoint
•
Streamlined endpoint account binding
This chapter describes the features and functionality available when provisioning
Cisco Small Business IP Telephony devices and explains the setup required:
•
Deployment, page 9
•
Provisioning Overview, page 11
Page 9
Deployment and Provisioning
Deployment
9
1
Deployment
Cisco Small Business IP Telephony devices provide convenient mechanisms for
provisioning, based on two deployment models:
•
Bulk distribution—The service provider acquires IP Telephony devices in
bulk quantity and either preprovisions them in-house or purchases RC units
from Cisco. The devices are then issued to the customers as part of a VoIP
service contract.
•
Retail distribution—The customer purchases the IP Telephony device from a
retail outlet and requests VoIP service from the service provider. The
service provider must then support the secure remote configuration of the
device.
Bulk Distribution
In this model, the service provider issues IP Telephony devices to its customers as
part of a VoIP service contract. The devices are either RC units or preprovisioned
in-house.
RC units are preprovisioned by Cisco to resynchronize with a Cisco server that
downloads the device profile and firmware updates.
A service provider can preprovision IP Telephony devices with the desired
parameters, including the parameters that control resynchronization, through
various methods: in-house by using DHCP and TFTP; remotely by using TFTP,
HTTP, or HTTPS; or a combination of in-house and remote provisioning.
RC Unit Deployment
RC units eliminate in-house preprovisioning of IP Telephony devices and reduce
the need for the service provider to physically handle the devices prior to shipping
them to end customers. This approach also discourages the use of IP Telephony
devices with an inappropriate service provider.
A RC unit is preprovisioned by Cisco with the connection information for the
provisioning servers. These servers are maintained by Cisco Systems, Inc. for the
service provider that purchased the units. The MAC address of each RC unit is
associated with a customizable profile on the Cisco provisioning servers. When
the RC unit is connected to the broadband link, it contacts the Cisco provisioning
server and downloads its customized profile.
Page 10
Deployment and Provisioning
Deployment
10
1
The service provider works with a Cisco sales engineer to develop a simple
provisioning profile. The profile contains minimal information that redirects the
device to the service provider provisioning server. This profile is placed on the
Cisco RC server by the Cisco Voice Team.
RC Unit Status
The status of an RC unit can be determined by viewing the Info > Product
Information page, Customization section, on the administration web server. An RC
unit that has not been provisioned displays Pending. An RC unit that has been
provisioned displays the name of the company that owns the unit. If the unit is not
an RC unit, the page displays Open.
Below is a sample template for an RC unit to be preprovisioned by Cisco with the
connection information:
Restricted Access Domains "domain.com, domain1.com, domain2.com";
Primary_DNS
- "x.y.w.z";
Secondary_DNS
- "a.b.c.d";
Provision_Enable
- "Yes";
Resync_Periodic
- "30";
Resync_Error_Retry_Delay
- "30";
Profile_Rule
- "http://prov.domain.com/sipura/profile?id=$MA";
The Restricted Access Domains parameter is configured with the actual
domain names of up to a maximum of five domains. The Primary_DNS and
Secondary_DNS parameters are configured with the actual domain names or IP
addresses of the DNS servers available to the RC unit.
Retail Distribution
In a retail distribution model, a customer purchases a Cisco Small Business IP
Telephony device and subscribes to a particular service. The Internet Telephony
Service Provider (ITSP) sets up and maintains a provisioning server, and
preprovisions the phone to resynchronize with the service provider server. See In-
House Device Preprovisioning, page 58 for more information.
The customer signs on to the service and establishes a VoIP account, possibly
through an online portal, and binds the device to the assigned service account.
When the device is powered up or a specified time elapses, the IP Telephony
device resynchronizes, downloading the latest parameters. These parameters can
address goals such as setting up a hunt group, setting speed dial numbers, and
limiting the features that a user can modify.
Page 11
Deployment and Provisioning
Provisioning Overview
11
1
Resynchronization Process
The firmware for each IP Telephony device includes an administration web server
that accepts new configuration parameter values. The IP Telephony device is
instructed to resync with a specified provisioning server through a resync URL
command in the device profile. The URL command typically includes an account
PIN number or alphanumeric code to associate the device with the new account.
For example:
http://192.168.1.102/admin/resync?https://prov.supervoip.com/cisco-init/
1234abcd
In this example, a device at the DHCP-assigned IP address 192.168.1.102 is
instructed to provision itself to the SuperVoIP service at prov.supervoip.com.
The PIN number for the new account is 1234abcd. The remote provisioning server
is configured to associate the IP Telephony device that is performing the resync
request with the new account, based on the URL and PIN.
Through this initial resync operation, the IP Telephony device is configured in a
single step, and is automatically directed to resync thereafter to a permanent URL
on the server.
For both initial and permanent access, the provisioning server relies on the client
certificate for authentication and supplies configuration parameter values based
on the associated service account.
Provisioning Overview
An IP Telephony device can be configured to resynchronize its internal
configuration state to match a remote profile periodically and on power up by
contacting a normal provisioning server (NPS) or an access control server (ACS).
By default, a profile resync is only attempted when the IP Telephony device is idle,
because the upgrade might trigger a software reboot interrupting a call. If
intermediate upgrades are required to reach a current upgrade state from an older
release, the upgrade logic is capable of automating multi-stage upgrades.
NPS
The NPS can be a TFTP, HTTP, or HTTPS server. A remote firmware upgrade is
achieved by using TFTP or HTTP, but not by using HTTPS because the firmware
does not contain sensitive information.
Page 12
Deployment and Provisioning
Provisioning Overview
12
1
Communication with the NPS does not require the use of a secure protocol
because the updated profile can be encrypted by a shared secret key. Secure
first-time provisioning is provided through a mechanism that uses SSL
functionality. An unprovisioned IP Telephony device can receive a 256-bit
symmetric key encrypted profile specifically targeted for that device.
TR-069
The digital subscriber line (DSL) Forum TR-069, CPE WAN Management Protocol
(CWMP), is used for communications between a customer premise equipment
(CPE) device and an auto-configuration server (ACS). The TR-069 Agent manages
a collection of CPE devices, with the primary capability for auto-configuration and
dynamic service provisioning, software image management, status and
performance monitoring, and diagnostics.
It supports multiple scenarios, including:
•
Device administration: Authenticates administrators, authorizes commands,
and provides an audit trail
•
Remote Access: Works with VPN and other remote network access
devices to enforce access policies
•
Network admission control: Communicates with posture and audit servers
to enforce admission control policies
The TR-069 Agent CPE devices must be set up and enabled for TR-069. An ACS
used to communicate with the CPE must be TR-069 compliant in order to enable
the TR-069 Agent.
The schema for TR-069, TR-098, TR-104 and TR-106 dictionaries are located at
BPR_HOME/rdu/templates/cwmp/schema/TemplateDictionarySchema.xsd
Page 13
Deployment and Provisioning
Provisioning Overview
13
1
Provisioning States
The provisioning process involves these provisioning states.
State
Description
MFG-RESET
Manufacturing
Reset
The device returns to a fully unprovisioned state; all
configurable parameters regain their default values.
Manufacturing reset can be performed through the IVR
sequence ****RESET#1#.
On phones that do not support IVR, perform the factory
reset through LCD Setup menu.
Allowing the end user to perform a manufacturing reset
guarantees that the device can always be returned to an
accessible state.
Page 14
Deployment and Provisioning
Provisioning Overview
14
1
SP-CUST
Service Provider
Customization
The Profile_Rule parameter points to a device-specific
configuration profile by using a provisioning server that is
specific to the service provider. The methods for initiating
resynchronization are:
•
Auto-configuration by using a local DHCP server. A
TFTP server name or IPv4 address is specified by
DHCP. The TFTP server includes the Profile_Rule
parameter in the configuration file.
•
Entering a resync URL. The URL starts a web
browser and requests a resync to a specific TFTP
server by entering the URL syntax: http://
x.x.x.x/admin/resync?prvserv/
device.cfg, where:
x.x.x.x is the IP address of the IP Telephony
device,
prvserv is the target TFTP server,
and device.cfg is the name of the configuration
file on the server.
•
Editing the Profile_Rule parameter by opening the
provisioning pane on the web interface and entering
the TFTP URL in the Profile_Rule parameter. For
example, prserv/spa962.cfg.
•
Modifying the configuration file Profile_Rule and to
contact a specific TFTP server and request a
configuration file identified by the MAC-address. For
example, this entry contacts a provisioning server,
requesting a profile unique to the device with a MAC
address identified by the $MA parameter:
Profile_Rule tftp.callme.com/profile/
$MA/spa962.cfg;
State
Description
Page 15
Deployment and Provisioning
Provisioning Overview
15
1
Configuration Access Control
The IP Telephony device firmware provides mechanisms for restricting end-user
access to some parameters. The firmware provides specific privileges for login to
an Admin account or a User account. Each can be independently password
protected.:
•
Admin Account—Allows the service provider full access to all interactive
voice response (IVR) functions and to all administration web server
parameters.
•
User Account—Allows the user to access basic IVR functions and to
configure a subset of the administration web server parameters.
SEC-PRV-1
Secure
Provisioning—
Initial
Configuration
An initial, device-unique CFG file is targeted to a IP
Telephony device by compiling the CFG file with the SPC -
-target option. This provides an encryption that does not
require the exchange of keys.
The initial, device-unique CFG file reconfigures the device
profile to enable stronger encryption by programming a
256-bit encryption key and pointing to a randomly-
generated TFTP directory. For example, the CFG file might
contain:
Profile_Rule [--key $A] tftp.callme.com/profile/$B/
spa962.cfg;
GPP_A 8e4ca259…;
256 bit key
GPP_B Gp3sqLn…;
random CFG file path directory
SEC-PRV-2
Secure
Provisioning—Full
Configuration
Profile resync operations subsequent to the initial SEC-
PRV-1 provisioning retrieve the 256-bit encrypted CFG files
that maintain the IP Telephony device in a state
synchronized to the provisioning server.
The profile parameters are reconfigured and maintained
through this strongly encrypted profile. The encryption key
and random directory location in the SEC-PRV-2
configuration can be changed periodically for extra
security.
State
Description
Page 16
Deployment and Provisioning
Provisioning Overview
16
1
The service provider can restrict the user account in the provisioning profile in the
following ways:
•
Indicate which configuration parameters are available to the User account
when creating the configuration. (Described in “Element Tags” on page 19.)
•
Disable user access to the administration web server.
•
Disable user access for LCD GUI. (Described in Access control for LCD
GUI, page 21.)
•
Disable the factory reset control by using the IVR.
•
Restrict the Internet domains accessed by the device for resync, upgrades,
or SIP registration for Line 1.
Communication Encryption
The configuration parameters communicated to the device can contain
authorization codes or other information that protect the system from unauthorized
access. It is in the service provider’s interest to prevent unauthorized activity by
the customer, and it is in the customer’s interest to prevent the unauthorized use of
the account. The service provider can encrypt the configuration profile
communication between the provisioning server and the device, in addition to
restricting access to the administration web server.
Page 17
2
Creating Provisioning Scripts for
Configuration Profile
IP Telephony devices accept two profile formats, one based on an open,
published syntax, and one based on an unpublished binary definition. The Open
format uses a simple XML-like syntax. The binary format begins as a Plain-text
format file. The SPA Profile Compiler (SPC) converts the Plain-text formatted file to
a binary file.
To use the proprietary Plain-text format, you must convert the files using the SPC
before they can be uploaded to the device. For more information see Plain-Text
Profile Format, page 26.
The examples in this document use configuration profiles with Open format (XML-
style) syntax. Sample profiles can be found in
This chapter describes the provisioning script in the following sections:
•
Configuration Profile Formats, page18
•
Open Profile (XML-style) Compression and Encryption, page 24
•
Plain-Text Profile Format, page 26
•
Using Provisioning Parameters, page 37
•
Using Provisioning Parameters, page 37
•
Data Types, page 46
•
SPA Profile Compiler, page 51
For detailed information about your IP Telephony device, refer to the administration
guide for that device. Each guide describes the parameters that can be configured
through the administration web server.
Page 18
Creating Provisioning Scripts for Configuration Profile
Configuration Profile Formats
18
2
Configuration Profile Formats
The configuration profile defines the parameter values for a specific IP Telephony
device.
The configuration profile can be in one of two formats:
•
Open format uses standard XML authoring tools to compile the parameters
and values. To protect confidential information in the configuration profile,
this type of file is typically delivered from the provisioning server to the IP
Telephony device over a secure channel provided by HTTPS. See Open
Profile (XML-style) Compression and Encryption, page 24.
•
Proprietary Plain-text format uses a proprietary parameter value-pair
design. See Plain-Text Profile Format, page 26.
NOTE Only UTF-8 charset is supported. If you modify the profile in an editor, do not
change the encoding format; otherwise, the IP Telephony device cannot recognize
the file.
Each model of IP Telephony device has a different feature set and therefore a
different set of parameters. You can produce a sample configuration profile by
following the procedure in Generating Sample Configuration Files, page 52.
Open Format (XML-style) Profile
The Open format profile is a text file with XML-like syntax in a hierarchy of
elements, with element attributes and values. This format lets you use standard
tools to create the configuration file. A configuration file in this format can be sent
from the provisioning server to the IP Telephony device during a resync operation
without compiling the file as a binary object.
An example XML profile can be generated by using the SPA Profile Compiler
(SPC). See Generating Sample Configuration Files, page 52 for more
information.
The IP Telephony device can accept configuration formats that are generated by
standard tools. This feature eases the development of back-end provisioning
server software to generate configuration profiles from existing databases.
To protect confidential information contained in the configuration profile, this file is
generally delivered from the provisioning server to the IP Telephony device over a
secure channel provided by HTTPS. Optionally, the file can be compressed by
using the gzip deflate algorithm (RFC1951). In addition, the file can be encrypted
by using 256-bit AES symmetric key encryption.
Page 19
Creating Provisioning Scripts for Configuration Profile
Configuration Profile Formats
19
2
Example: Open Profile Format
<flat-profile>
<Resync_On_Reset> Yes
</Resync_On_Reset>
<Resync_Periodic> 7200
</Resync_Periodic>
<Profile_Rule>
tftp://prov.telco.com:6900/cisco/config/spa504.cfg
</Profile_Rule>
</flat-profile>
The <flat-profile> element tag encloses all parameter elements to be
recognized by the IP Telephony device.
NOTE IP Telephony devices with firmware versions before 2.0.6 do not support Open
format profiles.
Element Tags, Attributes, Parameters, and Formatting
A file can include element tags, attributes, parameters, and formatting features.
Element Tags
The properties of element tags are:
•
The IP Telephony device recognizes elements with proper parameter
names, when encapsulated in the special <flat-profile> element.
•
The <flat-profile> element can be encapsulated within other arbitrary
elements.
•
Element names are enclosed in angle brackets.
•
Most of the element names are similar to the field names in the
administration web pages for the device, with the following modifications:
Element names may not include spaces or special characters. To derive
the element name from the administration web field name, substitute an
underscore for every space or the special characters [, ], (, ), or /.
For example, the Resync On Reset field is represented by the element
<Resync_On_Reset>.
Page 20
Creating Provisioning Scripts for Configuration Profile
Configuration Profile Formats
20
2
Each element name must be unique. In the administration web pages,
the same fields might appear on multiple web pages, such as the Line,
User, and Extension pages. Append [n] to the element name to indicate
the number that is shown in the page tab.
For example, the Dial Plan for Line 1 is represented by the element
<Dial_Plan[1]>
•
Each opening element tag must be matched by a corresponding closing
element tag. For example:
<flat-profile>
<Resync_On_Reset> Yes
</Resync_On_Reset>
<Resync_Periodic> 7200
</Resync_Periodic>
<Profile_Rule>tftp://prov.telco.com: 6900/cisco/config/
spa962.cfg
</Profile_Rule>
</flat-profile>
•
Element tags are case sensitive.
•
Empty element tags are allowed. Enter the opening element tag without a
corresponding element tag, and insert a space and a forward slash before
the less-than symbol. In this example, Profile Rule B is empty:
<Profile_Rule_B />
•
Unrecognized element names are ignored.
•
An empty element tag can be used to prevent the overwriting of any user-
supplied values during a resync operation. In the following example, the
user speed dial settings are unchanged:
<Speed_Dial_2_2_
ua=”rw”/>
<Speed_Dial_3_2_
ua=”rw”/>
<Speed_Dial_4_2_
ua=”rw”/>
<Speed_Dial_5_2_
ua=”rw”/>
<Speed_Dial_6_2_
ua=”rw”/>
<Speed_Dial_7_2_
ua=”rw”/>
<Speed_Dial_8_2_
ua=”rw”/>
Page 21
Creating Provisioning Scripts for Configuration Profile
Configuration Profile Formats
21
2
<Speed_Dial_9_2_
ua=”rw”/>
</flat-profile>
•
An empty value can be used to set the corresponding parameter to an
empty string. Enter an opening and closing element without any value
between them. In the following example, the GPP_A parameter is set to an
empty string.
<flat-profile>
<GPP_A>
</GPP_A>
</flat-profile>
User Access
The user access (ua) attribute controls access by the User account for specific
parameters. If the ua attribute is not specified in an element tag, the factory default
user access is applied for the corresponding parameter applied. Access by the
Admin account is unaffected by this attribute.
The ua attribute, if present, must have one of the following values:
•
na—no access
•
ro—read-only
•
rw—read/write
The ua attribute is illustrated by the following example:
<flat-profile>
<SIP_TOS_DiffServ_Value_1_ ua=”na”/>
<Dial_Plan_1_ ua=”ro”/>
<Dial_Plan_2_ ua=”rw”/>
</flat-profile>
The value of the ua option must be enclosed by double quotes.
Access control for LCD GUI
When the parameter <Phone-UI-User-Mode> is enabled, the phone UI honors the
user access attribute of the relevant parameters when it comes to presenting a
menu item:
For menu entries associated with a single configuration parameter:
Page 22
Creating Provisioning Scripts for Configuration Profile
Configuration Profile Formats
22
2
•
Provisioning the parameter with "ua=na" ("ua" stands for "user access")
attribute makes the entry disappear.
•
Provisioning the parameter with "ua=ro" attribute makes the entry read-only
and non-editable.
For menu entries that are associated with multiple configuration parameters:
•
Provisioning all concerned parameters with "ua=na" attribute makes the
entries disappear.
NOTE For login as normal user or admin from LCD GUI, the default display for all setting
page is "User Mode". After admin login, the mode switches to "Admin Mode", and the
attribute is "ua=xx", where all parameters are ignored.
Parameter Properties
These properties apply to the parameters:
•
Any parameters that are not specified by a profile are left unchanged in the
IP Telephony device.
•
Unrecognized parameters are ignored.
•
The IP Telephony device recognizes arbitrary, configurable aliases for a
limited number of parameter names.
•
If the Open format profile contains multiple occurrences of the same
parameter tag, the last such occurrence overrides any earlier ones. To avoid
inadvertently overriding configuration values for a parameter, it is
recommended that at most one instance of a parameter be specified in any
one profile.
Formatting
These properties apply to the formatting of the strings:
•
Comments are allowed by using standard XML syntax.
<!-- My comment is typed here -->
•
Leading and trailing white space is allowed for readability and will be
removed from the parameter value.
•
New lines within a value are converted to spaces.
•
An XML header of the form <? . . . ?> is allowed, but is ignored by the IP
Telephony device.
Page 23
Creating Provisioning Scripts for Configuration Profile
Configuration Profile Formats
23
2
•
To enter special characters, use basic XML character escapes, as shown in
the following table.
In the following example, character escapes are entered to represent the
greater than and less than symbols that are required in a dial plan rule. This
example defines an information hotline dial plan that sets the Dial_Plan[1]
parameter equal to (S0 <:18005551212>).
<flat-profile>
<Dial_Plan_1_>
(S0 <:18005551212>)
</Dial_Plan_1_>
</flat-profile>
•
Numeric character escapes, using decimal and hexadecimal values (s.a. &
#40; and .), are translated.
•
The firmware does not support the full Unicode character set, but only the
ASCII subset.
Special Character
XML Escape Sequence
& (ampersand)
&
< (less than)
<
(greater than)
>
’ (apostrophe)
'
” (double quote)
"
Page 24
Creating Provisioning Scripts for Configuration Profile
Open Profile (XML-style) Compression and Encryption
24
2
Open Profile (XML-style) Compression and Encryption
The Open configuration profile can be compressed to reduce the network load on
the provisioning server. It also can be encrypted to protect confidential
information. Compression is not required, but it must precede encryption.
Open Profile Compression
The supported compression method is the gzip deflate algorithm (RFC1951). The
gzip utility and the compression library that implements the same algorithm (zlib)
are available from Internet sites.
To identify when compression is applied, the IP Telephony device expects the
compressed file to contain a gzip compatible header, as generated by invoking the
gzip utility on the original Open profile. The IP Telephony device inspects the
downloaded file header to determine the format of the file.
For example, if profile.xml is a valid profile, the file profile.xml.gz is also
accepted. This profile type can be generated with either of the following
commands:
gzip profile.xml
replaces original file with compressed file.
cat profile.xml | gzip > profile.xml.gz
leaves original file in place, produces new compressed file.
A tutorial on compression is provided in Open Profile gzip Compression,
page 83.
Open Profile Encryption by using AES
An Open configuration profile can be encrypted by using symmetric key
encryption, whether or not the file is compressed. The supported encryption
algorithm is the American Encryption Standard (AES), using 256-bit keys, applied
in cipher block chaining mode.
NOTE Compression must precede encryption for the IP Telephony device to recognize a
compressed and encrypted Open format profile. A tutorial on encryption is
provided in Profile Encryption by using OpenSSL, page 84.
Page 25
Creating Provisioning Scripts for Configuration Profile
Open Profile (XML-style) Compression and Encryption
25
2
The OpenSSL encryption tool, available for download from various Internet sites,
can be used to perform the encryption. Support for 256-bit AES encryption might
require recompilation of the tool (to enable the AES code). The firmware has been
tested against version openssl-0.9.7c.
If the file is encrypted, the profile expects the file to have the same format as
generated by the following command:
example encryption key = SecretPhrase1234
openssl enc –e –aes-256-cbc –k SecretPhrase1234 –in profile.xml –out
profile.cfg
analogous invocation for a compressed xml file
openssl enc –e –aes-256-cbc –k SecretPhrase1234 –in profile.xml.gz –out
profile.cfg
A lower case -k precedes the secret key, which can be any plain text phrase and is
used to generate a random 64-bit salt. Then, in combination with the secret
specified with the -k argument, the encryption tool derives a random 128-bit initial
vector, and the actual 256-bit encryption key.
When this form of encryption is used to encrypt a configuration profile, the IP
Telephony device must be informed of the secret key value to decrypt the file. This
value is specified as a qualifier in the profile URL. The syntax is as follows, using an
explicit URL:
[--key “SecretPhrase1234”] http://prov.telco.com/path/profile.cfg
This value is programmed by using one of the Profile_Rule parameters. The key
must be preprovisioned into the unit at an earlier time. This bootstrap of the secret
key can be accomplished securely by using HTTPS.
Preencrypting configuration profiles offline with symmetric key encryption allows
the use of HTTP for resyncing profiles. The provisioning server uses HTTPS to
handle initial provisioning of the IP Telephony device after deployment. This
feature reduces the load on the HTTPS server in large scale deployments.
The final file name does not need to follow a specific format, but it is conventional
to end the name with the .cfg extension to indicate that it is a configuration profile.
Page 26
Creating Provisioning Scripts for Configuration Profile
Plain-Text Profile Format
26
2
Plain-Text Profile Format
The Plain-text format profile uses a proprietary format that can be encrypted to
prevent unauthorized use of confidential information. By convention, the encrypted
profile is named with the extension .cfg (for example, spa962.cfg). The SPC tool is
used to compile the Plain-text format profile into an encrypted CFG file.
The Plain-text format is an alternative to the Open format and is supported by all
firmware releases, and it is the only format recognized by firmware releases prior
to version 2.0.6. An example Plain-text format profile can be generated by using
the SPA Profile Compiler (SPC). See the Generating Sample Configuration Files,
page 52 for more information.
Plain–Text Syntax
The syntax of the Plain-text format profile accepted by SPC is a series of
parameter-value pairs, with the value enclosed in double quotes. Each parameter-
value pair is followed by a semicolon (for example, parameter_name “parameter_
value”;). If no quoted value is specified for a parameter (or if a parameter
specification is missing entirely from the Plain-text format profile) the value of the
parameter remains unchanged in the IP Telephony device.
The syntax also controls the User account access to the parameter in the
administration web server. An optional exclamation point or question mark,
immediately following the parameter name, indicates the parameter should be
read-write (!) or user read-only (?) for the User account.
If neither mark is present, the parameter is made inaccessible to the user from the
web server pages. Note that this syntax has no effect on the Admin account
access to the parameter. If the parameter specification is missing entirely from the
Plain-text format profile, the User account access to the parameter remains
unchanged in the IP Telephony device.
If the Plain-text format profile contains multiple occurrences of the same
parameter-value specification, the last occurrence overrides any earlier ones. To
avoid accidentally overwriting configuration values, it is recommended that a
profile includes no more than one specification for each parameter.
Page 27
Creating Provisioning Scripts for Configuration Profile
Plain-Text Profile Format
27
2
The element names derive from the field names in the administration web pages
for the device, with the following modifications:
•
Element names may not include spaces or special characters. To derive the
element name from the field name, substitute an underscore for spaces or
the following special characters: [ ] ( ) /
For example, the Resync On Reset field is represented by the following
element: <Resync_On_Reset>
•
Each element name must be unique. For fields that are duplicated on multiple
Line, User, or Extension pages, you must append [n] to indicate the line, user,
or extension number.
For example, the Dial Plan for Line 1 is represented by the following
element: <Dial_Plan[1]>
The following additional features can be used:
•
Comments are delimited by a # character, from the character to the end-of-
line.
•
Blank lines can be used for readability.
The following string illustrates the format for each parameter-value pair:
Parameter_name [ ‘?’ | ‘!’ ] [“quoted_parameter_value_string”] ‘;’
Boolean parameter values are asserted by any one of the values {Yes | yes | Enable
| enable | 1}. They are deasserted by any one of the values {No | no | Disable | disable
| 0}.
The following are examples of Plain-text format profile entries:
These parameter names are for illustration only
Feature_Enable
! “Enable” ;
user read-
write, but force the value to Enable
Another_Parameter
? “3600”
;
user read-only
Hidden_Parameter
“abc123” ;
user not-accessible
Some_Entry
!
;
user read-write, leaves value unchanged
Multiple plain text files can be spliced together to generate the source for the final
binary CFG file. This is accomplished by using the import directive at the start of a
new line followed by one or more spaces and the file name to splice into the
stream of parameter-value pairs. File splicing can be nested several files deep.
For example, the file base.txt contains the following:
Param1 “base value 1” ;
Page 28
Creating Provisioning Scripts for Configuration Profile
Plain-Text Profile Format
28
2
Param2 “base value 2” ;
The file spa1234.txt contains the following lines:
import base.txt
Param1 “new value overrides base” ;
Param7 “particular value 7” ;
When compiled, spa1234.cfg becomes:
Param1 “base value 1” ;
Param2 “base value 2” ;
Param1 “new value overrides base” ;
Param7 “particular value 7” ;
Comments
During development and scripting, it is often convenient to temporarily disable a
provisioning parameter by entering a # character at the start of the parameter
value. This effectively comments-out the remaining text in that parameter.
For example, a Profile_Rule with the value “# http://192.168.1.200/
sample.cfg” is equivalent to an empty Profile_Rule. The # character comment-
mechanism applies to the Profile_Rule*, Upgrade_Rule, and Resync_Trigger_*
parameters.
Macro Expansion
Several provisioning parameters undergo macro expansion internally prior to
being evaluated. This preevaluation step provides greater flexibility controlling the
resync and upgrade activities of the IP Telephony device.
The parameter groups which undergo macro expansion before evaluation are as
follows:
•
Resync_Trigger_*
•
Profile_Rule*
•
Log_Resync_*
•
Upgrade_Rule
•
Log_Upgrade_*
Under certain conditions, some general purpose parameters (GPP_*) also
undergo macro expansion, as explicitly indicated in the Optional Resync
Arguments section.
Page 29
Creating Provisioning Scripts for Configuration Profile
Plain-Text Profile Format
29
2
During macro expansion, expressions of the form $NAME and $(NAME) are
replaced by the contents of the named variables. These variables include general
purpose parameters, several product identifiers, certain event timers, and
provisioning state values. For a complete list, see the “Digest Authentication
Support in Profile and Report Rule” section on page 100.
In the following example, the expression $(MAU) is used to insert the MAC address
000E08012345.
The administrator enters: spa$(MAU)config.cfg
The resulting macro expansion for a device with MAC address
000E08012345 is: spa000E08012345config.cfg
If a macro name is not recognized, it remains unexpanded. For example, the name
STRANGE is not recognized as a valid macro name, while MAU is recognized as a
valid macro name.
The administrator enters: spa$STRANGE$MAU.cfg
The resulting macro expansion for a device with MAC address
000E08012345 is: spa$STRANGE000E08012345.cfg
Macro expansion is not applied recursively. For example, $$MAU” expands into
$MAU” (the $$ is expanded), and does not result in the MAC address.
The special purpose parameters (GPP_SA through GPP_SD), whose contents are
mapped to the macro expressions $SA through $SD, are only macro expanded as
the argument of the --key option in a resync URL.
Also, the macro expression can qualify the expansion so that only a substring of
the macro variable is used instead of its full value, such as a portion of the MAC
address.
The syntax for substring macro expansion is $(NAME:p) and $(NAME:p:q), where p
and q are non-negative integers. The resulting expansion results in the macro
variable substring starting at character offset p, and of length q (or till end-of-string
if q is not specified). Refer to the following examples.
The administrator enters: $(MAU:4)
The resulting macro expansion for a device with MAC address
000E08012345 is: 08012345
The administrator enters: $(MAU:8:2)
The resulting macro expansion for a device with MAC address
000E08012345 is: 23
Page 30
Creating Provisioning Scripts for Configuration Profile
Plain-Text Profile Format
30
2
Conditional Expressions
Conditional expressions can trigger resync events and select from alternative
URLs for resync and upgrade operations.
Conditional expressions consist of a list of comparisons, separated by the and
operator. All comparisons must be satisfied for the condition to be true.
Each comparison can relate one of three types of literals:
•
Integer values
•
Software or hardware version numbers
•
Doubled-quoted strings
Note that version numbers take the form of three non-negative integers separated
by periods (major, minor, and build numbers), plus an optional alphanumeric string
in parentheses. No spaces are allowed.
The following are examples of valid version numbers:
1.0.31(b)
1.0.33
2.0.3(G)
2.0.3(0412s)
2.0.6
Quoted strings can be compared for equality or inequality. Integers and version
numbers can also be compared arithmetically. The comparison operators can be
expressed as symbols or as acronyms. Acronyms are particularly convenient
when expressing the condition in an Open format profile.
Operator
Alternate
Syntax
Description
Applicable to
Integer and
Version
Operands
Applicable to
Quoted String
Operands
eq
equal to
Yes
Yes
!=
ne
not equal to
Yes
Yes
<
lt
less than
Yes
No
<=
le
less than or
equal to
Yes
No
Page 31
Creating Provisioning Scripts for Configuration Profile
Plain-Text Profile Format
31
2
For legacy support to firmware versions prior to 2.0.6, the not-equal-to operator
can also be expressed as a single ! character (in place of the two-character !=
string).
Conditional expressions typically involve macro-expanded variables. For example:
$REGTMR1 gt 300 and $PRVTMR gt 1200 and “$EXTIP” ne “”
$SWVER ge 2.0.6 and “$CCERT” eq “Installed”
It is important to enclose macro variables in double quotes where a string literal is
expected. Do not do so where a number or version number is expected.
For legacy support of firmware versions prior to 2.0.6, a relational expression with
no left-hand-side operand assumes $SWVER as the implicit left-hand-side. For
example, ! 1.0.33 is equivalent to: $SWVER != 1.0.33.
When used in the context of the Profile_Rule* and Upgrade_Rule parameters,
conditional expressions must be enclosed within the syntax “(expr)?” as in the
following upgrade rule example:
($SWVER ne 2.0.6)? http://ps.tell.com/sw/spa021024.bin
On the other hand, the syntax above using parentheses should not be used when
configuring the Resync_Trigger_* parameters.
gt
greater than
Yes
No
=
ge
greater than
or equal to
Yes
No
Operator
Alternate
Syntax
Description
Applicable to
Integer and
Version
Operands
Applicable to
Quoted String
Operands
Page 32
Creating Provisioning Scripts for Configuration Profile
Plain-Text Profile Format
32
2
Assignment Expressions
Arbitrary parameters can be pre-assigned values within the context of Profile_
Rule* and Upgrade_Rule parameter. This causes the assignment to be performed
before the profile if retrieved.
The syntax for performing these assignments is a list of individual parameter
assignments, enclosed within parentheses (assignments)!, with each assignment
taking the form:
ParameterXMLName = “Value” ;
Note that the recognized parameter names correspond to the names as for XML-
based profiles.
Any parameter can be assigned a new value in this way, and macro-expansion
applies. For example, the following is a valid assignment expression:
(User_ID_1_ = “uid$B” ; GPP_C = “” ; GPP_D = “$MA” ;)!
For conciseness, the general purpose parameters GPP_A through GPP_P can also
be referred to by the single lowercase letters a through p. The example above is
equivalent to the following:
(User_ID_1_ = “uid$B” ; c = “” ; d = “$MA” ;)!
White space can be used for readability.
URL Syntax
Standard URL syntax is used to specify how to retrieve configuration files and
firmware loads in Profile_Rule* and Upgrade_Rule parameters, respectively. The
syntax is as follows:
[ scheme:// ] [ server [:port]] filepath
Where scheme is one of the following values:
•
tftp
•
http
•
https
Page 33
Creating Provisioning Scripts for Configuration Profile
Plain-Text Profile Format
33
2
If scheme is omitted, tftp is assumed. The server can be a DNS-recognized host
name or a numeric IP address. The port is the destination UDP or TCP port
number. The filepath must begin with the root directory (/); it must be an absolute
path.
If server is missing, then the tftp server specified through DHCP (option 66) is
used.
If port is missing, then the standard port for the specified scheme is used (tftp
uses UDP port 69, http uses TCP port 80, https uses TCP port 443).
A filepath must be present. It need not necessarily refer to a static file, but can
indicate dynamic content obtained through CGI.
Macro expansion applies within URLs. The following are examples of valid URLs:
/$MA.cfg
/cisco/spa021025.bin
192.168.1.130/profiles/init.cfg
tftp://prov.call.com/cpe/cisco$MA.cfg
http://neptune.speak.net:8080/prov/$D/$E.cfg
https://secure.me.com/profile?Linksys
Optional Resync Arguments
The URLs entered in Profile_Rule* parameters can be preceded by optional
arguments, collectively enclosed by square brackets. The options are key, post,
and alias.
key
The key option is used to specify an encryption key. It is required to decrypt
profiles that have been encrypted with an explicit key. The key itself is specified
as a (possibly quoted) string following the term --key.
Some usage examples:
[--key VerySecretValue]
[--key “my secret phrase”]
[--key a37d2fb9055c1d04883a0745eb0917a4]
The bracketed optional arguments are macro expanded. In particular, note that the
special purpose parameters GPP_SA through GPP_SD are only macro expanded
into their macro variables $SA through $SD when used as arguments of the key
option, as in the following examples:
[--key $SC]
Page 34
Creating Provisioning Scripts for Configuration Profile
Plain-Text Profile Format
34
2
[--key “$SD”]
In the case of Open format profiles, the argument to --key must be the same as the
argument to the -k option given to openssl.
In the case of SPC compiled profiles, the argument to --key must be the same as
the argument to either the --ascii-key or the --hex-key options.
post
The post option provides an alternative access method for the http and https
schemes. If left unspecified, the IP Telephony device performs an HTTP GET
operation, when contacting the provisioning server. If post is specified, the device
performs an HTTP POST operation.
The body of the POST is generated from the contents of one of the general
purpose parameters, GPP_A through GPP_P, with macro expansion applied. The
GPP_* parameter to use is indicated by a single lowercase letter (a through p)
given as argument to the term --post.
Using POST provides a convenient alternative to the GET method when arbitrary
state or identifying information needs to be supplied from the IP Telephony device
to the server, as part of periodic resyncs.
For example, GPP_F could contain the following POST body template:
Product = “$PN”; MAC_Addr = “$MA”; Ser_Num = “$SN”; SW_Ver = “$SWVER”;
Then, a URL option uses the POST method to convey the information to the server
in the body of the profile request message (shown here with an accompanying
URL):
[--post f ] http://ps.one.com/cpe/resyncs?
alias
The alias option provides a flexible means of recognizing alternative parameter
names in Open format profiles. This is useful in cases where part of the
configuration profile is obtained from a customer database form that uses different
terminology than expected by the IP Telephony device.
For example, a customer Open format profile specifies the SIP registration
parameters: name, number, auth-secret, enclosed in an XML element hierarchy as
follows:
<CPE>
<SIP-Credentials>
Page 35
Creating Provisioning Scripts for Configuration Profile
Plain-Text Profile Format
35
2
<name>J. Smith</name>
<number>14085551234</number>
<auth-secret>732091751563sfd</auth-secret>
<SIP-Credentials>
</CPE>
To map these three parameters directly to the Display_Name_1_, User_ID_1_, and
Password_1_ parameters (Line 1), enter this mapping in a general purpose
parameter (for example, GPP_M):
/CPE/SIP-Credentials/name = /flat-profile/Display_Name_1_ ;
/CPE/SIP-Credentials/number = /flat-profile/User_ID_1_ ;
/CPE/SIP-Credentials/auth-secret = /flat-profile/Password_1_ ;
Then, request the customer credentials profile with the following URL option
(showing an example URL for completeness):
[--alias m ] http://acct.voipservice.net/credentials/spa$MA.xml
Upon receiving the profile, the IP Telephony device would apply the indicated
translations, assigning J. Smith to Display_Name_1_, 14085551234 to User_ID_1_,
and 732091751563sfd to Password_1_.
The alias option matches only the left-hand-side of an alias as much as specified
by the configured alias map. The element itself can be nested further. GPP_M
could have contained the following:
/SIP-Credentials/name = /flat-profile/Display_Name_1_ ;
/SIP-Credentials/number = /flat-profile/User_ID_1_ ;
/auth-secret = /flat-profile/Password_1_ ;
In general, it is best to specify enough enclosing elements to ensure an
unambiguous translation.
The alias option is designed to recognize a limited number of critical parameters.
Up to 30 parameters can be remapped this way.
Combining Options
Multiple URL options can be combined, by enclosing them within the same set of
square brackets. The following are examples of valid URL option strings:
[--post j --alias k]
[--key “SymmetricSecret” --alias a]
[--key “$SB” --post g]
[--alias a --key abracadabra321 --post c]
Page 36
Creating Provisioning Scripts for Configuration Profile
Applying a Profile to the IP Telephony Device
36
2
Applying a Profile to the IP Telephony Device
After you create an XML configuration script, it must be passed to the IP
Telephony device for application. To apply the configuration, choose one of the
following methods:
TFTP and the Resync URL
Complete the following steps to post the configuration file to a TFTP server
application on your PC.
STEP 1
Connect your PC to the ATA LAN.
STEP 2 Run a TFTP server application on the PC and make sure that the configuration file
is available in the TFTP root directory.
STEP 3 In a web browser, and enter the LAN IP address of the IP Telephony device, the IP
address of the computer, the filename, and the login credentials, in this format:
http://<WAN_IP_Address>/admin/resync?tftp://<PC_IP_Address>/<file_name>&
xuser=admin&xpassword=<password>
Example:
http://192.168.15.1/admin/resync?tftp://192.168.15.100/my_config.xml&xuser=
admin&xpassword=admin
Direct HTTP Post using cURL
Complete the following steps to post the configuration to the IP Telephony device
by using cURL. This command line tool is used to transfer data with a URL syntax.
To download cURL, see:
http://curl.haxx.se/download.html
STEP 1
Connect your PC to the LAN port of the IP Telephony device.
STEP 2 Post the configuration file to the IP Telephony device by entering the following
cURL command:
curl –d @my_config.xml “http://192.168.15.1/admin/config.xml&
xuser=admin&xpassword=admin”
Page 37
Creating Provisioning Scripts for Configuration Profile
Using Provisioning Parameters
37
2
Using Provisioning Parameters
This section describes the provisioning parameters broadly organized according
to function:
•
General Purpose Parameters
•
Enables
•
Triggers
•
Configurable Schedules
•
Profile Rules
•
Report Rule
•
Upgrade Rule
General Purpose Parameters
The general purpose parameters GPP_* are used as free string registers when
configuring the IP Telephony device to interact with a particular provisioning
server solution. The GPP_* parameters are empty by default. They can be
configured to contain diverse values, including the following:
•
Encryption keys
•
URLs
•
Multi-stage provisioning status information
•
Post request templates
•
Parameter name alias maps
•
Partial string values, eventually combined into complete parameter values.
The GPP_* parameters are available for macro expansion within other provisioning
parameters. For this purpose, single-letter upper-case macro names (A through P)
are sufficient to identify the contents of GPP_A through GPP_P. Also, the two-letter
upper-case macro names SA through SD identify GPP_SA through GPP_SD as a
special case when used as arguments of the key URL option.
For example, if GPP_A contains the string ABC, and GPP_B contains 123, the
expression $A$B macro expands into ABC123.
Page 38
Creating Provisioning Scripts for Configuration Profile
Using Provisioning Parameters
38
2
Enables
All profile resync and firmware upgrade operations are controlled by the
Provision_Enable and Upgrade_Enable parameters. These parameters control
resyncs and upgrades independently of each other. These parameters also
control resync and upgrade URL commands issued through the administration
web server. Both of these parameters are set to yes by default.
In addition, the Resync_From_SIP parameter controls requests for resync
operations via a SIP NOTIFY event sent from the service provider proxy server to
the IP Telephony device. If enabled, the proxy can request a resync by sending a
SIP NOTIFY message containing the Event: resync header to the device.
The device challenges the request with a 401 response (authorization refused for
used credentials), and expects an authenticated subsequent request before
honoring the resync request from the proxy. The Event: reboot_now and Event:
restart_now headers perform cold and warm restarts, respectively, are also
challenged.
The two remaining enables are Resync_On_Reset and Resync_After_Upgrade_
Attempt. These determine if the device performs a resync operation after power-
up software reboots and after each upgrade attempt.
When enabling Resync_On_Reset, the device introduces a random delay
following the boot-up sequence before actually performing the reset. The delay is
a random time up to the value specified in Resync_Random_Delay (in seconds). In
a pool of IP Telephony devices, all of which are simultaneously powered up, this
introduces a spread in the times at which each unit initiates a resync request to the
provisioning server. This feature can be useful in a large residential deployment, in
the case of a regional power failures.
Page 39
Creating Provisioning Scripts for Configuration Profile
Using Provisioning Parameters
39
2
Triggers
The IP Telephony device allows you to resync at specific intervals or at a specific
time.
Resyncing at Specific Intervals
The IP Telephony device is designed to resync with the provisioning server
periodically. The resync interval is configured in Resync_Periodic (seconds). If this
value is left empty, the device does not resync periodically.
The resync typically takes place when the voice lines are idle. In case a voice line
is active when a resync is due, the IP Telephony device delays the resync
procedure until the line becomes idle again. However, it waits no longer than
Forced_Resync_Delay (seconds). A resync might cause configuration parameter
values to change. This, in turn, causes a firmware reboot and terminates any voice
connection active at the time of the resync.
If a resync operation fails because the IP Telephony device was unable to retrieve
a profile from the server, if the downloaded file is corrupt, or an internal error
occurs, the device tries to resync again after a time specified in Resync_Error_
Retry_Delay (seconds). If Resync_Error_Retry_Delay is set to 0, the device does
not try to resync again following a failed resync attempt.
When upgrading, if an upgrade fails, a retry is performed after Upgrade_Error_
Retry_Delay seconds.
Two configurable parameters are available to conditionally trigger a resync:
Resync_Trigger_1 and Resync_Trigger_2. Each of these parameters can be
programmed with a conditional expression (which undergoes macro expansion). If
the condition in any of these parameters evaluates to true, a resync operation is
triggered, as though the periodic resync timer had expired.
The following example condition triggers a resync if Line 1 failed to register for
more than 5 minutes (300 seconds), and at least 10 minutes (600 seconds) have
elapsed since the last resync attempt.
$REGTMR1 gt 300 and $PRVTMR ge 600
Page 40
Creating Provisioning Scripts for Configuration Profile
Using Provisioning Parameters
40
2
Resyncing at a Specific Time
The Resync_At parameter allows the phone to resync at a specific time. This
parameter uses the 24-hour format (hhmm) to specify the time.
Another parameter Resync_At_Random_Delay allows the phone to resync at an
unspecified delay in time. This parameter uses a positive integer format to specify
the time.
To avoid simultaneously flooding the server with resync requests from multiple
phones set to resync at the same time, the phone triggers the resync up to 10
minutes after the specified time.
For example, if you set the resync time to 1000 (10 a.m.), the phone triggers the
resync anytime between 10:00 a.m. and 10:10 a.m.
By default, this feature is disabled. If the Resync_At parameter is provisioned, the
Resync_Periodic parameter is ignored.
Configurable Schedules
You can configure schedules for periodic resyncs, and you can specify the retry
intervals for resync and upgrade failures by using these provisioning parameters:
•
Resync_Periodic
•
Resync_Error_Retry_Delay
•
Upgrade_Error_Retry_Delay
Each parameter accepts a single delay value (seconds). The new extended syntax
allows for a comma-separated list of consecutive delay elements. The last
element in the sequence is implicitly repeated forever. Below is an example:
Resync_Periodic=7200
Resync_Error_Retry_Delay=1800,3600,7200,14400
In the above example, the IP Telephony device periodically resyncs every two
hours. In case of a resync failure, the device retries at these intervals: 30 minutes, 1
hour, 2 hours, 4 hours. It continues trying at 4-hour intervals until it successfully
resyncs.
Optionally, you can use a plus sign to specify an additional numeric value that
appends a random extra delay, as shown in this example:
Resync_Periodic=3600+600
Resync_Error_Retry_Delay=1800+300,3600+600,7200+900
Page 41
Creating Provisioning Scripts for Configuration Profile
Using Provisioning Parameters
41
2
In the above example, the device periodically resyncs every hour (plus an
additional random delay of up to 10 minutes). In case of a resync failure, the device
retries at these intervals: 30 minutes (plus up to 5 minutes). 1 hour (plus up to 10
minutes), 2 hours (plus up to 15 minutes). It continues trying at 2-hour intervals
(plus up to 15 minutes) until it successfully resyncs.
Below is another example:
Upgrade_Error_Retry_Delay = 1800,3600,7200,14400+3600
In this example, if a remote upgrade attempt fails, the device retries the upgrade in
30 minutes, then again after one more hour, then in two hours. If it still fails, it
subsequently retries every four to five hours, until it succeeds.
Profile Rules
The IP Telephony device provides multiple remote configuration profile
parameters (Profile_Rule*). This means that each resync operation can retrieve
multiple files, potentially managed by different servers.
In the simplest scenario, the device resyncs periodically to a single profile on a
central server, which updates all pertinent internal parameters. Alternatively, the
profile can be split between different files. One file is common for all the IP
Telephony devices in a deployment, while a separate file is provided that is unique
for each account. Encryption keys and certificate information could be supplied by
still another profile, stored on a separate server.
Whenever a resync operation is due, the IP Telephony device evaluates the four
Profile_Rule* parameters in sequence:
- Profile_Rule
- Profile_Rule_B
- Profile_Rule_C
- Profile_Rule_D
Each evaluation can result in a profile being retrieved from a remote provisioning
server, possibly updating some number of internal parameters. If an evaluation
fails, the resync sequence is interrupted, and is retried again from the beginning
specified by the Resync_Error_Retry_Delay parameter (seconds). If all evaluations
succeed, the device waits for the second specified by the Resync_Periodic
parameter, and then performs a resync again.
Page 42
Creating Provisioning Scripts for Configuration Profile
Using Provisioning Parameters
42
2
The contents of each Profile_Rule* parameter consist of a set of alternatives. The
alternatives are separated by the | (pipe) character. Each alternative consists of a
conditional expression, an assignment expression, a profile URL, and any
associated URL options. All these components are optional within each alternative.
The following are the valid combinations, and the order in which they must appear,
if present:
[ conditional-expr ] [ assignment-expr ] [[ options ] URL ]
Within each Profile_Rule* parameter, all of the alternatives except the last one must
provide a conditional expression. This expression is evaluated and processed as
follows:
- Conditions are evaluated from left to right, until one is found that evaluates as
true (or until one alternative is found with no conditional expression)
- Any accompanying assignment expression is evaluated, if present
- If a URL is specified as part of that alternative, an attempt is made to download
the profile located at the specified URL, and update the internal parameters
accordingly.
If all alternatives have conditional expressions, and none evaluates to true (or if the
whole profile rule is empty), then the entire Profile_Rule* parameter is skipped,
and the next profile rule parameter in the sequence is evaluated.
The following are some examples of valid programming for a single Profile_Rule*
parameter.
The following example resyncs unconditionally to the profile at the specified URL,
performing an HTTP GET request to the remote provisioning server.
http://remote.server.com/cisco/$MA.cfg
In the following example, the device resyncs to two different URLs, depending on
the registration state of Line 1. In case of lost registration, the device performs an
HTTP POST to a CGI script, transmitting the contents of the macro expanded
GPP_A (which may provide additional information on the state of the device).
($REGTMR1 eq 0)? http://p.tel.com/has-reg.cfg
| [--post a] http://p.tel.com/lost-reg?
In the following example, the device resyncs to the same server, but provides
additional information if a certificate is not installed in the unit (for legacy pre-2.0
units).
(“$CCERT” eq “Installed”)? https://p.tel.com/config?
Page 43
Creating Provisioning Scripts for Configuration Profile
Using Provisioning Parameters
43
2
| https://p.tel.com/config?cisco$MAU
In the following example, Line 1 is disabled until GPP_A is set equal to Provisioned
through the first URL. Afterwards, it resyncs to the second URL.
(“$A” ne “Provisioned”)? (Line_Enable_1_ = “No”;)! https://p.tel.com/init-
prov
| https://p.tel.com/configs
In the following example, the profile returned by the server is assumed to contain
XML element tags that need to be remapped to proper parameter names by the
aliases map stored in GPP_B.
[--alias b] https://p.tel.com/account/spa$MA.xml
A resync is typically considered unsuccessful if a requested profile is not received
from the server. This default behavior can be overridden by the parameter
Resync_Fails_On_FNF. If Resync_Fails_On_FNF is set to No, then the device
accepts a file-not-found response from the server as a successful resync. The
default value for Resync_Fails_On_FNF is Yes.
Report Rule
The IP Telephony device provides a mechanism for reporting its current internal
configuration to the provisioning server. This is useful for development and
debugging. The report syntax is similar to the Open format profile. All
provisionable parameters are included, except for the values of passwords, keys,
and the GPP_SA to GPP_SD parameters, which are not shown.
The Report_Rule parameter is evaluated like a profile rule parameter. In other
words, it accepts a URL, optionally qualified with a bracketed expression. The URL
specifies the target destination for the report and an encryption key can be
included as an option.
The URL scheme can be TFTP, HTTP, or HTTPS. When using TFTP, the operation
performed is TFTP put.
For the HTTP and HTTPS Report Method field, the operation performed is HTTP
post or HTTP put.
NOTE The default option is HTTP post.
Page 44
Creating Provisioning Scripts for Configuration Profile
Using Provisioning Parameters
44
2
If an encryption key is specified, the report is encrypted using 256-bit AES in CBC
mode. The encrypted report can be decrypted with the following OpenSSL (or
equivalent) command:
openssl enc –d –aes-256-cbc –k secretphrase –in rep.xml.enc –out rep.xml
The following is an example of the corresponding Report_Rule configuration:
[ --key secretphrase ] http://prov.serv.net/spa/$MA/rep.xml.enc
Once the report rule is configured, an actual report can be generated and
transmitted by sending the device a SIP NOTIFY message, with the Event: report
type. The SIP NOTIFY request is handled like other SIP notifies, with the device
requiring authentication from the requesting server before honoring the request to
issue a report. Each SIP NOTIFY report request generates one attempt to transmit
the report. Retries are not supported.
Deltas Report
In addition to reporting the current internal configuration to the provisioning server,
the Report Rule has an option for triggering the reporting of configuration changes
(deltas) to the server since the last resync, reboot, or upgrade.
The syntax of this option is:
Report Rule: [--delta] URL
Where URL is the path to where the report is stored on the server.
For example, to store delta configuration changes in a file with a name like
SPA504G_<MAC>_<serial#>.xml, do one of the following:
•
On the phone Web GUI, set the Report Rule field on the Configuration
Profile page (Voice tab > Provisioning tab > Configuration Profile) to:
[--delta] http://reportTargetServer/reportPath/$PN_$MA_
$SN.xml
•
Add the following to your provisioning file:
<Report_Rule ua="na">[ --delta ]
http://reportTargetServer/reportPath/$PN_$MA_$SN.xml
</Report_Rule>
Page 45
Creating Provisioning Scripts for Configuration Profile
Using Provisioning Parameters
45
2
Status.xml Report
The Report Rule has an option to report the status.xml data if [--status] is specified
in the report rule. The status report file path should be defined after the [--status]
keyword, separated with a comma. If the [--status] keyword or the status report
file path is missing, the phone will not report the status.xml data.
For example, if the following is configured:
[--status]http://my_http_server/config-525.xml
The phone will report the status file to http://my_http_server/config-525.xml.
If the following is configured:
[--delta]http://my_http_server/config-525.xml; [--status]http://my_http_server/
status-525.xml
The phone will report the delta report to http://my_http_server/config-525.xml
and the status report to http://my_http_server/status-525.xml.
Upgrade Rule
The IP Telephony device provides one configurable remote upgrade parameter,
Upgrade_Rule. This parameter accepts a syntax similar to the profile rule
parameters. URL options not supported for upgrades, but conditional expressions
and assignment expressions can be used. If conditional expressions are used, the
parameter can be populated with multiple alternatives, separated by the |
character. The syntax for each alternative is as follows:
[ conditional-expr ] [ assignment-expr ] URL
As in the case of Profile_Rule* parameters, the Upgrade_Rule parameter evaluates
each alternative until a conditional expression is satisfied or an alternative has no
conditional expression. The accompanying assignment expression is evaluated, if
specified. Then, an upgrade to the specified URL is attempted.
If the Upgrade_Rule contains a URL without a conditional expression, the device
upgrades to the firmware image specified by the URL. Subsequently, it does not
attempt to upgrade again until either the rule itself is modified or the effective
combination of scheme + server + port + filepath is changed, following macro
expansion and evaluation of the rule.
Page 46
Creating Provisioning Scripts for Configuration Profile
Data Types
46
2
In order to attempt a firmware upgrade, the device disables audio at the start of
the procedure, and reboots at the end of the procedure. For this reason, an
upgrade driven by the contents of Upgrade_Rule is only automatically initiated by
the device if any voice line is currently inactive.
For example,
http://p.tel.com/firmware/spa021025.bin
In this example, the Upgrade_Rule upgrades the firmware to the image stored at
the indicated URL. The following is another example:
(“$F” ne “beta-customer”)? http://p.tel.com/firmware/
spa021025.bin
| http://p.tel.com/firmware/spa-test-0527s.bin
This example directs the unit to load one of two images, based on the contents of
a general purpose parameter, GPP_F.
The device can enforce a downgrade limit with respect to firmware revision
number. This can be useful as a customization option. If a valid firmware revision
number is configured in the parameter Downgrade_Rev_Limit, the device rejects
upgrade attempts for firmware versions earlier than the specified limit.
Data Types
The data types used with configuration profile parameters are as follows:
•
Uns<n>—Unsigned n-bit value, where n = 8, 16, or 32. It can be specified in
decimal or hex format such as 12 or 0x18 as long as the value can fit into n
bits.
•
Sig<n>—Signed n-bit value. It can be specified in decimal or hex format.
Negative values must be preceded by a “-“ sign. A + sign before positive
value is optional.
•
Str<n>—A generic string with up to n non-reserved characters.
•
Float<n>—A floating point value with up to n decimal places.
•
Time<n>—Time duration in seconds, with up to n decimal places. Extra
decimal places specified are ignored.
Page 47
Creating Provisioning Scripts for Configuration Profile
Data Types
47
2
•
PwrLevel—Power level expressed in dBm with 1 decimal place, such as –
13.5 or 1.5 (dBm).
•
Bool—Boolean value of either “yes” or “no.”
•
{a,b,c,…}—A choice among a, b, c, …
•
IP—IP Address in the form of x.x.x.x, where x between 0 and 255. For
example 10.1.2.100.
•
Port—TCP/UDP Port number (0-65535). It can be specified in decimal of
hex format.
•
UserID—User ID as appeared in a URL; up to 63 characters.
•
FQDN—Fully Qualified Domain Name, such as “sip.Cisco.com:5060”, or
“109.12.14.12:12345”. It can contain up to 63 characters.
•
Phone—A phone number string, such as 14081234567, 69, 72, 345678, or
a generic URL such as 1234@10.10.10.100:5068, or jsmith@Cisco.com. It can
contain up to 39 characters.
•
ActCode—Activation code for a supplementary service, such as 69. It can
contain up to 7 characters.
•
PhTmplt—A phone number template. Each template may contain one or
more patterns separated by a “,”. White space at the beginning of each
pattern is ignored. “?” and “” represent wildcard characters. To represent
literally use %xx. For example, %2a represents . It can contain up to 39
characters. Examples: “1408, 1510”, “1408123????, 555?1.”.
•
RscTmplt—A template of SIP Response Status Code, such as “404, 5”,
“61?”, “407, 408, 487, 481”. It can contain up to 39 characters.
•
CadScript—A mini-script that specifies the cadence parameters of a signal.
Up to 127 characters. Syntax: S1[;S2], where: Si=Di(oni,1/offi,1[,oni,2/
offi,2[,oni,3/offi,3[,oni,4/offi,4[,oni,5/offi,5[,oni,6/offi,6]]]]]) and is known as a
section, oni,j and offi,j are the on/off duration in seconds of a segment and i =
1 or 2, and j = 1 to 6. Di is the total duration of the section in seconds. All
durations can have up to three decimal places to provide 1 ms resolution.
The wildcard character “*” stands for infinite duration. The segments within
a section are played in order and repeated until the total duration is played.
Example 1:
60(2/4)
Page 48
Creating Provisioning Scripts for Configuration Profile
Data Types
48
2
Number of Cadence Sections = 1
Cadence Section 1: Section Length = 60 s
Number of Segments = 1
Segment 1: On=2s, Off=4s
Total Ring Length = 60s
Example 2—Distinctive ring (short,short,short,long):
60(.2/.2,.2/.2,.2/.2,1/4)
Number of Cadence Sections = 1
Cadence Section 1: Section Length = 60s
Number of Segments = 4
Segment 1: On=0.2s, Off=0.2s
Segment 2: On=0.2s, Off=0.2s
Segment 3: On=0.2s, Off=0.2s
Segment 4: On=1.0s, Off=4.0s
Total Ring Length = 60s
•
FreqScript—A mini-script that specifics the frequency and level
parameters of a tone. Up to 127 characters. Syntax:
F1@L1[,F2@L2[,F3@L3[,F4@L4[,F5@L5[,F6@L6]]]]], where F1–F6 are frequency in
Hz (unsigned integers only) and L1–L6 are corresponding levels in dBm (with
up to 1 decimal places). White spaces before and after the comma are
allowed (but not recommended).
Example 1—Call Waiting Tone:
440@-10
Number of Frequencies = 1
Frequency 2 = 440 Hz at –10 dBm
Page 49
Creating Provisioning Scripts for Configuration Profile
Data Types
49
2
Example 2—Dial Tone:
350@-19,440@-19
Number of Frequencies = 2
Frequency 1 = 350 Hz at –19 dBm
Frequency 2 = 440 Hz at –19 dBm
•
ToneScript—A mini-script that specifies the frequency, level and cadence
parameters of a call progress tone. May contain up to 127 characters.
Syntax: FreqScript;Z1[;Z2]. The section Z1 is similar to the S1 section in a
CadScript except that each on/off segment is followed by a frequency
components parameter: Z1 = D1(oni,1/offi,1/fi,1[,oni,2/offi,2/fi,2 [,oni,3/offi,3/fi,3
[,oni,4/offi,4/fi,4 [,oni,5/offi,5/fi,5 [,oni,6/offi,6/fi,6]]]]]), where fi,j =
n1[+n2]+n3[+n4[+n5[+n6]]]]] and 1 < nk < 6 indicates which of the frequency
components given in the FreqScript are used in that segment; if more than
one frequency component is used in a segment, the components are
summed together.
Example 1—Dial tone:
350@-19,440@-19;10(/0/1+2)
Number of Frequencies = 2
Frequency 1 = 350 Hz at –19 dBm
Frequency 2 = 440 Hz at –19 dBm
Number of Cadence Sections = 1
Cadence Section 1: Section Length = 10 s
Number of Segments = 1
Segment 1: On=forever, with Frequencies 1 and 2
Total Tone Length = 10s
Example 2—Stutter tone:
350@-19,440@-19;2(.1/.1/1+2);10(/0/1+2)
Page 50
Creating Provisioning Scripts for Configuration Profile
Data Types
50
2
Number of Frequencies = 2
Frequency 1 = 350 Hz at –19 dBm
Frequency 2 = 440 Hz at –19 dBm
Number of Cadence Sections = 2
Cadence Section 1: Section Length = 2s
Number of Segments = 1
Segment 1: On=0.1s, Off=0.1s with Frequencies 1 and 2
Cadence Section 2: Section Length = 10s
Number of Segments = 1
Segment 1: On=forever, with Frequencies 1 and 2
Total Tone Length = 12s
Example 3—SIT tone:
985@-16,1428@-16,1777@-16;20(.380/0/1,.380/0/2,.380/0/
3,0/4/0)
Number of Frequencies = 3
Frequency 1 = 985 Hz at –16 dBm
Frequency 2 = 1428 Hz at –16 dBm
Frequency 3 = 1777 Hz at –16 dBm
Number of Cadence Sections = 1
Cadence Section 1: Section Length = 20s
Number of Segments = 4
Segment 1: On=0.38s, Off=0s, with Frequency 1
Segment 2: On=0.38s, Off=0s, with Frequency 2
Segment 3: On=0.38s, Off=0s, with Frequency 3
Segment 4: On=0s, Off=4s, with no frequency components
Total Tone Length = 20s
•
ProvisioningRuleSyntax—Scripting syntax used to define configuration
resync and firmware upgrade rules.
•
DialPlanScript—Scripting syntax used to specify Line 1 and Line 2 dial
plans.
Page 51
Creating Provisioning Scripts for Configuration Profile
SPA Profile Compiler
51
2
NOTE
•
<Par Name> represents a configuration parameter name. In a profile, the
corresponding tag is formed by replacing the space with an underscore “_”,
such as Par_Name.
•
An empty default value field implies an empty string < “” >.
•
The IP Telephony device continues to use the last configured values for tags
that are not present in a given profile.
•
Templates are compared in the order given. The first, not the closest, match
is selected. The parameter name must match exactly.
•
If more than one definition for a parameter is given in a profile, the last such
definition in the file is the one that takes effect in the IP Telephony device.
•
A parameter specification with an empty parameter value forces the
parameter back to its default value. To specify an empty string instead, use
the empty string "" as the parameter value.
SPA Profile Compiler
The SPA Profile Compiler (SPC) is available from Cisco for the Win32 environment
and Linux-i386-elf environment. For the OpenBSD environment, the SPC is made
available on a case-by-case basis. Contact Cisco for more information.
The SPC can:
•
Generate a sample Plain-text format or Open format profile. (See Generating
Sample Configuration Files, page 52.)
•
Compile a Plain-text format profile containing parameter-value pairs into a
binary, encrypted CFG file.
Downloading the SPC
The SPC is specific to the device and to the firmware release. It might be
necessary to download multiple versions of the SPC to create configuration
profiles for different model devices. To download a SPC, do the following:
STEP 3 Go to Cisco.com.
Page 52
Creating Provisioning Scripts for Configuration Profile
SPA Profile Compiler
52
2
STEP 4 Enter the device model number in the search box, and click Go.
STEP 5 In the Filter Results By list on the left side of the Search Results page, find the
Task, and click Download Software. The page refreshes.
STEP 6 Click the Download Software... link for the device (usually one of the first entries
in the filtered list). The Download Software... page appears. (If the Select A
Product page appear, select the desired device and continue.)
STEP 7 Choose Profile Compiler (SPC) Tool in the Select Software Type section.
STEP 8 Click Download Now to choose the latest release of the firmware.
STEP 9 Follow the instructions on the screen to complete the download process.
NOTE In the examples in this section, the SPC executable name is represented by spc.
Generating Sample Configuration Files
SPC can be used to generate sample configuration source files for both Plain-text
format and Open format. The features controlled through the configuration files
corresponds to the IP Telephony device model and firmware release. Before
generating a sample file, verify that you are using the correct SPC for your device
and firmware version.
Syntax (Windows)
spcexecuteable --sample-profile outputfile.name
spcexecuteable --sample-xml outputfile.name
Page 53
Creating Provisioning Scripts for Configuration Profile
SPA Profile Compiler
53
2
Where:
Usage Guidelines
IP Telephony devices with firmware versions before 2.0.6 do not support Open
format profiles.
Example Commands
To generate a sample plain text configuration profile to be used as source file for a
SPA525G in a Windows environment:
C:\SPC>spa525g-sccp-7-4-9-spc-win32-i386 --sample-profile
plaintext.txt
Displays the message: spc: generated SPA525G-SCCP sample
configuration plaintext.txt
And produces the output file plaintext.txt.
To generate an Open format profile to be used as source file for a SPA525G
running firmware version 2.0.6 or above in a Windows environment:
C:\SPC>spa525g-sccp-7-4-9-spc-win32-i386 --sample-xml xml.txt
Displays the message: spc: generated SPA525G-SCCP sample
configuration xml.txt
And produces the output file xml.txt.
Parameter
Description
spcexecuteable
SPC executable for the device. For example, the
executable for a SPA525G firmware version 7.4.9 in a
Windows environment is
spa525g-sccp-7-4-9-spc-win32-i386.
--sample-profile
--sample-xml
Flag to indicate the file type. The --sample-profile
flag outputs a profile in Plain-text format. The
--sample-xml flag outputs a profile in Open format.
outputfile.name
File name of the output profile.
Page 54
Creating Provisioning Scripts for Configuration Profile
SPA Profile Compiler
54
2
Compiling Profiles by using SPC
SPC can use different types of encryption to generate configuration files or none
at all.
•
Generic files are binary, non-targeted, and without an explicit key. A
scramble option can be used to encrypt a generic file with a randomizing
argument.
•
Targeted files are encrypted without an explicit key. The SPC uses the MAC
address of the target IP Telephony device to encrypt the file, and only that
device can decode it.
•
Explicit files are key-based and use AES or RC4 encryption to create the
CFG file.
Any combination of scrambling, targeting, or explicit-key encrypting can be
applied to a configuration file.
Syntax
spcexecuteable --scramble inputfile.txt outputfile.cfg
spcexecuteable --target inputfile.txt outputfile.cfg
spcexecuteable --rc4 inputfile.txt outputfile.cfg
spcexecuteable --aes inputfile.txt outputfile.cfg
Where:
Parameter
Description
spcexecuteable
SPC executable for the device. For example, the
executable for a SPA525G firmware version 7.4.9 in a
Windows environment is
spa525g-sccp-7-4-9-spc-win32-i386.
--scramble
--target
--rc4
--aes
Flag to indicate the profile type. The subsections in this
section describe these profile types.
inputfile.txt
File name of the input profile.
outputfile.cfg
File name of the output profile.
Page 55
Creating Provisioning Scripts for Configuration Profile
SPA Profile Compiler
55
2
Generic Profile and the Scramble Option
A generic, non-targeted profile is accepted as valid by any IP Telephony device
that resyncs to it. The following example command generates a generic CFG file:
spcexecutable spa962.txt spa962.cfg
Where spc is the executable. The Plain-text format input file is spa962.txt. The
binary output is spa962.cfg.
The --scramble option performs encryption that does not require the explicit
transmission of a key to the target device. It does require one randomizing
argument. For example,
spcexecutable --scramble SecretPhrase spa962.txt spa962.cfg
Where spc is the executable. The encryption is indicated by the --scramble
option. A randomizing argument is represented by the SecretPhrase. The Plain-
text format input file is spa962.txt. The binary output is spa962.cfg.
Targeted Profile
The --target option encrypts the profile without the need to explicitly transmit a
key, but only the target IP Telephony device can decode it. Targeted CFG files
provide a basic level of security. This command uses the MAC address of the
target device as an argument:
spcexecutable --target 000e08aabbcc spa962.txt spa962.cfg
Where spc is the executable. The encryption is indicated by the --target
option. The MAC address argument is the MAC address 000e08aabbcc. The
Plain-text format input file is spa962.txt. The binary output is spa962.cfg.
This example, only the IP Telephony device with the MAC address 000e08aabbcc
is able to decrypt and resynch to the spa962.cfg profile. If any other IP Telephony
device attempts to resync to this file, the device rejects the file as unreadable.
Explicit Key
Explicit key-based encryption requires that the key used to encrypt the file be
preprovisioned in the target device, so that the file can be decoded.
Two algorithms are available for this type of encryption:
•
RC4 (--rc4)
•
AES (--aes)
Page 56
Creating Provisioning Scripts for Configuration Profile
SPA Profile Compiler
56
2
The key can be specified either explicitly as a hexadecimal digit sequence (--hex-
key) or by hashing a secret phrase (--ascii-key). With the --hex-key option, the
key can be up to 256 bits in length. With the --ascii-key option, the generated key
is 128 bits.
The following example commands illustrate explicit key-based encryption:
spcexecutable –-rc4 –-ascii-key apple4sale spa962.txt spa962.cfg
spcexecutable –-aes –-ascii-key lucky777 spa962.txt spa962.cfg
spcexecutable –-aes –-ascii-key “my secret phrase” spa962.txt spa962.cfg
spcexecutable –-aes –-hex-key 8d23fe7...a5c29 spa962.txt spa962.cfg
Where spc is the executable. The encryption is indicated by the --rc4 or the
--aes option. Which key type, –-ascii-key or –-hex-key. An argument in the
form of an ASCII string or hexadecimal digits. The Plain-text format input file is
spa962.txt. The binary output is spa962.cfg.
Status Messages
After each compilation, SPC prints a final status message. Syntax error messages
are also printed if a compilation is not successful.
The status and error messages can be suppressed by using the --quiet command
line option:
spcexecutable –-quiet filename.txt filename.cfg
Messages can be redirected to a file by using the --log file_name option:
spcexecutable –-log prov.log filename.txt filename.cfg
When the messages are redirected, the SPC command is also printed in the log
file, preceded by a timestamp.
Page 57
3
In-House Preprovisioning and Provisioning
Servers
Cisco Small Business IP Telephony devices, other than RC units, are
preprovisioned by the service provider with a profile. That pre-provision profile
can range from a a limited set of parameters that resynchronizes the IP Telephony
device to another profile with a complete set of parameters delivered by remote
server. Or, it can be a complete set of parameters. By default, the IP Telephony
device resynchronizes on power up and at intervals configured in the profile.
When the user connects the IP Telephony device at the customer premises, the
device downloads the updated profile and any firmware updates.
This process of preprovisioning, deployment, and remote provisioning can be
accomplished many ways. This chapter describes the features and functionality
available when preprovisioning Cisco Small Business IP Telephony devices
in-house and provisioning them remotely:
•
Server Preparation and Software Tools, page 57
•
In-House Device Preprovisioning, page 58
•
Provisioning Server Setup, page 59
Server Preparation and Software Tools
The examples presented in this chapter require the availability of one or more
servers. These servers can be installed and run on a local PC:
•
TFTP (UDP port 69)
•
syslog (UDP port 514)
•
HTTP (TCP port 80)
•
HTTPS (TCP port 443).
Page 58
In-House Preprovisioning and Provisioning Servers
In-House Device Preprovisioning
58
3
To troubleshoot server configuration, it is helpful to install clients for each type of
server on a separate server machine. This establishes proper server operation,
independent of the interaction with Cisco Small Business IP Telephony devices.
Cisco also recommends the installation of the following software tools:
•
To generate configuration profiles, it is useful to install the open source gzip
compression utility.
•
For profile encryption and HTTPS operations, install the open source
OpenSSL software package.
•
To test the dynamic generation of profiles and one-step remote provisioning
using HTTPS, a scripting language with CGI scripting support, such as open
source Perl language tools, is recommended.
•
To verify secure exchanges between provisioning servers and Cisco Small
Business IP Telephony devices, install an Ethernet packet sniffer (such as
the freely downloadable Ethereal/Wireshark). Capture an Ethernet packet
trace of the interaction between the IP Telephony device and the
provisioning server by running the packet sniffer on a PC that is connected
to a switch with port mirroring enabled. For HTTPS transactions, you can
use the ssldump utility.
In-House Device Preprovisioning
With the Cisco factory default configuration, an IP Telephony device automatically
tries to resync to a profile on a TFTP server. The information regarding the profile
and TFTP server configured for preprovisioning is delivered to the device by a
managed DHCP server on a LAN. The service provider connects each new IP
Telephony device that LAN and the IP Telephony device automatically resyncs to
the local TFTP server, initializing its internal state in preparation for deployment.
This preprovisioning profile typically includes the URL of a remote provisioning
server that will keep the device updated after it is deployed and connected to the
customer network.
The preprovisioned device barcode can be scanned to record its MAC address or
serial number before the IP Telephony device is shipped to the customer. This
information can be used to create the profile to which the IP Telephony device will
resynchronize.
Page 59
In-House Preprovisioning and Provisioning Servers
Provisioning Server Setup
59
3
Upon receiving the IP Telephony device, the customer connects it to the
broadband link. On power-up the IP Telephony device contacts the provisioning
server through the URL configured through preprovisioning to for its resync and
updates the profile and firmware as necessary.
Provisioning Server Setup
This section describes setup requirements for provisioning an IP Telephony
device by using various servers and different scenarios. For testing purposes and
for the purposes of this document, provisioning servers are installed and run on a
local PC. Also, generally available software tools are useful for provisioning Cisco
Small Business IP Telephony devices.
TFTP Provisioning
Cisco Small Business IP Telephony devices support TFTP for both provisioning
resync and firmware upgrade operations. When devices are deployed remotely,
HTTP is recommended for provisioning as it offers greater reliability, given NAT
and router protection mechanisms. TFTP is useful for the in-house preprovisioning
of a large number of un-provisioned devices. See In-House Device
Preprovisioning, page 58 for more information.
The IP Telephony device is able to obtain a TFTP server IP address directly from
the DHCP server through DHCP option 66. If a Profile_Rule is configured with the
filepath of that TFTP server, the device downloads its profile from the TFTP server
when it is connected to a LAN and powered up.
The Profile_Rule provided with the factory default configuration is /device.cfg. For
example, on a SPA962 the filename is spa962.cfg. If the device has the factory
default profile, when powered up it resyncs to this file on the local TFTP server
specified by DHCP option 66. (The filepath is relative to the TFTP server virtual
root directory.)
Remote Endpoint Control and NAT
The IP Telephony device accesses the Internet through a router by using network
address translation (NAT). For enhanced security, the router might attempt to block
unauthorized incoming packets by implementing symmetric NAT (a packet filtering
strategy that severely restricts the packets that are allowed to enter the protected
network from the Internet). For this reason, remote provisioning by using TFTP is
not recommended.
Page 60
In-House Preprovisioning and Provisioning Servers
Provisioning Server Setup
60
3
Voice over IP can co-exist with NAT only when some form of NAT traversal is
provided. Configure Simple Traversal of UDP through NAT (STUN). This option
requires that the user have (1) a dynamic external (public) IP address from your
service, (2) a computer running STUN server software, and (3) an edge device
with an asymmetric NAT mechanism.
HTTP Provisioning
The IP Telephony device behaves like a browser requesting web pages from a
remote Internet site. This provides a reliable means of reaching the provisioning
server, even when a customer router implements symmetric NAT or other
protection mechanisms. HTTP and HTTPS work more reliably than TFTP in remote
deployments, especially when the deployed units are connected behind
residential firewalls or NAT-enabled routers.
Basic HTTP-based provisioning relies on the HTTP GET method for retrieving
configuration profiles. Typically, a configuration file is created for each deployed IP
Telephony device, and these files are stored within a HTTP server directory. When
the server receives the GET request, it simply returns the file specified in the GET
request header.
Alternatively, the requested URL can invoke a CGI script (using the GET method).
The configuration profile is generated dynamically by querying a customer
database and producing the profile on-the-fly.
When CGI handles resync requests, the IP Telephony device can use the HTTP
POST method to request the resync configuration data. The device can be
configured to convey certain status and identification information to the server
within the body of the HTTP POST request. The server uses this information to
generate a desired response configuration profile, or store the status information
for later analysis and tracking.
As part of both GET and POST requests, the IP Telephony device automatically
includes basic identifying information in the request header, in the User-Agent
field. This information conveys the manufacturer, product name, current firmware
version, and product serial number of the device.
For example, the following example is the User-Agent request field from a SPA962:
User-Agent: cisco/SPA-962-2.0.5 (88012BA01234)
Page 61
In-House Preprovisioning and Provisioning Servers
Provisioning Server Setup
61
3
When the IP Telephony device is configured to resync to a configuration profile by
using HTTP, it is recommended that the profile be encrypted to protect
confidential information. The IP Telephony device supports 256-bit AES in CBC
mode to decrypt profiles. Encrypted profiles downloaded by the IP Telephony
device by using HTTP avoid the danger of exposing confidential information
contained in the configuration profile. This resync mode produces a lower
computational load on the provisioning server when compared to using HTTPS.
NOTE Cisco SPA IP phones support HTTP Version 1.0, HTTP Version1.1, and Chunk
Encoding when HTTP Version 1.1 is the negotiated transport protocol.
HTTP Status Code Handling on Resync and Upgrade
The phone supports improved HTTP response for remote provisioning (Resync).
Current phone behavior is categorized in 3 ways:
•
A—Success, where the subsequent requests are determined by "Resync
Periodic" and "Resync Random Delay" values.
•
B—Failure when File Not Found or corrupt profile. Subsequent requests are
determined by "Resync Error Retry Delay" value.
•
C—Other failure when there is a connection error caused by bad URL or IP
address. Subsequent requests are determined by "Resync Error Retry
Delay" value. When the request times out:
•
SPA 50X phone retries (a maximum of 3 retries) immediately and then the
phone makes subsequent requests.
•
SPA525G phone makes subsequent requests based on “Error Retry
Delay.”
Table1
Phone Behavior for HTTP Responses
HTTP Status
Code
Description
Phone Behavior
301 Moved
Permanently
This and future requests
should be directed to a new
location.
Retry request immediately
with new location.
302 Found
Known as Temporarily
Moved.
Retry request immediately
with new location.
3xx
Other 3xx responses not
processed.
C
Page 62
In-House Preprovisioning and Provisioning Servers
Provisioning Server Setup
62
3
400 Bad
Request
The request cannot be
fulfilled due to bad syntax.
C
401
Unauthorized
Basic or digest access
authentication challenge.
Immediate retry request with
authentication credentials.
Maximum 2 retries. Upon
failure, the phone behavior is
C.
403 Forbidden
Server refuses to respond.
C
404 Not Found
Requested resource not
found. Subsequent
requests by client are
permissible.
B
407 Proxy
Authentication
Required
Basic or digest access
authentication challenge.
Immediate retry request with
authentication credentials.
Maximum 2 retries. Upon
failure, the phone behavior is
C.
4xx
Other client error status
codes are not processed.
C
500 Internal
Server Error
Generic error message.
SPA50X behavior is C.
SPA525G behavior is B.
501 Not
Implemented
The server does not
recognize the request
method, or it lacks the
ability to fulfill the request.
SPA50X behavior is C.
SPA525G behavior is B.
502 Bad
Gateway
The server is acting as a
gateway or proxy and
receives an invalid
response from the
upstream server.
SPA50X behavior is C.
SPA525G behavior is B.
Table1
Phone Behavior for HTTP Responses
HTTP Status
Code
Description
Phone Behavior
Page 63
In-House Preprovisioning and Provisioning Servers
Provisioning Server Setup
63
3
HTTPS Provisioning
For increased security managing remotely deployed units, the IP Telephony
device supports HTTPS for provisioning. Each IP Telephony device carries a
unique SLL Client Certificate (and associated private key), in addition to a Sipura
CA server root certificate. The latter allows the IP Telephony device to recognize
authorized provisioning servers, and reject non-authorized servers. On the other
hand, the client certificate allows the provisioning server to identify the individual
device that issues the request.
For a service provider to manage deployment by using HTTPS, a server certificate
must be generated for each provisioning server to which an IP Telephony device
resyncs by using HTTPS. The server certificate must be signed by the Cisco
Server CA Root Key, whose certificate is carried by all deployed units. To obtain a
signed server certificate, the service provider must forward a certificate signing
request to Cisco, which signs and returns the server certificate for installation on
the provisioning server.
The provisioning server certificate must contain the Common Name (CN) field, and
the FQDN of the host running the server in the subject. It might optionally contain
information following the host FQDN, separated by a slash (/) character. The
following examples are of CN entries that are accepted as valid by the IP
Telephony device:
CN=sprov.callme.com
CN=pv.telco.net/mailto:admin@telco.net
CN=prof.voice.com/info@voice.com
503 Service
Unavailable
The server is currently
unavailable (overloaded or
down for maintenance). This
is a temporary state.
SPA50X behavior is C.
SPA525G behavior is B.
504 Gateway
Timeout
The server behaves as a
gateway or proxy and does
not receive timely response
from the upstream server.
C
5xx
Other server error
C
Table1
Phone Behavior for HTTP Responses
HTTP Status
Code
Description
Phone Behavior
Page 64
In-House Preprovisioning and Provisioning Servers
Provisioning Server Setup
64
3
In addition to verifying the server certificate, the IP Telephony device tests the
server IP address against a DNS lookup of the server name specified in the server
certificate.
A certificate signing request can be generated by using the OpenSSL utility. The
following example shows the openssl command that produces a 1024-bit RSA
public/private key pair and a certificate signing request:
openssl req –new –out provserver.csr
This command generates the server private key in privkey.pem and a
corresponding certificate signing request in provserver.csr. The service provider
keeps the privkey.pem secret and submits provserver.csr to Cisco for signing.
Upon receiving the provserver.csr file Cisco generates provserver.crt, the signed
server certificate.
Cisco also provides a Sipura CA Client Root Certificate to the service provider.
This root certificate certifies the authenticity of the client certificate carried by
each IP Telephony device. Cisco SPA IP phones also support third-party signed
certificates, such as those provided by Verisign, Cybertrust, and so forth.
The unique client certificate offered by each device during an HTTPS session
carries identifying information embedded in its subject field. This information can
be made available by the HTTPS server to a CGI script invoked to handle secure
requests. In particular, the certificate subject indicates the unit product name (OU
element), MAC address (S element), and serial number (L element). The following
example from a SPA962 client certificate subject field shows these elements:
OU=SPA-962, L=88012BA01234, S=000e08abcdef
Units manufactured before firmware 2.0.x do not contain individual SSL client
certificates. When these units are upgraded to a firmware release in the 2.0.x tree,
they become capable of connecting to a secure server using HTTPS, but are only
able to supply a generic client certificate if requested to do so by the server. This
generic certificate contains the following information in the identifying fields:
OU=cisco.com, L=ciscogeneric, S=ciscogeneric
To determine if an IP Telephony device carries an individualized certificate, use the
$CCERT provisioning macro variable. The variable value expands to either
Installed or Not Installed, according to the presence or absence of a unique client
certificate. In the case of a generic certificate, it is possible to obtain the serial
number of the unit from the HTTP request header in the User-Agent field.
Page 65
In-House Preprovisioning and Provisioning Servers
Provisioning Server Setup
65
3
HTTPS servers can be configured to request SSL certificates from connecting
clients. If enabled, the server can verify the client certificate by using the Sipura
CA Client Root Certificate supplied by Cisco. It can then provide the certificate
information to a CGI for further processing.
The location for storing certificates might vary. For example, on an Apache
installation the file paths for storing the provisioning server–signed certificate, its
associated private key, and the Sipura CA client root certificate are as follows:
Server Certificate:
SSLCertificateFile /etc/httpd/conf/provserver.crt
Server Private Key:
SSLCertificateKeyFile /etc/httpd/conf/provserver.key
Certificate Authority (CA):
SSLCACertificateFile /etc/httpd/conf/spacroot.crt
Refer to the documentation provided for a HTTPS server for specific information.
Firmware release 2.0.6 and higher supports the following cipher suites for SSL
connection to a server by using HTTPS.
Table 2
Cipher Suites Supported for Connecting to an HTTPS Server
Numeric Code
Cipher Suite
0x0039
TLS_DHE_RSA_WITH_AES_256_CBC_SHA
0x0035
TLS_RSA_WITH_AES_256_CBC_SHA
0x0033
TLS_DHE_RSA_WITH_AES_128_CBC_SHA
0x002f
TLS_RSA_WITH_AES_128_CBC_SHA
0x0005
TLS_RSA_WITH_RC4_128_SHA
0x0004
TLS_RSA_WITH_RC4_128_MD5
0x0062
TLS_RSA_EXPORT1024_WITH_RC4_56_SHA
0x0060
TLS_RSA_EXPORT1024_WITH_RC4_56_MD5
0x0003
TLS_RSA_EXPORT_WITH_RC4_40_MD5
Page 66
In-House Preprovisioning and Provisioning Servers
Provisioning Server Setup
66
3
Redundant Provisioning Servers
The provisioning server can be specified as an IP address or as a fully qualified
domain name (FQDN). The use of a FQDN facilitates the deployment of redundant
provisioning servers. When the provisioning server is identified through a FQDN,
the IP Telephony device attempts to resolve the FQDN to an IP address through
DNS. Only DNS A-records are supported for provisioning; DNS SRV address
resolution is not available for provisioning. The IP Telephony device continues to
process A-records until a server responds. If no server associated with the
A-records responds, the IP Telephony device logs an error to the syslog server.
Syslog Server
If a syslog server is configured on the IP Telephony device (using the
<Syslog_Server> or <Debug_Server> parameters), the resync and upgrade
operations log messages to the syslog server. A message can be generated at the
start of a remote file request (configuration profile or firmware load), and at the
conclusion of the operation (indicating either success or failure).
The logged messages themselves are configured in the following parameters:
•
For profile resync:
Log_Resync_Request_Msg
Log_Resync_Success_Msg
Log_Resync_Failure_Msg
•
For firmware upgrades:
Log_Upgrade_Request_Msg
Log_Upgrade_Success_Msg
Log_Upgrade_Failure_Msg
These parameters are macro expanded into the actual syslog messages.
As indicated in the lower half of the diagram, a Cisco Small Business Client
Certificate Root Authority signs each unique certificate. The corresponding root
certificate is made available to service providers for client authentication
purposes.
Page 67
4
Provisioning Examples
This chapter provides example procedures for transferring configuration profiles
between the IP Telephony device and the provisioning server:
•
Basic Resync, page 67
•
Secure HTTPS Resync, page 75
•
Profile Management, page 83
•
Plain-Text Profile Resync, page 87
For information about creating configuration profiles, refer to Chapter 2, “Creating
Provisioning Scripts for Configuration Profile.”
Basic Resync
This section demonstrates the basic resync functionality of Cisco Small Business
IP Telephony devices.
TFTP Resync
The IP Telephony device supports multiple network protocols for retrieving
configuration profiles. The most basic profile transfer protocol is TFTP (RFC1350).
TFTP, widely used for the provisioning of network devices within private LAN
networks. Although not recommended for the deployment of remote endpoints
across the Internet, it can be convenient for deployment within small organizations,
for in-house preprovisioning, and for development and testing. See “In-House
Device Preprovisioning” section on page 58 for more information on in-house
preprovisioning. In this exercise, a profile is modified after downloading a file from
a TFTP server.
Page 68
Provisioning Examples
Basic Resync
68
4
Exercise
STEP 1
Within a LAN environment connect a PC and an IP Telephony device to a hub,
switch, or small router.
STEP 2 Connect an analog phone to the Phone 1 port of the IP Telephony device.
STEP 3 On the PC, install and activate a TFTP server.
STEP 4 Using a text editor, create a configuration profile that sets the value for GPP_A to
12345678 as shown in the example.
<flat-profile>
<GPP_A> 12345678
</GPP_A>
</flat-profile>
STEP 5 Save the profile with the name basic.txt in the root directory of the TFTP
server.
You can verify that the TFTP server is properly configured by requesting the
basic.txt file by using a TFTP client other than the IP Telephony device. Preferably,
use a TFTP client that is running on a separate host from the provisioning server.
STEP 6 Using an analog phone, obtain the IP address of the IP Telephony device (IVR
menu **** 110 #).
If the configuration has been modified since it was manufactured, perform factory
reset on the phone by using the IVR RESET option (**** 73738#).
STEP 7 Open the PC web browser on the admin/advanced configuration page. For
example, if the IP address of the phone is 192.168.1.100:
http://192.168.1.100/admin/advanced
STEP 8 Select the Provisioning tab, and inspect the values of the general purpose
parameters GPP_A through GPP_P. These should be empty.
STEP 9 Resync the test IP Telephony device to the basic.txt configuration profile by
opening the resync URL in a web browser window.
Assuming the IP address of the TFTP server is 192.168.1.200 the command should
be similar to this example:
http://192.168.1.100/admin/resync?tftp://192.168.1.200/basic.txt
Page 69
Provisioning Examples
Basic Resync
69
4
When IP Telephony device receives this command, the device at address
192.168.1.100 requests the file basic.txt from the TFTP server at IP address
192.168.1.200. It then parses the downloaded file and updates the GPP_A
parameter with the value 12345678.
STEP 10 Verify that the parameter was correctly updated by refreshing the admin/
advanced page on the PC web browser and selecting the Provisioning tab on that
page.
The GPP_A parameter should now contain the value 12345678.
Logging with syslog
The IP Telephony device sends a syslog message to the designated syslog server
when the device is about to resync to a provisioning server and after the resync
has either completed or failed. This server is identified in the web server
administration (admin/advanced, System tab, Syslog_Server parameter).
Configure the syslog server IP address into the device and observe the messages
generated during the remaining exercises.
Exercise
STEP 1
Install and activate a syslog server on the local PC.
STEP 2 Program the PC IP address into the Syslog_Server parameter of the profile and
submit the change:
<Syslog_Server ua="na">192.168.1.210</Syslog_Server>
STEP 3 Click the System tab and enter the value of your local syslog server into the
Syslog_Server parameter.
STEP 4 Repeat the resync operation as described in the TFTP Resync exercise.
The device generates two syslog messages during the resync. The first indicates
that a request is in progress. The second marks success or failure of the resync.
STEP 5 Verify that your syslog server received messages similar to the following:
SPA-962 00:0e:08:ab:cd:ef –- Requesting resync tftp://192.168.1.200/basic.txt
SPA-962 00:0e:08:ab:cd:ef –- Successful resync tftp://192.168.1.200/basic.txt
Detailed messages are available by programming a Debug_Server parameter
(instead of the Syslog_Server parameter) with the IP address of the syslog server,
and setting the Debug_Level to a value between 0 and 3 (3 being the most
verbose):
Page 70
Provisioning Examples
Basic Resync
70
4
<Debug_Server ua="na">192.168.1.210</Debug_Server>
<Debug_Level ua="na">3</Debug_Level>
The contents of these messages can be configured by using the following
parameters:
•
Log_Resync_Request_Msg
•
Log_Resync_Success_Msg
•
Log_Resync_Failure_Msg.
If any of these parameters are cleared, the corresponding syslog message is not
generated.
Automatic Device Resync
A device can resync periodically to the provisioning server to ensure that any
profile changes made on the server are propagated to the endpoint device (as
opposed to sending an explicit resync request to the endpoint).
To cause the IP Telephony device to periodically resync to a server, a configuration
profile URL is defined by using the Profile_Rule parameter, and a resync period is
defined by using the Resync_Periodic parameter.
Exercise
STEP 1
Using a web browser, open the admin/advanced page Provisioning tab.
STEP 2 Define the Profile_Rule parameter. The example assumes a TFTP server IP
address of 192.168.1.200:
<Profile_Rule ua="na">tftp://192.168.1.200/basic.txt</Profile_Rule>
STEP 3 In the Resync_Periodic parameter enter a small value for testing, such as 30
seconds:
<Resync_Periodic ua="na">30</Resync_Periodic>
STEP 4 Click Submit all Changes.
With the new parameter settings, the IP Telephony device resyncs to the
configuration file specified by the URL twice a minute.
STEP 5 Observe the resulting messages in the syslog trace (as described in the Logging
with syslog section).
Page 71
Provisioning Examples
Basic Resync
71
4
STEP 6 Ensure that the Resync_On_Reset parameter is set to yes:
<Resync_On_Reset ua="na">Yes</Resync_On_Reset>
STEP 7 Power cycle the IP Telephony deviceresync to the provisioning server.
If the resync operation fails for any reason, such as if the server is not responding,
the unit waits the number of seconds configured in Resync_Error_Retry_Delay
before attempting to resync again. If Resync_Error_Retry_Delay is zero, the IP
Telephony device does not try to resync after a failed resync attempt.
STEP 8 (Optional) Set the value of Resync_Error_Retry_Delay is set to a small number,
such as 30:
<Resync_Error_Retry_Delay ua="na">30</Resync_Error_Retry_Delay>
STEP 9 Disable the TFTP server, and observe the results in the syslog output.
Unique Profiles, Macro Expansion, and HTTP
In a deployment where each IP Telephony device must be configured with distinct
values for some parameters, such as User_ID or Display_Name, the service
provider can create a unique profile for each deployed device and host those
profiles on a provisioning server. Each IP Telephony device, in turn, must be
configured to resync to its own profile according a predetermined profile naming
convention.
The profile URL syntax can include identifying information specific to each IP
Telephony device, such as MAC address or serial number, by using the macro
expansion of built-in variables. Macro expansion eliminates the need to specify
these values in multiple locations within each profile.
A profile rule undergoes macro expansion before being applied to the IP
Telephony device. The macro expansion controls a number of values, for example:
•
$MA expands to the unit 12-digit MAC address (using lower case hex digits).
For example, 000e08abcdef.
•
$SN expands to the unit serial number. For example, 88012BA01234.
Page 72
Provisioning Examples
Basic Resync
72
4
Other values can be macro expanded in this way, including all the general purpose
parameters, (GPP_A through GPP_P). An example of this process can be seen in
the TFTP Resync section. Macro expansion is not limited to the URL file name, but
can also be applied to any portion of the profile rule parameter. These parameters
are referenced as $A through $P. For a complete list of variables available for
macro expansion, see the “Digest Authentication Support in Profile and Report
Rule” section on page100.
In this exercise, a profile specific to an IP Telephony device is provisioned on a
TFTP server.
Exercise
STEP 1
Obtain the MAC address of the IP Telephony device from its product label. (The
MAC address is the number, using numbers and lower–case hex digits, such as
000e08aabbcc.
STEP 2 Copy the basic.txt configuration file (described in the TFTP Resync exercise)
to a new file named spa_macaddress.cfg (replacing macaddress with the
MAC address of the IP Telephony device). For example:
spa_000e08abcdef.cfg
STEP 3 Move the new file in the virtual root directory of the TFTP server.
STEP 4 Open the admin/advanced page Provisioning tab.
STEP 5 Enter tftp://192.168.1.200/spa$MA.cfg in the Profile_Rule parameter:
<Profile_Rule ua="na">
tftp://192.168.1.200/spa$MA.cfg
</Profile_Rule>
STEP 6 Click Submit All Changes. This causes an immediate reboot and resync.
When the next resync occurs, the IP Telephony device retrieves the new file by
expanding the $MA macro expression into its MAC address.
Page 73
Provisioning Examples
Basic Resync
73
4
HTTP GET Resync
HTTP provides a more reliable resync mechanism than TFTP because HTTP
establishes a TCP connection and TFTP uses the less reliable UDP. In addition,
HTTP servers offer improved filtering and logging features compared to TFTP
servers.
On the client side, the IP Telephony device does not require any special
configuration setting on the server to be able to resync by using HTTP. The
Profile_Rule parameter syntax for using HTTP with the GET method is similar to
the syntax used for TFTP. If a standard web browser can retrieve a profile from a
your HTTP server, the IP Telephony device should be able to do so as well.
Exercise
STEP 1
Install an HTTP server on the local PC or other accessible host. (The open source
Apache server can be downloaded from the Internet.)
STEP 2 Copy the basic.txt configuration profile (described in the TFTP Resync
exercise) onto the virtual root directory of the installed server.
STEP 3 Verify proper server installation (and file access to basic.txt) by accessing the
profile by using a web browser.
STEP 4 Modify the Profile_Rule of the test IP Telephony device to point to the HTTP server
in place of the TFTP server, so as to download its profile periodically.
For example, assuming the HTTP server is at 192.168.1.300, enter the following
value:
<Profile_Rule ua="na">
http://192.168.1.200/basic.txt
</Profile_Rule>
STEP 5 Click Submit All Changes. This causes an immediate reboot and resync.
STEP 6 Observe the syslog messages sent by the IP Telephony device. The periodic
resyncs should now be obtaining the profile from the HTTP server.
STEP 7 In the HTTP server logs, observe how information identifying the test IP Telephony
device appears in the log of user agents.
This should include the manufacturer, product name, current firmware version, and
serial number.
Provisioning through Cisco XML
SPA phone extends Cisco XML feature to support provisioning via XML object:
Page 74
Provisioning Examples
Basic Resync
74
4
<CiscoIPPhoneExecute>
<ExecuteItem URL=Resync:[profile-rule]/>
</CiscoIPPhoneExecute>
After receiving the XML object, the SPA phone downloads the provisioning file
from [profile-rule]. Macros are used in this rule to simplify the development of XML
services application.
NOTE Macro support for this rule is a subset of macros supported for provisioning for SPA
phones.
URL Resolution by using Macro Expansion
Subdirectories with multiple profiles on the server is a convenient method for
managing a large number of deployed devices. The profile URL can contain:
•
A provisioning server name or an explicit IP address. If the profile identifies
the provisioning server by name, the IP Telephony device performs a DNS
lookup to resolve the name.
•
A non-standard server port specified in the URL by using the standard
syntax:port following the server name.
•
The subdirectory of the server virtual root directory where the profile is
stored, specified by using standard URL notation and managed by macro
expansion.
For example, the following Profile_Rule requests the profile spa962.cfg, in the
server subdirectory /cisco/config, from the TFTP server running on host
prov.telco.com listening for a connection on port 6900:
<Profile_Rule ua="na">
/tftp://prov.telco.com:6900/cisco/config/spa962.cfg
</Profile_Rule>
A profile for each IP Telephony device can be identified in a general purpose
parameter, with its value referred within a common profile rule by using macro
expansion.
For example, assume GPP_B is defined as Dj6Lmp23Q.
The Profile_Rule has the value:
tftp://prov.telco.com/cisco/$B/$MA.cfg
Page 75
Provisioning Examples
Secure HTTPS Resync
75
4
When the device resyncs and the macros are expanded, the IP Telephony device
with a MAC address of 000e08012345 requests the profile with the name that
contains the device MAC address at the following URL:
tftp://prov.telco.com/cisco/Dj6Lmp23Q/000e08012345.cfg
Secure HTTPS Resync
This section demonstrates the mechanisms available on the IP Telephony device
for resyncing by using a secure communication process. It includes the following
topics:
•
Basic HTTPS Resync, page 75
•
HTTPS With Client Certificate Authentication, page 77
•
HTTPS Client Filtering and Dynamic Content, page 78
Basic HTTPS Resync
HTTPS adds SSL to HTTP for remote provisioning so that the:
•
IP Telephony device can authenticate the provisioning server
•
provisioning server can authenticate the IP Telephony device
•
confidentiality of information exchanged between the IP Telephony device
and the provisioning server is ensured.
SSL generates and exchanges secret (symmetric) keys for each connection
between the IP Telephony device and the server, using public/private key pairs
preinstalled in the IP Telephony device and the provisioning server.
On the client side, the IP Telephony device does not require any special
configuration setting on the server to be able to resync using HTTPS. The
Profile_Rule parameter syntax for using HTTPS with the GET method is similar to
the syntax used for HTTP or TFTP. If a standard web browser can retrieve a profile
from a your HTTPS server, the IP Telephony device should be able to do so as well.
In addition to installing a HTTPS server, a SSL server certificate signed by Cisco
must be installed on the provisioning server. The devices cannot resync to a
server using HTTPS unless the server supplies a Cisco-signed server certificate.
Instructions for creating signed SSL Certificates for SPA Voice products can be
found at https://supportforums.cisco.com/docs/DOC-9852.
Page 76
Provisioning Examples
Secure HTTPS Resync
76
4
Exercise
STEP 1
Install an HTTPS server on a host whose IP address is known to the network DNS
server through normal hostname translation.
The open source Apache server can be configured to operate as an HTTPS
server when installed with the open source mod_ssl package.
STEP 2 Generate a server Certificate Signing Request for the server. For this step, you
might need to install the open source OpenSSL package or equivalent software. If
using OpenSSL, the command to generate the basic CSR file is as follows:
openssl req –new –out provserver.csr
This command generates a public/private key pair, which is saved in the
privkey.pem file.
STEP 3 Submit the CSR file (provserver.csr) to Cisco for signing. (See https://
supportforums.cisco.com/docs/DOC-9852 for more information.) A signed server
certificate is returned (provserver.cert) along with a Sipura CA Client Root
Certificate, spacroot.cert.
STEP 4 Store the signed server certificate, the private key pair file, and the client root
certificate in the appropriate locations on the server.
In the case of an Apache installation on Linux, these locations are typically as
follows:
Server Certificate:
SSLCertificateFile /etc/httpd/conf/provserver.cert
Server Private Key:
SSLCertificateKeyFile /etc/httpd/conf/pivkey.pem
Certificate Authority:
SSLCACertificateFile /etc/httpd/conf/spacroot.cert
STEP 5 Restart the server.
STEP 6 Copy the basic.txt configuration file (described in the TFTP Resync exercise)
onto the virtual root directory of the HTTPS server.
STEP 7 Verify proper server operation by downloading basic.txt from the HTTPS server
by using a standard browser from the local PC.
STEP 8 Inspect the server certificate supplied by the server.
The browser probably does not recognize it as valid unless the browser has been
preconfigured to accept Cisco as a root CA. However, the IP Telephony devices
expect the certificate to be signed this way.
Page 77
Provisioning Examples
Secure HTTPS Resync
77
4
Modify the Profile_Rule of the test device to contain a reference to the HTTPS
server, for example:
<Profile_Rule ua="na">
https://my.server.com/basic.txt
</Profile_Rule>
This example assumes the name of the HTTPS server is my.server.com.
STEP 9 Click Submit All Changes.
STEP 10 Observe the syslog trace sent by the IP Telephony device.
The syslog message should indicate that the resync obtained the profile from the
HTTPS server.
STEP 11 (Optional) Use an Ethernet protocol analyzer on the IP Telephony device subnet to
verify that the packets are encrypted.
In this exercise, client certificate verification was not enabled. The connection
between IP Telephony device and server is encrypted. However, the transfer is not
secure because any client can connect to the server and request the file, given
knowledge of the file name and directory location. For secure resync, the server
must also authenticate the client, as demonstrated in the exercise described in the
HTTPS With Client Certificate Authentication section.
HTTPS With Client Certificate Authentication
In the factory default configuration, the server does not request a SSL client
certificate from a client. Transfer of the profile is not secure because any client can
connect to the server and request the profile. You can edit the configuration to
enable client authentication; the server requires a client certificate to authenticate
the IP Telephony device before accepting a connection request.
Because of this, the resync operation cannot be independently tested by using a
browser lacking the proper credentials. The SSL key exchange within the HTTPS
connection between the test IP Telephony device and the server can be observed
using the ssldump utility. The utility trace shows the interaction between client and
server.
NOTE Both basic and digest authentication are supported on SPA300 and SPA500 Series
phones running firmware version 7.4.9c and higher.
Page 78
Provisioning Examples
Secure HTTPS Resync
78
4
Exercise
STEP 1
Enable client certificate authentication on the HTTPS server.
STEP 2 In Apache (v.2), set the following in the server configuration file:
SSLVerifyClient require
Also ensure that the spacroot.cert has been stored as shown in the Basic HTTPS
Resync exercise.
STEP 3 Restart the HTTPS server and observe the syslog trace from the IP Telephony
device.
Each resync to the server now performs symmetric authentication, so that both the
server certificate and the client certificate are verified before the profile is
transferred.
STEP 4 Use ssldump to capture a resync connection between the IP Telephony device
and the HTTPS server.
If client certificate verification is properly enabled on the server, the ssldump trace
shows the symmetric exchange of certificates (first server-to-client, then client-to-
server) before the encrypted packets containing the profile.
With client authentication enabled, only a IP Telephony device with a MAC address
matching a valid client certificate can request the profile from the provisioning
server. A request from an ordinary browser or other unauthorized device is
rejected by the server.
HTTPS Client Filtering and Dynamic Content
If the HTTPS server is configured to require a client certificate, then the
information in the certificate identifies the resyncing IP Telephony device and
supplies it with the correct configuration information.
The HTTPS server makes the certificate information available to CGI scripts (or
compiled CGI programs) invoked as part of the resync request. For the purpose of
illustration, this exercise uses the open source Perl scripting language, and
assumes that Apache (v.2) is used as the HTTPS server.
Page 79
Provisioning Examples
Secure HTTPS Resync
79
4
Exercise
STEP 1
Install Perl on the host running the HTTPS server.
STEP 2 Generate the following Perl reflector script:
#!/usr/bin/perl -wT
use strict;
print “Content-Type: text/plain\n\n”;
print “<flat-profile><GPP_D>”;
print “OU=$ENV{‘SSL_CLIENT_I_DN_OU’},\n”;
print “L=$ENV{‘SSL_CLIENT_I_DN_L’},\n”;
print “S=$ENV{‘SSL_CLIENT_I_DN_S’}\n”;
print “</GPP_D></flat-profile>”;
STEP 3 Save this file with the file name reflect.pl, with executable permission (chmod 755
on Linux), in the CGI scripts directory of the HTTPS server.
STEP 4 Verify accessibility of CGI scripts on the server (as in /cgi-bin/…).
STEP 5 Modify the Profile_Rule on the test device to resync to the reflector script, as in the
following example:
https://prov.server.com/cgi-bin/reflect.pl?
STEP 6 Click Submit All Changes.
STEP 7 Observe the syslog trace to ensure a successful resync.
STEP 8 Open the admin/advanced page, Provisioning tab.
STEP 9 Verify that the GPP_D parameter contains the information captured by the script.
This information contains the product name, MAC address, and serial number if the
test device carries a unique certificate from the manufacturer, or else generic
strings if it is a unit manufactured before firmware release 2.0.
A similar script could be used to determine information about the resyncing device
and then provide it with appropriate configuration parameter values.
Page 80
Provisioning Examples
Secure HTTPS Resync
80
4
HTTPS Certificates
The IP Telephony device provides a reliable and secure provisioning strategy
based on HTTPS requests from the device to the provisioning server. Both a
server certificate and a client certificate are used to authenticate the IP Telephony
device to the server and the server to the IP Telephony device.
To use HTTPS, you must generate a Certificate Signing Request (CSR) and submit
it to Cisco. Cisco generates a certificate for installation on the provisioning server.
The IP Telephony device accepts the certificate when it seeks to establish an
HTTPS connection with the provisioning server.
How HTTPS Works
HTTPS encrypts the communication between a client and a server, protecting the
message contents from other network devices. The encryption method for the
body of the communication between a client and a server is based on symmetric
key cryptography. With symmetric key cryptography, a single secret key is shared
by a client and a server over a secure channel protected by Public/Private key
encryption.
Messages encrypted by the secret key can only be decrypted using the same
key. HTTPS supports a wide range of symmetric encryption algorithms. The IP
Telephony device implements up to 256-bit symmetric encryption, using the
American Encryption Standard (AES), in addition to 128-bit RC4.
HTTPS also provides for the authentication of a server and a client engaged in a
secure transaction. This feature ensures that a provisioning server and an
individual client cannot be spoofed by other devices on the network. This is an
essential capability in the context of remote endpoint provisioning.
Server and client authentication is performed by using public/private key
encryption with a certificate that contains the public key. Text that is encrypted
with a public key can be decrypted only by its corresponding private key (and
vice versa). The IP Telephony device supports the RSA algorithm for public/
private key cryptography.
SSL Server Certificates
Each secure provisioning server is issued a SSL server certificate, directly signed
by Cisco. The firmware running on the IP Telephony device recognizes only a
Cisco certificate as valid. When a client connects to a server by using HTTPS, it
rejects any server certificate that is not signed by Cisco.
Page 81
Provisioning Examples
Secure HTTPS Resync
81
4
This mechanism protects the service provider from unauthorized access to the IP
Telephony device, or any attempt to spoof the provisioning server. Without such
protection, an attacker might be able to reprovision the IP Telephony device, to
gain configuration information, or to use a different VoIP service.
Client Certificates
In addition to a direct attack on an IP Telephony device, an attacker might attempt
to contact a provisioning server by using a standard web browser or another
HTTPS client to obtain the configuration profile from the provisioning server. To
prevent this kind of attack, each IP Telephony device also carries a unique client
certificate, signed by Cisco, including identifying information about each individual
endpoint. A certificate authority root certificate capable of authenticating the
device client certificate is given to each service provider. This authentication path
allows the provisioning server to reject unauthorized requests for configuration
profiles.
Certificate Structure
The combination of a server certificate and a client certificate ensures secure
communication between a remote IP Telephony device and its provisioning server.
The “Certificate Authority Flow” figure illustrates the relationship and placement
of certificates, public/private key pairs, and signing root authorities, among the
Cisco client, the provisioning server, and the certification authority.
The upper half of the diagram shows the Provisioning Server Root Authority that is
used to sign the individual provisioning server certificate. The corresponding root
certificate is compiled into the firmware, allowing the IP Telephony device to
authenticate authorized provisioning servers.
Page 82
Provisioning Examples
Secure HTTPS Resync
82
4

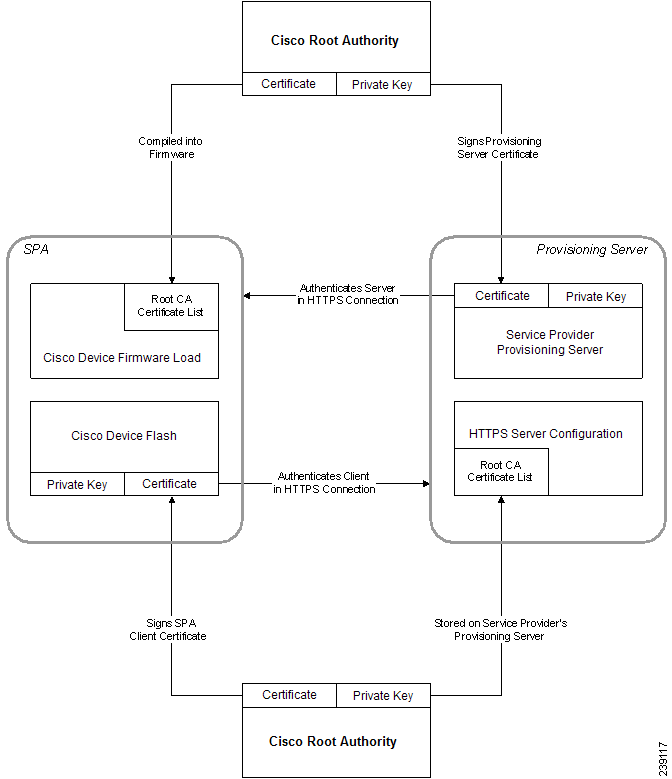

Certificate Authority Flow
Page 83
Provisioning Examples
Profile Management
83
4
Profile Management
This section demonstrates the formation of configuration profiles in preparation for
downloading. To explain the functionality, TFTP from a local PC is used as the
resync method, although HTTP or HTTPS can be used as well.
Open Profile gzip Compression
A configuration profile in XML format can become quite large if all parameters are
individually specified by the profile. To reduce the load on the provisioning server,
the IP Telephony device supports compression of the XML file, by using the
deflate compression format supported by the gzip utility (RFC 1951).
NOTE Compression must precede encryption for the IP Telephony device to recognize a
compressed and encrypted XML profile.
For integration into customized back-end provisioning server solutions, the open
source zlib compression library can be used in place of the standalone gzip utility
to perform the profile compression. However, the IP Telephony device expects the
file to contain a valid gzip header.
Additional information on compression is provided in Open Profile Compression,
page 24.
Exercise
STEP 1
Install gzip on the local PC.
STEP 2 Compress the basic.txt configuration profile (described in the TFTP Resync
exercise) by invoking gzip from the command line:
gzip basic.txt
This generates the deflated file basic.txt.gz.
STEP 3 Save the basic.txt.gz file in the TFTP server virtual root directory.
STEP 4 Modify the Profile_Rule on the test device to resync to the deflated file in place of
the original XML file, as shown in the following example:
tftp://192.168.1.200/basic.txt.gz
STEP 5 Click Submit All Changes.
STEP 6 Observe the syslog trace from the IP Telephony device.
Page 84
Provisioning Examples
Profile Management
84
4
Upon resync, the new file is downloaded by the IP Telephony device and used to
update its parameters.
Profile Encryption by using OpenSSL
A compressed or uncompressed profile can be encrypted (however, a file must
be compressed before it is encrypted). This is useful when the confidentiality of
the profile information is of particular concern, such as when using TFTP or HTTP
for communication between the IP Telephony device and the provisioning server.
The IP Telephony device supports symmetric key encryption by using the 256-bit
AES algorithm. This encryption can be performed by using the open source
OpenSSL package. Additional information on encryption is provided in Open
Profile Encryption by using AES, page 24.
Exercise
STEP 1
Install OpenSSL on a local PC. This might require that the OpenSSL application be
recompiled to enable AES.
STEP 2 Using the basic.txt configuration file (described in the TFTP Resync exercise),
generate an encrypted file with the following command:
openssl enc –aes-256-cbc –k MyOwnSecret –in basic.txt –out basic.cfg
The compressed basic.txt.gz file created in Open Profile gzip Compression also
can be used, because the XML profile can be both compressed and encrypted.
STEP 3 Store the encrypted basic.cfg file in the TFTP server virtual root directory.
STEP 4 Modify the Profile_Rule on the test device to resync to the encrypted file in place
of the original XML file. The encryption key is made known to the IP Telephony
device with the following URL option:
[--key MyOwnSecret ] tftp://192.168.1.200/basic.cfg
STEP 5 Click Submit All Changes.
STEP 6 Observe the syslog trace from the IP Telephony device.
On resync, the new file is downloaded by the IP Telephony device and is used to
update its parameters.
Page 85
Provisioning Examples
Profile Management
85
4
Partitioned Profiles
An IP Telephony device downloads multiple separate profiles during each resync.
This allows managing different kinds of profile information on separate servers
and maintaining common configuration parameter values separate from account
specific values.
Exercise
STEP 1
Create a new XML profile, basic2.txt, that specifies a value for a parameter that
makes it distinct from the earlier exercises. For instance, to the basic.txt profile you
can add the following:
<GPP_B>ABCD</GPP_B>
STEP 2 Store the basic2.txt profile in the virtual root directory of the TFTP server.
STEP 3 Leave the first profile rule from the earlier exercises in the folder, but configure the
second profile rule (Profile_Rule_B) to point to the new file:
<Profile_Rule_B ua="na">tftp://192.168.1.200/basic2.txt
</Profile_Rule_B>
STEP 4 Click Submit All Changes.
The IP Telephony device now resyncs to both the first and second profiles, in that
order, whenever a resync operation is due.
STEP 5 Observe the syslog trace to confirm the expected behavior.
Page 86
Provisioning Examples
Profile Management
86
4
Parameter Name Aliases
When generating an XML profile for the IP Telephony device, it might be
convenient to assign names to certain configuration parameters that are different
from the canonical names recognized by the IP Telephony device. For example, a
customer account database might generate XML element tags for a customer
telephone number and SIP registration password with names, such as SIP-number
and SIP-password. These names can be mapped to the canonical names
(User_ID_1_ and Password_1_ ) before being applied to Line1.
In many instances, the back-end provisioning solution used by the service
provider can perform this mapping. However, the IP Telephony device itself can
remap the parameter names internally. To do this, an alias map is defined and
stored in one of the general purpose provisioning parameters. Then, the profile
rule which invokes the resync is directed to remap the non-canonical XML
elements as specified by the alias map.
Exercise
STEP 1
Generate a profile named customer.XML containing the proprietary customer-
account XML form indicated in the following example:
<customer-account>
<SIP-number> 17775551234</SIP-number>
<SIP-password> 512835907884</SIP-password>
</customer-account>
STEP 2 Store the profile in the TFTP server virtual root directory.
STEP 3 Open the web interface on the device to the admin/advanced page, Provisioning
tab, and edit GPP_A to contain the alias map (do not enter new lines through the
web interface, instead simply enter each alias consecutively):
/customer-account/SIP-number = /flat-profile/User_ID_1_ ;
/customer-account/SIP-password = /flat-profile/Password_1_ ;
STEP 4 Edit the Profile_Rule to point to the new XML profile, and specify the alias map as a
URL option, as follows:
[--alias a ] tftp://192.168.1.200/customer.xml
STEP 5 Click Submit All Changes.
When the IP Telephony device resyncs, it receives the XML profile, remaps the
elements, as indicated by the alias map, and populates the User_ID_1_ and
Password_1_ parameters.
Page 87
Provisioning Examples
Plain-Text Profile Resync
87
4
STEP 6 View the Line 1 tab to verify the new configuration.
NOTE The IP Telephony device supports alias remapping of a limited number of
parameters. It is not meant to rename all parameters in its configuration.
Plain-Text Profile Resync
Only firmware releases after version 2.0.6 recognize the XML-based profiles. For
firmware releases earlier than 2.0.6, use the SIP Profiler Compiler tool (SPC) to
convert a text-based profile definition into a proprietary binary format understood
by earlier versions of the firmware. The tool also provides options for encrypting
the resulting binary profile.
The text-based profile understood by SPC uses a different syntax from the XML
profile presented earlier. It consists of a list of parameter-value pairs, with the
value in double quotes. Other minor syntax and parameter naming differences also
apply. See Plain-Text Profile Format, page 26 for more information. See
Generating Sample Configuration Files, page 52 for more information on
creating an example Plain-text format profile.
The following exercise specifies values for two parameters that apply to Line 1:
Exercise
STEP 1
Obtain the SPC utility from Cisco.
The SPA Profile Compiler (SPC) is available from Cisco for the Win32 environment
and Linux-i386-elf environment. For the OpenBSD environment, the SPC is made
available on a case-by-case basis. See Downloading the SPC, page 51 for more
information on how to obtain the SPC for each device.
STEP 2 Create a Plain-text format profile named account.txt containing the following
parameters:
User_ID[1] “17775551234” ;
Password[1] “512835907884” ;
STEP 3 Compile the text profile into a binary file, account.cfg by using the following
command:
spcexecutable account.txt account.cfg
STEP 4 Store account.cfg in the TFTP server virtual root directory.
Page 88
Provisioning Examples
Plain-Text Profile Resync
88
4
STEP 5 Modify profile rule parameter on the test device to point to the account.cfg profile
on the TFTP server:
tftp://192.168.1.200/account.cfg
STEP 6 Click Submit All Changes.
Upon resync, the IP Telephony device retrieves the new file, recognizes the binary
format and updates the two specified parameters.
STEP 7 Observe the syslog messages sent by the IP Telephony device during resync.
Page 89
5
Provisioning Guide for Cisco SPA100 and SPA200 Series Analog Telephone Adapters
Provisioning Parameters
This chapter describes the provisioning parameters that can be used in
configuration profile scripts. It includes the following sections:
•
Configuration Report, page 89
•
Status.xml Report, page 91
•
Firmware Upgrade Parameters, page 98
•
General Purpose Parameters, page 99
•
Digest Authentication Support in Profile and Report Rule, page100
•
Internal Error Codes, page 103
The Provisioning parameters described in this chapter are recognized by the
these ATAs beginning with firmware release 2.0.6 and higher unless otherwise
indicated.
Configuration Report
When the report rule is set, a SPA phone reports the phone profile to the server
upon boot-up or receiving a report SIP NOTIFY message. By default the entire
profile is reported.
Password or encryption key–related parameter values are not reported to the
server:
<Admin_Password> IP Phone admin password
<User_Password> IP Phone user password
<PPPOE_Login_Password>
< VPN_Password>
<Access_Password_N> Camera access password for each camera
profile
Page 90
Provisioning Parameters
Configuration Report
Provisioning Guide for Cisco SPA100 and SPA200 Series Analog Telephone Adapters
90
5
<Password_N> Sip account user password for each SIP
extension
<SRTP_Private_Key_N> SRTP private key password for each SIP
extension
<Auth_Page_Password_N> Auth page password for each SIP
extension
<PIN_Code> BluePhone Pin code
<Directory_Password> Broadsoft directory
<Password> LDAP password
Deltas Report
SPA phones running firmware version 7.4.9c or higher can report deltas to the
server if the –delta option is specified in the report rule. For example:
Report Rule: [--delta] http://report.com/delta$$MAC.xml
NOTE The double hyphen (--) required.
The main profile supports all provisionable parameters. Parameters in the main
profile include the WiFi profile parameters. The –delta option only applies to the
main profile. The deltas can be triggered by changes to the phone parameters
entered in the LCD screen, the Web GUI, a SIP event, or remote provisioning. The
personal address book, call history, Bluetooth profiles, and so forth are not in the
main profile and are not reported.
The delta report is generated if the phone detects changes since the last resync,
reboot, or upgrade. The report is done in asynchronous manner (with a random
delay) and is sent only when the phone is idle. (The phone is considered idle when
there is no active call or key press.)
Digest Authentication Support in Profile and Report Rule
Digest Authentication based on the username and password is defined as part of
profile rule and a report rule. The syntax is:
[--uid $SA]
[--pwd $SB]
In the following example, the phone uses this username and password when it is
challenged by the server:
[--uid slee --pwd 1234] http://download.com/spacfg.xml
Page 91
Provisioning Parameters
Status.xml Report
Provisioning Guide for Cisco SPA100 and SPA200 Series Analog Telephone Adapters
91
5
Status.xml Report
SPA phones running firmware version 7.5.3 or higher have an option to report the
status.xml data if [--status] is specified in the report rule. The status report file path
should be defined after the [--status] keyword, separated with a comma. If the [--
status] keyword or the status report file path is missing, the phone will not report
the status.xml data.
For example, if the following is configured:
[--status]http://my_http_server/config-525.xml
The phone will report the status file to http://my_http_server/config-525.xml.
If the following is configured:
[--delta]http://my_http_server/config-525.xml; [--status]http://my_http_server/
status-525.xml
The phone will report the delta report to http://my_http_server/config-525.xml
and the status report to http://my_http_server/status-525.xml.
See the Cisco SPA500 Series, SPA300 Series, and WIP310 IP Phone
Administration Guide for more information.
Report Content
An administrator can define the content [--content] that is included in the report
in the report rule. When --content path is defined, the main profile, address book
and call history are reported to server. Where p reports the main profile
parameters, a reports address book information, h reports the call history.
Page 92
Provisioning Parameters
Configuration Profile Parameters
Provisioning Guide for Cisco SPA100 and SPA200 Series Analog Telephone Adapters
92
5
Configuration Profile Parameters
The following table defines the function and usage of each parameter in the
Configuration Profile Parameters section under the Provisioning tab.
Parameter Name
Description and Default Value
Provision_Enable
Controls all resync actions independently of
firmware upgrade actions. Set to yes to
enable remote provisioning.
The default value is Yes.
Resync_On_Reset
Triggers a resync after every reboot except
for reboots caused by parameter updates
and firmware upgrades.
The default value is Yes.
Resync_Random_Delay
Prevents an overload of the provisioning
server when a large number of devices
power-on simultaneously and attempt initial
configuration. This delay is effective only on
the initial configuration attempt, following a
device power-on or reset.
The parameter is the maximum time interval
that the device waits before making contact
with the provisioning server. The actual
delay is a pseudo-random number between
zero and this value.
This parameter is in units of 20 seconds; the
default value of 3 represents 60 seconds.
This feature is disabled when this
parameter is set to zero.
The default value is 2 (40 seconds).
Resync At
(SPA500 series phones)
The hour and minutes (HHmm) that the
device resyncs with the provisioning server.
The default value is empty. If the value is
invalid, the parameter is ignored. If this
parameter is set with a valid value, the
Resync_Periodic parameter is ignored.
Page 93
Provisioning Parameters
Configuration Profile Parameters
Provisioning Guide for Cisco SPA100 and SPA200 Series Analog Telephone Adapters
93
5
Resync_At_Random_Delay
(firmware v7.4.9c and higher)
Prevents an overload of the provisioning
server when a large number of devices
power-on simultaneously.
To avoid flooding resync requests to the
server from multiple phones, the phone
resyncs in the range between the hours and
minutes, and the hours and minutes plus the
random delay (hhmm,
hhmm+random_delay). For example, if the
random delay = (Resync_At_Random_Delay
- 30)/60 minutes.
The input value in seconds is converted to
minutes, rounding up to the next minute to
calculate the final random_delay interval.
This feature is disabled when this
parameter is set to zero. The default value is
600 seconds (10 minutes). If the parameter
value is set to less than 600, the default
value is used.
Resync_Periodic
The time interval between periodic resyncs
with the provisioning server. The associated
resync timer is active only after the first
successful sync with the server.
Set this parameter to zero to disable
periodic resyncing.
The default value is 3600 seconds.
Parameter Name
Description and Default Value
Page 94
Provisioning Parameters
Configuration Profile Parameters
Provisioning Guide for Cisco SPA100 and SPA200 Series Analog Telephone Adapters
94
5
Resync_Error_Retry_Delay
Resync retry interval (in seconds) applied in
case of resync failure.
The device has an error retry timer that
activates if the previous attempt to sync
with the provisioning server fails. The
device waits to contact the server again
until the timer counts down to zero.
This parameter is the value that is initially
loaded into the error retry timer. If this
parameter is set to zero, the device
immediately retries to sync with the
provisioning server following a failed
attempt.
The default value is 3600 seconds.
Forced_Resync_Delay
Maximum delay (in seconds) the ATA waits
before performing a resync.
The device does not resync while one of its
phone lines is active. Because a resync can
take several seconds, it is desirable to wait
until the device has been idle for an
extended period before resyncing. This
allows a user to make calls in succession
without interruption.
The device has a timer that begins counting
down when all of its lines become idle. This
parameter is the initial value of the counter.
Resync events are delayed until this counter
decrements to zero.
The default value is 14,400 seconds.
Resync_From_SIP
Enables a resync to be triggered via a SIP
NOTIFY message.
The default value is Yes.
Resync_After_Upgrade_Attempt
Resync is triggered when all these conditions are
met: 1. Resync On Reset value is Yes.
2. Resync_After_Upgrade_Attempt is Yes.
3. Upgrade attempts cause the phone to reboot.
If the parameter is set to No, resync is not
triggered when upgrade is attempted.
Parameter Name
Description and Default Value
Page 95
Provisioning Parameters
Configuration Profile Parameters
Provisioning Guide for Cisco SPA100 and SPA200 Series Analog Telephone Adapters
95
5
Resync_Trigger_1,
Resync_Trigger_2
Configurable resync trigger conditions. A
resync is triggered when the logic equation
in these parameters evaluates to TRUE.
The default value is (empty).
Resync_Fails_On_FNF
Determines whether a file-not-found
response from the provisioning server
constitutes a successful or a failed resync.
A failed resync activates the error resync
timer.
The default value is Yes.
Profile_Rule
This parameter is a profile script that
evaluates to the provisioning resync
command. The command specifies the
protocol (TFTP, HTTP, or HTTPS) and an
associated URL.
If the command is not specified, TFTP is
assumed, and the address of the TFTP
server is obtained through DHCP option 66.
In the URL, either the IP address or the
FQDN of the server can be specified. The
file name can have macros, such as $MA,
which expands to the device MAC address.
The default value is /spa$PSN.cfg.
Profile_Rule_B, Profile_Rule_C,
Profile_Rule_D
Defines second, third, and fourth resync
commands and associated profile URLs.
These profile scripts are executed
sequentially after the primary Profile Rule
resync operation has completed. If a resync
is triggered and Profile Rule is blank, Profile
Rule B, C, and D are still evaluated and
executed.
The default value is (empty).
Log_Resync_Request_Msg
This parameter contains the message that
is sent to the syslog server at the start of a
resync attempt.
The default value is $PN $MAC –
Requesting resync $SCHEME://
$SERVIP:$PORT$PATH.
Parameter Name
Description and Default Value
Page 96
Provisioning Parameters
Configuration Profile Parameters
Provisioning Guide for Cisco SPA100 and SPA200 Series Analog Telephone Adapters
96
5
Log_Resync_Success_Msg
The syslog message that is issued upon
successful completion of a resync attempt.
The default value is $PN $MAC –
Successful resync $SCHEME://
$SERVIP:$PORT$PATH -- $ERR.
Log_Resync_Failure_Msg
The syslog message that is issued after a
failed resync attempt.
The default value is $PN $MAC – Resync
failed: $ERR.
Parameter Name
Description and Default Value
Page 97
Provisioning Parameters
Configuration Profile Parameters
Provisioning Guide for Cisco SPA100 and SPA200 Series Analog Telephone Adapters
97
5
Report_Rule
The target URL to which configuration
reports are sent. This parameter has the
same syntax as the Profile_Rule parameter,
and resolves to a TCP/IP command with an
associated URL.
A configuration report is generated in
response to an authenticated SIP NOTIFY
message, with Event: report. The report is
an XML file containing the name and value
of all the device parameters.
This parameter may optionally contain an
encryption key.
For example:
[ --key $K ] tftp://ps.callhome.net/$MA/
rep.xml.enc
Additionally, this parameter can trigger the
reporting of configuration changes (deltas)
to the server since the last resync, reboot,
or upgrade using the --delta option.
For example, to store delta configuration
changes in a file with a name like
SPA504G_<MAC><serial#>.xml, add the
following to your provisioning file:
[ --delta ]
http://reportTargetServer/reportPath/
$PN$MA_$SN.xml
</Report_Rule>
The default value is (empty).
Parameter Name
Description and Default Value
Page 98
Provisioning Parameters
Firmware Upgrade Parameters
Provisioning Guide for Cisco SPA100 and SPA200 Series Analog Telephone Adapters
98
5
Firmware Upgrade Parameters
The following table defines the function and usage of each parameter in the
Firmware Upgrade section of the Provisioning tab.
Parameter Name
Description and Default Value
Upgrade_Enable
Enables firmware upgrade operations
independently of resync actions.
The default value is Yes.
Upgrade_Error_Retry_Delay
The upgrade retry interval (in seconds) applied
in case of upgrade failure. The device has a
firmware upgrade error timer that activates
after a failed firmware upgrade attempt. The
timer is initialized with the value in this
parameter. The next firmware upgrade attempt
occurs when this timer counts down to zero.
The default value is 3600 seconds.
Downgrade_Rev_Limit
Enforces a lower limit on the acceptable
version number during a firmware upgrade or
downgrade. The device does not complete a
firmware upgrade operation unless the
firmware version is greater than or equal to this
parameter.
The default value is (empty).
Upgrade_Rule
This parameter is a firmware upgrade script
with the same syntax as Profile_Rule. Defines
upgrade conditions and associated firmware
URLs.
The default value is (empty).
Log_Upgrade_Request_Msg
The syslog message that is issued at the start
of a firmware upgrade attempt.
The default value is $PN $MAC -- Requesting
upgrade $SCHEME://$SERVIP:$PORT$PATH.
Page 99
Provisioning Parameters
General Purpose Parameters
Provisioning Guide for Cisco SPA100 and SPA200 Series Analog Telephone Adapters
99
5
General Purpose Parameters
The following table defines the function and usage of each parameter in the
General Purpose Parameters section of the Provisioning tab.
Log_Upgrade_Success_Msg
The syslog message that is issued after a
firmware upgrade attempt completes
successfully.
The default value is $PN $MAC -- Successful
upgrade $SCHEME://$SERVIP:$PORT$PATH --
$ERR.
Log_Upgrade_Failure_Msg
The syslog message that is issued after a failed
firmware upgrade attempt.
The default value is $PN $MAC -- Upgrade
failed: $ERR.
Parameter Name
Description and Default Value
Parameter Name
Description and Default Value
GPP_SA, GPP_SB, GPP_SC,
GPP_SD
Special purpose provisioning parameters,
designed to hold encryption keys and
passwords. To ensure the integrity of the
encryption mechanism, these parameters must
be kept secret. Therefore these parameters are
not displayed on the device configuration web
page, and they are not included in the
configuration report sent in response to a SIP
NOTIFY command.
Note that these parameters are not available on
the SPA500 Series phones.
The default value is (empty).
Page 100
Provisioning Parameters
Digest Authentication Support in Profile and Report Rule
Provisioning Guide for Cisco SPA100 and SPA200 Series Analog Telephone Adapters
100
5
Digest Authentication Support in Profile and Report Rule
Digest Authentication based on the username and password is defined as part of
profile rule and a report rule. The syntax is:
[--uid $SA]
[--pwd $SB]
In the following example, the phone uses this username and password when it is
challenged by the server:
[--uid slee --pwd 1234] http://download.com/spacfg.xml
Macro Expansion Variables
Certain macro variables are recognized within the following provisioning
parameters:
•
Profile_Rule
•
Profile_Rule_*
•
Resync_Trigger_*
•
Log_Resync_*
•
Upgrade_Rule
•
Log_Upgrade_*
•
GPP_* (under specific conditions)
GPP_A through GPP_P
General purpose provisioning parameters.
These parameters can be used as variables in
provisioning and upgrade rules. They are
referenced by prepending the variable name
with a ‘$’ character, such as $GPP_A.
The default value is (empty).
Parameter Name
Description and Default Value
Page 101
Provisioning Parameters
Macro Expansion Variables
Provisioning Guide for Cisco SPA100 and SPA200 Series Analog Telephone Adapters
101
5
Within these parameters, syntax types, such as $NAME or $(NAME), are
recognized and expanded.
Macro variable substrings can be specified with the notation $(NAME:p) and
$(NAME:p:q), where p and q are non-negative integers (available in revision 2.0.11
and above). The resulting macro expansion is the substring starting at character
offset p, with length q (or else till end-of-string if q is not specified). For example, if
GPP_A contains ABCDEF, then $(A:2) expands to CDEF, and $(A:2:3) expands to
CDE.
An unrecognized name is not translated, and the $NAME or $(NAME) form remains
unchanged in the parameter value after expansion.
Parameter Name
Description and Default Value
$
The form $$ expands to a single $ character.
A through P
Replaced by the contents of the general purpose
parameters GPP_A through GPP_P.
SA through SD
Replaced by the contents of the special purpose
parameters GPP_SA through GPP_SD. These
parameters are meant to hold keys or passwords used
in provisioning.
Note that $SA through $SD are only recognized as
arguments to the optional resync URL qualifier --key,
as in the following example:
[--key $SA] http://ps.callme.com/profiles/abcdefg.cfg
These variables are not expanded outside of this
limited context.
Note that these variables are not available on the
SPA500 Series phones.
MA
MAC address using lower case hex digits, for example,
000e08aabbcc.
MAU
MAC address using upper case hex digits, for example
000E08AABBCC.
MAC
MAC address using lower case hex digits, and colons
to separate hex digit pairs, for example
00:0e:08:aa:bb:cc.
PN
Product Name, for example SPA962.
Page 102
Provisioning Parameters
Macro Expansion Variables
Provisioning Guide for Cisco SPA100 and SPA200 Series Analog Telephone Adapters
102
5
PSN
Product Series Number, for example 962.
SN
Serial Number string, for example 88012BA01234.
CCERT
SSL Client Certificate status: Installed or Not Installed.
IP
IP address of the ATA within its local subnet, for
example 192.168.1.100.
EXTIP
External IP of the ATA, as seen on the Internet, for
example 66.43.16.52.
SWVER
Software version string, for example 2.0.6(b).
HWVER
Hardware version string, for example 1.88.1.
PRVST
Provisioning State, a numeric string:
-1 = explicit resync request,
0 = power-up resync,
1 = periodic resync,
2 = resync failed, retry attempt
UPGST
Upgrade State, a numeric string:
1 = first upgrade attempt,
2 = upgrade failed, retry attempt
UPGERR
Result message (ERR) of previous upgrade attempt,
for example http_get failed.
PRVTMR
Seconds since last resync attempt.
UPGTMR
Seconds since last upgrade attempt.
REGTMR1
Seconds since Line 1 lost registration with SIP server.
REGTMR2
Seconds since Line 2 lost registration with SIP server.
UPGCOND
Legacy macro name, always expands to true in
firmware rev 2.0.6 and above.
SCHEME
File access scheme, one of TFTP, HTTP, or HTTPS, as
obtained after parsing resync or upgrade URL.
METH
Deprecated alias for SCHEME, do not use.
SERV
Request target server host name, as obtained after
parsing resync or upgrade URL.
Parameter Name
Description and Default Value
Page 103
Provisioning Parameters
Internal Error Codes
Provisioning Guide for Cisco SPA100 and SPA200 Series Analog Telephone Adapters
103
5
Internal Error Codes
The ATA defines a number of internal error codes (X00–X99) to facilitate
configuration in providing finer control over the behavior of the unit under certain
error conditions.
SERVIP
Request target server IP address, as obtained after
parsing resync or upgrade URL, possibly following
DNS lookup.
PORT
Request target UDP/TCP port, as obtained after
parsing resync or upgrade URL.
PATH
Request target file path, as obtained after parsing
resync or upgrade URL.
ERR
Result message of resync or upgrade attempt. Only
useful in generating result syslog messages. The value
is preserved in the UPGERR variable in the case of
upgrade attempts.
UID1
The contents of the Line 1 User_ID configuration
parameter (Firmware 2.0.11 and above).
UID2
The contents of the Line 2 User_ID configuration
parameter (Firmware 2.0.11 and above).
ISCUST
Value=1 if unit is customized, 0 otherwise;
customization status viewable on WebUI Info page.
Parameter Name
Description and Default Value
Parameter Name
Description and Default Value
X00
Transport layer (or ICMP) error when sending a SIP
request.
X20
SIP request times out while waiting for a response.
X40
General SIP protocol error (for example, unacceptable
codec in SDP in 200 and ACK messages, or times out
while waiting for ACK).
X60
Dialed number invalid according to given dial plan.
Page 104
Provisioning Parameters
Internal Error Codes
Provisioning Guide for Cisco SPA100 and SPA200 Series Analog Telephone Adapters
104
5
Page 105
A
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
Sample Configuration Profiles
An up-to-date profile template can be obtained from the SPC tool by using the
commands:
spcexecuteable --sample-profile outputfile.name
spcexecuteable --sample-xml outputfile.name
The first version outputs a Plain-text format template. The second version outputs
an Open format (XML-style) template. Sample profiles can be generated by using
the SPA Profile Compiler (SPC). See Generating Sample Configuration Files,
page 52 for more information.
XML Open Format Sample
<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<flat-profile xmlns="http://www.sipura.net/xsd/SPA525G-SCCP"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.sipura.net/xsd/SPA525G-SCCP http://
www.sipura.net/xsd/SPA525G-SCCP/SPA525G-SCCP-7-4-9.xsd">
<!-- System Configuration -->
<Restricted_Access_Domains ua="na"></Restricted_Access_Domains>
<Enable_Web_Server ua="na">Yes</Enable_Web_Server>
<Web_Server_Port ua="na">80</Web_Server_Port>
<Enable_Web_Admin_Access ua="na">Yes</Enable_Web_Admin_Access>
<Admin_Password ua="na"></Admin_Password>
<User_Password ua="rw"></User_Password>
<SPA525-protocol ua="na">SIP</SPA525-protocol> <!-- options: SIP/SCCP -->
<SPA525-auto-detect-sccp ua="na">Yes</SPA525-auto-detect-sccp>
<SPA525-readonly ua="na">No</SPA525-readonly>
<Phone-UI-user-mode ua="na">No</Phone-UI-user-mode>
<!-- Power Settings -->
<PoE_Power_Required ua="na">Normal</PoE_Power_Required> <!-- options:
Normal/Maximum -->
<!-- Internet Connection Type -->
Page 106
Sample Configuration Profiles
XML Open Format Sample
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
106
A
<Connection_Type ua="rw">DHCP</Connection_Type> <!-- options: DHCP/Static
IP/PPPoE -->
<!-- Static IP Settings -->
<Static_IP ua="rw"></Static_IP>
<NetMask ua="rw"></NetMask>
<Gateway ua="rw"></Gateway>
<Ethernet_MTU ua="na">1500</Ethernet_MTU>
<Duplex_Mode ua="na">Auto</Duplex_Mode> <!-- options: Auto/10Mbps/Duplex/
10Mbps/Half/100Mbps/Duplex/100Mbps/Half -->
<!-- PPPoE Settings -->
<PPPoE_Login_Name ua="rw"></PPPoE_Login_Name>
<PPPoE_Login_Password ua="rw"></PPPoE_Login_Password>
<PPPoE_Service_Name ua="rw"></PPPoE_Service_Name>
<!-- Optional Network Configuration -->
<HostName ua="rw"></HostName>
<Domain ua="rw"></Domain>
<Primary_DNS ua="rw"></Primary_DNS>
<Secondary_DNS ua="rw"></Secondary_DNS>
<DNS_Server_Order ua="na">Manual,DHCP</DNS_Server_Order> <!-- options:
Manual/Manual,DHCP/DHCP,Manual -->
<TFTP_Server ua="na"></TFTP_Server>
<Alternate_TFTP ua="na">No</Alternate_TFTP>
<Syslog_Server ua="na"></Syslog_Server>
<Debug_Server ua="na"></Debug_Server>
<Debug_Level ua="na">3</Debug_Level> <!-- options: 0/1/2/3 -->
<Layer_2_Logging ua="na">No</Layer_2_Logging>
<NTP_Enable ua="na">Yes</NTP_Enable>
<Primary_NTP_Server ua="na"></Primary_NTP_Server>
<Secondary_NTP_Server ua="na"></Secondary_NTP_Server>
<Enable_Bonjour ua="na">No</Enable_Bonjour>
<!-- VLAN Settings -->
<Enable_VLAN ua="rw">No</Enable_VLAN>
<VLAN_ID ua="rw">1</VLAN_ID>
<PC_Port_VLAN_Highest_Priority ua="na">No Limit</
PC_Port_VLAN_Highest_Priority> <!-- options: 0/1/2/3/4/5/6/7/No Limit -->
<Enable_PC_Port_VLAN_Tagging ua="na">No</Enable_PC_Port_VLAN_Tagging>
<PC_Port_VLAN_ID ua="na">1</PC_Port_VLAN_ID>
<Enable_CDP ua="na">Yes</Enable_CDP>
<Enable_LLDP-MED ua="na">Yes</Enable_LLDP-MED>
<Network_Startup_Delay ua="na">4</Network_Startup_Delay>
<!-- Wi-Fi Settings -->
<SPA525-wifi-on ua="rw">No</SPA525-wifi-on>
<!-- Bluetooth Settings -->
Page 107
Sample Configuration Profiles
XML Open Format Sample
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
107
A
<Enable_BT ua="rw">No</Enable_BT>
<!-- BluePhone -->
<Bluetooth_Mode ua="na">0</Bluetooth_Mode> <!-- options: Phone/Handsfree/
Both -->
<Line ua="na">5</Line> <!-- options: 1/2/3/4/5/Disabled -->
<Short_Name ua="na"></Short_Name>
<User_Friendly_ID ua="na"></User_Friendly_ID>
<PIN_Code ua="na">0000</PIN_Code>
<!-- VPN Settings -->
<VPN_Server ua="rw"></VPN_Server>
<VPN_User_Name ua="rw"></VPN_User_Name>
<VPN_Password ua="rw"></VPN_Password>
<VPN_Tunnel_Group ua="na"></VPN_Tunnel_Group>
<Connect_on_Bootup ua="rw">No</Connect_on_Bootup>
<!-- Inventory Information -->
<Asset_ID ua="na"></Asset_ID>
<!-- Configuration Profile -->
<Provision_Enable ua="na">Yes</Provision_Enable>
<Resync_On_Reset ua="na">Yes</Resync_On_Reset>
<Resync_Random_Delay ua="na">2</Resync_Random_Delay>
<Resync_At__HHmm_ ua="na"></Resync_At__HHmm_>
<Resync_Periodic ua="na">3600</Resync_Periodic>
<Resync_Error_Retry_Delay ua="na">3600</Resync_Error_Retry_Delay>
<Forced_Resync_Delay ua="na">14400</Forced_Resync_Delay>
<Resync_From_SIP ua="na">Yes</Resync_From_SIP>
<Resync_After_Upgrade_Attempt ua="na">Yes</Resync_After_Upgrade_Attempt>
<Resync_Trigger_1 ua="na"></Resync_Trigger_1>
<Resync_Trigger_2 ua="na"></Resync_Trigger_2>
<Resync_Fails_On_FNF ua="na">Yes</Resync_Fails_On_FNF>
<Profile_Rule ua="na">/spa$PSN.cfg</Profile_Rule>
<Profile_Rule_B ua="na"></Profile_Rule_B>
<Profile_Rule_C ua="na"></Profile_Rule_C>
<Profile_Rule_D ua="na"></Profile_Rule_D>
<DHCP_Option_To_Use ua="na">66,160,159,150</DHCP_Option_To_Use>
<Transport_Protocol ua="na">https</Transport_Protocol> <!-- options: none/
tftp/http/https -->
<Log_Resync_Request_Msg ua="na">$PN $MAC -- Requesting resync $SCHEME://
$SERVIP:$PORT$PATH</Log_Resync_Request_Msg>
<Log_Resync_Success_Msg ua="na">$PN $MAC -- Successful resync $SCHEME://
$SERVIP:$PORT$PATH</Log_Resync_Success_Msg>
<Log_Resync_Failure_Msg ua="na">$PN $MAC -- Resync failed: $ERR</
Log_Resync_Failure_Msg>
<Report_Rule ua="na"></Report_Rule>
<User_Configurable_Resync ua="na">Yes</User_Configurable_Resync>
<!-- Firmware Upgrade -->
Page 108
Sample Configuration Profiles
XML Open Format Sample
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
108
A
<Upgrade_Enable ua="na">Yes</Upgrade_Enable>
<Upgrade_Error_Retry_Delay ua="na">3600</Upgrade_Error_Retry_Delay>
<Downgrade_Rev_Limit ua="na"></Downgrade_Rev_Limit>
<Upgrade_Rule ua="na"></Upgrade_Rule>
<Log_Upgrade_Request_Msg ua="na">$PN $MAC -- Requesting upgrade $SCHEME://
$SERVIP:$PORT$PATH</Log_Upgrade_Request_Msg>
<Log_Upgrade_Success_Msg ua="na">$PN $MAC -- Successful upgrade $SCHEME://
$SERVIP:$PORT$PATH -- $ERR</Log_Upgrade_Success_Msg>
<Log_Upgrade_Failure_Msg ua="na">$PN $MAC -- Upgrade failed: $ERR</
Log_Upgrade_Failure_Msg>
<License_Keys ua="na"></License_Keys>
<!-- General Purpose Parameters -->
<GPP_A ua="na"></GPP_A>
<GPP_B ua="na"></GPP_B>
<GPP_C ua="na"></GPP_C>
<GPP_D ua="na"></GPP_D>
<GPP_E ua="na"></GPP_E>
<GPP_F ua="na"></GPP_F>
<GPP_G ua="na"></GPP_G>
<GPP_H ua="na"></GPP_H>
<GPP_I ua="na"></GPP_I>
<GPP_J ua="na"></GPP_J>
<GPP_K ua="na"></GPP_K>
<GPP_L ua="na"></GPP_L>
<GPP_M ua="na"></GPP_M>
<GPP_N ua="na"></GPP_N>
<GPP_O ua="na"></GPP_O>
<GPP_P ua="na"></GPP_P>
<GPP_SA ua="na"></GPP_SA>
<GPP_SB ua="na"></GPP_SB>
<GPP_SC ua="na"></GPP_SC>
<GPP_SD ua="na"></GPP_SD>
<!-- SIP Parameters -->
<Max_Forward ua="na">70</Max_Forward>
<Max_Redirection ua="na">5</Max_Redirection>
<Max_Auth ua="na">2</Max_Auth>
<SIP_User_Agent_Name ua="na">$VERSION</SIP_User_Agent_Name>
<SIP_Server_Name ua="na">$VERSION</SIP_Server_Name>
<SIP_Reg_User_Agent_Name ua="na"></SIP_Reg_User_Agent_Name>
<SIP_Accept_Language ua="na"></SIP_Accept_Language>
<DTMF_Relay_MIME_Type ua="na">application/dtmf-relay</DTMF_Relay_MIME_Type>
<Remove_Last_Reg ua="na">No</Remove_Last_Reg>
<Use_Compact_Header ua="na">No</Use_Compact_Header>
<Escape_Display_Name ua="na">No</Escape_Display_Name>
<SIP-B_Enable ua="na">No</SIP-B_Enable>
<Talk_Package ua="na">No</Talk_Package>
<Hold_Package ua="na">No</Hold_Package>
<Conference_Package ua="na">No</Conference_Package>
<Notify_Conference ua="na">No</Notify_Conference>
<RFC_2543_Call_Hold ua="na">Yes</RFC_2543_Call_Hold>
Page 109
Sample Configuration Profiles
XML Open Format Sample
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
109
A
<Random_REG_CID_On_Reboot ua="na">No</Random_REG_CID_On_Reboot>
<Mark_All_AVT_Packets ua="na">Yes</Mark_All_AVT_Packets>
<SIP_TCP_Port_Min ua="na">5060</SIP_TCP_Port_Min>
<SIP_TCP_Port_Max ua="na">5080</SIP_TCP_Port_Max>
<CTI_Enable ua="na">No</CTI_Enable>
<Caller_ID_Header ua="na">PAID-RPID-FROM</Caller_ID_Header> <!-- options:
PAID-RPID-FROM/PAID-FROM/RPID-PAID-FROM/RPID-FROM/FROM -->
<Dialog_SDP_Enable ua="na">No</Dialog_SDP_Enable>
<!-- SIP Timer Values (sec) -->
<SIP_T1 ua="na">.5</SIP_T1>
<SIP_T2 ua="na">4</SIP_T2>
<SIP_T4 ua="na">5</SIP_T4>
<SIP_Timer_B ua="na">16</SIP_Timer_B>
<SIP_Timer_F ua="na">16</SIP_Timer_F>
<SIP_Timer_H ua="na">16</SIP_Timer_H>
<SIP_Timer_D ua="na">16</SIP_Timer_D>
<SIP_Timer_J ua="na">16</SIP_Timer_J>
<INVITE_Expires ua="na">240</INVITE_Expires>
<ReINVITE_Expires ua="na">30</ReINVITE_Expires>
<Reg_Min_Expires ua="na">1</Reg_Min_Expires>
<Reg_Max_Expires ua="na">7200</Reg_Max_Expires>
<Reg_Retry_Intvl ua="na">30</Reg_Retry_Intvl>
<Reg_Retry_Long_Intvl ua="na">1200</Reg_Retry_Long_Intvl>
<Reg_Retry_Random_Delay ua="na"></Reg_Retry_Random_Delay>
<Reg_Retry_Long_Random_Delay ua="na"></Reg_Retry_Long_Random_Delay>
<Reg_Retry_Intvl_Cap ua="na"></Reg_Retry_Intvl_Cap>
<Sub_Min_Expires ua="na">10</Sub_Min_Expires>
<Sub_Max_Expires ua="na">7200</Sub_Max_Expires>
<Sub_Retry_Intvl ua="na">10</Sub_Retry_Intvl>
<!-- Response Status Code Handling -->
<SIT1_RSC ua="na"></SIT1_RSC>
<SIT2_RSC ua="na"></SIT2_RSC>
<SIT3_RSC ua="na"></SIT3_RSC>
<SIT4_RSC ua="na"></SIT4_RSC>
<Try_Backup_RSC ua="na"></Try_Backup_RSC>
<Retry_Reg_RSC ua="na"></Retry_Reg_RSC>
<!-- RTP Parameters -->
<RTP_Port_Min ua="na">16384</RTP_Port_Min>
<RTP_Port_Max ua="na">16482</RTP_Port_Max>
<RTP_Packet_Size ua="na">0.030</RTP_Packet_Size>
<Max_RTP_ICMP_Err ua="na">0</Max_RTP_ICMP_Err>
<RTCP_Tx_Interval ua="na">0</RTCP_Tx_Interval>
<No_UDP_Checksum ua="na">No</No_UDP_Checksum>
<Symmetric_RTP ua="na">No</Symmetric_RTP>
<Stats_In_BYE ua="na">No</Stats_In_BYE>
<!-- SDP Payload Types -->
<AVT_Dynamic_Payload ua="na">101</AVT_Dynamic_Payload>
Page 110
Sample Configuration Profiles
XML Open Format Sample
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
110
A
<INFOREQ_Dynamic_Payload ua="na"></INFOREQ_Dynamic_Payload>
<G726r16_Dynamic_Payload ua="na">98</G726r16_Dynamic_Payload>
<G726r24_Dynamic_Payload ua="na">97</G726r24_Dynamic_Payload>
<G726r32_Dynamic_Payload ua="na">2</G726r32_Dynamic_Payload>
<G726r40_Dynamic_Payload ua="na">96</G726r40_Dynamic_Payload>
<G729b_Dynamic_Payload ua="na">99</G729b_Dynamic_Payload>
<L16_Dynamic_Payload ua="na">104</L16_Dynamic_Payload>
<EncapRTP_Dynamic_Payload ua="na">112</EncapRTP_Dynamic_Payload>
<RTP-Start-Loopback_Dynamic_Payload ua="na">113</RTP-Start-
Loopback_Dynamic_Payload>
<RTP-Start-Loopback_Codec ua="na">G711u</RTP-Start-Loopback_Codec> <!--
options: G711u/G711a/G726-32/G729a/G722 -->
<AVT_Codec_Name ua="na">telephone-event</AVT_Codec_Name>
<G711u_Codec_Name ua="na">PCMU</G711u_Codec_Name>
<G711a_Codec_Name ua="na">PCMA</G711a_Codec_Name>
<G726r32_Codec_Name ua="na">G726-32</G726r32_Codec_Name>
<G729a_Codec_Name ua="na">G729a</G729a_Codec_Name>
<G729b_Codec_Name ua="na">G729ab</G729b_Codec_Name>
<G722_Codec_Name ua="na">G722</G722_Codec_Name>
<L16_Codec_Name ua="na">L16</L16_Codec_Name>
<EncapRTP_Codec_Name ua="na">encaprtp</EncapRTP_Codec_Name>
<!-- NAT Support Parameters -->
<Handle_VIA_received ua="na">No</Handle_VIA_received>
<Handle_VIA_rport ua="na">No</Handle_VIA_rport>
<Insert_VIA_received ua="na">No</Insert_VIA_received>
<Insert_VIA_rport ua="na">No</Insert_VIA_rport>
<Substitute_VIA_Addr ua="na">No</Substitute_VIA_Addr>
<Send_Resp_To_Src_Port ua="na">No</Send_Resp_To_Src_Port>
<STUN_Enable ua="na">No</STUN_Enable>
<STUN_Test_Enable ua="na">No</STUN_Test_Enable>
<STUN_Server ua="na"></STUN_Server>
<EXT_IP ua="na"></EXT_IP>
<EXT_RTP_Port_Min ua="na"></EXT_RTP_Port_Min>
<NAT_Keep_Alive_Intvl ua="na">15</NAT_Keep_Alive_Intvl>
<!-- Linksys Key System Parameters -->
<Linksys_Key_System ua="na">No</Linksys_Key_System>
<Multicast_Address ua="na">224.168.168.168:6061</Multicast_Address>
<Force_LAN_Codec ua="na">none</Force_LAN_Codec> <!-- options: none/G711u/
G711a -->
<!-- Network Settings -->
<SCCP_TOS_DiffServ_Value_1_ ua="na">0x68</SCCP_TOS_DiffServ_Value_1_>
<SCCP_CoS_Value_1_ ua="na">3</SCCP_CoS_Value_1_> <!-- options: 0/1/2/3/4/5/
6/7 -->
<DTMF_Tx_Method_1_ ua="na">INFO</DTMF_Tx_Method_1_> <!-- options: InBand/
AVT/INFO/Auto/InBand+INFO/AVT+INFO -->
<DTMF_Tx_Volume_for_AVT_Packet_1_ ua="na">0</
DTMF_Tx_Volume_for_AVT_Packet_1_>
<!-- Network Settings -->
Page 111
Sample Configuration Profiles
XML Open Format Sample
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
111
A
<SCCP_TOS_DiffServ_Value_2_ ua="na">0x68</SCCP_TOS_DiffServ_Value_2_>
<SCCP_CoS_Value_2_ ua="na">3</SCCP_CoS_Value_2_> <!-- options: 0/1/2/3/4/5/
6/7 -->
<DTMF_Tx_Method_2_ ua="na">INFO</DTMF_Tx_Method_2_> <!-- options: InBand/
AVT/INFO/Auto/InBand+INFO/AVT+INFO -->
<DTMF_Tx_Volume_for_AVT_Packet_2_ ua="na">0</
DTMF_Tx_Volume_for_AVT_Packet_2_>
<!-- Network Settings -->
<SCCP_TOS_DiffServ_Value_3_ ua="na">0x68</SCCP_TOS_DiffServ_Value_3_>
<SCCP_CoS_Value_3_ ua="na">3</SCCP_CoS_Value_3_> <!-- options: 0/1/2/3/4/5/
6/7 -->
<DTMF_Tx_Method_3_ ua="na">INFO</DTMF_Tx_Method_3_> <!-- options: InBand/
AVT/INFO/Auto/InBand+INFO/AVT+INFO -->
<DTMF_Tx_Volume_for_AVT_Packet_3_ ua="na">0</
DTMF_Tx_Volume_for_AVT_Packet_3_>
<!-- Network Settings -->
<SCCP_TOS_DiffServ_Value_4_ ua="na">0x68</SCCP_TOS_DiffServ_Value_4_>
<SCCP_CoS_Value_4_ ua="na">3</SCCP_CoS_Value_4_> <!-- options: 0/1/2/3/4/5/
6/7 -->
<DTMF_Tx_Method_4_ ua="na">INFO</DTMF_Tx_Method_4_> <!-- options: InBand/
AVT/INFO/Auto/InBand+INFO/AVT+INFO -->
<DTMF_Tx_Volume_for_AVT_Packet_4_ ua="na">0</
DTMF_Tx_Volume_for_AVT_Packet_4_>
<!-- Network Settings -->
<SCCP_TOS_DiffServ_Value_5_ ua="na">0x68</SCCP_TOS_DiffServ_Value_5_>
<SCCP_CoS_Value_5_ ua="na">3</SCCP_CoS_Value_5_> <!-- options: 0/1/2/3/4/5/
6/7 -->
<DTMF_Tx_Method_5_ ua="na">INFO</DTMF_Tx_Method_5_> <!-- options: InBand/
AVT/INFO/Auto/InBand+INFO/AVT+INFO -->
<DTMF_Tx_Volume_for_AVT_Packet_5_ ua="na">0</
DTMF_Tx_Volume_for_AVT_Packet_5_>
<!-- Call Forward -->
<Cfwd_Setting ua="rw">Yes</Cfwd_Setting>
<Cfwd_All_Dest ua="rw"></Cfwd_All_Dest>
<Cfwd_Busy_Dest ua="rw"></Cfwd_Busy_Dest>
<Cfwd_No_Ans_Dest ua="rw"></Cfwd_No_Ans_Dest>
<Cfwd_No_Ans_Delay ua="rw">20</Cfwd_No_Ans_Delay>
<Speakerphone_DTMF_Masking ua="na">No</Speakerphone_DTMF_Masking>
<!-- Camera Settings -->
<Enable_Video_VLAN ua="ro">No</Enable_Video_VLAN>
<Video_VLAN_ID ua="ro">1</Video_VLAN_ID>
<!-- Camera Profile 1 -->
Page 112
Sample Configuration Profiles
XML Open Format Sample
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
112
A
<Camera_Name_1_ ua="ro"></Camera_Name_1_>
<Access_URL_1_ ua="ro"></Access_URL_1_>
<Access_User_Name_1_ ua="ro"></Access_User_Name_1_>
<Access_Password_1_ ua="na"></Access_Password_1_>
<Associated_Caller_ID_1_ ua="ro"></Associated_Caller_ID_1_>
<Door_Control_URL_1_ ua="na"></Door_Control_URL_1_>
<!-- Camera Profile 2 -->
<Camera_Name_2_ ua="ro"></Camera_Name_2_>
<Access_URL_2_ ua="ro"></Access_URL_2_>
<Access_User_Name_2_ ua="ro"></Access_User_Name_2_>
<Access_Password_2_ ua="na"></Access_Password_2_>
<Associated_Caller_ID_2_ ua="ro"></Associated_Caller_ID_2_>
<Door_Control_URL_2_ ua="na"></Door_Control_URL_2_>
<!-- Camera Profile 3 -->
<Camera_Name_3_ ua="ro"></Camera_Name_3_>
<Access_URL_3_ ua="ro"></Access_URL_3_>
<Access_User_Name_3_ ua="ro"></Access_User_Name_3_>
<Access_Password_3_ ua="na"></Access_Password_3_>
<Associated_Caller_ID_3_ ua="ro"></Associated_Caller_ID_3_>
<Door_Control_URL_3_ ua="na"></Door_Control_URL_3_>
<!-- Camera Profile 4 -->
<Camera_Name_4_ ua="ro"></Camera_Name_4_>
<Access_URL_4_ ua="ro"></Access_URL_4_>
<Access_User_Name_4_ ua="ro"></Access_User_Name_4_>
<Access_Password_4_ ua="na"></Access_Password_4_>
<Associated_Caller_ID_4_ ua="ro"></Associated_Caller_ID_4_>
<Door_Control_URL_4_ ua="na"></Door_Control_URL_4_>
<!-- Audio Volume -->
<Ringer_Volume ua="rw">9</Ringer_Volume>
<Speaker_Volume ua="rw">11</Speaker_Volume>
<Handset_Volume ua="rw">9</Handset_Volume>
<Headset_Volume ua="rw">9</Headset_Volume>
<Bluetooth_Volume ua="rw">9</Bluetooth_Volume>
<Handset_Version ua="rw">Auto</Handset_Version> <!-- options: Auto/
Original/v3 -->
<Deep_Bass ua="rw">Yes</Deep_Bass>
<!-- Call Record Setting -->
<Call_Record_Mode ua="na">No</Call_Record_Mode>
<Call_Record_Beep ua="na">Yes</Call_Record_Beep>
<!-- LCD Screen -->
<Screen_Saver_Enable ua="rw">No</Screen_Saver_Enable>
Page 113
Sample Configuration Profiles
XML Open Format Sample
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
113
A
<Screen_Saver_Type ua="rw">Black Background</Screen_Saver_Type> <!--
options: Black Background/Gray Background/Black/Gray Rotation/Picture
Rotation/Digital Frame/Download Picture/Clock -->
<Screen_Saver_Trigger_Time ua="rw">300</Screen_Saver_Trigger_Time>
<Screen_Saver_Refresh_Time ua="rw">10</Screen_Saver_Refresh_Time>
<Back_Light_Enable ua="na">No</Back_Light_Enable>
<Back_Light_Timer__sec_ ua="na">30</Back_Light_Timer__sec_>
<LCD_Contrast ua="rw">15</LCD_Contrast>
<Logo_Type ua="na"></Logo_Type> <!-- options: Default/Download BMP Picture/
Text Logo -->
<Text_Logo ua="na"></Text_Logo>
<Background_Picture_Type ua="na">Default</Background_Picture_Type> <!--
options: Default/Download BMP Picture -->
<BMP_Picture_Download_URL ua="na"></BMP_Picture_Download_URL>
<Station_Name ua="na"></Station_Name>
<Default_Ring ua="na">Chirp 1</Default_Ring>
<Default_Ring_1_ ua="na">0</Default_Ring_1_>
<Use_Default_Ring_1_ ua="na">Yes</Use_Default_Ring_1_>
<Default_Ring_2_ ua="na">0</Default_Ring_2_>
<Use_Default_Ring_2_ ua="na">Yes</Use_Default_Ring_2_>
<Default_Ring_3_ ua="na">0</Default_Ring_3_>
<Use_Default_Ring_3_ ua="na">Yes</Use_Default_Ring_3_>
<Default_Ring_4_ ua="na">0</Default_Ring_4_>
<Use_Default_Ring_4_ ua="na">Yes</Use_Default_Ring_4_>
<Default_Ring_5_ ua="na">0</Default_Ring_5_>
<Use_Default_Ring_5_ ua="na">Yes</Use_Default_Ring_5_>
<!-- Ring Tone -->
<Ring1 ua="na">n=Cisco Synth;w=file://Cisco_synth_ring1.mp3;c=0</Ring1>
<Ring2 ua="na">n=Retro;w=file://ringin.726;c=1</Ring2>
<Ring3 ua="na">n=Office;w=file://thx-short.726;c=1</Ring3>
<Ring4 ua="na">n=Analog Synth;w=file://Analog1.raw;c=1</Ring4>
<Ring5 ua="na">n=Are You There;w=file://AreYouThereF.raw;c=1</Ring5>
<Ring6 ua="na">n=Chime;w=file://Chime.raw;c=1</Ring6>
<Ring7 ua="na">n=Clock Shop;w=file://ClockShop.raw;c=1</Ring7>
<Ring8 ua="na">n=Film Score;w=file://FilmScore.raw;c=1</Ring8>
<Ring9 ua="na">n=Koto Effect;w=file://KotoEffect.raw;c=1</Ring9>
<Ring10 ua="na">n=Piano;w=file://Piano2.raw;c=1</Ring10>
<Ring11 ua="na">n=Pulse;w=file://Pulse1.raw;c=1</Ring11>
<Ring12 ua="na">n=Du-dut;w=file://Ring7.raw;c=1</Ring12>
<!-- Audio Input Gain (dB) -->
<Handset_Input_Gain ua="na">0</Handset_Input_Gain> <!-- options: -6/0/6/9 -
->
<Headset_Input_Gain ua="na">0</Headset_Input_Gain> <!-- options: -6/0/6/9 -
->
<Speakerphone_Input_Gain ua="na">0</Speakerphone_Input_Gain> <!-- options:
-6/0/6/9 -->
<Bluetooth_Input_Gain ua="na">0</Bluetooth_Input_Gain> <!-- options: -6/0/
6/9 -->
<!-- Call Progress Tones -->
Page 114
Sample Configuration Profiles
XML Open Format Sample
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
114
A
<Dial_Tone ua="na">350@-19,440@-19;(/0/1+2)</Dial_Tone>
<Bluetooth_Dial_Tone ua="na">350@-19,440@-19;1(0//0);(/0/1+2)</
Bluetooth_Dial_Tone>
<Outside_Dial_Tone ua="na">420@-16;(/0/1)</Outside_Dial_Tone>
<Prompt_Tone ua="na">520@-19,620@-19;(/0/1+2)</Prompt_Tone>
<Busy_Tone ua="na">480@-19,620@-19;(.5/.5/1+2)</Busy_Tone>
<Reorder_Tone ua="na">480@-19,620@-19;(.25/.25/1+2)</Reorder_Tone>
<Off_Hook_Warning_Tone ua="na">480@-10,620@0;(.125/.125/1+2)</
Off_Hook_Warning_Tone>
<Ring_Back_Tone ua="na">440@-19,480@-19;(2/4/1+2)</Ring_Back_Tone>
<Call_Waiting_Tone ua="na">440@-10;30(.3/9.7/1)</Call_Waiting_Tone>
<Confirm_Tone ua="na">600@-16;1(.25/.25/1)</Confirm_Tone>
<SIT1_Tone ua="na">985@-16,1428@-16,1777@-16;20(.380/0/1,.380/0/2,.380/0/
3,0/4/0)</SIT1_Tone>
<SIT2_Tone ua="na">914@-16,1371@-16,1777@-16;20(.274/0/1,.274/0/2,.380/0/
3,0/4/0)</SIT2_Tone>
<SIT3_Tone ua="na">914@-16,1371@-16,1777@-16;20(.380/0/1,.380/0/2,.380/0/
3,0/4/0)</SIT3_Tone>
<SIT4_Tone ua="na">985@-16,1371@-16,1777@-16;20(.380/0/1,.274/0/2,.380/0/
3,0/4/0)</SIT4_Tone>
<MWI_Dial_Tone ua="na">350@-19,440@-19;2(.1/.1/1+2);10(/0/1+2)</
MWI_Dial_Tone>
<Cfwd_Dial_Tone ua="na">350@-19,440@-19;2(.2/.2/1+2);10(*/0/1+2)</
Cfwd_Dial_Tone>
<Holding_Tone ua="na">600@-19;25(.1/.1/1,.1/.1/1,.1/9.5/1)</Holding_Tone>
<Conference_Tone ua="na">350@-19;20(.1/.1/1,.1/9.7/1)</Conference_Tone>
<Secure_Call_Indication_Tone ua="na">397@-19,507@-19;15(0/2/0,.2/.1/1,.1/
2.1/2)</Secure_Call_Indication_Tone>
<Page_Tone ua="na">600@-16;.3(.05/0.05/1)</Page_Tone>
<Low_Battery_Tone ua="na">1600@-16;2(.05/0.05/1,.05/.05/1,0/.5/0)</
Low_Battery_Tone>
<Alert_Tone ua="na">600@-19;.2(.05/0.05/1)</Alert_Tone>
<System_Beep ua="na">600@-16;.1(.05/0.05/1)</System_Beep>
<!-- Distinctive Ring Patterns -->
<Cadence_1 ua="na">60(2/4)</Cadence_1>
<Cadence_2 ua="na">60(.3/.2,1/.2,.3/4)</Cadence_2>
<Cadence_3 ua="na">60(.8/.4,.8/4)</Cadence_3>
<Cadence_4 ua="na">60(.4/.2,.3/.2,.8/4)</Cadence_4>
<Cadence_5 ua="na">60(.2/.2,.2/.2,.2/.2,1/4)</Cadence_5>
<Cadence_6 ua="na">60(.2/.4,.2/.4,.2/4)</Cadence_6>
<Cadence_7 ua="na">60(4.5/4)</Cadence_7>
<Cadence_8 ua="na">60(0.25/9.75)</Cadence_8>
<Cadence_9 ua="na">60(.4/.2,.4/2)</Cadence_9>
<!-- Control Timer Values (sec) -->
<Reorder_Delay ua="na">255</Reorder_Delay>
<Call_Back_Expires ua="na">1800</Call_Back_Expires>
<Call_Back_Retry_Intvl ua="na">30</Call_Back_Retry_Intvl>
<Call_Back_Delay ua="na">.5</Call_Back_Delay>
<Interdigit_Long_Timer ua="na">10</Interdigit_Long_Timer>
<Interdigit_Short_Timer ua="na">3</Interdigit_Short_Timer>
Page 115
Sample Configuration Profiles
XML Open Format Sample
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
115
A
<!-- Vertical Service Activation Codes -->
<Call_Return_Code ua="na">*69</Call_Return_Code>
<Blind_Transfer_Code ua="na">*98</Blind_Transfer_Code>
<Call_Back_Act_Code ua="na">*66</Call_Back_Act_Code>
<Call_Back_Deact_Code ua="na">*86</Call_Back_Deact_Code>
<Cfwd_All_Act_Code ua="na">*72</Cfwd_All_Act_Code>
<Cfwd_All_Deact_Code ua="na">*73</Cfwd_All_Deact_Code>
<Cfwd_Busy_Act_Code ua="na">*90</Cfwd_Busy_Act_Code>
<Cfwd_Busy_Deact_Code ua="na">*91</Cfwd_Busy_Deact_Code>
<Cfwd_No_Ans_Act_Code ua="na">*92</Cfwd_No_Ans_Act_Code>
<Cfwd_No_Ans_Deact_Code ua="na">*93</Cfwd_No_Ans_Deact_Code>
<CW_Act_Code ua="na">*56</CW_Act_Code>
<CW_Deact_Code ua="na">*57</CW_Deact_Code>
<CW_Per_Call_Act_Code ua="na">*71</CW_Per_Call_Act_Code>
<CW_Per_Call_Deact_Code ua="na">*70</CW_Per_Call_Deact_Code>
<Block_CID_Act_Code ua="na">*67</Block_CID_Act_Code>
<Block_CID_Deact_Code ua="na">*68</Block_CID_Deact_Code>
<Block_CID_Per_Call_Act_Code ua="na">*81</Block_CID_Per_Call_Act_Code>
<Block_CID_Per_Call_Deact_Code ua="na">*82</Block_CID_Per_Call_Deact_Code>
<Block_ANC_Act_Code ua="na">*77</Block_ANC_Act_Code>
<Block_ANC_Deact_Code ua="na">*87</Block_ANC_Deact_Code>
<DND_Act_Code ua="na">*78</DND_Act_Code>
<DND_Deact_Code ua="na">*79</DND_Deact_Code>
<Secure_All_Call_Act_Code ua="na">*16</Secure_All_Call_Act_Code>
<Secure_No_Call_Act_Code ua="na">*17</Secure_No_Call_Act_Code>
<Secure_One_Call_Act_Code ua="na">*18</Secure_One_Call_Act_Code>
<Secure_One_Call_Deact_Code ua="na">*19</Secure_One_Call_Deact_Code>
<Paging_Code ua="na">*96</Paging_Code>
<Call_Park_Code ua="na">*38</Call_Park_Code>
<Call_Pickup_Code ua="na">*36</Call_Pickup_Code>
<Call_UnPark_Code ua="na">*39</Call_UnPark_Code>
<Group_Call_Pickup_Code ua="na">*37</Group_Call_Pickup_Code>
<Media_Loopback_Code ua="na">*03</Media_Loopback_Code>
<Referral_Services_Codes ua="na"></Referral_Services_Codes>
<Feature_Dial_Services_Codes ua="na"></Feature_Dial_Services_Codes>
<!-- Vertical Service Announcement Codes -->
<Service_Annc_Base_Number ua="na"></Service_Annc_Base_Number>
<Service_Annc_Extension_Codes ua="na"></Service_Annc_Extension_Codes>
<!-- Outbound Call Codec Selection Codes -->
<Prefer_G711u_Code ua="na">*017110</Prefer_G711u_Code>
<Force_G711u_Code ua="na">*027110</Force_G711u_Code>
<Prefer_G711a_Code ua="na">*017111</Prefer_G711a_Code>
<Force_G711a_Code ua="na">*027111</Force_G711a_Code>
<Prefer_G722_Code ua="na">*01722</Prefer_G722_Code>
<Force_G722_Code ua="na">*02722</Force_G722_Code>
<Prefer_L16_Code ua="na">*01016</Prefer_L16_Code>
<Force_L16_Code ua="na">*02016</Force_L16_Code>
<Prefer_G726r32_Code ua="na">*0172632</Prefer_G726r32_Code>
<Force_G726r32_Code ua="na">*0272632</Force_G726r32_Code>
<Prefer_G729a_Code ua="na">*01729</Prefer_G729a_Code>
Page 116
Sample Configuration Profiles
XML Open Format Sample
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
116
A
<Force_G729a_Code ua="na">*02729</Force_G729a_Code>
<!-- Time -->
<Time_Zone ua="na">GMT-08:00</Time_Zone> <!-- options: GMT-12:00/GMT-11:00/
GMT-10:00/GMT-09:00/GMT-08:00/GMT-07:00/GMT-06:00/GMT-05:00/GMT-04:00/GMT-
03:30/GMT-03:00/GMT-02:00/GMT-01:00/GMT/GMT+01:00/GMT+02:00/GMT+03:00/
GMT+03:30/GMT+04:00/GMT+05:00/GMT+05:30/GMT+05:45/GMT+06:00/GMT+06:30/
GMT+07:00/GMT+08:00/GMT+09:00/GMT+09:30/GMT+10:00/GMT+11:00/GMT+12:00/
GMT+13:00 -->
<Time_Offset__HH_mm_ ua="na"></Time_Offset__HH_mm_>
<Ignore_DHCP_Time_Offset ua="na">Yes</Ignore_DHCP_Time_Offset>
<Daylight_Saving_Time_Rule ua="na">start=3/-1/7/2;end=10/-1/7/2;save=1</
Daylight_Saving_Time_Rule>
<Daylight_Saving_Time_Enable ua="na">Yes</Daylight_Saving_Time_Enable>
<!-- Language -->
<SCCP_Dictionary_Server_Script_1 ua="na"></SCCP_Dictionary_Server_Script_1>
<Language_Selection ua="na">English-US</Language_Selection>
<!-- Miscellaneous -->
<DTMF_Playback_Level ua="na">-16</DTMF_Playback_Level>
<DTMF_Playback_Length ua="na">.1</DTMF_Playback_Length>
<Inband_DTMF_Boost ua="na">12dB</Inband_DTMF_Boost> <!-- options: 0dB/3dB/
6dB/9dB/12dB/15dB/18dB -->
<SCCP_Dictionary_Server_Script_2 ua="na"></SCCP_Dictionary_Server_Script_2>
<SCCP_Language_Selection_2 ua="na"></SCCP_Language_Selection_2>
<!-- Locale Settings -->
<!-- General -->
<Subscribe_Expires ua="na">1800</Subscribe_Expires>
<Subscribe_Retry_Interval ua="na">30</Subscribe_Retry_Interval>
<Unit_1_Enable ua="na">Yes</Unit_1_Enable>
<Subscribe_Delay ua="na">1</Subscribe_Delay>
<Unit_2_Enable ua="na">Yes</Unit_2_Enable>
<Server_Type ua="na">Broadsoft</Server_Type> <!-- options: Broadsoft/
SPA9000/Asterisk/RFC3265_4235/Sylantro -->
<Test_Mode_Enable ua="na">No</Test_Mode_Enable>
<Attendant_Console_Call_Pickup_Code ua="na">*98</
Attendant_Console_Call_Pickup_Code>
<!-- Unit 1 -->
<Unit_1_Key_1 ua="na"></Unit_1_Key_1>
<Unit_1_Key_2 ua="na"></Unit_1_Key_2>
<Unit_1_Key_3 ua="na"></Unit_1_Key_3>
<Unit_1_Key_4 ua="na"></Unit_1_Key_4>
<Unit_1_Key_5 ua="na"></Unit_1_Key_5>
<Unit_1_Key_6 ua="na"></Unit_1_Key_6>
<Unit_1_Key_7 ua="na"></Unit_1_Key_7>
Page 117
Sample Configuration Profiles
XML Open Format Sample
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
117
A
<Unit_1_Key_8 ua="na"></Unit_1_Key_8>
<Unit_1_Key_9 ua="na"></Unit_1_Key_9>
<Unit_1_Key_10 ua="na"></Unit_1_Key_10>
<Unit_1_Key_11 ua="na"></Unit_1_Key_11>
<Unit_1_Key_12 ua="na"></Unit_1_Key_12>
<Unit_1_Key_13 ua="na"></Unit_1_Key_13>
<Unit_1_Key_14 ua="na"></Unit_1_Key_14>
<Unit_1_Key_15 ua="na"></Unit_1_Key_15>
<Unit_1_Key_16 ua="na"></Unit_1_Key_16>
<Unit_1_Key_17 ua="na"></Unit_1_Key_17>
<Unit_1_Key_18 ua="na"></Unit_1_Key_18>
<Unit_1_Key_19 ua="na"></Unit_1_Key_19>
<Unit_1_Key_20 ua="na"></Unit_1_Key_20>
<Unit_1_Key_21 ua="na"></Unit_1_Key_21>
<Unit_1_Key_22 ua="na"></Unit_1_Key_22>
<Unit_1_Key_23 ua="na"></Unit_1_Key_23>
<Unit_1_Key_24 ua="na"></Unit_1_Key_24>
<Unit_1_Key_25 ua="na"></Unit_1_Key_25>
<Unit_1_Key_26 ua="na"></Unit_1_Key_26>
<Unit_1_Key_27 ua="na"></Unit_1_Key_27>
<Unit_1_Key_28 ua="na"></Unit_1_Key_28>
<Unit_1_Key_29 ua="na"></Unit_1_Key_29>
<Unit_1_Key_30 ua="na"></Unit_1_Key_30>
<Unit_1_Key_31 ua="na"></Unit_1_Key_31>
<Unit_1_Key_32 ua="na"></Unit_1_Key_32>
<!-- Unit 2 -->
<Unit_2_Key_1 ua="na"></Unit_2_Key_1>
<Unit_2_Key_2 ua="na"></Unit_2_Key_2>
<Unit_2_Key_3 ua="na"></Unit_2_Key_3>
<Unit_2_Key_4 ua="na"></Unit_2_Key_4>
<Unit_2_Key_5 ua="na"></Unit_2_Key_5>
<Unit_2_Key_6 ua="na"></Unit_2_Key_6>
<Unit_2_Key_7 ua="na"></Unit_2_Key_7>
<Unit_2_Key_8 ua="na"></Unit_2_Key_8>
<Unit_2_Key_9 ua="na"></Unit_2_Key_9>
<Unit_2_Key_10 ua="na"></Unit_2_Key_10>
<Unit_2_Key_11 ua="na"></Unit_2_Key_11>
<Unit_2_Key_12 ua="na"></Unit_2_Key_12>
<Unit_2_Key_13 ua="na"></Unit_2_Key_13>
<Unit_2_Key_14 ua="na"></Unit_2_Key_14>
<Unit_2_Key_15 ua="na"></Unit_2_Key_15>
<Unit_2_Key_16 ua="na"></Unit_2_Key_16>
<Unit_2_Key_17 ua="na"></Unit_2_Key_17>
<Unit_2_Key_18 ua="na"></Unit_2_Key_18>
<Unit_2_Key_19 ua="na"></Unit_2_Key_19>
<Unit_2_Key_20 ua="na"></Unit_2_Key_20>
<Unit_2_Key_21 ua="na"></Unit_2_Key_21>
<Unit_2_Key_22 ua="na"></Unit_2_Key_22>
<Unit_2_Key_23 ua="na"></Unit_2_Key_23>
<Unit_2_Key_24 ua="na"></Unit_2_Key_24>
<Unit_2_Key_25 ua="na"></Unit_2_Key_25>
<Unit_2_Key_26 ua="na"></Unit_2_Key_26>
<Unit_2_Key_27 ua="na"></Unit_2_Key_27>
Page 118
Sample Configuration Profiles
XML Open Format Sample
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
118
A
<Unit_2_Key_28 ua="na"></Unit_2_Key_28>
<Unit_2_Key_29 ua="na"></Unit_2_Key_29>
<Unit_2_Key_30 ua="na"></Unit_2_Key_30>
<Unit_2_Key_31 ua="na"></Unit_2_Key_31>
<Unit_2_Key_32 ua="na"></Unit_2_Key_32>
<SPA525-SSID ua="na">~</SPA525-SSID>
<SPA525-Encryption-type ua="na">~</SPA525-Encryption-type>
<SPA525-Encryption-key ua="na">~</SPA525-Encryption-key>
<SPA525-Encryption-key-code ua="na"></SPA525-Encryption-key-code>
<Protect_IVR_FactoryReset ua="na">No</Protect_IVR_FactoryReset>
<profileName_1_ >cisco-voice</profileName_1_>
<ssid_1_ >cisco-voice</ssid_1_>
<securityMode_1_ >Disable</securityMode_1_> <!-- options: Disable/WEP/WPA-
PSK/WPA2-PSK/WPA-ENT/WPA2-ENT -->
<cipherType_1_ ></cipherType_1_> <!-- 0:TKIP, 1:AES -->
<wepKeyId_1_ ></wepKeyId_1_> <!-- [0-4] -->
<wepKeyLen_1_ ></wepKeyLen_1_> <!-- 0:10 hex, 1:26 hex, 2:5 ascii, 3:13
ascii -->
<wepKey0_1_ ></wepKey0_1_>
<wepKey1_1_ ></wepKey1_1_>
<wepKey2_1_ ></wepKey2_1_>
<wepKey3_1_ ></wepKey3_1_>
<pskKey_1_ ></pskKey_1_>
<eapType_1_ ></eapType_1_> <!-- 1:TLS, 2:TTLS, 3:LEAP -->
<identity_1_ ></identity_1_>
<password_1_ ></password_1_>
<anonymousIdentity_1_ ></anonymousIdentity_1_>
<serverCert_1_ ></serverCert_1_>
<clientCert_1_ ></clientCert_1_>
<ttlsAuthProto_1_ ></ttlsAuthProto_1_> <!-- 0:MD5, 1:MSCHV2, 2:MSCHAP,
3:PAP, 4:CHAP -->
<profileLock_1_ ></profileLock_1_> <!-- Yes/No -->
<profileEnable_1_ >Yes</profileEnable_1_> <!-- Yes/No -->
<profileName_2_ ></profileName_2_>
<ssid_2_ ></ssid_2_>
<securityMode_2_ >Disable</securityMode_2_>
<cipherType_2_ ></cipherType_2_>
<wepKeyId_2_ ></wepKeyId_2_>
<wepKeyLen_2_ ></wepKeyLen_2_>
<wepKey0_2_ ></wepKey0_2_>
<wepKey1_2_ ></wepKey1_2_>
<wepKey2_2_ ></wepKey2_2_>
<wepKey3_2_ ></wepKey3_2_>
<pskKey_2_ ></pskKey_2_>
<eapType_2_ ></eapType_2_>
<identity_2_ ></identity_2_>
<password_2_ ></password_2_>
<anonymousIdentity_2_ ></anonymousIdentity_2_>
<serverCert_2_ ></serverCert_2_>
<clientCert_2_ ></clientCert_2_>
<ttlsAuthProto_2_ ></ttlsAuthProto_2_>
<profileLock_2_ ></profileLock_2_>
<profileEnable_2_ ></profileEnable_2_>
<profileName_3_ ></profileName_3_>
Page 119
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
119
A
<ssid_3_ ></ssid_3_>
<securityMode_3_ >Disable</securityMode_3_>
<cipherType_3_ ></cipherType_3_>
<wepKeyId_3_ ></wepKeyId_3_>
<wepKeyLen_3_ ></wepKeyLen_3_>
<wepKey0_3_ ></wepKey0_3_>
<wepKey1_3_ ></wepKey1_3_>
<wepKey2_3_ ></wepKey2_3_>
<wepKey3_3_ ></wepKey3_3_>
<pskKey_3_ ></pskKey_3_>
<eapType_3_ ></eapType_3_>
<identity_3_ ></identity_3_>
<password_3_ ></password_3_>
<anonymousIdentity_3_ ></anonymousIdentity_3_>
<serverCert_3_ ></serverCert_3_>
<clientCert_3_ ></clientCert_3_>
<ttlsAuthProto_3_ ></ttlsAuthProto_3_>
<profileLock_3_ ></profileLock_3_>
<profileEnable_3_ ></profileEnable_3_>
</flat-profile>
Plain Text Sample One
***
*** SPA509G-SIP 7.5.3 Configuration Parameters
***
*** System Configuration
Restricted_Access_Domains "" ;
Enable_Web_Server "Yes" ;
Web_Server_Port "80" ;
Enable_Web_Admin_Access "Yes" ;
Admin_Passwd "" ;
User_Password ! "" ;
Signaling_Protocol "SIP" ; # options: SIP/SPCP
SPCP_Auto-detect "Yes" ;
Phone-UI-readonly "No" ;
Phone-UI-user-mode "No" ;
*** Power Setting
PoE_Power_Required "Normal" ; # options: Normal/
Maximum
*** Internet Connection Type
Connection_Type ! "DHCP" ; # options: DHCP/
Static IP
Page 120
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
120
A
*** Static IP Settings
Static_IP ! "" ;
NetMask ! "" ;
Gateway ! "" ;
*** Optional Network Configuration
HostName ! "" ;
Domain ! "" ;
Primary_DNS ! "" ;
Secondary_DNS ! "" ;
DNS_Server_Order "Manual" ; # options: Manual/
Manual,DHCP/DHCP,Manual
DNS_Query_Mode "Parallel" ; # options:
Parallel/Sequential
DNS_Query_TTL_Ignore "No" ;
Syslog_Server "" ;
Debug_Server "" ;
Debug_Level "0" ; # options: 0/1/2/3
Layer_2_Logging "No" ;
Port_Mirroring "No" ;
NTP_Enable "Yes" ;
Primary_NTP_Server "" ;
Secondary_NTP_Server "" ;
*** VLAN Settings
Enable_VLAN ! "No" ;
Enable_CDP "Yes" ;
Enable_LLDP-MED "Yes" ;
Network_Startup_Delay "3" ;
VLAN_ID ! "1" ;
PC_Port_VLAN_Highest_Priority "No Limit" ; # options: 0/1/
2/3/4/5/6/7/No Limit
Enable_PC_Port_VLAN_Tagging "No" ;
PC_Port_VLAN_ID "1" ;
*** Inventory Settings
Asset_ID "" ;
*** Configuration Profile
Provision_Enable "Yes" ;
Resync_On_Reset "Yes" ;
Resync_Random_Delay "2" ;
Resync_At_(HHmm) "" ;
Resync_At_Random_Delay "600" ;
Resync_Periodic "3600" ;
Resync_Error_Retry_Delay "3600" ;
Forced_Resync_Delay "14400" ;
Resync_From_SIP "Yes" ;
Resync_After_Upgrade_Attempt "Yes" ;
Resync_Trigger_1 "" ;
Page 121
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
121
A
Resync_Trigger_2 "" ;
Resync_Fails_On_FNF "Yes" ;
Profile_Rule "/spa$PSN.cfg" ;
Profile_Rule_B "" ;
Profile_Rule_C "" ;
Profile_Rule_D "" ;
DHCP_Option_To_Use "66,160,159,150,60,43,125" ;
Transport_Protocol "https" ; # options: none/
tftp/http/https
Log_Resync_Request_Msg "$PN $MAC -- Requesting resync
$SCHEME://$SERVIP:$PORT$PATH" ;
Log_Resync_Success_Msg "$PN $MAC -- Successful resync
$SCHEME://$SERVIP:$PORT$PATH" ;
Log_Resync_Failure_Msg "$PN $MAC -- Resync failed:
$ERR" ;
HTTP_Report_Method "POST" ; # options: POST/PUT
Report_Rule "" ;
User_Configurable_Resync "Yes" ;
*** Firmware Upgrade
Upgrade_Enable "Yes" ;
Upgrade_Error_Retry_Delay "3600" ;
Downgrade_Rev_Limit "" ;
Upgrade_Rule "" ;
Log_Upgrade_Request_Msg "$PN $MAC -- Requesting upgrade
$SCHEME://$SERVIP:$PORT$PATH" ;
Log_Upgrade_Success_Msg "$PN $MAC -- Successful upgrade
$SCHEME://$SERVIP:$PORT$PATH -- $ERR" ;
Log_Upgrade_Failure_Msg "$PN $MAC -- Upgrade failed:
$ERR" ;
License_Keys "" ;
*** CA Settings
Custom_CA_RULE "" ;
*** General Purpose Parameters
GPP_A "" ;
GPP_B "" ;
GPP_C "" ;
GPP_D "" ;
GPP_E "" ;
GPP_F "" ;
GPP_G "" ;
GPP_H "" ;
GPP_I "" ;
GPP_J "" ;
GPP_K "" ;
GPP_L "" ;
GPP_M "" ;
GPP_N "" ;
GPP_O "" ;
GPP_P "" ;
Page 122
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
122
A
GPP_SA "" ;
GPP_SB "" ;
GPP_SC "" ;
GPP_SD "" ;
*** SIP Parameters
Max_Forward "70" ;
Max_Redirection "5" ;
Max_Auth "2" ;
SIP_User_Agent_Name "$VERSION" ;
SIP_Server_Name "$VERSION" ;
SIP_Reg_User_Agent_Name "" ;
SIP_Accept_Language "" ;
DTMF_Relay_MIME_Type "application/dtmf-relay" ;
Hook_Flash_MIME_Type "application/hook-flash" ;
Remove_Last_Reg "No" ;
Use_Compact_Header "No" ;
Escape_Display_Name "No" ;
Escape_Special_Character "Yes" ;
SIP-B_Enable "No" ;
Talk_Package "No" ;
Hold_Package "No" ;
Conference_Package "No" ;
Notify_Conference "No" ;
RFC_2543_Call_Hold "Yes" ;
Random_REG_CID_On_Reboot "No" ;
Mark_All_AVT_Packets "Yes" ;
SIP_TCP_Port_Min "5060" ;
SIP_TCP_Port_Max "5080" ;
CTI_Enable "No" ;
Caller_ID_Header "PAID-RPID-FROM" ; # options:
PAID-RPID-FROM/PAID-FROM/RPID-PAID-FROM/RPID-FROM/FROM
SRTP_Method "x-sipura" ; # options: x-
sipura/s-descriptor
Hold_Target_Before_REFER "No" ;
Dialog_SDP_Enable "No" ;
Keep_Referee_When_REFER_Failed "No" ;
Display_Diversion_Info "No" ;
*** SIP Timer Values (sec)
SIP_T1 ".5" ;
SIP_T2 "4" ;
SIP_T4 "5" ;
SIP_Timer_B "16" ;
SIP_Timer_F "16" ;
SIP_Timer_H "16" ;
SIP_Timer_D "16" ;
SIP_Timer_J "16" ;
INVITE_Expires "240" ;
ReINVITE_Expires "30" ;
Reg_Min_Expires "1" ;
Reg_Max_Expires "7200" ;
Reg_Retry_Intvl "30" ;
Page 123
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
123
A
Reg_Retry_Long_Intvl "1200" ;
Reg_Retry_Random_Delay "" ;
Reg_Retry_Long_Random_Delay "" ;
Reg_Retry_Intvl_Cap "" ;
Sub_Min_Expires "10" ;
Sub_Max_Expires "7200" ;
Sub_Retry_Intvl "10" ;
*** Response Status Code Handling
SIT1_RSC "" ;
SIT2_RSC "" ;
SIT3_RSC "" ;
SIT4_RSC "" ;
Try_Backup_RSC "" ;
Retry_Reg_RSC "" ;
*** RTP Parameters
RTP_Port_Min "16384" ;
RTP_Port_Max "16538" ;
RTP_Packet_Size "0.030" ;
Max_RTP_ICMP_Err "0" ;
RTCP_Tx_Interval "0" ;
No_UDP_Checksum "No" ;
Symmetric_RTP "No" ;
Stats_In_BYE "No" ;
*** SDP Payload Types
AVT_Dynamic_Payload "101" ;
INFOREQ_Dynamic_Payload "" ;
G726r16_Dynamic_Payload "98" ;
G726r24_Dynamic_Payload "97" ;
G726r32_Dynamic_Payload "2" ;
G726r40_Dynamic_Payload "96" ;
G729b_Dynamic_Payload "99" ;
EncapRTP_Dynamic_Payload "112" ;
RTP-Start-Loopback_Dynamic_Payload "113" ;
RTP-Start-Loopback_Codec "G711u" ; # options: G711u/
G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
AVT_Codec_Name "telephone-event" ;
G711u_Codec_Name "PCMU" ;
G711a_Codec_Name "PCMA" ;
G726r16_Codec_Name "G726-16" ;
G726r24_Codec_Name "G726-24" ;
G726r32_Codec_Name "G726-32" ;
G726r40_Codec_Name "G726-40" ;
G729a_Codec_Name "G729a" ;
G729b_Codec_Name "G729ab" ;
G723_Codec_Name "G723" ;
G722_Codec_Name "G722" ;
L16_Codec_Name "L16" ;
EncapRTP_Codec_Name "encaprtp" ;
Page 124
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
124
A
*** NAT Support Parameters
Handle_VIA_received "No" ;
Handle_VIA_rport "No" ;
Insert_VIA_received "No" ;
Insert_VIA_rport "No" ;
Substitute_VIA_Addr "No" ;
Send_Resp_To_Src_Port "No" ;
STUN_Enable "No" ;
STUN_Test_Enable "No" ;
STUN_Server "" ;
EXT_IP "" ;
EXT_RTP_Port_Min "" ;
NAT_Keep_Alive_Intvl "15" ;
Redirect_Keep_Alive "No" ;
*** Linksys Key System Parameters
Linksys_Key_System "No" ;
Multicast_Address "224.168.168.168:6061" ;
Key_System_Auto_Discovery "Yes" ;
Key_System_IP_Address "" ;
Force_LAN_Codec "none" ; # options: none/
G711u/G711a
Auto_Ans_GrPage_On_Active_Call "Yes" ;
*** General
Line_Enable[1] "Yes" ;
*** Share Line Appearance
Share_Ext[1] "private" ; # options: private/
shared
Shared_User_ID[1] "" ;
Subscription_Expires[1] "3600" ;
Restrict_MWI[1] "No" ;
Monitor_User_ID[1] "" ;
*** NAT Settings
NAT_Mapping_Enable[1] "No" ;
NAT_Keep_Alive_Enable[1] "No" ;
NAT_Keep_Alive_Msg[1] "$NOTIFY" ;
NAT_Keep_Alive_Dest[1] "$PROXY" ;
*** Network Settings
SIP_TOS/DiffServ_Value[1] "0x68" ;
SIP_CoS_Value[1] "3" ; # options: 0/1/2/3/4/
5/6/7
RTP_TOS/DiffServ_Value[1] "0xb8" ;
RTP_CoS_Value[1] "6" ; # options: 0/1/2/3/4/
5/6/7
Page 125
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
125
A
Network_Jitter_Level[1] "high" ; # options: low/
medium/high/very high/extremely high
Jitter_Buffer_Adjustment[1] "up and down" ; # options: up
and down/up only/down only/disable
*** SIP Settings
SIP_Transport[1] "UDP" ; # options: UDP/TCP/TLS
SIP_Port[1] "5060" ;
SIP_100REL_Enable[1] "No" ;
EXT_SIP_Port[1] "" ;
Auth_Resync-Reboot[1] "Yes" ;
SIP_Proxy-Require[1] "" ;
SIP_Remote-Party-ID[1] "No" ;
Referor_Bye_Delay[1] "4" ;
Refer-To_Target_Contact[1] "No" ;
Referee_Bye_Delay[1] "0" ;
SIP_Debug_Option[1] "none" ; # options: none/1-
line/1-line excl. OPT/1-line excl. NTFY/1-line excl. REG/1-line excl.
OPT|NTFY|REG/full/full excl. OPT/full excl. NTFY/full excl. REG/full excl.
OPT|NTFY|REG
Refer_Target_Bye_Delay[1] "0" ;
Sticky_183[1] "No" ;
Auth_INVITE[1] "No" ;
Ntfy_Refer_On_1xx-To-Inv[1] "Yes" ;
Use_Anonymous_With_RPID[1] "Yes" ;
Set_G729_annexb[1] "none" ; # options: none/no/
yes/follow silence supp setting
Voice_Quality_Report_Address[1] "" ;
User_Equal_Phone[1] "No" ;
*** Call Feature Settings
Blind_Attn-Xfer_Enable[1] "No" ;
MOH_Server[1] "" ;
Message_Waiting[1] "No" ;
Auth_Page[1] "No" ;
Default_Ring[(1)] "1" ; # options: No Ring/1/
2/3/4/5/6/7/8/9/10/11/12/User 1/User 2
Auth_Page_Realm[1] "" ;
Conference_Bridge_URL[1] "" ;
Auth_Page_Password[1] "" ;
Mailbox_ID[1] "" ;
Voice_Mail_Server[1] "" ;
Voice_Mail_Subscribe_Interval[1] "86400" ;
State_Agent[1] "" ;
CFWD_Notify_Serv[1] "No" ;
CFWD_Notifier[1] "" ;
User_ID_with_Domain[1] "No" ;
Broadsoft_ACD[1] "No" ;
Auto_Ans_Page_On_Active_Call[1] "Yes" ;
Feature_Key_Sync[1] "No" ;
Call_Park_Monitor_Enable[1] "No" ;
*** Proxy and Registration
Page 126
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
126
A
Proxy[1] "" ;
Outbound_Proxy[1] "" ;
Alternate_Proxy[1] "" ;
Alternate_Outbound_Proxy[1] "" ;
Use_Outbound_Proxy[1] "No" ;
Use_OB_Proxy_In_Dialog[1] "Yes" ;
Register[1] "Yes" ;
Make_Call_Without_Reg[1] "No" ;
Register_Expires[1] "3600" ;
Ans_Call_Without_Reg[1] "No" ;
Use_DNS_SRV[1] "No" ;
DNS_SRV_Auto_Prefix[1] "No" ;
Proxy_Fallback_Intvl[1] "3600" ;
Proxy_Redundancy_Method[1] "Normal" ; # options: Normal/
Based on SRV Port
Dual_Registration[1] "No" ;
*** Subscriber Information
Display_Name[1] "" ;
User_ID[1] "" ;
Password[1] "" ;
Use_Auth_ID[1] "No" ;
Auth_ID[1] "" ;
Reversed_Auth_Realm[1] "" ;
Mini_Certificate[1] "" ;
SRTP_Private_Key[1] "" ;
Resident_Online_Number[1] "" ;
SIP_URI[1] "" ;
*** Audio Configuration
Preferred_Codec[1] "G711u" ; # options: G711u/
G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Use_Pref_Codec_Only[1] "No" ;
Second_Preferred_Codec[1] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Third_Preferred_Codec[1] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
G729a_Enable[1] "Yes" ;
G723_Enable[1] "Yes" ;
G722_Enable[1] "Yes" ;
L16_Enable[1] "Yes" ;
G726-16_Enable[1] "Yes" ;
G726-24_Enable[1] "Yes" ;
G726-32_Enable[1] "Yes" ;
G726-40_Enable[1] "Yes" ;
Release_Unused_Codec[1] "Yes" ;
DTMF_Process_AVT[1] "Yes" ;
Silence_Supp_Enable[1] "No" ;
DTMF_Tx_Method[1] "Auto" ; # options: InBand/
AVT/INFO/Auto/InBand+INFO/AVT+INFO
DTMF_Tx_Volume_for_AVT_Packet[1] "0" ;
DTMF_AVT_Packet_Interval[1] "0" ;
Page 127
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
127
A
Use_Remote_Pref_Codec[1] "No" ;
Codec_Negotiation[1] "Default" ; # options: Default/
List All
*** Dial Plan
Dial_Plan[1] "(*xx|[3469]11|0|00|[2-
9]xxxxxx|1xxx[2-9]xxxxxxS0|xxxxxxxxxxxx.)" ;
Caller_ID_Map[1] "" ;
Enable_IP_Dialing[1] "Yes" ;
Emergency_Number[1] "" ;
*** General
Line_Enable[2] "Yes" ;
*** Share Line Appearance
Share_Ext[2] "private" ; # options: private/
shared
Shared_User_ID[2] "" ;
Subscription_Expires[2] "3600" ;
Restrict_MWI[2] "No" ;
Monitor_User_ID[2] "" ;
*** NAT Settings
NAT_Mapping_Enable[2] "No" ;
NAT_Keep_Alive_Enable[2] "No" ;
NAT_Keep_Alive_Msg[2] "$NOTIFY" ;
NAT_Keep_Alive_Dest[2] "$PROXY" ;
*** Network Settings
SIP_TOS/DiffServ_Value[2] "0x68" ;
SIP_CoS_Value[2] "3" ; # options: 0/1/2/3/4/
5/6/7
RTP_TOS/DiffServ_Value[2] "0xb8" ;
RTP_CoS_Value[2] "6" ; # options: 0/1/2/3/4/
5/6/7
Network_Jitter_Level[2] "high" ; # options: low/
medium/high/very high/extremely high
Jitter_Buffer_Adjustment[2] "up and down" ; # options: up
and down/up only/down only/disable
*** SIP Settings
SIP_Transport[2] "UDP" ; # options: UDP/TCP/TLS
SIP_Port[2] "5061" ;
SIP_100REL_Enable[2] "No" ;
EXT_SIP_Port[2] "" ;
Auth_Resync-Reboot[2] "Yes" ;
SIP_Proxy-Require[2] "" ;
SIP_Remote-Party-ID[2] "No" ;
Referor_Bye_Delay[2] "4" ;
Page 128
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
128
A
Refer-To_Target_Contact[2] "No" ;
Referee_Bye_Delay[2] "0" ;
SIP_Debug_Option[2] "none" ; # options: none/1-
line/1-line excl. OPT/1-line excl. NTFY/1-line excl. REG/1-line excl.
OPT|NTFY|REG/full/full excl. OPT/full excl. NTFY/full excl. REG/full excl.
OPT|NTFY|REG
Refer_Target_Bye_Delay[2] "0" ;
Sticky_183[2] "No" ;
Auth_INVITE[2] "No" ;
Ntfy_Refer_On_1xx-To-Inv[2] "Yes" ;
Use_Anonymous_With_RPID[2] "Yes" ;
Set_G729_annexb[2] "none" ; # options: none/no/
yes/follow silence supp setting
Voice_Quality_Report_Address[2] "" ;
User_Equal_Phone[2] "No" ;
*** Call Feature Settings
Blind_Attn-Xfer_Enable[2] "No" ;
MOH_Server[2] "" ;
Message_Waiting[2] "No" ;
Auth_Page[2] "No" ;
Default_Ring[(2)] "1" ; # options: No Ring/1/
2/3/4/5/6/7/8/9/10/11/12/User 1/User 2
Auth_Page_Realm[2] "" ;
Conference_Bridge_URL[2] "" ;
Auth_Page_Password[2] "" ;
Mailbox_ID[2] "" ;
Voice_Mail_Server[2] "" ;
Voice_Mail_Subscribe_Interval[2] "86400" ;
State_Agent[2] "" ;
CFWD_Notify_Serv[2] "No" ;
CFWD_Notifier[2] "" ;
User_ID_with_Domain[2] "No" ;
Broadsoft_ACD[2] "No" ;
Auto_Ans_Page_On_Active_Call[2] "Yes" ;
Feature_Key_Sync[2] "No" ;
Call_Park_Monitor_Enable[2] "No" ;
*** Proxy and Registration
Proxy[2] "" ;
Outbound_Proxy[2] "" ;
Alternate_Proxy[2] "" ;
Alternate_Outbound_Proxy[2] "" ;
Use_Outbound_Proxy[2] "No" ;
Use_OB_Proxy_In_Dialog[2] "Yes" ;
Register[2] "Yes" ;
Make_Call_Without_Reg[2] "No" ;
Register_Expires[2] "3600" ;
Ans_Call_Without_Reg[2] "No" ;
Use_DNS_SRV[2] "No" ;
DNS_SRV_Auto_Prefix[2] "No" ;
Proxy_Fallback_Intvl[2] "3600" ;
Page 129
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
129
A
Proxy_Redundancy_Method[2] "Normal" ; # options: Normal/
Based on SRV Port
Dual_Registration[2] "No" ;
*** Subscriber Information
Display_Name[2] "" ;
User_ID[2] "" ;
Password[2] "" ;
Use_Auth_ID[2] "No" ;
Auth_ID[2] "" ;
Reversed_Auth_Realm[2] "" ;
Mini_Certificate[2] "" ;
SRTP_Private_Key[2] "" ;
Resident_Online_Number[2] "" ;
SIP_URI[2] "" ;
*** Audio Configuration
Preferred_Codec[2] "G711u" ; # options: G711u/
G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Use_Pref_Codec_Only[2] "No" ;
Second_Preferred_Codec[2] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Third_Preferred_Codec[2] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
G729a_Enable[2] "Yes" ;
G723_Enable[2] "Yes" ;
G722_Enable[2] "Yes" ;
L16_Enable[2] "Yes" ;
G726-16_Enable[2] "Yes" ;
G726-24_Enable[2] "Yes" ;
G726-32_Enable[2] "Yes" ;
G726-40_Enable[2] "Yes" ;
Release_Unused_Codec[2] "Yes" ;
DTMF_Process_AVT[2] "Yes" ;
Silence_Supp_Enable[2] "No" ;
DTMF_Tx_Method[2] "Auto" ; # options: InBand/
AVT/INFO/Auto/InBand+INFO/AVT+INFO
DTMF_Tx_Volume_for_AVT_Packet[2] "0" ;
DTMF_AVT_Packet_Interval[2] "0" ;
Use_Remote_Pref_Codec[2] "No" ;
Codec_Negotiation[2] "Default" ; # options: Default/
List All
*** Dial Plan
Dial_Plan[2] "(*xx|[3469]11|0|00|[2-
9]xxxxxx|1xxx[2-9]xxxxxxS0|xxxxxxxxxxxx.)" ;
Caller_ID_Map[2] "" ;
Enable_IP_Dialing[2] "Yes" ;
Emergency_Number[2] "" ;
*** General
Page 130
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
130
A
Line_Enable[3] "Yes" ;
*** Share Line Appearance
Share_Ext[3] "private" ; # options: private/
shared
Shared_User_ID[3] "" ;
Subscription_Expires[3] "3600" ;
Restrict_MWI[3] "No" ;
Monitor_User_ID[3] "" ;
*** NAT Settings
NAT_Mapping_Enable[3] "No" ;
NAT_Keep_Alive_Enable[3] "No" ;
NAT_Keep_Alive_Msg[3] "$NOTIFY" ;
NAT_Keep_Alive_Dest[3] "$PROXY" ;
*** Network Settings
SIP_TOS/DiffServ_Value[3] "0x68" ;
SIP_CoS_Value[3] "3" ; # options: 0/1/2/3/4/
5/6/7
RTP_TOS/DiffServ_Value[3] "0xb8" ;
RTP_CoS_Value[3] "6" ; # options: 0/1/2/3/4/
5/6/7
Network_Jitter_Level[3] "high" ; # options: low/
medium/high/very high/extremely high
Jitter_Buffer_Adjustment[3] "up and down" ; # options: up
and down/up only/down only/disable
*** SIP Settings
SIP_Transport[3] "UDP" ; # options: UDP/TCP/TLS
SIP_Port[3] "5062" ;
SIP_100REL_Enable[3] "No" ;
EXT_SIP_Port[3] "" ;
Auth_Resync-Reboot[3] "Yes" ;
SIP_Proxy-Require[3] "" ;
SIP_Remote-Party-ID[3] "No" ;
Referor_Bye_Delay[3] "4" ;
Refer-To_Target_Contact[3] "No" ;
Referee_Bye_Delay[3] "0" ;
SIP_Debug_Option[3] "none" ; # options: none/1-
line/1-line excl. OPT/1-line excl. NTFY/1-line excl. REG/1-line excl.
OPT|NTFY|REG/full/full excl. OPT/full excl. NTFY/full excl. REG/full excl.
OPT|NTFY|REG
Refer_Target_Bye_Delay[3] "0" ;
Sticky_183[3] "No" ;
Auth_INVITE[3] "No" ;
Ntfy_Refer_On_1xx-To-Inv[3] "Yes" ;
Use_Anonymous_With_RPID[3] "Yes" ;
Set_G729_annexb[3] "none" ; # options: none/no/
yes/follow silence supp setting
Voice_Quality_Report_Address[3] "" ;
Page 131
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
131
A
User_Equal_Phone[3] "No" ;
*** Call Feature Settings
Blind_Attn-Xfer_Enable[3] "No" ;
MOH_Server[3] "" ;
Message_Waiting[3] "No" ;
Auth_Page[3] "No" ;
Default_Ring[(3)] "1" ; # options: No Ring/1/
2/3/4/5/6/7/8/9/10/11/12/User 1/User 2
Auth_Page_Realm[3] "" ;
Conference_Bridge_URL[3] "" ;
Auth_Page_Password[3] "" ;
Mailbox_ID[3] "" ;
Voice_Mail_Server[3] "" ;
Voice_Mail_Subscribe_Interval[3] "86400" ;
State_Agent[3] "" ;
CFWD_Notify_Serv[3] "No" ;
CFWD_Notifier[3] "" ;
User_ID_with_Domain[3] "No" ;
Broadsoft_ACD[3] "No" ;
Auto_Ans_Page_On_Active_Call[3] "Yes" ;
Feature_Key_Sync[3] "No" ;
Call_Park_Monitor_Enable[3] "No" ;
*** Proxy and Registration
Proxy[3] "" ;
Outbound_Proxy[3] "" ;
Alternate_Proxy[3] "" ;
Alternate_Outbound_Proxy[3] "" ;
Use_Outbound_Proxy[3] "No" ;
Use_OB_Proxy_In_Dialog[3] "Yes" ;
Register[3] "Yes" ;
Make_Call_Without_Reg[3] "No" ;
Register_Expires[3] "3600" ;
Ans_Call_Without_Reg[3] "No" ;
Use_DNS_SRV[3] "No" ;
DNS_SRV_Auto_Prefix[3] "No" ;
Proxy_Fallback_Intvl[3] "3600" ;
Proxy_Redundancy_Method[3] "Normal" ; # options: Normal/
Based on SRV Port
Dual_Registration[3] "No" ;
*** Subscriber Information
Display_Name[3] "" ;
User_ID[3] "" ;
Password[3] "" ;
Use_Auth_ID[3] "No" ;
Auth_ID[3] "" ;
Reversed_Auth_Realm[3] "" ;
Mini_Certificate[3] "" ;
SRTP_Private_Key[3] "" ;
Resident_Online_Number[3] "" ;
Page 132
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
132
A
SIP_URI[3] "" ;
*** Audio Configuration
Preferred_Codec[3] "G711u" ; # options: G711u/
G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Use_Pref_Codec_Only[3] "No" ;
Second_Preferred_Codec[3] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Third_Preferred_Codec[3] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
G729a_Enable[3] "Yes" ;
G723_Enable[3] "Yes" ;
G722_Enable[3] "Yes" ;
L16_Enable[3] "Yes" ;
G726-16_Enable[3] "Yes" ;
G726-24_Enable[3] "Yes" ;
G726-32_Enable[3] "Yes" ;
G726-40_Enable[3] "Yes" ;
Release_Unused_Codec[3] "Yes" ;
DTMF_Process_AVT[3] "Yes" ;
Silence_Supp_Enable[3] "No" ;
DTMF_Tx_Method[3] "Auto" ; # options: InBand/
AVT/INFO/Auto/InBand+INFO/AVT+INFO
DTMF_Tx_Volume_for_AVT_Packet[3] "0" ;
DTMF_AVT_Packet_Interval[3] "0" ;
Use_Remote_Pref_Codec[3] "No" ;
Codec_Negotiation[3] "Default" ; # options: Default/
List All
*** Dial Plan
Dial_Plan[3] "(*xx|[3469]11|0|00|[2-
9]xxxxxx|1xxx[2-9]xxxxxxS0|xxxxxxxxxxxx.)" ;
Caller_ID_Map[3] "" ;
Enable_IP_Dialing[3] "Yes" ;
Emergency_Number[3] "" ;
*** General
Line_Enable[4] "Yes" ;
*** Share Line Appearance
Share_Ext[4] "private" ; # options: private/
shared
Shared_User_ID[4] "" ;
Subscription_Expires[4] "3600" ;
Restrict_MWI[4] "No" ;
Monitor_User_ID[4] "" ;
*** NAT Settings
NAT_Mapping_Enable[4] "No" ;
NAT_Keep_Alive_Enable[4] "No" ;
Page 133
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
133
A
NAT_Keep_Alive_Msg[4] "$NOTIFY" ;
NAT_Keep_Alive_Dest[4] "$PROXY" ;
*** Network Settings
SIP_TOS/DiffServ_Value[4] "0x68" ;
SIP_CoS_Value[4] "3" ; # options: 0/1/2/3/4/
5/6/7
RTP_TOS/DiffServ_Value[4] "0xb8" ;
RTP_CoS_Value[4] "6" ; # options: 0/1/2/3/4/
5/6/7
Network_Jitter_Level[4] "high" ; # options: low/
medium/high/very high/extremely high
Jitter_Buffer_Adjustment[4] "up and down" ; # options: up
and down/up only/down only/disable
*** SIP Settings
SIP_Transport[4] "UDP" ; # options: UDP/TCP/TLS
SIP_Port[4] "5063" ;
SIP_100REL_Enable[4] "No" ;
EXT_SIP_Port[4] "" ;
Auth_Resync-Reboot[4] "Yes" ;
SIP_Proxy-Require[4] "" ;
SIP_Remote-Party-ID[4] "No" ;
Referor_Bye_Delay[4] "4" ;
Refer-To_Target_Contact[4] "No" ;
Referee_Bye_Delay[4] "0" ;
SIP_Debug_Option[4] "none" ; # options: none/1-
line/1-line excl. OPT/1-line excl. NTFY/1-line excl. REG/1-line excl.
OPT|NTFY|REG/full/full excl. OPT/full excl. NTFY/full excl. REG/full excl.
OPT|NTFY|REG
Refer_Target_Bye_Delay[4] "0" ;
Sticky_183[4] "No" ;
Auth_INVITE[4] "No" ;
Ntfy_Refer_On_1xx-To-Inv[4] "Yes" ;
Use_Anonymous_With_RPID[4] "Yes" ;
Set_G729_annexb[4] "none" ; # options: none/no/
yes/follow silence supp setting
Voice_Quality_Report_Address[4] "" ;
User_Equal_Phone[4] "No" ;
*** Call Feature Settings
Blind_Attn-Xfer_Enable[4] "No" ;
MOH_Server[4] "" ;
Message_Waiting[4] "No" ;
Auth_Page[4] "No" ;
Default_Ring[(4)] "1" ; # options: No Ring/1/
2/3/4/5/6/7/8/9/10/11/12/User 1/User 2
Auth_Page_Realm[4] "" ;
Conference_Bridge_URL[4] "" ;
Auth_Page_Password[4] "" ;
Mailbox_ID[4] "" ;
Voice_Mail_Server[4] "" ;
Page 134
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
134
A
Voice_Mail_Subscribe_Interval[4] "86400" ;
State_Agent[4] "" ;
CFWD_Notify_Serv[4] "No" ;
CFWD_Notifier[4] "" ;
User_ID_with_Domain[4] "No" ;
Broadsoft_ACD[4] "No" ;
Auto_Ans_Page_On_Active_Call[4] "Yes" ;
Feature_Key_Sync[4] "No" ;
Call_Park_Monitor_Enable[4] "No" ;
*** Proxy and Registration
Proxy[4] "" ;
Outbound_Proxy[4] "" ;
Alternate_Proxy[4] "" ;
Alternate_Outbound_Proxy[4] "" ;
Use_Outbound_Proxy[4] "No" ;
Use_OB_Proxy_In_Dialog[4] "Yes" ;
Register[4] "Yes" ;
Make_Call_Without_Reg[4] "No" ;
Register_Expires[4] "3600" ;
Ans_Call_Without_Reg[4] "No" ;
Use_DNS_SRV[4] "No" ;
DNS_SRV_Auto_Prefix[4] "No" ;
Proxy_Fallback_Intvl[4] "3600" ;
Proxy_Redundancy_Method[4] "Normal" ; # options: Normal/
Based on SRV Port
Dual_Registration[4] "No" ;
*** Subscriber Information
Display_Name[4] "" ;
User_ID[4] "" ;
Password[4] "" ;
Use_Auth_ID[4] "No" ;
Auth_ID[4] "" ;
Reversed_Auth_Realm[4] "" ;
Mini_Certificate[4] "" ;
SRTP_Private_Key[4] "" ;
Resident_Online_Number[4] "" ;
SIP_URI[4] "" ;
*** Audio Configuration
Preferred_Codec[4] "G711u" ; # options: G711u/
G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Use_Pref_Codec_Only[4] "No" ;
Second_Preferred_Codec[4] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Third_Preferred_Codec[4] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
G729a_Enable[4] "Yes" ;
G723_Enable[4] "Yes" ;
G722_Enable[4] "Yes" ;
L16_Enable[4] "Yes" ;
Page 135
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
135
A
G726-16_Enable[4] "Yes" ;
G726-24_Enable[4] "Yes" ;
G726-32_Enable[4] "Yes" ;
G726-40_Enable[4] "Yes" ;
Release_Unused_Codec[4] "Yes" ;
DTMF_Process_AVT[4] "Yes" ;
Silence_Supp_Enable[4] "No" ;
DTMF_Tx_Method[4] "Auto" ; # options: InBand/
AVT/INFO/Auto/InBand+INFO/AVT+INFO
DTMF_Tx_Volume_for_AVT_Packet[4] "0" ;
DTMF_AVT_Packet_Interval[4] "0" ;
Use_Remote_Pref_Codec[4] "No" ;
Codec_Negotiation[4] "Default" ; # options: Default/
List All
*** Dial Plan
Dial_Plan[4] "(*xx|[3469]11|0|00|[2-
9]xxxxxx|1xxx[2-9]xxxxxxS0|xxxxxxxxxxxx.)" ;
Caller_ID_Map[4] "" ;
Enable_IP_Dialing[4] "Yes" ;
Emergency_Number[4] "" ;
*** General
Line_Enable[5] "Yes" ;
*** Share Line Appearance
Share_Ext[5] "private" ; # options: private/
shared
Shared_User_ID[5] "" ;
Subscription_Expires[5] "3600" ;
Restrict_MWI[5] "No" ;
Monitor_User_ID[5] "" ;
*** NAT Settings
NAT_Mapping_Enable[5] "No" ;
NAT_Keep_Alive_Enable[5] "No" ;
NAT_Keep_Alive_Msg[5] "$NOTIFY" ;
NAT_Keep_Alive_Dest[5] "$PROXY" ;
*** Network Settings
SIP_TOS/DiffServ_Value[5] "0x68" ;
SIP_CoS_Value[5] "3" ; # options: 0/1/2/3/4/
5/6/7
RTP_TOS/DiffServ_Value[5] "0xb8" ;
RTP_CoS_Value[5] "6" ; # options: 0/1/2/3/4/
5/6/7
Network_Jitter_Level[5] "high" ; # options: low/
medium/high/very high/extremely high
Jitter_Buffer_Adjustment[5] "up and down" ; # options: up
and down/up only/down only/disable
Page 136
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
136
A
*** SIP Settings
SIP_Transport[5] "UDP" ; # options: UDP/TCP/TLS
SIP_Port[5] "5064" ;
SIP_100REL_Enable[5] "No" ;
EXT_SIP_Port[5] "" ;
Auth_Resync-Reboot[5] "Yes" ;
SIP_Proxy-Require[5] "" ;
SIP_Remote-Party-ID[5] "No" ;
Referor_Bye_Delay[5] "4" ;
Refer-To_Target_Contact[5] "No" ;
Referee_Bye_Delay[5] "0" ;
SIP_Debug_Option[5] "none" ; # options: none/1-
line/1-line excl. OPT/1-line excl. NTFY/1-line excl. REG/1-line excl.
OPT|NTFY|REG/full/full excl. OPT/full excl. NTFY/full excl. REG/full excl.
OPT|NTFY|REG
Refer_Target_Bye_Delay[5] "0" ;
Sticky_183[5] "No" ;
Auth_INVITE[5] "No" ;
Ntfy_Refer_On_1xx-To-Inv[5] "Yes" ;
Use_Anonymous_With_RPID[5] "Yes" ;
Set_G729_annexb[5] "none" ; # options: none/no/
yes/follow silence supp setting
Voice_Quality_Report_Address[5] "" ;
User_Equal_Phone[5] "No" ;
*** Call Feature Settings
Blind_Attn-Xfer_Enable[5] "No" ;
MOH_Server[5] "" ;
Message_Waiting[5] "No" ;
Auth_Page[5] "No" ;
Default_Ring[(5)] "1" ; # options: No Ring/1/
2/3/4/5/6/7/8/9/10/11/12/User 1/User 2
Auth_Page_Realm[5] "" ;
Conference_Bridge_URL[5] "" ;
Auth_Page_Password[5] "" ;
Mailbox_ID[5] "" ;
Voice_Mail_Server[5] "" ;
Voice_Mail_Subscribe_Interval[5] "86400" ;
State_Agent[5] "" ;
CFWD_Notify_Serv[5] "No" ;
CFWD_Notifier[5] "" ;
User_ID_with_Domain[5] "No" ;
Broadsoft_ACD[5] "No" ;
Auto_Ans_Page_On_Active_Call[5] "Yes" ;
Feature_Key_Sync[5] "No" ;
Call_Park_Monitor_Enable[5] "No" ;
*** Proxy and Registration
Proxy[5] "" ;
Outbound_Proxy[5] "" ;
Alternate_Proxy[5] "" ;
Page 137
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
137
A
Alternate_Outbound_Proxy[5] "" ;
Use_Outbound_Proxy[5] "No" ;
Use_OB_Proxy_In_Dialog[5] "Yes" ;
Register[5] "Yes" ;
Make_Call_Without_Reg[5] "No" ;
Register_Expires[5] "3600" ;
Ans_Call_Without_Reg[5] "No" ;
Use_DNS_SRV[5] "No" ;
DNS_SRV_Auto_Prefix[5] "No" ;
Proxy_Fallback_Intvl[5] "3600" ;
Proxy_Redundancy_Method[5] "Normal" ; # options: Normal/
Based on SRV Port
Dual_Registration[5] "No" ;
*** Subscriber Information
Display_Name[5] "" ;
User_ID[5] "" ;
Password[5] "" ;
Use_Auth_ID[5] "No" ;
Auth_ID[5] "" ;
Reversed_Auth_Realm[5] "" ;
Mini_Certificate[5] "" ;
SRTP_Private_Key[5] "" ;
Resident_Online_Number[5] "" ;
SIP_URI[5] "" ;
*** Audio Configuration
Preferred_Codec[5] "G711u" ; # options: G711u/
G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Use_Pref_Codec_Only[5] "No" ;
Second_Preferred_Codec[5] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Third_Preferred_Codec[5] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
G729a_Enable[5] "Yes" ;
G723_Enable[5] "Yes" ;
G722_Enable[5] "Yes" ;
L16_Enable[5] "Yes" ;
G726-16_Enable[5] "Yes" ;
G726-24_Enable[5] "Yes" ;
G726-32_Enable[5] "Yes" ;
G726-40_Enable[5] "Yes" ;
Release_Unused_Codec[5] "Yes" ;
DTMF_Process_AVT[5] "Yes" ;
Silence_Supp_Enable[5] "No" ;
DTMF_Tx_Method[5] "Auto" ; # options: InBand/
AVT/INFO/Auto/InBand+INFO/AVT+INFO
DTMF_Tx_Volume_for_AVT_Packet[5] "0" ;
DTMF_AVT_Packet_Interval[5] "0" ;
Use_Remote_Pref_Codec[5] "No" ;
Codec_Negotiation[5] "Default" ; # options: Default/
List All
Page 138
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
138
A
*** Dial Plan
Dial_Plan[5] "(*xx|[3469]11|0|00|[2-
9]xxxxxx|1xxx[2-9]xxxxxxS0|xxxxxxxxxxxx.)" ;
Caller_ID_Map[5] "" ;
Enable_IP_Dialing[5] "Yes" ;
Emergency_Number[5] "" ;
*** General
Line_Enable[6] "Yes" ;
*** Share Line Appearance
Share_Ext[6] "private" ; # options: private/
shared
Shared_User_ID[6] "" ;
Subscription_Expires[6] "3600" ;
Restrict_MWI[6] "No" ;
Monitor_User_ID[6] "" ;
*** NAT Settings
NAT_Mapping_Enable[6] "No" ;
NAT_Keep_Alive_Enable[6] "No" ;
NAT_Keep_Alive_Msg[6] "$NOTIFY" ;
NAT_Keep_Alive_Dest[6] "$PROXY" ;
*** Network Settings
SIP_TOS/DiffServ_Value[6] "0x68" ;
SIP_CoS_Value[6] "3" ; # options: 0/1/2/3/4/
5/6/7
RTP_TOS/DiffServ_Value[6] "0xb8" ;
RTP_CoS_Value[6] "6" ; # options: 0/1/2/3/4/
5/6/7
Network_Jitter_Level[6] "high" ; # options: low/
medium/high/very high/extremely high
Jitter_Buffer_Adjustment[6] "up and down" ; # options: up
and down/up only/down only/disable
*** SIP Settings
SIP_Transport[6] "UDP" ; # options: UDP/TCP/TLS
SIP_Port[6] "5065" ;
SIP_100REL_Enable[6] "No" ;
EXT_SIP_Port[6] "" ;
Auth_Resync-Reboot[6] "Yes" ;
SIP_Proxy-Require[6] "" ;
SIP_Remote-Party-ID[6] "No" ;
Referor_Bye_Delay[6] "4" ;
Refer-To_Target_Contact[6] "No" ;
Referee_Bye_Delay[6] "0" ;
SIP_Debug_Option[6] "none" ; # options: none/1-
line/1-line excl. OPT/1-line excl. NTFY/1-line excl. REG/1-line excl.
Page 139
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
139
A
OPT|NTFY|REG/full/full excl. OPT/full excl. NTFY/full excl. REG/full excl.
OPT|NTFY|REG
Refer_Target_Bye_Delay[6] "0" ;
Sticky_183[6] "No" ;
Auth_INVITE[6] "No" ;
Ntfy_Refer_On_1xx-To-Inv[6] "Yes" ;
Use_Anonymous_With_RPID[6] "Yes" ;
Set_G729_annexb[6] "none" ; # options: none/no/
yes/follow silence supp setting
Voice_Quality_Report_Address[6] "" ;
User_Equal_Phone[6] "No" ;
*** Call Feature Settings
Blind_Attn-Xfer_Enable[6] "No" ;
MOH_Server[6] "" ;
Message_Waiting[6] "No" ;
Auth_Page[6] "No" ;
Default_Ring[(6)] "1" ; # options: No Ring/1/
2/3/4/5/6/7/8/9/10/11/12/User 1/User 2
Auth_Page_Realm[6] "" ;
Conference_Bridge_URL[6] "" ;
Auth_Page_Password[6] "" ;
Mailbox_ID[6] "" ;
Voice_Mail_Server[6] "" ;
Voice_Mail_Subscribe_Interval[6] "86400" ;
State_Agent[6] "" ;
CFWD_Notify_Serv[6] "No" ;
CFWD_Notifier[6] "" ;
User_ID_with_Domain[6] "No" ;
Broadsoft_ACD[6] "No" ;
Auto_Ans_Page_On_Active_Call[6] "Yes" ;
Feature_Key_Sync[6] "No" ;
Call_Park_Monitor_Enable[6] "No" ;
*** Proxy and Registration
Proxy[6] "" ;
Outbound_Proxy[6] "" ;
Alternate_Proxy[6] "" ;
Alternate_Outbound_Proxy[6] "" ;
Use_Outbound_Proxy[6] "No" ;
Use_OB_Proxy_In_Dialog[6] "Yes" ;
Register[6] "Yes" ;
Make_Call_Without_Reg[6] "No" ;
Register_Expires[6] "3600" ;
Ans_Call_Without_Reg[6] "No" ;
Use_DNS_SRV[6] "No" ;
DNS_SRV_Auto_Prefix[6] "No" ;
Proxy_Fallback_Intvl[6] "3600" ;
Proxy_Redundancy_Method[6] "Normal" ; # options: Normal/
Based on SRV Port
Dual_Registration[6] "No" ;
*** Subscriber Information
Page 140
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
140
A
Display_Name[6] "" ;
User_ID[6] "" ;
Password[6] "" ;
Use_Auth_ID[6] "No" ;
Auth_ID[6] "" ;
Reversed_Auth_Realm[6] "" ;
Mini_Certificate[6] "" ;
SRTP_Private_Key[6] "" ;
Resident_Online_Number[6] "" ;
SIP_URI[6] "" ;
*** Audio Configuration
Preferred_Codec[6] "G711u" ; # options: G711u/
G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Use_Pref_Codec_Only[6] "No" ;
Second_Preferred_Codec[6] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Third_Preferred_Codec[6] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
G729a_Enable[6] "Yes" ;
G723_Enable[6] "Yes" ;
G722_Enable[6] "Yes" ;
L16_Enable[6] "Yes" ;
G726-16_Enable[6] "Yes" ;
G726-24_Enable[6] "Yes" ;
G726-32_Enable[6] "Yes" ;
G726-40_Enable[6] "Yes" ;
Release_Unused_Codec[6] "Yes" ;
DTMF_Process_AVT[6] "Yes" ;
Silence_Supp_Enable[6] "No" ;
DTMF_Tx_Method[6] "Auto" ; # options: InBand/
AVT/INFO/Auto/InBand+INFO/AVT+INFO
DTMF_Tx_Volume_for_AVT_Packet[6] "0" ;
DTMF_AVT_Packet_Interval[6] "0" ;
Use_Remote_Pref_Codec[6] "No" ;
Codec_Negotiation[6] "Default" ; # options: Default/
List All
*** Dial Plan
Dial_Plan[6] "(*xx|[3469]11|0|00|[2-
9]xxxxxx|1xxx[2-9]xxxxxxS0|xxxxxxxxxxxx.)" ;
Caller_ID_Map[6] "" ;
Enable_IP_Dialing[6] "Yes" ;
Emergency_Number[6] "" ;
*** General
Line_Enable[7] "Yes" ;
*** Share Line Appearance
Page 141
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
141
A
Share_Ext[7] "private" ; # options: private/
shared
Shared_User_ID[7] "" ;
Subscription_Expires[7] "3600" ;
Restrict_MWI[7] "No" ;
Monitor_User_ID[7] "" ;
*** NAT Settings
NAT_Mapping_Enable[7] "No" ;
NAT_Keep_Alive_Enable[7] "No" ;
NAT_Keep_Alive_Msg[7] "$NOTIFY" ;
NAT_Keep_Alive_Dest[7] "$PROXY" ;
*** Network Settings
SIP_TOS/DiffServ_Value[7] "0x68" ;
SIP_CoS_Value[7] "3" ; # options: 0/1/2/3/4/
5/6/7
RTP_TOS/DiffServ_Value[7] "0xb8" ;
RTP_CoS_Value[7] "6" ; # options: 0/1/2/3/4/
5/6/7
Network_Jitter_Level[7] "high" ; # options: low/
medium/high/very high/extremely high
Jitter_Buffer_Adjustment[7] "up and down" ; # options: up
and down/up only/down only/disable
*** SIP Settings
SIP_Transport[7] "UDP" ; # options: UDP/TCP/TLS
SIP_Port[7] "5066" ;
SIP_100REL_Enable[7] "No" ;
EXT_SIP_Port[7] "" ;
Auth_Resync-Reboot[7] "Yes" ;
SIP_Proxy-Require[7] "" ;
SIP_Remote-Party-ID[7] "No" ;
Referor_Bye_Delay[7] "4" ;
Refer-To_Target_Contact[7] "No" ;
Referee_Bye_Delay[7] "0" ;
SIP_Debug_Option[7] "none" ; # options: none/1-
line/1-line excl. OPT/1-line excl. NTFY/1-line excl. REG/1-line excl.
OPT|NTFY|REG/full/full excl. OPT/full excl. NTFY/full excl. REG/full excl.
OPT|NTFY|REG
Refer_Target_Bye_Delay[7] "0" ;
Sticky_183[7] "No" ;
Auth_INVITE[7] "No" ;
Ntfy_Refer_On_1xx-To-Inv[7] "Yes" ;
Use_Anonymous_With_RPID[7] "Yes" ;
Set_G729_annexb[7] "none" ; # options: none/no/
yes/follow silence supp setting
Voice_Quality_Report_Address[7] "" ;
User_Equal_Phone[7] "No" ;
*** Call Feature Settings
Page 142
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
142
A
Blind_Attn-Xfer_Enable[7] "No" ;
MOH_Server[7] "" ;
Message_Waiting[7] "No" ;
Auth_Page[7] "No" ;
Default_Ring[(7)] "1" ; # options: No Ring/1/
2/3/4/5/6/7/8/9/10/11/12/User 1/User 2
Auth_Page_Realm[7] "" ;
Conference_Bridge_URL[7] "" ;
Auth_Page_Password[7] "" ;
Mailbox_ID[7] "" ;
Voice_Mail_Server[7] "" ;
Voice_Mail_Subscribe_Interval[7] "86400" ;
State_Agent[7] "" ;
CFWD_Notify_Serv[7] "No" ;
CFWD_Notifier[7] "" ;
User_ID_with_Domain[7] "No" ;
Broadsoft_ACD[7] "No" ;
Auto_Ans_Page_On_Active_Call[7] "Yes" ;
Feature_Key_Sync[7] "No" ;
Call_Park_Monitor_Enable[7] "No" ;
*** Proxy and Registration
Proxy[7] "" ;
Outbound_Proxy[7] "" ;
Alternate_Proxy[7] "" ;
Alternate_Outbound_Proxy[7] "" ;
Use_Outbound_Proxy[7] "No" ;
Use_OB_Proxy_In_Dialog[7] "Yes" ;
Register[7] "Yes" ;
Make_Call_Without_Reg[7] "No" ;
Register_Expires[7] "3600" ;
Ans_Call_Without_Reg[7] "No" ;
Use_DNS_SRV[7] "No" ;
DNS_SRV_Auto_Prefix[7] "No" ;
Proxy_Fallback_Intvl[7] "3600" ;
Proxy_Redundancy_Method[7] "Normal" ; # options: Normal/
Based on SRV Port
Dual_Registration[7] "No" ;
*** Subscriber Information
Display_Name[7] "" ;
User_ID[7] "" ;
Password[7] "" ;
Use_Auth_ID[7] "No" ;
Auth_ID[7] "" ;
Reversed_Auth_Realm[7] "" ;
Mini_Certificate[7] "" ;
SRTP_Private_Key[7] "" ;
Resident_Online_Number[7] "" ;
SIP_URI[7] "" ;
*** Audio Configuration
Page 143
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
143
A
Preferred_Codec[7] "G711u" ; # options: G711u/
G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Use_Pref_Codec_Only[7] "No" ;
Second_Preferred_Codec[7] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Third_Preferred_Codec[7] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
G729a_Enable[7] "Yes" ;
G723_Enable[7] "Yes" ;
G722_Enable[7] "Yes" ;
L16_Enable[7] "Yes" ;
G726-16_Enable[7] "Yes" ;
G726-24_Enable[7] "Yes" ;
G726-32_Enable[7] "Yes" ;
G726-40_Enable[7] "Yes" ;
Release_Unused_Codec[7] "Yes" ;
DTMF_Process_AVT[7] "Yes" ;
Silence_Supp_Enable[7] "No" ;
DTMF_Tx_Method[7] "Auto" ; # options: InBand/
AVT/INFO/Auto/InBand+INFO/AVT+INFO
DTMF_Tx_Volume_for_AVT_Packet[7] "0" ;
DTMF_AVT_Packet_Interval[7] "0" ;
Use_Remote_Pref_Codec[7] "No" ;
Codec_Negotiation[7] "Default" ; # options: Default/
List All
*** Dial Plan
Dial_Plan[7] "(*xx|[3469]11|0|00|[2-
9]xxxxxx|1xxx[2-9]xxxxxxS0|xxxxxxxxxxxx.)" ;
Caller_ID_Map[7] "" ;
Enable_IP_Dialing[7] "Yes" ;
Emergency_Number[7] "" ;
*** General
Line_Enable[8] "Yes" ;
*** Share Line Appearance
Share_Ext[8] "private" ; # options: private/
shared
Shared_User_ID[8] "" ;
Subscription_Expires[8] "3600" ;
Restrict_MWI[8] "No" ;
Monitor_User_ID[8] "" ;
*** NAT Settings
NAT_Mapping_Enable[8] "No" ;
NAT_Keep_Alive_Enable[8] "No" ;
NAT_Keep_Alive_Msg[8] "$NOTIFY" ;
NAT_Keep_Alive_Dest[8] "$PROXY" ;
*** Network Settings
Page 144
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
144
A
SIP_TOS/DiffServ_Value[8] "0x68" ;
SIP_CoS_Value[8] "3" ; # options: 0/1/2/3/4/
5/6/7
RTP_TOS/DiffServ_Value[8] "0xb8" ;
RTP_CoS_Value[8] "6" ; # options: 0/1/2/3/4/
5/6/7
Network_Jitter_Level[8] "high" ; # options: low/
medium/high/very high/extremely high
Jitter_Buffer_Adjustment[8] "up and down" ; # options: up
and down/up only/down only/disable
*** SIP Settings
SIP_Transport[8] "UDP" ; # options: UDP/TCP/TLS
SIP_Port[8] "5067" ;
SIP_100REL_Enable[8] "No" ;
EXT_SIP_Port[8] "" ;
Auth_Resync-Reboot[8] "Yes" ;
SIP_Proxy-Require[8] "" ;
SIP_Remote-Party-ID[8] "No" ;
Referor_Bye_Delay[8] "4" ;
Refer-To_Target_Contact[8] "No" ;
Referee_Bye_Delay[8] "0" ;
SIP_Debug_Option[8] "none" ; # options: none/1-
line/1-line excl. OPT/1-line excl. NTFY/1-line excl. REG/1-line excl.
OPT|NTFY|REG/full/full excl. OPT/full excl. NTFY/full excl. REG/full excl.
OPT|NTFY|REG
Refer_Target_Bye_Delay[8] "0" ;
Sticky_183[8] "No" ;
Auth_INVITE[8] "No" ;
Ntfy_Refer_On_1xx-To-Inv[8] "Yes" ;
Use_Anonymous_With_RPID[8] "Yes" ;
Set_G729_annexb[8] "none" ; # options: none/no/
yes/follow silence supp setting
Voice_Quality_Report_Address[8] "" ;
User_Equal_Phone[8] "No" ;
*** Call Feature Settings
Blind_Attn-Xfer_Enable[8] "No" ;
MOH_Server[8] "" ;
Message_Waiting[8] "No" ;
Auth_Page[8] "No" ;
Default_Ring[(8)] "1" ; # options: No Ring/1/
2/3/4/5/6/7/8/9/10/11/12/User 1/User 2
Auth_Page_Realm[8] "" ;
Conference_Bridge_URL[8] "" ;
Auth_Page_Password[8] "" ;
Mailbox_ID[8] "" ;
Voice_Mail_Server[8] "" ;
Voice_Mail_Subscribe_Interval[8] "86400" ;
State_Agent[8] "" ;
CFWD_Notify_Serv[8] "No" ;
CFWD_Notifier[8] "" ;
Page 145
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
145
A
User_ID_with_Domain[8] "No" ;
Broadsoft_ACD[8] "No" ;
Auto_Ans_Page_On_Active_Call[8] "Yes" ;
Feature_Key_Sync[8] "No" ;
Call_Park_Monitor_Enable[8] "No" ;
*** Proxy and Registration
Proxy[8] "" ;
Outbound_Proxy[8] "" ;
Alternate_Proxy[8] "" ;
Alternate_Outbound_Proxy[8] "" ;
Use_Outbound_Proxy[8] "No" ;
Use_OB_Proxy_In_Dialog[8] "Yes" ;
Register[8] "Yes" ;
Make_Call_Without_Reg[8] "No" ;
Register_Expires[8] "3600" ;
Ans_Call_Without_Reg[8] "No" ;
Use_DNS_SRV[8] "No" ;
DNS_SRV_Auto_Prefix[8] "No" ;
Proxy_Fallback_Intvl[8] "3600" ;
Proxy_Redundancy_Method[8] "Normal" ; # options: Normal/
Based on SRV Port
Dual_Registration[8] "No" ;
*** Subscriber Information
Display_Name[8] "" ;
User_ID[8] "" ;
Password[8] "" ;
Use_Auth_ID[8] "No" ;
Auth_ID[8] "" ;
Reversed_Auth_Realm[8] "" ;
Mini_Certificate[8] "" ;
SRTP_Private_Key[8] "" ;
Resident_Online_Number[8] "" ;
SIP_URI[8] "" ;
*** Audio Configuration
Preferred_Codec[8] "G711u" ; # options: G711u/
G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Use_Pref_Codec_Only[8] "No" ;
Second_Preferred_Codec[8] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Third_Preferred_Codec[8] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
G729a_Enable[8] "Yes" ;
G723_Enable[8] "Yes" ;
G722_Enable[8] "Yes" ;
L16_Enable[8] "Yes" ;
G726-16_Enable[8] "Yes" ;
G726-24_Enable[8] "Yes" ;
G726-32_Enable[8] "Yes" ;
G726-40_Enable[8] "Yes" ;
Page 146
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
146
A
Release_Unused_Codec[8] "Yes" ;
DTMF_Process_AVT[8] "Yes" ;
Silence_Supp_Enable[8] "No" ;
DTMF_Tx_Method[8] "Auto" ; # options: InBand/
AVT/INFO/Auto/InBand+INFO/AVT+INFO
DTMF_Tx_Volume_for_AVT_Packet[8] "0" ;
DTMF_AVT_Packet_Interval[8] "0" ;
Use_Remote_Pref_Codec[8] "No" ;
Codec_Negotiation[8] "Default" ; # options: Default/
List All
*** Dial Plan
Dial_Plan[8] "(*xx|[3469]11|0|00|[2-
9]xxxxxx|1xxx[2-9]xxxxxxS0|xxxxxxxxxxxx.)" ;
Caller_ID_Map[8] "" ;
Enable_IP_Dialing[8] "Yes" ;
Emergency_Number[8] "" ;
*** General
Line_Enable[9] "Yes" ;
*** Share Line Appearance
Share_Ext[9] "private" ; # options: private/
shared
Shared_User_ID[9] "" ;
Subscription_Expires[9] "3600" ;
Restrict_MWI[9] "No" ;
Monitor_User_ID[9] "" ;
*** NAT Settings
NAT_Mapping_Enable[9] "No" ;
NAT_Keep_Alive_Enable[9] "No" ;
NAT_Keep_Alive_Msg[9] "$NOTIFY" ;
NAT_Keep_Alive_Dest[9] "$PROXY" ;
*** Network Settings
SIP_TOS/DiffServ_Value[9] "0x68" ;
SIP_CoS_Value[9] "3" ; # options: 0/1/2/3/4/
5/6/7
RTP_TOS/DiffServ_Value[9] "0xb8" ;
RTP_CoS_Value[9] "6" ; # options: 0/1/2/3/4/
5/6/7
Network_Jitter_Level[9] "high" ; # options: low/
medium/high/very high/extremely high
Jitter_Buffer_Adjustment[9] "up and down" ; # options: up
and down/up only/down only/disable
*** SIP Settings
SIP_Transport[9] "UDP" ; # options: UDP/TCP/TLS
Page 147
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
147
A
SIP_Port[9] "5068" ;
SIP_100REL_Enable[9] "No" ;
EXT_SIP_Port[9] "" ;
Auth_Resync-Reboot[9] "Yes" ;
SIP_Proxy-Require[9] "" ;
SIP_Remote-Party-ID[9] "No" ;
Referor_Bye_Delay[9] "4" ;
Refer-To_Target_Contact[9] "No" ;
Referee_Bye_Delay[9] "0" ;
SIP_Debug_Option[9] "none" ; # options: none/1-
line/1-line excl. OPT/1-line excl. NTFY/1-line excl. REG/1-line excl.
OPT|NTFY|REG/full/full excl. OPT/full excl. NTFY/full excl. REG/full excl.
OPT|NTFY|REG
Refer_Target_Bye_Delay[9] "0" ;
Sticky_183[9] "No" ;
Auth_INVITE[9] "No" ;
Ntfy_Refer_On_1xx-To-Inv[9] "Yes" ;
Use_Anonymous_With_RPID[9] "Yes" ;
Set_G729_annexb[9] "none" ; # options: none/no/
yes/follow silence supp setting
Voice_Quality_Report_Address[9] "" ;
User_Equal_Phone[9] "No" ;
*** Call Feature Settings
Blind_Attn-Xfer_Enable[9] "No" ;
MOH_Server[9] "" ;
Message_Waiting[9] "No" ;
Auth_Page[9] "No" ;
Default_Ring[(9)] "1" ; # options: No Ring/1/
2/3/4/5/6/7/8/9/10/11/12/User 1/User 2
Auth_Page_Realm[9] "" ;
Conference_Bridge_URL[9] "" ;
Auth_Page_Password[9] "" ;
Mailbox_ID[9] "" ;
Voice_Mail_Server[9] "" ;
Voice_Mail_Subscribe_Interval[9] "86400" ;
State_Agent[9] "" ;
CFWD_Notify_Serv[9] "No" ;
CFWD_Notifier[9] "" ;
User_ID_with_Domain[9] "No" ;
Broadsoft_ACD[9] "No" ;
Auto_Ans_Page_On_Active_Call[9] "Yes" ;
Feature_Key_Sync[9] "No" ;
Call_Park_Monitor_Enable[9] "No" ;
*** Proxy and Registration
Proxy[9] "" ;
Outbound_Proxy[9] "" ;
Alternate_Proxy[9] "" ;
Alternate_Outbound_Proxy[9] "" ;
Use_Outbound_Proxy[9] "No" ;
Use_OB_Proxy_In_Dialog[9] "Yes" ;
Register[9] "Yes" ;
Page 148
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
148
A
Make_Call_Without_Reg[9] "No" ;
Register_Expires[9] "3600" ;
Ans_Call_Without_Reg[9] "No" ;
Use_DNS_SRV[9] "No" ;
DNS_SRV_Auto_Prefix[9] "No" ;
Proxy_Fallback_Intvl[9] "3600" ;
Proxy_Redundancy_Method[9] "Normal" ; # options: Normal/
Based on SRV Port
Dual_Registration[9] "No" ;
*** Subscriber Information
Display_Name[9] "" ;
User_ID[9] "" ;
Password[9] "" ;
Use_Auth_ID[9] "No" ;
Auth_ID[9] "" ;
Reversed_Auth_Realm[9] "" ;
Mini_Certificate[9] "" ;
SRTP_Private_Key[9] "" ;
Resident_Online_Number[9] "" ;
SIP_URI[9] "" ;
*** Audio Configuration
Preferred_Codec[9] "G711u" ; # options: G711u/
G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Use_Pref_Codec_Only[9] "No" ;
Second_Preferred_Codec[9] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Third_Preferred_Codec[9] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
G729a_Enable[9] "Yes" ;
G723_Enable[9] "Yes" ;
G722_Enable[9] "Yes" ;
L16_Enable[9] "Yes" ;
G726-16_Enable[9] "Yes" ;
G726-24_Enable[9] "Yes" ;
G726-32_Enable[9] "Yes" ;
G726-40_Enable[9] "Yes" ;
Release_Unused_Codec[9] "Yes" ;
DTMF_Process_AVT[9] "Yes" ;
Silence_Supp_Enable[9] "No" ;
DTMF_Tx_Method[9] "Auto" ; # options: InBand/
AVT/INFO/Auto/InBand+INFO/AVT+INFO
DTMF_Tx_Volume_for_AVT_Packet[9] "0" ;
DTMF_AVT_Packet_Interval[9] "0" ;
Use_Remote_Pref_Codec[9] "No" ;
Codec_Negotiation[9] "Default" ; # options: Default/
List All
*** Dial Plan
Dial_Plan[9] "(*xx|[3469]11|0|00|[2-
9]xxxxxx|1xxx[2-9]xxxxxxS0|xxxxxxxxxxxx.)" ;
Page 149
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
149
A
Caller_ID_Map[9] "" ;
Enable_IP_Dialing[9] "Yes" ;
Emergency_Number[9] "" ;
*** General
Line_Enable[10] "Yes" ;
*** Share Line Appearance
Share_Ext[10] "private" ; # options: private/
shared
Shared_User_ID[10] "" ;
Subscription_Expires[10] "3600" ;
Restrict_MWI[10] "No" ;
Monitor_User_ID[10] "" ;
*** NAT Settings
NAT_Mapping_Enable[10] "No" ;
NAT_Keep_Alive_Enable[10] "No" ;
NAT_Keep_Alive_Msg[10] "$NOTIFY" ;
NAT_Keep_Alive_Dest[10] "$PROXY" ;
*** Network Settings
SIP_TOS/DiffServ_Value[10] "0x68" ;
SIP_CoS_Value[10] "3" ; # options: 0/1/2/3/4/
5/6/7
RTP_TOS/DiffServ_Value[10] "0xb8" ;
RTP_CoS_Value[10] "6" ; # options: 0/1/2/3/4/
5/6/7
Network_Jitter_Level[10] "high" ; # options: low/
medium/high/very high/extremely high
Jitter_Buffer_Adjustment[10] "up and down" ; # options: up
and down/up only/down only/disable
*** SIP Settings
SIP_Transport[10] "UDP" ; # options: UDP/TCP/TLS
SIP_Port[10] "5069" ;
SIP_100REL_Enable[10] "No" ;
EXT_SIP_Port[10] "" ;
Auth_Resync-Reboot[10] "Yes" ;
SIP_Proxy-Require[10] "" ;
SIP_Remote-Party-ID[10] "No" ;
Referor_Bye_Delay[10] "4" ;
Refer-To_Target_Contact[10] "No" ;
Referee_Bye_Delay[10] "0" ;
SIP_Debug_Option[10] "none" ; # options: none/1-
line/1-line excl. OPT/1-line excl. NTFY/1-line excl. REG/1-line excl.
OPT|NTFY|REG/full/full excl. OPT/full excl. NTFY/full excl. REG/full excl.
OPT|NTFY|REG
Refer_Target_Bye_Delay[10] "0" ;
Sticky_183[10] "No" ;
Page 150
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
150
A
Auth_INVITE[10] "No" ;
Ntfy_Refer_On_1xx-To-Inv[10] "Yes" ;
Use_Anonymous_With_RPID[10] "Yes" ;
Set_G729_annexb[10] "none" ; # options: none/no/
yes/follow silence supp setting
Voice_Quality_Report_Address[10] "" ;
User_Equal_Phone[10] "No" ;
*** Call Feature Settings
Blind_Attn-Xfer_Enable[10] "No" ;
MOH_Server[10] "" ;
Message_Waiting[10] "No" ;
Auth_Page[10] "No" ;
Default_Ring[(10)] "1" ; # options: No Ring/1/
2/3/4/5/6/7/8/9/10/11/12/User 1/User 2
Auth_Page_Realm[10] "" ;
Conference_Bridge_URL[10] "" ;
Auth_Page_Password[10] "" ;
Mailbox_ID[10] "" ;
Voice_Mail_Server[10] "" ;
Voice_Mail_Subscribe_Interval[10] "86400" ;
State_Agent[10] "" ;
CFWD_Notify_Serv[10] "No" ;
CFWD_Notifier[10] "" ;
User_ID_with_Domain[10] "No" ;
Broadsoft_ACD[10] "No" ;
Auto_Ans_Page_On_Active_Call[10] "Yes" ;
Feature_Key_Sync[10] "No" ;
Call_Park_Monitor_Enable[10] "No" ;
*** Proxy and Registration
Proxy[10] "" ;
Outbound_Proxy[10] "" ;
Alternate_Proxy[10] "" ;
Alternate_Outbound_Proxy[10] "" ;
Use_Outbound_Proxy[10] "No" ;
Use_OB_Proxy_In_Dialog[10] "Yes" ;
Register[10] "Yes" ;
Make_Call_Without_Reg[10] "No" ;
Register_Expires[10] "3600" ;
Ans_Call_Without_Reg[10] "No" ;
Use_DNS_SRV[10] "No" ;
DNS_SRV_Auto_Prefix[10] "No" ;
Proxy_Fallback_Intvl[10] "3600" ;
Proxy_Redundancy_Method[10] "Normal" ; # options: Normal/
Based on SRV Port
Dual_Registration[10] "No" ;
*** Subscriber Information
Display_Name[10] "" ;
User_ID[10] "" ;
Password[10] "" ;
Page 151
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
151
A
Use_Auth_ID[10] "No" ;
Auth_ID[10] "" ;
Reversed_Auth_Realm[10] "" ;
Mini_Certificate[10] "" ;
SRTP_Private_Key[10] "" ;
Resident_Online_Number[10] "" ;
SIP_URI[10] "" ;
*** Audio Configuration
Preferred_Codec[10] "G711u" ; # options: G711u/
G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Use_Pref_Codec_Only[10] "No" ;
Second_Preferred_Codec[10] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Third_Preferred_Codec[10] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
G729a_Enable[10] "Yes" ;
G723_Enable[10] "Yes" ;
G722_Enable[10] "Yes" ;
L16_Enable[10] "Yes" ;
G726-16_Enable[10] "Yes" ;
G726-24_Enable[10] "Yes" ;
G726-32_Enable[10] "Yes" ;
G726-40_Enable[10] "Yes" ;
Release_Unused_Codec[10] "Yes" ;
DTMF_Process_AVT[10] "Yes" ;
Silence_Supp_Enable[10] "No" ;
DTMF_Tx_Method[10] "Auto" ; # options: InBand/
AVT/INFO/Auto/InBand+INFO/AVT+INFO
DTMF_Tx_Volume_for_AVT_Packet[10] "0" ;
DTMF_AVT_Packet_Interval[10] "0" ;
Use_Remote_Pref_Codec[10] "No" ;
Codec_Negotiation[10] "Default" ; # options:
Default/List All
*** Dial Plan
Dial_Plan[10] "(*xx|[3469]11|0|00|[2-
9]xxxxxx|1xxx[2-9]xxxxxxS0|xxxxxxxxxxxx.)" ;
Caller_ID_Map[10] "" ;
Enable_IP_Dialing[10] "Yes" ;
Emergency_Number[10] "" ;
*** General
Line_Enable[11] "Yes" ;
*** Share Line Appearance
Share_Ext[11] "private" ; # options: private/
shared
Shared_User_ID[11] "" ;
Subscription_Expires[11] "3600" ;
Restrict_MWI[11] "No" ;
Page 152
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
152
A
Monitor_User_ID[11] "" ;
*** NAT Settings
NAT_Mapping_Enable[11] "No" ;
NAT_Keep_Alive_Enable[11] "No" ;
NAT_Keep_Alive_Msg[11] "$NOTIFY" ;
NAT_Keep_Alive_Dest[11] "$PROXY" ;
*** Network Settings
SIP_TOS/DiffServ_Value[11] "0x68" ;
SIP_CoS_Value[11] "3" ; # options: 0/1/2/3/4/
5/6/7
RTP_TOS/DiffServ_Value[11] "0xb8" ;
RTP_CoS_Value[11] "6" ; # options: 0/1/2/3/4/
5/6/7
Network_Jitter_Level[11] "high" ; # options: low/
medium/high/very high/extremely high
Jitter_Buffer_Adjustment[11] "up and down" ; # options: up
and down/up only/down only/disable
*** SIP Settings
SIP_Transport[11] "UDP" ; # options: UDP/TCP/TLS
SIP_Port[11] "5070" ;
SIP_100REL_Enable[11] "No" ;
EXT_SIP_Port[11] "" ;
Auth_Resync-Reboot[11] "Yes" ;
SIP_Proxy-Require[11] "" ;
SIP_Remote-Party-ID[11] "No" ;
Referor_Bye_Delay[11] "4" ;
Refer-To_Target_Contact[11] "No" ;
Referee_Bye_Delay[11] "0" ;
SIP_Debug_Option[11] "none" ; # options: none/1-
line/1-line excl. OPT/1-line excl. NTFY/1-line excl. REG/1-line excl.
OPT|NTFY|REG/full/full excl. OPT/full excl. NTFY/full excl. REG/full excl.
OPT|NTFY|REG
Refer_Target_Bye_Delay[11] "0" ;
Sticky_183[11] "No" ;
Auth_INVITE[11] "No" ;
Ntfy_Refer_On_1xx-To-Inv[11] "Yes" ;
Use_Anonymous_With_RPID[11] "Yes" ;
Set_G729_annexb[11] "none" ; # options: none/no/
yes/follow silence supp setting
Voice_Quality_Report_Address[11] "" ;
User_Equal_Phone[11] "No" ;
*** Call Feature Settings
Blind_Attn-Xfer_Enable[11] "No" ;
MOH_Server[11] "" ;
Message_Waiting[11] "No" ;
Auth_Page[11] "No" ;
Page 153
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
153
A
Default_Ring[(11)] "1" ; # options: No Ring/1/
2/3/4/5/6/7/8/9/10/11/12/User 1/User 2
Auth_Page_Realm[11] "" ;
Conference_Bridge_URL[11] "" ;
Auth_Page_Password[11] "" ;
Mailbox_ID[11] "" ;
Voice_Mail_Server[11] "" ;
Voice_Mail_Subscribe_Interval[11] "86400" ;
State_Agent[11] "" ;
CFWD_Notify_Serv[11] "No" ;
CFWD_Notifier[11] "" ;
User_ID_with_Domain[11] "No" ;
Broadsoft_ACD[11] "No" ;
Auto_Ans_Page_On_Active_Call[11] "Yes" ;
Feature_Key_Sync[11] "No" ;
Call_Park_Monitor_Enable[11] "No" ;
*** Proxy and Registration
Proxy[11] "" ;
Outbound_Proxy[11] "" ;
Alternate_Proxy[11] "" ;
Alternate_Outbound_Proxy[11] "" ;
Use_Outbound_Proxy[11] "No" ;
Use_OB_Proxy_In_Dialog[11] "Yes" ;
Register[11] "Yes" ;
Make_Call_Without_Reg[11] "No" ;
Register_Expires[11] "3600" ;
Ans_Call_Without_Reg[11] "No" ;
Use_DNS_SRV[11] "No" ;
DNS_SRV_Auto_Prefix[11] "No" ;
Proxy_Fallback_Intvl[11] "3600" ;
Proxy_Redundancy_Method[11] "Normal" ; # options: Normal/
Based on SRV Port
Dual_Registration[11] "No" ;
*** Subscriber Information
Display_Name[11] "" ;
User_ID[11] "" ;
Password[11] "" ;
Use_Auth_ID[11] "No" ;
Auth_ID[11] "" ;
Reversed_Auth_Realm[11] "" ;
Mini_Certificate[11] "" ;
SRTP_Private_Key[11] "" ;
Resident_Online_Number[11] "" ;
SIP_URI[11] "" ;
*** Audio Configuration
Preferred_Codec[11] "G711u" ; # options: G711u/
G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Use_Pref_Codec_Only[11] "No" ;
Page 154
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
154
A
Second_Preferred_Codec[11] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Third_Preferred_Codec[11] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
G729a_Enable[11] "Yes" ;
G723_Enable[11] "Yes" ;
G722_Enable[11] "Yes" ;
L16_Enable[11] "Yes" ;
G726-16_Enable[11] "Yes" ;
G726-24_Enable[11] "Yes" ;
G726-32_Enable[11] "Yes" ;
G726-40_Enable[11] "Yes" ;
Release_Unused_Codec[11] "Yes" ;
DTMF_Process_AVT[11] "Yes" ;
Silence_Supp_Enable[11] "No" ;
DTMF_Tx_Method[11] "Auto" ; # options: InBand/
AVT/INFO/Auto/InBand+INFO/AVT+INFO
DTMF_Tx_Volume_for_AVT_Packet[11] "0" ;
DTMF_AVT_Packet_Interval[11] "0" ;
Use_Remote_Pref_Codec[11] "No" ;
Codec_Negotiation[11] "Default" ; # options:
Default/List All
*** Dial Plan
Dial_Plan[11] "(*xx|[3469]11|0|00|[2-
9]xxxxxx|1xxx[2-9]xxxxxxS0|xxxxxxxxxxxx.)" ;
Caller_ID_Map[11] "" ;
Enable_IP_Dialing[11] "Yes" ;
Emergency_Number[11] "" ;
*** General
Line_Enable[12] "Yes" ;
*** Share Line Appearance
Share_Ext[12] "private" ; # options: private/
shared
Shared_User_ID[12] "" ;
Subscription_Expires[12] "3600" ;
Restrict_MWI[12] "No" ;
Monitor_User_ID[12] "" ;
*** NAT Settings
NAT_Mapping_Enable[12] "No" ;
NAT_Keep_Alive_Enable[12] "No" ;
NAT_Keep_Alive_Msg[12] "$NOTIFY" ;
NAT_Keep_Alive_Dest[12] "$PROXY" ;
*** Network Settings
SIP_TOS/DiffServ_Value[12] "0x68" ;
Page 155
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
155
A
SIP_CoS_Value[12] "3" ; # options: 0/1/2/3/4/
5/6/7
RTP_TOS/DiffServ_Value[12] "0xb8" ;
RTP_CoS_Value[12] "6" ; # options: 0/1/2/3/4/
5/6/7
Network_Jitter_Level[12] "high" ; # options: low/
medium/high/very high/extremely high
Jitter_Buffer_Adjustment[12] "up and down" ; # options: up
and down/up only/down only/disable
*** SIP Settings
SIP_Transport[12] "UDP" ; # options: UDP/TCP/TLS
SIP_Port[12] "5071" ;
SIP_100REL_Enable[12] "No" ;
EXT_SIP_Port[12] "" ;
Auth_Resync-Reboot[12] "Yes" ;
SIP_Proxy-Require[12] "" ;
SIP_Remote-Party-ID[12] "No" ;
Referor_Bye_Delay[12] "4" ;
Refer-To_Target_Contact[12] "No" ;
Referee_Bye_Delay[12] "0" ;
SIP_Debug_Option[12] "none" ; # options: none/1-
line/1-line excl. OPT/1-line excl. NTFY/1-line excl. REG/1-line excl.
OPT|NTFY|REG/full/full excl. OPT/full excl. NTFY/full excl. REG/full excl.
OPT|NTFY|REG
Refer_Target_Bye_Delay[12] "0" ;
Sticky_183[12] "No" ;
Auth_INVITE[12] "No" ;
Ntfy_Refer_On_1xx-To-Inv[12] "Yes" ;
Use_Anonymous_With_RPID[12] "Yes" ;
Set_G729_annexb[12] "none" ; # options: none/no/
yes/follow silence supp setting
Voice_Quality_Report_Address[12] "" ;
User_Equal_Phone[12] "No" ;
*** Call Feature Settings
Blind_Attn-Xfer_Enable[12] "No" ;
MOH_Server[12] "" ;
Message_Waiting[12] "No" ;
Auth_Page[12] "No" ;
Default_Ring[(12)] "1" ; # options: No Ring/1/
2/3/4/5/6/7/8/9/10/11/12/User 1/User 2
Auth_Page_Realm[12] "" ;
Conference_Bridge_URL[12] "" ;
Auth_Page_Password[12] "" ;
Mailbox_ID[12] "" ;
Voice_Mail_Server[12] "" ;
Voice_Mail_Subscribe_Interval[12] "86400" ;
State_Agent[12] "" ;
CFWD_Notify_Serv[12] "No" ;
CFWD_Notifier[12] "" ;
User_ID_with_Domain[12] "No" ;
Broadsoft_ACD[12] "No" ;
Page 156
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
156
A
Auto_Ans_Page_On_Active_Call[12] "Yes" ;
Feature_Key_Sync[12] "No" ;
Call_Park_Monitor_Enable[12] "No" ;
*** Proxy and Registration
Proxy[12] "" ;
Outbound_Proxy[12] "" ;
Alternate_Proxy[12] "" ;
Alternate_Outbound_Proxy[12] "" ;
Use_Outbound_Proxy[12] "No" ;
Use_OB_Proxy_In_Dialog[12] "Yes" ;
Register[12] "Yes" ;
Make_Call_Without_Reg[12] "No" ;
Register_Expires[12] "3600" ;
Ans_Call_Without_Reg[12] "No" ;
Use_DNS_SRV[12] "No" ;
DNS_SRV_Auto_Prefix[12] "No" ;
Proxy_Fallback_Intvl[12] "3600" ;
Proxy_Redundancy_Method[12] "Normal" ; # options: Normal/
Based on SRV Port
Dual_Registration[12] "No" ;
*** Subscriber Information
Display_Name[12] "" ;
User_ID[12] "" ;
Password[12] "" ;
Use_Auth_ID[12] "No" ;
Auth_ID[12] "" ;
Reversed_Auth_Realm[12] "" ;
Mini_Certificate[12] "" ;
SRTP_Private_Key[12] "" ;
Resident_Online_Number[12] "" ;
SIP_URI[12] "" ;
*** Audio Configuration
Preferred_Codec[12] "G711u" ; # options: G711u/
G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Use_Pref_Codec_Only[12] "No" ;
Second_Preferred_Codec[12] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
Third_Preferred_Codec[12] "Unspecified" ; # options:
Unspecified/G711u/G711a/G726-16/G726-24/G726-32/G726-40/G729a/G722
G729a_Enable[12] "Yes" ;
G723_Enable[12] "Yes" ;
G722_Enable[12] "Yes" ;
L16_Enable[12] "Yes" ;
G726-16_Enable[12] "Yes" ;
G726-24_Enable[12] "Yes" ;
G726-32_Enable[12] "Yes" ;
G726-40_Enable[12] "Yes" ;
Release_Unused_Codec[12] "Yes" ;
DTMF_Process_AVT[12] "Yes" ;
Page 157
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
157
A
Silence_Supp_Enable[12] "No" ;
DTMF_Tx_Method[12] "Auto" ; # options: InBand/
AVT/INFO/Auto/InBand+INFO/AVT+INFO
DTMF_Tx_Volume_for_AVT_Packet[12] "0" ;
DTMF_AVT_Packet_Interval[12] "0" ;
Use_Remote_Pref_Codec[12] "No" ;
Codec_Negotiation[12] "Default" ; # options:
Default/List All
*** Dial Plan
Dial_Plan[12] "(*xx|[3469]11|0|00|[2-
9]xxxxxx|1xxx[2-9]xxxxxxS0|xxxxxxxxxxxx.)" ;
Caller_ID_Map[12] "" ;
Enable_IP_Dialing[12] "Yes" ;
Emergency_Number[12] "" ;
*** Call Forward
Cfwd_Setting ! "Yes" ;
Cfwd_All_Dest ! "" ;
Cfwd_Busy_Dest ! "" ;
Cfwd_No_Ans_Dest ! "" ;
Cfwd_No_Ans_Delay ! "20" ;
*** Speed Dial
Speed_Dial_2 ! "" ;
Speed_Dial_3 ! "" ;
Speed_Dial_4 ! "" ;
Speed_Dial_5 ! "" ;
Speed_Dial_6 ! "" ;
Speed_Dial_7 ! "" ;
Speed_Dial_8 ! "" ;
Speed_Dial_9 ! "" ;
*** Supplementary Services
CW_Setting ! "Yes" ;
Block_CID_Setting ! "No" ;
Block_ANC_Setting ! "No" ;
DND_Setting ! "No" ;
Secure_Call_Setting "No" ;
Dial_Assistance ! "No" ;
Auto_Answer_Page "Yes" ;
Preferred_Audio_Device ! "Speaker" ; # options:
Speaker/Headset
Send_Audio_To_Speaker ! "No" ;
Time_Format ! "12hr" ; # options: 12hr/24hr
Date_Format ! "month/day" ; # options: month/
day/day/month
Miss_Call_Shortcut ! "Yes" ;
Miss_Call_Banner ! "Yes" ;
Accept_Media_Loopback_Request "automatic" ; # options:
never/automatic/manual
Page 158
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
158
A
Media_Loopback_Mode "source" ; # options: source/
mirror
Media_Loopback_Type "media" ; # options: media/
packet
Text_Message ! "Yes" ;
Text_Message_From_3rd_Party ! "No" ;
Alert_Tone_Off ! "No" ;
Log_Missed_Calls_for_EXT_1 "Yes" ;
Log_Missed_Calls_for_EXT_2 "Yes" ;
Log_Missed_Calls_for_EXT_3 "Yes" ;
Log_Missed_Calls_for_EXT_4 "Yes" ;
Log_Missed_Calls_for_EXT_5 "Yes" ;
Log_Missed_Calls_for_EXT_6 "Yes" ;
Log_Missed_Calls_for_EXT_7 "Yes" ;
Log_Missed_Calls_for_EXT_8 "Yes" ;
Log_Missed_Calls_for_EXT_9 "Yes" ;
Log_Missed_Calls_for_EXT_10 "Yes" ;
Log_Missed_Calls_for_EXT_11 "Yes" ;
Log_Missed_Calls_for_EXT_12 "Yes" ;
Shared_Line_DND_Cfwd_Enable "Yes" ;
*** Audio
Ringer_Volume ! "8" ;
Speaker_Volume ! "8" ;
Handset_Volume ! "10" ;
Headset_Volume ! "10" ;
Handset_Version ! "Auto" ; # options: Auto/
Original/v3
Deep_Bass ! "Default" ; # options: Default/
HiDef/Standard
Speakerphone_Enable "Yes" ;
*** LCD
LCD_Contrast ! "8" ;
Back_Light_Timer "10 s" ; # options: Off/10 s/
20 s/30 s/Always On
*** General
Station_Name "" ;
Station_Display_Name "" ;
Voice_Mail_Number "" ;
Text_Logo "" ;
BMP_Picture_Download_URL "" ;
Select_Logo "" ; # options: Default/BMP
Picture/Text Logo/None
Select_Background_Picture "None" ; # options: None/BMP
Picture/Text Logo
Softkey_Labels_Font "Auto" ; # options: Normal/
Narrow/Auto
Screen_Saver_Enable ! "No" ;
Screen_Saver_Wait ! "300" ;
Page 159
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
159
A
Screen_Saver_Icon ! "Background Picture" ; #
options: StationTime/Lock/Phone/DateTime/Background Picture
*** Line Key 1
Extension[1] "1" ; # options: 1/2/3/4/5/
6/7/8/9/10/11/12/Disabled
Short_Name[1] "$USER" ;
Share_Call_Appearance[1] "private" ; # options:
private/shared
Extended_Function[1] "" ;
*** Line Key 2
Extension[2] "1" ; # options: 1/2/3/4/5/
6/7/8/9/10/11/12/Disabled
Short_Name[2] "$USER" ;
Share_Call_Appearance[2] "private" ; # options:
private/shared
Extended_Function[2] "" ;
*** Line Key 3
Extension[3] "1" ; # options: 1/2/3/4/5/
6/7/8/9/10/11/12/Disabled
Short_Name[3] "$USER" ;
Share_Call_Appearance[3] "private" ; # options:
private/shared
Extended_Function[3] "" ;
*** Line Key 4
Extension[4] "1" ; # options: 1/2/3/4/5/
6/7/8/9/10/11/12/Disabled
Short_Name[4] "$USER" ;
Share_Call_Appearance[4] "private" ; # options:
private/shared
Extended_Function[4] "" ;
*** Line Key 5
Extension[5] "1" ; # options: 1/2/3/4/5/
6/7/8/9/10/11/12/Disabled
Short_Name[5] "$USER" ;
Share_Call_Appearance[5] "private" ; # options:
private/shared
Extended_Function[5] "" ;
*** Line Key 6
Extension[6] "1" ; # options: 1/2/3/4/5/
6/7/8/9/10/11/12/Disabled
Short_Name[6] "$USER" ;
Share_Call_Appearance[6] "private" ; # options:
private/shared
Page 160
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
160
A
Extended_Function[6] "" ;
*** Line Key 7
Extension[7] "1" ; # options: 1/2/3/4/5/
6/7/8/9/10/11/12/Disabled
Short_Name[7] "$USER" ;
Share_Call_Appearance[7] "private" ; # options:
private/shared
Extended_Function[7] "" ;
*** Line Key 8
Extension[8] "1" ; # options: 1/2/3/4/5/
6/7/8/9/10/11/12/Disabled
Short_Name[8] "$USER" ;
Share_Call_Appearance[8] "private" ; # options:
private/shared
Extended_Function[8] "" ;
*** Line Key 9
Extension[9] "1" ; # options: 1/2/3/4/5/
6/7/8/9/10/11/12/Disabled
Short_Name[9] "$USER" ;
Share_Call_Appearance[9] "private" ; # options:
private/shared
Extended_Function[9] "" ;
*** Line Key 10
Extension[10] "1" ; # options: 1/2/3/4/5/
6/7/8/9/10/11/12/Disabled
Short_Name[10] "$USER" ;
Share_Call_Appearance[10] "private" ; # options:
private/shared
Extended_Function[10] "" ;
*** Line Key 11
Extension[11] "1" ; # options: 1/2/3/4/5/
6/7/8/9/10/11/12/Disabled
Short_Name[11] "$USER" ;
Share_Call_Appearance[11] "private" ; # options:
private/shared
Extended_Function[11] "" ;
*** Line Key 12
Extension[12] "1" ; # options: 1/2/3/4/5/
6/7/8/9/10/11/12/Disabled
Short_Name[12] "$USER" ;
Share_Call_Appearance[12] "private" ; # options:
private/shared
Extended_Function[12] "" ;
Page 161
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
161
A
*** Miscellaneous Line Key Settings
Line_ID_Mapping "Vertical First" ; # options:
Horizontal First/Vertical First
SCA_Barge-In_Enable "No" ;
SCA_Sticky_Auto_Line_Seize "No" ;
Line_Navigation "Per Line" ; # options: Per
Call/Per Line
Call_Appearance_Per_Line "2" ; # options: 2/3/4/5/6/
7/8/9/10
Softkey_Navigation_Style "Scrollable" ; # options:
Scrollable/More
*** Line Key LED Pattern
Idle_LED "" ;
Remote_Undefined_LED "" ;
Local_Seized_LED "" ;
Remote_Seized_LED "" ;
Local_Progressing_LED "" ;
Remote_Progressing_LED "" ;
Local_Ringing_LED "" ;
Remote_Ringing_LED "" ;
Local_Active_LED "" ;
Remote_Active_LED "" ;
Local_Held_LED "" ;
Remote_Held_LED "" ;
Register_Failed_LED "" ;
Disabled_LED "" ;
Registering_LED "" ;
Call_Back_Active_LED "" ;
Trunk_In-use_LED "" ;
Trunk_No_Service_LED "" ;
Trunk_Reserved_LED "" ;
*** Supplementary Services
Conference_Serv "Yes" ;
Attn_Transfer_Serv "Yes" ;
Blind_Transfer_Serv "Yes" ;
DND_Serv "Yes" ;
Block_ANC_Serv "Yes" ;
Call_Back_Serv "Yes" ;
Block_CID_Serv "Yes" ;
Secure_Call_Serv "Yes" ;
Cfwd_All_Serv "Yes" ;
Cfwd_Busy_Serv "Yes" ;
Cfwd_No_Ans_Serv "Yes" ;
Paging_Serv "Yes" ;
Call_Park_Serv "Yes" ;
Call_Pick_Up_Serv "Yes" ;
ACD_Login_Serv "No" ;
Group_Call_Pick_Up_Serv "Yes" ;
ACD_Ext "1" ; # options: 1/2/3/4
Page 162
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
162
A
Service_Annc_Serv "No" ;
*** Ring Tone
Ring1 "n=Classic-1;w=3;c=1" ;
Ring2 "n=Classic-2;w=3;c=2" ;
Ring3 "n=Classic-3;w=3;c=3" ;
Ring4 "n=Classic-4;w=3;c=4" ;
Ring5 "n=Simple-1;w=2;c=1" ;
Ring6 "n=Simple-2;w=2;c=2" ;
Ring7 "n=Simple-3;w=2;c=3" ;
Ring8 "n=Simple-4;w=2;c=4" ;
Ring9 "n=Simple-5;w=2;c=5" ;
Ring10 "n=Office;w=4;c=1" ;
Ring11 "n=Pulse;w=5;c=1" ;
Ring12 "n=Du-dut;w=6;c=1" ;
*** Audio Input Gain (dB)
Handset_Input_Gain "0" ; # options: -6/0/6
Headset_Input_Gain "0" ; # options: -6/0/6/12/-
12/-18
Speakerphone_Input_Gain "0" ; # options: -6/0/6
Acoustic_Echo_Canceller_Enable "Yes" ;
Handset_Additional_Input_Gain "0" ; # options: -3/-2/-1/0/
1/2/3
Headset_Additional_Input_Gain "0" ; # options: -3/-2/-1/0/
1/2/3
Speakerphone_Additional_Input_Gain "0" ; # options: -3/-2/-1/0/
1/2/3
*** Multiple Paging Group Parameters
Group_Paging_Script
"pggrp=224.168.168.168:34560;name=All;num=800;listen=yes;" ;
*** Broadsoft Settings
Directory_Enable "No" ;
XSI_Host_Server "" ;
Directory_Name "" ;
Directory_Type "Enterprise" ; # options:
Enterprise/Group/Personal
Directory_UserID "" ;
Directory_Password "" ;
*** LDAP Corporate Directory Search
LDAP_Dir_Enable "No" ;
LDAP_Corp_Dir_Name "" ;
LDAP_Server "" ;
LDAP_Auth_Method "None" ; # options: None/
Simple/DIGEST-MD5
LDAP_Client_DN "" ;
LDAP_Username "" ;
Page 163
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
163
A
LDAP_Password "" ;
LDAP_Search_Base "" ;
LDAP_Last_Name_Filter "" ;
LDAP_First_Name_Filter "" ;
LDAP_Search_Item_3 "" ;
LDAP_Item_3_Filter "" ;
LDAP_Search_Item_4 "" ;
LDAP_item_4_Filter "" ;
LDAP_Display_Attrs "" ;
LDAP_Number_Mapping "" ;
*** XML Service
XML_Directory_Service_Name "" ;
XML_Directory_Service_URL "" ;
XML_Application_Service_Name "" ;
XML_Application_Service_URL "" ;
XML_User_Name "" ;
XML_Password "" ;
CISCO_XML_EXE_Auth_Mode "Trusted" ; # options:
Trusted/Local Credential/Remote Credential
*** Extension Mobility
EM_Enable "No" ;
EM_User_Domain "" ;
EM_Phone_User_ID "" ;
EM_Phone_Password "" ;
EM_Mobile_User_ID "" ;
EM_Mobile_Password "" ;
*** Programmable Softkeys
Programmable_Softkey_Enable "No" ;
Idle_Key_List
"em_login|1;acd_login|1;acd_logout|1;astate|2;avail|3;unavail|3;redial|5;dir
|6;cfwd|7;dnd|8;lcr|9;pickup|10;gpickup|11;unpark|12;em_logout" ;
Missed_Call_Key_List "lcr|1;miss|4" ;
Off_Hook_Key_List
"redial|1;dir|2;cfwd|3;dnd|4;lcr|5;unpark|6;pickup|7;gpickup|8;starcode|11;a
lpha|12" ;
Dialing_Input_Key_List
"dial|1;delchar|2;clear|3;cancel|4;left|5;right|6;starcode|7;alpha|8;dir" ;
Progressing_Key_List "endcall|2" ;
Connected_Key_List
"hold|1;endcall|2;conf|3;xfer|4;toggle;bxfer;confLx;xferLx;park;phold;flash;
" ;
Start-Xfer_Key_List
"hold|1;endcall|2;xfer|4;toggle;" ;
Start-Conf_Key_List
"hold|1;endcall|2;conf|3;toggle;" ;
Conferencing_Key_List "hold|1;endcall|2;join|4" ;
Releasing_Key_List "endcall|2;" ;
Hold_Key_List
"resume|1;endcall|2;newcall|3;redial;dir;cfwd;dnd" ;
Page 164
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
164
A
Ringing_Key_List "answer|1;ignore|2;toggle|4" ;
Shared_Active_Key_List
"newcall|1;barge|2;cfwd|3;dnd|4" ;
Shared_Held_Key_List "resume|1;barge|2;cfwd|3;dnd|4"
;
PSK_1 "" ;
PSK_2 "" ;
PSK_3 "" ;
PSK_4 "" ;
PSK_5 "" ;
PSK_6 "" ;
PSK_7 "" ;
PSK_8 "" ;
PSK_9 "" ;
PSK_10 "" ;
PSK_11 "" ;
PSK_12 "" ;
PSK_13 "" ;
PSK_14 "" ;
PSK_15 "" ;
PSK_16 "" ;
*** Call Progress Tones
Dial_Tone "350@-19,440@-19;10(/0/1+2)" ;
Outside_Dial_Tone "420@-16;10(/0/1)" ;
Prompt_Tone "520@-19,620@-19;10(/0/1+2)" ;
Busy_Tone "480@-19,620@-19;10(.5/.5/1+2)"
;
Reorder_Tone "480@-19,620@-19;10(.25/.25/
1+2)" ;
Off_Hook_Warning_Tone "480@-10,620@0;10(.125/.125/
1+2)" ;
Ring_Back_Tone "440@-19,480@-19;(2/4/1+2)" ;
Call_Waiting_Tone "440@-10;30(.3/9.7/1)" ;
Confirm_Tone "600@-16;1(.25/.25/1)" ;
SIT1_Tone "985@-16,1428@-16,1777@-
16;20(.380/0/1,.380/0/2,.380/0/3,0/4/0)" ;
SIT2_Tone "914@-16,1371@-16,1777@-
16;20(.274/0/1,.274/0/2,.380/0/3,0/4/0)" ;
SIT3_Tone "914@-16,1371@-16,1777@-
16;20(.380/0/1,.380/0/2,.380/0/3,0/4/0)" ;
SIT4_Tone "985@-16,1371@-16,1777@-
16;20(.380/0/1,.274/0/2,.380/0/3,0/4/0)" ;
MWI_Dial_Tone "350@-19,440@-19;2(.1/.1/
1+2);10(/0/1+2)" ;
Cfwd_Dial_Tone "350@-19,440@-19;2(.2/.2/
1+2);10(/0/1+2)" ;
Holding_Tone "600@-19;25(.1/.1/1,.1/.1/1,.1/
9.5/1)" ;
Conference_Tone "350@-19;20(.1/.1/1,.1/9.7/1)" ;
Secure_Call_Indication_Tone "397@-19,507@-19;15(0/2/0,.2/
.1/1,.1/2.1/2)" ;
Page_Tone "600@-16;.3(.05/0.05/1)" ;
Alert_Tone "600@-19;.2(.05/0.05/1)" ;
Page 165
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
165
A
Call_Pickup_Tone "440@-10;30(.3/9.7/1)" ;
*** Distinctive Ring Patterns
Cadence_1 "60(2/4)" ;
Cadence_2 "60(.3/.2,1/.2,.3/4)" ;
Cadence_3 "60(.8/.4,.8/4)" ;
Cadence_4 "60(.4/.2,.3/.2,.8/4)" ;
Cadence_5 "60(.2/.2,.2/.2,.2/.2,1/4)" ;
Cadence_6 "60(.2/.4,.2/.4,.2/4)" ;
Cadence_7 "60(4.5/4)" ;
Cadence_8 "60(0.25/9.75)" ;
Cadence_9 "60(.4/.2,.4/2)" ;
*** Control Timer Values (sec)
Reorder_Delay "255" ;
Call_Back_Expires "1800" ;
Call_Back_Retry_Intvl "30" ;
Call_Back_Delay ".5" ;
Interdigit_Long_Timer "10" ;
Interdigit_Short_Timer "3" ;
*** Vertical Service Activation Codes
Call_Return_Code "*69" ;
Blind_Transfer_Code "*98" ;
Call_Back_Act_Code "*66" ;
Call_Back_Deact_Code "*86" ;
Cfwd_All_Act_Code "*72" ;
Cfwd_All_Deact_Code "*73" ;
Cfwd_Busy_Act_Code "*90" ;
Cfwd_Busy_Deact_Code "*91" ;
Cfwd_No_Ans_Act_Code "*92" ;
Cfwd_No_Ans_Deact_Code "*93" ;
CW_Act_Code "*56" ;
CW_Deact_Code "*57" ;
CW_Per_Call_Act_Code "*71" ;
CW_Per_Call_Deact_Code "*70" ;
Block_CID_Act_Code "*67" ;
Block_CID_Deact_Code "*68" ;
Block_CID_Per_Call_Act_Code "*81" ;
Block_CID_Per_Call_Deact_Code "*82" ;
Block_ANC_Act_Code "*77" ;
Block_ANC_Deact_Code "*87" ;
DND_Act_Code "*78" ;
DND_Deact_Code "*79" ;
Secure_All_Call_Act_Code "*16" ;
Secure_No_Call_Act_Code "*17" ;
Secure_One_Call_Act_Code "*18" ;
Secure_One_Call_Deact_Code "*19" ;
Paging_Code "*96" ;
Call_Park_Code "*38" ;
Call_Pickup_Code "*36" ;
Call_UnPark_Code "*39" ;
Page 166
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
166
A
Group_Call_Pickup_Code "*37" ;
Media_Loopback_Code "*03" ;
Referral_Services_Codes "" ;
Feature_Dial_Services_Codes "" ;
*** Vertical Service Announcement Codes
Service_Annc_Base_Number "" ;
Service_Annc_Extension_Codes "" ;
*** Outbound Call Codec Selection Codes
Prefer_G711u_Code "*017110" ;
Force_G711u_Code "*027110" ;
Prefer_G711a_Code "*017111" ;
Force_G711a_Code "*027111" ;
Prefer_G723_Code "*01723" ;
Force_G723_Code "*02723" ;
Prefer_G722_Code "*01722" ;
Force_G722_Code "*02722" ;
Prefer_L16_Code "*01016" ;
Force_L16_Code "*02016" ;
Prefer_G726r16_Code "*0172616" ;
Force_G726r16_Code "*0272616" ;
Prefer_G726r24_Code "*0172624" ;
Force_G726r24_Code "*0272624" ;
Prefer_G726r32_Code "*0172632" ;
Force_G726r32_Code "*0272632" ;
Prefer_G726r40_Code "*0172640" ;
Force_G726r40_Code "*0272640" ;
Prefer_G729a_Code "*01729" ;
Force_G729a_Code "*02729" ;
*** Miscellaneous
Set_Local_Date_(mm/dd) "" ;
Set_Local_Time_(HH/mm) "" ;
Time_Zone "GMT-08:00" ; # options: GMT-
12:00/GMT-11:00/GMT-10:00/GMT-09:00/GMT-08:00/GMT-07:00/GMT-06:00/GMT-05:00/
GMT-04:00/GMT-03:30/GMT-03:00/GMT-02:00/GMT-01:00/GMT/GMT+01:00/GMT+02:00/
GMT+03:00/GMT+03:30/GMT+04:00/GMT+05:00/GMT+05:30/GMT+05:45/GMT+06:00/
GMT+06:30/GMT+07:00/GMT+08:00/GMT+09:00/GMT+09:30/GMT+10:00/GMT+11:00/
GMT+12:00/GMT+13:00
Time_Offset_(HH/mm) "" ;
Ignore_DHCP_Time_Offset "Yes" ;
Daylight_Saving_Time_Rule "" ;
Daylight_Saving_Time_Enable "Yes" ;
DTMF_Playback_Level "-16" ;
DTMF_Playback_Length ".1" ;
Inband_DTMF_Boost "12dB" ; # options: 0dB/3dB/
6dB/9dB/12dB/15dB/18dB
Dictionary_Server_Script "" ;
Language_Selection "" ;
Default_Character_Encoding "ISO-8859-1" ; # options: ISO-
8859-1/UTF-8
Page 167
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
167
A
Locale "en-US" ; # options: en-US/
en-CA/en-AU/en-GB/fr-FR/fr-CA/es-ES/it-IT/de-DE/nn-NO/pt-PT/nl-NL/sv-SE/pt-
BZ/es-MX/en-NZ/da-DK
*** General
Subscribe_Expires "1800" ;
Subscribe_Retry_Interval "30" ;
Unit_1_Enable "Yes" ;
Subscribe_Delay "1" ;
Unit_2_Enable "Yes" ;
Server_Type "Broadsoft" ; # options:
Broadsoft/SPA9000/Asterisk/RFC3265_4235/Sylantro
Test_Mode_Enable "No" ;
Attendant_Console_Call_Pickup_Code "*98" ;
Attendant_Console_Call_Park_Code "*68" ;
Attendant_Console_Call_unPark_Code "*88" ;
BLF_List_URI "" ;
Call_Pickup_Audio_Notification "No" ;
Attendant_Console_Font_Size "10" ; # options: 10/12
Attendant_Console_LCD_Contrast "12" ;
*** Attendant Key LED Pattern
Application_LED "" ;
Serv_Subscribe_Failed_LED "" ;
Serv_Subscribing_LED "" ;
SNRM_Day_Mode_LED "" ;
SNRM_Night_Mode_LED "" ;
Parking_Lot_Idle_LED "" ;
Parking_Lot_Busy_LED "" ;
BLF_Idle_LED "" ;
BLF_Ringing_LED "" ;
BLF_Busy_LED "" ;
BLF_Held_LED "" ;
*** Unit 1
Unit_1_Key_1 "" ;
Unit_1_Key_2 "" ;
Unit_1_Key_3 "" ;
Unit_1_Key_4 "" ;
Unit_1_Key_5 "" ;
Unit_1_Key_6 "" ;
Unit_1_Key_7 "" ;
Unit_1_Key_8 "" ;
Unit_1_Key_9 "" ;
Unit_1_Key_10 "" ;
Unit_1_Key_11 "" ;
Unit_1_Key_12 "" ;
Unit_1_Key_13 "" ;
Unit_1_Key_14 "" ;
Unit_1_Key_15 "" ;
Unit_1_Key_16 "" ;
Unit_1_Key_17 "" ;
Page 168
Sample Configuration Profiles
Plain Text Sample One
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
168
A
Unit_1_Key_18 "" ;
Unit_1_Key_19 "" ;
Unit_1_Key_20 "" ;
Unit_1_Key_21 "" ;
Unit_1_Key_22 "" ;
Unit_1_Key_23 "" ;
Unit_1_Key_24 "" ;
Unit_1_Key_25 "" ;
Unit_1_Key_26 "" ;
Unit_1_Key_27 "" ;
Unit_1_Key_28 "" ;
Unit_1_Key_29 "" ;
Unit_1_Key_30 "" ;
Unit_1_Key_31 "" ;
Unit_1_Key_32 "" ;
*** Unit 2
Unit_2_Key_1 "" ;
Unit_2_Key_2 "" ;
Unit_2_Key_3 "" ;
Unit_2_Key_4 "" ;
Unit_2_Key_5 "" ;
Unit_2_Key_6 "" ;
Unit_2_Key_7 "" ;
Unit_2_Key_8 "" ;
Unit_2_Key_9 "" ;
Unit_2_Key_10 "" ;
Unit_2_Key_11 "" ;
Unit_2_Key_12 "" ;
Unit_2_Key_13 "" ;
Unit_2_Key_14 "" ;
Unit_2_Key_15 "" ;
Unit_2_Key_16 "" ;
Unit_2_Key_17 "" ;
Unit_2_Key_18 "" ;
Unit_2_Key_19 "" ;
Unit_2_Key_20 "" ;
Unit_2_Key_21 "" ;
Unit_2_Key_22 "" ;
Unit_2_Key_23 "" ;
Unit_2_Key_24 "" ;
Unit_2_Key_25 "" ;
Unit_2_Key_26 "" ;
Unit_2_Key_27 "" ;
Unit_2_Key_28 "" ;
Unit_2_Key_29 "" ;
Unit_2_Key_30 "" ;
Unit_2_Key_31 "" ;
Unit_2_Key_32 "" ;
Protect_IVR_FactoryReset "No" ;
Page 169
Sample Configuration Profiles
Plain Text Sample Two
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
169
A
Plain Text Sample Two
***
*** Linksys SPA Series Configuration Parameters
***
*** System Configuration
Restricted_Access_Domains "" ;
Enable_Web_Server "Yes" ;
Web_Server_Port "80" ;
Enable_Web_Admin_Access "Yes" ;
Admin_Passwd "" ;
User_Password ! "" ;
*** Internet Connection Type
DHCP ! "Yes" ;
Static_IP ! "" ;
NetMask ! "" ;
Gateway ! "" ;
*** Optional Network Configuration
HostName ! "" ;
Domain ! "" ;
Primary_DNS ! "" ;
Secondary_DNS ! "" ;
DNS_Server_Order "Manual" ; # options: Manual/Manual,DHCP/
DHCP,Manual
DNS_Query_Mode "Parallel" ; # options: Parallel/Sequential
Syslog_Server "" ;
Debug_Server "" ;
Debug_Level "0" ; # options: 0/1/2/3
Primary_NTP_Server "" ;
Secondary_NTP_Server "" ;
*** Configuration Profile
Provision_Enable "Yes" ;
Resync_On_Reset "Yes" ;
Resync_Random_Delay "2" ;
Resync_Periodic "3600" ;
Resync_Error_Retry_Delay "3600" ;
Forced_Resync_Delay "14400" ;
Resync_From_SIP "Yes" ;
Resync_After_Upgrade_Attempt "Yes" ;
Resync_Trigger_1 "" ;
Page 170
Sample Configuration Profiles
Plain Text Sample Two
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
170
A
Resync_Trigger_2 "" ;
Profile_Rule "/spa$PSN.cfg" ;
Profile_Rule_B "" ;
Profile_Rule_C "" ;
Profile_Rule_D "" ;
Log_Resync_Request_Msg "$PN $MAC -- Requesting resync $SCHEME://
$SERVIP:$PORT$PATH" ;
Log_Resync_Success_Msg "$PN $MAC -- Successful resync $SCHEME://
$SERVIP:$PORT$PATH" ;
Log_Resync_Failure_Msg "$PN $MAC -- Resync failed: $ERR" ;
*** Firmware Upgrade
Upgrade_Enable "Yes" ;
Upgrade_Error_Retry_Delay "3600" ;
Downgrade_Rev_Limit "" ;
Upgrade_Rule "" ;
Log_Upgrade_Request_Msg "$PN $MAC -- Requesting upgrade $SCHEME://
$SERVIP:$PORT$PATH" ;
Log_Upgrade_Success_Msg "$PN $MAC -- Successful upgrade $SCHEME://
$SERVIP:$PORT$PATH -- $ERR" ;
Log_Upgrade_Failure_Msg "$PN $MAC -- Upgrade failed: $ERR" ;
*** General Purpose Parameters
GPP_A "" ;
GPP_B "" ;
GPP_C "" ;
GPP_D "" ;
GPP_E "" ;
GPP_F "" ;
GPP_G "" ;
GPP_H "" ;
GPP_I "" ;
GPP_J "" ;
GPP_K "" ;
GPP_L "" ;
GPP_M "" ;
GPP_N "" ;
GPP_O "" ;
GPP_P "" ;
GPP_SA "" ;
GPP_SB "" ;
GPP_SC "" ;
GPP_SD "" ;
*** SIP Parameters
Max_Forward "70" ;
Max_Redirection "5" ;
Max_Auth "2" ;
SIP_User_Agent_Name "$VERSION" ;
SIP_Server_Name "$VERSION" ;
SIP_Accept_Language "" ;
DTMF_Relay_MIME_Type "application/dtmf-relay" ;
Page 171
Sample Configuration Profiles
Plain Text Sample Two
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
171
A
Hook_Flash_MIME_Type "application/hook-flash" ;
Remove_Last_Reg "No" ;
Use_Compact_Header "No" ;
*** SIP Timer Values (sec)
SIP_T1 ".5" ;
SIP_T2 "4" ;
SIP_T4 "5" ;
SIP_Timer_B "32" ;
SIP_Timer_F "32" ;
SIP_Timer_H "32" ;
SIP_Timer_D "32" ;
SIP_Timer_J "32" ;
INVITE_Expires "240" ;
ReINVITE_Expires "30" ;
Reg_Min_Expires "1" ;
Reg_Max_Expires "7200" ;
Reg_Retry_Intvl "30" ;
Reg_Retry_Long_Intvl "1200" ;
*** Response Status Code Handling
SIT1_RSC "" ;
SIT2_RSC "" ;
SIT3_RSC "" ;
SIT4_RSC "" ;
Try_Backup_RSC "" ;
Retry_Reg_RSC "" ;
*** RTP Parameters
RTP_Port_Min "16384" ;
RTP_Port_Max "16482" ;
RTP_Packet_Size "0.030" ;
Max_RTP_ICMP_Err "0" ;
RTCP_Tx_Interval "0" ;
*** SDP Payload Types
NSE_Dynamic_Payload "100" ;
AVT_Dynamic_Payload "101" ;
G726r16_Dynamic_Payload "98" ;
G726r24_Dynamic_Payload "97" ;
G726r40_Dynamic_Payload "96" ;
G729b_Dynamic_Payload "99" ;
NSE_Codec_Name "NSE" ;
AVT_Codec_Name "telephone-event" ;
G711u_Codec_Name "PCMU" ;
G711a_Codec_Name "PCMA" ;
G726r16_Codec_Name "G726-16" ;
G726r24_Codec_Name "G726-24" ;
G726r32_Codec_Name "G726-32" ;
G726r40_Codec_Name "G726-40" ;
G729a_Codec_Name "G729a" ;
Page 172
Sample Configuration Profiles
Plain Text Sample Two
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
172
A
G729b_Codec_Name "G729ab" ;
G723_Codec_Name "G723" ;
*** NAT Support Parameters
Handle_VIA_received "No" ;
Handle_VIA_rport "No" ;
Insert_VIA_received "No" ;
Insert_VIA_rport "No" ;
Substitute_VIA_Addr "No" ;
Send_Resp_To_Src_Port "No" ;
STUN_Enable "No" ;
STUN_Test_Enable "No" ;
STUN_Server "" ;
EXT_IP "" ;
EXT_RTP_Port_Min "" ;
NAT_Keep_Alive_Intvl "15" ;
***
Line_Enable[1] "Yes" ;
SAS_Enable[1] "No" ;
MOH_Server[1] "" ;
SAS_DLG_Refresh_Intvl[1] "30" ;
NAT_Mapping_Enable[1] "No" ;
SAS_Inbound_RTP_Sink[1] "" ;
SIP_Port[1] "5060" ;
NAT_Keep_Alive_Enable[1] "No" ;
EXT_SIP_Port[1] "" ;
NAT_Keep_Alive_Msg[1] "$NOTIFY" ;
SIP_TOS/DiffServ_Value[1] "0x68" ;
NAT_Keep_Alive_Dest[1] "$PROXY" ;
RTP_TOS/DiffServ_Value[1] "0xb8" ;
SIP_Debug_Option[1] "none" ; # options: none/1-line/1-line
excl. OPT/1-line excl. NTFY/1-line excl. REG/1-line excl. OPT|NTFY|REG/full/
full excl. OPT/full excl. NTFY/full excl. REG/full excl. OPT|NTFY|REG
Network_Jitter_Level[1] "high" ; # options: low/medium/high/very
high
SIP_100REL_Enable[1] "No" ;
Blind_Attn-Xfer_Enable[1] "No" ;
SIP_Proxy-Require[1] "" ;
Auth_Resync-Reboot[1] "Yes" ;
SIP_Remote-Party-ID[1] "No" ;
*** Proxy and Registration
Proxy[1] "" ;
Use_Outbound_Proxy[1] "No" ;
Outbound_Proxy[1] "" ;
Use_OB_Proxy_In_Dialog[1] "Yes" ;
Register[1] "Yes" ;
Make_Call_Without_Reg[1] "No" ;
Register_Expires[1] "3600" ;
Ans_Call_Without_Reg[1] "No" ;
Use_DNS_SRV[1] "No" ;
Page 173
Sample Configuration Profiles
Plain Text Sample Two
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
173
A
DNS_SRV_Auto_Prefix[1] "No" ;
Proxy_Fallback_Intvl[1] "3600" ;
*** Subscriber Information
Display_Name[1] "" ;
User_ID[1] "" ;
Password[1] "" ;
Use_Auth_ID[1] "No" ;
Auth_ID[1] "" ;
Mini_Certificate[1] "" ;
SRTP_Private_Key[1] "" ;
*** Supplementary Service Subscription
Call_Waiting_Serv[1] "Yes" ;
Block_CID_Serv[1] "Yes" ;
Block_ANC_Serv[1] "Yes" ;
Dist_Ring_Serv[1] "Yes" ;
Cfwd_All_Serv[1] "Yes" ;
Cfwd_Busy_Serv[1] "Yes" ;
Cfwd_No_Ans_Serv[1] "Yes" ;
Cfwd_Sel_Serv[1] "Yes" ;
Cfwd_Last_Serv[1] "Yes" ;
Block_Last_Serv[1] "Yes" ;
Accept_Last_Serv[1] "Yes" ;
DND_Serv[1] "Yes" ;
CID_Serv[1] "Yes" ;
CWCID_Serv[1] "Yes" ;
Call_Return_Serv[1] "Yes" ;
Call_Back_Serv[1] "Yes" ;
Three_Way_Call_Serv[1] "Yes" ;
Three_Way_Conf_Serv[1] "Yes" ;
Attn_Transfer_Serv[1] "Yes" ;
Unattn_Transfer_Serv[1] "Yes" ;
MWI_Serv[1] "Yes" ;
VMWI_Serv[1] "Yes" ;
Speed_Dial_Serv[1] "Yes" ;
Secure_Call_Serv[1] "Yes" ;
Referral_Serv[1] "Yes" ;
Feature_Dial_Serv[1] "Yes" ;
*** Audio Configuration
Preferred_Codec[1] "G711u" ; # options: G711u/G711a/G726-16/
G726-24/G726-32/G726-40/G729a/G723
Silence_Supp_Enable[1] "No" ;
Use_Pref_Codec_Only[1] "No" ;
Echo_Canc_Enable[1] "Yes" ;
G729a_Enable[1] "Yes" ;
Echo_Canc_Adapt_Enable[1] "Yes" ;
G723_Enable[1] "Yes" ;
Echo_Supp_Enable[1] "Yes" ;
G726-16_Enable[1] "Yes" ;
FAX_CED_Detect_Enable[1] "Yes" ;
Page 174
Sample Configuration Profiles
Plain Text Sample Two
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
174
A
G726-24_Enable[1] "Yes" ;
FAX_CNG_Detect_Enable[1] "Yes" ;
G726-32_Enable[1] "Yes" ;
FAX_Passthru_Codec[1] "G711u" ; # options: G711u/G711a
G726-40_Enable[1] "Yes" ;
FAX_Codec_Symmetric[1] "Yes" ;
DTMF_Tx_Method[1] "Auto" ; # options: InBand/AVT/INFO/Auto
FAX_Passthru_Method[1] "NSE" ; # options: None/NSE/ReINVITE
Hook_Flash_Tx_Method[1] "None" ; # options: None/AVT/INFO
FAX_Process_NSE[1] "Yes" ;
Release_Unused_Codec[1] "Yes" ;
*** Dial Plan
Dial_Plan[1] "(*xx|[3469]11|0|00|[2-9]xxxxxx|1xxx[2-
9]xxxxxxS0|xxxxxxxxxxxx.)" ;
Enable_IP_Dialing[1] "No" ;
*** FXS Port Polarity Configuration
Idle_Polarity[1] "Forward" ; # options: Forward/Reverse
Caller_Conn_Polarity[1] "Forward" ; # options: Forward/Reverse
Callee_Conn_Polarity[1] "Forward" ; # options: Forward/Reverse
*** Call Forward Settings
Cfwd_All_Dest[1] ! "" ;
Cfwd_Busy_Dest[1] ! "" ;
Cfwd_No_Ans_Dest[1] ! "" ;
Cfwd_No_Ans_Delay[1] ! "20" ;
*** Selective Call Forward Settings
Cfwd_Sel1_Caller[1] ! "" ;
Cfwd_Sel1_Dest[1] ! "" ;
Cfwd_Sel2_Caller[1] ! "" ;
Cfwd_Sel2_Dest[1] ! "" ;
Cfwd_Sel3_Caller[1] ! "" ;
Cfwd_Sel3_Dest[1] ! "" ;
Cfwd_Sel4_Caller[1] ! "" ;
Cfwd_Sel4_Dest[1] ! "" ;
Cfwd_Sel5_Caller[1] ! "" ;
Cfwd_Sel5_Dest[1] ! "" ;
Cfwd_Sel6_Caller[1] ! "" ;
Cfwd_Sel6_Dest[1] ! "" ;
Cfwd_Sel7_Caller[1] ! "" ;
Cfwd_Sel7_Dest[1] ! "" ;
Cfwd_Sel8_Caller[1] ! "" ;
Cfwd_Sel8_Dest[1] ! "" ;
Cfwd_Last_Caller[1] ! "" ;
Cfwd_Last_Dest[1] ! "" ;
Block_Last_Caller[1] ! "" ;
Accept_Last_Caller[1] ! "" ;
*** Speed Dial Settings
Page 175
Sample Configuration Profiles
Plain Text Sample Two
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
175
A
Speed_Dial_2[1] ! "" ;
Speed_Dial_3[1] ! "" ;
Speed_Dial_4[1] ! "" ;
Speed_Dial_5[1] ! "" ;
Speed_Dial_6[1] ! "" ;
Speed_Dial_7[1] ! "" ;
Speed_Dial_8[1] ! "" ;
Speed_Dial_9[1] ! "" ;
*** Supplementary Service Settings
CW_Setting[1] ! "Yes" ;
Block_CID_Setting[1] ! "No" ;
Block_ANC_Setting[1] ! "No" ;
DND_Setting[1] ! "No" ;
CID_Setting[1] ! "Yes" ;
CWCID_Setting[1] ! "Yes" ;
Dist_Ring_Setting[1] ! "Yes" ;
Secure_Call_Setting[1] "No" ;
*** Distinctive Ring Settings
Ring1_Caller[1] ! "" ;
Ring2_Caller[1] ! "" ;
Ring3_Caller[1] ! "" ;
Ring4_Caller[1] ! "" ;
Ring5_Caller[1] ! "" ;
Ring6_Caller[1] ! "" ;
Ring7_Caller[1] ! "" ;
Ring8_Caller[1] ! "" ;
*** Ring Settings
Default_Ring[1] ! "1" ; # options: 1/2/3/4/5/6/7/8
Default_CWT[1] ! "1" ; # options: 1/2/3/4/5/6/7/8
Hold_Reminder_Ring[1] ! "8" ; # options: 1/2/3/4/5/6/7/8/none
Call_Back_Ring[1] ! "7" ; # options: 1/2/3/4/5/6/7/8
Cfwd_Ring_Splash_Len[1] ! "0" ;
Cblk_Ring_Splash_Len[1] ! "0" ;
VMWI_Ring_Splash_Len[1] ! ".5" ;
VMWI_Ring_Policy[1] "New VM Available" ; # options: New VM
Available/New VM Becomes Available/New VM Arrives
Ring_On_No_New_VM[1] "No" ;
***
Line_Enable[2] "Yes" ;
SAS_Enable[2] "No" ;
MOH_Server[2] "" ;
SAS_DLG_Refresh_Intvl[2] "30" ;
NAT_Mapping_Enable[2] "No" ;
SAS_Inbound_RTP_Sink[2] "" ;
SIP_Port[2] "5061" ;
NAT_Keep_Alive_Enable[2] "No" ;
Page 176
Sample Configuration Profiles
Plain Text Sample Two
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
176
A
EXT_SIP_Port[2] "" ;
NAT_Keep_Alive_Msg[2] "$NOTIFY" ;
SIP_TOS/DiffServ_Value[2] "0x68" ;
NAT_Keep_Alive_Dest[2] "$PROXY" ;
RTP_TOS/DiffServ_Value[2] "0xb8" ;
SIP_Debug_Option[2] "none" ; # options: none/1-line/1-line
excl. OPT/1-line excl. NTFY/1-line excl. REG/1-line excl. OPT|NTFY|REG/full/
full excl. OPT/full excl. NTFY/full excl. REG/full excl. OPT|NTFY|REG
Network_Jitter_Level[2] "high" ; # options: low/medium/high/very
high
SIP_100REL_Enable[2] "No" ;
Blind_Attn-Xfer_Enable[2] "No" ;
SIP_Proxy-Require[2] "" ;
Auth_Resync-Reboot[2] "Yes" ;
SIP_Remote-Party-ID[2] "No" ;
*** Proxy and Registration
Proxy[2] "" ;
Use_Outbound_Proxy[2] "No" ;
Outbound_Proxy[2] "" ;
Use_OB_Proxy_In_Dialog[2] "Yes" ;
Register[2] "Yes" ;
Make_Call_Without_Reg[2] "No" ;
Register_Expires[2] "3600" ;
Ans_Call_Without_Reg[2] "No" ;
Use_DNS_SRV[2] "No" ;
DNS_SRV_Auto_Prefix[2] "No" ;
Proxy_Fallback_Intvl[2] "3600" ;
*** Subscriber Information
Display_Name[2] "" ;
User_ID[2] "" ;
Password[2] "" ;
Use_Auth_ID[2] "No" ;
Auth_ID[2] "" ;
Mini_Certificate[2] "" ;
SRTP_Private_Key[2] "" ;
*** Supplementary Service Subscription
Call_Waiting_Serv[2] "Yes" ;
Block_CID_Serv[2] "Yes" ;
Block_ANC_Serv[2] "Yes" ;
Dist_Ring_Serv[2] "Yes" ;
Cfwd_All_Serv[2] "Yes" ;
Cfwd_Busy_Serv[2] "Yes" ;
Cfwd_No_Ans_Serv[2] "Yes" ;
Cfwd_Sel_Serv[2] "Yes" ;
Cfwd_Last_Serv[2] "Yes" ;
Block_Last_Serv[2] "Yes" ;
Accept_Last_Serv[2] "Yes" ;
DND_Serv[2] "Yes" ;
CID_Serv[2] "Yes" ;
Page 177
Sample Configuration Profiles
Plain Text Sample Two
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
177
A
CWCID_Serv[2] "Yes" ;
Call_Return_Serv[2] "Yes" ;
Call_Back_Serv[2] "Yes" ;
Three_Way_Call_Serv[2] "Yes" ;
Three_Way_Conf_Serv[2] "Yes" ;
Attn_Transfer_Serv[2] "Yes" ;
Unattn_Transfer_Serv[2] "Yes" ;
MWI_Serv[2] "Yes" ;
VMWI_Serv[2] "Yes" ;
Speed_Dial_Serv[2] "Yes" ;
Secure_Call_Serv[2] "Yes" ;
Referral_Serv[2] "Yes" ;
Feature_Dial_Serv[2] "Yes" ;
*** Audio Configuration
Preferred_Codec[2] "G711u" ; # options: G711u/G711a/G726-16/
G726-24/G726-32/G726-40/G729a/G723
Silence_Supp_Enable[2] "No" ;
Use_Pref_Codec_Only[2] "No" ;
Echo_Canc_Enable[2] "Yes" ;
G729a_Enable[2] "Yes" ;
Echo_Canc_Adapt_Enable[2] "Yes" ;
G723_Enable[2] "Yes" ;
Echo_Supp_Enable[2] "Yes" ;
G726-16_Enable[2] "Yes" ;
FAX_CED_Detect_Enable[2] "Yes" ;
G726-24_Enable[2] "Yes" ;
FAX_CNG_Detect_Enable[2] "Yes" ;
G726-32_Enable[2] "Yes" ;
FAX_Passthru_Codec[2] "G711u" ; # options: G711u/G711a
G726-40_Enable[2] "Yes" ;
FAX_Codec_Symmetric[2] "Yes" ;
DTMF_Tx_Method[2] "Auto" ; # options: InBand/AVT/INFO/Auto
FAX_Passthru_Method[2] "NSE" ; # options: None/NSE/ReINVITE
Hook_Flash_Tx_Method[2] "None" ; # options: None/AVT/INFO
FAX_Process_NSE[2] "Yes" ;
Release_Unused_Codec[2] "Yes" ;
*** Dial Plan
Dial_Plan[2] "(*xx|[3469]11|0|00|[2-9]xxxxxx|1xxx[2-
9]xxxxxxS0|xxxxxxxxxxxx.)" ;
Enable_IP_Dialing[2] "No" ;
*** FXS Port Polarity Configuration
Idle_Polarity[2] "Forward" ; # options: Forward/Reverse
Caller_Conn_Polarity[2] "Forward" ; # options: Forward/Reverse
Callee_Conn_Polarity[2] "Forward" ; # options: Forward/Reverse
*** Call Forward Settings
Cfwd_All_Dest[2] ! "" ;
Cfwd_Busy_Dest[2] ! "" ;
Page 178
Sample Configuration Profiles
Plain Text Sample Two
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
178
A
Cfwd_No_Ans_Dest[2] ! "" ;
Cfwd_No_Ans_Delay[2] ! "20" ;
*** Selective Call Forward Settings
Cfwd_Sel1_Caller[2] ! "" ;
Cfwd_Sel1_Dest[2] ! "" ;
Cfwd_Sel2_Caller[2] ! "" ;
Cfwd_Sel2_Dest[2] ! "" ;
Cfwd_Sel3_Caller[2] ! "" ;
Cfwd_Sel3_Dest[2] ! "" ;
Cfwd_Sel4_Caller[2] ! "" ;
Cfwd_Sel4_Dest[2] ! "" ;
Cfwd_Sel5_Caller[2] ! "" ;
Cfwd_Sel5_Dest[2] ! "" ;
Cfwd_Sel6_Caller[2] ! "" ;
Cfwd_Sel6_Dest[2] ! "" ;
Cfwd_Sel7_Caller[2] ! "" ;
Cfwd_Sel7_Dest[2] ! "" ;
Cfwd_Sel8_Caller[2] ! "" ;
Cfwd_Last_Caller[2] ! "" ;Cfwd_Sel8_Dest[2] ! "" ;
Cfwd_Last_Dest[2] ! "" ;
Block_Last_Caller[2] ! "" ;
Accept_Last_Caller[2] ! "" ;
*** Speed Dial Settings
Speed_Dial_2[2] ! "" ;
Speed_Dial_3[2] ! "" ;
Speed_Dial_4[2] ! "" ;
Speed_Dial_5[2] ! "" ;
Speed_Dial_6[2] ! "" ;
Speed_Dial_7[2] ! "" ;
Speed_Dial_8[2] ! "" ;
Speed_Dial_9[2] ! "" ;
*** Supplementary Service Settings
CW_Setting[2] ! "Yes" ;
Block_CID_Setting[2] ! "No" ;
Block_ANC_Setting[2] ! "No" ;
DND_Setting[2] ! "No" ;
CID_Setting[2] ! "Yes" ;
CWCID_Setting[2] ! "Yes" ;
Dist_Ring_Setting[2] ! "Yes" ;
Secure_Call_Setting[2] "No" ;
*** Distinctive Ring Settings
Ring1_Caller[2] ! "" ;
Ring2_Caller[2] ! "" ;
Ring3_Caller[2] ! "" ;
Ring4_Caller[2] ! "" ;
Ring5_Caller[2] ! "" ;
Ring6_Caller[2] ! "" ;
Page 179
Sample Configuration Profiles
Plain Text Sample Two
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
179
A
Ring7_Caller[2] ! "" ;
Ring8_Caller[2] ! "" ;
*** Ring Settings
Default_Ring[2] ! "1" ; # options: 1/2/3/4/5/6/7/8
Default_CWT[2] ! "1" ; # options: 1/2/3/4/5/6/7/8
Hold_Reminder_Ring[2] ! "8" ; # options: 1/2/3/4/5/6/7/8/none
Call_Back_Ring[2] ! "7" ; # options: 1/2/3/4/5/6/7/8
Cfwd_Ring_Splash_Len[2] ! "0" ;
Cblk_Ring_Splash_Len[2] ! "0" ;
VMWI_Ring_Splash_Len[2] ! ".5" ;
VMWI_Ring_Policy[2] "New VM Available" ; # options: New VM
Available/New VM Becomes Available/New VM Arrives
Ring_On_No_New_VM[2] "No" ;
*** Call Progress Tones
Dial_Tone "350@-19,440@-19;10(/0/1+2)" ;
Second_Dial_Tone "420@-19,520@-19;10(/0/1+2)" ;
Outside_Dial_Tone "420@-16;10(/0/1)" ;
Prompt_Tone "520@-19,620@-19;10(/0/1+2)" ;
Busy_Tone "480@-19,620@-19;10(.5/.5/1+2)" ;
Reorder_Tone "480@-19,620@-19;10(.25/.25/1+2)" ;
Off_Hook_Warning_Tone "480@-10,620@0;10(.125/.125/1+2)" ;
Ring_Back_Tone "440@-19,480@-19;(2/4/1+2)" ;
Confirm_Tone "600@-16;1(.25/.25/1)" ;
SIT1_Tone "985@-16,1428@-16,1777@-16;20(.380/0/1,.380/
0/2,.380/0/3,0/4/0)" ;
SIT2_Tone "914@-16,1371@-16,1777@-16;20(.274/0/1,.274/
0/2,.380/0/3,0/4/0)" ;
SIT3_Tone "914@-16,1371@-16,1777@-16;20(.380/0/1,.380/
0/2,.380/0/3,0/4/0)" ;
SIT4_Tone "985@-16,1371@-16,1777@-16;20(.380/0/1,.274/
0/2,.380/0/3,0/4/0)" ;
MWI_Dial_Tone "350@-19,440@-19;2(.1/.1/1+2);10(/0/1+2)" ;
Cfwd_Dial_Tone "350@-19,440@-19;2(.2/.2/1+2);10(/0/1+2)" ;
Holding_Tone "600@-19;(.1/.1/1,.1/.1/1,.1/9.5/1)" ;
Conference_Tone "350@-19;20(.1/.1/1,.1/9.7/1)" ;
Secure_Call_Indication_Tone "397@-19,507@-19;15(0/2/0,.2/.1/1,.1/2.1/
2)" ;
*** Distinctive Ring Patterns
Ring1_Cadence "60(2/4)" ;
Ring2_Cadence "60(.3/.2,1/.2,.3/4)" ;
Ring3_Cadence "60(.8/.4,.8/4)" ;
Ring4_Cadence "60(.4/.2,.3/.2,.8/4)" ;
Ring5_Cadence "60(.2/.2,.2/.2,.2/.2,1/4)" ;
Ring6_Cadence "60(.2/.4,.2/.4,.2/4)" ;
Ring7_Cadence "60(.4/.2,.4/.2,.4/4)" ;
Ring8_Cadence "60(0.25/9.75)" ;
*** Distinctive Call Waiting Tone Patterns
Page 180
Sample Configuration Profiles
Plain Text Sample Two
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
180
A
CWT1_Cadence "30(.3/9.7)" ;
CWT2_Cadence "30(.1/.1, .1/9.7)" ;
CWT3_Cadence "30(.1/.1, .3/.1, .1/9.3)" ;
CWT4_Cadence "30(.1/.1,.1/.1,.1/9.5)" ;
CWT5_Cadence "30(.3/.1,.1/.1,.3/9.1)" ;
CWT6_Cadence "30(.1/.1,.3/.2,.3/9.1)" ;
CWT7_Cadence "30(.3/.1,.3/.1,.1/9.1)" ;
CWT8_Cadence "2.3(.3/2)" ;
*** Distinctive Ring/CWT Pattern Names
Ring1_Name "Bellcore-r1" ;
Ring2_Name "Bellcore-r2" ;
Ring3_Name "Bellcore-r3" ;
Ring4_Name "Bellcore-r4" ;
Ring5_Name "Bellcore-r5" ;
Ring6_Name "Bellcore-r6" ;
Ring7_Name "Bellcore-r7" ;
Ring8_Name "Bellcore-r8" ;
*** Ring and Call Waiting Tone Spec
Ring_Waveform "Sinusoid" ; # options: Sinusoid/Trapezoid
Ring_Frequency "25" ;
Ring_Voltage "70" ;
CWT_Frequency "440@-10" ;
*** Control Timer Values (sec)
Hook_Flash_Timer_Min ".1" ;
Hook_Flash_Timer_Max ".9" ;
Callee_On_Hook_Delay "0" ;
Reorder_Delay "5" ;
Call_Back_Expires "1800" ;
Call_Back_Retry_Intvl "30" ;
Call_Back_Delay ".5" ;
VMWI_Refresh_Intvl "30" ;
Interdigit_Long_Timer "10" ;
Interdigit_Short_Timer "3" ;
CPC_Delay "2" ;
CPC_Duration "0" ;
*** Vertical Service Activation Codes
Call_Return_Code "*69" ;
Blind_Transfer_Code "*98" ;
Call_Back_Act_Code "*66" ;
Call_Back_Deact_Code "*86" ;
Cfwd_All_Act_Code "*72" ;
Cfwd_All_Deact_Code "*73" ;
Cfwd_Busy_Act_Code "*90" ;
Cfwd_Busy_Deact_Code "*91" ;
Cfwd_No_Ans_Act_Code "*92" ;
Cfwd_No_Ans_Deact_Code "*93" ;
Cfwd_Last_Act_Code "*63" ;
Page 181
Sample Configuration Profiles
Plain Text Sample Two
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
181
A
Cfwd_Last_Deact_Code "*83" ;
Block_Last_Act_Code "*60" ;
Block_Last_Deact_Code "*80" ;
Accept_Last_Act_Code "*64" ;
Accept_Last_Deact_Code "*84" ;
CW_Act_Code "*56" ;
CW_Deact_Code "*57" ;
CW_Per_Call_Act_Code "*71" ;
CW_Per_Call_Deact_Code "*70" ;
Block_CID_Act_Code "*67" ;
Block_CID_Deact_Code "*68" ;
Block_CID_Per_Call_Act_Code "*81" ;
Block_CID_Per_Call_Deact_Code "*82" ;
Block_ANC_Act_Code "*77" ;
Block_ANC_Deact_Code "*87" ;
DND_Act_Code "*78" ;
DND_Deact_Code "*79" ;
CID_Act_Code "*65" ;
CID_Deact_Code "*85" ;
CWCID_Act_Code "*25" ;
CWCID_Deact_Code "*45" ;
Dist_Ring_Act_Code "*26" ;
Dist_Ring_Deact_Code "*46" ;
Speed_Dial_Act_Code "*74" ;
Secure_All_Call_Act_Code "*16" ;
Secure_No_Call_Act_Code "*17" ;
Secure_One_Call_Act_Code "*18" ;
Secure_One_Call_Deact_Code "*19" ;
Referral_Services_Codes "" ;
Feature_Dial_Services_Codes "" ;
*** Outbound Call Codec Selection Codes
Prefer_G711u_Code "*017110" ;
Force_G711u_Code "*027110" ;
Prefer_G711a_Code "*017111" ;
Force_G711a_Code "*027111" ;
Prefer_G723_Code "*01723" ;
Force_G723_Code "*02723" ;
Prefer_G726r16_Code "*0172616" ;
Force_G726r16_Code "*0272616" ;
Prefer_G726r24_Code "*0172624" ;
Force_G726r24_Code "*0272624" ;
Prefer_G726r32_Code "*0172632" ;
Force_G726r32_Code "*0272632" ;
Prefer_G726r40_Code "*0172640" ;
Force_G726r40_Code "*0272640" ;
Prefer_G729a_Code "*01729" ;
Force_G729a_Code "*02729" ;
*** Miscellaneous
Set_Local_Date_(mm/dd) "" ;
Set_Local_Time_(HH/mm) "" ;
Page 182
Sample Configuration Profiles
Plain Text Sample Two
Provisioning Guide for Cisco SPA112, SPA122, and SPA232D Analog Telephone Adapters
182
A
Time_Zone "GMT-07:00" ; # options: GMT-12:00/GMT-
11:00/GMT-10:00/GMT-09:00/GMT-08:00/GMT-07:00/GMT-06:00/GMT-05:00/GMT-04:00/
GMT-03:30/GMT-03:00/GMT-02:00/GMT-01:00/GMT/GMT+01:00/GMT+02:00/GMT+03:00/
GMT+03:30/GMT+04:00/GMT+05:00/GMT+05:30/GMT+05:45/GMT+06:00/GMT+06:30/
GMT+07:00/GMT+08:00/GMT+09:00/GMT+09:30/GMT+10:00/GMT+11:00/GMT+12:00/
GMT+13:00
FXS_Port_Impedance "600" ; # options: 600/900/600+2.16uF/
900+2.16uF/270+750||150nF/220+820||120nF/220+820||115nF/370+620||310nF
FXS_Port_Input_Gain "-3" ;
FXS_Port_Output_Gain "-3" ;
DTMF_Playback_Level "-16" ;
DTMF_Playback_Length ".1" ;
Detect_ABCD "Yes" ;
Playback_ABCD "Yes" ;
Caller_ID_Method "Bellcore(N.Amer,China)" ; # options:
Bellcore(N.Amer,China)/DTMF(Finland,Sweden)/DTMF(Denmark)/ETSI DTMF/ETSI
DTMF With PR/ETSI DTMF After Ring/ETSI FSK/ETSI FSK With PR(UK)
FXS_Port_Power_Limit "3" ; # options: 1/2/3/4/5/6/7/8
Protect_IVR_FactoryReset "No" ;
Page 183
B
Provisioning Guide for Cisco SPA100 and SPA200 Series Analog Telephone Adapters
Acronyms
A/D
Analog To Digital Converter
ANC
Anonymous Call
B2BUA
Back to Back User Agent
Bool
Boolean Values. Specified as yes and no, or 1 and 0 in the profile
CA
Certificate Authority
CAS
CPE Alert Signal
CDR
Call Detail Record
CID
Caller ID
CIDCW
Call Waiting Caller ID
CNG
Comfort Noise Generation
CPC
Calling Party Control
CPE
Customer Premises Equipment
CWCID
Call Waiting Caller ID
CWT
Call Waiting Tone
D/A
Digital to Analog Converter
dB
decibel
dBm
dB with respect to 1 milliwatt
DHCP
Dynamic Host Configuration Protocol
DNS
Domain Name System
Page 184
Acronyms
Provisioning Guide for Cisco SPA100 and SPA200 Series Analog Telephone Adapters
184
B
DRAM
Dynamic Random Access Memory
DSL
Digital Subscriber Loop
DSP
Digital Signal Processor
DTAS
Data Terminal Alert Signal (same as CAS)
DTMF
Dual Tone Multiple Frequency
FQDN
Fully Qualified Domain Name
FSK
Frequency Shift Keying
FXS
Foreign eXchange Station
GW
Gateway
ITU
International Telecommunication Union
HTML
Hypertext Markup Language
HTTP
Hypertext Transfer Protocol
HTTPS
HTTP over SSL
ICMP
Internet Control Message Protocol
IGMP
Internet Group Management Protocol
ILEC
Incumbent Local Exchange Carrier
IP
Internet Protocol
ISP
Internet Service Provider
ITSP
Internet Telephony Service Provider
IVR
Interactive Voice Response
LAN
Local Area Network
LBR
Low Bit Rate
LBRC
Low Bit Rate Codec
MC
Mini-Certificate
MGCP
Media Gateway Control Protocol
Page 185
Acronyms
Provisioning Guide for Cisco SPA100 and SPA200 Series Analog Telephone Adapters
185
B
MOH
Music On Hold
MOS
Mean Opinion Score (1-5, the higher the better)
ms
Millisecond
MSA
Music Source Adaptor
MWI
Message Waiting Indication
OSI
Open Switching Interval
PCB
Printed Circuit Board
PR
Polarity Reversal
PS
Provisioning Server
PSQM
Perceptual Speech Quality Measurement (1-5, the lower the
better)
PSTN
Public Switched Telephone Network
NAT
Network Address Translation
OOB
Out-of-band
REQT
(SIP) Request Message
RESP
(SIP) Response Message
RSC
(SIP) Response Status Code, such as 404, 302, 600
RTP
Real Time Protocol
RTT
Round Trip Time
SAS
Streaming Audio Server
SDP
Session Description Protocol
SDRAM
Synchronous DRAM
sec
seconds
SIP
Session Initiation Protocol
SLA
Shared line appearance
SLIC
Subscriber Line Interface Circuit
Page 186
Acronyms
Provisioning Guide for Cisco SPA100 and SPA200 Series Analog Telephone Adapters
186
B
SP
Service Provider
SSL
Secure Socket Layer
TFTP
Trivial File Transfer Protocol
TCP
Transmission Control Protocol
UA
User Agent
uC
Micro-controller
UDP
User Datagram Protocol
URL
Uniform Resource Locator
VM
Voicemail
VMWI
Visual Message Waiting Indication/Indicator
VQ
Voice Quality
WAN
Wide Area Network
XML
Extensible Markup Language
Page 187
C
Provisioning Guide for Cisco SPA100 and SPA200 Series Analog Telephone Adapters
Where to Go From Here
Cisco provides a wide range of resources to help you and your customer obtain
the full benefits of the ATA.
Product Resources
Support
Cisco Small Business Support
Community
www.myciscocommunity.com/community/
smallbizsupport/voiceandconferencing
Online Technical Support and
Documentation (Login Required)
www.cisco.com/support
Cisco Small Business Support
and Resources
www.cisco.com/go/smallbizhelp
Downloads and Documentation
Firmware
www.cisco.com/go/software
Technical Documentation and
Open Source Documentation
IP Phones:
www.cisco.com/en/US/products/ps10033/
tsd_products_support_series_home.html
Voice Gateways/Analog Telephone
Adapters:
www.cisco.com/go/smallbizvoicegateways
Voice System (SPA400):
www.cisco.com/en/US/products/ps10030/
tsd_products_support_series_home.html
Page 188
Where to Go From Here
Provisioning Guide for Cisco SPA100 and SPA200 Series Analog Telephone Adapters
188
C
Cisco Small Business
Cisco Partner Central for Small
Business (Partner Login
Required)
www.cisco.com/web/partners/sell/smb
Cisco Small Business Home
www.cisco.com/smb
Page 189
Copyright © 2013 Cisco Systems, Inc. All rights reserved.
78-21003-01
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL:
www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1110R)
