Format: PDF Title: Poly VVX D230 DECT IP Phone User Guide Author: Plantronics, Inc. (Poly — formerly Plantronics and Polycom) Creator: FrameMaker 2017

Page 1

7.0.0 | September 2019 | 3725-49215-001A

USER GUIDE GETTING HELP For more information about installing, configuring, and administering Poly/Polycom products or services, go to Polycom Support. Plantronics, Inc. (Poly – formerly Plantronics and Polycom) 345 Encinal Street Santa Cruz, California 95060 © 2019 Plantronics, Inc. All rights reserved. Poly, the propeller design, and the Poly logo are trademarks of Plantronics, Inc. All other trademarks are the property of VVX D230 DECT IP Phone

Image 1 from page 1

Image 2 from page 1

Page 2

Table of Contents Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Disposal warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Introducing the VVX D230 DECT IP Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Overview of the VVX D230 DECT IP Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Overview of the VVX D230 Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 VVX D230 DECT Base Station Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Navigate the Handset Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Return to the Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Tips for Setting Up the Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Getting Started with the VVX D230 DECT IP Phone . . . . . . . . . . . . . . . . . . . . . . 12 Register the Wireless Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Unregister the Wireless Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Using Your VVX D230 DECT IP Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Placing Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Place a Call Using the Default Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Place a Call Using an Alternate Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Place a New Call During an Active Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Forwarding Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Enable Call Forwarding on a Particular Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Forward an Incoming Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Answering and Rejecting Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Answer an Incoming Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Answer an Incoming Call During a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Reject an Incoming Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Hold a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Resume a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Placing Intercom Calls to Another Wireless Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Place an Intercom Call When Not in a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Place an Intercom Call During a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Page 3

VVX D230 Wireless Handset User Guide 3

Transferring Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Transfer a Call to Another Wireless Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Blind Transfer a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Conference Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Start a Conference Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Split a Conference Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Join Calls into a Conference Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Switch Between Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Park Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Retrieve Parked Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Shared Line Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Barge In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Pick Up Held Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 End a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Redial a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Audio Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Switch Between the Earpiece and the Speakerphone . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Adjust the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Mute or Unmute the Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Access Voicemail Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Enable Do Not Disturb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Disable Do Not Disturb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Directories and Speed Dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Contact Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Add a Contact to the Contact Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 View Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Sort the Contact Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Call a Contact from the Contact Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Edit Contacts in the Contact Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Delete a Contact from the Contact Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Enterprise Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 View Contact Information for Enterprise Directory Contacts . . . . . . . . . . . . . . . . . . . . . . . 23 Call a Contact from the Enterprise Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Search the Enterprise Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Save Enterprise Directory Contacts to the Contact Directory . . . . . . . . . . . . . . . . . . . . . . 24 Speed Dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Add a Speed Dial Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Call a Speed Dial Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Replace a Speed Dial Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Page 4

VVX D230 Wireless Handset User Guide 4

Delete a Speed Dial Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Call Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Missed Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Call a Missed Call Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 View Details for a Missed Call Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Delete a Missed Call Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Delete All Missed Call Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Add a Missed Call Entry to the Contact Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Received Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Call a Received Call Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 View Details for a Received Call Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Delete a Received Call Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Delete All Received Call Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Add a Received Call Entry to the Contact Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Dialed Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Call a Dialed Call Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 View Details for a Dialed Call Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Delete a Dialed Call Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Delete All Dialed Call Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Add a Dialed Entry to the Contact Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Recent Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Call a Recent Calls Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 View Details for a Recent Calls Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Delete a Recent Call Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Delete All Recent Call Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Add a Recent Call Entry to the Contact Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 VVX D230 DECT IP Phone Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Set the Time and Date Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Ring Type Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Set the Ring Type for External Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Set the Ring Type for Internal Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Enable or Disable Keypad Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Set a Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Name the Wireless Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Enable Call Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Outgoing Line Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 View Wireless Handset Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 View Wireless Base Station Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Page 5

VVX D230 Wireless Handset User Guide 5

Reset the Wireless Handset to Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Take Care of Your VVX D230 DECT IP Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Cleaning Your Wireless Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 VVX D230 Wireless Handset Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 VVX D230 Wireless Handset Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Radio Frequency Interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Page 6

Important Safety Instructions When using your VVX D230 DECT IP Phone, follow basic safety precautions to reduce the risk of fire, electric shock and injury, including the following: ● Read and understand all the instructions. ● Follow all warnings and instructions marked on the handset. ● Unplug the handset from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a slightly damp cloth for cleaning. ● Do not use the handset near water, for example, near a bath tub, kitchen sink, or swimming pool. ● Do not expose the handset to direct sunlight or an extreme cold environment. Do not put the handset close to heating sources such as radiators, heaters, or cookers. ● Do not overload wall outlets and extension cords to help avoid fire or electric shock. ● Unplug the handset from the wall outlet and refer servicing to the distributor under the following conditions: If the power supply cord or plug is damaged or frayed. If the handset does not operate normally according to the operating instructions. If the handset has been dropped and the casing has been damaged. If the handset exhibits a distinct change in performance. ● Avoid using a telephone, other than a cordless type, during an electrical storm. There may be a remote risk of electric shock from lightning. ● Electrical storms can sometimes cause power surges harmful to electronic equipment. For your own safety, take caution when using electric appliances during storms. ● Do not use the handset to report a gas leak in the vicinity of the leak. ● Use only the supplied battery pack. The operation periods for the handsets are applicable only with the default battery capacities. ● The use of other battery types or non-rechargeable batteries or primary cells can be dangerous, causing interference and unit damages. The manufacturer is not held liable for damage arising from such non-compliance. ● Do not use third-party charging bays as they can damage the battery. ● Note the correct polarity while inserting the batteries. ● The battery should not be exposed to excessive heat such as bright sunshine or fire. ● The battery should not be immersed in water. Your wireless handset can be damaged if it gets wet. Do not use the wireless handset in the rain, and do not handle it with wet hands. Do not install the base station near a sink, bathtub, or shower.

Page 7

VVX D230 Wireless Handset User Guide Important Safety Instructions 7

Replacing the Battery Dispose of used batteries according to local published guidelines. Disposal warning 1 When this crossed-out wheeled bin symbol is attached to a product, it means the product is covered by the European Directive 2002/96/EC. 2 All electrical and electronic products and batteries should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. 3 The correct disposal of your old appliance or battery helps prevent potential negative consequences for the environment and human health. For more detailed information about disposal of your old appliance or battery, contact your city office, waste disposal service, or the reseller where you purchased the product. If the base station falls into water, do not retrieve it until you unplug the power cord and telephone line cords from the wall. Then pull the unit out by the unplugged cords. Replacement with an incorrect battery can cause an explosion.

Image 1 from page 7

Image 2 from page 7

Page 8

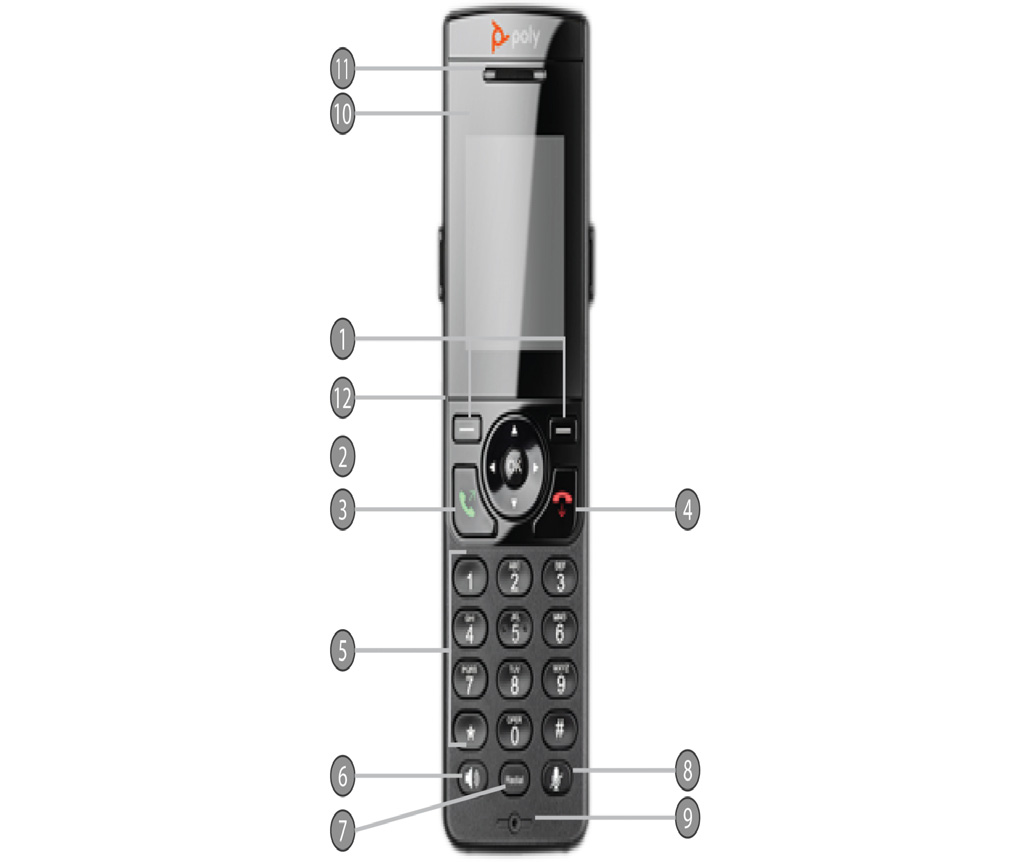

Introducing the VVX D230 DECT IP Phone The VVX D230 DECT IP Phone is a standalone IP based wireless phone that enables you to manage calls to your line at any time while you’re away from your desk. The system consists of a base station with support for up to 10 handsets. This section includes overview information on using the VVX D230 DECT IP Phone. Overview of the VVX D230 DECT IP Phone This following figure displays the hardware features on the VVX D230 DECT IP Phone. The table lists each numbered feature shown in the following figure. VVX D230 DECT IP Phone Hardware Features VVX D230 DECT IP Phone Hardware Feature Descriptions Reference Number Feature Feature Description 1 Soft keys Select a menu item displayed above the key. 2 Navigation keys / OK button Increase or decrease the ringer volume, scroll through menus, or move the cursor within fields. Press OK to enter the main menu, select a highlighted item, or save an entry or setting while in a menu. 3 Call button Place a call, answer a call, or view recent calls.

Image 1 from page 8

Page 9

VVX D230 Wireless Handset User Guide Introducing the VVX D230 DECT IP Phone 9

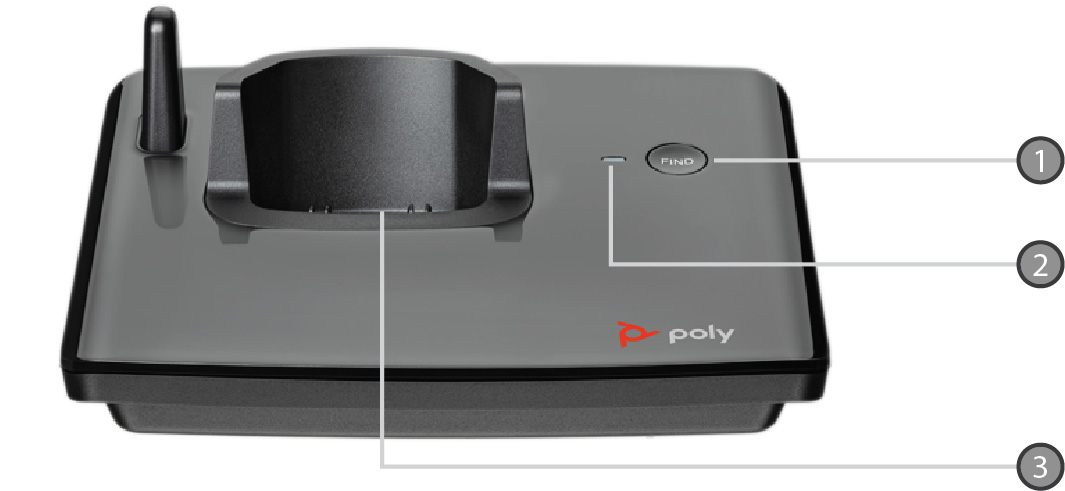

Overview of the VVX D230 Base Station This following figure displays the hardware features on the VVX D230 DECT Base Station. The table lists each numbered feature shown in the following figure. VVX D230 DECT Base Station Hardware Features 4 End button Hang up during a call or cancel the handset software update. Press and hold to power on or off the wireless handset. 5 Keypad Enter numbers or characters. Press and hold * to turn on or turn off the ringer. Press and hold # to lock or unlock the keypad. Press and hold 0 to insert a plus sign (+) for international calls. 6 Speakerphone Place or answer a call using the wireless handset speakerphone. Switch between the wireless handset speakerphone and the wireless handset earpiece during a call. 7 Redial button Redial the last dialed number. 8 Mute button Mute or unmute the microphone during an active call. 9 Microphone Transmit your audio during a call. 10 LED Light Flashes to indicate an incoming call, missed call, or new voicemail. 11 Earpiece Enables you to hear audio from contacts during a call. 12 Headphone port Enables you to connect a headset to the phone. VVX D230 DECT IP Phone Hardware Feature Descriptions Reference Number Feature Feature Description

Image 1 from page 9

Page 10

VVX D230 Wireless Handset User Guide Introducing the VVX D230 DECT IP Phone 10

F VVX D230 DECT Base Station Status Indicator The following table shows the behavior of the status indicator on the base station. Navigate the Handset Menus The following table lists the menu structure on the VVX D230 DECT IP Phone. To navigate the menu: 1 On the wireless handset, press Menu. VVX D230 DECT Base Station Hardware Feature Descriptions Reference Number Feature Feature Description 1 Find Press to locate the registered wireless handsets. Press and hold for 5 seconds or more to register a wireless handset to the base station. 2 Status Indicator See VVX D230 DECT Base Station Status Indicator. 3 Charging Cradle Place the wireless handset in the cradle to charge. Base Station State Status Indicator Behavior Powering On On Idle Steady indicator. Waiting for network to be ready Repeatedly flashes on for 1 second and off for 1 second. Locating a handset Repeatedly flashes on for 1 second and off for 1 second. Registering a handset Repeatedly flashes on for 2 seconds and off for 1 second. Menu Structure Call Log Message Intercom Directories DND Call Forwarding Preferences Settings Missed Calls Received Calls Dialed Calls Recent Calls [List of Lines] List of Handsets Contact Directory Enterprise Directory Add New Contact Speed Dial List Select All [List of Lines] List of Lines Ring Type Keypad Tones Language List Time & Date Outgoing Line Handset Name Registration Handset Info Basestation Info Factory Reset

Page 11

VVX D230 Wireless Handset User Guide Introducing the VVX D230 DECT IP Phone 11

2 Use the navigation keys to go the menu options. 3 Press OK or Select to enter a menu. Return to the Home Screen You can return to the Home screen from any other screen on the wireless handset. Note that if you press End during a call, it will drop the ongoing call and then return to the home screen. To return to the Home screen: » Press End . Tips for Setting Up the Base Station For maximum coverage and to reduce interference, follow these recommendations when you set up the VVX D230 Base Station: ● Place the base station within 1.8 m (6 ft) of the main power socket (when not using PoE) and Ethernet port so that the cables can reach. ● Make sure that the base station is at least 0.9 m (3 ft) from other electrical appliances to avoid interference. Your wireless handset works by sending radio signals between the wireless handset and the base station. The strength of the signal depends on where you place the base station. Placing it as high as possible ensures the best signal. ● If the reception for the base station location isn’t satisfactory, move it to another location for better reception. Depending on the surrounding conditions, as well as spatial and structural factors, the range may reduce. The range indoors is normally less than outdoors.

Image 1 from page 11

Page 12

Getting Started with the VVX D230 DECT IP Phone Before you can begin using your VVX D230 Wireless Handset, you must first register it to the base station. Register the Wireless Handset You can register up to 10 wireless handsets to the base station. To register a handset to a base: 1 Press and hold the FIND button on the base station for 5 or more seconds. 2 On the wireless handset, go to Menu > Settings > Registration. 3 Select Register. When the handset finds the base station, it asks you to register to it. 4 Select Yes. When the registration is successful, a message indicates successful registration. Unregister the Wireless Handset If you need to replace a wireless handset, unregister the wireless handset before you register the new wireless handset to the base station. To unregister a wireless handset: 1 On the wireless handset, go to Menu > Settings > Registration. 2 Select Deregister. The wireless handset displays a message confirming the unregistration. 3 Select Yes.

Page 13

Using Your VVX D230 DECT IP Phone You can perform similar call functions on the VVX D230 DECT IP Phone as you do with a wired desktop IP phone. This section includes the following call functions you can perform on the wireless handset. Placing Calls You can place a call using the default line or an alternate line. Place a Call Using the Default Line By default, when you place a call on the wireless handset, the call is placed on the default line. To place a call using the default line: » Enter your contact’s number and press the Call button . Place a Call Using an Alternate Line You can choose to use an alternate line before placing a call. To place a call using another line: 1 Press Lines, and select a line. 2 Enter your contact’s number or select a contact from a directory or the recent calls list. 3 Press OK, then press the Call button to dial. Place a New Call During an Active Call You can place new calls to contacts during active calls. To place a new call during a call: 1 While in an active call, press New Call. 2 Enter a contact’s number or choose a contact from the directory. 3 Press Call. If the called handset has multiple lines, choose a line, then press Call.

Page 14

VVX D230 Wireless Handset User Guide Using Your VVX D230 DECT IP Phone 14

Forwarding Calls You can choose to enable call forwarding for any private lines registered on the wireless handset, and you can choose to forward an incoming call to the handset. You can’t enable call forwarding or forward incoming calls on shared lines or lines registered on multiple phones. Enable Call Forwarding on a Particular Line You can enable call forwarding on any line on the wireless handset. To enable call forwarding: 1 Press Lines. 2 Go to a registered line on the wireless handset, then press Options. 3 Select Enable Forward. 4 Choose Always, No Answer, or Busy, then press OK. 5 Enter your forwarding contact’s number, then press OK. Forward an Incoming Call You can forward incoming calls to a contact. To forward an incoming call to a designated number: 1 During an incoming call, press Forward. 2 Use the dialing keys to enter a contact’s number to forward the call, then press OK. The call is forwarded when the far end answers the call. Answering and Rejecting Calls You can choose to answer or reject incoming calls on the wireless handset. Answer an Incoming Call You can answer an incoming call on the wireless handset. To answer an incoming call: » Press the Call button or the Speakerphone button . Answer an Incoming Call During a Call A tone plays when you receive an incoming call during an active call on the wireless handset.

Page 15

VVX D230 Wireless Handset User Guide Using Your VVX D230 DECT IP Phone 15

To answer an incoming call during a call: » Press the Call button or the Speakerphone button to answer the incoming call. If you answered the incoming call, the first call goes on hold automatically. Reject an Incoming Call You can reject rather than answer incoming calls on the wireless handset. To reject an incoming call: » Press the End button . The call is rejected and the screen returns to the Home screen. Hold a Call You can place active calls on hold. To hold a call: 1 During a call, press Options. 2 Select Hold. Resume a Call You can resume any held call on the wireless handset. To resume a call: » Press Options, then select Resume. Placing Intercom Calls to Another Wireless Handset You can create an intercom call with another wireless handset to quickly send an announcement. Place an Intercom Call When Not in a Call You can create an intercom call with another wireless handset when you’re not in a call. To place an intercom call to another wireless handset when not in a call: 1 Press Menu > Intercom, then highlight the wireless handset you want to connect with. 2 Press the Speakerphone button , the Call button, or the OK button. 3 Press the End button when you’re done with your message.

Image 1 from page 15

Page 16

VVX D230 Wireless Handset User Guide Using Your VVX D230 DECT IP Phone 16

Place an Intercom Call During a Call You can create an intercom call with another wireless handset during an active call. To place an intercom call to another wireless handset during a call: 1 During a call, press Options > Hold. 2 Press New Call, select Intercom, then select the wireless handset you want to connect with. 3 Press the End button when you’re done with your message, and resume the held call. Transferring Calls You can transfer a call to another wireless handset, to a directory contact, or to a designated number. Transfer a Call to Another Wireless Handset You can transfer a call on your wireless handset to another contact to enable someone else to take the call or to resume the call on another handset. To transfer a call to another registered wireless handset: 1 During a call, press Options, then select Transfer. 2 Enter a number or select a contact from a directory or the recent calls list. 3 Press the Call soft key, the Call button, or the OK button. 4 Talk with your contact, then press Transfer again to complete the transfer. Blind Transfer a Call You can transfer a call to another contact without speaking to the contact first. To blind transfer a call: 1 During a call, press Options, then select Blind Transfer. 2 Enter a number or select a contact from a directory or the recent calls list. 3 Press Transfer. The call is transferred when the contact answers the call. Conference Calls You can make a conference call with two contacts at the same time. Start a Conference Call You can start a conference call with two other contacts.

Image 1 from page 16

Page 17

VVX D230 Wireless Handset User Guide Using Your VVX D230 DECT IP Phone 17

To start a conference call: 1 During a call, press the New Call soft key. 2 Enter your contact’s number or choose a directory contact, then press Dial. 3 After you answer the new call, press Options > Conference. Split a Conference Call When you split a conference into two calls, both calls go on hold, then you can choose which call to make the active call. To split a conference call: 1 During a conference call, press Split. 2 Select which call you want to resume. Join Calls into a Conference Call When you have an active call and a held call on the wireless handset, you can join the two calls to make a conference call. To join two calls into a conference call: 1 With one active call and one held call, press Options. 2 Go to Conference, then press Select. This establishes a conference call. Switch Between Calls You can switch between calls when you have at least one active call and one held call on the wireless handset. To switch between calls: » With one active call and a held call, press Swap. Park Calls You can park the current call and retrieve it on another wireless handset by entering the dedicated retrieval code. This feature is only available for lines registered with the service that supports call park. To park a call: 1 During the call, press Options > Call Park. 2 Enter the extension where you want to park the call. For example, enter 6889.

Page 18

VVX D230 Wireless Handset User Guide Using Your VVX D230 DECT IP Phone 18

Retrieve Parked Calls You can retrieve a parked call from any phone or wireless handset on the network. To retrieve a parked call: 1 Enter the retrieval code, then the extension where you parked the call, followed by a pound sign (#). For example, enter *88 then enter 6889#. 2 Press the Call button . Shared Line Calls If there’s a shared line for more than one wireless handset, any of the handsets can receive an incoming call on the line, barge in on other calls, and pick up a held call. This feature is only available for lines registered with services that support shared lines. Barge In You can barge in on an active call on another wireless handset on the shared line. To barge in on a call: 1 When there’s an active call, press Lines and select the shared line. 2 Select Options > Barge In. Pick Up Held Calls When you place a call on hold on the shared line, you can pick up and resume the call from your wireless handset. To pick up a held call: 1 On the wireless handset, press Lines and select the shared line. 2 Select Options > Resume. End a Call You can end an active call at any time. To end a call: » Do one of the following: Press the End button . Place the wireless handset in the base station or charging cradle.

Image 1 from page 18

Page 19

VVX D230 Wireless Handset User Guide Using Your VVX D230 DECT IP Phone 19

Redial a Number You can redial the last dialed number on your phone. To redial a number: » Press Redial. Audio Adjustments You can control many audio functions on the handset, including using the speakerphone or earpiece, controlling the volume, or muting the microphone. Switch Between the Earpiece and the Speakerphone You can switch between listening to audio on the speakerphone and the earpiece. To switch between the earpiece and speakerphone: » During a call, press the Speakerphone button . Adjust the Volume You can increase or decrease the volume of the ring tone or call audio on your wireless handset. To adjust the volume: » Press the Upward Arrow Key or the Downward Arrow Key to adjust the listening volume. Mute or Unmute the Microphone During a call, you can mute the microphone to stop sending audio to the far end, and you can unmute the microphone when you’re ready to resume sending audio. To mute or unmute your audio: » During a call, press the Mute button to mute or unmute the microphone. Access Voicemail Messages You can access and listen to new voicemail messages from the wireless handset. To access and listen to voicemail messages: 1 Press Menu, then select Messages. 2 Select the Message Center.

Image 1 from page 19

Image 2 from page 19

Page 20

VVX D230 Wireless Handset User Guide Using Your VVX D230 DECT IP Phone 20

3 Choose a line, then press Select. The wireless handset accesses the message center and you can listen to new voicemail messages. Enable Do Not Disturb If you don’t want any disturbance, enable Do Not Disturb (DND) to prevent the handset from ringing for incoming calls. To enable DND: 1 Press Menu, then go to DND. 2 Do one of the following: To enable DND on all lines, choose Select all. Select the lines you want to enable DND for. 3 Press OK. Disable Do Not Disturb You can disable DND at any time from the wireless handset. To disable DND: 1 Press Menu, then select DND. 2 Deselect the lines you want to disable DND for, then press OK.

Page 21

Directories and Speed Dial The VVX D230 DECT IP Phone can access the handset’s contact directory and enterprise directory, if available on the phone. You can perform the following tasks in each directory: ● In the contact directory, you can call, view, edit, delete, or save any contact. ● In the enterprise directory, you can view and search for enterprise contacts. You can also call any contacts in the list and add the contact to the contact directory. You can’t edit or delete any of the contacts in the enterprise directory. Contact Directory You can call, view, delete, save, or edit contact information for any contact in the contact directory. Add a Contact to the Contact Directory You can add a new contact to the contact directory on the wireless handset. To add a contact to the contact directory: 1 Do one of the following: Press the Left Navigation Key <, then select Add New Contact. Go to Menu > Directories > Add New Contact. 2 Enter the first name, then press the Downward Arrow Key . 3 Enter the last name, then press the Downward Arrow Key . 4 Enter the office number, then press the Downward Arrow Key . 5 If applicable, enter any additional numbers, then press the Downward Arrow Key . 6 Use the Left Navigation Key or the Right Navigation Key to select a ringtone. 7 Press Save to save the entry. View Contact Information Contact directory entries display alphabetically, and you can select a contact to view the contact’s information. To view contact information: 1 Do one of the following:

Image 1 from page 21

Page 22

VVX D230 Wireless Handset User Guide Directories and Speed Dial 22

Press the Left Navigation Key <, then select Contact Directory. Go to Menu > Directories > Contact Directory. 2 Enter your contact’s first name or the last name to search for your contact or press the Downward Arrow Key to go to the directory to your contact. 3 Press Options > View Details. Sort the Contact Directory You can sort the directory to quickly search for a contact. To sort the contact directory: 1 Do one of the following: Press the Left Navigation Key <, then select Contact Directory. Go to Menu > Directories > Contact Directory. 2 Press Options > Sort by. 3 Choose First Name or Last Name. Call a Contact from the Contact Directory You can call any contact stored in the contact directory from the wireless handset. To call a contact directory entry: 1 Do one of the following: Press the Left Navigation Key <, then select Contact Directory. Go to Menu > Directories > Contact Directory. 2 Enter your contact’s first name or the last name to search for your contact or press the Downward Arrow Key to go to the directory to your contact. 3 Press Options > Call. Edit Contacts in the Contact Directory You can edit any contact in the contact directory from the wireless handset. To edit a contact directory entry: 1 Do one of the following: Press the Left Navigation Key <, then select Contact Directory. Go to Menu > Directories > Contact Directory. 2 Enter your contact’s first name or the last name to search for your contact or press the Downward Arrow Key to go to the directory to your contact. 3 Press Options > Edit. 4 Edit the contact’s information, then press Save.

Image 1 from page 22

Page 23

VVX D230 Wireless Handset User Guide Directories and Speed Dial 23

Delete a Contact from the Contact Directory You can delete any contact in the contact directory from the wireless handset. To delete a contact directory entry: 1 Do one of the following: Press the Left Navigation Key <, then select Contact Directory. Go to Menu > Directories > Contact Directory. 2 Enter your contact’s first name or the last name to search for your contact or press the Downward Arrow Key to go to the directory to your contact. 3 Press Options > Delete. 4 Press OK to confirm. Enterprise Directory When your VVX D230 handset is registered with your enterprise and the directory is available on the paired VVX D230 phone, you can access the enterprise directory from the wireless handset. You can view, search for, and call enterprise contacts on the wireless handset. View Contact Information for Enterprise Directory Contacts You view contact information for any contact stored in the enterprise directory. Enterprise directory entries display alphabetically. If there are no entries in the directory, the screen displays No Records. To view an enterprise directory entry: 1 Do one of the following: Press the Left Navigation Key <, then select Enterprise Directory. Go to Menu > Directories > Enterprise Directory. 2 Enter your contact’s first name or the last name to search for your contact or press the Downward Arrow Key to go to the directory to your contact. 3 Press Options > View Details. Call a Contact from the Enterprise Directory You can call any contact stored in the enterprise directory from the wireless handset. To call an Enterprise Directory entry: 1 Do one of the following: Press the Left Navigation Key <, then select Enterprise Directory. Go to Menu > Directories > Enterprise Directory. 2 Enter your contact’s first name or the last name to search for your contact or press the Downward Arrow Key to go to the directory to your contact.

Image 1 from page 23

Page 24

VVX D230 Wireless Handset User Guide Directories and Speed Dial 24

3 Press Options > Call. Search the Enterprise Directory You can search for contacts in the enterprise directory using a contact’s first or last name. To perform an advanced search for an enterprise directory entry: 1 Do one of the following: Press the Left Navigation Key <, then select Enterprise Directory. 2 Go to Menu > Directories > Enterprise Directory. 3 Press Options > Advanced Search. 4 Enter your contact’s information, then press Search. Save Enterprise Directory Contacts to the Contact Directory You can copy contacts from the enterprise directory to the contact directory and edit the contact’s information before saving to the contact directory. To save an enterprise directory entry to the contact directory: 1 Do one of the following: Press the Left Navigation Key <, then select Enterprise Directory. Go to Menu > Directories > Enterprise Directory. 2 Enter your contact’s first name or the last name to search for your contact or press the Downward Arrow Key to go to the directory to your contact. 3 Press Options > Copy to Contact Directory. 4 If necessary, edit the contact information, then press Copy. Speed Dial You can assign your directory entries to a speed dial spot to quickly call a contact from the wireless handset. You can add up to nine contacts as speed dial entries on the wireless handset. Add a Speed Dial Entry When you add a contact as a speed dial entry, you can quickly call that contact without needing to find the contact in a directory. To add a speed dial entry: 1 Do one of the following: Press the Left Navigation Key <, then select Speed Dial List. Go to Menu > Directories > Speed Dial List. 2 Select an empty speed dial slot, then choose a directory or Manual Entry.

Image 1 from page 24

Page 25

VVX D230 Wireless Handset User Guide Directories and Speed Dial 25

3 Enter the contact’s first name or the last name to search the directory or go to the directory to find the contact. If you chose Manual Entry, enter the contact’s number. 4 Press Select to save the speed dial entry. Call a Speed Dial Entry You can quickly call a contact from the speed dial list. To call a speed dial entry: 1 Do one of the following: Press the Left Navigation Key <, then select Speed Dial List. Go to Menu > Directories > Speed Dial List. 2 Go to the desired speed dial, press Options, and select Call. Replace a Speed Dial Entry If a contact’s number changes, or if you want to change the speed dial entry, you can replace the current speed dial entry with another contact. To replace a speed dial entry: 1 Do one of the following: Press the Left Navigation Key <, then select Speed Dial List. Go to Menu > Directories > Speed Dial List. 2 Go to the desired speed dial, press Options, and select Replace. 3 Choose a directory or select Manual Entry. 4 Enter the contact’s first name or the last name to search the directory or go to the directory to find the contact. If you chose Manual Entry, enter the contact’s number. 5 Press Replace to save the new speed dial entry. Delete a Speed Dial Entry You can delete a contact from the speed dial list when you no longer need them as a speed dial contact. To delete a speed dial entry: 1 Do one of the following: Press the Left Navigation Key <, then select Speed Dial List. Go to Menu > Directories > Speed Dial List. 2 Go to the desired speed dial, press Options, and select Delete. 3 Select Yes to confirm.

Page 26

Call Logs You can view the following types of call entries in the call logs: ● Missed calls: Record of calls missed by you ● Received calls: Record of calls received by you ● Dialed calls: Record of calls made or dialed by you ● Recent calls: Mixed record of the missed, received, and dialed calls Missed Calls Missed calls include all the calls missed by the wireless handset and calls missed because the line was busy. You can return a missed call, view details for missed calls, and delete missed call entries. You can also add contacts to the contact directory from the missed calls list. Call a Missed Call Entry You can return a call to a missed caller from the missed calls list. To call a missed call entry: 1 Do one of the following: Press the Right navigation key > then select Missed Calls. Go to Menu > Call logs > Missed Calls. 2 Go to the desired entry, press Options, and select Call. View Details for a Missed Call Entry You can view information for the missed call in the missed calls list. To view details of a missed call entry: 1 Do one of the following: Press the Right navigation key > then select Missed Calls. Go to Menu > Call logs > Missed Calls. 2 Go to the desired entry, press Options, and select View Details. Delete a Missed Call Entry You can delete a missed call entry from the missed calls list.

Page 27

VVX D230 Wireless Handset User Guide Call Logs 27

To delete a missed call entry: 1 Do one of the following: Press the Right navigation key > then select Missed Calls. Go to Menu > Call logs > Missed Calls. 2 Go to the desired entry, press Options, and select Delete. 3 Select Yes to confirm. Delete All Missed Call Entries You can delete all missed calls in the missed calls list at one time. To delete all missed call entries: 1 Do one of the following: Press the Right navigation key > then select Missed Calls. Go to Menu > Call logs > Missed Calls. 2 Press Options, and select Delete All. 3 Select Yes to confirm. Add a Missed Call Entry to the Contact Directory You can add a call entry from the missed calls list to the contact directory. To add a missed call entry to the contact directory: 1 Do one of the following: Press the Right navigation key > then select Missed Calls. Go to Menu > Call logs > Missed Calls. 2 Go to the desired entry, press Options, and select Add/Edit Contact. 3 Enter or edit the contact’s information, then press Save. Received Calls You can return a received call, view details for received calls, and delete received call entries. You can also add contacts to the contact directory from the Received Calls list. Call a Received Call Entry You can call a recent contact from the received calls list. To call a received call entry: 1 Do one of the following: Press the Right navigation key > then select Received Calls.

Page 28

VVX D230 Wireless Handset User Guide Call Logs 28

Go to Menu > Call logs > Received Calls. 2 Go to the desired entry, press Options, and select Call. View Details for a Received Call Entry You can view information for the received call in the received calls list. To view details of a received call entry: 1 Do one of the following: Press the Right navigation key > then select Received Calls. Go to Menu > Call logs > Received Calls. 2 Go to the desired entry, press Options, and select View Details. Delete a Received Call Entry You can delete a received call entry from the received calls list. To delete a received call entry: 1 Do one of the following: Press the Right navigation key > then select Received Calls. Go to Menu > Call logs > Received Calls. 2 Go to the desired entry, press Options, and select Delete. 3 Press Yes to confirm. Delete All Received Call Entries You can delete all received calls in the received calls list at one time. To delete all received call entries: 1 Do one of the following: Press the Right navigation key > then select Received Calls. Go to Menu > Call logs > Received Calls. 2 Press Options, and select Delete All. 3 Select Yes to confirm. Add a Received Call Entry to the Contact Directory You can add a call entry from the received calls list to the contact directory. To add a received call entry to the contact directory: 1 Do one of the following: Press the Right navigation key > then select Received Calls.

Page 29

VVX D230 Wireless Handset User Guide Call Logs 29

Go to Menu > Call logs > Received Calls. 2 Go to the desired entry, press Options, and select Add/Edit Contact. 3 Enter or edit the contact’s information, then press Save. Dialed Calls Dialed calls records the calls made by you. You can call previously dialed calls, view details for dialed calls, and delete dialed call entries. You can also add contacts to the contact directory from the dialed calls list. Call a Dialed Call Entry You can call a contact from the dialed calls list. To call a dialed call entry: 1 Do one of the following: Press the Right navigation key > then select Dialed Calls. Go to Menu > Call logs > Dialed Calls. 2 Go to the desired entry, press Options, and select Call. View Details for a Dialed Call Entry You can view information for the dialed call in the dialed calls list. To view details of a dialed call entry: 1 Do one of the following: Press the Right navigation key > then select Dialed Calls. Go to Menu > Call logs > Dialed Calls. 2 Go to the desired entry, press Options, and select View Details. Delete a Dialed Call Entry You can delete a dialed call entry from the dialed calls list. To delete a dialed call entry: 1 Do one of the following: Press the Right navigation key > then select Dialed Calls. Go to Menu > Call logs > Dialed Calls. 2 Go to the desired entry, press Options, and select Delete. 3 Press Yes to confirm.

Page 30

VVX D230 Wireless Handset User Guide Call Logs 30

Delete All Dialed Call Entries You can delete all dialed calls in the dialed calls list at one time. To delete all dialed call entries: 1 Do one of the following: Press the Right navigation key > then select Dialed Calls. Go to Menu > Call logs > Dialed Calls. 2 Press Options, and select Delete All. 3 Select Yes to confirm. Add a Dialed Entry to the Contact Directory You can add a call entry from the dialed calls list to the contact directory. To add a dialed call entry to the contact directory: 1 Do one of the following: Press the Right navigation key > then select Dialed Calls. Go to Menu > Call logs > Dialed Calls. 2 Go to the desired entry, press Options, and select Add/Edit Contact. 3 Enter or edit the contact’s information, then press Save. Recent Calls Recent calls record all the recent call activities, including Missed, Received, Dialed, and Remotely Answered calls. You can return a recent call, view details for recent calls, and delete recent call entries. You can also add contacts to the contact directory from the recent calls list. Call a Recent Calls Entry You can call a contact from the recent calls list. To call a recent call entry: 1 Do one of the following: Press the Right navigation key > then select Recent Calls. Go to Menu > Call logs > Recent Calls. 2 Go to the desired entry, press Options, and select Call. View Details for a Recent Calls Entry You can view information for a recent call entry in the recent calls list.

Page 31

VVX D230 Wireless Handset User Guide Call Logs 31

To view details of a recent call entry: 1 Do one of the following: Press the Right navigation key > then select Recent Calls. Go to Menu > Call logs > Recent Calls. 2 Go to the desired entry, press Options, and select View Details. Delete a Recent Call Entry You can delete a recent call entry from the recent calls list. To delete a recent call entry: 1 Do one of the following: Press the Right navigation key > then select Recent Calls. Go to Menu > Call logs > Recent Calls. 2 Go to the desired entry, press Options, and select Delete. 3 Press Yes to confirm. Delete All Recent Call Entries You can delete all recent calls in the recent calls list at one time. To delete all recent call entries: 1 Do one of the following: Press the Right navigation key > then select Recent Calls. Go to Menu > Call logs > Recent Calls. 2 Press Options, and select Delete All. 3 Select Yes to confirm. Add a Recent Call Entry to the Contact Directory You can add a call entry from the recent calls list to the contact directory. To add a recent call entry to the contact directory: 1 Do one of the following: Press the Right navigation key > then select Recent Calls. Go to Menu > Call logs > Recent Calls. 2 Go to the desired entry, press Options, and select Add/Edit Contact. 3 Enter or edit the contact’s information, then press Save.

Page 32

VVX D230 DECT IP Phone Settings The VVX D230 DECT IP Phone has a selection of settings that you can use to personalize the wireless handset. Set the Time and Date Format You can choose how the time and date display on the wireless handset. To set the time or date format: 1 Go to Menu > Preferences > Time & Date. 2 Select Clock Date, and choose a format. 3 Select Clock Time, and choose a format. Ring Type Settings You can set the ring type for external and internal calls. Set the Ring Type for External Calls External calls are any incoming calls from outside your network. You can set a ring type to distinguish these calls from internal calls. To set the ring type for external calls: 1 Go to Menu > Preferences > Ring Type. 2 Select External Calls, and choose a ring type. A sample of the ring type plays as you scroll through the list. Set the Ring Type for Internal Calls Internal calls are incoming calls from within in your network. You can set a ring type to distinguish these calls from external calls. To set the ring type for internal calls: 1 Go to Menu > Preferences > Ring Type.

Page 33

VVX D230 Wireless Handset User Guide VVX D230 DECT IP Phone Settings 33

2 Select Internal Calls, and choose a ring type. A sample of the ring type plays as you scroll through the list. Enable or Disable Keypad Tones By default, tones play when you press keys on the wireless handset. You can choose to disable this feature and stop tones from playing when pressing the keypad keys. To enable or disable keypad tones: 1 Go to Menu > Preferences > Keypad Tones. 2 Choose Turn on or Turn off, depending on the current setting. Set a Language You can choose the language that displays on the wireless handset. To set the language: 1 Go to Menu > Preferences > Language list. 2 Choose your desired language. Name the Wireless Handset You can create a customized name with up to 15 characters for each wireless handset. To set a name for the wireless handset: 1 Go to Menu > Settings > Handset Name. 2 Edit the wireless handset name, then press Save. Enable Call Forwarding You can forward all incoming calls to another wireless handset or contact. To enable call forwarding: 1 Go to Menu > Call Forwarding. 2 Choose a line, then choose Always, No Answer, or Busy. 3 Enter the number you want to forward calls to, then press OK to confirm. Outgoing Line Setup You can set the default line used to automatically handle outgoing calls on the wireless handset.

Page 34

VVX D230 Wireless Handset User Guide VVX D230 DECT IP Phone Settings 34

To set up Outgoing Lines: 1 Go to Menu > Settings > Outgoing Line. 2 Select the outgoing line. 3 Click OK View Wireless Handset Information You can view the wireless handset information, including product name and software version. To view wireless handset information: 1 Go to Menu > Settings > Handset Info. 2 Press Back to return to the Settings menu. View Wireless Base Station Information You can view the wireless base station information, including the base station IP and package version. To view wireless base station information: 1 Go to Menu > Settings > Basestation Info. The handset displays the base station IP address and the Package Version. Reset the Wireless Handset to Factory Defaults If necessary, you can reset your wireless handset to the factory default settings. Resetting to factory defaults does the following: ● Resets all settings to defaults. ● Deletes all contacts or call records. ● Unregisters the wireless handset from the base station. Contact your system administrator before resetting the wireless handset to its factory defaults. To reset the wireless handset to factory defaults: 1 Go to Menu > Settings > Factory Reset. 2 Press OK to confirm.

Page 35

Care and Maintenance Your wireless handset contains sophisticated electronic parts, so you must treat it with care. Take Care of Your VVX D230 DECT IP Phone ● Place the wireless handset down gently. ● Save the original packing materials to protect your telephone if you need to ship it. Cleaning Your Wireless Handset ● Your wireless handset has a durable plastic casing. Clean it with a soft cloth slightly dampened with water or a mild soap only. ● Don’t use excess water or cleaning solvents of any kind.

Page 36

Troubleshooting If you have issues with your VVX D230 DECT IP Phone or the base station, try the following troubleshooting procedures and solutions to resolve certain issues. VVX D230 Wireless Handset Range If your VVX D230 wireless handset isn’t reachable or misplaced, do the following: ● Check if the handset has enough signal strength. If the handset has enough signal strength, reboot the handset. ● If you misplace the handset, you can locate the handset by pressing Find on the base station. VVX D230 Wireless Handset Registration If the VVX D230 DECT IP Phone fails to register with the VVX D230 base station, do one of the following: ● Make sure that the VVX D230 DECT IP Phone and base station are in the same DECT region. » Go to DECT Wireless > System > DECT Base Information > DECT Type in the system web interface. The DECT Type must match Region as shown on the Handset Info menu under Settings. Note that you can’t register non-Poly DECT phones with the VVX D230 base station. ● Verify whether the VVX D230 base station is in subscription mode. » Go to DECT Wireless > Registration. » Check that <RegistrationWindow> is OPEN or the LED on the base station is flashing. Radio Frequency Interference To avoid noise in audio calls and interference between VVX D230 base stations, place multiple VVX D230 base stations more than 4 m (13 ft) apart.
