Page 1

CiscoUnifiedTAPIDevelopersGuideforCiscoUnifiedCommunications Manager, Release 15 and SUs First Published: 2023-12-18 Last Modified: 2026-02-05 Americas Headquarters Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 USA http://www.cisco.com Tel: 408 526-4000 800 553-NETS (6387) Fax: 408 527-0883

Image 2 from page 1

Page 2

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS. THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY. The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB's public domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California. NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS" WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE. IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental. All printed copies and duplicate soft copies of this document are considered uncontrolled. See the current online version for the latest version. Cisco has more than 200 offices worldwide. Addresses and phone numbers are listed on the Cisco website at www.cisco.com/go/offices. Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: https://www.cisco.com/c/en/us/about/legal/trademarks.html. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1721R) © 2023 –2026 Cisco Systems, Inc. All rights reserved.

Page 3

C O N T E N T S New and Changed Information 1 C H A P T E R 1 Cisco Unified Communications Manager Release 15SU4 1 Features Supported in Previous Releases 1 Cisco Unified Communications Manager, Release 15SU2 1 Cisco Unified Communications Manager, Release 15 2 Cisco Unified Communications Manager Release 14SU5 2 Cisco Unified Communications Manager, Release 14 2 Cisco Unified Communications Manager, Release 12.5(1) 2 Cisco Unified Communications Manager, Release 12.0(1) 2 Cisco Unified Communications Manager, Release 11.5(1) 2 Cisco Unified Communications Manager, Release 11.0(1) 3 Cisco Unified Communications Manager, Release 10.5(2) 3 Cisco Unified Communications Manager, Release 10.0(1) 3 Cisco Unified Communications Manager Release 9.1(1) 3 Cisco Unified Communications Manager Release 9.0(1) 4 Cisco Unified Communications Manager Release 8.6(1) 4 Cisco Unified Communications Manager Release 8.5(1) 4 Cisco Unified Communications Manager Release 8.0(1) 5 Cisco Unified Communications Manager Release 7.1(3) 5 Cisco Unified Communications Manager Release 7.1(2) 5 Cisco Unified Communications Manager Release 7.0(1) 6 Cisco Unified Communications Manager Release 6.1(x) 6 Cisco Unified Communications Manager Release 6.0(1) 6 Cisco Unified Communications Manager Release 5.1 7 Cisco Unified Communications Manager Release 5.0 7 Cisco Unified Communications Manager Release 4.x 7 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs iii

Image 1 from page 3

Page 3 content

Page 4

Cisco Unified Communications Manager Releases Prior to 4.x 8 Overview 9 C H A P T E R 2 Cisco Unified Communications Manager Interfaces 9 Provisioning Interfaces 9 Administrative XML 9 Cisco Extension Mobility 10 Device Monitoring and Call Control Interfaces 10 Cisco TAPI and Media Driver 10 Cisco JTAPI 10 Cisco Web Dialer 10 Serviceability Interfaces 11 Serviceability XML 11 SNMP/MIBs 11 Routing Rules Interface 12 Cisco Unified TSP Overview 12 Cisco Unified TSP Concepts 13 Basic TAPI Applications 13 Cisco TSP Components 14 Cisco Media Drivers 14 TAPI Debugging 14 CTI Manager (Cluster Support) 15 Cisco Unified Communications Manager Failure 15 Call Survivability 16 CTI Manager Failure 16 Cisco Unified TAPI Application Failure 16 LINE_CALLDEVSPECIFIC Event Support for RTP Events 17 QoS 17 Presentation Indication (PI) 17 Call Control 18 CTI Port 18 Dynamic Port Registration 19 CTI Route Point 19 Media Termination at Route Point 19 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs iv Contents

Page 4 content

Page 5

Monitoring Call Park Directory Numbers 20 Multiple Cisco Unified TSPs 20 CTI Device/Line Restriction 21 Development Guidelines 21 Features Supported by TSP 23 C H A P T E R 3 3XX 25 Additional Features Supported on SIP Phones 25 AES 256 Algorithm IDs 26 Agent Greeting 26 Agent Zip Tone 27 Alternate Script 28 Arabic and Hebrew Language 28 Barge and cBarge 28 Call Control Discovery 29 Calling Party IP Address 29 Calling Party Normalization 29 Call PickUp 30 Call Queuing Feature Support 31 Call Recording and Call Recording Enhancement 32 Call Recording for SIP or TLS Authenticated calls 34 CallFwdAll Notification 35 Cisco Unified TSP Auto Update 35 CIUS Session Persistency 36 Click to Conference 37 CCMEncryption Enhancements 37 Conference Enhancements 38 CTI Port Third-Party Monitoring Port 39 CTI Remote Device 40 Application Dial Rule Support 42 DTMF Support 42 Extend Mode Support for CSF Is Removed 43 Remote Destination Reachability Verification 43 Persistent Connection 43 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs v Contents

Page 5 content

Page 6

Announcement Call 45 NuRD (Number Matching for Remote Destination) Support 47 Mobility Interaction Support 47 Call Forwarding 48 CTI Video Support 49 Default CTI IP Addressing for Devices 51 Device State Server 52 Direct Transfer 53 Direct Transfer Across Lines 53 Directory Change Notification 54 Do Not Disturb 54 Do Not Disturb-Reject 55 Drop-Any-Party 56 Early Offer 56 Media Driver Support for Early Offer 57 TAPI Application Message Flow for Early Offer Call 58 End-to-End Call Trace 61 EnergyWise DeepSleep Mode Support 62 Extension Mobility 63 Extension Mobility Cross Cluster 63 Extension Mobility Memory Optimization Option 64 External Call Control 65 FIPS Compliance 66 Conference Changes 67 Forced Authorization Code and Client Matter Code 67 Forwarding 67 Gateway Recording 67 Hold Reversion 69 Hunt List 69 Hunt Pilot Connected Number 70 Hunt Group Login Status 70 Intercom 71 IPv6 73 Transfer Changes 74 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs vi Contents

Page 6 content

Page 7

Join 74 Join Across Lines (SCCP) 74 Join Across Lines (SIP) 75 Line-Side Phones That Run SIP 75 Localization Infrastructure Changes 76 Logical Partitioning 77 Message Waiting Indicator Enhancement 77 Monitoring Call Park Directory Numbers 78 Multiple Calls Per Line Appearance 78 New Cisco Media Driver 79 Other-Device State Notification 79 Park Monitoring 80 Partition 82 Password Expiry Notification 82 Password Expired 82 Account Lock 83 Privacy Release 84 Redirect to Device 84 Redirect and Blind Transfer 84 lineRedirect 85 lineDevSpecific -redirect reset Original Called ID 85 lineDevSpecific -redirect set Original Called ID 85 lineDevSpecific -redirect FAC CMC 85 lineBlindTransfer 85 lineDevSpecific -blind transfer FAC CMC 86 Refer and Replaces for Phones That Are Running SIP 86 Ringback on SIP 183 for Transfers 86 Secure Conference 87 Secure RTP 88 Presentation Indication 90 Secure TLS 90 Support for RSHA12 Algorithm 92 Secured Monitoring and Recording 92 Select Calls 93 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs vii Contents

Page 7 content

Page 8

Conference Changes 93 Transfer Changes 93 Set the Original Called Party Upon Redirect 93 Shared Line Appearance 94 Silent Install 94 Silent Monitoring 94 SIP URL Address 95 Presentation Indication 96 Change Notification of SuperProvider and CallPark DN Monitoring Flags 96 Super Provider 96 SuperProvider 97 Support for Cisco Unified IP Phone 6900 and 9900 Series 97 Support for 100 + Directory Numbers 100 Swap and Cancel Softkeys 100 Translation Pattern 102 Presentation Indication 102 Change Notification of SuperProvider and CallPark DN Monitoring Flags 102 Unicode 102 Unrestricted Unified CM 102 URI Dialing 103 Video On Hold Support 104 Whisper Coaching 104 XSI Object Pass Through 107 Cisco Unified TAPI Installation 109 C H A P T E R 4 Required Software 109 Supported Windows Platforms 109 Installing the Cisco Unified CM TSP Client 110 Cisco TSP Client Interaction with Windows Services 110 Installation Setup Screen 111 Configure TSP Instance for Unified CM Releases Until 15SU1 111 Configure TSP Instance From Unified CM Release 15SU2 Onwards 112 Fallback Settings 113 Configure Secure TSP Instance 115 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs viii Contents

Page 8 content

Page 9

Cisco Media Driver Selection 116 AutoUpgrade 117 Update Credentials 117 Cisco TSP Notifier 117 Multi-Language Settings 117 Installation Completed 118 Reinstall or Add a New Instance 119 Upgrading CiscoTSP 120 Downgrade or Uninstall of Cisco TSP 121 Silent Installation of Cisco Unified CM TSP 122 Upgrading Unified CM TSP Client to Release 8.5(1) or Later Using Silent Installation 124 Using Cisco TSP 125 Program Group and Program Elements 125 Modifying Cisco TSP Configuration 126 Cisco Unified CM TSP Configuration Settings 127 General 127 User 128 CTI Manager Tab for Unified CM Releases Until 15SU1 129 CTI Manager Tab from Unified CM Release 15SU2 Onwards 130 Security 133 Configuring Cisco Media Driver 136 Trace 136 Advanced 137 Language 139 Managing the Cisco Unified CM TSP 140 Reinstall the Cisco Unified TSP 140 Upgrade the Cisco Unified TSP 140 Remove Cisco Unified TSP From the Provider List 141 Uninstall the Cisco TSP Client 141 Auto Update for Cisco Unified TSP Upgrades 141 Verify the Cisco Unified CM TSP Installation 142 Cisco TSP Behavior on Windows Upgrade 142 Basic TAPI Implementation 143 C H A P T E R 5 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs ix Contents

Page 9 content

Page 10

Overview 143 TAPI Line Functions 143 lineAccept 146 lineAddProvider 146 lineAddToConference 147 lineAnswer 148 lineBlindTransfer 148 lineCallbackFunc 149 lineClose 150 lineCompleteTransfer 150 lineConfigProvider 151 lineDeallocateCall 152 lineDevSpecific 152 lineDevSpecificFeature 154 lineDial 155 lineDrop 156 lineForward 157 lineGenerateDigits 159 lineGenerateTone 160 lineGetAddressCaps 161 lineGetAddressID 162 lineGetAddressStatus 163 lineGetCallInfo 163 lineGetCallStatus 164 lineGetConfRelatedCalls 164 lineGetDevCaps 165 lineGetID 166 lineGetLineDevStatus 167 lineGetMessage 167 lineGetNewCalls 168 lineGetNumRings 169 lineGetProviderList 170 lineGetRequest 171 lineGetStatusMessages 172 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs x Contents

Page 10 content

Page 11

lineGetTranslateCaps 172 lineHandoff 173 lineHold 174 lineInitialize 175 lineInitializeEx 176 lineMakeCall 177 lineMonitorDigits 178 lineMonitorTones 178 lineNegotiateAPIVersion 179 lineNegotiateExtVersion 180 lineOpen 181 linePark 182 linePrepareAddToConference 183 lineRedirect 185 lineRegisterRequestRecipient 185 lineRemoveFromConference 186 lineRemoveProvider 187 lineSetAppPriority 188 lineSetCallPrivilege 189 lineSetNumRings 190 lineSetStatusMessages 191 lineSetTollList 192 lineSetupConference 193 lineSetupTransfer 194 lineShutdown 194 lineTranslateAddress 195 lineTranslateDialog 196 lineUnhold 198 lineUnpark 198 TAPI Line Messages 199 LINE_ADDRESSSTATE 200 LINE_APPNEWCALL 201 LINE_CALLDEVSPECIFIC 202 LINE_CALLINFO 202 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs xi Contents

Page 11 content

Page 12

LINE_CALLSTATE 203 LINE_CLOSE 207 LINE_CREATE 207 LINE_DEVSPECIFIC 208 LINE_DEVSPECIFICFEATURE 209 LINE_GATHERDIGITS 210 LINE_GENERATE 211 LINE_LINEDEVSTATE 212 LINE_MONITORDIGITS 213 LINE_MONITORTONE 213 LINE_REMOVE 214 LINE_REPLY 215 LINE_REQUEST 216 TAPI Line Device Structures 216 LINEADDRESSCAPS 217 LINEADDRESSSTATUS 228 LINEAPPINFO 229 LINECALLINFO 231 LINECALLLIST 239 LINECALLPARAMS 240 LINECALLSTATUS 242 LINECARDENTRY 248 LINECOUNTRYENTRY 250 LINECOUNTRYLIST 251 LINEDEVCAPS 252 LINEDEVSTATUS 257 LINEEXTENSIONID 259 LINEFORWARD 259 LINEFORWARDLIST 263 LINEGENERATETONE 263 LINEINITIALIZEEXPARAMS 264 LINELOCATIONENTRY 265 LINEMESSAGE 267 LINEMONITORTONE 268 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs xii Contents

Page 12 content

Page 13

LINEPROVIDERENTRY 269 LINEPROVIDERLIST 269 LINEREQMAKECALL 270 LINETRANSLATECAPS 271 LINETRANSLATEOUTPUT 272 TAPI Phone Functions 274 phoneCallbackFunc 275 phoneClose 276 phoneDevSpecific 276 phoneGetDevCaps 276 phoneGetDisplay 277 phoneGetLamp 278 phoneGetMessage 278 phoneGetRing 279 phoneGetStatus 280 phoneGetStatusMessages 281 phoneInitialize 282 phoneInitializeEx 283 phoneNegotiateAPIVersion 285 phoneOpen 286 phoneSetDisplay 287 phoneSetStatusMessages 288 phoneShutdown 290 TAPI Phone Messages 290 PHONE_BUTTON 291 PHONE_CLOSE 294 PHONE_CREATE 294 PHONE_REMOVE 295 PHONE_REPLY 296 PHONE_STATE 296 TAPI Phone Structures 298 PHONECAPS Structure 298 PHONEINITIALIZEEXPARAMS 300 PHONEMESSAGE 301 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs xiii Contents

Page 13 content

Page 14

PHONESTATUS 302 VARSTRING 304 Wave Functions 305 waveInAddBuffer 306 waveInClose 306 waveInGetID 307 waveInGetPosition 307 waveInOpen 308 waveInPrepareHeader 309 waveInReset 310 waveInStart 310 waveInUnprepareHeader 310 waveOutClose 311 waveOutGetDevCaps 311 waveOutGetID 312 waveOutGetPosition 312 waveOutOpen 313 waveOutPrepareHeader 314 waveOutReset 314 waveOutUnprepareHeader 315 waveOutWrite 315 Cisco Device-Specific Extensions 317 C H A P T E R 6 Cisco Line Device Specific Extensions 317 LINEDEVCAPS 321 LINECALLINFO 324 Details 332 Parameters 338 LINECALLPARAMS 343 LINEDEVSTATUS 344 Detail 344 Parameters 345 CCiscoLineDevSpecific 346 Header File 347 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs xiv Contents

Page 14 content

Page 15

Class Detail 347 Functions 347 Parameter 348 Subclasses 348 Enumeration 348 Message Waiting 349 Class Detail 349 Parameters 349 Message Waiting Dirn 349 Class Detail 350 Parameters 350 Message Summary 350 Class Detail 351 Parameters 351 Message Summary Dirn 352 Class Detail 352 Parameters 352 Audio Stream Control 353 Class Detail 354 Parameters 354 Set Status Messages 355 Description 355 Class Detail 357 Parameters 357 Swap-Hold/SetupTransfer 358 Class Details 358 Parameters 358 Redirect Reset Original Called ID 359 Description 359 Class Details 359 Parameters 359 Port Registration per Call 359 Class Details 360 Parameters 360 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs xv Contents

Page 15 content

Page 16

Setting RTP Parameters for Call 362 Class Details 362 Parameters 362 Redirect Set Original Called ID 362 Class Details 363 Parameters 363 Join 363 Class Details 364 Parameters 364 Set User SRTP Algorithm IDs 364 Class Detail 365 Supported Algorithm Constants 365 Parameters 365 Explicit Acquire 366 Class Details 366 Parameters 366 Explicit De-Acquire 366 Class Details 367 Parameters 367 Redirect FAC CMC 367 Class Detail 368 Parameters 368 Blind Transfer FAC CMC 368 Class Detail 369 Parameters 369 CTI Port Third Party Monitor 369 Class Detail 370 Parameters 370 Send Line Open 370 Class Detail 371 Set Intercom SpeedDial 371 Class Detail 371 Parameters 372 Intercom Talk Back 372 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs xvi Contents

Page 16 content

Page 17

Class Detail 372 Redirect with Feature Priority 373 Detail 373 Parameters 373 Start Call Monitoring 373 Class Detail 374 Parameters 374 Return Values 375 Start Call Recording 375 Class Detail 375 Parameters 375 Return Values 376 StopCall Recording 376 Class Detail 376 Parameters 377 Return Values 377 Set IPv6 Address and Mode 377 Class Detail 378 Parameters 378 Set RTP Parameters for IPv6 Calls 378 Class Detail 379 Parameters 379 Direct Transfer 379 Class Detail 379 Parameters 380 RegisterCallPickUpGroupForNotification 380 Class Detail 380 Parameters 380 UnRegisterCallPickUpGroupForNotification 381 Class Details 381 Parameters 381 CallPickUpRequest 381 Class Details 381 Parameters 382 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs xvii Contents

Page 17 content

Page 18

Start Send Media to BIB 382 Description 382 Class Detail 382 Parameters 383 Stop Send Media to BIB 383 Description 383 Class Detail 383 Parameters 383 Agent Zip Tone 384 Description 384 Class Detail 384 Parameters 384 Early Offer 384 Enable Feature 385 Description 385 Class Detail 385 Parameters 385 UpdateMonitorMode 387 Description 387 Class Detail 387 Parameters 387 Add Remote Destination 388 Remove Remote Destination 389 Update Remote Destination 390 lineHold Enhancement 391 Message Details 391 Parameters 391 Cisco Line Device Feature Extensions 391 CCiscoLineDevSpecificFeature 391 Header File 392 Class Detail 392 Functions 392 Parameter 392 Subclasses 392 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs xviii Contents

Page 18 content

Page 19

Do-Not-Disturb 393 Class Detail 393 Parameters 393 Do-Not-Disturb Change Notification Event 393 Message Details 394 Parameters 394 Cisco Phone Device-Specific Extensions 395 CCiscoPhoneDevSpecific 395 Header File 396 Class Detail 396 Functions 396 Parameter 396 Subclasses 396 Enumeration 396 Device Data PassThrough 397 Class Detail 397 Parameters 397 Set Status Msgs 398 Class Detail 398 Parameters 398 Set Unicode Display 399 Class Detail 399 Parameters 399 Explicit Acquire 399 Class Details 400 Parameters 400 Explicit Deacquire 400 Class Details 401 Parameters 401 Request Call RTP Snapshot 401 Class Details 401 Parameters 401 Hunt Group Login Status 402 Class Detail 402 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs xix Contents

Page 19 content

Page 20

Parameter 402 Enumeration 402 Redirect Enhancement 403 Class Details 403 Parameters 403 Constants 405 Phone State Event 405 Parameters 405 Messages 405 Announcement Events 406 Start Transmission Events 407 Start Reception Events 408 Stop Transmission Events 409 Stop Reception Events 409 Existing Call Events 410 Open Logical Channel Events 410 LINECALLINFO_DEVSPECIFICDATA Events 411 Call Tone Changed Events 412 Line Property Changed Events 413 Phone Property Changed Events 414 Monitoring Started Event 415 Monitoring Ended Event 415 Recording Started Event 415 Recording Ended Event 416 Recording Failure Event 416 Silent Monitoring Session Terminated Event 417 Media to BIB Started Event 417 Media to BIB Ended Event 417 Get IP and Port Event 418 MultiMedia Streams Data Notification Event 418 Monitor Mode Update Event 419 Cisco TSP Media Driver 421 C H A P T E R 7 Cisco Rtp Library Components 422 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs xx Contents

Page 20 content

Page 21

TAPI Application Support 423 CiscoTSP and Cisco Rtp Library Interaction 423 Codec Advertisement 423 Typical TAPI Application Message Flow 424 EpAPI Functions 426 EpApiInit 426 EpApiInitByDefault 427 EpApiClose 428 EpLocalAddressGetAll 429 EpLocalAddressPortGet 429 EpLocalAddressPortGetByFamily 430 EpLocalAddressPortGetByIdx 430 EpLocalAddrPortFree 431 EpOpenById 432 EpClose 433 EpGetStreamHandle 433 EpStreamStart 434 EpStreamStop 435 EpStreamRead 435 EpStreamWrite 436 EpStreamCodecInGet 437 EpStreamCodecInSet 438 EpStreamCodecOutGet 439 EpStreamCodecOutSet 439 EpApiTraceLevelSet 440 EpApiGetLastError 441 EpApi Error Codes 441 Callback Function 442 Data Structures 443 RTPADDR 443 RTPSIL 444 RTPCODEC 445 Trace Options 445 Trace Level 445 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs xxi Contents

Page 21 content

Page 22

Trace Callback Function 446 Known Problems or Limitations 446 Cisco Unified TAPI Examples 447 C H A P T E R 8 MakeCall 447 OpenLine 448 CloseLine 451 Message Sequence Charts 453 A P P E N D I X A Abbreviations 454 3XX 455 Agent Greeting 455 Configuration 455 Procedure 455 Agent Zip Tone 471 Configuration 471 Application Issues the Play Tone Request on a CTI Port with PlayToneDirection -Local/Remote 473 Application Issues the Play Tone Request When the Call Is Established Between Customer and Agent (Shared Line). PlayToneDirection -Local 473 Conference Scenario: PlayToneDirection -local. 475 Application Issues the Play Tone Request When the Call Is Established Between Customer and Agent Agent Puts the Call on Hold. PlayToneDirection -Remote 476 Announcement Call 476 Blind Transfer 479 Call Control Discovery 481 Basic Call Initiated From TAPI From Phone A on Cluster 1 to Phone B on Cluster2 481 Configuration 481 Basic Call Initiated From TAPI From Phone A on Cluster 1 to Phone B on Cluster2 with PSTN Failover Rule Not Set 483 Basic Call Initiated From TAPI From Phone A(1900) and B(1901) on Cluster 1 B Redirects to Phone C(1000) on Cluster2 with PSTN Failover Rule Set 485 Basic Call Initiated From TAPI From Phone A and B on Cluster 1 B Transfers to Phone C(1000) on Cluster 2 with PSTN Failover Rule 486 Call Initiated From TAPI From Phone A and B on Cluster 1 B Sets Up Conference to Phone C(1000) on Cluster 2 with PSTN Failover Rule 489 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs xxii Contents

Page 22 content

Page 23

Basic Call Initiated From TAPI From Phone A on Cluster 1 to Phone B on Cluster 2 Over SAF Trunk 490 Basic Call Initiated From TAPI From Phone A and B on Cluster 1 B Redirects to Phone C(1000) on Cluster 2 Over SAF Trunk 492 Basic Call Initiated From TAPI From Phone A and B on Cluster 1 B Transfers to Phone C(1000) on Cluster 2 Over SAF Trunk 493 CallFwdAll Notification 495 Application Pressed CFwdAll on TAPI Monitored Device 495 TAPI Monitored Device Goes Off Hook 496 Application Monitors Off Hook Device 496 Application Monitors Device After User Presses CFwdAll 496 User Presses CFwdAll Softkey After Device Is Off Hook 497 User Presses CFwdAll Softkey on a Multiline Device 497 User Presses CFwdAll on a Multiline Device by Selecting a Line 497 Shared Line Scenario on Pressing CFwdAll Softkey 498 Cancellation of CFwdAll 498 Calling Party IP Address 499 Basic Call 499 Consultation Transfer 499 Consultation Conference 499 Redirect 500 Calling Party Normalization 500 Incoming Call From PSTN to End Point 500 Incoming Call From National PSTN to CTI-Observed End Point 501 Incoming Call From International PSTN to CTI-Observed End Point 501 Outgoing Call From CTI-Observed End Point to PSTN Number 502 Outgoing Call From CTI-Observed End Point to National PSTN Number 502 Outgoing Call From CTI-Observed End Point to International PSTN Number 503 Call PickUp 503 Registering CallPickUpGroup for Notification 503 Configuration 503 UnRegistering CallPickUpGroup for Notification 504 Re-Registering CallPickUpGroup for Notification 504 Registering/UnRegistering CallPickUpGroup for Notification with Invalid Information 505 CallPickUp After Enabling Auto Call Pickup Enabled 505 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs xxiii Contents

Page 23 content

Page 24

CallPickUp with Auto Call Pickup Enabled Disabled 506 CallPickUp with Multiple Calls Available 508 CallPickupGroup Changed for a Device on AdminPage 509 CallPickUpGroup Partition or DN Information Updated 509 CallPickUpGroup Is Deleted 510 Call Queuing 510 FailOver or FailBack Scenario 535 GroupCallPickup 536 OtherCallPickup 537 DirectCallPickup 538 CallPickup (Negative Use Case) 539 GroupCallPickup with SuperSet Call PickupDN 540 Group or Direct CallPickup with Invalid DN 540 Call Recording for SIP or TLS Authenticated calls 541 CCMEncryption Enhancements 542 CIUS Session Persistency 543 Notify the Line Application and Expose the Changed IP Address 543 Notify the Phone Application and Expose the Changed IP Address 544 Click to Conference 546 Drop Party by Using Click-2-Conference 552 Drop Entire Conference by Using Click-2-Conference Feature 554 Conference Enhancements 555 Noncontroller Adding Parties to Conferences 555 Chaining Two Ad Hoc Conferences Using Join 557 CTI Remote Device 561 CTI RD Call Forwarding 639 Video Capabilities and Multimedia Information 640 Direct Transfer Across Lines 655 Do Not Disturb-Reject 664 Application Enables DND-R on a Phone 664 Normal Feature Priority 664 Feature Priority - Emergency 664 Drop Any Party 666 Early Offer 680 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs xxiv Contents

Page 24 content

Page 25

Application Dynamically Registers CTI Port with Early Offer Support 680 Configuration 680 Application Dynamically Registers CTI Port Without Early Offer Support 682 Application Dynamically Registers IPV6 CTI Port with Early Offer Support 683 Mutiple Applications Dynamically Register CTI Port/RP 685 Multiple Applications Dynamically Register CTI Port/RP with Early Offer Support 685 Application Statically Registers CTI Port with Early Offer Support and Then Disable the Early Offer Support 687 Application Statically Registers CTI Port with Out Early Offer Support and Then Enables Early Offer Support 688 Application Registers CTI Port with Legacy Wave Driver and Enables Early Offer Support 689 Application Registers CTI Port with New Cisco Wave Driver and Enables Early Offer Support 690 Mutiple Applications Statically Register CTI Port 691 End-To-End Call Trace 692 Direct Call Scenario: Variation 1 692 Direct Call Scenario: Variation 2 693 Consult Transfer Scenario: Variation 1 694 Consult Transfer Scenario: Variation 2 696 Blind Transfer Scenario 698 Redirect Scenario 699 Shared Line Scenario 701 Shared Line Scenario with Barge 702 Call Park Scenario: Variation 1 704 Call Park Scenario: Variation 2 706 3-Party Conference Call Scenario 708 Three-Party Conference Drop Down to Two-Party Call Scenario 711 Conference Chaining Scenario Using Join 713 Transfer Call Scenario via QSIP Without Path Replacement 714 Transfer Call Scenario via QSIP with Path Replacement 716 Hunt List Scenario 718 Call Pickup Scenario: Variation 1 720 Call Pickup Scenario: Variation 2 721 EnergyWise Deep Sleep Mode Use Cases 723 Verify EnergyWisePowerSavePlus Reason Code in LINEDEVSTATE Message 723 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs xxv Contents

Page 25 content

Page 26

Verify EnergyWisePowerSavePlus Reason Code in PhoneState Suspend 724 Verify Reason EnergyWisePowerSavePlus Reason Code in LineDevstate/Phone State Message 725 Verify Call Manager Failure Reason Code in LineDevstate/Phone State Message 727 Verify DeviceUnregister Reason Code in LineDevstate/Phone State Event 729 Verify CTILinkFailure Reason Code in LineDevstate/Phone State Message 731 Extension Mobility Cross Cluster 733 TAPI Application Does LineInitializeEx and EMCC User Logs Into a Device 733 TAPI Application Does LineInitializeEx and EMCCUser Logs Out of a Device 734 Application Does PhoneInitializeEx and EMCC User Logs In to a Device 734 TAPI Application Does PhoneInitializeEx and EMCC User Logs Out of a Device 734 EMCC User Logs in to a Device From Cluster 2 (Visiting Cluster) 735 EMCC User Logs Out of a Device From Cluster 2 (Visiting Cluster) 735 EMCC User Logs In to a Device with LineH Configured 735 EMCC User Logs Out of a Device with LineH Configured 736 EMCC User Logs In to a DeviceH Configured for Multiple Lines (LineH) 736 EMCC User Logs In to a Device with LineH Configured and Administrator Removes the Device From Application Control List 736 EMCC User Logs In and Out of a Device with LineH Configured and Administrator Removes the Device From Application Control List 737 EMCC User Logs in to a Device with LineH Configured and EM_Profile Not Included in Application Control List 737 EMCC User Logs In to a DeviceV and EM_Profile Is Removed by Administrator From Application Control List 738 EMCC User Logs In to a Device Then Application Does Provider Open 738 EMCC User Logs In to a DeviceV in Visiting Cluster and Administrator Adds the EM_Profile to Application Control List 739 Extension Mobility Memory Optimization Option 739 Common Configuration 739 Use Cases 740 External Call Control 744 Basic Call Initiated From TAPI with External Call Control on Translation Pattern and CEPM Returns Reject 744 Basic Call Initiated From TAPI Using External Call Control on Translation Pattern and CEPM Returns Divert with Modified Calling and Called Parties 745 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs xxvi Contents

Page 26 content

Page 27

Basic Call Initiated From TAPI Using External Call Control on Translation Pattern and CEPM Returns Continue with Modified Calling and Called Parties 747 Conference Call Initiated From TAPI Using External Call Control on Translation Pattern and CEPM Returns Continue with Modified Calling and Called Parties in the Consult Call 748 Call Is Redirected to a Hunt List of Chaperones and Chaperone Enables Call Recording and Conferences in the Called Party 752 Forced Authorization and Client Matter Code Scenarios 757 Manual Call to a Destination That Requires an FAC 757 Manual Call to a Destination That Requires Both FAC and CMC 760 lineMakeCall to a Destination That Requires an FAC 763 lineMakeCall to a Destination That Requires Both FAC and CMC 765 Timeout Waiting for FAC or Invalid FAC 767 Gateway Recording 769 Hunt List 780 Basic Hunt List Call 781 Hunt List Call Moved to Next Member 782 Hunt List Calls FWNA and FWNA Is Not Configured on HuntPilot 783 Hunt List Call FWNA with FWNA to B 784 Hunt List Call Dropped When Hunt List Is Busy and FWB Is Not Configured 786 Hunt List Call Is Forwarded When Hunt List Is Busy and FWB Is Configured to B 786 HuntList Call Redirected When in ACCEPT State 787 Hunt List Call Redirected When in Connected State 788 Hunt List Call Member Is CTI or RP Port 789 Hunt List Call Moved to Different Line Group Members and Answered by CTI Port 789 Hunt List Call Is Redirected to Another Hunt List 790 Hunt List Call Is Consult Transferred to Another Line 792 Hunt List Call Direct Transferred to Another Line 794 Hunt List Call Is Conferenced to Another Line 795 Hunt List Call Is Joined to Another Line 798 Hunt List Call Is Conferenced to Another Hunt List After LG11 Answers 800 Hunt List Call Conferenced to the Same Hunt List and Completes Conference Before Hunt List Agent Answers 803 Hunt List Basic Call with SharedLine 808 Hunt List Basic Call with DND-R Configured on LG1 810 Hunt List Call Put in Conference via Join Operation 810 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs xxvii Contents

Page 27 content

Page 28

Hunt List Call Is Picked Up From Pickup Group -G-Pickup Auto Pick Pp Is Enabled 814 Hunt List Call Is Picked Up From Pickup Group When LG1 Is in Pickup Group 1 -Auto Pickup Disabled 815 Hunt List Call Is Picked Up From Pickup Group When HP2 Is in Pickup Group 2 -Auto Pick Up Enabled 816 Conferenced Hunt List Call Becomes Two-Party Call 817 Hunt List Broadcast Scenario (Broadcast Option Is Configured on HP1) 821 Hunt List Call Is Involved in c-Barge Conference 821 Hunt List Feature Interact with Four-Party Conference 829 Hunt Pilot Connected Number Feature 835 Caller Consult Transfer Call to Another Hunt List 855 Hunt Group Login Status 857 Intercom 861 Application Invoking Speeddial 862 Agent Invokes Talkback 863 Change the SpeedDial 863 IPv6 Use Cases 863 Join Across Lines 868 Logical Partitioning 883 Manual Outbound Call 886 Monitoring and Recording 889 Monitoring a Call 889 Automatic Recording 893 Application-Controlled Recording 894 NuRD (Number Matching for Remote Destination) Support 896 Park Monitoring 896 Persistent Connection Use Cases 907 Presentation Indication 921 Making a Call Through Translation Pattern 921 Blind Transfer Through Translation Pattern 924 Redirect to Device 929 Redirect Set Original Called (TxToVM) 933 Refer and Replace Scenarios 935 In-Dialog Refer -Referrer in Cisco Unified Communications Manager Cluster 935 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs xxviii Contents

Page 28 content

Page 29

In-Dialog Refer Where ReferToTarget Redirects the Call in Offering State 937 In-Dialog Refer Where Refer Fails or Refer to Target Is Busy 938 Out-of-Dialog Refer 940 Invite with Replace for Confirmed Dialog 942 Refer with Replace for All in Cluster 943 Refer with Replace for All in Cluster Replace Dialog Belongs to Another Station 945 Secure Conferencing 946 Conference with All Parties as Secure 946 Hold or Resume in Secure Conference 948 Secure Monitoring and Recording 951 Silent Monitoring 951 Basic Silent Monitoring Scenario in Secure Mode 953 Silent Monitoring Scenario on Non-Secure Call in Secure Mode 954 Silent Monitoring Scenario on Non-Secure Call From Supervisor Which Is Secure 955 Silent Monitoring Scenario on Secure Call From Supervisor Which Is Non-Secure 955 Transfer of Monitored Call From Supervisor to Other Supervisor 956 Transfer of Call From One Customer to Other 958 Park on Supervisor 959 Silent Monitoring on Conferenced Call 959 Conference on Monitored Call 960 Conference on Monitored Call 961 Supervisor Holds the Call 961 Recording 961 Basic Recording Scenario 962 Basic Recording Scenario in Secure Mode 963 Recording Scenario on Non-Secure Call in Secure Mode 963 Recording Scenario on Non-Secure Call Using Secure Recording Profile/Device 964 Recording Scenario When Agent Holds the Call 964 Recording and Monitoring 964 Both Silent Monitoring and Recording on Agent Call in Secure Mode 965 Recording Silent Monitored Call on Supervisor 967 Shared Lines-Initiating a New Call Manually 968 SRTP 973 Media Terminate by Application (Open Secure CTI Port or RP) 973 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs xxix Contents

Page 29 content

Page 30

Media Terminate by TSP Wave Driver (Open Secure CTI Port) 973 Support for Cisco IP Phone 6900 Series 974 Support for Cisco Unified IP Phone 6900 and 9900 Series Use Cases 984 Swap or Cancel 988 Unrestricted Unified CM 1010 LineHold Enhancement 1012 Whisper Coaching 1012 Setup 1012 Application Initiates a Whisper Coaching Session 1012 Application Updates the Monitoring Mode 1013 Agent Holds the Customer Call with Whisper Coaching Then Agent S Shared Line Resumes the Call 1016 Agent Transfers a Whisper Coaching Call Monitoring Call Goes Idle at the Supervisor 1018 Application Updates the Monitoring Mode (WhisperCoaching to Silent) 1019 Supervisor Holds/Resumes the Whisper Coaching Monitoring Session 1021 Supervisor Transfers the Whisper Coaching Session to Another Supervisor 1023 Supervisor Conferences the Whisper Coaching Session to Another Supervisor 1024 Application Initiates a Whisper Coaching Session Second Application on a Different Client Opens All Lines 1027 Secure R & M with Whisper Coaching Supports 1029 Application Initiates a Secure Whisper Coaching Session 1029 Application Updates the Monitoring Mode on an Agent Call That Is on Hold 1031 Application Initiates Whisper Coaching Where the Agent Is a SIP Device with Older Firmware Version That Does Not Support Media Mixing 1032 Application Updates the Monitoring Mode Where the Agent Is a SIP Device with Older Firmware Version That Does Not Support Media Mixing 1032 Application Updates the Monitoring Mode on a Monitoring Call at the Supervisor That Is in a Conference 1033 Application Initiates Whisper Coaching on an Agent That Is Already Playing an Agent Greeting 1033 Application Initiates Agent Greeting on a Call That Already Has a Whisper Coaching Session 1033 Cisco Unified TAPI Interfaces 1035 A P P E N D I X B Cisco Unified TAPI Version 2.1 Interfaces 1035 Troubleshooting Cisco Unified TAPI 1045 A P P E N D I X C Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs xxx Contents

Page 30 content

Page 31

TSP Trace of Internal Messages 1045 TSP Operation Verification 1045 Version Compatibility 1046 Cisco TSP Readme 1046 Unsupported CTI Events for SIP Phones 1046 Cisco Unified TAPI Operations-by-Release 1047 A P P E N D I X D Cisco Unified TAPI Operations-by-Release 1047 CTI Supported Devices 1057 A P P E N D I X E CTI Supported Devices 1057 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs xxxi Contents

Page 31 content

Page 32

Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs xxxii Contents

Page 32 content

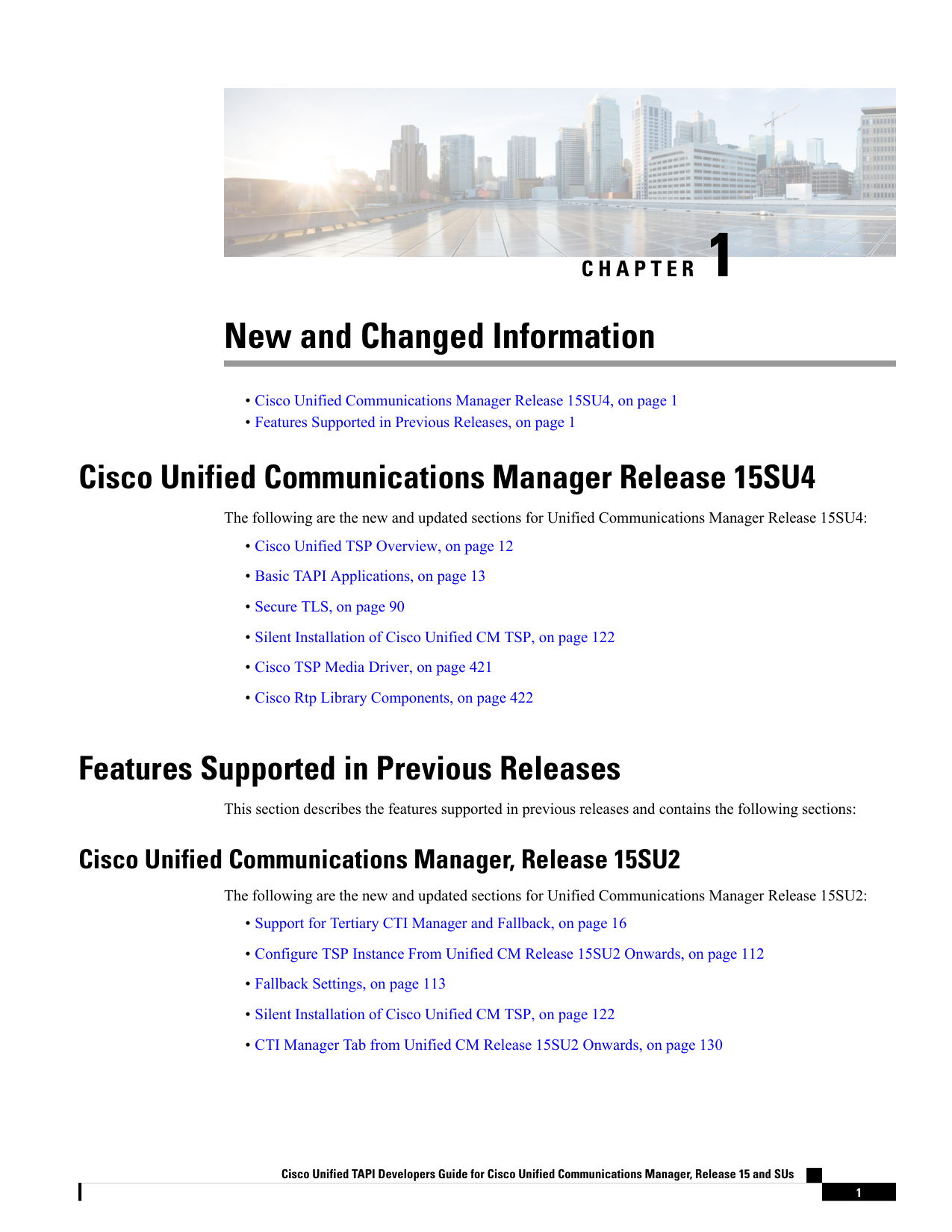

Page 33

C H A P T E R 1 New and Changed Information • Cisco Unified Communications Manager Release 15SU4, on page 1 • Features Supported in Previous Releases, on page 1 Cisco Unified Communications Manager Release 15SU4 The following are the new and updated sections for Unified Communications Manager Release 15SU4: • Cisco Unified TSP Overview, on page 12 • Basic TAPI Applications, on page 13 • Secure TLS, on page 90 • Silent Installation of Cisco Unified CM TSP, on page 122 • Cisco TSP Media Driver, on page 421 • Cisco Rtp Library Components, on page 422 Features Supported in Previous Releases This section describes the features supported in previous releases and contains the following sections: Cisco Unified Communications Manager, Release 15SU2 The following are the new and updated sections for Unified Communications Manager Release 15SU2: • Support for Tertiary CTI Manager and Fallback, on page 16 • Configure TSP Instance From Unified CM Release 15SU2 Onwards, on page 112 • Fallback Settings, on page 113 • Silent Installation of Cisco Unified CM TSP, on page 122 • CTI Manager Tab from Unified CM Release 15SU2 Onwards, on page 130 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1

Image 1 from page 33

Page 33 content

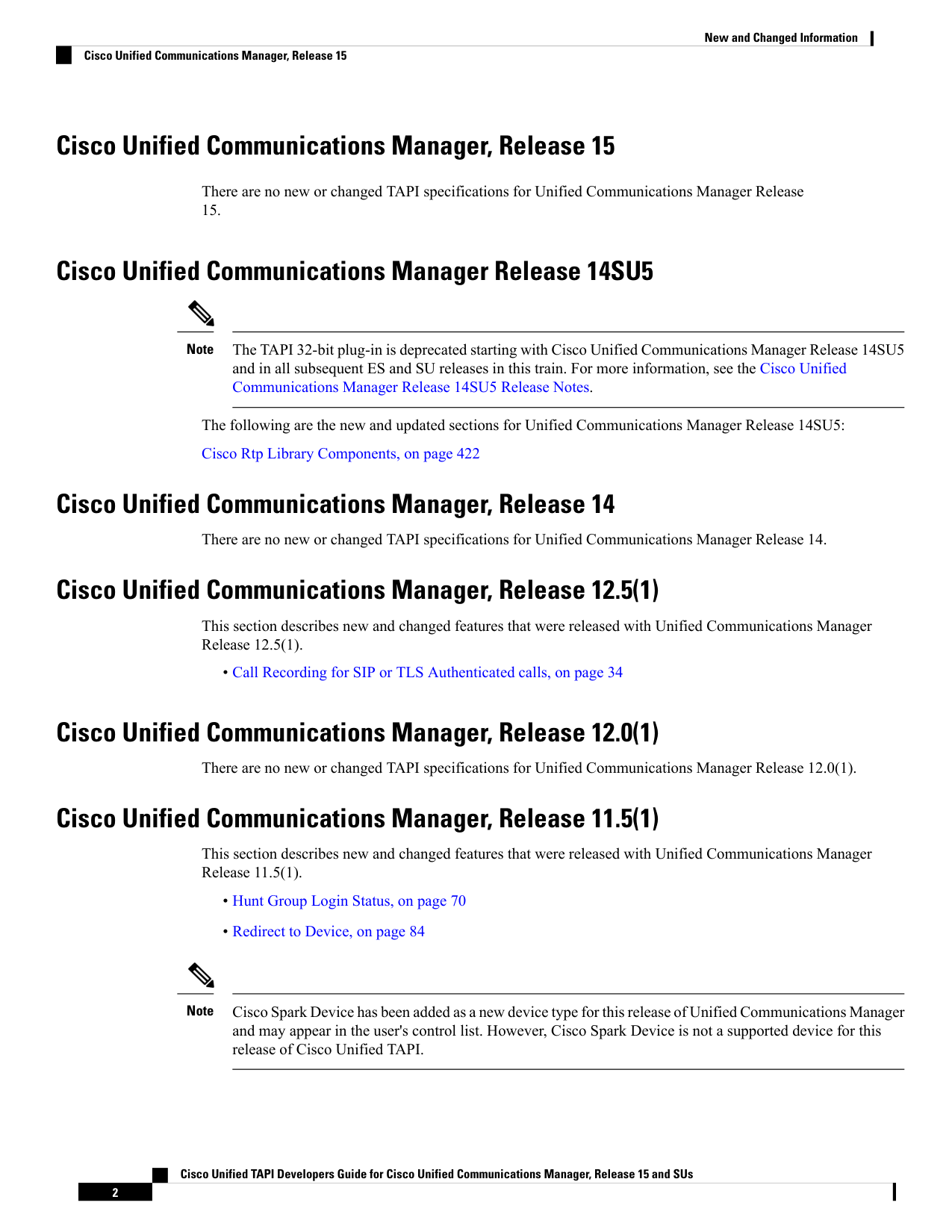

Page 34

Cisco Unified Communications Manager, Release 15 There are no new or changed TAPI specifications for Unified Communications Manager Release 15. Cisco Unified Communications Manager Release 14SU5 The TAPI 32-bit plug-in is deprecated starting with Cisco Unified Communications Manager Release 14SU5 and in all subsequent ES and SU releases in this train. For more information, see the Cisco Unified Communications Manager Release 14SU5 Release Notes. Note The following are the new and updated sections for Unified Communications Manager Release 14SU5: Cisco Rtp Library Components, on page 422 Cisco Unified Communications Manager, Release 14 There are no new or changed TAPI specifications for Unified Communications Manager Release 14. Cisco Unified Communications Manager, Release 12.5(1) This section describes new and changed features that were released with Unified Communications Manager Release 12.5(1). • Call Recording for SIP or TLS Authenticated calls, on page 34 Cisco Unified Communications Manager, Release 12.0(1) There are no new or changed TAPI specifications for Unified Communications Manager Release 12.0(1). Cisco Unified Communications Manager, Release 11.5(1) This section describes new and changed features that were released with Unified Communications Manager Release 11.5(1). • Hunt Group Login Status, on page 70 • Redirect to Device, on page 84 Cisco Spark Device has been added as a new device type for this release of Unified Communications Manager and may appear in the user's control list. However, Cisco Spark Device is not a supported device for this release of Cisco Unified TAPI. Note Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 2 New and Changed Information Cisco Unified Communications Manager, Release 15

Image 1 from page 34

Page 34 content

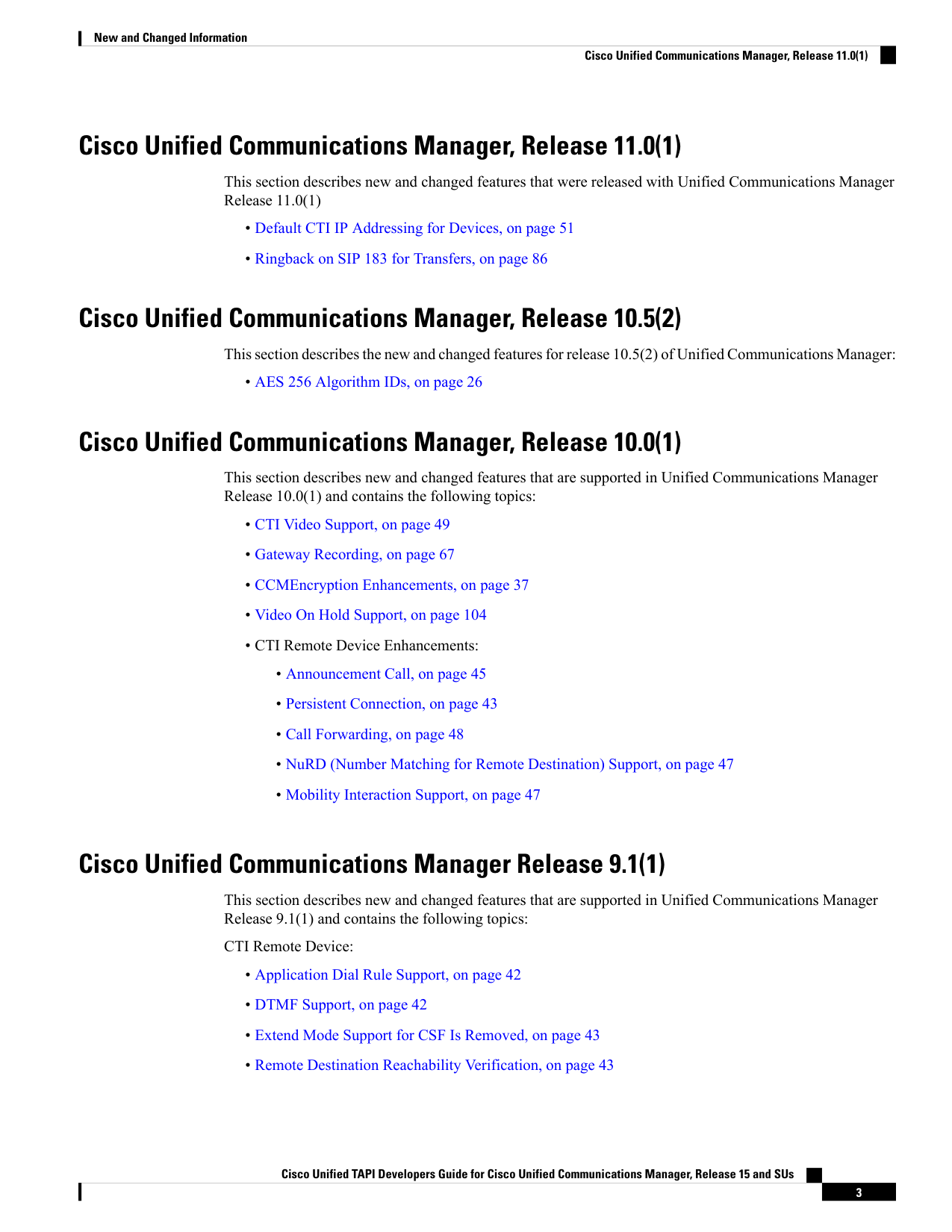

Page 35

Cisco Unified Communications Manager, Release 11.0(1) This section describes new and changed features that were released with Unified Communications Manager Release 11.0(1) • Default CTI IP Addressing for Devices, on page 51 • Ringback on SIP 183 for Transfers, on page 86 Cisco Unified Communications Manager, Release 10.5(2) This section describes the new and changed features for release 10.5(2) of Unified Communications Manager: • AES 256 Algorithm IDs, on page 26 Cisco Unified Communications Manager, Release 10.0(1) This section describes new and changed features that are supported in Unified Communications Manager Release 10.0(1) and contains the following topics: • CTI Video Support, on page 49 • Gateway Recording, on page 67 • CCMEncryption Enhancements, on page 37 • Video On Hold Support, on page 104 • CTI Remote Device Enhancements: • Announcement Call, on page 45 • Persistent Connection, on page 43 • Call Forwarding, on page 48 • NuRD (Number Matching for Remote Destination) Support, on page 47 • Mobility Interaction Support, on page 47 Cisco Unified Communications Manager Release 9.1(1) This section describes new and changed features that are supported in Unified Communications Manager Release 9.1(1) and contains the following topics: CTI Remote Device: • Application Dial Rule Support, on page 42 • DTMF Support, on page 42 • Extend Mode Support for CSF Is Removed, on page 43 • Remote Destination Reachability Verification, on page 43 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 3 New and Changed Information Cisco Unified Communications Manager, Release 11.0(1)

Page 35 content

Page 36

Cisco Unified Communications Manager Release 9.0(1) This section describes new and changed features that are supported in Cisco Unified Communications Manager release 9.0(1) and contains the following topics: • Call Queuing Feature Support, on page 31 • Call Recording and Call Recording Enhancement, on page 32 • CIUS Session Persistency, on page 36 • CTI Remote Device, on page 40 • Hunt Pilot Connected Number, on page 70 • URI Dialing, on page 103 Cisco Unified Communications Manager Release 8.6(1) This section describes new and changed features that are supported in Unified Communications Manager release 8.6(1) and contains the following topics: • EnergyWise DeepSleep Mode Support, on page 62 • FIPS Compliance, on page 66 • Password Expiry Notification, on page 82 Cisco Unified Communications Manager Release 8.5(1) This section describes new and changed features that are supported in Unified Communications Manager release 8.5(1) and contains the following topics: • Agent Greeting, on page 26 • Agent Zip Tone, on page 27 • Early Offer, on page 56 • Extension Mobility Memory Optimization Option, on page 64 • Other-Device State Notification, on page 79 • Unrestricted Unified CM, on page 102 • Whisper Coaching, on page 104 Cisco announces the end-of-Availability for Cisco TAPI Wave Driver. The last release includes the affected product(s) is Unified Communication Manager Release 8.X. Unified Communication Manager 9.0(1) and later does not include Cisco TAPI Wave Driver. Note Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 4 New and Changed Information Cisco Unified Communications Manager Release 9.0(1)

Image 1 from page 36

Page 36 content

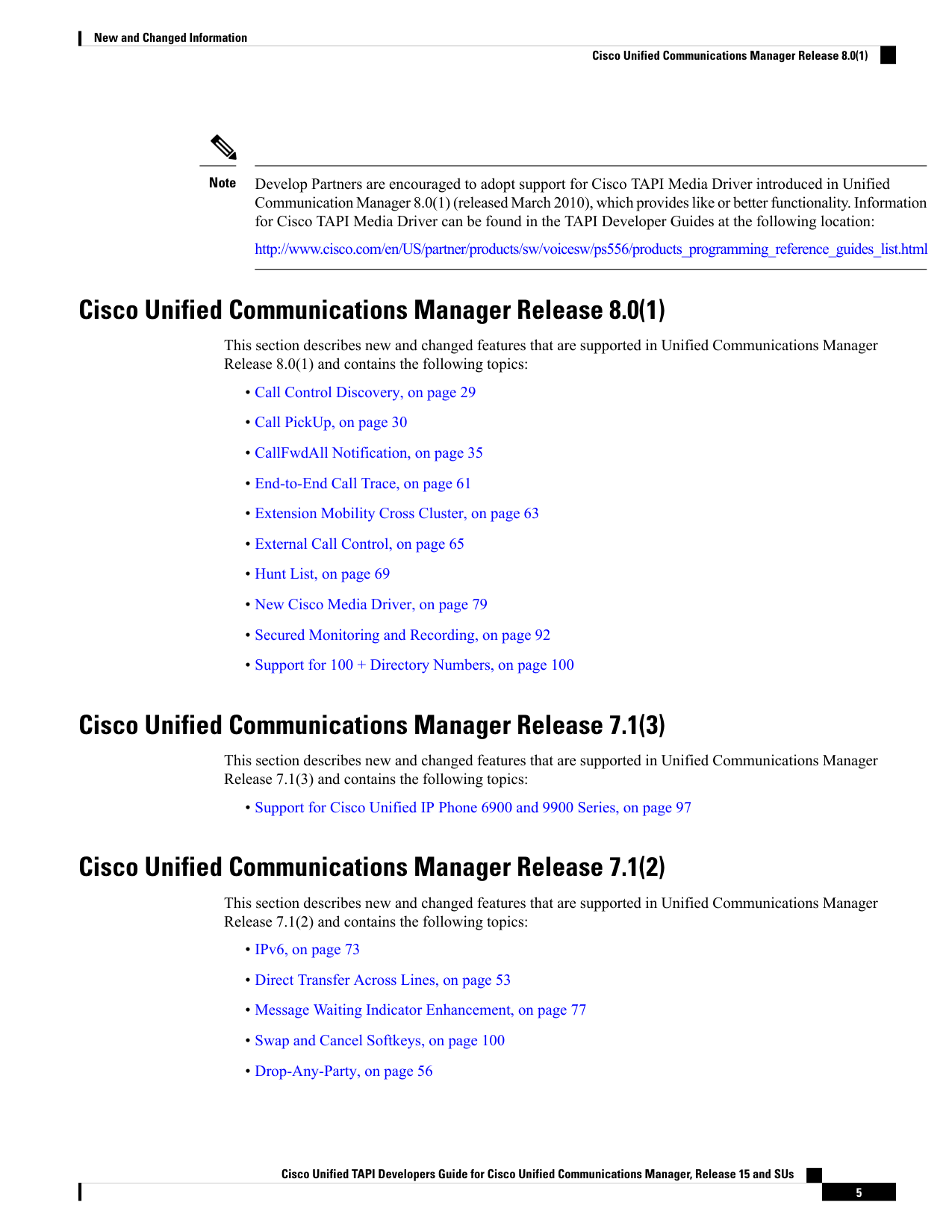

Page 37

Develop Partners are encouraged to adopt support for Cisco TAPI Media Driver introduced in Unified Communication Manager 8.0(1) (released March 2010), which provides like or better functionality. Information for Cisco TAPI Media Driver can be found in the TAPI Developer Guides at the following location: http://www.cisco.com/en/US/partner/products/sw/voicesw/ps556/products\_programming\_reference\_guides\_list.html Note Cisco Unified Communications Manager Release 8.0(1) This section describes new and changed features that are supported in Unified Communications Manager Release 8.0(1) and contains the following topics: • Call Control Discovery, on page 29 • Call PickUp, on page 30 • CallFwdAll Notification, on page 35 • End-to-End Call Trace, on page 61 • Extension Mobility Cross Cluster, on page 63 • External Call Control, on page 65 • Hunt List, on page 69 • New Cisco Media Driver, on page 79 • Secured Monitoring and Recording, on page 92 • Support for 100 + Directory Numbers, on page 100 Cisco Unified Communications Manager Release 7.1(3) This section describes new and changed features that are supported in Unified Communications Manager Release 7.1(3) and contains the following topics: • Support for Cisco Unified IP Phone 6900 and 9900 Series, on page 97 Cisco Unified Communications Manager Release 7.1(2) This section describes new and changed features that are supported in Unified Communications Manager Release 7.1(2) and contains the following topics: • IPv6, on page 73 • Direct Transfer Across Lines, on page 53 • Message Waiting Indicator Enhancement, on page 77 • Swap and Cancel Softkeys, on page 100 • Drop-Any-Party, on page 56 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 5 New and Changed Information Cisco Unified Communications Manager Release 8.0(1)

Image 1 from page 37

Page 37 content

Page 38

• Park Monitoring, on page 80 • Logical Partitioning, on page 77 • Support for Cisco Unified IP Phone 6900 and 9900 Series, on page 97 • Device State Server, on page 52 Cisco Unified Communications Manager Release 7.0(1) This section describes new and changed features supported in Unified Communications Manager Release 7.0(1) and contains the following: • Join Across Lines (SIP), on page 75 • Localization Infrastructure Changes, on page 76 • Secure Conference, on page 87 • Calling Party Normalization, on page 29 • Click to Conference, on page 37 For the features, Join Across Lines, Do Not Disturb-Reject, and Calling Party Normalization, each TAPI application must be upgraded to a version that is compatible with these features. Additionally, if you are upgrading from Release 5.1 and you use Join Across Lines, the Conference Chaining feature must not be enabled or used until all applications are either upgraded to a version compatible with the new CUCM version. Also, you should verify that the applications are not impacted by the Conference Chaining feature. Note Cisco Unified Communications Manager Release 6.1(x) This section describes new and changed features that Unified Communications Manager Release 6.1(x) supports and contains the following topic: • Join Across Lines (SCCP), on page 74 Cisco Unified Communications Manager Release 6.0(1) This section describes new and changed features that are supported in Unified Communications Manager Release 6.0(1), and contains the following topics: • Intercom, on page 71 • Secure Conference, on page 87 • Do Not Disturb, on page 54 • Conference Enhancements, on page 38 • Arabic and Hebrew Language, on page 28 • Additional Features Supported on SIP Phones, on page 25 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 6 New and Changed Information Cisco Unified Communications Manager Release 7.0(1)

Image 1 from page 38

Page 38 content

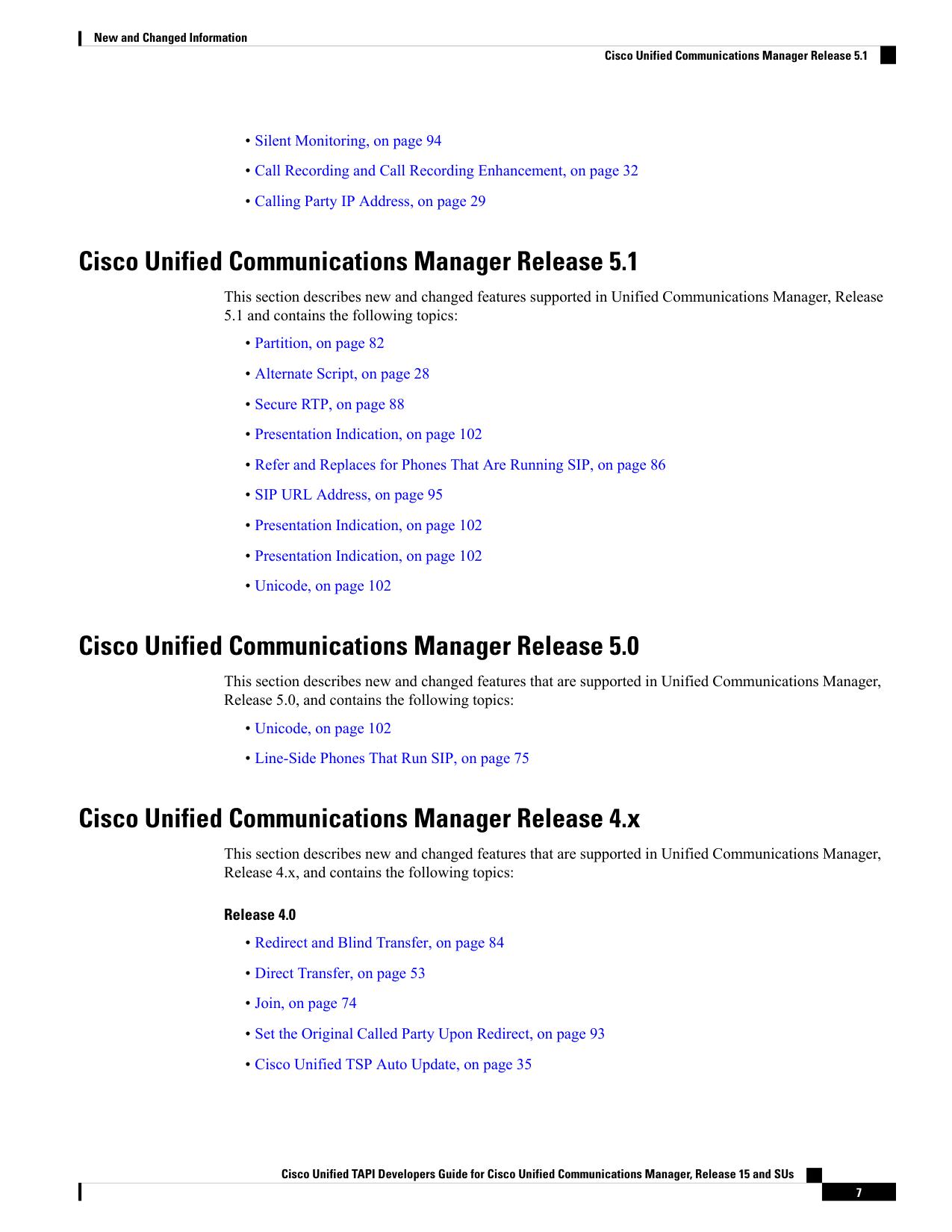

Page 39

• Silent Monitoring, on page 94 • Call Recording and Call Recording Enhancement, on page 32 • Calling Party IP Address, on page 29 Cisco Unified Communications Manager Release 5.1 This section describes new and changed features supported in Unified Communications Manager, Release 5.1 and contains the following topics: • Partition, on page 82 • Alternate Script, on page 28 • Secure RTP, on page 88 • Presentation Indication, on page 102 • Refer and Replaces for Phones That Are Running SIP, on page 86 • SIP URL Address, on page 95 • Presentation Indication, on page 102 • Presentation Indication, on page 102 • Unicode, on page 102 Cisco Unified Communications Manager Release 5.0 This section describes new and changed features that are supported in Unified Communications Manager, Release 5.0, and contains the following topics: • Unicode, on page 102 • Line-Side Phones That Run SIP, on page 75 Cisco Unified Communications Manager Release 4.x This section describes new and changed features that are supported in Unified Communications Manager, Release 4.x, and contains the following topics: Release 4.0 • Redirect and Blind Transfer, on page 84 • Direct Transfer, on page 53 • Join, on page 74 • Set the Original Called Party Upon Redirect, on page 93 • Cisco Unified TSP Auto Update, on page 35 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 7 New and Changed Information Cisco Unified Communications Manager Release 5.1

Page 39 content

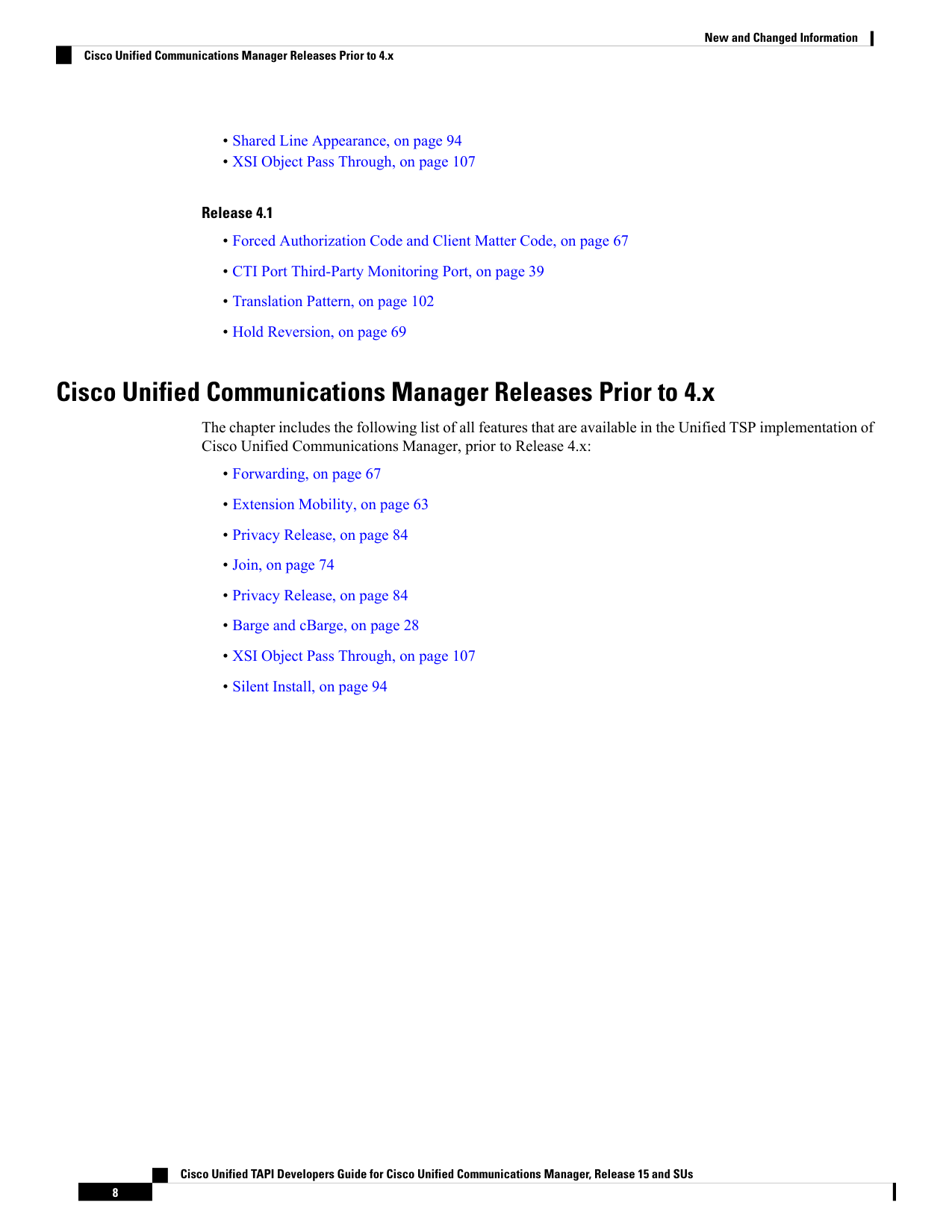

Page 40

• Shared Line Appearance, on page 94 • XSI Object Pass Through, on page 107 Release 4.1 • Forced Authorization Code and Client Matter Code, on page 67 • CTI Port Third-Party Monitoring Port, on page 39 • Translation Pattern, on page 102 • Hold Reversion, on page 69 Cisco Unified Communications Manager Releases Prior to 4.x The chapter includes the following list of all features that are available in the Unified TSP implementation of Cisco Unified Communications Manager, prior to Release 4.x: • Forwarding, on page 67 • Extension Mobility, on page 63 • Privacy Release, on page 84 • Join, on page 74 • Privacy Release, on page 84 • Barge and cBarge, on page 28 • XSI Object Pass Through, on page 107 • Silent Install, on page 94 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 8 New and Changed Information Cisco Unified Communications Manager Releases Prior to 4.x

Page 40 content

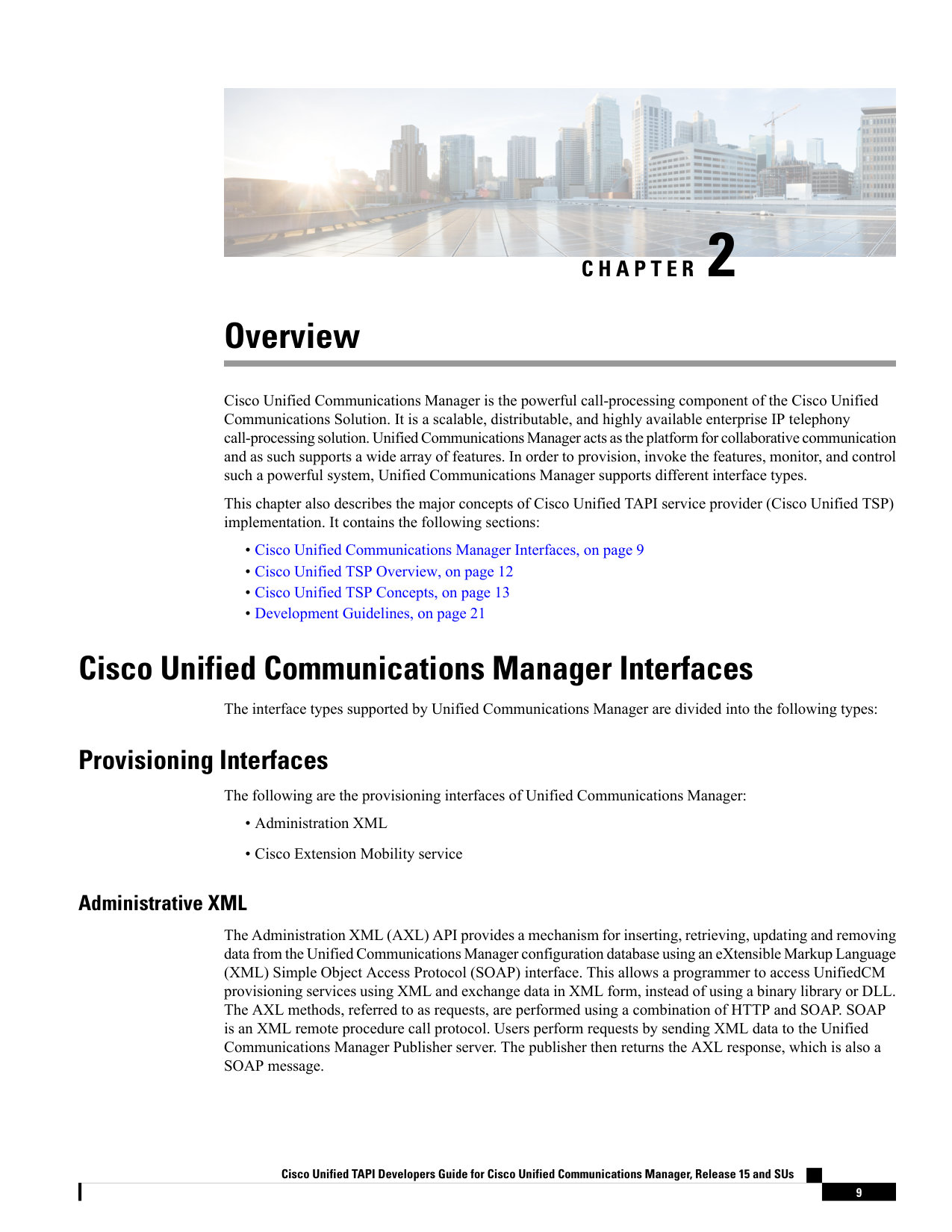

Page 41

C H A P T E R 2 Overview Cisco Unified Communications Manager is the powerful call-processing component of the Cisco Unified Communications Solution. It is a scalable, distributable, and highly available enterprise IP telephony call-processing solution. Unified Communications Manager acts as the platform for collaborative communication and as such supports a wide array of features. In order to provision, invoke the features, monitor, and control such a powerful system, Unified Communications Manager supports different interface types. This chapter also describes the major concepts of Cisco Unified TAPI service provider (Cisco Unified TSP) implementation. It contains the following sections: • Cisco Unified Communications Manager Interfaces, on page 9 • Cisco Unified TSP Overview, on page 12 • Cisco Unified TSP Concepts, on page 13 • Development Guidelines, on page 21 Cisco Unified Communications Manager Interfaces The interface types supported by Unified Communications Manager are divided into the following types: Provisioning Interfaces The following are the provisioning interfaces of Unified Communications Manager: • Administration XML • Cisco Extension Mobility service Administrative XML The Administration XML (AXL) API provides a mechanism for inserting, retrieving, updating and removing data from the Unified Communications Manager configuration database using an eXtensible Markup Language (XML) Simple Object Access Protocol (SOAP) interface. This allows a programmer to access UnifiedCM provisioning services using XML and exchange data in XML form, instead of using a binary library or DLL. The AXL methods, referred to as requests, are performed using a combination of HTTP and SOAP. SOAP is an XML remote procedure call protocol. Users perform requests by sending XML data to the Unified Communications Manager Publisher server. The publisher then returns the AXL response, which is also a SOAP message. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 9

Image 1 from page 41

Page 41 content

Page 42

For more information, See the Administrative XML Tech Center on the Cisco Developer Network http://developer.cisco.com/web/axl/home. Cisco Extension Mobility The Cisco Extension Mobility (Extension Mobility) service, a feature of Unified Communications Manager, allows a device, usually a Cisco Unified IP Phone, to temporarily embody a new device profile, including lines, speed dials, and services. It enables users to temporarily access their individual Cisco Unified IP Phone configuration, such as their line appearances, services, and speed dials, from other Cisco Unified IP Phones. The Extension Mobility service works by downloading a new configuration file to the phone. Unified Communications Manager dynamically generates this new configuration file based on information about the user who is logging in. You can use the XML-based Extension Mobility service API with your applications, so they can take advantage of Extension Mobility service functionality. For more information, See the Extension Mobility API Tech Center on the Cisco Developer Network http://developer.cisco.com/web/emapi/home. Also, see Unified Communications Manager XML Developers Guide for relevant release of Unified Communications Manager at the following location: http://www.cisco.com/en/US/products/sw/voicesw/ps556/products\_programming\_reference\_guides\_list.html. Device Monitoring and Call Control Interfaces The following are the device monitoring and call control interfaces of Unified Communications Manager: Cisco TAPI and Media Driver Unified Communications Manager exposes sophisticated call control of IP telephony devices and soft-clients using the Computer Telephony TAPI interface. Cisco's Telephone Service Provider (TSP) and Media Driver interface enables custom applications to monitor telephony-enabled devices and call events, establish first-and third-party call control, and interact with the media layer to terminate media, play announcements, record calls. For more information, see the TAPI and Media Driver Tech Center on the Cisco Developer Network at the following location: https://developer.cisco.com/site/tapi/ Cisco JTAPI For more information, see the JTAPI Tech Center on the Cisco Developer Network at the following location: http://developer.cisco.com/web/jtapi/home Also, see Cisco Unified JTAPI Developers Guide for Unified Communications Manager for relevant release of Unified Communications Manager at the following location: http://www.cisco.com/en/US/products/sw/voicesw/ps556/products\_programming\_reference\_guides\_list.html Cisco Web Dialer The Web Dialer, which is installed on a Unified Communications Manager server, allows Cisco Unified IP Phone users to make calls from web and desktop applications. For example, the Web Dialer uses hyperlinked telephone numbers in a company directory to allow users to make calls from a web page by clicking the Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 10 Overview Cisco Extension Mobility

Page 42 content

Page 43

telephone number of the person that they are trying to call. The two main components of Web Dialer comprise the Web Dialer Servlet and the Redirector Servlet. For more information, see the Web Dialer Tech Center on the Cisco Developer Network http://developer.cisco.com/web/wd/home. For more information on Cisco Web Dialer, see Unified Communications Manager XML Developers Guide for relevant release of Unified Communications Manager at the following location: http://www.cisco.com/en/US/products/sw/voicesw/ps556/products\_programming\_reference\_guides\_list.html. Serviceability Interfaces The following are the serviceability interfaces of Unified Communications Manager: Serviceability XML A collection of services and tools designed to monitor, diagnose, and address issues specific to UnifiedCM. serviceabiltiy XML interface: • Provides platform, service and application performance counters to monitor the health of UnifiedCM hardware and software • Provides real-time device and Computer Telephony Integration (CTI) connection status to monitor the health of phones, devices, and applications connected to Unified Communications Manager. • Enables remote control (Start/Stop/Restart) of Unified Communications Manager services. • Collects and packages Unified Communications Manager trace files and logs for troubleshooting and analysis. • Provides applications with Call Detail Record files based on search criteria. • Provides management consoles with SNMP data specific to Unified Communications Manager hardware and software. For more information, see the Serviceability XML Tech Center on the Cisco Developer Network http://developer.cisco.com/web/sxml/home. SNMP/MIBs SNMP interface allows external applications to query and report various UCMgr entities. It provides information on the connectivity of the Unified Communication Manager to other devices in the network, including syslog information. The MIBs supported by Unified Communications Manager includes: • Cisco-CCM-MIB, CISCO-CDP-MIB, Cisco-syslog-MIB • Standard MIBs like MIB II, SYSAPPL-MIB, HOST RESOURCES-MIB • Vendor MIBs For more information, see the SNMP/MIB Tech Center on the Cisco Developer Network http://developer.cisco.com/web/sxml/home. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 11 Overview Serviceability Interfaces

Page 43 content

Page 44

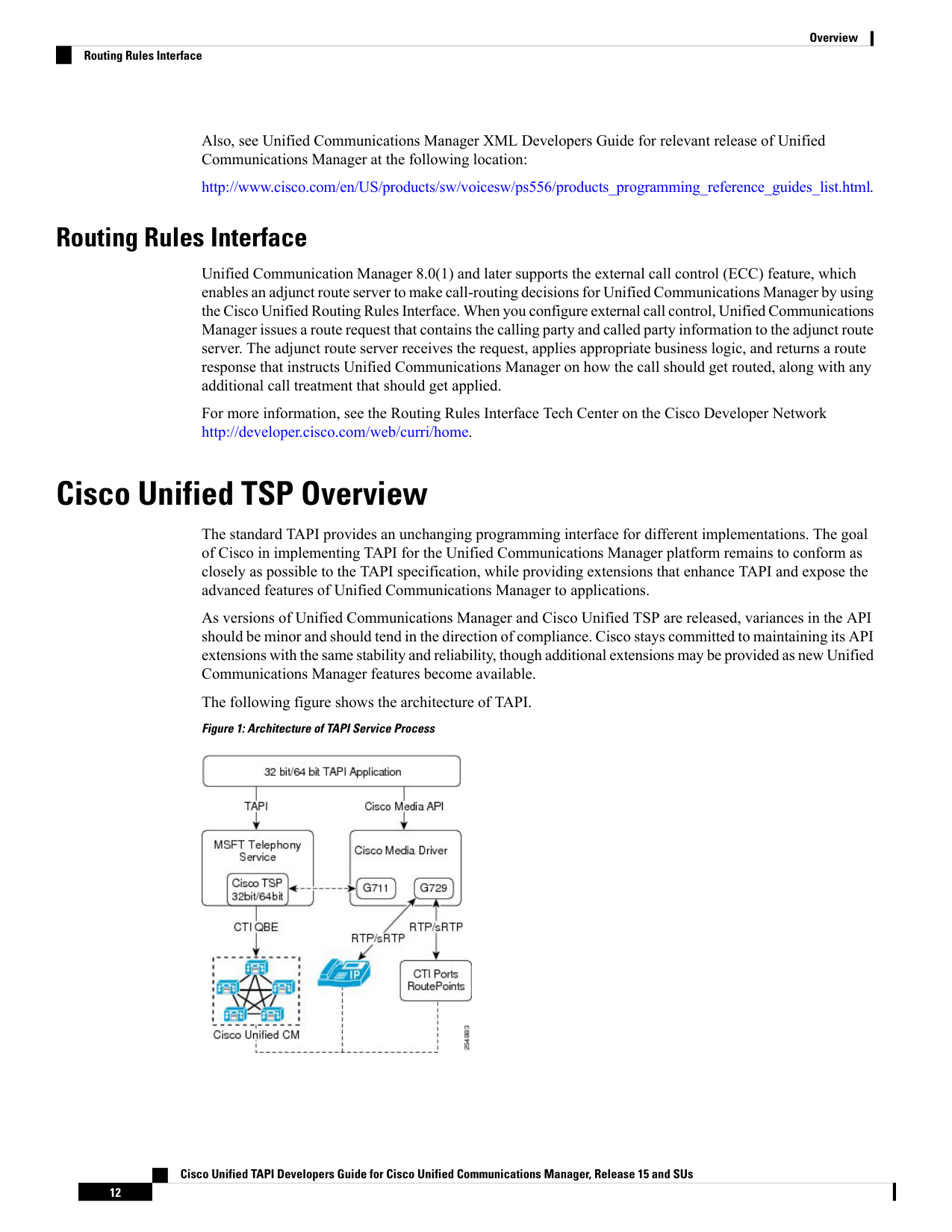

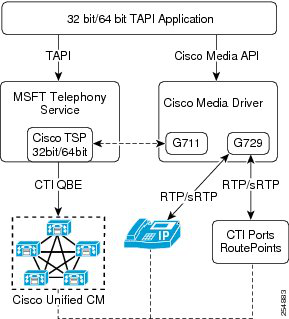

Also, see Unified Communications Manager XML Developers Guide for relevant release of Unified Communications Manager at the following location: http://www.cisco.com/en/US/products/sw/voicesw/ps556/products\_programming\_reference\_guides\_list.html. Routing Rules Interface Unified Communication Manager 8.0(1) and later supports the external call control (ECC) feature, which enables an adjunct route server to make call-routing decisions for Unified Communications Manager by using the Cisco Unified Routing Rules Interface. When you configure external call control, Unified Communications Manager issues a route request that contains the calling party and called party information to the adjunct route server. The adjunct route server receives the request, applies appropriate business logic, and returns a route response that instructs Unified Communications Manager on how the call should get routed, along with any additional call treatment that should get applied. For more information, see the Routing Rules Interface Tech Center on the Cisco Developer Network http://developer.cisco.com/web/curri/home. Cisco Unified TSP Overview The standard TAPI provides an unchanging programming interface for different implementations. The goal of Cisco in implementing TAPI for the Unified Communications Manager platform remains to conform as closely as possible to the TAPI specification, while providing extensions that enhance TAPI and expose the advanced features of Unified Communications Manager to applications. As versions of Unified Communications Manager and Cisco Unified TSP are released, variances in the API should be minor and should tend in the direction of compliance. Cisco stays committed to maintaining its API extensions with the same stability and reliability, though additional extensions may be provided as new Unified Communications Manager features become available. The following figure shows the architecture of TAPI. Figure 1: Architecture of TAPI Service Process Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 12 Overview Routing Rules Interface

Image 1 from page 44

Page 44 content

Page 45

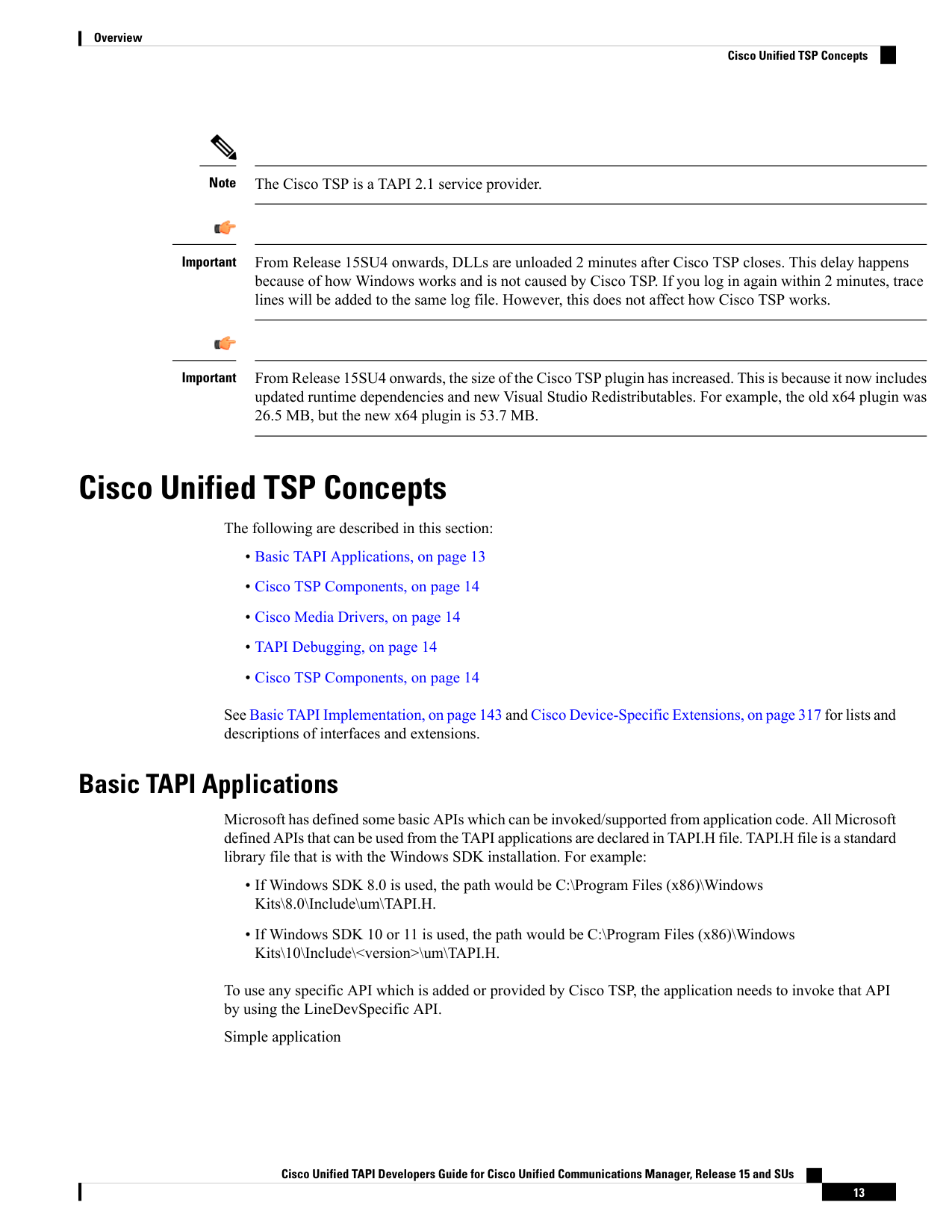

The Cisco TSP is a TAPI 2.1 service provider. Note From Release 15SU4 onwards, DLLs are unloaded 2 minutes after Cisco TSP closes. This delay happens because of how Windows works and is not caused by Cisco TSP. If you log in again within 2 minutes, trace lines will be added to the same log file. However, this does not affect how Cisco TSP works. Important From Release 15SU4 onwards, the size of the Cisco TSP plugin has increased. This is because it now includes updated runtime dependencies and new Visual Studio Redistributables. For example, the old x64 plugin was 26.5 MB, but the new x64 plugin is 53.7 MB. Important Cisco Unified TSP Concepts The following are described in this section: • Basic TAPI Applications, on page 13 • Cisco TSP Components, on page 14 • Cisco Media Drivers, on page 14 • TAPI Debugging, on page 14 • Cisco TSP Components, on page 14 See Basic TAPI Implementation, on page 143 and Cisco Device-Specific Extensions, on page 317 for lists and descriptions of interfaces and extensions. Basic TAPI Applications Microsoft has defined some basic APIs which can be invoked/supported from application code. All Microsoft defined APIs that can be used from the TAPI applications are declared in TAPI.H file. TAPI.H file is a standard library file that is with the Windows SDK installation. For example: • If Windows SDK 8.0 is used, the path would be C:\Program Files (x86)\Windows Kits\8.0\Include\um\TAPI.H. • If Windows SDK 10 or 11 is used, the path would be C:\Program Files (x86)\Windows Kits\10\Include<version>\um\TAPI.H. To use any specific API which is added or provided by Cisco TSP, the application needs to invoke that API by using the LineDevSpecific API. Simple application Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 13 Overview Cisco Unified TSP Concepts

Image 1 from page 45

Page 45 content

Page 46

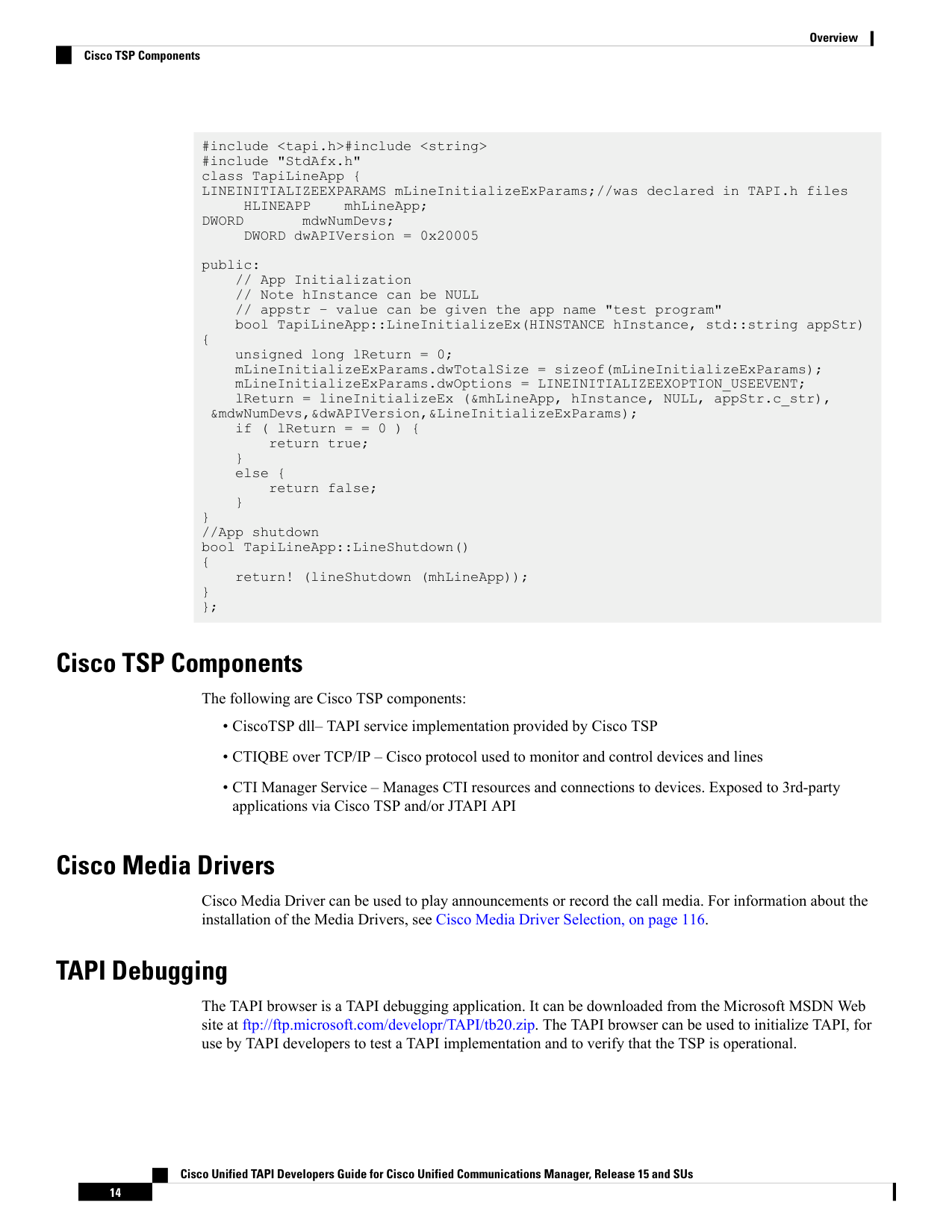

#include <tapi.h>#include <string> #include "StdAfx.h" class TapiLineApp { LINEINITIALIZEEXPARAMS mLineInitializeExParams;//was declared in TAPI.h files HLINEAPP mhLineApp; DWORD mdwNumDevs; DWORD dwAPIVersion = 0x20005 public: // App Initialization // Note hInstance can be NULL // appstr – value can be given the app name "test program" bool TapiLineApp::LineInitializeEx(HINSTANCE hInstance, std::string appStr) { unsigned long lReturn = 0; mLineInitializeExParams.dwTotalSize = sizeof(mLineInitializeExParams); mLineInitializeExParams.dwOptions = LINEINITIALIZEEXOPTION_USEEVENT; lReturn = lineInitializeEx (&mhLineApp, hInstance, NULL, appStr.c_str), &mdwNumDevs,&dwAPIVersion,&LineInitializeExParams); if ( lReturn = = 0 ) { return true; } else { return false; } } //App shutdown bool TapiLineApp::LineShutdown() { return! (lineShutdown (mhLineApp)); } }; Cisco TSP Components The following are Cisco TSP components: • CiscoTSP dll– TAPI service implementation provided by Cisco TSP • CTIQBE over TCP/IP – Cisco protocol used to monitor and control devices and lines • CTI Manager Service – Manages CTI resources and connections to devices. Exposed to 3rd-party applications via Cisco TSP and/or JTAPI API Cisco Media Drivers Cisco Media Driver can be used to play announcements or record the call media. For information about the installation of the Media Drivers, see Cisco Media Driver Selection, on page 116. TAPI Debugging The TAPI browser is a TAPI debugging application. It can be downloaded from the Microsoft MSDN Web site at ftp://ftp.microsoft.com/developr/TAPI/tb20.zip. The TAPI browser can be used to initialize TAPI, for use by TAPI developers to test a TAPI implementation and to verify that the TSP is operational. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 14 Overview Cisco TSP Components

Page 46 content

Page 47

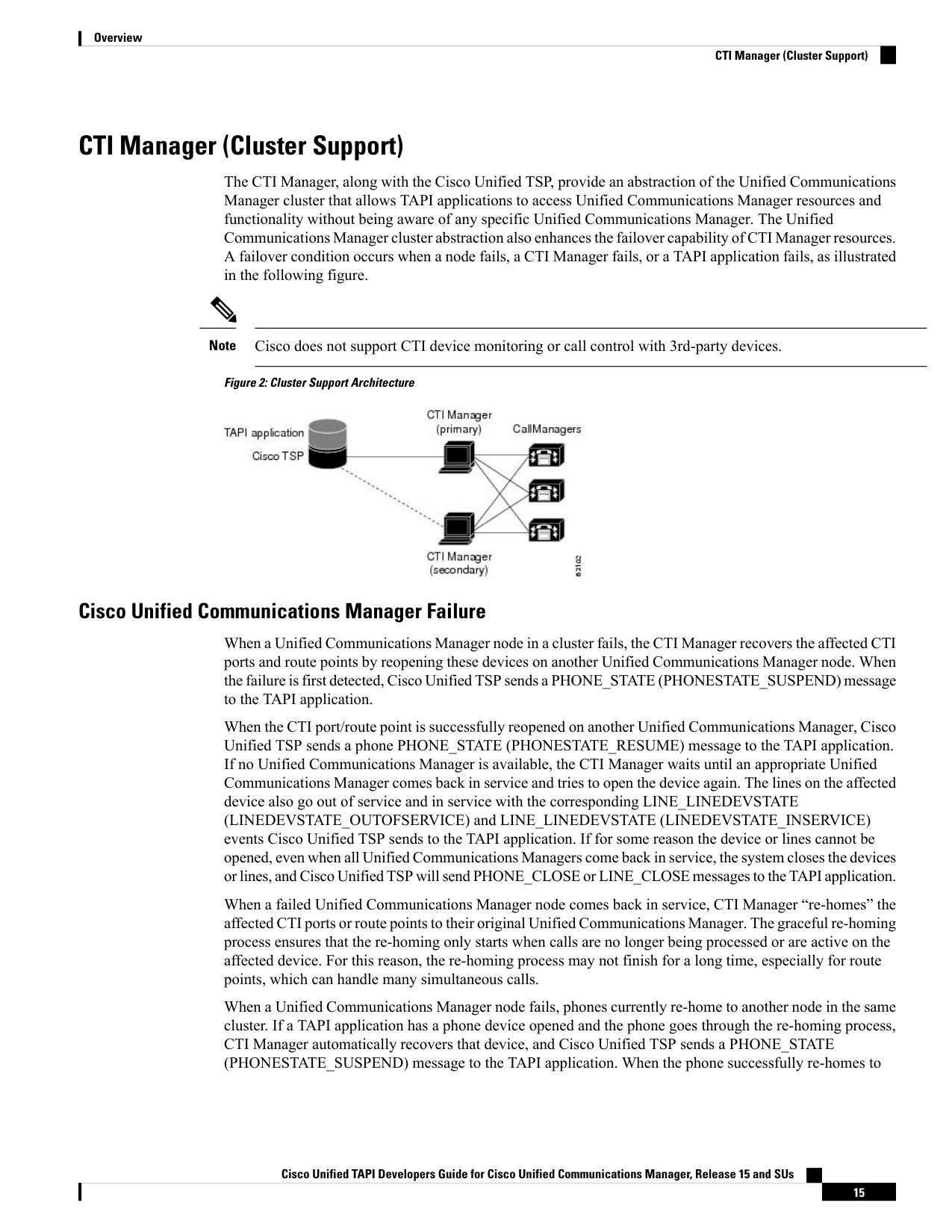

CTI Manager (Cluster Support) The CTI Manager, along with the Cisco Unified TSP, provide an abstraction of the Unified Communications Manager cluster that allows TAPI applications to access Unified Communications Manager resources and functionality without being aware of any specific Unified Communications Manager. The Unified Communications Manager cluster abstraction also enhances the failover capability of CTI Manager resources. A failover condition occurs when a node fails, a CTI Manager fails, or a TAPI application fails, as illustrated in the following figure. Cisco does not support CTI device monitoring or call control with 3rd-party devices. Note Figure 2: Cluster Support Architecture Cisco Unified Communications Manager Failure When a Unified Communications Manager node in a cluster fails, the CTI Manager recovers the affected CTI ports and route points by reopening these devices on another Unified Communications Manager node. When the failure is first detected, Cisco Unified TSP sends a PHONE_STATE (PHONESTATE_SUSPEND) message to the TAPI application. When the CTI port/route point is successfully reopened on another Unified Communications Manager, Cisco Unified TSP sends a phone PHONE_STATE (PHONESTATE_RESUME) message to the TAPI application. If no Unified Communications Manager is available, the CTI Manager waits until an appropriate Unified Communications Manager comes back in service and tries to open the device again. The lines on the affected device also go out of service and in service with the corresponding LINE_LINEDEVSTATE (LINEDEVSTATE_OUTOFSERVICE) and LINE_LINEDEVSTATE (LINEDEVSTATE_INSERVICE) events Cisco Unified TSP sends to the TAPI application. If for some reason the device or lines cannot be opened, even when all Unified Communications Managers come back in service, the system closes the devices or lines, and Cisco Unified TSP will send PHONE_CLOSE or LINE_CLOSE messages to the TAPI application. When a failed Unified Communications Manager node comes back in service, CTI Manager “re-homes” the affected CTI ports or route points to their original Unified Communications Manager. The graceful re-homing process ensures that the re-homing only starts when calls are no longer being processed or are active on the affected device. For this reason, the re-homing process may not finish for a long time, especially for route points, which can handle many simultaneous calls. When a Unified Communications Manager node fails, phones currently re-home to another node in the same cluster. If a TAPI application has a phone device opened and the phone goes through the re-homing process, CTI Manager automatically recovers that device, and Cisco Unified TSP sends a PHONE_STATE (PHONESTATE_SUSPEND) message to the TAPI application. When the phone successfully re-homes to Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 15 Overview CTI Manager (Cluster Support)

Image 1 from page 47

Image 2 from page 47

Page 47 content

Page 48

another Unified Communications Manager node, Cisco Unified TSP sends a PHONE_STATE (PHONESTATE_RESUME) message to the TAPI application. The lines on the affected device also go out of service and in service, and Cisco Unified TSP sends LINE_LINEDEVSTATE (LINEDEVSTATE_OUTOFSERVICE) and LINE_LINEDEVSTATE (LINEDEVSTATE_INSERVICE) messages to the TAPI application. Call Survivability When a device or Unified Communications Manager failure occurs, no call survivability exists; however, media streams that are already connected between devices will survive. Calls in the process of being set up or modified (transfer, conference, redirect) simply get dropped. CTI Manager Failure When a primary CTI Manager fails, Cisco Unified TSP sends a PHONE_STATE (PHONESTATE_SUSPEND) message and a LINE_LINEDEVSTATE (LINEDEVSTATE_OUTOFSERVICE) message for every phone and line device that the application opened. Cisco Unified TSP then connects to a backup CTIManager. When a connection to a backup CTI Manager is established and the device or line successfully reopens, the Cisco Unified TSP sends a PHONE_STATE (PHONESTATE_RESUME) or LINE_LINEDEVSTATE (LINEDEVSTATE_INSERVICE) message to the TAPI application. If the Cisco Unified TSP is unsuccessful in opening the device or line for a CTI port or route point, the Cisco Unified TSP closes the device or line by sending the appropriate PHONE_CLOSE or LINE_CLOSE message to the TAPI application. After Cisco Unified TSP is connected to the backup CTIManager, Cisco Unified TSP will not reconnect to the primary CTIManager until the connection is lost between Cisco Unified TSP and the backup CTIManager. If devices are added to or removed from the user while the CTI Manager is down, Cisco Unified TSP generates PHONE_CREATE/LINE_CREATE or PHONE_REMOVE/LINE_REMOVE events, respectively, when connection to a backup CTI Manager is established. Support for Tertiary CTI Manager and Fallback This section is applicable from Release 15SU2 onwards. Important The secondary CTI Manager was referred to as the backup CTI Manager in earlier releases. Note Before this release, Cisco TSP enabled you to configure only a primary and secondary CTI Manager. From this release onwards, Cisco TSP enables you to configure a tertiary CTI Manager. When the tertiary CTI Manager is configured, it is treated as the least priority server. Cisco TSP connects to it only when connectivity to both the primary and secondary CTI Managers is lost. The TSP remains connected to tertiary by default unless you have explicitly enabled and configured a valid choice for fallback settings. For more information, see Fallback Settings, on page 113. Cisco Unified TAPI Application Failure When a Cisco TAPI application fails (the CTI Manager closes the provider), calls at CTI ports and route points that have not yet been terminated get redirected to the Call Forward On Failure (CFF) number that has been Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 16 Overview Call Survivability

Image 1 from page 48

Page 48 content

Page 49

configured for them. The system routes new calls into CTI Ports and Route Points that are not opened by an application to their CFNA number. LINE_CALLDEVSPECIFIC Event Support for RTP Events RTP events are generated as LINE_CALLDEVSPECIFIC events that contain Call Handle details of the call. However, to activate the feature, the application must negotiate the extension version greater than or equal to 0x00040001 when opening the line. Due to dependency on the extension version of the line, the Media Events, RTP_START / STOP, are reported differently to the application: • If extension version is less than EXTVERSION_FOUR_DOT_ZERO - 0x00040000 — TSP reports LINE_DEVSPECIFIC event to application on the line irrespective whether call object is present. In this case, even if a call is DeAllocated after IDLE state, RTP_STOP events are delivered to the application. • If extension version is greater than or same as EXTVERSION_FOUR_DOT_ZERO - 0x00040000—TSP does report the Media Events if the Call Object is DeAllocated from Application. So a check must be added for the Extension Version to maintain backward compatibility. So it must not be assumed that RTP events will always come before IDLE event. QoS Cisco Unified TSP supports the Cisco baseline for baselining of Quality of Service (QoS). Cisco Unified TSP marks the IP Differentiated Services Code Point (DSCP) for QBE control signals that flow from TSP to CTI with the value of the Service parameter “DSCP IP for CTI Applications” that CTI sends in the ProviderOpenCompletedEvent. The Cisco TAPI Wave driver marks the RTP packets with the value that CTI sends in the StartTransmissionEvent. The system stores the DSCP value received in the StartTransmissionEvent in the DevSpecific portion of the LINECALLINFO structure, and fires the LINECALLINFOSTATE_DEVSPECIFIC event with the QoS indicator. QoS information is not available if you begin monitoring in the middle of a call because existing calls do not have an RTP event. Note Presentation Indication (PI) There is a need to separate the presentability aspects of a number (calling, called, and so on) from the actual number itself. For example, when the number is not to be displayed on the IP phone, the information might still be needed by another system, such as Unity VM. Hence, each number/name of the display name needs to be associated with a Presentation Indication (PI) flag, which will indicate whether the information should be displayed to the user or not. You can set up this feature as follows: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 17 Overview LINE_CALLDEVSPECIFIC Event Support for RTP Events

Image 1 from page 49

Page 49 content

Page 50

On a Per-Call Basis You can use Route Patterns and Translation Patterns to set or reset PI flags for various partyDNs/Names on a per-call basis. If the pattern matches the digits, the PI settings that are associated with the pattern will be applied to the call information. On a Permanent Basis You can configure a trunk device with “Allow” or “Restrict” options for parties. This will set the PI flags for the corresponding party information for all calls from this trunk. Cisco Unified TSP supports this feature. If calls are made via Translation patterns with all of the flags set to Restricted, the system sends the CallerID/Name, ConnectedID/Name, and RedirectionID/Name to applications as Blank. The system also sets the LINECALLPARTYID flags to Blocked if both the Name and Party number are set to Restricted. When developing an application, be sure only to use functions that the Cisco TAPI Service Provider supports. For example, the Cisco TAPI Service Provider supports transfer, but not fax detection. If an application requires an unsupported media or bearer mode, the application will not work as expected. Cisco Unified TSP does not support TAPI 3.0 applications. Call Control You can configure Cisco Unified TSP to provide first-or third-party call control. First-Party Call Control In first-party call control, the application terminates the audio stream. Ordinarily, this occurs by using the Cisco wave driver. However, if you want the application to control the audio stream instead of the wave driver, use the Cisco device-specific extensions. Third-Party Call Control In third-party call control, the control of an audio stream terminating device is not “local” to the Unified Communications Manager. In such cases, the controller might be the physical IP phone on your desk or a group of IP phones for which your application is responsible. Cisco does not support CTI device monitoring or call control with 3rd-party devices. Note CTI Port For first-party call control, a CTI port device must exist in the Cisco Unified Communications Manager. Because each port can only have one active audio stream at a time, most configurations only need one line per port. A CTI port device does not actually exist in the system until you run a TAPI application and a line on the port device is opened requesting LINEMEDIAMODE_AUTOMATEDVOICE and LINEMEDIAMODE_INTERACTIVEVOICE. Until the port is opened, anyone who calls the directory number that is associated with that CTI port device receives a busy or reorder tone. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 18 Overview Call Control

Image 1 from page 50

Page 50 content

Page 51

The IP address and UDP port number is either specified statically (the same IP address and UDP port number is used for every call) or dynamically. By default, CTI ports use static registration. Dynamic Port Registration Dynamic Port Registration enables applications to specify the IP address and UDP port number on a call-by-call basis. Currently, the IP address and UDP port number are specified when a CTI port registers and is static through the life of the registration of the CTI port. When media is requested to be established to the CTI port, the system uses the same static IP address and UDP port number for every call. An application that wants to use Dynamic Port Registration must specify the IP address and UDP port number on a call before invoking any features on the call. If the feature is invoked before the IP address and UDP port number are set, the feature will fail, and the call state will be set depending on when the media time-out occurs. CTI Route Point You can use Cisco Unified TAPI to control CTI route points. CTI route points allow Cisco Unified TAPI applications to redirect incoming calls with an infinite queue depth. This allows incoming calls to avoid busy signals. CTI route point devices have an address capability flag of LINEADDRCAPFLAGS_ROUTEPOINT. When your application opens a line of this type, it can handle any incoming call by disconnecting, accepting, or redirecting the call to some other directory number. The basis for redirection decisions can be caller ID information, time of day, or other information that is available to the program. Media Termination at Route Point The Media Termination at Route Point feature lets applications terminate media at route points. This feature enables applications to pass the IP address and port number where they want the call at the route point to have media established. The system supports the following features at route points: • Answer • Multiple Active Calls • Redirect • Hold • UnHold • Blind Transfer • DTMF Digits • Tones Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 19 Overview Dynamic Port Registration

Page 51 content

Page 52

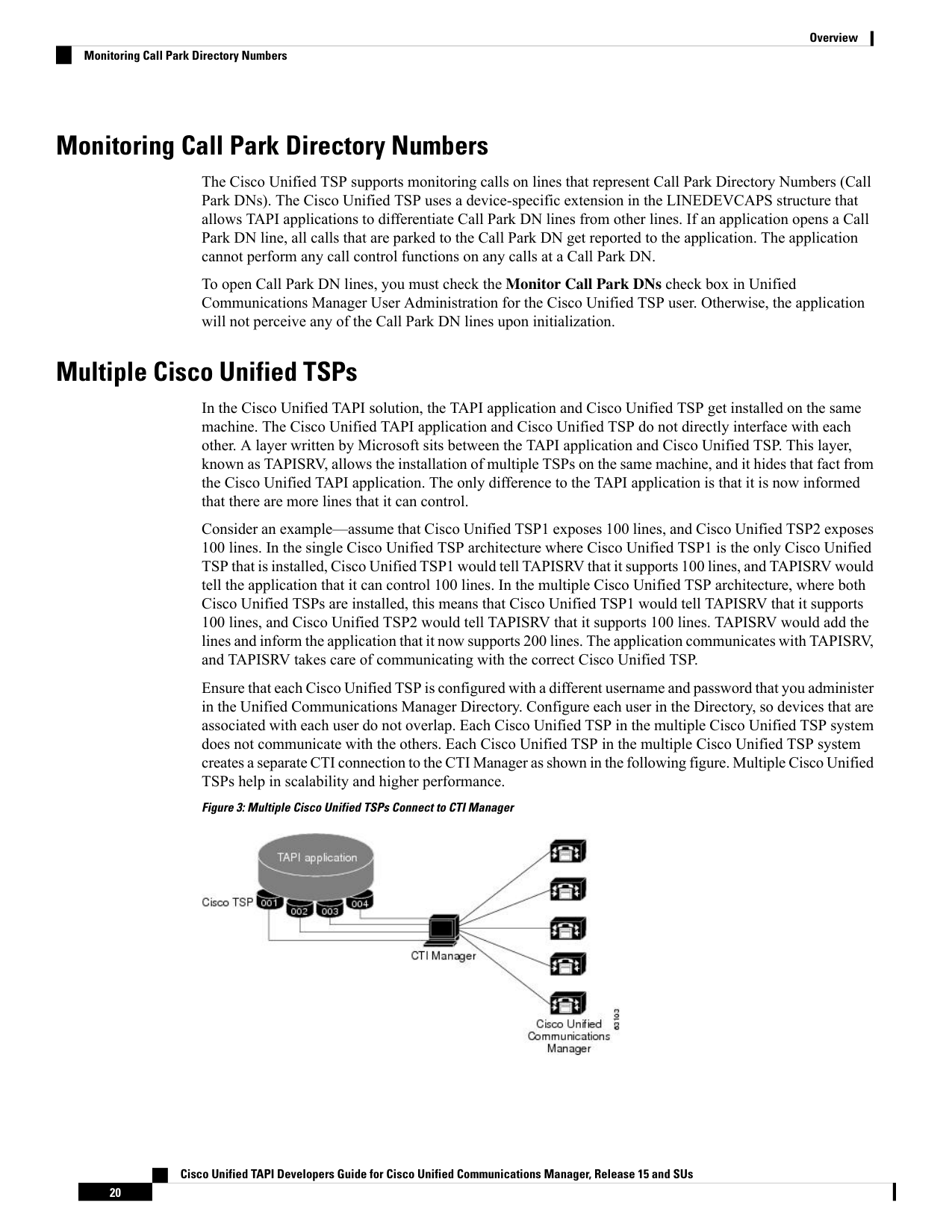

Monitoring Call Park Directory Numbers The Cisco Unified TSP supports monitoring calls on lines that represent Call Park Directory Numbers (Call Park DNs). The Cisco Unified TSP uses a device-specific extension in the LINEDEVCAPS structure that allows TAPI applications to differentiate Call Park DN lines from other lines. If an application opens a Call Park DN line, all calls that are parked to the Call Park DN get reported to the application. The application cannot perform any call control functions on any calls at a Call Park DN. To open Call Park DN lines, you must check the Monitor Call Park DNs check box in Unified Communications Manager User Administration for the Cisco Unified TSP user. Otherwise, the application will not perceive any of the Call Park DN lines upon initialization. Multiple Cisco Unified TSPs In the Cisco Unified TAPI solution, the TAPI application and Cisco Unified TSP get installed on the same machine. The Cisco Unified TAPI application and Cisco Unified TSP do not directly interface with each other. A layer written by Microsoft sits between the TAPI application and Cisco Unified TSP. This layer, known as TAPISRV, allows the installation of multiple TSPs on the same machine, and it hides that fact from the Cisco Unified TAPI application. The only difference to the TAPI application is that it is now informed that there are more lines that it can control. Consider an example—assume that Cisco Unified TSP1 exposes 100 lines, and Cisco Unified TSP2 exposes 100 lines. In the single Cisco Unified TSP architecture where Cisco Unified TSP1 is the only Cisco Unified TSP that is installed, Cisco Unified TSP1 would tell TAPISRV that it supports 100 lines, and TAPISRV would tell the application that it can control 100 lines. In the multiple Cisco Unified TSP architecture, where both Cisco Unified TSPs are installed, this means that Cisco Unified TSP1 would tell TAPISRV that it supports 100 lines, and Cisco Unified TSP2 would tell TAPISRV that it supports 100 lines. TAPISRV would add the lines and inform the application that it now supports 200 lines. The application communicates with TAPISRV, and TAPISRV takes care of communicating with the correct Cisco Unified TSP. Ensure that each Cisco Unified TSP is configured with a different username and password that you administer in the Unified Communications Manager Directory. Configure each user in the Directory, so devices that are associated with each user do not overlap. Each Cisco Unified TSP in the multiple Cisco Unified TSP system does not communicate with the others. Each Cisco Unified TSP in the multiple Cisco Unified TSP system creates a separate CTI connection to the CTI Manager as shown in the following figure. Multiple Cisco Unified TSPs help in scalability and higher performance. Figure 3: Multiple Cisco Unified TSPs Connect to CTI Manager Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 20 Overview Monitoring Call Park Directory Numbers

Image 1 from page 52

Page 52 content

Page 53

CTI Device/Line Restriction With CTI Device/Line restriction implementation, a CTIRestricted flag is be placed on device or line basis. When a device is restricted, it assumes that all its configured lines are restricted. Cisco Unified TSP does not report any restricted devices and lines back to application. When a CTIRestricted flag is changed from Unified Communications Manager Administration, Cisco Unified TSP treats it as normal device/line add or removal. Development Guidelines Cisco maintains a policy of interface backward compatibility for at least one previous major release of Unified Communications Manager. Cisco still requires Cisco Technology Developer Program member applications to be retested and updated as necessary to maintain compatibility with each new major release of Unified Communications Manager. The following practices are recommended to all developers, including those in the Cisco Technology Developer Program, to reduce the number and extent of any updates that may be necessary: • The order of events and/or messages may change. Developers should not depend on the order of events or messages. For example, where a feature invocation involves two or more independent transactions, the events or messages may be interleaved. Events related to the second transaction may precede messages related to the first. Additionally, events or messages can be delayed due to situations beyond control of the interface (for example, network or transport failures). Applications should be able to recover from out of order events or messages, even when the order is required for protocol operation. • The order of elements within the interface event or message may change, within the constraints of the protocol specification. Developers must avoid unnecessary dependence on the order of elements to interpret information. • New interface events, methods, responses, headers, parameters, attributes, other elements, or new values of existing elements, may be introduced. Developers must disregard or provide generic treatments where necessary for any unknown elements or unknown values of known elements encountered. • Previous interface events, methods, responses, headers, parameters, attributes, and other elements, will remain, and will maintain their previous meaning and behavior to the extent possible and consistent with the need to correct defects. • Applications must not be dependent on interface behavior resulting from defects (behavior not consistent with published interface specifications) since the behavior can change when defect is fixed. • Use of deprecated methods, handlers, events, responses, headers, parameters, attributes, or other elements must be removed from applications as soon as possible to avoid issues when those deprecated items are removed from Unified Communications Manager. • Application Developers must be aware that not all new features and new supported devices (for example, phones) will be forward compatible. New features and devices may require application modifications to be compatible and/or to make use of the new features/devices. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 21 Overview CTI Device/Line Restriction

Page 53 content

Page 54

Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 22 Overview Development Guidelines

Page 54 content

Page 55

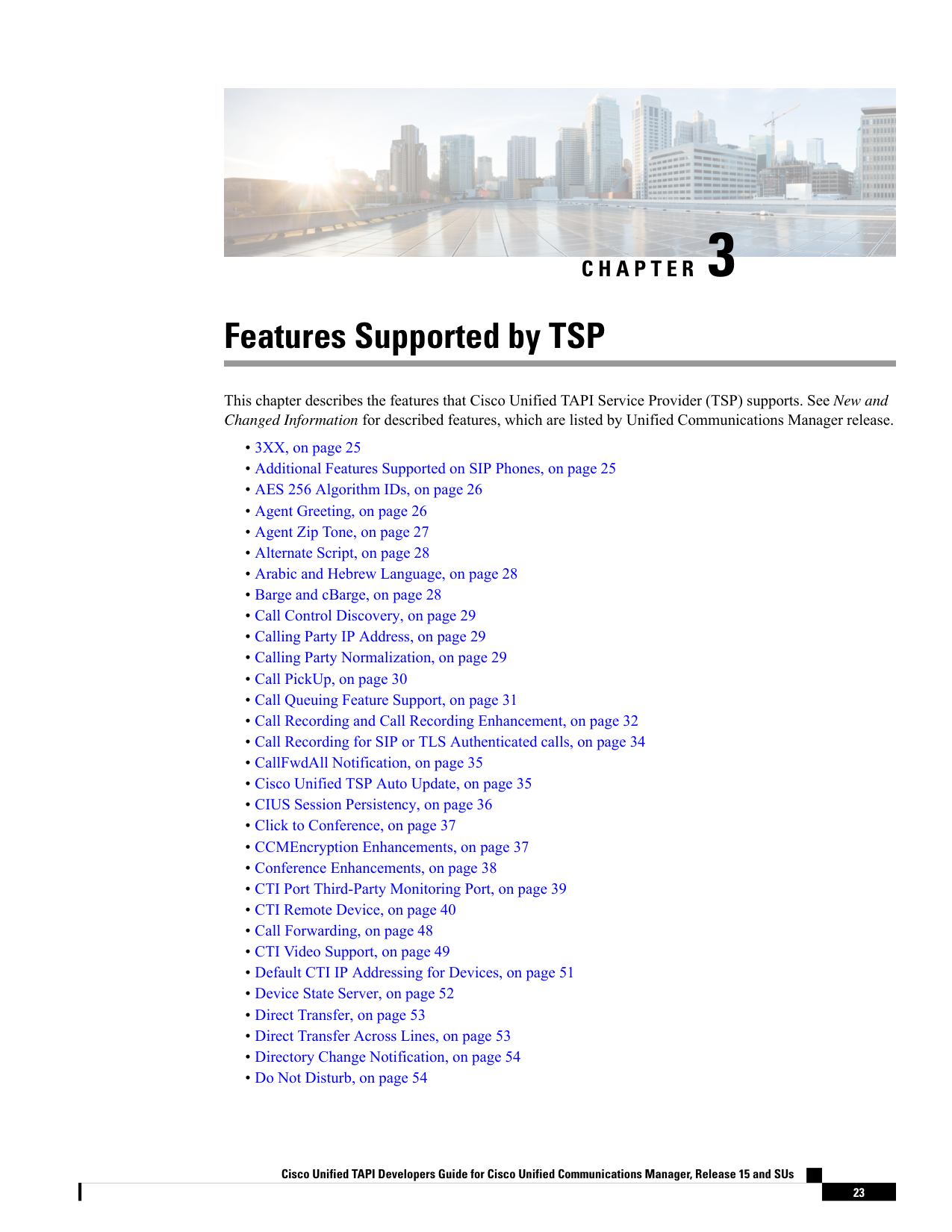

C H A P T E R 3 Features Supported by TSP This chapter describes the features that Cisco Unified TAPI Service Provider (TSP) supports. See New and Changed Information for described features, which are listed by Unified Communications Manager release. • 3XX, on page 25 • Additional Features Supported on SIP Phones, on page 25 • AES 256 Algorithm IDs, on page 26 • Agent Greeting, on page 26 • Agent Zip Tone, on page 27 • Alternate Script, on page 28 • Arabic and Hebrew Language, on page 28 • Barge and cBarge, on page 28 • Call Control Discovery, on page 29 • Calling Party IP Address, on page 29 • Calling Party Normalization, on page 29 • Call PickUp, on page 30 • Call Queuing Feature Support, on page 31 • Call Recording and Call Recording Enhancement, on page 32 • Call Recording for SIP or TLS Authenticated calls, on page 34 • CallFwdAll Notification, on page 35 • Cisco Unified TSP Auto Update, on page 35 • CIUS Session Persistency, on page 36 • Click to Conference, on page 37 • CCMEncryption Enhancements, on page 37 • Conference Enhancements, on page 38 • CTI Port Third-Party Monitoring Port, on page 39 • CTI Remote Device, on page 40 • Call Forwarding, on page 48 • CTI Video Support, on page 49 • Default CTI IP Addressing for Devices, on page 51 • Device State Server, on page 52 • Direct Transfer, on page 53 • Direct Transfer Across Lines, on page 53 • Directory Change Notification, on page 54 • Do Not Disturb, on page 54 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 23

Image 1 from page 55

Page 55 content

Page 56

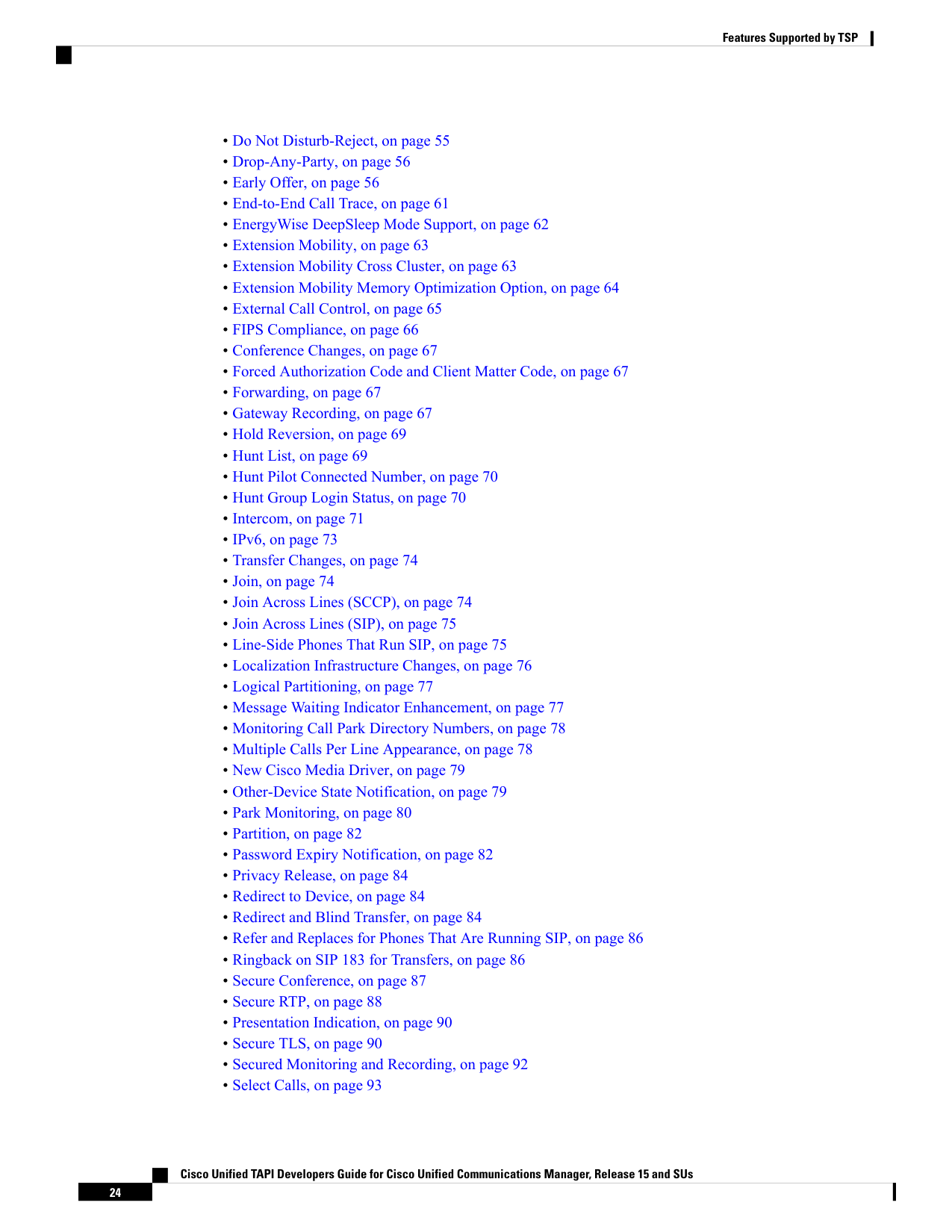

• Do Not Disturb-Reject, on page 55 • Drop-Any-Party, on page 56 • Early Offer, on page 56 • End-to-End Call Trace, on page 61 • EnergyWise DeepSleep Mode Support, on page 62 • Extension Mobility, on page 63 • Extension Mobility Cross Cluster, on page 63 • Extension Mobility Memory Optimization Option, on page 64 • External Call Control, on page 65 • FIPS Compliance, on page 66 • Conference Changes, on page 67 • Forced Authorization Code and Client Matter Code, on page 67 • Forwarding, on page 67 • Gateway Recording, on page 67 • Hold Reversion, on page 69 • Hunt List, on page 69 • Hunt Pilot Connected Number, on page 70 • Hunt Group Login Status, on page 70 • Intercom, on page 71 • IPv6, on page 73 • Transfer Changes, on page 74 • Join, on page 74 • Join Across Lines (SCCP), on page 74 • Join Across Lines (SIP), on page 75 • Line-Side Phones That Run SIP, on page 75 • Localization Infrastructure Changes, on page 76 • Logical Partitioning, on page 77 • Message Waiting Indicator Enhancement, on page 77 • Monitoring Call Park Directory Numbers, on page 78 • Multiple Calls Per Line Appearance, on page 78 • New Cisco Media Driver, on page 79 • Other-Device State Notification, on page 79 • Park Monitoring, on page 80 • Partition, on page 82 • Password Expiry Notification, on page 82 • Privacy Release, on page 84 • Redirect to Device, on page 84 • Redirect and Blind Transfer, on page 84 • Refer and Replaces for Phones That Are Running SIP, on page 86 • Ringback on SIP 183 for Transfers, on page 86 • Secure Conference, on page 87 • Secure RTP, on page 88 • Presentation Indication, on page 90 • Secure TLS, on page 90 • Secured Monitoring and Recording, on page 92 • Select Calls, on page 93 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 24 Features Supported by TSP

Page 56 content

Page 57

• Conference Changes, on page 93 • Transfer Changes, on page 93 • Set the Original Called Party Upon Redirect, on page 93 • Shared Line Appearance, on page 94 • Silent Install, on page 94 • Silent Monitoring, on page 94 • SIP URL Address, on page 95 • Presentation Indication, on page 96 • Change Notification of SuperProvider and CallPark DN Monitoring Flags, on page 96 • Super Provider, on page 96 • SuperProvider, on page 97 • Support for Cisco Unified IP Phone 6900 and 9900 Series, on page 97 • Support for 100 + Directory Numbers, on page 100 • Swap and Cancel Softkeys, on page 100 • Translation Pattern, on page 102 • Presentation Indication, on page 102 • Change Notification of SuperProvider and CallPark DN Monitoring Flags, on page 102 • Unicode, on page 102 • Unrestricted Unified CM, on page 102 • URI Dialing, on page 103 • Video On Hold Support, on page 104 • Whisper Coaching, on page 104 • XSI Object Pass Through, on page 107 3XX Cisco TSP maps the CTI reason code for 3XX to REDIRECT. When a call arrives on a monitored line due to 3XX feature, the call reason for the incoming call will get REDIRECT in this case. No interface change for TSP 3XX support. Backward Compatibility This feature is backward compatible. Additional Features Supported on SIP Phones Unified Communications Manager extends support for phones that are running SIP with these new features: • PhoneSetLamp (but only for setting the MWI lamp) • PhoneSetDisplay • PhoneDevSpecific (CPDST_SET_DEVICE_UNICODE_DISPLAY) • LineGenerateTone • Park and UnPark • The LINECALLREASON_REMINDER reason for CallPark reminder calls Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 25 Features Supported by TSP 3XX

Page 57 content

Page 58

• PhoneGetDisplay (but only after a PhoneSetDisplay) TSP does not pass unicode name for phones that are running SIP. AES 256 Algorithm IDs From release 10.5(2) Cisco Unified Communications Manager has updated its list of supported encryption algorithm IDs. CiscoTSP has also updated its list of SRTP AlgorithmIDs. The new CiscoSRTPAlgorithm IDs added to CiscoLineDevSpecificMsg.h are: • SRTP_AES_CM_128_HMAC_SHA1_80 • SRTP_F8_128_HMAC_SHA1_32 • SRTP_F8_128_HMAC_SHA1_80 • SRTP_AEAD_AES_128_GCM • SRTP_AEAD_AES_256_GCM The SRTP_AEAD_128_GCM and SRTP_AEAD_AES_256_GCM will be negotiated only for secure calls between two SIP endpoints. CTI Ports can register with the above mentioned algorithm IDs, but will negotiate only on the existing SRTP_AEAD_128_COUNTER for a secure call. Agent Greeting Agent Greeting allows a CTI application (for example, the Contact Center) to instruct Unified Communications Manager to automatically play a pre-recorded announcement to the customer immediately after a successful media connection to the agent device. Applications are responsible for answering this call and playing greeting (for example, “Thank you for calling Citibank Visa. My name is Joe. May I have your account number please.”). The agent and customer can hear the agent greeting and the agent can remain on mute until the greeting ends or talk to the customer before the greeting ends. To support the Agent Greeting feature, Cisco Unified TSP introduces a new CCiscoLineDevSpecific extension to initiate and stop Agent Greeting. To handle agent greetings during the customer calls: • CCiscoLineDevSpecificStartSendMediaToBIBRequest allows the application to initiate an agent greeting to the customer call. The request contains IVRDN and CGPNToIVR. • CCiscoLineDevSpecificStopSendMediaToBIBRequest allows the application to stop an agent greeting. This request is placed on the line where the agent greeting is currently playing and no other parameter is required. • When an agent greeting is initiated or stopped, Cisco Unified TSP sends LineCallDevSpecific (SLDSMT_MEDIA_TO_BIB_STARTED) or LineCallDevSpecific (SLDSMT_MEDIA_TO_BIB_ENDED) to application. • In the case of an agent greeting ended event, param2 indicates if the agent greeting was played successfully. • If the application opens another line while an agent greeting is currently playing to the agent-to-customer call, Cisco Unified TSP exposes SendMediaToBIB bitmap in CallAttributeBits bitmap of Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 26 Features Supported by TSP AES 256 Algorithm IDs

Page 58 content

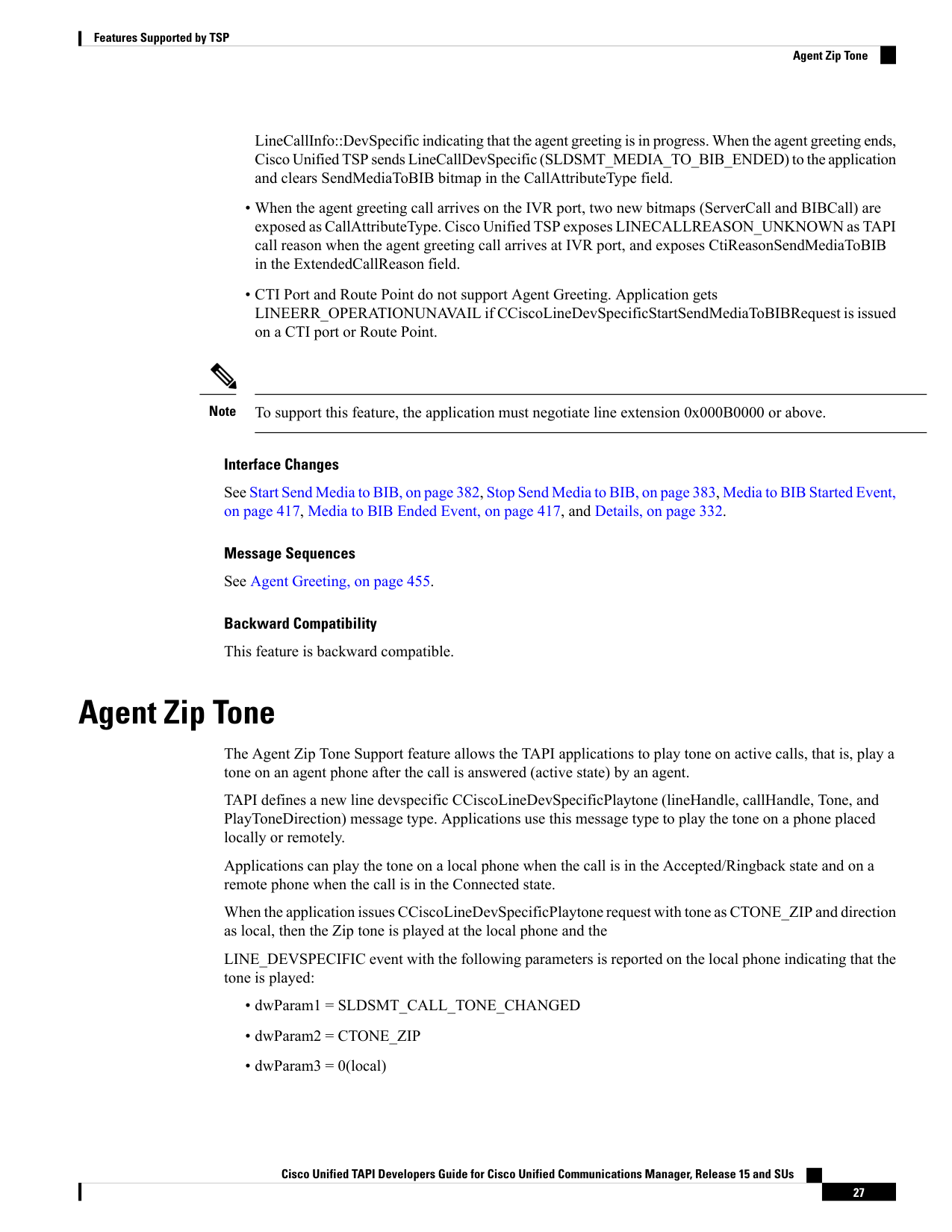

Page 59

LineCallInfo::DevSpecific indicating that the agent greeting is in progress. When the agent greeting ends, Cisco Unified TSP sends LineCallDevSpecific (SLDSMT_MEDIA_TO_BIB_ENDED) to the application and clears SendMediaToBIB bitmap in the CallAttributeType field. • When the agent greeting call arrives on the IVR port, two new bitmaps (ServerCall and BIBCall) are exposed as CallAttributeType. Cisco Unified TSP exposes LINECALLREASON_UNKNOWN as TAPI call reason when the agent greeting call arrives at IVR port, and exposes CtiReasonSendMediaToBIB in the ExtendedCallReason field. • CTI Port and Route Point do not support Agent Greeting. Application gets LINEERR_OPERATIONUNAVAIL if CCiscoLineDevSpecificStartSendMediaToBIBRequest is issued on a CTI port or Route Point. To support this feature, the application must negotiate line extension 0x000B0000 or above. Note Interface Changes See Start Send Media to BIB, on page 382, Stop Send Media to BIB, on page 383, Media to BIB Started Event, on page 417, Media to BIB Ended Event, on page 417, and Details, on page 332. Message Sequences See Agent Greeting, on page 455. Backward Compatibility This feature is backward compatible. Agent Zip Tone The Agent Zip Tone Support feature allows the TAPI applications to play tone on active calls, that is, play a tone on an agent phone after the call is answered (active state) by an agent. TAPI defines a new line devspecific CCiscoLineDevSpecificPlaytone (lineHandle, callHandle, Tone, and PlayToneDirection) message type. Applications use this message type to play the tone on a phone placed locally or remotely. Applications can play the tone on a local phone when the call is in the Accepted/Ringback state and on a remote phone when the call is in the Connected state. When the application issues CCiscoLineDevSpecificPlaytone request with tone as CTONE_ZIP and direction as local, then the Zip tone is played at the local phone and the LINE_DEVSPECIFIC event with the following parameters is reported on the local phone indicating that the tone is played: • dwParam1 = SLDSMT_CALL_TONE_CHANGED • dwParam2 = CTONE_ZIP • dwParam3 = 0(local) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 27 Features Supported by TSP Agent Zip Tone

Image 1 from page 59

Page 59 content

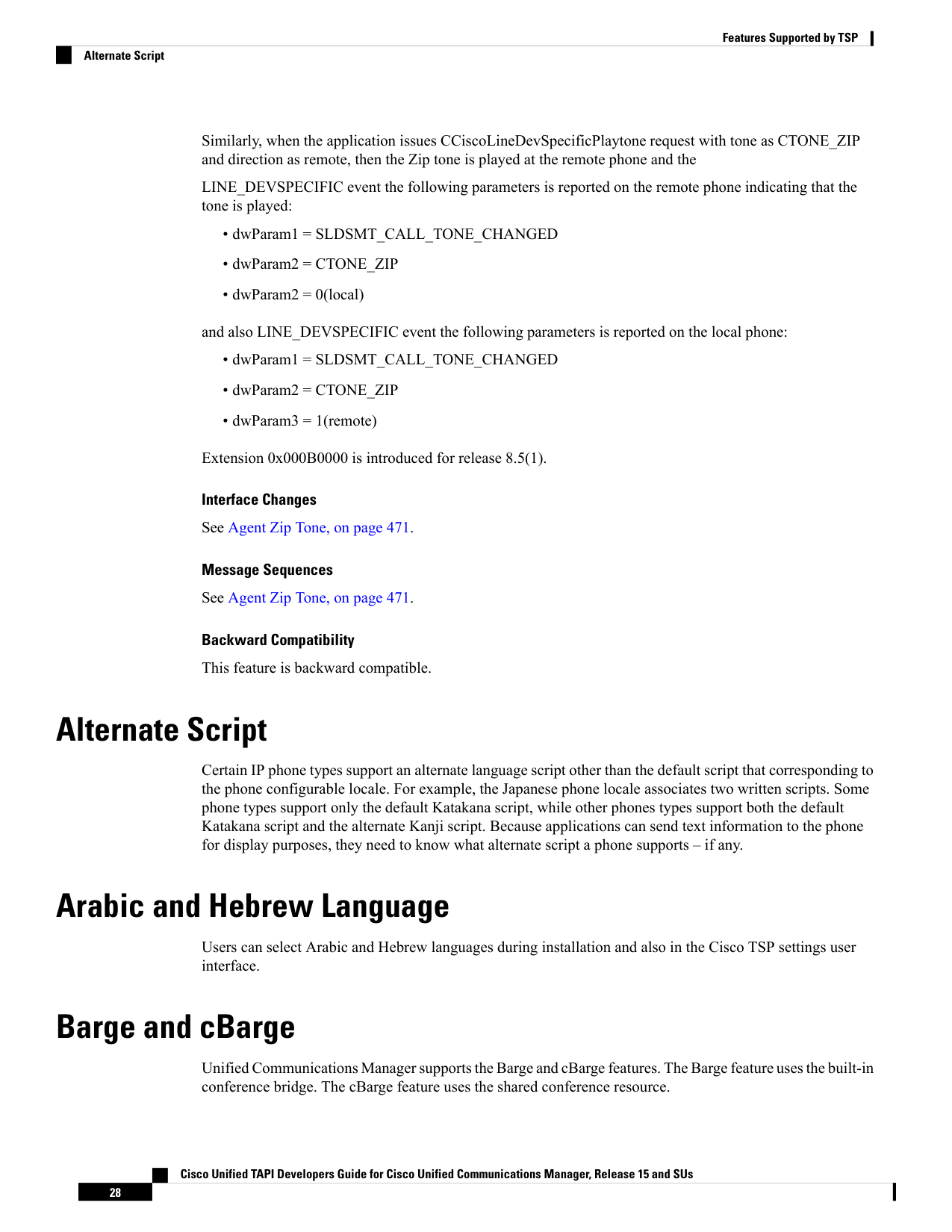

Page 60

Similarly, when the application issues CCiscoLineDevSpecificPlaytone request with tone as CTONE_ZIP and direction as remote, then the Zip tone is played at the remote phone and the LINE_DEVSPECIFIC event the following parameters is reported on the remote phone indicating that the tone is played: • dwParam1 = SLDSMT_CALL_TONE_CHANGED • dwParam2 = CTONE_ZIP • dwParam2 = 0(local) and also LINE_DEVSPECIFIC event the following parameters is reported on the local phone: • dwParam1 = SLDSMT_CALL_TONE_CHANGED • dwParam2 = CTONE_ZIP • dwParam3 = 1(remote) Extension 0x000B0000 is introduced for release 8.5(1). Interface Changes See Agent Zip Tone, on page 471. Message Sequences See Agent Zip Tone, on page 471. Backward Compatibility This feature is backward compatible. Alternate Script Certain IP phone types support an alternate language script other than the default script that corresponding to the phone configurable locale. For example, the Japanese phone locale associates two written scripts. Some phone types support only the default Katakana script, while other phones types support both the default Katakana script and the alternate Kanji script. Because applications can send text information to the phone for display purposes, they need to know what alternate script a phone supports – if any. Arabic and Hebrew Language Users can select Arabic and Hebrew languages during installation and also in the Cisco TSP settings user interface. Barge and cBarge Unified Communications Manager supports the Barge and cBarge features. The Barge feature uses the built-in conference bridge. The cBarge feature uses the shared conference resource. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 28 Features Supported by TSP Alternate Script

Page 60 content

Page 61

Cisco Unified TSP supports the events that are caused by the invocation of the Barge and cBarge features. It does not support invoking either Barge or cBarge through an API of Cisco Unified TSP. Call Control Discovery The Call Control Discovery feature facilitates provisioning for inter-call agent communications. It uses the Service Advertisement Framework (SAF) network service to advertise itself as a call control entity and to discover other call control entities (CUCMs or CMEs) on the network so that it can dynamically adapt their routing behavior. When call is made between two devices on different clusters, and the ICT bandwidth doesn't allow the call to go through, the CCD feature will fail over the call through a PSTN trunk to reach the same destination. PSTN failover will also be triggered by the CCDRequestingService when the call to a learned Hosted DNPattern gets rejected with a cause code other than unallocated, unassigned number and user busy TAPI shall pass the CtiReasonSAF_CCD_PSTNFailover in the existing ExtendedCallReason field of the devSpecific portion of lineCallInfo. Since TAPI requires the TAPI call reason field to be set only once, the TAPI call reason shall remain as LINECALLREASON_DIRECT. Interface Changes There are no interface changes. Message Sequences See Call Control Discovery, on page 481 Backward Compatibility This feature is backward compatible. Calling Party IP Address The Calling Party IP Address feature provides the IP address of the calling party. The calling party device, which must be supported, must be an IP phone. The IP address is provided to applications in the devspecific data of LINECALLINFO. A value of zero (0) indicates that the information in not available. The enhancement provides the IP address to the destination side of basic calls, consultation calls for transfer and conference, and basic redirect and forwarding. If the calling party changes, no support is provided. Message Sequence See Calling Party IP Address, on page 499. Calling Party Normalization Prior to the Unified Communication Manager Release 7.0(1), the “+” symbol was not supported. Also, no support existed for displaying the localized or global number of the caller to the called party on its alerting display and the entry into its call directories for supporting a callback without the need of an EditDial. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 29 Features Supported by TSP Call Control Discovery

Page 61 content

Page 62

Unified Communications Manager Release 7.0(1) adds support for “+” symbol and also the calling number is globalized and passed to the application. This enables the end user to dial back without using EditDial. Along with the globalized calling party, the user would also get the number type of the calling party. This would help the user to know where the call originated, that is, whether it is a SUBSCRIBER, NATIONAL or INTERNATIONAL number. Interface Changes See LINECALLINFO, on page 324. Message Sequences See Calling Party Normalization, on page 500. Backward Compatibility This feature is backward compatible. Call PickUp Call Pickup enables TAPI applications to invoke pickup, group-pickup, other-pickup, and directed pickup features from the application. Apart from providing the API to invoke Call PickUp feature, application registers Call pickup groups for alert notification, whenever a call is available for pickup. There will not be any notification if the call is picked up and the alerting stops. Whenever there is a new call on the Pickup Group, TAPI fires a LINE_APPNEWCALL event followed by a LINE_CALLSTATE with a LINECALLSTATE_UNKNOWN | CLDSMT_CALL_PICKUP_STATE. TAPI provides the pickup group Direct Number or Partition for the line in the devSpecific data of LINEDEVCAPS when LineGetDevCaps API is invoked with Extension version 0x000A0000 or higher. New LineType is added for this feature, which is exposed to Application in Devspecific part of LINEDEVCAPS for the Pickup Line. #define LINEDEVCAPSDEVSPECIFIC_PICKUPDN 0x00000004 New extension 0x000A0000 must be negotiated to use the new APIs. Range of Permanent Line ID for the Pickup Line is between MAX_PICKUP_PERMID and MIN_PICKUP_PERMID. const DWORD MAX_PICKUP_PERMID = 0xFFFFFFFF; const DWORD MIN_PICKUP_PERMID = 0xFF000000; New Call State Callpickup State is added for this feature #define CLDSMT_CALL_PICKUP_STATE 0x10000000 Interface Changes See RegisterCallPickUpGroupForNotification, on page 380, UnRegisterCallPickUpGroupForNotification, on page 381, and CallPickUpRequest, on page 381. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 30 Features Supported by TSP Call PickUp

Page 62 content

Page 63

Message Sequences See Call PickUp, on page 503 Backward Compatibility This feature is backward compatible. Call Queuing Feature Support Unified Communications Manager queuing feature provides the ability to hold callers in a queue if there are more calls distributed through the call distribution feature than it can handle at any given time until the hunt members are available to answer them. While a call is in queue, the user is given the initial greeting announcement, music on hold, repeated announcements and so on. TAPI exposes the below call reasons for the respective conditions in extendedCallInfo in the DevSpecific part of the LINECALLINFO structure. • CallQueue {45 (0x2D)} CallQueue call reason is exposed on the calling party call when the call is queued when all HuntMembers of the HuntGroup are busy • CallDeQueue {46 (0x2E)} CallDeQueue call reason is exposed on the connected party call when the dequeued-call is offered on the available Huntmember or any other DN which has been configured in the Queuing feature if no Huntmember is available • CallDeQueueTimerExpired {47 (0x2F)} CallDeQueueTimerExpired call reason is exposed on the connected party call when the queued-call timer expires and the call is offered on the DN which has been configured in the Queuing feature when the "Maximum wait time in Queue" expires • CallDeQueueAgentsBusy {48 (0x30)} CallDeQueueAgentsBusy call reason is exposed on the connected party call when all the hunt members are busy and hence the call is never queued and directly offered on the DN which has been configured in the Queuing feature when "Maximum Number of callers allowed in Queue" is reached • CallDeQueueAgentsUnavailable {49 (0x31)} CallDeQueueAgentsUnavailable call reason is exposed on the connected party call when no hunt member is either logged-in or registered and the call is offered on the DN which has been configured in the Queuing feature when "No hunt members are Logged-in or registered" TAPI shall not expose the ConnectedHuntPilotDN in the devspecific part of LINECALLINFO, on the calling party when the call is queued. The connectedHuntPilotDN is updated when the de-queued call offered on one of the hunt members is answered and goes to connected state. The following Call queue setting configurations are available in the Hunt Pilot Configuration page. Maximum Number of Callers Allowed in Queue (1-100): This is the queue depth configuration and reflects the maximum number calls that can be in the queue at any point of time. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 31 Features Supported by TSP Call Queuing Feature Support

Page 63 content

Page 64

Destination When Queue is full: It is the user configurable destination number to which the calls are forwarded when the maximum number of calls allowed in queue limit is reached. Maximum Wait Time in Queue (10 -3600 seconds): User configurable maximum wait time a call on be in the queue. Destination When Maximum Wait Time is Met: User configurable destination DN to which the call is forwarded when the maximum wait time in queue is reached. Destination When There Are No Agents Logged In or Registered: User configurable destination DN to which the queue feature forwards the calls when none of the hunt members in the HuntPilot are registered or logged in. Interface Changes Not applicable. Message Sequences See Call Queuing, on page 510. Backward Compatibility This feature is not backward compatible. Call Recording and Call Recording Enhancement The Call Recording feature provides two ways of recording the conversations between the agent and the customer: automatic call recording and selective call recording. A line appearance configuration determines which mode is enabled. Administrators can configure no recording, automatic recording of all calls, or selective recording for a line appearance. In selective call recording, recording can be initiated using a softkey or programmable line key assigned to the device, a CTI-enabled application, or both interchangeably. Selective recording supports two modes: silent recording and user recording. In the silent recording mode, the call recording status is not reflected on the Cisco IP device display. Silent recording is typically used in a call center environment to enable a supervisor to record an agent call. A CTI-enabled application running on the supervisor desktop is generally used to start and stop the recording for the agent-customer call. In the user recording mode, the call recording status is reflected on the Cisco IP device display. A recording may be started or stopped using a softkey, programmable line key, or CTI-enabled application running on the user desktop. The recording configuration on a line appearance cannot be overridden by an application. TSP will report ‘Recording type’ information to app in devSpecificData of LineDevCaps structure. Whenever there is a change in ‘Recording Type’, TSP will send LINE_DEVSPECIFIC (SLDSMT_LINE_PROPERTY_CHANGED with indication of LPCT_RECORDING_TYPE) event to application. If the automatic call recording is enabled, a recording session will be triggered whenever a call is received or initiated from the line appearance. When the application invoked call recording is enabled, application can start a recording session by using CCiscoLineDevSpecificStartCallRecording (SLDST_START_CALL_RECORDING) on the call after it becomes active. The selective recording can occur in the middle of the call, whereas the automatic recording always starts at the beginning of the call. The Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 32 Features Supported by TSP Call Recording and Call Recording Enhancement

Page 64 content

Page 65

recorder is configured in CallManager as a SIP trunk device. Recorder DN can not be overridden by an application. TSP will provide start recording request in lineDevSpecific to app for establishing a recording session. Application need to provide toneDirection as input to TSP in the start recording request. The result of the recording session is that the two media streams of the recorded call (agent-customer call) is being relayed from agent’s phone to the recorder. TSP will provide agent’s CCM Call Handle in the devSpecificData of LINECALLINFO. TSP will inform the application when recording starts on its call by sending LINE_CALLDEVSPECIFIC (SLDSMT_RECORDING_STARTED) event. TSP will provide recording call attribute information (deviceName, DN, Partition) in devspecific data of LINECALLINFO after recording starts. The recording session will be terminated when the call is ended or if app sends stop recording request to TSP through lineDevSpecific – CciscoLineDevSpecificStopCallRecording (SLDST_STOP_CALL_RECORDING).TSP will inform agent by sending LINE_CALLDEVSPECIFIC (SLDSMT_RECORDING_ENDED) when recording is stopped by stop recording request. Both recording and monitoring get supported only for IP phones/CTI supported phones that are running SIP and within one cluster. It can be invoked only on phones that support built in bridges. Also built in bridge should be turned on to monitor or record calls on a device. Monitoring party does not need to have a BIB configured. Recording and monitoring will not be supported for secure calls in this phase. Call Attributes Call Attributes can be found in the DEVSPECIFIC portion of the LINECALLINFO structure. The Call Attribute Info is presented in the format of an array because Silent Monitoring and Call Recording could happen at the same time. DWORD CallAttrtibuteInfoOffset; DWORD CallAttrtibuteInfoSize; DWORD CallAttrtibuteInfoElementCount; DWORD CallAttrtibuteInfoElementFixedSize; Offset pointing to array of the following structure: typedef struct CallAttributeInfo{ DWORD CallAttributeType; DWORD PartyDNOffset; DWORD PartyDNSize; DWORD PartyPartitionOffset; DWORD PartyPartitionSize; DWORD DeviceNameOffset; DWORD DeviceNameSize; }CallAttributeInfo; enum CallAttributeType { CallAttribute_Regular = 0, CallAttribute_SilentMonitorCall, CallAttribute_SilentMonitorCall_Target, CallAttribute_RecordedCall, CallAttribute_WhisperCoachingCall, CallAttribute_WhisperCoachingCall_Target, CallAttribute_Recorded_Automatic, CallAttribute_Recorded_AppInitiatedSilent, Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 33 Features Supported by TSP Call Recording and Call Recording Enhancement

Page 65 content

Page 66

CallAttribute_Recorded_UserInitiatedFromApp, CallAttribute_Recorded_UserInitiatedFromDevice } ; For recorded calls, if the application negotiates an extension less than 0x000C0000 the CallAttributeType is set to CallAttribute_RecordedCall. If the application negotiates an extension version equal to 0x000C0000 or higher, the CallAttributeType is set to CallAttribute_Recorded_Automatic, CallAttribute_Recorded_AppInitiatedSilent, CallAttribute_Recorded_UserInitiatedFromApp, or CallAttribute_Recorded_UserInitiatedFromDevice. Call Recording Enhancement Unified Communications Manager Release 9.0 the Call Recording feature is enhanced to allow user to start/stop current active call recording by pressing softkey on IP phone. Record key toggles between start and stop modes. When TAPI Application invokes Recording Start / Stop APIs it has the same effect as if the user pressed the Record key on his IP phone. In addition, applications can control whether or not the phone display indication of on-going recording. The data types that are used by Cisco TSP to report recording configuration and recording type to TAPI applications are re-worked in order to reflect the recent changes in UCM. Interface Changes • LineDevCaps::DevSpecific change (Cisco Extention 0x000C0000) LINEDEVCAPS, on page 252 • LineCallInfo::DevSpecific change (Cisco Extention 0x000C0000) LINECALLINFO, on page 324 • CciscoLineDevSpecificStartCallRecording Start Call Recording, on page 375 • CciscoLineDevSpecificStopCallRecording StopCall Recording, on page 376 Message Sequence There are no changes to the message sequence with this enhancement. Backward Compatability This feature is backward compatible. Call Recording for SIP or TLS Authenticated calls Prior to 12.5.1 version, the phones which are authenticated (phone with Security profile having Device Security Mode as Authenticated) were not allowed to make use of the Call Recording feature. Whereas, Non–Secured phones or Secured/ Encrypted phones could use Call Recording feature with Non- Secured or Secured recorders, respectively. With the release 12.5.1, Cisco UCM TAPI interface has been enhanced to allow recording in Authenticated Phones based on the value of the new service parameter Authenticated Phone Recording. The expectation is that the authenticated phones should also be allowed to make use of the Call Recording feature. It depends on value set in the newly added service parameter Authenticated Phone Recording which can be set to the following values: • Allow Recording – Authenticated Phones can be allowed to record the calls. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 34 Features Supported by TSP Call Recording for SIP or TLS Authenticated calls

Page 66 content

Page 67

• Do Not Allow Recording – Authenticated Phones cannot make use of Call Recording feature. This will be the default value for the service parameter. The behavior would be the same as that of the current behavior. Message Sequences Call Recording for SIP or TLS Authenticated calls, on page 541 Backward Compatibility This feature is backward compatible. TAPI will support the current API’s. CallFwdAll Notification This enhancement allows TAPI applications to distinguish off-hook calls (outgoing calls) from calls made by using the CFwdAll softkey. TAPI provide two new additional mask bits in the existing bitmask, CallAttributeBitMask, as a part of LINECALLINFO::DEVSPECIFIC. For normal outgoing calls, the new mask is set to 0 and if a call is generated due to CFwdAll activation or deactivation, the corresponding new bit is set to 1. Cases where the user presses CFwdAll softkey for an on-hook device are addressed, but when users go off-hook first and then press CFwdAll softkey, are not covered. Interface Changes In the CallAttributeBitMask field, LINECALLINFO::DEVSPECIFIC is modified to include the two new bit masks, TSPCallAttribute_CallForwardAllSet and TSPCallAttribute_CallForwardAllClear. For more information, see Details, on page 332. Message Sequences See CallFwdAll Notification, on page 495. Backward Compatibility This feature is backward compatible. Cisco Unified TSP Auto Update Cisco Unified TSP supports auto update functionality, so the latest plug-in can be downloaded and installed on a client machine. Be aware that the new plug-in will be QBE compatible with the connected CTIManager. When the Unified Communications Manager is upgraded to a newer version, and Cisco Unified TSP auto update functionality is enabled, the user will receive the latest compatible Cisco Unified TSP, which will work with the upgraded Unified Communications Manager. This ensures that the applications work as expected with the new release (provided the new Cisco Unified Communications Manager interface is backward compatible with the TAPI interface). The locally installed Cisco Unified TSP on the client machine allows applications to set the auto update options as part of the Cisco Unified TSP configuration. The user can opt for updating Cisco Unified TSP in the following different ways: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 35 Features Supported by TSP CallFwdAll Notification

Page 67 content

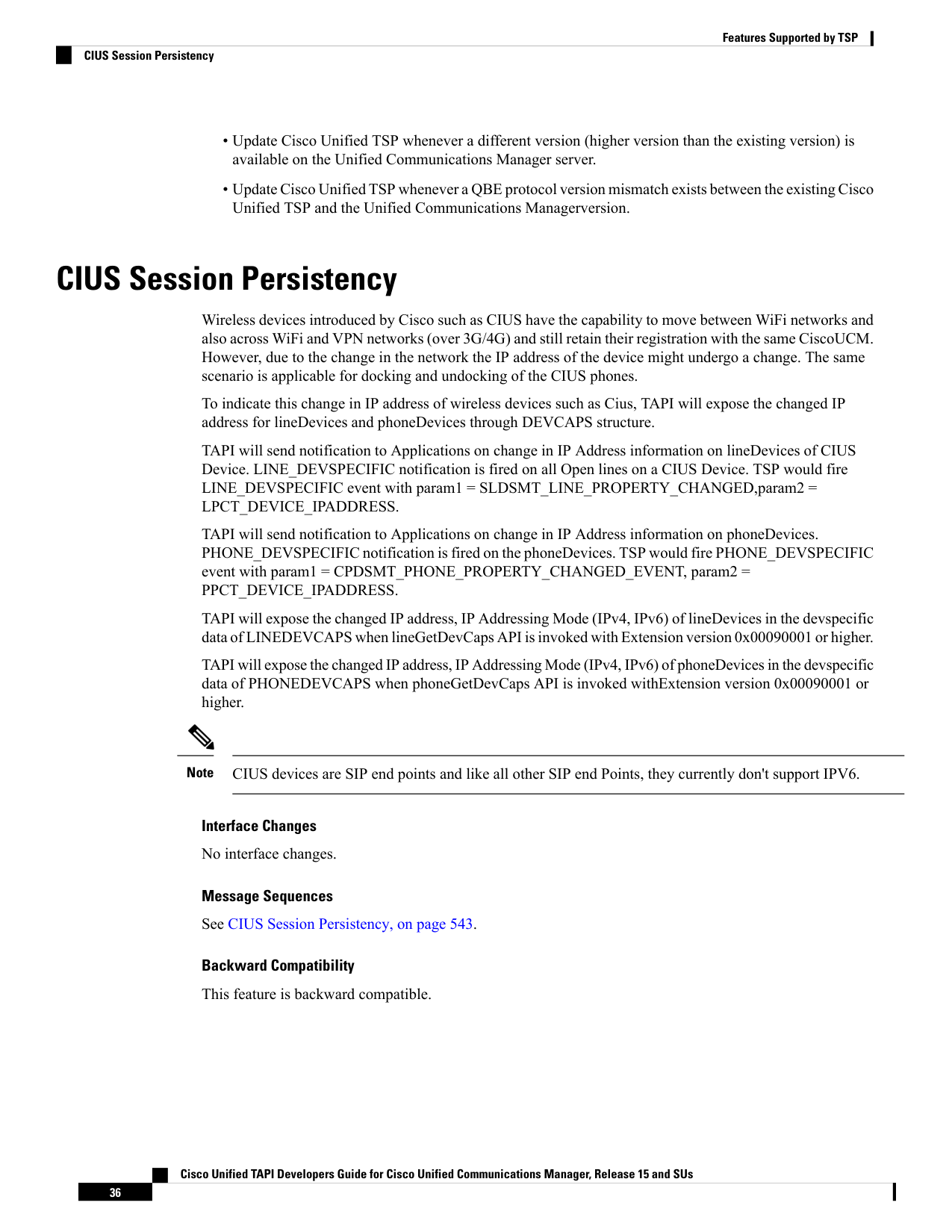

Page 68

• Update Cisco Unified TSP whenever a different version (higher version than the existing version) is available on the Unified Communications Manager server. • Update Cisco Unified TSP whenever a QBE protocol version mismatch exists between the existing Cisco Unified TSP and the Unified Communications Managerversion. CIUS Session Persistency Wireless devices introduced by Cisco such as CIUS have the capability to move between WiFi networks and also across WiFi and VPN networks (over 3G/4G) and still retain their registration with the same CiscoUCM. However, due to the change in the network the IP address of the device might undergo a change. The same scenario is applicable for docking and undocking of the CIUS phones. To indicate this change in IP address of wireless devices such as Cius, TAPI will expose the changed IP address for lineDevices and phoneDevices through DEVCAPS structure. TAPI will send notification to Applications on change in IP Address information on lineDevices of CIUS Device. LINE_DEVSPECIFIC notification is fired on all Open lines on a CIUS Device. TSP would fire LINE_DEVSPECIFIC event with param1 = SLDSMT_LINE_PROPERTY_CHANGED,param2 = LPCT_DEVICE_IPADDRESS. TAPI will send notification to Applications on change in IP Address information on phoneDevices. PHONE_DEVSPECIFIC notification is fired on the phoneDevices. TSP would fire PHONE_DEVSPECIFIC event with param1 = CPDSMT_PHONE_PROPERTY_CHANGED_EVENT, param2 = PPCT_DEVICE_IPADDRESS. TAPI will expose the changed IP address, IP Addressing Mode (IPv4, IPv6) of lineDevices in the devspecific data of LINEDEVCAPS when lineGetDevCaps API is invoked with Extension version 0x00090001 or higher. TAPI will expose the changed IP address, IP Addressing Mode (IPv4, IPv6) of phoneDevices in the devspecific data of PHONEDEVCAPS when phoneGetDevCaps API is invoked withExtension version 0x00090001 or higher. CIUS devices are SIP end points and like all other SIP end Points, they currently don't support IPV6. Note Interface Changes No interface changes. Message Sequences See CIUS Session Persistency, on page 543. Backward Compatibility This feature is backward compatible. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 36 Features Supported by TSP CIUS Session Persistency

Image 1 from page 68

Page 68 content

Page 69

Click to Conference The Click to Conference feature enables users to create conferences from an Instant Messaging (IM) application without creating a consult call first. The Cisco TSP treats the feature as an existing conference model; however, when the conference is created or dropped, the CtiExtendedReason may come as Click2Conference. Interface Changes None. Message Sequences See Click to Conference, on page 546. Backward Compatibility This feature is backward compatible. CCMEncryption Enhancements Starting with release Unified Communications Manager 10.0(1), Encryption method, which is used to encrypt the user login password, is enhanced. Older CiscoTSP clients (9.x or earlier) use Symmetric Key Encryption. Starting with rlease 10.x, the CiscoTSP client is enhanced to use a combination of Asymmetric and Symmetric Encryption mechanism. This enhancement provides more security for user credentials in non-secured connections. Cisco recommends that applications/users upgrade Cisco TAPI clients to take advantage of this security enhancement. To maintain backward compatibility from CTI, a new CTI Service Parameter is introduced - Require Public key Encryption. The default value for this Service Parameter for this Release is False. On False: CTI/CUCM allows applications/CiscoTSP clients using symmetric encryption method and Asymmetric Public key encryption method to connect with CUCM. On True: Only CiscoTSP clients/applications which use asymmetric PublicKey Encryption Method will be able to open provider with Unified Communications Manager 10.x. Cisco recommends that applications upgrade Cisco TAPI clients and set this service parameter to "true". The proposed plan for future releases is to set default value as true for this service parameter and later deprecate it to ensure that applications do not use older CiscoTSP Clients which use Symmetric Encryption method. Interface Changes There are no interface changes for this feature. Message Sequence CCMEncryption Enhancements, on page 542 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 37 Features Supported by TSP Click to Conference

Page 69 content

Page 70

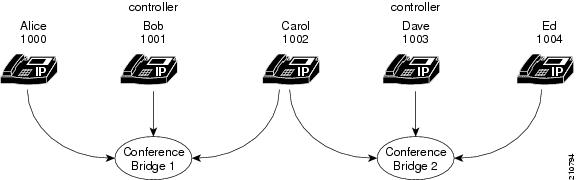

Backward Compatibility As mentioned above, new CTI Service parameter is added to maintain backward compatibility. Conference Enhancements The Conference feature of Unified Communication Manager has been enhanced with the following functions: • Allowing a noncontroller to add another party into an ad hoc conference. Applications can issue the lineGetCallStatus against a CONNECTED call of a noncontroller conference participant and check the dwCallFeatures before adding another party into the conference. The application should have the PREPAREADDCONF feature in the dwCallFeatures list if the participant is allowed to add another party. • Allowing multiple conferences to be chained. Be aware that these features are only available if the 'Advanced Ad-hoc Conference' service parameter is enabled on the Unified Communications Manager. When this service parameter is changed from enabled to disabled, the system no longer allows new chaining between ad hoc conferences. However, existing chained conferences will stay intact. Any participant who is brought into the ad hoc conference by a noncontroller before this change will remain in the conference, but they can no longer add a new participant or remove an existing participant. To avoid ad hoc conference resources remaining connected together after all real participants have left, Unified Communications Manager will disallow having more than two conference resources connected to the same ad hoc conference. However, using a star topology to connect multiple conferences could yield better voice quality than a linear topology. A new advanced service parameter, 'Non-linear Ad Hoc Conference Linking Enabled', lets an administrator select the star topology. A participant can use the conference, transfer, or join commands to chain two conferences together. When two conferences are chained together, each participant only sees the participants from their own conference, and the chained conference appears as a participant with a unique conference bridge name. In other words, participants do not have a full view of the chained conference. The system treats the conferences as two separate conferences, even though all the participants are talking to each other. The following figures shows how TSP presents a conference model in the case of conference chaining. A, B, and C are in conference-1, and C, D, and E are in conference-2. C has an ONHOLD call on conference-1 and an active call on conference-2. Figure 4: Conference Before Join C then does a join with the primary call from conference-1. For A, B, and C, the conference participants comprise A, B, C, and conference-2. For D and E, the conference participants comprise D, E, and conference-1. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 38 Features Supported by TSP Conference Enhancements

Image 1 from page 70

Page 70 content

Page 71

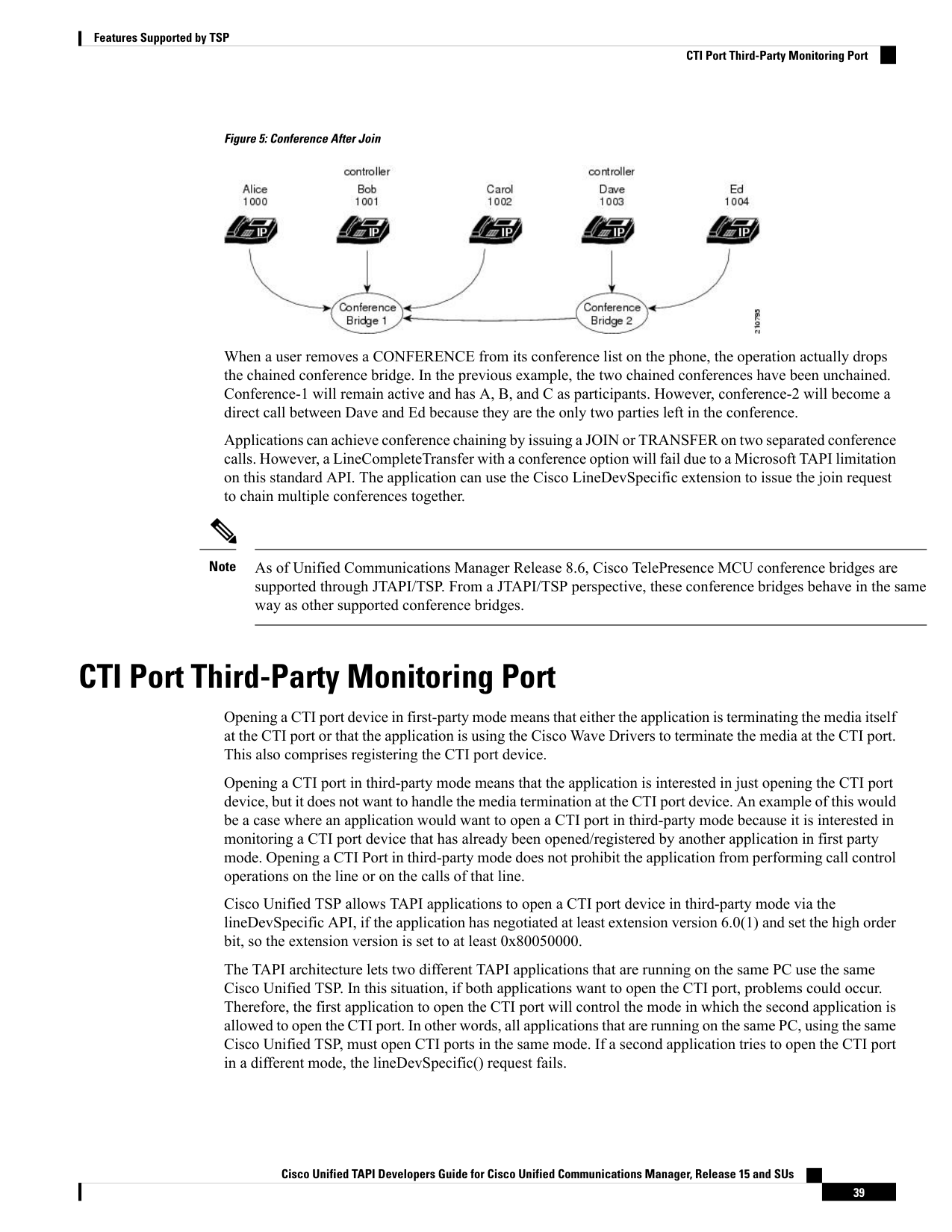

Figure 5: Conference After Join When a user removes a CONFERENCE from its conference list on the phone, the operation actually drops the chained conference bridge. In the previous example, the two chained conferences have been unchained. Conference-1 will remain active and has A, B, and C as participants. However, conference-2 will become a direct call between Dave and Ed because they are the only two parties left in the conference. Applications can achieve conference chaining by issuing a JOIN or TRANSFER on two separated conference calls. However, a LineCompleteTransfer with a conference option will fail due to a Microsoft TAPI limitation on this standard API. The application can use the Cisco LineDevSpecific extension to issue the join request to chain multiple conferences together. As of Unified Communications Manager Release 8.6, Cisco TelePresence MCU conference bridges are supported through JTAPI/TSP. From a JTAPI/TSP perspective, these conference bridges behave in the same way as other supported conference bridges. Note CTI Port Third-Party Monitoring Port Opening a CTI port device in first-party mode means that either the application is terminating the media itself at the CTI port or that the application is using the Cisco Wave Drivers to terminate the media at the CTI port. This also comprises registering the CTI port device. Opening a CTI port in third-party mode means that the application is interested in just opening the CTI port device, but it does not want to handle the media termination at the CTI port device. An example of this would be a case where an application would want to open a CTI port in third-party mode because it is interested in monitoring a CTI port device that has already been opened/registered by another application in first party mode. Opening a CTI Port in third-party mode does not prohibit the application from performing call control operations on the line or on the calls of that line. Cisco Unified TSP allows TAPI applications to open a CTI port device in third-party mode via the lineDevSpecific API, if the application has negotiated at least extension version 6.0(1) and set the high order bit, so the extension version is set to at least 0x80050000. The TAPI architecture lets two different TAPI applications that are running on the same PC use the same Cisco Unified TSP. In this situation, if both applications want to open the CTI port, problems could occur. Therefore, the first application to open the CTI port will control the mode in which the second application is allowed to open the CTI port. In other words, all applications that are running on the same PC, using the same Cisco Unified TSP, must open CTI ports in the same mode. If a second application tries to open the CTI port in a different mode, the lineDevSpecific() request fails. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 39 Features Supported by TSP CTI Port Third-Party Monitoring Port

Image 1 from page 71

Image 2 from page 71

Page 71 content

Page 72

CTI Remote Device This feature provides the TSP/CTI applications to extend its ability to monitor and have limited call control capability over third-party devices of a User. This capability is provided to users by representing all the third-party devices/end points of a user as a Remote Destinations configured on a virtual device type named as "CTI Remote Device". "CTI Remote Device" is a new type of Virtual Device, can be configured from Admin pages just like any other device and need to be associated with End User with Mobility support enabled. Remote Destinations can be configured on CTI Remote Device page and each of these Remote Destinations will be configured with the Number which can be used to dial any Third Party devices (PSTN, Mobile or other PBX) and thus each of these Remote Destinations will be representing one of the third-party devices of a User which are not actually registered to Unified Communications Manager. "CTI Remote Device" can be configured with 5 Lines, each of them shared with Enterprise Phone's Lines. On any incoming call to CTI Remote Device, the call will be extended to all the Remote Destinations/Third Party Devices configured/associated with CTI Remote Device. Call will be reported to Applications on a line on CTI Remote Device, which represents the call that is extended to Third Party Devices. Call events will be reported like other normal calls representing the state of the calls extended to Third Party Devices. "Cisco Unified Client Services Framework" (CSF) Devices are also enhanced to be registered in Extend Mode from Jabber Clients. In the Extend Mode CSF devices behave exactly like CTI Remote Devices. Capability to configure and associate Remote Destinations to CTI Remote Device is also extended to CSF Devices. Remote Destinations can be configured from CUCM Admin Device pages of CTI Remote Device and CSF Device or from Remote Destination pages (add new and associate it to CTI Remote/CSF device) or from TSP applications using Add/Update/Remove Remote Destination feature. The max number of remote destinations can be configured for a single CTI Remote Device depends on its owner user's max remote destinations configuration on the CUCM Admin user page (Default is 4). Following are the supported features on CTI Remote Devices in this Release. 1. Receiving Incoming Enterprise Calls 2. Make Call (DVO -Dial via Office) 3. Call Disconnect 4. Hold / UnHold(Resume/Retrieve) 5. Redirect 6. DSS(Device State Server), and DND -(Do Not Disturb) and CPN (Globalized Calling Party) 7. Call Forwarding (Busy, Forward All ...) 8. Transfer and Direct Transfer a. only Direct Transfer on Same Line (DTSL) is supported 9. Conference and Join a. DropAnyParty Feature is also supported b. only Join on Same Line (JSL) is supported Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 40 Features Supported by TSP CTI Remote Device

Page 72 content

Page 73

Add/Update/Remove Remote Destinations 11. URI dialing Refer to FFS for detailed information on feature (EDCS # 1048080). To support this feature, CiscoTSP enumerates and exposes the newly added "CTI Remote Device" and expose the Remote Destination information configured on the "CTI Remote Device" to applications. New Line Type is added for CTI Remote Device, which is exposed to Application in Devspecific part of LINEDEVCAPS (LINEDEVCAPS::DevSpecific::dwLineTypeFlags = LINEDEVCAPSDEVSPECIFIC_REMOTEDEVICE (0x00000008)) using which Remote Device Lines are identified. It provides applications/Users capability to Add new Remote Destinations and Remove/Update existing Remote Destinations configured on "CTI Remote Device" or CSF Devices. CiscoTSP would provide applications the capability to monitor and control incoming and outgoing calls. Note: This feature requires a Cisco Jabber client and this functionality is intended to be supported in Jabber for Windows 9.1 Note Interface Changes The following new interfaces were added to support this feature: • CciscoLineDevSpecificAddRemoteDestination Add Remote Destination, on page 388 • CciscoLineDevSpecificRemoveRemoteDestination Remove Remote Destination, on page 389 • CciscoLineDevSpecificUpdateRemoteDestination Update Remote Destination, on page 390 The following new error codes were added to support this feature: Description Error Reported on new LineDevSpecific Extensions ( Add and Update) when the remote Destination Information which application is trying to update or add is already available. LINEERR_DUPLICATE_INFORMATION Reported on new LineDevSpecific Extensions (Update and Remove) when the RemoteDestination Number provided is not present on the Device/Line. LINEERR_REMOTE_DESTINATION_UNAVAIL Reported on new LineDevSpecifc Extension (Add) when total Remote Destination count has exceeded the limit of Remote Destinations configured for Owner User ID associated with Cti Remote Device/CSF device. LINEERR_REMOTE_DESTINATION_LIMIT_EXCEEDED Reported if any feature related operation request on CTI RemoteDevice failed as Active RD is not set. LINEERR_OPERATION_FAIL_NO_ACTIVE_RD_SET Reported if any feature related operation request on CTI RemoteDevice failed as there is no Associated End User associated with Device. LINEERR_ENDUSER_NOT_ASSOCIATED_WITH_DEVICE Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 41 Features Supported by TSP CTI Remote Device

Image 1 from page 73

Page 73 diagram

Page 74

See device specific extensions. Message Sequences See CTI Remote Device, on page 561. Backward Compatibility This feature is backward compatible. Application Dial Rule Support Starting with Cisco Unified Communication Manager Release 9.1 a matching Application Dial Rule is applied prior to digit analysis when a call is offered to Remote Destination associated with a CTI Remote Device. When an application adding or updating Remote Destination on a CTI Remote Device is a part of verification process the Application Dial Rules are applied before digit analysis. Interface Change No Interface changes Message Sequensce Not Applicable Backward Compatibility In Cisco Unified Communication Manager Release 9.0 Application Dial Rules were not applied to Remote Destinations that are associated with CTI Remote Device. DTMF Support Starting with Cisco Unified Communication Manager Release 9.1, applications are able to invoke lineGenerateDigits() API on a CTI Remote Device. Only out-of-band DTMF is supported in Cisco Unified Communication Manager Release 9.1. Interface Change No Interface changes Message Sequensce Not Applicable Backward Compatibility This is a new feature and is backward compatible. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 42 Features Supported by TSP Application Dial Rule Support

Page 74 content

Page 75

Extend Mode Support for CSF Is Removed In Cisco Unified Communication Manager Release 9.0 a CSF device had the ability to add Remote Destinations, starting with Cisco Unified Communication Manager Release 9.1 CSF devices can no longer register with CTI in extend mode as CTI Remote Devices and CSF devices will not be able to add Remote Destination. Interface Change No Interface changes Message Sequensce Not Applicable Backward Compatibility Application upgrades from Cisco Unified Communication Manager Release 9.0 to Release 9.1 or later results in the removal of Remote Destinations configured for CSF devices. Remote Destination Reachability Verification In Cisco Unified Communication Manager Release 9.1, an enhancement is added in CTI to verify Remote Destination reachability when it is added or updated on a CTI Remote Device. To determine if the destination is reachable, CTI performs digit analysis based on Reroute CSS configured on the CTI Remote Device. The reachability verifies that the outside dial prefix, CSS and route pattern are configured correctly. If the destination is not reachable the request returns the error: CTIERR_EXTEND_AND_CONNECT_DESTINATION_NOT_REACHABLE. Error code LINEERR_REMOTE_DESTINATION_NOT_REACHABLE – can be returned when an application attempts to add or update a Remote Destination and it cannot be reached. Interface Change No Interface changes Message Sequensce Not Applicable Backward Compatibility Backward compatibility issues may be seen when upgrading to Cisco Unified Communication Manager Release 9.1. In Unified Communication Manager Release 9.0 destination reachability was not verified and there were no errors returned. Persistent Connection Persistent connection or Persistent call refers to a call between a CTI remote device and a remote destination that stay connected even when no active customer calls exist. For example: At the beginning of the day, a Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 43 Features Supported by TSP Extend Mode Support for CSF Is Removed

Page 75 content

Page 76

Unified Communications Manager server phones a teleworker at home to establish a persistent connection that remains active all day, until the application drops the call. At least one remote destination must be configured and active on the CTI remote device in order to create a persistent call. One persistent call for each remote device is allowed at a time. No feature invocations, such as park, hold, conference, and transfer, are allowed on persistent calls. Once a persistent call is created it remains connected until application drops the call or the maximum call duration timer expires. A persistent call is also disconnected when a remote destination drops the call or is no longer active. Persistent calls cannot be dropped if an active call to the remote device exists. Therefore, if there is an active call, the persistent call will be dropped as soon as that call is finished. A Persistent Connection Call differs from a typical call in that no media events are generated for the persistent call. An application may not always receive notification about a persistent call that was accepted (LNECALLSTATE_ACCEPTED). This notification may depend on the type of trunks and gateways used in a specific telephone network. The Persistent Call feature enhances some TAPI APIs and introduces new APIs and error codes. This feature is backward compatible and existing applications are not affected. Note Create a Persistent Call The TAPI lineMakeCall function is used to create persistent call.. The relevant data is provided in LINECALLPARAMS structure pointed to by the lpLineCallParams parameter. Cisco TSP ignores all other lineMakeCall parameter for a persistent call. For a persistent call, the LINECALLPARAMS contains the following data: • DevSpecific part refering to Cisco_CallParamsDevSpecific structure where DevSpecificFlags is set to Cisco_CALLPARAMS_DEVSPECIFICFLAGS_PERSISTENT CALL (0x00000002) • CallingPartyID set to a directory number that appears as a remote destination CallerID directory number • DisplayableAddress set to a name that appears as the remote destination CallerIDName. Drop a Persistent Call Use the standard TAPI lineDrop function to drop or disconnect persistent call. The hCall parameter should specify the persistent call handle (HCALL) returned by lineMakeCall when the persistent call was created. Persistent Call State Change When the persistent call status changes, an application receives a standard TAPI LINE_CALLSTATE message. For a persistent call, the new call state in the dwParamas1 field will be constructed as follows: • The low-order 24 bits are set to one of the LINECALLSTATE_constants as they are for a regular call. • The high-order 8 bits is set to 0x20. A corresponding bitmask is defined in CiscoLineDevspecificMsg header file as CLDSMET_PERSISTENT_CALL_STATE (0x200000000). Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 44 Features Supported by TSP Persistent Connection

Image 1 from page 76

Page 76 content

Page 77

Persistent Call Attribute Bit Mask A new bit definition, TSPCallAttribute_PersistentCall(0x00004000), is added to the CallAttributeBitMask enumeration in CiscoLineDevSpecificMsg.h header file. For a persistent call, a corresponding bit is turned on in the CallAttributeBitMask field in Cisco TSP extension of the TAPI LINECALLINFO structure. Interface Changes • lineMakeCall, on page 177 TAPI Line Functions – lineMakeCall – Note added • LINECALLINFO, on page 324 DevSpecific change - (Cisco Extention 000D0000 – new bit definition added for Call Attribute Type - TSPCallAttribute_PersistentCall(0x00004000)) • LINECALLPARAMS, on page 343 Cisco Device-Specific Extentions – LINECALLPARAMS section added. The following new error codes were added to support this feature: Description Error Attempt to create persistent call failed. LINEERR_PERSISTENT_CALL_CREATE_FAILED Persistent call cannot be created because another one already exists. LINEERR_PERSISTENT_CALL_ALREADY_EXISTS No feature invocation is allowed on persistent call, such as park, hold, conference, and transfer. LINEERR_OPERATION_NOT_ALLOWED_ON_PERSISTENT_CALL An attempt to disconnect persistent call while customer call is still active LINEERR_PERSISTENT_CALL_DROP_FAILED_CALL_ACTIVE An attempt to create announcement call on a device where persistent call does not exist LINEERR_NO_PERSISTENT_CALL_EXISTS An attempt to create announcement call while persistent call is still being setup LINEERR_PERSISTENT_CALL_NOT_ESTABLISHED Requested operation is not allowed in current call state LINEERR_OPERATION_NOT_AVAILABLE_IN_CURRENT_STATE Usage Cases See Persistent Connection Use Cases, on page 907. Backward Compatibility This enhancement is backward compatible and existing applications will not be affected with introduction of this enhancement. Announcement Call Cisco Extend and Connect is enhanced with an ability to play announcements to a remote destination. In order to play the announcement, an application creates a special type of call -Announcement Call -and identifies an announcement to be played. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 45 Features Supported by TSP Announcement Call

Page 77 diagram

Page 78

The announcement can be played only to a remote destination with an existing Persistent Call. Only announcements that were uploaded to the Unified Communications Manager can be played. Applications are notified that an announcement started by the LINE_DEVSPECIFIC event: SLDSMT_ANNOUNCEMENT_STARTED. Applications are notified that an announcement stopped by the LINE_DEVSPECIFIC event: SLDSMT_ANNOUNCEMENT_ENDED. Create Announcement Call The TAPI lineMakeCall function is used to create announcement call. The relevant data is provided in LINECALLPARAMS structure pointed to by the lpLineCallParams parameter. CiscoTSP ignores all other lineMakeCall parameters in the case of announcement call. In the case of an announcement call, the following data is provided in the LINECALLPARAMS: • DevSpecific part refers to Cisco_CallParamsDevSpecific structure where the DevSpecificFlags is set to Cisco_CALLPARAMS_DEVSPECIFICFLAGS_ANNOUNCEMENTCALL • CallData is set to a media content identifier (announcementID) Drop Announcement Call The standard TAPI lineDrop function drops or disconnects the announcement call. The hCall parameter specifies the announcement call handle (HCALL) returned by lineMakeCall when the announcement call is created. Announcement Call State Change When the status of the announcement call changes, an application receives the standard TAPI LINE_CALLSTATE message. For an announcement call, the construction of the new call state in the dwParams1 field is: • The low-order 24 bits are set to one of the LINECALLSTATE_constants, which is the same as a regular call. • The high-order 8 bits are set to 0x40. A corresponding bitmask is defined in the CiscoLineDevspecificMsg header file as follows: CLDSMT_ANNOUNCEMENT_CALL_STATE 0x40000000 Announcement Call Attribute Bit Mask A new bit definition, TSPCallAttribute_AnnouncementCall (0x00008000), is added to the CallAttributeBitMask enumeration in the CiscoLineDevSpecificMsg.h header file. For an announcement call, a corresponding bit is turned on in the CallAttributeBitMask field in the Cisco TSP extension of the TAPI LINECALLINFO structure. Interface Changes • Cisco_LineCallInfo_Ext000D0000extD0 is added. See LINECALLINFO, on page 324. • Cisco_CALLPARAMS_DEVSPECIFICFLAGS_ANNOUNCEMENTCALL is added. See LINECALLPARAMS, on page 343. • lineMakeCall: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 46 Features Supported by TSP Announcement Call

Page 78 content

Page 79

Beginning with Unified Communications Manager Release 10.01, applications can use lineMakeCall to create a Persistent Call or Announcement Call. For a Persistent Call or Announcement Call, the relevant data is provided in the LINECALLPARAMS structure pointed to by the lpLineCallParams parameter. All other lineMakeCall parameters are ignored in these cases. • See Announcement Events, on page 406. Message Sequence See Announcement Call, on page 476. Backward Compatibility This enhancement is backward compatible and existing applications are not affected by the introduction of this enhancement. NuRD (Number Matching for Remote Destination) Support In CUCM 10.0, the existing "Cisco Extend and Connect" feature includes number matching for remote destination support. When users directly call a number that is configured as a remote destination for CTI Remote Device (CTI RD), and that remote destination is set to be active, the call is offered on the CTI Remote Device and extended to the remote destination. The called party is presented to the application as the CTI RD. If active remote destination is not set, when users call a remote destination number, a direct call between the caller and the remote destination occurs. This scenario also applies to a remote destination making a call to an enterprise directory number. If the remote destination is set to be active, from an application perspective, the CTI RD appears to initiate the call to the enterprise dn. If the active remote destination is not set, when the remote destination calls an enterprise dn, it is a direct call between the remote destination and the enterprise dn. For those calls from and to a remote destination number, all existing features allowed on CTI RD can be performed. Interface Changes There are no interface changes for this feature. Use Cases See NuRD (Number Matching for Remote Destination) Support, on page 896. Backward Compatibility This feature can change the existing expected behavior in regards to calls to and from remote destination numbers directly. Applications that do not want to leverage this NuRD feature can keep the cluster-wide service parameter "Reroute Remote Destination Calls to Enterprise Number" set to false. Enabling it will enable the NuRD features. This parameter by default is set to false. Mobility Interaction Support The "Cisco Extend and Connect" feature includes mobility interaction. Users can specify remote destinations that are shared between the CTI Remote Device (CTI RD) and the Remote Destination Profile (RDP). When both the CTI RD and the RDP are configured for the same user, and if the application is active (active rd is Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 47 Features Supported by TSP NuRD (Number Matching for Remote Destination) Support

Page 79 content

Page 80

set), the CTI RD processes the call first and then offers the call to the RDP. If the application is not active, the RDP processes the call first and does not offer the call to the CTI RD. When only the CTI RD is configured for a user, the existing "Cisco Extend and Connect" feature behavior with remote destinations remains unchanged. When only RDP is configured for a user, there is no application support because the devices are not controllable from a CTI. Interface Changes There are no interface changes for this feature. Use Cases There are no new use cases for this feature. (Add/Update/Delete Remote Destination) are added for CTIRD, and are applicable (without any change from App/User). Backward Compatibility There are no backward compatibility issues for this feature. Call Forwarding Starting with Unified Communications Manager 10.0(1), a new feature called “CTI Rd Call Forward” allows users to control when incoming calls are forwarded to all configured Remote Destinations on the CTI Remote Device, when no active remote destination is set. A new check box, Route calls to all remote destinations when client is not connected, is added to the Unified Communications Manager device window. The check box determines whether calls are routed to all remote destinations when Active Remote Destination is not set. When you enable the Route calls to all remote destinations when client is not connected check box, and Active Remote Destination is not set, the call is routed to all remote destinations. If this check box is disabled, and Active Remote Destination is not set, the call is disconnected with User_Busy error on the CTI Remote Device. In scenarios where Active Remote Destination is set, the call is always routed to the Active Remote Destination regardless of whether the Route calls to all remote destinations when client is not connected check box is enabled or disabled. Interface Changes There are no interface changes for this feature. Message Sequence See CTI RD Call Forwarding, on page 639. Backward Compatibility There are no backward-compatibility issues for this feature. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 48 Features Supported by TSP Call Forwarding

Page 80 content

Page 81

CTI Video Support The CTI Video Support feature allows the TAPI Application to retrieve the multimedia capabilities of Line Devices. Applications that monitor devices use this information to answer or route video calls to video capable devices. TAPI shall expose a new structure DeviceMultiMediaCapability in Devspecific data of linedevcaps when applications issue a TSPI_LineGetDevCaps () API with Extension version 0x000D0000 or higher, on these line devices, Cisco TSP will fire SLDSMT_LINE_PROPERTY_CHANGED or CPDSMT_PHONE_PROPERTY_CHANGED_EVENT with param1= LPCT_DEVICE_MULTIMEDIACAP_INFO or PPCT_DEVICE_MULTIMEDIACAP_INFO to report Multimedia capability information change. A new structure, DeviceCallMultiMediaCapInfo, is introduced under CiscoLineDevSpecificMsg.h, which provides the information about calling and called party multimedia capabilities that is exposed in the devspecific data of LineGetCallInfo. Similarly, when the video capability of a calling/called of a Call changes, TSP fires LINE_CALLDEVSPECIFIC with param1= SLDSMT_LINECALLINFO_DEVSPECIFICDATA and param2= SLDST_DEVICE_VIDEO_CAP_INFO to report Multimedia capability information of the call Also, devspecific data of LineCallInfo contains two new fieldsCallingPartyMultiMediaCapBitMask and CalledPartyMultiMediaCapBitMask, which indicate the fields in the DeviceMultiMediaCapInfo with valid information. When the application makes a video call from one video enabled phone to another, the TSP fires LINE_CALLDEVSPECIFIC event with param1= SLDSMT_MULTIMEDIA_STREAMSDATA to report MultiMedia Streams information of the call. The Multimedia Streams information of the call is exposed in the Devspecific data of linecallinfo (As a part of VideoStreamInfo structure) when application issues TSPI_LineGetCallInfo() API with Extension version 0x000D0000 or higher. The following table describes the video capabilities provided by TAPI for currently supported devices. Supports Multimedia Streams Information Reports calling and called Multimedia Capabilities on call info (LineGetCallInfo) Supports Dynamic Video Capability Change SupportsInitialDevice Multimedia Capability Device Yes Yes Yes Yes 8945 (SIP) No Yes Yes Yes 8945 (SCCP) Yes Yes Yes Yes 9951, 9971(SIP) Yes Yes N/A Yes EX60/90 (SIP) Yes Yes N/A Yes CTS 500-32 (SIP) No Yes Yes Yes Jabber(CSF/softphone mode) (SIP) No Yes N/A N/A CTI RoutePoint (SCCP) No Yes N/A N/A CTI Port (SCCP) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 49 Features Supported by TSP CTI Video Support

Page 81 diagram

Page 82

Supports Multimedia Streams Information Reports calling and called Multimedia Capabilities on call info (LineGetCallInfo) Supports Dynamic Video Capability Change SupportsInitialDevice Multimedia Capability Device No Yes N/A N/A All other phones Supported Features (With in the same cluster): • Originating Call and Consult Call • Redirect • Call Forward • Hold and Resume • Hunt List • Transfer • Extension Mobility • Super Provider Supported Features (Across the cluster): • Originating Call and Consult Call • Redirect • Call Forward • Hold and Resume • Hunt List • Extension Mobility • Super Provider Limitations: • Remote In Use • CiscoTSP does not provide correct calling and called party multimedia capabilities on a call that is in inactive state or is in Remote In Use state. • MultiMedia Capability • Calling and called party multimedia capabilities are UKNOWN on the calling side until the called party answers the call. • When a call is initiated over SIP trunk configured with early offer, the called party video capabilities are the negotiated capabilities that get reported instead of the actual capability, on the called party. • Only video capability information is known for calls over the H323 trunk, Screen count and telepresence interop information is unknown. • MultiMediaStreams • CiscoTSP does not provide multimedia streams information if the device is a SCCP phone. The CiscoTSP does not deliver SLDSMT_MULTIMEDIA_STREAMSDATA, and the TSPI_LineGetCallInfo() API does not provide multimedia streams information in the VideoStreamInfo structure. • Change in called party Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 50 Features Supported by TSP CTI Video Support

Page 82 diagram

Page 83

In scenarios such as Shared Lines or redirect, where the called party changes, the application is notified of the new called party capability only if the called party is configured with unique display names. • Interface Changes • LineDevCaps::DevSpecific change - (Cisco Extention 000D0000) LINEDEVCAPS, on page 321 • LineCallInfo::DevSpecific change - (Cisco Extention 000D0000) LINECALLINFO, on page 324 • • LPCT_DEVICE_MULTIMEDIACAP_INFO – Indicates or notifies application that Device Multi Media Capability Information on the Line/Device has changed. Line Property Changed Events, on page 413 • PPCT_DEVICE_MULTIMEDIACAP_INFO – Indicates or notifies application that Device Multi Media Capability Information on the Line/Device has changed. Phone Property Changed Events, on page 414 • SLDST_DEVICE_VIDEO_CAP_INFO – (New bit mask type added for Param2 bits on SLDSMT_LINECALLINFO_DEVSPECIFICDATA) LINECALLINFO_DEVSPECIFICDATA Events, on page 411 • SLDSMT_MULTIMEDIA_STREAMSDATA – (New Message Type in Line_DevSpecific Message) MultiMedia Streams Data Notification Event, on page 418 Message Sequences See Video Capabilities and Multimedia Information, on page 640. Backward Compatibility This feature is not backward compatible. Default CTI IP Addressing for Devices A new CTIManager service parameter, IP Addressing Mode for Devices, has been added that allows you to configure the default CTI IP addressing mode for a device that does not have an associated Common Device Configuration. Cisco TAPI communicates the value of this parameter to an application in the device-specific extension of the TAPI LINEDEVCAPS structure. When the application invokes the lineGetDevCaps() method for a device that does not have a Common Device Configuration, Cisco TAPI returns the value in dwLineDevCapsIPAddressingMode field. By default this parameter is set to allow both IPv4 and IPv6 modes (IPAddress_IPv4_IPv6). For an individual CTI device, if that device has an associated Common Device Configuration, the IP Addressing Mode setting in the Common Device Configuration overrides the value of the IP Addressing Mode for Devices service parameter. Note Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 51 Features Supported by TSP Default CTI IP Addressing for Devices

Image 1 from page 83

Page 83 content

Page 84

Device State Server The Device State Server feature provides accumulative state of all the lines on the device. Applications are notified about the device status through the PHONE_DEVSPECIFIC and LINE_DEVSPECIFIC events. An application for enabling the Device State Server support needs to set the DEVSPECIFIC_DEVICE_STATE and DEVSPECIFIC_DEVICE_STATE_STATUS_ message flags using the lineDevSpecific SLDST_SET_STATUS_MESSAGES request and the PhoneDevSpecific CPDST_SET_DEVICE_STATUS_MESSAGES request respectively. When Cisco TSP receives the DEVICE_STATE events from CTI, it notifies the application about the accumulative state of all the lines on the device using the PHONE_DEVSPECIFIC and LINE_DEVSPECIFIC events. The device status in the LINE_DEVSPECIFIC and PHONE_DEVSPECIFIC events can be one of the following. enum lineDeviceState{ lineDeviceState_UNKNOWN = 0, lineDeviceState_ACTIVE = 1, lineDeviceState_ALERTING = 2, lineDeviceState_HELD = 3, lineDeviceState_WHISPER = 4, lineDeviceState_IDLE = 5 }; enum PhoneDeviceState{ PhoneDeviceState_UNKNOWN = 0, PhoneDeviceState_ACTIVE = 1, PhoneDeviceState_ALERTING = 2, PhoneDeviceState_HELD = 3, PhoneDeviceState_WHISPER = 4, PhoneDeviceState_IDLE = 5 }; This feature provides the accumulative state of all the lines on the device or the phone to the application. Events are provided based on the following criteria: • IDLE If all the lines on the device are IDLE, the device state is considered IDLE and the corresponding event is delivered to the qualified applications. • ACTIVE If any of the lines on the device have an ACTIVE (call states are LINECALLSTATE_DIALTONE, LINECALLSTATE_DIALING, LINECALLSTATE_PROCEEDING, LINECALLSTATE_RINGBACK, and LINECALLSTATE_DISCONNECTED) call, the device state is considered ACTIVE and the corresponding event is delivered to the qualified applications. • ALERTING If there is no ACTIVE call on any of the lines of the device and at least one of the lines has an ALERTING (call states are LINECALLSTATE_OFFERING and LINECALLSTATE_ACCEPTED) call, the device state is considered ALERTING and the corresponding event is delivered to the qualified applications. • HELD Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 52 Features Supported by TSP Device State Server

Page 84 content

Page 85

If there is no ACTIVE or ALERTING call on any of the lines of the device and at least one of the lines has a HELD call, the device state is considered HELD and the corresponding event is delivered to the qualified applications. • WHISPER If there is no ACTIVE or ALERTING or HELD call on any of the lines of the device and at least one of the lines have an intercom call, the device state is considered WHISPER and the corresponding event is delivered to the qualified applications. The ACTIVE state has priority over the ALERTING, HELD, and IDLE states. The ALERTING state has priority over the HELD and IDLE states. The HELD state has priority over the IDLE state. Note To make the LineDevSpecific event indicate the device state for any line of that device, the DEVSPECIFIC_DEVICE_STATE_STATUS_message flag for that line must be turned on using the lineDevSpecific SLDST_SET_STATUS_MESSAGES request. Note Direct Transfer In Unified Communications Manager, the Direct Transfer softkey lets users transfer the other end of one established call to the other end of another established call, while dropping the feature initiator from those two calls. Here, an established call refers to a call that is either in the on hold state or in the connected state. The “Direct Transfer” feature does not initiate a consultation call and does not put the active call on hold. A TAPI application can invoke the “Direct Transfer” feature by using the TAPI lineCompleteTransfer() function on two calls that are already in the established state. This also means that the two calls do not have to be set up initially by using the lineSetupTransfer() function. Direct Transfer Across Lines The Direct Transfer Across Lines feature allows the application to directly transfer calls across the lines that are configured on the device. The application monitors both the lines when directly transferring the calls across the lines. A new LineDevSpecific extension, CciscoLineDevSpecificDirectTransfer, is added to direct transfer calls across the lines or on the same line. The 0x00090000 extension must be negotiated to use CciscoLineDevSpecificDirectTransfer. Interface Changes See Direct Transfer, on page 379. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 53 Features Supported by TSP Direct Transfer

Image 1 from page 85

Page 85 content

Page 86

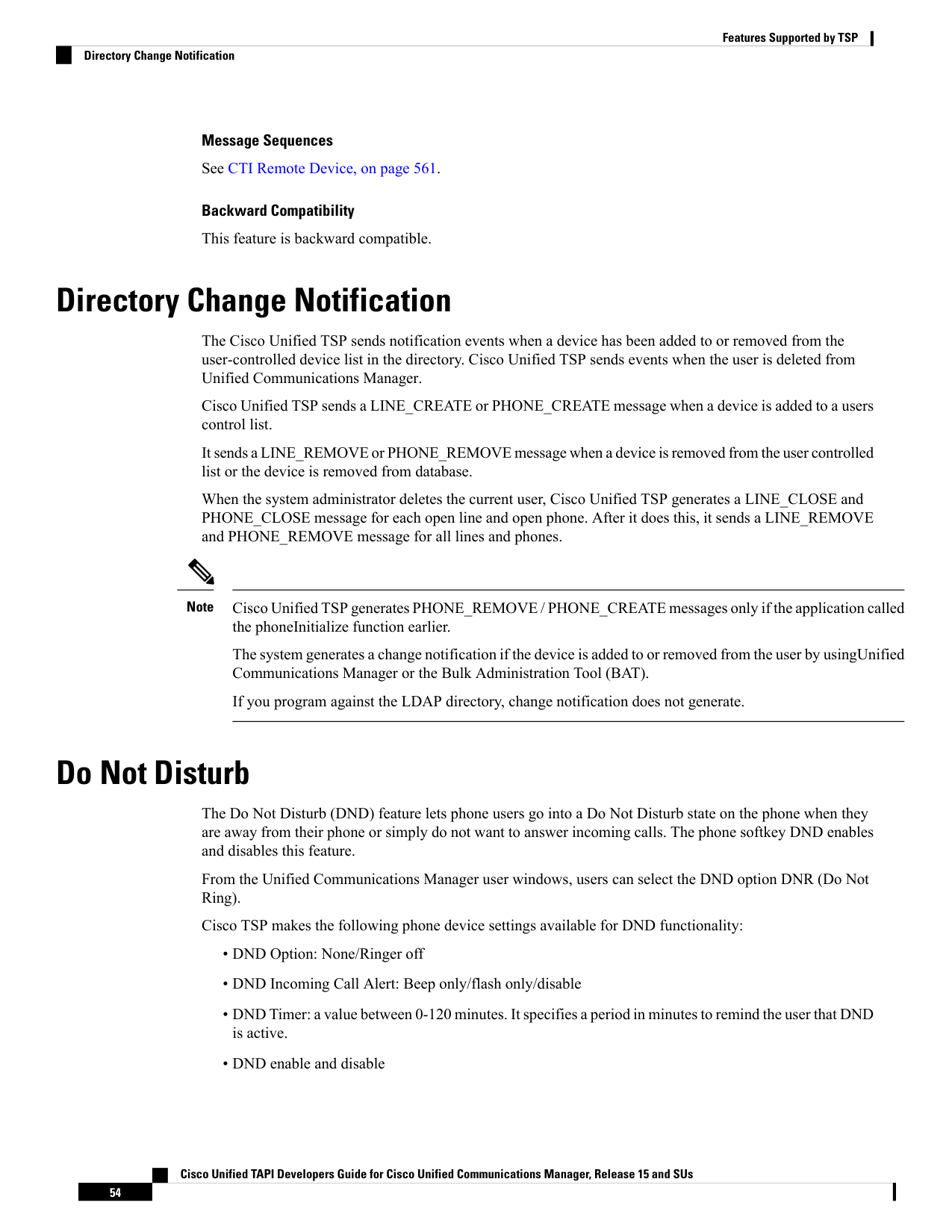

Message Sequences See CTI Remote Device, on page 561. Backward Compatibility This feature is backward compatible. Directory Change Notification The Cisco Unified TSP sends notification events when a device has been added to or removed from the user-controlled device list in the directory. Cisco Unified TSP sends events when the user is deleted from Unified Communications Manager. Cisco Unified TSP sends a LINE_CREATE or PHONE_CREATE message when a device is added to a users control list. It sends a LINE_REMOVE or PHONE_REMOVE message when a device is removed from the user controlled list or the device is removed from database. When the system administrator deletes the current user, Cisco Unified TSP generates a LINE_CLOSE and PHONE_CLOSE message for each open line and open phone. After it does this, it sends a LINE_REMOVE and PHONE_REMOVE message for all lines and phones. Cisco Unified TSP generates PHONE_REMOVE / PHONE_CREATE messages only if the application called the phoneInitialize function earlier. The system generates a change notification if the device is added to or removed from the user by usingUnified Communications Manager or the Bulk Administration Tool (BAT). If you program against the LDAP directory, change notification does not generate. Note Do Not Disturb The Do Not Disturb (DND) feature lets phone users go into a Do Not Disturb state on the phone when they are away from their phone or simply do not want to answer incoming calls. The phone softkey DND enables and disables this feature. From the Unified Communications Manager user windows, users can select the DND option DNR (Do Not Ring). Cisco TSP makes the following phone device settings available for DND functionality: • DND Option: None/Ringer off • DND Incoming Call Alert: Beep only/flash only/disable • DND Timer: a value between 0-120 minutes. It specifies a period in minutes to remind the user that DND is active. • DND enable and disable Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 54 Features Supported by TSP Directory Change Notification

Image 1 from page 86

Page 86 content

Page 87

Cisco TSP includes DND feature support for TAPI applications that negotiate at least extension version 8.0 (0x00080000). Applications can only enable or disable the DND feature on a device. Cisco TSP allows TAPI applications to enable or disable the DND feature via the lineDevSpecificFeature API. Cisco TSP notifies applications via the LINE_DEVSPECIFICFEATURE message about changes in the DND configuration or status. To receive change notifications, an application must enable the DEVSPECIFIC_DONOTDISTURB_CHANGED message flag with a lineDevSpecific SLDST_SET_STATUS_MESSAGES request. This feature applies to phones and CTI ports. It does not apply to route points. Do Not Disturb-Reject Do Not Disturb (DND) enhancements support the rejection of a call. The enhancement Do Not Disturb–Reject (DND–R) enables the user to reject any calls when necessary. Prior to the Unified Communications Manager Release 7.0(1), DND was available only with the Ringer Off option. If DND was set, the call would still get presented but without ringing the phone. To enable DND–R, access the Unified Communications Manager Administration phone page or the user can enable it on the phone. However, if the call has an emergency priority set, the incoming call is presented on the phone even if the DND–R option is selected. This will make sure that emergency calls are not missed. Feature priority is introduced and defined in the enum type for making calls or redirecting existing calls. The priority is defined as: enum CiscoDoNotDisturbFeaturePriority { CallPriority_NORMAL = 1 CallPriority_URGENT = 2 CallPriority_EMERGENCY = 3 }; Feature priority introduces LineMakeCall as part of DevSpecific data. Currently the following structure is supported in DevSpecific data for LineMakeCall: typedef struct LineParams { DWORD FeaturePriority; } LINE_PARAMS; The new Cisco LineDevSpecific extension, CciscoLineRedirectWithFeaturePriority with type SLDST_REDIRECT_WITH_FEATURE_PRIORITY, supports redirected calls with feature priority. Also in a shared line scenario, if one of the lines is DND–R enabled and if the Remote In Use is true, then it will be marked as connected inactive. Interface Changes See lineMakeCall, on page 177 and Redirect with Feature Priority, on page 373. Message Sequences See Do Not Disturb-Reject, on page 664. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 55 Features Supported by TSP Do Not Disturb-Reject

Page 87 content

Page 88

Backward Compatibility This feature is backward compatible. Drop-Any-Party The Drop-Any-Party feature enables the application to drop any call from the ad-hoc conference. This feature is currently supported from the phone interface. The application uses the LineRemoveFromConference function to drop the call from a conference. When the call is dropped from a conference, TSP receives CtiDropConferee as the call state change cause, and this is sent to TAPI as the default cause. Interface Changes See lineRemoveFromConference, on page 186. Message Sequences See Drop Any Party, on page 666. Backward Compatibility This feature is backward compatible. The 0x00090000 extension is added to maintain backward compatibility. Early Offer The Early Offer feature allows the SIP trunk to support early offer outbound calls without using MTP when the media capabilities and media port information of the calling endpoint is available. For the endpoints where the media port information is not available (for example, H323 slow start calls or delayed offer SIP calls or legacy SCCP phones) for Early Offer, Unified Communications Manager allocates an MTP to provide an offer. This means UnifiedCM allocates MTP only when needed. To support the Early Offer feature, Cisco TSP introduces CCiscoLineDevSpecific extension (CciscoLineDevSpecificEnableFeatureSupport) to allow the application to enable or disable the Early Offer feature. This DevSpecific type is generic and can be used for supporting features added in the future. The registration of CTI ports or route points are as follows: • Dynamic registration of CTI ports or route points with Early Offer Support: • New LineDevSpecific type must be requested before registration. • Static registration of CTI ports with Early Offer Support: • New LineDevSpecific type is requested before registration and used to change the Device Capability of Early Offer Support after registration. GET IP and PORT EVENT reports to a CTI Port or Route Point registered with Early Offer Support enabled, on an outbound call. When an outbound call is routed through the SIP trunk with Early Offer Support, TSP reports LINE_DEVSPECIFIC event with Param1 = SLDSMT_RTP_GET_IP_PORT and Param2 = IPAddressing Mode along with SetRTP bit information (ninth bit from LSB). dwParam2 = 0x00000xyy, where: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 56 Features Supported by TSP Drop-Any-Party

Page 88 content

Page 89

• x (ninth Bit from LSB) — SetRTPInfo (1 — Applications must set the RTP information and 0 — Applications must not set the RTP Information • yy (8 bits) — IPAddressing Mode. For dynamically-registered CTI ports or route points with Early Offer: For this notification, applications have to set the RTP information using the Existing LineDevspecific Type (CciscoLineDevSpecificSetRTPParamsForCall) with the IP and Port Information for the IPAddressing Mode reported. Applications must not set the RTP information on the Open Logical Channel notification if the application has already set the information on GetIP and Port notification (SLDSMT_RTP_GET_IP_PORT). For statically-registered CTI ports: For this notification, applications must open and reserve the port used for registration. To receive the Get IP and Port notification (SLDSMT_RTP_GET_IP_PORT), an application must set the DEVSPECIFIC_GET_IP_PORT message flag by using the lineDevSpecific SLDST_SET_STATUS_MESSAGES request. TAPI provides setRTP information in dwParam2 of OpenLogical Channel notification (LINE_DEVSPECIFIC Event with dwParam1 = SLDSMT_OPEN_LOGICAL_CHANNEL) along with the IP addressing capability using which the application must determine whether it has to set the RTP information. dwParam2 = 0x0000xxyy, where: • xx — SetRTPInfo (1 — Applications must set the RTP information and 0 — Applications must not set RTP information) • yy — IPAddressing Capability. TSP Reports New Error Code (LINEERR_REGISTER_GETPORT_SUPPORT_MISMATCH) when application tries to dynamically or statically register CTI port or route point without Early Offer Support, where as the CTI port is already Registered Dynamically/Statically with Early Offer support by other applications. Media Driver Support for Early Offer For an Early Offer call on a CTI Port registered with Early Offer support, when the other party has the IP and Port information of the calling party, the other party starts transmitting the media early even before the Media Events are reported on the CTI Port (registered with Early Offer). Due to this Early Media or delay in reporting Media Reception Event to the application, Wave Driver misses initial data transmitted as the current Wave Drivers (both Legacy and Cisco New Wave Driver) supports opening of the Ports and starts reception of data only after Media Events are reported to the application. To capture the early transmitted data, the receiving port needs to be opened after GET_IP_PORT Event and Buffer Incoming Data. Current supported APIs for opening a port in New Wave Driver and Legacy Wave Driver requires CODEC and other supported information (DSCP, SRTP Information, and Silence Type). But in the Early Offer case, this information is not available at GET_IP_PORT event and needs to add new API’s to open the Port, start buffering, and then Update the endpoint with other media endpoint related information (CODEC, DSCP, SRTP Information, and Silence Type). The following API’s have been added to the New Wave Driver to capture Early Media for Early Offer Call: • EpStreamOpen()—Opens the Port and Starts Buffering Incoming Data. • EpUpdateById()—Updates the Media endpoint Data Information (CODEC, DSCP, SRTP Information, and Silence Type). Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 57 Features Supported by TSP Media Driver Support for Early Offer

Page 89 content

Page 90

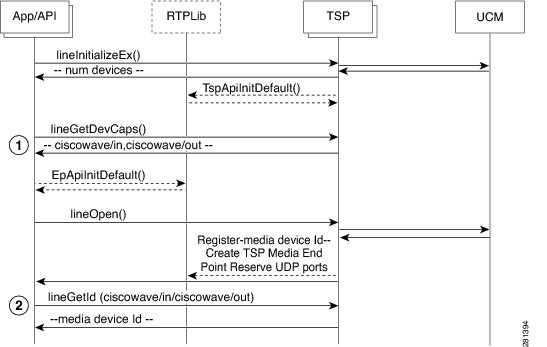

• Returns True on successful updation or false on failure; specific error code can be retrieved by calling EpApiGetLastError. • When the Stream is already started using EpStreamStart() API, EpUpdateById() request fails with error EP_ERR_TOAPP_INVALID_STATE. • When the Port is opened using EpStreamOpen() API, EpUpdateByID() will update the data information related to the media endpoint except the address and port. • On a Stream that is opened; In case of mismatch of LocalAddrInfo with the actual port used for Opening Socket, the request fails with error EP_ERR_ADDR_MISMATCH. Applications must use these newly added APIs to capture Early Media Data for Early Offer Call. Note TAPI Application Message Flow for Early Offer Call The message flow in the following figure is described in steps 1 and 2. Figure 7: Application Message Flow for Early Offer Call — Steps 1 and 2 1. Initialize TAPI, get LINEINFO for the available line devices, and find the devices that are capable of using the Cisco RTP Library functionalities. 2. Get the media device identifier associated with a particular line device. The message flow in the following figure is described in steps 3 to 6. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 58 Features Supported by TSP TAPI Application Message Flow for Early Offer Call

Image 1 from page 90

Image 2 from page 90

Page 90 content

Page 91

Figure 8: Application Message Flow for Early Offer Call — Steps 3 to 6 3. Initialize RTP Library. 4. Subscribe for media stream, and GetIP and Port events for the relevant devices using the Cisco lineDevSpecific extension (CciscoLineDevSpecificSetStatusMsgs). 5. Enable the Early Offer feature support on that line/device using the lineDevSpecific extension (CciscoLineDevSpecificEnableFeatureSupport). 6. GetIP and Port events reported to the application, and reports for the Early Offer call. The message flow in the following figure is described in steps 7 to 8. Figure 9: Application Message Flow for Early Offer Call — Steps 7 to 10 7. Create Media End Point for receiving the data. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 59 Features Supported by TSP TAPI Application Message Flow for Early Offer Call

Image 1 from page 91

Image 2 from page 91

Page 91 content

Page 92

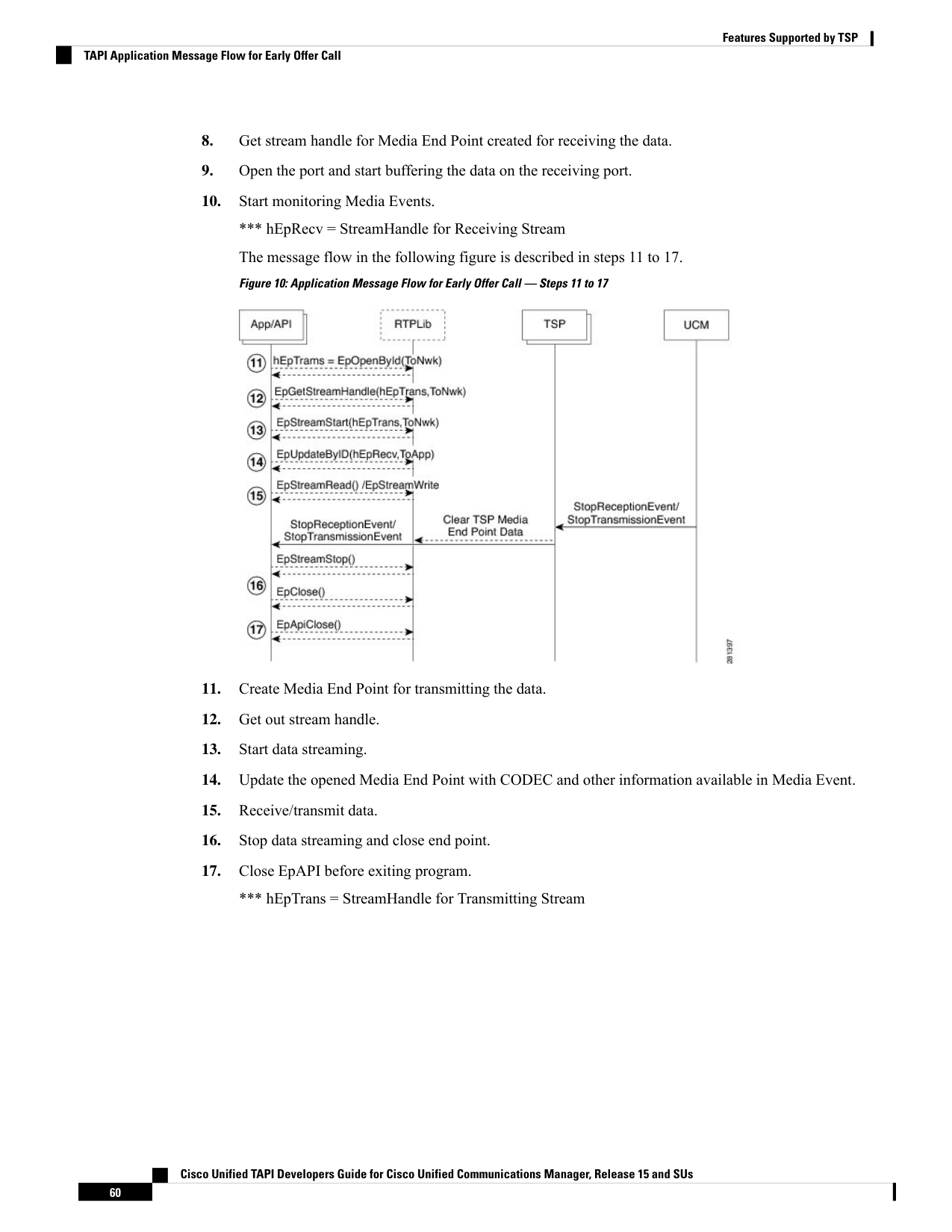

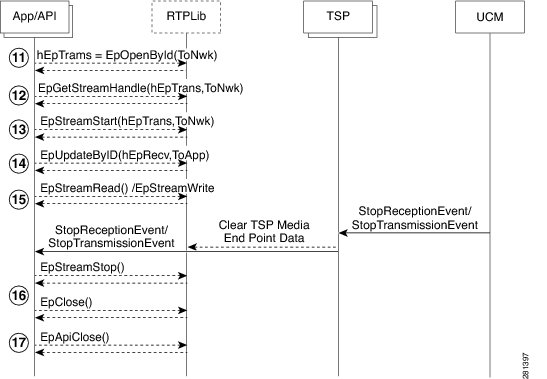

Get stream handle for Media End Point created for receiving the data. 9. Open the port and start buffering the data on the receiving port. 10. Start monitoring Media Events. *** hEpRecv = StreamHandle for Receiving Stream The message flow in the following figure is described in steps 11 to 17. Figure 10: Application Message Flow for Early Offer Call — Steps 11 to 17 11. Create Media End Point for transmitting the data. 12. Get out stream handle. 13. Start data streaming. 14. Update the opened Media End Point with CODEC and other information available in Media Event. 15. Receive/transmit data. 16. Stop data streaming and close end point. 17. Close EpAPI before exiting program. *** hEpTrans = StreamHandle for Transmitting Stream Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 60 Features Supported by TSP TAPI Application Message Flow for Early Offer Call

Image 1 from page 92

Page 92 content

Page 93

• For the IPV6 Registered port, GetPort Notification is not reported to the application. For the Dual Mode CTI Port or Route Point the Early Offer is supported with IPV4 addresses capability. • For the Statically Registered CTI port with Legacy Wave driver, the Early Offer feature is not supported and TSP reports error if new LineDevspecific is requested to enable Feature Support. • For the Statically Registered CTI port with New Cisco Wave Driver/User control Registered CTI Port, New Get IP and Port Notification applications has to open the port that is assigned for the CTI Port. • On an Early Offer support registered CTI Port, the applications must send the RTP information about new notification and must not set the RTP information on OpenLogical Channel Notification. If set, it is failed by CTI and an acknowledgement is reported to the application. • When IPv6 support is added, the application receives GetPort Notification twice (one for Ipv4 and one for Ipv6 address) for dual mode device. When a call is answered, the application can close the unused port based on IPAddressingType in Open Logical Channel Notification. Note To support this feature, the application must negotiate line extension 0x000B0000 or above. Note Interface Changes See Early Offer, on page 384, Enable Feature, on page 385, Get IP and Port Event, on page 418, Set Status Messages, on page 355, and Open Logical Channel Events, on page 410. Message Sequences See Early Offer, on page 680. Backward Compatibility This feature is backward compatible. End-to-End Call Trace End-to-End Call Trace allows tracing of calls that traverse multiple Cisco voice products, such as Unified Communications Manager, Cisco IOS Gateway, and Cisco Call Center products. A new tool called System Call Tracing tool is developed to collect call records from all voice platforms to trace specific calls and to troubleshoot call failure or other issues. This tool uses the calling party number, called party number, and time stamp to find at least one call record from any voice product that it can access. From that single call record, System Call Tracing tool traces the call on all the voice products it has traversed. Interface Changes LINECALLINFO::DEVSPECIFIC is modified to include TSP Unique Call Reference ID. For more information, see LINECALLINFO, on page 324. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 61 Features Supported by TSP End-to-End Call Trace

Image 1 from page 93

Page 93 content

Page 94

Message Sequences See End-To-End Call Trace, on page 692. Backward Compatibility New extension 0x000A0000 is added to maintain backward compatibility. EnergyWise DeepSleep Mode Support This feature allows the phone to participate in an EnergyWise enabled system. The phone reports its power usage to a EnergyWise compliant switch to allow the tracking and control of power within the customer premise. The phone provides alternate reduced power modes including an extremely low, off mode. The Unified Communications Manager administrator configures and exclusively manages the phones power state through vendor specific configuration on the Cisco Unified CM Admin pages. When the phone turns off power after negotiation with an EnergyWise switch, it unregisters from Cisco Unified CM and enters Deep Sleep/PowerSavePlus mode. Phones automatically re-register back with the Cisco Unified CM once the Deep Sleep mode configured PowerON time is reached. However, for Cisco Unified IP Phones Series 9900 and 6900 phones, press the select key on the phone to wake up the phone from the Deep Sleep/PowerSavePlus mode, but there is no way to register Cisco Unified IP Phones 7900 Series phones back to the Cisco Unified CM during Deep Sleep. This is the limitation for the Cisco Unified IP Phones 7900 Series phones. You can configure Deep Sleep mode on the Device page of the Cisco Unified CM. Configure Deep Sleep mode for the phones at least 10 minutes before the actual power off time to allow the information to synchronize between the switch and the phone. Power off idle timer enables only in the case when there is physical interaction on the phone. For example if there is a call on the EnergyWise configured phone during the deep sleep time and the user tries to disconnect the call from the application, then the power off idle timer defaults to 10 minutes but if the user disconnects the call manually from the phone, then the power off idle timer takes the value configured on the Cisco Unified CM device page. TAPI provides the PHONE_STATE message with dwparam1 = PHONESTATE_SUSPEND and EnergyWisePowerSavePlus reason in dwParam2 when the phone unregisters as it enters DeepSleep, and if the phone successfully negotiates with the appropriate extension version 0x000B0000 or higher. TAPI provides the LINE_LINEDEVSTATE message with dwparam1 = LINEDEVSTATE_OUTOFSERVICE and EnergyWisePowerSavePlus reason in dwparam2 when the phone unregisters as it enters DeepSleep, and if the phone successfully negotiates with the appropriate extension version 0x000B0000 or higher. As part of this feature TAPI exposes all out of service reason codes in the PHONESTATE_SUSPEND and LINEDEVSTATE_OUTOFSERVICE in dwParam2 when the phone unregisters, and if the phone successfully negotiates with the appropriate extension version 0x000B0000 or higher. TAPI defines a new enum CiscoLineDevStateOutOfServiceReason in CiscoLineDevSpecificMsg.h And enum CiscoPhoneStateOutOfServiceReason in CiscoPhoneDevSpecificMsg.h Interface Changes New Enum under CiscoLineDevSpecificMsg.h enum CiscoLineDevStateOutOfServiceReason { Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 62 Features Supported by TSP EnergyWise DeepSleep Mode Support

Page 94 content

Page 95

CiscoLineDevStateOutOfServiceReason_Unknown = 0x00000000, CiscoLineDevStateOutOfServiceReason_CallManagerFailure = 0x00000001, CiscoLineDevStateOutOfServiceReason_ReHomeToHigherPriorityCM = 0x00000002, CiscoLineDevStateOutOfServiceReason_NoCallManagerAvailable = 0x00000003, CiscoLineDevStateOutOfServiceReason_DeviceFailure = 0x00000004, CiscoLineDevStateOutOfServiceReason_DeviceUnregistered = 0x00000005, CiscoLineDevStateOutOfServiceReason_EnergyWisePowerSavePlus = 0x00000006, CiscoLineDevStateOutOfServiceReason_CtiLinkFailure = 0x00000101 }; New Enum under CiscoPhoneDevSpecificMsg.h enum CiscoPhoneStateOutOfServiceReason { CiscoPhoneStateOutOfServiceReason_Unknown = 0x00000000, CiscoPhoneStateOutOfServiceReason_CallManagerFailure = 0x00000001, CiscoPhoneStateOutOfServiceReason_ReHomeToHigherPriorityCM = 0x00000002, CiscoPhoneStateOutOfServiceReason_NoCallManagerAvailable = 0x00000003, CiscoPhoneStateOutOfServiceReason_DeviceFailure = 0x00000004, CiscoPhoneStateOutOfServiceReason_DeviceUnregistered = 0x00000005, CiscoPhoneStateOutOfServiceReason_EnergyWisePowerSavePlus = 0x00000006, CiscoPhoneStateOutOfServiceReason_CtiLinkFailure = 0x00000101 }; Message Sequences See EnergyWise Deep Sleep Mode Use Cases, on page 723 Backwards Compatibility This feature is backward compatible. Extension Mobility Extension Mobility, a Unified Communications Manager feature, allows a user to log in and log out of a phone. Cisco Extension Mobility loads a user Device Profile (including line, speed dial numbers, and so on) onto the phone when the user logs in. Cisco Unified TSP recognizes a user who is logged into a device as the Cisco Unified TSP User. Using Unified Communications Manager, you can associate a list of controlled devices with a user. When the Cisco Unified TSP user logs into the device, the system places the lines that are listed in the user Cisco Extension Mobility profile on the phone device and removes lines that were previously on the phone. If the device is not in the controlled device list for the Cisco Unified TSP User, the application receives a PHONE_CREATE or LINE_CREATE message. If the device is in the controlled list, the application receives a LINE_CREATE message for the added line and a LINE_REMOVE message for the removed line. When the user logs out, the original lines get restored. For a non-controlled device, the application perceives a PHONE_REMOVE or LINE_REMOVE message. For a controlled device, it perceives a LINE_CREATE message for an added line and a LINE_REMOVE message for a removed line. Extension Mobility Cross Cluster Extension Mobility Cross Cluster allows users provisioned in one cluster to log in to an IP phone in another cluster. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 63 Features Supported by TSP Extension Mobility

Page 95 content

Page 96

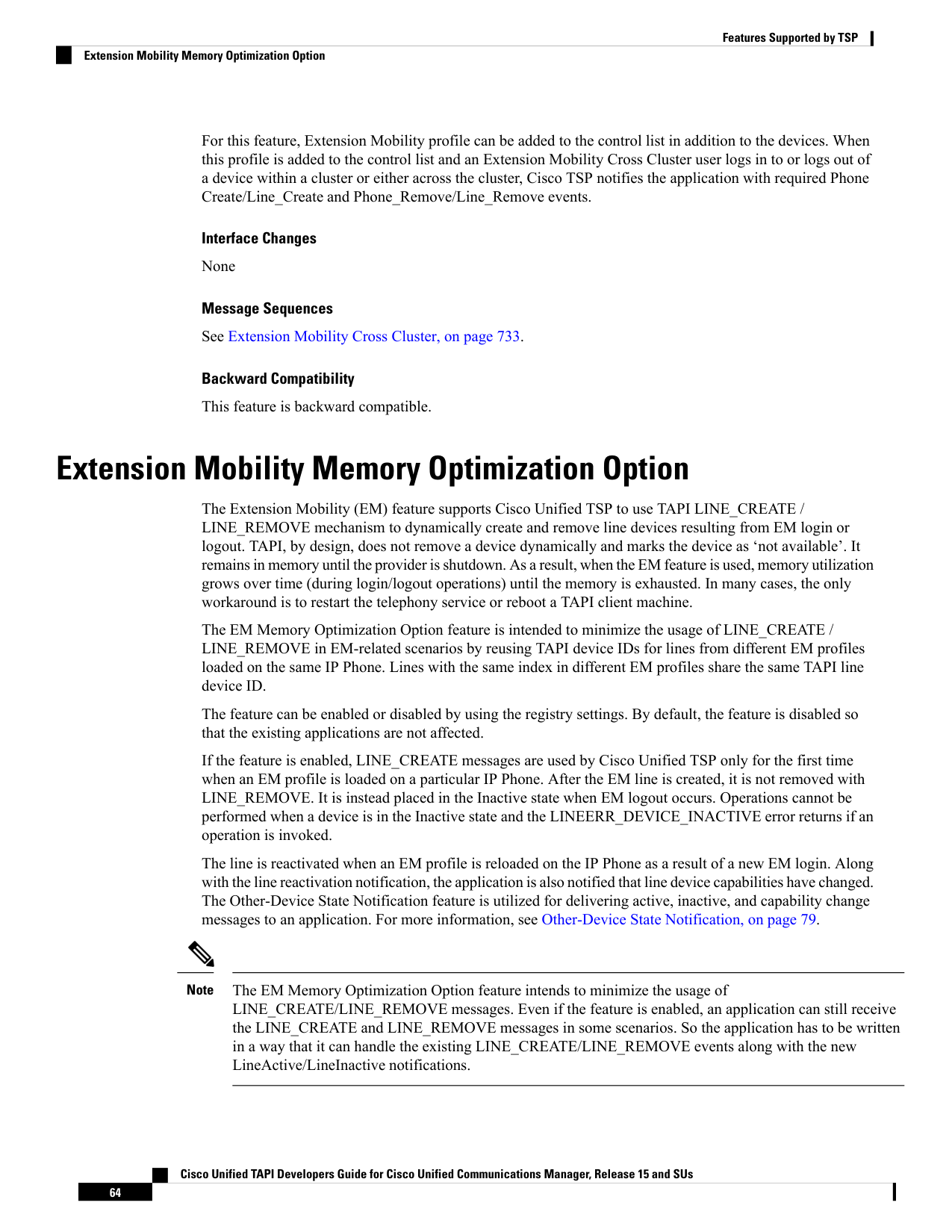

For this feature, Extension Mobility profile can be added to the control list in addition to the devices. When this profile is added to the control list and an Extension Mobility Cross Cluster user logs in to or logs out of a device within a cluster or either across the cluster, Cisco TSP notifies the application with required Phone Create/Line_Create and Phone_Remove/Line_Remove events. Interface Changes None Message Sequences See Extension Mobility Cross Cluster, on page 733. Backward Compatibility This feature is backward compatible. Extension Mobility Memory Optimization Option The Extension Mobility (EM) feature supports Cisco Unified TSP to use TAPI LINE_CREATE / LINE_REMOVE mechanism to dynamically create and remove line devices resulting from EM login or logout. TAPI, by design, does not remove a device dynamically and marks the device as ‘not available’. It remains in memory until the provider is shutdown. As a result, when the EM feature is used, memory utilization grows over time (during login/logout operations) until the memory is exhausted. In many cases, the only workaround is to restart the telephony service or reboot a TAPI client machine. The EM Memory Optimization Option feature is intended to minimize the usage of LINE_CREATE / LINE_REMOVE in EM-related scenarios by reusing TAPI device IDs for lines from different EM profiles loaded on the same IP Phone. Lines with the same index in different EM profiles share the same TAPI line device ID. The feature can be enabled or disabled by using the registry settings. By default, the feature is disabled so that the existing applications are not affected. If the feature is enabled, LINE_CREATE messages are used by Cisco Unified TSP only for the first time when an EM profile is loaded on a particular IP Phone. After the EM line is created, it is not removed with LINE_REMOVE. It is instead placed in the Inactive state when EM logout occurs. Operations cannot be performed when a device is in the Inactive state and the LINEERR_DEVICE_INACTIVE error returns if an operation is invoked. The line is reactivated when an EM profile is reloaded on the IP Phone as a result of a new EM login. Along with the line reactivation notification, the application is also notified that line device capabilities have changed. The Other-Device State Notification feature is utilized for delivering active, inactive, and capability change messages to an application. For more information, see Other-Device State Notification, on page 79. The EM Memory Optimization Option feature intends to minimize the usage of LINE_CREATE/LINE_REMOVE messages. Even if the feature is enabled, an application can still receive the LINE_CREATE and LINE_REMOVE messages in some scenarios. So the application has to be written in a way that it can handle the existing LINE_CREATE/LINE_REMOVE events along with the new LineActive/LineInactive notifications. Note Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 64 Features Supported by TSP Extension Mobility Memory Optimization Option

Image 1 from page 96

Page 96 content

Page 97

Installation/Configuration Change This feature can be enabled or disabled using the registry settings. The registry settings are stored in the EMOptions registry entry that is created during the Cisco TSP installation or upgrade. There is only one EMOptions entry in the Cisco TSP registry settings which applies to all Cisco TSP instances on the box. The EMOptions registry settings must be changed manually. There is no Cisco TSP configuration interface to modify the setting and no possibility to change the feature behavior dynamically. Cisco TSP must be restarted for the modified setting to take effect. A corresponding parameter is also available for a silent Cisco TSP install. This allows enabling or disabling of the feature at the time of the silent install/upgrade process. Interface Changes CiscoLineDevStateCloseReason provides details to the LINEDEVSTATE_CLOSE state and is passed to the application as dwParam2 in the LINE_LINEDEVSTATE message. enum CiscoLineDevStateCloseReason { CiscoLineDevStateCloseReason_Unknown = 0, CiscoLineDevStateCloseReason_LineNotAvailable, CiscoLineDevStateCloseReason_EMActivity }; Message Sequences See Extension Mobility Memory Optimization Option, on page 739. Backward Compatibility This feature can be enabled or disabled using the registry settings. By default, this feature has been disabled so that the existing applications are not affected. External Call Control External Call Control enables Unified Communications Manager to route calls based on enterprise policies and presence-based routing rules of individual users. When External Call Control is enabled, Unified Communications Manager queries the designated web services hosting the enterprise policies or user rules and routes the calls based on the routing decisions returned. As TSP receives the expected unmodified Directory Number or partition in all of the party fields, most scenarios remain unaffected by the External Call Control feature. TSP passes these unmodified fields in the PartyId fields to TAPI. Since it is also possible for the External Call Control feature to change the modified calling and called parties, TSP passes this in the existing modified fields of the devSpecific part of lineCallInfo. With the changes made by CTI for the External Call Control feature, TSP also supports Translation Patterns. Calls going through translation patterns are supported by the TSP and if these calls are involved in a conference, the correct number of CONFERENCE calls shall be created and maintain for the duration of the conference. Interface Changes New CtiReasonExternalCallControl (42) in the ExtendedCallReason field in the devSpecific part of lineCallInfo for some intercept scenarios. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 65 Features Supported by TSP External Call Control

Page 97 content

Page 98

New dev specific error, LINEERR_OPERATION_FAIL_CHAPERONE_DEVICE, is returned in LINE_REPLY for any request that is rejected for a device which is involved in a chaperone call except for lineSetupConference/lineAddToConference, lineDevSpecific(SLDST_START_CALL_RECORDING), and lineDrop requests. In the CallAttributeBitMask field, LINECALLINFO::DEVSPECIFIC is modified to include a new bit mask, TSPCallAttribute_ChaperoneCall. For more information, see Details, on page 332. Message Sequences See External Call Control, on page 744. Backward Compatibility This feature is backward compatible. As TSP did not support Translation Patterns before this release, the support of Translation Patterns is considered backward compatible even though there is a change in the CallInfo for calls using Translation Patterns. Note FIPS Compliance Federal Information Processing Standards (FIPS) are publicly announced standards developed by the United States federal government for use in computer systems by all non-military government agencies and government contractors. The FIPS 140-2 requirements have been defined jointly by the American NIST (National Institute for Standards and Technology) and the Canadian CSEC (Communications Security Establishment of Canada). FIPS compliance support has been added to Unified Communications Manager. This mode can be enabled or disabled using CallManager Administration Command Line Interface. From CiscoTSP, FIPS Compliance is supported by upgrading to FIPS 140-2 validated OpenSSL Version, “FIPS capable OpenSSL”, library which is used for setting TLS connection with CTI Manager or Unified Communications Manager. FIPS mode on CiscoTSP can be updated dynamically. Currently, CiscoTSP enables FIPS Mode and depends on FIPS Mode of the Unified Communications Manager. Interface Changes No interface changes. Message Sequences No impact on end user. Backward Compatibility This feature is backwards compatible. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 66 Features Supported by TSP FIPS Compliance

Image 1 from page 98

Page 98 content

Page 99

Conference Changes Forced Authorization Code and Client Matter Code Cisco Unified TSP supports and interacts with two Unified Communications Manager features: Forced Authorization Code (FAC) and Client Matter Code (CMC). The FAC feature lets the System Administrator require users to enter an authorization code to reach certain dialed numbers. The CMC feature lets the System Administrator require users to enter a client matter code to reach certain dialed numbers. The system alerts a user of a phone that a FAC or CMC must be entered by sending a “ZipZip” tone to the phone that the phone in turn plays to the user. Cisco Unified TSP will send a new LINE_DEVSPECIFIC event to the application whenever the application should play a “ZipZip” tone. Applications can use this event to indicate when a FAC or CMC is required. For an application to start receiving the new LINE_DEVSPECIFIC event, it must perform the following steps: 1. lineOpen with dwExtVersion set to 0x00050000 or higher 2. lineDevSpecific – Set Status Messages to turn on the Call Tone Changed device specific events The application can enter the FAC or CMC code with the lineDial() API. Applications can enter the code in its entirety or one digit at a time. An application may also enter the FAC and CMC code in the same string as long as they are separated by a “#” character and also ended with a “#” character. The optional “#” character at the end only serves to indicate dialing is complete. If an application does a lineRedirect() or a lineBlindTransfer() to a destination that requires a FAC or CMC, Cisco Unified TSP returns an error. The error that Cisco Unified TSP returns indicates whether a FAC, a CMC, or both are required. Cisco Unified TSP supports two new lineDevSpecific() functions, one for Redirect and one for BlindTransfer, that allows an application to enter a FAC or CMC, or both, when a call gets redirected or blind transferred. Forwarding Cisco Unified TSP now provides added support for the lineForward() request to set and clear ForwardAll information on a line. This will allow TAPI applications to set the Call Forward All setting for a particular line device. Activating this feature will allow users to set the call forwarding Unconditionally to a forward destination. Cisco Unified TSP sends LINE_ADDRESSSTATE messages when lineForward() requests successfully complete. These events also get sent when call forward indications are obtained from the CTI, indicating that a change in forward status has been received from a third party, such as Unified Communications Manager Administration or another application setting call forward all. Gateway Recording Unified Communications Manager has been providing a recording solution since release 6.0. In previous releases, the call recording was phone-based. The Cisco IP phones are used to fork, or direct, the two media streams of the agent-customer call to the recorder. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 67 Features Supported by TSP Conference Changes

Page 99 content

Page 100

However, for call scenarios where the devices involved do not directly register with Unified Communications Manager, phone-based recording is not possible. This situation excludes the calls handled by the mobile agents from being recorded. In addition, the recording of mobile calls becomes increasingly mandatory by regulations in different jurisdictions, or becomes the essential business requirement for call centers or enterprises. These requirements call for a recording solution that does not rely on media forking from the endpoints. The enhancements for the recording solution allow an external call that goes through a Cisco voice gateway to be recorded by having the voice gateway direct the two media streams to a voice recorder. This solution uses the existing CCiscoLineDevSpecificStartCallRecording and CCiscoLineDevSpecificStopCallRecording APIs to start and stop a user control recording session. Automatic recording is also configured on the line. There is an additional option to specify the voice gateway, or the IP phone as the prefered recording resource on a particular line. In addition, the CTI Remote Device that was introduced in Unified Communications Manager Release 9.0 now supports recording through a gateway enabled for recording. If there is a recording gateway between the CTI Remote Device and the remote-destination where the call was routed, the recording can be started at the CTI Remote Device. If there is a recording gateway between the caller and the CTI Remote Device, the recording can also be started at the CTI Remote Device. You can also configure the line(s) on the CTI Remote Device to support Automatic or Selective Recording. The CTI Remote Device can only use a gateway to route the media. CTI port calls can be captured using the Network Recording feature available in Unified Communications Manager Release 10.0(1). The call media must pass through at least one recording-enabled gateway to be recorded. A typical use case: An external call to a CTI Port softphone. The Recording Media Source for the CTI Port is always gateway-preferred. Interface Changes • Recording Failure Event, on page 416 • LINECALLINFO, on page 324 • LINEDEVCAPS, on page 321 Message Sequences Gateway Recording, on page 769 Backward Compatibility Due to a design change to support Gateway Recording, the same recording may be stopped and restarted due to a feature invocation that was not seen in prior releases. Previously, this stop and start of the recording was only seen when the call being recorded is put on hold and then resume. In this release, this can happen when the party on the other end of the call being recorded changes. Take the following example: 10.0 Pre-10.0 Action A calls B and B answers App receives SLDSMT_RECORDING_STARTED event at A App receives SLDSMT_RECORDING_STARTED event at A TSP application issues CCiscoLineDevSpecificStartCallRecording at A. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 68 Features Supported by TSP Gateway Recording

Page 100 diagram

Page 101

10.0 Pre-10.0 Action App receives SLDSMT_RECORDING_ENDED event at A App receives SLDSMT_RECORDING_STARTED event at A No event is received at A B transfers the call to C and C answers Applications do not need to start the recording again but must handle these extra events. Hold Reversion The Hold Reversion feature allows a holding party to be notified about the HELD call after the hold reversion duration times out. The holding party gets audio and visible hold reversion notifications. The application can set the hold reversion event flag to receive the hold reversion notification from Cisco TSP. CallInfo and CallState of the call remains unchanged when a hold reversion event occurs and the LineCallDevSpecific event is sent to the application indicating the hold reversion if the application has enabled the hold reversion event flag. Hunt List CiscoTSP supports lines and their devices included in the Hunt List and provides appropriate information for applications to understand that the call is offered through a Hunt Pilot. Hunt List can include more than one Line Group and each Line Group may have different call distribution algorithms. Irrespective of the algorithm used in the Line Groups, CiscoTSP provides consistent information to applications. When call offered on the line is routed through Hunt Pilot, CiscoTSP provides Hunt Pilot Directory Number or Partition in LINECALLINFO::DEVSPECIFIC for Caller, Called, or Connected IDs. However, there will be no Hunt Pilot information for Redirection and Redirecting ID. Hunt Pilot name is not passed to LINECALLINFO::DEVSPECIFIC. There is no separate LineDevSpecific event to report the Hunt Pilot information, however, it is reported by existing event when caller, called, or connected id changes. Hunt List can also interact with Call Pickup feature. However, Hunt List broadcast feature is not supported while interacting with Call Pickup feature. In this case, there will be no Pickup notification for the broadcasted call. CTI or Unified Communications Manager fails the pickup request if the application tries to pickup a broadcast call in Hunt List. When call is routed to Hunt List and offering is accepted by Line Group member, the called information becomes Hunt Pilot's information. After Line Group member answers the call, connected ID will shows the actual Line Group member information with Hunt Pilot information in LINECALLINFO::DEVSPECIFIC. In this case, both called and connected ID contains Hunt Pilot information. In case of a conference, Hunt Pilot Directory Number or Partition is presented if connected party's primary call is routed through Hunt List. To support this feature, the application must negotiate line extension 0x00A0000 or above. Note Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 69 Features Supported by TSP Hold Reversion

Image 1 from page 101

Page 101 diagram

Page 102

Interface Changes LINECALLINFO, on page 324. Message Sequences See Hunt List, on page 780. Backward Compatibility This feature is backward compatible. Hunt Pilot Connected Number In Unified Communications Manager 9.0, the support for hunt pilots is enhanced to expose the huntmember which has answered the call as the called party in a call involving a hunt pilot at the calling side. With this enhancement, when a user calls a hunt pilot HP and the call is answered by the hunt list Line group member LG1, TAPI exposes DNof the HuntMember as the ModifiedConnectedParty DN under devspecific part of linecallinfo under Call Party Normalization info structure. When this feature is disabled, the modifiedconnectedParty exposed is the HuntPilotDN. The HuntPilot Information is available in the devspecific part of linecallinfo(under HuntPilotInfo structure). There is no change in Huntpilot information for call scenarios involving huntpilot, when this feature is enabled from the information exposed when this is feature is disabled. Interface Changes Not applicable. Message Sequences See Hunt Pilot Connected Number Feature, on page 835. Backward Compatibility This feature is backward compatible. It can be enabled on Huntpilot page Display Line Group Member DN as Connected Party. By default, this feature is disabled so that the existing applications are not affected. Hunt Group Login Status This feature allows TSP applications to log a controlled device in and out of a hunt group. In addition, TSP applications can query a device for the hunt group login status. After the TSP application successfully logs in or logs out of a hunt group, the TSP application sends a phone event to notify associated applications of the updated login status. If the request to change the status does not actually result in a status change (for example, if TSP tries to log a device into a hunt group, but the device was already logged in to that group) no notification is sent. Interface Updates To support this feature, two interfaces have been updated: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 70 Features Supported by TSP Hunt Pilot Connected Number

Page 102 content

Page 103

• To log in and log out of hunt groups, the CCiscoPhoneDevSpecificSetHuntGroupLoginStatus extension has been added to the existing CCiscoPhoneDevSpecific interface. The new extension has an enum mHuntGroupLoginStatus. • To query the hunt group login status, a new extension Cisco_LineDevCaps_Ext000E0000 has been added to the existing LineGetDevCapsinterface. The new extension has a member variable of DeviceHuntGroupLoginStatus. To log in and out of hunt groups, the application must negotiate line extension 0x000E0000 or above. The new line extension is added as a part of this feature. To make use of this feature, he application must open a TAPI phone device with minimum extension version 0x00030000. Note Error Description Hunt group logins are not supported with the following device types. Login requests return the LINEERR_OPERATIONUNAVAIL error: • DeviceTapiRoutePoint • CtiRemoteDevice • CtiSparkRemoteDevice The range of enum values for Hunt Group Login status must fall within the range of 0 to 2. Otherwise, the request returns LINEERR_INVALPARAM. If the request to set the Hunt Group Login Status is in process and a second request is sent, the second request returns the LINEERR_PENDING_REQUEST error. Interface Changes Hunt Group Login Status, on page 402 Message Sequences Hunt Group Login Status, on page 857 Backward Compatibility none Intercom The Intercom feature allows one user to call another user and have the call automatically answered with one-way media from the caller to the called party, regardless of whether the called party is busy or idle. To ensure that no accidental voice of the called party is sent back to the caller, Unified Communications Manager implements a ‘whisper’ intercom, which means that only one-way audio from the caller is connected, but not audio from the called party. The called party must manually press a key to talk back to the caller. A Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 71 Features Supported by TSP Intercom

Image 1 from page 103

Page 103 content

Page 104

zip-zip (auto-answer) tone will play to the called party before the party can hear the voice of the caller. For intercom users to know whether the intercom is using one-way or two-way audio, the lamp for both intercom buttons appears colored amber for a one-way whisper Intercom and green for two-way audio. For TSP applications, only one RTP event occurs for the monitored party: either the intercom originator or the intercom destination, with the call state as whisper, in the case of a one-way whisper intercom. TSP exposes the Intercom line indication and Intercom Speed Dial information in DevSpecific of LineDevCap. The application can retrieve the information by issuing LineGetDevCaps. In the DevSpecific portion, TSP provides information that indicates (DevSpecificFlag = LINEDEVCAPSDEVSPECIFIC_INTERCOMDN) whether this is the Intercom line. You can retrieve the Intercom speed dial information in the DevSpecific portion after the partition field. If a CTI port is used for the Intercom, the application should open the CTI port with dynamic media termination. TSP returns LINEERR_OPERATIONUNAVAIL if the Intercom line is opened with static media termination. You cannot use CTI Route Point for the Intercom feature. Note The administrator can configure the speed dial and label options from Unified Communications Manager Administration. However, the application can issue CciscoLineSetIntercomSpeeddial with SLDST_LINE_SET_INTERCOM_SPEEDDIAL to set or reset SpeedDial and Label for the intercom line. The Application setting will overwrite the administrator setting that is configured in the database. Unified Communications Manager uses the application setting to make the intercom call until the line is closed or until the application resets it. In the case of a Communications Manager or CTIManager failover, CTIManager or Cisco TSP resets the speed dial setting of the previous application. If the application restarts, the application must reset the speed dial setting; otherwise, Unified Communications Manager will use the database setting to make the intercom call. In any case, if resetting of the speed dial or label fails, the system sends a LINE_DEVSPECIFIC event to indicate the failure. When the application wants to release the application setting and have the speed dial setting revert to the database setting, the application can call CciscoLineSetIntercomSpeeddial with a NULL value for SpeedDial and Label. If the speed dial setting is changed, whether due to a change in the database or because the application overwrites the setting, the system generates a LineDevSpecific event to indicate the change. However, the application needs to call CCiscoLineDevSpecificSetStatusMsgs with DEVSPECIFIC_SPEEDDIAL_CHANGED to receive this notification. After receiving the notification, the application can call LineGetDevCaps to find out the current settings of speed dial and label. Users can initiate an intercom call by pressing the Intercom button at the originator or by issuing a LineMakeCall with a NULL destination if Speedial/Label is configured on the intercom line. Otherwise, LineMakeCall should have a valid Intercom DN. For an intercom call, a CallAttribute field in LINECALLINFODEVSPECIFIC indicates whether the call is for the intercom originator or the intercom target. After the intercom call is established, the system sends a zip-zip tone event to the application as a tone-changed event. Users can invoke a TalkBack at the destination in two ways: • By pressing the intercom button • By issuing CciscoLineIntercomTalkback with SLDST_LINE _INTERCOM_TALKBACK Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 72 Features Supported by TSP Intercom

Image 1 from page 104

Page 104 content

Page 105

TSP reports the Whisper call state in the extended call state bit as CLDSMT_CALL_WHISPER_STATE. If the call is being put on hold because the destination is answering an intercom call by using talk back, the system reports the call reason CtiReasonTalkBack in the extended call reason field for the held call. The application cannot set line features, such as set call forwarding and set message waiting, other than to initiate the intercom call, drop the intercom call, or talk back. After the intercom call is established, the system limits call features for the intercom call. For the originator, only LINECALLFEATURE_DROP is allowed. For the destination, the system supports only the LINECALLFEATURE_DROP and TalkBack features for the whisper intercom call. After the intercom call becomes two-audio after the destination initiates talk back, the system allows only LINECALLFEATURE_DROP at the destination. Speed dial labels support unicode. IPv6 The IPv6 support feature enables IPv6 capabilities in a Unified Communications Manager network. IPv6 increases the number of addresses available for network devices. TAPI can connect to Unified CM with IPv6 support if the IPv6 Support feature is enabled on Unified CM. IPv6 enhancements include the following: • Provides the IPv6 address of the calling party to the called party in the Devspecific part of LINECALLINFO. • Support to register a CTI port or a route point with an IPv6 address. The RTP destination address also contains IPv6 addresses if the same is involved in media establishment. The TSP user interface includes the primary and backup CTI Manager address and a flag that indicates the preference of user while connecting to the CTI Manager. CTI ports and route points can be registered with IPv4, IPv6, or both. The following new CiscoLineDevSpecific functions allow the application to specify IP address mode and IPv6 address before opening CTI port and route point: • CciscoLineDevSpecificSetIPv6AddressAndMode • CciscoLineDevSpecificSetRTPParamsForCallIPv6 For dynamic port registration, on receiving the SLDSMT_OPEN_LOGICAL_CHANNEL event, the CciscoLineDevSpecificSetRTPParamsForCallIPv6 allows the application to provide IPv6 information for the call. Interface Changes See Set IPv6 Address and Mode, on page 377. Message Sequences See IPv6 Use Cases, on page 863. Backward Compatibility This feature is backward compatible. The 0x00090000 extension must be negotiated to use this feature. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 73 Features Supported by TSP IPv6

Page 105 content

Page 106

Transfer Changes Join In Unified Communications Manager, the Join softkey joins all the parties of established calls (at least two) into one conference call. The Join feature does not initiate a consultation call and does not put the active call on hold. It also can include more than two calls, which results in a call with more than three parties. Cisco Unified TSP exposes the Join feature as a new device-specific function that is known as lineDevSpecific() – Join. Applications can apply this function to two or more calls that are already in the established state. This also means that the two calls do not need to be set up initially by using the lineSetupConference() or linePrepareAddToConference() functions. Cisco Unified TSP also supports the lineCompleteTransfer() function with dwTransferMode = Conference. This function allows a TAPI application to join all the parties of two, and only two, established calls into one conference call. Cisco Unified TSP also supports the lineAddToConference() function to join a call to an existing conference call that is in the ONHOLD state. A feature interaction issue involves Join, Shared Lines, and the Maximum Number of Calls. The issue occurs when you have two shared lines and the maximum number of calls on one line is less than the maximum number of calls on the other line. For example, in a scenario where one shared line, A, has a maximum number of calls set to 5 and another shared line, A’, has a maximum number of calls set to 2, the scenario involves the following steps: A calls B. B answers. A puts the call on hold. C calls A. A answers. C puts the call on hold. At this point, line A has two calls in the ONHOLD state, and line A’ has two calls in the CONNECTED_INACTIVE state. D calls A. A answers. At this point, the system presents the call to A, but not to A’. This happens because the maximum calls for A’ specifies 2. A performs a Join operation either through the phone or by using the lineDevSpecific – Join API to join all the parties in the conference. It uses the call between A and D as the primary call of the Join operation. Because the call between A and D was used as the primary call of the Join, the system does not present the ensuing conference call to A’. Both calls on A’ will go to the IDLE state. As the end result, A’ will not see the conference call that exists on A. Join Across Lines (SCCP) This feature allows two or more calls on different lines of the same device to be joined through the join operation. Applications can use the existing join API to perform the task. When the join across line happens, the consultation call on the different line on which the survival call does not reside will get cleared, and a Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 74 Features Supported by TSP Transfer Changes

Page 106 content

Page 107

CONFERENCED call that represents the consultation call will be created on the primary line where conference parent is created. This feature should have no impact when multiple calls are joined on the same line. This feature is supported on SCCP devices that can be controlled by CTI. In addition, this feature also supports chaining of conference calls on different lines on the same device. Also, a join across line can be performed on a non-controller line; that is, the original conference controller was on a different device then where the join is being performed. This feature returns an error if one of the lines that are involved in the Join Across Lines is an intercom line. Note Backwards Compatibility This feature is backward compatible. Join Across Lines (SIP) This feature allows two or more calls on different lines of the same device to be joined by using the join operation. Applications can use the existing join API to perform the task. When the join across line happens, the consultation call on the different line on which the survival call does not reside will get cleared, and a CONFERENCED call that represents the consultation call will get created on the primary line where conference parent is created. This feature should have no impact when multiple calls are joined on the same line. This feature is supported both on SCCP and SIP devices that can be controlled by CTI. In addition, this feature also supports chaining of conference calls on different lines on the same device. Also, a join across line can be performed on a non-controller (the original conference controller was on a different device then where the join is being performed) line. This feature returns an error if one of the lines involved in the Join Across Lines is an intercom line. Interface Changes None. Message Sequences See Join Across Lines, on page 868. Backwards Compatibility This feature is backward compatible. Line-Side Phones That Run SIP TSP supports controlling and monitoring of TNP-based phones that are running SIP. Existing phones (7960 and 7940) that are running SIP cannot be controlled or monitored by the TSP and should not get included in the control list. Though the general behavior of a phone that is running is similar to a phone that is running SCCP not all TSP features get supported for phones that are running SIP. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 75 Features Supported by TSP Join Across Lines (SIP)

Image 1 from page 107

Page 107 content

Page 108

CCiscoPhoneDevSpecificDataPassThrough functionality does not support on phones that are running SIP configured with UDP transport due to UDP limitations. Phones that are running SIP must be configured to use TCP (default) if the CCiscoPhoneDevSpecificDataPassThrough functionality is needed. TSP application registration state for TNP phones that are running SIP with UDP as transport may not remain consistent to the registration state of the phone. TNP phone that are running SIP with UDP as transport may appear to be registered when application reports the devices as out of service. This may happen when CTIManager determines that Unified CM is down and puts the device as out of service, but, because of the inherent delay in UDP to determine the lost connectivity, phone may appear to be in service. The way applications open devices and lines on phones that are running SIP remains the same as that of phone that is running SCCP. It is the phone that controls when and how long to play reorder tone. When a SIP phone gets a request to play reorder tone, the phone that is running SIP releases the resources from Unified CM and plays reorder tone. The call appears to be IDLE to a TSP application even though reorder tone is being played on the phone. Applications can still receive and initiate calls from the phone even when reorder tone plays on the phone. Because resources have been released on Unified CM, this call does not count against the busy trigger and maximum number of call counters. When consult call scenario is invoked on the SIP, the order of new call event (for consult call) and on hold call state change event (for original call). Localization Infrastructure Changes Beginning with Release 7.0(1), the TSP localization is automated. The TSP UI can download the new and updated locale files directly from a configured TFTP server location. As a result of the download functionality, Cisco TSP install supports only the English language during the installation. During installation, the user inputs the TFTP server IP address. When the user opens the TSP interface for the first time, the TSP interface automatically downloads the locale files from the configured TFTP server and extracts those files to the resources directory. The languages tab in the TSP preferences UI also provides functionality to update the locale files. To upgrade from Unified Communications Manager, Release 6.0(1) TSP to Cisco Unified Communications Manager, Release 7.0(1) TSP, you must ensure that Release 6.0(1) TSP was installed by using English. If Release 6.0(1) TSP is installed using any language other than English and if the user upgrades to Release 7.0(1) TSP, then the user must manually uninstall Release 6.0(1) TSP from Add/Remove programs in control panel and then perform a fresh install of Release 7.0(1) TSP. Note Interface Changes None. Message Sequences None. Backward Compatibility Only English locale is packaged in Cisco TSP installer. The TSP UI downloads the locale files from the configured TFTP server. The end user can select the required and supported locale after the installation. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 76 Features Supported by TSP Localization Infrastructure Changes

Image 1 from page 108

Page 108 content

Page 109

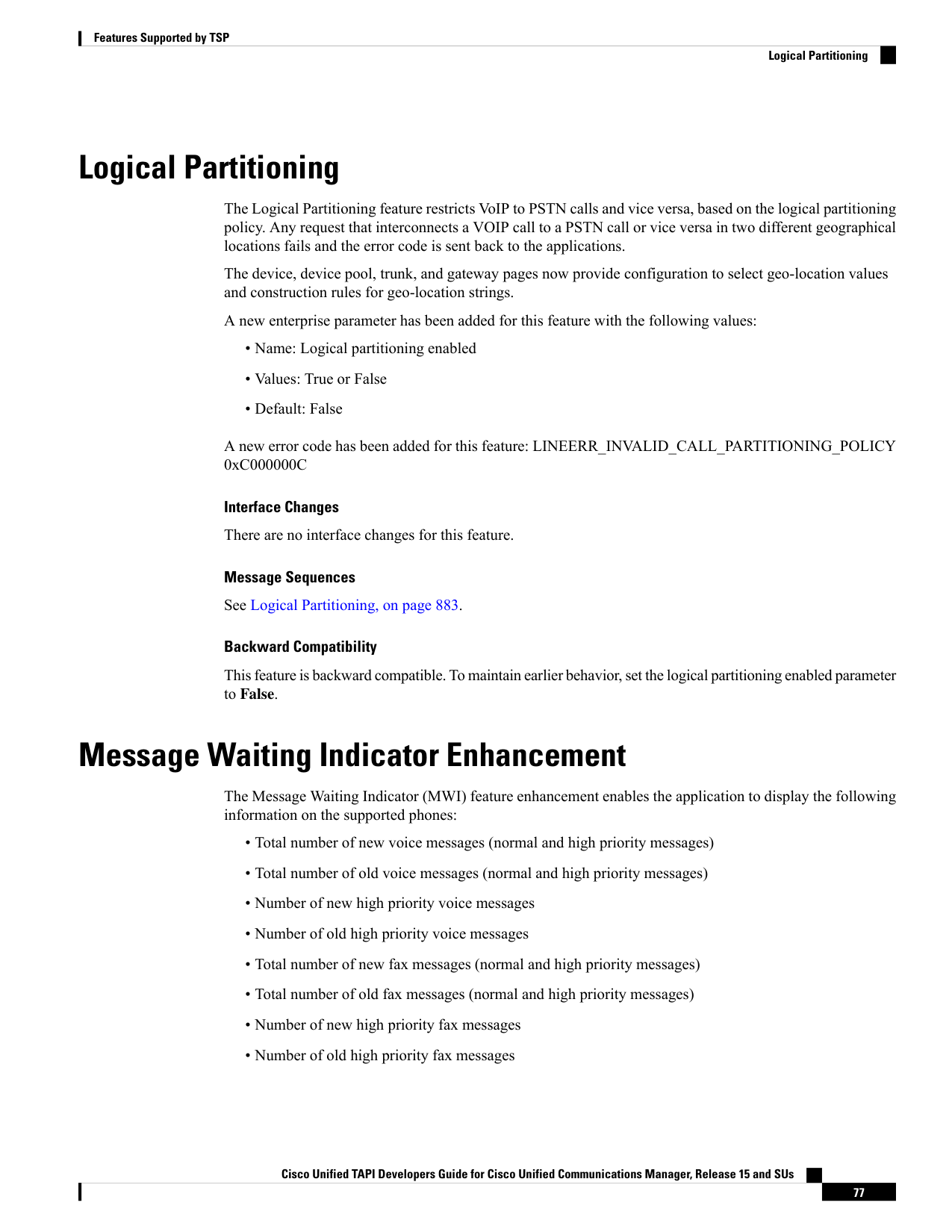

Logical Partitioning The Logical Partitioning feature restricts VoIP to PSTN calls and vice versa, based on the logical partitioning policy. Any request that interconnects a VOIP call to a PSTN call or vice versa in two different geographical locations fails and the error code is sent back to the applications. The device, device pool, trunk, and gateway pages now provide configuration to select geo-location values and construction rules for geo-location strings. A new enterprise parameter has been added for this feature with the following values: • Name: Logical partitioning enabled • Values: True or False • Default: False A new error code has been added for this feature: LINEERR_INVALID_CALL_PARTITIONING_POLICY 0xC000000C Interface Changes There are no interface changes for this feature. Message Sequences See Logical Partitioning, on page 883. Backward Compatibility This feature is backward compatible. To maintain earlier behavior, set the logical partitioning enabled parameter to False. Message Waiting Indicator Enhancement The Message Waiting Indicator (MWI) feature enhancement enables the application to display the following information on the supported phones: • Total number of new voice messages (normal and high priority messages) • Total number of old voice messages (normal and high priority messages) • Number of new high priority voice messages • Number of old high priority voice messages • Total number of new fax messages (normal and high priority messages) • Total number of old fax messages (normal and high priority messages) • Number of new high priority fax messages • Number of old high priority fax messages Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 77 Features Supported by TSP Logical Partitioning

Page 109 content

Page 110

MWI also includes two CCiscoLineDevSpecific subclasses are added to enhance the MWI functionality. Similar to the existing setMessageWaiting operation, one MWI operation sets the summary information for the controlled line, while the another MWI operation sets the message summary information on any line that is reachable by the controlled line, as defined by the configured calling search space of the controlled line. Interface Changes See Message Summary, on page 350 and Message Summary Dirn, on page 352. Message Sequences There are no message sequences for this feature. Backward Compatibility This feature is backward compatible. Monitoring Call Park Directory Numbers Cisco TSP supports monitoring calls on lines that represent Unified Communications Manager Administration Call Park Directory Numbers (Call Park DNs). Cisco TSP uses a device-specific extension in the LINEDEVCAPS structure that enables TAPI applications to differentiate Call Park DN lines from other lines. If an application opens a Call Park DN line, all calls that are parked to the Call Park DN are reported to the application. The application cannot perform any call-control functions on any of the calls at a Call Park DN. In order to open Call Park DN lines, the Monitor Call Park DNs check box in theUnified Communications Manager Administration for the TSP user must be checked. Otherwise, the application will not see any of the Call Park DN lines upon initialization. Multiple Calls Per Line Appearance The following topics describe the conditions of Line Appearance. Maximum Number of Calls The maximum number of calls per Line Appearance remains database configurable, which means that the Cisco TSP supports more than two calls per line on Multiple Call Display (MCD) devices. An MCD device comprises a device that can display more than two call instances per DN at any given time. For non-MCD devices, the Cisco TSP supports a maximum of two calls per line. The absolute maximum number of calls per line appearance equals 200. Busy Trigger In Cisco Unified CM, a setting, busy trigger, indicates the limit on the number of calls per line appearance before the Cisco Unified CM will reject an incoming call. Be aware that the busy trigger setting is database configurable, per line appearance, per cluster. The busy trigger setting replaces the old call waiting flag per DN. You cannot modify the busy trigger setting using the CiscoTSP. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 78 Features Supported by TSP Monitoring Call Park Directory Numbers

Page 110 content

Page 111

Call Forward No Answer Timer Be aware that the Call Forward No Answer timer is database configurable, per DN, per cluster. You cannot configure this timer using the CiscoTSP. New Cisco Media Driver Cisco TSP now allows the application to use the new Cisco Media Driver (next generation Wave Driver). Cisco Media Driver provides applications with functions similar to the legacy kernel mode driver, has improved scalability, and supports latest Microsoft operating system releases. Two additional device classes, ciscowave/in and ciscowave/out, have been introduced to support the new driver. These classes can be used in the lineGetID() to retrieve line-device identifiers for media devices associated with line when the new Cisco Media Driver is used for audio streaming. For more information, see Cisco TSP Media Driver, on page 421. Interface Changes None Message Sequences None Backward Compatibility This feature is not backward compatible. Other-Device State Notification TAPI specification does not have a provision to notify applications regarding state changes of non-opened devices. The Other-Device State Notification feature enhances Cisco TSP with that functionality. Using this feature, an application can assign devices that Cisco TSP should use to notify the application about non-opened device state changes. Currently, Cisco TSP supports this feature only for line devices. An application can enable the feature on any open line device using a DEVSPECIFIC_OTHER_DEVICE_STATE_NOTIFY flag in CCiscoLineDevSpecificSetStatusMsgs lineDevSpecific request. Cisco TSP then uses this line to deliver other-device state change notifications to the application. Notifications are sent in LINE_LINEDEVSTATE message as follows: LINE_LINEDEVSTATE hDevice = (DWORD) hLine; dwCallbackInstance = (DWORD) hCallback; dwParam1 = (DWORD) LINEDEVSTATE_OTHER; dwParam2 = (DWORD) CISCO_LINEDEVSTATE_OTHER_REASON_constant; dwParam3 = (DWORD) dwLineDeviceId; CiscoLineDevStateOtherReason enumeration defines all relevant values of the Param2 in this notification. Param3 contains the TAPI identifier of the line device for which the state has changed. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 79 Features Supported by TSP New Cisco Media Driver

Page 111 content

Page 112

The other-device state notification is a supplementary mechanism that can be used by other features that provide the application with state change notifications for non-opened devices. For example, EM Memory Optimization uses this feature to notify an application when a line device becomes active or inactive as a result of EM login or logout. Interface Changes CiscoLineDevStateOtherReason enumeration type provides details to LINEDEVSTATE_OTHER and is passed to the application as dwParam2 in the LINE_LINEDEVSTATE message enum CiscoLineDevStateOtherReason { CiscoLineDevStateOtherReason_Unknown = 0, CiscoLineDevStateOtherReason_OtherLineInactive, CiscoLineDevStateOtherReason_OtherLineActive, CiscoLineDevStateOtherReason_OtherLineCapsChange }; DEVSPECIFIC_OTHER_DEVICE_STATE_NOTIFY flag in Set Status Messages, lineDevSpecific request must be used to enable other-device state notifications. For more information, see Set Status Messages, on page 355. Message Sequences See Extension Mobility Memory Optimization Option, on page 739. Backward Compatibility The other-device state notification is a supplementary feature intended to be used by other features that require to provide the application with state change notifications for non-opened devices. Its backward compatibility should be considered in a context of a specific feature. For more information, see Extension Mobility Memory Optimization Option, on page 64. Park Monitoring The Park Monitoring feature allows you to monitor the status of parked calls. This feature improves the user experience of retrieving the parked calls. When TAPI receives a parked call notification, a call representing the parked call is generated, and the call is set to CONNECTED INACTIVE state. The parked call is set to IDLE when it is retrieved or forwarded to Park Monitoring Forward No Retrieve Destination. DEVSPECIFIC_PARK_STATUS event is sent when call is parked, reminded, retrieved, and aborted. LineDevSpecific SLDST_SET_STATUS_MESSAGES are enhanced to allow the application to enable/disable DEVSPECIFIC_PARK_STATUS event. When Cisco TSP receives the LINE_PARK_STATUS event for the newly parked call, Cisco TSP simulates a call for each of the newly parked call using the SubID received from the LINE_PARK_STATUS event, and notifies the application about the new parked call using the LINE_NEWCALL event. Cisco TSP uses LINE_CALLSTATE event to notify changes in the park status to the application. The park status in the LINE_CALLSTATE event can be one of the following: • Parked -indicates a call is parked by the TSP monitored Cisco Unified IP phone. • Retrieved -indicates a previously parked call is retrieved. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 80 Features Supported by TSP Park Monitoring

Page 112 content

Page 113

• Abandoned -indicates a previously parked call is disconnected while waiting to be retrieved. • Reminder -indicates the park monitoring reversion timer for the parked call has expired. • Forwarded -indicates the parked call has been forwarded to the configured Park Monitoring Forward No Retrieve destination, or if the FNR destination is not configured, the call is forwarded back to the parker. When Cisco TSP receives the LINE_PARK_STATUS event, it maps the existing CALLINFO structure with the fields received from LINE_PARK_STATUS event. The application then retrieves the updated structure by invoking lineGetCallInfo. The mapping of the fields in the LINE_PARK_STATUS event to the LINECALLINFO structure is as follows: Description LINECALLINFO-- LINE_PARK_STATUS Identifies the line handle to which this message applies hline LineHandle Identifies the global call handle to which this message applies. dwcallid GCID A unique ID that identifies a particular parked call dwRedirectingName TransactionID Identifies the call reason. dwReason CallReason Parked, retrieved, abandoned, reminder, forwarded -indicates the status of the parked call. dwBearerMode Park Status The park slot DN. dwCallerID ParkSlotDN The partition of the park slot DN. dwCallerIDName ParkSlotPartition The parked party DN. dwCalledID ParkedPartyDN The partition of the parked party DN. dwCalledIDName ParkedPartyPartition To maintain the existing behavior of the Park feature for the Cisco Unified IP Phones running SIP, you can set the value of the Park Monitoring Forward No Retrieve Destination timer equal to the existing Call Park Duration timer and leave the Park Monitoring Forward No Retrieve Destination blank. To override the Park Monitoring feature for the Cisco Unified IP Phones running SIP, turn off the DEVSPECIFIC_PARK_STATUS message flag by using the lineDevSpecific SLDST_SET_STATUS_MESSAGES request. Interface Changes See Set Status Messages, on page 355. Message Sequences See Park Monitoring, on page 896. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 81 Features Supported by TSP Park Monitoring

Page 113 diagram

Page 114

Backward Compatibility This feature is backward compatible. Partition The CiscoTSP support of this feature will provide Partition support information. Prior to release 5.1, CiscoTSP only reported partial information about the DNs to the applications in that it would report the numbers assigned but not the information about the partitions with which they were associated. Thus, if a phone has two lines that are configured with same DNs – one in Partition P1 and the other in P2, a TSP application would cannot distinguish between these two and consequently open only one line of these two. CiscoTSP provides the partition information about all DNs to the applications. Thus, the preceding limitation gets overcome and applications can distinguish between and open two lines on a device, which share the same DN but belong to different partitions. TSP applications can query for LINEDEVCAPS where the partition information is stored in the devSpecific portion of the structure. The application will receive the partition information for the CallerID, CalledID, ConnectedID, RedirectionID, and RedirectingID in a call. This is provided as a part of DevSpecific Portion of the LINECALLINFO structure. Also, the partition information of the Call Park DN at which the call was parked is also sent to the applications. The value of the partition information is sent to applications in ASCII format. Note Password Expiry Notification The password expiry notification notifies the user about the password expiry date and provides the specific reason for the initialization failure if the password is already expired or the account is locked. The user can create a credential policy and associate the same with user password credentials. After the CiscoTSP application is started, the password expiry notification appears. This information appears only once, when the application is initially loaded, and will not be updated periodically. If the application is already started and second application begins, the password expiry notification will not appear again because the application is already loaded. CiscoTSP notifies the user about the password expiry as follows: Popup message from CiscoTSP notifier: Unified CM TSP initialization Success -Password will Expire in Days : 9 Application Event Log message: Information : Password will Expire in [9] Days Password Expired The CiscoTSP initialization fails and a message is displayed if the password is expired. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 82 Features Supported by TSP Partition

Image 1 from page 114

Page 114 content

Page 115

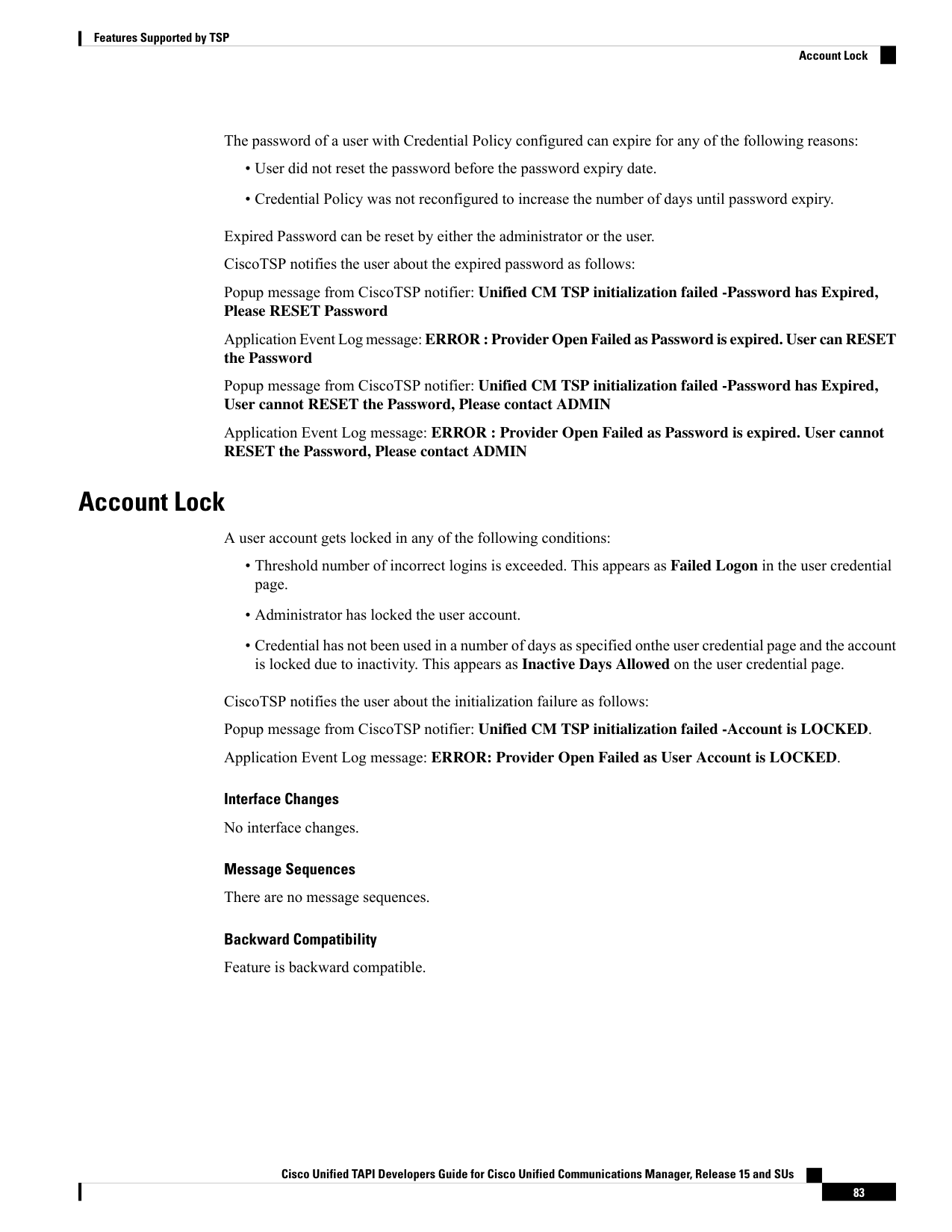

The password of a user with Credential Policy configured can expire for any of the following reasons: • User did not reset the password before the password expiry date. • Credential Policy was not reconfigured to increase the number of days until password expiry. Expired Password can be reset by either the administrator or the user. CiscoTSP notifies the user about the expired password as follows: Popup message from CiscoTSP notifier: Unified CM TSP initialization failed -Password has Expired, Please RESET Password Application Event Log message: ERROR : Provider Open Failed as Password is expired. User can RESET the Password Popup message from CiscoTSP notifier: Unified CM TSP initialization failed -Password has Expired, User cannot RESET the Password, Please contact ADMIN Application Event Log message: ERROR : Provider Open Failed as Password is expired. User cannot RESET the Password, Please contact ADMIN Account Lock A user account gets locked in any of the following conditions: • Threshold number of incorrect logins is exceeded. This appears as Failed Logon in the user credential page. • Administrator has locked the user account. • Credential has not been used in a number of days as specified onthe user credential page and the account is locked due to inactivity. This appears as Inactive Days Allowed on the user credential page. CiscoTSP notifies the user about the initialization failure as follows: Popup message from CiscoTSP notifier: Unified CM TSP initialization failed -Account is LOCKED. Application Event Log message: ERROR: Provider Open Failed as User Account is LOCKED. Interface Changes No interface changes. Message Sequences There are no message sequences. Backward Compatibility Feature is backward compatible. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 83 Features Supported by TSP Account Lock

Page 115 content

Page 116

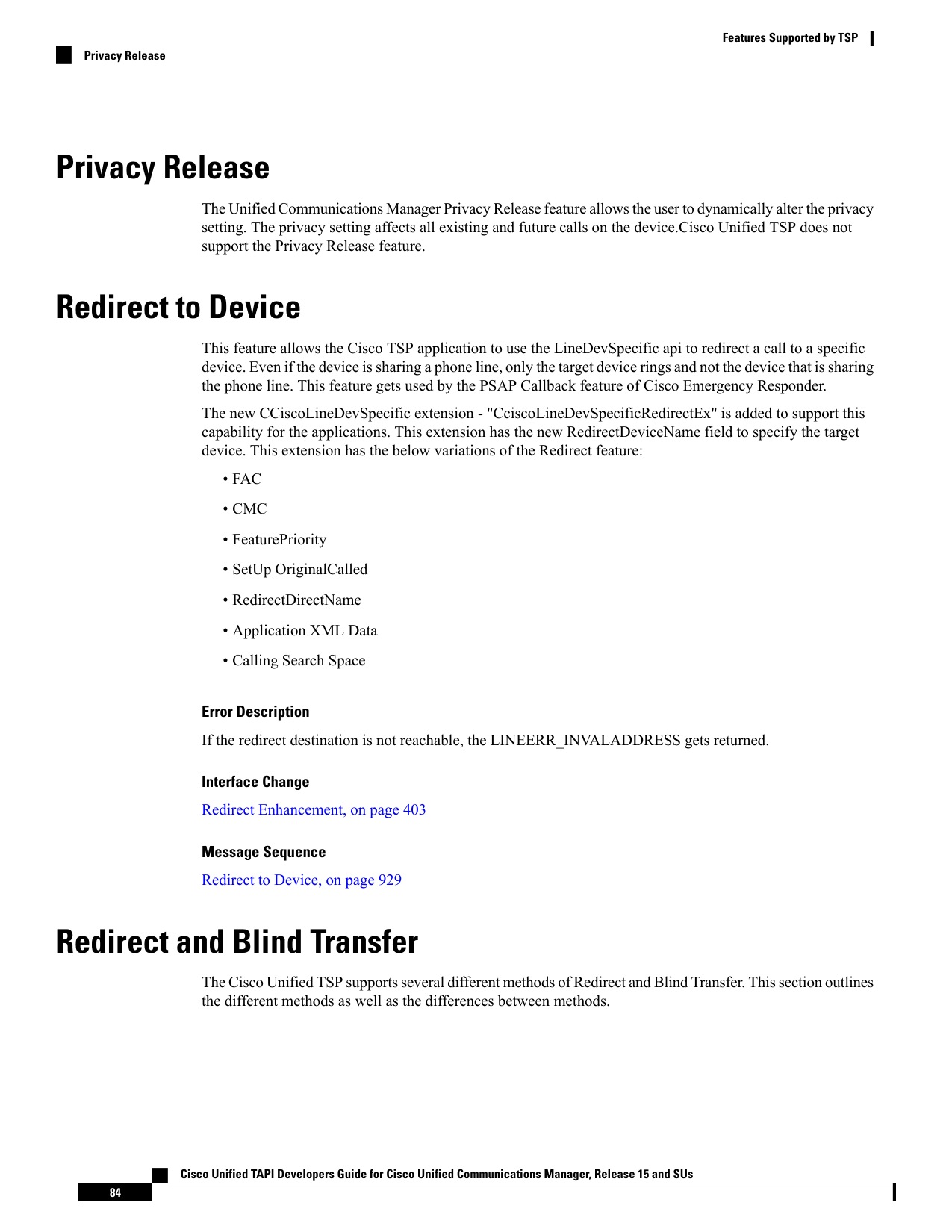

Privacy Release The Unified Communications Manager Privacy Release feature allows the user to dynamically alter the privacy setting. The privacy setting affects all existing and future calls on the device.Cisco Unified TSP does not support the Privacy Release feature. Redirect to Device This feature allows the Cisco TSP application to use the LineDevSpecific api to redirect a call to a specific device. Even if the device is sharing a phone line, only the target device rings and not the device that is sharing the phone line. This feature gets used by the PSAP Callback feature of Cisco Emergency Responder. The new CCiscoLineDevSpecific extension - "CciscoLineDevSpecificRedirectEx" is added to support this capability for the applications. This extension has the new RedirectDeviceName field to specify the target device. This extension has the below variations of the Redirect feature: • FAC • CMC • FeaturePriority • SetUp OriginalCalled • RedirectDirectName • Application XML Data • Calling Search Space Error Description If the redirect destination is not reachable, the LINEERR_INVALADDRESS gets returned. Interface Change Redirect Enhancement, on page 403 Message Sequence Redirect to Device, on page 929 Redirect and Blind Transfer The Cisco Unified TSP supports several different methods of Redirect and Blind Transfer. This section outlines the different methods as well as the differences between methods. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 84 Features Supported by TSP Privacy Release

Page 116 content

Page 117

lineRedirect This standard TAPI lineRedirect function redirects calls to a specified destination. The Calling Search Space and Original Called Party that Cisco Unified TSP uses for this function follows: • Calling Search Space (CSS) — Uses CSS of the CallingParty (the party being redirected) for all cases unless the call is in a conference or a member of a two-party conference where it uses the CSS of the RedirectingParty (the party that is doing the redirect). • Original Called Party — Not changed. lineDevSpecific -redirect reset Original Called ID This function redirects calls to a specified destination while resetting the Original Called Party to the party that is redirecting the call. The Calling Search Space and Original Called Party that Cisco Unified TSP uses for this function follow: • Calling Search Space (CSS) — Uses CSS of the CallingParty (the party being redirected). • Original Called Party — Set to the RedirectingParty (the party that is redirecting the call). lineDevSpecific -redirect set Original Called ID This function redirects calls to a specified destination while allowing the application to set the Original Called Party to any value. The Calling Search Space and Original Called Party that Cisco Unified TSP uses for this function follow: • Calling Search Space (CSS) — Uses CSS of the CallingParty (the party being redirected). • Original Called Party — Set to the preferredOriginalCalledID that the lineDevSpecific function specifies. You can use this request to implement the Transfer to Voice Mail feature (TxToVM). Using this feature, applications can transfer the call on a line directly to the voice mailbox on another line. You can achieve TxToVM by specifying the following fields in the above request: voice mail pilot as the destination DN and the DN of the line to whose voice mail box the call is to be transferred as the preferredOriginalCalledID. lineDevSpecific -redirect FAC CMC This function redirects calls to a specified destination that requires either a FAC, CMC, or both. The Calling Search Space and Original Called Party that Cisco Unified TSP uses for this function follow: • Calling Search Space (CSS) — Uses CSS of the CallingParty (the party being redirected). • Original Called Party — Not changed. lineBlindTransfer Use the standard TAPI lineBlindTransfer function to blind transfer calls to a specified destination. The Calling Search Space and Original Called Party that Cisco Unified TSP uses for this function follow: • Calling Search Space (CSS) — Uses CSS of the TransferringParty (the party that is transferring the call). Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 85 Features Supported by TSP lineRedirect

Page 117 content

Page 118

• Original Called Party — Set to the TransferringParty (the party that is transferring the call). lineDevSpecific -blind transfer FAC CMC This function blind transfers calls to a specified destination that requires a FAC, CMC, or both. The Calling Search Space and Original Called Party that Cisco Unified TSP uses for this function follow: • Calling Search Space (CSS) — Uses CSS of the TransferringParty (the party that is transferring the call). Original Called Party — Set to the TransferringParty (the party that is transferring the call). Refer and Replaces for Phones That Are Running SIP As part of CTI support for phones that are running SIP, TSP will support new SIP features Refer and Replaces. Refer, Refer with Replaces, Invite with Replaces represent different mechanisms to initiate different call control features. For example, Refer with Replaces in SIP terms can be translated to Transfer operation in Unified CM. Invite with Replaces can be used for Pickup call feature across SIP trunks. TSP will support event handling corresponding to the features that are initiated by Unified CM phones that are running SIP / third party phones that are running SIP. TSP will not support Refer / Replaces request initiation from the API. Because TAPI does not have Refer/Replaces feature related reason codes defined, the standard TAPI reason will be LINECALLREASON_UNKNOWN. TSP will provide new call reason to user as part of LINE_CALLINFO::dwDevSpecificData if the application negotiated extension version greater or equal to 0x00070000. For In-dialog refer, TSP places Referrer in LINECALLSTATE_UNKNOWN | CLDSMT_CALL_WAITING_STATE call state with extended call reason as CtiCallReasonRefer. This helps present the Referrer’s call leg such that applications cannot call any other call functions on this call. Any request on this call when it is in LINECALLSTATE_UNKNOWN | CLDSMT_CALL_WAITING_STATE will return an error as LINEERR_INVALCALLSTATE. The Referrer must clear this call after the Refer request is initiated. If Referrer does not drop the call, Refer feature will clear this call if the refer is successful. LINECALLSTATE_IDLE with extended reason as CtiCallReasonRefer will get reported. If Referrer does not drop the call and if Refer request fails (For example, Refer to target is busy), refer feature will restore the call between Referrer and Referee. With Unified CM Phones that are running SIP, Unified CM makes all the existing call features transparent such that applications will get the existing events when the phone invokes a SIP feature whose behavior matches with the existing feature of Unified CM. For example, when Refer with Replaces is called by a phone that runs SIP (with both primary and secondary/consult call legs on same SIP line) within Unified CM cluster, all the events will get reported the same as Transfer feature. Ringback on SIP 183 for Transfers Cisco TAPI has been updated with how it responds to SIP 183 messages when a call is transferred over a gateway or trunk. When an established call gets transferred over a trunk and a SIP 183 is received, Cisco TAPI reports a RINGBACK state. When the call is answered, Cisco TAPI reports a call state of CONNECTED. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 86 Features Supported by TSP lineDevSpecific -blind transfer FAC CMC

Page 118 content

Page 119

A new Cisco CallManager service parameter, CTI Report Ringback on SIP 183 with SDP, has been added to configure this feature. When this sevice parameter is set to True, the above behavior applies. This is the default setting. If an application needs to use the legacy behavior, you can set the service parameter to False. Under this setting, if the call gets transferred over a gateway or trunk, Cisco TAPI will report a PROGRESSING state when Cisco Unified Communications Manager recieves a SIP 183, but after a connection is established, Cisco TAPI does not report the CONNECTED state. Secure Conference Prior to release 6.0(1), the security status of each call matched the status for the call between the phone and its immediately connected party, which is a conference bridge in the case of a conference call. No secured conference resource existed, so secure conference calls were not possible. Release 7.0(1) supports a secured conference resource to enable secure conference. The Secure Conference feature lets the administrator configure the Conference bridge resources with either a non-secure mode or an encrypted signaling and media mode. If the bridge is configured in encrypted signaling and media mode, the Conference Bridge will register to Unified Communications Manager as a secure media resource. This enables the user to create a secure conference session. When the media streams of all participants who are involved in the conference are encrypted, the conference exists in encrypted mode. Otherwise, the conference exists in non-secure mode. The overall conference security status depends on the least-secure call in the conference. For example, suppose parties A (secure), B (secure), and C (non-secure) are in a conference. Even though the conference bridge can support encrypted sRTP and is using that protocol to communicate with A and B, C remains a non-secure phone. Thus, the overall conference security status is non-secure. Even though the overall conference security status is non-secure, because a secure conference bridge was allocated, all secure phones (in this case, A and B) will receive sRTP keys. TSP informs each participant about the overall call security status. The system provides the overall call security level of the conference to the application in the DEVSPECIFIC portion of LINECALLINFO to indicate whether the conference call is encrypted or non-secure. The Secure Conference feature uses four fields to present the call security status: DWORD CallSecurityStatusOffset; DWORD CallSecurityStatusSize; DWORD CallSecurityStatusElementCount; DWORD CallSecurityStatusElementFixedSize; The offset will point to following structure: typedef struct CallSecurityStatusInfo { DWORD CallSecurityStatus; } CallSecurityStatusInfo; The system updates LINECALLINFO whenever the overall call security status changes during the call because a secure or non-secure party joins or leaves the conference. A conference resource gets allocated to the conference creator based on the creator security capability. If no conference resource with the same security capability is available, the system allocates a less-secure conference resource to preserve existing functionality. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 87 Features Supported by TSP Secure Conference

Page 119 content

Page 120

When a shared line is involved in the secure conference, the phone that has its line in RIU (remote in use) mode will not show a security status for the call. However, TSP exposes the overall security status to the application along with other call information for the inactive call. This means that TSP also reports the OverallSecurityStatus to all RIU lines. The status will match what is reported to the active line. Applications can decide whether to expose the information to the end user. Secure RTP The secure RTP (SRTP) feature allows Cisco TSP to report SRTP information to application as well as allow application to specify SRTP algorithm IDs during device registration. The SRTP information that Cisco TSP provides will include master key, master salt, algorithmID, isMKIPresent, and keyDerivation. To receive those key materials, administrator needs to configure TLS Enabled and SRTP Enabled flag in Unified Communications Manager Admin User windows and establish TLS link between TSP and CTIManager. Besides, during device registration, application can provide SRTP algorithm IDs for CTI port and CTI Route Point in case of media termination by application. Application should use new Cisco extension for Line_devSpecific -CciscoLineDevSpecificUserSetSRTPAlgorithmID to set supported SRTP algorithm IDs after calling LineOpen with 0x80070000 version or higher negotiated, then followed by either CCiscoLineDevSpecificUserControlRTPStream or CciscoLineDevSpecificPortRegistrationPerCall to allow TSP to open device on CTI Manager. When call arrives on an opened line, TSP will send LINE_CALLDEVSPECIFIC event to application with secure media indicator; then, application should query LINECALLINFO to get detail SRTP information if SRTP information is available. The SRTP information resides in the DevSpecific portion of the LINECALLINFO structure. In case of mid-call monitoring, Cisco TSP will send LINE_CALLDEVSPECIFIC with secure media indicator, however there will be no SRTP information available for retrieval under this scenario. The event is only sent upon application request via PhoneDevSpecific with CPDST_REQUEST_RTP_SNAPSHOT_INFO message type. To support SRTP that is using static registration, a generic mechanism for delayed device/line now exists. The following ones apply: • Extension version bit SELSIUSTSP_LINE_EXT_VER_FOR_DELAYED_OPEN = 0x40000000 • CiscoLineDevSpecificType -SLDST_SEND_LINE_OPEN • CCiscoLineDevSpecific -CciscoLineDevSpecificSendLineOpen If application negotiates with 0x00070000 in lineOpen against CTI port, TSP will do LineOpen/DeviceOpen immediately. If application negotiates with 0x40070000 in LineOpen against CTI port, TSP will delay the LineOpen/DeviceOpen. Application can specify SRTP algorithm ID by using CciscoLineDevSpecificUserSetSRTPAlgorithmID (SLDST_USER_SET_SRTP_ALGORITHM_ID). However, to trigger actual device/line open in TSP, application needs to send CciscoLineDevSpecificSendLineOpen(SLDST_SEND_LINE_OPEN) If application negotiates with 0x80070000 in LineOpen against CTI port/RP, TSP will delay the LineOpen/DeviceOpen until application specifies media information in CCiscoLineDevSpecific; however, application can use CciscoLineDevSpecificUserSetSRTPAlgorithmID (SLDST_USER_SET_SRTP_ALGORITHM_ID) to specify SRTP algorithm ID before specifying the media information. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 88 Features Supported by TSP Secure RTP

Page 120 content

Page 121

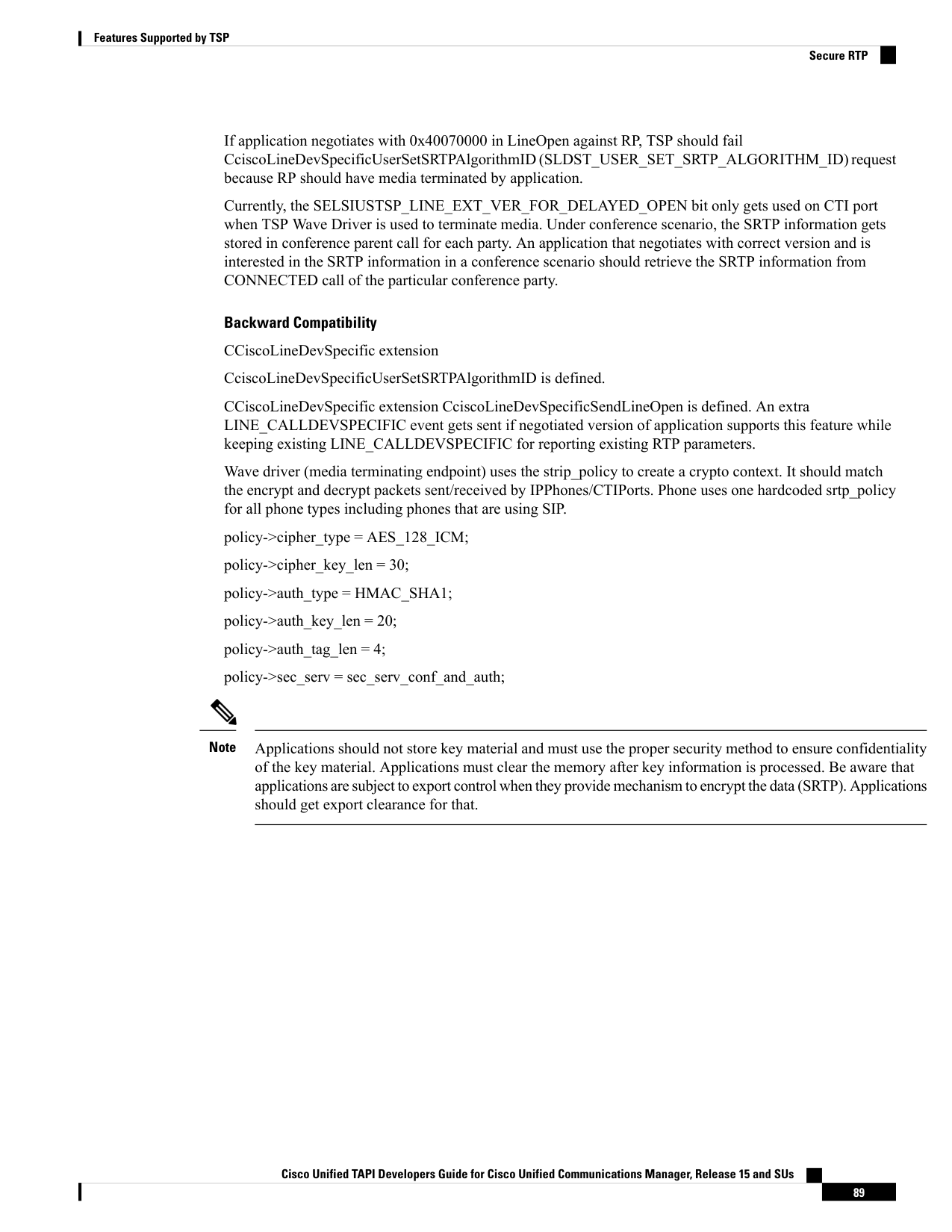

If application negotiates with 0x40070000 in LineOpen against RP, TSP should fail CciscoLineDevSpecificUserSetSRTPAlgorithmID (SLDST_USER_SET_SRTP_ALGORITHM_ID) request because RP should have media terminated by application. Currently, the SELSIUSTSP_LINE_EXT_VER_FOR_DELAYED_OPEN bit only gets used on CTI port when TSP Wave Driver is used to terminate media. Under conference scenario, the SRTP information gets stored in conference parent call for each party. An application that negotiates with correct version and is interested in the SRTP information in a conference scenario should retrieve the SRTP information from CONNECTED call of the particular conference party. Backward Compatibility CCiscoLineDevSpecific extension CciscoLineDevSpecificUserSetSRTPAlgorithmID is defined. CCiscoLineDevSpecific extension CciscoLineDevSpecificSendLineOpen is defined. An extra LINE_CALLDEVSPECIFIC event gets sent if negotiated version of application supports this feature while keeping existing LINE_CALLDEVSPECIFIC for reporting existing RTP parameters. Wave driver (media terminating endpoint) uses the strip_policy to create a crypto context. It should match the encrypt and decrypt packets sent/received by IPPhones/CTIPorts. Phone uses one hardcoded srtp_policy for all phone types including phones that are using SIP. policy->cipher_type = AES_128_ICM; policy->cipher_key_len = 30; policy->auth_type = HMAC_SHA1; policy->auth_key_len = 20; policy->auth_tag_len = 4; policy->sec_serv = sec_serv_conf_and_auth; Applications should not store key material and must use the proper security method to ensure confidentiality of the key material. Applications must clear the memory after key information is processed. Be aware that applications are subject to export control when they provide mechanism to encrypt the data (SRTP). Applications should get export clearance for that. Note Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 89 Features Supported by TSP Secure RTP

Image 1 from page 121

Page 121 content

Page 122

Presentation Indication Secure TLS From Release 15SU4 onwards, TAPI supports TLS 1.3. For more information, see the "TLS 1.3 Setup (From Release 15SU2 Onwards)" chapter in the Security Guide for Cisco Unified Communications Manager. The supported ciphers when communicating with both CAPF and CTI Manager in FIPS and non-FIPS modes are as follows: TLS_AES_256_GCM_SHA384 TLS_CHACHA20_POLY1305_SHA256 TLS_AES_128_GCM_SHA256 TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384 TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256 TLS_RSA_WITH_AES_128_CBC_SHA Note Establishing secure connection to CTIManager involves application user to configure more information through Cisco TSP UI. This information will help TSP to create its own client certificate. This certificate is used to create a mutually authenticated secure channel between TSP and CTIManager. TSP UI adds a new tab called Security and the options that are available on this tab follows: • Check box for Secure Connection to CTIManager: If checked, TSP will connect over TLS CTIQBE port (2749); otherwise, TSP will connect over CTIQBE port (2748). • Default setting specifies non secure connection and the setting will remain unchecked. Ensure that the security flag for the TSP user is enabled through Unified Communications Manager Administration as well. CTIManager will perform a verification check whether a user who is connecting on TLS is allowed to have secure access. CTIManager will allow only security enabled users to connect to TLS port 2749 and only non secure users to connect to CTIQBE port 2748. The user flag to enable security depends on the cluster security mode. If cluster security mode is set to secure, user security settings will have a meaning; otherwise, the connection has to be non secure. If secure connection to CTIManager is checked, the following settings will get enabled for editing. • CAPF Server: CAPF server IP address from which to fetch the client certificate. • CAPF Port: (Default 3804) – CAPF Server Port to connect to for Certificate download. • Authorization Code (AuthCode): Required for Client authentication with CAPF Server and Private Key storage on client machine. • Instance ID(IID): Each secure connection to CTIManager must have its own certificate for authentication. With the restriction of having a distinct certificate per connection, CAPF Server needs to verify that the user with appropriate AuthCode and IID is requesting the certificate. CAPF server will use AuthCode and IID to verify the user identity. After CAPF server provides a certificate, it clears the AuthCode to make sure only one instance of an app requests a certificate based on a single AuthCode. CCM admin will allow user configuration to provide multiple IID and AuthCode. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 90 Features Supported by TSP Presentation Indication

Image 1 from page 122

Page 122 content

Page 123

• TFTP Server: TFTP server IP address to fetch the CTL file. CTL, which file is required to verify the server certificate, gets sent while mutually authenticating the TLS connection. • Check box to Fetch Certificate: This setting is not stored anywhere, instead only gets used to update the Client certificate when it is checked and will get cleared automatically. • Number of Retries for Certificate Fetch: This indicates the number of retries TSP will perform to connect to CAPF Server for certificate download in case an error. (Default -0) (Range – 0 to 3) • Retry Interval for Certificate Fetch: This will be used when the retry is configured. It indicates the (secs) for which TSP will wait during retries. (Default – 0) (Range – 0 to 15) Because user is not expected to update the client certificate every time it changes, TSP UI will pop up a message when this box is checked by user that says “This will trigger a certificate update. Please make sure that you really want to update the TSP certificate now.” This will ensure that if user selects this check box in an error. TSP will fail to establish a secure connection to CTIManager if a valid certificate cannot be obtained. Each secure connection to CTIManager needs to have a unique certificate for authentication. If an application tries to create more than one Provider simultaneously with the same certificate or when a session with the same certificate already exists/is open, CTI Manager disconnects both providers. TSP will try reconnecting to CTIManager to bring the provider in service. However, if both providers continuously try to connect by using the same duplicated certificate, both providers will be closed after a certain number of retries, and the certificate will be marked as compromised by CTIManager on Unified CM server. The number of retries after which the certificate should be marked as compromised is configurable from the CTIManager Service Parameter CTI InstanceId Retry Count. CTI manager rejects further attempt to open provider with the certificate that is compromised. In this case, the CAPF profile of the compromised certificate should be deleted and a new CAPF Profile must be created for the user. The new CAPF profile for the user should use new instance ID. Otherwise, the old certificate, which was compromised previously, can be used again. A new error code, TSPERR_INIT_CERTIFICATE_COMPROMISED, with value as 0x00000011 where TSPERR_UNKNOWN is 0x00000010 now exists. Application should not have checks like “if (err < TSPERR_UNKNOWN))” because error codes exists that have a value greater than that. When TLS is used, the initial handshake will be slow as expected due to heavy use of public key cryptography. After the initial handshake is complete and the session is established, the overhead gets significantly reduced. The following profiling result applies on ProviderOpen for both secure and non-secure CTI connection. Comments Duration on OpenAllLines Duration on ProviderOpen Type of CTI Connection Controlled Devices N/A 1 sec 382 ms Non-Secure 0 With certificate retrieval. N/A 4 sec 987 ms Secure N/A 3 sec 736 ms Secure 3 sec 164ms 1 sec 672 ms Non-secure 100 3 sec 445ms 5 sec 758 ms Secure 3 min 26 sec 728 ms 29 sec 513 ms Non-Secure 2500 3 min 26 sec 928 ms 34 sec 219 ms Secure Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 91 Features Supported by TSP Secure TLS

Page 123 diagram

Page 124

TAPI does not support TLS 1.3. Note Support for RSHA12 Algorithm Prior to the11.5 release, Cisco TSP had hardcoded the digest algorithm used for validating the signature of CTLFile to SHA1. From 11.5 release onwards, Cisco TSP is enhanced to use the digest algorithm based on DigestAlgorithm Tag mentioned in CTLFile. This way Cisco TSP validates CTLFile signed with SHA1 or SHA512. Backward Compatibility Issues: Cisco TSP versions prior to 11.5 will not be able to validate CTLFile signed using SHA512 if the parameter: “TFTP File Signature Algorithm Required Field” (System-> Enterprise Parameters Configuration) in Cisco Unified Communications Manager is set to RSASHA512. The secure connection fails as CiscoTSP supports only SHA1 and not SHA512 algorithm. Secured Monitoring and Recording This feature enhances the ability to monitor or record calls in a secure environment. In Unified Communications Manager (Cisco Unified CM), Release 8.0(1), Cisco Unified CM software has been enhanced to enable call monitoring and recording in a secure environment. So, secured calls can be monitored and recorded. The recording and monitoring session is created in a secure mode only when the Supervisor/Recording Device and the Agent has secure capabilities. Recording/Monitoring request is successful only when the Supervisor/Recording Device has higher than or meets the security capabilities of the Agent. TransactionID, which is unique for reach monitoring session, is exposed to the application in Call Attribute information, DevSpecific part of Call Info for the call on supervisor and agent. If the Silent Monitoring session is toned down when the Supervisor Security capabilities do not meet or exceed the capabilities of the agent, LINE_DEVSPECIFIC event is delivered with Param1 = SLDSMT_MONITORING_TERMINATED indicating the Monitoring Terminated event and Param2 = TransactionID of the call that is terminated. To receive the Monitoring Terminated event, the DEVSPECIFIC_SILENT_MONITORING_TERMINATED message flag must be set in applications by using the lineDevSpecific SLDST_SET_STATUS_MESSAGES request. The application has to determine the monitoring session to be terminated based on the TransactionID that TSP exposes in LINE_DEVSPECIFIC Event for the Monitoring Session Terminated Event: • Monitoring Terminated event is delivered to the original supervisor that initiated the Monitoring session and is longer present in monitoring the call. • Recording: Cisco Unified CM does not support recording on Authenticated devices and also when the Recording device is authenticated. • If the application monitors the Customer, Agent and Supervisor lines after Monitoring/Recording sessions start, CallReason will be LINECALLREASON_UNKNOWN for direct calls from the customer to the Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 92 Features Supported by TSP Support for RSHA12 Algorithm

Image 1 from page 124

Page 124 content

Page 125

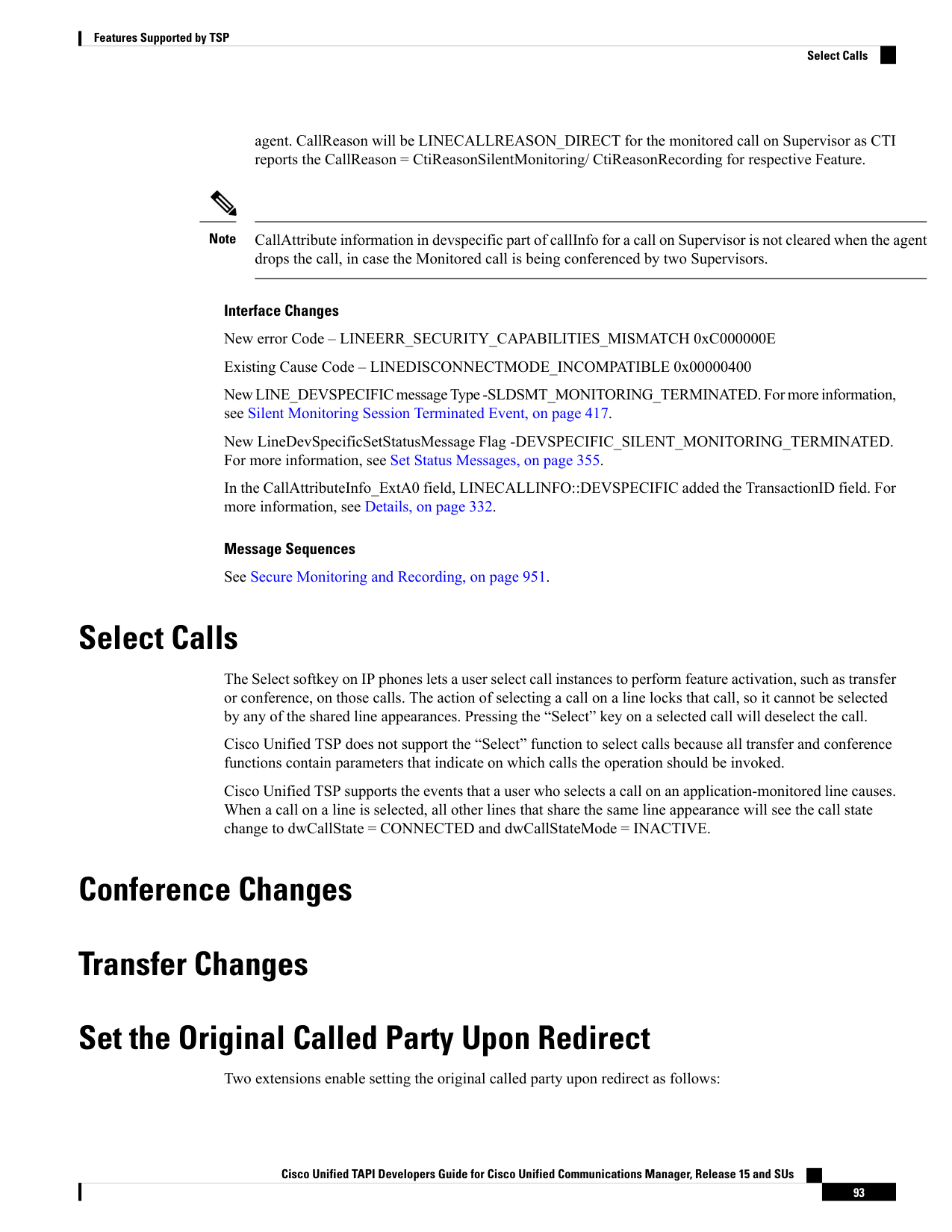

agent. CallReason will be LINECALLREASON_DIRECT for the monitored call on Supervisor as CTI reports the CallReason = CtiReasonSilentMonitoring/ CtiReasonRecording for respective Feature. CallAttribute information in devspecific part of callInfo for a call on Supervisor is not cleared when the agent drops the call, in case the Monitored call is being conferenced by two Supervisors. Note Interface Changes New error Code – LINEERR_SECURITY_CAPABILITIES_MISMATCH 0xC000000E Existing Cause Code – LINEDISCONNECTMODE_INCOMPATIBLE 0x00000400 New LINE_DEVSPECIFIC message Type -SLDSMT_MONITORING_TERMINATED. For more information, see Silent Monitoring Session Terminated Event, on page 417. New LineDevSpecificSetStatusMessage Flag -DEVSPECIFIC_SILENT_MONITORING_TERMINATED. For more information, see Set Status Messages, on page 355. In the CallAttributeInfo_ExtA0 field, LINECALLINFO::DEVSPECIFIC added the TransactionID field. For more information, see Details, on page 332. Message Sequences See Secure Monitoring and Recording, on page 951. Select Calls The Select softkey on IP phones lets a user select call instances to perform feature activation, such as transfer or conference, on those calls. The action of selecting a call on a line locks that call, so it cannot be selected by any of the shared line appearances. Pressing the “Select” key on a selected call will deselect the call. Cisco Unified TSP does not support the “Select” function to select calls because all transfer and conference functions contain parameters that indicate on which calls the operation should be invoked. Cisco Unified TSP supports the events that a user who selects a call on an application-monitored line causes. When a call on a line is selected, all other lines that share the same line appearance will see the call state change to dwCallState = CONNECTED and dwCallStateMode = INACTIVE. Conference Changes Transfer Changes Set the Original Called Party Upon Redirect Two extensions enable setting the original called party upon redirect as follows: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 93 Features Supported by TSP Select Calls

Image 1 from page 125

Page 125 content

Page 126

• CCiscoLineDevSpecificRedirectResetOrigCalled • CCiscoLineDevSpecificRedirectSetOrigCalled See lineDevSpecific, on page 152 for more information. Shared Line Appearance Cisco Unified TSP supports opening two different lines that each share the same DN. Each of these lines represents a Shared Line Appearance. The Unified Communications Manager allows multiple active calls to exist concurrently on each of the different devices that share the same line appearance. The system still limits each device to, at most, one active call and multiple hold or incoming calls at any given time. Applications that use the Cisco Unified TSP to monitor and control shared line appearances can support this functionality. If a call is active on a line that is a shared line appearance with another line, the call appears on the other line with the dwCallState = CONNECTED and the dwCallStateMode = INACTIVE. Even though the call party information may not display on the actual IP phone for the call at the other line, Cisco Unified TSP still reports the call party information on the call at the other line. This gives the application the ability to decide whether to block this information. Also, the system does not allow call control functions on a call that is in the CONNECTED INACTIVE call state. Cisco Unified TSP does not support shared lines on CTI Route Point devices. In the scenario where a line is calling a DN that contains multiple shared lines, the dwCalledIDName in the LINECALLINFO structure for the line with the outbound call may be empty or set randomly to the name of one of the shared DNs. The reason for this should be obvious as Cisco Unified TSP and the Unified Communications Manager cannot resolve which of the shared DN’s you are calling until the call is answered. Silent Install The Cisco TSP installer supports silent install, silent upgrade, and silent reinstall from the command prompt. Users do not see any dialog boxes during the silent installation. Silent Monitoring Silent monitoring is a feature that enables a supervisor to listen to a conversation between an agent and a customer without the agent detecting the monitoring session. TSP provides monitoring type in line DevSpecific request for applications to monitor calls on a per call basis. Both monitored and monitoring party have to be in controlled list of the user. The Application is required to send permanent lineID, monitoring Mode and toneDirection as input to CCiscoLineDevSpecificStartCallMonitoring. Only silent monitoring mode is supported and the supervisor cannot talk to the agent. The Application can specify if a tone should be played when monitoring starts. ToneDirection can be none (no tone played), local (tone played to Agent only), remote (tone played to Customer and Supervisor), both local and remote (tone played to agent, customer, and supervisor). Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 94 Features Supported by TSP Shared Line Appearance

Page 126 content

Page 127

enum PlayToneDirection { PlayToneDirection_LocalOnly = 0, PlayToneDirection_RemoteOnly, PlayToneDirection_BothLocalAndRemote, PlayToneDirection_NoLocalOrRemote }; Monitoring of a call which is in connected state on that line will start if the request is successful. This will result in a new call between supervisor and agent. However, the call will be automatically answered with Built-in Bridge (BIB) and agent is not be aware of the call. The call established between supervisor and agent will be one-way audio call. Supervisor will get the mixed stream of agent and customer voices. The application can only invoke the monitoring session for a call after it becomes active. TSP will send LINE_CALLDEVSPECIFIC (SLDSMT_MONITORING_STARTED) event to the agent call when supervisor starts monitoring the call. TSP will provide monitored party’s call attribute information (deviceName, DN, Partition) to the monitoring party in DEVSPECIFIC portion of LINECALLINFO after monitoring has started. Similarly, TSP will provide monitoring party’s call attribute information (deviceName, DN, Partition) to the monitored party in devspecific data of LINECALLINFO after monitoring has started. The monitoring session will be terminated when the agent-customer call is ended by either the agent or the customer. The supervisor can also terminate the monitoring session by dropping the monitoring call.TSP will inform agent by sending LINE_CALLDEVSPECIFIC (SLDSMT_MONITORING_ENDED) when supervisor drops the call. The event will not be sent if monitoring session has been ended after agent dropped the call. SIP URL Address As part of CTI support for phones that are using SIP, TSP will expose SIP URL that is received in Device/Call event that is received from CTIManager. The SIP URL will get presented for each corresponding party in extended call information structure of LINE_CALLINFO::dwDevSpecificData. When a SIP trunk is involved in a call, the DN may not get presented in party information. Application then needs to consider SIP URL information under this call scenario for information. TSP will provide SIP URL information to user as part of LINE_CALLINFO::dwDevSpecificData if the application negotiated extension version greater than or equal to 0x00070000. CTI phones that are running SIP support the following features or functions: • Call Initiate • Call Answer • Call Close/Disconnect • Consult Transfer • Direct Transfer • Call Join • Conference • Hold/unhold • Line Dial Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 95 Features Supported by TSP SIP URL Address

Page 127 content

Page 128

• Redirect • lineDevSpecific (SLDST_MSG_WAITING) • lineDevSpecific (SLDST_MSG_WAITING_DIRN) Presentation Indication Change Notification of SuperProvider and CallPark DN Monitoring Flags Super Provider The Super Provider functionality allows a TSP application to control any CTI controllable device in the system (IP Phones, CTI Ports, CTI Route Points etc). The TSP application has to have an associated list of devices that it can control. It cannot control any devices that are outside of this list. However, certain applications would want to control a large number (possibly all) of the CTI controllable devices in the system. Super Provider enables the administrator to configure a CTI application as a “Super-Provider.” This will mean that particular application can control absolutely any CTI controllable device in the system. Previously, the Super Provider functionality was never exposed to TSP apps, that is the TSP application needed to have the device in the controllable list. In this release, TSP apps can control any CTI controllable device in the CallManager system. The Super-Provider apps need to explicitly “Acquire” the device before opening them. TSP exposes new interfaces to the apps to explicitly Acquire/Deacquire any device in the system. The device information will be fetched for the explicitly acquired device using the SingleGetInfoFetch API exposed via QBE by CTI. Later, TSP will fetch the line information for this device using the LineInfoFetch API. The lines of this device are reported to the app using the LINE_CREATE/PHONE_CREATE events. The apps can explicitly 'De-Acquire' the device. After the device is successfully de-acquired, TSP will fire LINE_REMOVE/PHONE_REMOVE events to the apps. TSP also supports Change Notification of Super-Provider flag. If the administrator has configured a User as a Super-Provider in the admin pages, then the status of this is changed and the user is no more a Super-Provider, then CTI will inform the same to TSP in ProviderUserChangedEvent. If any device had been explicitly acquired and opened in super-provider mode, then TSP will fire PHONE_REMOVE/LINE_REMOVE to the app indicating that the device/line is no more available for the app to use. In this release, TSP supports change notification of CallParkDN Monitoring as well. Say, the user has been configured to allow monitoring of CallParkDN in the admin pages, now the status of this flag is disabled. Then TSP will fire LINE_REMOVE for the CallParkDNs. Say, initially the CallParkDN Monitoring is disabled, now the status is changed to enabled, then TSP will fetch all the CallParkDNs from CTI and fire LINE_CREATE for each of the CallParkDNs. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 96 Features Supported by TSP Presentation Indication

Page 128 content

Page 129

SuperProvider SuperProvider functionality allows a TSP application to control any CTI-controllable device in the system (IP Phones, CTI Ports, CTI Route Points and so on). Normally, a TSP application must have an associated list of devices that it can control. It cannot control any devices that are outside this list; however, certain applications would want to control a large number (possibly all) the CTI controllable devices in the system. SuperProvider functionality enables the administrator to configure a CTI application as a SuperProvider. This will mean that particular application can control absolutely any CTI controllable device in the system. The SuperProvider functionality never gets exposed to TSP apps; that is, TSP application needed to have the device in the controllable list. In release 5.1 and later, TSP apps can control any CTI-controllable device in the Unified CM system. The SuperProvider apps need to explicitly acquire the device before opening them. TSP exposes new interfaces to the apps to explicitly Acquire/Deacquire any device in the system. The device information is fetched for the explicitly acquired device by using the SingleGetInfoFetch API exposed via QBE by CTI. Later, TSP will fetch the line information for this device by using the LineInfoFetch API. The lines of this device are reported to the app by using the LINE_CREATE/PHONE_CREATE events. The apps can explicitly ‘De-Acquire’ the device. After the device is successfully de-acquired, TSP will fire LINE_REMOVE/PHONE_REMOVE events to the apps. TSP also supports Change Notification of “Super-Provider” flag. If the administrator has configured a User as a “Super-Provider” in the Unified CM Administration, the status of this changes and the user no longer represents a Super-Provider, then CTI will inform TSP in ProviderUserChangedEvent. If any device had been explicitly acquired and opened in super-provider mode, TSP will fire PHONE_REMOVE/LINE_REMOVE to the app and indicates that the device/line is no longer available for the app to use. In release 5.1 and later, TSP supports change notification of CallParkDN Monitoring as well. If the user has been configured to allow monitoring of CallParkDN in the Unified CM Administration, the status of this flag is disabled. Then TSP will fire LINE_REMOVE for the CallParkDNs. If the CallParkDN Monitoring is disabled, the status changes to enabled, TSP fetches all the CallParkDNs from CTI and fire LINE_CREATE for each of the CallParkDNs. Support for Cisco Unified IP Phone 6900 and 9900 Series In this release, CiscoTSP exposes Max Calls, Busy Trigger / Line Label, Line Instance, and Voice Mail Pilot Number in LineDevCap::DevSpecific interface. TSP handles new device information -Device IP Address (IPv4 and IPv6) and NewCallRollOver/Consult call rollover/Join/DT/JAL/DTAL flag. This device information is kept in Device object and exposed through PhoneDevCap::DevSpecific, and also be exposed to Line App through LineDevCap::DevSpecific. For NewCallRollOver/Consult call rollover/Join/DT/JAL/DTAL flag, there are two sets of information representing device setting and application behavior. TAPI reports any change in the information above through LineDevSpecific event or PhoneDevSpecific event: • Max Calls TAPI exposes Max Calls information in MaxCalls field of LineDevCaps::DevSpecific Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 97 Features Supported by TSP SuperProvider

Page 129 content

Page 130

When the information changes, TSP reports the LineDevSpecific event with param1 = SLDSMT_LINE_PROPERTY_CHANGED, param2 has LPCT_MAX_CALLS bit on. • Busy Trigger TAPI exposes busy trigger information in BusyTrigger field of LineDevCaps::DevSpecific When the information changes, TSP reports LineDevSpecific event with param1 = SLDSMT_LINE_PROPERTY_CHANGED, param2 has LPCT_BUSY_TRIGGER bit on. • Line Instance ID TAPI exposes Line Instance ID (Line Button number) of the line configured on the device in LineInstanceNumber of LineDevCaps::DevSpecific When the information changes, TSP reports LineDevSpecific event with param1 = SLDSMT_LINE_PROPERTY_CHANGED, param2 has LPCT_LINE_INSTANCE bit on. • Line Label TAPI exposes Label of the line in LineLabelASCII and LineLabelUnicode field of LineDevCaps::DevSpecific When the information changes, TSP reports LineDevSpecific event with param1 = SLDSMT_LINE_PROPERTY_CHANGED, param2 has LPCT_LINE_LABEL bit on. • Voice Mail Pilot TAPI exposes Voice Mail Box Pilot configured on the line in VoiceMailPilotDN field of LineDevCaps::DevSpecific When the information changes, TSP reports LineDevSpecific event with param1 = SLDSMT_LINE_PROPERTY_CHANGED, param2 has LPCT_VOICEMAIL_PILOT bit on. • Registered Device IP address and IP address mode TAPI exposes registered IP Address (IPv4 and IPv6) of the device in RegisteredIPv4Address and RegisteredIPv6Address fields of PhoneDevCaps::DevSpecific interface as well as in RegisteredIPv4Address and RegisteredIPv6Address fields of LineDevCaps::DevSpecific interface. Along with registered IP address, RegisteredIPAddressMode interface indicates whether the device is registered with IPv4 or IPv6 or IPv4 and IPv6. If the device is unregistered, the RegisteredIPAddressMode has a value of IPAddress_Unknown. In case of IPAddress_Unknown, the RegisteredIPv4Address and RegisteredIPv6Address can be used only for reference. Device IP address applies only to IP phones and CTI Port and RP are not supported. When the information is changed, TSP reports LineDevSpecific event with param1 = SLDSMT_LINE_PROPERTY_CHANGED, param2 has LPCT_DEVICE_IPADDRESS bit on. For phone application, TSP reports PhoneDevSpecific event with param1 = CPDSMT_PHONE_PROPERTY_CHANGED_EVENT, param2 has PPCT_DEVICE_IPADDRESS bit on • New Call Rollover TAPI exposes the new call rollover information configured on the device in NewCallRollOverEnabled flag of PhoneDevCaps::DevSpecific interface as well as in NewCallRollOverEnabled flag of LineDevCaps::DevSpecific interface. There are two sets of flags, one for device and one for application. When the information is changed, TSP reports LineDevSpecific event with param1 = SLDSMT_LINE_PROPERTY_CHANGED, param2 has LPCT_NEWCALL_ROLLOVER bit on. For phone application, TSP reports PhoneDevSpecific event with param1 = Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 98 Features Supported by TSP Support for Cisco Unified IP Phone 6900 and 9900 Series

Page 130 content

Page 131

CPDSMT_PHONE_PROPERTY_CHANGED_EVENT, param2 has PPCT_NEWCALL_ROLLOVER bit on. • Consult Call Rollover TAPI exposes new call rollover information configured on the device in ConsultCallRollOverEnabled flag of PhoneDevCaps::DevSpecific interface as well as in ConsultCallRollOverEnabled flag of LineDevCaps::DevSpecific interface. There are two sets of flags, one for device and one for application. When the information changes, TSP reports LineDevSpecific event with par am1 = SLDSMT_LINE_PROPERTY_CHANGED, param2 has LPCT_CONSULTCALL_ROLLOVERbit on. For phone application, TSP reports PhoneDevSpecific event with param1 = CPDSMT_PHONE_PROPERTY_CHANGED_EVENT, param2 has PPCT_CONSULTCALL_ROLLOVER bit on. • Join On Same Line TAPI exposes Join On Same Line information configured on the device in JoinOnSameLineEnabled flag of PhoneDevCaps::DevSpecific interface as well as in JoinOnSameLineEnabled flag of LineDevCaps::DevSpecific interface. There are two sets of flags, one for device and one for application. When changes, TSP reports LineDevSpecific event with param1 = SLDSMT_LINE_PROPERTY_CHANGED, param2 has LPCT_JOIN_ON_SAME_LINE bit on. For phone application, TSP reports PhoneDevSpecific event with param1 = CPDSMT_ PHONE_PROPERTY_CHANGED_EVENT, param2 has PPCT_JOIN_ON_SAME_LINE bit on. • Join Across Line TAPI exposes Join Across Line information configured on the device in JoinAcrossLineEnabled flag of PhoneDevCaps::DevSpecific interface as well as in JoinAcrossLineEnabled flag of LineDevCaps::DevSpecific interface. There are two set of flags, one for device and one for application. When the information changes, TSP reports LineDevSpecific event with param1 = SLDSMT_LINE_PROPERTY_CHANGED, param2 has LPCT_JOIN_ACROSS_LINE bit on. For phone application, TSP reports PhoneDevSpecific event with param1 = CPDSMT_ PHONE_PROPERTY_CHANGED_EVENT, param2 has PPCT_JOIN_ACROSS_LINE bit on. • Direct Transfer On Same Line TAPI exposes Direct Transfer On Same Line information configured on the device in DirectTransferSameLineEnabled flag of PhoneDevCaps::DevSpecific interface as well as in DirectTransferSameLineEnabled flag of LineDevCaps::DevSpecific interface. There are two sets of flags, one for device and one for application. When the information changes, TSP reports LineDevSpecific event with param1 = SLDSMT_LINE_PROPERTY_CHANGED,param2hasLPCT_DIRECTTRANSFER_ON_SAME_LINE bit on. For phone application, TSP reports PhoneDevSpecific event with param1 = CPDSMT_PHONE_PROPERTY_CHANGED_EVENT, param2 has PPCT_DIRECTRANSFER_ON_SAME_LINE bit on. • Direct Transfer Across Line TAPI exposes Direct Transfer Across Line information configured on the device in DirectTransferAcrossLineEnabled flag of PhoneDevCaps::DevSpecific interface as well as in DirectTransferAcrossLineEnabled flag of LineDevCaps::DevSpecific interface. There are two set of flags, one for device and one for application. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 99 Features Supported by TSP Support for Cisco Unified IP Phone 6900 and 9900 Series

Page 131 content

Page 132

When the information is changed, TSP reports LineDevSpecific event with param1 = SLDSMT_LINE_PROPERTY_CHANGED, param2 has LPCT_DIRECTTRANSFER_ACROSS_LINE bit on. For phone application, TSP reports PhoneDevSpecific event with param1 = CPDSMT_PHONE_PROPERTY_CHANGED_EVENT, param2 has PPCT_DIRECTRANSFER_ACROSS_LINE bit on. To receive the PHONE_PROPERTY_CHANGED_EVENT, the application must use CCiscoPhoneDevSpecificSetStatusMsgs to set the DEVSPECIFIC_DEVICE_PROPERTY_CHANGED_EVENT bit. For the change notification event described above, the event is delivered to the application by TAPI layer only if the line or device is opened (even though CisoTSP sends the event to TAPI layer). If the line or phone is not opened, the application should call LineGetDevCaps again to obtain latest information about the line/device. The new extension 0x00090001 must be opened or negotiated for this feature. Interface Changes See LINEDEVCAPS, on page 321, Line Property Changed Events, on page 413, and Set Status Msgs, on page 398. Message Sequences See Support for Cisco Unified IP Phone 6900 and 9900 Series Use Cases, on page 984. Backward Compatibility This feature is backward compatible. To maintain backward compatibility new extension (0x00090001) is added. Support for 100 + Directory Numbers This feature enables users to have more than 100 Directory Numbers associated with a Device (Phones, CTI Ports and Route Points). TSP supports this feature and displays the corresponding Lines to the application. Interface Changes There are no interface changes. Message Sequences There are no message sequences. Backward Compatibility This feature is backward compatible. Swap and Cancel Softkeys The following softkeys have been added to the Cisco Unified IP Phone 7900 Series: • Swap Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 100 Features Supported by TSP Support for 100 + Directory Numbers

Page 132 content

Page 133

• Cancel Swap The Swap softkey can be only be used when you use the Transfer or Conference feature. When you press Swap, the phone puts the consultative call on hold and resumes the primary call. Swap operation breaks the internal linkage between the primary and consultative calls, but you can still complete the transfer or conference operation. Cancel When you press Cancel before completing the transfer operation, the TSP receives an event notification from CTI and cancels any pending transfer or conference requests. The Swap and Cancel features operate as follows: • For swap operation, the primary call state is changed to CONNECTED, and the consult call state is changed to ONHOLD. • For cancel operation, the primary call state is changed to ONHOLD, and consult call state remains as CONNECTED. • To complete the transfer operation after swap or cancel, the application invokes LineCompleteTransfer or CciscoLineDevSpecificDirectTransfer. • To complete the conference operation after swap or cancel, the application invokes Cisco Join API – CCiscoLineDevSpecificJoin. When using the Swap and Cancel features, the Cisco Unified IP Phones maintain a consulting relationship between the primary and the consulting calls, on invoking consult transfer or consult conference: • The Swap operation puts the active call on hold and retrieves the held call. • The Cancel operation breaks the consulting relationship between the primary and the consulting calls. When users perform the swap operation, the behavior remains the same while resuming calls and all pending transfer or conference operation are cancelled. Users can swap or toggle during consultative transfer or conference transactions, and also swap or toggle between call sessions during the transaction to check the status of each party. Interface Changes There are no interface changes for this feature. Message Sequences See Refer and Replace Scenarios, on page 935. Backward Compatibility This feature is backward compatible. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 101 Features Supported by TSP Swap and Cancel Softkeys

Page 133 content

Page 134

Translation Pattern TSP does not support the translation pattern because it may cause a dangling call in a conference scenario. The application needs to clear the call to remove this dangling call or simply close and reopen the line. Warning Presentation Indication Change Notification of SuperProvider and CallPark DN Monitoring Flags Unicode Cisco TSP supports unicode character sets. TSP will send unicode party names to the application in all call events. The party name needs to be configured in Unified Communications Manager Administration. This support is limited to only party names. The locale information also gets sent to the application. The UCS-2 encoding for unicode gets used. The party names will exist in the DevSpecific portion of the LINECALLINFO structure. In SIP call scenarios, where a call comes back into Unified CM from SIP proxy over a SIP trunk, only ASCII name will get passed because SIP has no way of populating both ASCII and unicode. As the result, the Connected and Redirection Unicode Name will get reported as empty to application. Unrestricted Unified CM Encryption is permanently disabled in Unrestricted Unified Communications Manager. In the current Unified Communications Manager, signaling and media encryption are configurable. Upgrading from the Unrestricted version to the Restricted version of Unified Communications Manager is not supported. Administrator cannot create a new role with security groups and roles (“Standard CTI Secure Connection” and “Standard CTI Allow Reception of SRTP Key Material”) as these roles are not available in Unrestricted Unified Communications Manager. Upgrade from unrestricted version to the restricted version is not supported. Note In case of an upgrade from Restricted to Unrestricted Unified Communications Manager, all the security features are disabled and Standard CTI Secure roles associated with the end user are removed. But the custom administrative user roles created with the CTI secure privileges mentioned above are not disabled in the Unified Communications Manager database. In such cases, the application can connect to Unrestricted Unified Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 102 Features Supported by TSP Translation Pattern

Image 1 from page 134

Image 2 from page 134

Page 134 content

Page 135

Communications Manager as a non-secure application because CTIManager filters the information about CTI secure roles. Also, after an upgrade from Restricted Unified Communications Manager to Unrestricted Unified Communications Manager, secure TAPI application cannot connect to Unrestricted Unified Communications Manager. To connect to the Unrestricted Cisco Unified Communications Manager after an upgrade, the application must disable secure connection from TSP UI. If the application tries to register CTI Ports/Route Points as secure endpoints in an Unrestricted Unified Communications Manager, then the request fails. However, in some scenarios the registration request may pass, but the device remains closed and failure is reported to the application. Interface Changes There are no interface changes for this feature. Message Sequences See Unrestricted Unified CM, on page 1010. Backward Compatibility This feature is backward compatible. URI Dialing Cisco TSP supports dialing using directory URIs as the destination address. Cisco TSP uses the @ symbol to differentiate between directory URIs and directory numbers. If an @ symbol is present, the dialed address is a directory URI. Directory URIs can now be returned in the dwDevSpecificData call structure. URI dialing is also supported for CTI Remote Devices. Remote destinations can be configured with directory URIs as the remote destination number. Interface Changes The following interfaces have changed to support directory URIs: • lineMakeCall—lpszDestAddress parameter can contain a directory URI • lineBlindTransfer—lpszDestAddress parameter can contain a directory URI • lineForward—dwDestAddressOffset in the lineForward structure can now point at a destination address • lineRedirect—lpszDestAddress parameter can contain a directory URI Message Sequence Charts There is no change to the message sequence. Backwards Compatibility No backwards compatibility issues. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 103 Features Supported by TSP URI Dialing

Page 135 content

Page 136

Video On Hold Support CiscoTSP is enhanced to provide capability for applications to select/Play Video file when call is placed on Hold. This enhancement was designed for the Remote Expert solution. The newly added contentID is a pass through from application (TAPI) to CCM. TAPI will not process or manipulate this value. The contentID references a VoH stream to be played when the call is placed on hold. The VoH files are housed externally on a media sense server. To have video on hold capability, the video on hold server must be configured in CCM Admin. This server coincides to the media sense server which houses all the VoH files. New CCiscoLineDevSpecific extension - "CciscoLineDevSpecificHoldEx" is added to support this capability for the applications. Interface Changes See lineHold Enhancement, on page 391. Use Cases See LineHold Enhancement, on page 1012. Backward Compatibility There are no backward compatibility issues for this feature. Whisper Coaching Silent Call Monitoring is a feature that allows a supervisor to discreetly listen to a conversation between an agent and a customer without allowing the agent to detect the monitoring session. Whisper Coaching is an enhancement to the Silent Call Monitoring feature. Whisper Coaching allows supervisors to talk to agents during a monitoring session. This feature provides applications the ability to change the current monitoring mode of a monitoring call from Silent Monitoring to Whisper Coaching and vice versa. If the application opens the line while the whisper coaching session is already in progress, TSP exposes either the TSPCallAttribute_WhisperCoachingCall or TSPCallAttribute_WhisperCoachingCall_Target bitmap in the CallAttributeType field of LineCallInfo::DevSpecific. This indicates whether the call is a whisper coaching call or the target of a whisper coaching call. Support of this feature consists of the following: • In the exiting CciscoLineDevSpecificStartCallMonitoringrequest, an m_MonitorMode parameter is enhanced to support an enumeration for Whisper coaching. • A new CCiscoLineDevSpecific extension, CciscoLineDevSpecificMonitoringUpdateMode, needs to be added that allows the application to toggle between the silent monitoring and whisper coaching modes and vice versa. • A new LineCallDevSpecific event updates the application stating that the monitoring mode has changed. • A new field, activeToneDirection, is added in the CallAttributeInfo_ExtA0 structure. This field specifies the active tone direction that is being played for the call. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 104 Features Supported by TSP Video On Hold Support

Page 136 content

Page 137

The behaviors of toneDirection are as follows: • The existing service parameters for toneDirection are used for both silent and whisper coaching monitoring sessions. The service parameters are “Play Monitoring Notification Tone To Observed Target” (for a local party or an agent) and “Play Monitoring Notification Tone To Observed Connected Parties” (for a remote party or a customer). • For CciscoLineDevSpecificStartCallMonitoring (monitoring mode = Silent) or CciscoLineDevSpecificMonitoringUpdateMode (monitoring mode = Silent), the application specified toneDirection is used in addition to the toneDirection configured with the service parameters. • For CciscoLineDevSpecificStartCallMonitoring (monitoring mode = Whisper) or CciscoLineDevSpecificMonitoringUpdateMode (monitoring mode = Whisper), the application specified toneDirection for a remote side (customer only) is honored. This feature uses the service parameter that configured play toneDirection and the application specified toneDirection to play the tone to the remote side (customer only). The following table lists effective toneDirection for StartSilentMonitoring/Toggle to SilentMonitoring. Table 1: Effective ToneDirection for StartSilentMonitoring/Toggle to SilentMonitoring Observed Target = true Observed Connected Parties = true Observed Target = false Observed Connected Parties = true Observed Target = true Observed Connected Parties = false Observed Target = false Observed Connected Parties = false Both Remote Only Local Only None AppRequests toneDirection = None Both Both Local Only Local Only AppRequests toneDirection = Local Only Both Remote Only Both Remote Only AppRequests toneDirection = Remote Only Both Both Both Both AppRequests toneDirection = Both The following table lists effective toneDirection for Start WhisperCoaching/Toggle to WhisperCoaching. Table 2: Effective ToneDirection for StartWhisperCoaching/Toggle to WhisperCoaching Observed Target = true Observed Connected Parties = true Observed Target = false Observed Connected Parties = true Observed Target = true Observed Connected Parties = false Observed Target = false Observed Connected Parties = false Remote Only Remote Only None None AppRequests toneDirection = None Remote Only Remote Only None None AppRequests toneDirection = Local Only Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 105 Features Supported by TSP Whisper Coaching

Page 137 diagram

Page 138

Observed Target = true Observed Connected Parties = true Observed Target = false Observed Connected Parties = true Observed Target = true Observed Connected Parties = false Observed Target = false Observed Connected Parties = false Remote Only Remote Only Remote Only Remote Only AppRequests toneDirection = Remote Only Remote Only Remote Only Remote Only Remote Only AppRequests toneDirection = Both Due to the fix for CSCsb89374, the behavior for the toggle request using CciscoLineDevSpecificMonitoringUpdateMode is different between SIP and SCCP phones. When CciscoLineDevSpecificMonitoringUpdateMode is changed: • For SCCP phones, no media break is reported • For SIP phones, a media break is always reported Consider the following example for toggle: dwParam1 = 0x30403 represents StartReception dwParam1 = 0x e0500401 represents StartTransmission dwParam1 = 0x4 represents StopReception dwParam1 = 0x2 represents StopTransmission SCCP SIP LINE_DEVSPECIFIC dwParam1 = 0xe0500401 LINE_DEVSPECIFIC dwParam1 = 0x4 LINE_DEVSPECIFIC dwParam1 = 0x30403 LINE_DEVSPECIFIC dwParam1 = 0x e0500401 Toggle from Silent to Whisper LINE_DEVSPECIFIC dwParam1 = 0x2 LINE_DEVSPECIFIC dwParam1 = 0x4 LINE_DEVSPECIFIC dwParam1 = 0x2 LINE_DEVSPECIFIC dwParam1 = 0x30403 Toggle from Whisper to Silent Interface Changes See UpdateMonitorMode, on page 387, Monitor Mode Update Event, on page 419, Details, on page 332, Details, on page 332, and Details, on page 332. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 106 Features Supported by TSP Whisper Coaching

Page 138 diagram

Page 139

Message Sequences See Whisper Coaching, on page 1012. Backward Compatibility This feature is backward compatible. XSI Object Pass Through XSI-enabled IP phones allow applications to directly communicate with the phone and access XSI features, such as manipulate display, get user input, play tone, and so on. To allow TAPI applications access to the XSI capabilities without having to set up and maintain an independent connection directly to the phone, TAPI provides the ability to send the device data through the CTI interface. The system exposes this feature as a Cisco Unified TSP device-specific extension. The system only supports the PhoneDevSpecificDataPassthrough request for IP phone devices. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 107 Features Supported by TSP XSI Object Pass Through

Page 139 content

Page 140

Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 108 Features Supported by TSP XSI Object Pass Through

Page 140 content

Page 141

C H A P T E R 4 Cisco Unified TAPI Installation This chapter describes how to install and configure the Cisco Unified Telephony Application Programming Interface (TAPI) client software for Unified Communications Manager. The upgraded TAPI client software does not work with previous releases of Unified Communications Manager. Note • Required Software, on page 109 • Supported Windows Platforms, on page 109 • Installing the Cisco Unified CM TSP Client, on page 110 • Silent Installation of Cisco Unified CM TSP, on page 122 • Using Cisco TSP, on page 125 • Cisco Unified CM TSP Configuration Settings, on page 127 • Managing the Cisco Unified CM TSP, on page 140 • Verify the Cisco Unified CM TSP Installation, on page 142 • Cisco TSP Behavior on Windows Upgrade, on page 142 Required Software Cisco TSP requires the following software: • Unified Communications Manager • Supported Windows Platforms, on page 109 Supported Windows Platforms All Windows operating systems support CiscoTAPI. Depending on the type and version of your operating system, you may need to install a service pack. For a detailed breakdown of supported Windows platforms for Cisco Unified TAPI, see https://developer.cisco.com/site/tapi/documents/supported-windows-os/. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 109

Image 1 from page 141

Image 2 from page 141

Page 141 content

Page 142

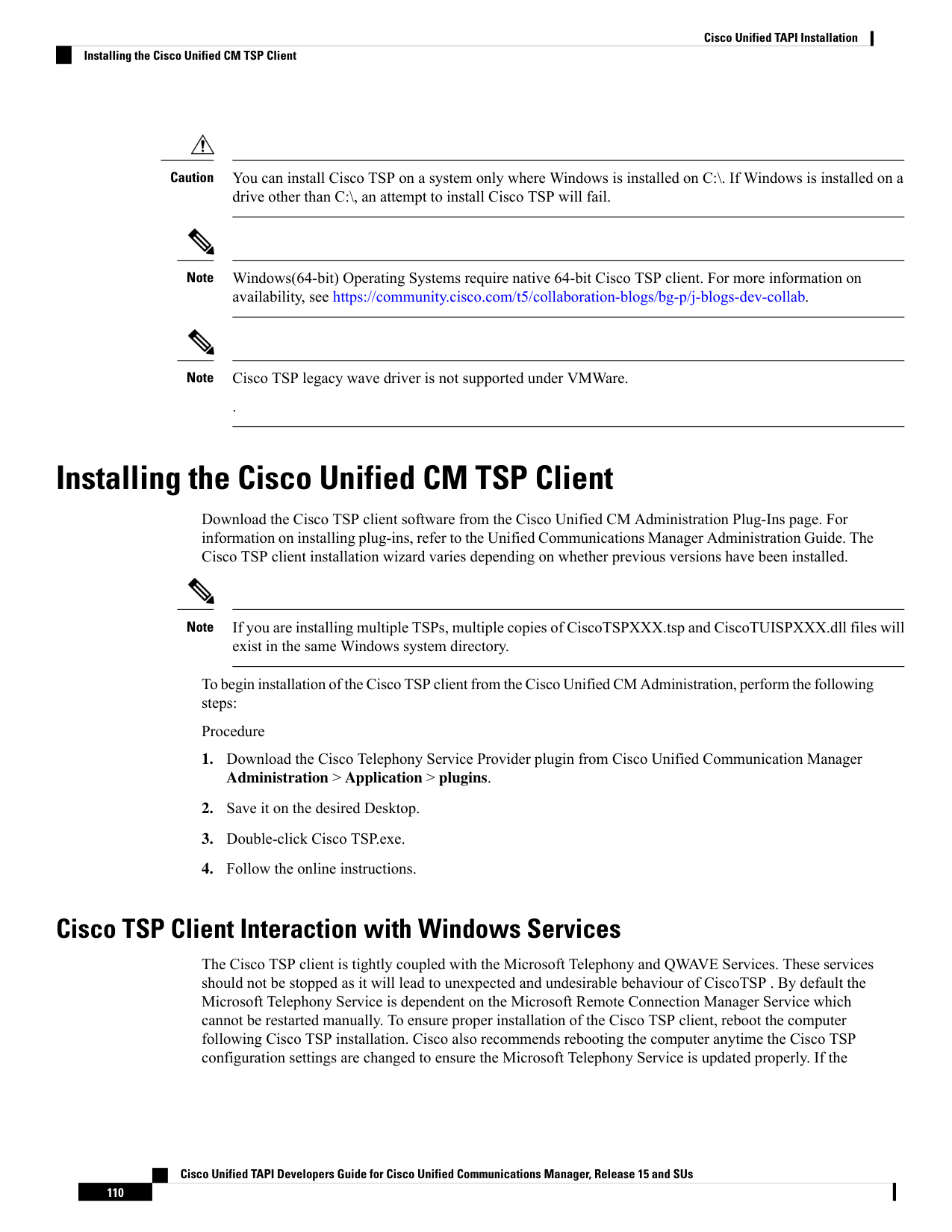

You can install Cisco TSP on a system only where Windows is installed on C:. If Windows is installed on a drive other than C:, an attempt to install Cisco TSP will fail. Caution Windows(64-bit) Operating Systems require native 64-bit Cisco TSP client. For more information on availability, see https://community.cisco.com/t5/collaboration-blogs/bg-p/j-blogs-dev-collab. Note Cisco TSP legacy wave driver is not supported under VMWare. . Note Installing the Cisco Unified CM TSP Client Download the Cisco TSP client software from the Cisco Unified CM Administration Plug-Ins page. For information on installing plug-ins, refer to the Unified Communications Manager Administration Guide. The Cisco TSP client installation wizard varies depending on whether previous versions have been installed. If you are installing multiple TSPs, multiple copies of CiscoTSPXXX.tsp and CiscoTUISPXXX.dll files will exist in the same Windows system directory. Note To begin installation of the Cisco TSP client from the Cisco Unified CM Administration, perform the following steps: Procedure 1. Download the Cisco Telephony Service Provider plugin from Cisco Unified Communication Manager Administration > Application > plugins. 2. Save it on the desired Desktop. 3. Double-click Cisco TSP.exe. 4. Follow the online instructions. Cisco TSP Client Interaction with Windows Services The Cisco TSP client is tightly coupled with the Microsoft Telephony and QWAVE Services. These services should not be stopped as it will lead to unexpected and undesirable behaviour of CiscoTSP . By default the Microsoft Telephony Service is dependent on the Microsoft Remote Connection Manager Service which cannot be restarted manually. To ensure proper installation of the Cisco TSP client, reboot the computer following Cisco TSP installation. Cisco also recommends rebooting the computer anytime the Cisco TSP configuration settings are changed to ensure the Microsoft Telephony Service is updated properly. If the Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 110 Cisco Unified TAPI Installation Installing the Cisco Unified CM TSP Client

Image 1 from page 142

Image 2 from page 142

Page 142 content

Page 143

Microsoft Remote Connection Service is disabled, computer reboot is not required; simply restart the Microsoft Telephony Service using the Windows Services Applet for the new settings to take effect. Installation Setup Screen Click on Cisco TSP.exe to begin the installation process. Specify the destination folder where the Cisco TSP files must reside from the Choose Destination Location screen (shown below) and configure the number of TSP instances desired. Figure 11: Choose Destination Location Screen Configure TSP Instance for Unified CM Releases Until 15SU1 For each desired TSP Instance, configure the User ID, Password, and CTIManager settings in the Configure TSP Instance screen shown below. If the required information is not known during the installation, it can be configured later using the Open Cisco TAPI Configuration icon found in the Programs Menu (available after the installation). Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 111 Cisco Unified TAPI Installation Installation Setup Screen

Image 1 from page 143

Page 143 content

Page 144

Figure 12: Configure TSP Instance Screen for Unified CM Releases Until 15SU1 Configure TSP Instance From Unified CM Release 15SU2 Onwards The following screenshot is applicable from Release 15SU2 onwards. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 112 Cisco Unified TAPI Installation Configure TSP Instance From Unified CM Release 15SU2 Onwards

Image 1 from page 144

Page 144 content

Page 145

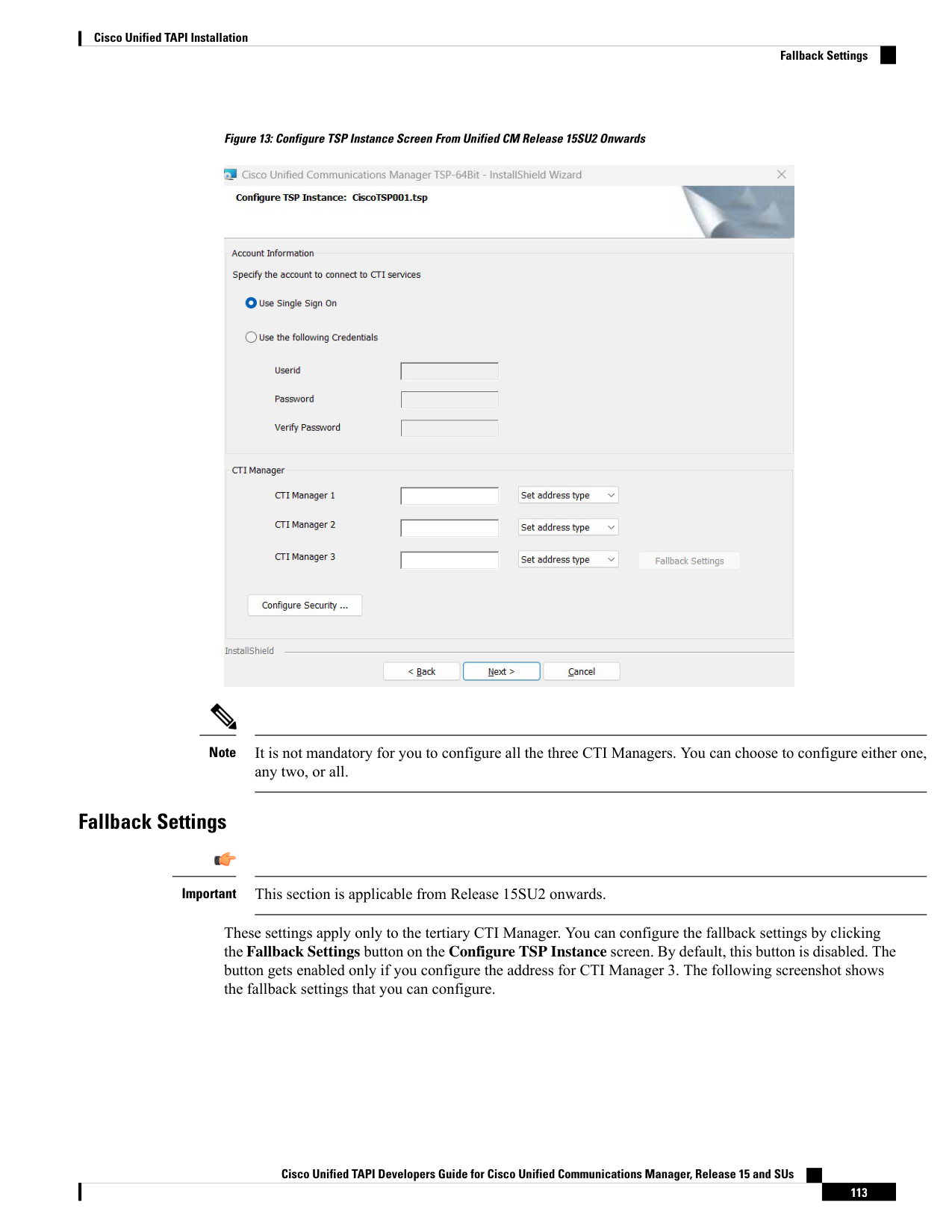

Figure 13: Configure TSP Instance Screen From Unified CM Release 15SU2 Onwards It is not mandatory for you to configure all the three CTI Managers. You can choose to configure either one, any two, or all. Note Fallback Settings This section is applicable from Release 15SU2 onwards. Important These settings apply only to the tertiary CTI Manager. You can configure the fallback settings by clicking the Fallback Settings button on the Configure TSP Instance screen. By default, this button is disabled. The button gets enabled only if you configure the address for CTI Manager 3. The following screenshot shows the fallback settings that you can configure. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 113 Cisco Unified TAPI Installation Fallback Settings

Image 1 from page 145

Image 2 from page 145

Page 145 content

Page 146

Figure 14: Fallback Settings Screen The following table describes the Fallback Settings fields. • If you provide an incorrect format for a field, an error message appears on the screen. • A check is done before initiating the fallback to ensure that the Cisco TSP instance does not lose connectivity at the fallback time. • There is a minor difference in the actual fallback time. It can happen either a minute earlier or later than the specified time. • Daylight Saving Time (DST) applies to fallback time adjustment, but would differ by an hour than intended when Scheduled Fallback defaults to the 180th day. • For the HH:MM format, you must prefix 0 when you enter a single digit for hours and minutes. For example, 09:00. Note Table 3: Fallback Settings Fields Description Field This is the default option. If you select this option, the Cisco TSP instance remains connected to the tertiary CTI Manager even after connectivity to either the primary or secondary CTI Manager is restored. Disable Fallback Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 114 Cisco Unified TAPI Installation Fallback Settings

Image 1 from page 146

Image 2 from page 146

Page 146 diagram

Page 147

Description Field If you select this option, either the primary or secondary CTI Manager reachability must remain intact for the specified time duration before the Cisco TSP instance initiates a fallback. The valid values for this field are numbers in the range 1-3600 minutes. Fallback After If you select this option, you can schedule a time for the initiation of fallback. The format is YYYY/MM/DD HH:MM. The Cisco TSP instance initiates a forced fallback at the scheduled time. Note If the connectivity to either the primary or secondary CTI Manager is not established at the configured fallback time, Cisco TSP would not attempt to do a fallback later when the connectivity is restored. To force a fallback, you must reconfigure the fallback option to the required interval or time. Scheduled Fallback If you select this option, you can schedule a planned fallback to occur either every day at a particular time or on a particular day and time of the week. The format is either ddd HH:MM or HH:MM. For example, Mon 09:00 or 09:00. You can schedule a daily fallback by omitting the day setting. If you omit the day setting and specify a time in the future, the fallback happens on the same day. If you omit the day setting and specify a time in the past, the fallback happens on the next day. Fallback Every After the installation of the Cisco Unified CM TSP client is complete, you can either configure or modify the fallback settings using the CTI Manager tab in the Cisco Unified CM TSP dialog box. For more information, see CTI Manager Tab from Unified CM Release 15SU2 Onwards, on page 130. Note Configure Secure TSP Instance To configure a secure CTI connection, click the Configure Security button on the desired Configure TSP Instance. Populate the specified information from the Configure Secure TSP Instance screen as shown below. Refer to the Unified Communications Manager Security Guide for the desired release for additional information regarding Securing CTI. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 115 Cisco Unified TAPI Installation Configure Secure TSP Instance

Image 1 from page 147

Page 147 diagram

Page 148

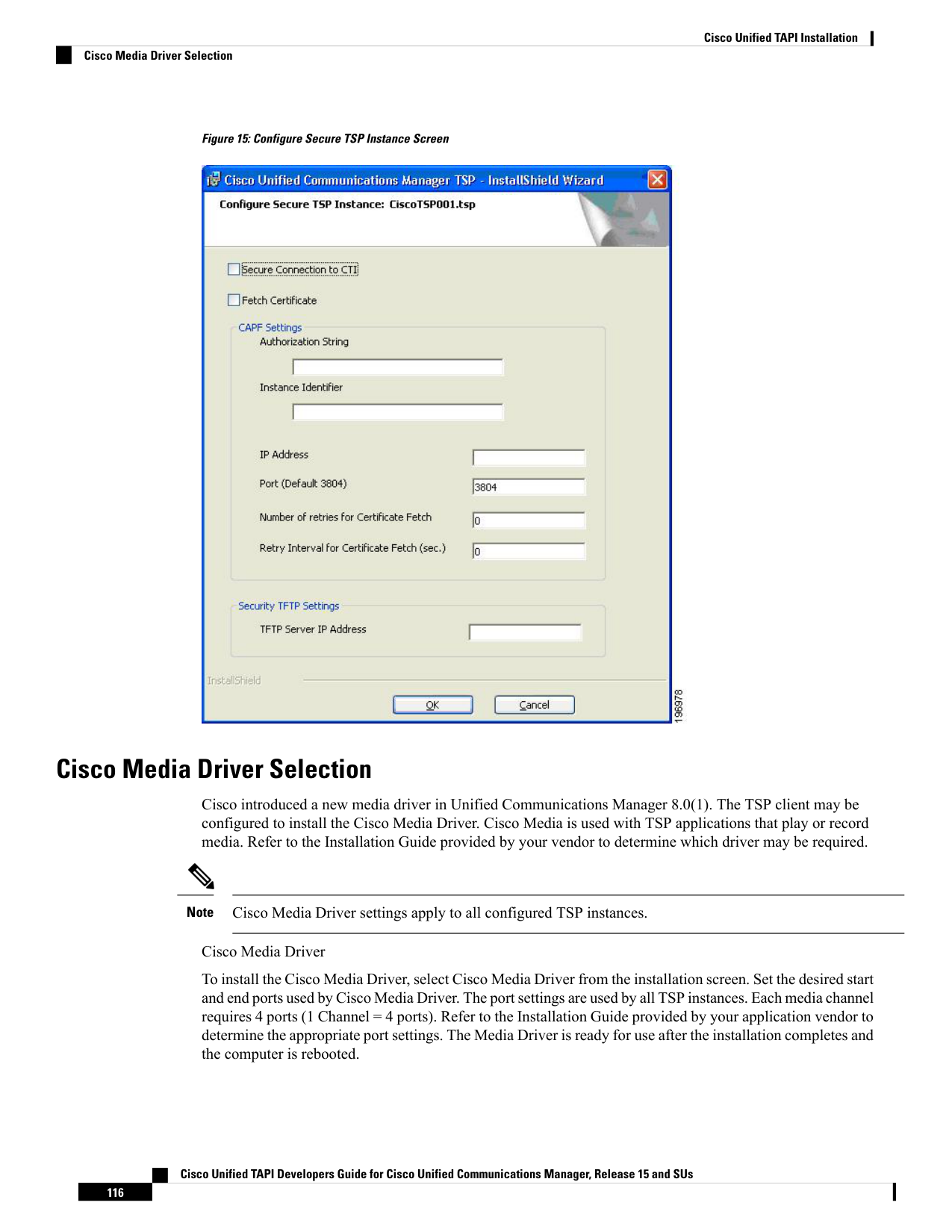

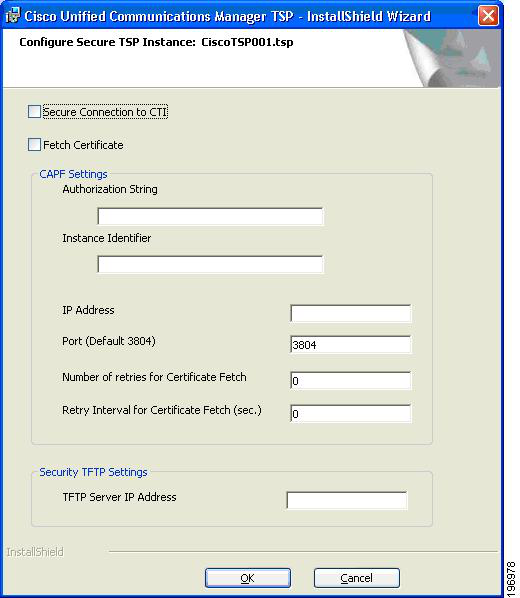

Figure 15: Configure Secure TSP Instance Screen Cisco Media Driver Selection Cisco introduced a new media driver in Unified Communications Manager 8.0(1). The TSP client may be configured to install the Cisco Media Driver. Cisco Media is used with TSP applications that play or record media. Refer to the Installation Guide provided by your vendor to determine which driver may be required. Cisco Media Driver settings apply to all configured TSP instances. Note Cisco Media Driver To install the Cisco Media Driver, select Cisco Media Driver from the installation screen. Set the desired start and end ports used by Cisco Media Driver. The port settings are used by all TSP instances. Each media channel requires 4 ports (1 Channel = 4 ports). Refer to the Installation Guide provided by your application vendor to determine the appropriate port settings. The Media Driver is ready for use after the installation completes and the computer is rebooted. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 116 Cisco Unified TAPI Installation Cisco Media Driver Selection

Image 1 from page 148

Image 2 from page 148

Page 148 content

Page 149

AutoUpgrade The TSP client can be configured to detect and install new client versions automatically when Cisco Unified CM is upgraded. When set to Always or Ask, the auto-upgrade service requires the login User to have local Administrative rights to install applications. If the logged-in User is not permitted to install applications, set Auto-upgrade to Never. Update Credentials Cisco TSP 8.0 introduces a new feature that enables the Administrator to allow Users to update their credentials (UserID and Password) without requiring the User to have local Administrative rights. When this option is checked, all Standard Users can update their UserID and Password using the Cisco TAPI Configuration tool. Configuring all other Cisco TSP options requires local Administrative rights. If the Administrator does not want to allow Standard Users to update their credentials, leave this unchecked. Cisco TSP Notifier Cisco TSP 8.0 introduces a new feature that helps identify connectivity issues between Cisco Unified CM CTI Manager and the PC where the TSP client has been installed. TSP Notifier is installed automatically and can be configured to run during Windows start-up. The user must disable UAC to have the notifier run during startup. TSP Notifier runs as a background application in the system tray. The Cisco TAPI Notifier can detect the following errors: • Unified CM TSP Authentication failed -Check UserID and Password • Unified CM TSP Initialization failed -User not configured in Cisco Unified CM for CTI usage • Unified CM TSP Initialization error -Check and update Cisco Unified CM TSP version • Unified CM TSP Version is incompatible with Cisco Unified CM version • Unified CM TSP Initialization failed -User not configured in Cisco Unified CM for secure CTI usage • Unified CM TSP Initialization failed -Cisco Unified CM security configuration does not match with Unified CM TSP • Unified CM TSP Initialization failed -Invalid security certificate • Unified CM TSP Initialization failed -Security certificate compromised Multi-Language Settings Populate the TFTP server where locale files have been installed. The locale files are downloaded after the installation is completed and the PC rebooted. Use the Cisco TAPI Configuration tool to set the desired locale. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 117 Cisco Unified TAPI Installation AutoUpgrade

Page 149 content

Page 150

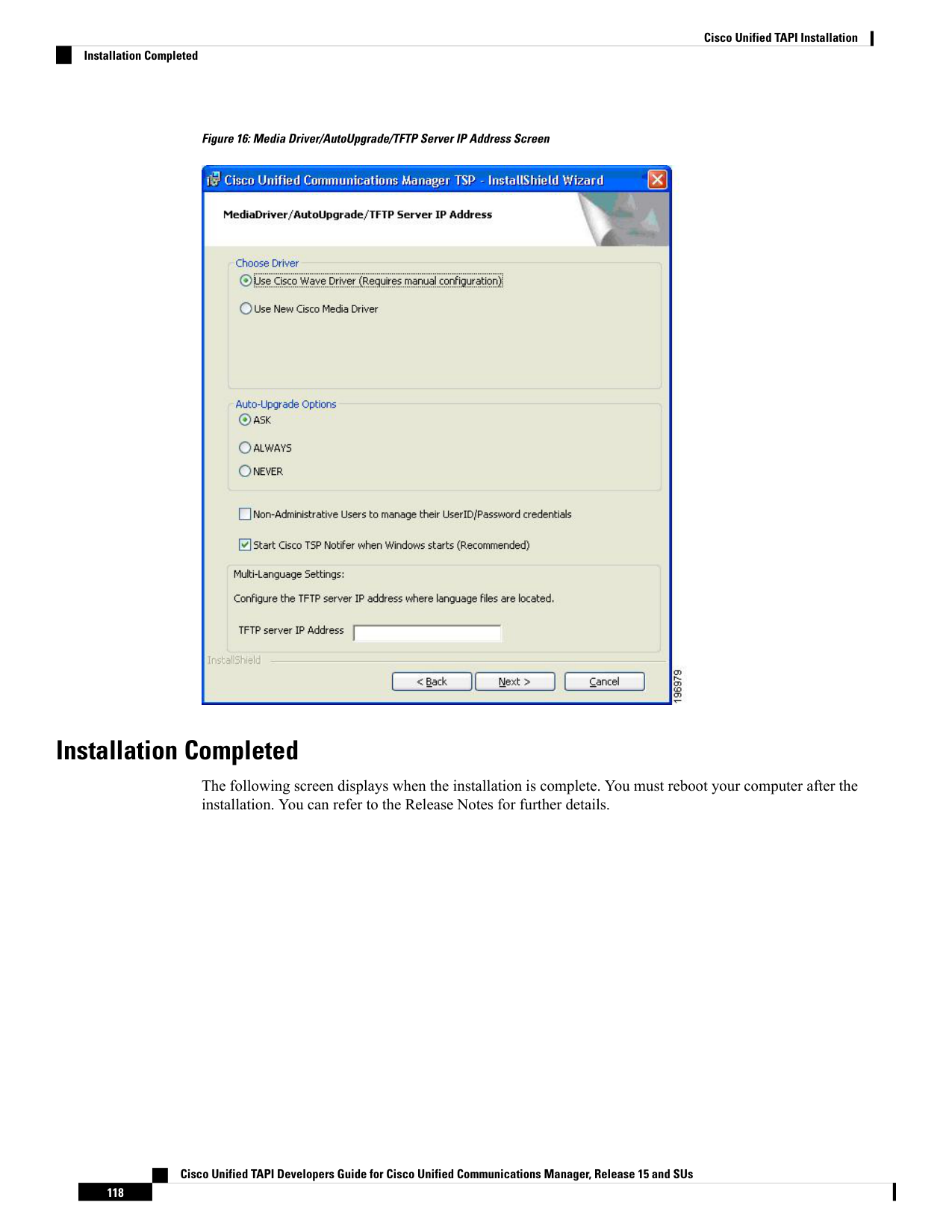

Figure 16: Media Driver/AutoUpgrade/TFTP Server IP Address Screen Installation Completed The following screen displays when the installation is complete. You must reboot your computer after the installation. You can refer to the Release Notes for further details. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 118 Cisco Unified TAPI Installation Installation Completed

Image 1 from page 150

Page 150 content

Page 151

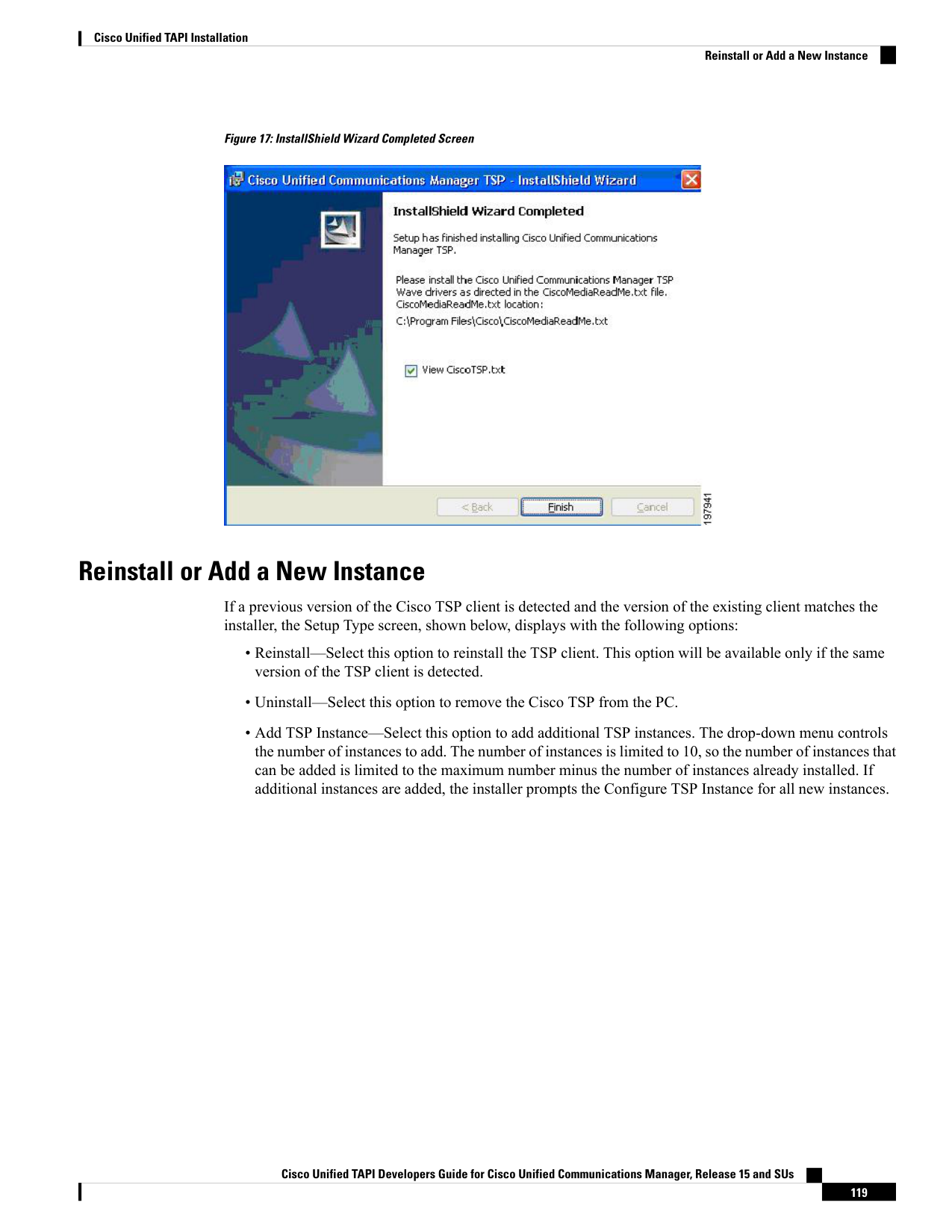

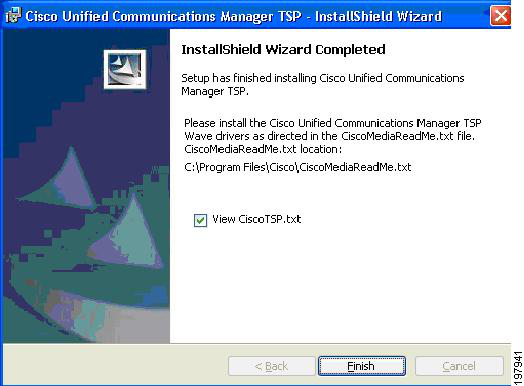

Figure 17: InstallShield Wizard Completed Screen Reinstall or Add a New Instance If a previous version of the Cisco TSP client is detected and the version of the existing client matches the installer, the Setup Type screen, shown below, displays with the following options: • Reinstall—Select this option to reinstall the TSP client. This option will be available only if the same version of the TSP client is detected. • Uninstall—Select this option to remove the Cisco TSP from the PC. • Add TSP Instance—Select this option to add additional TSP instances. The drop-down menu controls the number of instances to add. The number of instances is limited to 10, so the number of instances that can be added is limited to the maximum number minus the number of instances already installed. If additional instances are added, the installer prompts the Configure TSP Instance for all new instances. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 119 Cisco Unified TAPI Installation Reinstall or Add a New Instance

Image 1 from page 151

Page 151 content

Page 152

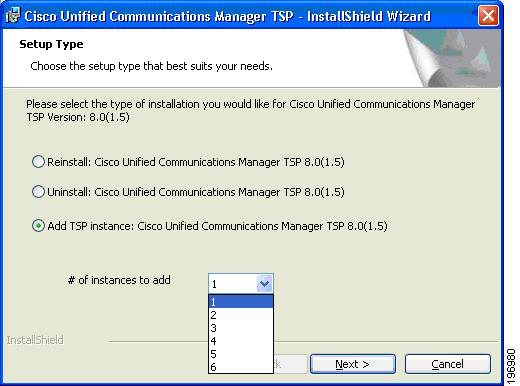

Figure 18: Setup Type Screen Upgrading CiscoTSP If a previous version of the Cisco TSP client is detected and the version of the installer is newer than the one already installed, the Setup Type screen, shown below, displays with the following options: • Upgrade—Select this option to upgrade all existing TSP instances and client. • Uninstall Cisco TSP—Select this option to remove the Cisco TSP from the PC. • Upgrade and Add a New TSP Instance—Select this option to add additional TSP instances and upgrade all instances to the newer version. The drop-down menu controls the number of instances to add. The number of instances is limited to 10, so the number of instances that can be added is limited to the maximum number minus the number of instances already installed. If additional instances are added, the installer will prompt Configure TSP Instance for all new instances. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 120 Cisco Unified TAPI Installation Upgrading CiscoTSP

Image 1 from page 152

Page 152 content

Page 153

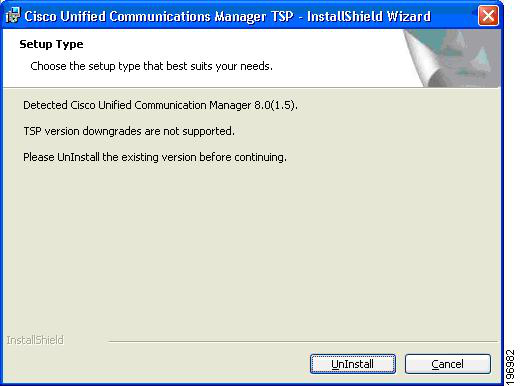

Figure 19: Setup Type Screen Downgrade or Uninstall of Cisco TSP If a previous version of the Cisco TSP client is detected and the version of the installer is older than the one already installed, the Setup Type screen, shown below, displays with this option: • Uninstall—Select this option to remove the Cisco TSP from your computer. Figure 20: Setup Type Screen - Uninstall Option Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 121 Cisco Unified TAPI Installation Downgrade or Uninstall of Cisco TSP

Image 1 from page 153

Image 2 from page 153

Page 153 content

Page 154

Silent Installation of Cisco Unified CM TSP Cisco TSP 8.0 introduces a new Silent Installation feature that allows the Cisco TSP to be remotely installed using Microsoft Group Policy or other remote installation tools. See the list of silent installation parameters to determine the correct settings based on the needed configuration. Example 1 New Cisco TSP installation that does not require Cisco Media Driver or Cisco Wave Driver: USER ID = bob PASSWORD = cisco123 CTIManager1 = 1.1.1.1 CTI1_TYPE = IPV4 Cisco TSP.exe /s /v"/qn PASS = "cisco123" USER = "bob" CTI1 = "1.1.1.1" CTI1_TYPE = "ipv4"" Example 2 New Cisco TSP installation which requires the Cisco Media Driver: USER ID = bob PASSWORD = cisco123 CTIManager1 = 1.1.1.1 CTI1_TYPE = IPV4 DRIVER_TYPE = NEW MDP_START = 30000 MDP_END = 31000 Cisco TSP.exe /s /v"/qn PASS = "cisco123" USER = "bob" CTI1 = "1.1.1.1" CTI1_TYPE = "ipv4" DRIVER_TYPE = "NEW" MDP_START = "30000" MDP_END = "31000"" Syntax Format • No spaces between the parameter and the " = " sign. • "" is used as an escape character, so " is needed to indicate a double quote. • If no parameters are used: • For Silent Install -CiscoTSP.exe /s /v/"qn" • Silent Upgrade -CiscoTSP.exe /s /v"/qn [REINSTALL = "ALL" REBOOT = "ReallySuppress"]" Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 122 Cisco Unified TAPI Installation Silent Installation of Cisco Unified CM TSP

Page 154 content

Page 155

• Silent Reinstall -CiscoTSP.exe /s /v"/qn REINSTALL = "ALL" REBOOT = "ReallySuppress"" See the following table for the list of parameters that you can pass (default). Table 4: Silent Install Parameters Valid values Comment Name All User name used to during provider initializing USER All Password used to during provider initializing PASS All CTI Manager 1 IP address CTI1 All CTI Manager 2 IP address CTI2 "NO", "YES" Non-admin can modify the userid/password NONAD "NONE", "IPV4", "IPV6", "HOST" Ipv4, Ipv6, or hostname CTI1_TYPE "NONE", "IPV4", "IPV6", "HOST" None, Ipv4, Ipv6, or hostname CTI2_TYPE "ASK", "NEVER", "ALWAYS" Ask, Always, Never AUTOUPGRADE_TYPE "WAVE", "MEDIA" Cisco Wave Driver, Cisco Media Driver DRIVER_TYPE 0 -255 Number of Legacy Wave Driver Ports NUM_WDP 0 -65535 Media Driver Port Start Range MDP_START 0 -65535 Media Driver Port End Range MDP_END New Silent Install Parameters This section is applicable from Release 15SU2 onwards. Important See the following table for a list of new silent install parameters that you can pass from Release 15SU2 onwards. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 123 Cisco Unified TAPI Installation Silent Installation of Cisco Unified CM TSP

Page 155 diagram

Page 156

The FALLBACK_AFTER, SCHEDULED_FALLBACK, and FALLBACK_EVERY parameters are applicable only after you pass the CTI3_TYPE parameter. By default, fallback is disabled. If you enter invalid values for the FALLBACK_AFTER, SCHEDULED_FALLBACK, and FALLBACK_EVERY parameters, the Cisco TSP installation still continues, but the fallback remains disabled. However, when you check the install logs, you can find traces that indicate that the value or values provided were invalid. When you pass two, or all the three fallback parameters (that is, FALLBACK_AFTER, SCHEDULED_FALLBACK, and FALLBACK_EVERY), they are considered in the following order of preference: • FALLBACK_EVERY—First preference • FALLBACK_AFTER—Second preference • SCHEDULED_FALLBACK—Last preference Note Table 5: New Silent Install Parameters Valid values Comment Name All CTI Manager 3 IP address CTI3 "NONE", "IPV4", "IPV6", "HOST" None, Ipv4, Ipv6, or hostname CTI3_TYPE 1-3600 Duration for fallback in minutes. FALLBACK_AFTER The format is YYYY/MM/DD HH:MM. Schedules a time for the initiation of fallback. SCHEDULED_FALLBACK The format is either ddd HH:MM or HH:MM. Schedules a planned fallback. FALLBACK_EVERY From Release 15SU4 onwards, during silent installation, the TSP installer does not perform a robust validation to detect an existing Microsoft Visual C++ 2015-2022 redistributable installed. It may attempt a forced reinstall or upgrade that may result in installation failure. To avoid this issue, users should either uninstall the existing Visual C++ 2015-2022 redistributable before performing a silent installation, or use the GUI-based installer. Important Upgrading Unified CM TSP Client to Release 8.5(1) or Later Using Silent Installation After the silent fresh installation or silent upgrade from previous versions of TSP to the 8.5(1) client, you must reboot the system for the changes to take effect. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 124 Cisco Unified TAPI Installation Upgrading Unified CM TSP Client to Release 8.5(1) or Later Using Silent Installation

Image 1 from page 156

Page 156 diagram

Page 157

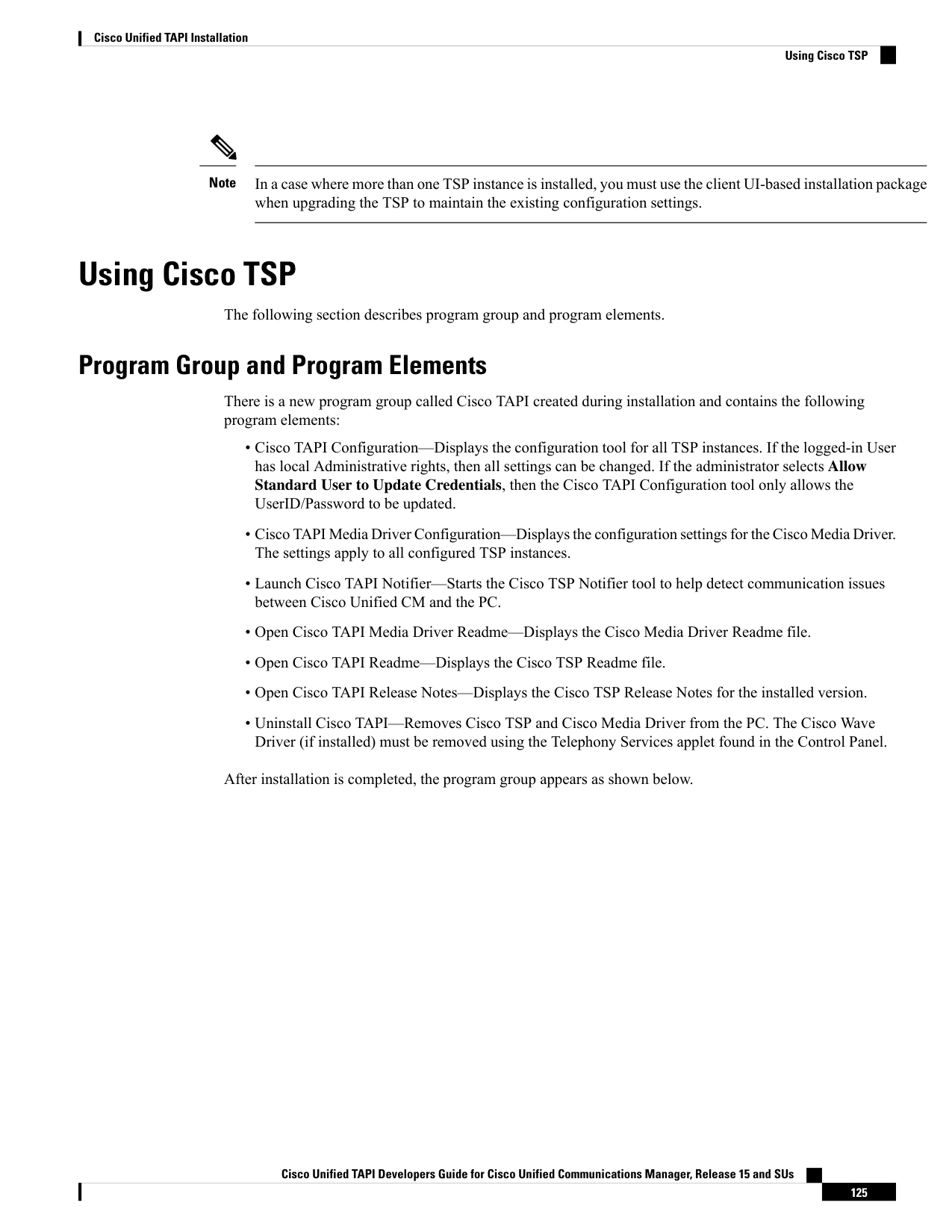

In a case where more than one TSP instance is installed, you must use the client UI-based installation package when upgrading the TSP to maintain the existing configuration settings. Note Using Cisco TSP The following section describes program group and program elements. Program Group and Program Elements There is a new program group called Cisco TAPI created during installation and contains the following program elements: • Cisco TAPI Configuration—Displays the configuration tool for all TSP instances. If the logged-in User has local Administrative rights, then all settings can be changed. If the administrator selects Allow Standard User to Update Credentials, then the Cisco TAPI Configuration tool only allows the UserID/Password to be updated. • Cisco TAPI Media Driver Configuration—Displays the configuration settings for the Cisco Media Driver. The settings apply to all configured TSP instances. • Launch Cisco TAPI Notifier—Starts the Cisco TSP Notifier tool to help detect communication issues between Cisco Unified CM and the PC. • Open Cisco TAPI Media Driver Readme—Displays the Cisco Media Driver Readme file. • Open Cisco TAPI Readme—Displays the Cisco TSP Readme file. • Open Cisco TAPI Release Notes—Displays the Cisco TSP Release Notes for the installed version. • Uninstall Cisco TAPI—Removes Cisco TSP and Cisco Media Driver from the PC. The Cisco Wave Driver (if installed) must be removed using the Telephony Services applet found in the Control Panel. After installation is completed, the program group appears as shown below. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 125 Cisco Unified TAPI Installation Using Cisco TSP

Image 1 from page 157

Page 157 content

Page 158

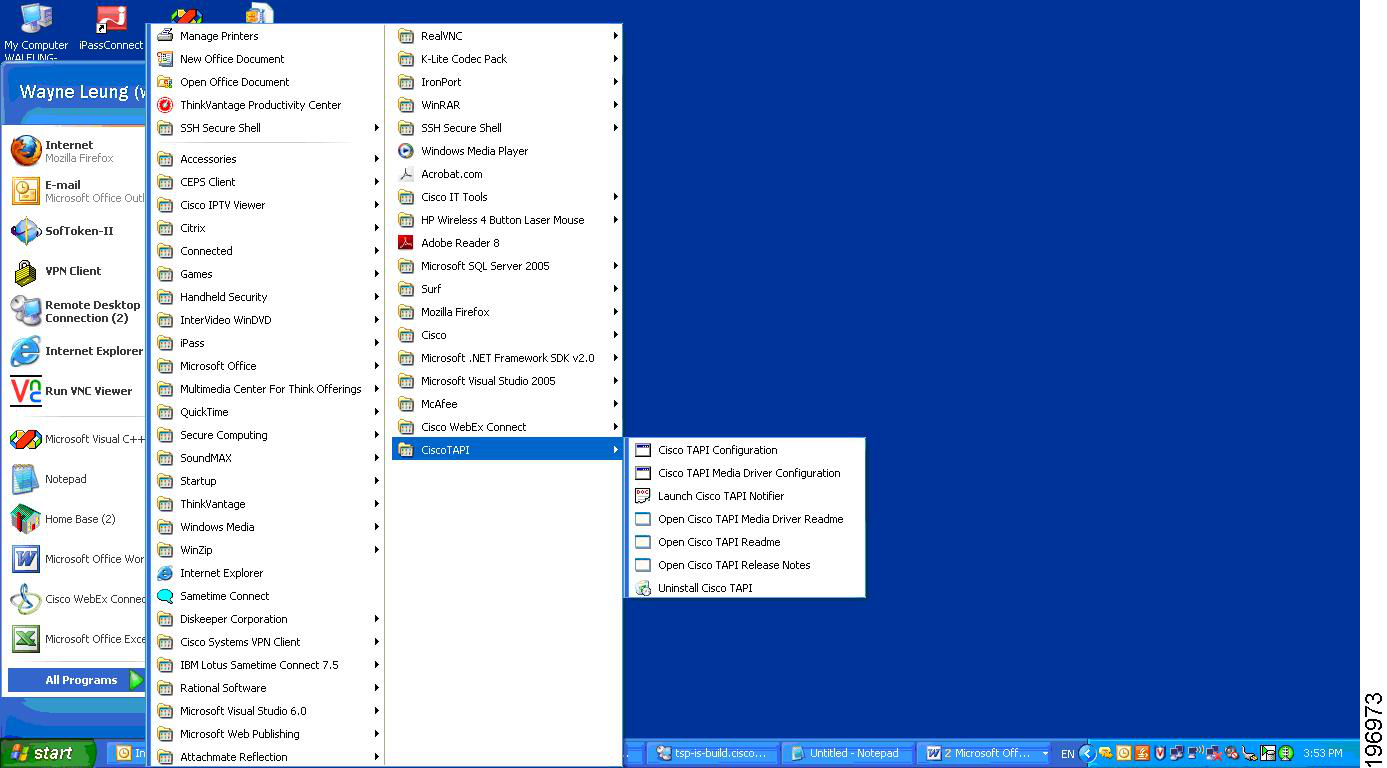

Figure 21: Cisco TAPI Menu From MS Windows Invoking the uninstall of Cisco TAPI the removes both the TSP and the next generation Media Driver (the old existing Wave Driver is NOT removed). It removes the Program Group from the Windows Task Bar along with all the program elements. Modifying Cisco TSP Configuration Select Cisco TAPI Configuration from the Cisco TSP Program Group as shown below in the CiscoConfig dialog. Figure 22: CiscoConfig Dialog Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 126 Cisco Unified TAPI Installation Modifying Cisco TSP Configuration

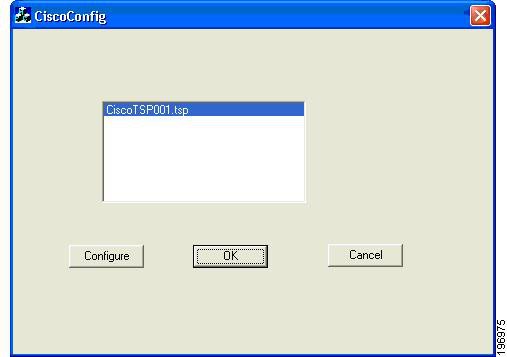

Image 1 from page 158

Image 2 from page 158

Page 158 content

Page 159

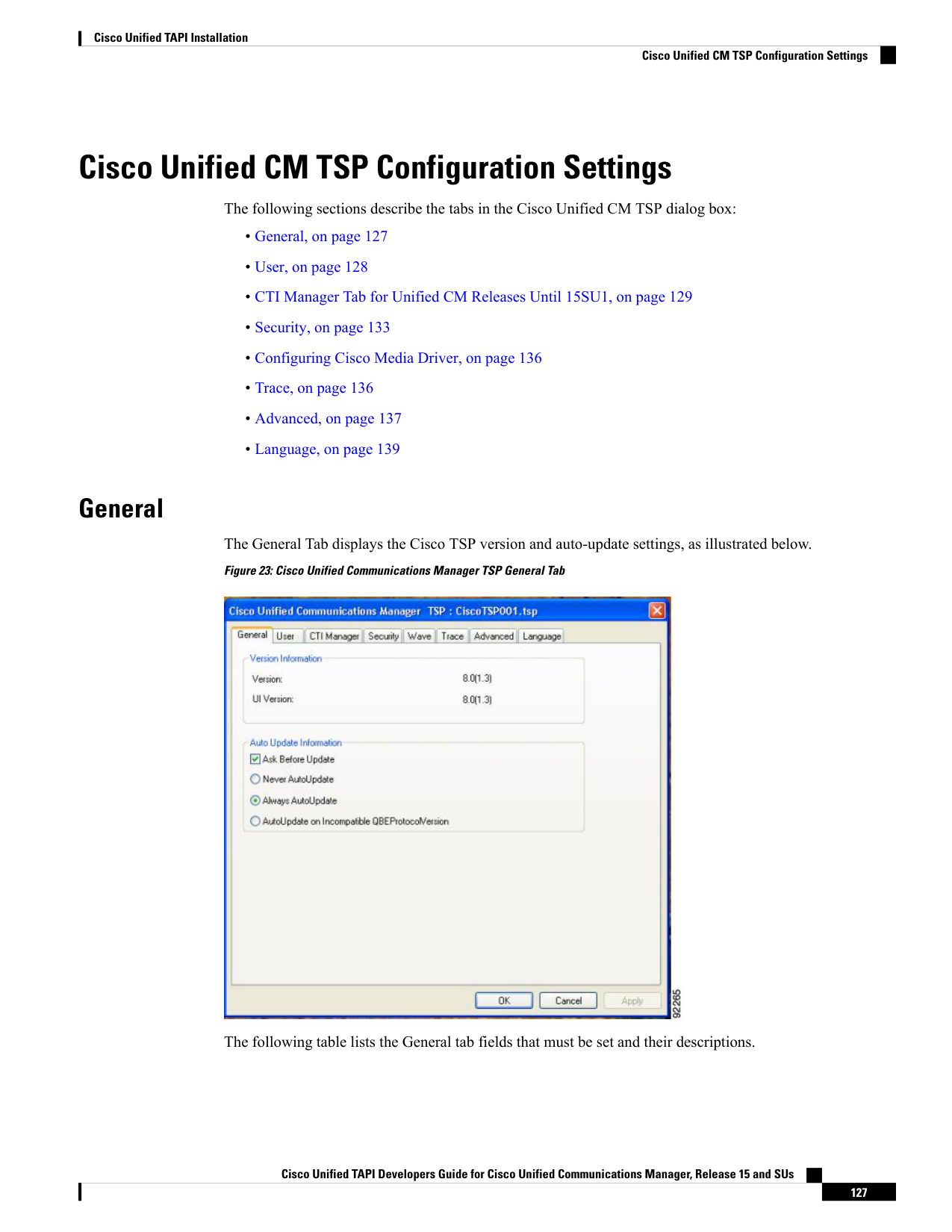

Cisco Unified CM TSP Configuration Settings The following sections describe the tabs in the Cisco Unified CM TSP dialog box: • General, on page 127 • User, on page 128 • CTI Manager Tab for Unified CM Releases Until 15SU1, on page 129 • Security, on page 133 • Configuring Cisco Media Driver, on page 136 • Trace, on page 136 • Advanced, on page 137 • Language, on page 139 General The General Tab displays the Cisco TSP version and auto-update settings, as illustrated below. Figure 23: Cisco Unified Communications Manager TSP General Tab The following table lists the General tab fields that must be set and their descriptions. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 127 Cisco Unified TAPI Installation Cisco Unified CM TSP Configuration Settings

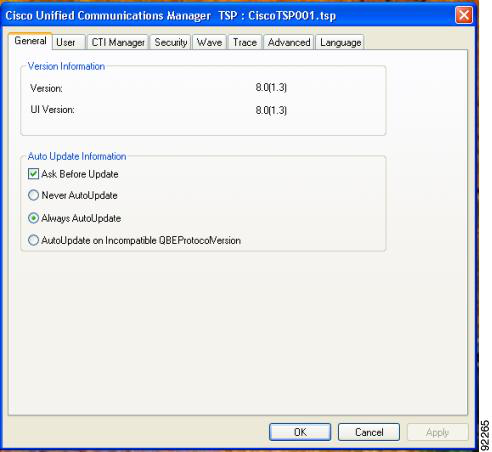

Image 1 from page 159

Page 159 content

Page 160

Table 6: Auto Update Information Fields Description Field Auto-upgrade service prompts the User to upgrade the TSP client. Ask Before Update Select this to disable the auto-update service. Never AutoUpdate Select this to enable automatic updates when new TSP client versions are detected. Always AutoUpdate Select this to allow the Cisco TSP to auto update only when the local TSP version is incompatible with the Unified CM version. AutoUpdate on Incompatible QBEProtocolVersion User The User tab allows you to set the user name and password, as illustrated in below. Figure 24: Cisco Unified Communications Manager TSP User Tab The table below describes the fields for the User tab that must be set. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 128 Cisco Unified TAPI Installation User

Image 1 from page 160

Page 160 diagram

Page 161

Table 7: User Tab Configuration Fields Description Field Enter the user name of the user. The TSP instance will access devices and lines that are associated with this User in Cisco Unified CM. Make sure that this User is enabled for CTI using the Cisco Unified CM Administration UI Note You can designate only one user name and password to be active at any time for any one TSP instance. User Name Enter the password that is associated with the user. The computer encrypts the password and stores it in the registry. Password Reenter the user password. Verify Password CTI Manager Tab for Unified CM Releases Until 15SU1 The CTI Manager tab enables you to configure the primary and backup CTI Manager information, as illustrated in the following screenshot. Figure 25: Cisco Unified Communications Manager TSP CTI Manager Tab for Unified CM Releases Until 15SU1 The following table describes the CTI Manager tab fields that you must set. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 129 Cisco Unified TAPI Installation CTI Manager Tab for Unified CM Releases Until 15SU1

Image 1 from page 161

Page 161 diagram

Page 162

Table 8: CTI Manager Configuration Fields for Unified CM Releases Until 15SU1 Description Field Use this field to specify the CTI Manager to which the TSP attempts to connect to first. Select one of the following options: • Click the IP Address radio button and use the text box to provide the IPv4 address of the Primary CTI Manager. • Click the IPV6 Address radio button and use the text box to provide the IPv6 address, if the application must connect using IPv6 with the Primary CTI Manager. • Click the Host Name radio button and enter the host name of the Primary CTI Manager. Primary CTI Manager Location Use this field to specify the CTI Manager to which the TSP attempts to connect when the Primary CTI Manager is not reachable. Select one of the following options: • Click the IP Address radio button and use the text box to provide the IPv4 address of the Backup CTI Manager. • Click the IPV6 Address radio button and use the text box to provide the IPv6 address, if the application must connect using IPv6 with the Backup CTI Manager. • Click the Host Name radio button and enter the host name of the Backup CTI Manager. Backup CTI Manager Location Preferred addressing mode with which the application tries to connect with the CTI Manager when IPv4 or IPv6 address is available. Click the radio button that is applicable. If the TSP fails to connect, it retries with the other IP addressing modes. IP Addressing Preference CTI Manager Tab from Unified CM Release 15SU2 Onwards The CTI Manager tab enables you to configure information that is related to the primary, secondary, and tertiary CTI Managers, as illustrated in the following screenshot. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 130 Cisco Unified TAPI Installation CTI Manager Tab from Unified CM Release 15SU2 Onwards

Page 162 diagram

Page 163

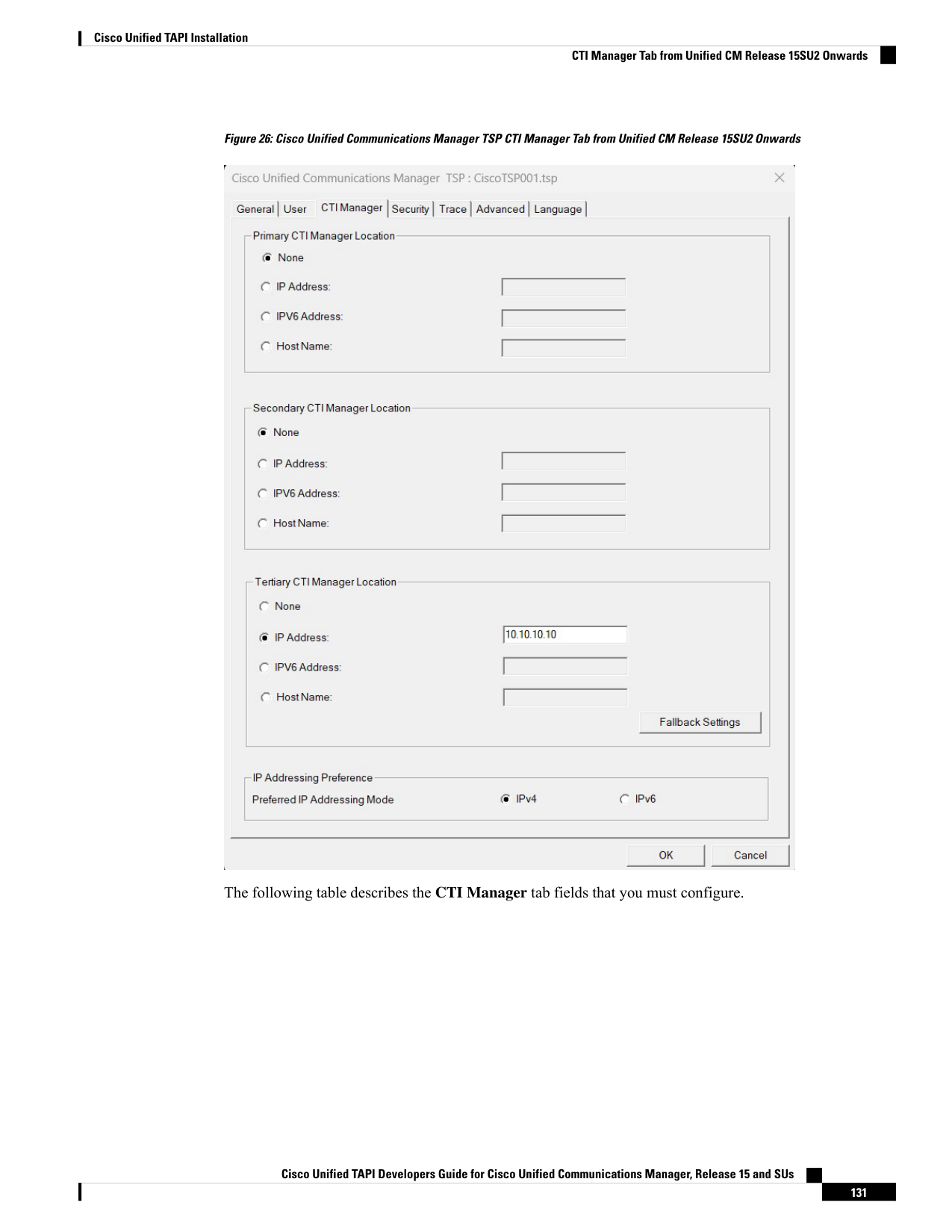

Figure 26: Cisco Unified Communications Manager TSP CTI Manager Tab from Unified CM Release 15SU2 Onwards The following table describes the CTI Manager tab fields that you must configure. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 131 Cisco Unified TAPI Installation CTI Manager Tab from Unified CM Release 15SU2 Onwards

Image 1 from page 163

Page 163 content

Page 164

Table 9: CTI Manager Configuration Fields from Unified CM Release 15SU2 Onwards Description Field Use this field to specify the CTI Manager to which the TSP attempts to connect to first. Select one of the following options: • Click the IP Address radio button and use the text box to provide the IPv4 address of the Primary CTI Manager. • Click the IPV6 Address radio button and use the text box to provide the IPv6 address, if the application must connect using IPv6 with the Primary CTI Manager. • Click the Host Name radio button and enter the host name of the Primary CTI Manager. Primary CTI Manager Location Use this field to specify the CTI Manager to which the TSP attempts to connect when the Primary CTI Manager is not reachable. Select one of the following options: • Click the IP Address radio button and use the text box to provide the IPv4 address of the Secondary CTI Manager. • Click the IPV6 Address radio button and use the text box to provide the IPv6 address, if the application must connect using IPv6 with the Secondary CTI Manager. • Click the Host Name radio button and enter the host name of the Secondary CTI Manager. Secondary CTI Manager Location Use this field to specify the CTI Manager to which the TSP attempts to connect when both the Primary and Secondary CTI Managers are not reachable. Select one of the following options: • Click the IP Address radio button and use the text box to provide the IPv4 address of the Tertiary CTI Manager. • Click the IPV6 Address radio button and use the text box to provide the IPv6 address, if the application must connect using IPv6 with the Tertiary CTI Manager. • Click the Host Name radio button and enter the host name of the Tertiary CTI Manager. Tertiary CTI Manager Location Preferred addressing mode with which the application tries to connect with the CTI Manager when IPv4 or IPv6 address is available. Click the radio button that is applicable. If the TSP fails to connect, it retries with the other IP addressing modes. IP Addressing Preference When you click the Fallback Settings button on the CTI Manager tab, the Fallback Settings screen appears as shown in the following screenshot. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 132 Cisco Unified TAPI Installation CTI Manager Tab from Unified CM Release 15SU2 Onwards

Page 164 diagram

Page 165

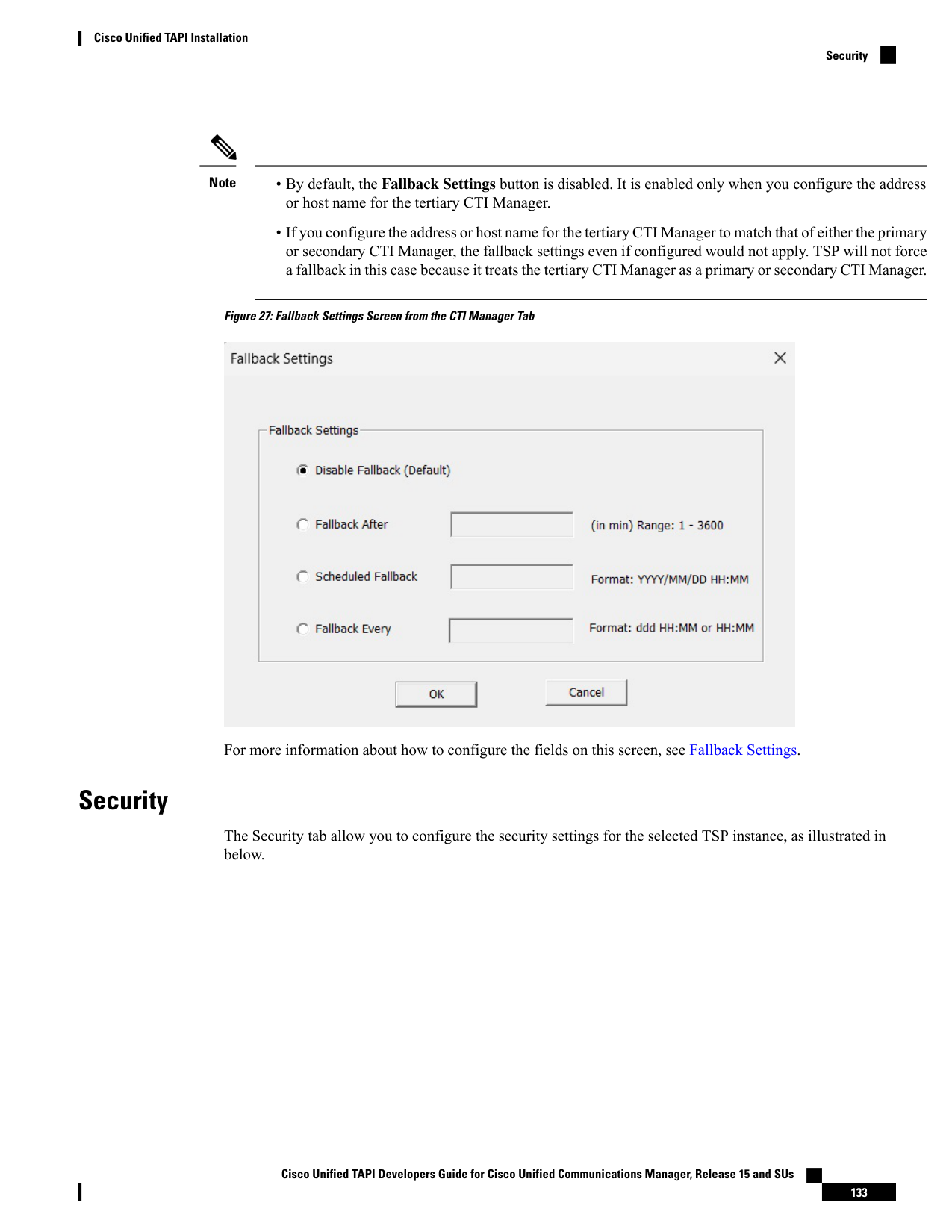

• By default, the Fallback Settings button is disabled. It is enabled only when you configure the address or host name for the tertiary CTI Manager. • If you configure the address or host name for the tertiary CTI Manager to match that of either the primary or secondary CTI Manager, the fallback settings even if configured would not apply. TSP will not force a fallback in this case because it treats the tertiary CTI Manager as a primary or secondary CTI Manager. Note Figure 27: Fallback Settings Screen from the CTI Manager Tab For more information about how to configure the fields on this screen, see Fallback Settings. Security The Security tab allow you to configure the security settings for the selected TSP instance, as illustrated in below. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 133 Cisco Unified TAPI Installation Security

Image 1 from page 165

Image 2 from page 165

Page 165 content

Page 166

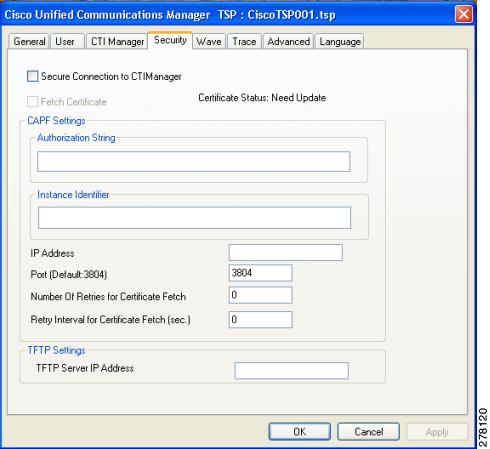

Figure 28: Cisco Unified Communications Manager TSP Security Tab The table below describes the Security tab fields that must be set. Table 10: Security Tab Configuration Fields Description Field If selected, TSP will secure the connection with CTIManager. Default setting is a non-secure connection, so the setting is unchecked. It is important that the security flag for the TSP User must be enabled through the Cisco Unified CM Administration UI. CTIManager performs a verification to check whether the User connecting via TLS is allowed to have secure access. CTIManager allows only security-enabled users to connect using TLS. The User flag to enable security requires the cluster security to also be enabled/set, otherwise the connection has to be non-secure. Secure Connection to CTIManager Select this option for the Cisco TSP to download certificate files if they are not already available or installed. This is performed when the certificate status is Need Update. This setting is not stored anywhere and is used only to update the Client certificate when checked and is cleared automatically. Fetch Certificates Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 134 Cisco Unified TAPI Installation Security

Image 1 from page 166

Page 166 diagram

Page 167

Description Field Provide the authentication (authorization) string generated under the CAPF profile. To install or upgrade a locally stored certificate, the User must enter the authentication (authorization) string. This string supports one-time use only; after you use the string for an instance, you cannot use it again. This is required for Client authentication with CAPF Server and Private Key storage on client machine. Authorization String Provide Instance ID for CAPF end User profile: Each secure connection to CTIManager must have its own certificate for authentication. With the restriction of a distinct certificate per connection, CAPF Server must verify that the user with appropriate AuthCode and InstanceID is requesting the certificate. CAPF server uses the AuthCode and InstanceID to verify the User's identity. Once CAPF server provides a certificate it clears the AuthCode to ensure that only one instance of an application requests a certificate based on a single AuthCode. Cisco Unified CM Administration UI allows User configuration to provide multiple InstanceID and AuthCode. Instance Identifier Provide the CAPF server IP address from which to fetch the client certificate. IP Address Provide the CAPF Server Port to connect for Certificate download (Default :3804). Port Indicates the number of retries TSP will perform to connect to the CAPF Server for certificate download in case of an error. This value is used when a communication failure occurs while the certificate installation is taking place. Default value is 0 and range is 0 to 3. Number of Retries for Certificate Fetch Indicates the number of seconds the TSP should wait between re-attempting to retrieve the certificate. Default value is 0 and range is 0 to 15. Retry Interval for Certificate Fetch Indicates the TFTP server IP address from which to fetch the CTL file. CTL file is required to verify the server certificate, sent while mutually authenticating the TLS connection. Note TAPI connects to default UDP port (69) while downloading the CTL file. TFTP IP Address Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 135 Cisco Unified TAPI Installation Security

Page 167 diagram

Page 168

Configuring Cisco Media Driver Cisco Media Driver The media driver settings are used by all TSP instances. Trace The Trace tab allows you to configure various trace settings, as illustrated below. Changes to trace parameters take effect immediately and do not require a computer reboot, even if the TSP is running. Figure 29: Cisco Unified Communications Manager TSP Trace Tab The table below describes the Trace tab fields that must be set. Table 11: Trace Tab Configuration Fields Description Field This setting allows you to enable Global Cisco TSP trace. Select the check box to enable Cisco TSP trace. When you enable trace, you can modify other trace parameters in the dialog box. The Cisco TSP trace depends on the values that you enter in these fields. Clear the check box to disable Cisco TSP trace. When you disable trace, you cannot choose any trace parameters in the dialog box, and TSP ignores the values that are entered in these fields. On Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 136 Cisco Unified TAPI Installation Configuring Cisco Media Driver

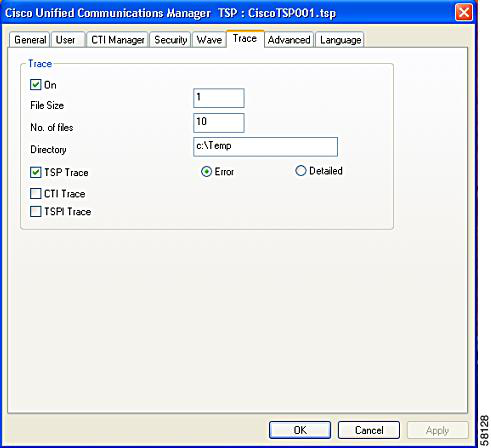

Image 1 from page 168

Page 168 diagram

Page 169

Description Field Default file size is 1 MB. File size Use this field to specify the maximum number of trace files. The default value is 10. File numbering occurs in a rotating sequence starting at 0. The counter restarts at 0 after it reaches the maximum number of files minus one. No. of files Use this field to specify the location in which trace files for all CiscoTSPs are stored. The system creates a subdirectory for each instance of CiscoTSP. For example, the CiscoTSP001Log directory stores Cisco TSP 1 log files. The system creates trace files with filename TSP001Debug000xxx.txt for each TSP in its respective subdirectory. Directory This setting activates internal TSP tracing. When you activate TSP tracing, Cisco Unified TSP logs internal debug information that you can use for debugging purposes. You can choose one of the following levels: Error—Logs only TSP errors. Detailed—Logs all TSP details (such as log function calls in the order that they are called). The system checks the TSP Trace check box and chooses the Error radio button by default. TSP Trace This setting traces messages that flow between Cisco TSP and CTIManager. By default, CTI Trace is not selected. CTI Trace This setting traces all messages and function calls between Microsoft TAPI and the Cisco TSP. By default, TSPI Trace is not selected. If TSPI Trace is enabled, Cisco TSP traces all the function calls that Microsoft TAPI makes to the Cisco TSP with parameters and messages (events) from Cisco TSP to MS TAPI. TSPI Trace Advanced The Advanced tab allows you to configure timer settings, as illustrated in below. Timer settings should only be changed when necessary and recommended by Cisco Technical Assistance Center (TAC). Note Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 137 Cisco Unified TAPI Installation Advanced

Image 1 from page 169

Page 169 diagram

Page 170

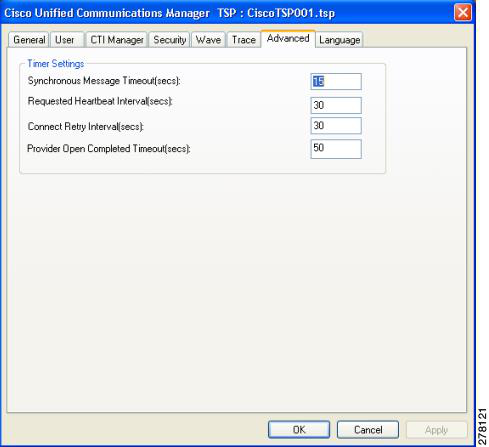

Figure 30: Cisco Unified Communications Manager TSP Advanced Tab The table below describes the Advanced tab fields that must be set. Table 12: Advanced Configuration Fields Description Field Use this field to designate the time that the TSP waits to receive a response to a synchronous message. The value displays in seconds, and the default value is 15. Range goes from 5 to 60 seconds. Synchronous Message Timeout (secs) Use this field to designate the interval at which the heartbeat messages are sent from TSP to detect whether the CTI Manager connection is still alive. TSP sends heartbeats when no traffic exists between the TSP and CTI Manager for 30 seconds or more. The default interval is 30 seconds. Range goes from 30 to 300 seconds. Requested Heartbeat Interval (secs) Use this field to designate the interval between reconnection attempts after a CTI Manager connection failure. The default value is 30 seconds. Range goes from 15 to 300 seconds. Connect Retry Interval (secs) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 138 Cisco Unified TAPI Installation Advanced

Image 1 from page 170

Page 170 diagram

Page 171

Description Field Use this field to designate the time that Cisco Unified TSP waits for a Provider Open Completed Event, which indicates the CTI Manager is initialized and ready to serve TSP requests. Be aware that CTI initialization time is directly proportional to the number of devices that are configured in the system. The default value is 50 seconds. Range goes from 5 to 900 seconds. Provider Open Completed Timeout (secs) Language The Language tab displays the installed locales and allows for localization of the client user interface, as illustrated in below. Figure 31: Cisco Unified Communications Manager TSP Language Tab The following table desctribes the Language tab fields. Table 13: Language Configuration Fields Description Field Configure the TFTP server IP where the COP files are installed for the desired Locales. TFTP Server IP Address Downloads the locale files from the configured TFTP server and extracts those files to the resources directory in the client machine Update Locale Files Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 139 Cisco Unified TAPI Installation Language

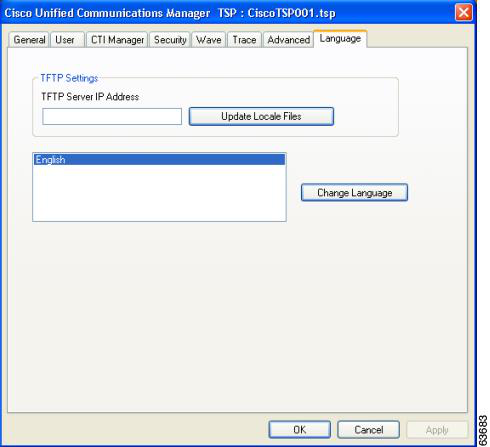

Image 1 from page 171

Page 171 diagram

Page 172

Description Field Choose a language and click this to reload the tabs with the text in that language. Change Language Managing the Cisco Unified CM TSP You can perform the following actions on all installed TSPs: • Reinstall the existing Cisco Unified TSP client (same version) • Upgrade to the newer version of the Cisco TSP client • Remove Cisco TSP from the Telephone Service Provider List • Uninstall the Cisco TSP client • Uninstall the Cisco Wave Driver Reinstall the Cisco Unified TSP Use the following procedure to reinstall the Cisco Unified TSP on all supported platforms. Procedure Step 1 Open the Control Panel and double-click Add/Remove Programs. Step 2 Choose Cisco Unified TSP and click Change. The Cisco Unified TSP maintenance install dialog box displays. Step 3 Click the Reinstall TSP radio button and click Next. Step 4 Follow the online instructions. Step 5 Restart the computer Upgrade the Cisco Unified TSP Use the following procedure to upgrade the Cisco Unified TSP on all supported platforms. Procedure Step 1 Download and save the new TSP client on the target PC and double-click the installer. Step 2 Select the Upgrade from TSP radio button and click Next. Step 3 Follow the online instructions. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 140 Cisco Unified TAPI Installation Managing the Cisco Unified CM TSP

Page 172 diagram

Page 173

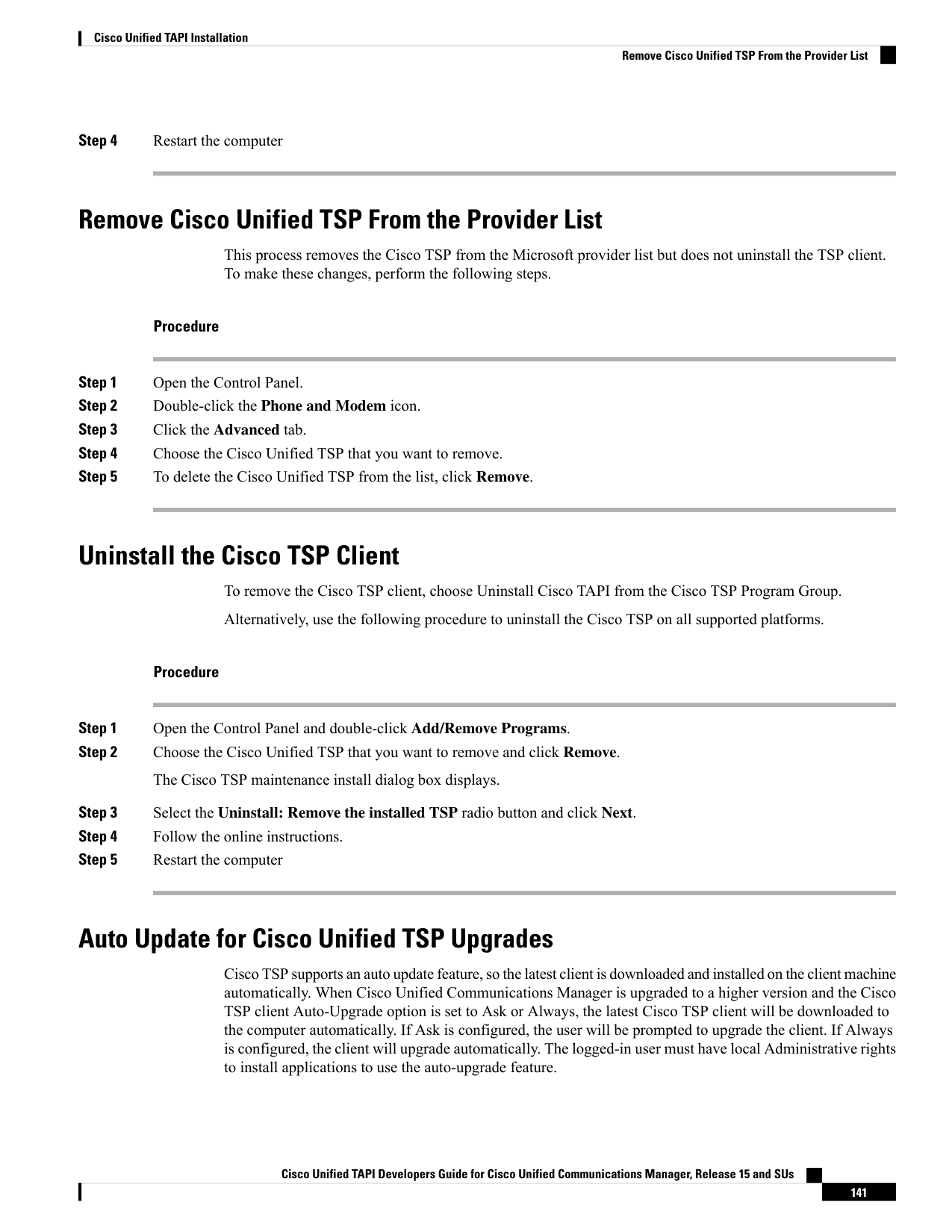

Step 4 Restart the computer Remove Cisco Unified TSP From the Provider List This process removes the Cisco TSP from the Microsoft provider list but does not uninstall the TSP client. To make these changes, perform the following steps. Procedure Step 1 Open the Control Panel. Step 2 Double-click the Phone and Modem icon. Step 3 Click the Advanced tab. Step 4 Choose the Cisco Unified TSP that you want to remove. Step 5 To delete the Cisco Unified TSP from the list, click Remove. Uninstall the Cisco TSP Client To remove the Cisco TSP client, choose Uninstall Cisco TAPI from the Cisco TSP Program Group. Alternatively, use the following procedure to uninstall the Cisco TSP on all supported platforms. Procedure Step 1 Open the Control Panel and double-click Add/Remove Programs. Step 2 Choose the Cisco Unified TSP that you want to remove and click Remove. The Cisco TSP maintenance install dialog box displays. Step 3 Select the Uninstall: Remove the installed TSP radio button and click Next. Step 4 Follow the online instructions. Step 5 Restart the computer Auto Update for Cisco Unified TSP Upgrades Cisco TSP supports an auto update feature, so the latest client is downloaded and installed on the client machine automatically. When Cisco Unified Communications Manager is upgraded to a higher version and the Cisco TSP client Auto-Upgrade option is set to Ask or Always, the latest Cisco TSP client will be downloaded to the computer automatically. If Ask is configured, the user will be prompted to upgrade the client. If Always is configured, the client will upgrade automatically. The logged-in user must have local Administrative rights to install applications to use the auto-upgrade feature. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 141 Cisco Unified TAPI Installation Remove Cisco Unified TSP From the Provider List

Page 173 content

Page 174

Verify the Cisco Unified CM TSP Installation Use the Microsoft Windows Phone Dialer Application to verify that the Cisco TSP client has been installed and is configured correctly. Locate the dialer application by performing a search for dialer.exe. Procedure Step 1 Open the Dialer application by locating it in Windows Explorer and double-clicking it Step 2 Choose Edit > Options. Step 3 Choose Phone as the Preferred Line for Calling. Step 4 In the Line Used For area, choose one Cisco Line in the Phone Calls drop-down menu. Step 5 Click OK. Step 6 Click Dial. Step 7 Enter a number to dial, choose Phone Call in the Dial as box, and then click Place Call. What to do next If the call is successful, the Cisco TSP client is installed correctly. If you encounter problems during this procedure, or if no lines appear in the line drop-down list on the dialer application, check the following items: • Verify the Cisco TSP configuration settings by opening the Cisco TAPI Configuration tool and verifying the configured parameters. • Reboot the computer to ensure all configuration options and installation processes have completed and are updated successfully. • Test the network link between the Cisco TSP client machine and Cisco Unified CM by using the ping command to check connectivity. • Ensure that the Cisco Unified CM CTIManager is running. Cisco TSP Behavior on Windows Upgrade On upgrade of windows to a higher version, for example from Windows 8 to Windows 10, Cisco TSP must be reinstalled to retain all the previous instances of data present in CiscoTSP Configuration. Perform the following procedure to reinstall the Cisco Unified TSP. Reinstall the Cisco Unified TSP, on page 140 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 142 Cisco Unified TAPI Installation Verify the Cisco Unified CM TSP Installation

Page 174 content

Page 175

C H A P T E R 5 Basic TAPI Implementation This chapter outlines the TAPI 2.1 functions, events, and messages that the Cisco Unified TAPI Service Provider (TSP) supports. This chapter contains functions in the following sections: • Overview, on page 143 • TAPI Line Functions, on page 143 • TAPI Line Messages, on page 199 • TAPI Line Device Structures, on page 216 • TAPI Phone Functions, on page 274 • TAPI Phone Messages, on page 290 • TAPI Phone Structures, on page 298 • Wave Functions, on page 305 Overview TAPI comprises a set of classes that expose the functionality of the Cisco Unified Communications Solutions. TAPI enables developers to create customized IP telephony applications for Unified Communications Manager without specific knowledge of the communication protocols between the Unified Communications Manager and the service provider. For example, a developer could create a TAPI application that communicates with an external voice-messaging system. TAPI Line Functions The number of TAPI devices that are configured in the Unified Communications Manager determines the number of available lines. Cisco Media Driver is used to terminate a media stream in the first-party call control models. Table 14: TAPI Line Functions Supported TAPI line functions supported lineAccept, on page 146 lineAddProvider, on page 146 lineAddToConference, on page 147 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 143

Image 1 from page 175

Page 175 diagram

Page 176

TAPI line functions supported lineAnswer, on page 148 lineBlindTransfer, on page 148 lineCallbackFunc, on page 149 lineClose, on page 150 lineCompleteTransfer, on page 150 lineConfigProvider, on page 151 lineDeallocateCall, on page 152 lineDevSpecific, on page 152 lineDevSpecificFeature, on page 154 lineDial, on page 155 lineDrop, on page 156 lineForward, on page 157 lineGenerateDigits, on page 159 lineGenerateTone, on page 160 lineGetAddressCaps, on page 161 lineGetAddressID, on page 162 lineGetAddressStatus, on page 163 lineGetCallInfo, on page 163 lineGetCallStatus, on page 164 lineGetConfRelatedCalls, on page 164 lineGetDevCaps, on page 165 lineGetID, on page 166 lineGetLineDevStatus, on page 167 lineGetMessage, on page 167 lineGetNewCalls, on page 168 lineGetNumRings, on page 169 lineGetProviderList, on page 170 lineGetRequest, on page 171 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 144 Basic TAPI Implementation TAPI Line Functions

Page 176 diagram

Page 177

TAPI line functions supported lineGetStatusMessages, on page 172 lineGetTranslateCaps, on page 172 lineHandoff, on page 173 lineHold, on page 174 lineInitialize, on page 175 lineInitializeEx, on page 176 lineMakeCall, on page 177 lineMonitorDigits, on page 178 lineMonitorTones, on page 178 lineNegotiateAPIVersion, on page 179 lineNegotiateExtVersion, on page 180 lineOpen, on page 181 linePark, on page 182 linePrepareAddToConference, on page 183 lineRedirect, on page 185 lineRegisterRequestRecipient, on page 185 lineRemoveFromConference, on page 186 lineSetAppPriority, on page 188 lineSetCallPrivilege, on page 189 lineSetNumRings, on page 190 lineSetStatusMessages, on page 191 lineSetTollList, on page 192 lineSetupConference, on page 193 lineSetupTransfer, on page 194 lineShutdown, on page 194 lineTranslateAddress, on page 195 lineTranslateDialog, on page 196 lineUnhold, on page 198 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 145 Basic TAPI Implementation TAPI Line Functions

Page 177 diagram

Page 178

TAPI line functions supported lineUnpark, on page 198 lineAccept The lineAccept function accepts the specified offered call. Function Details LONG lineAccept(HCALL hCall, LPCSTR lpsUserUserInfo, DWORD dwSize ); Parameters hCall A handle to the call to be accepted. The application must be an owner of the call. Call state of hCall must be offering. lpsUserUserInfo A pointer to a string that contains user-user information to be sent to the remote party as part of the call accept. Leave this pointer NULL if you do not want to send user-user information. User-user information is sent only if supported by the underlying network. The protocol discriminator member for the user-user information, if required, should appear as the first byte of the buffer that is pointed to by lpsUserUserInfo and must be accounted for in dwSize. The Cisco Unified TSP does not support user-user information. Note dwSize The size in bytes of the user-user information in lpsUserUserInfo. If lpsUserUserInfo is NULL, no user-user information gets sent to the calling party, and dwSize is ignored. lineAddProvider The lineAddProvider function installs a new telephony service provider into the telephony system. Function Details LONG WINAPI lineAddProvider( LPCSTR lpszProviderFilename, HWND hwndOwner, LPDWORD lpdwPermanentProviderID ); Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 146 Basic TAPI Implementation lineAccept

Image 1 from page 178

Page 178 diagram

Page 179

Parameters lpszProviderFilename A pointer to a null-terminated string that contains the path of the service provider to be added. hwndOwner A handle to a window in which dialog boxes that need to be displayed as part of the installation process (for example, by the service provider's TSPI_providerInstall function) would be attached. Can be NULL to indicate that any window created during the function should have no owner window. lpdwPermanentProviderID A pointer to a DWORD-sized memory location into which TAPI writes the permanent provider identifier of the newly installed service provider. Return Values Returns zero if request succeeds or a negative number if an error occurs. Possible return values are: • LINEERR_INIFILECORRUPT • LINEERR_NOMEM • LINEERR_INVALPARAM • LINEERR_NOMULTIPLEINSTANCE • LINEERR_INVALPOINTER • LINEERR_OPERATIONFAILED lineAddToConference This function takes the consult call that is specified by hConsultCall and adds it to the conference call that is specified by hConfCall. Function Details LONG lineAddToConference( HCALL hConfCall, HCALL hConsultCall ); Parameters hConfCall A pointer to the conference call handle. The state of the conference call must be OnHoldPendingConference or OnHold. hConsultCall A pointer to the consult call that will be added to the conference call. The application must be the owner of this call, and it cannot be a member of another conference call. The allowed states of the consult call comprise connected, onHold, proceeding, or ringback Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 147 Basic TAPI Implementation lineAddToConference

Page 179 content

Page 180

lineAnswer The lineAnswer function answers the specified offering call. CallProcessing requires previous calls on the device to be in connected call state before answering further calls on the same device. If calls are answered without checking for the call state of previous calls on the same device, then Cisco Unified TSP might return a successful answer response but the call will not go to connected state and needs to be answered again. Note Function Details LONG lineAnswer( HCALL hCall, LPCSTR lpsUserUserInfo, DWORD dwSize ); Parameters hCall A handle to the call to be answered. The application must be an owner of this call. The call state of hCall must be offering or accepted. lpsUserUserInfo A pointer to a string that contains user-user information to be sent to the remote party at the time the call is answered. You can leave this pointer NULL if no user-user information will be sent. User-user information only gets sent if supported by the underlying network. The protocol discriminator field for the user-user information, if required, should be the first byte of the buffer that is pointed to by lpsUserUserInfo and must be accounted for in dwSize. The Cisco Unified TSP does not support user-user information. Note dwSize The size in bytes of the user-user information in lpsUserUserInfo. If lpsUserUserInfo is NULL, no user-user information gets sent to the calling party, and dwSize is ignored. lineBlindTransfer The lineBlindTransfer function performs a blind or single-step transfer of the specified call to the specified destination address. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 148 Basic TAPI Implementation lineAnswer

Image 1 from page 180

Page 180 content

Page 181

The lineBlindTransfer function that is implemented until Cisco Unified TSP 3.3 does not comply with the TAPI specification. This function actually gets implemented as a consultation transfer and not a single-step transfer. From Cisco Unified TSP 4.0, the lineBlindTransfer complies with the TAPI specs wherein the transfer is a single-step transfer. Note If the application tries to blind transfer a call to an address that requires a FAC, CMC, or both, then the lineBlindTransfer function will return an error. If a FAC is required, the TSP will return the error LINEERR_FACREQUIRED. If a CMC is required, the TSP will return the error LINEERR_CMCREQUIRED. If both a FAC and a CMC are required, the TSP will return the error LINEERR_FACANDCMCREQUIRED. An application that wants to blind transfer a call to an address that requires a FAC, CMC, or both, should use the lineDevSpecific -BlindTransferFACCMC function. Function Details LONG lineBlindTransfer( HCALL hCall, LPCSTR lpszDestAddress, DWORD dwCountryCode ); Parameters hCall A handle to the call to be transferred. The application must be an owner of this call. The call state of hCall must be connected. lpszDestAddress A pointer to a NULL-terminated string that identifies the location to which the call is to be transferred. The destination address uses the standard dial number format. dwCountryCode The country code of the destination. The implementation uses this parameter to select the call progress protocols for the destination address. If a value of 0 is specified, the defined default call-progress protocol is used. lineCallbackFunc The lineCallbackFunc function provides a placeholder for the application-supplied function name. Function Details VOID FAR PASCAL lineCallbackFunc( DWORD hDevice, DWORD dwMsg, DWORD dwCallbackInstance, DWORD dwParam1, DWORD dwParam2, DWORD dwParam3 ); Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 149 Basic TAPI Implementation lineCallbackFunc

Image 1 from page 181

Page 181 content

Page 182

Parameters hDevice A handle to either a line device or a call that is associated with the callback. The context that dwMsg provides determines the nature of this handle (line handle or call handle). Applications must use the DWORD type for this parameter because using the HANDLE type may generate an error. dwMsg A line or call device message. dwCallbackInstance Callback instance data that is passed back to the application in the callback. TAPI does not interpret DWORD. dwParam1 A parameter for the message. dwParam2 A parameter for the message. dwParam3 A parameter for the message. Further Details For information about parameter values that are passed to this function, see TAPI Line Functions, on page 143. lineClose The lineClose function closes the specified open line device. Function Details LONG lineClose( HLINE hLine ); Parameter hLine A handle to the open line device to be closed. After the line has been successfully closed, this handle no longer remains valid. lineCompleteTransfer The lineCompleteTransfer function completes the transfer of the specified call to the party that is connected in the consultation call. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 150 Basic TAPI Implementation lineClose

Page 182 content

Page 183

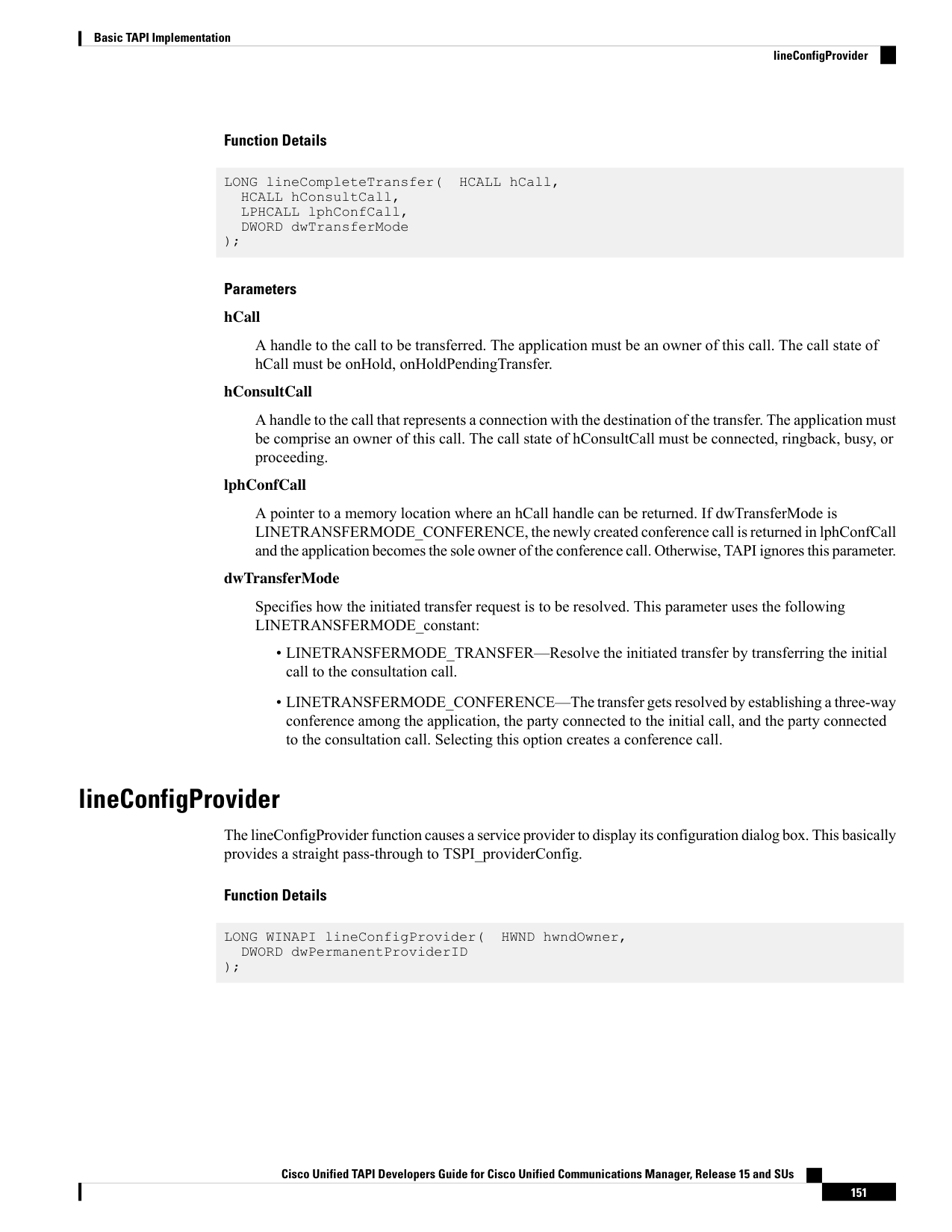

Function Details LONG lineCompleteTransfer( HCALL hCall, HCALL hConsultCall, LPHCALL lphConfCall, DWORD dwTransferMode ); Parameters hCall A handle to the call to be transferred. The application must be an owner of this call. The call state of hCall must be onHold, onHoldPendingTransfer. hConsultCall A handle to the call that represents a connection with the destination of the transfer. The application must be comprise an owner of this call. The call state of hConsultCall must be connected, ringback, busy, or proceeding. lphConfCall A pointer to a memory location where an hCall handle can be returned. If dwTransferMode is LINETRANSFERMODE_CONFERENCE, the newly created conference call is returned in lphConfCall and the application becomes the sole owner of the conference call. Otherwise, TAPI ignores this parameter. dwTransferMode Specifies how the initiated transfer request is to be resolved. This parameter uses the following LINETRANSFERMODE_constant: • LINETRANSFERMODE_TRANSFER—Resolve the initiated transfer by transferring the initial call to the consultation call. • LINETRANSFERMODE_CONFERENCE—The transfer gets resolved by establishing a three-way conference among the application, the party connected to the initial call, and the party connected to the consultation call. Selecting this option creates a conference call. lineConfigProvider The lineConfigProvider function causes a service provider to display its configuration dialog box. This basically provides a straight pass-through to TSPI_providerConfig. Function Details LONG WINAPI lineConfigProvider( HWND hwndOwner, DWORD dwPermanentProviderID ); Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 151 Basic TAPI Implementation lineConfigProvider

Page 183 content

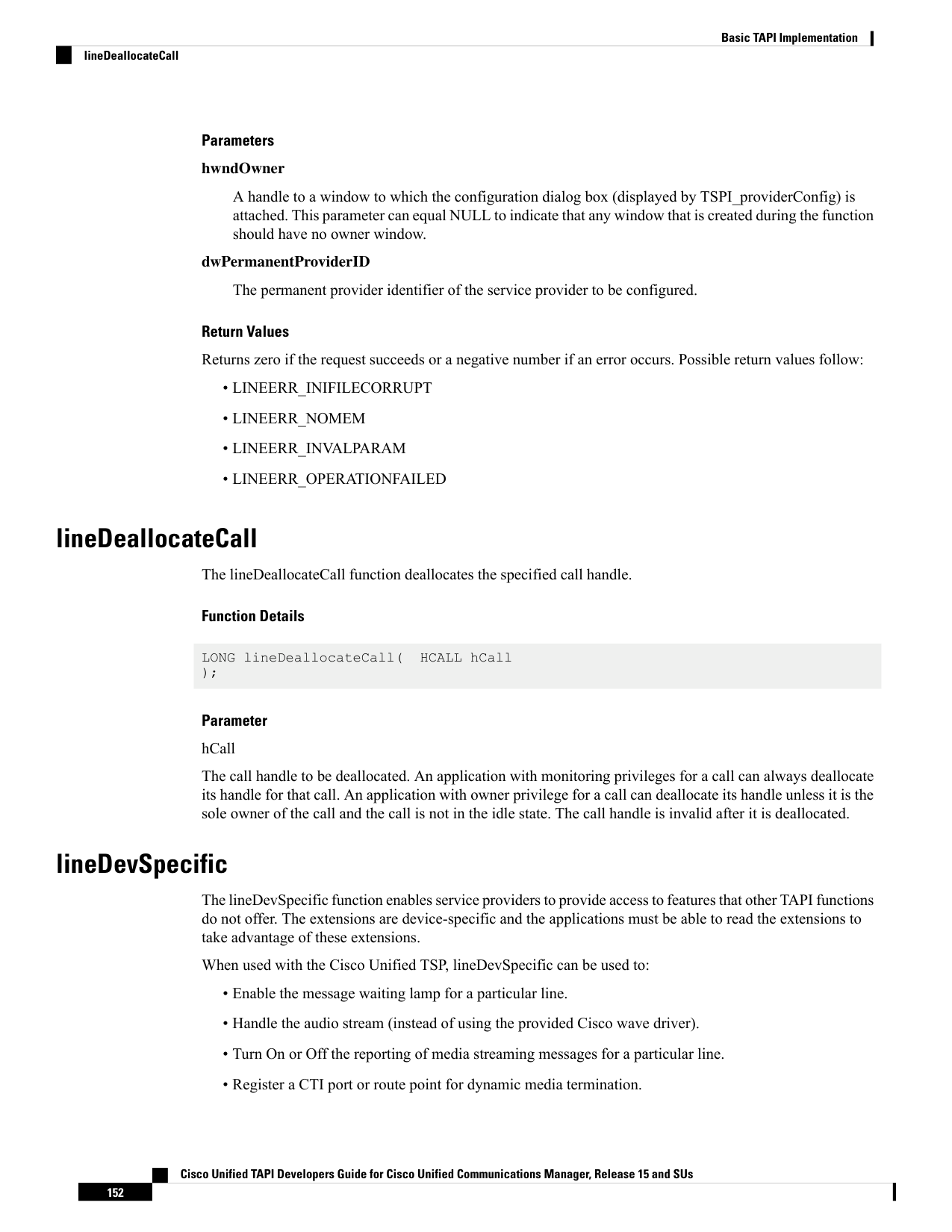

Page 184

Parameters hwndOwner A handle to a window to which the configuration dialog box (displayed by TSPI_providerConfig) is attached. This parameter can equal NULL to indicate that any window that is created during the function should have no owner window. dwPermanentProviderID The permanent provider identifier of the service provider to be configured. Return Values Returns zero if the request succeeds or a negative number if an error occurs. Possible return values follow: • LINEERR_INIFILECORRUPT • LINEERR_NOMEM • LINEERR_INVALPARAM • LINEERR_OPERATIONFAILED lineDeallocateCall The lineDeallocateCall function deallocates the specified call handle. Function Details LONG lineDeallocateCall( HCALL hCall ); Parameter hCall The call handle to be deallocated. An application with monitoring privileges for a call can always deallocate its handle for that call. An application with owner privilege for a call can deallocate its handle unless it is the sole owner of the call and the call is not in the idle state. The call handle is invalid after it is deallocated. lineDevSpecific The lineDevSpecific function enables service providers to provide access to features that other TAPI functions do not offer. The extensions are device-specific and the applications must be able to read the extensions to take advantage of these extensions. When used with the Cisco Unified TSP, lineDevSpecific can be used to: • Enable the message waiting lamp for a particular line. • Handle the audio stream (instead of using the provided Cisco wave driver). • Turn On or Off the reporting of media streaming messages for a particular line. • Register a CTI port or route point for dynamic media termination. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 152 Basic TAPI Implementation lineDeallocateCall

Page 184 content

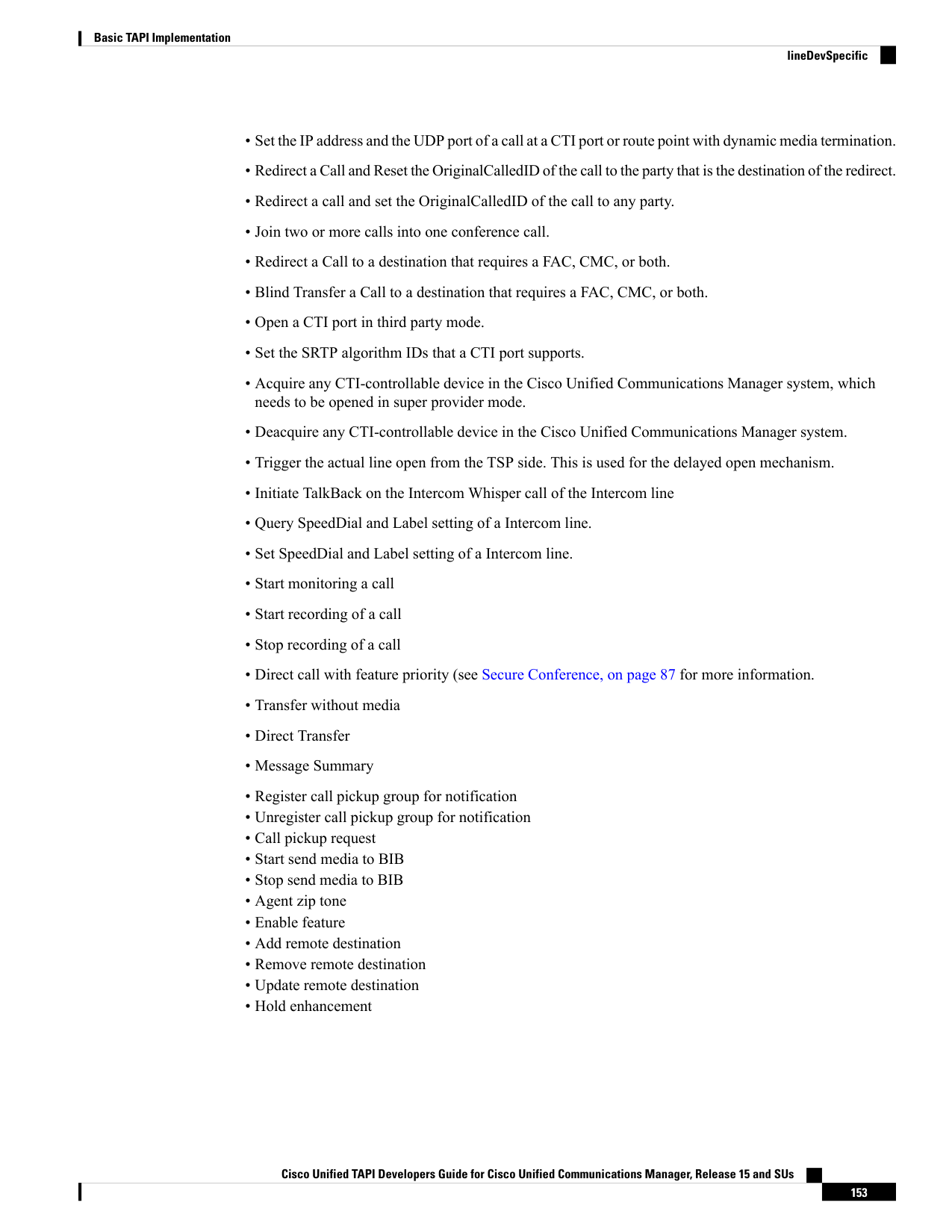

Page 185

• Set the IP address and the UDP port of a call at a CTI port or route point with dynamic media termination. • Redirect a Call and Reset the OriginalCalledID of the call to the party that is the destination of the redirect. • Redirect a call and set the OriginalCalledID of the call to any party. • Join two or more calls into one conference call. • Redirect a Call to a destination that requires a FAC, CMC, or both. • Blind Transfer a Call to a destination that requires a FAC, CMC, or both. • Open a CTI port in third party mode. • Set the SRTP algorithm IDs that a CTI port supports. • Acquire any CTI-controllable device in the Cisco Unified Communications Manager system, which needs to be opened in super provider mode. • Deacquire any CTI-controllable device in the Cisco Unified Communications Manager system. • Trigger the actual line open from the TSP side. This is used for the delayed open mechanism. • Initiate TalkBack on the Intercom Whisper call of the Intercom line • Query SpeedDial and Label setting of a Intercom line. • Set SpeedDial and Label setting of a Intercom line. • Start monitoring a call • Start recording of a call • Stop recording of a call • Direct call with feature priority (see Secure Conference, on page 87 for more information. • Transfer without media • Direct Transfer • Message Summary • Register call pickup group for notification • Unregister call pickup group for notification • Call pickup request • Start send media to BIB • Stop send media to BIB • Agent zip tone • Enable feature • Add remote destination • Remove remote destination • Update remote destination • Hold enhancement Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 153 Basic TAPI Implementation lineDevSpecific

Page 185 content

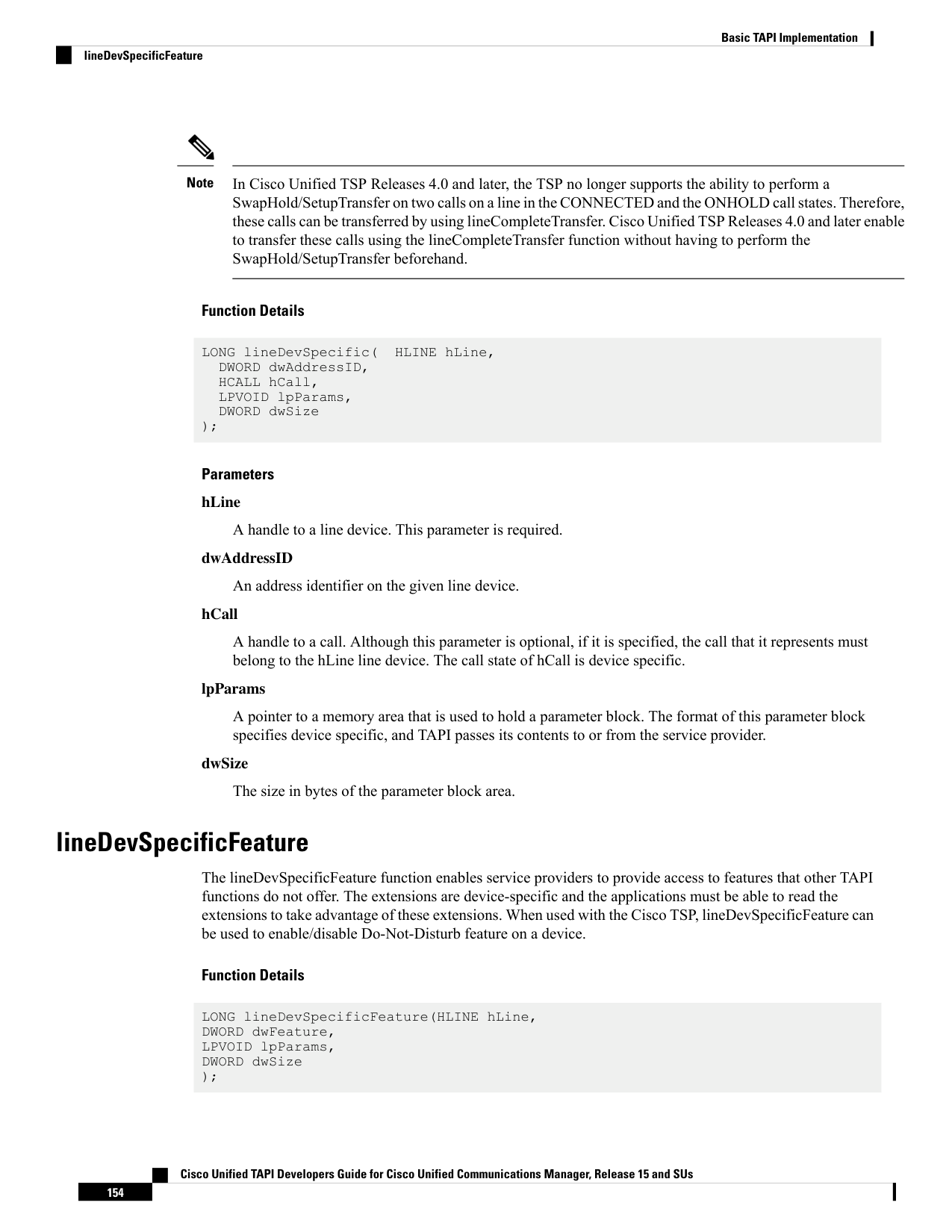

Page 186

In Cisco Unified TSP Releases 4.0 and later, the TSP no longer supports the ability to perform a SwapHold/SetupTransfer on two calls on a line in the CONNECTED and the ONHOLD call states. Therefore, these calls can be transferred by using lineCompleteTransfer. Cisco Unified TSP Releases 4.0 and later enable to transfer these calls using the lineCompleteTransfer function without having to perform the SwapHold/SetupTransfer beforehand. Note Function Details LONG lineDevSpecific( HLINE hLine, DWORD dwAddressID, HCALL hCall, LPVOID lpParams, DWORD dwSize ); Parameters hLine A handle to a line device. This parameter is required. dwAddressID An address identifier on the given line device. hCall A handle to a call. Although this parameter is optional, if it is specified, the call that it represents must belong to the hLine line device. The call state of hCall is device specific. lpParams A pointer to a memory area that is used to hold a parameter block. The format of this parameter block specifies device specific, and TAPI passes its contents to or from the service provider. dwSize The size in bytes of the parameter block area. lineDevSpecificFeature The lineDevSpecificFeature function enables service providers to provide access to features that other TAPI functions do not offer. The extensions are device-specific and the applications must be able to read the extensions to take advantage of these extensions. When used with the Cisco TSP, lineDevSpecificFeature can be used to enable/disable Do-Not-Disturb feature on a device. Function Details LONG lineDevSpecificFeature(HLINE hLine, DWORD dwFeature, LPVOID lpParams, DWORD dwSize ); Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 154 Basic TAPI Implementation lineDevSpecificFeature

Image 1 from page 186

Page 186 content

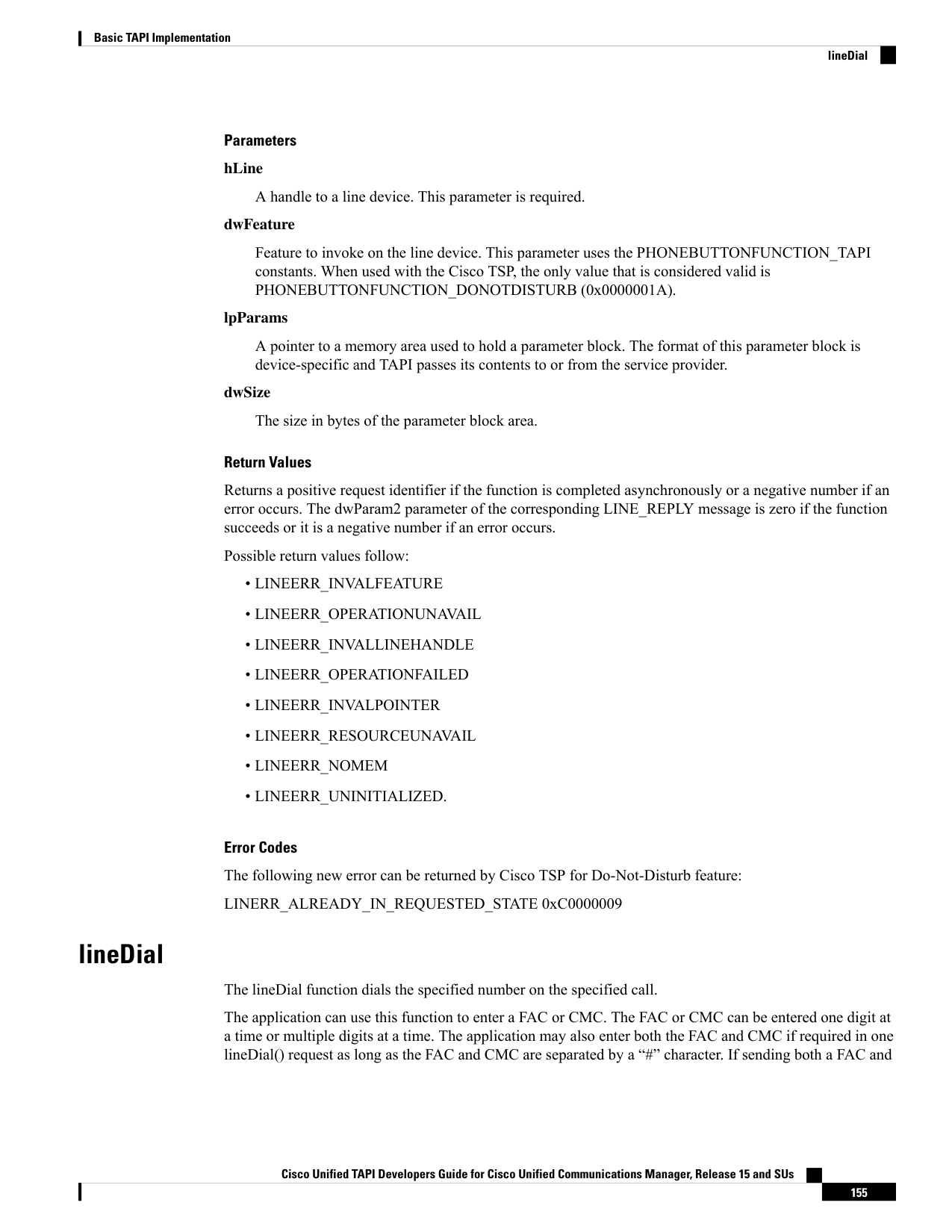

Page 187

Parameters hLine A handle to a line device. This parameter is required. dwFeature Feature to invoke on the line device. This parameter uses the PHONEBUTTONFUNCTION_TAPI constants. When used with the Cisco TSP, the only value that is considered valid is PHONEBUTTONFUNCTION_DONOTDISTURB (0x0000001A). lpParams A pointer to a memory area used to hold a parameter block. The format of this parameter block is device-specific and TAPI passes its contents to or from the service provider. dwSize The size in bytes of the parameter block area. Return Values Returns a positive request identifier if the function is completed asynchronously or a negative number if an error occurs. The dwParam2 parameter of the corresponding LINE_REPLY message is zero if the function succeeds or it is a negative number if an error occurs. Possible return values follow: • LINEERR_INVALFEATURE • LINEERR_OPERATIONUNAVAIL • LINEERR_INVALLINEHANDLE • LINEERR_OPERATIONFAILED • LINEERR_INVALPOINTER • LINEERR_RESOURCEUNAVAIL • LINEERR_NOMEM • LINEERR_UNINITIALIZED. Error Codes The following new error can be returned by Cisco TSP for Do-Not-Disturb feature: LINERR_ALREADY_IN_REQUESTED_STATE 0xC0000009 lineDial The lineDial function dials the specified number on the specified call. The application can use this function to enter a FAC or CMC. The FAC or CMC can be entered one digit at a time or multiple digits at a time. The application may also enter both the FAC and CMC if required in one lineDial() request as long as the FAC and CMC are separated by a “#” character. If sending both a FAC and Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 155 Basic TAPI Implementation lineDial

Page 187 content

Page 188

CMC in one lineDial() request, Cisco recommends that you terminate the lpszDestAddress with a “#” character to avoid waiting for the T.302 interdigit time-out. You cannot use this function to enter a dial string along with a FAC and/or a CMC. You must enter the FAC and/or CMC in a separate lineDial request. Function Details LONG lineDial( HCALL hCall, LPCSTR lpszDestAddress, DWORD dwCountryCode ); Parameters hCall A handle to the call on which a number is to be dialed. Ensure the application is an owner of the call. The call state of hCall can be any state except idle and disconnected. lpszDestAddress The destination to be dialed by using the standard dial number format. dwCountryCode The country code of the destination. The implementation uses this code to select the call progress protocols for the destination address. If a value of 0 is specified, the default call progress protocol is used. lineDrop The lineDrop function drops or disconnects the specified call. The application can specify user-user information to be transmitted as part of the call disconnect. Function Details LONG lineDrop( HCALL hCall, LPCSTR lpsUserUserInfo, DWORD dwSize ); Parameters hCall A handle to the call to be dropped. Ensure the application is an owner of the call. The call state of hCall can be any state except an Idle state. lpsUserUserInfo A pointer to a string that contains user-user information to be sent to the remote party as part of the call disconnect. You can leave this pointer NULL if no user-user information is to be sent. User-user information is sent only if it is supported by the underlying network. The protocol discriminator field for the user-user information, if required, should appear as the first byte of the buffer that is pointed to by lpsUserUserInfo and must be accounted for in dwSize. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 156 Basic TAPI Implementation lineDrop

Page 188 content

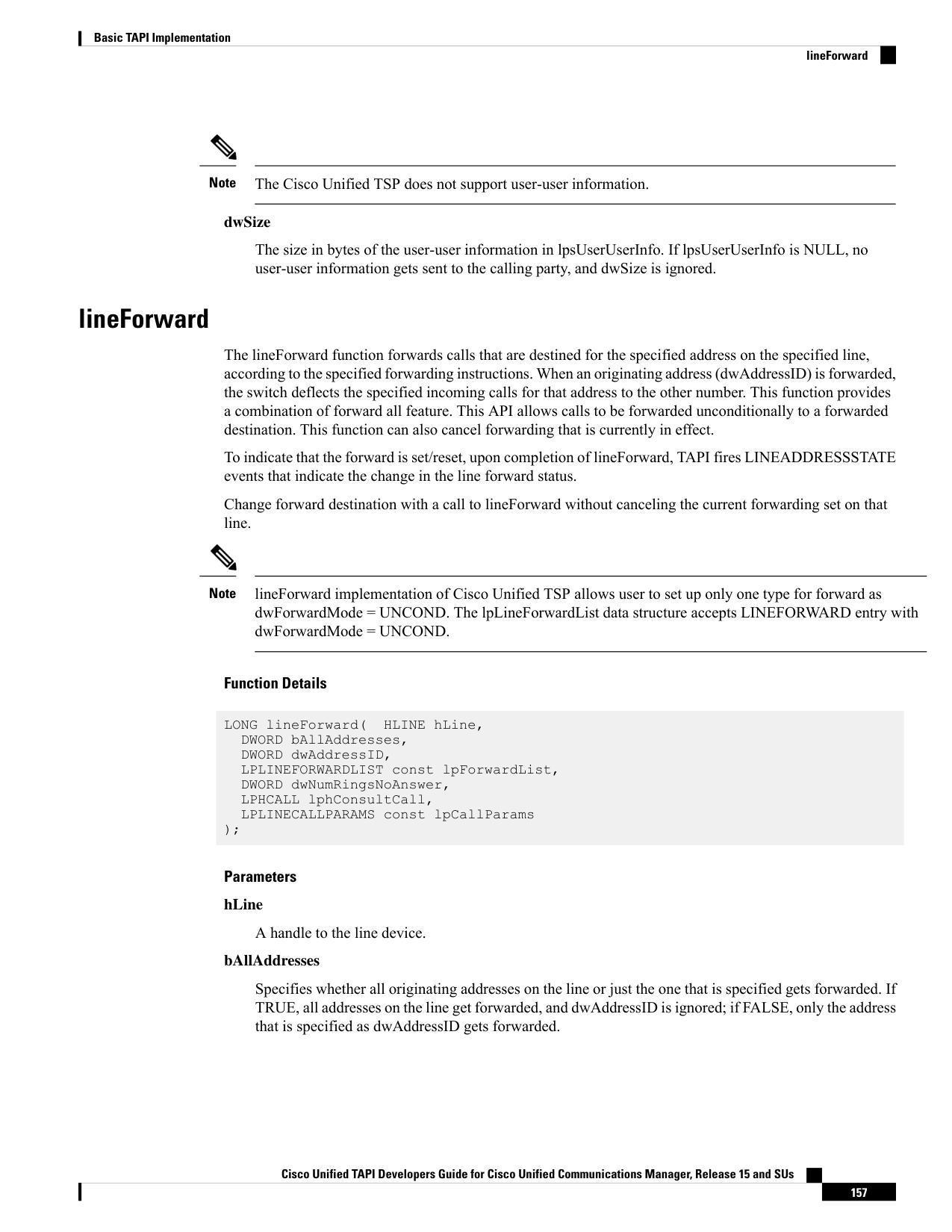

Page 189

The Cisco Unified TSP does not support user-user information. Note dwSize The size in bytes of the user-user information in lpsUserUserInfo. If lpsUserUserInfo is NULL, no user-user information gets sent to the calling party, and dwSize is ignored. lineForward The lineForward function forwards calls that are destined for the specified address on the specified line, according to the specified forwarding instructions. When an originating address (dwAddressID) is forwarded, the switch deflects the specified incoming calls for that address to the other number. This function provides a combination of forward all feature. This API allows calls to be forwarded unconditionally to a forwarded destination. This function can also cancel forwarding that is currently in effect. To indicate that the forward is set/reset, upon completion of lineForward, TAPI fires LINEADDRESSSTATE events that indicate the change in the line forward status. Change forward destination with a call to lineForward without canceling the current forwarding set on that line. lineForward implementation of Cisco Unified TSP allows user to set up only one type for forward as dwForwardMode = UNCOND. The lpLineForwardList data structure accepts LINEFORWARD entry with dwForwardMode = UNCOND. Note Function Details LONG lineForward( HLINE hLine, DWORD bAllAddresses, DWORD dwAddressID, LPLINEFORWARDLIST const lpForwardList, DWORD dwNumRingsNoAnswer, LPHCALL lphConsultCall, LPLINECALLPARAMS const lpCallParams ); Parameters hLine A handle to the line device. bAllAddresses Specifies whether all originating addresses on the line or just the one that is specified gets forwarded. If TRUE, all addresses on the line get forwarded, and dwAddressID is ignored; if FALSE, only the address that is specified as dwAddressID gets forwarded. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 157 Basic TAPI Implementation lineForward

Image 1 from page 189

Page 189 content

Page 190

dwAddressID The address of the specified line whose incoming calls are to be forwarded. This parameter gets ignored if bAllAddresses is TRUE. If bAllAddresses is FALSE, dwAddressID must equal 0. Note lpForwardList A pointer to a variably sized data structure that describes the specific forwarding instructions of type LINEFORWARDLIST. To cancel the forwarding that currently is in effect, ensure lpForwardList Parameter is set to NULL. Note dwNumRingsNoAnswer The number of rings before a call is considered a no answer. If dwNumRingsNoAnswer is out of range, the actual value gets set to the nearest value in the allowable range. This parameter is not used because this version of Cisco Unified TSP does not support call forward no answer. Note lphConsultCall A pointer to an HCALL location. In some telephony environments, this location is loaded with a handle to a consultation call that is used to consult the party to which the call is being forwarded, and the application becomes the initial sole owner of this call. This pointer must be valid even in environments where call forwarding does not require a consultation call. This handle is set to NULL if no consultation call is created. This parameter is also ignored because a consult call is not created for setting up lineForward. Note lpCallParams A pointer to a structure of type LINECALLPARAMS. This pointer gets ignored unless lineForward requires the establishment of a call to the forwarding destination (and lphConsultCall is returned; in which case, lpCallParams is optional). If NULL, default call parameters get used. Otherwise, the specified call parameters get used for establishing hConsultCall. This parameter must be NULL for this version of Cisco Unified TSP because we do not create a consult call. Note Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 158 Basic TAPI Implementation lineForward

Image 1 from page 190

Page 190 content

Page 191

Return Values Returns zero if the request succeeds or a negative number if an error occurs. Possible return values follow: • LINEERR_INVALLINEHANDLE • LINEERR_NOMEM • LINEERR_INVALADDRESSID • LINEERR_OPERATIONUNAVAIL • LINEERR_INVALADDRESS • LINEERR_OPERATIONFAILED • LINEERR_INVALCOUNTRYCODE • LINEERR_RESOURCEUNAVAIL • LINEERR_INVALPOINTER • LINEERR_STRUCTURETOOSMALL • LINEERR_INVALPARAM • LINEERR_UNINITIALIZED For lpForwardList[0].dwForwardMode other than UNCOND, lineForward returns LINEERR_OPERATIONUNAVAIL. For lpForwardList.dwNumEntries more than 1, lineForward returns LINEERR_INVALPARAM Note lineGenerateDigits The lineGenerateDigits function initiates the generation of the specified digits on the specified call as out-of-band tones by using the specified signaling mode. The Cisco Unified TSP supports neither invoking this function with a NULL value for lpszDigits to abort a digit generation that is currently in progress nor invoking lineGenerateDigits while digit generation is in progress. Cisco Unified IP Phones pass DTMF digits out of band. This means that the tone is not injected into the audio stream (in-band) but is sent as a message in the control stream. The phone on the far end then injects the tone into the audio stream to present it to the user. CTI port devices do not inject DTMF tones. Also, be aware that some gateways will not inject DTMF tones into the audio stream on the way out of the LAN. Note Function Details LONG lineGenerateDigits( HCALL hCall, DWORD dwDigitMode, LPCSTR lpszDigits, DWORD dwDuration ); Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 159 Basic TAPI Implementation lineGenerateDigits

Image 1 from page 191

Page 191 content

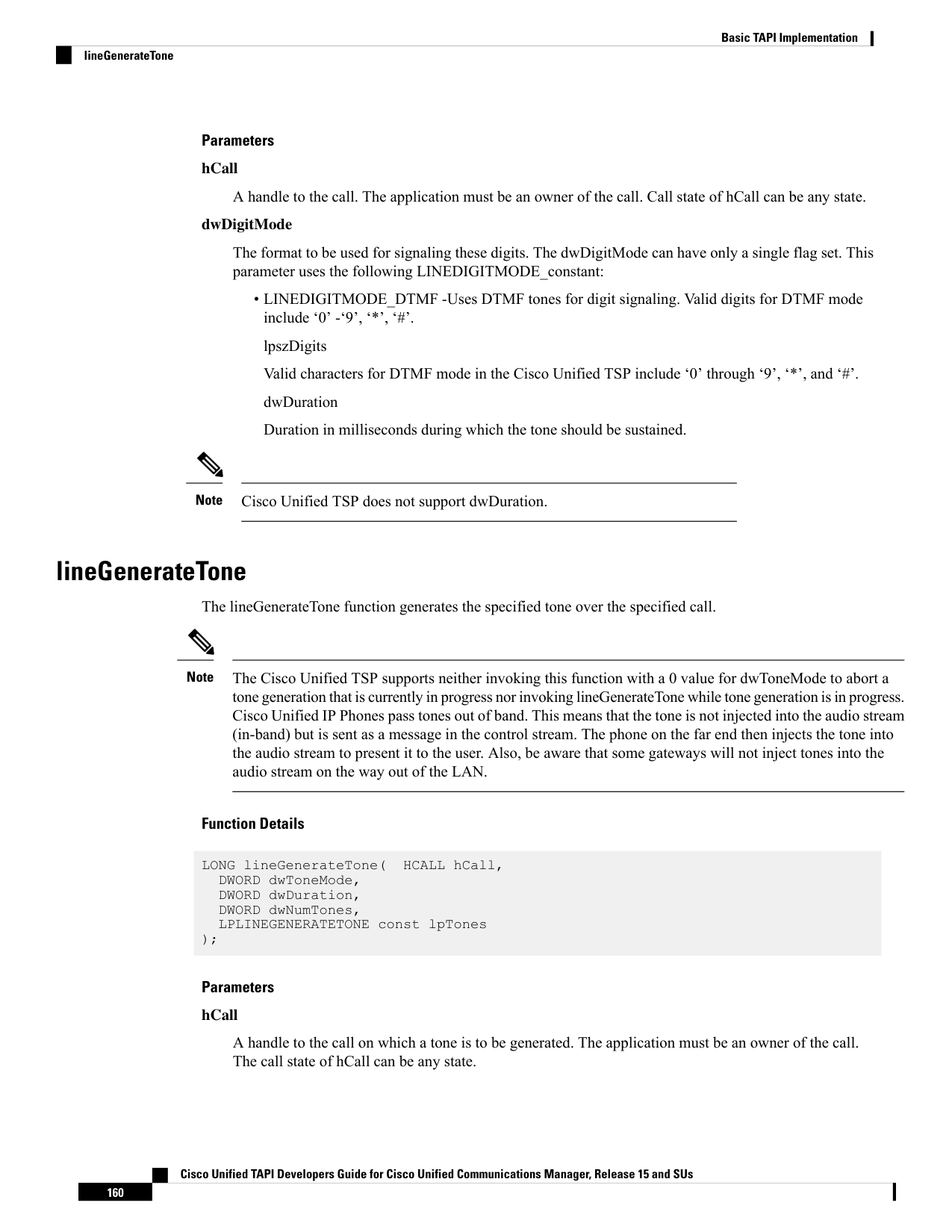

Page 192

Parameters hCall A handle to the call. The application must be an owner of the call. Call state of hCall can be any state. dwDigitMode The format to be used for signaling these digits. The dwDigitMode can have only a single flag set. This parameter uses the following LINEDIGITMODE_constant: • LINEDIGITMODE_DTMF -Uses DTMF tones for digit signaling. Valid digits for DTMF mode include ‘0’ -‘9’, ‘*’, ‘#’. lpszDigits Valid characters for DTMF mode in the Cisco Unified TSP include ‘0’ through ‘9’, ‘*’, and ‘#’. dwDuration Duration in milliseconds during which the tone should be sustained. Cisco Unified TSP does not support dwDuration. Note lineGenerateTone The lineGenerateTone function generates the specified tone over the specified call. The Cisco Unified TSP supports neither invoking this function with a 0 value for dwToneMode to abort a tone generation that is currently in progress nor invoking lineGenerateTone while tone generation is in progress. Cisco Unified IP Phones pass tones out of band. This means that the tone is not injected into the audio stream (in-band) but is sent as a message in the control stream. The phone on the far end then injects the tone into the audio stream to present it to the user. Also, be aware that some gateways will not inject tones into the audio stream on the way out of the LAN. Note Function Details LONG lineGenerateTone( HCALL hCall, DWORD dwToneMode, DWORD dwDuration, DWORD dwNumTones, LPLINEGENERATETONE const lpTones ); Parameters hCall A handle to the call on which a tone is to be generated. The application must be an owner of the call. The call state of hCall can be any state. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 160 Basic TAPI Implementation lineGenerateTone

Image 1 from page 192

Page 192 content

Page 193

dwToneMode Defines the tone to be generated. Tones can be either standard or custom tones. A custom tone comprises a set of arbitrary frequencies. A small number of standard tones are predefined. The duration of the tone gets specified with dwDuration for both standard and custom tones. The dwToneMode parameter can have only one bit set. If no bits are set (the value 0 is passed), tone generation gets canceled. This parameter uses the following LINETONEMODE_constant: • LINETONEMODE_BEEP -The tone is a beep, as used to announce the beginning of a recording. The service provider defines the exact beep tone. dwDuration Duration in milliseconds during which the tone should be sustained. Cisco Unified TSP does not support dwDuration. Note dwNumTones The number of entries in the lpTones array. This parameter is ignored if dwToneMode ≠CUSTOM. lpTones A pointer to a LINEGENERATETONE array that specifies the components of the tone. This parameter gets ignored for non-custom tones. If lpTones is a multifrequency tone, the various tones play simultaneously. lineGetAddressCaps The lineGetAddressCaps function queries the specified address on the specified line device to determine its telephony capabilities. Function Details LONG lineGetAddressCaps( HLINEAPP hLineApp, DWORD dwDeviceID, DWORD dwAddressID, DWORD dwAPIVersion, DWORD dwExtVersion, LPLINEADDRESSCAPS lpAddressCaps ); Parameters hLineApp The handle by which the application is registered with TAPI. dwDeviceID The line device that contains the address to be queried. Only one address gets supported per line, so dwAddressID must be zero. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 161 Basic TAPI Implementation lineGetAddressCaps

Image 1 from page 193

Page 193 content

Page 194

dwAddressID The address on the given line device whose capabilities are to be queried. dwAPIVersion The version number, obtained by lineNegotiateAPIVersion, of the API that is to be used. The high-order word contains the major version number; the low-order word contains the minor version number. dwExtVersion The version number of the extensions to be used. This number can be left zero if no device-specific extensions are to be used. Otherwise, the high-order word contains the major version number and the low-order word contains the minor version number. lpAddressCaps A pointer to a variably sized structure of type LINEADDRESSCAPS. Upon successful completion of the request, this structure gets filled with address capabilities information. Prior to calling lineGetAddressCaps, the application should set the dwTotalSize member of this structure to indicate the amount of memory that is available to TAPI for returning information. lineGetAddressID The lineGetAddressID function returns the address identifier that is associated with an address in a different format on the specified line. Function Details LONG lineGetAddressID( HLINE hLine, LPDWORD lpdwAddressID, DWORD dwAddressMode, LPCSTR lpsAddress, DWORD dwSize ); Parameters hLine A handle to the open line device. lpdwAddressID A pointer to a DWORD-sized memory location that returns the address identifier. dwAddressMode The address mode of the address that is contained in lpsAddress. The dwAddressMode parameter can have only a single flag set. This parameter uses the following LINEADDRESSMODE_constant: • LINEADDRESSMODE_DIALABLEADDR -The address is specified by its dialable address. The lpsAddress parameter represents the dialable address or canonical address format. lpsAddress A pointer to a data structure that holds the address that is assigned to the specified line device. dwAddressMode determines the format of the address. Because the only valid value equals Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 162 Basic TAPI Implementation lineGetAddressID

Page 194 content

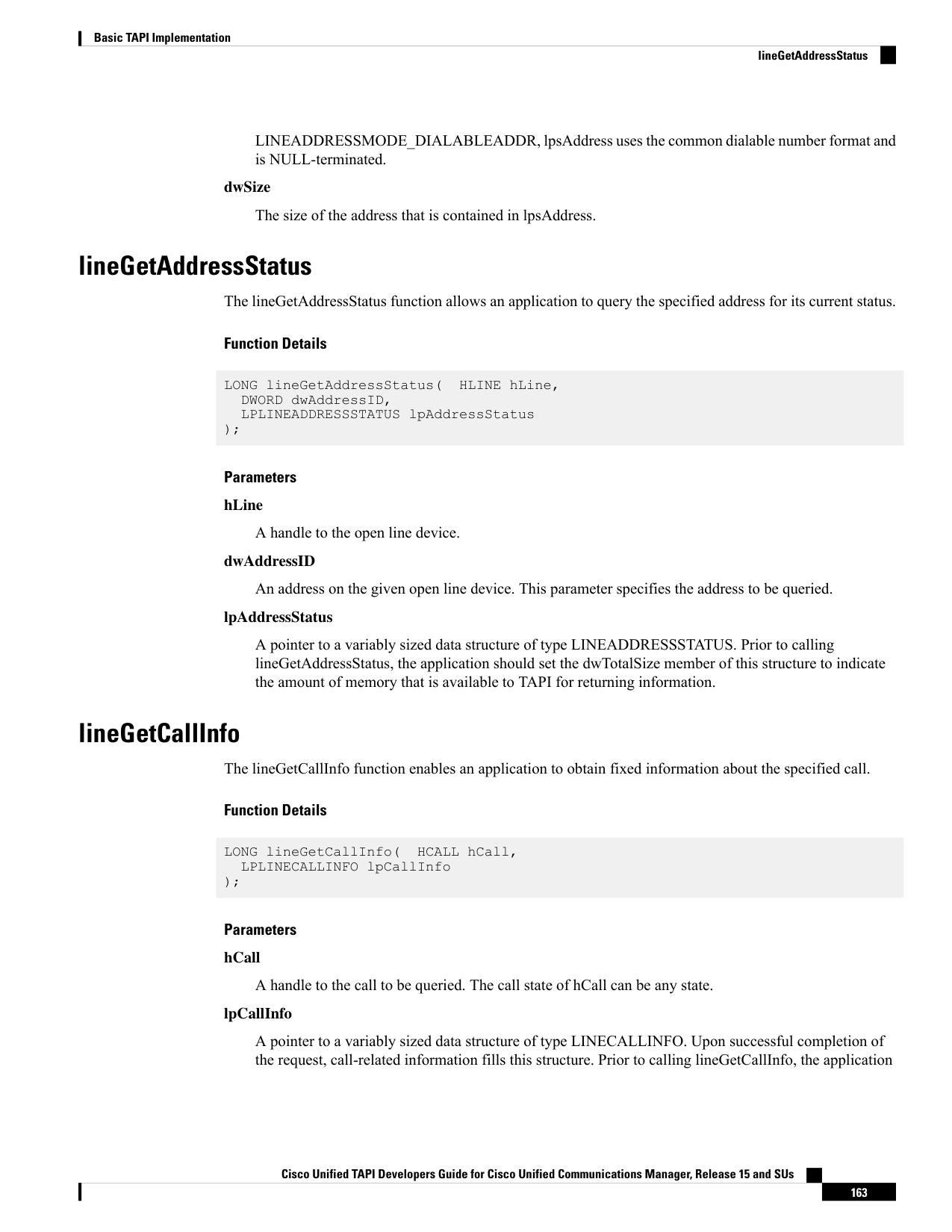

Page 195

LINEADDRESSMODE_DIALABLEADDR, lpsAddress uses the common dialable number format and is NULL-terminated. dwSize The size of the address that is contained in lpsAddress. lineGetAddressStatus The lineGetAddressStatus function allows an application to query the specified address for its current status. Function Details LONG lineGetAddressStatus( HLINE hLine, DWORD dwAddressID, LPLINEADDRESSSTATUS lpAddressStatus ); Parameters hLine A handle to the open line device. dwAddressID An address on the given open line device. This parameter specifies the address to be queried. lpAddressStatus A pointer to a variably sized data structure of type LINEADDRESSSTATUS. Prior to calling lineGetAddressStatus, the application should set the dwTotalSize member of this structure to indicate the amount of memory that is available to TAPI for returning information. lineGetCallInfo The lineGetCallInfo function enables an application to obtain fixed information about the specified call. Function Details LONG lineGetCallInfo( HCALL hCall, LPLINECALLINFO lpCallInfo ); Parameters hCall A handle to the call to be queried. The call state of hCall can be any state. lpCallInfo A pointer to a variably sized data structure of type LINECALLINFO. Upon successful completion of the request, call-related information fills this structure. Prior to calling lineGetCallInfo, the application Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 163 Basic TAPI Implementation lineGetAddressStatus

Page 195 content

Page 196

should set the dwTotalSize member of this structure to indicate the amount of memory that is available to TAPI for returning information. lineGetCallStatus The lineGetCallStatus function returns the current status of the specified call. Function Details LONG lineGetCallStatus( HCALL hCall, LPLINECALLSTATUS lpCallStatus ); Parameters hCall A handle to the call to be queried. The call state of hCall can be any state. lpCallStatus A pointer to a variably sized data structure of type LINECALLSTATUS. Upon successful completion of the request, call status information fills this structure. Prior to calling lineGetCallStatus, the application should set the dwTotalSize member of this structure to indicate the amount of memory available to TAPI for returning information. lineGetConfRelatedCalls The lineGetConfRelatedCalls function returns a list of call handles that are part of the same conference call as the specified call. The specified call represents either a conference call or a participant call in a conference call. New handles get generated for those calls for which the application does not already have handles, and the application receives monitor privilege to those calls. Function Details LONG WINAPI lineGetConfRelatedCalls( HCALL hCall, LPLINECALLLIST lpCallList ); Parameters hCall A handle to a call. This represents either a conference call or a participant call in a conference call. For a conference parent call, the call state of hCall can be any state. For a conference participant call, it must be in the conferenced state. lpCallList A pointer to a variably sized data structure of type LINECALLLIST. Upon successful completion of the request, call handles to all calls in the conference call return in this structure. The first call in the list represents the conference call, the other calls represent the participant calls. The application receives monitor privilege to those calls for which it does not already have handles; the privileges to calls in the Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 164 Basic TAPI Implementation lineGetCallStatus

Page 196 content

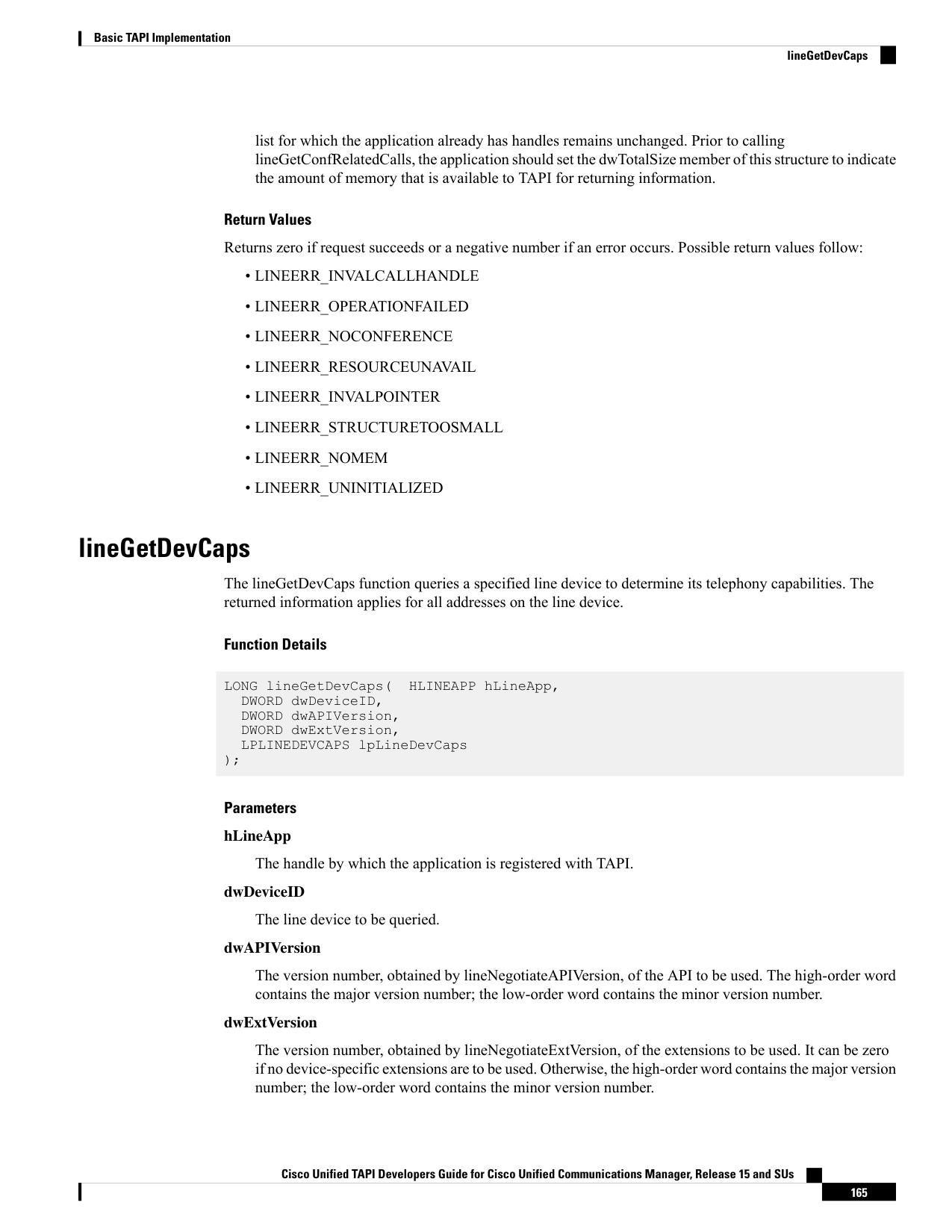

Page 197

list for which the application already has handles remains unchanged. Prior to calling lineGetConfRelatedCalls, the application should set the dwTotalSize member of this structure to indicate the amount of memory that is available to TAPI for returning information. Return Values Returns zero if request succeeds or a negative number if an error occurs. Possible return values follow: • LINEERR_INVALCALLHANDLE • LINEERR_OPERATIONFAILED • LINEERR_NOCONFERENCE • LINEERR_RESOURCEUNAVAIL • LINEERR_INVALPOINTER • LINEERR_STRUCTURETOOSMALL • LINEERR_NOMEM • LINEERR_UNINITIALIZED lineGetDevCaps The lineGetDevCaps function queries a specified line device to determine its telephony capabilities. The returned information applies for all addresses on the line device. Function Details LONG lineGetDevCaps( HLINEAPP hLineApp, DWORD dwDeviceID, DWORD dwAPIVersion, DWORD dwExtVersion, LPLINEDEVCAPS lpLineDevCaps ); Parameters hLineApp The handle by which the application is registered with TAPI. dwDeviceID The line device to be queried. dwAPIVersion The version number, obtained by lineNegotiateAPIVersion, of the API to be used. The high-order word contains the major version number; the low-order word contains the minor version number. dwExtVersion The version number, obtained by lineNegotiateExtVersion, of the extensions to be used. It can be zero if no device-specific extensions are to be used. Otherwise, the high-order word contains the major version number; the low-order word contains the minor version number. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 165 Basic TAPI Implementation lineGetDevCaps

Page 197 content

Page 198

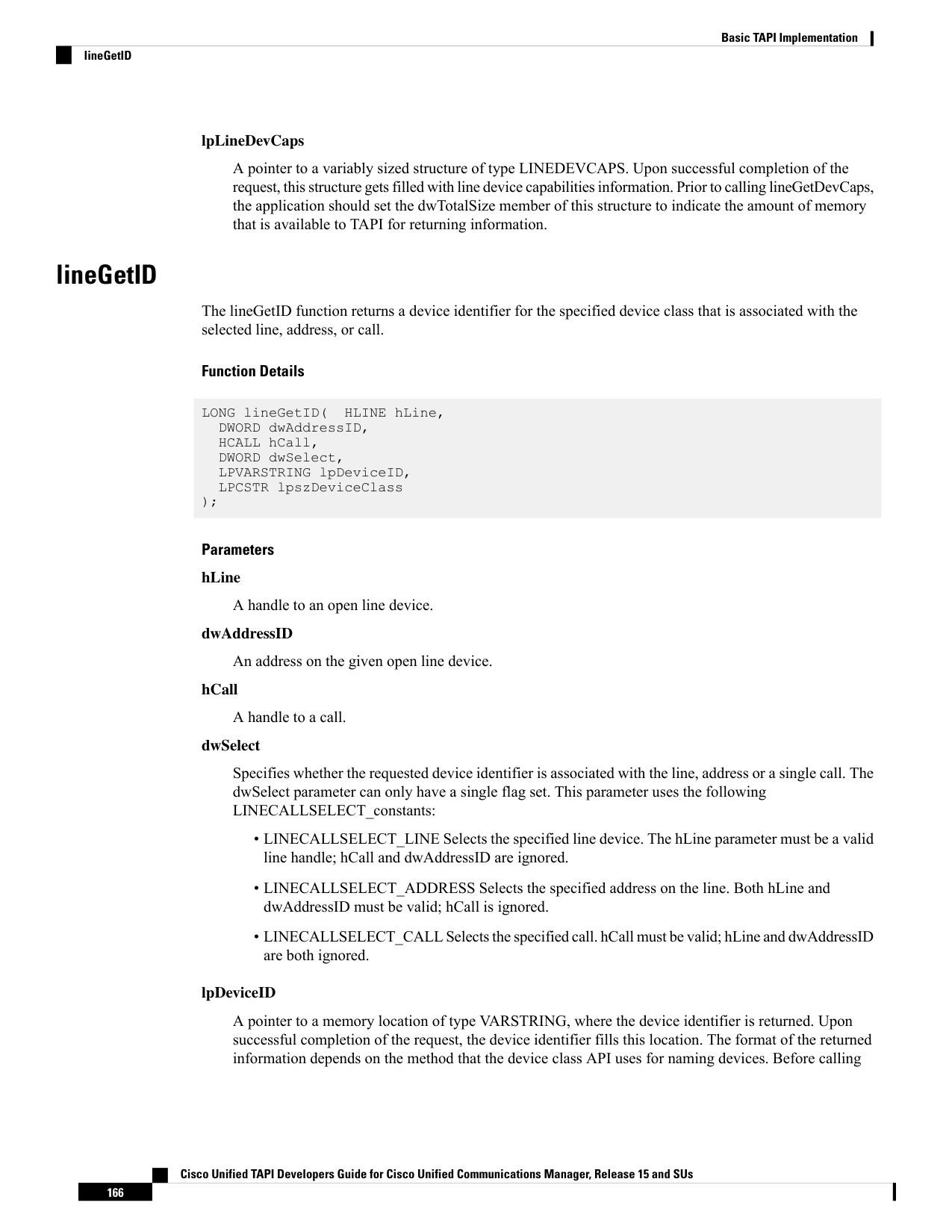

lpLineDevCaps A pointer to a variably sized structure of type LINEDEVCAPS. Upon successful completion of the request, this structure gets filled with line device capabilities information. Prior to calling lineGetDevCaps, the application should set the dwTotalSize member of this structure to indicate the amount of memory that is available to TAPI for returning information. lineGetID The lineGetID function returns a device identifier for the specified device class that is associated with the selected line, address, or call. Function Details LONG lineGetID( HLINE hLine, DWORD dwAddressID, HCALL hCall, DWORD dwSelect, LPVARSTRING lpDeviceID, LPCSTR lpszDeviceClass ); Parameters hLine A handle to an open line device. dwAddressID An address on the given open line device. hCall A handle to a call. dwSelect Specifies whether the requested device identifier is associated with the line, address or a single call. The dwSelect parameter can only have a single flag set. This parameter uses the following LINECALLSELECT_constants: • LINECALLSELECT_LINE Selects the specified line device. The hLine parameter must be a valid line handle; hCall and dwAddressID are ignored. • LINECALLSELECT_ADDRESS Selects the specified address on the line. Both hLine and dwAddressID must be valid; hCall is ignored. • LINECALLSELECT_CALL Selects the specified call. hCall must be valid; hLine and dwAddressID are both ignored. lpDeviceID A pointer to a memory location of type VARSTRING, where the device identifier is returned. Upon successful completion of the request, the device identifier fills this location. The format of the returned information depends on the method that the device class API uses for naming devices. Before calling Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 166 Basic TAPI Implementation lineGetID

Page 198 content

Page 199

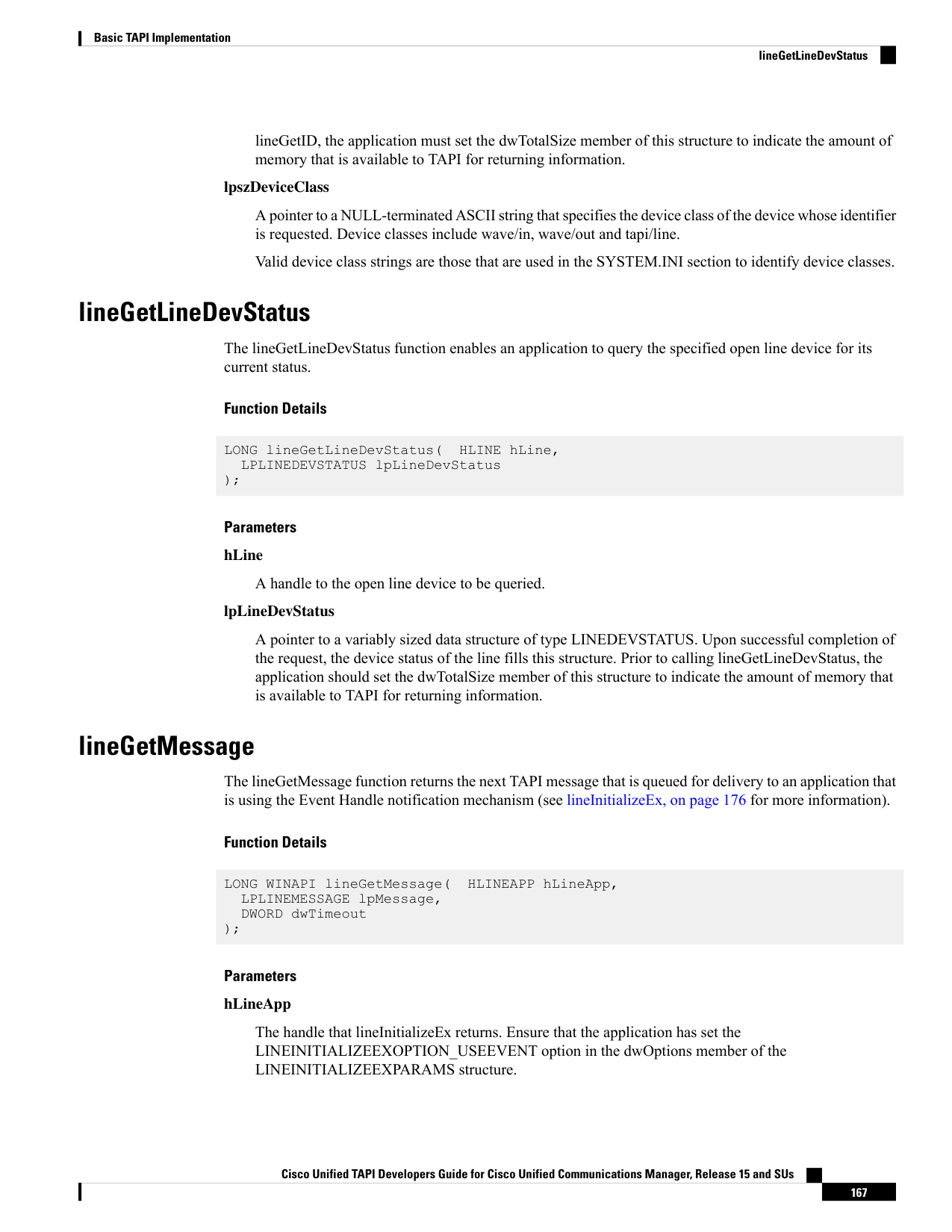

lineGetID, the application must set the dwTotalSize member of this structure to indicate the amount of memory that is available to TAPI for returning information. lpszDeviceClass A pointer to a NULL-terminated ASCII string that specifies the device class of the device whose identifier is requested. Device classes include wave/in, wave/out and tapi/line. Valid device class strings are those that are used in the SYSTEM.INI section to identify device classes. lineGetLineDevStatus The lineGetLineDevStatus function enables an application to query the specified open line device for its current status. Function Details LONG lineGetLineDevStatus( HLINE hLine, LPLINEDEVSTATUS lpLineDevStatus ); Parameters hLine A handle to the open line device to be queried. lpLineDevStatus A pointer to a variably sized data structure of type LINEDEVSTATUS. Upon successful completion of the request, the device status of the line fills this structure. Prior to calling lineGetLineDevStatus, the application should set the dwTotalSize member of this structure to indicate the amount of memory that is available to TAPI for returning information. lineGetMessage The lineGetMessage function returns the next TAPI message that is queued for delivery to an application that is using the Event Handle notification mechanism (see lineInitializeEx, on page 176 for more information). Function Details LONG WINAPI lineGetMessage( HLINEAPP hLineApp, LPLINEMESSAGE lpMessage, DWORD dwTimeout ); Parameters hLineApp The handle that lineInitializeEx returns. Ensure that the application has set the LINEINITIALIZEEXOPTION_USEEVENT option in the dwOptions member of the LINEINITIALIZEEXPARAMS structure. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 167 Basic TAPI Implementation lineGetLineDevStatus

Page 199 content

Page 200

lpMessage A pointer to a LINEMESSAGE structure. Upon successful return from this function, the structure contains the next message that had been queued for delivery to the application. dwTimeout The time-out interval, in milliseconds. The function returns if the interval elapses, even if no message can be returned. If dwTimeout is zero, the function checks for a queued message and returns immediately. If dwTimeout is INFINITE, the function time-out interval never elapses. Return Values Returns zero if the request succeeds or returns a negative number if an error occurs. Possible return values follow: • LINEERR_INVALAPPHANDLE • LINEERR_OPERATIONFAILED • LINEERR_INVALPOINTER • LINEERR_NOMEM lineGetNewCalls The lineGetNewCalls function returns call handles to calls on a specified line or address for which the application currently does not have handles. The application receives monitor privilege for these calls. An application can use lineGetNewCalls to obtain handles to calls for which it currently has no handles. The application can select the calls for which handles are to be returned by basing this selection on scope (calls on a specified line, or calls on a specified address). For example, an application can request call handles to all calls on a given address for which it currently has no handle. Function Details LONG WINAPI lineGetNewCalls( HLINE hLine, DWORD dwAddressID, DWORD dwSelect, LPLINECALLLIST lpCallList ); Parameters hLine A handle to an open line device. dwAddressID An address on the given open line device. An address identifier permanently associates with an address; the identifier remains constant across operating system upgrades. dwSelect The selection of calls that are requested. This parameter uses one and only one of the LINECALLSELECT_Constants. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 168 Basic TAPI Implementation lineGetNewCalls

Page 200 content

Page 201

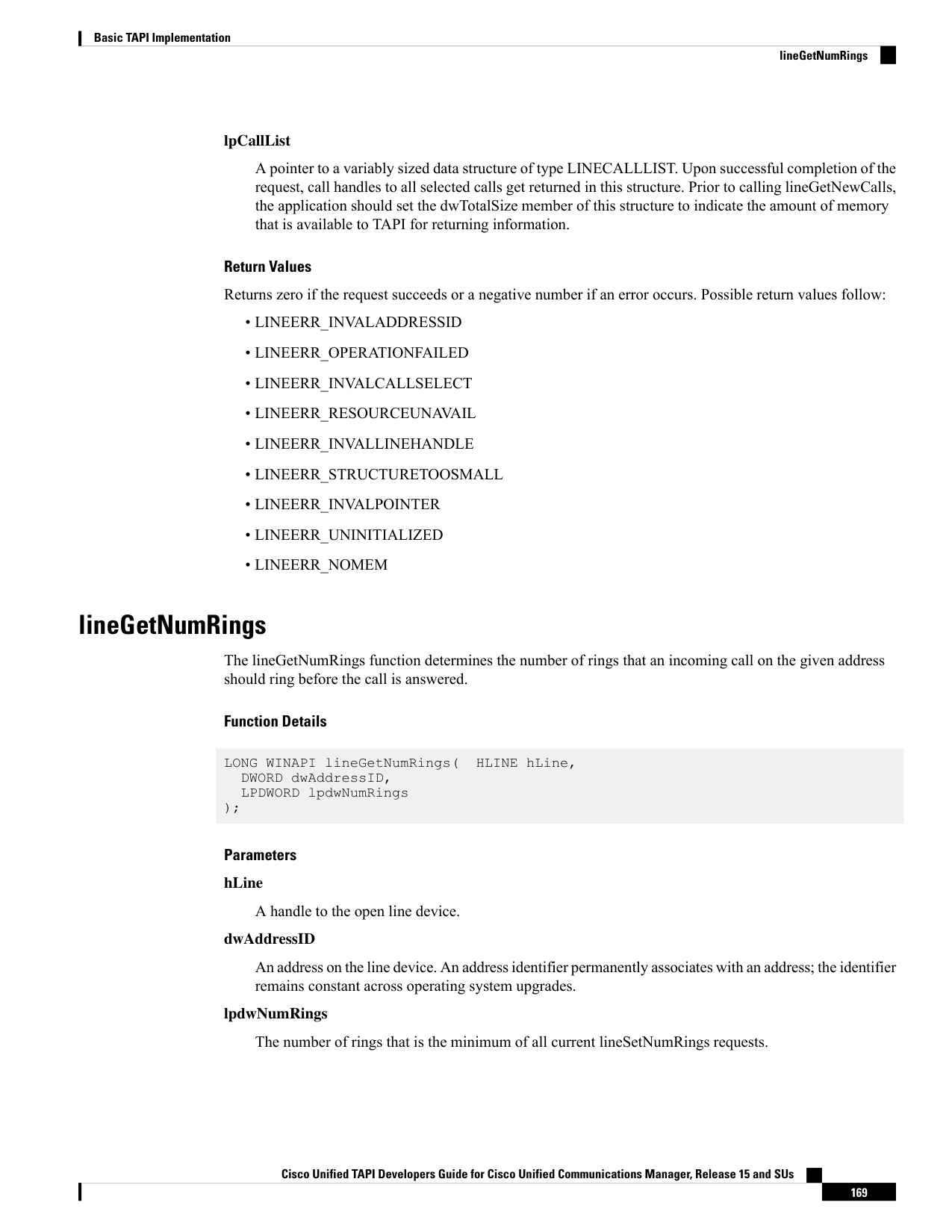

lpCallList A pointer to a variably sized data structure of type LINECALLLIST. Upon successful completion of the request, call handles to all selected calls get returned in this structure. Prior to calling lineGetNewCalls, the application should set the dwTotalSize member of this structure to indicate the amount of memory that is available to TAPI for returning information. Return Values Returns zero if the request succeeds or a negative number if an error occurs. Possible return values follow: • LINEERR_INVALADDRESSID • LINEERR_OPERATIONFAILED • LINEERR_INVALCALLSELECT • LINEERR_RESOURCEUNAVAIL • LINEERR_INVALLINEHANDLE • LINEERR_STRUCTURETOOSMALL • LINEERR_INVALPOINTER • LINEERR_UNINITIALIZED • LINEERR_NOMEM lineGetNumRings The lineGetNumRings function determines the number of rings that an incoming call on the given address should ring before the call is answered. Function Details LONG WINAPI lineGetNumRings( HLINE hLine, DWORD dwAddressID, LPDWORD lpdwNumRings ); Parameters hLine A handle to the open line device. dwAddressID An address on the line device. An address identifier permanently associates with an address; the identifier remains constant across operating system upgrades. lpdwNumRings The number of rings that is the minimum of all current lineSetNumRings requests. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 169 Basic TAPI Implementation lineGetNumRings

Page 201 content

Page 202

Return Values Returns zero if request succeeds or a negative number if an error occurs. Possible return values follow: • LINEERR_INVALADDRESSID • LINEERR_OPERATIONFAILED • LINEERR_INVALLINEHANDLE • LINEERR_RESOURCEUNAVAIL • LINEERR_INVALPOINTER • LINEERR_UNINITIALIZED • LINEERR_NOMEM lineGetProviderList The lineGetProviderList function returns a list of service providers that are currently installed in the telephony system. Function Details LONG WINAPI lineGetProviderList( DWORD dwAPIVersion, LPLINEPROVIDERLIST lpProviderList ); Parameters dwAPIVersion The highest version of TAPI that the application supports (not necessarily the value that lineNegotiateAPIVersion negotiates on some particular line device). lpProviderList A pointer to a memory location where TAPI can return a LINEPROVIDERLIST structure. Prior to calling lineGetProviderList, the application should set the dwTotalSize member of this structure to indicate the amount of memory that is available to TAPI for returning information. Return Values Returns zero if request succeeds or a negative number if an error occurs. Possible return values follow: • LINEERR_INCOMPATIBLEAPIVERSION • LINEERR_NOMEM • LINEERR_INIFILECORRUPT • LINEERR_OPERATIONFAILED • LINEERR_INVALPOINTER • LINEERR_STRUCTURETOOSMALL Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 170 Basic TAPI Implementation lineGetProviderList

Page 202 content

Page 203

lineGetRequest The lineGetRequest function retrieves the next by-proxy request for the specified request mode. Function Details LONG WINAPI lineGetRequest( HLINEAPP hLineApp, DWORD dwRequestMode, LPVOID lpRequestBuffer ); Parameters hLineApp The application's usage handle for the line portion of TAPI. dwRequestMode The type of request that is to be obtained. dwRequestMode can have only one bit set. This parameter uses one and only one of the LINEREQUESTMODE_Constants. lpRequestBuffer A pointer to a memory buffer where the parameters of the request are to be placed. The size of the buffer and the interpretation of the information that is placed in the buffer depends on the request mode. The application-allocated buffer provides sufficient size to hold the request. If dwRequestMode is LINEREQUESTMODE_MAKECALL, interpret the content of the request buffer by using the LINEREQMAKECALL structure. If dwRequestMode is LINEREQUESTMODE_MEDIACALL, interpret the content of the request buffer by using the LINEREQMEDIACALL structure. Return Values Returns zero if the request succeeds or a negative number if an error occurs. Possible return values follow: • LINEERR_INVALAPPHANDLE • LINEERR_NOTREGISTERED • LINEERR_INVALPOINTER • LINEERR_OPERATIONFAILED • LINEERR_INVALREQUESTMODE • LINEERR_RESOURCEUNAVAIL • LINEERR_NOMEM • LINEERR_UNINITIALIZED • LINEERR_NOREQUEST Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 171 Basic TAPI Implementation lineGetRequest

Page 203 content

Page 204

lineGetStatusMessages The lineGetStatusMessages function enables an application to query the notification messages that the application receives for events related to status changes for the specified line or any of its addresses. Function Details LONG WINAPI lineGetStatusMessages( HLINE hLine, LPDWORD lpdwLineStates, LPDWORD lpdwAddressStates ); Parameters hLine Handle to the line device. lpdwLineStates A bit array that identifies the line device status changes for which a message is to be sent to the application. If a flag is TRUE, that message is enabled; if FALSE, it is disabled. This parameter uses one or more LINEDEVSTATE_Constants. lpdwAddressStates A bit array that identifies for which address status changes a message is to be sent to the application. If a flag is TRUE, that message is enabled; if FALSE, disabled. This parameter uses one or more LINEADDRESSSTATE_Constants. Return Values Returns zero if the request succeeds or a negative number if an error occurs. Possible return values follow: • LINEERR_INVALLINEHANDLE • LINEERR_OPERATIONFAILED • LINEERR_INVALPOINTER • LINEERR_RESOURCEUNAVAIL • LINEERR_NOMEM • LINEERR_UNINITIALIZED lineGetTranslateCaps The lineGetTranslateCaps function returns address translation capabilities. Function Details LONG WINAPI lineGetTranslateCaps( HLINEAPP hLineApp, DWORD dwAPIVersion, Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 172 Basic TAPI Implementation lineGetStatusMessages

Page 204 content

Page 205

LPLINETRANSLATECAPS lpTranslateCaps ); Parameters hLineApp The application handle that lineInitializeEx returns. If an application has not yet called the lineInitializeEx function, it can set the hLineApp parameter to NULL. dwAPIVersion The highest version of TAPI that the application supports (not necessarily the value that lineNegotiateAPIVersion negotiates on some particular line device). lpTranslateCaps A pointer to a location to which a LINETRANSLATECAPS structure is loaded. Prior to calling lineGetTranslateCaps, the application should set the dwTotalSize member of this structure to indicate the amount of memory that is available to TAPI for returning information. Return Values Returns zero if the request succeeds or a negative number if an error occurs. Possible return values follow: • LINEERR_INCOMPATIBLEAPIVERSION • LINEERR_NOMEM • LINEERR_INIFILECORRUPT • LINEERR_OPERATIONFAILED • LINEERR_INVALAPPHANDLE • LINEERR_RESOURCEUNAVAIL • LINEERR_INVALPOINTER • LINEERR_STRUCTURETOOSMALL • LINEERR_NODRIVER. lineHandoff The lineHandoff function gives ownership of the specified call to another application. Specify the application either directly by its file name or indirectly as the highest priority application that handles calls of the specified media mode. Function Details LONG WINAPI lineHandoff( HCALL hCall, LPCSTR lpszFileName, DWORD dwMediaMode ); Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 173 Basic TAPI Implementation lineHandoff

Page 205 content

Page 206

Parameters hCall A handle to the call to be handed off. The application must be an owner of the call. The call state of hCall can be any state. lpszFileName A pointer to a null-terminated string. If this pointer parameter is non-NULL, it contains the file name of the application that is the target of the handoff. If NULL, the handoff target represents the highest priority application that has opened the line for owner privilege for the specified media mode. A valid file name does not include the path of the file. dwMediaMode The media mode that is used to identify the target for the indirect handoff. The dwMediaMode parameter indirectly identifies the target application that is to receive ownership of the call. This parameter gets ignored if lpszFileName is not NULL. This parameter uses one and only one of the LINEMEDIAMODE_Constants. Return Values Returns zero if the request succeeds or a negative number if an error occurs. Possible return values follow: • LINEERR_INVALCALLHANDLE • LINEERR_OPERATIONFAILED • LINEERR_INVALMEDIAMODE • LINEERR_TARGETNOTFOUND • LINEERR_INVALPOINTER • LINEERR_TARGETSELF • LINEERR_NOMEM • LINEERR_UNINITIALIZED • LINEERR_NOTOWNER lineHold The lineHold function places the specified call on hold. Function Details LONG lineHold( HCALL hCall ); Parameter hCall Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 174 Basic TAPI Implementation lineHold

Page 206 content

Page 207

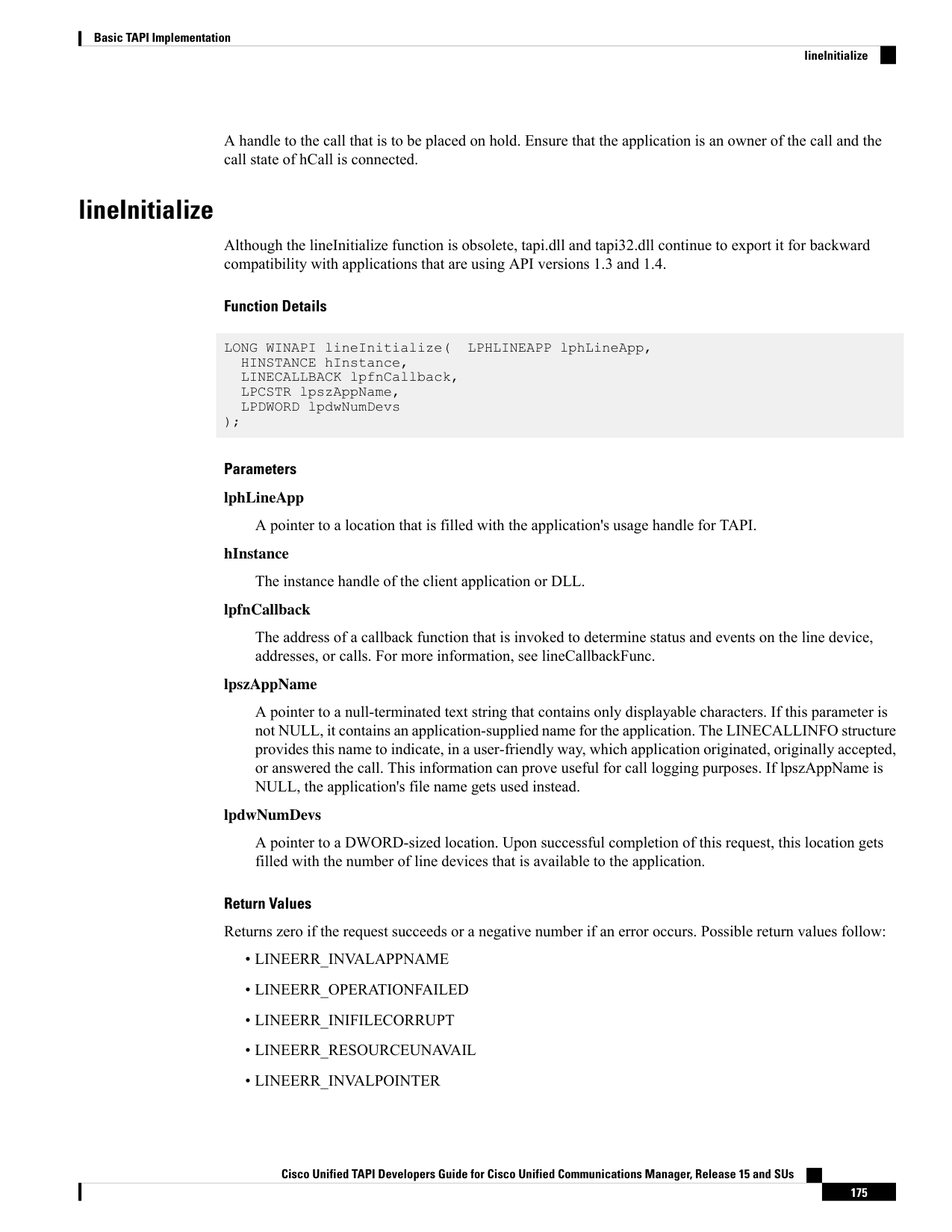

A handle to the call that is to be placed on hold. Ensure that the application is an owner of the call and the call state of hCall is connected. lineInitialize Although the lineInitialize function is obsolete, tapi.dll and tapi32.dll continue to export it for backward compatibility with applications that are using API versions 1.3 and 1.4. Function Details LONG WINAPI lineInitialize( LPHLINEAPP lphLineApp, HINSTANCE hInstance, LINECALLBACK lpfnCallback, LPCSTR lpszAppName, LPDWORD lpdwNumDevs ); Parameters lphLineApp A pointer to a location that is filled with the application's usage handle for TAPI. hInstance The instance handle of the client application or DLL. lpfnCallback The address of a callback function that is invoked to determine status and events on the line device, addresses, or calls. For more information, see lineCallbackFunc. lpszAppName A pointer to a null-terminated text string that contains only displayable characters. If this parameter is not NULL, it contains an application-supplied name for the application. The LINECALLINFO structure provides this name to indicate, in a user-friendly way, which application originated, originally accepted, or answered the call. This information can prove useful for call logging purposes. If lpszAppName is NULL, the application's file name gets used instead. lpdwNumDevs A pointer to a DWORD-sized location. Upon successful completion of this request, this location gets filled with the number of line devices that is available to the application. Return Values Returns zero if the request succeeds or a negative number if an error occurs. Possible return values follow: • LINEERR_INVALAPPNAME • LINEERR_OPERATIONFAILED • LINEERR_INIFILECORRUPT • LINEERR_RESOURCEUNAVAIL • LINEERR_INVALPOINTER Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 175 Basic TAPI Implementation lineInitialize

Page 207 content

Page 208

• LINEERR_REINIT • LINEERR_NODRIVER • LINEERR_NODEVICE • LINEERR_NOMEM • LINEERR_NOMULTIPLEINSTANCE. lineInitializeEx The lineInitializeEx function initializes the use of TAPI by the application for the subsequent use of the line abstraction. It registers the specified notification mechanism of the application and returns the number of line devices that are available. A line device represents any device that provides an implementation for the line-prefixed functions in the telephony API. Function Details LONG lineInitializeEx( LPHLINEAPP lphLineApp, HINSTANCE hInstance, LINECALLBACK lpfnCallback, LPCSTR lpszFriendlyAppName, LPDWORD lpdwNumDevs, LPDWORD lpdwAPIVersion, LPLINEINITIALIZEEXPARAMS lpLineInitializeExParams ); Parameters lphLineApp A pointer to a location that is filled with the TAPI usage handle for the application. hInstance The instance handle of the client application or DLL. The application or DLL can pass NULL for this parameter, in which case TAPI uses the module handle of the root executable of the process (for purposes of identifying call handoff targets and media mode priorities). lpfnCallback The address of a callback function that is invoked to determine status and events on the line device, addresses, or calls, when the application is using the “hidden window” method of event notification. This parameter gets ignored and should be set to NULL when the application chooses to use the “event handle” or “completion port” event notification mechanisms. lpszFriendlyAppName A pointer to a NULL-terminated ASCII string that contains only standard ASCII characters. If this parameter is not NULL, it contains an application-supplied name for the application. The LINECALLINFO structure provides this name to indicate, in a user-friendly way, which application originated, originally accepted, or answered the call. This information can prove useful for call-logging purposes. If lpszFriendlyAppName is NULL, the module filename of the application gets used instead (as returned by the Windows API GetModuleFileName). Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 176 Basic TAPI Implementation lineInitializeEx

Page 208 content

Page 209

lpdwNumDevs A pointer to a DWORD-sized location. Upon successful completion of this request, this location gets filled with the number of line devices that are available to the application. lpdwAPIVersion A pointer to a DWORD-sized location. The application must initialize this DWORD, before calling this function, to the highest API version that it is designed to support (for example, the same value that it would pass into dwAPIHighVersion parameter of lineNegotiateAPIVersion). Make sure that artificially high values are not used; ensure that the value is set to 0x00020000. TAPI translates any newer messages or structures into values or formats that the application supports. Upon successful completion of this request, this location is filled with the highest API version that TAPI supports, which allows the application to adapt to being installed on a system with an older TAPI version. lpLineInitializeExParams A pointer to a structure of type LINEINITIALIZEEXPARAMS that contains additional parameters that are used to establish the association between the application and TAPI (specifically, the selected event notification mechanism of the application and associated parameters). lineMakeCall The lineMakeCall function places a call on the specified line to the specified destination address. Optionally, you can specify call parameters if anything but default call setup parameters are requested. Function Details LONG lineMakeCall(HLINE hLine, LPHCALL lphCall, LPCSTR lpszDestAddress, DWORD dwCountryCode, LPLINECALLPARAMS const lpCallParams ); typedef struct LineParams { DWORD FeaturePriority; Parameters hLine A handle to the open line device on which a call is to be originated. lphCall A pointer to an HCALL handle. The handle is only valid after the application receives LINE_REPLY message that indicates that the lineMakeCall function successfully completed. Use this handle to identify the call when you invoke other telephony operations on the call. The application initially acts as the sole owner of this call. This handle registers as void if the reply message returns an error (synchronously or asynchronously). lpszDestAddress A pointer to the destination address. This parameter follows the standard dialable number format. This pointer can be NULL for non-dialed addresses or when all dialing is performed by using lineDial. In the latter case, lineMakeCall allocates an available call appearance that would typically remain in the dial tone state until dialing begins. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 177 Basic TAPI Implementation lineMakeCall

Page 209 content

Page 210

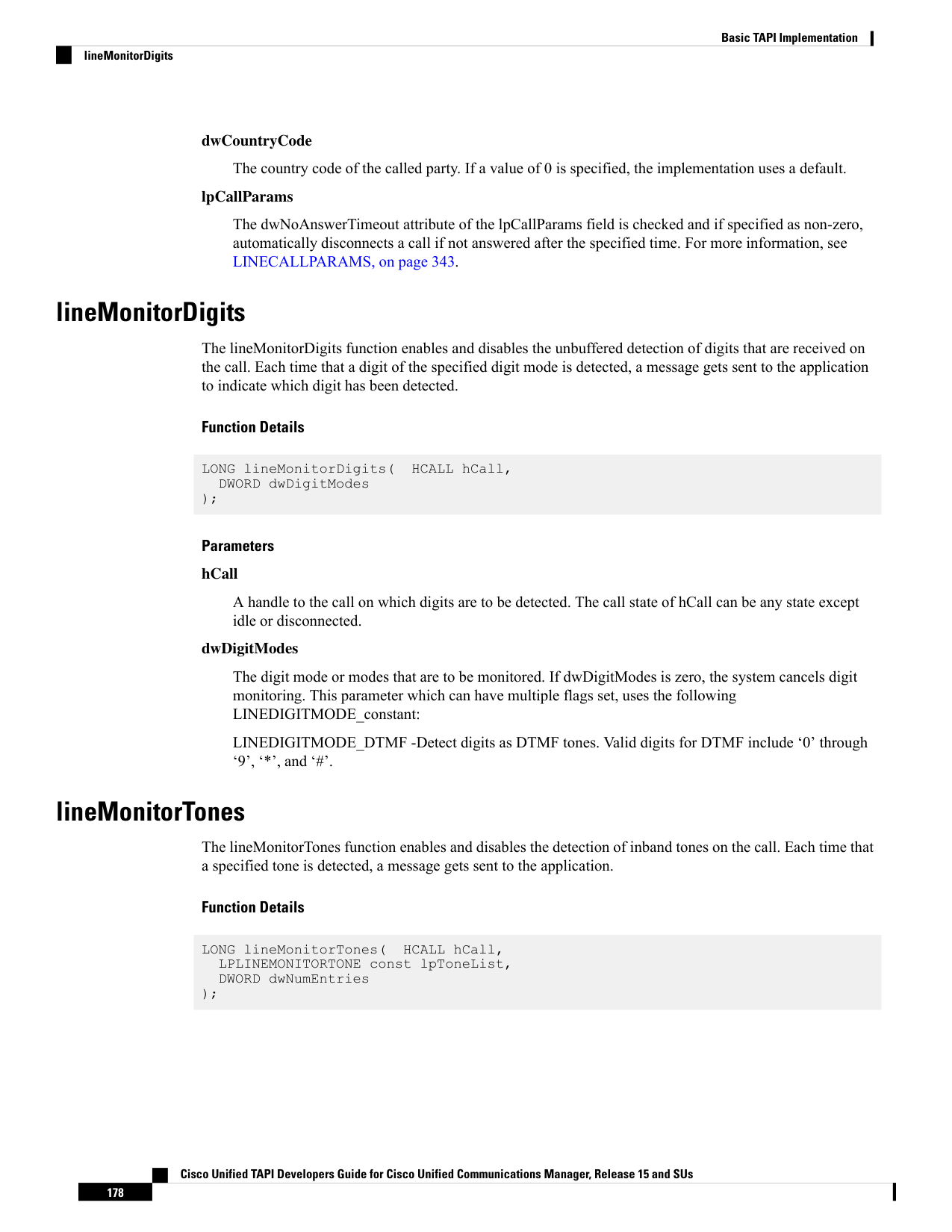

dwCountryCode The country code of the called party. If a value of 0 is specified, the implementation uses a default. lpCallParams The dwNoAnswerTimeout attribute of the lpCallParams field is checked and if specified as non-zero, automatically disconnects a call if not answered after the specified time. For more information, see LINECALLPARAMS, on page 343. lineMonitorDigits The lineMonitorDigits function enables and disables the unbuffered detection of digits that are received on the call. Each time that a digit of the specified digit mode is detected, a message gets sent to the application to indicate which digit has been detected. Function Details LONG lineMonitorDigits( HCALL hCall, DWORD dwDigitModes ); Parameters hCall A handle to the call on which digits are to be detected. The call state of hCall can be any state except idle or disconnected. dwDigitModes The digit mode or modes that are to be monitored. If dwDigitModes is zero, the system cancels digit monitoring. This parameter which can have multiple flags set, uses the following LINEDIGITMODE_constant: LINEDIGITMODE_DTMF -Detect digits as DTMF tones. Valid digits for DTMF include ‘0’ through ‘9’, ‘*’, and ‘#’. lineMonitorTones The lineMonitorTones function enables and disables the detection of inband tones on the call. Each time that a specified tone is detected, a message gets sent to the application. Function Details LONG lineMonitorTones( HCALL hCall, LPLINEMONITORTONE const lpToneList, DWORD dwNumEntries ); Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 178 Basic TAPI Implementation lineMonitorDigits

Page 210 content

Page 211

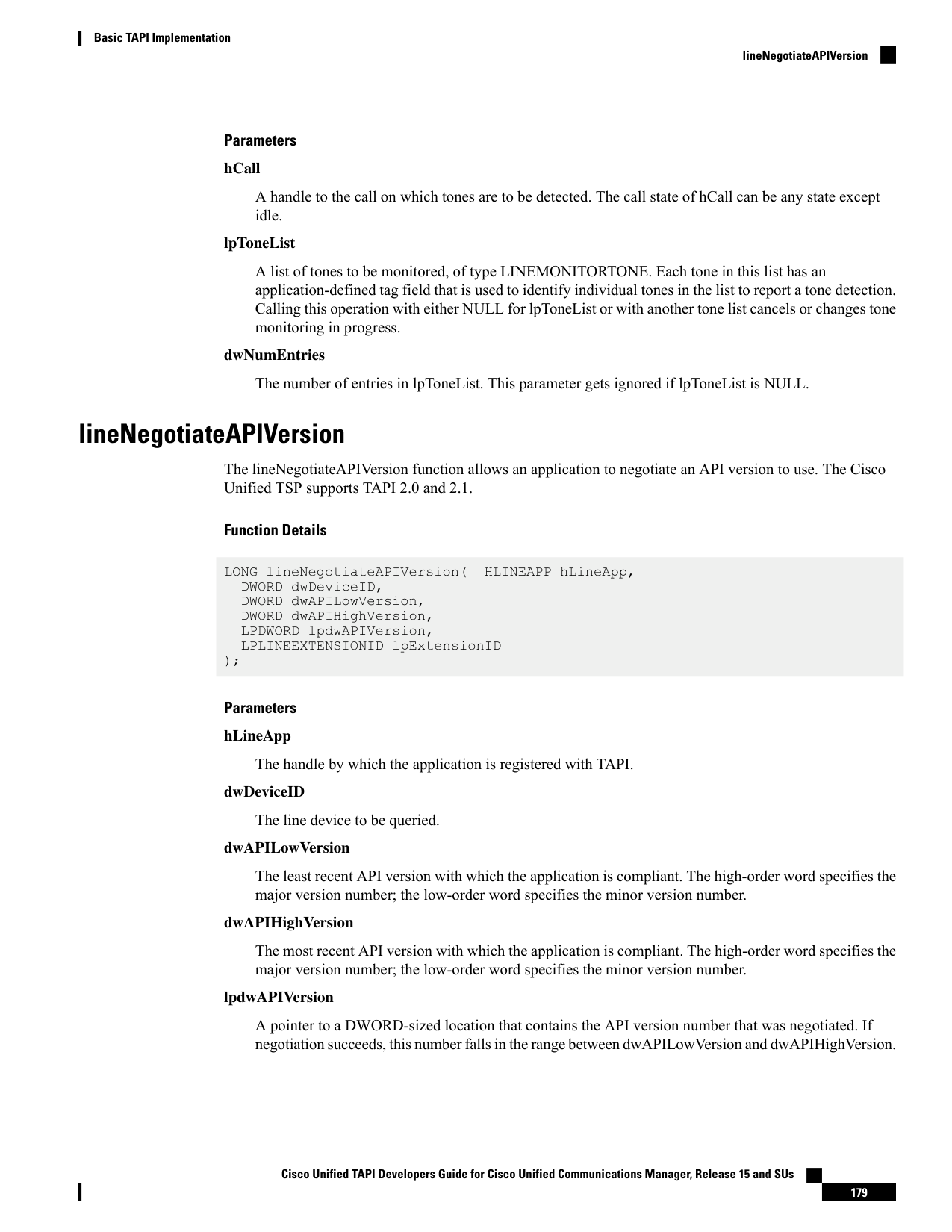

Parameters hCall A handle to the call on which tones are to be detected. The call state of hCall can be any state except idle. lpToneList A list of tones to be monitored, of type LINEMONITORTONE. Each tone in this list has an application-defined tag field that is used to identify individual tones in the list to report a tone detection. Calling this operation with either NULL for lpToneList or with another tone list cancels or changes tone monitoring in progress. dwNumEntries The number of entries in lpToneList. This parameter gets ignored if lpToneList is NULL. lineNegotiateAPIVersion The lineNegotiateAPIVersion function allows an application to negotiate an API version to use. The Cisco Unified TSP supports TAPI 2.0 and 2.1. Function Details LONG lineNegotiateAPIVersion( HLINEAPP hLineApp, DWORD dwDeviceID, DWORD dwAPILowVersion, DWORD dwAPIHighVersion, LPDWORD lpdwAPIVersion, LPLINEEXTENSIONID lpExtensionID ); Parameters hLineApp The handle by which the application is registered with TAPI. dwDeviceID The line device to be queried. dwAPILowVersion The least recent API version with which the application is compliant. The high-order word specifies the major version number; the low-order word specifies the minor version number. dwAPIHighVersion The most recent API version with which the application is compliant. The high-order word specifies the major version number; the low-order word specifies the minor version number. lpdwAPIVersion A pointer to a DWORD-sized location that contains the API version number that was negotiated. If negotiation succeeds, this number falls in the range between dwAPILowVersion and dwAPIHighVersion. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 179 Basic TAPI Implementation lineNegotiateAPIVersion

Page 211 content

Page 212

lpExtensionID A pointer to a structure of type LINEEXTENSIONID. If the service provider for the specified dwDeviceID supports provider-specific extensions, upon a successful negotiation, this structure gets filled with the extension identifier of these extensions. This structure contains all zeros if the line provides no extensions. An application can ignore the returned parameter if it does not use extensions. The Cisco Unified TSP extensionID specifies 0x8EBD6A50, 0x138011d2, 0x905B0060, 0xB03DD275. lineNegotiateExtVersion The lineNegotiateExtVersion function allows an application to negotiate an extension version to use with the specified line device. Do not call this operation if the application does not support extensions. Function Details LONG lineNegotiateExtVersion( HLINEAPP hLineApp, DWORD dwDeviceID, DWORD dwAPIVersion, DWORD dwExtLowVersion, DWORD dwExtHighVersion, LPDWORD lpdwExtVersion ); Parameters hLineApp The handle by which the application is registered with TAPI. dwDeviceID The line device to be queried. dwAPIVersion The API version number that was negotiated for the specified line device by using lineNegotiateAPIVersion. dwExtLowVersion The least recent extension version of the extension identifier that lineNegotiateAPIVersion returns and with which the application is compliant. The high-order word specifies the major version number; the low-order word specifies the minor version number. dwExtHighVersion The most recent extension version of the extension identifier that lineNegotiateAPIVersion returns and with which the application is compliant. The high-order word specifies the major version number; the low-order word specifies the minor version number. lpdwExtVersion A pointer to a DWORD-sized location that contains the extension version number that was negotiated. If negotiation succeeds, this number falls between dwExtLowVersion and dwExtHighVersion. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 180 Basic TAPI Implementation lineNegotiateExtVersion

Page 212 content

Page 213

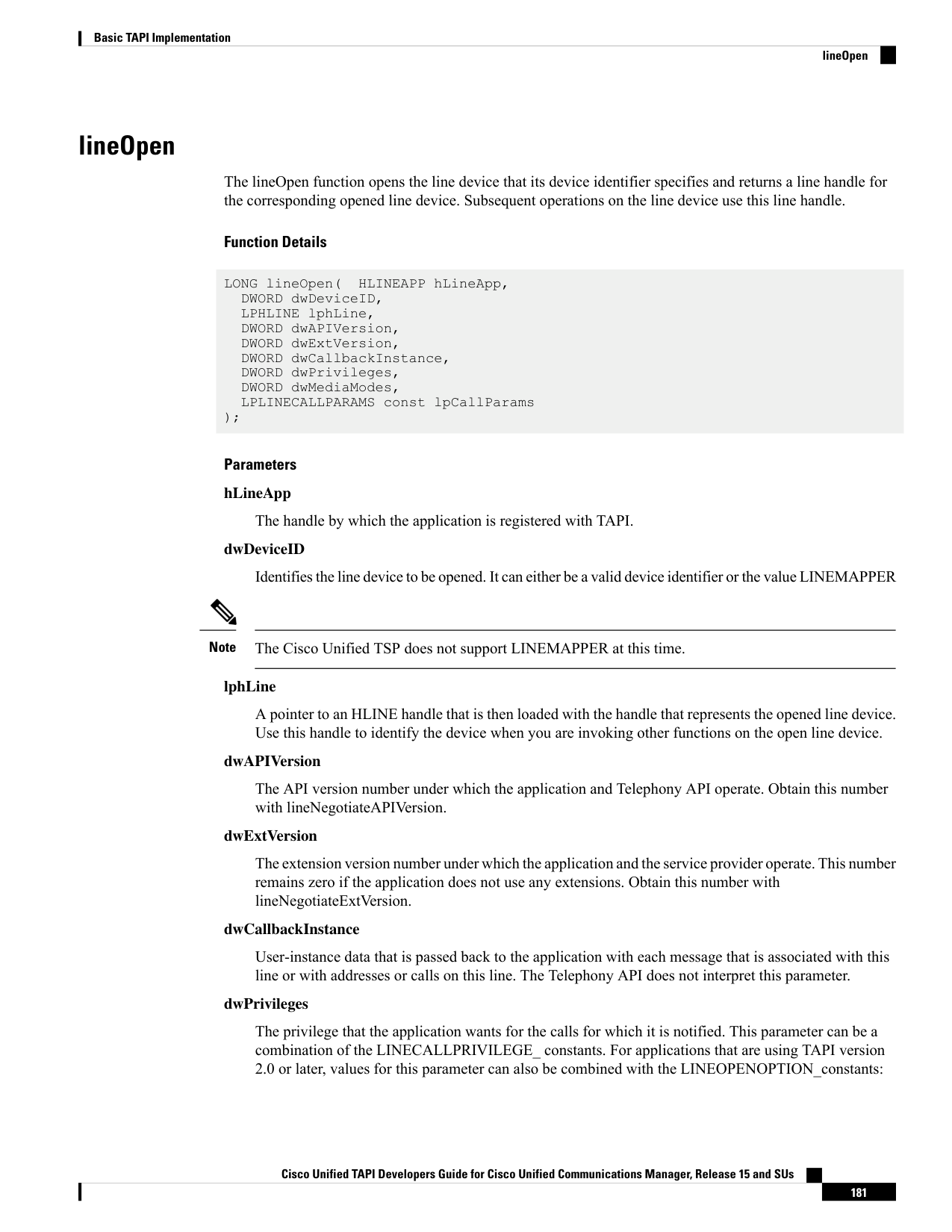

lineOpen The lineOpen function opens the line device that its device identifier specifies and returns a line handle for the corresponding opened line device. Subsequent operations on the line device use this line handle. Function Details LONG lineOpen( HLINEAPP hLineApp, DWORD dwDeviceID, LPHLINE lphLine, DWORD dwAPIVersion, DWORD dwExtVersion, DWORD dwCallbackInstance, DWORD dwPrivileges, DWORD dwMediaModes, LPLINECALLPARAMS const lpCallParams ); Parameters hLineApp The handle by which the application is registered with TAPI. dwDeviceID Identifies the line device to be opened. It can either be a valid device identifier or the value LINEMAPPER The Cisco Unified TSP does not support LINEMAPPER at this time. Note lphLine A pointer to an HLINE handle that is then loaded with the handle that represents the opened line device. Use this handle to identify the device when you are invoking other functions on the open line device. dwAPIVersion The API version number under which the application and Telephony API operate. Obtain this number with lineNegotiateAPIVersion. dwExtVersion The extension version number under which the application and the service provider operate. This number remains zero if the application does not use any extensions. Obtain this number with lineNegotiateExtVersion. dwCallbackInstance User-instance data that is passed back to the application with each message that is associated with this line or with addresses or calls on this line. The Telephony API does not interpret this parameter. dwPrivileges The privilege that the application wants for the calls for which it is notified. This parameter can be a combination of the LINECALLPRIVILEGE_ constants. For applications that are using TAPI version 2.0 or later, values for this parameter can also be combined with the LINEOPENOPTION_constants: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 181 Basic TAPI Implementation lineOpen

Image 1 from page 213

Page 213 content

Page 214

• LINECALLPRIVILEGE_NONE -The application can make only outgoing calls. • LINECALLPRIVILEGE_MONITOR -The application can monitor only incoming and outgoing calls. • LINECALLPRIVILEGE_OWNER -The application can own only incoming calls of the types that are specified in dwMediaModes. • LINECALLPRIVILEGE_MONITOR + LINECALLPRIVILEGE_OWNER -The application can own only incoming calls of the types that are specified in dwMediaModes, but if the application does not represent an owner of a call, it acts as a monitor. • Other flag combinations return the LINEERR_INVALPRIVSELECT error. dwMediaModes The media mode or modes of interest to the application. Use this parameter to register the application as a potential target for incoming call and call handoff for the specified media mode. This parameter proves meaningful only if the bit LINECALLPRIVILEGE_OWNER in dwPrivileges is set (and ignored if it is not). This parameter uses the following LINEMEDIAMODE_constant: • LINEMEDIAMODE_INTERACTIVEVOICE -The application can handle calls of the interactive voice media type; that is, it manages voice calls with the user on this end of the call. Use this parameter for third-party call control of physical phones and CTI port and CTI route point devices that other applications opened. • LINEMEDIAMODE_AUTOMATEDVOICE -Voice energy exists on the call. An automated application locally handles the voice. This represents first-party call control and is used with CTI port and CTI route point devices. lpCallParams The dwNoAnswerTimeout attribute of the lpCallParams field is checked and if it is non-zero, automatically disconnects a call if it is not answered after the specified time. linePark The linePark function parks the specified call according to the specified park mode. Function Details LONG WINAPI linePark(HCALL hCall, DWORD dwParkMode, LPCSTR lpszDirAddress, LPVARSTRING lpNonDirAddress ); Parameters hCall Handle to the call to be parked. The application must act as an owner of the call. The call state of hcall must be connected. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 182 Basic TAPI Implementation linePark

Page 214 content

Page 215

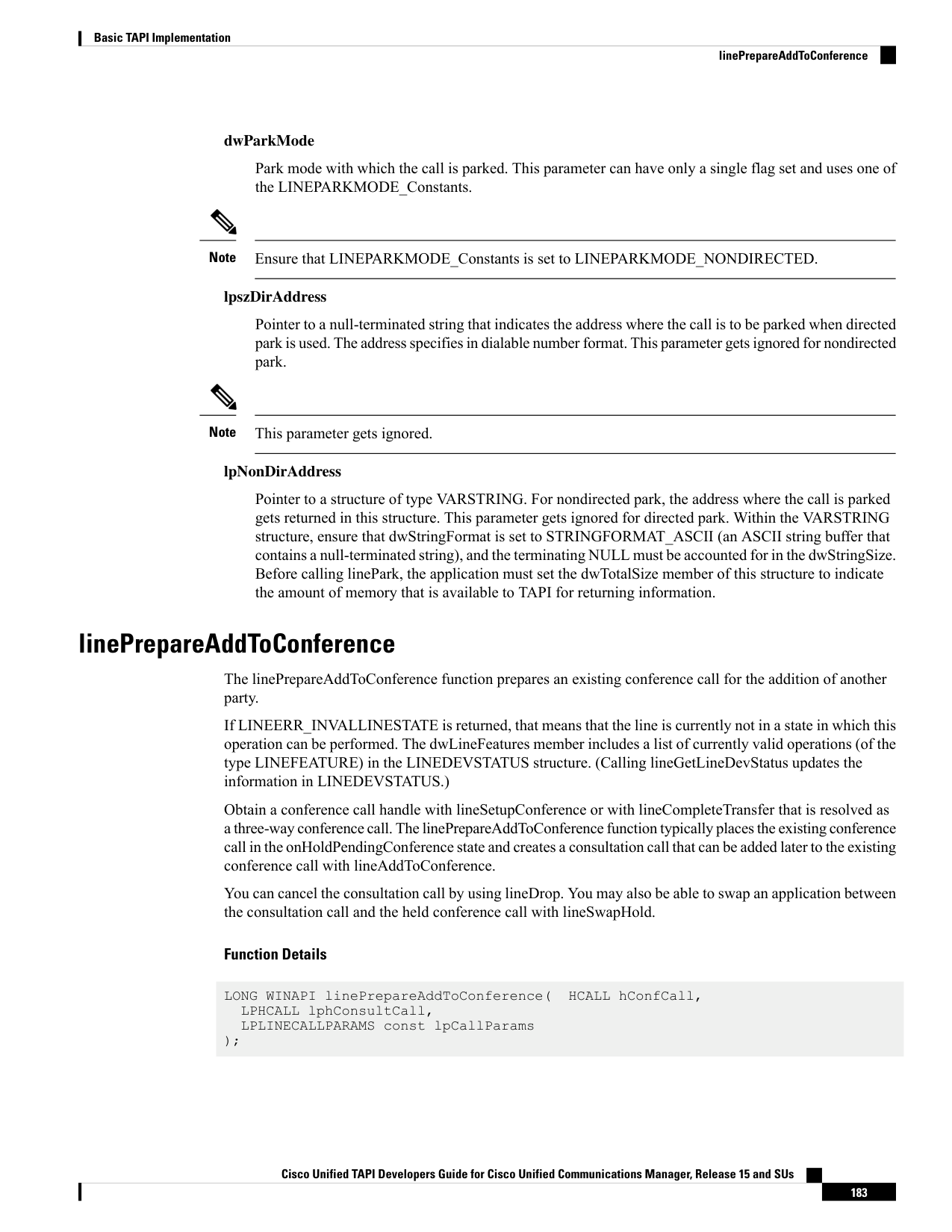

dwParkMode Park mode with which the call is parked. This parameter can have only a single flag set and uses one of the LINEPARKMODE_Constants. Ensure that LINEPARKMODE_Constants is set to LINEPARKMODE_NONDIRECTED. Note lpszDirAddress Pointer to a null-terminated string that indicates the address where the call is to be parked when directed park is used. The address specifies in dialable number format. This parameter gets ignored for nondirected park. This parameter gets ignored. Note lpNonDirAddress Pointer to a structure of type VARSTRING. For nondirected park, the address where the call is parked gets returned in this structure. This parameter gets ignored for directed park. Within the VARSTRING structure, ensure that dwStringFormat is set to STRINGFORMAT_ASCII (an ASCII string buffer that contains a null-terminated string), and the terminating NULL must be accounted for in the dwStringSize. Before calling linePark, the application must set the dwTotalSize member of this structure to indicate the amount of memory that is available to TAPI for returning information. linePrepareAddToConference The linePrepareAddToConference function prepares an existing conference call for the addition of another party. If LINEERR_INVALLINESTATE is returned, that means that the line is currently not in a state in which this operation can be performed. The dwLineFeatures member includes a list of currently valid operations (of the type LINEFEATURE) in the LINEDEVSTATUS structure. (Calling lineGetLineDevStatus updates the information in LINEDEVSTATUS.) Obtain a conference call handle with lineSetupConference or with lineCompleteTransfer that is resolved as a three-way conference call. The linePrepareAddToConference function typically places the existing conference call in the onHoldPendingConference state and creates a consultation call that can be added later to the existing conference call with lineAddToConference. You can cancel the consultation call by using lineDrop. You may also be able to swap an application between the consultation call and the held conference call with lineSwapHold. Function Details LONG WINAPI linePrepareAddToConference( HCALL hConfCall, LPHCALL lphConsultCall, LPLINECALLPARAMS const lpCallParams ); Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 183 Basic TAPI Implementation linePrepareAddToConference

Image 1 from page 215

Page 215 content

Page 216

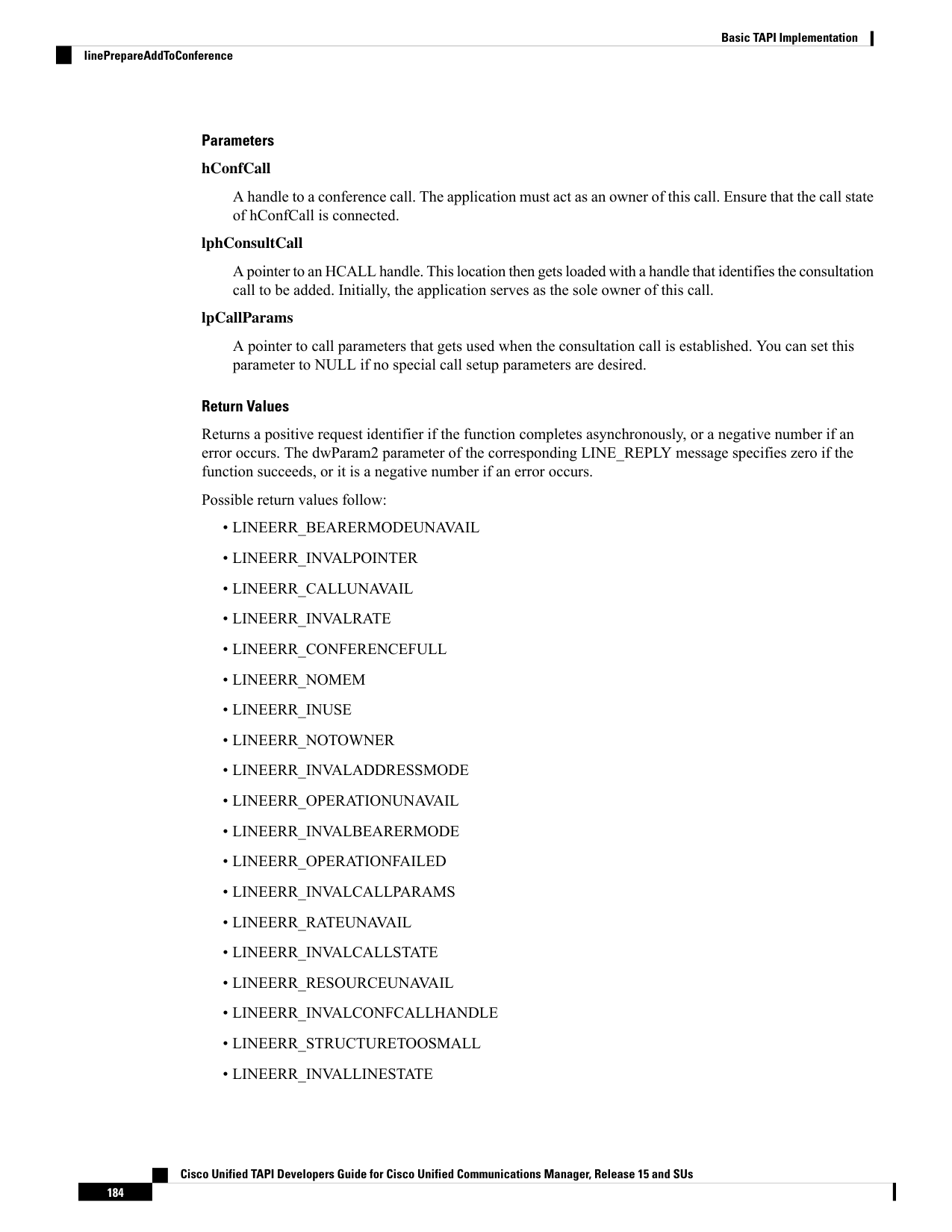

Parameters hConfCall A handle to a conference call. The application must act as an owner of this call. Ensure that the call state of hConfCall is connected. lphConsultCall A pointer to an HCALL handle. This location then gets loaded with a handle that identifies the consultation call to be added. Initially, the application serves as the sole owner of this call. lpCallParams A pointer to call parameters that gets used when the consultation call is established. You can set this parameter to NULL if no special call setup parameters are desired. Return Values Returns a positive request identifier if the function completes asynchronously, or a negative number if an error occurs. The dwParam2 parameter of the corresponding LINE_REPLY message specifies zero if the function succeeds, or it is a negative number if an error occurs. Possible return values follow: • LINEERR_BEARERMODEUNAVAIL • LINEERR_INVALPOINTER • LINEERR_CALLUNAVAIL • LINEERR_INVALRATE • LINEERR_CONFERENCEFULL • LINEERR_NOMEM • LINEERR_INUSE • LINEERR_NOTOWNER • LINEERR_INVALADDRESSMODE • LINEERR_OPERATIONUNAVAIL • LINEERR_INVALBEARERMODE • LINEERR_OPERATIONFAILED • LINEERR_INVALCALLPARAMS • LINEERR_RATEUNAVAIL • LINEERR_INVALCALLSTATE • LINEERR_RESOURCEUNAVAIL • LINEERR_INVALCONFCALLHANDLE • LINEERR_STRUCTURETOOSMALL • LINEERR_INVALLINESTATE Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 184 Basic TAPI Implementation linePrepareAddToConference

Page 216 content

Page 217

• LINEERR_USERUSERINFOTOOBIG • LINEERR_INVALMEDIAMODE • LINEERR_UNINITIALIZED lineRedirect The lineRedirect function redirects the specified offered or accepted call to the specified destination address. If the application tries to redirect a call to an address that requires a FAC, CMC, or both, the lineRedirect function returns an error. If a FAC is required, the TSP returns the message LINEERR_FACREQUIRED. If a CMC is required, the TSP returns the message LINEERR_CMCREQUIRED. If both a FAC and a CMC are required, the TSP returns the message LINEERR_FACANDCMCREQUIRED. An application that wants to redirect a call to an address that requires a FAC, CMC, or both, should use the lineDevSpecific RedirectFACCMC function. Note Function Details LONG lineRedirect( HCALL hCall, LPCSTR lpszDestAddress, DWORD dwCountryCode ); Parameters hCall A handle to the call to be redirected. The application must act as an owner of the call. The call state of hCall must be offering, accepted, or connected. The Cisco Unified TSP supports redirecting of calls in the connected call state. Note lpszDestAddress A pointer to the destination address. This follows the standard dialable number format. dwCountryCode The country code of the party to which the call is redirected. If a value of 0 is specified, the implementation uses a default. lineRegisterRequestRecipient The lineRegisterRequestRecipient function registers the invoking application as a recipient of requests for the specified request mode. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 185 Basic TAPI Implementation lineRedirect

Image 1 from page 217

Page 217 content

Page 218

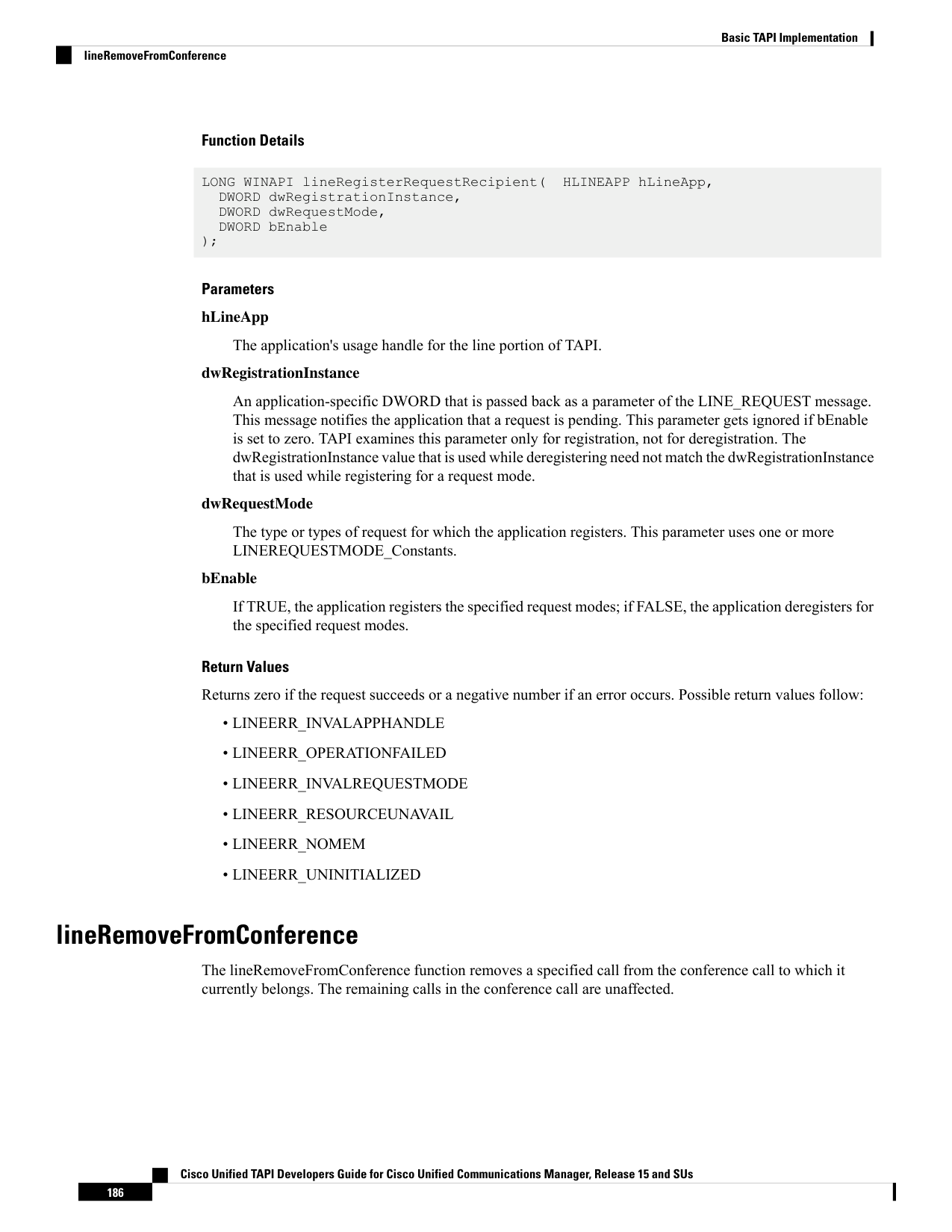

Function Details LONG WINAPI lineRegisterRequestRecipient( HLINEAPP hLineApp, DWORD dwRegistrationInstance, DWORD dwRequestMode, DWORD bEnable ); Parameters hLineApp The application's usage handle for the line portion of TAPI. dwRegistrationInstance An application-specific DWORD that is passed back as a parameter of the LINE_REQUEST message. This message notifies the application that a request is pending. This parameter gets ignored if bEnable is set to zero. TAPI examines this parameter only for registration, not for deregistration. The dwRegistrationInstance value that is used while deregistering need not match the dwRegistrationInstance that is used while registering for a request mode. dwRequestMode The type or types of request for which the application registers. This parameter uses one or more LINEREQUESTMODE_Constants. bEnable If TRUE, the application registers the specified request modes; if FALSE, the application deregisters for the specified request modes. Return Values Returns zero if the request succeeds or a negative number if an error occurs. Possible return values follow: • LINEERR_INVALAPPHANDLE • LINEERR_OPERATIONFAILED • LINEERR_INVALREQUESTMODE • LINEERR_RESOURCEUNAVAIL • LINEERR_NOMEM • LINEERR_UNINITIALIZED lineRemoveFromConference The lineRemoveFromConference function removes a specified call from the conference call to which it currently belongs. The remaining calls in the conference call are unaffected. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 186 Basic TAPI Implementation lineRemoveFromConference

Page 218 content

Page 219

Function Details LONG WINAPI lineRemoveFromConference( HCALL hCall ); Parameters hCall Handle to the call that is to be removed from the conference. The application must be an owner of this call. The call state of hCall must be conference. Return Values Returns a positive request identifier if the function is completed asynchronously, or a negative number if an error occurs. The dwParam2 parameter of the corresponding LINE_REPLY message is zero if the function succeeds or it is a negative number if an error occurs. The following table shows the return values for this function: Description Value The handle to the call that is to be removed is invalid. LINEERR_INVALCALLHANDLE The operation is unavailable. LINEERR_OPERATIONUNAVAIL The call state is something other than conferenced. LINEERR_INVALCALLSTATE The operation failed. LINEERR_OPERATIONFAILED Not enough memory. LINEERR_NOMEM The resources are unavailable. LINEERR_RESOURCEUNAVAIL The application is not the owner of this call. LINEERR_NOTOWNER A parameter is uninitialized. LINEERR_UNINITIALIZED lineRemoveProvider The lineRemoveProvider function removes an existing telephony service provider from the system. Function Details LONG WINAPI lineRemoveProvider( DWORD dwPermanentProviderID, HWND hwndOwner ); Parameters dwPermanentProviderID The permanent provider identifier of the service provider that is to be removed. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 187 Basic TAPI Implementation lineRemoveProvider

Page 219 diagram

Page 220

hwndOwner A handle to a window to which any dialog boxes that need to be displayed as part of the removal process (for example, a confirmation dialog box by the service provider's TSPI_providerRemove function) would be attached. The parameter can be a NULL value to indicate that any window that is created during the function should have no owner window. Return Values Returns zero if the request succeeds or a negative number if an error occurs. Possible return values follow: • LINEERR_INIFILECORRUPT • LINEERR_NOMEM • LINEERR_INVALPARAM • LINEERR_OPERATIONFAILED lineSetAppPriority The lineSetAppPriority function allows an application to set its priority in the handoff priority list for a particular media type or Assisted Telephony request mode or to remove itself from the priority list. Function Details LONG WINAPI lineSetAppPriority( LPCSTR lpszAppFilename, DWORD dwMediaMode, LPLINEEXTENSIONID lpExtensionID, DWORD dwRequestMode, LPCSTR lpszExtensionName, DWORD dwPriority ); Parameters lpszAppFilename A pointer to a string that contains the application executable module filename (without directory information). In TAPI version 2.0 or later, the parameter can specify a filename in either long or 8.3 filename format. dwMediaMode The media type for which the priority of the application is to be set. The value can be one LINEMEDIAMODE_Constant; only a single bit may be on. Use the value zero to set the application priority for Assisted Telephony requests. lpExtensionID A pointer to a structure of type LINEEXTENSIONID. This parameter gets ignored. dwRequestMode If the dwMediaMode parameter is zero, this parameter specifies the Assisted Telephony request mode for which priority is to be set. It must be either LINEREQUESTMODE_MAKECALL or LINEREQUESTMODE_MEDIACALL. This parameter gets ignored if dwMediaMode is nonzero. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 188 Basic TAPI Implementation lineSetAppPriority

Page 220 content

Page 221

lpszExtensionName This parameter gets ignored. dwPriority The new priority for the application. If the value 0 is passed, the application gets removed from the priority list for the specified media or request mode (if it was already not present, no error gets generated). If the value 1 is passed, the application gets inserted as the highest priority application for the media or request mode (and removed from a lower-priority position, if it was already in the list). Any other value generates an error. Return Values Returns zero if the request succeeds or a negative number if an error occurs. Possible return values follow: • LINEERR_INIFILECORRUPT • LINEERR_INVALREQUESTMODE • LINEERR_INVALAPPNAME • LINEERR_NOMEM • LINEERR_INVALMEDIAMODE • LINEERR_OPERATIONFAILED • LINEERR_INVALPARAM • LINEERR_RESOURCEUNAVAIL • LINEERR_INVALPOINTER lineSetCallPrivilege The lineSetCallPrivilege function sets the application privilege to the specified privilege. Function Details LONG WINAPI lineSetCallPrivilege( HCALL hCall, DWORD dwCallPrivilege ); Parameters hCall A handle to the call whose privilege is to be set. The call state of hCall can be any state. dwCallPrivilege The privilege that the application can have for the specified call. This parameter uses one and only one LINECALLPRIVILEGE_Constant. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 189 Basic TAPI Implementation lineSetCallPrivilege

Page 221 content

Page 222

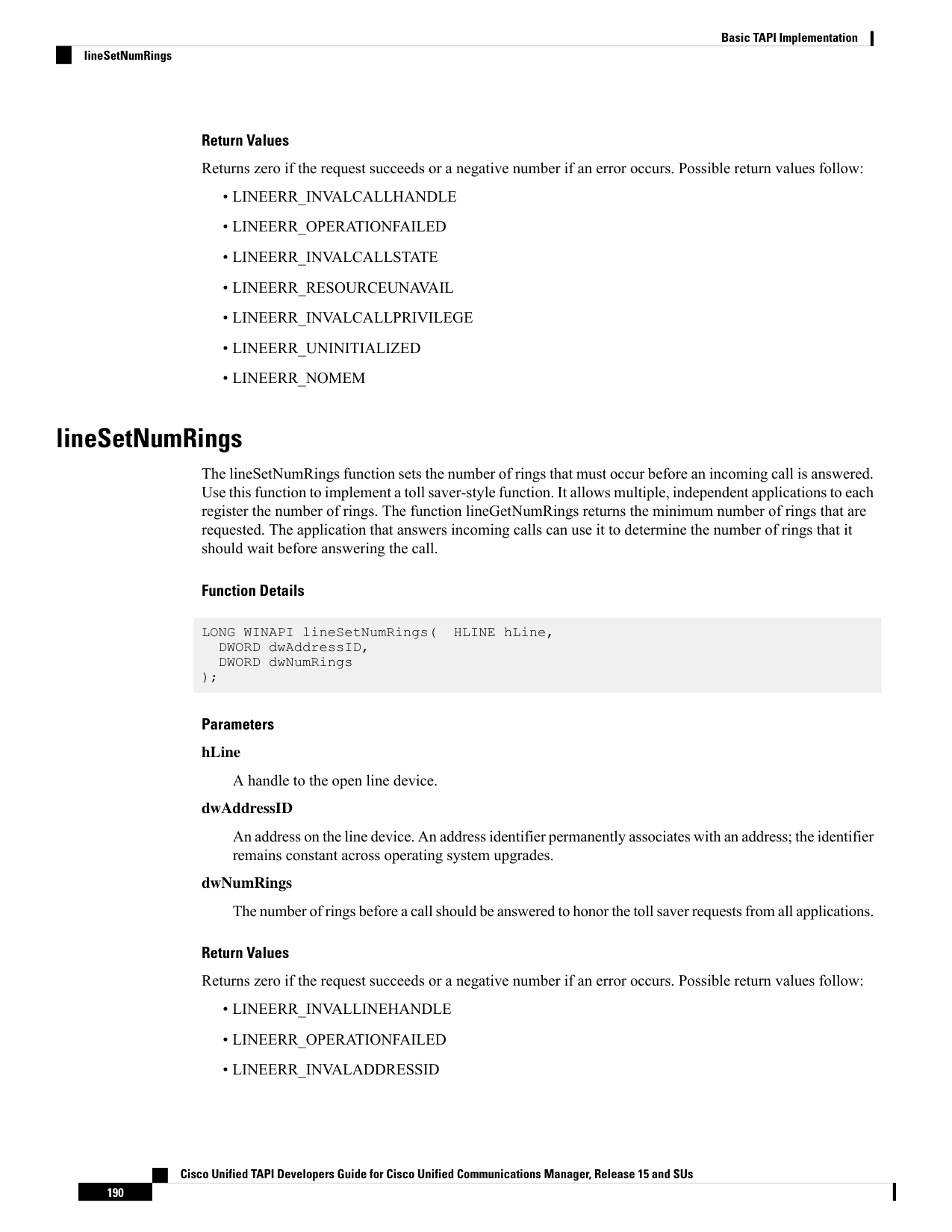

Return Values Returns zero if the request succeeds or a negative number if an error occurs. Possible return values follow: • LINEERR_INVALCALLHANDLE • LINEERR_OPERATIONFAILED • LINEERR_INVALCALLSTATE • LINEERR_RESOURCEUNAVAIL • LINEERR_INVALCALLPRIVILEGE • LINEERR_UNINITIALIZED • LINEERR_NOMEM lineSetNumRings The lineSetNumRings function sets the number of rings that must occur before an incoming call is answered. Use this function to implement a toll saver-style function. It allows multiple, independent applications to each register the number of rings. The function lineGetNumRings returns the minimum number of rings that are requested. The application that answers incoming calls can use it to determine the number of rings that it should wait before answering the call. Function Details LONG WINAPI lineSetNumRings( HLINE hLine, DWORD dwAddressID, DWORD dwNumRings ); Parameters hLine A handle to the open line device. dwAddressID An address on the line device. An address identifier permanently associates with an address; the identifier remains constant across operating system upgrades. dwNumRings The number of rings before a call should be answered to honor the toll saver requests from all applications. Return Values Returns zero if the request succeeds or a negative number if an error occurs. Possible return values follow: • LINEERR_INVALLINEHANDLE • LINEERR_OPERATIONFAILED • LINEERR_INVALADDRESSID Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 190 Basic TAPI Implementation lineSetNumRings

Page 222 content

Page 223

• LINEERR_RESOURCEUNAVAIL • LINEERR_NOMEM • LINEERR_UNINITIALIZED lineSetStatusMessages The lineSetStatusMessages function enables an application to specify the notification messages to receive for events that are related to status changes for the specified line or any of its addresses. Function Details LONG lineSetStatusMessages( HLINE hLine, DWORD dwLineStates, DWORD dwAddressStates ); Parameters hLine A handle to the line device. dwLineStates A bit array that identifies for which line-device status changes a message is to be sent to the application. This parameter uses the following LINEDEVSTATE_constants: • LINEDEVSTATE_OTHER -Device-status items other than the following ones changed. The application should check the current device status to determine which items changed. • LINEDEVSTATE_RINGING -The switch tells the line to alert the user. Service providers notify applications on each ring cycle by sending LINE_LINEDEVSTATE messages that contain this constant. For example, in the United States, service providers send a message with this constant every 6 seconds. • LINEDEVSTATE_NUMCALLS -The number of calls on the line device changed. • LINEDEVSTATE_REINIT -Items changed in the configuration of line devices. To become aware of these changes (as with the appearance of new line devices) the application should reinitialize its use of TAPI. New lineInitialize, lineInitializeEx, and lineOpen requests get denied until applications have shut down their usage of TAPI. The hDevice parameter of the LINE_LINEDEVSTATE message remains NULL for this state change as it applies to any lines in the system. Because of the critical nature of LINEDEVSTATE_REINIT, such messages cannot be masked, so the setting of this bit is ignored, and the messages always get delivered to the application. • LINEDEVSTATE_REMOVED -Indicates that the service provider is removing the device from the system (most likely through user action, through a control panel or similar utility). Normally, a LINE_CLOSE message on the device immediately follows LINE_LINEDEVSTATE message with this value. Subsequent attempts to access the device prior to TAPI being reinitialized result in LINEERR_NODEVICE being returned to the application. If a service provider sends a LINE_LINEDEVSTATE message that contains this value to TAPI, TAPI passes it along to applications that have negotiated TAPI version 1.4 or later; applications that negotiate a previous TAPI version do not receive any notification. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 191 Basic TAPI Implementation lineSetStatusMessages

Page 223 content

Page 224

dwAddressStates A bit array that identifies for which address status changes a message is to be sent to the application. This parameter uses the following LINEADDRESSSTATE_constant: • LINEADDRESSSTATE_NUMCALLS -The number of calls on the address changed. This change results from events such as a new incoming call, an outgoing call on the address, or a call changing its hold status. lineSetTollList The lineSetTollList function manipulates the toll list. Function Details LONG WINAPI lineSetTollList( HLINEAPP hLineApp, DWORD dwDeviceID, LPCSTR lpszAddressIn, DWORD dwTollListOption ); Parameters hLineApp The application handle that lineInitializeEx returns. If an application has not yet called the lineInitializeEx function, it can set the hLineApp parameter to NULL. dwDeviceID The device identifier for the line device upon which the call is intended to be dialed, so variations in dialing procedures on different lines can be applied to the translation process. lpszAddressIn A pointer to a null-terminated string that contains the address from which the prefix information is to be extracted for processing. Ensure that this parameter is not NULL, and also ensure that it is in the canonical address format. dwTollListOption The toll list operation to be performed. This parameter uses one and only one of the LINETOLLLISTOPTION_Constants. Return Values Returns zero if the request succeeds or a negative number if an error occurs. Possible return values follow: • LINEERR_BADDEVICEID • LINEERR_NODRIVER • LINEERR_INVALAPPHANDLE • LINEERR_NOMEM • LINEERR_INVALADDRESS Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 192 Basic TAPI Implementation lineSetTollList

Page 224 content

Page 225

• LINEERR_OPERATIONFAILED • LINEERR_INVALPARAM • LINEERR_RESOURCEUNAVAIL • LINEERR_INIFILECORRUPT • LINEERR_UNINITIALIZED • LINEERR_INVALLOCATION lineSetupConference The lineSetupConference function initiates a conference for an existing two-party call that the hCall parameter specifies. A conference call and consult call are established, and the handles return to the application. Use the consult call to dial the third party and the conference call replaces the initial two-party call. The application can also specify the destination address of the consult call that will allow the PBX to dial the call for the application. Function Details LONG lineSetupConference (HCALL hCall, HLINE hLine, LPHCALL lphConfCall, LPHCALL lphConsultCall, DWORD dwNumParties, LPLINECALLPARAMS const lpCallParams ); Parameters hCall The handle of the existing two-party call. Ensure that the application is the owner of the call. hLine The line on which the initial two-party call was made. This parameter is not used because hCall must be set. lphConfCall A pointer to the conference call handle. The service provider allocates this call and returns the handle to the application. lphConsultCall A pointer to the consult call. If the application does not specify the destination address in the call parameters, it should use this call handle to dial the consult call. If the destination address is specified, the consult call will be made using this handle. dwNumParties The number of parties in the conference call. Currently the Cisco Unified TAPI Service Provider supports a three-party conference call. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 193 Basic TAPI Implementation lineSetupConference

Page 225 content

Page 226

lpCallParams The call parameters that are used to set up the consult call. The application can specify the destination address if it wants the consult call to be dialed for it in the conference setup. lineSetupTransfer The lineSetupTransfer function initiates a transfer of the call that the hCall parameter specifies. It establishes a consultation call, lphConsultCall, on which the party can be dialed that can become the destination of the transfer. The application acquires owner privilege to the lphConsultCall parameter. Function Details LONG lineSetupTransfer( HCALL hCall, LPHCALL lphConsultCall, LPLINECALLPARAMS const lpCallParams ); Parameters hCall The handle of the call to be transferred. Ensure that the application is an owner of the call and ensure that the call state of hCall is connected. lphConsultCall A pointer to an hCall handle. This location is then loaded with a handle that identifies the temporary consultation call. When setting up a call for transfer, a consultation call automatically gets allocated that enables lineDial to dial the address that is associated with the new transfer destination of the call. The originating party can carry on a conversation over this consultation call prior to completing the transfer. The call state of hConsultCall does not apply. This transfer procedure may not be valid for some line devices. The application may need to ignore the new consultation call and remove the hold on an existing held call (using lineUnhold) to identify the destination of the transfer. On switches that support cross-address call transfer, the consultation call can exist on a different address than the call that is to be transferred. It may also be necessary to set up the consultation call as an entirely new call, by lineMakeCall, to the destination of the transfer. The address capabilities of the call specifies which forms of transfer are available. lpCallParams The dwNoAnswerTimeout attribute of the lpCallParams field is checked and, if is non-zero, used to automatically disconnect a call if it is not answered after the specified time. lineShutdown The lineShutdown function shuts down the usage of the line abstraction of the API. Function Details LONG lineShutdown( HLINEAPP hLineApp ); Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 194 Basic TAPI Implementation lineSetupTransfer

Page 226 content

Page 227

Parameters hLineApp The usage handle of the application for the line API. lineTranslateAddress The lineTranslateAddress function translates the specified address into another format. Function Details LONG WINAPI lineTranslateAddress( HLINEAPP hLineApp, DWORD dwDeviceID, DWORD dwAPIVersion, LPCSTR lpszAddressIn, DWORD dwCard, DWORD dwTranslateOptions, LPLINETRANSLATEOUTPUT lpTranslateOutput ); Parameters hLineApp The application handle that lineInitializeEx returns. If a TAPI 2.0 application has not yet called the lineInitializeEx function, it can set the hLineApp parameter to NULL. TAPI 1.4 applications must still call lineInitialize first. dwDeviceID The device identifier for the line device upon which the call is intended to be dialed, so variations in dialing procedures on different lines can be applied to the translation process. dwAPIVersion Indicates the highest version of TAPI that the application supports (not necessarily the value that is negotiated by lineNegotiateAPIVersion on some particular line device). lpszAddressIn Pointer to a null-terminated string that contains the address from which the information is to be extracted for translation. This parameter must either use the canonical address format or an arbitrary string of dialable digits (non-canonical). This parameter must not be NULL. If the AddressIn contains a subaddress or name field, or additional addresses separated from the first address by CR and LF characters, only the first address gets translated. dwCard The credit card to be used for dialing. This parameter proves valid only if the CARDOVERRIDE bit is set in dwTranslateOptions. This parameter specifies the permanent identifier of a Card entry in the [Cards] section in the registry (as obtained from lineTranslateCaps) that should be used instead of the PreferredCardID that is specified in the definition of the CurrentLocation. It does not cause the PreferredCardID parameter of the current Location entry in the registry to be modified; the override applies only to the current translation operation. This parameter gets ignored if the CARDOVERRIDE bit is not set in dwTranslateOptions. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 195 Basic TAPI Implementation lineTranslateAddress

Page 227 content

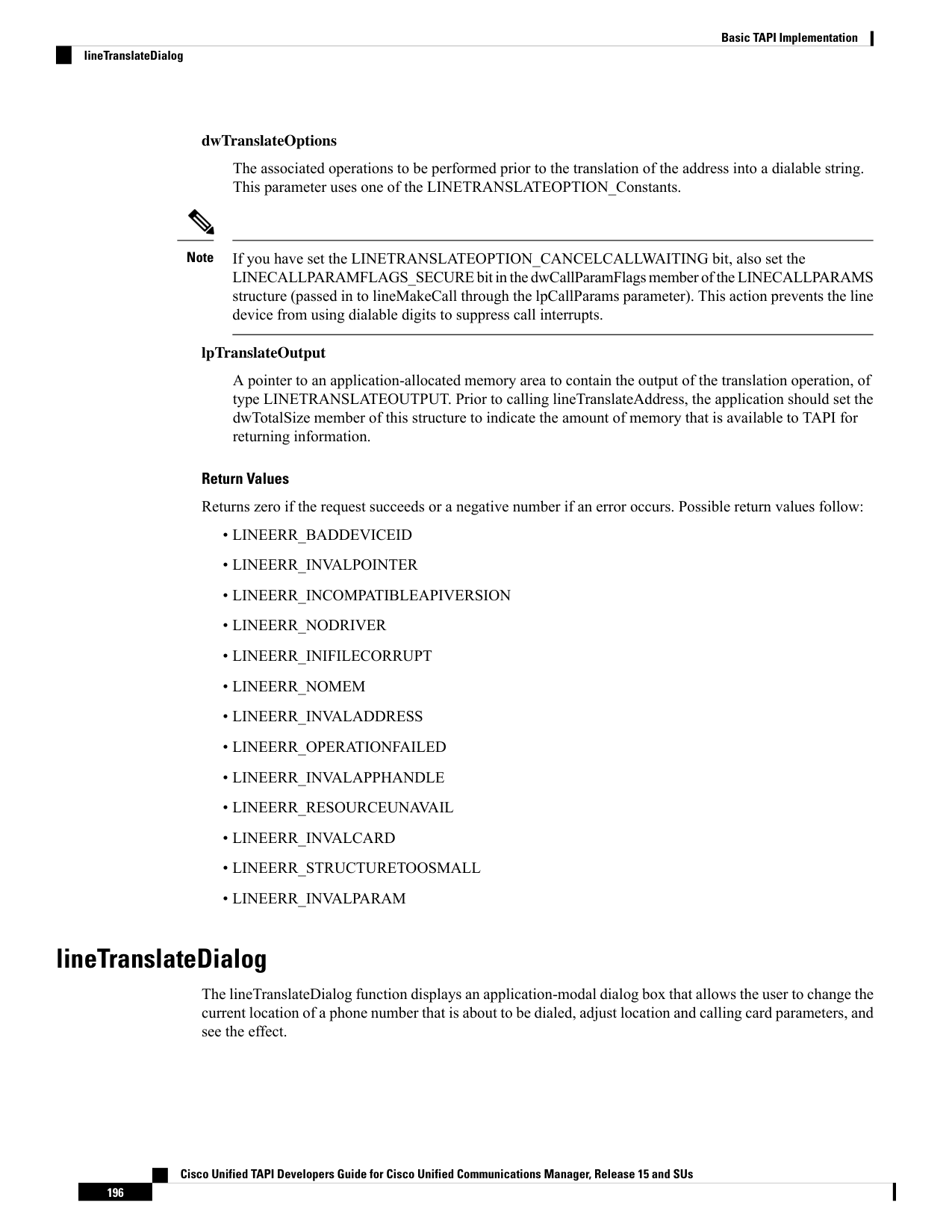

Page 228

dwTranslateOptions The associated operations to be performed prior to the translation of the address into a dialable string. This parameter uses one of the LINETRANSLATEOPTION_Constants. If you have set the LINETRANSLATEOPTION_CANCELCALLWAITING bit, also set the LINECALLPARAMFLAGS_SECURE bit in the dwCallParamFlags member of the LINECALLPARAMS structure (passed in to lineMakeCall through the lpCallParams parameter). This action prevents the line device from using dialable digits to suppress call interrupts. Note lpTranslateOutput A pointer to an application-allocated memory area to contain the output of the translation operation, of type LINETRANSLATEOUTPUT. Prior to calling lineTranslateAddress, the application should set the dwTotalSize member of this structure to indicate the amount of memory that is available to TAPI for returning information. Return Values Returns zero if the request succeeds or a negative number if an error occurs. Possible return values follow: • LINEERR_BADDEVICEID • LINEERR_INVALPOINTER • LINEERR_INCOMPATIBLEAPIVERSION • LINEERR_NODRIVER • LINEERR_INIFILECORRUPT • LINEERR_NOMEM • LINEERR_INVALADDRESS • LINEERR_OPERATIONFAILED • LINEERR_INVALAPPHANDLE • LINEERR_RESOURCEUNAVAIL • LINEERR_INVALCARD • LINEERR_STRUCTURETOOSMALL • LINEERR_INVALPARAM lineTranslateDialog The lineTranslateDialog function displays an application-modal dialog box that allows the user to change the current location of a phone number that is about to be dialed, adjust location and calling card parameters, and see the effect. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 196 Basic TAPI Implementation lineTranslateDialog

Image 1 from page 228

Page 228 content

Page 229

Function Details LONG WINAPI lineTranslateDialog( HLINEAPP hLineApp, DWORD dwDeviceID, DWORD dwAPIVersion, HWND hwndOwner, LPCSTR lpszAddressIn ); Parameters hLineApp The application handle that lineInitializeEx returns. If an application has not yet called the lineInitializeEx function, it can set the hLineApp parameter to NULL. dwDeviceID The device identifier for the line device upon which the call is intended to be dialed, so variations in dialing procedures on different lines can be applied to the translation process. dwAPIVersion Indicates the highest version of TAPI that the application supports (not necessarily the value that lineNegotiateAPIVersion negotiates on the line device that dwDeviceID indicates). hwndOwner A handle to a window to which the dialog box is to be attached. Can be a NULL value to indicate that any window that is created during the function should have no owner window. lpszAddressIn A pointer to a null-terminated string that contains a phone number that is used, in the lower portion of the dialog box, to show the effect of the user's changes on the location parameters. Ensure that the number is in canonical format; if noncanonical, the phone number portion of the dialog box does not display. You can leave this pointer NULL, in which case the phone number portion of the dialog box does not display. If the lpszAddressIn parameter contains a subaddress or name field, or additional addresses separated from the first address by CR and LF characters, only the first address gets used in the dialog box. Return Values Returns zero if request succeeds or a negative number if an error occurs. Possible return values follow: • LINEERR_BADDEVICEID • LINEERR_INVALPARAM • LINEERR_INCOMPATIBLEAPIVERSION • LINEERR_INVALPOINTER • LINEERR_INIFILECORRUPT • LINEERR_NODRIVER • LINEERR_INUSE • LINEERR_NOMEM Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 197 Basic TAPI Implementation lineTranslateDialog

Page 229 content

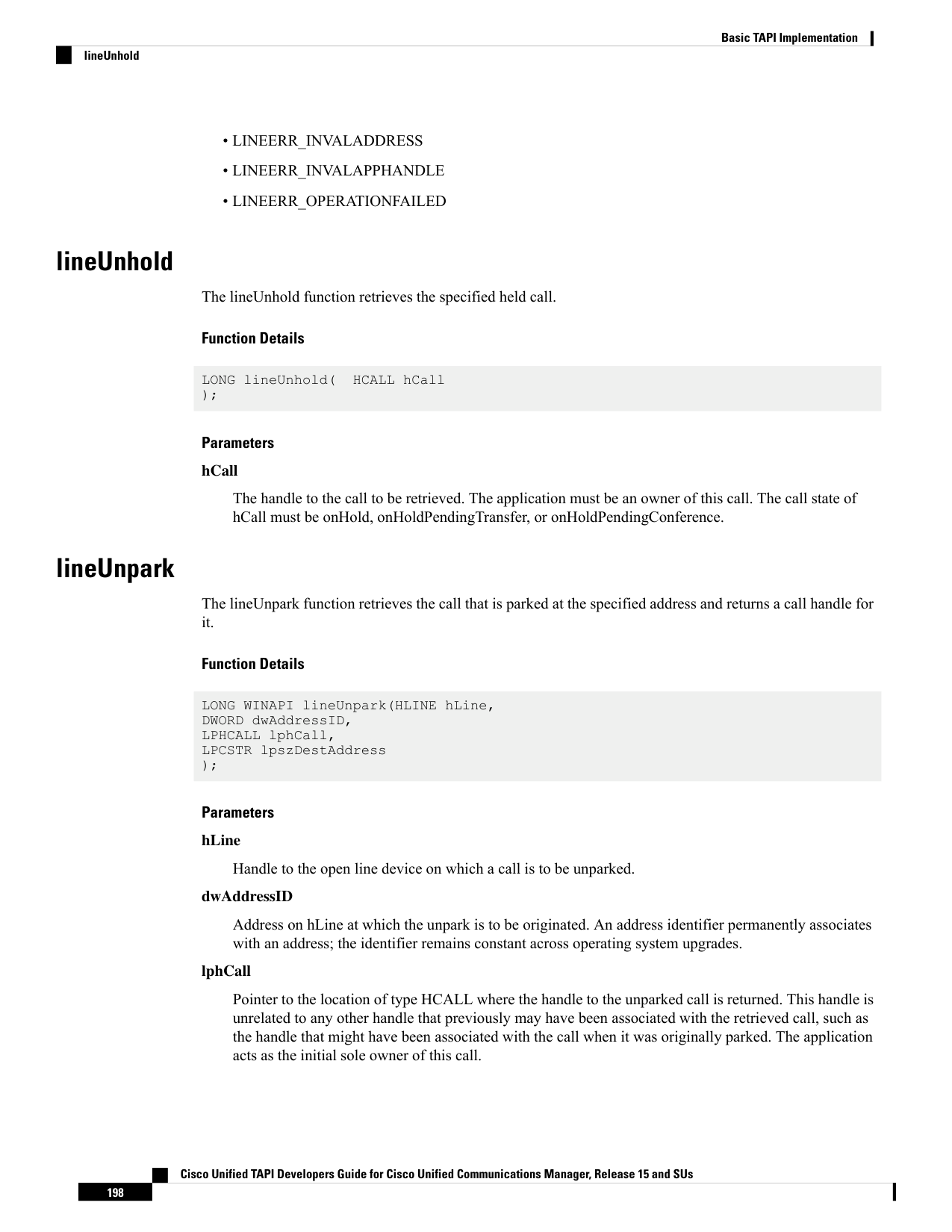

Page 230

• LINEERR_INVALADDRESS • LINEERR_INVALAPPHANDLE • LINEERR_OPERATIONFAILED lineUnhold The lineUnhold function retrieves the specified held call. Function Details LONG lineUnhold( HCALL hCall ); Parameters hCall The handle to the call to be retrieved. The application must be an owner of this call. The call state of hCall must be onHold, onHoldPendingTransfer, or onHoldPendingConference. lineUnpark The lineUnpark function retrieves the call that is parked at the specified address and returns a call handle for it. Function Details LONG WINAPI lineUnpark(HLINE hLine, DWORD dwAddressID, LPHCALL lphCall, LPCSTR lpszDestAddress ); Parameters hLine Handle to the open line device on which a call is to be unparked. dwAddressID Address on hLine at which the unpark is to be originated. An address identifier permanently associates with an address; the identifier remains constant across operating system upgrades. lphCall Pointer to the location of type HCALL where the handle to the unparked call is returned. This handle is unrelated to any other handle that previously may have been associated with the retrieved call, such as the handle that might have been associated with the call when it was originally parked. The application acts as the initial sole owner of this call. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 198 Basic TAPI Implementation lineUnhold

Page 230 content

Page 231

lpszDestAddress Pointer to a null-terminated character buffer that contains the address where the call is parked. The address displays in standard dialable address format. TAPI Line Messages This section describes the line messages that the Cisco Unified TSP supports. These messages notify the application of asynchronous events such as a new call arriving in the Cisco Unified Communications Manager. The messages get sent to the application by the method that the application specifies in lineInitializeEx . Table 15: TAPI Line Messages TAPI Line Messages LINE_ADDRESSSTATE, on page 200 LINE_APPNEWCALL, on page 201 LINE_CALLDEVSPECIFIC, on page 202 LINE_CALLINFO, on page 202 LINE_CALLSTATE, on page 203 LINE_CLOSE, on page 207 LINE_CREATE, on page 207 LINE_DEVSPECIFIC, on page 208 LINE_DEVSPECIFICFEATURE, on page 209 LINE_GATHERDIGITS, on page 210 LINE_GENERATE, on page 211 LINE_LINEDEVSTATE, on page 212 LINE_MONITORDIGITS, on page 213 LINE_MONITORTONE, on page 213 LINE_REMOVE, on page 214 LINE_REPLY, on page 215 LINE_REQUEST, on page 216 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 199 Basic TAPI Implementation TAPI Line Messages

Page 231 diagram

Page 232

LINE_ADDRESSSTATE The LINE_ADDRESSSTATE message gets sent when the status of an address changes on a line that is currently open by the application. The application can invoke lineGetAddressStatus to determine the current status of the address. Function Details LINE_ADDRESSSTATE dwDevice = (DWORD) hLine; dwCallbackInstance = (DWORD) hCallback; dwParam1 = (DWORD) idAddress; dwParam2 = (DWORD) AddressState; dwParam3 = (DWORD) 0; Parameters dwDevice A handle to the line device. dwCallbackInstance The callback instance supplied when the line is opened. dwParam1 The address identifier of the address that changed status. dwParam2 The address state that changed. Can be a combination of these values: LINEADDRESSSTATE_OTHER Address-status items other than those that are in the following list changed. The application should check the current address status to determine which items changed. LINEADDRESSSTATE_DEVSPECIFIC The device-specific item of the address status changed. LINEADDRESSSTATE_INUSEZERO The address changed to idle (it is now in use by zero stations). LINEADDRESSSTATE_INUSEONE The address changed from idle or from being used by many bridged stations to being used by just one station. LINEADDRESSSTATE_INUSEMANY The monitored or bridged address changed from being used by one station to being used by more than one station. LINEADDRESSSTATE_NUMCALLS The number of calls on the address has changed. This change results from events such as a new inbound call, an outbound call on the address, or a call changing its hold status. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 200 Basic TAPI Implementation LINE_ADDRESSSTATE

Page 232 content

Page 233

LINEADDRESSSTATE_FORWARD The forwarding status of the address changed, including the number of rings for determining a no-answer condition. The application should check the address status to determine details about the current forwarding status of the address. LINEADDRESSSTATE_TERMINALS The terminal settings for the address changed. LINEADDRESSSTATE_CAPSCHANGE Indicates that due to configuration changes that the user made, or other circumstances, one or more of the members in the LINEADDRESSCAPS structure for the address changed. The application should use lineGetAddressCaps to read the updated structure. Applications that support API versions earlier than 1.4 receive a LINEDEVSTATE_REINIT message that requires them to shut down and reinitialize their connection to TAPI to obtain the updated information. dwParam3 This parameter is not used. LINE_APPNEWCALL The LINE_APPNEWCALL message informs an application when a new call handle is spontaneously created on its behalf (other than through an API call from the application, in which case the handle would have been returned through a pointer parameter that passed into the function). Function Details LINE_APPNEWCALL dwDevice = (DWORD) hLine; dwCallbackInstance = (DWORD) dwInstanceData; dwParam1 = (DWORD) dwAddressID; dwParam2 = (DWORD) hCall; dwParam3 = (DWORD) dwPrivilege; Parameters dwDevice The handle of the application to the line device on which the call was created. dwCallbackInstance The callback instance that is supplied when the line belonging to the call is opened. dwParam1 Identifier of the address on the line on which the call appears. dwParam2 The handle of the application to the new call. dwParam3 The privilege of the application to the new call (LINECALLPRIVILEGE_OWNER or LINECALLPRIVILEGE_MONITOR). Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 201 Basic TAPI Implementation LINE_APPNEWCALL

Page 233 content

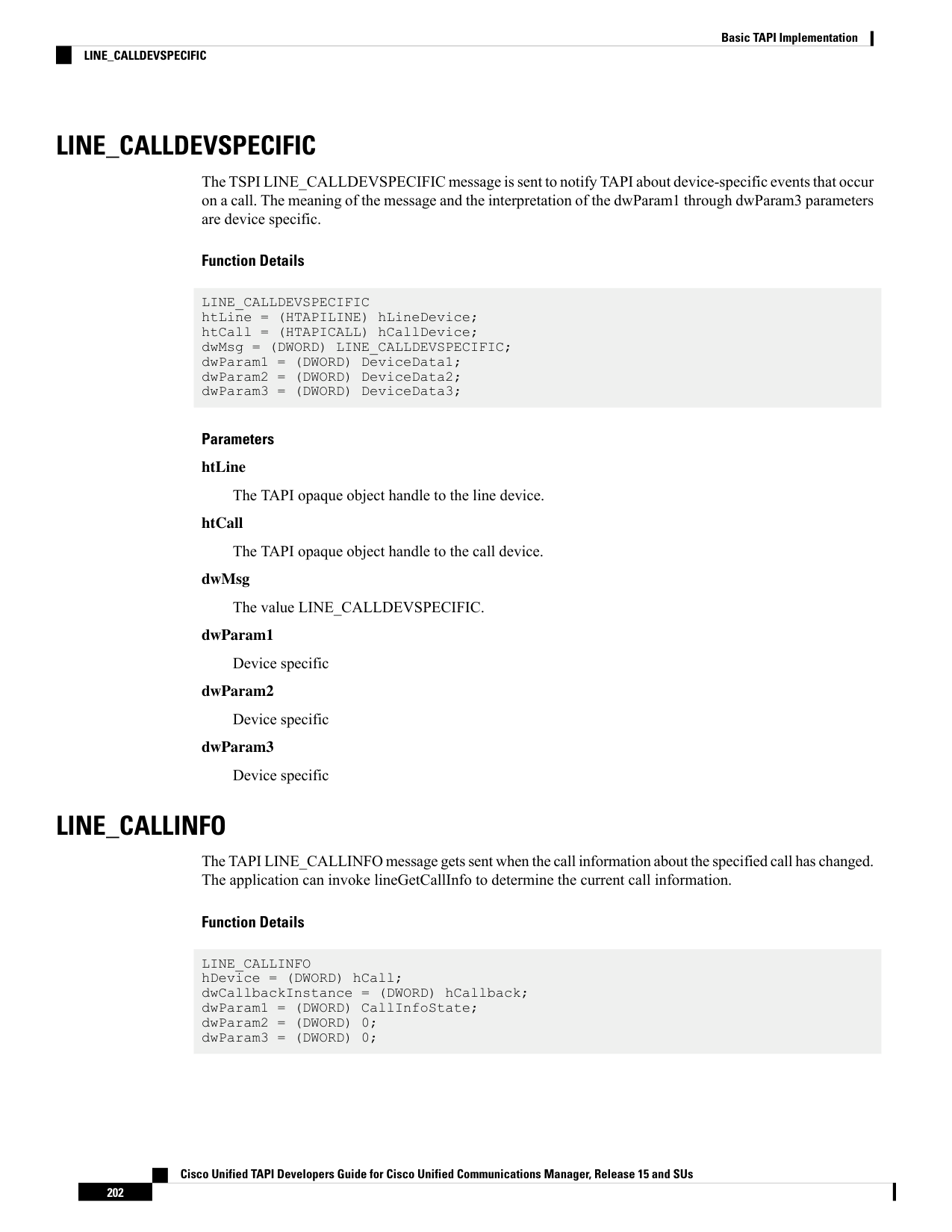

Page 234

LINE_CALLDEVSPECIFIC The TSPI LINE_CALLDEVSPECIFIC message is sent to notify TAPI about device-specific events that occur on a call. The meaning of the message and the interpretation of the dwParam1 through dwParam3 parameters are device specific. Function Details LINE_CALLDEVSPECIFIC htLine = (HTAPILINE) hLineDevice; htCall = (HTAPICALL) hCallDevice; dwMsg = (DWORD) LINE_CALLDEVSPECIFIC; dwParam1 = (DWORD) DeviceData1; dwParam2 = (DWORD) DeviceData2; dwParam3 = (DWORD) DeviceData3; Parameters htLine The TAPI opaque object handle to the line device. htCall The TAPI opaque object handle to the call device. dwMsg The value LINE_CALLDEVSPECIFIC. dwParam1 Device specific dwParam2 Device specific dwParam3 Device specific LINE_CALLINFO The TAPI LINE_CALLINFO message gets sent when the call information about the specified call has changed. The application can invoke lineGetCallInfo to determine the current call information. Function Details LINE_CALLINFO hDevice = (DWORD) hCall; dwCallbackInstance = (DWORD) hCallback; dwParam1 = (DWORD) CallInfoState; dwParam2 = (DWORD) 0; dwParam3 = (DWORD) 0; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 202 Basic TAPI Implementation LINE_CALLDEVSPECIFIC

Page 234 content

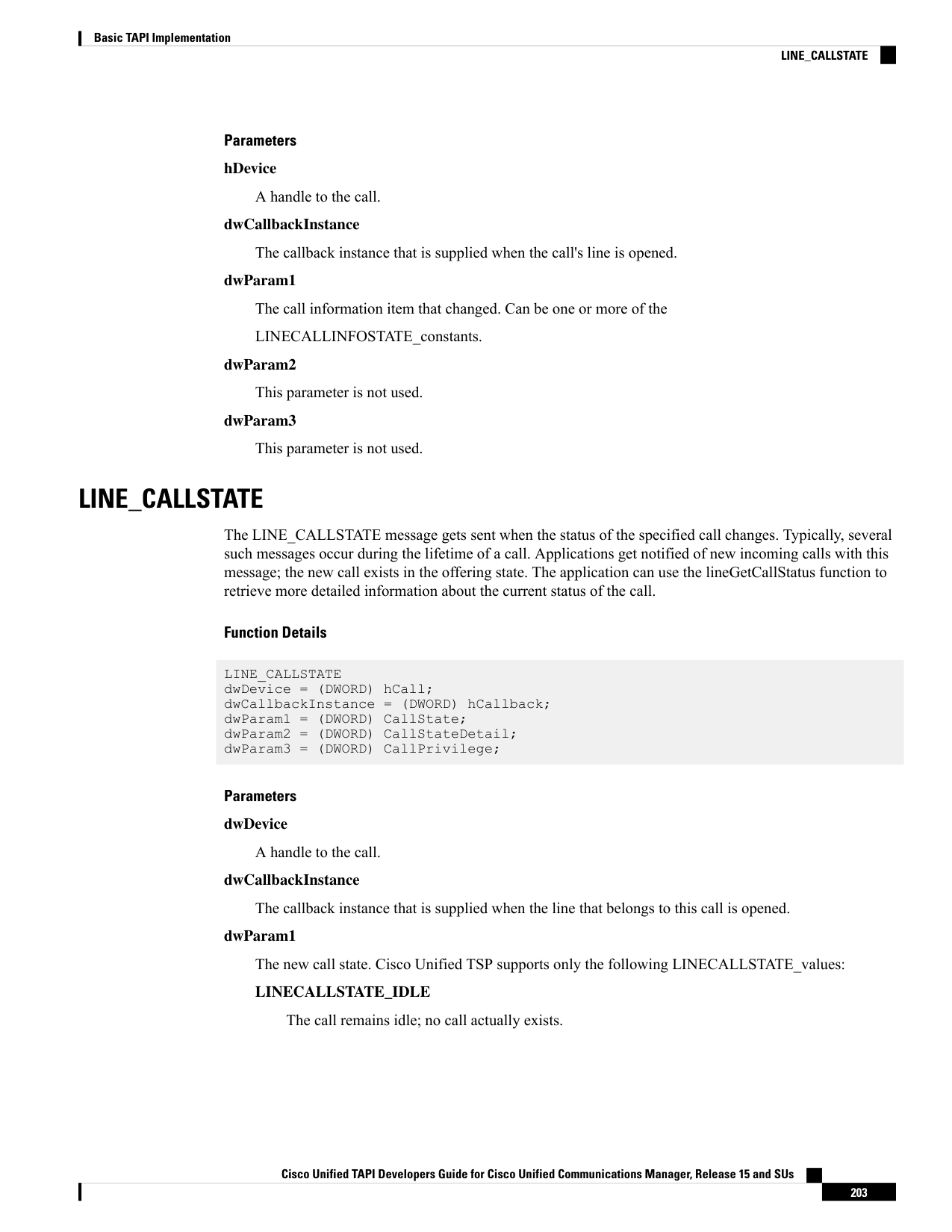

Page 235

Parameters hDevice A handle to the call. dwCallbackInstance The callback instance that is supplied when the call's line is opened. dwParam1 The call information item that changed. Can be one or more of the LINECALLINFOSTATE_constants. dwParam2 This parameter is not used. dwParam3 This parameter is not used. LINE_CALLSTATE The LINE_CALLSTATE message gets sent when the status of the specified call changes. Typically, several such messages occur during the lifetime of a call. Applications get notified of new incoming calls with this message; the new call exists in the offering state. The application can use the lineGetCallStatus function to retrieve more detailed information about the current status of the call. Function Details LINE_CALLSTATE dwDevice = (DWORD) hCall; dwCallbackInstance = (DWORD) hCallback; dwParam1 = (DWORD) CallState; dwParam2 = (DWORD) CallStateDetail; dwParam3 = (DWORD) CallPrivilege; Parameters dwDevice A handle to the call. dwCallbackInstance The callback instance that is supplied when the line that belongs to this call is opened. dwParam1 The new call state. Cisco Unified TSP supports only the following LINECALLSTATE_values: LINECALLSTATE_IDLE The call remains idle; no call actually exists. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 203 Basic TAPI Implementation LINE_CALLSTATE

Page 235 content

Page 236

LINECALLSTATE_OFFERING The call gets offered to the station, which signals the arrival of a new call. In some environments, a call in the offering state does not automatically alert the user. The switch that instructs the line to ring does alerts; it does not affect any call states. LINECALLSTATE_ACCEPTED The system offered the call and it has been accepted. This indicates to other (monitoring) applications that the current owner application claimed responsibility for answering the call. In ISDN, this also indicates that alerting to both parties started. LINECALLSTATE_CONFERENCED The call is a member of a conference call and is logically in the connected state. LINECALLSTATE_DIALTONE The call receives a dial tone from the switch, which means that the switch is ready to receive a dialed number. LINECALLSTATE_DIALING Destination address information (a phone number) is sent to the switch over the call. The lineGenerateDigits does not place the line into the dialing state. LINECALLSTATE_RINGBACK The call receives ringback from the called address. Ringback indicates that the call has reached the other station and is being alerted. LINECALLSTATE_ONHOLDPENDCONF The call currently remains on hold while it gets added to a conference. LINECALLSTATE_CONNECTED The call is established and the connection is made. Information can flow over the call between the originating address and the destination address. LINECALLSTATE_PROCEEDING Dialing completes and the call proceeds through the switch or telephone network. LINECALLSTATE_ONHOLD The switch keeps the call on hold. LINECALLSTATE_ONHOLDPENDTRANSFER The call that is currently on hold awaits transfer to another number. LINECALLSTATE_DISCONNECTED The remote party disconnected from the call. LINECALLSTATE_UNKNOWN The state of the call is not known. This state may occur due to limitations of the call-progress detection implementation. Cisco Unified TSP supports two new call states that indicate more information about the call state within the Cisco Unified Communications Manager setup. The standard TAPI call state is set to Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 204 Basic TAPI Implementation LINE_CALLSTATE

Page 236 content

Page 237

LINECALLSTATE_UNKNOWN and the following call states will be ORed with the unknown call state. #define CLDSMT_CALL_PROGRESSING_STATE 0x0100000 The Progressing state indicates that the call is in progress over the network. The application must negotiate extension version 0x00050001 to receive this call state. #define CLDSMT_CALL_WAITING_STATE 0x02000000 The waiting state indicates that the REFER request is in progress on Referrer's line and the application should not request any other function on this call. All the requests will result in LINEERR_INVALCALLSTATE. Application has to negotiate extension version 0x00070000 to receive this call state. #define CLDSMT_CALL_WHISPER_STATE 0x03000000 The whisper state indicates that the Intercom call is connected in one-way audio mode. The Intercom originator cannot issue other function other that to drop the Intercom call. While at destination side, the system allows only Talkback and dropping call. All other requests result in LINEERR_OPERATIONUNAVAIL. dwParam2 Call-state-dependent information. • If dwParam1 is LINECALLSTATE_CONNECTED, dwParam2 contains details about the connected mode. This parameter uses the following LINECONNECTEDMODE_constants: LINECONNECTEDMODE_ACTIVE Call connects at the current station (the current station acts as a participant in the call). LINECONNECTEDMODE_INACTIVE Call stays active at one or more other stations, but the current station does not participate in the call. When a call is disconnected with cause code = DISCONNECTMODE_TEMPFAILURE and the lineState = LINEDEVSTATE_INSERVICE, applications must take care of dropping the call. If the application terminates media for a device, then it is also takes the responsibility to stop the RTP streams for the same call. Cisco Unified TSP will not provide Stop Transmission/Reception events to applications in this scenario. The behavior is exactly the same with IP phones. The user must hang up the disconnected -temp fail call on IP phone to stop the media. The application is also responsible for stopping the RTP streams in case the line goes out of service (LINEDEVSTATE_OUTOFSERVICE) and the call on a line is reported as IDLE. If an application with negotiated extension version 0x00050001 or greater receives device-specific CLDSMT_CALL_PROGRESSING_STATE = 0x01000000 with LINECALLSTATE_UNKNOWN, the cause code is reported as the standard Q931 cause codes in dwParam2. Note • If dwParam1 specifies LINECALLSTATE_DIALTONE, dwParam2 contains the details about the dial tone mode. This parameter uses the following LINEDIALTONEMODE_constant: LINEDIALTONEMODE_UNAVAIL The dial tone mode is unavailable and cannot become known. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 205 Basic TAPI Implementation LINE_CALLSTATE

Image 1 from page 237

Page 237 content

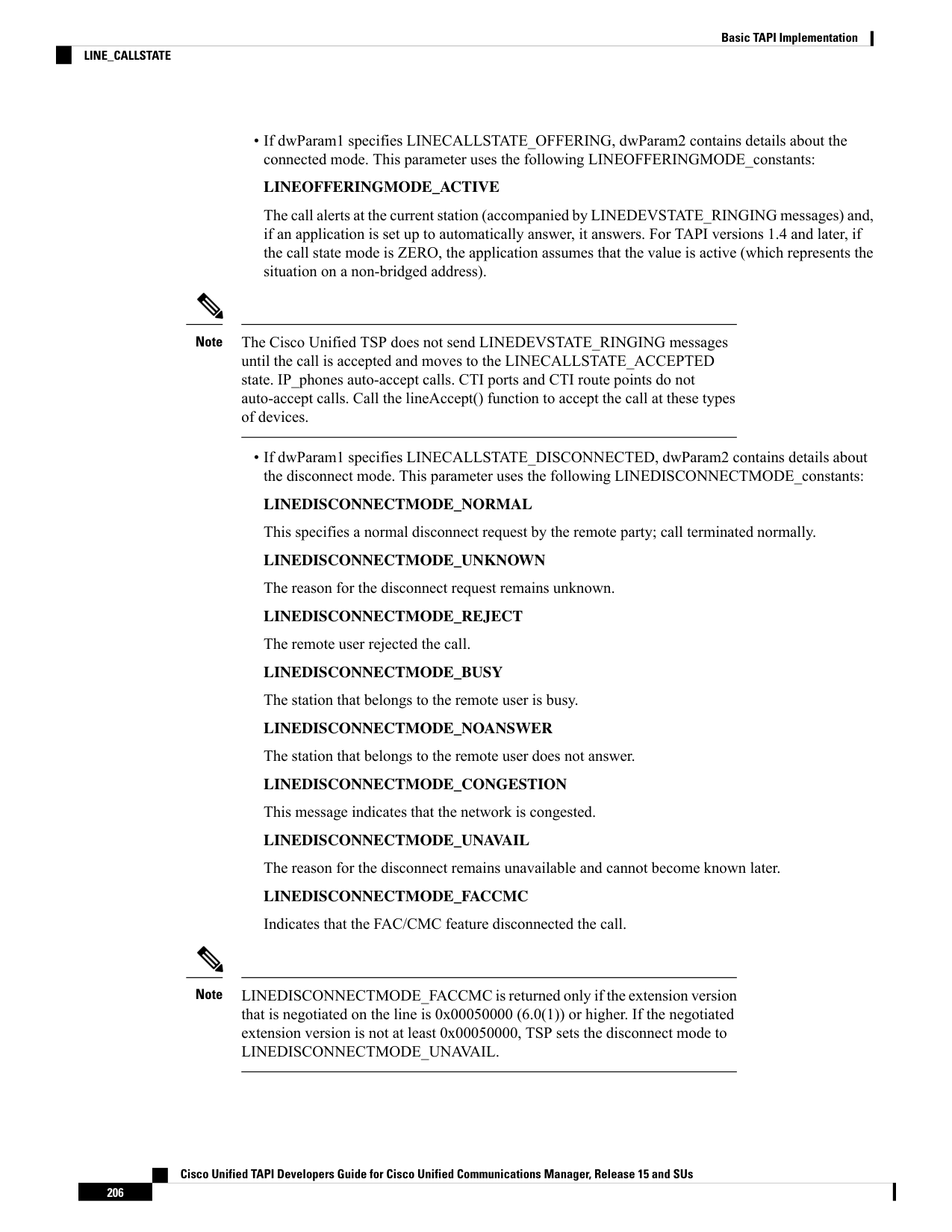

Page 238

• If dwParam1 specifies LINECALLSTATE_OFFERING, dwParam2 contains details about the connected mode. This parameter uses the following LINEOFFERINGMODE_constants: LINEOFFERINGMODE_ACTIVE The call alerts at the current station (accompanied by LINEDEVSTATE_RINGING messages) and, if an application is set up to automatically answer, it answers. For TAPI versions 1.4 and later, if the call state mode is ZERO, the application assumes that the value is active (which represents the situation on a non-bridged address). The Cisco Unified TSP does not send LINEDEVSTATE_RINGING messages until the call is accepted and moves to the LINECALLSTATE_ACCEPTED state. IP_phones auto-accept calls. CTI ports and CTI route points do not auto-accept calls. Call the lineAccept() function to accept the call at these types of devices. Note • If dwParam1 specifies LINECALLSTATE_DISCONNECTED, dwParam2 contains details about the disconnect mode. This parameter uses the following LINEDISCONNECTMODE_constants: LINEDISCONNECTMODE_NORMAL This specifies a normal disconnect request by the remote party; call terminated normally. LINEDISCONNECTMODE_UNKNOWN The reason for the disconnect request remains unknown. LINEDISCONNECTMODE_REJECT The remote user rejected the call. LINEDISCONNECTMODE_BUSY The station that belongs to the remote user is busy. LINEDISCONNECTMODE_NOANSWER The station that belongs to the remote user does not answer. LINEDISCONNECTMODE_CONGESTION This message indicates that the network is congested. LINEDISCONNECTMODE_UNAVAIL The reason for the disconnect remains unavailable and cannot become known later. LINEDISCONNECTMODE_FACCMC Indicates that the FAC/CMC feature disconnected the call. LINEDISCONNECTMODE_FACCMC is returned only if the extension version that is negotiated on the line is 0x00050000 (6.0(1)) or higher. If the negotiated extension version is not at least 0x00050000, TSP sets the disconnect mode to LINEDISCONNECTMODE_UNAVAIL. Note Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 206 Basic TAPI Implementation LINE_CALLSTATE

Image 1 from page 238

Page 238 content

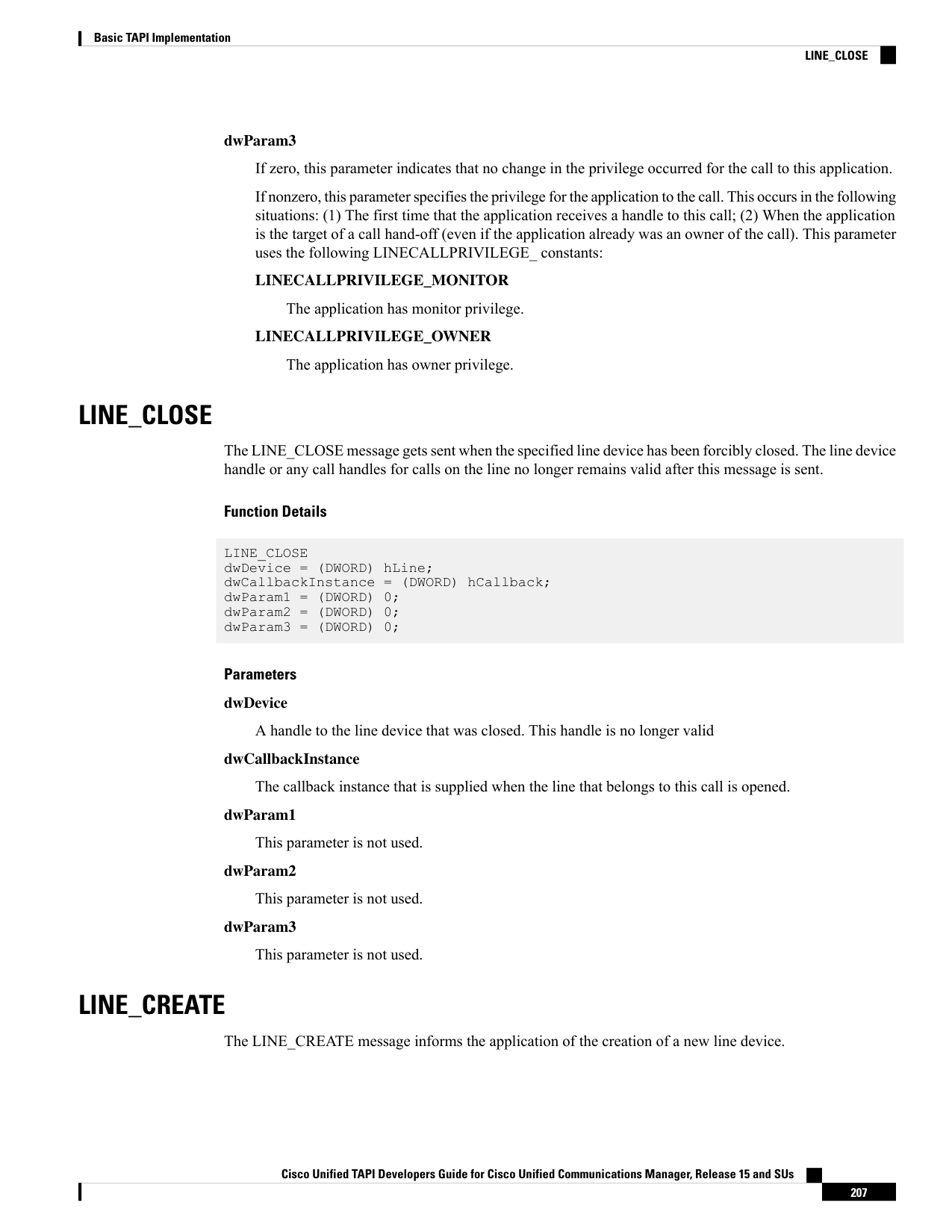

Page 239

dwParam3 If zero, this parameter indicates that no change in the privilege occurred for the call to this application. If nonzero, this parameter specifies the privilege for the application to the call. This occurs in the following situations: (1) The first time that the application receives a handle to this call; (2) When the application is the target of a call hand-off (even if the application already was an owner of the call). This parameter uses the following LINECALLPRIVILEGE_ constants: LINECALLPRIVILEGE_MONITOR The application has monitor privilege. LINECALLPRIVILEGE_OWNER The application has owner privilege. LINE_CLOSE The LINE_CLOSE message gets sent when the specified line device has been forcibly closed. The line device handle or any call handles for calls on the line no longer remains valid after this message is sent. Function Details LINE_CLOSE dwDevice = (DWORD) hLine; dwCallbackInstance = (DWORD) hCallback; dwParam1 = (DWORD) 0; dwParam2 = (DWORD) 0; dwParam3 = (DWORD) 0; Parameters dwDevice A handle to the line device that was closed. This handle is no longer valid dwCallbackInstance The callback instance that is supplied when the line that belongs to this call is opened. dwParam1 This parameter is not used. dwParam2 This parameter is not used. dwParam3 This parameter is not used. LINE_CREATE The LINE_CREATE message informs the application of the creation of a new line device. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 207 Basic TAPI Implementation LINE_CLOSE

Page 239 content

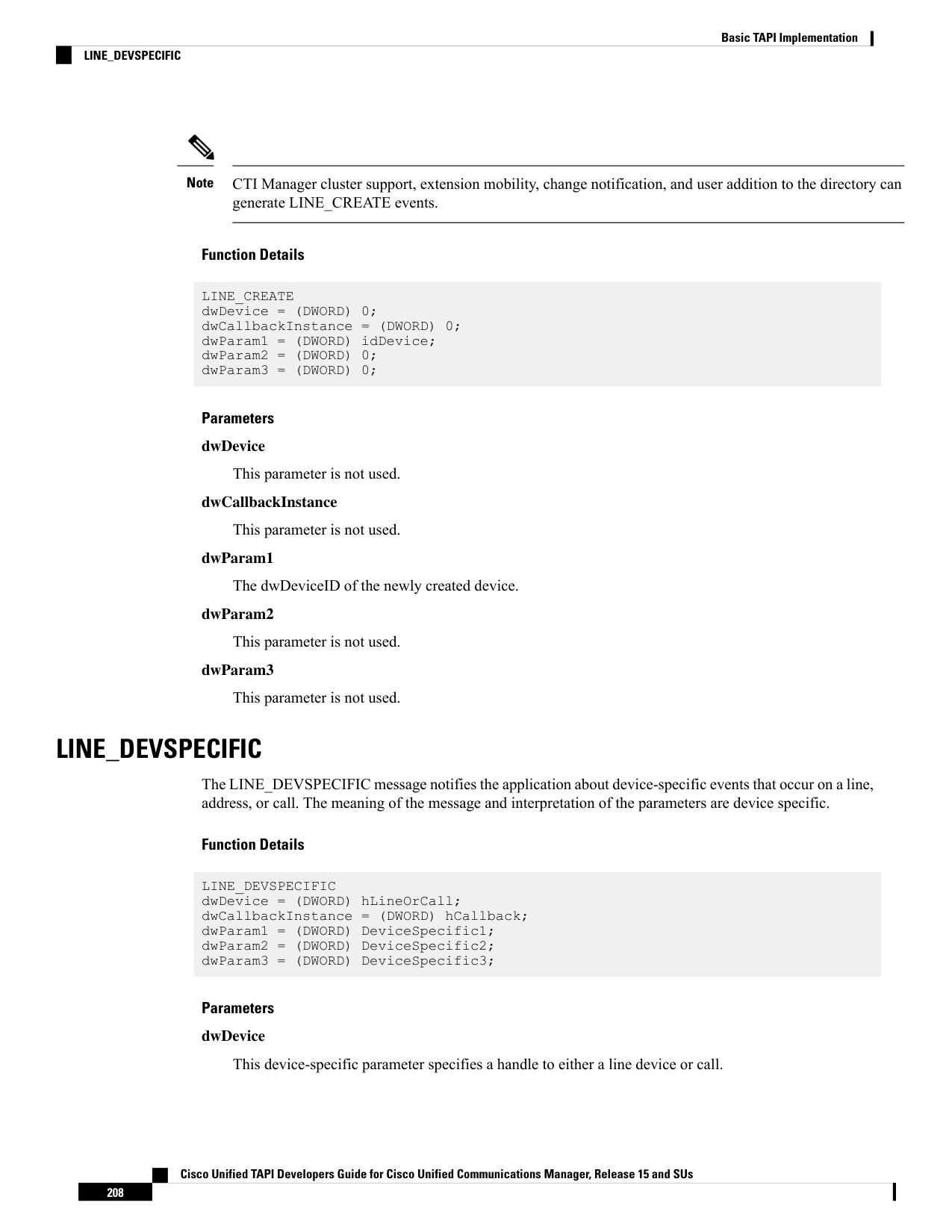

Page 240

CTI Manager cluster support, extension mobility, change notification, and user addition to the directory can generate LINE_CREATE events. Note Function Details LINE_CREATE dwDevice = (DWORD) 0; dwCallbackInstance = (DWORD) 0; dwParam1 = (DWORD) idDevice; dwParam2 = (DWORD) 0; dwParam3 = (DWORD) 0; Parameters dwDevice This parameter is not used. dwCallbackInstance This parameter is not used. dwParam1 The dwDeviceID of the newly created device. dwParam2 This parameter is not used. dwParam3 This parameter is not used. LINE_DEVSPECIFIC The LINE_DEVSPECIFIC message notifies the application about device-specific events that occur on a line, address, or call. The meaning of the message and interpretation of the parameters are device specific. Function Details LINE_DEVSPECIFIC dwDevice = (DWORD) hLineOrCall; dwCallbackInstance = (DWORD) hCallback; dwParam1 = (DWORD) DeviceSpecific1; dwParam2 = (DWORD) DeviceSpecific2; dwParam3 = (DWORD) DeviceSpecific3; Parameters dwDevice This device-specific parameter specifies a handle to either a line device or call. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 208 Basic TAPI Implementation LINE_DEVSPECIFIC

Image 1 from page 240

Page 240 content

Page 241

dwCallbackInstance The callback instance that is supplied when the line opens. dwParam1 is device specific dwParam2 is device specific dwParam3 is device specific LINE_DEVSPECIFICFEATURE This line message, added in Cisco Unified Communications Manager Release 6.0, enables a Do Not Disturb (DND) change notification event. Cisco TSP notifies applications by using the LINE_DEVSPECIFICFEATURE message about changes in the DND configuration or status. In order to receive change notifications an application needs to enable DEVSPECIFIC_DONOTDISTURB_CHANGED message flag by using lineDevSpecific SLDST_SET_STATUS_MESSAGES request. LINE_DEVSPECIFICFEATURE message is sent to notify the application about device-specific events occurring on a line device. In case of a DND change notification, the message includes information about the type of change that occurred on a device and resulted feature status or configured option. Function Details dwDevice = (DWORD) hLine; dwCallbackInstance = (DWORD) hCallback; dwParam1 = (DWORD) PHONEBUTTONFUNCTION_DONOTDISTURB; dwParam2 = (DWORD) typeOfChange; dwParam3 = (DWORD) currentValue; enum CiscoDoNotDisturbOption { DoNotDisturbOption_NONE = 0, DoNotDisturbOption_RINGEROFF = 1, DoNotDisturbOption_REJECT = 2 }; enum CiscoDoNotDisturbStatus { DoNotDisturbStatus_UNKNOWN = 0, DoNotDisturbStatus_ENABLED = 1, DoNotDisturbStatus_DISABLED = 2 }; enum CiscoDoNotDisturbNotification { DoNotDisturb_STATUS_CHANGED = 1, DoNotDisturb_OPTION_CHANGED = 2 }; Parameters dwDevice A handle to a line device. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 209 Basic TAPI Implementation LINE_DEVSPECIFICFEATURE

Page 241 content

Page 242

dwCallbackInstance The callback instance supplied when opening the line. dwParam1 Always equal to PHONEBUTTONFUNCTION_DONOTDISTURB for the Do-Not-Disturb change notification dwParam2 Indicates the type of change and can have one of the following enum values: enum CiscoDoNotDisturbNotification { DoNotDisturb_STATUS_CHANGED = 1, DoNotDisturb_OPTION_CHANGED = 2 }; dwParam3 If the dwParm2 indicates status change (is equal to DoNotDisturb_STATUS_CHANGED) this parameter can have one of the following enum values: enum CiscoDoNotDisturbStatus { DoNotDisturbStatus_UNKNOWN = 0, DoNotDisturbStatus_ENABLED = 1, DoNotDisturbStatus_DISABLED = 2 }; If the dwParm2 indicates option change (is equal to DoNotDisturb_OPTION_CHANGED) this parameter can have one of the following enum values: enum CiscoDoNotDisturbOption { DoNotDisturbOption_NONE = 0, DoNotDisturbOption_RINGEROFF = 1, DoNotDisturbOption_REJECT = 2 }; LINE_GATHERDIGITS The TAPI LINE_GATHERDIGITS message is sent when the current buffered digit-gathering request is terminated or canceled. You can examine the digit buffer after the application receives this message. Function Details LINE_GATHERDIGITS hDevice = (DWORD) hCall; dwCallbackInstance = (DWORD) hCallback; dwParam1 = (DWORD) GatherTermination; dwParam2 = (DWORD) 0; dwParam3 = (DWORD) 0; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 210 Basic TAPI Implementation LINE_GATHERDIGITS

Page 242 content

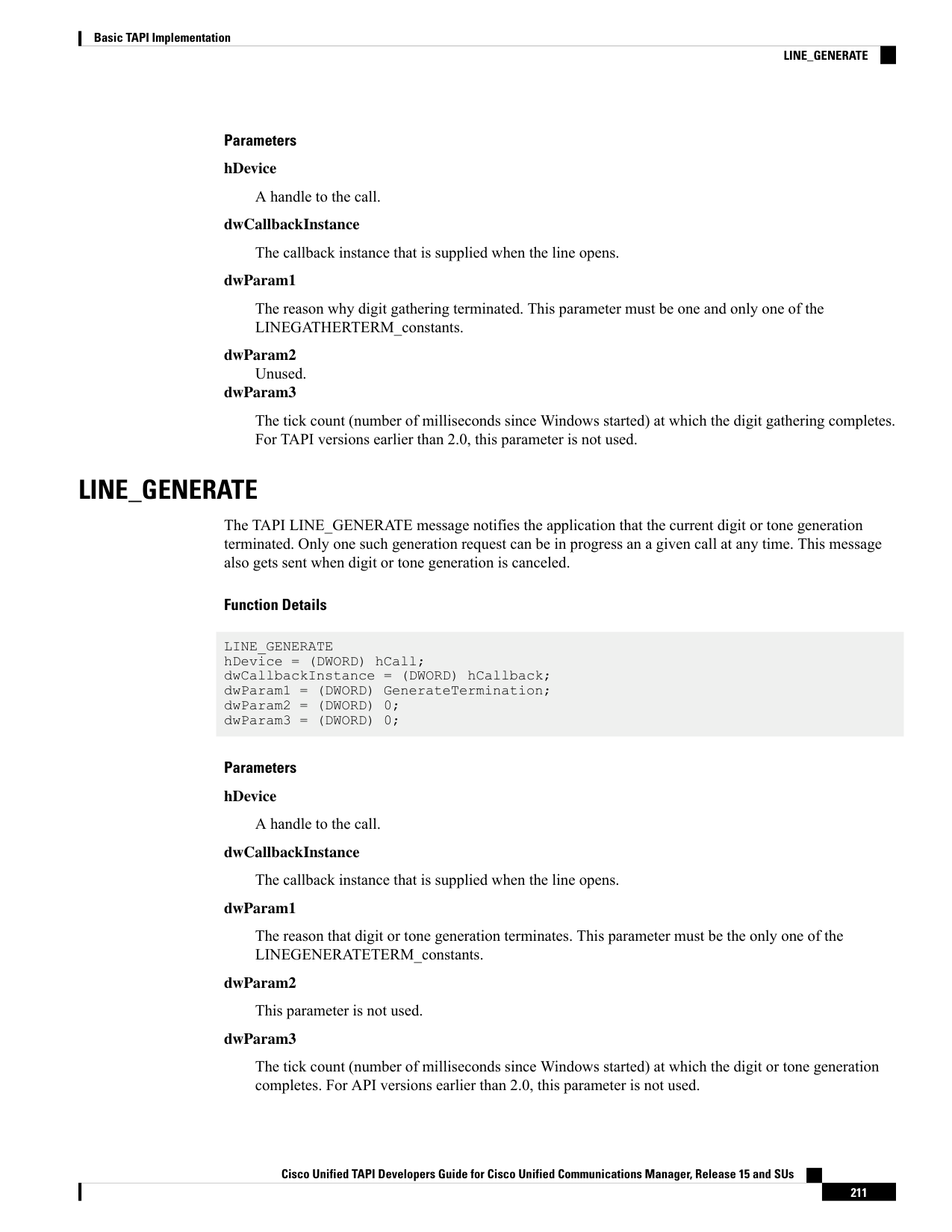

Page 243

Parameters hDevice A handle to the call. dwCallbackInstance The callback instance that is supplied when the line opens. dwParam1 The reason why digit gathering terminated. This parameter must be one and only one of the LINEGATHERTERM_constants. dwParam2 Unused. dwParam3 The tick count (number of milliseconds since Windows started) at which the digit gathering completes. For TAPI versions earlier than 2.0, this parameter is not used. LINE_GENERATE The TAPI LINE_GENERATE message notifies the application that the current digit or tone generation terminated. Only one such generation request can be in progress an a given call at any time. This message also gets sent when digit or tone generation is canceled. Function Details LINE_GENERATE hDevice = (DWORD) hCall; dwCallbackInstance = (DWORD) hCallback; dwParam1 = (DWORD) GenerateTermination; dwParam2 = (DWORD) 0; dwParam3 = (DWORD) 0; Parameters hDevice A handle to the call. dwCallbackInstance The callback instance that is supplied when the line opens. dwParam1 The reason that digit or tone generation terminates. This parameter must be the only one of the LINEGENERATETERM_constants. dwParam2 This parameter is not used. dwParam3 The tick count (number of milliseconds since Windows started) at which the digit or tone generation completes. For API versions earlier than 2.0, this parameter is not used. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 211 Basic TAPI Implementation LINE_GENERATE

Page 243 content

Page 244

LINE_LINEDEVSTATE The TAPI LINE_LINEDEVSTATE message gets sent when the state of a line device changes. The application can invoke lineGetLineDevStatus to determine the new status of the line. Function Details LINE_LINEDEVSTATE hDevice = (DWORD) hLine; dwCallbackInstance = (DWORD) hCallback; dwParam1 = (DWORD) DeviceState; dwParam2 = (DWORD) DeviceStateDetail1; dwParam3 = (DWORD) DeviceStateDetail2; Parameters hDevice A handle to the line device. This parameter is NULL when dwParam1 is LINEDEVSTATE_REINIT. dwCallbackInstance The callback instance that is supplied when the line is opened. If the dwParam1 parameter is LINEDEVSTATE_REINIT, the dwCallbackInstance parameter is not valid and is set to zero. dwParam1 The line device status item that changed. The parameter can be one or more of the LINEDEVSTATE_constants. LINEDEVSTATE_OUTOFSERVICE Indicates the line device unregisters as it enters Energywise DeepSleep/PowersavePlus mode dwParam2 The interpretation of this parameter depends on the value of dwParam1. If dwParam1 is LINEDEVSTATE_RINGING, dwParam2 contains the ring mode with which the switch instructs the line to ring. Valid ring modes include numbers in the range one to dwNumRingModes, where dwNumRingModes specifies a line device capability. If dwParam1 is LINEDEVSTATE_REINIT, and TAPI issued the message as a result of translation of a new API message into a REINIT message, dwParam2 contains the dwMsg parameter of the original message (for example, LINE_CREATE or LINE_LINEDEVSTATE). If dwParam2 is zero, this indicates that the REINIT message represents a real REINIT message that requires the application to call lineShutdown at its earliest convenience. If dw Param1 is LINEDEVSTATE_OUTOFSERVICE, dwParam2 contains the reason EnergyWisePowerSavePlus when the line device unregisters as it enters EnergywiseDeepSleep. dwParam3 The interpretation of this parameter depends on the value of dwParam1. If dwParam1 is LINEDEVSTATE_RINGING, dwParam3 contains the ring count for this ring event. The ring count starts at zero. If dwParam1 is LINEDEVSTATE_REINIT, and TAPI issued the message as a result of translation of a new API message into a REINIT message, dwParam3 contains the dwParam1 parameter of the original message (for example, LINEDEVSTATE_TRANSLATECHANGE or some other Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 212 Basic TAPI Implementation LINE_LINEDEVSTATE

Page 244 content

Page 245

LINEDEVSTATE_value, if dwParam2 is LINE_LINEDEVSTATE, or the new device identifier, if dwParam2 is LINE_CREATE). LINE_MONITORDIGITS The LINE_MONITORDIGITS message gets sent when a digit is detected. The lineMonitorDigits function controls the sending of this message. Function Details LINE_MONITORDIGITS dwDevice = (DWORD) hCall; dwCallbackInstance = (DWORD) hCallback; dwParam1 = (DWORD) Digit; dwParam2 = (DWORD) DigitMode; dwParam3 = (DWORD) 0; Parameters dwDevice A handle to the call. dwCallbackInstance The callback instance that is supplied when the line for this call is opened. dwParam1 The low-order byte contains the last digit that is received in ASCII. dwParam2 The digit mode that was detected. This parameter must be one and only one of the following LINEDIGITMODE_constant: LINEDIGITMODE_DTMF Detect digits as DTMF tones. Valid digits for DTMF include ‘0’ through ‘9’, ‘*’, and ‘#’. dwParam3 The “tick count” (number of milliseconds after Windows started) at which the specified digit was detected. For API versions earlier than 2.0, this parameter is not used. LINE_MONITORTONE The LINE_MONITORTONE message gets sent when a tone is detected. The lineMonitorTones function controls the sending of this message. Cisco Unified TSP supports only silent detection through LINE_MONITORTONE. Note Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 213 Basic TAPI Implementation LINE_MONITORDIGITS

Image 1 from page 245

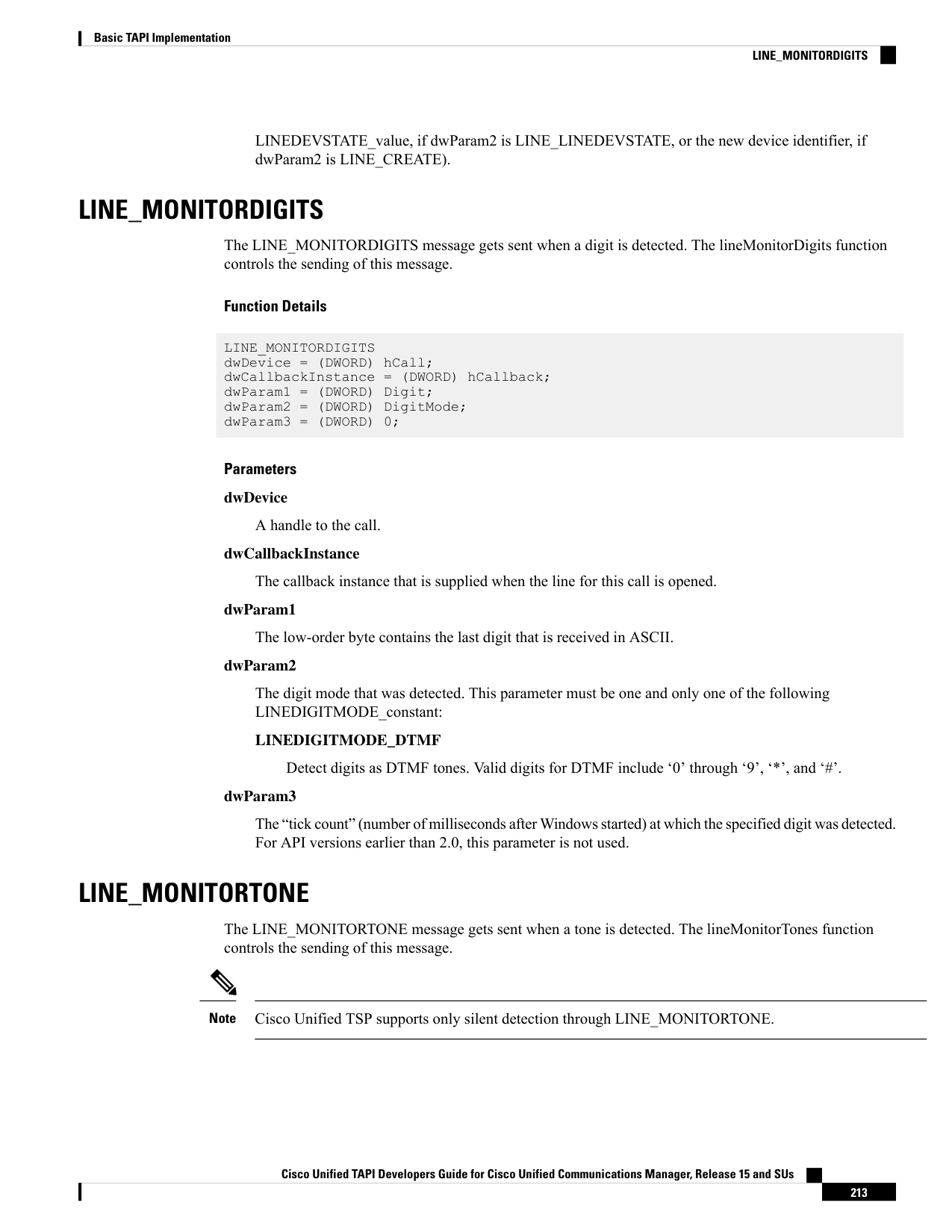

Page 245 content

Page 246

Function Details LINE_MONITORTONE dwDevice = (DWORD) hCall; dwCallbackInstance = (DWORD) hCallback; dwParam1 = (DWORD) dwAppSpecific; dwParam2 = (DWORD) 0; dwParam3 = (DWORD) tick count; Parameters dwDevice A handle to the call. dwCallbackInstance The callback instance supplied when the line opens for this call. dwParam1 The application-specific dwAppSpecific member of the LINE_MONITORTONE structure for the tone that was detected. dwParam2 This parameter is not used. dwParam3 The “tick count” (number of milliseconds after Windows started) at which the specified digit was detected. LINE_REMOVE The LINE_REMOVE message informs an application of the removal (deletion from the system) of a line device. Generally, this parameter is not used for temporary removals, such as extraction of PCMCIA devices, but only for permanent removals in which, the service provider would no longer report the device, if TAPI were reinitialized. CTI Manager cluster support, extension mobility, change notification, and user deletion from the directory can generate LINE_REMOVE events. Note Function Details LINE_REMOVE dwDevice = (DWORD) 0; dwCallbackInstance = (DWORD) 0; dwParam1 = (DWORD) dwDeviceID; dwParam2 = (DWORD) 0; dwParam3 = (DWORD) 0; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 214 Basic TAPI Implementation LINE_REMOVE

Image 1 from page 246

Page 246 content

Page 247

Parameters dwDevice Reserved. Set to zero. dwCallbackInstance Reserved. Set to zero. dwParam1 Identifier of the line device that was removed. dwParam2 Reserved. Set to zero. dwParam3 Reserved. Set to zero. LINE_REPLY The LINE_REPLY message reports the results of function calls that completed asynchronously. Function Details LINE_REPLY dwDevice = (DWORD) 0; dwCallbackInstance = (DWORD) hCallback; dwParam1 = (DWORD) idRequest; dwParam2 = (DWORD) Status; dwParam3 = (DWORD) 0; Parameters dwDevice This parameter is not used. dwCallbackInstance Returns the callback instance for this application. dwParam1 The request identifier for which this is the reply. dwParam2 The success or error indication. The application should cast this parameter into a long integer: • Zero indicates success. • A negative number indicates an error. dwParam3 This parameter is not used. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 215 Basic TAPI Implementation LINE_REPLY

Page 247 content

Page 248

LINE_REQUEST The TAPI LINE_REQUEST message reports the arrival of a new request from another application. Function Details LINE_REQUEST hDevice = (DWORD) 0; dwCallbackInstance = (DWORD) hRegistration; dwParam1 = (DWORD) RequestMode; dwParam2 = (DWORD) RequestModeDetail1; dwParam3 = (DWORD) RequestModeDetail2; Parameters hDevice This parameter is not used. dwCallbackInstance The registration instance of the application that is specified on lineRegisterRequestRecipient. dwParam1 The request mode of the newly pending request. This parameter uses the LINEREQUESTMODE_constants. dwParam2 If dwParam1 is set to LINEREQUESTMODE_DROP, dwParam2 contains the hWnd of the application that requests the drop. Otherwise, dwParam2 is not used. dwParam3 If dwParam1 is set to LINEREQUESTMODE_DROP, the low-order word of dwParam3 contains the wRequestID as specified by the application requesting the drop. Otherwise, dwParam3 is not used. TAPI Line Device Structures The following table lists the TAPI line device structures that the Cisco Unified TSP supports. This section lists the possible values for the structure members as set by the TSP, and provides a cross reference to the functions that use them. If the value of a structure member is device, line, or call specific, the system notes the value for each condition. Table 16: TAPI Line Device Structures TAPI Line Device Structures LINEADDRESSCAPS, on page 217 LINEADDRESSSTATUS, on page 228 LINEAPPINFO, on page 229 LINECALLINFO, on page 231 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 216 Basic TAPI Implementation LINE_REQUEST

Page 248 diagram

Page 249

TAPI Line Device Structures LINECALLLIST, on page 239 LINECALLPARAMS, on page 240 LINECALLSTATUS, on page 242 LINECARDENTRY, on page 248 LINECOUNTRYENTRY, on page 250 LINECOUNTRYLIST, on page 251 LINEDEVCAPS, on page 252 LINEDEVSTATUS, on page 257 LINEEXTENSIONID, on page 259 LINEFORWARD, on page 259 LINEFORWARDLIST, on page 263 LINEGENERATETONE, on page 263 LINEINITIALIZEEXPARAMS, on page 264 LINELOCATIONENTRY, on page 265 LINEMESSAGE, on page 267 LINEMONITORTONE, on page 268 LINEPROVIDERENTRY, on page 269 LINEPROVIDERLIST, on page 269 LINEREQMAKECALL, on page 270 LINETRANSLATECAPS, on page 271 LINETRANSLATEOUTPUT, on page 272 LINEADDRESSCAPS Members Values Members For All Devices:The device identifier of the line device with which this address is associated. dwLineDeviceID Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 217 Basic TAPI Implementation LINEADDRESSCAPS

Page 249 diagram

Page 250

Values Members For All Devices:The size, in bytes, of the variably sized address field and the offset, in bytes, from the beginning of this data structure dwAddressSizedwAddressOffset For All Devices:0 dwDevSpecificSize dwDevSpecificOffset For All Devices:0 dwAddressSharing For All Devices (except Park DNs):LINEADDRESSSTATE_FORWARD dwAddressStates For Park DNs:0 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 218 Basic TAPI Implementation LINEADDRESSCAPS

Page 250 diagram

Page 251

Values Members For All Devices (except Park DNs):LINECALLINFOSTATE_CALLEDID LINECALLINFOSTATE_CALLERID LINECALLINFOSTATE_CALLID LINECALLINFOSTATE_CONNECTEDID LINECALLINFOSTATE_MEDIAMODE LINECALLINFOSTATE_MONITORMODES LINECALLINFOSTATE_NUMMONITORS LINECALLINFOSTATE_NUMOWNERDECR LINECALLINFOSTATE_NUMOWNERINCR LINECALLINFOSTATE_ORIGIN LINECALLINFOSTATE_REASON LINECALLINFOSTATE_REDIRECTINGID LINECALLINFOSTATE_REDIRECTIONID dwCallInfoStates For Park DNs: LINECALLINFOSTATE_CALLEDID LINECALLINFOSTATE_CALLERID LINECALLINFOSTATE_CALLID LINECALLINFOSTATE_CONNECTEDID LINECALLINFOSTATE_NUMMONITORS LINECALLINFOSTATE_NUMOWNERDECR LINECALLINFOSTATE_NUMOWNERINCR LINECALLINFOSTATE_ORIGIN LINECALLINFOSTATE_REASON LINECALLINFOSTATE_REDIRECTINGID LINECALLINFOSTATE_REDIRECTIONID For All Devices:LINECALLPARTYID_ADDRESS LINECALLPARTYID_NAME LINECALLPARTYID_UNKNOWN LINECALLPARTYID_BLOCKED dwCallerIDFlags Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 219 Basic TAPI Implementation LINEADDRESSCAPS

Page 251 diagram

Page 252

Values Members For All Devices: LINECALLPARTYID_ADDRESS LINECALLPARTYID_NAME LINECALLPARTYID_UNKNOWN dwCalledIDFlags For All Devices: LINECALLPARTYID_ADDRESS LINECALLPARTYID_NAME LINECALLPARTYID_UNKNOWN LINECALLPARTYID_BLOCKED dwConnectedIDFlags For All Devices: LINECALLPARTYID_ADDRESS LINECALLPARTYID_NAME LINECALLPARTYID_UNKNOWN LINECALLPARTYID_BLOCKED dwRedirectionIDFlags For All Devices:LINECALLPARTYID_ADDRESS LINECALLPARTYID_NAME LINECALLPARTYID_UNKNOWN dwRedirectingIDFlags Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 220 Basic TAPI Implementation LINEADDRESSCAPS

Page 252 diagram

Page 253

Values Members For IP Phones and CTI Ports:LINECALLSTATE_ACCEPTED LINECALLSTATE_CONFERENCED LINECALLSTATE_CONNECTED LINECALLSTATE_DIALING LINECALLSTATE_DIALTONE LINECALLSTATE_DISCONNECTED LINECALLSTATE_IDLE LINECALLSTATE_OFFERING LINECALLSTATE_ONHOLD LINECALLSTATE_ONHOLDPENDCONF LINECALLSTATE_ONHOLDPENDTRANSFER LINECALLSTATE_PROCEEDING LINECALLSTATE_RINGBACK LINECALLSTATE_UNKNOWN dwCallStates For CTI Route Points (without media):LINECALLSTATE_ACCEPTED LINECALLSTATE_DISCONNECTED LINECALLSTATE_IDLE LINECALLSTATE_OFFERING LINECALLSTATE_UNKNOWN For CTI Route Points (with media):LINECALLSTATE_ACCEPTED LINECALLSTATE_CONNECTED LINECALLSTATE_DISCONNECTED LINECALLSTATE_ONHOLD LINECALLSTATE_IDLE LINECALLSTATE_OFFERING LINECALLSTATE_UNKNOWN Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 221 Basic TAPI Implementation LINEADDRESSCAPS

Page 253 diagram

Page 254

Values Members For Park DNs:LINECALLSTATE_ACCEPTED LINECALLSTATE_CONFERENCED LINECALLSTATE_CONNECTED LINECALLSTATE_DISCONNECTED LINECALLSTATE_IDLE LINECALLSTATE_OFFERING LINECALLSTATE_ONHOLD LINECALLSTATE_UNKNOWN For IP Phones and CTI Ports:LINEDIALTONEMODE_UNAVAIL dwDialToneModes For CTI Route Points and Park DNs:0 For All Devices:0 dwBusyModes For All Devices:0 dwSpecialInfo For All Devices:LINEDISCONNECTMODE_BADDADDRESS LINEDISCONNECTMODE_BUSY LINEDISCONNECTMODE_CONGESTION LINEDISCONNECTMODE_FORWARDED LINEDISCONNECTMODE_NOANSWER LINEDISCONNECTMODE_NORMAL LINEDISCONNECTMODE_REJECT LINEDISCONNECTMODE_TEMPFAILURE LINEDISCONNECTMODE_UNREACHABLE LINEDISCONNECTMODE_FACCMC (if negotiated extension version is 0x00050000 or greater) dwDisconnectModes For IP Phones, CTI Ports, and Park DNs:1 dwMaxNumActiveCalls For CTI Route Points (without media): 0 For CTI Route Points (with media):Cisco Unified Communications Manager Administration configuration Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 222 Basic TAPI Implementation LINEADDRESSCAPS

Page 254 diagram

Page 255

Values Members For IP Phones, CTI Ports:200 dwMaxNumOnHoldCalls For CTI Route Points:0 For CTI Route Points (with media):Cisco Unified Communications Manager Administration configuration (same configuration as dwMaxNumActiveCalls) For Park DNs: 1 For IP Phones and CTI Ports:1 dwMaxNumOnHoldPendingCalls For CTI Route Points and Park DNs:0 For IP Phones, CTI Ports, and Park DNs:16 dwMaxNumConference For CTI Route Points:0 For All Devices:0 dwMaxNumTransConf For IP Phones:LINEADDRCAPFLAGS_CONFERENCEHELD LINEADDRCAPFLAGS_DIALED LINEADDRCAPFLAGS_FWDSTATUSVALID LINEADDRCAPFLAGS_PARTIALDIAL LINEADDRCAPFLAGS_TRANSFERHELD dwAddrCapFlags For CTI Ports:LINEADDRCAPFLAGS_CONFERENCEHELD LINEADDRCAPFLAGS_DIALED LINEADDRCAPFLAGS_ACCEPTTOALERT LINEADDRCAPFLAGS_FWDSTATUSVALID LINEADDRCAPFLAGS_PARTIALDIAL LINEADDRCAPFLAGS_TRANSFERHELD For CTI Route Points:LINEADDRCAPFLAGS_ACCEPTTOALERT LINEADDRCAPFLAGS_FWDSTATUSVALID LINEADDRCAPFLAGS_ROUTEPOINT ForParkDNs:LINEADDRCAPFLAGS_NOEXTERNALCALLS LINEADDRCAPFLAGS_NOINTERNALCALLS Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 223 Basic TAPI Implementation LINEADDRESSCAPS

Page 255 diagram

Page 256

Values Members For IP Phones (except VG248 and ATA186) and CTI Ports:LINECALLFEATURE_ACCEPT LINECALLFEATURE_ADDTOCONF LINECALLFEATURE_ANSWER LINECALLFEATURE_BLINDTRANSFER LINECALLFEATURE_COMPLETETRANSF LINECALLFEATURE_DIAL LINECALLFEATURE_DROP LINECALLFEATURE_GATHERDIGITS LINECALLFEATURE_GENERATEDIGITS LINECALLFEATURE_GENERATETONE LINECALLFEATURE_HOLD LINECALLFEATURE_MONITORDIGITS LINECALLFEATURE_MONITORTONES LINECALLFEATURE_PARK LINECALLFEATURE_PREPAREADDTOCONF LINECALLFEATURE_REDIRECT LINECALLFEATURE_SETUPCONF LINECALLFEATURE_SETUPTRANSFER LINECALLFEATURE_UNHOLD LINECALLFEATURE_UNPARK dwCallFeatures Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 224 Basic TAPI Implementation LINEADDRESSCAPS

Page 256 diagram

Page 257

Values Members For VG248 and ATA186 Devices:LINECALLFEATURE_ACCEPT LINECALLFEATURE_ADDTOCONF LINECALLFEATURE_BLINDTRANSFER LINECALLFEATURE_COMPLETETRANSF LINECALLFEATURE_DIAL LINECALLFEATURE_DROP LINECALLFEATURE_GATHERDIGITS LINECALLFEATURE_GENERATEDIGITS LINECALLFEATURE_GENERATETONE LINECALLFEATURE_HOLD LINECALLFEATURE_MONITORDIGITS LINECALLFEATURE_MONITORTONES LINECALLFEATURE_PARK LINECALLFEATURE_PREPAREADDTOCONF LINECALLFEATURE_REDIRECT LINECALLFEATURE_SETUPCONF LINECALLFEATURE_SETUPTRANSFER LINECALLFEATURE_UNHOLD INECALLFEATURE_UNPARK Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 225 Basic TAPI Implementation LINEADDRESSCAPS

Page 257 diagram

Page 258

Values Members For CTI Route Points (without media):LINECALLFEATURE_ACCEPT LINECALLFEATURE_DROP LINECALLFEATURE_REDIRECT For CTI Route Points (with media):LINECALLFEATURE_ACCEPT LINECALLFEATURE_ANSWER LINECALLFEATURE_DIAL LINECALLFEATURE_DROP LINECALLFEATURE_GATHERDIGITS LINECALLFEATURE_GENERATEDIGITS LINECALLFEATURE_GENERATETONE LINECALLFEATURE_HOLD LINECALLFEATURE_MONITORDIGITS LINECALLFEATURE_MONITORTONES LINECALLFEATURE_REDIRECT LINECALLFEATURE_UNHOLD dwCallFeatures (continued) For Park DNs:0 For All Devices:0 dwRemoveFromConfCaps For All Devices:0 dwRemoveFromConfState For IP Phones and CTI Ports:LINETRANSFERMODE_TRANSFER LINETRANSFERMODE_CONFERENCE dwTransferModes For CTI Route Points and Park DNs:0 For IP Phones and CTI Ports:LINEPARKMODE_NONDIRECTED dwParkModes For CTI Route Points and Park DNs:0 For All Devices (except ParkDNs):LINEFORWARDMODE_UNCOND dwForwardModes For Park DNs:0 For All Devices (except ParkDNs):1 dwMaxForwardEntries For Park DNs:0 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 226 Basic TAPI Implementation LINEADDRESSCAPS

Page 258 diagram

Page 259

Values Members For All Devices:0 dwMaxSpecificEntries For All Devices:0 dwMinFwdNumRings For All Devices:0 dwMaxFwdNumRings For All Devices:0 dwMaxCallCompletions For All Devices:0 dwCallCompletionConds For All Devices:0 dwCallCompletionModes For All Devices:0 dwNumCompletionMessages For All Devices:0 dwCompletionMsgTextEntrySize For All Devices:0 dwCompletionMsgTextSize dwCompletionMsgTextOffset For IP Phones and CTI Ports:LINEADDRFEATURE_FORWARD LINEADDRFEATURE_FORWARDFWD LINEADDRFEATURE_MAKECALL dwAddressFeatures For CTI Route Points:LINEADDRFEATURE_FORWARD LINEADDRFEATURE_FORWARDFWD For Park DNs:0 For All Devices:0 dwPredictiveAutoTransferStates For All Devices:0 dwNumCallTreatments For All Devices:0 dwCallTreatmentListSizedwCallTreatmentListOffset For All Devices (except Park DNs): "tapi/line" "tapi/phone" "wave/in" "wave/out" dwDeviceClassesSize dwDeviceClassesOffset For Park DNs : "tapi/line" For All Devices:0 dwMaxCallDataSize Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 227 Basic TAPI Implementation LINEADDRESSCAPS

Page 259 diagram

Page 260

Values Members For IP Phones and CTI Ports:LINECALLFEATURE2_TRANSFERNORM LINECALLFEATURE2_TRANSFERCONF dwCallFeatures2 For CTI Route Points and Park DNs:0 For IP Phones and CTI Ports: 4294967295 (0xFFFFFFFF) dwMaxNoAnswerTimeout For CTI Route Points and Park DNs:0 For IP Phones, CTI Ports LINECONNECTEDMODE_ACTIVE LINECONNECTEDMODE_INACTIVE dwConnectedModes For Park DNs: LINECONNECTEDMODE_ACTIVE For CTI Route Points (without media):0 For CTI Route Points (with media)LINECONNECTEDMODE_ACTIVE For All Devices: LINEOFFERINGMODE_ACTIVE dwOfferingModes For All Devices:0 dwAvailableMediaModes LINEADDRESSSTATUS Members Values Members For All Devices:1 dwNumInUse For All Devices: The number of calls on the address that are in call states other than idle, onhold, onholdpendingtransfer, and onholdpendingconference. dwNumActiveCalls For All Devices: The number of calls on the address in the onhold state. dwNumOnHoldCalls Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 228 Basic TAPI Implementation LINEADDRESSSTATUS

Page 260 diagram

Page 261

Values Members For All Devices: The number of calls on the address in the onholdpendingtransfer or the onholdpendingconference state. dwNumOnHoldPendCalls For IP Phones and CTI Ports:LINEADDRFEATURE_FORWARD LINEADDRFEATURE_FORWARDFWD LINEADDRFEATURE_MAKECALL dwAddressFeatures For CTI Route Points:LINEADDRFEATURE_FORWARD LINEADDRFEATURE_FORWARDFWD For Park DNs:0 For All Devices:0 dwNumRingsNoAnswer For All Devices (except Park DNs): The number of entries in the array to which dwForwardSize and dwForwardOffset refer. dwForwardNumEntries For Park DNs:0 For All Devices (except Park DNs): The size, in bytes, and the offset, in bytes, from the beginning of this data structure of the variably sized field that describes the address forwarding information. This information appears as an array of dwForwardNumEntries elements, of type LINEFORWARD. Consider the offsets of the addresses in the array relative to the beginning of the LINEADDRESSSTATUS structure. The offsets dwCallerAddressOffset and dwDestAddressOffset in the variably sized field of type LINEFORWARD to which dwForwardSize and dwForwardOffset point are relative to the beginning of the LINEADDRESSSTATUS data structure (the root container). dwForwardSize dwForwardOffset For Park DNs:0 For All Devices:0 dwTerminalModesSizedwTerminalModesOffset For All Devices:0 dwDevSpecificSizedwDevSpecificOffset LINEAPPINFO The LINEAPPINFO structure contains information about the application that is currently running. The LINEDEVSTATUS structure can contain an array of LINEAPPINFO structures. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 229 Basic TAPI Implementation LINEAPPINFO

Page 261 diagram

Page 262

Structure Details typedef struct lineappinfo_tag { DWORD dwMachineNameSize; DWORD dwMachineNameOffset; DWORD dwUserNameSize; DWORD dwUserNameOffset; DWORD dwModuleFilenameSize; DWORD dwModuleFilenameOffset; DWORD dwFriendlyNameSize; DWORD dwFriendlyNameOffset; DWORD dwMediaModes; DWORD dwAddressID; } LINEAPPINFO, *LPLINEAPPINFO; Members Values Members Size (bytes) and offset from beginning of LINEDEVSTATUS of a string that specifies the name of the computer on which the application is executing. dwMachineNameSize dwMachineNameOffset Size (bytes) and offset from beginning of LINEDEVSTATUS of a string that specifies the user name under whose account the application is running. dwUserNameSize dwUserNameOffset Size (bytes) and offset from beginning of LINEDEVSTATUS of a string that specifies the module filename of the application. You can use this string in a call to lineHandoff to perform a directed handoff to the application. dwModuleFilenameSize dwModuleFilenameOffset Size (bytes) and offset from beginning of LINEDEVSTATUS of the string that the application provides to lineInitialize or lineInitializeEx, which should be used in any display of applications to the user. dwFriendlyNameSize dwFriendlyNameOffset The media types for which the application has requested ownership of new calls; zero if the line dwPrivileges did not include LINECALLPRIVILEGE_OWNER when it opened. dwMediaModes If the line handle that was opened by using LINEOPENOPTION_SINGLEADDRESS contains the address identifier that is specified, set to 0xFFFFFFFF if the single address option was not used. An address identifier permanently associates with an address; the identifier remains constant across operating system upgrades. dwAddressID Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 230 Basic TAPI Implementation LINEAPPINFO

Page 262 diagram

Page 263

LINECALLINFO Members Values Members For All Devices: The handle for the line device with which this call is associated. hLine For All Devices: The device identifier of the line device with which this call is associated. dwLineDeviceID For All Devices:0 dwAddressID For All Devices: LINEBEARERMODE_SPEECH LINEBEARERMODE_VOICE dwBearerMode For All Devices:0 dwRate For IP Phones and Park DNs:LINEMEDIAMODE_INTERACTIVEVOICE dwMediaMode For CTI Ports and CTI Route Points:LINEMEDIAMODE_AUTOMATEDVOICE LINEMEDIAMODE_INTERACTIVEVOICE For All Devices: Not interpreted by the API implementation and service provider. Any owner application of this call can set it with the lineSetAppSpecific function. dwAppSpecific For All Devices: In some telephony environments, the switch or service provider can assign a unique identifier to each call. This allows the call to be tracked across transfers, forwards, or other events. The domain of these call IDs and their scope is service provider-defined. The dwCallID member makes this unique identifier available to the applications. The Cisco Unified TSP uses dwCallID to store the “GlobalCallID” of the call. The “GlobalCallID” represents a unique identifier that allows applications to identify all call handles that are related to a call. dwCallID For All Devices:0 dwRelatedCallID For All Devices:0 dwCallParamFlags Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 231 Basic TAPI Implementation LINECALLINFO

Page 263 diagram

Page 264

Page 264 diagram

Page 265

Values Members For CTI Route Points (without media):LINECALLSTATE_ACCEPTED LINECALLSTATE_DISCONNECTED LINECALLSTATE_IDLE LINECALLSTATE_OFFERING LINECALLSTATE_UNKNOWN For CTI Route Points (with media):LINECALLSTATE_ACCEPTED LINECALLSTATE_BUSY LINECALLSTATE_CONNECTED LINECALLSTATE_DIALING LINECALLSTATE_DIALTONE LINECALLSTATE_DISCONNECTED LINECALLSTATE_IDLE LINECALLSTATE_OFFERING LINECALLSTATE_ONHOLD LINECALLSTATE_PROCEEDING LINECALLSTATE_RINGBACK LINECALLSTATE_UNKNOWN dwCallStates (continued) For Park DNs:LINECALLSTATE_ACCEPTED LINECALLSTATE_CONFERENCED LINECALLSTATE_CONNECTED LINECALLSTATE_DISCONNECTED LINECALLSTATE_IDLE LINECALLSTATE_OFFERING LINECALLSTATE_ONHOLD LINECALLSTATE_UNKNOWN For IP Phones, CTI Ports, and CTI Route Points (with media): LINEDIGITMODE_DTMF dwMonitorDigitModes For CTI Route Points and Park DNs:0 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 233 Basic TAPI Implementation LINECALLINFO

Page 265 diagram

Page 266

Values Members For IP Phones and Park DNs:LINEMEDIAMODE_INTERACTIVEVOICE dwMonitorMediaModes For CTI Ports and CTI Route Points:LINEMEDIAMODE_AUTOMATEDVOICE LINEMEDIAMODE_INTERACTIVEVOICE For All Devices:0 DialParams For All Devices:LINECALLORIGIN_CONFERENCE LINECALLORIGIN_EXTERNAL LINECALLORIGIN_INTERNAL LINECALLORIGIN_OUTBOUND LINECALLORIGIN_UNAVAIL LINECALLORIGIN_UNKNOWN dwOrigin For All Devices: LINECALLREASON_DIRECT LINECALLREASON_FWDBUSY LINECALLREASON_FWDNOANSWER LINECALLREASON_FWDUNCOND LINECALLREASON_PARKED LINECALLREASON_PICKUP LINECALLREASON_REDIRECT LINECALLREASON_REMINDER LINECALLREASON_TRANSFER LINECALLREASON_UNKNOWN LINECALLREASON_UNPARK dwReason For All Devices:0 dwCompletionID For All Devices: The number of application modules with different call handles with owner privilege for the call. dwNumOwners For All Devices: The number of application modules with different call handles with monitor privilege for the call. dwNumMonitors For All Devices:0 dwCountryCode For All Devices:0xFFFFFFFF dwTrunk Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 234 Basic TAPI Implementation LINECALLINFO

Page 266 diagram

Page 267

Values Members For All Devices:LINECALLPARTYID_ADDRESS LINECALLPARTYID_NAME LINECALLPARTYID_UNKNOWN LINECALLPARTYID_BLOCKED dwCallerIDFlags For All Devices: The size, in bytes, of the variably sized field that contains the caller party ID number information and the offset, in bytes, from the beginning of this data structure. dwCallerIDSize dwCallerIDOffset For All Devices: The size, in bytes, of the variably sized field that contains the caller party ID name information and the offset, in bytes, from the beginning of this data structure. dwCallerIDNameSize dwCallerIDNameOffset For All Devices: LINECALLPARTYID_ADDRESS LINECALLPARTYID_NAME LINECALLPARTYID_UNKNOWN dwCalledIDFlags For All Devices: The size, in bytes, of the variably sized field that contains the called-party ID number information and the offset, in bytes, from the beginning of this data structure. dwCalledIDSize dwCalledIDOffset For All Devices: The size, in bytes, of the variably sized field that contains the called-party ID name information and the offset, in bytes, from the beginning of this data structure. dwCalledIDNameSize dwCalledIDNameOffset For All Devices: LINECALLPARTYID_ADDRESS LINECALLPARTYID_NAME LINECALLPARTYID_UNKNOWN LINECALLPARTYID_BLOCKED dwConnectedIDFlags For All Devices: The size, in bytes, of the variably sized field that contains the connected party identifier number information and the offset, in bytes, from the beginning of this data structure. dwConnectedIDSize dwConnectedIDOffset Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 235 Basic TAPI Implementation LINECALLINFO

Page 267 diagram

Page 268

Values Members For All Devices: The size, in bytes, of the variably sized field that contains the connected party identifier name information and the offset, in bytes, from the beginning of this data structure. dwConnectedIDNameSize dwConnectedIDNameOffset For All Devices: LINECALLPARTYID_ADDRESS LINECALLPARTYID_NAME LINECALLPARTYID_UNKNOWN LINECALLPARTYID_BLOCKED dwRedirectionIDFlags For All Devices: The size, in bytes, of the variably sized field that contains the redirection party identifier number information and the offset, in bytes, from the beginning of this data structure. dwRedirectionIDSize dwRedirectionIDOffset For All Devices: The size, in bytes, of the variably sized field that contains the redirection party identifier name information and the offset, in bytes, from the beginning of this data structure. dwRedirectionIDNameSize dwRedirectionIDNameOffset For All Devices: LINECALLPARTYID_ADDRESS LINECALLPARTYID_NAME LINECALLPARTYID_UNKNOWN dwRedirectingIDFlags For All Devices: The size, in bytes, of the variably sized field that contains the redirecting party identifier number information and the offset, in bytes, from the beginning of this data structure. dwRedirectingIDSize dwRedirectingIDOffset For All Devices: The size, in bytes, of the variably sized field that contains the redirecting party identifier name information and the offset, in bytes, from the beginning of this data structure. dwRedirectingIDNameSize dwRedirectingIDNameOffset For All Devices: The size, in bytes, and the offset, in bytes, from the beginning of this data structure of the variably sized field that holds the user-friendly application name of the application that first originated, accepted, or answered the call. This specifies the name that an application can specify in lineInitializeEx. If the application specifies no such name, the application module filename gets used instead. dwAppNameSize dwAppNameOffset Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 236 Basic TAPI Implementation LINECALLINFO

Page 268 diagram

Page 269

Values Members For All Devices: 0 dwDisplayableAddressSize dwDisplayableAddressOffset For All Devices: 0 dwCalledPartySize dwCalledPartyOffset For All Devices: 0 dwCommentSize dwCommentOffset For All Devices: 0 dwDisplaySize dwDisplayOffset For All Devices: 0 dwUserUserInfoSize dwUserUserInfoOffset For All Devices: 0 dwHighLevelCompSize dwHighLevelCompOffset For All Devices: 0 dwLowLevelCompSize dwLowLevelCompOffset For All Devices: 0 dwChargingInfoSize dwChargingInfoOffset For All Devices: 0 dwTerminalModesSize dwTerminalModesOffset Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 237 Basic TAPI Implementation LINECALLINFO

Page 269 diagram

Page 270

Values Members For All Devices: If dwExtVersion > = 0x00060000 (6.0), this field will point to TSP_Unicode_Party_Names structure, If dwExtVersion > = 0x00070000 (7.0), this field will also point to a common structure that has a pointer to SRTP structure, DSCPValueForAudioCalls value, and Partition information. The LINECALLINFO, on page 324 defines the structure. The ExtendedCallInfo structure contains ExtendedCallReason that represents the last feature-related reason that caused a change in the callinfo/callstatus for this call. The ExtendedCallInfo will also provide SIP URL information for all call parties. If dwExtVersion > = 0x00080000 (8.0), this field will also point to common structure which has pointer to CallSecurityStatus structure. For IP Phones: If dwExtVersion > = 0x00080000 (8.0), this field will also point to common structure that has pointer to CallAtributeInfo and CCMCallID structure. The structures are defined below. If dwExtVersion > = 0x00080000 (8.0), this field will also point to common structure which has pointer to CallSecurityStatus structure. dwDevSpecificSize dwDevSpecificOffset CallAttributeType: This field holds information about DN.Partition.DeviceName for regular calls, monitoring calls, monitored calls, and recording calls. PartyDNOffset, PartyDNSize, provides the size, in bytes, of the variably sized field that contains the Monitoring/Monitored/Recorder party DN information and the offset, in bytes, from the beginning of LINECALLINFO data structure. PartyPartitionOffset PartyPartitionSize, provides the size, in bytes, of the variably sized field that contains the Monitoring/Monitored/Recorder party Partition information and the offset, in bytes, from the beginning of LINECALLINFO data structure. DevcieNameSizeprovides the size, in bytes, of the variably sized field that contains the Monitoring/Monitored/Recorder party Device Name and the offset, in bytes, from the beginning of LINECALLINFO data structure. OverallCallSecurityStatus holds the security status of the call for two-party call as well for conference call. CCMCallID field holds the CCM call Id for each call leg. For All Devices: 0 dwCallTreatment Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 238 Basic TAPI Implementation LINECALLINFO

Page 270 diagram

Page 271

Values Members For All Devices: 0 dwCallDataSize dwCallDataOffset For All Devices: 0 dwSendingFlowspecSize dwSendingFlowspecOffset For All Devices: 0 dwReceivingFlowspecSize dwReceivingFlowspecOffset LINECALLLIST The LINECALLLIST structure describes a list of call handles. The lineGetNewCalls and lineGetConfRelatedCalls functions return a structure of this type. You must not extend this structure. Note Structure Details typedef struct linecalllist_tag { DWORD dwTotalSize; DWORD dwNeededSize; DWORD dwUsedSize; DWORD dwCallsNumEntries; DWORD dwCallsSize; DWORD dwCallsOffset; } LINECALLLIST, FAR *LPLINECALLLIST; Members Values Members The total size, in bytes, that is allocated to this data structure. dwTotalSize The size, in bytes, for this data structure that is needed to hold all the returned information. dwNeededSize The size, in bytes, of the portion of this data structure that contains useful information. dwUsedSize The number of handles in the hCalls array. dwCallsNumEntries The size, in bytes, and the offset, in bytes, from the beginning of this data structure of the variably sized field (which is an array of HCALL-sized handles). dwCallsSized wCallsOffset Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 239 Basic TAPI Implementation LINECALLLIST

Image 1 from page 271

Page 271 diagram

Page 272

LINECALLPARAMS Members Values Members not supported dwBearerMode not supported dwMinRatedwMaxRate not supported dwMediaMode not supported dwCallParamFlags not supported dwAddressMode not supported dwAddressID not supported DialParams not supported dwOrigAddressSize dwOrigAddressOffset not supported dwDisplayableAddressSize dwDisplayableAddressOffset not supported dwCalledPartySize dwCalledPartyOffset not supported dwCommentSize dwCommentOffset not supported dwUserUserInfoSize dwUserUserInfoOffset not supported dwHighLevelCompSize dwHighLevelCompOffset not supported dwLowLevelCompSize dwLowLevelCompOffset not supported dwDevSpecificSize dwDevSpecificOffset not supported dwPredictiveAutoTransferStates not supported dwTargetAddressSize dwTargetAddressOffset Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 240 Basic TAPI Implementation LINECALLPARAMS

Page 272 diagram

Page 273

Values Members not supported dwSendingFlowspecSize dwSendingFlowspecOffset not supported dwReceivingFlowspecSize dwReceivingFlowspecOffset not supported dwDeviceClassSize dwDeviceClassOffset not supported dwDeviceConfigSize dwDeviceConfigOffset not supported dwCallDataSize dwCallDataOffset For All Devices: The number of seconds, after the completion of dialing, that the call should be allowed to wait in the PROCEEDING or RINGBACK state before the service provider automatically abandons it with a LINECALLSTATE_DISCONNECTED and LINEDISCONNECTMODE_NOANSWER. A value of 0 indicates that the application does not want automatic call abandonment. dwNoAnswerTimeout not supported dwCallingPartyIDSize dwCallingPartyIDOffset Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 241 Basic TAPI Implementation LINECALLPARAMS

Page 273 diagram

Page 274

LINECALLSTATUS Members Values Members For IP Phones and CTI Ports:LINECALLSTATE_ACCEPTED LINECALLSTATE_CONFERENCED LINECALLSTATE_CONNECTED LINECALLSTATE_DIALING LINECALLSTATE_DIALTONE LINECALLSTATE_DISCONNECTED LINECALLSTATE_IDLE LINECALLSTATE_OFFERING LINECALLSTATE_ONHOLD LINECALLSTATE_ONHOLDPENDCONF LINECALLSTATE_ONHOLDPENDTRANSFER LINECALLSTATE_PROCEEDING LINECALLSTATE_RINGBACK LINECALLSTATE_UNKNOWN dwCallState Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 242 Basic TAPI Implementation LINECALLSTATUS

Page 274 diagram

Page 275

Values Members For CTI Route Points (without media):LINECALLSTATE_ACCEPTED LINECALLSTATE_DISCONNECTED LINECALLSTATE_IDLE LINECALLSTATE_OFFERING LINECALLSTATE_UNKNOWN For CTI Route Points (with media):LINECALLSTATE_ACCEPTED LINECALLSTATE_CONNECTED LINECALLSTATE_DIALING LINECALLSTATE_DIALTONE LINECALLSTATE_DISCONNECTED LINECALLSTATE_IDLE LINECALLSTATE_OFFERING LINECALLSTATE_ONHOLD LINECALLSTATE_PROCEEDING LINECALLSTATE_RINGBACK LINECALLSTATE_UNKNOWN For Park DNs:LINECALLSTATE_ACCEPTED LINECALLSTATE_CONFERENCED LINECALLSTATE_CONNECTED LINECALLSTATE_DISCONNECTED LINECALLSTATE_IDLE LINECALLSTATE_OFFERING LINECALLSTATE_ONHOLD LINECALLSTATE_UNKNOWN dwCallState (continued) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 243 Basic TAPI Implementation LINECALLSTATUS

Page 275 diagram

Page 276

Values Members For IP Phones, CTI Ports:LINECONNECTEDMODE_ACTIVE LINECONNECTEDMODE_INACTIVE LINEDIALTONEMODE_NORMAL LINEDIALTONEMODE_UNAVAIL LINEDISCONNECTMODE_BADADDRESS LINEDISCONNECTMODE_BUSY LINEDISCONNECTMODE_CONGESTION LINEDISCONNECTMODE_FORWARDED LINEDISCONNECTMODE_NOANSWER LINEDISCONNECTMODE_NORMAL LINEDISCONNECTMODE_REJECT LINEDISCONNECTMODE_TEMPFAILURE LINEDISCONNECTMODE_UNREACHABLE LINEDISCONNECTMODE_FACCMC (if negotiated extension version is 0x00050000 or greater) dwCallStateMode For CTI Route Points:LINEDISCONNECTMODE_BADADDRESS LINEDISCONNECTMODE_BUSY LINEDISCONNECTMODE_CONGESTION LINEDISCONNECTMODE_FORWARDED LINEDISCONNECTMODE_NOANSWER LINEDISCONNECTMODE_NORMAL LINEDISCONNECTMODE_REJECT LINEDISCONNECTMODE_TEMPFAILURE LINEDISCONNECTMODE_UNREACHABLE LINEDISCONNECTMODE_FACCMC (if negotiated extension version is 0x00050000 or greater) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 244 Basic TAPI Implementation LINECALLSTATUS

Page 276 diagram

Page 277

Values Members For Park DNs:LINECONNECTEDMODE_ACTIVE LINEDISCONNECTMODE_BADADDRESS LINEDISCONNECTMODE_BUSY LINEDISCONNECTMODE_CONGESTION LINEDISCONNECTMODE_FORWARDED LINEDISCONNECTMODE_NOANSWER LINEDISCONNECTMODE_NORMAL LINEDISCONNECTMODE_REJECT LINEDISCONNECTMODE_TEMPFAILURE LINEDISCONNECTMODE_UNREACHABLE For All Devices LINECALLPRIVILEGE_MONITOR LINECALLPRIVILEGE_NONE LINECALLPRIVILEGE_OWNER dwCallPrivilege Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 245 Basic TAPI Implementation LINECALLSTATUS

Page 277 diagram

Page 278

Values Members For IP Phones (except VG248 and ATA186) and CTI Ports: LINECALLFEATURE_ACCEPT LINECALLFEATURE_ADDTOCONF LINECALLFEATURE_ANSWER LINECALLFEATURE_BLINDTRANSFER LINECALLFEATURE_COMPLETETRANSF LINECALLFEATURE_DIAL LINECALLFEATURE_DROP LINECALLFEATURE_GATHERDIGITS LINECALLFEATURE_GENERATEDIGITS LINECALLFEATURE_GENERATETONE LINECALLFEATURE_HOLD LINECALLFEATURE_MONITORDIGITS LINECALLFEATURE_MONITORTONES LINECALLFEATURE_PARK LINECALLFEATURE_PREPAREADDTOCONF LINECALLFEATURE_REDIRECT LINECALLFEATURE_SETUPCONF LINECALLFEATURE_SETUPTRANSFER LINECALLFEATURE_UNHOLD LINECALLFEATURE_UNPARK dwCallFeatures Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 246 Basic TAPI Implementation LINECALLSTATUS

Page 278 diagram

Page 279

Values Members For VG248 and ATA186 Devices:LINECALLFEATURE_ACCEPT LINECALLFEATURE_ADDTOCONF LINECALLFEATURE_BLINDTRANSFER LINECALLFEATURE_COMPLETETRANSF LINECALLFEATURE_DIAL LINECALLFEATURE_DROP LINECALLFEATURE_GATHERDIGITS LINECALLFEATURE_GENERATEDIGITS LINECALLFEATURE_GENERATETONE LINECALLFEATURE_HOLD LINECALLFEATURE_MONITORDIGITS LINECALLFEATURE_MONITORTONES LINECALLFEATURE_PARK LINECALLFEATURE_PREPAREADDTOCONF LINECALLFEATURE_REDIRECT LINECALLFEATURE_SETUPCONF LINECALLFEATURE_SETUPTRANSFER LINECALLFEATURE_UNHOLD LINECALLFEATURE_UNPARK Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 247 Basic TAPI Implementation LINECALLSTATUS

Page 279 diagram

Page 280

Values Members For CTI Route Points (without media):LINECALLFEATURE_ACCEPT LINECALLFEATURE_DROP LINECALLFEATURE_REDIRECT For CTI Route Points (with media):LINECALLFEATURE_ACCEPT LINECALLFEATURE_ANSWER LINECALLFEATURE_BLINDTRANSFER LINECALLFEATURE_DIA LLINECALLFEATURE_DROP LINECALLFEATURE_GATHERDIGITS LINECALLFEATURE_GENERATEDIGITS LINECALLFEATURE_GENERATETONE LINECALLFEATURE_HOLD LINECALLFEATURE_MONITORDIGITS LINECALLFEATURE_MONITORTONES LINECALLFEATURE_REDIRECT LINECALLFEATURE_UNHOLD dwCallFeatures (continued) For Park DNs:0 dwCallFeatures (continued) For All Devices:0 dwDevSpecificSizedwDevSpecificOffset For IP Phones and CTI Ports:LINECALLFEATURE2_TRANSFERNORM LINECALLFEATURE2_TRANSFERCONF dwCallFeatures2 For CTI Route Points and Park DNs:0 For All Devices: The Coordinated Universal Time at which the current call state was entered. tStateEntryTime LINECARDENTRY The LINECARDENTRY structure describes a calling card. The LINETRANSLATECAPS structure can contain an array of LINECARDENTRY structures. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 248 Basic TAPI Implementation LINECARDENTRY

Page 280 diagram

Page 281

You must not extend this structure. Note Structure Details typedef struct linecardentry_tag { DWORD dwPermanentCardID; DWORD dwCardNameSize; DWORD dwCardNameOffset; DWORD dwCardNumberDigits; DWORD dwSameAreaRuleSize; DWORD dwSameAreaRuleOffset; DWORD dwLongDistanceRuleSize; DWORD dwLongDistanceRuleOffset; DWORD dwInternationalRuleSize; DWORD dwInternationalRuleOffset; DWORD dwOptions; } LINECARDENTRY, FAR *LPLINECARDENTRY; Members Values Members The permanent identifier that identifies the card. dwPermanentCardID A null-terminated string (size includes the NULL) that describes the card in a user-friendly manner. dwCardNameSize dwCardNameOffset The number of digits in the existing card number. The card number itself is not returned for security reasons (TAPI stores it in scrambled form). The application can use this parameter to insert filler bytes into a text control in “password” mode to show that a number exists. dwCardNumberDigits The offset, in bytes, from the beginning of the LINETRANSLATECAPS structure and the total number of bytes in the dialing rule that is defined for calls to numbers in the same area code. The rule specifies a null-terminated string. dwSameAreaRuleSize dwSameAreaRuleOffset The offset, in bytes, from the beginning of the LINETRANSLATECAPS structure and the total number of bytes in the dialing rule that is defined for calls to numbers in the other areas in the same country or region. The rule specifies a null-terminated string. dwLongDistanceRuleSize dwLongDistanceRuleOffset The offset, in bytes, from the beginning of the LINETRANSLATECAPS structure and the total number of bytes in the dialing rule that is defined for calls to numbers in other countries/regions. The rule specifies a null-terminated string. dwInternationalRuleSize dwInternationalRuleOffset Indicates other settings that are associated with this calling card, by using the LINECARDOPTION_ dwOptions Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 249 Basic TAPI Implementation LINECARDENTRY

Image 1 from page 281

Page 281 diagram

Page 282

LINECOUNTRYENTRY The LINECOUNTRYENTRY structure provides the information for a single country entry. An array of one or more of these structures makes up part of the LINECOUNTRYLIST structure that the lineGetCountry function returns. You must not extend this structure. Note Structure Details typedef struct linecountryentry_tag { DWORD dwCountryID; DWORD dwCountryCode; DWORD dwNextCountryID; DWORD dwCountryNameSize; DWORD dwCountryNameOffset; DWORD dwSameAreaRuleSize; DWORD dwSameAreaRuleOffset; DWORD dwLongDistanceRuleSize; DWORD dwLongDistanceRuleOffset; DWORD dwInternationalRuleSize; DWORD dwInternationalRuleOffset; } LINECOUNTRYENTRY, FAR *LPLINECOUNTRYENTRY; Members Values Members The country or region identifier of the entry that specifies an internal identifier that allows multiple entries to exist in the country or region list with the same country code (for example, all countries in North America and the Caribbean share country code 1, but require separate entries in the list). dwCountryID The actual country code of the country or region that the entry represents (that is, the digits that would be dialed in an international call). Display only this value to users (Country IDs should never display, as they could be confusing). dwCountryCode The country identifier of the next entry in the country or region list. Because country codes and identifiers are not assigned in numeric sequence, the country or region list represents a single linked list, with each entry pointing to the next. The last country or region in the list includes a dwNextCountryID value of zero. When the LINECOUNTRYLIST structure is used to obtain the entire list, the entries in the list appear in sequence as linked by their dwNextCountryID members. dwNextCountryID The size, in bytes, and the offset, in bytes, from the beginning of the LINECOUNTRYLIST structure of a null-terminated string that gives the name of the country or region. dwCountryNameSize dwCountryNameOffset Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 250 Basic TAPI Implementation LINECOUNTRYENTRY

Image 1 from page 282

Page 282 diagram

Page 283

Values Members The size, in bytes, and the offset, in bytes, from the beginning of the LINECOUNTRYLIST structure of a null-terminated string that contains the dialing rule for direct-dialed calls to the same area code. dwSameAreaRuleSize dwSameAreaRuleOffset The size, in bytes, and the offset, in bytes, from the beginning of the LINECOUNTRYLIST structure of a null-terminated string that contains the dialing rule for direct-dialed calls to other areas in the same country or region. dwLongDistanceRuleSize dwLongDistanceRuleOffset The size, in bytes, and the offset, in bytes, from the beginning of the LINECOUNTRYLIST structure of a null-terminated string that contains the dialing rule for direct-dialed calls to other countries/regions. dwInternationalRuleSize dwInternationalRuleOffset LINECOUNTRYLIST The LINECOUNTRYLIST structure describes a list of countries/regions. This structure can contain an array of LINECOUNTRYENTRY structures. The lineGetCountry function returns LINECOUNTRYLIST. You must not extend this structure. Note Structure Details typedef struct linecountrylist_tag { DWORD dwTotalSize; DWORD dwNeededSize; DWORD dwUsedSize; DWORD dwNumCountries; DWORD dwCountryListSize; DWORD dwCountryListOffset; } LINECOUNTRYLIST, FAR *LPLINECOUNTRYLIST; Members Values Members The total size, in bytes, that are allocated to this data structure. dwTotalSize The size, in bytes, for this data structure that is needed to hold all the returned information. dwNeededSize The size, in bytes, of the portion of this data structure that contains useful information. dwUsedSize Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 251 Basic TAPI Implementation LINECOUNTRYLIST

Image 1 from page 283

Page 283 diagram

Page 284

Values Members The number of LINECOUNTRYENTRY structures that are present in the array dwCountryListSize and dwCountryListOffset dominate. dwNumCountries The size, in bytes, and the offset, in bytes, from the beginning of this data structure of an array of LINECOUNTRYENTRY elements that provide information on each country or region. dwCountryListSize dwCountryListOffset LINEDEVCAPS Members Values Members For All Devices: The size, in bytes, of the variably sized field that contains service provider information and the offset, in bytes, from the beginning of this data structure. The dwProviderInfoSize/ Offset member provides information about the provider hardware and/or software. This information is useful when a user needs to call customer service with problems regarding the provider. The Cisco Unified TSP sets this field to "Cisco Unified TSPxxx.TSP: Cisco IP PBX Service Provider Ver. x.x(x.x)" where the text before the colon specifies the file name of the TSP and the text after "Ver." specifies the version of TSP. dwProviderInfoSize dwProviderInfoOffset For All Devices: The size, in bytes, of the variably sized device field that contains switch information and the offset, in bytes, from the beginning of this data structure. The dwSwitchInfoSize/Offset member provides information about the switch to which the line device connects, such as the switch manufacturer, the model name, the software version, and so on. This information is useful when a user needs to call customer service with problems regarding the switch. The Cisco Unified TSP sets this field to "Cisco Unified Communications Manager Ver. x.x(x.x), Cisco CTI Manager Ver x.x(x.x)" where the text after "Ver." specifies the version of the Cisco Unified Communications Manager and the version of the CTI Manager, respectively. dwSwitchInfoSize dwSwitchInfoOffset Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 252 Basic TAPI Implementation LINEDEVCAPS

Page 284 diagram

Page 285

Values Members For All Devices: The permanent DWORD identifier by which the line device is known in the system configuration. This identifier specifies a permanent name for the line device. This permanent name (as opposed to dwDeviceID) does not change as lines are added or removed from the system and persists through operating system upgrades. You can therefore use it to link line-specific information in .ini files (or other files) in a way that is not affected by adding or removing other lines or by changing the operating system. dwPermanentLineID For All Devices: The size, in bytes, of the variably sized device field that contains a user-configurable name for this line device and the offset, in bytes, from the beginning of this data structure. You can configure this name when you configure the line device service provider, and the name gets provided for the convenience of the user. Cisco Unified TSP sets this field to “Cisco Line: [deviceName] (dirn)” where deviceName specifies the name of the device on which the line resides, and dirn specifies the directory number for the device. dwLineNameSize dwLineNameOffset For All Devices: STRINGFORMAT_ASCII dwStringFormat For All Devices: LINEADDRESSMODE_ADDRESSID dwAddressModes For All Devices:1 dwNumAddresses For All Devices: LINEBEARERMODE_SPEECH LINEBEARERMODE_VOICE dwBearerModes For All Devices:0 dwMaxRate For IP Phones and Park DNs: LINEMEDIAMODE_INTERACTIVEVOICE dwMediaModes For CTI Ports and CTI Route Points: LINEMEDIAMODE_AUTOMATEDVOICE LINEMEDIAMODE_INTERACTIVEVOICE For IP Phones, CTI Ports, and CTI Route Points (with media): LINETONEMODE_BEEP dwGenerateToneModes For CTI Route Points (without media) and Park DNs:0 For All Devices:0 dwGenerateToneMaxNumFreq Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 253 Basic TAPI Implementation LINEDEVCAPS

Page 285 diagram

Page 286

Values Members For IP Phones, CTI Ports, and CTI Route Points (with media): LINETONEMODE_DTMF dwGenerateDigitModes For CTI Route Points and Park DNs:0 For All Devices:0 dwMonitorToneMaxNumFreq For All Devices:0 dwMonitorToneMaxNumEntries For IP Phones, CTI Ports, and CTI Route Points (with media): LINETONEMODE_DTMF dwMonitorDigitModes For CTI Route Points (without media) and Park DNs:0 For All Devices:0 dwGatherDigitsMinTimeout dwGatherDigitsMaxTimeout For All Devices:0 dwMedCtlDigitMaxListSize dwMedCtlMediaMaxListSize dwMedCtlToneMaxListSize dwMedCtlCallStateMaxListSize For IP Phones:0 dwDevCapFlags For All Other Devices: LINEDEVCAPFLAGS_CLOSEDROP For All Devices:1 dwMaxNumActiveCalls For CTI Route Points (without media):0 For CTI Route Points (with media): Cisco Unified Communications Manager Administration configuration For IP Phones (except for VG248 and ATA186), CTI Route Points (with media) and CTI Ports: LINEANSWERMODE_HOLD dwAnswerMode For VG248 devices, ATA186 devices, CTI Route Points (without media), and Park DNs:0 For All Devices:1 dwRingModes Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 254 Basic TAPI Implementation LINEDEVCAPS

Page 286 diagram

Page 287

Values Members For IP Phones, CTI Ports, and Route Points (with media): LINEDEVSTATE_CLOSE LINEDEVSTATE_DEVSPECIFIC LINEDEVSTATE_INSERVICE LINEDEVSTATE_MSGWAITOFF LINEDEVSTATE_MSGWAITON LINEDEVSTATE_NUMCALLS LINEDEVSTATE_OPEN LINEDEVSTATE_OUTOFSERVICE LINEDEVSTATE_REINIT LINEDEVSTATE_RINGING LINEDEVSTATE_TRANSLATECHANGE dwLineStates For CTI Route Points (without media): LINEDEVSTATE_CLOSE LINEDEVSTATE_INSERVICE LINEDEVSTATE_OPEN LINEDEVSTATE_OUTOFSERVICE LINEDEVSTATE_REINIT LINEDEVSTATE_RINGING LINEDEVSTATE_TRANSLATECHANGE For Park DNs:LINEDEVSTATE_CLOSE LINEDEVSTATE_DEVSPECIFIC LINEDEVSTATE_INSERVICE LINEDEVSTATE_NUMCALLS LINEDEVSTATE_OPEN LINEDEVSTATE_OUTOFSERVICE LINEDEVSTATE_REINIT LINEDEVSTATE_TRANSLATECHANGE For All Devices:0 dwUUIAcceptSize For All Devices:0 dwUUIAnswerSize For All Devices:0 dwUUIMakeCallSize For All Devices:0 dwUUIDropSize Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 255 Basic TAPI Implementation LINEDEVCAPS

Page 287 diagram

Page 288

Values Members For All Devices:0 dwUUISendUserUserInfoSize For All Devices:0 dwUUICallInfoSize For All Devices:0 MinDialParams MaxDialParams For All Devices:0 DefaultDialParams For All Devices:0 dwNumTerminals For All Devices:0 dwTerminalCapsSize dwTerminalCapsOffset For All Devices:0 dwTerminalTextEntrySize For All Devices:0 dwTerminalTextSize dwTerminalTextOffset For All Devices (except ParkDNs): If dwExtVersion > 0x00030000 (3.0):LINEDEVCAPS_DEV_SPECIFIC.m_DevSpecificFlags = 0 dwDevSpecificSize dwDevSpecificOffset For Park DNs: If dwExtVersion > 0x00030000 (3.0):LINEDEVCAPS_DEV_SPECIFIC.m_DevSpecificFlags = LINEDEVCAPSDEVSPECIFIC_PARKDN For Intercom DNs: LINEDEVCAPS_DEV_SPECIFIC. M_DevSpecificFlags = LINEDEVCAPSDEVSPECIFIC_INTERCOMDNLOCALEinfo PARTITION_INFO INTERCOM_SPEEDDIAL_INFO For IP Phones, CTI Ports, and CTI Route Points (with media): LINEFEATURE_DEVSPECIFIC LINEFEATURE_FORWARD LINEFEATURE_FORWARDFWD LINEFEATURE_MAKECALL dwLineFeatures For CTI Route Points (without media): LINEFEATURE_FORWARD LINEFEATURE_FORWARDFWD For Park DNs:0 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 256 Basic TAPI Implementation LINEDEVCAPS

Page 288 diagram

Page 289

Values Members For All Devices:0 dwSettableDevStatus For IP Phones and CTI Route Points: "tapi/line" "tapi/phone" dwDeviceClassesSize dwDeviceClassesOffset For CTI Ports: "tapi/line" "tapi/phone" "wave/in" "wave/out" For Park DNs: "tapi/line" The GUID that is permanently associated with the line device. PermanentLineGuid LINEDEVSTATUS Members Values Members For All Devices: The number of active opens on the line device. dwNumOpens For All Devices: Bit array that indicates for which media types the line device is currently open. dwOpenMediaModes For All Devices: The number of calls on the line in call states other than idle, onhold, onholdpendingtransfer, and onholdpendingconference. dwNumActiveCalls For All Devices: The number of calls on the line in the onhold state. dwNumOnHoldCalls For All Devices: The number of calls on the line in the onholdpendingtransfer or onholdpendingconference state. dwNumOnHoldPendCalls Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 257 Basic TAPI Implementation LINEDEVSTATUS

Page 289 diagram

Page 290

Values Members For IP Phones, CTI Ports, and CTI Route Points (with media): LINEFEATURE_DEVSPECIFIC LINEFEATURE_FORWARD LINEFEATURE_FORWARDFWD LINEFEATURE_MAKECALL dwLineFeatures For CTI Route Points (without media): LINEFEATURE_FORWARD LINEFEATURE_FORWARDFWD For Park DNs:0 For All Devices:0 dwNumCallCompletions For All Devices:0 dwRingMode For All Devices:0 dwSignalLevel For All Devices:0 dwBatteryLevel For All Devices:0 dwRoamMode For IP Phones and CTI Ports: LINEDEVSTATUSGLAGS_CONNECTED LINEDEVSTATUSGLAGS_INSERVICE LINEDEVSTATUSGLAGS_MSGWAIT dwDevStatusFlags For CTI Route Points and Park DNs: LINEDEVSTATUSGLAGS_CONNECTED LINEDEVSTATUSGLAGS_INSERVICE For All Devices:0 dwTerminalModesSizedwTerminalModesOffset For All Devices:0 dwDevSpecificSizedwDevSpecificOffset For All Devices:0 dwAvailableMediaModes For All Devices: Length, in bytes, and offset from the beginning of LINEDEVSTATUS of an array of LINEAPPINFO structures. The dwNumOpens member indicates the number of elements in the array. Each element in the array identifies an application that has the line open. dwAppInfoSizedwAppInfoOffset Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 258 Basic TAPI Implementation LINEDEVSTATUS

Page 290 diagram

Page 291

LINEEXTENSIONID Members Values Members For All Devices: 0x8EBD6A50 dwExtensionID0 For All Devices: 0x128011D2 dwExtensionID1 For All Devices: 0x905B0060 dwExtensionID2 For All Devices: 0xB03DD275 dwExtensionID3 LINEFORWARD The LINEFORWARD structure describes an entry of the forwarding instructions. Structure Details typedef struct lineforward_tag { DWORD dwForwardMode; DWORD dwCallerAddressSize; DWORD dwCallerAddressOffset; DWORD dwDestCountryCode; DWORD dwDestAddressSize; DWORD dwDestAddressOffset; } LINEFORWARD, FAR *LPLINEFORWARD; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 259 Basic TAPI Implementation LINEEXTENSIONID

Page 291 diagram

Page 292

Members Values Members dwForwardMode Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 260 Basic TAPI Implementation LINEFORWARD

Page 292 diagram

Page 293

Values Members The types of forwarding. The dwForwardMode member can have only a single bit set. This member uses the following LINEFORWARDMODE_ constants: LINEFORWARDMODE_UNCOND Forward all calls unconditionally, irrespective of their origin. Use this value when unconditional forwarding for internal and external calls cannot be controlled separately. Unconditional forwarding overrides forwarding on busy and/or no-answer conditions. Note LINEFORWARDMODE_UNCOND is the only forward mode that Cisco Unified TSP supports. LINEFORWARDMODE_UNCONDINTERNAL Forward all internal calls unconditionally. Use this value when unconditional forwarding for internal and external calls can be controlled separately. LINEFORWARDMODE_UNCONDEXTERNAL Forward all external calls unconditionally. Use this value when unconditional forwarding for internal and external calls can be controlled separately. LINEFORWARDMODE_UNCONDSPECIFIC Unconditionally forward all calls that originated at a specified address (selective call forwarding). LINEFORWARDMODE_BUSY Forward all calls on busy, irrespective of their origin. Use this value when forwarding for internal and external calls both on busy and on no answer cannot be controlled separately. LINEFORWARDMODE_BUSYINTERNAL Forward all internal calls on busy. Use this value when forwarding for internal and external calls on busy and on no answer can be controlled separately. LINEFORWARDMODE_BUSYEXTERNAL Forward all external calls on busy. Use this value when forwarding for internal and external calls on busy and on no answer can be controlled separately. LINEFORWARDMODE_BUSYSPECIFIC Forward on busy all calls that originated at a specified address (selective call forwarding). LINEFORWARDMODE_NOANSW Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 261 Basic TAPI Implementation LINEFORWARD

Page 293 diagram

Page 294

Values Members Forward all calls on no answer, irrespective of their origin. Use this value when call forwarding for internal and external calls on no answer cannot be controlled separately. LINEFORWARDMODE_NOANSWINTERNAL Forward all internal calls on no answer. Use this value when forwarding for internal and external calls on no answer can be controlled separately. LINEFORWARDMODE_NOANSWEXTERNAL Forward all external calls on no answer. Use this value when forwarding for internal and external calls on no answer can be controlled separately. LINEFORWARDMODE_NOANSWSPECIFIC Forward all calls that originated at a specified address on no answer (selective call forwarding). LINEFORWARDMODE_BUSYNA Forward all calls on busy or no answer, irrespective of their origin. Use this value when forwarding for internal and external calls on both busy and on no answer cannot be controlled separately. LINEFORWARDMODE_BUSYNAINTERNAL Forward all internal calls on busy or no answer. Use this value when call forwarding on busy and on no answer cannot be controlled separately for internal calls. LINEFORWARDMODE_BUSYNAEXTERNAL Forward all external calls on busy or no answer. Use this value when call forwarding on busy and on no answer cannot be controlled separately for internal calls. LINEFORWARDMODE_BUSYNASPECIFIC Forward on busy or no answer all calls that originated at a specified address (selective call forwarding). LINEFORWARDMODE_UNKNOWN Calls get forwarded, but the conditions under which forwarding occurs are not known at this time. LINEFORWARDMODE_UNAVAIL Calls are forwarded, but the conditions under which forwarding occurs are not known and are never known by the service provider. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 262 Basic TAPI Implementation LINEFORWARD

Page 294 diagram

Page 295

Values Members The size in bytes of the variably sized address field that contains the address of a caller to be forwarded and the offset in bytes from the beginning of the containing data structure. The dwCallerAddressSize/Offset member gets set to zero if dwForwardMode is not one of the following choices:LINEFORWARDMODE_BUSYNASPECIFIC, LINEFORWARDMODE_NOANSWSPECIFIC, LINEFORWARDMODE_UNCONDSPECIFIC, or LINEFORWARDMODE_BUSYSPECIFIC. dwCallerAddressSize dwCallerAddressOffset The country code of the destination address to which the call is to be forwarded. dwDestCountryCode The size in bytes of the variably sized address field that contains the address where calls are to be forwarded and the offset in bytes from the beginning of the containing data structure. dwDestAddressSize dwDestAddressOffset LINEFORWARDLIST The LINEFORWARDLIST structure describes a list of forwarding instructions. Structure Details typedef struct lineforwardlist_tag { DWORD dwTotalSize; DWORD dwNumEntries; LINEFORWARD ForwardList[1]; } LINEFORWARDLIST, FAR *LPLINEFORWARDLIST; Members Values Members The total size in bytes of the data structure. dwTotalSize Number of entries in the array, specified as ForwardList[ ]. dwNumEntries An array of forwarding instruction. The array entries specify type LINEFORWARD. ForwardList[ ] LINEGENERATETONE The LINEGENERATETONE structure contains information about a tone to be generated. The lineGenerateTone and TSPI_lineGenerateTone functions use this structure. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 263 Basic TAPI Implementation LINEFORWARDLIST

Page 295 diagram

Page 296

You must not extend this structure. Note This structure gets used only for the generation of tones; it is not used for tone monitoring. Structure Details typedef struct linegeneratetone_tag { DWORD dwFrequency; DWORD dwCadenceOn; DWORD dwCadenceOff; DWORD dwVolume; } LINEGENERATETONE, FAR *LPLINEGENERATETONE; Members Values Members The frequency, in hertz, of this tone component. A service provider may adjust (round up or down) the frequency that the application specified to fit its resolution. dwFrequency The “on” duration, in milliseconds, of the cadence of the custom tone to be generated. Zero means no tone gets generated. dwCadenceOn The “off” duration, in milliseconds, of the cadence of the custom tone to be generated. Zero means no off time, that is, a constant tone. dwCadenceOff The volume level at which the tone gets generated. A value of 0x0000FFFF represents full volume, and a value of 0x00000000 means silence. dwVolume LINEINITIALIZEEXPARAMS The LINEINITIZALIZEEXPARAMS structure describes parameters that are supplied when calls are made by using LINEINITIALIZEEX. Structure Details typedef struct lineinitializeexparams_tag { DWORD dwTotalSize; DWORD dwNeededSize; DWORD dwUsedSize; DWORD dwOptions; union { HANDLE hEvent; HANDLE hCompletionPort; } Handles; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 264 Basic TAPI Implementation LINEINITIALIZEEXPARAMS

Image 1 from page 296

Page 296 diagram

Page 297

DWORD dwCompletionKey; } LINEINITIALIZEEXPARAMS, FAR *LPLINEINITIALIZEEXPARAMS; Members Values Members The total size, in bytes, that is allocated to this data structure. dwTotalSize The size, in bytes, for this data structure that is needed to hold all the returned information. dwNeededSize The size, in bytes, of the portion of this data structure that contains useful information. dwUsedSize One of the LINEINITIALIZEEXOPTION_constants. Specifies the event notification mechanism that the application wants to use. dwOptions If dwOptions specifies LINEINITIALIZEEXOPTION_USEEVENT, TAPI returns the event handle in this field. hEvent If dwOptions specifies LINEINITIALIZEEXOPTION_USECOMPLETIONPORT, the application must specify in this field the handle of an existing completion port that was opened by using CreateIoCompletionPort. hCompletionPort If dwOptions specifies LINEINITIALIZEEXOPTION_USECOMPLETIONPORT, the application must specify in this field a value that is returned through the lpCompletionKey parameter of GetQueuedCompletionStatus to identify the completion message as a telephony message. dwCompletionKey Further Details See lineInitializeEx, on page 176 for further information on these options. LINELOCATIONENTRY The LINELOCATIONENTRY structure describes a location that is used to provide an address translation context. The LINETRANSLATECAPS structure can contain an array of LINELOCATIONENTRY structures. You must not extend this structure. Note Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 265 Basic TAPI Implementation LINELOCATIONENTRY

Image 1 from page 297

Page 297 diagram

Page 298

Structure Details typedef struct linelocationentry_tag { DWORD dwPermanentLocationID; DWORD dwLocationNameSize; DWORD dwLocationNameOffset; DWORD dwCityCodeSize; DWORD dwCityCodeOffset; DWORD dwPreferredCardID; DWORD dwLocalAccessCodeSize; DWORD dwLocalAccessCodeOffset; DWORD dwLongDistanceAccessCodeSize; DWORD dwLongDistanceAccessCodeOffset; DWORD dwTollPrefixListSize; DWORD dwTollPrefixListOffset; DWORD dwCountryID; DWORD dwOptions; DWORD dwCancelCallWaitingSize; DWORD dwCancelCallWaitingOffset; } LINELOCATIONENTRY, FAR *LPLINELOCATIONENTRY; Members Values Members The permanent identifier that identifies the location. dwPermanentLocationID Contains a null-terminated string (size includes the NULL) that describes the location in a user-friendly manner. dwLocationNameSize dwLocationNameOffset The country code of the location. dwCountryCode The preferred calling card when dialing from this location. dwPreferredCardID Contains a null-terminated string that specifies the city or area code that is associated with the location (the size includes the NULL). Applications can use this information, along with the country code, to “default” entry fields for the user when you enter the phone numbers, to encourage the entry of proper canonical numbers. dwCityCodeSize dwCityCodeOffset The size, in bytes, and the offset, in bytes, from the beginning of the LINETRANSLATECAPS structure of a null-terminated string that contains the access code to be dialed before calls to addresses in the local calling area. dwLocalAccessCodeSize dwLocalAccessCodeOffset The size, in bytes, and the offset, in bytes, from the beginning of the LINETRANSLATECAPS structure of a null-terminated string that contains the access code to be dialed before calls to addresses outside the local calling area. dwLongDistanceAccessCodeSize dwLongDistanceAccessCodeOffset Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 266 Basic TAPI Implementation LINELOCATIONENTRY

Page 298 diagram

Page 299

Values Members The size, in bytes, and the offset, in bytes, from the beginning of the LINETRANSLATECAPS structure of a null-terminated string that contains the toll prefix list for the location. The string contains only prefixes that consist of the digits “0” through “9” and are separated from each other by a single “,” (comma) character. dwTollPrefixListSize dwTollPrefixListOffset The country identifier of the country or region that is selected for the location. Use this identifier with the lineGetCountry function to obtain additional information about the specific country or region, such as the country or region name (you cannot use the dwCountryCode member for this purpose because country codes are not unique). dwCountryID Indicates options in effect for this location with values taken from the LINELOCATIONOPTION_Constants. dwOptions The size, in bytes, and the offset, in bytes, from the beginning of the LINETRANSLATECAPS structure of a null-terminated string that contains the dial digits and modifier characters that should be prefixed to the dialable string (after the pulse/tone character) when an application sets the LINETRANSLATEOPTION_CANCELCALLWAITING bit in the dwTranslateOptions parameter of lineTranslateAddress. If no prefix is defined, dwCancelCallWaitingSize set to zero may indicate this, or dwCancelCallWaitingSize set to 1 and dwCancelCallWaitingOffset pointing to an empty string (single NULL byte) may indicate this. dwCancelCallWaitingSize dwCancelCallWaitingOffset LINEMESSAGE The LINEMESSAGE structure contains parameter values that specify a change in status of the line that the application currently has open. The lineGetMessage function returns the LINEMESSAGE structure. Structure Details typedef struct linemessage_tag { DWORD hDevice; DWORD dwMessageID; DWORD_PTR dwCallbackInstance; DWORD_PTR dwParam1; DWORD_PTR dwParam2; DWORD_PTR dwParam3; } LINEMESSAGE, FAR *LPLINEMESSAGE; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 267 Basic TAPI Implementation LINEMESSAGE

Page 299 diagram

Page 300

Members Values Members A handle to either a line device or a call. The context that dwMessageID provides can determine the nature of this handle (line handle or call handle). hDevice A line or call device message. dwMessageID Instance data passed back to the application, which the application in the dwCallBackInstance parameter of lineInitializeEx specified. TAPI does not interpret this DWORD. dwCallbackInstance A parameter for the message. dwParam1 A parameter for the message. dwParam2 A parameter for the message. dwParam3 For details about the parameter values that are passed in this structure, see TAPI Line Messages, on page 199. LINEMONITORTONE The LINEMONITORTONE structure defines a tone for the purpose of detection. Use this as an entry in an array. An array of tones gets passed to the lineMonitorTones function that monitors these tones and sends a LINE_MONITORTONE message to the application when a detection is made. A tone with all frequencies set to zero corresponds to silence. An application can thus monitor the call information stream for silence. You must not extend this structure. Note Structure Details typedef struct linemonitortone_tag { DWORD dwAppSpecific; DWORD dwDuration; DWORD dwFrequency1; DWORD dwFrequency2; DWORD dwFrequency3; } LINEMONITORTONE, FAR *LPLINEMONITORTONE; Members Values Members Used by the application for tagging the tone. When this tone is detected, the value of the dwAppSpecific member gets passed back to the application. dwAppSpecific Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 268 Basic TAPI Implementation LINEMONITORTONE

Image 1 from page 300

Page 300 diagram

Page 301

Values Members The duration, in milliseconds, during which the tone should be present before a detection is made. dwDuration dwFrequency2 dwFrequency1 The frequency, in hertz, of a component of the tone. If fewer than three frequencies are needed in the tone, a value of 0 should be used for the unused frequencies. A tone with all three frequencies set to zero gets interpreted as silence and can be used for silence detection. dwFrequency3 LINEPROVIDERENTRY The LINEPROVIDERENTRY structure provides the information for a single service provider entry. An array of these structures gets returned as part of the LINEPROVIDERLIST structure that the function lineGetProviderList returns. You cannot extend this structure. Note Structure Details typedef struct lineproviderentry_tag { DWORD dwPermanentProviderID; DWORD dwProviderFilenameSize; DWORD dwProviderFilenameOffset; } LINEPROVIDERENTRY, FAR *LPLINEPROVIDERENTRY; Members Values Members The permanent provider identifier of the entry. dwPermanentProviderID The size, in bytes, and the offset, in bytes, from the beginning of the LINEPROVIDERLIST structure of a null-terminated string that contains the filename (path) of the service provider DLL (.TSP) file. dwProviderFilenameSizedwProviderFilenameOffset LINEPROVIDERLIST The LINEPROVIDERLIST structure describes a list of service providers. The lineGetProviderList function returns a structure of this type. The LINEPROVIDERLIST structure can contain an array of LINEPROVIDERENTRY structures. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 269 Basic TAPI Implementation LINEPROVIDERENTRY

Image 1 from page 301

Page 301 diagram

Page 302

You must not extend this structure. Note Structure Details typedef struct lineproviderlist_tag { DWORD dwTotalSize; DWORD dwNeededSize; DWORD dwUsedSize; DWORD dwNumProviders; DWORD dwProviderListSize; DWORD dwProviderListOffset; } LINEPROVIDERLIST, FAR *LPLINEPROVIDERLIST; Members Values Members The total size, in bytes, that are allocated to this data structure. dwTotalSize The size, in bytes, for this data structure that is needed to hold all the returned information. dwNeededSize The size, in bytes, of the portion of this data structure that contains useful information. dwUsedSize The number of LINEPROVIDERENTRY structures that are present in the array that is denominated by dwProviderListSize and dwProviderListOffset. dwNumProviders The size, in bytes, and the offset, in bytes, from the beginning of this data structure of an array of LINEPROVIDERENTRY elements, which provide the information on each service provider. dwProviderListSize dwProviderListOffset LINEREQMAKECALL The LINEREQMAKECALL structure describes a request that a call initiated to the lineGetRequest function. You cannot extend this structure. Note Structure Details typedef struct linereqmakecall_tag { char szDestAddress[TAPIMAXDESTADDRESSSIZE]; char szAppName[TAPIMAXAPPNAMESIZE]; char szCalledParty[TAPIMAXCALLEDPARTYSIZE]; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 270 Basic TAPI Implementation LINEREQMAKECALL

Image 1 from page 302

Page 302 diagram

Page 303

char szComment[TAPIMAXCOMMENTSIZE]; } LINEREQMAKECALL, FAR *LPLINEREQMAKECALL; Members Values Members The null-terminated destination address of the make-call request. The address uses the canonical address format or the dialable address format. The maximum length of the address specifies TAPIMAXDESTADDRESSSIZE characters, which include the NULL terminator. Longer strings get truncated. szDestAddress [TAPIMAXADDRESSSIZE] The null-terminated, user-friendly application name or filename of the application that originated the request. The maximum length of the address specifies TAPIMAXAPPNAMESIZE characters, which include the NULL terminator. szAppName [TAPIMAXAPPNAMESIZE] The null-terminated, user-friendly called-party name. The maximum length of the called-party information specifies TAPIMAXCALLEDPARTYSIZE characters, which include the NULL terminator. szCalledParty [TAPIMAXCALLEDPARTYSIZE] The null-terminated comment about the call request. The maximum length of the comment string specifies TAPIMAXCOMMENTSIZE characters, which include the NULL terminator. szComment [TAPIMAXCOMMENTSIZE] LINETRANSLATECAPS The LINETRANSLATECAPS structure describes the address translation capabilities. This structure can contain an array of LINELOCATIONENTRY structures and an array of LINECARDENTRY structures. the lineGetTranslateCaps function returns the LINETRANSLATECAPS structure. You must not extend this structure. Note Structure Details typedef struct linetranslatecaps_tag { DWORD dwTotalSize; DWORD dwNeededSize; DWORD dwUsedSize; DWORD dwNumLocations; DWORD dwLocationListSize; DWORD dwLocationListOffset; DWORD dwCurrentLocationID; DWORD dwNumCards; DWORD dwCardListSize; DWORD dwCardListOffset; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 271 Basic TAPI Implementation LINETRANSLATECAPS

Image 1 from page 303

Page 303 diagram

Page 304

DWORD dwCurrentPreferredCardID; } LINETRANSLATECAPS, FAR *LPLINETRANSLATECAPS; Members Values Members The total size, in bytes, that is allocated to this data structure. dwTotalSize The size, in bytes, for this data structure that is needed to hold all the returned information. dwNeededSize The size, in bytes, of the portion of this data structure that contains useful information. dwUsedSize The number of entries in the location list. It includes all locations that are defined, including zero (default). dwNumLocations List of locations that are known to the address translation. The list comprises a sequence of LINELOCATIONENTRY structures. The dwLocationListOffset member points to the first byte of the first LINELOCATIONENTRY structure, and the dwLocationListSize member indicates the total number of bytes in the entire list. dwLocationListSize dwLocationListOffset The dwPermanentLocationID member from the LINELOCATIONENTRY structure for the CurrentLocation. dwCurrentLocationID The number of entries in the CardList. dwNumCards List of calling cards that are known to the address translation. It includes only non-hidden card entries and always includes card 0 (direct dial). The list comprises a sequence of LINECARDENTRY structures. The dwCardListOffset member points to the first byte of the first LINECARDENTRY structure, and the dwCardListSize member indicates the total number of bytes in the entire list. dwCardListSize dwCardListOffset The dwPreferredCardID member from the LINELOCATIONENTRY structure for the CurrentLocation. dwCurrentPreferredCardID LINETRANSLATEOUTPUT The LINETRANSLATEOUTPUT structure describes the result of an address translation. The lineTranslateAddress function uses this structure. You must not extend this structure. Note Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 272 Basic TAPI Implementation LINETRANSLATEOUTPUT

Image 1 from page 304

Page 304 diagram

Page 305

Structure Details typedef struct linetranslateoutput_tag { DWORD dwTotalSize; DWORD dwNeededSize; DWORD dwUsedSize; DWORD dwDialableStringSize; DWORD dwDialableStringOffset; DWORD dwDisplayableStringSize; DWORD dwDisplayableStringOffset; DWORD dwCurrentCountry; DWORD dwDestCountry; DWORD dwTranslateResults; } LINETRANSLATEOUTPUT, FAR *LPLINETRANSLATEOUTPUT; Members Values Members The total size, in bytes, that is allocated to this data structure. dwTotalSize The size, in bytes, for this data structure that is needed to hold all the returned information. dwNeededSize The size, in bytes, of the portion of this data structure that contains useful information. dwUsedSize Contains the translated output that can be passed to the lineMakeCall, lineDial, or other function that requires a dialable string. The output always comprises a null-terminated string (NULL gets included in the count in dwDialableStringSize). This output string includes ancillary fields such as name and subaddress if they were in the input string. This string may contain private information such as calling card numbers. To prevent inadvertent visibility to unauthorized persons, it should not display to the user. dwDialableStringSize dwDialableStringOffset Contains the translated output that can display to the user for confirmation. Identical to DialableString, except the “friendly name” of the card enclosed within bracket characters (for example, “[AT&T Card]”) replaces calling card digits. The ancillary fields, such as name and subaddress, get removed. You can display this string in call-status dialog boxes without exposing private information to unauthorized persons. You can also include this information in call logs. dwDisplayableStringSize dwDisplayableStringOffset Contains the country code that is configured in CurrentLocation. Use this value to control the display by the application of certain user interface elements for local call progress tone detection and for other purposes. dwCurrentCountry Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 273 Basic TAPI Implementation LINETRANSLATEOUTPUT

Page 305 diagram

Page 306

Values Members Contains the destination country code of the translated address. This value may pass to the dwCountryCode parameter of lineMakeCall and other dialing functions (so the call progress tones of the destination country or region such as a busy signal are properly detected). This field gets set to zero if the destination address that is passed to lineTranslateAddress is not in canonical format. dwDestCountry Indicates the information that is derived from the translation process, which may assist the application in presenting user-interface elements. This field uses one LINETRANSLATERESULT_. dwTranslateResults TAPI Phone Functions TAPI phone functions enable an application to control physical aspects of a phone Table 17: TAPI Phone Functions TAPI phone functions phoneCallbackFunc, on page 275 phoneClose, on page 276 phoneDevSpecific, on page 276 phoneGetDevCaps, on page 276 phoneGetDisplay, on page 277 phoneGetLamp, on page 278 phoneGetMessage, on page 278 phoneGetRing, on page 279 phoneGetStatus, on page 280 phoneGetStatusMessages, on page 281 phoneInitialize, on page 282 phoneInitializeEx, on page 283 phoneNegotiateAPIVersion, on page 285 phoneOpen, on page 286 phoneSetDisplay, on page 287 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 274 Basic TAPI Implementation TAPI Phone Functions

Page 306 diagram

Page 307

TAPI phone functions phoneSetStatusMessages, on page 288 phoneShutdown, on page 290 phoneCallbackFunc The phoneCallbackFunc function provides a placeholder for the application-supplied function name. All callbacks occur in the application context. The callback function must reside in a dynamic-link library (DLL) or application module and be exported in the module-definition file. Function Details VOID FAR PASCAL phoneCallbackFunc( HANDLE hDevice, DWORD dwMsg, DWORD dwCallbackInstance, DWORD dwParam1, DWORD dwParam2, DWORD dwParam3 ); Parameters hDevice A handle to a phone device that is associated with the callback. dwMsg A line or call device message. dwCallbackInstance Callback instance data that is passed to the application in the callback. TAPI does not interpret this DWORD. dwParam1 A parameter for the message. dwParam2 A parameter for the message. dwParam3 A parameter for the message. Further Details For more information about the parameters that are passed to this callback function, see TAPI Line Messages, on page 199 and TAPI Phone Messages, on page 290. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 275 Basic TAPI Implementation phoneCallbackFunc

Page 307 diagram

Page 308

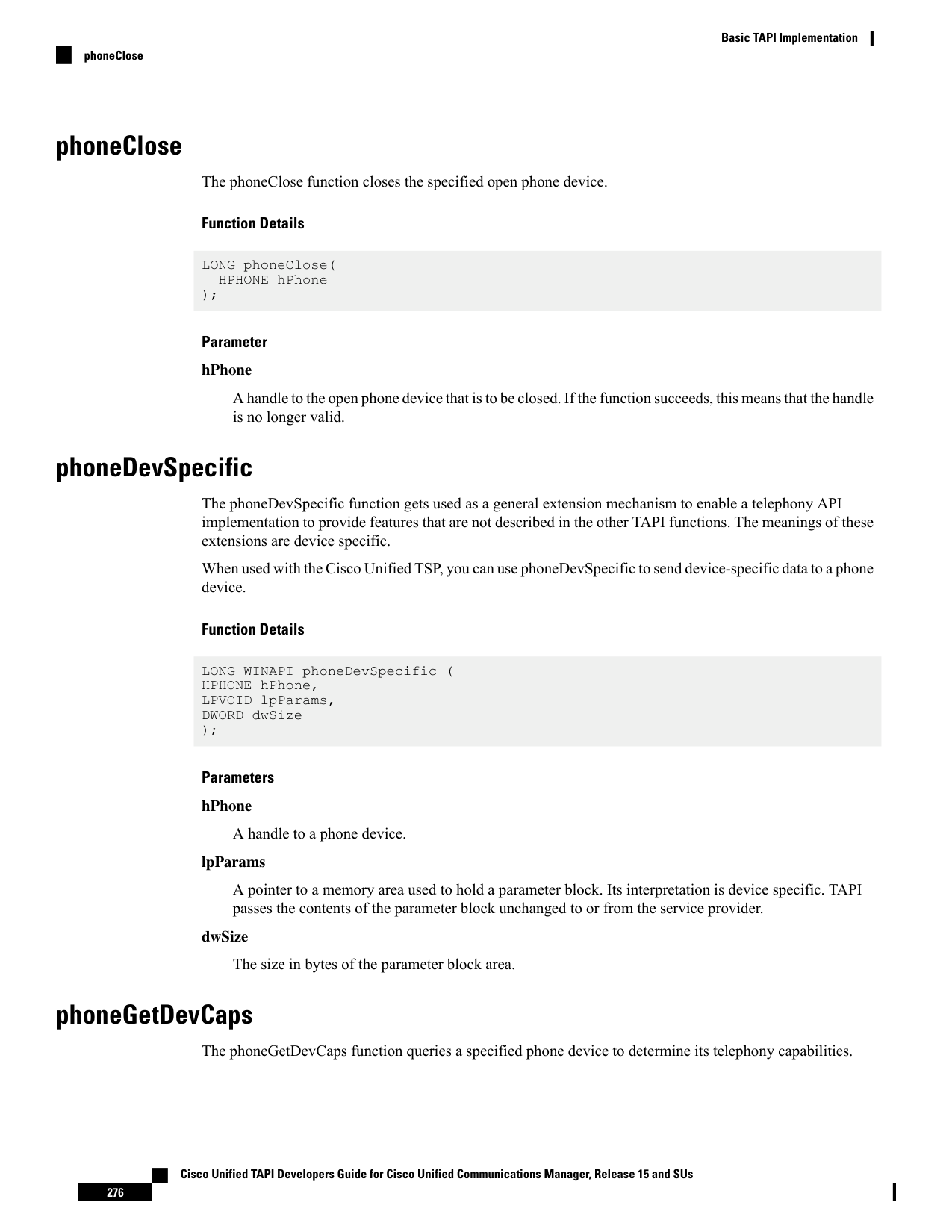

phoneClose The phoneClose function closes the specified open phone device. Function Details LONG phoneClose( HPHONE hPhone ); Parameter hPhone A handle to the open phone device that is to be closed. If the function succeeds, this means that the handle is no longer valid. phoneDevSpecific The phoneDevSpecific function gets used as a general extension mechanism to enable a telephony API implementation to provide features that are not described in the other TAPI functions. The meanings of these extensions are device specific. When used with the Cisco Unified TSP, you can use phoneDevSpecific to send device-specific data to a phone device. Function Details LONG WINAPI phoneDevSpecific ( HPHONE hPhone, LPVOID lpParams, DWORD dwSize ); Parameters hPhone A handle to a phone device. lpParams A pointer to a memory area used to hold a parameter block. Its interpretation is device specific. TAPI passes the contents of the parameter block unchanged to or from the service provider. dwSize The size in bytes of the parameter block area. phoneGetDevCaps The phoneGetDevCaps function queries a specified phone device to determine its telephony capabilities. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 276 Basic TAPI Implementation phoneClose

Page 308 content

Page 309

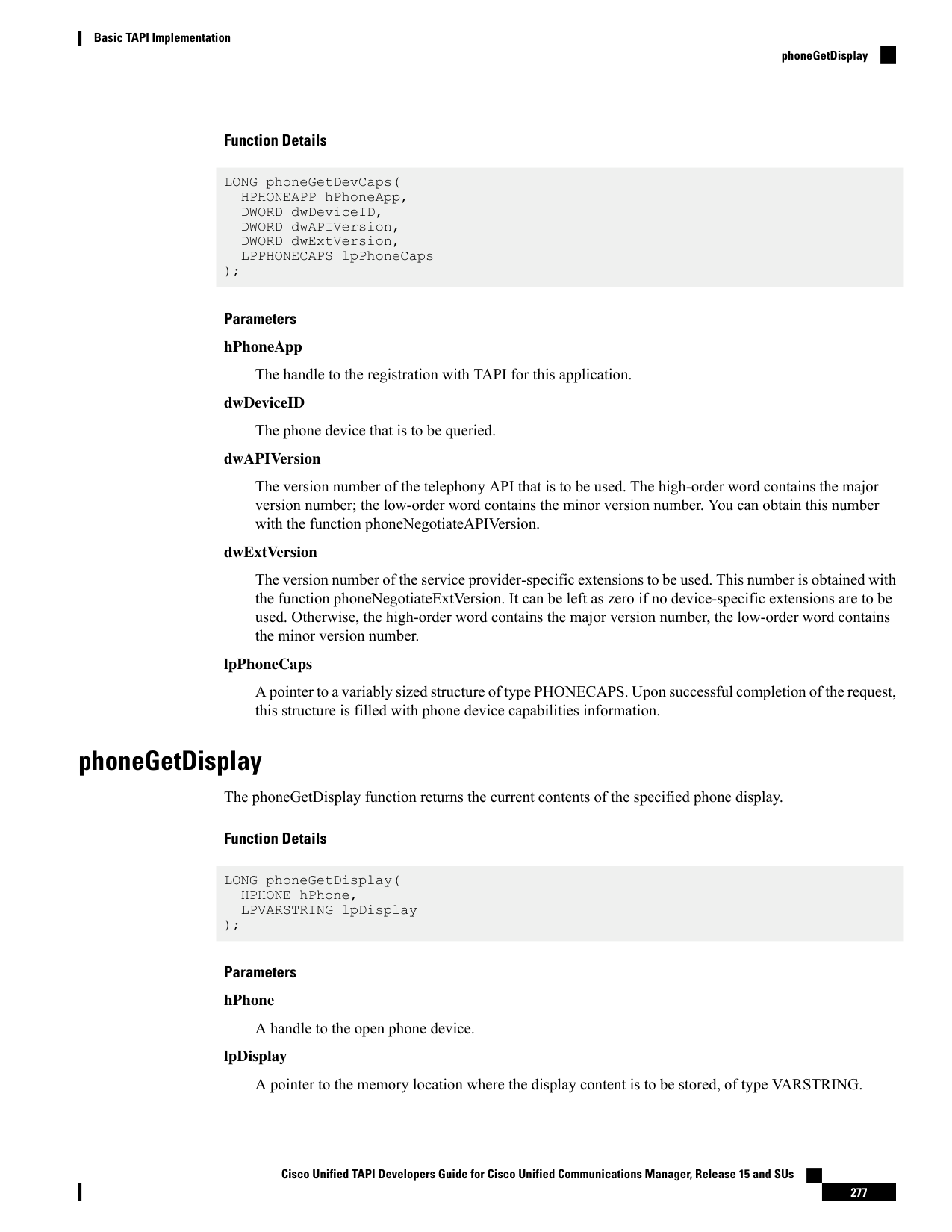

Function Details LONG phoneGetDevCaps( HPHONEAPP hPhoneApp, DWORD dwDeviceID, DWORD dwAPIVersion, DWORD dwExtVersion, LPPHONECAPS lpPhoneCaps ); Parameters hPhoneApp The handle to the registration with TAPI for this application. dwDeviceID The phone device that is to be queried. dwAPIVersion The version number of the telephony API that is to be used. The high-order word contains the major version number; the low-order word contains the minor version number. You can obtain this number with the function phoneNegotiateAPIVersion. dwExtVersion The version number of the service provider-specific extensions to be used. This number is obtained with the function phoneNegotiateExtVersion. It can be left as zero if no device-specific extensions are to be used. Otherwise, the high-order word contains the major version number, the low-order word contains the minor version number. lpPhoneCaps A pointer to a variably sized structure of type PHONECAPS. Upon successful completion of the request, this structure is filled with phone device capabilities information. phoneGetDisplay The phoneGetDisplay function returns the current contents of the specified phone display. Function Details LONG phoneGetDisplay( HPHONE hPhone, LPVARSTRING lpDisplay ); Parameters hPhone A handle to the open phone device. lpDisplay A pointer to the memory location where the display content is to be stored, of type VARSTRING. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 277 Basic TAPI Implementation phoneGetDisplay

Page 309 content

Page 310

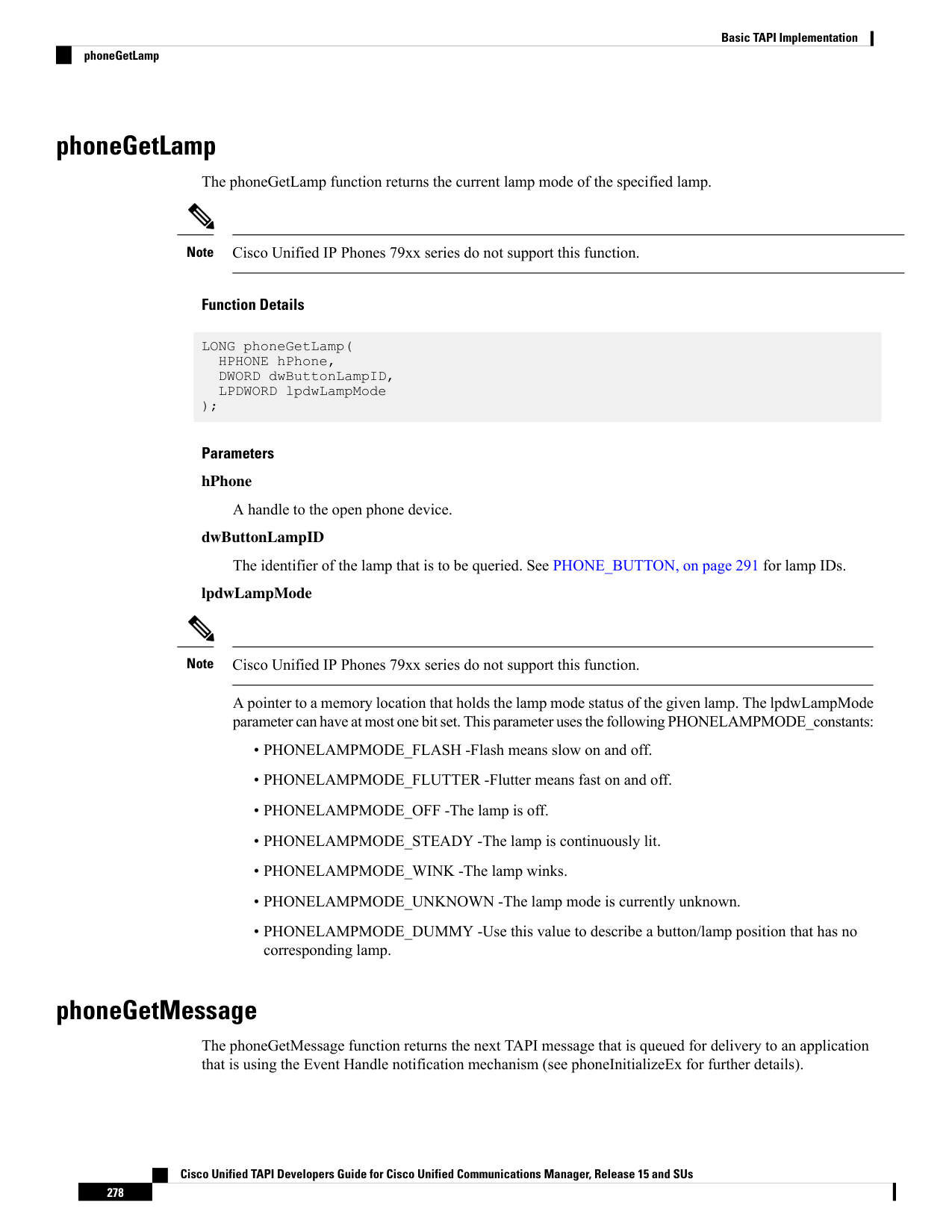

phoneGetLamp The phoneGetLamp function returns the current lamp mode of the specified lamp. Cisco Unified IP Phones 79xx series do not support this function. Note Function Details LONG phoneGetLamp( HPHONE hPhone, DWORD dwButtonLampID, LPDWORD lpdwLampMode ); Parameters hPhone A handle to the open phone device. dwButtonLampID The identifier of the lamp that is to be queried. See PHONE_BUTTON, on page 291 for lamp IDs. lpdwLampMode Cisco Unified IP Phones 79xx series do not support this function. Note A pointer to a memory location that holds the lamp mode status of the given lamp. The lpdwLampMode parameter can have at most one bit set. This parameter uses the following PHONELAMPMODE_constants: • PHONELAMPMODE_FLASH -Flash means slow on and off. • PHONELAMPMODE_FLUTTER -Flutter means fast on and off. • PHONELAMPMODE_OFF -The lamp is off. • PHONELAMPMODE_STEADY -The lamp is continuously lit. • PHONELAMPMODE_WINK -The lamp winks. • PHONELAMPMODE_UNKNOWN -The lamp mode is currently unknown. • PHONELAMPMODE_DUMMY -Use this value to describe a button/lamp position that has no corresponding lamp. phoneGetMessage The phoneGetMessage function returns the next TAPI message that is queued for delivery to an application that is using the Event Handle notification mechanism (see phoneInitializeEx for further details). Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 278 Basic TAPI Implementation phoneGetLamp

Image 1 from page 310

Page 310 content

Page 311

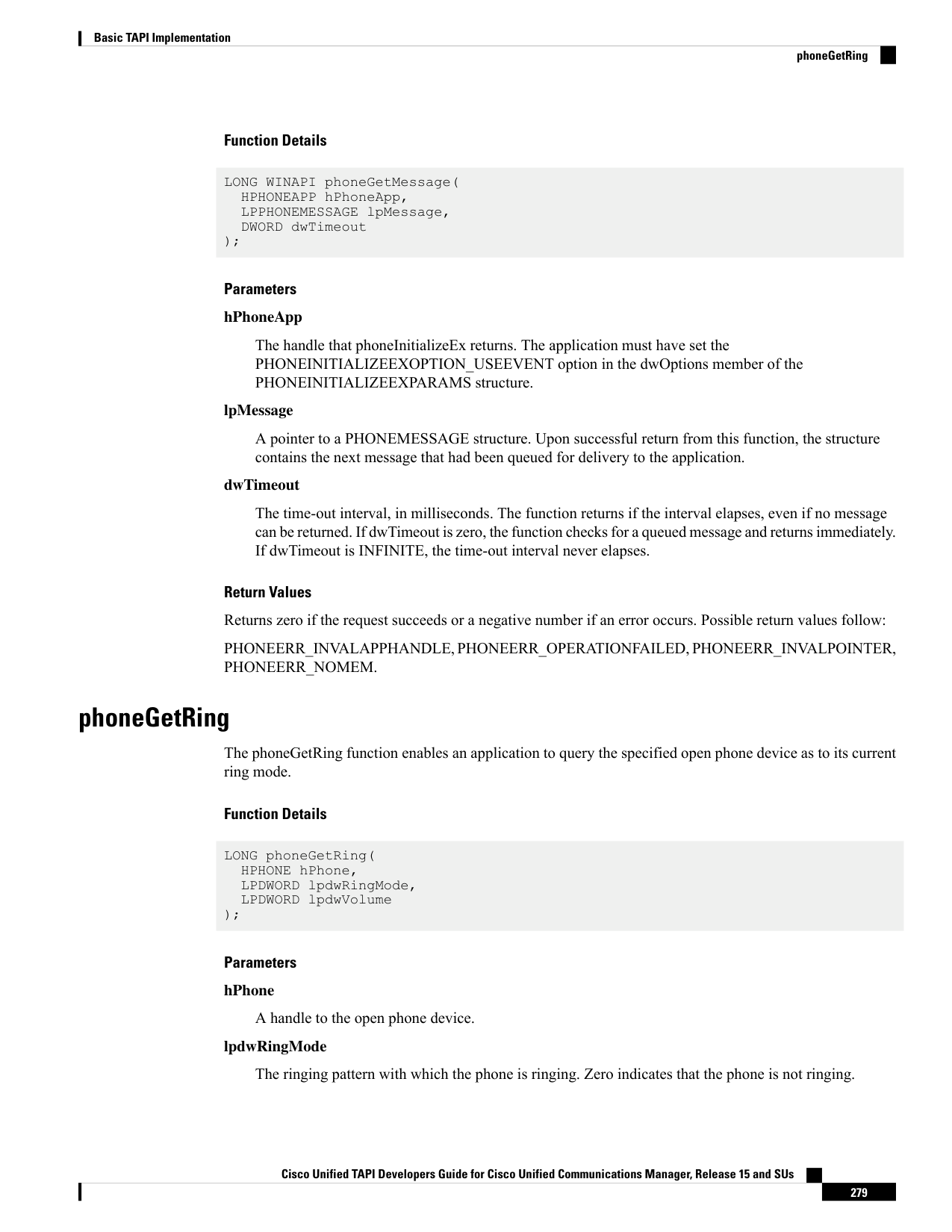

Function Details LONG WINAPI phoneGetMessage( HPHONEAPP hPhoneApp, LPPHONEMESSAGE lpMessage, DWORD dwTimeout ); Parameters hPhoneApp The handle that phoneInitializeEx returns. The application must have set the PHONEINITIALIZEEXOPTION_USEEVENT option in the dwOptions member of the PHONEINITIALIZEEXPARAMS structure. lpMessage A pointer to a PHONEMESSAGE structure. Upon successful return from this function, the structure contains the next message that had been queued for delivery to the application. dwTimeout The time-out interval, in milliseconds. The function returns if the interval elapses, even if no message can be returned. If dwTimeout is zero, the function checks for a queued message and returns immediately. If dwTimeout is INFINITE, the time-out interval never elapses. Return Values Returns zero if the request succeeds or a negative number if an error occurs. Possible return values follow: PHONEERR_INVALAPPHANDLE, PHONEERR_OPERATIONFAILED, PHONEERR_INVALPOINTER, PHONEERR_NOMEM. phoneGetRing The phoneGetRing function enables an application to query the specified open phone device as to its current ring mode. Function Details LONG phoneGetRing( HPHONE hPhone, LPDWORD lpdwRingMode, LPDWORD lpdwVolume ); Parameters hPhone A handle to the open phone device. lpdwRingMode The ringing pattern with which the phone is ringing. Zero indicates that the phone is not ringing. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 279 Basic TAPI Implementation phoneGetRing

Page 311 content

Page 312

The system supports four ring modes. The following table lists the valid ring modes. Table 18: Ring Modes Definition Ring Modes Off 0 Inside Ring 1 Outside Ring 2 Feature Ring 3 lpdwVolume The volume level with which the phone is ringing. This parameter has no meaning; the value 0x8000 always gets returned. phoneGetStatus The phoneGetStatus function enables an application to query the specified open phone device for its overall status. Function Details LONG WINAPI phoneGetStatusMessages( HPHONE hPhone, LPPHONESTATUS lpPhoneStatus ) ; Parameters hPhone A handle to the open phone device to be queried. lpPhoneStatus A pointer to a variably sized data structure of type PHONESTATUS, which is loaded with the returned information about the phone status. Return Values Returns zero if the request succeeds or a negative number if an error occurs. Return values include the following: PHONEERR_INVALPHONEHANDLE, PHONEERR_NOMEM PHONEERR_INVALPOINTER, PHONEERR_RESOURCEUNAVAIL PHONEERR_OPERATIONFAILED, PHONEERR_STRUCTURETOOSMALL PHONEERR_OPERATIONUNAVAIL, PHONEERR_UNINITIALIZED Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 280 Basic TAPI Implementation phoneGetStatus

Page 312 diagram

Page 313

phoneGetStatusMessages The phoneGetStatusMessages function returns information about which phone-state changes on the specified phone device generate a callback to the application. An application can use phoneGetStatusMessages to query the generation of the corresponding messages. The phoneSetStatusMessages can control Message generation. All phone status messages remain disabled by default. Function Details LONG WINAPI phoneGetStatusMessages( HPHONE hPhone, LPDWORD lpdwPhoneStates, LPDWORD lpdwButtonModes, LPDWORD lpdwButtonStates ); Parameters hPhone A handle to the open phone device that is to be monitored. lpdwPhoneStates A pointer to a DWORD holding zero, one or more of the PHONESTATE_Constants. These flags specify the set of phone status changes and events for which the application can receive notification messages. You can enable or disable monitoring individually for the following states: • PHONESTATE_OTHER • PHONESTATE_CONNECTED • PHONESTATE_DISCONNECTED • PHONESTATE_OWNER • PHONESTATE_MONITORS • PHONESTATE_DISPLAY • PHONESTATE_LAMP • PHONESTATE_RINGMODE • PHONESTATE_RINGVOLUME • PHONESTATE_HANDSETHOOKSWITCH • PHONESTATE_HANDSETVOLUME • PHONESTATE_HANDSETGAIN • PHONESTATE_SPEAKERHOOKSWITCH • PHONESTATE_SPEAKERVOLUME • PHONESTATE_SPEAKERGAIN Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 281 Basic TAPI Implementation phoneGetStatusMessages

Page 313 content

Page 314

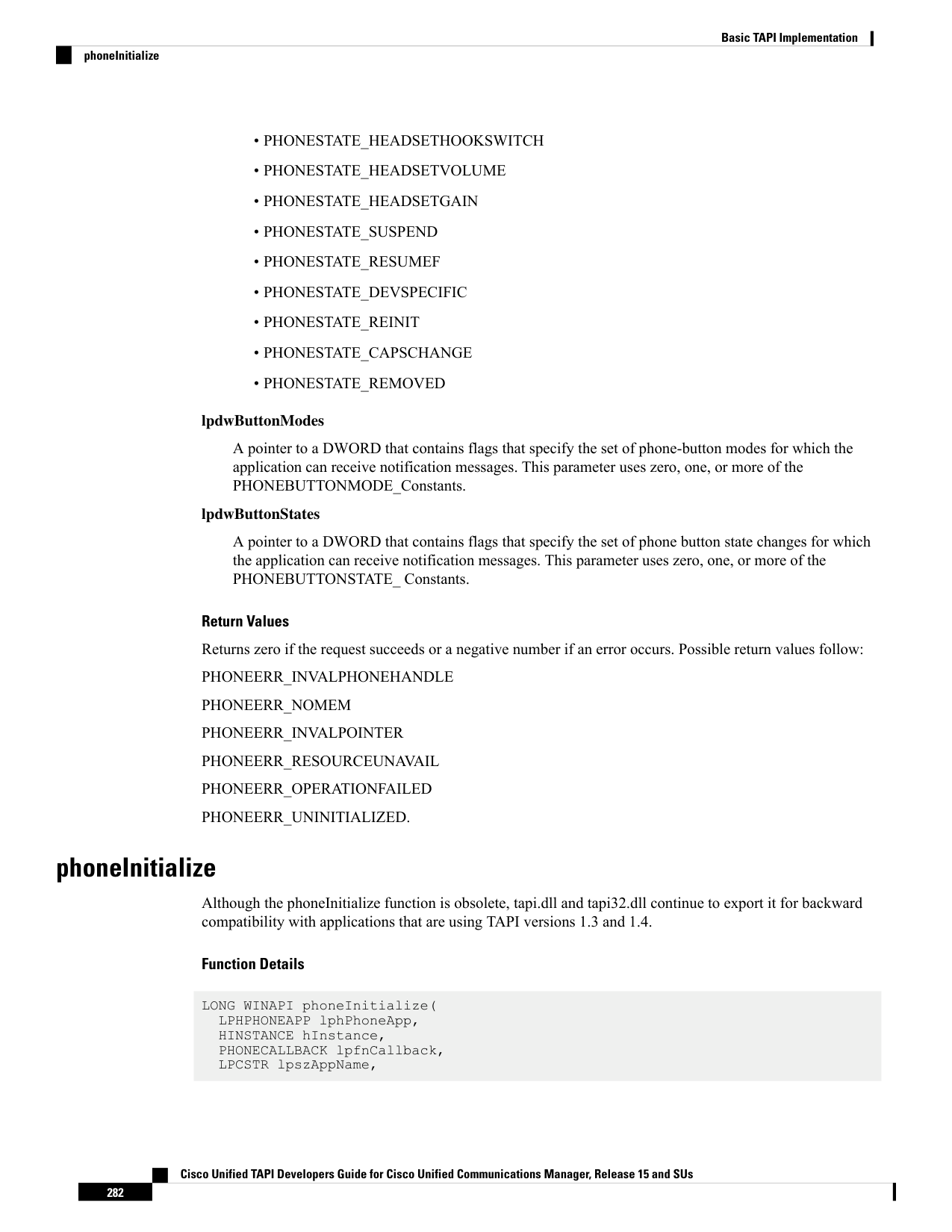

• PHONESTATE_HEADSETHOOKSWITCH • PHONESTATE_HEADSETVOLUME • PHONESTATE_HEADSETGAIN • PHONESTATE_SUSPEND • PHONESTATE_RESUMEF • PHONESTATE_DEVSPECIFIC • PHONESTATE_REINIT • PHONESTATE_CAPSCHANGE • PHONESTATE_REMOVED lpdwButtonModes A pointer to a DWORD that contains flags that specify the set of phone-button modes for which the application can receive notification messages. This parameter uses zero, one, or more of the PHONEBUTTONMODE_Constants. lpdwButtonStates A pointer to a DWORD that contains flags that specify the set of phone button state changes for which the application can receive notification messages. This parameter uses zero, one, or more of the PHONEBUTTONSTATE_ Constants. Return Values Returns zero if the request succeeds or a negative number if an error occurs. Possible return values follow: PHONEERR_INVALPHONEHANDLE PHONEERR_NOMEM PHONEERR_INVALPOINTER PHONEERR_RESOURCEUNAVAIL PHONEERR_OPERATIONFAILED PHONEERR_UNINITIALIZED. phoneInitialize Although the phoneInitialize function is obsolete, tapi.dll and tapi32.dll continue to export it for backward compatibility with applications that are using TAPI versions 1.3 and 1.4. Function Details LONG WINAPI phoneInitialize( LPHPHONEAPP lphPhoneApp, HINSTANCE hInstance, PHONECALLBACK lpfnCallback, LPCSTR lpszAppName, Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 282 Basic TAPI Implementation phoneInitialize

Page 314 content

Page 315

LPDWORD lpdwNumDevs ); Parameters lphPhoneApp A pointer to a location that is filled with the application usage handle for TAPI. hInstance The instance handle of the client application or DLL. lpfnCallback The address of a callback function that is invoked to determine status and events on the phone device. lpszAppName A pointer to a null-terminated string that contains displayable characters. If this parameter is non-NULL, it contains an application-supplied name of the application. This name, which is provided in the PHONESTATUS structure, indicates, in a user-friendly way, which application is the current owner of the phone device. You can use this information for logging and status reporting purposes. If lpszAppName is NULL, the application filename gets used instead. lpdwNumDevs A pointer to DWORD. This location gets loaded with the number of phone devices that are available to the application. Return Values Returns zero if the request succeeds or a negative number if an error occurs. Possible return values follow: PHONEERR_INVALAPPNAME PHONEERR_INIFILECORRUPT PHONEERR_INVALPOINTER PHONEERR_NOMEM PHONEERR_OPERATIONFAILED PHONEERR_REINIT PHONEERR_RESOURCEUNAVAIL PHONEERR_NODEVICE PHONEERR_NODRIVER PHONEERR_INVALPARAM phoneInitializeEx The phoneInitializeEx function initializes the application use of TAPI for subsequent use of the phone abstraction. It registers the application specified notification mechanism and returns the number of phone devices that are available to the application. A phone device represents any device that provides an implementation for the phone-prefixed functions in the telephony API. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 283 Basic TAPI Implementation phoneInitializeEx

Page 315 content

Page 316

Function Details LONG WINAPI phoneInitializeEx( LPHPHONEAPP lphPhoneApp, HINSTANCE hInstance, PHONECALLBACK lpfnCallback, LPCSTR lpszFriendlyAppName, LPDWORD lpdwNumDevs, LPDWORD lpdwAPIVersion, LPPHONEINITIALIZEEXPARAMS lpPhoneInitializeExParams ); Parameters lphPhoneApp A pointer to a location that is filled with the application usage handle for TAPI. hInstance The instance handle of the client application or DLL. The application or DLL can pass NULL for this parameter, in which case TAPI uses the module handle of the root executable of the process. lpfnCallback The address of a callback function that is invoked to determine status and events on the line device, addresses, or calls, when the application is using the "hidden window" method of event notification (for more information, see phoneCallbackFunc). When the application chooses to use the event handle or completion port event notification mechanisms, this parameter gets ignored and should be set to NULL. lpszFriendlyAppName A pointer to a null-terminated string that contains only displayable characters. If this parameter is not NULL, it contains an application-supplied name for the application. This name, which is provided in the PHONESTATUS structure, indicates, in a user-friendly way, which application has ownership of the phone device. If lpszFriendlyAppName is NULL, the application module filename gets used instead (as returned by the Windows function GetModuleFileName). lpdwNumDevs A pointer to a DWORD. Upon successful completion of this request, the number of phone devices that are available to the application fills this location. lpdwAPIVersion A pointer to a DWORD. The application must initialize this DWORD, before calling this function, to the highest API version that it is designed to support (for example, the same value that it would pass into dwAPIHighVersion parameter of phoneNegotiateAPIVersion). Do no use artificially high values; ensure the values are accurately set. TAPI translates any newer messages or structures into values or formats that the application version supports. Upon successful completion of this request, the highest API version that TAPI supports fills this location, which allows the application to detect and adapt to being installed on a system with an older version of TAPI. lpPhoneInitializeExParams A pointer to a structure of type PHONEINITIALIZEEXPARAMS that contains additional parameters that are used to establish the association between the application and TAPI (specifically, the application-selected event notification mechanism and associated parameters). Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 284 Basic TAPI Implementation phoneInitializeEx

Page 316 content

Page 317

Return Values Returns zero if the request succeeds or a negative number if an error occurs. Possible return values follow: PHONEERR_INVALAPPNAME PHONEERR_OPERATIONFAILED PHONEERR_INIFILECORRUPT PHONEERR_INVALPOINTER PHONEERR_REINIT PHONEERR_NOMEM PHONEERR_INVALPARAM phoneNegotiateAPIVersion Use the phoneNegotiateAPIVersion function to negotiate the API version number to be used with the specified phone device. It returns the extension identifier that the phone device supports, or zeros if no extensions are provided. Function Details LONG WINAPI phoneNegotiateAPIVersion( HPHONEAPP hPhoneApp, DWORD dwDeviceID, DWORD dwAPILowVersion, DWORD dwAPIHighVersion, LPDWORD lpdwAPIVersion, LPPHONEEXTENSIONID lpExtensionID ); Parameters hPhoneApp The handle to the application registration with TAPI. dwDeviceID The phone device to be queried. dwAPILowVersion The least recent API version with which the application is compliant. The high-order word represents the major version number, and the low-order word represents the minor version number. dwAPIHighVersion The most recent API version with which the application is compliant. The high-order word represents the major version number, and the low-order word represents the minor version number. lpdwAPIVersion A pointer to a DWORD in which the API version number that was negotiated will be returned. If negotiation succeeds, this number ranges from dwAPILowVersion to dwAPIHighVersion. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 285 Basic TAPI Implementation phoneNegotiateAPIVersion

Page 317 content

Page 318

lpExtensionID A pointer to a structure of type PHONEEXTENSIONID. If the service provider for the specified dwDeviceID parameter supports provider-specific extensions, this structure gets filled with the extension identifier of these extensions when negotiation succeeds. This structure contains all zeros if the line provides no extensions. An application can ignore the returned parameter if it does not use extensions. Return Values Returns zero if the request succeeds or a negative number if an error occurs. Possible return values follow: PHONEERR_INVALAPPHANDLE PHONEERR_OPERATIONFAILED PHONEERR_BADDEVICEID PHONEERR_OPERATIONUNAVAIL PHONEERR_NODRIVER PHONEERR_NOMEM PHONEERR_INVALPOINTER PHONEERR_RESOURCEUNAVAIL,PHONEERR_INCOMPATIBLEAPIVERSION PHONEERR_UNINITIALIZED PHONEERR_NODEVICE phoneOpen The phoneOpen function opens the specified phone device. Open the device by using either owner privilege or monitor privilege. An application that opens the phone with owner privilege can control the lamps, display, ringer, and hookswitch or hookswitches that belong to the phone. An application that opens the phone device with monitor privilege receives notification only about events that occur at the phone, such as hookswitch changes or button presses. Because ownership of a phone device is exclusive, only one application at a time can have a phone device opened with owner privilege. The phone device can, however, be opened multiple times with monitor privilege. To open a phone device on a CTI port, first ensure a corresponding line device is open. Note Function Details LONG phoneOpen( HPHONEAPP hPhoneApp, DWORD dwDeviceID, LPHPHONE lphPhone, DWORD dwAPIVersion, DWORD dwExtVersion, DWORD dwCallbackInstance, DWORD dwPrivilege ); Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 286 Basic TAPI Implementation phoneOpen

Image 1 from page 318

Page 318 content

Page 319

Parameters hPhoneApp A handle by which the application is registered with TAPI. dwDeviceID The phone device to be opened. lphPhone A pointer to an HPHONE handle that identifies the open phone device. Use this handle to identify the device when invoking other phone control functions. dwAPIVersion The API version number under which the application and telephony API agreed to operate. Obtain this number from phoneNegotiateAPIVersion. dwExtVersion The extension version number under which the application and the service provider agree to operate. This number is zero if the application does not use any extensions. Obtain this number from phoneNegotiateExtVersion. dwCallbackInstance User instance data that is passed back to the application with each message. The telephony API does not interpret this parameter. dwPrivilege The privilege requested. The dwPrivilege parameter can have only one bit set. This parameter uses the following PHONEPRIVILEGE_constants: • PHONEPRIVILEGE_MONITOR -An application that opens a phone device with this privilege gets informed about events and state changes that occur on the phone. The application cannot invoke any operations on the phone device that would change its state. • PHONEPRIVILEGE_OWNER -An application that opens a phone device in this mode can change the state of the lamps, ringer, display, and hookswitch devices of the phone. Having owner privilege to a phone device automatically includes monitor privilege as well. phoneSetDisplay The phoneSetDisplay function causes the specified string to display on the specified open phone device. Prior to Release 4.0, Cisco Unified Communications Manager messages that were passed to the phone would automatically overwrite any messages sent to the phone by using phoneSetDisplay(). In Cisco Unified Communications Manager 4.0, the message sent to the phone in the phoneSetDisplay() API remains on the phone until the phone is rebooted. If the application wants to clear the text from the display and see the Cisco Unified Communications Manager messages again, a NULL string, not spaces, should be passed in the phoneSetDisplay() API. In other words, the lpsDisplay parameter should be NULL and the dwSize should be set to 0. Note Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 287 Basic TAPI Implementation phoneSetDisplay

Image 1 from page 319

Page 319 content

Page 320

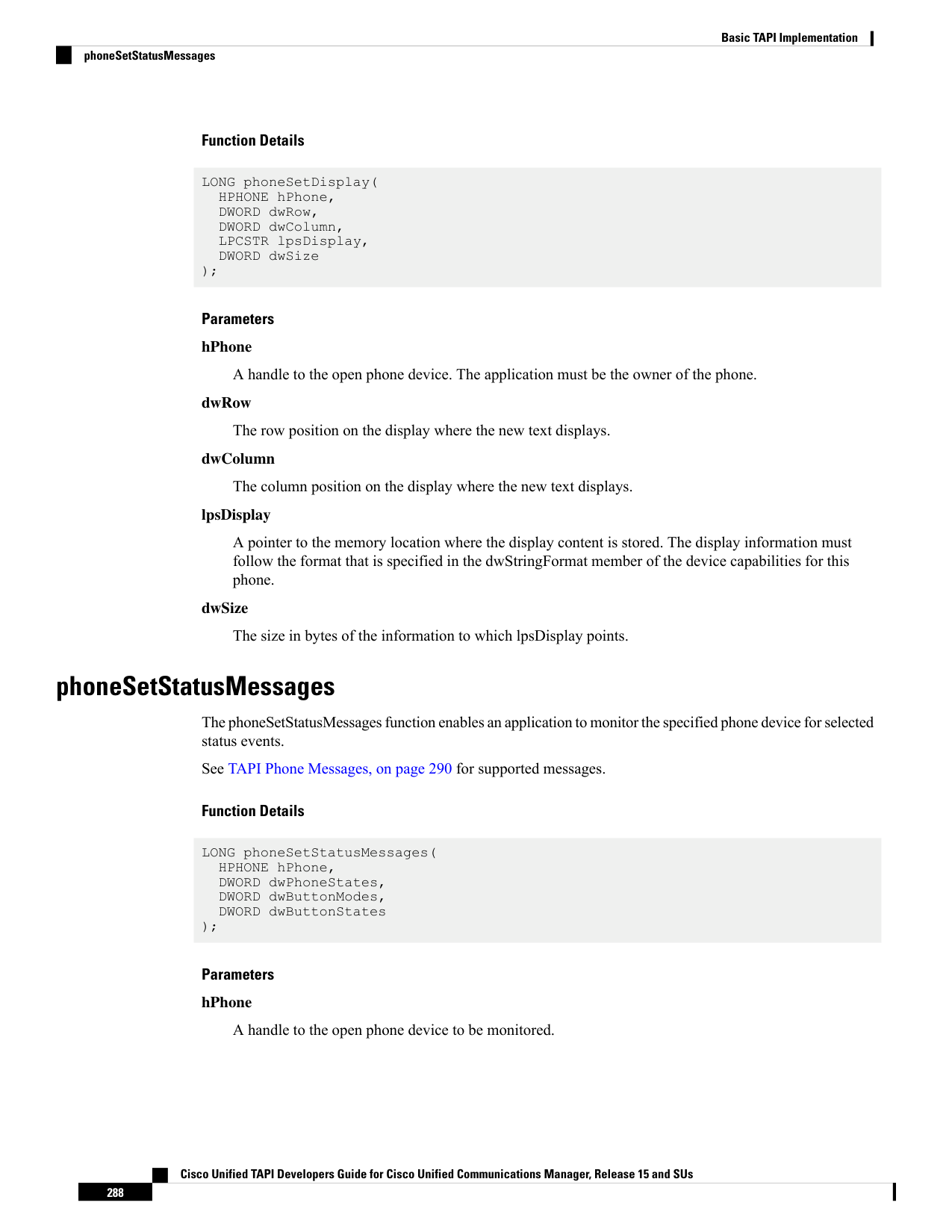

Function Details LONG phoneSetDisplay( HPHONE hPhone, DWORD dwRow, DWORD dwColumn, LPCSTR lpsDisplay, DWORD dwSize ); Parameters hPhone A handle to the open phone device. The application must be the owner of the phone. dwRow The row position on the display where the new text displays. dwColumn The column position on the display where the new text displays. lpsDisplay A pointer to the memory location where the display content is stored. The display information must follow the format that is specified in the dwStringFormat member of the device capabilities for this phone. dwSize The size in bytes of the information to which lpsDisplay points. phoneSetStatusMessages The phoneSetStatusMessages function enables an application to monitor the specified phone device for selected status events. See TAPI Phone Messages, on page 290 for supported messages. Function Details LONG phoneSetStatusMessages( HPHONE hPhone, DWORD dwPhoneStates, DWORD dwButtonModes, DWORD dwButtonStates ); Parameters hPhone A handle to the open phone device to be monitored. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 288 Basic TAPI Implementation phoneSetStatusMessages

Page 320 content

Page 321

dwPhoneStates These flags specify the set of phone status changes and events for which the application can receive notification messages. This parameter can have zero, one, or more bits set. This parameter uses the following PHONESTATE_ constants: • PHONESTATE_OTHER -Phone status items other than those in the following list changed. The application should check the current phone status to determine which items changed. • PHONESTATE_OWNER -The number of owners for the phone device changed. • PHONESTATE_MONITORS -The number of monitors for the phone device changed. • PHONESTATE_DISPLAY -The display of the phone changed. • PHONESTATE_LAMP -A lamp of the phone changed. • PHONESTATE_RINGMODE -The ring mode of the phone changed. • PHONESTATE_SPEAKERHOOKSWITCH -The hookswitch state changed for this speakerphone. • PHONESTATE_REINIT -Items changed in the configuration of phone devices. To become aware of these changes (as with the appearance of new phone devices), the application should reinitialize its use of TAPI. New phoneInitialize, phoneInitializeEx, and phoneOpen requests get denied until applications have shut down their usage of TAPI. The hDevice parameter of the PHONE_STATE message stays NULL for this state change because it applies to any line in the system. Because of the critical nature of PHONESTATE_REINIT, you cannot mask such messages, so the setting of this bit gets ignored, and the messages always get delivered to the application. • PHONESTATE_REMOVED -Indicates that the service provider is removing the device from the system (most likely through user action, through a control panel or similar utility). A PHONE_CLOSE message on the device immediately follows a PHONE_STATE message with this value. Subsequent attempts to access the device prior to TAPI being reinitialized result in PHONEERR_NODEVICE being returned to the application. If a service provider sends a PHONE_STATE message that contains this value to TAPI, TAPI passes it along to applications that negotiated TAPI version 1.4 or later; applications that negotiated a previous TAPI version do not receive any notification. dwButtonModes The set of phone-button modes for which the application can receive notification messages. This parameter can have zero, one, or more bits set. This parameter uses the following PHONEBUTTONMODE_constants: • PHONEBUTTONMODE_CALL -The button is assigned to a call appearance. • PHONEBUTTONMODE_FEATURE -The button is assigned to requesting features from the switch, such as hold, conference, and transfer. • PHONEBUTTONMODE_KEYPAD -The button is one of the 12 keypad buttons, ‘0’ through ‘9’, ‘*’, and ‘#’. • PHONEBUTTONMODE_DISPLAY -The button is a “soft” button that is associated with the phone display. A phone set can have zero or more display buttons. dwButtonStates The set of phone-button state changes for which the application can receive notification messages. If the dwButtonModes parameter is zero, the system ignores dwButtonStates. If dwButtonModes has one or Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 289 Basic TAPI Implementation phoneSetStatusMessages

Page 321 content

Page 322

more bits set, this parameter also must have at least one bit set. This parameter uses the following PHONEBUTTONSTATE_constants: • PHONEBUTTONSTATE_UP -The button is in the “up” state. • PHONEBUTTONSTATE_DOWN -The button is in the “down” state (pressed down). • PHONEBUTTONSTATE_UNKNOWN -The up or down state of the button is unknown at this time but may become known later. • PHONEBUTTONSTATE_UNAVAIL -The service provider does not know the up or down state of the button, and the state will not become known. phoneShutdown The phoneShutdown function shuts down the application usage of the TAPI phone abstraction. If this function is called when the application has open phone devices, these devices are closed. Note Function Details LONG WINAPI phoneShutdown( HPHONEAPP hPhoneApp ); Parameter hPhoneApp The application usage handle for TAPI. Return Values Returns zero if the request succeeds or a negative number if an error occurs. Possible return values follow: PHONEERR_INVALAPPHANDLE, PHONEERR_NOMEM, PHONEERR_UNINITIALIZED, PHONEERR_RESOURCEUNAVAIL. TAPI Phone Messages Messages notify the application of asynchronous events. All messages get sent to the application through the message notification mechanism that the application specified in lineInitializeEx. The message always contains a handle to the relevant object (phone, line, or call), of which the application can determine the type from the message type. The following table describes TAPI Phone messages. Table 19: TAPI Phone Messages TAPI Phone Messages PHONE_BUTTON, on page 291 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 290 Basic TAPI Implementation phoneShutdown

Image 1 from page 322

Page 322 diagram

Page 323

TAPI Phone Messages PHONE_CLOSE, on page 294 PHONE_CREATE, on page 294 PHONE_REMOVE, on page 295 PHONE_REPLY, on page 296 PHONE_STATE, on page 296 PHONE_BUTTON The PHONE_BUTTON message notifies the application that button press monitoring is enabled if it has detected a button press on the local phone. Function Details PHONE_BUTTON hPhone = (HPHONE) hPhoneDevice; dwCallbackInstance = (DWORD) hCallback; dwParam1 = (DWORD) idButtonOrLamp; dwParam2 = (DWORD) ButtonMode; dwParam3 = (DWORD) ButtonState; Parameters hPhone A handle to the phone device. dwCallbackInstance The callback instance that is provided when the phone device for this application is opened. dwParam1 The button/lamp identifier of the button that was pressed. Button identifiers zero through 11 always represent the KEYPAD buttons, with ‘0’ being button identifier zero, ‘1’ being button identifier 1 (and so on through button identifier 9), and with ‘*’ being button identifier 10, and ‘#’ being button identifier 11. Find additional information about a button identifier with phoneGetDevCaps, on page 276. dwParam2 The button mode of the button. The button mode for each button ID gets listed as shown in the table below. The TAPI service provider cannot detect button down or button up state changes. To conform to the TAPI specification, two messages are sent to simulate a down state followed by an up state in dwparam3. This parameter uses the following PHONEBUTTONMODE_constants: • PHONEBUTTONMODE_CALL -The button is assigned to a call appearance. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 291 Basic TAPI Implementation PHONE_BUTTON

Page 323 diagram

Page 324

• PHONEBUTTONMODE_FEATURE -The button is assigned to requesting features from the switch, such as hold, conference, and transfer. • PHONEBUTTONMODE_KEYPAD -The button is one of the 12 keypad buttons, ‘0’ through ‘9’, ‘*’, and ‘#’. • PHONEBUTTONMODE_DISPLAY -The button is a soft button that is associated with the phone display. A phone set can have zero or more display buttons. dwParam3 Specifies whether this is a button-down event or a button-up event. This parameter uses the following PHONEBUTTONSTATE_constants: • PHONEBUTTONSTATE_UP -The button is in the up state. • PHONEBUTTONSTATE_DOWN -The button is in the down state (pressed down). • PHONEBUTTONSTATE_UNKNOWN -The up or down state of the button is not known at this time and may be known later. • PHONEBUTTONSTATE_UNAVAIL -The service provider does not know the up or down state of the button, and the state cannot become known at a future time. Button ID values of zero through 11 map to the keypad buttons as defined by TAPI. Values above 11 map to line and feature buttons. The low-order part of the DWORD specifies the feature. The high-order part of the DWORD specifies the instance number of that feature. The following table lists all possible values for the low-order part of the DWORD that corresponds to the feature. Use the following expression to make the button ID: ButtonID = (instance << 16) | featureID The following table lists the valid phone button values. Table 20: Phone Button Values Button Mode Has Instance Feature Value Keypad No Keypad button 0 0 Keypad No Keypad button 1 1 Keypad No Keypad button 2 2 Keypad No Keypad button 3 3 Keypad No Keypad button 4 4 Keypad No Keypad button 5 5 Keypad No Keypad button 6 6 Keypad No Keypad button 7 7 Keypad No Keypad button 8 8 Keypad No Keypad button 9 9 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 292 Basic TAPI Implementation PHONE_BUTTON

Page 324 diagram

Page 325

Button Mode Has Instance Feature Value Keypad No Keypad button ‘*’ 10 Keypad No Keypad button ‘#’ 11 Feature No Last Number Redial 12 Feature Yes Speed Dial 13 Feature No Hold 14 Feature No Transfer 15 Feature No Forward All (for line one) 16 Feature No Forward Busy (for line one) 17 Feature No Forward No Answer (for line one) 18 Feature No Display 19 Call Yes Line 20 Feature No Chat (for line one) 21 Feature No Whiteboard (for line one) 22 Feature No Application Sharing (for line one) 23 Feature No T120 File Transfer (for line one) 24 Feature No Video (for line one) 25 Feature No Voice Mail (for line one) 26 Feature No Answer Release 27 Feature No Auto-answer 28 Feature Yes Generic Custom Button 1 44 Feature Yes Generic Custom Button 2 45 Feature Yes Generic Custom Button 3 46 Feature Yes Generic Custom Button 4 47 Feature Yes Generic Custom Button 5 48 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 293 Basic TAPI Implementation PHONE_BUTTON

Page 325 diagram

Page 326

PHONE_CLOSE The PHONE_CLOSE message gets sent when an open phone device is forcibly closed as part of resource reclamation. The device handle is no longer valid after this message is sent. Function Details PHONE_CLOSE hPhone = (HPHONE) hPhoneDevice; dwCallbackInstance = (DWORD) hCallback; dwParam1 = (DWORD) 0; dwParam2 = (DWORD) 0; dwParam3 = (DWORD) 0; Parameters hPhone A handle to the open phone device that was closed. The handle is no longer valid after this message is sent. dwCallbackInstance The callback instance of the application that is provided on an open phone device. dwParam1 Not used. dwParam2 Not used. dwParam3 Not used. PHONE_CREATE The PHONE_CREATE message gets sent to inform applications of the creation of a new phone device. CTI Manager cluster support, extension mobility, change notification, and user addition to the directory can generate PHONE_CREATE events. Note Function Details PHONE_CREATE hPhone = (HPHONE) hPhoneDevice; dwCallbackInstance = (DWORD) 0; dwParam1 = (DWORD) idDevice; dwParam2 = (DWORD) 0; dwParam3 = (DWORD) 0; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 294 Basic TAPI Implementation PHONE_CLOSE

Image 1 from page 326

Page 326 content

Page 327

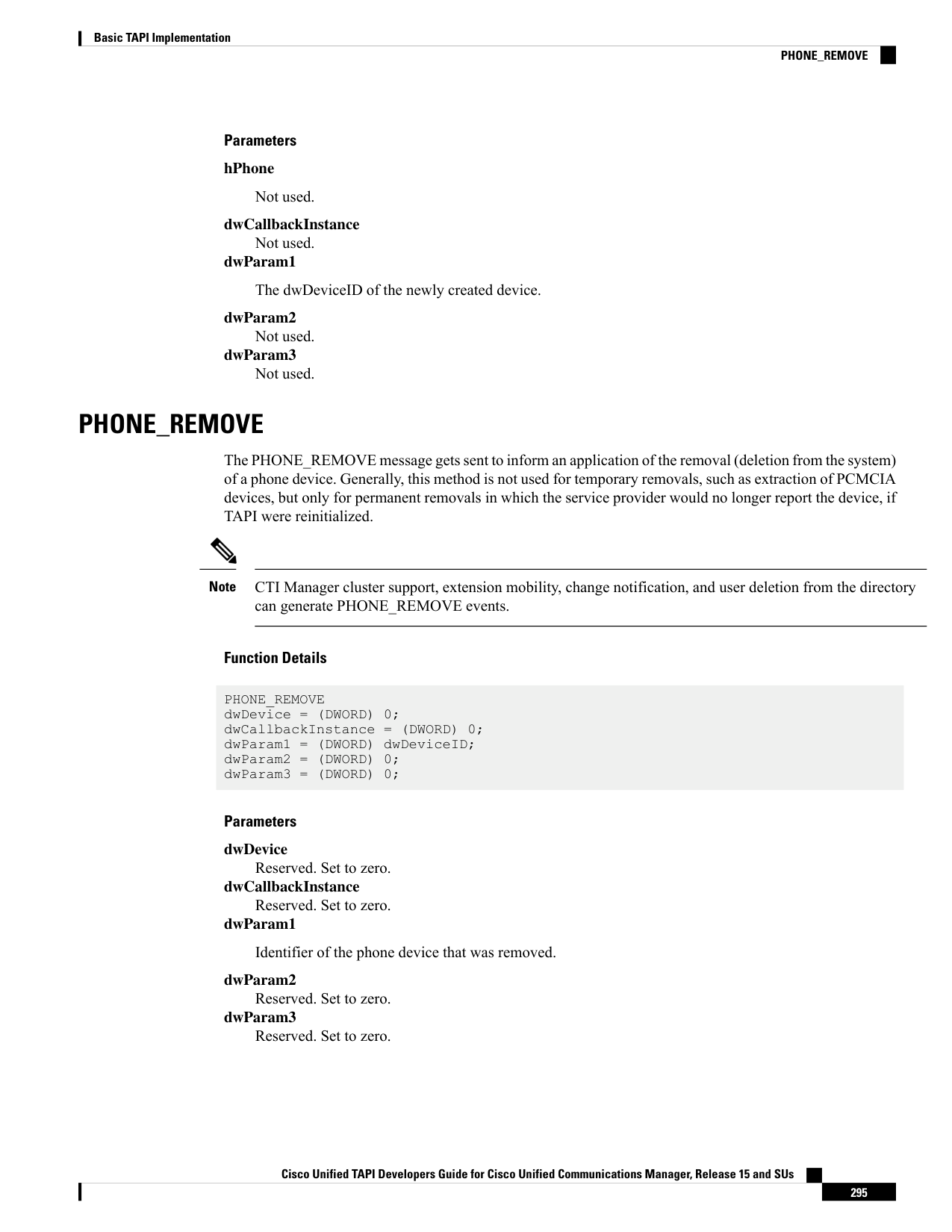

Parameters hPhone Not used. dwCallbackInstance Not used. dwParam1 The dwDeviceID of the newly created device. dwParam2 Not used. dwParam3 Not used. PHONE_REMOVE The PHONE_REMOVE message gets sent to inform an application of the removal (deletion from the system) of a phone device. Generally, this method is not used for temporary removals, such as extraction of PCMCIA devices, but only for permanent removals in which the service provider would no longer report the device, if TAPI were reinitialized. CTI Manager cluster support, extension mobility, change notification, and user deletion from the directory can generate PHONE_REMOVE events. Note Function Details PHONE_REMOVE dwDevice = (DWORD) 0; dwCallbackInstance = (DWORD) 0; dwParam1 = (DWORD) dwDeviceID; dwParam2 = (DWORD) 0; dwParam3 = (DWORD) 0; Parameters dwDevice Reserved. Set to zero. dwCallbackInstance Reserved. Set to zero. dwParam1 Identifier of the phone device that was removed. dwParam2 Reserved. Set to zero. dwParam3 Reserved. Set to zero. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 295 Basic TAPI Implementation PHONE_REMOVE

Image 1 from page 327

Page 327 content

Page 328

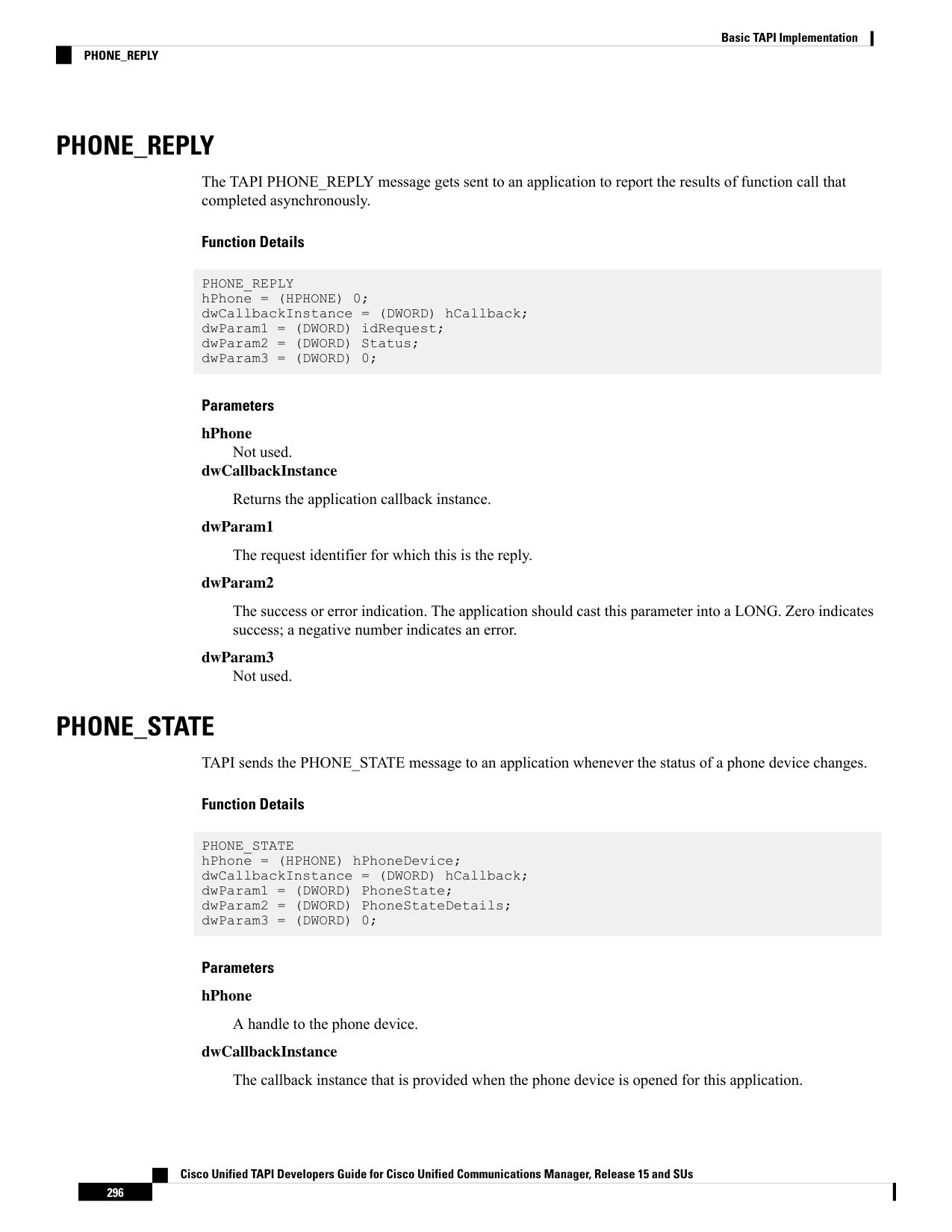

PHONE_REPLY The TAPI PHONE_REPLY message gets sent to an application to report the results of function call that completed asynchronously. Function Details PHONE_REPLY hPhone = (HPHONE) 0; dwCallbackInstance = (DWORD) hCallback; dwParam1 = (DWORD) idRequest; dwParam2 = (DWORD) Status; dwParam3 = (DWORD) 0; Parameters hPhone Not used. dwCallbackInstance Returns the application callback instance. dwParam1 The request identifier for which this is the reply. dwParam2 The success or error indication. The application should cast this parameter into a LONG. Zero indicates success; a negative number indicates an error. dwParam3 Not used. PHONE_STATE TAPI sends the PHONE_STATE message to an application whenever the status of a phone device changes. Function Details PHONE_STATE hPhone = (HPHONE) hPhoneDevice; dwCallbackInstance = (DWORD) hCallback; dwParam1 = (DWORD) PhoneState; dwParam2 = (DWORD) PhoneStateDetails; dwParam3 = (DWORD) 0; Parameters hPhone A handle to the phone device. dwCallbackInstance The callback instance that is provided when the phone device is opened for this application. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 296 Basic TAPI Implementation PHONE_REPLY

Page 328 content

Page 329

dwParam1 The phone state that changed. This parameter uses the following PHONESTATE_constants: • PHONESTATE_OTHER -Phone-status items other than the following ones changed. The application should check the current phone status to determine which items changed. • PHONESTATE_CONNECTED -The connection between the phone device and TAPI was just made. This happens when TAPI is first invoked or when the wire that connects the phone to the computer is plugged in while TAPI is active. • PHONESTATE_DISCONNECTED -The connection between the phone device and TAPI just broke. This happens when the wire that connects the phone set to the computer is unplugged while TAPI is active. • PHONESTATE_OWNER -The number of owners for the phone device changed. • PHONESTATE_MONITORS -The number of monitors for the phone device changed. • PHONESTATE_DISPLAY -The display of the phone changed. • PHONESTATE_LAMP -A lamp of the phone changed. • PHONESTATE_RINGMODE -The ring mode of the phone changed. • PHONESTATE_HANDSETHOOKSWITCH -The hookswitch state changed for this speakerphone. • PHONESTATE_REINIT -Items changed in the configuration of phone devices. To become aware of these changes (as with the appearance of new phone devices), the application should reinitialize its use of TAPI. The hDevice parameter of the PHONE_STATE message stays NULL for this state change as it applies to any of the phones in the system. • PHONESTATE_REMOVED -Indicates that the device is being removed from the system by the service provider (most likely through user action, through a control panel or similar utility). Normally, a PHONE_CLOSE message on the device immediately follows a PHONE_STATE message with this value. Subsequent attempts to access the device prior to TAPI being reinitialized result in PHONEERR_NODEVICE being returned to the application. If a service provider sends a PHONE_STATE message that contains this value to TAPI, TAPI passes it along to applications that negotiated TAPI version 1.4 or later; applications that negotiated a previous API version do not receive any notification. • PHONESTATE_SUSPEND -Indicates the phone unregisters as it enters Energywise DeepSleep/PowersavePlus mode. dwParam2 Phone state-dependent information that details the status change. This parameter is not used if multiple flags are set in dwParam1 because multiple status items get changed. The application should invoke phoneGetStatus to obtain a complete set of information. Parameter dwparam2 can comprise one of PHONESTATE_LAMP, PHONESTATE_DISPLAY, PHONESTATE_HANDSETHOOKSWITCH, or PHONESTATE_RINGMODE. Because the Cisco Unified TSP cannot differentiate among hook switches for handsets, headsets, or speaker, the PHONESTATE_HANDSETHOOKSWITCH value always gets used for hook switches. If dwparam2 is PHONESTATE_LAMP, dwparam2 is the button ID that the PHONE_BUTTON message defines. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 297 Basic TAPI Implementation PHONE_STATE

Page 329 content

Page 330

If dwParam1 is PHONESTATE_OWNER, dwParam2 contains the new number of owners. If dwParam1 is PHONESTATE_MONITORS, dwParam2 contains the new number of monitors. If dwParam1 is PHONESTATE_LAMP, dwParam2 contains the button/lamp identifier of the lamp that changed. If dwParam1 is PHONESTATE_RINGMODE, dwParam2 contains the new ring mode. If dwParam1 is PHONESTATE_HANDSET, SPEAKER, or HEADSET, dwParam2 contains the new hookswitch mode of that hookswitch device. This parameter uses the following PHONEHOOKSWITCHMODE_constants: • PHONEHOOKSWITCHMODE_ONHOOK -The microphone and speaker both remain on hook for this device. • PHONEHOOKSWITCHMODE_MICSPEAKER -The microphone and speaker both remain active for this device. The Cisco Unified TSP cannot distinguish among handsets, headsets, or speakers, so this value gets sent when the device is off hook. If dw Param1 is PHONESTATE_SUSPEND, dwParam2 contains the reason EnergyWisePowerSavePlus when the phone unregisters as it enters EnergywiseDeepSleep. dwParam3 The TAPI specification specifies that dwparam3 is zero; however, the Cisco Unified TSP will send the new lamp state to the application in dwparam3 to avoid the call to phoneGetLamp to obtain the state when dwparam2 is PHONESTATE_LAMP. TAPI Phone Structures This section describes the TAPI phone structures that Cisco Unified TSP supports: . Table 21: TAPI Phone Structures TAPI Phone Structure PHONECAPS Structure, on page 298 PHONEINITIALIZEEXPARAMS, on page 300 PHONEMESSAGE, on page 301 PHONESTATUS, on page 302 VARSTRING, on page 304 PHONECAPS Structure This section lists the Cisco-set attributes for each member of the PHONECAPS structure. If the value of a structure member is device, line, or call specific, the list gives the value for each condition. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 298 Basic TAPI Implementation TAPI Phone Structures

Page 330 diagram

Page 331

Members dwProviderInfoSize dwProviderInfoOffset "Cisco Unified TSPxxx.TSP: Cisco IP PBX Service Provider Ver. X.X(x.x)" where the text before the colon specifies the file name of the TSP, and the text after "Ver. " specifies the version of the TSP. dwPhoneInfoSize dwPhoneInfoOffset "DeviceType:[type]" where type specifies the device type that is specified in the Cisco Unified Communications Manager database. dwPermanentPhoneID dwPhoneNameSize dwPhoneNameOffset "Cisco Phone: [deviceName]" where deviceName specifies the name of the device in the Cisco Unified Communications Manager database. dwStringFormat STRINGFORMAT_ASCII dwPhoneStates PHONESTATE_OWNER | PHONESTATE_MONITORS | PHONESTATE_DISPLAY | (Not set for CTI Route Points) PHONESTATE_LAMP | (Not set for CTI Route Points) PHONESTATE_RESUME | PHONESTATE_REINIT | PHONESTATE_SUSPEND dwHookSwitchDevs PHONEHOOKSWITCHDEV_HANDSET (Not set for CTI Route Points) dwHandsetHookSwitchModes PHONEHOOKSWITCHMODE_ONHOOK | (Not set for CTI Route Points) PHONEHOOKSWITCHMODE_MICSPEAKER | (Not set for CTI Route Points) PHONEHOOKSWITCHMODE_UNKNOWN (Not set for CTI Route Points) dwDisplayNumRows (Not set for CTI Route Points) 1 dwDisplayNumColumns 20 (Not set for CTI Route Points) dwNumRingModes 3 (Not set for CTI Route Points) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 299 Basic TAPI Implementation PHONECAPS Structure

Page 331 content

Page 332

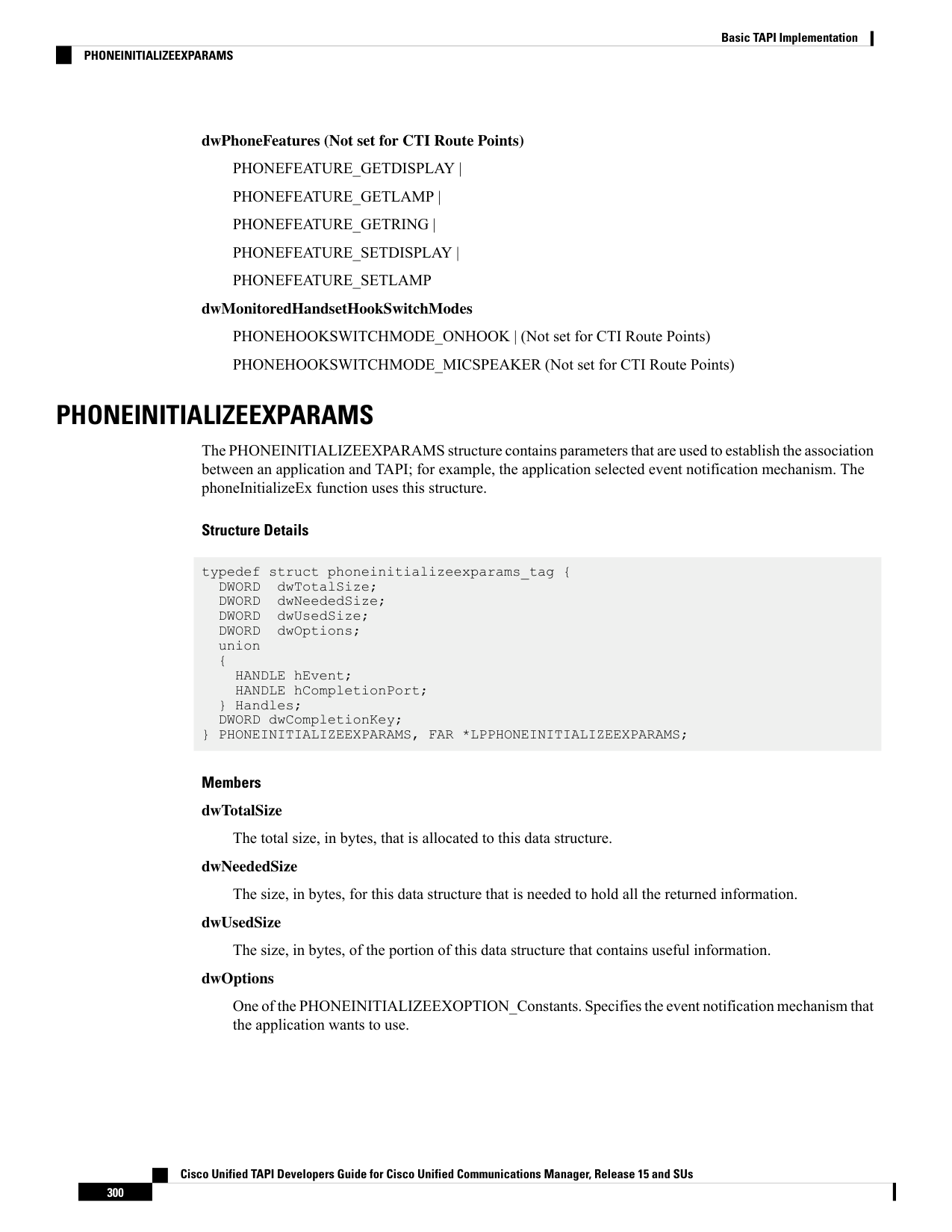

dwPhoneFeatures (Not set for CTI Route Points) PHONEFEATURE_GETDISPLAY | PHONEFEATURE_GETLAMP | PHONEFEATURE_GETRING | PHONEFEATURE_SETDISPLAY | PHONEFEATURE_SETLAMP dwMonitoredHandsetHookSwitchModes PHONEHOOKSWITCHMODE_ONHOOK | (Not set for CTI Route Points) PHONEHOOKSWITCHMODE_MICSPEAKER (Not set for CTI Route Points) PHONEINITIALIZEEXPARAMS The PHONEINITIALIZEEXPARAMS structure contains parameters that are used to establish the association between an application and TAPI; for example, the application selected event notification mechanism. The phoneInitializeEx function uses this structure. Structure Details typedef struct phoneinitializeexparams_tag { DWORD dwTotalSize; DWORD dwNeededSize; DWORD dwUsedSize; DWORD dwOptions; union { HANDLE hEvent; HANDLE hCompletionPort; } Handles; DWORD dwCompletionKey; } PHONEINITIALIZEEXPARAMS, FAR *LPPHONEINITIALIZEEXPARAMS; Members dwTotalSize The total size, in bytes, that is allocated to this data structure. dwNeededSize The size, in bytes, for this data structure that is needed to hold all the returned information. dwUsedSize The size, in bytes, of the portion of this data structure that contains useful information. dwOptions One of the PHONEINITIALIZEEXOPTION_Constants. Specifies the event notification mechanism that the application wants to use. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 300 Basic TAPI Implementation PHONEINITIALIZEEXPARAMS

Page 332 content

Page 333

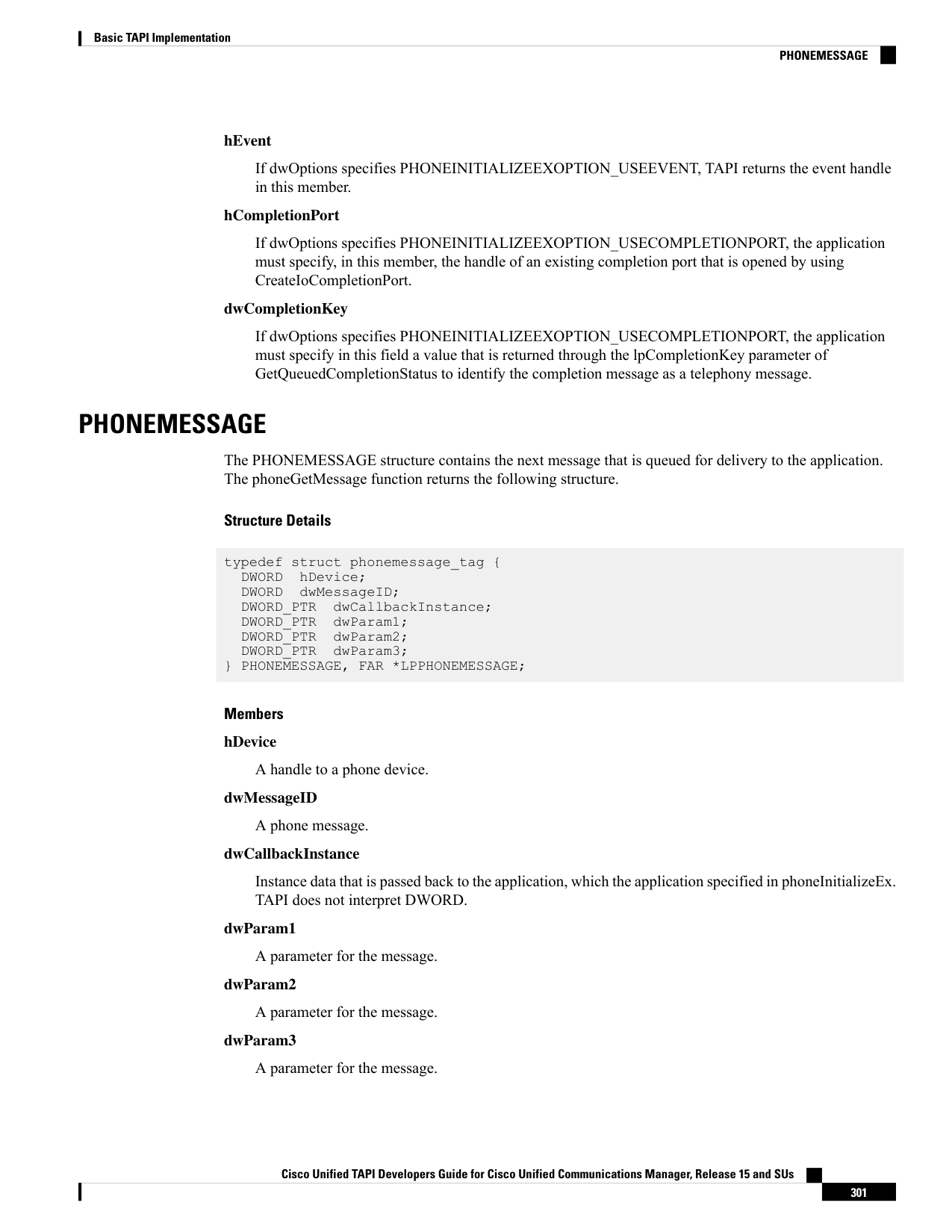

hEvent If dwOptions specifies PHONEINITIALIZEEXOPTION_USEEVENT, TAPI returns the event handle in this member. hCompletionPort If dwOptions specifies PHONEINITIALIZEEXOPTION_USECOMPLETIONPORT, the application must specify, in this member, the handle of an existing completion port that is opened by using CreateIoCompletionPort. dwCompletionKey If dwOptions specifies PHONEINITIALIZEEXOPTION_USECOMPLETIONPORT, the application must specify in this field a value that is returned through the lpCompletionKey parameter of GetQueuedCompletionStatus to identify the completion message as a telephony message. PHONEMESSAGE The PHONEMESSAGE structure contains the next message that is queued for delivery to the application. The phoneGetMessage function returns the following structure. Structure Details typedef struct phonemessage_tag { DWORD hDevice; DWORD dwMessageID; DWORD_PTR dwCallbackInstance; DWORD_PTR dwParam1; DWORD_PTR dwParam2; DWORD_PTR dwParam3; } PHONEMESSAGE, FAR *LPPHONEMESSAGE; Members hDevice A handle to a phone device. dwMessageID A phone message. dwCallbackInstance Instance data that is passed back to the application, which the application specified in phoneInitializeEx. TAPI does not interpret DWORD. dwParam1 A parameter for the message. dwParam2 A parameter for the message. dwParam3 A parameter for the message. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 301 Basic TAPI Implementation PHONEMESSAGE

Page 333 content

Page 334

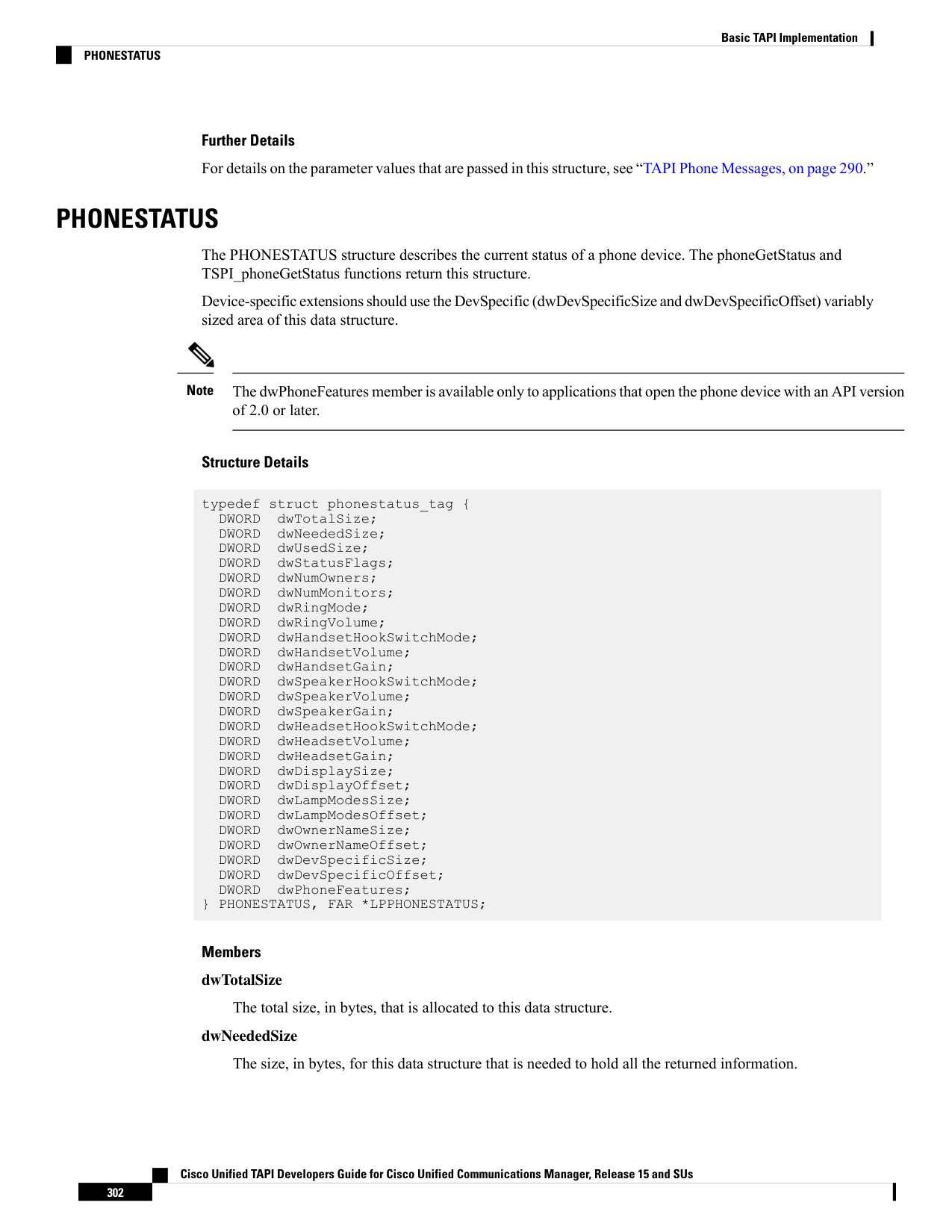

Further Details For details on the parameter values that are passed in this structure, see “TAPI Phone Messages, on page 290.” PHONESTATUS The PHONESTATUS structure describes the current status of a phone device. The phoneGetStatus and TSPI_phoneGetStatus functions return this structure. Device-specific extensions should use the DevSpecific (dwDevSpecificSize and dwDevSpecificOffset) variably sized area of this data structure. The dwPhoneFeatures member is available only to applications that open the phone device with an API version of 2.0 or later. Note Structure Details typedef struct phonestatus_tag { DWORD dwTotalSize; DWORD dwNeededSize; DWORD dwUsedSize; DWORD dwStatusFlags; DWORD dwNumOwners; DWORD dwNumMonitors; DWORD dwRingMode; DWORD dwRingVolume; DWORD dwHandsetHookSwitchMode; DWORD dwHandsetVolume; DWORD dwHandsetGain; DWORD dwSpeakerHookSwitchMode; DWORD dwSpeakerVolume; DWORD dwSpeakerGain; DWORD dwHeadsetHookSwitchMode; DWORD dwHeadsetVolume; DWORD dwHeadsetGain; DWORD dwDisplaySize; DWORD dwDisplayOffset; DWORD dwLampModesSize; DWORD dwLampModesOffset; DWORD dwOwnerNameSize; DWORD dwOwnerNameOffset; DWORD dwDevSpecificSize; DWORD dwDevSpecificOffset; DWORD dwPhoneFeatures; } PHONESTATUS, FAR *LPPHONESTATUS; Members dwTotalSize The total size, in bytes, that is allocated to this data structure. dwNeededSize The size, in bytes, for this data structure that is needed to hold all the returned information. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 302 Basic TAPI Implementation PHONESTATUS

Image 1 from page 334

Page 334 content

Page 335

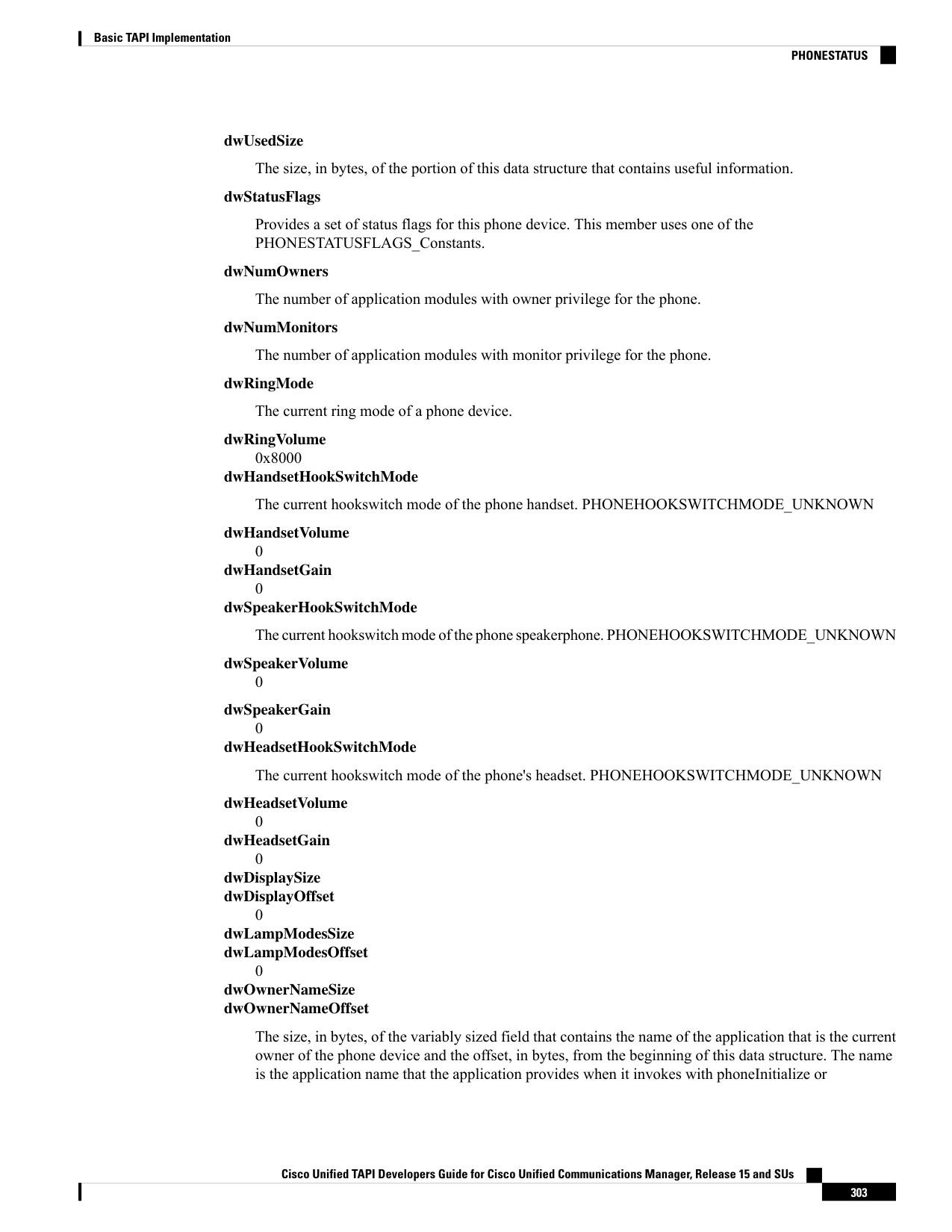

dwUsedSize The size, in bytes, of the portion of this data structure that contains useful information. dwStatusFlags Provides a set of status flags for this phone device. This member uses one of the PHONESTATUSFLAGS_Constants. dwNumOwners The number of application modules with owner privilege for the phone. dwNumMonitors The number of application modules with monitor privilege for the phone. dwRingMode The current ring mode of a phone device. dwRingVolume 0x8000 dwHandsetHookSwitchMode The current hookswitch mode of the phone handset. PHONEHOOKSWITCHMODE_UNKNOWN dwHandsetVolume 0 dwHandsetGain 0 dwSpeakerHookSwitchMode The current hookswitch mode of the phone speakerphone. PHONEHOOKSWITCHMODE_UNKNOWN dwSpeakerVolume 0 dwSpeakerGain 0 dwHeadsetHookSwitchMode The current hookswitch mode of the phone's headset. PHONEHOOKSWITCHMODE_UNKNOWN dwHeadsetVolume 0 dwHeadsetGain 0 dwDisplaySize dwDisplayOffset 0 dwLampModesSize dwLampModesOffset 0 dwOwnerNameSize dwOwnerNameOffset The size, in bytes, of the variably sized field that contains the name of the application that is the current owner of the phone device and the offset, in bytes, from the beginning of this data structure. The name is the application name that the application provides when it invokes with phoneInitialize or Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 303 Basic TAPI Implementation PHONESTATUS

Page 335 content

Page 336

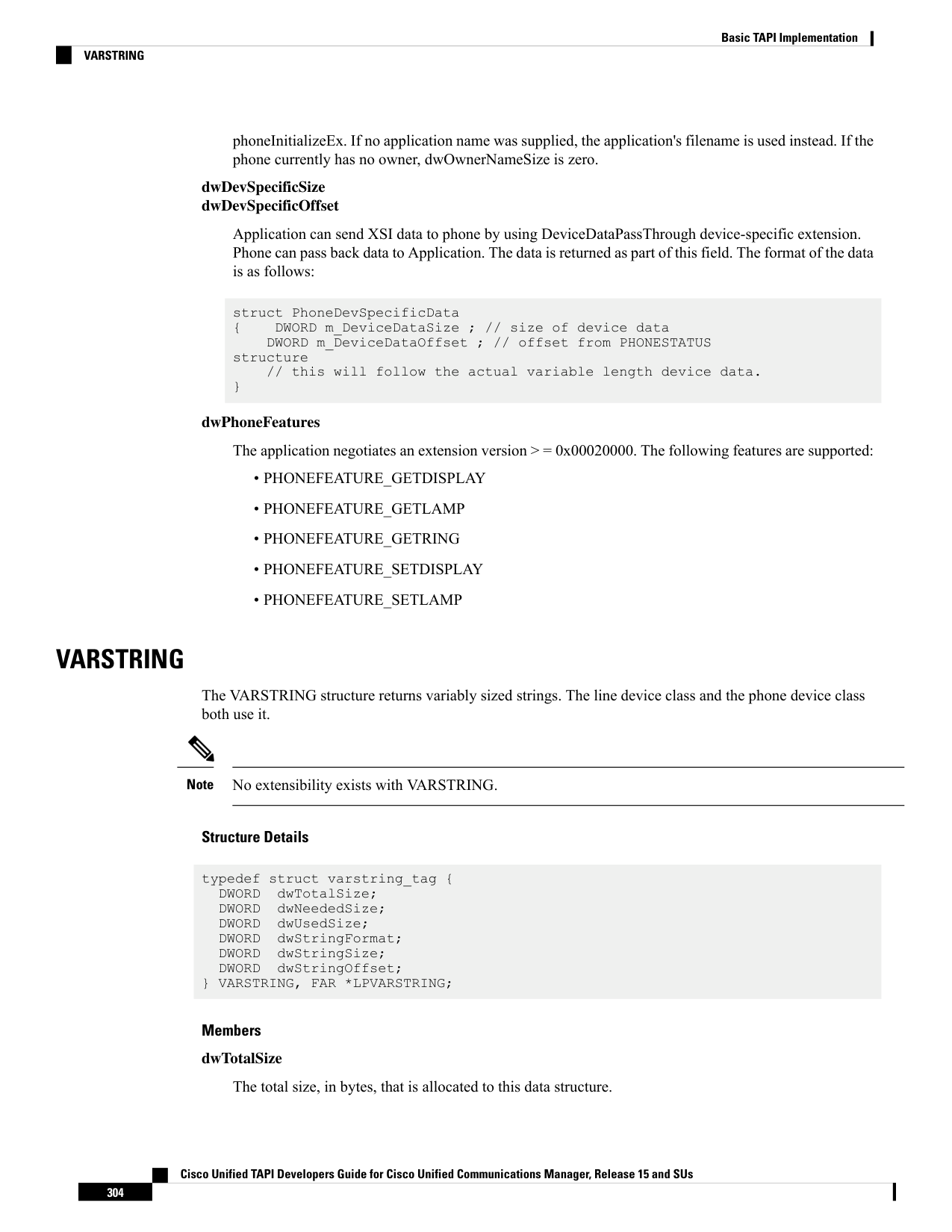

phoneInitializeEx. If no application name was supplied, the application's filename is used instead. If the phone currently has no owner, dwOwnerNameSize is zero. dwDevSpecificSize dwDevSpecificOffset Application can send XSI data to phone by using DeviceDataPassThrough device-specific extension. Phone can pass back data to Application. The data is returned as part of this field. The format of the data is as follows: struct PhoneDevSpecificData { DWORD m_DeviceDataSize ; // size of device data DWORD m_DeviceDataOffset ; // offset from PHONESTATUS structure // this will follow the actual variable length device data. } dwPhoneFeatures The application negotiates an extension version > = 0x00020000. The following features are supported: • PHONEFEATURE_GETDISPLAY • PHONEFEATURE_GETLAMP • PHONEFEATURE_GETRING • PHONEFEATURE_SETDISPLAY • PHONEFEATURE_SETLAMP VARSTRING The VARSTRING structure returns variably sized strings. The line device class and the phone device class both use it. No extensibility exists with VARSTRING. Note Structure Details typedef struct varstring_tag { DWORD dwTotalSize; DWORD dwNeededSize; DWORD dwUsedSize; DWORD dwStringFormat; DWORD dwStringSize; DWORD dwStringOffset; } VARSTRING, FAR *LPVARSTRING; Members dwTotalSize The total size, in bytes, that is allocated to this data structure. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 304 Basic TAPI Implementation VARSTRING

Image 1 from page 336

Page 336 content

Page 337

dwNeededSize The size, in bytes, for this data structure that is needed to hold all the returned information. dwUsedSize The size, in bytes, of the portion of this data structure that contains useful information. dwStringFormat The format of the string. This member uses one of the STRINGFORMAT_Constants. dwStringSize dwStringOffset The size, in bytes, of the variably sized device field that contains the string information and the offset, in bytes, from the beginning of this data structure. If a string cannot be returned in a variable structure, the dwStringSize and dwStringOffset members get set in one of the following ways: • dwStringSize and dwStringOffset members both get set to zero. • dwStringOffset gets set to nonzero and dwStringSize gets set to zero. • dwStringOffset gets set to nonzero, dwStringSize gets set to 1, and the byte at the given offset gets set to zero. ] Wave Functions The AVAudio32.dll implements the wave interfaces to the Cisco wave drivers. The system supports all APIs for input and output waveform devices. Cisco TSP 8.0 includes Cisco Media Driver, a new and innovative way for TAPI-based applications, to provide media interaction. Cisco TSP 8.0(1) includes support for Cisco Media Driver and Cisco Wave Driver. Only one driver is active at any given time. For more information, see Cisco TSP Media Driver, on page 421. Table 22: Wave Functions Wave functions waveInAddBuffer, on page 306 waveInClose, on page 306 waveInGetID, on page 307 waveInGetPosition, on page 307 waveInOpen, on page 308 waveInPrepareHeader, on page 309 waveInReset, on page 310 waveInStart, on page 310 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 305 Basic TAPI Implementation Wave Functions

Page 337 diagram

Page 338

Wave functions waveInUnprepareHeader, on page 310 waveOutClose, on page 311 waveOutGetDevCaps, on page 311 waveOutGetID, on page 312 waveOutGetPosition, on page 312 waveOutOpen, on page 313 waveOutPrepareHeader, on page 314 waveOutReset, on page 314 waveOutUnprepareHeader, on page 315 waveOutWrite, on page 315 waveInAddBuffer The waveInAddBuffer function sends an input buffer to the given waveform-audio input device. When the buffer is filled, the application receives notification. Function Details MMRESULT waveInAddBuffer( HWAVEIN hwi, LPWAVEHDR pwh, UINT cbwh ); Parameters hwi Handle of the waveform-audio input device. pwh Address of a WAVEHDR structure that identifies the buffer. cbwh Size, in bytes, of the WAVEHDR structure. waveInClose The waveInClose function closes the given waveform-audio input device. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 306 Basic TAPI Implementation waveInAddBuffer

Page 338 diagram

Page 339

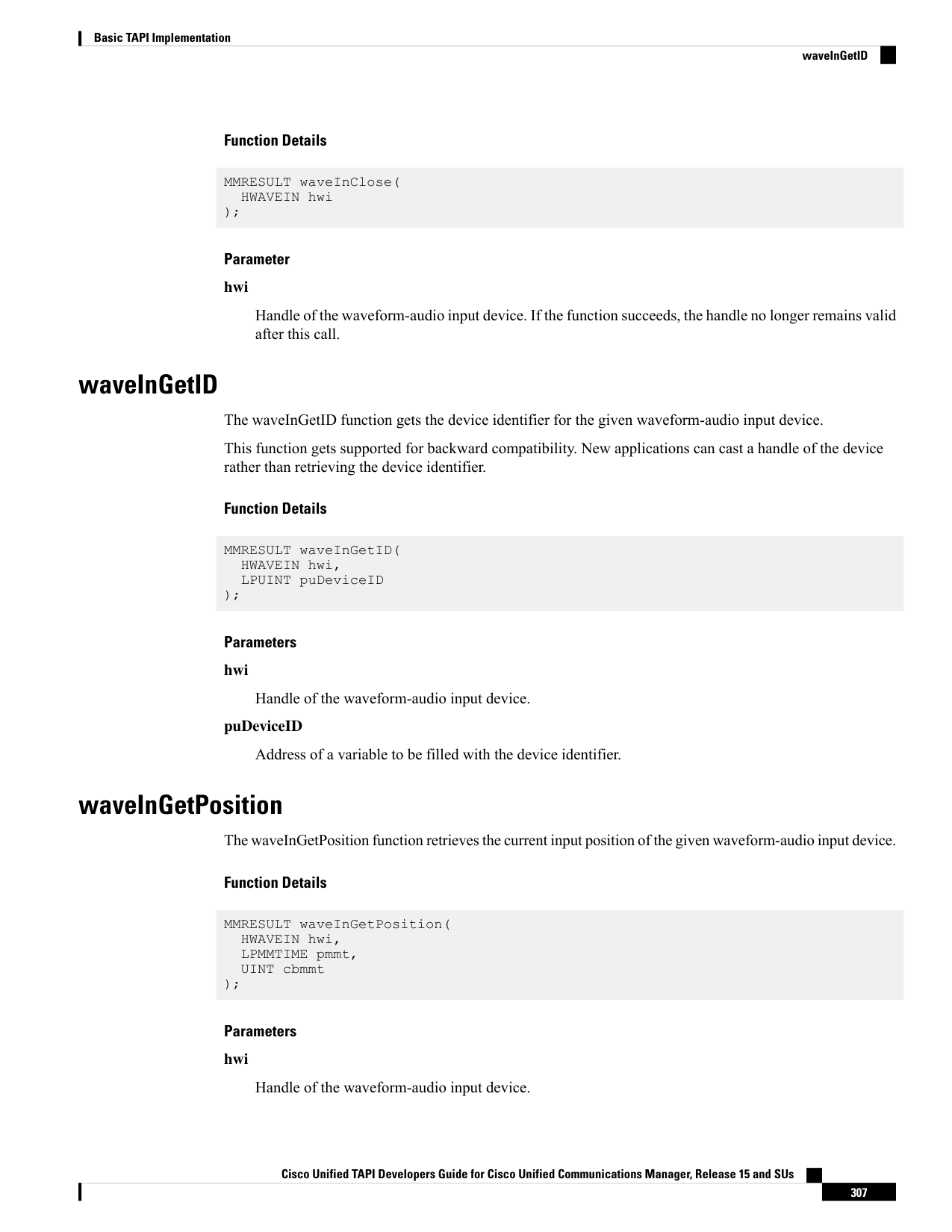

Function Details MMRESULT waveInClose( HWAVEIN hwi ); Parameter hwi Handle of the waveform-audio input device. If the function succeeds, the handle no longer remains valid after this call. waveInGetID The waveInGetID function gets the device identifier for the given waveform-audio input device. This function gets supported for backward compatibility. New applications can cast a handle of the device rather than retrieving the device identifier. Function Details MMRESULT waveInGetID( HWAVEIN hwi, LPUINT puDeviceID ); Parameters hwi Handle of the waveform-audio input device. puDeviceID Address of a variable to be filled with the device identifier. waveInGetPosition The waveInGetPosition function retrieves the current input position of the given waveform-audio input device. Function Details MMRESULT waveInGetPosition( HWAVEIN hwi, LPMMTIME pmmt, UINT cbmmt ); Parameters hwi Handle of the waveform-audio input device. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 307 Basic TAPI Implementation waveInGetID

Page 339 content

Page 340

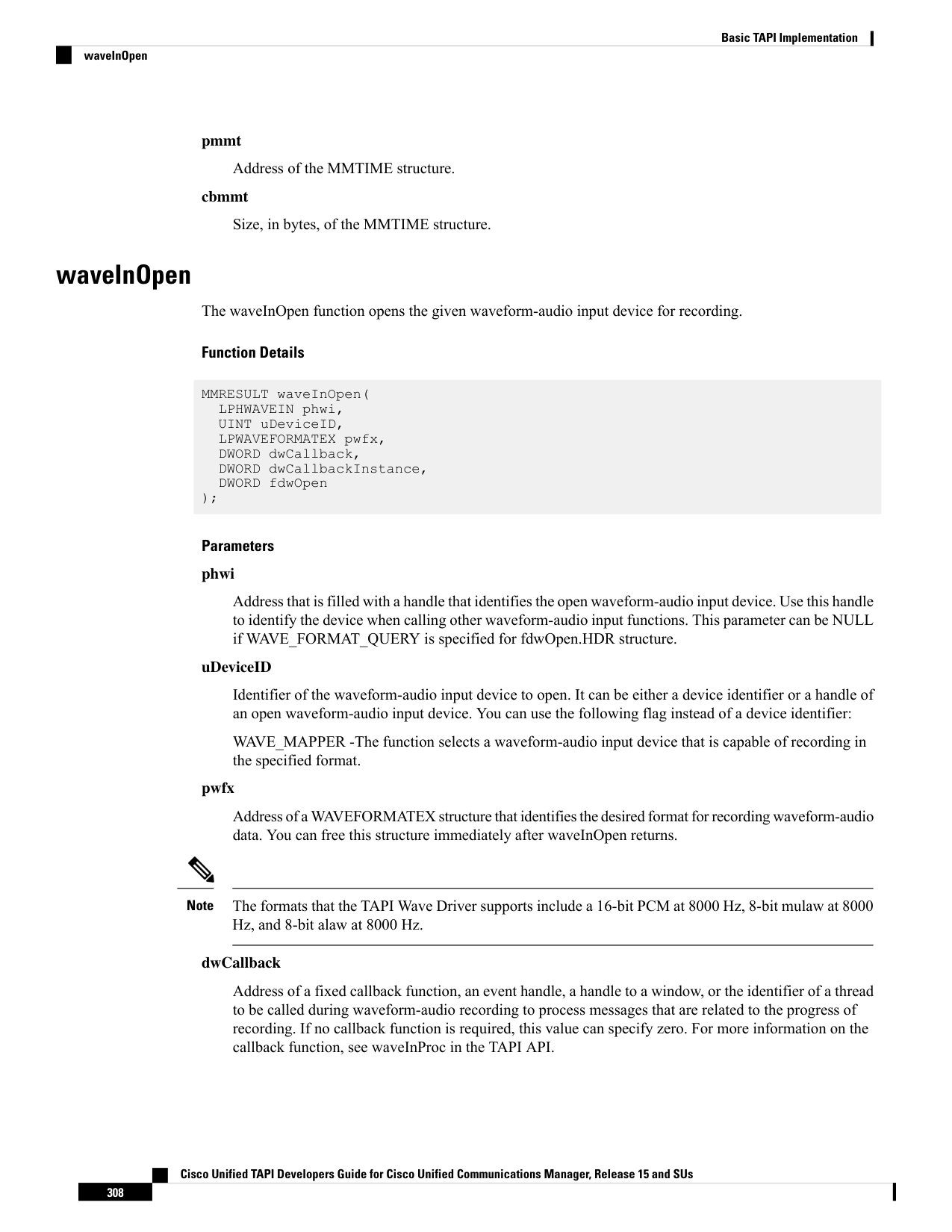

pmmt Address of the MMTIME structure. cbmmt Size, in bytes, of the MMTIME structure. waveInOpen The waveInOpen function opens the given waveform-audio input device for recording. Function Details MMRESULT waveInOpen( LPHWAVEIN phwi, UINT uDeviceID, LPWAVEFORMATEX pwfx, DWORD dwCallback, DWORD dwCallbackInstance, DWORD fdwOpen ); Parameters phwi Address that is filled with a handle that identifies the open waveform-audio input device. Use this handle to identify the device when calling other waveform-audio input functions. This parameter can be NULL if WAVE_FORMAT_QUERY is specified for fdwOpen.HDR structure. uDeviceID Identifier of the waveform-audio input device to open. It can be either a device identifier or a handle of an open waveform-audio input device. You can use the following flag instead of a device identifier: WAVE_MAPPER -The function selects a waveform-audio input device that is capable of recording in the specified format. pwfx Address of a WAVEFORMATEX structure that identifies the desired format for recording waveform-audio data. You can free this structure immediately after waveInOpen returns. The formats that the TAPI Wave Driver supports include a 16-bit PCM at 8000 Hz, 8-bit mulaw at 8000 Hz, and 8-bit alaw at 8000 Hz. Note dwCallback Address of a fixed callback function, an event handle, a handle to a window, or the identifier of a thread to be called during waveform-audio recording to process messages that are related to the progress of recording. If no callback function is required, this value can specify zero. For more information on the callback function, see waveInProc in the TAPI API. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 308 Basic TAPI Implementation waveInOpen

Image 1 from page 340

Page 340 content

Page 341

dwCallbackInstance User-instance data that is passed to the callback mechanism. This parameter is not used with the window callback mechanism. fdwOpen Flags for opening the device. The following values definitions apply: • CALLBACK_EVENT -The dwCallback parameter specifies an event handle. • CALLBACK_FUNCTION -The dwCallback parameter specifies a callback procedure address. • CALLBACK_NULL -No callback mechanism. This represents the default setting. • CALLBACK_THREAD -The dwCallback parameter specifies a thread identifier. • CALLBACK_WINDOW -The dwCallback parameter specifies a window handle. • WAVE_FORMAT_DIRECT -If this flag is specified, the A driver does not perform conversions on the audio data. • WAVE_FORMAT_QUERY -The function queries the device to determine whether it supports the given format, but it does not open the device. • WAVE_MAPPED -The uDeviceID parameter specifies a waveform-audio device to which the wave mapper maps. waveInPrepareHeader The waveInPrepareHeader function prepares a buffer for waveform-audio input. Function Details MMRESULT waveInPrepareHeader( HWAVEIN hwi, LPWAVEHDR pwh, UINT cbwh ); Parameters hwi Handle of the waveform-audio input device. pwh Address of a WAVEHDR structure that identifies the buffer to be prepared. cbwh Size, in bytes, of the WAVEHDR structure. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 309 Basic TAPI Implementation waveInPrepareHeader

Page 341 content

Page 342

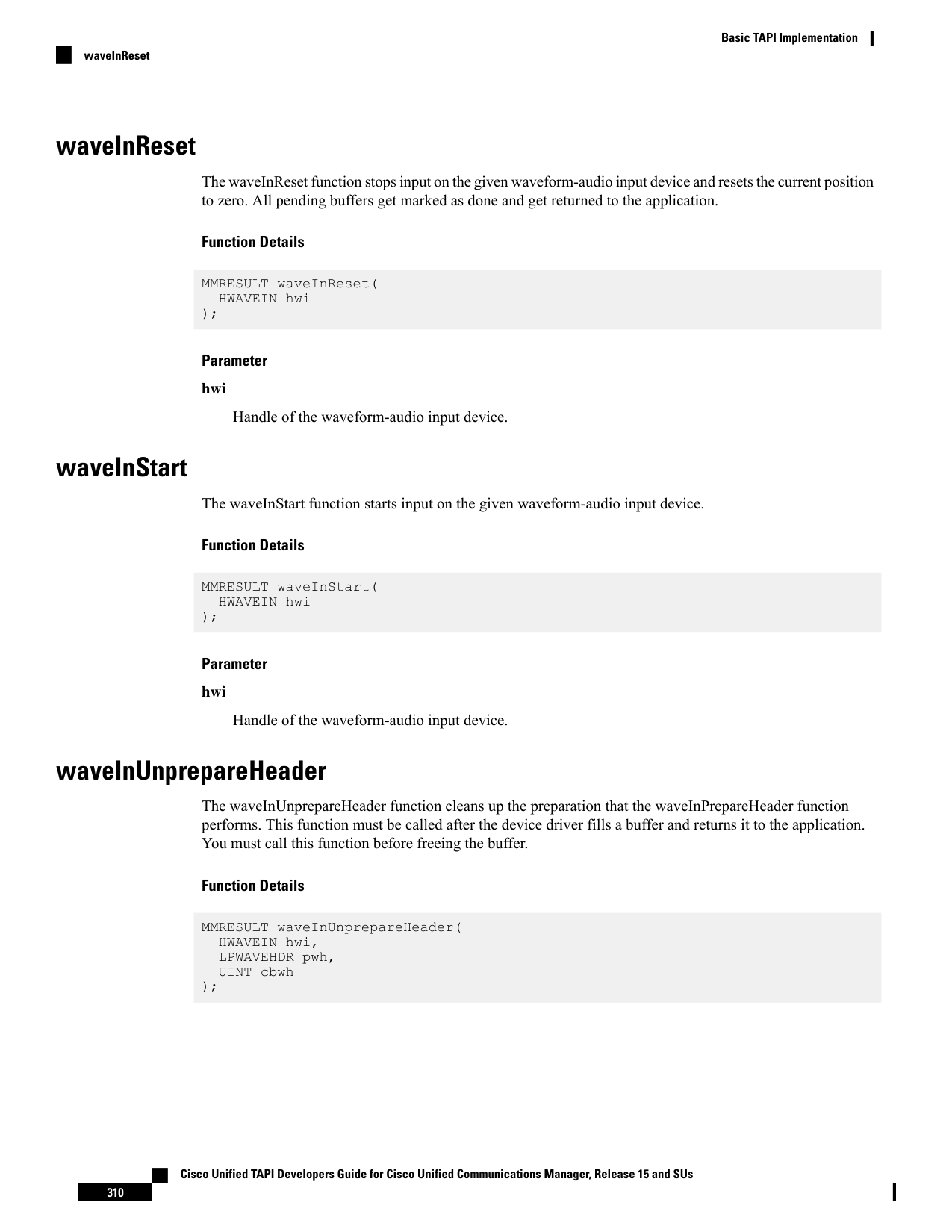

waveInReset The waveInReset function stops input on the given waveform-audio input device and resets the current position to zero. All pending buffers get marked as done and get returned to the application. Function Details MMRESULT waveInReset( HWAVEIN hwi ); Parameter hwi Handle of the waveform-audio input device. waveInStart The waveInStart function starts input on the given waveform-audio input device. Function Details MMRESULT waveInStart( HWAVEIN hwi ); Parameter hwi Handle of the waveform-audio input device. waveInUnprepareHeader The waveInUnprepareHeader function cleans up the preparation that the waveInPrepareHeader function performs. This function must be called after the device driver fills a buffer and returns it to the application. You must call this function before freeing the buffer. Function Details MMRESULT waveInUnprepareHeader( HWAVEIN hwi, LPWAVEHDR pwh, UINT cbwh ); Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 310 Basic TAPI Implementation waveInReset

Page 342 content

Page 343

Parameters hwi Handle of the waveform-audio input device. pwh Address of a WAVEHDR structure that identifies the buffer to be cleaned up. cbwh Size, in bytes, of the WAVEHDR structure. waveOutClose The waveOutClose function closes the given waveform-audio output device. Function Details MMRESULT waveOutClose( HWAVEOUT hwo ); Parameter hwo Handle of the waveform-audio output device. If the function succeeds, the handle no longer remains valid after this call. waveOutGetDevCaps The waveOutGetDevCaps function retrieves the capabilities of a given waveform-audio output device. Function Details MMRESULT waveOutGetDevCaps( UINT uDeviceID, LPWAVEOUTCAPS pwoc, UINT cbwoc ); Parameters uDeviceID Identifier of the waveform-audio output device. It can be either a device identifier or a handle of an open waveform-audio output device. pwoc Address of a WAVEOUTCAPS structure that is to be filled with information about the capabilities of the device. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 311 Basic TAPI Implementation waveOutClose

Page 343 content

Page 344

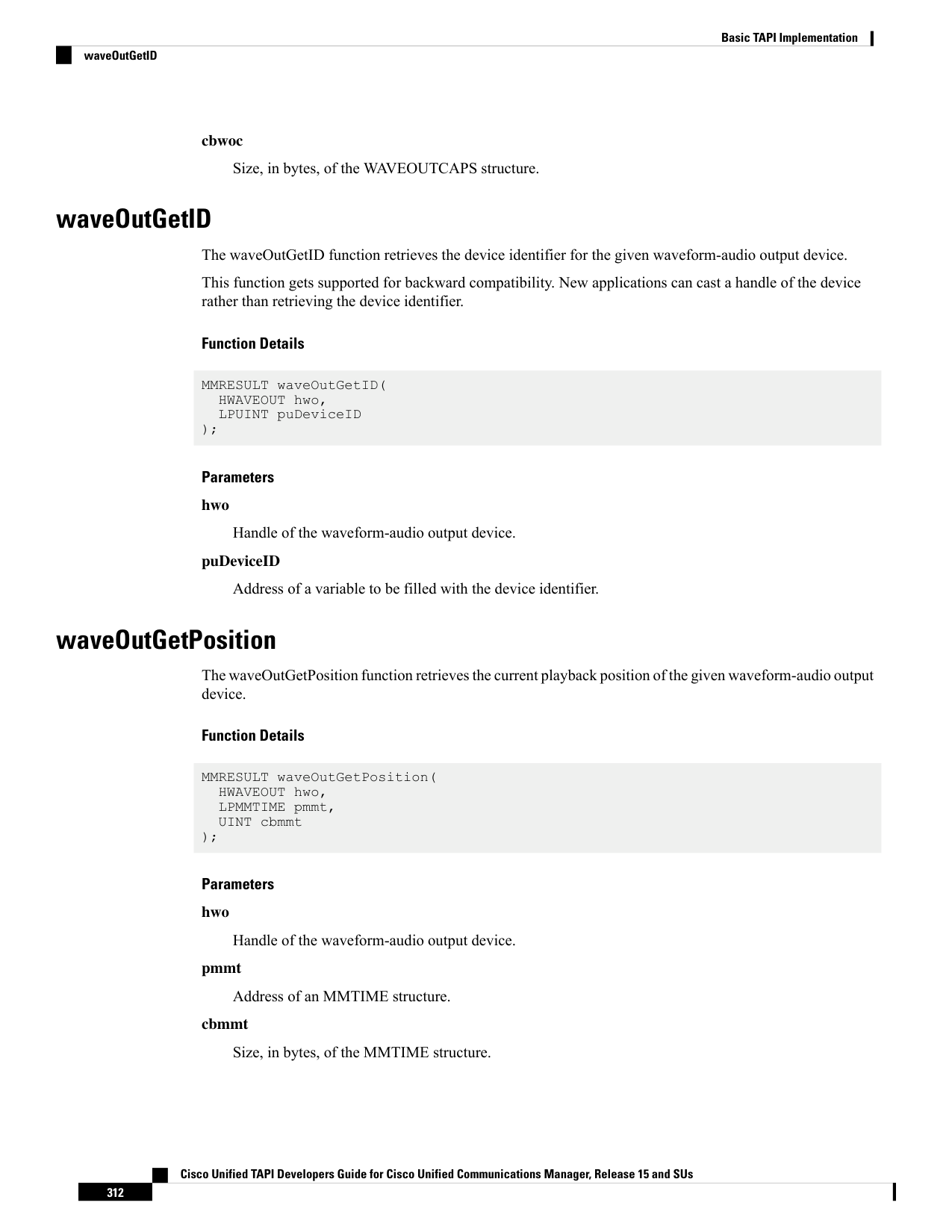

cbwoc Size, in bytes, of the WAVEOUTCAPS structure. waveOutGetID The waveOutGetID function retrieves the device identifier for the given waveform-audio output device. This function gets supported for backward compatibility. New applications can cast a handle of the device rather than retrieving the device identifier. Function Details MMRESULT waveOutGetID( HWAVEOUT hwo, LPUINT puDeviceID ); Parameters hwo Handle of the waveform-audio output device. puDeviceID Address of a variable to be filled with the device identifier. waveOutGetPosition The waveOutGetPosition function retrieves the current playback position of the given waveform-audio output device. Function Details MMRESULT waveOutGetPosition( HWAVEOUT hwo, LPMMTIME pmmt, UINT cbmmt ); Parameters hwo Handle of the waveform-audio output device. pmmt Address of an MMTIME structure. cbmmt Size, in bytes, of the MMTIME structure. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 312 Basic TAPI Implementation waveOutGetID

Page 344 content

Page 345

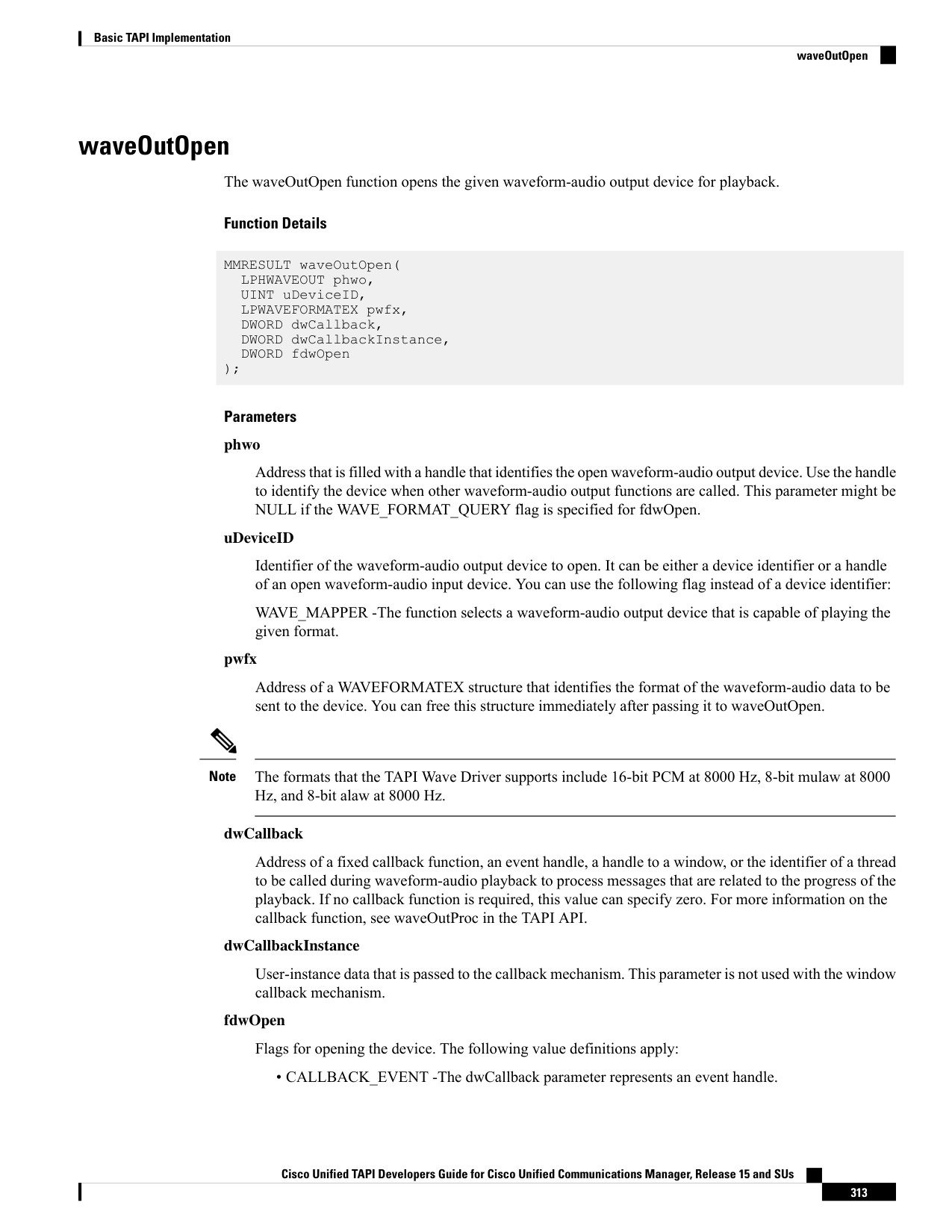

waveOutOpen The waveOutOpen function opens the given waveform-audio output device for playback. Function Details MMRESULT waveOutOpen( LPHWAVEOUT phwo, UINT uDeviceID, LPWAVEFORMATEX pwfx, DWORD dwCallback, DWORD dwCallbackInstance, DWORD fdwOpen ); Parameters phwo Address that is filled with a handle that identifies the open waveform-audio output device. Use the handle to identify the device when other waveform-audio output functions are called. This parameter might be NULL if the WAVE_FORMAT_QUERY flag is specified for fdwOpen. uDeviceID Identifier of the waveform-audio output device to open. It can be either a device identifier or a handle of an open waveform-audio input device. You can use the following flag instead of a device identifier: WAVE_MAPPER -The function selects a waveform-audio output device that is capable of playing the given format. pwfx Address of a WAVEFORMATEX structure that identifies the format of the waveform-audio data to be sent to the device. You can free this structure immediately after passing it to waveOutOpen. The formats that the TAPI Wave Driver supports include 16-bit PCM at 8000 Hz, 8-bit mulaw at 8000 Hz, and 8-bit alaw at 8000 Hz. Note dwCallback Address of a fixed callback function, an event handle, a handle to a window, or the identifier of a thread to be called during waveform-audio playback to process messages that are related to the progress of the playback. If no callback function is required, this value can specify zero. For more information on the callback function, see waveOutProc in the TAPI API. dwCallbackInstance User-instance data that is passed to the callback mechanism. This parameter is not used with the window callback mechanism. fdwOpen Flags for opening the device. The following value definitions apply: • CALLBACK_EVENT -The dwCallback parameter represents an event handle. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 313 Basic TAPI Implementation waveOutOpen

Image 1 from page 345

Page 345 content

Page 346

• CALLBACK_FUNCTION -The dwCallback parameter specifies a callback procedure address. • CALLBACK_NULL -No callback mechanism. This value specifies the default setting. • CALLBACK_THREAD -The dwCallback parameter represents a thread identifier. • CALLBACK_WINDOW -The dwCallback parameter specifies a window handle. • WAVE_ALLOWSYNC -If this flag is specified, a synchronous waveform-audio device can be opened. If this flag is not specified while a synchronous driver is opened, the device will fail to open. • WAVE_FORMAT_DIRECT -If this flag is specified, the ACM driver does not perform conversions on the audio data. • WAVE_FORMAT_QUERY -If this flag is specified, waveOutOpen queries the device to determine whether it supports the given format, but the device does not actually open. • WAVE_MAPPED -If this flag is specified, the uDeviceID parameter specifies a waveform-audio device to which the wave mapper maps. waveOutPrepareHeader The waveOutPrepareHeader function prepares a waveform-audio data block for playback. Function Details MMRESULT waveOutPrepareHeader( HWAVEOUT hwo, LPWAVEHDR pwh, UINT cbwh ); Parameters hwo Handle of the waveform-audio output device. pwh Address of a WAVEHDR structure that identifies the data block to be prepared. cbwh Size, in bytes, of the WAVEHDR structure. waveOutReset The waveOutReset function stops playback on the given waveform-audio output device and resets the current position to zero. All pending playback buffers get marked as done and get returned to the application. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 314 Basic TAPI Implementation waveOutPrepareHeader

Page 346 content

Page 347

Function Details MMRESULT waveOutReset( HWAVEOUT hwo ); Parameter hwo Handle of the waveform-audio output device. waveOutUnprepareHeader The waveOutUnprepareHeader function cleans up the preparation that the waveOUtPrepareHeader function performs. Ensure this function is called after the device driver is finished with a data block. You must call this function before freeing the buffer. Function Details MMRESULT waveOutUnprepareHeader( HWAVEOUT hwo, LPWAVEHDR pwh, UINT cbwh ); Parameters hwo Handle of the waveform-audio output device. pwh Address of a WAVEHDR structure that identifies the data block to be cleaned up. cbwh Size, in bytes, of the WAVEHDR structure. waveOutWrite The waveOutWrite function sends a data block to the given waveform-audio output device. Function Details MMRESULT waveOutWrite( HWAVEOUT hwo, LPWAVEHDR pwh, UINT cbwh ); Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 315 Basic TAPI Implementation waveOutUnprepareHeader

Page 347 content

Page 348

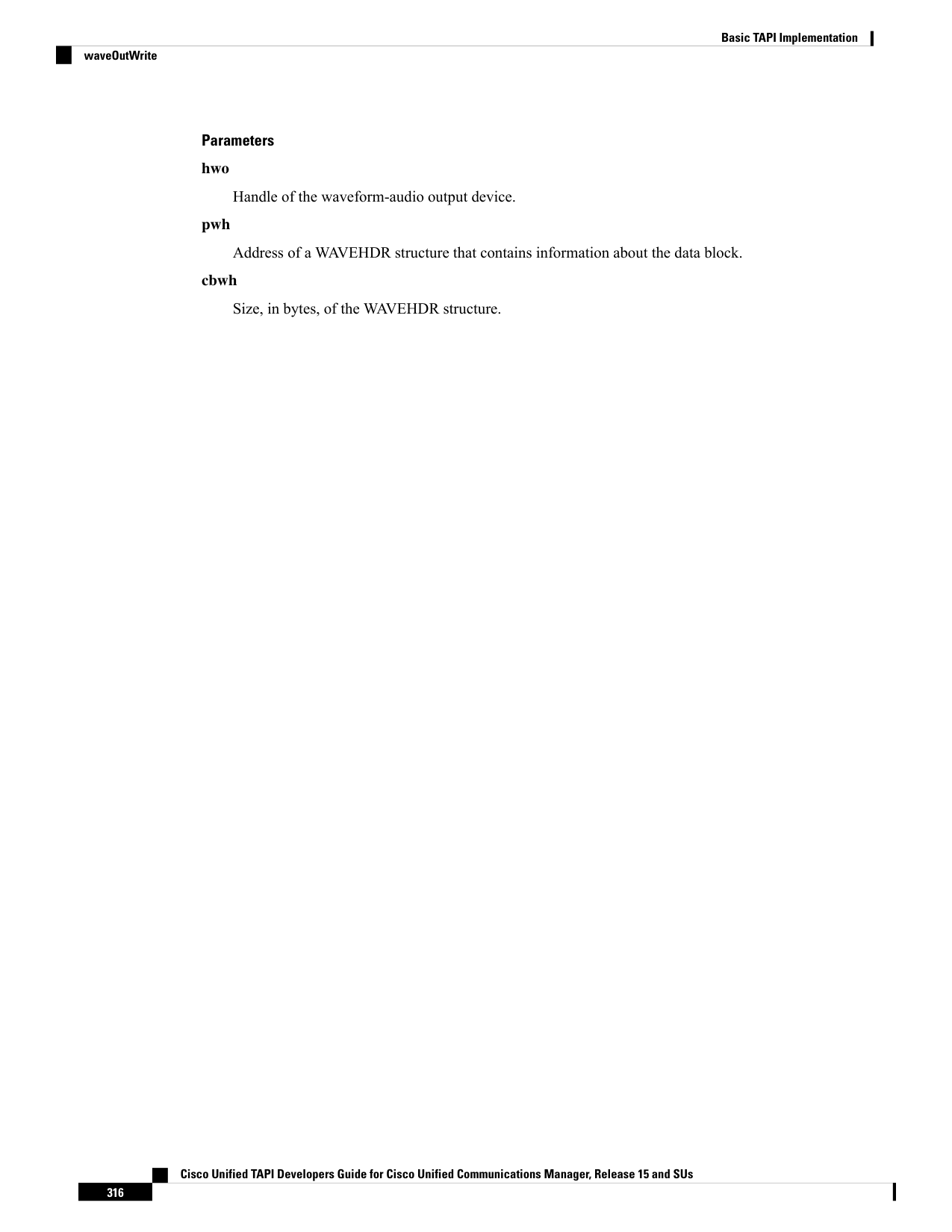

Parameters hwo Handle of the waveform-audio output device. pwh Address of a WAVEHDR structure that contains information about the data block. cbwh Size, in bytes, of the WAVEHDR structure. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 316 Basic TAPI Implementation waveOutWrite

Page 348 content

Page 349

C H A P T E R 6 Cisco Device-Specific Extensions This chapter describes the Cisco device-specific TAPI extensions. CiscoLineDevSpecific and the CCiscoPhoneDevSpecific class represent the parent class. This chapter describes how to invoke the Cisco device-specific TAPI extensions with the lineDevSpecific function. It also describes a set of classes that you can use when you call phoneDevSpecific. It contains the following sections: • Cisco Line Device Specific Extensions, on page 317 • Cisco Line Device Feature Extensions, on page 391 • CCiscoPhoneDevSpecific, on page 395 • Messages, on page 405 Cisco Line Device Specific Extensions The following table lists and describes the subclasses of Cisco Line Device-Specific Extensions. This section contains all of the extensions in the table and descriptions of the following data structures: • LINEDEVCAPS, on page 321 • LINECALLINFO, on page 324 • LINECALLPARAMS, on page 343 • LINEDEVSTATUS, on page 344 Synopsis Cisco functions The CCiscoLineDevSpecific class specifies the parent class to the following classes. CCiscoLineDevSpecific, on page 346 The CCiscoLineDevSpecificMsgWaiting class turns the message waiting lamp on or off for the line that the hLine parameter specifies. Message Waiting, on page 349 The CCiscoLineDevSpecificMsgWaiting class turns the message waiting lamp on or off for the line that a parameter specifies and remains independent of the hLine parameter. Message Waiting Dirn, on page 349 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 317

Image 1 from page 349

Page 349 diagram

Page 350

Synopsis Cisco functions The CCiscoLineDevSpecificSetMsgSummary class turns the message waiting lamp on or off, as well as provides voice and fax message counts for the line specified by the hLine parameter. Message Summary, on page 350 The CCiscoLineDevSpecificSetMsgSummaryDirn class turns the message waiting lamp on or off and provides voice and fax message counts for the line specified by a parameter and is independent of the hLine parameter. Message Summary Dirn, on page 352 The CCiscoLineDevSpecificUserControlRTPStream class controls the audio stream for a line. Audio Stream Control, on page 353 The CCiscoLineDevSpecificSetStatusMsgs class controls the reporting of certain line device specific messages for a line. Set Status Messages, on page 355 Cisco Unified TSP 4.0 and later do not support this function. The CCiscoLineDevSpecificSwapHoldSetupTransfer class performs a setupTransfer between a call that is in CONNECTED state and a call that is in ONHOLD state. This function will change the state of the connected call to ONHOLDPENDTRANSFER state and the ONHOLD call to CONNECTED state. This action will then allow a completeTransfer to be performed on the two calls. Swap-Hold/SetupTransfer, on page 358 The CCiscoLineDevSpecificRedirectResetOrigCalled class gets used to redirect a call to another party while resetting the original called ID of the call to the destination of the redirect. Redirect Reset Original Called ID, on page 359 The CciscoLineDevSpecificPortRegistrationPerCall class gets used to register a CTI port or route point for the Dynamic Port Registration feature, which allows applications to specify the IP address and UDP port number on a call-by-call basis. Port Registration per Call, on page 359 The CciscoLineDevSpecificSetRTPParamsForCall class sets the IP address and UDP port number for the specified call. Setting RTP Parameters for Call, on page 362 The CCiscoLineDevSpecificRedirectSetOrigCalled class to redirect a call to another party while setting the original called ID of the call to any other party. Redirect Set Original Called ID, on page 362 The CciscoLineDevSpecificJoin class joins two or more calls into one conference call. Join, on page 363 The CciscoLineDevSpecificUserSetSRTPAlgorithmID class allows the application to set SRTP algorithm IDs. You should use this class after lineopen and before CCiscoLineDevSpecificSetRTPParamsForCall or CCiscoLineDevSpecificUserControlRTPStream Set User SRTP Algorithm IDs, on page 364 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 318 Cisco Device-Specific Extensions Cisco Line Device Specific Extensions

Page 350 diagram

Page 351

Synopsis Cisco functions The CciscoLineDevSpecificAcquire class explicitly acquires any CTI Controllable device in the Cisco Unified Communications Manager system, which needs to be opened in Super Provider mode. Explicit Acquire, on page 366 The CciscoLineDevSpecificDeacquire class explicitly de-acquires any CTI controllable device in the Cisco Unified Communications Manager system. Explicit De-Acquire, on page 366 The CCiscoLineDevSpecificRedirectFACCMC class redirects a call to another party while including a FAC, CMC, or both. Redirect FAC CMC, on page 367 The CCiscoLineDevSpecificBlindTransferFACCMC class blind transfers a call to another party while including a FAC, CMC, or both. Blind Transfer FAC CMC, on page 368 The CCiscoLineDevSpecificCTIPortThirdPartyMonitor class opens a CTI port in third-party mode. CTI Port Third Party Monitor, on page 369 The CciscoLineDevSpecificSendLineOpen class triggers actual line open from TSP side. Use this for delayed open mechanism. Send Line Open, on page 370 The CciscoLineSetIntercomSpeeddial class allows the application to set or reset SpeedDial/Label on an intercom line. Set Intercom SpeedDial, on page 371 The CciscoLineIntercomTalkback class allows the application to initiate talk back on an incoming Intercom call on an Intercom line. Intercom Talk Back, on page 372 The CciscoLineRedirectWithFeaturePriority class enables the application to redirect calls with specified priority. Redirect with Feature Priority, on page 373 The CCiscoLineDevSpecificStartCallMonitoring class allows applications to send a start monitoring request for the active call on a line. Start Call Monitoring, on page 373 The CCiscoLineDevSpecificStartCallRecording allows the application to send a recording request for the active call on that line. Start Call Recording, on page 375 The CCiscoLineDevSpecificStopCallRecording allows the application to stop recording a call on that line. StopCall Recording, on page 376 The CciscoLineDevSpecificSetIPv6AddressAndMode enables the application to set the IPv6 address and addressing mode during registration. Set IPv6 Address and Mode, on page 377 The CciscoLineDevSpecificSetRTPParamsForCallIPv6 class sets the RTP parameters for calls for which you must specify IPv6 address. Set RTP Parameters for IPv6 Calls, on page 378 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 319 Cisco Device-Specific Extensions Cisco Line Device Specific Extensions

Page 351 diagram

Page 352

Synopsis Cisco functions The CciscoLineDevSpecificDirectTransfer class transfers calls across lines or on the same line. Direct Transfer, on page 379 The CciscoLineDevSpecificRegisterCallPickupGroupForNotification class is used to register the call Pickup Group for notification on calls for Pickup. RegisterCallPickUpGroupForNotification, on page 380 The CciscoLineDevSpecificUnRegisterCallPickupGroupForNotification class is used to unregister the call Pickup Group for notification on calls for Pickup. UnRegisterCallPickUpGroupForNotification, on page 381 This feature allows to invoke the pickup, group-pickup, other-pickup, and directed pickup feature from the application. Apart from providing API to invoke feature, application will have capability to register Call pickup group for alert notification, whenever a call is available for pickup. The CciscoLineDevSpecificCallPickupRequest class is used to Pickup the call from the PickGroup. CallPickUpRequest, on page 381 The CCiscoLineDevSpecificStartSendMediaToBIBRequest class allows the application to initiate agent greeting to the customer call. Start Send Media to BIB, on page 382 The CCiscoLineDevSpecificStopSendMediaToBIBRequest class allows the application to stop agent greeting that is playing on the agent-to-customer call. Stop Send Media to BIB, on page 383 The CciscoLineDevSpecificEnableFeatureSupport class allows the application to initiate Zip tone on the Agent Call. Agent Zip Tone, on page 384 The CciscoLineDevSpecificEnableFeatureSupport class allows the application to enhance or update feature support. Enable Feature, on page 385 The CciscoLineDevSpecificAddRemoteDestination class is used to add new Remote Destination to CTI Remote Device. Add Remote Destination, on page 388 The CciscoLineDevSpecificRemoveRemoteDestination class is used to remove Remote Destination from List of Remote Destinations of CTI Remote Device. Remove Remote Destination, on page 389 The CciscoLineDevSpecificUpdateRemoteDestination class is used to update Remote Destination information on a CTI Remote Device. Update Remote Destination, on page 390 CciscoLineDevSpecificHoldEx class is used to put call on hold and specify media content that should be played while call is on hold. lineHold Enhancement, on page 391 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 320 Cisco Device-Specific Extensions Cisco Line Device Specific Extensions

Page 352 diagram

Page 353

Synopsis Cisco functions The CciscoSetupTransferWithoutMedia class allows the application to transfer a call that does not have media setup. Transfer with media LINEDEVCAPS Cisco TSP implements several line device-specific extensions and uses the DevSpecific (dwDevSpecificSize and dwDevSpecificOffset) variably sized area of the LINEDEVCAPS data structure for those extensions. The Cisco_LineDevCaps_Ext structure in the CiscoLineDevSpecificMsg.h header file defines the DevSpecific area layout. Cisco TSP organizes the data in that structure based on the extension version in which the data was introduced: // LINEDEVCAPS Dev Specific extention // typedef struct Cisco_LineDevCaps_Ext { Cisco_LineDevCaps_Ext00030000 ext30; Cisco_LineDevCaps_Ext00060000 ext60; Cisco_LineDevCaps_Ext00070000 ext70; Cisco_LineDevCaps_Ext00080000 ext80; Cisco_LineDevCaps_Ext00090000 ext90; Cisco_LineDevCaps_Ext00090001 ext91; Cisco_LineDevCaps_Ext000A0000 extA0; Cisco_LineDevCaps_Ext000C0000 extC0; Cisco_LineDevCaps_Ext000D0000 extD0; Cisco_LineDevCaps_Ext000E0000 extE0; } CISCO_LINEDEVCAPS_EXT; For a specific line device, the extension area will include a portion of this structure starting from the beginning and up to the extension version that an application negotiated. The individual extension version substructure definitions follow: // LINEDEVCAPS 00030000 extention // typedef struct Cisco_LineDevCaps_Ext00030000 { DWORD dwLineTypeFlags; } CISCO_LINEDEVCAPS_EXT00030000; // LINEDEVCAPS 00060000 extention // typedef struct Cisco_LineDevCaps_Ext00060000 { DWORD dwLocale; } CISCO_LINEDEVCAPS_EXT00060000; // LINEDEVCAPS 00070000 extention // typedef struct Cisco_LineDevCaps_Ext00070000 { DWORD dwPartitionOffset; DWORD dwPartitionSize; } CISCO_LINEDEVCAPS_EXT00070000; // LINEDEVCAPS 00080000 extention // typedef struct Cisco_LineDevCaps_Ext00080000 { Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 321 Cisco Device-Specific Extensions LINEDEVCAPS

Page 353 diagram

Page 354

DWORD dwLineDevCaps_DevSpecificFlags; // LINEFEATURE_DEVSPECIFIC DWORD dwLineDevCaps_DevSpecificFeatureFlags; // LINEFEATURE_DEVSPECIFICFEAT RECORD_TYPE_INFO recordTypeInfo; INTERCOM_SPEEDDIAL_INFO intercomSpeedDialInfo; } CISCO_LINEDEVCAPS_EXT00080000; // LINEDEVCAPS 00090000 extention // //

typedef struct Cisco_LineDevCaps_Ext00090000 { IpAddressingMode dwLineDevCapsIPAddressingMode; // LINEFEATURE_DEVSPECIFIC } CISCO_LINEDEVCAPS_EXT00090000; // = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = // Cisco Extention 00090001 // = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = // LINEDEVCAPS 00090001 extention // //

typedef struct Cisco_LineDevCaps_Ext00090001 { DWORD MaxCalls ; DWORD BusyTrigger ; DWORD LineInstanceNumber ; DWORD LineLabelASCIIOffset ; DWORD LineLabelASCIISize ; DWORD LineLabelUnicodeOffset ; DWORD LineLabelUnicodeSize ; DWORD VoiceMailPilotDNOffset ; DWORD VoiceMailPilotDNSize ; DWORD RegisteredIPAddressMode;// IpAddressingMode DWORD RegisteredIPv4Address ; DWORD RegisteredIPv6AddressOffset; DWORD RegisteredIPv6AddressSize; DWORD ApplicationFeatureFlagBitMap;// CiscoFeatureInformation DWORD DeviceFeatureFlagBitMap; // CiscoFeatureInformation } CISCO_LINEDEVCAPS_EXT00090001; typedef struct Cisco_LineDevCaps_Ext000A0000 { DWORD dwPickUpGroupDNOffset; DWORD dwPickUpGroupDNSize; DWORD dwPickUpGroupPartitionOffset; DWORD dwPickUpGroupPartitionSize; } CISCO_LINEDEVCAPS_EXT000A0000; typedefstruct Cisco_LineDevCaps_Ext000C0000 { DWORD DeviceProtocolType; DWORD RemoteDestinationOffset; DWORD RemoteDestinationSize; DWORD RemoteDestinationCount; DWORD RemoteDestinationElementFixedSize; DWORD IsMyAppLastToSetActiveRD; } CISCO_LINEDEVCAPS_EXT000C0000; typedef struct Cisco_LineDevCaps_Ext000D0000 { DWORD DeviceMultiMediaCapabilityBitMask; DWORD DeviceMultiMediaCapabilityOffset; DWORD DeviceMultiMediaCapabilitySize; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 322 Cisco Device-Specific Extensions LINEDEVCAPS

Page 354 content

Page 355

DWORD DeviceMultiMediaCapabilityCount; DWORD DeviceMultiMediaCapabilityElementFixedSize; DWORD ClusterIDSize; DWORD ClusterIDOffset; } CISCO_LINEDEVCAPS_EXT000D0000; See the CiscoLineDevSpecificMsg.h header file for additional information on the DevSpecific structure layout and data. CISCO_LINEDEVCAPS_EXT000D000 structure contains following information: Table 23: CISCO_LINEDEVCAPS_EXT000D000 Structure Description Fields Bitmask field indicates which fields in MultiMediaCapability structure Info are valid DWORD DeviceMultiMediaCapabilityBitMask Offset pointing to the DeviceMultiMediaCapability structure Information DWORD DeviceMultiMediaCapabilityOffset Size of the DeviceMultiMediaCapability Information DWORD DeviceMultiMediaCapabilitySize Count of MultiMediaCapaility Info available DWORD DeviceMultiMediaCapabilityCount Size of MultiMediaCapability Structure DWORD DeviceMultiMediaCapabilityElementFixedSize Offset/Size of the name of the cluster ID where the line is located DWORD ClusterIDSize DWORD ClusterIDOffset MultiMediacapability Information CiscoDeviceMultiMediaCapInfoBitMask - Bit mask indicates which fields in MultiMediaCapability Structure Exposed are valid and can be used by Applications. Following is the Enum Definition which is used to update this bitmask field. enum CiscoDeviceMultiMediaCapInfoBitMask { CiscoDeviceMultiMediaCapability_None = 0x00000000, CiscoDeviceMultiMediaCapability_VideoCapability = 0x00000001, CiscoDeviceMultiMediaCapability_TelepresenceInfo = 0x00000002, CiscoDeviceMultiMediaCapability_ScreenCount = 0x00000004 }; Device MultiMedia Capability of the Device is exposed as a structure DeviceMultiMediaCapability in the DevSpecific part. This structure contains the fields deviceVideoCapability, telepresenceInfo and screenCount. typedef struct DeviceMultiMediaCapability { DWORD deviceVideoCapability; DWORD telepresenceInfo; DWORD screenCount; } DeviceMultiMediaCapability; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 323 Cisco Device-Specific Extensions LINEDEVCAPS

Page 355 diagram

Page 356

Value Data fields This field contains the type value defined in the following enumeration. [CiscoDeviceVideoCapabilityInfo] DeviceVideoCapability This field indicates if Telepresence interop is supported by the device, defined in the following enumeration. [CiscoDeviceTelepresenceInfo] TelepresenceInfo This field indicates the number of screens present on the device. ScreenCount enum CiscoLineDeviceVideoCapabilityInfo { CiscoLineDeviceVideoCapability_None = 0x00000000, CiscoLineDeviceVideoCapability_Enabled = 0x00000001, }; enum CiscoDeviceTelepresenceInfo { CiscoDeviceTelepresence_None = 0x00000000, CiscoDeviceTelepresence_Enabled = 0x00000001, }; As part of 11.5 release, CISCO_LINEDEVCAPS_EXT has been modified to include CISCO_LINEDEVCAPS_EXT000E0000 structure. The structure for the new extension Cisco_LineDevCaps_Ext000E0000 is: // LINEDEVCAPS 000E0000 extention // typedef struct Cisco_LineDevCaps_Ext000E0000 { DWORD DeviceHuntGroupLoginStatus; }CISCO_LINEDEVCAPS_EXT000E0000; Value Data fields DeviceHuntGroupLoginStatus field contains the type value defined in the following enumeration [CiscoDeviceHuntGroupLoginStatus]. DeviceHuntGroupLoginStatus enum CiscoDeviceHuntGroupLoginStatus { CiscoDeviceHuntGroupLoginStatus_NotApplicable = 0, CiscoDeviceHuntGroupLoginStatus_Login = 1, CiscoDeviceHuntGroupLoginStatus_Logout = 2 }; LINECALLINFO Cisco TSP implements several line device-specific extensions and uses the DevSpecific (dwDevSpecificSize and dwDevSpecificOffset) variably sized area of the LINECALLINFO data structure for those extensions. The Cisco_LineCallInfo_Ext structure in the CiscoLineDevSpecificMsg.h header file defines DevSpecific area layout. Cisco TSP organizes the data in the structure, that is based on the extension version, in which the data is introduced: // LINECALLINFO Dev Specific extention // typedef struct Cisco_LineCallInfo_Ext { Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 324 Cisco Device-Specific Extensions LINECALLINFO

Page 356 diagram

Page 357

Cisco_LineCallInfo_Ext00060000 ext60; Cisco_LineCallInfo_Ext00070000 ext70; Cisco_LineCallInfo_Ext00080000 ext80; Cisco_LineCallInfo_Ext00080001 ext81; Cisco_LineCallInfo_Ext00090000 ext90; Cisco_LineCallInfo_Ext00090000 ext91; Cisco_LineCallInfo_Ext000A0000 extA0; Cisco_LineCallInfo_Ext000D0000 extD0; Cisco_LineCallInfo_Ext000F0000 extF0; } CISCO_LINECALLINFO_EXT; For a specific line device, the extension area includes, a portion of the structure from the beginning to the extension version that an application negotiated. The definitions for individual extension version substructure are as follows: // LINECALLINFO 00060000 extention // typedef struct Cisco_LineCallInfo_Ext00060000 { TSP_UNICODE_PARTY_NAMES unicodePartyNames; } CISCO_LINECALLINFO_EXT00060000; // LINECALLINFO 00070000 extention // typedef struct Cisco_LineCallInfo_Ext00070000 { DWORD SRTPKeyInfoStructureOffset; // offset from base of LINECALLINFO DWORD SRTPKeyInfoStructureSize; // includes variable length data total size DWORD SRTPKeyInfoStructureElementCount; DWORD SRTPKeyInfoStructureElementFixedSize; DWORD DSCPInformationOffset; // offset from base of LINECALLINFO DWORD DSCPInformationSize; // fixed size of the DSCPInformation structure DWORD DSCPInformationElementCount; DWORD DSCPInformationElementFixedSize; DWORD CallPartitionInfoOffset; // offset from base of LINECALLINFO DWORD CallPartitionInfoSize; // fixed size of the CallPartitionInformation structure DWORD CallPartitionInfoElementCount; DWORD CallPartitionInfoElementFixedSize; DWORD ExtendedCallInfoOffset; // = = = > ExtendedCallInfo { } DWORD ExtendedCallInfoSize; // DWORD ExtendedCallInfoElementCount; // DWORD ExtendedCallInfoElementSize; // } CISCO_LINECALLINFO_EXT00070000; // LINECALLINFO 00080000 extention // //

typedef struct Cisco_LineCallInfo_Ext00080000 { DWORD CallSecurityStatusOffset; DWORD CallSecurityStatusSize; DWORD CallSecurityStatusElementCount; DWORD CallSecurityStatusElementFixedSize; DWORD CCMCallIDInfoOffset; DWORD CCMCallIDInfoSize; DWORD CCMCallIDInfoElementCount; DWORD CCMCallIDInfoElementFixedSize; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 325 Cisco Device-Specific Extensions LINECALLINFO

Page 357 content

Page 358

DWORD CallAttrtibuteInfoOffset; DWORD CallAttrtibuteInfoSize; DWORD CallAttrtibuteInfoElementCount; DWORD CallAttrtibuteInfoElementFixedSize; DWORD TSPIntercomSideInfo; DWORD CallingPartyIpAddr; } CISCO_LINECALLINFO_EXT00080000; // LINECALLINFO 00080001 extension // //

typedef struct Cisco_LineCallInfo_Ext00080001 { DWORD CPNInfoOffset; //array of structure of CPNInfo structure DWORD CPNInfoSize; DWORD CPNInfoElementCount; DWORD CPNInfoElementFixedSize; } CISCO_LINECALLINFO_EXT00080001; // LINECALLINFO 00090000 extention // //

typedef struct Cisco_LineCallInfo_Ext00090000 { DWORD IPv6InfoOffset; DWORD IPv6InfoSize; DWORD IPv6InfoElementCount; DWORD IPv6InfoElementFixedSize; DWORD FarEndIPAddressingMode; }CISCO_LINECALLINFO_EXT00090000; // LINECALLINFO 000A0000 extention // //

typedef struct Cisco_LineCallInfo_Ext000A0000 { DWORD CallAttributeBitMask; DWORD UniqueCallRefIDInfoOffset; DWORD UniqueCallRefIDInfoSize; DWORD UniqueCallRefIDInfoElementCount; DWORD UniqueCallRefIDElementFixedSize; //HuntList DWORD HuntPilotInfoOffset; //point to HuntPoiltInfo DWORD HuntPilotInfoSize; DWORD HuntPilotInfoCount; DWORD HuntPilotInfoElementFixedSize; DWORD GlobalCallID; DWORD CallManagerID; } CISCO_LINECALLINFO_EXT000A0000; typedef struct Cisco_LineCallInfo_Ext000D0000 { DWORD CallingPartyMultiMediaCapBitMask; //refer to CiscoDeviceMultiMediaCapInfoBitMask DWORD CalledPartyMultiMediaCapBitMask; //refer to CiscoDeviceMultiMediaCapInfoBitMask DWORD CallingPartyMultiMediaCapInfoOffset; //refer to DeviceCallMultiMediaCapInfo DWORD CallingPartyMultiMediaCapInfoSize; DWORD CallingPartyMultiMediaCapInfoCount; DWORD CallingPartyMultiMediaCapInfoElementFixedSize; DWORD CalledPartyMultiMediaCapInfoOffset; //refer to DeviceCallMultiMediaCapInfo DWORD CalledPartyMultiMediaCapInfoSize; DWORD CalledPartyMultiMediaCapInfoCount; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 326 Cisco Device-Specific Extensions LINECALLINFO

Page 358 content

Page 359

DWORD CalledPartyMultiMediaCapInfoElementFixedSize; DWORD MultiMediaStreamsInfoOffset; //refer to VideoStreamInfo DWORD MultiMediaStreamsInfoSize; DWORD MultiMediaStreamsInfoCount; DWORD MultiMediaStreamsInfoElementFixedSize; DWORD RecordingAttributeInfo_ExtD0_Offset; DWORD RecordingAttributeInfo_ExtD0_Size; DWORD RecordingAttributeInfo_ExtD0_Count; DWORD RecordingAttributeInfo_ExtD0_ElementFixedSize; } CISCO_LINECALLINFO_EXT000D0000; Calling and Called MultiMediaCapability Information The video capability of the calling party and the called party is exposed as a structure DeviceCallMultiMediaCapInfo in the DevSpecific part. The structure contains the following fields: • VideoCapStatus, • TelepresenceInfo, and • ScreenCount typedef struct DeviceCallMultiMediaCapInfo { DWORD VideoCapStatus; DWORD TelepresenceInfo; DWORD ScreenCount; } DeviceCallMultiMediaCapInfo; Value Data fields Contains the value that is defined in the following enumeration [CiscoDeviceVideoCapabilityInfo]. DeviceVideoCapability Indicates if Telepresence is enabled on the device, which is defined in the following enumeration [CiscoDeviceTelepresenceInfo]. TelepresenceInfo Indicates the number of screens present on the device. ScreenCount Indicates which fields of DeviceCallMultiMediaCapInfo structure have valid information [CiscoDeviceMultiMediaCapInfoBitMask]. CallingPartyMultiMediaCapInfoBitMask Indicates which fields of DeviceCallMultiMediaCapInfo structure have valid information [CiscoDeviceMultiMediaCapInfoBitMask]. CalledPartyMultiMediaCapInfoBitMask enum CiscoDeviceVideoCapabilityInfo { CiscoDeviceVideoCapability_None = 0x00000000, CiscoDeviceVideoCapability_Enabled = 0x00000001, }; enum CiscoDeviceTelepresenceInfo Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 327 Cisco Device-Specific Extensions LINECALLINFO

Page 359 diagram

Page 360

{ CiscoDeviceTelepresence_None = 0x00000000, CiscoDeviceTelepresence_Enabled = 0x00000001, }; enum CiscoDeviceMultiMediaCapInfoBitMask { CiscoDeviceMultiMediaCapability_None = 0x00000000, CiscoDeviceMultiMediaCapability_VideoCapability = 0x00000001, CiscoDeviceMultiMediaCapability_TelepresenceInfo = 0x00000002, CiscoDeviceMultiMediaCapability_ScreenCount = 0x00000004 }; MultiMediaStream Information When the call arrives on an opened line, the TSP sends the LINE_CALLDEVSPECIFIC event to the application with Multimedia Stream information. The application then sends a query to the LINECALLINFO to get a detailed Multimedia Stream information. The information is exposed as a part of the VideoStreamInfo structure in the DevSpecific part of the LineCallInfo. The structure contains the following data. typedef struct VideoStreamInfo { DWORD StreamId; DWORD CompressionType; // MEDIAPAYLOAD DWORD BitRate; DWORD MediaMode; DWORD bKeyInfoPresent; //ipv6 DWORD RxRTPDestinationV6Offset; DWORD RxRTPDestinationV6Size; DWORD RxRTPDestinationV4; DWORD RxIpAddrMode; DWORD TxRTPDestinationV6Offset; DWORD TxRTPDestinationV6Size; DWORD TxRTPDestinationV4; DWORD TxIpAddrMode; MultiMediaEncryptionKeyInfo MediaEncryptionKeyInfo; } VideoStreamInfo; Value Data fields Indicates the index of the MultiMedia stream. StreamId Indicates the compression type of the video stream. CompressionType Indicates the bit rate of the video stream. BitRate Indicates the media mode of the video stream. MediaMode Indicates the packet size of the video stream. PacketSize Indicates whether Key Information is present. bKeyInfoPresent Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 328 Cisco Device-Specific Extensions LINECALLINFO

Page 360 diagram

Page 361

Value Data fields Contains the value in bytes from the beginning of LINECALLINFO structure. Contains the value in bytes of the variably sized Reception RTP destination IPv6 information. RxRTPDestinationV6Offset RxRTPDestinationV6Size Indicates the IPv4 address of the video stream. RxRTPDestinationV4 Specifies the reception IP addressing mode. RxIpAddrMode Contains the value in bytes from the beginning of LINECALLINFO structure. Contains the value in bytes of the variably sized Transmission RTP destination IPv6 information. TxRTPDestinationV6Offset TxRTPDestinationV6Size Indicates the IPv4 address of the video stream. TxRTPDestinationV4 Specifies the transmission IP addressing mode. TxIpAddrMode Contains the value in bytes from the beginning of LINECALLINFO structure. Contains the value in bytes of the variably sized Multimedia Encryption Key information. MediaEncryptionKeyInfo Cisco TSP reports a detailed multimedia Encryption Key Information to the applications as a part of the structure CiscoTsp_MultiMediaEncryptionKeyInfo, if there is secure connection to CTIManager. The application user is authorized to receive multimedia Encryption Key Information. The multimedia Encryption Key information that is provided by Cisco TSP includes TxKeylen, RxKeylen, Txkey, RxKey, TxSalt, RxSalt, AlgorithmID, TxIsMKIPresent, RxIsMKIPresent, and SecurityIndicator. The administrator must configure TLS Enabled and SRTP Enabled flags on CallManager Admin User pages to receive the key materials. TLS link must be established between TSP and CTIManager. typedef struct CiscoTsp_MultiMediaEncryptionKeyInfo { DWORD AlgorithmID; DWORD TxKeyOffset; DWORD TxKeySize; DWORD RxKeyOffset; DWORD RxKeySize; DWORD TxSaltOffset; DWORD TxSaltSize; DWORD RxSaltOffset; DWORD RxSaltSize; DWORD TxIsMKIPresent; DWORD RxIsMKIPresent; DWORD SecurityIndicator; } CiscoTsp_MultiMediaEncryptionKeyInfo; Specifies the negotiated algorithm id. AlgorithmID Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 329 Cisco Device-Specific Extensions LINECALLINFO

Page 361 diagram

Page 362

Contains the value in bytes from the beginning of LINECALLINFO structure. Contains the value in bytes of the variably sized Transmission Key information. TxKeyOffset TxKeySize Contains the value in bytes from the beginning of LINECALLINFO structure. Contains the value in bytes of the variably sized Reception Key information. RxKeyOffset RxKeySize Contains the value in bytes from the beginning of LINECALLINFO structure. Contains the value in bytes of the variably sized Transmission Salt information. TxSaltOffset TxSaltSize Contains the value in bytes from the beginning of LINECALLINFO structure. Contains the value in bytes of the variably sized Reception Salt information. RxSaltOffset RxSaltSize Indicates whether Transmission MKI is present. TxIsMKIPresent Indicates whether Reception MKI is present. RxIsMKIPresent Specifies the security indicator. SecurityIndicator See the CiscoLineDevSpecificMsg.h header file for additional information on the DevSpecific structure layout and data. A new CISCO_LINECALLINFO_EXT000F0000 structure is introduced and contains the following information: typedef struct Cisco_LineCallInfo_Ext000F0000 { DWORD MultiForkingRecorderInfo_ExtF0_Offset; DWORD MultiForkingRecorderInfo_ExtF0_Size; DWORD MultiForkingRecorderInfo_ExtF0_Count; DWORD MultiForkingRecorderInfo_ExtF0_ElementFixedSize; DWORD SessionIDInfo_ExtF0_Offset; DWORD SessionIDInfo_ExtF0_Size; DWORD SessionIDInfo_ExtF0_Count; DWORD SessionIDInfo_ExtF0_ElementFixedSize; }Cisco_LineCallInfo_Ext000F0000; The following table details the fields in the CISCO_LINECALLINFO_EXT000F0000 structure: Value Data fields Refers to MultiForkingRecorderInfo. MultiForkingRecorderInfo_ExtF0_Offset MultiForkingRecorderInfo_ExtF0_Size MultiForkingRecorderInfo_ExtF0_Count MultiForkingRecorderInfo_ExtF0_ElementFixedSize Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 330 Cisco Device-Specific Extensions LINECALLINFO

Page 362 diagram

Page 363

Value Data fields Refers to SessionIDInfo. SessionIDInfo_ExtF0_Offset SessionIDInfo_ExtF0_ExtF0_Size SessionIDInfo_ExtF0_ExtF0_Count SessionIDInfo_ExtF0_ExtF0_ElementFixedSize MultiForkingRecorder Information TSP reports the detailed MultiForking Recorders information to the applications as a part of the structure MultiForkingRecorderInfo. The MultiForking information that is provided by Cisco TSP includes RecorderType, RecorderStatus, RecorderUri, and RecorderErrorMsg. typedef struct MultiForkingRecorderInfo { DWORD RecorderType; DWORD RecorderStatus; DWORD RecorderUriOffset; DWORD RecorderUriSize; DWORD RecorderErrorMsgOffset; DWORD RecorderErrorMsgSize; } MultiForkingRecorderInfo; Value Data fields Contains the value that is defined in the following: enumeration (CiscoMultiForkingRecorderType). RecorderType Contains the value that is defined in the following: enumeration (CiscoMultiForkingRecorderStatus). RecorderStatus Contains the value in bytes from the beginning of LINECALLINFO structure. RecorderUriOffset Contains the value in bytes of the variably sized Recorder URI (IP and Port number). RecorderUriSize Contains the value in bytes from the beginning of LINECALLINFO structure. RecorderErrorMsgOffset Contains the value in bytes of the variably sized Recorder Error Message, when the recording fails. RecorderErrorMsgSize enum CiscoMultiForkingRecorderType { CiscoMultiForkingRecorderType_Unknown = 0, CiscoMultiForkingRecorderType_Mandatory, CiscoMultiForkingRecorderType_Optional }; enum CiscoMultiForkingRecorderStatus { CiscoMultiForkingRecorderStatus_Unknown = 0, Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 331 Cisco Device-Specific Extensions LINECALLINFO

Page 363 diagram

Page 364

CiscoMultiForkingRecorderStatus_Success, CiscoMultiForkingRecorderStatus_Failure }; SessionID Information TSP reports the SessionID information to the applications as a part of the structure SessionIDInfo. The SessionID information that is provided by Cisco TSP includes DeviceUUID and PeerUUID. typedef struct SessionIdInfo { DWORD DeviceUuidOffset; DWORD DeviceUuidSize; DWORD PeerUuidOffset; DWORD PeerUuidSize; } SessionIdInfo; Value Data fields Contains the value in bytes from the beginning of LINECALLINFO structure. Contains the value in bytes of the variably sized UUID, of one of the two sessions in the call (Either Calling or Called session). DeviceUuidOffset DeviceUuidSize Contains the value in bytes from the beginning of LINECALLINFO structure. Contains the value in bytes of the variably sized UUID of the other session. PeerUuidOffset PeerUuidSize Details The TSP_Unicode_Party_names structure and SRTP information structure describe the device-specific extensions that the Cisco Unified TSP made to the LINECALLINFO structure. DSCPValueForAudioCalls will contain the DSCP value that CTI sent in the StartTransmissionEvent. ExtendedCallInfo structure has extra call information. For Cisco Unified Communications Manager Release 7.0(1), the ExtendedCallReason field belongs to the ExtendedCallInfo structure. CallAttributeInfo contains the information about attributeType (Monitoring, Monitored, Recorder,securityStatus) and PartyInfo (Dn,Partition,DeviceName) CCMCallID contains CCM Call identifier value. CallingPartyIPAddress contains the IP address of the calling party if the calling party device supports it. CallSecurityStatus structure contains the overall security status of the call for two-party call as well as conference call. DWORD TapiCallerPartyUnicodeNameOffset; DWORD TapiCallerPartyUnicodeNameSize; DWORDTapiCallerPartyLocale; DWORD TapiCalledPartyUnicodeNameOffset; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 332 Cisco Device-Specific Extensions Details

Page 364 diagram

Page 365

DWORD TapiCalledPartyUnicodeNameSize; DWORDTapiCalledPartyLocale; DWORD TapiConnectedPartyUnicodeNameOffset; DWORD TapiConnectedPartyUnicodeNameSize; DWORDTapiConnectedPartyLocale; DWORD TapiRedirectionPartyUnicodeNameOffset; DWORD TapiRedirectionPartyUnicodeNameSize; DWORDTapiRedirectionPartyLocale; DWORD TapiRedirectingPartyUnicodeNameOffset; DWORD TapiRedirectingPartyUnicodeNameSize; DWORDTapiRedirectingPartyLocale; DWORD SRTPKeyInfoStructureOffset; // offset from base of LINECALLINFO DWORD SRTPKeyInfoStructureSize;// includes variable length data total size DWORD SRTPKeyInfoStructureElementCount; DWORD SRTPKeyInfoStructureElementFixedSize; DWORD DSCPValueInformationOffset; DWORD DSCPValueInformationSize; DWORD DSCPValueInformationElementCount; DWORD DSCPValueInformationElementFixedSize; DWORD PartitionInformationOffset; // offset from base of LINECALLINFO DWORD PartitionInformationSize; // includes variable length data total size DWORD PartitionInformationElementCount; DWORD PartitionInformationElementFixedSize; DWORD ExtendedCallInfoOffset; DWORD ExtendedCallInfoSize; DWORD ExtendedCallInfoElementCount; DWORD ExtendedCallInfoElementSize; DWORD CallAttrtibuteInfoOffset; DWORD CallAttrtibuteInfoSize; DWORD CallAttrtibuteInfoElementCount; DWORD CallAttrtibuteInfoElementSize; DWORD CallingPartyIPAddress; DWORD CCMCallIDInfoOffset; DWORD CCMCallIDInfoSize; DWORD CCMCallIDInfoElementCount; DWORD CCMCallIDInfoElementFixedSize; DWORD CallSecurityStatusOffset; DWORD CallSecurityStatusSize; DWORD CallSecurityStatusElementCount; DWORD CallSecurityStatusElementFixedSize; DWORD IsChaperoneCall; DWORD UniqueCallRefIDInfoOffset, DWORD UniqueCallRefIDInfoSize; DWORD CallAttributeBitMask; typedef struct SRTPKeyInfoStructure { SRTPKeyInformation TransmissionSRTPInfo; SRTPKeyInformation ReceptionSRTPInfo; } SRTPKeyInfoStructure; typedef struct SRTPKeyInformation { DWORDIsSRTPDataAvailable; DWORDSecureMediaIndicator;// CiscoSecurityIndicator DWORDMasterKeyOffset; DWORDMasterKeySize; DWORDMasterSaltOffset; DWORDMasterSaltSize; DWORDAlgorithmID;// CiscoSRTPAlgorithmIDs Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 333 Cisco Device-Specific Extensions Details

Page 365 content

Page 366

DWORDIsMKIPresent; DWORDKeyDerivationRate; } SRTPKeyInformation; enum CiscoSRTPAlgorithmIDs { SRTP_NO_ENCRYPTION=0, SRTP_AES_128_COUNTER=1 }; enum CiscoSecurityIndicator { SRTP_MEDIA_ENCRYPT_KEYS_AVAILABLE, SRTP_MEDIA_ENCRYPT_USER_NOT_AUTH, SRTP_MEDIA_ENCRYPT_KEYS_UNAVAILABLE, SRTP_MEDIA_NOT_ENCRYPTED }; If isSRTPInfoavailable is set to False, rest of the information from SRTPKeyInformation must be ignored. If MasterKeySize or MasterSlatSize is set to 0, then corresponding MasterKeyOffset or MasterSaltOffset must be ignored. typedef struct DSCPValueInformation{ DWORD DSCPValueForAudioCalls; } typedef struct PartitionInformation { DWORD CallerIDPartitionOffset; DWORD CallerIDPartitionSize; DWORD CalledIDPartitionOffset; DWORD CalledIDPartitionSize; DWORD ConnecetedIDPartitionOffset; DWORD ConnecetedIDPartitionSize; DWORD RedirectionIDPartitionOffset; DWORD RedirectionIDPartitionSize; DWORD RedirectingIDPartitionOffset; DWORD RedirectingIDPartitionSize; } PartitionInformation; Struct ExtendedCallInfo { DWORD ExtendedCallReason ; DWORD CallerIDURLOffset;// CallPartySipURLInfo DWORD CallerIDURISize; DWORD CalledIDURLOffset;// CallPartySipURLInfo DWORD CalledIDURISize; DWORD ConnectedIDURIOffset;// CallPartySipURLInfo DWORD ConnectedIDURISize; DWORD RedirectionIDURIOffset;// CallPartySipURLInfo DWORD RedirectionIDURISize; DWORD RedirectingIDURIOffset;// CallPartySipURLInfo DWORD RedirectingIDURISize; } Struct CallPartySipURLInfo { DWORD dwUserOffset; //sip user string DWORDdwUserSize; DWORDdwHostOffset; //host name string Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 334 Cisco Device-Specific Extensions Details

Page 366 content

Page 367

DWORDdwHostSize; DWORDdwPort;// integer port number DWORD dwTransportType; // SIP_TRANS_TYPE DWORD dwURLType;// SIP_URL_TYPE } enum { CTI_SIP_TRANSPORT_TCP=1, CTI_SIP_TRANSPORT_UDP, CTI_SIP_TRANSPORT_TLS } SIP_TRANS_TYPE; enum { CTI_NO_URL = 0, CTI_SIP_URL, CTI_TEL_URL } SIP_URL_TYPE; typedef struct CallAttributeInfo { DWORD CallAttributeType; DWORD PartyDNOffset; DWORD PartyDNSize; DWORD PartyPartitionOffset; DWORD PartyPartitionSize; DWORD DeviceNameOffset; DWORD DeviceNameSize; DWORD OverallCallSecurityStatus; } typedef struct CallAttributeInfo_ExtA0 { DWORD CallAttributeType; DWORD PartyDNOffset; DWORD PartyDNSize; DWORD PartyPartitionOffset; DWORD PartyPartitionSize; DWORD DeviceNameOffset; DWORD DeviceNameSize; DWORD OverallCallSecurityStatus; DWORD TransactionID;//Secure R & M } CallAttributeInfo_ExtA0; typedef struct CallAttributeInfo_ExtB0 { CallAttributeInfo_ExtA0 attr_a0; DWORD ActiveToneDirection; } CallAttributeInfo_ExtB0; typedef struct CCMCallHandleInformation { DWORD CCMCallID; } enum { CallAttribute_Regular = 0, CallAttribute_SilentMonitorCall, CallAttribute_SilentMonitorCall_Target, CallAttribute_RecordedCall, CallAttribute_WhisperCoachingCall, CallAttribute_WhisperCoachingCall_Target, CallAttribute_Recorded_Automatic, CallAttribute_Recorded_AppInitiatedSilent, CallAttribute_Recorded_UserInitiatedFromApp, Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 335 Cisco Device-Specific Extensions Details

Page 367 content

Page 368

CallAttribute_Recorded_UserInitiatedFromDevice } CallAttributeType typedef struct CallSecurityStausInfo { DWORD CallSecurityStaus } CallSecurityStausInfo enum OverallCallSecurityStatus { OverallCallSecurityStatus_Unknown = 0, OverallCallSecurityStatus_NotAuthenticated, OverallCallSecurityStatus_Authenticated, OverallCallSecurityStatus_Encrypted }; typedef struct CPNInfo { DWORD CallerPartyNumberType;//refer to CiscoNumberType DWORD CalledPartyNumberType; DWORD ConnectedIdNumberType; DWORD RedirectingPartyNumberType; DWORD RedirectionPartyNumberType; DWORD ModifiedCallingPartySize; DWORD ModifiedCallingPartyOffset; DWORD ModifiedCalledPartySize; DWORD ModifiedCalledPartyOffset; DWORD ModifiedConnectedIdSize; DWORD ModifiedConnectedIdOffset; DWORD ModifiedRedirectingPartySize; DWORD ModifiedRedirectingPartyOffset; DWORD ModifiedRedirectionPartySize; DWORD ModifiedRedirectionPartyOffset; DWORD GlobalizedCallingPartySize; DWORD GlobalizedCallingPartyOffset; } CPNInfo; enum CiscoNumberType { NumberType_Unknown = 0, // UNKNOWN_NUMBER NumberType_International = 1, // INTERNATIONAL_NUMBER NumberType_National = 2, // NATIONAL_NUMBER NumberType_NetSpecificNum = 3, // NET_SPECIFIC_NUMBER NumberType_Subscriber = 4, // SUBSCRIBER_NUMBER NumberType_Abbreviated = 6 // ABBREVIATED_NUMBER }; typedef struct Cisco_LineCallInfo_Ext000A0000 { … //HuntList DWORD HuntPilotInfoOffset;//point to HuntPoiltInfo DWORD HuntPilotInfoSize; DWORD HuntPilotInfoCount; DWORD HuntPilotInfoElementFixedSize; }CISCO_LINECALLINFO_EXT000A0000; //HuntList typedef struct HuntPilotInfo { DWORD CallingPartyHuntPilotDNOffset; DWORD CallingPartyHuntPilotDNSize; DWORD CallingPartyHuntPilotPartitionOffset; DWORD CallingPartyHuntPilotPartitionSize; DWORD CalledPartyHuntPilotDNOffset; DWORD CalledPartyHuntPilotDNSize; DWORD CalledPartyHuntPilotPartitionOffset; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 336 Cisco Device-Specific Extensions Details

Page 368 content

Page 369

DWORD CalledPartyHuntPilotPartitionSize; DWORD ConnectedPartyHuntPilotDNOffset; DWORD ConnectedPartyHuntPilotDNSize; DWORD ConnectedPartyHuntPilotPartitionOffset; DWORD ConnectedPartyHuntPilotPartitionSize; }HuntPilotInfo; typedef struct UniqueCallRefIDInfo { DWORD UniqueCallRefIDOffset; DWORD UniqueCallRefIDSize; } UniqueCallRefIDInfo; typedef enum { TSPCallAttribute_Normal = 0x00000000, TSPCallAttribute_IntercomOriginator = 0x00000001, TSPCallAttribute_IntercomTarget = 0x00000002, TSPCallAttribute_SilentMonitorCall = 0x00000004, TSPCallAttribute_SilentMonitorCall_Target = 0x00000008, TSPCallAttribute_RecordedCall = 0x00000010, TSPCallAttribute_ChaperoneCall = 0x00000020, TSPCallAttribute_CallForwardAllSet = 0x00000040, TSPCallAttribute_CallForwardAllClear = 0x00000080, TSPCallAttribute_WhisperMonitorCall = 0x00000100, TSPCallAttribute_WhisperMonitorCall_Target= 0x00000200, TSPCallAttribute_BIBCall = 0x00000400, TSPCallAttribute_ServerCall =0x00000800, TSPCallAttribute_SendMediaToBIB = 0x00001000 } CallAttributeBits Cisco TSP exposes the multimedia capability information of a linedevice in the devspecific data of LINEGETCALLINFO when LineGetCallInfo is invoked with Extension version 0x000D0000 or higher. The calling party and the called party multimedia capability is exposed as a structure DeviceVideoCapInfo in the DevSpecific part. This structure contains three fields: • deviceVideoCapability, • telepresenceInfo, and, • screenCount. typedef struct DeviceVideoCapInfo{ DWORD VideoCapStatus; DWORD TelepresenceInfo; DWORD ScreenCount; } DeviceVideoCapInfo; Value Data fields DeviceVideoCapability field contains the type value defined in the following enumeration [CiscoDeviceVideoCapabilityInfo]. DeviceVideoCapability This field indicates if Telepresence is enabled on the device, defined in the following enumeration [CiscoDeviceTelepresenceInfo]. TelepresenceInfo This field indicated the number of screens present on the device. ScreenCount Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 337 Cisco Device-Specific Extensions Details

Page 369 diagram

Page 370

enum CiscoDeviceVideoCapabilityInfo { CiscoDeviceVideoCapability_None = 0x00000000, CiscoDeviceVideoCapability_Enabled = 0x00000001, }; enum CiscoDeviceTelepresenceInfo { CiscoDeviceTelepresence_None = 0x00000000, CiscoDeviceTelepresence_Enabled = 0x00000001, }; Parameters Value Parameter The size, in bytes, of the variably sized field that contains the Unicode Caller party identifier name information, and the offset, in bytes, from the beginning of the LINECALLINFO data structure TapiCallerPartyUnicodeNameOffsetTapiCallerPartyUnicodeNameSize The Unicode Caller party identifier name Locale information TapiCallerPartyLocale The size, in bytes, of the variably sized field that contains the Unicode Caller party identifier name information, and the offset, in bytes, from the beginning of the LINECALLINFO data structure TapiCallerPartyUnicodeNameOffsetTapiCallerPartyUnicodeNameSize The Unicode Caller party identifier name Locale information TapiCallerPartyLocale The size, in bytes, of the variably sized field that contains the Unicode Called party identifier name information and the offset, in bytes, from the beginning of the LINECALLINFO data structure TapiCalledPartyUnicodeNameOffsetTapiCalledPartyUnicodeNameSize The Unicode Called party identifier name locale information TapiCalledPartyLocale The size, in bytes, of the variably sized field that contains the Unicode Connected party identifier name information and the offset, in bytes, from the beginning of the LINECALLINFO data structure TapiConnectedPartyUnicodeNameOffsetTapiConnectedPartyUnicodeNameSize The Unicode Connected party identifier name locale information TapiConnectedPartyLocale The size, in bytes, of the variably sized field that contains the Unicode Redirection party identifier name information and the offset, in bytes, from the beginning of the LINECALLINFO data structure TapiRedirectionPartyUnicodeNameOffsetTapiRedirectionPartyUnicodeNameSize The Unicode Redirection party identifier name locale information TapiRedirectionPartyLocale Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 338 Cisco Device-Specific Extensions Parameters

Page 370 diagram

Page 371

Value Parameter The size, in bytes, of the variably sized field that contains the Unicode Redirecting party identifier name information and the offset, in bytes, from the beginning of the LINECALLINFO data structure TapiRedirectingPartyUnicodeNameOffsetTapiRedirectingPartyUnicodeNameSize The Unicode Redirecting party identifier name locale information TapiRedirectingPartyLocale Point to SRTPKeyInfoStructure SRTPKeyInfoStructureOffset Total size of SRTP information SRTPKeyInfoStructureSize Number of SRTPKeyInfoStructure element SRTPKeyInfoStructureElementCount Fixed size of SRTPKeyInfoStructure SRTPKeyInfoStructureElementFixedSize Indicates whether media is secure and whether application is authorized for key information SecureMediaIndicator The offset and size of SRTP MasterKey information MasterKeyOffsetMasterKeySize The offset and size of SRTP MasterSaltKey information MasterSaltOffsetMasterSaltSize Specifies negotiated SRTP algorithm ID AlgorithmID Indicates whether MKI is present IsMKIPresent Provides the KeyDerivationRate KeyDerivationRate The DSCP value for Audio Calls DSCPValueForAudioCalls The size, in bytes, of the variably sized field that contains the Caller party identifier partition information and the offset, in bytes, from the beginning of LINECALLINFO data structure CallerIDPartitionOffsetCallerIDPartitionSize The size, in bytes, of the variably sized field that contains the Called party identifier partition information and the offset, in bytes, from the beginning of LINECALLINFO data structure CalledIDPartitionOffsetCalledIDPartitionSize The size, in bytes, of the variably sized field that contains the Connected party identifier partition information and the offset, in bytes, from the beginning of LINECALLINFO data structure ConnectedIDPartitionOffsetConnecetedIDPartitionSize The size, in bytes, of the variably sized field that contains the Redirection party identifier partition information, and the offset, in bytes, from the beginning of LINECALLINFO data structure RedirectionIDPartitionOffsetRedirectionIDPartitionSize Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 339 Cisco Device-Specific Extensions Parameters

Page 371 diagram

Page 372

Value Parameter The size, in bytes, of the variably sized field that contains the Redirecting party identifier partition information and the offset, in bytes, from the beginning of LINECALLINFO data structure RedirectingIDPartitionOffsetRedirectingIDPartitionSize Presents all the last feature-related CTI Call reason code to the application as an extension to the standard reason codes that TAPI supports. This provides the feature-specific information per call. As phones that are running SIP are supported through CTI, new features can get introduced for phones that are running on SIP during releases. Note Be aware that this field is not backward compatible and can change as changes or additions are made in the SIP phone support for a feature. Applications should implement some default behavior to handle any unknown reason codes that might be provided through this field. For Refer, the reason code specified is CtiCallReason_Refer. For Replaces, the reason code specified is CtiCallReason_Replaces. ExtendedCallReason The size, in bytes, of the variably sized field that contains the Caller party identifier URL information and the offset, in bytes, from the beginning of LINECALLINFO data structure CallerIDURLOffsetCallerIDURLSize The size, in bytes, of the variably sized field that contains the Called party identifier URL information and the offset, in bytes, from the beginning of LINECALLINFO data structure CalledIDURLOffsetCalledIDURLSize The size, in bytes, of the variably sized field that contains the Connected party identifier URL information and the offset, in bytes, from the beginning of LINECALLINFO data structure ConnectedIDURLOffsetConnecetedIDURLSize The size, in bytes, of the variably sized field that contains the Redirection party identifier URL information and the offset, in bytes, from the beginning of LINECALLINFO data structure RedirectionIDURLOffsetRedirectionIDURLSize The size, in bytes, of the variably sized field that contains the Redirecting party identifier URL information and the offset, in bytes, from the beginning of LINECALLINFO data structure RedirectingIDURLOffsetRedirectingIDURLSize Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 340 Cisco Device-Specific Extensions Parameters

Page 372 diagram

Page 373

Value Parameter Identifies whether the following information (DN.Partition.DeviceName) is for a regular call, a monitoring call, a monitored call, or a recording call CallAttributeType The size, in bytes, of the variably sized field that contains the Monitoring/Monitored/Recorder party DN information and the offset, in bytes, from the beginning of the LINECALLINFO data structure PartyDNOffset, PartyDNSize, The size, in bytes, of the variably sized field that contains the Monitoring/Monitored/Recorder party partition information and the offset, in bytes, from the beginning of the LINECALLINFO data structure PartyPartitionOffset PartyPartitionSize The size, in bytes, of the variably sized field that contains the Monitoring/Monitored/Recorder party device name and the offset, in bytes, from the beginning of the LINECALLINFO data structure DeviceNameOffset DeviceNameSize The security status of the call for two-party calls and conference calls OverallCallSecurityStatus The Cisco Unified Communications Manager caller ID for each call leg CCMCallID The size, in bytes, of the variably sized field containing the Hunt Pilot DN, and the offset, in bytes, from the beginning of LINECALLINFO data structure. CallingPartyHuntPilotDNOffset CallingPartyHuntPilotDNSize The size, in bytes, of the variably sized field containing the Hunt Pilot Partition, and the offset, in bytes, from the beginning of LINECALLINFO data structure. CallingPartyHuntPilotPartitionOffset CallingPartyHuntPilotPartitionSize The size, in bytes, of the variably sized field containing the Hunt Pilot DN, and the offset, in bytes, from the beginning of LINECALLINFO data structure. CalledPartyHuntPilotDNOffset CalledPartyHuntPilotDNSize The size, in bytes, of the variably sized field containing the Hunt Pilot Partition, and the offset, in bytes, from the beginning of LINECALLINFO data structure. CalledPartyHuntPilotPartitionOffset CalledPartyHuntPilotPartitionSize The size, in bytes, of the variably sized field containing the Hunt Pilot DN, and the offset, in bytes, from the beginning of LINECALLINFO data structure. ConnectedPartyHuntPilotDNOffset ConnectedPartyHuntPilotDNSize Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 341 Cisco Device-Specific Extensions Parameters

Page 373 diagram

Page 374

Value Parameter The size, in bytes, of the variably sized field containing the Hunt Pilot Partition, and the offset, in bytes, from the beginning of LINECALLINFO data structure. ConnectedPartyHuntPilotPartitionOffset ConnectedPartyHuntPilotPartitionSize This field specifies whether the call is a chaperone call or not. IsChaperoneCall To indicate that partition information exists in the LINECALLINFO structure, the system fires a LINECALLINFOSTATE_DEVSPECIFIC event. The bit map indicating the change is defined as the following: 0x00000001 SLDST_SRTP_INFO 0x00000002 SLDST_QOS_INFO 0x00000004 SLDST_PARTITION_INFO 0x00000008 SLDST_EXTENDED_CALL_INFO 0x00000010 //M&R SLDST_CALL_ATTRIBUTE_INFO 0x00000020 //M&R SLDST_CCM_CALL_ID 0x00000040 //SecureConf SLDST_SECURITY_STATUS_INFO 0x00000080 //CPN SLDST_NUMBER_TYPE_CHANGED 0x00000100 //CPN SLDST_GLOBALIZED_CALLING_PARTY_CHANGED 0x00000200//IPv6 new SLDST_FAR_END_IP_ADDRESS_CHANGED 0x00000400 SLDST_UNIQUE_CALL_REF_ID_INFO 0x00000800 SLDST_DEVICE_VIDEO_CAP_INFO 0x00001000 SLDST_MULTIMEDIA_STREAMS_INFO LINEDEVSPECIFIC{ hDevice = hcall //call handle for which the info has changed. dwParam1 = SLDSMT_LINECALLINFO_DEVSPECIFICDATA //indicates DevSpecific portion’s changed dwParam2 = SLDST_SRTP_INFO | SLDST_QOS_INFO |SLDST_PARTITION_INFO | SLDST_EXTENDED_CALL_INFO | SLDST_CALL_ATTRIBUTE_INFO|SLDST_CCM_CALLID| SLDST_CALL_SECURITY_STATUS | SLDST_NUMBER_TYPE_CHANGED | SLDST_GLOBALIZED_CALLING_PARTY_CHANGED | SLDST_FAR_END_IP_ADDRESS_CHANGED | SLDST_UNIQUE_CALL_REF_ID_INFO | SLDST_DEVICE_VIDEO_CAP_INFO | SLDST_MULTIMEDIA_STREAMS_INFO dwParam3 = … dwParam3 will be security indicator if dwParam2 has bit set for SLDST_SRTP_INFO } Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 342 Cisco Device-Specific Extensions Parameters

Page 374 diagram

Page 375

LINECALLPARAMS Cisco TSP implements several line device-specific extensions that require applications to use LINECALLPARAMS structure to pass relevant data in the lineMakeCall request. Details With extention 0x00080001 feature priority is introduced for DoNotDisturb-Reject feature. Feature priority can be specified in DevSpecific part of LINECALLPARAMS (dwDevSpecificSize and dwDevSpecificOffset) as typedef struct LineParamas { DWORD FeaturePriority; } LINE_PRAMS; Starting with extention 0x000D0000 Feature Priority data is included in Cisco_CallParamsDevSpecific structure that replaces LineParams structure. The Cisco_CallParamsDevSpecific structure is defined in CiscoLineDevSpecificMsg.h header file as follows: typedef struct Cisco_CallParamsDevSpecific_tag { DWORD CallPriority; DWORD DevSpecificFlags; } Cisco_CallParamsDevSpecific; The DevSpecificFlags field in that structure is used to identify a specific feature and can be set to one of the following: #define Cisco_CALLPARAMS_DEVSPECIFICFLAGS_PRIORITYCALL 0x00000001 #define Cisco_CALLPARAMS_DEVSPECIFICFLAGS_PERSISTENTCALL 0x00000002 #define Cisco_CALLPARAMS_DEVSPECIFICFLAGS_ANNOUNCEMENTCALL 0x00000004 Cisco_CALLPARAMS_DEVSPECIFICFLAGS_PRIORITYCALL indicates the feature priority call for DoNotDisturb-Reject feature. The CallPriority field in Cisco_CallParamsDevSpecific structure should be used to specify feature priority. Cisco_CALLPARAMS_DEVSPECIFICFLAGS_PERSISTENTCALL indicates that Persistent Call is to be created. In this case, two other LINECALLPARAMS fields are used: • CallingPartyID (dwCallingPartyIDSize and dwCallingPartyIDOffset) is used to specify calling-party ID • DisplayabeAddress (dwDisplayableAddress Size and dwDisplayableAddress Offset) is used to specify calling-party ID name Cisco_CALLPARAMS_DEVSPECIFICFLAGS_ANNOUNCEMENTCALL indicates that Announcement call is to be created. In that case CallData field in the LINECALLPARAMS structure is used to specify an announcement ID. Announcement ID (or media-contmt ID) is a string with a maximum length defined in CiscoLineDevSpecificMsg.h as MAX_CISCO_TSP_MEDIA_CONTENT_ID_SIZE. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 343 Cisco Device-Specific Extensions LINECALLPARAMS

Page 375 content

Page 376

LINEDEVSTATUS Cisco TSP implements several line device-specific extensions and uses the DevSpecific (dwDevSpecificSize and dwDevSpecificOffset) variably sized area of the LINEDEVSTATUS data structure for those extensions. Cisco TSP defines the DevSpecific area layout in the Cisco_LineDevStatus_Ext structure in the CiscoLineDevSpecificMsg.h header file. The extension version in which the data was introduced provides basis for how the data in that structure is organized. // LINEDEVSTATUS Dev Specific extention // typedef struct Cisco_LineDevStatus_Ext { Cisco_LineDevStatus_Ext00060000 ext60; Cisco_LineDevStatus_Ext00070000 ext70; Cisco_LineDevStatus_Ext00080000 ext80; } CISCO_LINEDEVSTATUS_EXT; typedef struct Cisco_LineDevStatus_Ext00080000 { CISCOLINEDEVSTATUS_DONOTDISTURB doNotDisturbStatus; } CISCO_LINEDEVSTATUS_EXT00080000; typedef struct CiscoLineDevStatus_DoNotDisturb { DWORD m_LineDevStatus_DoNotDisturbOption; DWORD m_LineDevStatus_DoNotDisturbStatus; } CISCOLINEDEVSTATUS_DONOTDISTURB; For a specific line device, the extension area will include a portion of this structure, starting from the beginning and up to the extension version that an application negotiated. Detail The individual extension version substructure definitions follow: // LINEDEVSTATUS 00060000 extention // typedef struct Cisco_LineDevStatus_Ext00060000 { DWORD dwSupportedEncoding; } CISCO_LINEDEVSTATUS_EXT00060000; // LINEDEVSTATUS 00070000 extention // typedef struct Cisco_LineDevStatus_Ext00070000 { char lpszAlternateScript[MAX_ALTERNATE_SCRIPT_SIZE]; // An empty string means there is no alternate script configured // or the phone does not support alternate scripts } CISCO_LINEDEVSTATUS_EXT00070000; // LINEDEVSTATUS 00080000 extention // // Status extention 00080000 Data Structure// typedef struct Cisco_LineDevStatus_Ext00080000 { CISCOLINEDEVSTATUS_DONOTDISTURB doNotDisturbStatus; } CISCO_LINEDEVSTATUS_EXT00080000; typedef struct CiscoLineDevStatus_DoNotDisturb { DWORD m_LineDevStatus_DoNotDisturbOption; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 344 Cisco Device-Specific Extensions LINEDEVSTATUS

Page 376 content

Page 377

DWORD m_LineDevStatus_DoNotDisturbStatus; } CISCOLINEDEVSTATUS_DONOTDISTURB; You can find additional information on the DevSpecific structure layout and data in the CiscoLineDevSpecificMsg.h header file. The CiscoLineDevStatus_DoNotDisturb structure belongs to the LINEDEVSTATUS_DEV_SPECIFIC_DATA structure and gets used to reflect the current state of the Do Not Disturb feature. Parameters DWORD dwSupportEncoding This parameter indicates the Support Encoding for the Unicode Party names that are being sent in device-specific extension of the LINECALLINFO structure. The typical values could be enum { UnknownEncoding = 0,// Unknown encoding NotApplicableEncoding = 1,// Encoding not applicable to this device AsciiEncoding = 2, // ASCII encoding Ucs2UnicodeEncoding = 3 // UCS-2 Unicode encoding } Be aware that the dwSupportedEncoding extension is only available if extension version 0x00060000 or higher is negotiated. Note LPCSTR lpszAlternateScript This parameter specifies the alternate script that the device supports. An empty string indicates the device does not support or is not configured with an alternate script. The only supported script in this release is "Kanji" for the Japanese locale. m_LineDevStatus_DoNotDisturbOption This field contains DND option that is configured for the device and can comprise one of the following enum values: enum CiscoDoNotDisturbOption { DoNotDisturbOption_NONE = 0, DoNotDisturbOption_RINGEROFF = 1, DoNotDisturbOption_REJECT = 2 }; m_LineDevStatus_DoNotDisturbStatus field contains current DND status on the device and can be one of the following enum values: enum CiscoDoNotDisturbStatus { DoNotDisturbStatus_UNKNOWN = 0, DoNotDisturbStatus_ENABLED = 1, DoNotDisturbStatus_DISABLED = 2 }; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 345 Cisco Device-Specific Extensions Parameters

Image 1 from page 377

Page 377 content

Page 378

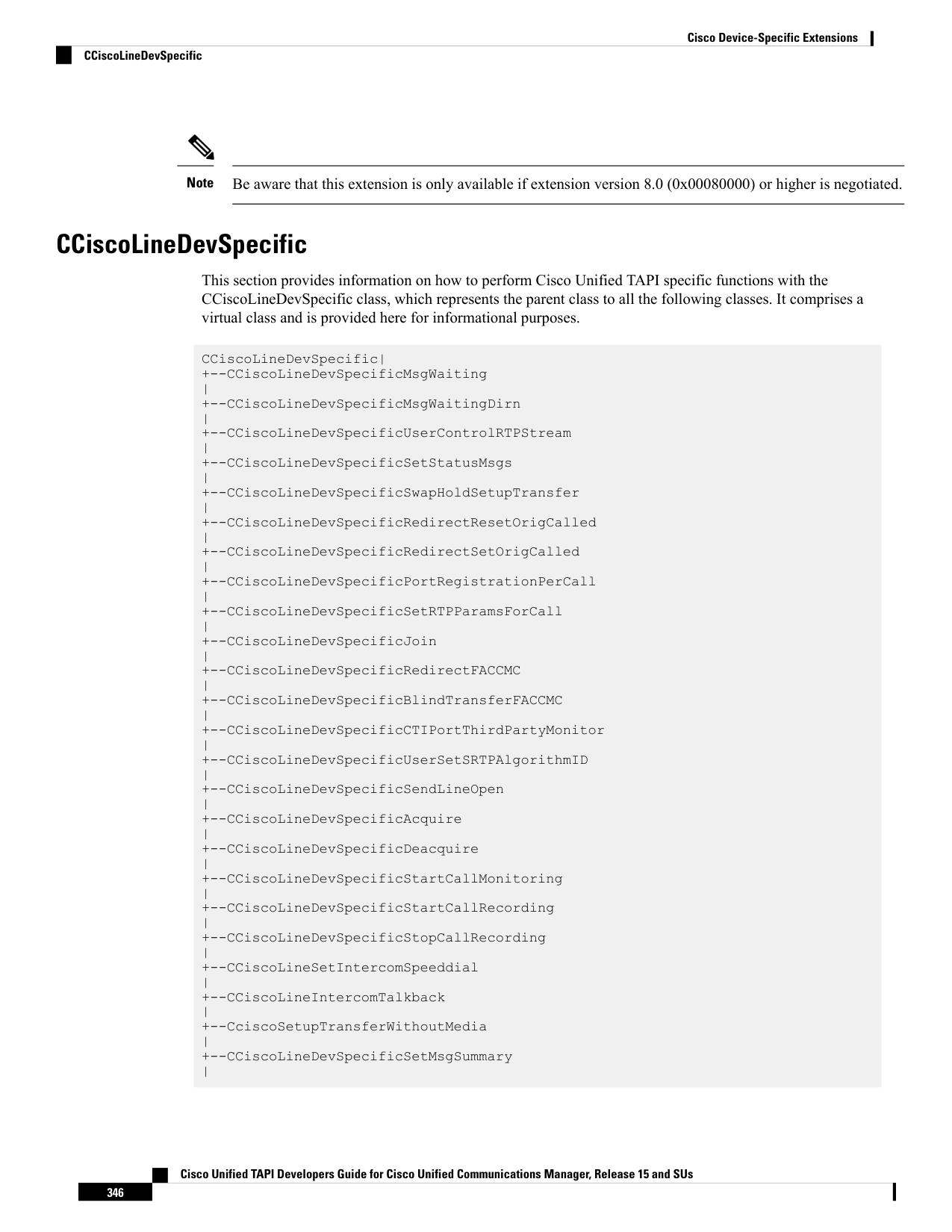

Be aware that this extension is only available if extension version 8.0 (0x00080000) or higher is negotiated. Note CCiscoLineDevSpecific This section provides information on how to perform Cisco Unified TAPI specific functions with the CCiscoLineDevSpecific class, which represents the parent class to all the following classes. It comprises a virtual class and is provided here for informational purposes. CCiscoLineDevSpecific| +--CCiscoLineDevSpecificMsgWaiting | +--CCiscoLineDevSpecificMsgWaitingDirn | +--CCiscoLineDevSpecificUserControlRTPStream | +--CCiscoLineDevSpecificSetStatusMsgs | +--CCiscoLineDevSpecificSwapHoldSetupTransfer | +--CCiscoLineDevSpecificRedirectResetOrigCalled | +--CCiscoLineDevSpecificRedirectSetOrigCalled | +--CCiscoLineDevSpecificPortRegistrationPerCall | +--CCiscoLineDevSpecificSetRTPParamsForCall | +--CCiscoLineDevSpecificJoin | +--CCiscoLineDevSpecificRedirectFACCMC | +--CCiscoLineDevSpecificBlindTransferFACCMC | +--CCiscoLineDevSpecificCTIPortThirdPartyMonitor | +--CCiscoLineDevSpecificUserSetSRTPAlgorithmID | +--CCiscoLineDevSpecificSendLineOpen | +--CCiscoLineDevSpecificAcquire | +--CCiscoLineDevSpecificDeacquire | +--CCiscoLineDevSpecificStartCallMonitoring | +--CCiscoLineDevSpecificStartCallRecording | +--CCiscoLineDevSpecificStopCallRecording | +--CCiscoLineSetIntercomSpeeddial | +--CCiscoLineIntercomTalkback | +--CciscoSetupTransferWithoutMedia | +--CCiscoLineDevSpecificSetMsgSummary | Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 346 Cisco Device-Specific Extensions CCiscoLineDevSpecific

Image 1 from page 378

Page 378 content

Page 379

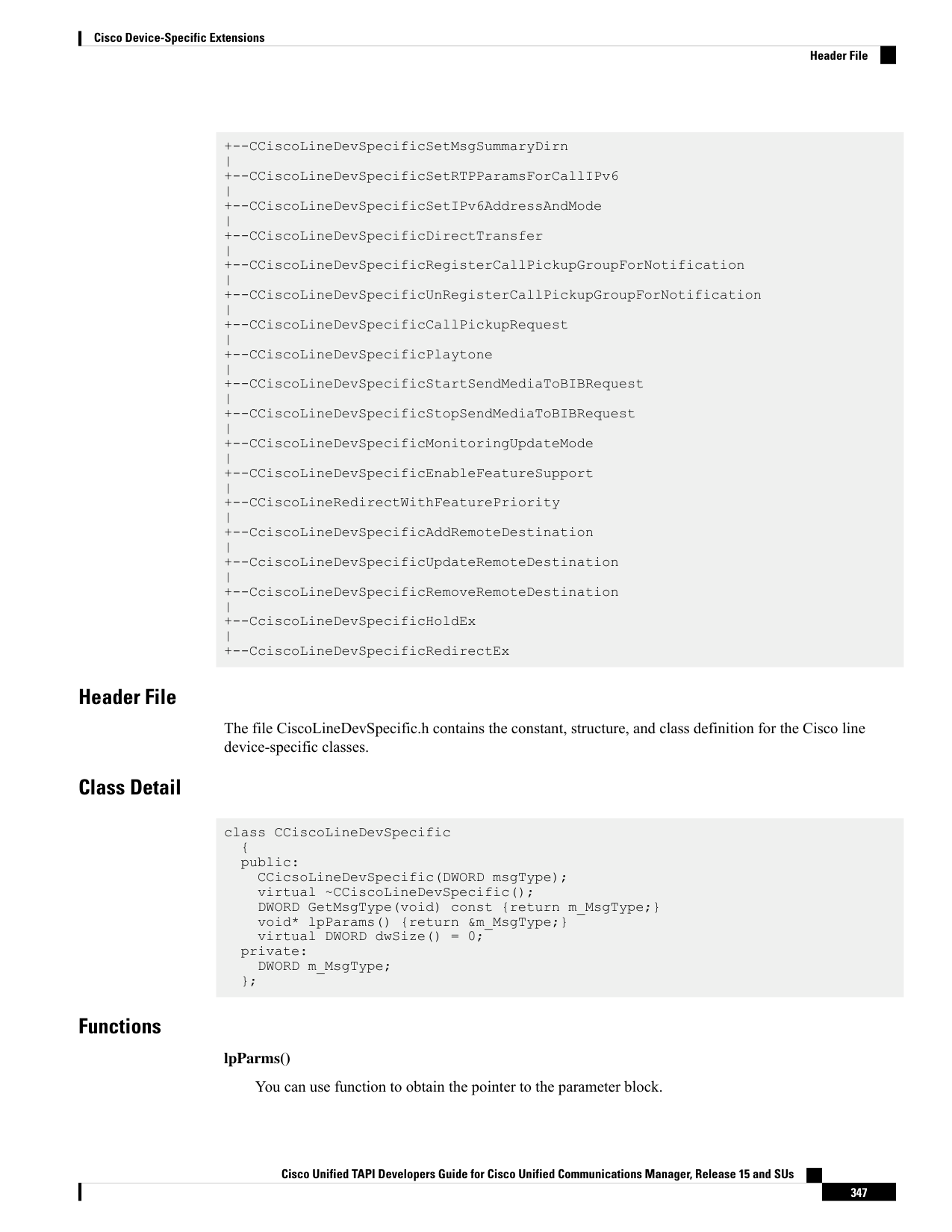

+--CCiscoLineDevSpecificSetMsgSummaryDirn | +--CCiscoLineDevSpecificSetRTPParamsForCallIPv6 | +--CCiscoLineDevSpecificSetIPv6AddressAndMode | +--CCiscoLineDevSpecificDirectTransfer | +--CCiscoLineDevSpecificRegisterCallPickupGroupForNotification | +--CCiscoLineDevSpecificUnRegisterCallPickupGroupForNotification | +--CCiscoLineDevSpecificCallPickupRequest | +--CCiscoLineDevSpecificPlaytone | +--CCiscoLineDevSpecificStartSendMediaToBIBRequest | +--CCiscoLineDevSpecificStopSendMediaToBIBRequest | +--CCiscoLineDevSpecificMonitoringUpdateMode | +--CCiscoLineDevSpecificEnableFeatureSupport | +--CCiscoLineRedirectWithFeaturePriority | +--CciscoLineDevSpecificAddRemoteDestination | +--CciscoLineDevSpecificUpdateRemoteDestination | +--CciscoLineDevSpecificRemoveRemoteDestination | +--CciscoLineDevSpecificHoldEx | +--CciscoLineDevSpecificRedirectEx Header File The file CiscoLineDevSpecific.h contains the constant, structure, and class definition for the Cisco line device-specific classes. Class Detail class CCiscoLineDevSpecific { public: CCicsoLineDevSpecific(DWORD msgType); virtual ~CCiscoLineDevSpecific(); DWORD GetMsgType(void) const {return m_MsgType;} void* lpParams() {return &m_MsgType;} virtual DWORD dwSize() = 0; private: DWORD m_MsgType; }; Functions lpParms() You can use function to obtain the pointer to the parameter block. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 347 Cisco Device-Specific Extensions Header File

Page 379 content

Page 380

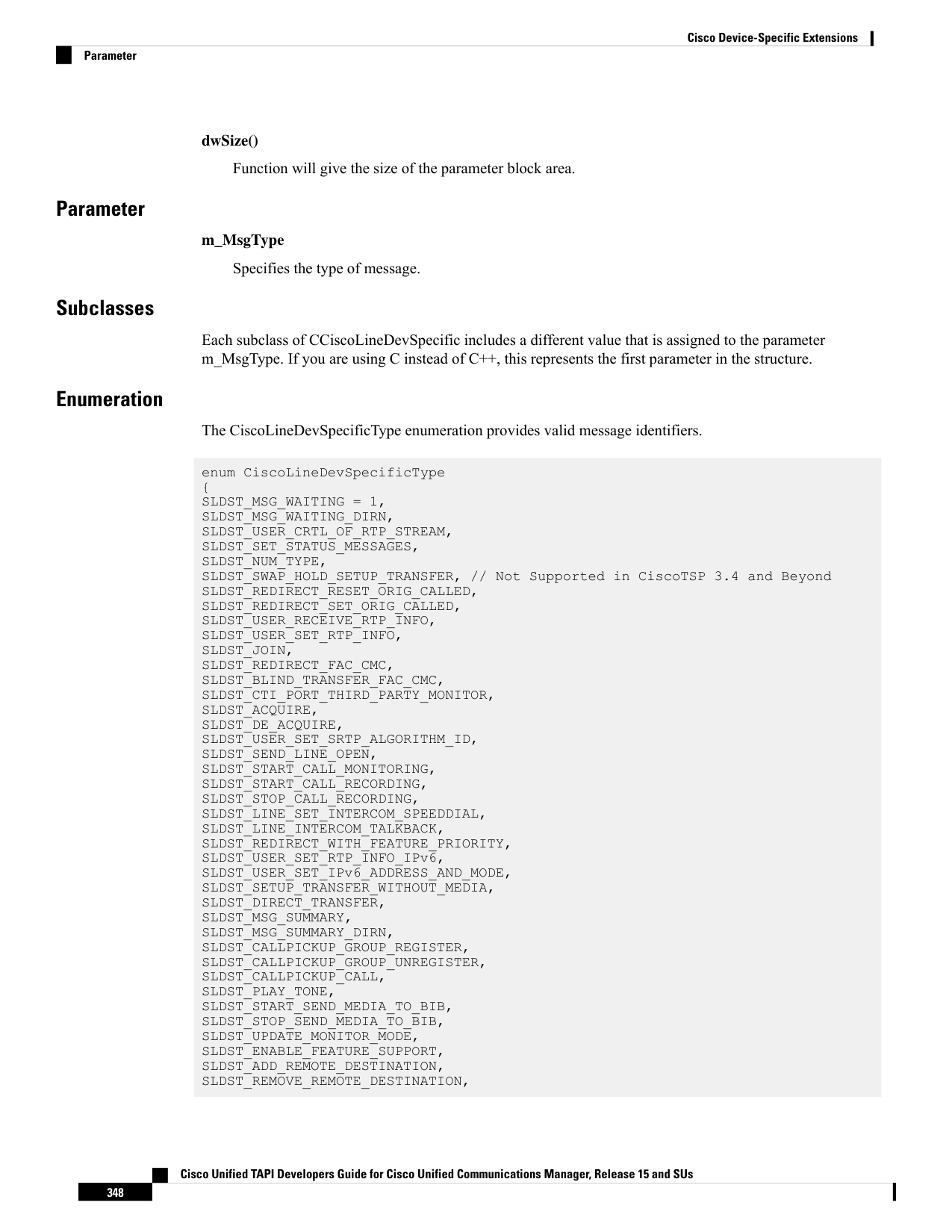

dwSize() Function will give the size of the parameter block area. Parameter m_MsgType Specifies the type of message. Subclasses Each subclass of CCiscoLineDevSpecific includes a different value that is assigned to the parameter m_MsgType. If you are using C instead of C++, this represents the first parameter in the structure. Enumeration The CiscoLineDevSpecificType enumeration provides valid message identifiers. enum CiscoLineDevSpecificType { SLDST_MSG_WAITING = 1, SLDST_MSG_WAITING_DIRN, SLDST_USER_CRTL_OF_RTP_STREAM, SLDST_SET_STATUS_MESSAGES, SLDST_NUM_TYPE, SLDST_SWAP_HOLD_SETUP_TRANSFER, // Not Supported in CiscoTSP 3.4 and Beyond SLDST_REDIRECT_RESET_ORIG_CALLED, SLDST_REDIRECT_SET_ORIG_CALLED, SLDST_USER_RECEIVE_RTP_INFO, SLDST_USER_SET_RTP_INFO, SLDST_JOIN, SLDST_REDIRECT_FAC_CMC, SLDST_BLIND_TRANSFER_FAC_CMC, SLDST_CTI_PORT_THIRD_PARTY_MONITOR, SLDST_ACQUIRE, SLDST_DE_ACQUIRE, SLDST_USER_SET_SRTP_ALGORITHM_ID, SLDST_SEND_LINE_OPEN, SLDST_START_CALL_MONITORING, SLDST_START_CALL_RECORDING, SLDST_STOP_CALL_RECORDING, SLDST_LINE_SET_INTERCOM_SPEEDDIAL, SLDST_LINE_INTERCOM_TALKBACK, SLDST_REDIRECT_WITH_FEATURE_PRIORITY, SLDST_USER_SET_RTP_INFO_IPv6, SLDST_USER_SET_IPv6_ADDRESS_AND_MODE, SLDST_SETUP_TRANSFER_WITHOUT_MEDIA, SLDST_DIRECT_TRANSFER, SLDST_MSG_SUMMARY, SLDST_MSG_SUMMARY_DIRN, SLDST_CALLPICKUP_GROUP_REGISTER, SLDST_CALLPICKUP_GROUP_UNREGISTER, SLDST_CALLPICKUP_CALL, SLDST_PLAY_TONE, SLDST_START_SEND_MEDIA_TO_BIB, SLDST_STOP_SEND_MEDIA_TO_BIB, SLDST_UPDATE_MONITOR_MODE, SLDST_ENABLE_FEATURE_SUPPORT, SLDST_ADD_REMOTE_DESTINATION, SLDST_REMOVE_REMOTE_DESTINATION, Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 348 Cisco Device-Specific Extensions Parameter

Page 380 content

Page 381

SLDST_UPDATE_REMOTE_DESTINATION, SLDST_HOLD_EX SLDST_REDIRECT_EX }; Message Waiting The CCiscoLineDevSpecificMsgWaiting class turns the message waiting lamp on or off for the line that the hLine parameter specifies. This extension does not require an extension version to be negotiated. Note CCiscoLineDevSpecific | +--CCiscoLineDevSpecificMsgWaiting Class Detail class CCiscoLineDevSpecificMsgWaiting : public CCiscoLineDevSpecific { public: CCiscoLineDevSpecificMsgWaiting() : CCiscoLineDevSpecific(SLDST_MSG_WAITING){} virtual ~CCiscoLineDevSpecificMsgWaiting() {} virtual DWORD dwSize(void) const {return sizeof(*this)-4;} DWORD m_BlinkRate; }; Parameters DWORD m_MsgType Equals SLDST_MSG_WAITING. DWORD m_BlinkRate Any supported PHONELAMPMODE_constants that are specified in the phoneSetLamp() function. Cisco Unified IP Phone 7900 Series supports only PHONELAMPMODE_OFF and PHONELAMPMODE_STEADY Note Message Waiting Dirn The CCiscoLineDevSpecificMsgWaitingDirn class turns the message waiting lamp on or off for the line that a parameter specifies and remains independent of the hLine parameter. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 349 Cisco Device-Specific Extensions Message Waiting

Image 1 from page 381

Page 381 diagram

Page 382

This extension does not require an extension version to be negotiated. Note CCiscoLineDevSpecific | +--CCiscoLineDevSpecificMsgWaitingDirn Class Detail class CCiscoLineDevSpecificMsgWaitingDirn : public CCiscoLineDevSpecific { public: CCiscoLineDevSpecificMsgWaitingDirn() : CCiscoLineDevSpecific(SLDST_MSG_WAITING_DIRN) {} virtual ~CCiscoLineDevSpecificMsgWaitingDirn() {} virtual DWORD dwSize(void) const {return sizeof(*this)-4;} DWORD m_BlinkRate; char m_Dirn[25]; }; Parameters DWORD m_MsgType Specifies SLDST_MSG_WAITING_DIRN. DWORD m_BlinkRate As in the CCiscoLineDevSpecificMsgWaiting message. Cisco Unified IP Phone 7900 Series supports only PHONELAMPMODE_OFF and PHONELAMPMODE_STEADY Note char m_Dirn[25] The directory number for which the message waiting lamp should be set. Message Summary Use the CCiscoLineDevSpecificSetMsgSummary class to turn the message waiting lamp on or off as well as to provide voice and fax message counts for the line specified by the hLine parameter. Be aware that this extension does not require an extension version to be negotiated. Note CCiscoLineDevSpecific | +--CCiscoLineDevSpecificSetMsgSummary Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 350 Cisco Device-Specific Extensions Class Detail

Image 1 from page 382

Page 382 diagram

Page 383

Class Detail class CCiscoLineDevSpecificSetMsgSummary : public CCiscoLineDevSpecific { public: CCiscoLineDevSpecificSetMsgSummary() : CCiscoLineDevSpecific(SLDST_MSG_SUMMARY){} virtual ~CCiscoLineDevSpecificSetMsgSummary() {} virtual DWORD dwSize(void) const {return sizeof(*this)-4;} DWORD m_BlinkRate; MSG_SUMMARY m_MessageSummary; }; Parameters DWORD m_MsgType equals SLDST_MSG_SUMMARY. DWORD m_BlinkRate is any supported PHONELAMPMODE_constants specified in the phoneSetLamp() function. MSG_SUMMARY m_MessageSummary A data structure with the following format: typedef struct { DWORD m_voiceCounts; // indicates if new voice counts are // provided. True = counts will be displayed // on supported phones. DWORD m_totalNewVoiceMsgs; // specifies the total number of new // voice messages. This number includes all // the high and normal priority voice // messages that are new. DWORD m_totalOldVoiceMsgs; // specifies the total number of old // voice messages. This number includes all // high and normal priority voice messages // that are old. DWORD m_highPriorityVoiceCounts; // indicates if old voice // counts are provided. True = counts will be // displayed on supported phones. DWORD m_newHighPriorityVoiceMsgs; //specifies the number of new // high priority voice messages. DWORD m_oldHighPriorityVoiceMsgs; //specifies the number of old // high priority voice messages. DWORD m_faxCounts; // indicates if new fax counts are // provided. True = counts will be displayed // on supported phones. DWORD m_totalNewFaxMsgs; // specifies the total number of new // fax messages. This number includes all // the high and normal priority fax // messages that are new. DWORD m_totalOldFaxMsgs; // specifies the total number of old // fax messages. This number includes all // high and normal priority fax messages // that are old. DWORD m_highPriorityFaxCounts; // indicates if old fax counts // are provided. True = counts will be // displayed on supported phones. DWORD m_newHighPriorityFaxMsgs; // specifies the number of new Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 351 Cisco Device-Specific Extensions Class Detail

Page 383 content

Page 384

// high priority fax messages. DWORD m_oldHighPriorityFaxMsgs; // specifies the number of old // high priority fax messages. } MSG_SUMMARY; Message Summary Dirn Use the CCiscoLineDevSpecificSetMsgSummaryDirn class to turn the message waiting lamp on or off and to provide voice and fax message counts for the line specified by a parameter and is independent of the hLine parameter. Be aware that this extension does not require an extension version to be negotiated. Note CCiscoLineDevSpecific | +--CCiscoLineDevSpecificSetMsgSummaryDirn Class Detail class CCiscoLineDevSpecificSetMsgSummaryDirn : public CCiscoLineDevSpecific { public: CCiscoLineDevSpecificSetMsgSummaryDirn() : CCiscoLineDevSpecific(SLDST_MSG_SUMMARY_DIRN) {} virtual ~CCiscoLineDevSpecificSetMsgSummaryDirn() {} virtual DWORD dwSize(void) const {return sizeof(*this)-4;} DWORD m_BlinkRate; char m_Dirn[25]; MSG_SUMMARY m_MessageSummary; }; Parameters DWORD m_MsgType equals SLDST_MSG_SUMMARY_DIRN. DWORD m_BlinkRate is as in the CCiscoLineDevSpecificSetMsgSummary message. char m_Dirn[25] is the directory number for which the message waiting lamp should be set. MSG_SUMMARY m_MessageSummary A data structure with the following format: typedef struct { DWORD m_voiceCounts; // indicates if new voice counts are // provided. True = counts will be displayed // on supported phones. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 352 Cisco Device-Specific Extensions Message Summary Dirn

Image 1 from page 384

Page 384 diagram

Page 385

DWORD m_totalNewVoiceMsgs; // specifies the total number of new // voice messages. This number includes all // the high and normal priority voice // messages that are new. DWORD m_totalOldVoiceMsgs; // specifies the total number of old // voice messages. This number includes all // high and normal priority voice messages // that are old. DWORD m_highPriorityVoiceCounts; // indicates if old voice // counts are provided. True = counts will be // displayed on supported phones. DWORD m_newHighPriorityVoiceMsgs; //specifies the number of new // high priority voice messages. DWORD m_oldHighPriorityVoiceMsgs; //specifies the number of old // high priority voice messages. DWORD m_faxCounts; // indicates if new fax counts are // provided. True = counts will be displayed // on supported phones. DWORD m_totalNewFaxMsgs; // specifies the total number of new // fax messages. This number includes all // the high and normal priority fax // messages that are new. DWORD m_totalOldFaxMsgs; // specifies the total number of old // fax messages. This number includes all // high and normal priority fax messages // that are old. DWORD m_highPriorityFaxCounts; // indicates if old fax counts // are provided. True = counts will be // displayed on supported phones. DWORD m_newHighPriorityFaxMsgs; // specifies the number of new // high priority fax messages. DWORD m_oldHighPriorityFaxMsgs; // specifies the number of old // high priority fax messages. } MSG_SUMMARY; Audio Stream Control The CCiscoLineDevSpecificUserControlRTPStream class controls the audio stream of a line. To use this class you must call the lineNegotiateExtVersion API before opening the line. When lineNegotiateExtVersion is called ensure the highest bit is set on both the dwExtLowVersion and dwExtHighVersion parameters. This causes the call to lineOpen to behave differently. The line does not actually open, but waits for a lineDevSpecific call to complete the open with more information. The CCiscoLineDevSpecificUserControlRTPStream class provides the extra information that is required. CCiscoLineDevSpecific | +--CCiscoLineDevSpecificUserControlRTPStream Procedure 1. Call lineNegotiateExtVersion for the deviceID of the line that is to be opened (OR 0x80000000 with the dwExtLowVersion and dwExtHighVersion parameters). 2. Call lineOpen for the deviceID of the line that is to be opened. 3. Call lineDevSpecific with a CCiscoLineDevSpecificUserControlRTPStream message in the lpParams parameter. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 353 Cisco Device-Specific Extensions Audio Stream Control

Page 385 content

Page 386

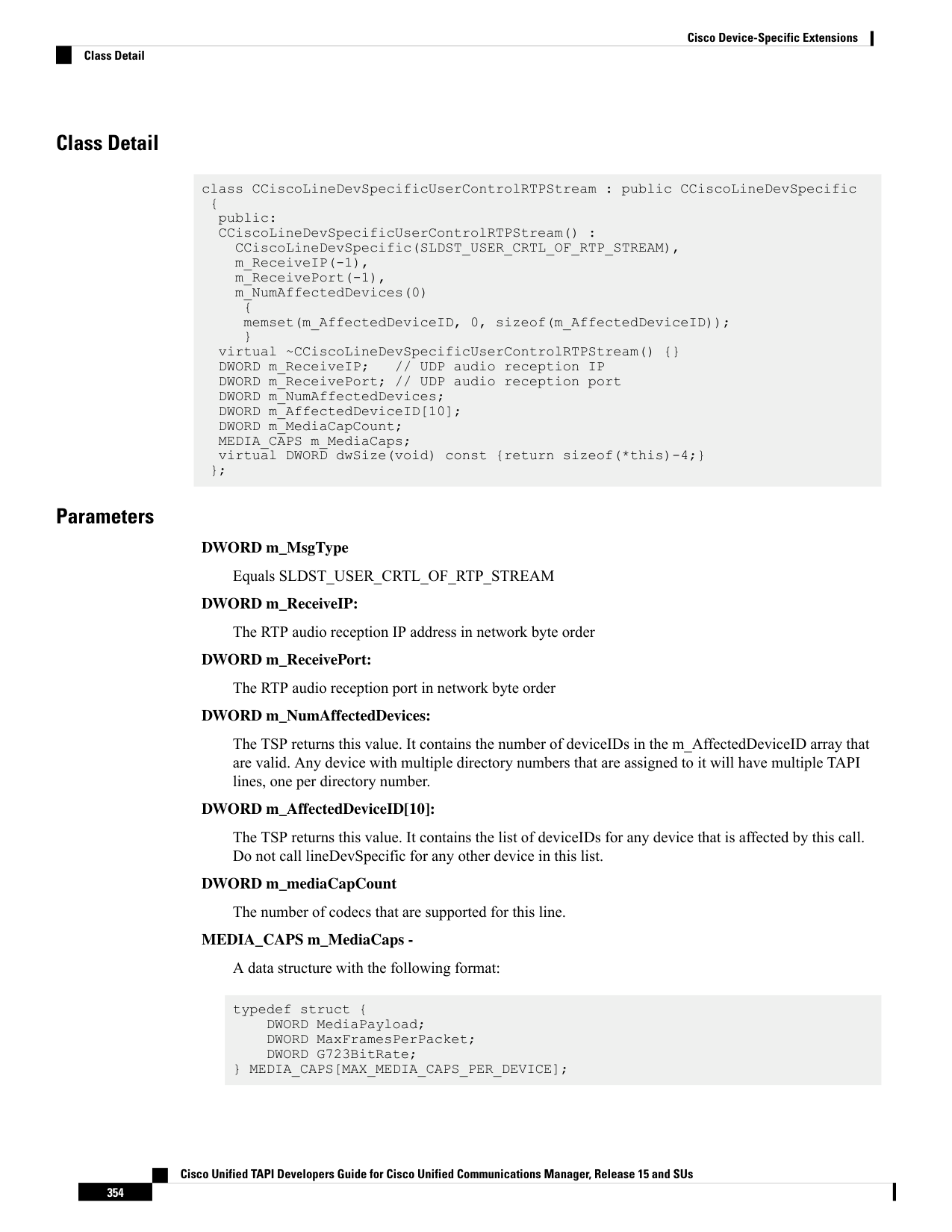

Class Detail class CCiscoLineDevSpecificUserControlRTPStream : public CCiscoLineDevSpecific { public: CCiscoLineDevSpecificUserControlRTPStream() : CCiscoLineDevSpecific(SLDST_USER_CRTL_OF_RTP_STREAM), m_ReceiveIP(-1), m_ReceivePort(-1), m_NumAffectedDevices(0) { memset(m_AffectedDeviceID, 0, sizeof(m_AffectedDeviceID)); } virtual ~CCiscoLineDevSpecificUserControlRTPStream() {} DWORD m_ReceiveIP; // UDP audio reception IP DWORD m_ReceivePort; // UDP audio reception port DWORD m_NumAffectedDevices; DWORD m_AffectedDeviceID[10]; DWORD m_MediaCapCount; MEDIA_CAPS m_MediaCaps; virtual DWORD dwSize(void) const {return sizeof(*this)-4;} }; Parameters DWORD m_MsgType Equals SLDST_USER_CRTL_OF_RTP_STREAM DWORD m_ReceiveIP: The RTP audio reception IP address in network byte order DWORD m_ReceivePort: The RTP audio reception port in network byte order DWORD m_NumAffectedDevices: The TSP returns this value. It contains the number of deviceIDs in the m_AffectedDeviceID array that are valid. Any device with multiple directory numbers that are assigned to it will have multiple TAPI lines, one per directory number. DWORD m_AffectedDeviceID[10]: The TSP returns this value. It contains the list of deviceIDs for any device that is affected by this call. Do not call lineDevSpecific for any other device in this list. DWORD m_mediaCapCount The number of codecs that are supported for this line. MEDIA_CAPS m_MediaCaps - A data structure with the following format: typedef struct { DWORD MediaPayload; DWORD MaxFramesPerPacket; DWORD G723BitRate; } MEDIA_CAPS[MAX_MEDIA_CAPS_PER_DEVICE]; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 354 Cisco Device-Specific Extensions Class Detail

Page 386 content

Page 387

This data structure defines each codec that is supported on a line. The limit specifies 18. The following description shows each member in the MEDIA_CAPS data structure: MediaPayload specifies an enumerated integer that contains one of the following values: enum { Media_Payload_G711Alaw64k = 2, Media_Payload_G711Alaw56k = 3, // "restricted" Media_Payload_G711Ulaw64k = 4, Media_Payload_G711Ulaw56k = 5, // "restricted" Media_Payload_G722_64k = 6, Media_Payload_G722_56k = 7, Media_Payload_G722_48k = 8, Media_Payload_G7231 = 9, Media_Payload_G728 = 10, Media_Payload_G729 = 11, Media_Payload_G729AnnexA = 12, Media_Payload_G729AnnexB = 15, Media_Payload_G729AnnexAwAnnexB = 16, Media_Payload_GSM_Full_Rate = 18, Media_Payload_GSM_Half_Rate = 19, Media_Payload_GSM_Enhanced_Full_Rate = 20, Media_Payload_Wide_Band_256k = 25, Media_Payload_Data64 = 32, Media_Payload_Data56 = 33, Media_Payload_GSM = 80, Media_Payload_G726_32K = 82, Media_Payload_G726_24K = 83, Media_Payload_G726_16K = 84, // Media_Payload_G729_B = 85, // Media_Payload_G729_B_LOW_COMPLEXITY = 86, } Media_PayloadType; Read MaxFramesPerPacket as MaxPacketSize. It specifies a 16-bit integer that indicates the maximum desired RTP packet size in milliseconds. Typically, this value gets set to 20. G723BitRate specifies a 6-byte field that contains either the G.723.1 information bit rate, or it gets ignored. The following list provides values for the G.723.1 field values: enum { Media_G723BRate_5_3 = 1, //5.3Kbps Media_G723BRate_6_4 = 2 //6.4Kbps } Media_G723BitRate; Set Status Messages CCiscoLineDevSpecific | +--CCiscoLineDevSpecificSetStatusMsgs Description Use the CCiscoLineDevSpecificSetStatusMsgs class to turn on or off the status messages for the line that the hLine parameter specifies. The Cisco Unified TSP supports the following flags: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 355 Cisco Device-Specific Extensions Set Status Messages

Page 387 content

Page 388

• DEVSPECIFIC_MEDIA_STREAM—Setting this flag on a line turns on the reporting of media streaming messages for that line. Clearing this flag turns off the reporting of media streaming messages for that line. • DEVSPECIFIC_CALL_TONE_CHANGED—Setting this flag on a line turns on the reporting of call tone changed events for that line. Clearing this flag turns off the reporting of call tone changed events for that line. • DEVSPECIFIC_SILENT_MONITORING_TERMINATED—Setting this flag on a line turns on the reporting of Monitoring Session Terminated Event messages for that line. Clearing this flag turns off the reporting of Monitoring Session Terminated Event Messages for that line. • DEVSPECIFIC_GET_IP_PORT—Setting this flag on a line turns on the reporting of Get IP and Port Notification Event messages for that line. Clearing this flag turns off the reporting of Get IP and Port Notification Event Messages for that line. • DEVSPECIFIC_HOLD_REVERSION—Setting this flag on a line causes the application to receive a LINE_DEVSPECIFIC(dwParam1 = SLDSMT_HOLD_REVERSION) when a hold reversion happens on a held call. Clearing this flag on a line turns off the reporting of the LINE_DEVSPECIFIC(dwParam1 = SLDSMT_HOLD_REVERSION) event. • DEVSPECIFIC_IDLE_TRANSFER_REASON—Setting this flag on a line causes the reason to be reported as LINECALLREASON_TRANSFER when calls go to the LINECALLSTATE_IDLE state after a transfer is completed at the transfer controller. Clearing this flag on a line causes the reason to be reported as LINECALLREASON_DIRECT when calls go to the LINECALLSTATE_IDLE state after a transfer is completed at the transfer controller. • DEVSPECIFIC_SPEEDDIAL_CHANGED—Setting this flag on a line causes a LINE_DEVSPECIFIC(dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED, dwParam2 = LPCT_INTERCOM_LINE, and dwParam3 = CiscoIntercomLineChangeResult) to be fired to the application when there is a change in the database or the application overwrites the speed dial setting. Clearing this flag turns off the reporting of the LINE_DEVSPECIFIC(dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED, dwParam2 = LPCT_INTERCOM_LINE, and dwParam3 = CiscoIntercomLineChangeResult) event. • DEVSPECIFIC_DONOTDISTURB_CHANGED—Setting this flag on a line causes a LINE_DEVSPECIFICFEATURE(dwParam1 = PHONEBUTTONFUNCTION_DONOTDISTURB, dwParam2 = typeOfChange, and dwParam3 = currentValue) to be fired to the application when there is a change in the DND configuration or status. Clearing this flag turns off the reporting of the LINE_DEVSPECIFICFEATURE(dwParam1 = PHONEBUTTONFUNCTION_DONOTDISTURB, dwParam2 = typeOfChange, and dwParam3 = currentValue) event. • DEVSPECIFIC_DISPLAYABLE_ADDRESS—Setting this flag on a line causes the DisplayableAddress field in LINECALLINFO to be filled with the latest called partyDN/ASCCI name/Unicode name/Partition (separated by ":"). Clearing this flag causes the DisplayableAddress field in LINECALLINFO to be empty. • DEVSPECIFIC_DEVICE_STATE—Setting this flag gets the accumulative state of all the lines on the device and with the state being fired to the application using the LINE_DEVSPECIFIC(dwParam1 = SLDSMT_DEVICE_STATE, dwParam2 = State) events. Clearing this flag turns off the reporting of the accumulative state of all the lines on the device. The DEVSPECIFIC_DEVICE_STATE state is defined as: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 356 Cisco Device-Specific Extensions Description

Page 388 content

Page 389

enum lineDeviceState{ lineDeviceState_UNKNOWN = 0, lineDeviceState_ACTIVE = 1, lineDeviceState_ALERTING = 2, lineDeviceState_HELD = 3, lineDeviceState_WHISPER = 4, lineDeviceState_IDLE = 5 }; • DEVSPECIFIC_PARK_MONITORING—Setting this flag on a line causes the Park Monitoring events to be fired to the application. Clearing this flag turns off the reporting of the Park Monitoring events. For more information, see Park Monitoring, on page 80. • DEVSPECIFIC_OTHER_DEVICE_STATE_NOTIFY—Setting this flag on a line notifies the application about the non-opened device state changes. Clearing this flag turns off the reporting of the other non-opened device state changes. For more information, see Other-Device State Notification, on page 79. This extension only applies if extension version 0x00020001 or higher is negotiated. Note Class Detail class CCiscoLineDevSpecificSetStatusMsgs : public CCiscoLineDevSpecific { public: CCiscoLineDevSpecificSetStatusMsgs() : CCiscoLineDevSpecific(SLDST_SET_STATUS_MESSAGES) {} virtual ~CCiscoLineDevSpecificSetStatusMsgs() {} DWORD m_DevSpecificStatusMsgsFlag; virtual DWORD dwSize(void) const {return sizeof(*this)-4;} }; Parameters DWORD m_MsgType Equals SLDST_SET_STATUS_MESSAGES. DWORD m_DevSpecificStatusMsgsFlag Identifies which status changes cause a LINE_DEVSPECIFIC message to be sent to the application. The supported values follow: #define DEVSPECIFIC_MEDIA_STREAM0x00000001#define DEVSPECIFIC_CALL_TONE_CHANGED0x00000002 #define CALL_DEVSPECIFIC_RTP_EVENTS0x00000003 #define DEVSPECIFIC_IDLE_TRANSFER_REASON 0x00000004 #define DEVSPECIFIC_HOLD_REVERSION 0x00000008 #define DEVSPECIFIC_SPEEDDIAL_CHANGED0x00000010 #define DEVSPECIFIC_DONOTDISTURB_CHANGED0x00000020 #define DEVSPECIFIC_DISPLAYABLE_ADDRESS0x00000040 #define DEVSPECIFIC_PARK_MONITORING0x00000080 #define DEVSPECIFIC_DEVICE_STATE0x00000100 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 357 Cisco Device-Specific Extensions Class Detail

Image 1 from page 389

Page 389 content

Page 390

#define DEVSPECIFIC_SILENT_MONITORING_TERMINATED0x00000200 #define DEVSPECIFIC_OTHER_DEVICE_STATE_NOTIFY0x00000400 #define DEVSPECIFIC_GET_IP_PORT0x00000800 Swap-Hold/SetupTransfer Cisco Unified TSP 4.0 and later do not support this. Note The CCiscoLineDevSpecificSwapHoldSetupTransfer class gets used to perform a SetupTransfer between a call that is in CONNECTED state and a call that is in the ONHOLD state. This function changes the state of the connected call to ONHOLDPENDTRANSFER state and the ONHOLD call to CONNECTED state. This allows a CompleteTransfer to be performed on the two calls. In Cisco Unified TSP 4.0 and later, the TSP allows applications to use lineCompleteTransfer() to transfer the calls without having to use the CCiscoLineDevSpecificSwapHoldSetupTransfer function. Therefore, this function returns LINEERR_OPERATIONUNAVAIL in Cisco Unified TSP 4.0 and beyond. CCiscoLineDevSpecific | +--CCiscoLineDevSpecificSwapHoldSetupTransfer This extension only applies if extension version 0x00020002 or higher is negotiated. Note Class Details class CCiscoLineDevSpecificSwapHoldSetupTransfer : public CCiscoLineDevSpecific { public: CCiscoLineDevSpecificSwapHoldSetupTransfer() : CCiscoLineDevSpecific(SLDST_SWAP_HOLD_SETUP_TRANSFER) {} virtual ~CCiscoLineDevSpecificSwapHoldSetupTransfer() {} DWORD heldCallID; virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer }; Parameters DWORD m_MsgType Equals SLDST_SWAP_HOLD_SETUP_TRANSFER. DWORD heldCallID Equals the callid of the held call that is returned in dwCallID of LPLINECALLINFO. HCALL hCall (in lineDevSpecific parameter list) Equals the handle of the connected call. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 358 Cisco Device-Specific Extensions Swap-Hold/SetupTransfer

Image 1 from page 390

Page 390 diagram

Page 391

Redirect Reset Original Called ID CCiscoLineDevSpecific | +--CCiscoLineDevSpecificRedirectResetOrigCalled Description The CCiscoLineDevSpecificRedirectResetOrigCalled class redirects a call to another party while it resets the original called ID of the call to the destination of the redirect. This extension only applies if extension version 0x00020003 or higher is negotiated. Note Class Details class CCiscoLineDevSpecificRedirectResetOrigCalled: public CCiscoLineDevSpecific { public: CCiscoLineDevSpecificRedirectResetOrigCalled: CCiscoLineDevSpecific(SLDST_REDIRECT_RESET_ORIG_CALLED) {} virtual ~CCiscoLineDevSpecificRedirectResetOrigCalled{} char m_DestDirn[25]; //redirect destination address virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer }; Parameters DWORD m_MsgType Equals SLDST_REDIRECT_RESET_ORIG_CALLED. DWORD m_DestDirn Equals the destination address where the call needs to be redirected. HCALL hCall (In lineDevSpecific parameter list) Equals the handle of the connected call. Port Registration per Call The CCiscoLineDevSpecificPortRegistrationPerCall class registers the CTI Port for the RTP parameters on a per-call basis. With this request, the application receives the new lineDevSpecific event that requests that it needs to set the RTP parameters for the call. To use this class, ensure the lineNegotiateExtVersion API is called before opening the line. When calling lineNegotiateExtVersion, ensure the highest bit is set on both the dwExtLowVersion and dwExtHighVersion parameters. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 359 Cisco Device-Specific Extensions Redirect Reset Original Called ID

Image 1 from page 391

Page 391 content

Page 392

This causes the call to lineOpen to behave differently. The line does not actually open, but waits for a lineDevSpecific call to complete the open with more information. The extra information required is provided in the CciscoLineDevSpecificPortRegistrationPerCall class. CCiscoLineDevSpecific | +--CCiscoLineDevSpecificPortRegistrationPerCall Procedure 1. Call lineNegotiateExtVersion for the deviceID of the line that is to be opened (or 0x80000000 with the dwExtLowVersion and dwExtHighVersion parameters) 2. Call lineOpen for the deviceID of the line that is to be opened. 3. Call lineDevSpecific with a CciscoLineDevSpecificPortRegistrationPerCall message in the lpParams parameter. This extension is only available if the extension version 0x00040000 or higher gets negotiated. Note Class Details class CCiscoLineDevSpecificPortRegistrationPerCall: public CCiscoLineDevSpecific { public: CCiscoLineDevSpecificPortRegistrationPerCall () : CCiscoLineDevSpecific(SLDST_USER_RECEIVE_RTP_INFO), m_RecieveIP(-1), m_RecievePort(-1), m_NumAffectedDevices(0) { memset((char*)m_AffectedDeviceID, 0, sizeof(m_AffectedDeviceID)); } virtual ~ CCiscoLineDevSpecificPortRegistrationPerCall () {} DWORD m_NumAffectedDevices; DWORD m_AffectedDeviceID[10]; DWORD m_MediaCapCount; MEDIA_CAPSm_MediaCaps; virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer }; Parameters DWORD m_MsgType Equals SLDST_USER_RECEIVE_RTP_INFO DWORD m_NumAffectedDevices: TSP returns this value. It contains the number of deviceIDs in the m_AffectedDeviceID array that are valid. Any device with multiple directory numbers that are assigned to it will have multiple TAPI lines, one per directory number. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 360 Cisco Device-Specific Extensions Class Details

Image 1 from page 392

Page 392 content

Page 393

DWORD m_AffectedDeviceID[10]: TSP returns this value. It contains the list of deviceIDs for any device that is affected by this call. Do not call lineDevSpecific for any other device in this list. DWORD m_mediaCapCount The number of codecs that are supported for this line. MEDIA_CAPS m_MediaCaps - A data structure with the following format: typedef struct { DWORD MediaPayload; DWORD MaxFramesPerPacket; DWORD G723BitRate; } MEDIA_CAPS[MAX_MEDIA_CAPS_PER_DEVICE]; This data structure defines each codec that is supported on a line. The limit specifies 18. The following description applies for each member in the MEDIA_CAPS data structure: MediaPayload is an enumerated integer that contains one of the following values. enum{ Media_Payload_G711Alaw64k = 2, Media_Payload_G711Alaw56k = 3, // "restricted" Media_Payload_G711Ulaw64k = 4, Media_Payload_G711Ulaw56k = 5, // "restricted" Media_Payload_G722_64k = 6, Media_Payload_G722_56k = 7, Media_Payload_G722_48k = 8, Media_Payload_G7231 = 9, Media_Payload_G728 = 10, Media_Payload_G729 = 11, Media_Payload_G729AnnexA = 12, Media_Payload_G729AnnexB = 15, Media_Payload_G729AnnexAwAnnexB = 16, Media_Payload_GSM_Full_Rate = 18, Media_Payload_GSM_Half_Rate = 19, Media_Payload_GSM_Enhanced_Full_Rate = 20, Media_Payload_Wide_Band_256k = 25, Media_Payload_Data64 = 32, Media_Payload_Data56 = 33, Media_Payload_GSM = 80, Media_Payload_G726_32K = 82, Media_Payload_G726_24K = 83, Media_Payload_G726_16K = 84, // Media_Payload_G729_B = 85, // Media_Payload_G729_B_LOW_COMPLEXITY = 86, } Media_PayloadType; MaxFramesPerPacket should read as MaxPacketSize and comprises a 16 bit integer that is specified in milliseconds. It indicates the RTP packet size. Typically, this value gets set to 20. G723BitRate comprises a six byte field that contains either the G.723.1 information bit rate, or gets ignored. The values for the G.723.1 field comprises values that are enumerated as follows. enum Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 361 Cisco Device-Specific Extensions Parameters

Page 393 content

Page 394

{ Media_G723BRate_5_3 = 1, //5.3Kbps Media_G723BRate_6_4 = 2 //6.4Kbps } Media_G723BitRate; Setting RTP Parameters for Call The CCiscoLineDevSpecificSetRTPParamsForCall class sets the RTP parameters for a specific call. This extension only applies if extension version 0x00040000 or higher gets negotiated. Note CCiscoLineDevSpecific | +--CCiscoLineDevSpecificSetRTPParamsForCall Class Details class CciscoLineDevSpecificSetRTPParamsForCall: public CCiscoLineDevSpecific { public: CciscoLineDevSpecificSetRTPParamsForCall () : CCiscoLineDevSpecific(SLDST_USER_SET_RTP_INFO) {} virtual ~ CciscoLineDevSpecificSetRTPParamsForCall () {} virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer DWORD m_RecieveIP; // UDP audio reception IP DWORD m_RecievePort; // UDP audio reception port }; Parameters DWORD m_MsgType Equals SLDST_USER_SET_RTP_INFO DWORD m_ReceiveIP This specifies the RTP audio reception IP address in the network byte order to set for the call. DWORD m_ReceivePort This specifies the RTP audio reception port in the network byte order to set for the call. Redirect Set Original Called ID The CCiscoLineDevSpecificRedirectSetOrigCalled class redirects a call to another party while it sets the original called ID of the call to any other party. This extension only applies if extension version 0x00040000 or higher gets negotiated. Note Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 362 Cisco Device-Specific Extensions Setting RTP Parameters for Call

Image 1 from page 394

Page 394 diagram

Page 395

CCiscoLineDevSpecific | +--CCiscoLineDevSpecificRedirectSetOrigCalled Class Details class CCiscoLineDevSpecificRedirectSetOrigCalled: public CCiscoLineDevSpecific { public: CCiscoLineDevSpecificRedirectSetOrigCalled () : CCiscoLineDevSpecific(SLDST_REDIRECT_SET_ORIG_CALLED) {} virtual ~ CCiscoLineDevSpecificRedirectSetOrigCalled () {} char m_DestDirn[25]; char m_SetOriginalCalledTo[25]; // subtract virtual function table pointer virtual DWORD dwSize(void) const {return (sizeof (*this) -4) ; } Parameters DWORD m_MsgType Equals SLDST_REDIRECT_SET_ORIG_CALLED char m_DestDirn[25] Indicates the destination of the redirect. If this request is being used to transfer to voice mail, set this field to the voice mail pilot number of the DN of the line for the voice mail, to which you want to transfer. char m_SetOriginalCalledTo[25] Indicates the DN to which the OriginalCalledParty needs to be set. If this request is being used to transfer to voice mail, set this field to the DN of the line for the voice mail, to which you want to transfer. HCALL hCall (in lineDevSpecific parameter list) Equals the handle of the connected call. Join The CCiscoLineDevSpecificJoin class joins two or more calls into one conference call. Each call that is being joined can be in the ONHOLD or the CONNECTED call state. The Cisco Unified Communications Manager may succeed in joining some calls that are specified in the Join request, but not all. In this case, the Join request will succeed and the Cisco Unified Communications Manager attempts to join as many calls as possible. This extension only applies if extension version 0x00040000 or higher gets negotiated. Note CCiscoLineDevSpecific | +--CCiscoLineDevSpecificJoin Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 363 Cisco Device-Specific Extensions Class Details

Image 1 from page 395

Page 395 content

Page 396

Class Details class CCiscoLineDevSpecificJoin : public CCiscoLineDevSpecific{ public: CCiscoLineDevSpecificJoin () : CCiscoLineDevSpecific(SLDST_JOIN) {} virtual ~ CCiscoLineDevSpecificJoin () {} DWORD m_CallIDsToJoinCount; CALLIDS_TO_JOIN m_CallIDsToJoin; virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer }; Parameters DWORD m_MsgType Equals SLDST_JOIN DWORD m_CallIDsToJoinCount The number of callIDs that are contained in the m_CallIDsToJoin parameter. CALLIDS_TO_JOIN m_CallIDsToJoin A data structure that contains an array of dwCallIDs to join with the following format: typedef struct { DWORD CallID; // dwCallID to Join } CALLIDS_TO_JOIN[MAX_CALLIDS_TO_JOIN]; where MAX_CALLIDS_TO_JOIN is defined as: const DWORD MAX_CALLIDS_TO_JOIN = 14; HCALL hCall (in LineDevSpecific parameter list) Equals the handle of the call that is being joined with callIDsToJoin to create the conference. Set User SRTP Algorithm IDs The CciscoLineDevSpecificUserSetSRTPAlgorithmID class gets used to allow applications to set SRTP algorithm IDs. To use this class, ensure the lineNegotiateExtVersion API is called before opening the line. When calling lineNegotiateExtVersion, ensure the highest bit or second highest bit is set on both the dwExtLowVersion and dwExtHighVersion parameters. This causes the call to lineOpen to behave differently. The line does not actually opens, but waits for a lineDevSpecific call to complete the open with more information. Provide the extra information that is required in the CciscoLineDevSpecificUserSetSRTPAlgorithmID class. This extension is only available if extension version 0x80070000, 0x4007000 or higher is negotiated. Note Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 364 Cisco Device-Specific Extensions Class Details

Image 1 from page 396

Page 396 content

Page 397

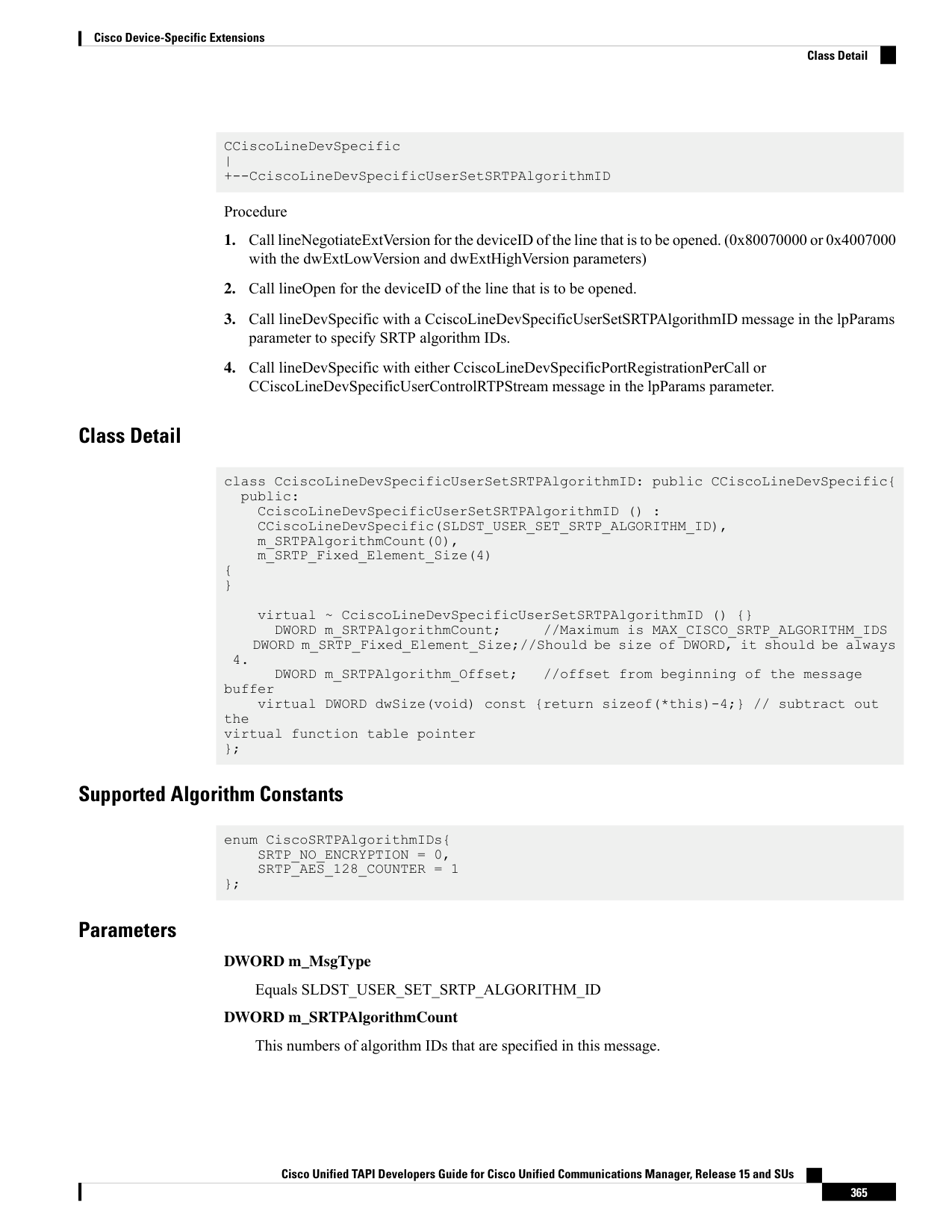

CCiscoLineDevSpecific | +--CciscoLineDevSpecificUserSetSRTPAlgorithmID Procedure 1. Call lineNegotiateExtVersion for the deviceID of the line that is to be opened. (0x80070000 or 0x4007000 with the dwExtLowVersion and dwExtHighVersion parameters) 2. Call lineOpen for the deviceID of the line that is to be opened. 3. Call lineDevSpecific with a CciscoLineDevSpecificUserSetSRTPAlgorithmID message in the lpParams parameter to specify SRTP algorithm IDs. 4. Call lineDevSpecific with either CciscoLineDevSpecificPortRegistrationPerCall or CCiscoLineDevSpecificUserControlRTPStream message in the lpParams parameter. Class Detail class CciscoLineDevSpecificUserSetSRTPAlgorithmID: public CCiscoLineDevSpecific{ public: CciscoLineDevSpecificUserSetSRTPAlgorithmID () : CCiscoLineDevSpecific(SLDST_USER_SET_SRTP_ALGORITHM_ID), m_SRTPAlgorithmCount(0), m_SRTP_Fixed_Element_Size(4) { } virtual ~ CciscoLineDevSpecificUserSetSRTPAlgorithmID () {} DWORD m_SRTPAlgorithmCount; //Maximum is MAX_CISCO_SRTP_ALGORITHM_IDS DWORD m_SRTP_Fixed_Element_Size;//Should be size of DWORD, it should be always 4. DWORD m_SRTPAlgorithm_Offset; //offset from beginning of the message buffer virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer }; Supported Algorithm Constants enum CiscoSRTPAlgorithmIDs{ SRTP_NO_ENCRYPTION = 0, SRTP_AES_128_COUNTER = 1 }; Parameters DWORD m_MsgType Equals SLDST_USER_SET_SRTP_ALGORITHM_ID DWORD m_SRTPAlgorithmCount This numbers of algorithm IDs that are specified in this message. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 365 Cisco Device-Specific Extensions Class Detail

Page 397 content

Page 398

DWORD m_SRTP_Fixed_Element_Size Should be size of DWORD, it should be always 4. DWORD m_SRTPAlgorithm_Offset Offset from the beginning of the message buffer. This is offset where you start put algorithm ID array. Be aware that the dwSize should be recalculated based on size of the structure, m_SRTPAlgorithmCount and m_SRTP_Fixed_Element_Size. Note Explicit Acquire The CCiscoLineDevSpecificAcquire class gets used to explicitly acquire any CTI controllable device. If a Superprovider application needs to open any CTI Controllable device on the Cisco Unified Communications Manager system, the application should explicitly acquire that device by using the above interface. After successful response, it can open the device as usual. Be aware that this extension is only available if extension version 0x00070000 or higher is negotiated. Note CCiscoLineDevSpecific | +--CCiscoLineDevSpecificAcquire Class Details class CCiscoLineDevSpecificAcquire : public CCiscoLineDevSpecific{ public: CCiscoLineDevSpecificAcquire () : CCiscoLineDevSpecific(SLDST_ACQUIRE) {} virtual ~ CCiscoLineDevSpecificAcquire () {} char m_DeviceName[16]; virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer }; Parameters DWORD m_MsgType Equals SLDST_ACQUIRE m_DeviceName[16] The DeviceName that needs to be explicitly acquired. Explicit De-Acquire The CCiscoLineDevSpecificDeacquire class is used to explicitly de-acquire the explicitly acquired device. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 366 Cisco Device-Specific Extensions Explicit Acquire

Image 1 from page 398

Page 398 content

Page 399

If a Superprovider application has explicitly acquired any CTI Controllable device on the Cisco Unified Communications Manager system, then the application should explicitly De-acquire that device by using the above interface. Be aware that this extension is only available if extension version 0x00070000 or higher is negotiated. Note CCiscoLineDevSpecific | +--CCiscoLineDevSpecificDeacquire Class Details class CCiscoLineDevSpecificDeacquire : public CCiscoLineDevSpecific{ public: CCiscoLineDevSpecificDeacquire () : CCiscoLineDevSpecific(SLDST_ACQUIRE) {} virtual ~ CCiscoLineDevSpecificDeacquire () {} char m_DeviceName[16]; virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer }; Parameters DWORD m_MsgType Equals SLDST_DEACQUIRE char m_DeviceName[16] The DeviceName that needs to be explicitly de-acquired. Redirect FAC CMC The CCiscoLineDevSpecificRedirectFACCMC class is used to redirect a call to another party that requires a FAC, CMC, or both. Be aware that this extension is only available if extension version 0x00050000 or higher is negotiated. Note CCiscoLineDevSpecific | +--CCiscoLineDevSpecificRedirectFACCMC If the FAC is invalid, the TSP will return a new device-specific error code LINEERR_INVALIDFAC. If the CMC is invalid, the TSP will return a new device-specific error code LINEERR_INVALIDCMC. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 367 Cisco Device-Specific Extensions Class Details

Image 1 from page 399

Page 399 diagram

Page 400

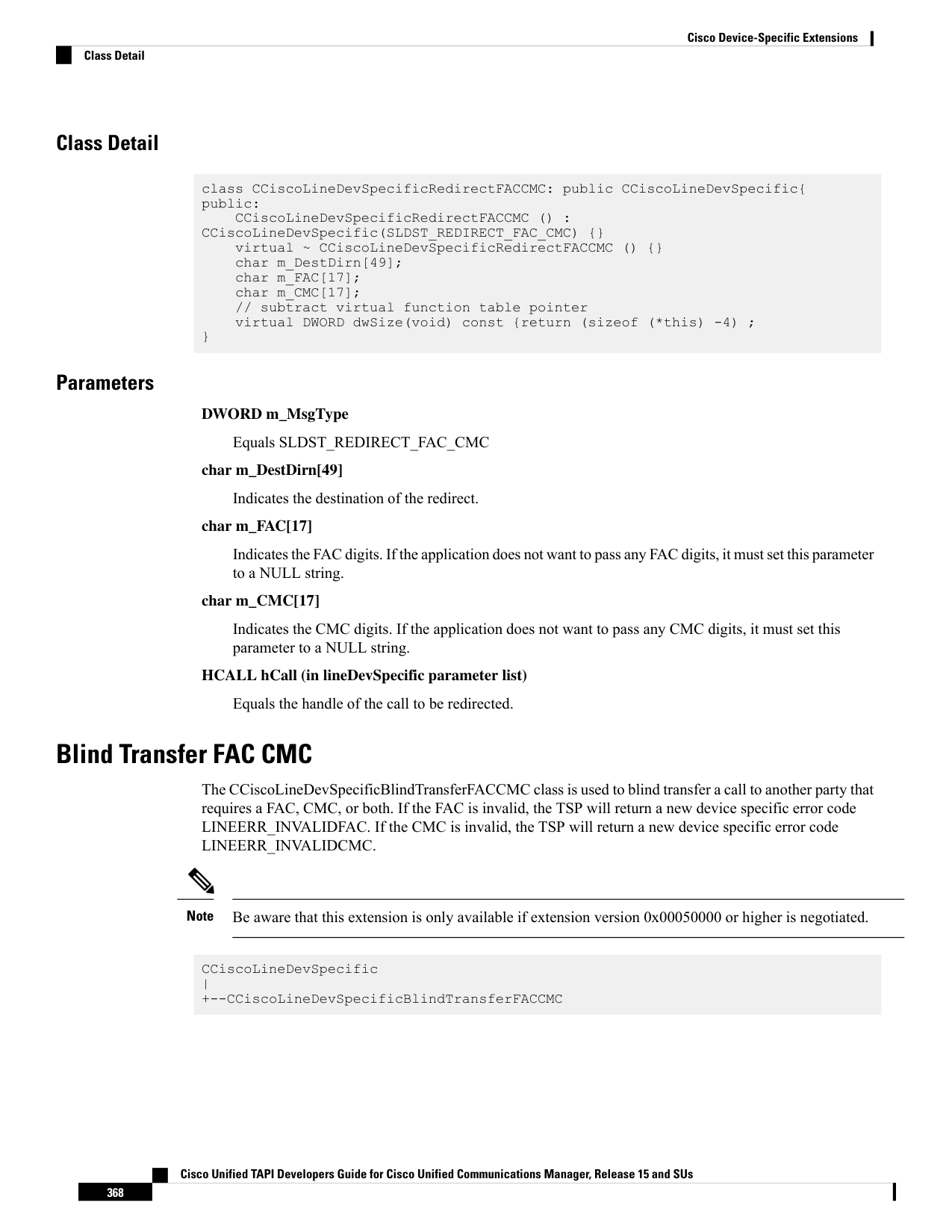

Class Detail class CCiscoLineDevSpecificRedirectFACCMC: public CCiscoLineDevSpecific{ public: CCiscoLineDevSpecificRedirectFACCMC () : CCiscoLineDevSpecific(SLDST_REDIRECT_FAC_CMC) {} virtual ~ CCiscoLineDevSpecificRedirectFACCMC () {} char m_DestDirn[49]; char m_FAC[17]; char m_CMC[17]; // subtract virtual function table pointer virtual DWORD dwSize(void) const {return (sizeof (*this) -4) ; } Parameters DWORD m_MsgType Equals SLDST_REDIRECT_FAC_CMC char m_DestDirn[49] Indicates the destination of the redirect. char m_FAC[17] Indicates the FAC digits. If the application does not want to pass any FAC digits, it must set this parameter to a NULL string. char m_CMC[17] Indicates the CMC digits. If the application does not want to pass any CMC digits, it must set this parameter to a NULL string. HCALL hCall (in lineDevSpecific parameter list) Equals the handle of the call to be redirected. Blind Transfer FAC CMC The CCiscoLineDevSpecificBlindTransferFACCMC class is used to blind transfer a call to another party that requires a FAC, CMC, or both. If the FAC is invalid, the TSP will return a new device specific error code LINEERR_INVALIDFAC. If the CMC is invalid, the TSP will return a new device specific error code LINEERR_INVALIDCMC. Be aware that this extension is only available if extension version 0x00050000 or higher is negotiated. Note CCiscoLineDevSpecific | +--CCiscoLineDevSpecificBlindTransferFACCMC Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 368 Cisco Device-Specific Extensions Class Detail

Image 1 from page 400

Page 400 content

Page 401

Class Detail class CCiscoLineDevSpecificBlindTransferFACCMC: public CCiscoLineDevSpecific{ public: CCiscoLineDevSpecificBlindTransferFACCMC () : CCiscoLineDevSpecific(SLDST_BLIND_TRANSFER_FAC_CMC) {} virtual ~ CCiscoLineDevSpecificBlindTransferFACCMC () {} char m_DestDirn[49]; char m_FAC[17]; char m_CMC[17]; // subtract virtual function table pointer virtual DWORD dwSize(void) const {return (sizeof (*this) -4) ; } Parameters DWORD m_MsgType Equals SLDST_BLIND_TRANSFER_FAC_CMC char m_DestDirn[49] Indicates the destination of the blind transfer. char m_FAC[17] Indicates the FAC digits. If the application does not want to pass any FAC digits, it must set this parameter to a NULL string. char m_CMC[17] Indicates the CMC digits. If the application does not want to pass any CMC digits, it must set this parameter to a NULL string. HCALL hCall (in lineDevSpecific parameter list) Equals the handle of the call that is to be blind transferred. CTI Port Third Party Monitor The CCiscoLineDevSpecificCTIPortThirdPartyMonitor class is used for opening CTI ports in third-party mode. To use this class, ensure the lineNegotiateExtVersion API is called before opening the line. When calling lineNegotiateExtVersion, ensure the highest bit is set on both the dwExtLowVersion and dwExtHighVersion parameters. This causes the call to lineOpen to behave differently. The line does not actually open, but waits for a lineDevSpecific call to complete the open with more information. Provide the extra information that is required in the CCiscoLineDevSpecificCTIPortThirdPartyMonitor class. CCiscoLineDevSpecific | +--CCiscoLineDevSpecificCTIPortThirdPartyMonitor Procedure 1. Call lineNegotiateExtVersion for the deviceID of the line that is to be opened. (OR 0x80000000 with the dwExtLowVersion and dwExtHighVersion parameters) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 369 Cisco Device-Specific Extensions Class Detail

Page 401 content

Page 402

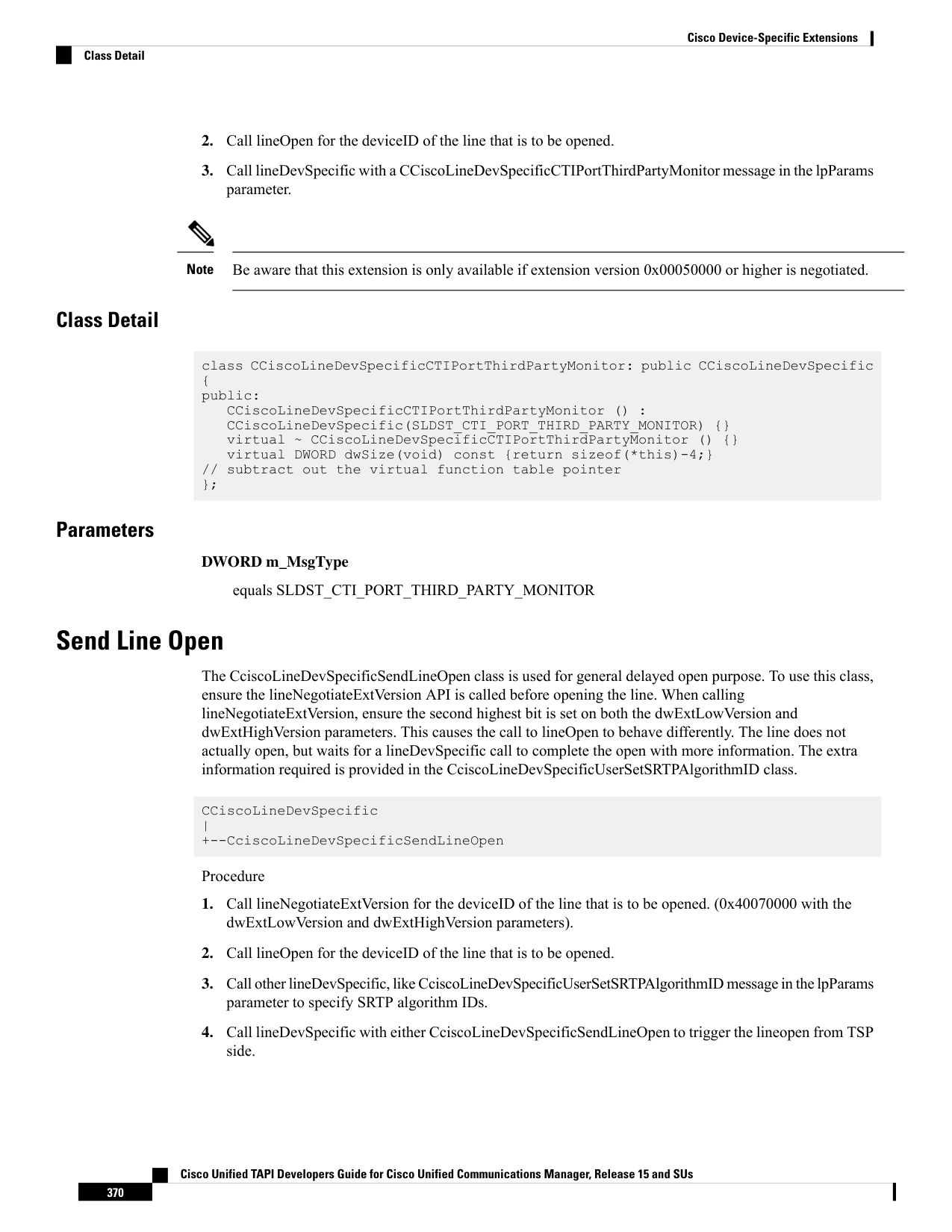

Call lineOpen for the deviceID of the line that is to be opened. 3. Call lineDevSpecific with a CCiscoLineDevSpecificCTIPortThirdPartyMonitor message in the lpParams parameter. Be aware that this extension is only available if extension version 0x00050000 or higher is negotiated. Note Class Detail class CCiscoLineDevSpecificCTIPortThirdPartyMonitor: public CCiscoLineDevSpecific { public: CCiscoLineDevSpecificCTIPortThirdPartyMonitor () : CCiscoLineDevSpecific(SLDST_CTI_PORT_THIRD_PARTY_MONITOR) {} virtual ~ CCiscoLineDevSpecificCTIPortThirdPartyMonitor () {} virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer }; Parameters DWORD m_MsgType equals SLDST_CTI_PORT_THIRD_PARTY_MONITOR Send Line Open The CciscoLineDevSpecificSendLineOpen class is used for general delayed open purpose. To use this class, ensure the lineNegotiateExtVersion API is called before opening the line. When calling lineNegotiateExtVersion, ensure the second highest bit is set on both the dwExtLowVersion and dwExtHighVersion parameters. This causes the call to lineOpen to behave differently. The line does not actually open, but waits for a lineDevSpecific call to complete the open with more information. The extra information required is provided in the CciscoLineDevSpecificUserSetSRTPAlgorithmID class. CCiscoLineDevSpecific | +--CciscoLineDevSpecificSendLineOpen Procedure 1. Call lineNegotiateExtVersion for the deviceID of the line that is to be opened. (0x40070000 with the dwExtLowVersion and dwExtHighVersion parameters). 2. Call lineOpen for the deviceID of the line that is to be opened. 3. Call other lineDevSpecific, like CciscoLineDevSpecificUserSetSRTPAlgorithmID message in the lpParams parameter to specify SRTP algorithm IDs. 4. Call lineDevSpecific with either CciscoLineDevSpecificSendLineOpen to trigger the lineopen from TSP side. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 370 Cisco Device-Specific Extensions Class Detail

Image 1 from page 402

Page 402 content

Page 403

Be aware that this extension is only available if extension version 0x40070000 or higher is negotiated. Note Class Detail class CciscoLineDevSpecificSendLineOpen: public CCiscoLineDevSpecific { public: CciscoLineDevSpecificSendLineOpen () : CCiscoLineDevSpecific(SLDST_SEND_LINE_OPEN) {} virtual ~ CciscoLineDevSpecificSendLineOpen () {} virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer }; Set Intercom SpeedDial Use the CciscoLineSetIntercomSpeeddial class to allow application to set or reset SpeedDial/Label on an intercom line. Be aware that this extension is only available if extension version 0x00080000 or higher is negotiated Note CCiscoLineDevSpecific | +--CciscoLineSetIntercomSpeeddial Procedure 1. Call lineNegotiateExtVersion for the deviceID of the line that is to be opened (0x00080000 or higher). 2. Call lineOpen for the deviceID of the line that is to be opened. 3. Wait for line in service. 4. Call CciscoLineSetIntercomSpeeddial to set or reset speed dial setting on the intercom line. Class Detail class CciscoLineSetIntercomSpeeddial: public CCiscoLineDevSpecific { public: CciscoLineSetIntercomSpeeddial () : CCiscoLineDevSpecific(SLDST_LINE_SET_INTERCOM_SPEEDDIAL) {} virtual ~ CciscoLineSetIntercomSpeeddial () {} DWORD SetOption; //0 = clear app value, 1 = set App Value char Intercom_DN[MAX_DIRN]; char Intercom_Ascii_Label[MAX_DIRN]; wchar_t Intercom_Unicode_Label[MAX_DIRN]; virtual DWORD dwSize(void) const {return sizeof(*this)-4;} Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 371 Cisco Device-Specific Extensions Class Detail

Image 1 from page 403

Page 403 diagram

Page 404

// subtract out the virtual function table pointer }; Parameters DWORD m_MsgType Equals SLDST_USER_SET_INTERCOM_SPEEDDIAL DWORD SetOption Use this parameter to indicate whether the application wants to set a new intercom speed dial value or clear the previous value. 0 = clear, 1 = set. Char Intercom_DN [MAX_DIRN] A DN array that indicates the intercom target Char Intercom_Ascii_Label[MAX_DIRN] Indicates the ASCII value of the intercom line label Wchar_tIntercom_Unicode_Label[MAX_DIRN] Indicates the Unicode value of the intercom line label MAX_DIRN is defined as 25. Intercom Talk Back Use the CciscoLineIntercomTalkback class to allow the application to initiate talk back on an incoming intercom call on an intercom line. Be aware that this extension is only available if extension version 0x00080000 or higher is negotiated. Note CCiscoLineDevSpecific | +--CciscoLineIntercomTalkback Class Detail class CciscoLineIntercomTalkback: public CCiscoLineDevSpecific{ public: CCciscoLineIntercomTalkback () : CCiscoLineDevSpecific(SLDST_INTERCOM_TALKBACK) {} virtual ~ CciscoLineIntercomTalkback () {} virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer }; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 372 Cisco Device-Specific Extensions Parameters

Image 1 from page 404

Page 404 content

Page 405

Redirect with Feature Priority CciscoLineRedirectWithFeaturePriority enables an application to redirect calls with specified feature priorities. The following is the structure of CciscoLineDevSpecific: CCiscoLineDevSpecific | +--CciscoLineRedirectWithFeaturePriority Be aware that this extension is only available if the extension version 0x00080001 or higher is negotiated. Note Detail class CciscoLineRedirectWithFeaturePriority: public CCiscoLineDevSpecific { public: CciscoLineRedirectWithFeaturePriority() : CCiscoLineDevSpecific(SLDST_REDIRECT_WITH_FEATURE_PRIORITY) {} virtual ~ CciscoLineRedirectWithFeaturePriority () {} CiscoDoNotDisturbFeaturePriority FeaturePriority; char m_DestDirn[25]; virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer }; Parameters DWORD m_MsgType Equals SLDST_REDIRECT_WITH_FEATURE_PRIORITY enum CiscoDoNotDisturbFeaturePriority {CallPriority_NORMAL = 1, CallPriority_URGENT = 2, CallPriority_EMERGENCY = 3}; This identifies the priorities. char m_DestDirn[25]; This is redirect destination. Start Call Monitoring Use CCiscoLineDevSpecificStartCallMonitoring to allow application to send a start monitoring request for the active call on a line. Be aware that this extension is only available if extension version 0x00080000 or higher is negotiated. Note Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 373 Cisco Device-Specific Extensions Redirect with Feature Priority

Image 1 from page 405

Page 405 content

Page 406

CCiscoLineDevSpecific | +--CCiscoLineDevSpecificStartCallMonitoring Class Detail class CCiscoLineDevSpecificStartCallMonitoring: public CCiscoLineDevSpecific { public: CCiscoLineDevSpecificStartCallMonitoring () : CCiscoLineDevSpecific(SLDST_START_CALL_MONITORING) {} virtual ~ CCiscoLineDevSpecificStartCallMonitoring () {} DWORD m_PermanentLineID ; DWORD m_MonitorMode; DWORD m_ToneDirection; // subtract out the virtual function table pointer virtual DWORD dwSize(void) const {return sizeof(*this)-4;} } ; Parameters DWORD m_MsgType Equals SLDST_START_MONITORING DWORD m_PermanentLineID The permanent lineID of the line whose active call has to be monitored. DWORD MonitorMode This can have the following enum value: enum { MonitorMode_None = 0, MonitorMode_Silent = 1, MonitorMode_Whisper = 2, // Not used MonitorMode_Active = 3 // Not used } MonitorMode; Silent Monitoring mode represents the only mode that is supported in which the supervisor cannot talk to the agent. Note DWORD PlayToneDirection This parameter specifies whether a tone should play at the agent or customer phone when monitoring starts. It can have following enum values: enum { PlayToneDirection_LocalOnly = 0, PlayToneDirection_RemoteOnly, PlayToneDirection_BothLocalAndRemote, PlayToneDirection_NoLocalOrRemote } PlayToneDirection Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 374 Cisco Device-Specific Extensions Class Detail

Image 1 from page 406

Page 406 diagram

Page 407

Return Values -LINERR_OPERATIONFAILED-LINEERR_OPERATIONUNAVAIL -LINEERR_RESOURCEUNAVAIL -LINEERR_BIB_RESOURCE_UNAVAIL -LINERR_PENDING_REQUEST -LINEERR_OPERATION_ALREADY_INPROGRESS -LINEERR_ALREADY_IN_REQUESTED_STATE -LINEERR_PRIMARY_CALL_INVALID -LINEERR_PRIMARY_CALL_STATE_INVALID Start Call Recording Use CCiscoLineDevSpecificStartCallRecording to allow applications to send a recording request for the active call on that line. Be aware that this extension is only available if extension version 0x00080000 or higher is negotiated Note CCiscoLineDevSpecific | +--CCiscoLineDevSpecificStartCallRecording Class Detail class CCiscoLineDevSpecificStartCallRecording: public CCiscoLineDevSpecific{ public: CCiscoLineDevSpecificStartCallRecording () : CCiscoLineDevSpecific(SLDST_START_CALL_RECORDING) {} virtual ~CCiscoLineDevSpecificStartCallRecording () {} DWORD m_ToneDirection; DWORD m_InvocationType; virtual DWORD dwSize(void) const { // subtract out the virtual function table pointer return sizeof(*this)-sizeof(void*); } }; Parameters DWORD m_MsgType Equals SLDST_START_RECORDING DWORD m_ToneDirection This parameter specifies whether a tone should play at the agent or customer phone when recording starts. It can have the following values: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 375 Cisco Device-Specific Extensions Return Values

Image 1 from page 407

Page 407 content

Page 408

enum { PlayToneDirection_NoLocalOrRemote = 0, PlayToneDirection_LocalOnly, PlayToneDirection_RemoteOnly, PlayToneDirection_BothLocalAndRemote, PlayToneDirection_NotApplicable } PlayToneDirection DWORD m_InvocationType This parameter specifies whether the recording status is displayed on the phone (user-controlled recording) or not displayed (silent recording). enum RecordingInvocationType { RecordingInvocationType_SilentRecording = 1, RecordingInvocationType_UserControlledRecording = 2 } Return Values -LINERR_OPERATIONFAILED-LINEERR_OPERATIONUNAVAIL -LINEERR_INVALCALLHANDLE -LINEERR_BIB_RESOURCE_UNAVAIL -LINERR_PENDING_REQUEST -LINERR_OPERATION_ALREADY_INPROGRESS -LINEERR_RECORDING_INVOCATION_TYPE_NOT_MATCHING -LINEERR_RECORDING_CONFIG_NOT_MATCHING StopCall Recording Use CCiscoLineDevSpecificStopCallRecording to allow application to stop recording a call on that line. Be aware that this extension is only available if extension version 0x00080000 or higher is negotiated. Note CCiscoLineDevSpecific | +--CCiscoLineDevSpecificStopCallRecording Class Detail class CCiscoLineDevSpecificStopCallRecording: public CCiscoLineDevSpecific { public: CCiscoLineDevSpecificStopCallRecording () : CCiscoLineDevSpecific(SLDST_STOP_CALL_RECORDING) {} virtual ~CCiscoLineDevSpecificStopCallRecording () {} DWORD m_InvocationType; virtual DWORD dwSize(void) const { // subtract out the virtual function table pointer Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 376 Cisco Device-Specific Extensions Return Values

Image 1 from page 408

Page 408 diagram

Page 409

return sizeof(*this)-sizeof(void*); } } ; Parameters DWORD m_MsgType Equals SLDST_STOP_RECORDING DWORD m_InvocationType This parameter specifies whether the recording status is displayed on the phone (user-controlled recording) or not displayed (silent recording). enum RecordingInvocationType { RecordingInvocationType_SilentRecording = 1, RecordingInvocationType_UserControlledRecording = 2 } Return Values -LINERR_OPERATIONFAILED-LINEERR_OPERATIONUNAVAIL -LINEERR_INVALCALLHANDLE -LINERR_PENDING_REQUEST -LINEERR_RECORDING_INVOCATION_TYPE_NOT_MATCHING -LINEERR_NO_RECORDING_SESSION -LINEERR_RECORDING_SESSION_INACTIVE Set IPv6 Address and Mode Use the CciscoLineDevSpecificSetIPv6AddressAndMode class to allow the application to set IPv6 address and addressing mode during the static registration. To use this class, ensure the lineNegotiateExtVersion API must be called before opening the line. When calling lineNegotiateExtVersion, ensure the highest bit or the second highest must be set on both the dwExtLowVersion and dwExtHighVersion parameters. This causes the call to lineOpen to behave differently. The line does not actually open, but waits for a lineDevSpecific call to complete the open with more information. The extra information required is provided in the CciscoLineDevSpecificSetIPv6AddressAndMode class. CCiscoLineDevSpecific| +--CciscoLineDevSpecificSetIPv6AddressAndMode This extension is available only if extension version 0x80090000, 0x40090000 or higher is negotiated. Note Procedure 1. Open Call lineNegotiateExtVersion for the deviceID of the line (0x80090000 or 0x40090000 with the dwExtLowVersion and dwExtHighVersion parameters) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 377 Cisco Device-Specific Extensions Parameters

Image 1 from page 409

Page 409 diagram

Page 410

Open Call lineOpen for the deviceID of the line. 3. Call lineDevSpecific with a CciscoLineDevSpecificSetIPv6AddressAndMode message in the lpParams parameter to specify IPv6 address and the IP Addressing mode as IPv6. Class Detail class CciscoLineDevSpecificSetIPv6AddressAndMode: public CCiscoLineDevSpecific { public: CciscoLineDevSpecificSetIPv6AddressAndMode() : CCiscoLineDevSpecific(SLDST_USER_SET_IPv6_ADDRESS_AND_MODE), m_ReceivePort(-1), m_IPAddressMode( (IpAddressingMode) 1) { } virtual ~ CciscoLineDevSpecificSetIPv6AddressAndMode() { } char m_ReceiveIPv6Address[16]; DWORD m_ReceivePort; IpAddressingMode m_IPAddressMode; virtual DWORD dwSize(void) const { return sizeof(*this) -4; } // subtract out the virtual function table pointer }; Parameters DWORDm_MsgType Equals SLDST_USER_SET_IPv6_ADDRESS Charm_ReceiveIPv6Address[16] User has to specify the IPv6 address to register the CTI Port with DWORDm_ReceivePort This specifies the port number for the user to register the CTI Port. Intm_IPAddressMode This specifies the Addressing mode with which user wants the CTI Port/RP registered. Set RTP Parameters for IPv6 Calls Use CciscoLineDevSpecificSetRTPParamsForCallIPv6 class to set the RTP parameters for calls for which you must specify IPv6 address. Be aware that this extension is available only if extension version 0x00090000 or higher is negotiated. Note Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 378 Cisco Device-Specific Extensions Class Detail

Image 1 from page 410

Page 410 content

Page 411

Class Detail class CciscoLineDevSpecificSetRTPParamsForCallIPv6: public CCiscoLineDevSpecific { public: CciscoLineDevSpecificSetRTPParamsForCallIPv6 () : CCiscoLineDevSpecific(SLDST_USER_SET_RTP_INFO_IPv6) {} virtual ~ CciscoLineDevSpecificSetRTPParamsForCallIPv6 () {} virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer char m_RecieveIPv6[16]; // UDP audio reception IPv6 DWORD m_RecievePort // UDP audio reception port }; Parameters DWORD m_MsgType Equals SLDST_USER_SET_RTP_INFO_IPv6 DWORD m_ReceiveIPv6 This is the RTP audio reception IPv6 address to set for the call DWORD m_RecievePort This is the RTP audio reception port to set for the call. Direct Transfer Use the CciscoLineDevSpecificDirectTransfer to transfer calls across lines or on the same line. CCiscoLineDevSpecific | +--CciscoLineDevSpecificDirectTransfer Be aware that this extension is available only if extension version 0x00090001 or higher is negotiated. Note Class Detail class CciscoLineDevSpecificDirectTransfer: public CCiscoLineDevSpecific{ public: CciscoLineDevSpecificDirectTransfer () : CCiscoLineDevSpecific(SLDST_DIRECT_TRANSFER) {} virtual ~ CciscoLineDevSpecificDirectTransfer () {} DWORD m_CallIDsToTransfer; virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer }; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 379 Cisco Device-Specific Extensions Class Detail

Image 1 from page 411

Page 411 content

Page 412

Parameters DWORD m_MsgType equals SLDST_DIRECT_TRANSFER DWORD m_CallIDsToTransfer Consult dwCallID to be transferred HCALL hCall (in LineDevSpecific parameter list) Equals the handle of the call that is being transferred. RegisterCallPickUpGroupForNotification The CciscoLineDevSpecificRegisterCallPickupGroupForNotification class is used to register the call Pickup Group for notification on calls for Pickup. CCiscoLineDevSpecific | +--CciscoLineDevSpecificRegisterCallPickupGroupForNotification This extension is available only if extension version 0x000A0000 or higher is negotiated. Note Class Detail class CciscoLineDevSpecificRegisterCallPickupGroupForNotification: public CCiscoLineDevSpecific { public: CciscoLineDevSpecificRegisterCallPickupGroupForNotification (): CCiscoLineDevSpecific (SLDST_CALLPICKUP_GROUP_REGISTER) {} virtual ~ CciscoLineDevSpecificRegisterCallPickupGroupForNotification () {} char callPickupGroupDN[MAX_DIRN]; char callPickupGroupPartition[MAX_PARTITION]; virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer }; Parameters DWORD m_MsgType equals SLDST_CALLPICKUP_GROUP_REGISTER Char CallPickupGroupDN [] -DN of the pickup Group Char CallPickupGroupPartition [] -Partition of the PickupGroup Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 380 Cisco Device-Specific Extensions Parameters

Image 1 from page 412

Page 412 content

Page 413

UnRegisterCallPickUpGroupForNotification The CciscoLineDevSpecificUnRegisterCallPickupGroupForNotification class is used to unregister the call Pickup Group for notification on calls for Pickup. CCiscoLineDevSpecific | +--CciscoLineDevSpecificUnRegisterCallPickupGroupForNotification This extension is available only if extension version 0x000A0000 or higher is negotiated Note Class Details class CciscoLineDevSpecificUnRegisterCallPickupGroupForNotification: public CCiscoLineDevSpecific{ Public: CciscoLineDevSpecificUnRegisterCallPickupGroupForNotification () : CCiscoLineDevSpecific(SLDST_CALLPICKUP_GROUP_UNREGISTER) {} virtual ~ CciscoLineDevSpecificUnRegisterCallPickupGroupForNotification () {} virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer }; Parameters DWORD m_MsgType equals SLDST_CALLPICKUP_GROUP_UNREGISTER CallPickUpRequest The CciscoLineDevSpecificCallPickupRequest class is used to Pickup the call from the PickGroup. CCiscoLineDevSpecific +--CciscoLineDevSpecificCallPickupRequest This extension is available only if extension version 0x000A0000 or higher is negotiated. Note Class Details class CciscoLineDevSpecificCallPickupRequest: public CCiscoLineDevSpecific{ public: CciscoLineDevSpecificCallPickupRequest (): CCiscoLineDevSpecific (SLDST_CALLPICKUP_CALL) {} Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 381 Cisco Device-Specific Extensions UnRegisterCallPickUpGroupForNotification

Image 1 from page 413

Page 413 diagram

Page 414

virtual ~ CciscoLineDevSpecificCallPickupRequest () {} DWORD PickupType; char PickupGroupDN[MAX_DIRN]; virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer }; Parameters DWORD m_MsgType equals SLDST_CALLPICKUP_CALL Char PickupGroupDN [] -DN of the pickup Group/DN;will be required for GroupCallPickUp and DirectedCallPickUp DWORD PickupType -indicates the type of pickup (CtiCallPickUp, CtiGroupCallPickUp, , CtiOtherPickup, DirectedCallPickup) enum CallPickupType{ CallPickup_Simple = 0, CallPickup_Group = 1, CallPickup_Other = 2, CallPickup_Direct = 3 }; Start Send Media to BIB CCiscoLineDevSpecific | +--CCiscoLineDevSpecificStartSendMediaToBIBRequest Description The CCiscoLineDevSpecificStartSendMediaToBIBRequest class allows the application to initiate agent greeting to the customer call. This extension is only available if extension version 0x000B0000 or higher is negotiated. Note TAPI line handle and TAPI call handle are required for this request. Class Detail class CCiscoLineDevSpecificStartSendMediaToBIBRequest: public CCiscoLineDevSpecific{ public: CCiscoLineDevSpecificStartSendMediaToBIBRequest (): CCiscoLineDevSpecific (SLDST_START_SEND_MEDIA_TO_BIB) {} virtual ~ CCiscoLineDevSpecificStartSendMediaToBIBRequest () {} char m_IVRDN [49]; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 382 Cisco Device-Specific Extensions Parameters

Image 1 from page 414

Page 414 diagram

Page 415

char m_CGPNTOIVR [49]; virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer Parameters DWORD m_MsgType equals SLDST_START_SEND_MEDIA_TO_BIB char m_IVRDN [49] IVR port DN where Agent Greeting will be played from char m_CGPNTOIVR [49] The CallingPartyDN passed to IVR. The application can use this field to pass DN as CallingPartyDN for the agent greeting call. Stop Send Media to BIB CCiscoLineDevSpecific | +--CCiscoLineDevSpecificStopSendMediaToBIBRequest Description The CCiscoLineDevSpecificStopSendMediaToBIBRequest class allows the application to stop the agent greeting that is playing on the agent-to-customer call. This extension is only available if extension version 0x000B0000 or higher is negotiated. Note TAPI line handle and TAPI call handle are required for this request. Class Detail class CCiscoLineDevSpecificStopSendMediaToBIBRequest: public CCiscoLineDevSpecific { public: CCiscoLineDevSpecificStopSendMediaToBIBRequest (): CCiscoLineDevSpecific (SLDST_STOP_SEND_MEDIA_TO_BIB) {} virtual ~ CCiscoLineDevSpecificStopSendMediaToBIBRequest () {} virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer }; Parameters DWORD m_MsgType equals SLDST_START_SEND_MEDIA_TO_BIB Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 383 Cisco Device-Specific Extensions Parameters

Image 1 from page 415

Page 415 content

Page 416

Agent Zip Tone CCiscoLineDevSpecific | +--CciscoLineDevSpecificEnableFeatureSupport Description The CCiscoLineDevSpecificPlaytone class is used to play the tone (Zip Tone) to the direction specified in the request. This extension is only available if extension version 0x000B0000 or higher is negotiated. Note Class Detail class CCiscoLineDevSpecificPlaytone: public CCiscoLineDevSpecific //AgentZiptone { public: CCiscoLineDevSpecificPlaytone() : CCiscoLineDevSpecific(SLDST_PLAY_TONE) { } virtual ~ CCiscoLineDevSpecificPlaytone() { } DWORD m_Tone; DWORD m_ToneDirection; virtual DWORD dwSize(void) const { return sizeof(*this) -4; } // subtract out the virtual function table pointer }; Parameters DWORD m_Tone -Indicates the Tone type equals CTONE_ZIP DWORD m_ToneDirection -Indicates the direction of the tone to be played; equals Tonedirection (Local/Remote) Early Offer New error Code – LINEERR_REGISTER_GETPORT_SUPPORT_MISMATCH 0xC000000F Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 384 Cisco Device-Specific Extensions Agent Zip Tone

Image 1 from page 416

Page 416 content

Page 417

Enable Feature CCiscoLineDevSpecific | +--CciscoLineDevSpecificEnableFeatureSupport Description The CciscoLineDevSpecificEnableFeatureSupport class allows application to enhance or update feature support. This extension is only available if extension version 0x000B0000 or higher is negotiated. Note Class Detail class CciscoLineDevSpecificEnableFeatureSupport: public CCiscoLineDevSpecific{ public: CciscoLineDevSpecificEnableFeatureSupport() : CCiscoLineDevSpecific(SLDST_ENABLE_FEATURE_SUPPORT) { } virtual ~ CciscoLineDevSpecificEnableFeatureSupport() { } DWORD m_Feature; DWORD m_Feature_Capability; //Should have Value supported for Feature specified in m_Feature virtual DWORD dwSize(void) const { return sizeof(*this) -4; } // subtract out the virtual function table pointer Parameters DWORD m_MsgType equals SLDST_ENABLE_FEATURE_SUPPORT DWORD m_Feature Feature value for which the capability needs to be changed and should have a value from the following Enum: enum TspFeatureSupport { Feature_unknown = 0, Feature_EarlyOffer = 1 }; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 385 Cisco Device-Specific Extensions Enable Feature

Image 1 from page 417

Page 417 content

Page 418

DWORD m_Feature_Capability The Capability information that needs to be changed/updated for the feature. This information changes depending on the feature. Early Offer (Get Port) Support: m_Feature should be Feature_EarlyOffer(1) and m_Feature_Capability should have a value from following Enum: enum TspFeatureOption{ Feature_Disable = 0, Feature_Enable = 1 }; Sample Code: Here is a sample code that illustrates how applications must use this devspecific type, and fill the Class Object to enable/disable the Early Offer feature support. void main(){ … … … …. CciscoLineDevSpecificEnableFeatureSupport featureObject; featureObject.m_MsgType = SLDST_ENABLE_FEATURE_SUPPORT; featureObject.m_Feature = Feature_EarlyOffer(1); featureObject. m_Feature_Capability = Feature_Enable(1)/ Feature_Disable(0); int result = TSPI_lineDevSpecific(dwRequestID,hdLine, dwAddressID, NULL, &featureObject, sizeof(CciscoLineDevSpecificEnableFeatureSupport)); … … … …. … … … …. } New CiscoLineDevStateOutOfServiceReason_EMLogin and CiscoLineDevStateOutOfServiceReason_EMLogout values in the CiscoLineDevStateOtherReason enumeration type in CiscoLineDevSpecificMsg.h: enum CiscoLineDevStateOutOfServiceReason { CiscoLineDevStateOutOfServiceReason_Unknown = 0x00000000, CiscoLineDevStateOutOfServiceReason_CallManagerFailure = 0x00000001, CiscoLineDevStateOutOfServiceReason_ReHomeToHigherPriorityCM = 0x00000002, CiscoLineDevStateOutOfServiceReason_NoCallManagerAvailable = 0x00000003, CiscoLineDevStateOutOfServiceReason_DeviceFailure = 0x00000004, CiscoLineDevStateOutOfServiceReason_DeviceUnregistered = 0x00000005, CiscoLineDevStateOutOfServiceReason_EnergyWisePowerSavePlus = 0x00000006, CiscoLineDevStateOutOfServiceReason_EMLogin = 0x00000007, CiscoLineDevStateOutOfServiceReason_EMLogout = 0x00000008, CiscoLineDevStateOutOfServiceReason_CtiLinkFailure = 0x00000101 }; New CiscoLineDevStateCloseReason enumeration type in CiscoLineDevSpecificMsg.h: enum CiscoLineDevStateCloseReason { CiscoLineDevStateCloseReason_Unknown = 0, CiscoLineDevStateCloseReason_EMLogin = 1, CiscoLineDevStateCloseReason_EMLogout = 2 }; New CiscoLineDevStateOtherReason enumeration type in CiscoLineDevSpecificMsg.h: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 386 Cisco Device-Specific Extensions Parameters

Page 418 content

Page 419

enum CiscoLineDevStateOtherReason { CiscoLineDevStateOtherReason_Unknown = 0, CiscoLineDevStateOtherReason_OtherLineInactive = 1, CiscoLineDevStateOtherReason_OtherLineActive = 2, CiscoLineDevStateOtherReason_OtherLineCapsChange = 3 }; New LINEERR_DEVICE_INACTIVE error is returned if an operation is invoked on a line device in “inactive” state. UpdateMonitorMode CCiscoLineDevSpecific | +--CciscoLineDevSpecificMonitoringUpdateMode Description The CciscoLineDevSpecificMonitoringUpdateMode class allows the application to toggle between the silent monitoring and whisper coaching modes, and vice versa. This extension is only available if extension version 0x000B0000 or higher is negotiated. Note Class Detail class CciscoLineDevSpecificMonitoringUpdateMode : public CCiscoLineDevSpecific { public: CciscoLineDevSpecificMonitoringUpdateMode (): CCiscoLineDevSpecific (SLDST_UPDATE_MONITOR_MODE) {} virtual ~ CciscoLineDevSpecificMonitoringUpdateMode () {} DWORD m_MonitorMode; DWORD m_ActiveToneDirection; virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer }; Parameters DWORD m_MsgType equals SLDST_UPDATE_MONITOR_MODE DWORD m_MonitorMode Monitoring mode to toggle to DWORD m_ActiveToneDirection Direction of the tone to be played Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 387 Cisco Device-Specific Extensions UpdateMonitorMode

Image 1 from page 419

Page 419 content

Page 420

Add Remote Destination CCiscoLineDevSpecific | +-- CciscoLineDevSpecificAddRemoteDestination Description The CciscoLineDevSpecificAddRemoteDestination class is used to add new Remote Destination to CTI Remote Device. This extension is only available on CTI Remote Device Line and if extension version 0x000C0000 or higher is negotiated. Note Class Details class CciscoLineDevSpecificAddRemoteDestination: public CCiscoLineDevSpecific { public: CciscoLineDevSpecificAddRemoteDestination() : CCiscoLineDevSpecific(SLDST_ADD_REMOTE_DESTINATION) { } virtual ~ CciscoLineDevSpecificAddRemoteDestination() { } char m_RDNumber [MAX_CTI_LINE_DIR_SIZE]; wchar_t m_UnicodeRDName [MAX_CTI_RD_UNICODE_DISPLAY_STRING]; DWORD m_ActiveRD; virtual DWORD dwSize(void) const { returnsizeof(this) - sizeof(void); } // subtract out the virtual function table pointer }; Parameters DWORD m_MsgType Equals SLDST_ADD_REMOTE_DESTINATION char m_RDNumber [MAX_CTI_LINE_DIR_SIZE] Remote Destination Number [*Mandatory Field] wchar_t m_UnicodeRDName [MAX_UNICODE_DISPLAY_STRING] unicode Remote Destination Name DWORD m_activeRD 0 – if this Remote Destination is not Active 1 or greater – when this Remote Destination need to be set as Active Remote Destination Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 388 Cisco Device-Specific Extensions Add Remote Destination

Image 1 from page 420

Page 420 content

Page 421

Remove Remote Destination CCiscoLineDevSpecific | +-- CciscoLineDevSpecificRemoveRemoteDestination Description The CciscoLineDevSpecificRemoveRemoteDestination class is used to remove Remote Destination from List of Remote Destinations of CTI Remote Device. This extension is only available on CTI Remote Device Line and if extension version 0x000C0000 or higher is negotiated. Note Class Details class CciscoLineDevSpecificRemoveRemoteDestination: public CCiscoLineDevSpecific { public: CciscoLineDevSpecificRemoveRemoteDestination() : CCiscoLineDevSpecific(SLDST_REMOVE_REMOTE_DESTINATION) { } virtual ~ CciscoLineDevSpecificRemoveRemoteDestination() { } char m_RDNumber [MAX_CTI_LINE_DIR_SIZE]; virtual DWORD dwSize(void) const { returnsizeof(this) - sizeof(void); } // subtract out the virtual function table pointer }; Parameters DWORD m_MsgType Equals SLDST_REMOVE_REMOTE_DESTINATION char m_RDNumber [MAX_CTI_LINE_DIR_SIZE] Remote Destination Number [*Mandatory Field] Remote Destination can be removed using Remote Destination Number which is used a unique key for Remote Destinations on a CTI Remote Device. Note Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 389 Cisco Device-Specific Extensions Remove Remote Destination

Image 1 from page 421

Page 421 content

Page 422

Update Remote Destination CCiscoLineDevSpecific | +-- CciscoLineDevSpecificUpdateRemoteDestination Description The CciscoLineDevSpecificUpdateRemoteDestination class is used to update Remote Destination information on a CTI Remote Device. This extension is only available on CTI Remote Device Line and if extension version 0x000C0000 or higher is negotiated. Note Class Details class CciscoLineDevSpecificUpdateRemoteDestination: public CCiscoLineDevSpecific { public: CciscoLineDevSpecificUpdateRemoteDestination() : CCiscoLineDevSpecific(SLDST_UPDATE_REMOTE_DESTINATION) { } virtual ~ CciscoLineDevSpecificUpdateRemoteDestination() { } char m_RDNumber [MAX_CTI_LINE_DIR_SIZE]; wchar_t m_UnicodeRDName [MAX_CTI_RD_UNICODE_DISPLAY_STRING]; char m_NewRDNumber [MAX_CTI_LINE_DIR_SIZE]; DWORD m_ActiveRD; virtual DWORD dwSize(void) const { returnsizeof(this) - sizeof(void); } // subtract out the virtual function table pointer }; Parameters DWORD m_MsgType Equals SLDST_UPDATE_REMOTE_DESTINATION. char m_RDNumber [MAX_CTI_LINE_DIR_SIZE] Current Remote Destination Number which need to be updated [*Mandatory Field] wchar_t m_UnicodeRDName [MAX_UNICODE_DISPLAY_STRING] unicode Remote Destination Name char m_NewRDNumber [MAX_CTI_LINE_DIR_SIZE] New Remote Destination Number [*Mandatory Field] DWORD m_activeRD Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 390 Cisco Device-Specific Extensions Update Remote Destination

Image 1 from page 422

Page 422 content

Page 423

0 – if this Remote Destination is not Active 1 or greater – when this Remote Destination need to be set as Active Remote Destination lineHold Enhancement The CciscoLineDevSpecificHoldEx class is used to put a call on hold and specifies media content that is played while a call is on hold. Message Details class CciscoLineDevSpecificHoldEx: public CCiscoLineDevSpecific { public: CciscoLineDevSpecificHoldEx() : CCiscoLineDevSpecific(SLDST_HOLD_EX) {} virtual ~ CciscoLineDevSpecificHoldEx() {} char m_MediaContentId [MAX_CISCO_TSP_MEDIA_CONTENT_ID_SIZE]; DWORD m_MediaContentIdLength; virtual DWORD dwSize(void) const {return sizeof(this) - sizeof(void);} }; Parameters char m_MediaContentId [MAX_CISCO_TSP_MEDIA_CONTENT_ID_SIZE] String that represents media content identifier (mediaContentID). Only known to UCM (uploaded to UCM) media content can be played. DWORD m_MediaContentIdLength Actual length of the string in the m_MediaContentId field. Cisco Line Device Feature Extensions CCiscoLineDevSpecificFeature represents the parent class. Currently, it consist of only one subclass: CCiscoLineDevSpecificFeature_DoNotDisturb, which allows applications to enable and disable the Do-Not-Disturb feature on a device. This following sections describe the line device feature-specific extensions to the TAPI structures that Cisco TSP supports: • CCiscoLineDevSpecificFeature, on page 391 • Do-Not-Disturb, on page 393 • Do-Not-Disturb Change Notification Event, on page 393 CCiscoLineDevSpecificFeature This section provides information on how to invoke Cisco-specific TAPI extensions with the CCiscoLineDevSpecificFeature class, which represents the parent class to all the following classes. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 391 Cisco Device-Specific Extensions lineHold Enhancement

Page 423 content

Page 424

Be aware that this virtual class is provided for informational purposes only. Note CCiscoLineDevSpecificFeature Header File The file CiscoLineDevSpecific.h contains the corresponding constant, structure, and class definitions for the Cisco lineDevSpecificFeature extension classes. Class Detail class CCiscoLineDevSpecificFeature { public: CCicsoLineDevSpecificFeature(const DWORD msgType): m_MsgType(msgType) {;} virtual ~ CCicsoLineDevSpecificFeature() {;} DWORD GetMsgType(void) const {return m_MsgType;} void* lpParams(void) const {return (void*)&m_MsgType;} virtual DWORD dwSize(void) const = 0; private: DWORD m_MsgType; }; Functions lpParms() Function that can be used to obtain a pointer to the parameter block dwSize() Function that returns size of the parameter block area Parameter m_MsgType Specifies the type of message. The parameter value uniquely identifies the feature to invoke on the device. The PHONEBUTTONFUNCTION_ TAPI_Constants definition lists the valid feature identifiers. Currently, the only recognized value specifies PHONEBUTTONFUNCTION_DONOTDISTURB (0x0000001A). Each subclass of CCiscoLineDevSpecificFeature includes a unique value that is assigned to the m_MsgType parameter. Subclasses Each subclass of CCiscoLineDevSpecificFeature carries a unique value that is assigned to the m_MsgType parameter. If you are using C instead of C++, this represents the first parameter in the structure. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 392 Cisco Device-Specific Extensions Header File

Image 1 from page 424

Page 424 content

Page 425

Do-Not-Disturb Use the CCiscoLineDevSpecificFeature_DoNotDisturb class in conjunction with the request to enable or disable the DND feature on a device. The Do-Not-Disturb feature gives phone users the ability to go into a Do Not Disturb (DND) state on the phone when they are away from their phones or simply do not want to answer the incoming calls. A phone softkey, DND, allows users to enable or disable this feature. CCiscoLineDevSpecificFeature | +--CCiscoLineDevSpecificFeature_DoNotDisturb Class Detail class CCiscoLineDevSpecificFeature_DoNotDisturb : public CCiscoLineDevSpecificFeature { public: CCiscoLineDevSpecificFeature_DoNotDisturb() : CCiscoLineDevSpecificFeature(PHONEBUTTONFUNCTION_DONOTDISTURB), m_Operation((CiscoDoNotDisturbOperation)0) {} virtual ~CCiscoLineDevSpecificFeature_DoNotDisturb() {} virtual DWORD dwSize(void) const {return sizeof(*this)-4;} CiscoDoNotDisturbOperation m_Operation; }; Parameters DWORD m_MsgType Equals PHONEBUTTONFUNCTION_DONOTDISTURB. CiscoDoNotDisturbOperation m_Operation Specifies a requested operation and can comprise one of the following enum values: enum CiscoDoNotDisturbOperation { DoNotDisturbOperation_ENABLE = 1, DoNotDisturbOperation_DISABLE = 2 }; Do-Not-Disturb Change Notification Event Cisco TSP notifies applications via the LINE_DEVSPECIFICFEATURE message about changes in the DND configuration or status. To receive change notifications, an application needs to enable the DEVSPECIFIC_DONOTDISTURB_CHANGED message flag with a lineDevSpecific SLDST_SET_STATUS_MESSAGES request. The LINE_DEVSPECIFICFEATURE message notifies the application about device-specific events that occur on a line device. In the case of a Do-Not-Disturb Change Notification, the message includes information about the type of change that occurred on a device and the resulting feature status or configured option. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 393 Cisco Device-Specific Extensions Do-Not-Disturb

Page 425 content

Page 426

Message Details LINE_DEVSPECIFICFEATUREdwDevice = (DWORD) hLine; dwCallbackInstance = (DWORD) hCallback; dwParam1 = (DWORD) PHONEBUTTONFUNCTION_DONOTDISTURB; dwParam2 = (DWORD) typeOfChange; dwParam3 = (DWORD) currentValue; enum CiscoDoNotDisturbOption { DoNotDisturbOption_NONE = 0, DoNotDisturbOption_RINGEROFF = 1, DoNotDisturbOption_REJECT = 2 }; enum CiscoDoNotDisturbStatus { DoNotDisturbStatus_UNKNOWN = 0, DoNotDisturbStatus_ENABLED = 1, DoNotDisturbStatus_DISABLED = 2 }; enum CiscoDoNotDisturbNotification { DoNotDisturb_STATUS_CHANGED = 1, DoNotDisturb_OPTION_CHANGED = 2 }; Parameters dwDevice A handle to a line device dwCallbackInstance The callback instance that is supplied when the line is opened dwParam1 Always equal to PHONEBUTTONFUNCTION_DONOTDISTURB for the Do-Not-Disturb change notification dwParam2 Indicates type of change and can comprise one of the following enum values: enum CiscoDoNotDisturbNotification { DoNotDisturb_STATUS_CHANGED = 1, DoNotDisturb_OPTION_CHANGED = 2 }; dwParam3 If the dwParm2 indicates status change with the value DoNotDisturb_STATUS_CHANGED, this parameter can comprise one of the following enum values: enum CiscoDoNotDisturbStatus { DoNotDisturbStatus_UNKNOWN = 0, DoNotDisturbStatus_ENABLED = 1, DoNotDisturbStatus_DISABLED = 2 }; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 394 Cisco Device-Specific Extensions Message Details

Page 426 content

Page 427

If the dwParm2 indicates option change with the value DoNotDisturb_OPTION_CHANGED, this parameter can comprise one of the following enum values: enum CiscoDoNotDisturbOption { DoNotDisturbOption_NONE = 0, DoNotDisturbOption_RINGEROFF = 1, DoNotDisturbOption_REJECT = 2 }; Cisco Phone Device-Specific Extensions The following table lists and describes the subclasses of CiscoPhoneDevSpecific. Table 24: Cisco Phone Device-Specific TAPI Functions Synopsis Cisco Functions The CCiscoPhoneDevSpecific class represents the parent class to the following classes. CCiscoPhoneDevSpecific, on page 395 Allows the application to send the Device Specific XSI data through CTI. Device Data PassThrough, on page 397 Allows the application to acquire any CTI-controllable device that can get opened later in superprovider mode. Explicit Acquire, on page 366 Allows the application to deacquire a CTI-controllable device that was explicitly acquired. Explicit De-Acquire, on page 366 Allows the application to request secure RTP indicator for calls on the device. Request Call RTP Snapshot, on page 401 Allows the application to set status bit map to enable specific DEVICE_DEVSPECIFIC messages to be sent to the application. Set Status Msgs, on page 398 Sets the Unicode display on the phone. Set Unicode Display, on page 399 CCiscoPhoneDevSpecific This section provides information on how to perform Cisco TAPI-specific functions with the CCiscoPhoneDevSpecific class, which represents the parent class to all the following classes. Be aware that this virtual class is provided for informational purposes only. Note CCiscoPhoneDevSpecific| +--CCiscoPhoneDevSpecificDataPassThrough | +--CCiscoPhoneDevSpecificSetStatusMsgs Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 395 Cisco Device-Specific Extensions Cisco Phone Device-Specific Extensions

Image 1 from page 427

Page 427 diagram

Page 428

| +--CCiscoPhoneDevSpecificSetUnicodeDisplay | +--CCiscoPhoneDevSpecificAcquire | +--CCiscoPhoneDevSpecificDeacquire | +--CCiscoPhoneDevSpecificGetRTPSnapshot Header File The file CiscoLineDevSpecific.h contains the constant, structure, and class definition for the Cisco phone device-specific classes. Class Detail class CCiscoPhoneDevSpecific { public : CCiscoPhoneDevSpecific(DWORD msgType):m_MsgType(msgType) {;} virtual ~CCiscoPhoneDevSpecific() {;} DWORD GetMsgType (void) const { return m_MsgType;} void *lpParams(void) const {return (void*)&m_MsgType;} virtual DWORD dwSize(void) const = 0; private : DWORD m_MsgType ; } Functions lpParms() Function that can be used to obtain the pointer to the parameter block dwSize() Function that will give the size of the parameter block area Parameter m_MsgType Specifies the type of message. Subclasses Each subclass of CCiscoPhoneDevSpecific represents a different value that is assigned to the parameter m_MsgType. If you are using C instead of C++, this represents the first parameter in the structure. Enumeration The CiscoPhoneDevSpecificType enumeration includes valid message identifiers. enum CiscoPhoneDevSpecificType { Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 396 Cisco Device-Specific Extensions Header File

Page 428 content

Page 429

CPDST_DEVICE_DATA_PASSTHROUGH_REQUEST = 1, CPDST_SET_DEVICE_STATUS_MESSAGES, CPDST_SET_DEVICE_UNICODE_DISPLAY, CPDST_ACQUIRE, CPDST_DE_ACQUIRE, CPDST_REQUEST_DEVICE_SNAPSHOT_INFO }; Device Data PassThrough XSI-enabled IP phones allow applications to directly communicate with the phone and access XSI features (for example, manipulate display, get user input, play tone, and so on). To allow TAPI applications to have access to some of these XSI capabilities without having to setup and maintain an independent connection directly to the phone, TAPI will provide the ability to send device data through the CTI interface. This feature gets exposed as a Cisco Unified TSP device-specific extension. PhoneDevSpecificDataPassthrough request only gets supported for the IP phone devices. Application must open a TAPI phone device with minimum extension version 0x00030000 to make use of this feature. The CCiscoPhoneDevSpecificDataPassThrough class is used to send the device-specific data to CTI-controlled IP phone devices. Be aware that this extension requires applications to negotiate extension version as 0x00030000. Note CCiscoPhoneDevSpecific | +--CCiscoPhoneDevSpecificDataPassThrough Class Detail class CCiscoPhoneDevSpecificDataPassThrough : public CCiscoPhoneDevSpecific { public: CCiscoPhoneDevSpecificDataPassThrough () : CCiscoPhoneDevSpecific(CPDST_DEVICE_DATA_PASSTHROUGH_REQUEST) { memset((char*)m_DeviceData, 0, sizeof(m_DeviceData)) ; } virtual ~CCiscoPhoneDevSpecificDataPassThrough() {;} // data size determined by MAX_DEVICE_DATA_PASSTHROUGH_SIZE TCHAR m_DeviceData[MAX_DEVICE_DATA_PASSTHROUGH_SIZE] ; // subtract out the virtual funciton table pointer size virtual DWORD dwSize (void) const {return (sizeof (*this)-4) ;} } Parameters DWORD m_MsgType Equals CPDST_DEVICE_DATA_PASSTHROUGH_REQUEST. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 397 Cisco Device-Specific Extensions Device Data PassThrough

Image 1 from page 429

Page 429 content

Page 430

DWORD m_DeviceData This character buffer contains the XML data that is to be sent to phone device. Be aware that MAX_DEVICE_DATA_PASSTHROUGH_SIZE = 2000. Note A phone can pass data to an application and it can get retrieved by using PhoneGetStatus (PHONESTATUS:devSpecificData). See PHONESTATUS description for further details. Set Status Msgs PhoneDevSpecificSetStatusMsgs allows the application to set status bit map to enable specific DEVICE_DEVSPECIFIC messages to be sent to the application. The application must open a TAPI phone device with minimum extension version 0x00030000 to use this feature. Be aware that this extension requires applications to negotiate extension version as 0x00030000. Note CCiscoPhoneDevSpecific | +--CCiscoPhoneDevSpecificSetStatusMsgs Class Detail class CCiscoPhoneDevSpecificSetStatusMsgs:public CCiscoPhoneDevSpecific{ public: CCiscoPhoneDevSpecificSetStatusMsgs() : CCiscoPhoneDevSpecific (CPDST_SET_DEVICE_STATUS_MESSAGES) {;} virtual ~CCiscoPhoneDevSpecificSetStatusMsgs() {;} DWORD m_DevSpecificStatusMsgFlags ; // PHONE_DEVSPECIFIC // subtract virtual function table pointer virtual DWORD dwSize(void) const {return (sizeof (*this) -4) ; } } ; Parameters DWORD m_MsgType equals CPDST_SET_DEVICE_STATUS_MESSAGES. DWORD m_DevSpecificStatusMsgFlags Bit map of PHONE_DEVSPECIFIC event flag const DWORD DEVSPECIFIC_DEVICE_DATA_PASSTHROUGH_EVENT = 0x00000001; const DWORD DEVSPECIFIC_DEVICE_SOFTKEY_PRESSED_EVENT = 0x00000002; const DWORD DEVSPECIFIC_DEVICE_STATE_EVENT = 0x00000004; const DWORD DEVSPECIFIC_DEVICE_PROPERTY_CHANGED_EVENT = 0x00000008; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 398 Cisco Device-Specific Extensions Set Status Msgs

Image 1 from page 430

Page 430 content

Page 431

Set Unicode Display PhoneDevSpecificSetUnicodeDisplay sets the Unicode display on the phone. The application must open a TAPI phone device with minimum extension version 0x00060000 to use this feature. Be aware that this extension requires applications to negotiate extension version as 0x00060000. Note CCiscoPhoneDevSpecific | +--CCiscoPhoneDevSpecificSetUnicodeDisplay Class Detail { public: CCiscoPhoneDevSpecificSetUnicodeDisplay() : CCiscoPhoneDevSpecific (CPDST_SET_DEVICE_UNICODE_DISPLAY) {;} virtual ~CCiscoPhoneDevSpecificSetUnicodeDisplay() {;} DWORD dwRow; DWORD dwColumn; DWORD dwSizeOfUnicodeStr; wchar_t UnicodeDisplay[MAX_UNICODE_DISPLAY_STRING]; // subtract virtual function table pointer virtual DWORD dwSize(void) const {return (sizeof (*this) -4) ; } } ; Parameters DWORD m_MsgType Equals CPDST_SET_DEVICE_UNICODE_DISPLAY. DWORD m_dwRow Row number on the phone display where the Unicode string must be displayed DWORD m_dwColumn Column number on the phone display where the Unicode string must be displayed DWORD m_dwSizeOfUnicodeStr Size of the Unicode string wchar_t UnicodeDisplay[MAX_UNICODE_DISPLAY_STRING]; Unicode display string, with maximum size of MAX_UNICODE_DISPLAY_STRING MAX_UNICODE_DISPLAY_STRING = 100 Explicit Acquire The CCiscoPhoneDevSpecificAcquire class gets used to explicitly acquire any CTI controllable device. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 399 Cisco Device-Specific Extensions Set Unicode Display

Image 1 from page 431

Page 431 content

Page 432

If a Super-provider application needs to open any CTI-controllable device on the Cisco Unified Communications Manager system, the application should explicitly acquire that device by using the preceding interface. After successful response, it can open the device as usual. Be aware that this extension is only available if extension version 0x00070000 or higher is negotiated. Note CCiscoPhoneDevSpecific | +--CCiscoPhoneDevSpecificAcquire Class Details class CCiscoPhoneDevSpecific Acquire : public CCiscoPhoneDevSpecific{ public: CCiscoPhoneDevSpecificAcquire () : CCiscoPhoneDevSpecific (CPDST_ACQUIRE) {} virtual ~ CCiscoPhoneDevSpecificAcquire () {} char m_DeviceName[16]; virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer }; Parameters DWORD m_MsgType Equals CPDST_ACQUIRE char m_DeviceName[16] The DeviceName that needs to be explicitly acquired. Explicit Deacquire The CCiscoPhoneDevSpecificDeacquire class gets used to explicitly de-acquire an explicitly acquired device. If a SuperProvider application explicitly acquired any CTI-controllable device on the Unified Communications Manager system, the application should explicitly de-acquire that device by using this interface. Be aware that this extension is only available if extension version 0x00070000 or higher is negotiated. Note CCiscoPhoneDevSpecific | +--CCiscoPhoneDevSpecificDeacquire Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 400 Cisco Device-Specific Extensions Class Details

Image 1 from page 432

Page 432 diagram

Page 433

Class Details class CCiscoPhoneDevSpecificDeacquire : public CCiscoPhoneDevSpecific{ public: CCiscoPhoneDevSpecificDeacquire () : CCiscoPhoneDevSpecific (CPDST_ACQUIRE) {} virtual ~ CCiscoPhoneDevSpecificDeacquire () {} char m_DeviceName[16]; virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer }; Parameters DWORD m_MsgType Equals CPDST_DEACQUIRE char m_DeviceName[16] The DeviceName that needs to be explicitly de-acquired. Request Call RTP Snapshot The CCiscoPhoneDevSpecificGetRTPSnapshot class gets used to request Call RTP snapshot event from the device. There will be LineCallDevSpecific event for each call on the device. Be aware that this extension is only available if extension version 0x00070000 or higher is negotiated. Note CCiscoPhoneDevSpecific | +--CCiscoPhoneDevSpecificGetRTPSnapshot Class Details class CCiscoPhoneDevSpecificGetRTPSnapshot: public CCiscoPhoneDevSpecific{ public: CCiscoPhoneDevSpecificGetRTPSnapshot () : CCiscoPhoneDevSpecific (CPDST_REQUEST_RTP_SNAPSHOT_INFO) {} virtual ~ CCiscoPhoneDevSpecificGetRTPSnapshot () {} char m_DeviceName[16]; virtual DWORD dwSize(void) const {return sizeof(*this)-4;} // subtract out the virtual function table pointer }; Parameters DWORD m_MsgType Equals CPDST_DEACQUIRE Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 401 Cisco Device-Specific Extensions Class Details

Image 1 from page 433

Page 433 content

Page 434

char m_DeviceName[16] The DeviceName that needs to be explicitly de-acquired. Hunt Group Login Status CCiscoPhoneDevSpecificSetHuntGroupLoginStatus is added in LineDevSpecificMsg.h. This class allows the application to set the HuntGroup Login Status of the device to login or logout. { | CCiscoPhoneDevSpecificSetHuntGroupLoginStatus } Class Detail class CCiscoPhoneDevSpecificSetHuntGroupLoginStatus: public CCiscoPhoneDevSpecific { public: CCiscoPhoneDevSpecificSetHuntGroupLoginStatus () : CCiscoPhoneDevSpecific(CPDST_REQUEST_DEVICE_HUNTGROUP_LOGIN_STATUS) { } virtual ~CCiscoPhoneDevSpecificSetHuntGroupLoginStatus() { ; } CiscoDeviceHuntGroupLoginStatus m_HuntGroupLoginStatus; virtual DWORD dwSize(void) const { return (sizeof(this) - sizeof(void)); } }; The request is sent by the application with CPDST_REQUEST_DEVICE_HUNTGROUP_LOGIN_STATUS message type. enum CiscoPhoneDevSpecificType. { | +- CPDST_REQUEST_DEVICE_HUNTGROUP_LOGIN_STATUS } Parameter CiscoDeviceHuntGroupLoginStatus m_HuntGroupLoginStatus is an enumeration. Enumeration The following enumeration is added to the LineDevSpecifcMsg.h: enum CiscoDeviceHuntGroupLoginStatus { CiscoDeviceHuntGroupLoginStatus_NotApplicable = 0, CiscoDeviceHuntGroupLoginStatus_Login = 1, CiscoDeviceHuntGroupLoginStatus_Logout = 2 }; where: • CiscoDeviceHuntGroupLoginStatus_NotApplicable is for devices which do not support Hunt Groups. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 402 Cisco Device-Specific Extensions Hunt Group Login Status

Page 434 content

Page 435

• CiscoDeviceHuntGroupLoginStatus_Login is to set the Hunt Group Login Status to Login. • CiscoDeviceHuntGroupLoginStatus_Logout is to set the Hunt Group Login Status to Logout Redirect Enhancement A new message type is added in LineDevSpecific message: CciscoLineDevSpecificRedirectEx : SLDST_REDIRECT_EX, This message type contains the new RedirectDeviceName field. CCiscoLineDevSpecificRedirectEx enables an application to redirect calls. The following is the structure of CciscoLineDevSpecific: CCiscoLineDevSpecific +-- CCiscoLineDevSpecificRedirectEx Class Details class CCiscoLineDevSpecificRedirectEx: public CCiscoLineDevSpecific { public: CCiscoLineDevSpecificRedirectEx () : CCiscoLineDevSpecific(SLDST_REDIRECT_EX) { } virtual ~ CCiscoLineDevSpecificRedirectEx () { } DWORD m_RedirectBitMask; CiscoDoNotDisturbFeaturePriority FeaturePriority; char m_DestDirn[MAX_DESTINATION_DIRECTORY_NUMBER]; char m_SetOriginalCalledTo[MAX_DEVICE_SIZE]; char m_FAC[MAX_FAC_CMC_DIGITS]; char m_CMC[MAX_FAC_CMC_DIGITS]; char m_RedirectDeviceName[MAX_DEVICE_SIZE]; DWORD m_ApplicationXMLDataSize; TCHAR m_ApplicationXMLData[MAX_XML_DATA_SIZE]; CiscoCallingSearchSpace m_callingSearchSpace; virtual DWORD dwSize(void) const { return sizeof(this) - sizeof(void); } // subtract out the virtual function table pointer }; Parameters DWORD m_RedirectBitMask This bit mask field indicates which fields in CciscoLineRedirectEx class are valid and used by applications. Following is the Enum Definition which is used to update this bitmask field: enum RedirectInfoBitMask { RedirectInfo_None = 0x00000000, RedirectInfoSetOriginalCalledTo = 0x00000001, RedirectInfo_FAC= 0x00000002, RedirectInfo_CMC= 0x00000004, RedirectInfo_RedirectDeviceName = 0x00000008, RedirectInfo_CallingSearchSpace = 0x00000010, Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 403 Cisco Device-Specific Extensions Redirect Enhancement

Page 435 content

Page 436

RedirectInfo_ApplicationXMLData = 0x00000020 }; CiscoCallingSearchSpace m_callingSearchSpace: typedef enum { CiscoCallingSearchSpace_Default = 0, CiscoCallingSearchSpace_CallingParty = 1, CiscoCallingSearchSpace_RedirectingParty = 2 } CiscoCallingSearchSpace; where CiscoCallingSearchSpace_Default is to use CSS of party being redirected, CiscoCallingSearchSpace_CallingParty is to use CSS of party being redirected i.e calling party after redirect CiscoCallingSearchSpace_RedirectingParty is to use CSS of redirecting party. CiscoDoNotDisturbFeaturePriority FeaturePriority; Feature priority is introduced and defined in the enum type for making calls or redirecting existing calls. The following enum defines the priority as: { CallPriority_NORMAL = 1 CallPriority_URGENT = 2 CallPriority_EMERGENCY = 3 }; char m_DestDirn[MAX_DESTINATION_DIRECTORY_NUMBER]; Indicates the destination address where the call needs to be redirected. char m_SetOriginalCalledTo[MAX_DEVICE_SIZE]; Indicates the DN to which the OriginalCalledParty needs to be set. char m_FAC[MAX_FAC_CMC_DIGITS]; Indicates the FAC digits. If the application does not want to pass any FAC digits, it can set this parameter to a NULL string. char m_CMC[MAX_FAC_CMC_DIGITS]; Indicates the CMC digits. If the application does not want to pass any FAC digits, it can set this parameter to a NULL string. char m_RedirectDeviceName[MAX_DEVICE_SIZE]; Indicates the name of the device for which call needs to be redirected to. DWORD m_ApplicationXMLDataSize; Indicates the size of the xml data that application sends to the call manager. TCHAR m_ApplicationXMLData[MAX_XML_DATA_SIZE]; Indicates the content of the xml data. Applications are allowed to send the xml data within the range of 0 to 10000 characters. CiscoCallingSearchSpace m_callingSearchSpace; Indicates the calling search space which applications can set to the css of calling party or that of redirecting party, while doing a redirect. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 404 Cisco Device-Specific Extensions Parameters

Page 436 content

Page 437

Constants #define MAX_DEVICE_SIZE 49 #define MAX_DESTINATION_DIRECTORY_NUMBER 49 #define MAX_XML_DATA_SIZE 10000 Phone State Event When the capability of the device changes, a PHONE_STATE event is fired with an indication of what is changed. Parameters PHONE_STATE dwParam1 - PHONE_STATE dwParam2 - PHONESTATE_CAPSCHANGE (0x00040000) dwParam3 - CiscoPhoneCapsDevSpecificStatus - PHONECAPS_DEVSPECIFIC_HUNTGROUP_LOGIN_STATUS(0x00000001) dwParam4 - updated value of HuntGroup Login Status of the device The following enumerator is added: enum CiscoPhoneCapsDevSpecificStatus { PHONECAPS_DEVSPECIFIC_HUNTGROUP_LOGIN_STATUS = 0x00000001 }; where PHONECAPS_DEVSPECIFIC_HUNTGROUP_LOGIN_STATUS will notify the application about the successful change in the HuntGroup Login status of the device. Messages This section describes the line device specific messages that the Cisco Unified TSP supports. An application receives nonstandard TAPI messages in the following LINE_DEVSPECIFIC messages: • A message to signal when to stop and start streaming RTP audio. • A message that contains the call handle of active calls when the application starts up. • A message that indicates to set the RTP parameters based on the data of the message. • A message that indicates secure media status. The message type represents an enumerated integer with the following values: enum CiscoLineDevSpecificMsgType{ SLDSMT_START_TRANSMISION = 1, SLDSMT_STOP_TRANSMISION, SLDSMT_START_RECEPTION, SLDSMT_STOP_RECEPTION, Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 405 Cisco Device-Specific Extensions Constants

Page 437 content

Page 438

SLDST_LINE_EXISTING_CALL, SLDSMT_OPEN_LOGICAL_CHANNEL, SLDSMT_CALL_TONE_CHANGED, SLDSMT_LINECALLINFO_ DEVSPECIFICDATA, SLDSMT_HOLD_REVERSION, SLDSMT_LINE_PROPERTY_CHANGED, SLDSMT_MONITORING_STARTED, SLDSMT_MONITORING_ENDED, SLDSMT_RECORDING_STARTED, SLDSMT_RECORDING_ENDED, SLDSMT_NUM_TYPE, SLDSMT_IP_ADDRESSING_MODE_CHANGED, SLDSMT_START_TRANSMISION_ADDRESSING_MODE, SLDSMT_START_RECEPTION_ADDRESSING_MODE, SLDSMT_DEVICE_STATE, SLDSMT_MONITORING_TERMINATED, SLDSMT_MEDIA_TO_BIB_STARTED, SLDSMT_MEDIA_TO_BIB_ENDED, SLDSMT_MONITORING_MODE_UPDATED, SLDSMT_RTP_GET_IP_PORT SLDSMT_MULTIMEDIA_STREAMSDATA, SLDSMT_ANNOUNCEMENT_STARTED, SLDSMT_ANNOUNCEMENT_ENDED, SLDSMT_RECORDING_FAILED }; Announcement Events SLDSMT_ANNOUNCEMENT_STARTED When an announcement starts, the SLDSMT_ANNOUNCEMENT_STARTED message is sent to the application. The format of the parameters follows: LINE_DEVSPECIFIC hDevice -TAPI call handle dwParam1 - SLDSMT_ANNOUNCEMENT_STARTED dwParam2 -unused dwParam3 -unused SLDSMT_ANNOUNCEMENT_ENDED When an announcement ends, the SLDSMT_ANNOUNCEMENT_ENDED message is sent to the application. If the announcement does not play, the application analyzes the cause code parameter to verify whether the announcement was successful and the failure reason. The format of the parameters follows: LINE_DEVSPECIFIC hDevice -TAPI call handle dwParam1 - SLDSMT_ANNOUNCEMENT_ENDED dwParam2 -result (0 or error code in case of failure) dwParam3 -unused Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 406 Cisco Device-Specific Extensions Announcement Events

Page 438 content

Page 439

SLDSMT_RECORDING_FAILED An SLDSMT_RECORDING_FAILED is generated to the application when a recording is unable to restart after being interrupted. The application must then restart the recording. The format of the parameters follows: LINE_DEVSPECIFIC hDevice -TAPI call handle dwParam1 -SLDSMT_RECORDING_FAILED (0x1C) dwParam2 -cause code for failure dwParam3 -unused Start Transmission Events SLDSMT_START_TRANSMISION When a message is received, the RTP stream transmission starts and: • dwParam2 specifies the network byte order IP address of the remote machine to which the RTP stream should be directed. • dwParam3, specifies the high-order word that is the network byte order IP port of the remote machine to which the RTP stream should be directed. • dwParam3, specifies the low-order word that is the packet size, in milliseconds, to use. The application receives these messages to signal when to start streaming RTP audio. At extension version 1.0 (0x00010000), the parameters have the following format: • dwParam1 contains the message type. • dwParam2 contains the IP address of the remote machine. • dwParam3 contains the network byte order IP port of the remote machine to which the RTP stream should be directed in the high-order word and the packet size in milliseconds in the low-order word. At extension version 2.0 (0x00020000), start transmission uses the following format: • dwParam1:from highest order bit to lowest • First two bits blank • Precedence value 3 bits • Maximum frames per packet 8 bits • G723 bit rate 2 bits • Silence suppression value 1 bit • Compression type 8 bits • Message type 8 bits • dwParam2 contains the IP address of the remote machine Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 407 Cisco Device-Specific Extensions Start Transmission Events

Page 439 content

Page 440

• dwParam3 contains the network byte order IP port of the remote machine to which the RTP stream should be directed in the high-order word and the packet size in milliseconds in the low-order word. At extension version 4.0 (0x00040000), start transmission has the following format: • hCall – The call of the Start Transmission event • dwParam1:from highest order bit to lowest • First two bits blank • Precedence value 3 bits • Maximum frames per packet 8 bits • G723 bit rate 2 bits • Silence suppression value 1 bit • Compression type 8 bits • Message type 8 bits • dwParam2 contains the IP address of the remote machine • dwParam3 contains the network byte order IP port of the remote machine to which the RTP stream should be directed in the high-order word and the packet size in milliseconds in the low-order word. Start Reception Events SLDSMT_START_RECEPTION When a message is received, the RTP stream reception starts and: • dwParam2 specifies the network byte order IP address of the local machine to use. • dwParam3, specifies the high-order word that is the network byte order IP port to use. • dwParam3, specifies the low-order high-order word that is the packet size, in milliseconds, to use. When a message is received, the RTP stream reception should commence. At extension version 1, the parameters have the following format: • dwParam1 contains the message type. • dwParam2 contains the IP address of the remote machine. • dwParam3 contains the network byte order IP port of the remote machine to which the RTP stream should be directed in the high-order word and the packet size in milliseconds in the low-order word. At extension version 2 start reception uses the following format: • dwParam1:from highest order bit to lowest • First 13 bits blank • G723 bit rate 2 bits Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 408 Cisco Device-Specific Extensions Start Reception Events

Page 440 content

Page 441

• Silence suppression value 1 bit • Compression type 8 bits • Message type 8 bits • dwParam2 contains the IP address of the remote machine • dwParam3 contains the network byte order IP port of the remote machine to which the RTP stream should be directed in the high-order word and the packet size in milliseconds in the low-order word. At extension version 4.0 (0x00040000), start reception uses the following format: • hCall – The call of the Start Reception event • dwParam1:from highest order bit to lowest • First 13 bits blank • G723 bit rate 2 bits • Silence suppression value 1 bit • Compression type 8 bits • Message type 8 bits • dwParam2 contains the IP address of the remote machine • dwParam3 contains the network byte order IP port of the remote machine to which the RTP stream should be directed in the high-order word and the packet size in milliseconds in the low-order word. Stop Transmission Events SLDSMT_STOP_TRANSMISION When a message is received, transmission of the streaming should stop. At extension version 1.0 (0x00010000), stop transmission uses the following format: • dwParam1 – Message type At extension version 4.0 (0x00040000), stop transmission uses the following format: • hCall – The call for which the Stop Transmission event applies. • dwParam1 – Message type Stop Reception Events SLDSMT_STOP_RECEPTION When a message is received, reception of the streaming should stop. At extension version 1.0 (0x00010000), stop reception uses the following format: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 409 Cisco Device-Specific Extensions Stop Transmission Events

Page 441 content

Page 442

• dwParam1 -message type At extension version 4.0 (0x00040000), stop reception uses the following format: • hCall – The call for which the Stop Reception event applies. • dwParam1 – Message type Existing Call Events SLDST_LINE_EXISTING_CALL These events inform the application of existing calls in the PBX when it starts up. The format of the parameters follows: • dwParam1 – Message type • dwParam2 – Call object • dwParam3 – TAPI call handle Open Logical Channel Events SLDSMT_OPEN_LOGICAL_CHANNEL When a call has media established at a CTI Port or Route Point that is registered for Dynamic Port Registration, receipt of this message indicates that an IP address and UDP port number need to be set for the call. This extension is only available if extension version 0x00040000 or higher gets negotiated. Note The following format of the parameters applies: • hCall -The call for which the Open Logical Channel event applies • dwParam1 – Message type • dwParam2 – Compression Type • dwParam3 – Packet size in milliseconds At extension version 9.0 (0x00090000), start transmission has the following format: • hCall -The call the Open Logical Channel event is for • dwParam1: from highest order bit to lowest • First eight bits blank • Maximum frames per packet 8 bits • Compression type 8 bits • Message type 8 bits Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 410 Cisco Device-Specific Extensions Existing Call Events

Image 1 from page 442

Page 442 content

Page 443

• dwParam2 contains the IP addressing mode • dwParam3: Packet size in milliseconds At extension version B.0 (0x000B0000), Open Logical channel has the following format: • hCall -The call the Open Logical Channel event is for • dwParam1: from highest order bit to lowest • First sixteen bits blank • Compression type 8 bits • Message type 8 bits • dwParam2: from highest order bit to lowest • First twenty three bits blank • SetRTPInfo (twenty fourth bit from MSB/ninth bit from LSB) • IP addressing mode 8 bits • dwParam3: Packet size in milliseconds LINECALLINFO_DEVSPECIFICDATA Events SLDSMT_LINECALLINFO_ DEVSPECIFICDATA This message indicates that the DEVSPECIFICDATA information is changed in the DEVSPECIFIC portion of the LINECALLINFO structure for the different fields. The fields are only available if the negotiated version contains support for the particular feature. Note The following format applies for the parameters: • hCall -The call handle • dwParam1 -Message type • dwParam2 SLDST_SRTP_INFO | SLDST_QOS_INFO |SLDST_PARTITION_INFO | SLDST_EXTENDED_CALL_INFO | SLDST_CALL_ATTRIBUTE_INFO|SLDST_CCM_CALLID| SLDST_CALL_SECURITY_STATUS | SLDST_NUMBER_TYPE_CHANGED | SLDST_GLOBALIZED_CALLING_PARTY_CHANGED | SLDST_FAR_END_IP_ADDRESS_CHANGED | SLDST_UNIQUE_CALL_REF_ID_INFO SLDST_DEVICE_VIDEO_CAP_INFO | SLDST_MULTIMEDIA_STREAMS_INFO The bit mask values follow: 0x00000001 SLDST_SRTP_INFO 0x00000002 SLDST_QOS_INFO Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 411 Cisco Device-Specific Extensions LINECALLINFO_DEVSPECIFICDATA Events

Image 1 from page 443

Page 443 diagram

Page 444

0x00000004 SLDST_PARTITION_INFO 0x00000008 SLDST_EXTENDED_CALL_INFO 0x00000010 SLDST_CALL_ATTRIBUTE_INFO 0x00000020 SLDST_CCM_CALL_ID 0x00000040 SLDST_SECURITY_STATUS_INFO 0x00000080 SLDST_NUMBER_TYPE_CHANGED 0x00000100 SLDST_GLOBALIZED_CALLING_PARTY_CHANGED 0x00000200 SLDST_FAR_END_IP_ADDRESS_CHANGED 0x00000400 SLDST_UNIQUE_CALL_REF_ID_INFO 0x00000800 SLDST_DEVICE_VIDEO_CAP_INFO 0x00001000 SLDST_MULTIMEDIA_STREAMS_INFO For example, if there are changes in SRTP and QoS but not in Partition, then both the SLDST_SRTP_INFO and SLDST_QOS_INFO bits are set. The value for dwParam2 = SLDST_SRTP_INFO | SLDST_QOS_INFO = 0x00000011 • dwParam3 -If a change occurs in the SRTP information, then this field contains the CiscoSecurityIndicator. enum CiscoSecurityIndicator { SRTP_MEDIA_ENCRYPT_KEYS_AVAILABLE, SRTP_MEDIA_ENCRYPT_USER_NOT_AUTH, SRTP_MEDIA_ENCRYPT_KEYS_UNAVAILABLE, SRTP_MEDIA_NOT_ENCRYPTED }; dwParam3 is used when dwParam2 has the SRTP bit mask set. Note Call Tone Changed Events SLDSMT_CALL_TONE_CHANGED When a tone change occurs on a call, receipt of this message indicates the tone and the feature that caused the tone change. Be aware that this extension is only available if extension version 0x00050000 or higher is negotiated. In the Cisco Unified TSP 4.1 release and later, this event only gets sent for Call Tone Changed Events where the tone equals CTONE_ZIPZIP and the tone gets generated as a result of the FAC/CMC feature. Note Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 412 Cisco Device-Specific Extensions Call Tone Changed Events

Image 1 from page 444

Page 444 diagram

Page 445

The format of the parameters follows: • hCall—The call for which the Call Tone Changed event applies • dwParam—Message type • dwParam2—CTONE_ZIPZIP, 0x31 (Zip Zip tone), CTONE_ZIP, 0x32 (Zip tone) • dwParam3—If dwParam2 is CTONE_ZIPZIP, this parameter contains a bitmask with the following possible values: • CZIPZIP_FACREQUIRED—If this bit is set, it indicates that a FAC is required. • CZIPZIP_CMCREQUIRED—If this bit is set, it indicates that a CMC is required. • If dwParam2 is CTONE_ZIP, this parameter contains direction mode with the following possible values: 0 -Tone is played at local End 1 -Tone is played at Remote End For a DN that requires both codes, the first event always applies for the FAC and CMC code. The application optionally can send both codes separated by # in the same request. The second event generation remains optional based on what the application sends in the first request. Note Line Property Changed Events SLDSMT_LINE_PROPERTY_CHANGED When a line property is changed, a LINEDEVSPECIFIC event is fired with indication of the changes. This extension is available only if extension version 0x00080000 or higher is negotiated. Note The format of the parameters follows: dwParam1 -Message type dwParam2 -indication type -CiscoLinePropertyChangeType enum CiscoLinePropertyChangeType { LPCT_INTERCOM_LINE

0x00000001, LPCT_RECORDING_TYPE

0x00000002, LPCT_MAX_CALLS

0x00000004, LPCT_BUSY_TRIGGER

0x00000008, LPCT_LINE_INSTANCE

0x00000010, LPCT_LINE_LABEL

0x00000020, LPCT_VOICEMAIL_PILOT

0x00000040, LPCT_DEVICE_IPADDRESS

0x00000080, LPCT_NEWCALL_ROLLOVER

0x00000100, LPCT_CONSULTCALL_ROLLOVER

0x00000200, Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 413 Cisco Device-Specific Extensions Line Property Changed Events

Image 1 from page 445

Page 445 content

Page 446

LPCT_JOIN_ON_SAME_LINE

0x00000400, LPCT_JOIN_ACROSS_LINE

0x00000800, LPCT_DIRECTTRANSFER_ON_SAME_LINE

0x00001000, LPCT_DIRECTTRANSFER_ACROSS_LINE

0x00002000 }; dwParam3 -default = 0, In case, dwParam2 = LPCT_INTERCOM_LINE, dwParam3 is the result of the change Enum CiscoIntercomLineChangeResult { IntercomSettingChange_successful = 0; IntercomSettingRestorationFail = 1 } If dwParam2 = LPCT_RECORDING_TYPE, dwParam3 will have a new Recording Type: enum recordType { RecordType_NoRecording = 0, RecordType_AutomaticRecording = 1, RecordType_ApplicationInvokedCallRecording = 2, RecordType_DeviceInvokedCallRecording = 3 }; Phone Property Changed Events CPDSMT_PHONE_PROPERTY_CHANGED_EVENT When a Phone property is changed, a PHONE_DEVSPECIFIC event is fired with indication of what has been changed. The following format of the parameters applies: dwParam1 – SLDSMT_LINE_PROPERTY_CHANGED (0x04) dwParam2 – indication type – CiscoLinePropertyChangeType dwParam3 – updated based on dwParam2 (LinePropertyChangeType) CiscoPhonePropertyChangeType enum CiscoPhonePropertyChangeType { PPCT_DEVICE_IPADDRESS = 0x00000001, PPCT_NEWCALL_ROLLOVER = 0x00000002, PPCT_CONSULTCALL_ROLLOVER = 0x00000004, PPCT_JOIN_ON_SAME_LINE = 0x00000008, PPCT_JOIN_ACROSS_LINE = 0x00000010, PPCT_DIRECTTRANSFER_ON_SAME_LINE = 0x00000020, PPCT_DIRECTTRANSFER_ACROSS_LINE = 0x00000040, PPCT_DEVICE_MULTIMEDIACAP_INFO = 0x00000080, PPCT_DEVICE_HUNTGROUP_LOGIN_INFO = 0x00000090, }; PPCT_DEVICE_MULTIMEDIACAP_INFO Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 414 Cisco Device-Specific Extensions Phone Property Changed Events

Page 446 content

Page 447

Indicates or notifies application that Device Multi Media Capability Information on the Line/Device has changed. PPCT_DEVICE_HUNTGROUP_LOGIN_INFO Indicates or notifies application that DeviceHuntGroup Login Status of the device has been changed. Monitoring Started Event SLDSMT_MONITORING_STARTED When monitoring starts on a particular call, this event is triggered for the monitored call to inform the application. This event is available only if extension version 0x00080000 or higher is negotiated. Note The format of the parameters follows: • dwParam1—Message type • dwParam2—0 • dwParam3—0 Monitoring Ended Event SLDSMT_MONITORING_ENDED When monitoring is stopped for a particular call, this event is triggered for the monitored call to inform the application. This event is available only if extension version 0x00080000 or higher is negotiated. Note The format of the parameters follows: • dwParam1—Message type • dwParam2—Reason code • dwParam3—0 Recording Started Event SLDSMT_RECORDING _STARTED When recording starts on a particular call, this event is triggered to inform the same to the application. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 415 Cisco Device-Specific Extensions Monitoring Started Event

Image 1 from page 447

Page 447 content

Page 448

This event is available only if extension version 0x00080000 or higher is negotiated. Note The format of the parameters follows: • dwParam1—Message type • dwParam2—0 • dwParam3—0 Recording Ended Event SLDSMT_RECORDING _ENDED When recording is stopped on a particular call, this event is triggered to inform the same to the application. This event is available only if extension version 0x00080000 or higher is negotiated. Note The format of the parameters follows: • dwParam1—Message type • dwParam2—Reason code • dwParam3—0 Recording Failure Event SLDSMT_RECORDING_FAILED When a recording is started and another feature can cause the recording to stop and start again. If the recording does not restart, an SLDSMT_RECORDING_FAILED message is generated to the application. The application then restarts the recording. The format of the parameters follows: • LINE_DEVSPECIFIC • hDevice -TAPI call handle • dwParam1 - SLDSMT_RECORDING_FAILED (0x1C) • dwParam2 -cause code for failure • dwParam3 -unused Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 416 Cisco Device-Specific Extensions Recording Ended Event

Image 1 from page 448

Page 448 content

Page 449

Silent Monitoring Session Terminated Event SLDSMT_MONITORING_TERMINATED When Monitoring Session is toned down as security capabilities of the supervisor do not meet or exceed the capabilities of agent, this event is fired on the supervisor to inform the same to the application. This event is only available if extension version 0x000A0000 or higher is negotiated. Note The format of the parameters follows: • dwParam1 – Message type -SLDSMT_MONITORING_TERMINATED • dwParam2 – TransactionID – which is unique for the Monitoring session • dwParam3 – New Cause Code -LINEDISCONNECTMODE_INCOMPATIBLE Media to BIB Started Event SLDSMT_MEDIA_TO_BIB_STARTED This event indicates that agent greeting call has been successfully set up. This event is only available if extension version 0x000B0000 or higher is negotiated. Note The format of the parameters follows: • dwParam1 – Message type -SLDSMT_MEDIA_TO_BIB_STARTED • dwParam2 – reserved (0) • dwParam3 – reserved (0) Media to BIB Ended Event SLDSMT_MEDIA_TO_BIB_ENDED This event indicates that the agent greeting has ended. This event is only available if extension version 0x000B0000 or higher is negotiated. Note The format of the parameters follows: • dwParam1 – Message type -SLDSMT_MEDIA_TO_BIB_ENDED • dwParam2 – result code: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 417 Cisco Device-Specific Extensions Silent Monitoring Session Terminated Event

Image 1 from page 449

Page 449 content

Page 450

• non 0: Agent Greeting was successfully played • 0: Agent Greeting was not successfully played dwParam3 – result code Get IP and Port Event SLDSMT_RTP_GET_IP_PORT This event indicates that the application has to set the RTP Port and IP information using existing SetRTP devspecific Extension. The application has to set the RTP information only for Dynamically Registered CTI Ports or Route Points and for static Registered CTI Ports, application has to open the port used for registration. This event is available only if extension version 0x000B0000 or higher is negotiated. Note The format of the parameters follows: • dwParam1 – Message type -SLDSMT_RTP_GET_IP_PORT • dwParam2 – IP Addressing Capability (from highest order bit to lowest) • First twenty three bits blank • SetRTPInfo (twenty fourth bit from MSB or ninth bit from LSB) • IP addressing mode 8 bits • dwParam3 – reserved (0) MultiMedia Streams Data Notification Event SLDSMT_MULTIMEDIA_STREAMSDATA When MultiMediaStreams Data Information is changed on a Call, SLDSMT_MULTIMEDIA_STREAMSDATA message is sent to the application. The format of the parameters follows: LINE_DEVSPECIFIC hDevice – TAPI call handle dwParam1 – SLDSMT_MULTIMEDIA_STREAMSDATA dwParam2 – unused dwParam3 – unused Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 418 Cisco Device-Specific Extensions Get IP and Port Event

Image 1 from page 450

Page 450 content

Page 451

Monitor Mode Update Event SLDSMT_MONITORING_MODE_UPDATED This event indicates that the monitoring mode has been successfully updated to the value in dwParam1 and is sent to active supervisor and agent lines. This event is available only if extension version 0x000B0000 or higher is negotiated. Note The format of the parameters follows: • dwParam1 – Message type -SLDSMT_MONITORING_MODE_UPDATED • dwParam2 – monitoring mode enum { MonitorMode_Silent = 1, MonitorMode_Whisper = 2, MonitorMode_Active = 3 // Not currently used } MonitorMode; • dwParam3 – active tone direction enum { PlayToneDirection_NoLocalOrRemote = 0, PlayToneDirection_LocalOnly, PlayToneDirection_RemoteOnly, PlayToneDirection_BothLocalAndRemote } PlayToneDirection Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 419 Cisco Device-Specific Extensions Monitor Mode Update Event

Image 1 from page 451

Page 451 content

Page 452

Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 420 Cisco Device-Specific Extensions Monitor Mode Update Event

Page 452 content

Page 453

C H A P T E R 7 Cisco TSP Media Driver Cisco Media Driver introduces a new and innovative way for TAPI-based applications to provide media interaction such as play announcements, record calls, and so on. Cisco TSP 8.0(1) includes support for both Cisco Media Driver and Cisco Wave Driver, but only one driver can be active at any given time. From Release 11.5(1) onwards, Cisco Media Driver is deprecated. Important Cisco Media Driver offers several advantages: • Simplified Installation and Management—Cisco Media Driver configuration can be completed through the Cisco TSP Installation Wizard. Channel and port settings are consistently and automatically applied to all configured TSP instances. • Performance and Scalability—Cisco Media Driver can scale to support up to 1000 configured ports with hundreds of simultaneously active media channels. Refer to the application vendor's Installation Guide to determine the number of channels supported by the TAPI application. • Codec Support—Cisco Media Driver supports 8KHz, 16-bit PCM, G.711 a-law, G.711 u-law natively. Additionally, G.729a can be supported when pass-through mode is enabled. • Reliability—Cisco Media Driver runs as an independent process, similar to Windows applications, providing greater application stability and reliability. Creating and debugging media applications is now much easier. • Cisco Rtp Library Components, on page 422 • TAPI Application Support, on page 423 • EpAPI Functions, on page 426 • EpApi Error Codes, on page 441 • Callback Function, on page 442 • Data Structures, on page 443 • Trace Options, on page 445 • Known Problems or Limitations, on page 446 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 421

Image 1 from page 453

Page 453 content

Page 454

Cisco Rtp Library Components Header Files The following header files contain declaration of all functions, data structures, and so on exposed by the Cisco Rtp Library. • ciscortpapi.h • ciscortpbase.h • ciscortpcbcs.h • ciscortpcodec.h • ciscortperr.h • ciscortpep.h • ciscortpip.h To use Cisco Rtp Library functionality a typical application would only need to explicitly include ciscortpapi.h and ciscortpep.h files. Import Library The following import library has to be linked with an application to use Cisco Rtp Library functionality: • cmrtplib.lib DLLs The following DLLs are installed as a part of the CiscoTSP plug-in and used by Cisco Rtp Library: Windows 64-bit OS (x64): • ciscortplib64.dll • ciscortpmon64.dll • ciscortpg711a64.dll • ciscortpg711u64.dll • ciscortpg72964.dll • ciscortppcm1664.dll Windows 32-bit OS (x86): From Release 14SU5 onwards, the following Windows 32-bit DLLs are no longer supported: Important • ciscortplib.dll Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 422 Cisco TSP Media Driver Cisco Rtp Library Components

Page 454 content

Page 455

• ciscortpmon.dll • ciscortpg711a.dll • ciscortpg711u.dll • ciscortpg729.dll • ciscortppcm16.dll TAPI Application Support CiscoTSP and Cisco Rtp Library Interaction In order to allow TAPI applications to associate TAPI line device with Rtp Library media endpoints Cisco TSP implements two new device classes: ciscowave/in and ciscowave/out. If TAPI line device is capable to terminate media by means of Cisco Rtp Library, an application can use ciscowave/in and ciscowave/out device class names in the TAPI lineGetID() function to obtain associated media device identifiers. Media device identifier can be used in Cisco Rtp Library APIs to create media endpoints and manipulate media on a corresponding TAPI line device. The following figure shows high level view of TAPI application which uses Cisco TAPI service provider and Cisco Rtp Library functionalities. Figure 32: TAPI Application with Cisco Components Codec Advertisement Cisco Media Driver devices advertise G.711 support natively. Cisco Unified CM automatically invokes Media Termination Points (MTPs) when needed to provide transcoding (see Example 1). If MTPs are not configured and transcoding is required, call setup fails (see Example 2). Example 1 1. G729PassThrough set to OFF (default). 2. TSP application registers CTI port 1. 3. CTI port 1 advertises G.711 support (default). 4. Unified CM is configured with MTPs, which can be used if transcoding is needed. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 423 Cisco TSP Media Driver TAPI Application Support

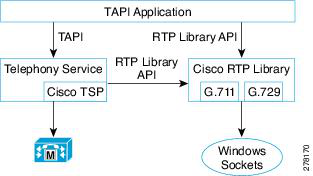

Image 1 from page 455

Page 455 content

Page 456

CTI port 1 calls Device 1000. 6. Device 1000 only supports G.729, so an MTP is inserted to provide transcoding. Example 2 1. G729PassThrough set to OFF (default). 2. TSP application registers CTI port 1. 3. CTI port 1 advertises G.711 support (default). 4. Unified CM is not configured with MTPs for transcoding. 5. CTI port 1 calls Device 1000. 6. Device 1000 only supports G.729 and no MTPs are available, so call setup fails. Applications which natively support G.729 can change the default codec advertisement by setting the G729PassThrough registry option to ON (1). The TSP application is then responsible for playing the appropriate media file (G.711 or G.729) based on the compatible codecs supported by the Device receiving the media (see Example 3 below). The Registry key can be found at: • Windows XP: HKEY_Local_Machine/Software/Cisco Systems, Inc./ RtpLib/G729PassThrough • Windows Vista: HKEY_USERS\S-1-5-20\Software\Cisco Systems, Inc.\ RtpLib\G729PassThrough Example 3 1. G729PassThrough set to ON. 2. TSP application registers CTI port 1. 3. CTI port 1 advertises G.711 and G.729 support. 4. Unified CM is not configured with MTPs for transcoding. 5. CTI port 1 calls Device 1000. 6. Device 1000 only supports G.729, so the application plays the appropriate G.729 media file. Typical TAPI Application Message Flow The message flow in the following figure is described in steps 1 and 2. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 424 Cisco TSP Media Driver Typical TAPI Application Message Flow

Page 456 content

Page 457

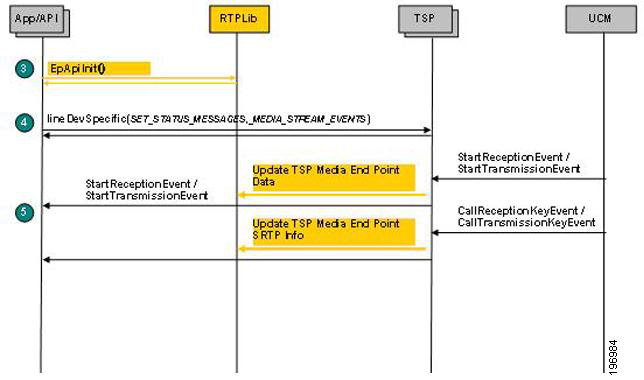

Figure 33: Typical TAPI Application Message Flow 1 1. Initialize TAPI, get LINEINFO for available line devices, find devices which are capable of using Cisco Rtp Library functionalities 2. Get media device identifier associated with a particular line device The message flow in the following figure is described in steps 3 to 5. Figure 34: Typical TAPI Application Message Flow 2 3. Initialize Rtp Library 4. Subscribe for media stream events for relevant devices using Cisco lineDevSpecific extension Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 425 Cisco TSP Media Driver Typical TAPI Application Message Flow

Image 1 from page 457

Image 2 from page 457

Page 457 content

Page 458

Start monitoring media events The message flow in following figure is described in steps 6 to 10. Figure 35: Typical TAPI Application Message Flow 3 6. Create media endpoint 7. Get in/out stream handle and start data streaming 8. Receive / transmit data 9. Stop data streaming, close endpoint 10. Close EpAPI before exiting the program EpAPI Functions EpApiInit Initializes EpApi and Rtp Library. Syntax CMAPI bool EpApiInit ( PRTPLIBTRACE pTraceCallback, USHORT portRangeStart, USHORT numPorts, int IPAddressFamily, PRTPADDR pDefaultRtpAddr ); Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 426 Cisco TSP Media Driver EpAPI Functions

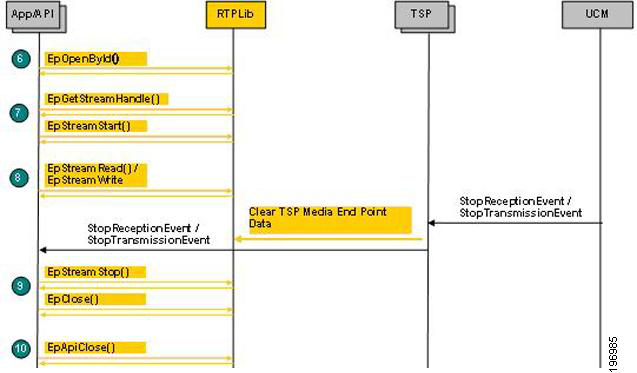

Image 1 from page 458

Page 458 content

Page 459

Parameters pTraceCallback Pointer to an application callback function to be called with the trace record data passed to it. portRangeStart First port number in the continuous range of UDP ports (port pool) which can be used to create endpoints. numPorts Number of ports in the UDP port range (port pool) which can be used to create endpoints. IPAddressFamily IP address family to be used by Rtp Library to create endpoints can be set to: • AF_UNSPEC: both AF_INET and AF_INET6 can be used. • AF_INET: AF_INET only can be used. • AF_INET6: AF_INET6 only can be used. This settings can be overwritten by the pDefaultRtpAddr parameter. pDefaultRtpAddr IP address to be used use by Rtp Library to create endpoints. If not NULL, only this address will be used. Return Value If no errors occurs, this function returns true. If an error occurs, false is returned, and a specific error code can be retrieved by calling EpApiGetLastError. Description Error code Unable to create endpoint with specified IP address family EP_ERR_ADDR_NOTAVAIL The following describes a possible cause of the error: Invalid number of UDP ports EP_ERR_PARAM_INVALID Already initialized RTP_ERR_INITALREADY Unable to create high resolution timer RTP_ERR_TIMER_NOTAVAIL Remarks An error code can be set even when EpApiInit returns true. In some cases a default action / value can be assumed even if a parameter or registry settings is invalid. In those cases EpApiInit returns true but also set a proper error code to indicate an issue. EpApiInitByDefault Initializes EpApi and Rtp Library with default settings. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 427 Cisco TSP Media Driver EpApiInitByDefault

Page 459 diagram

Page 460

Syntax CMAPI bool EpApiInitByDefault ( PRTPLIBTRACEpTraceCallback, ); Parameters pTraceCallback Pointer to an application callback function to be called with the trace record data passed to it. Return Value If no errors occurs, this function returns true. If an error occurs, false is returned, and a specific error code can be retrieved by calling EpApiGetLastError. Description Error code Already initialized RTP_ERR_INITALREADY Remarks Rtp Library will be initialized as if registry is set as follows: • UDPPortRangeStart = 50000 • UDPPortRangeEnd = 50999 EpApiClose Closes EpApi. Syntax CMAPI bool EpApiClose (); Return Value If no errors occurs, this function returns true. If an error occurs, false is returned, and a specific error code can be retrieved by calling EpApiGetLastError. Description Error code EpAPI is not initialized. EP_ERR_INIT Remarks As a result of this function execution all active sessions, connections and streams will be terminated, timers closed and all data freed. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 428 Cisco TSP Media Driver EpApiClose

Page 460 diagram

Page 461

EpLocalAddressGetAll Returns an array of RTPADDR structures which contain local IP addresses available for use by Rtp Library. Syntax CMAPI int EpLocalAddressPortGetAll( PRTPADDR pBuffer, int * pBufSize ); Parameters pBuffer Pointer to a memory buffer to fill in with array of RTPADDR structures or NULL. pBufSize • IN—Length of the buffer (in bytes), pointed to by pBuffer. • OUT—Space in the buffer used or required. Return Value If no errors occurs, this function returns a number of available local IP addresses and an array of RTPADDR structures in the pBuffer. If pBuffer parameter value is NULL, the function returns the number of available local IP addresses and the pBufSize will contain the buffer size required for the RTPADDR structure array. If an error occurs, 0 is returned and a specific error code can be retrieved by calling EpApiGetLastError. In case of EP_ERR_PARAM_INVALID error, pBufSize will contain the size of the required buffer. Description Error code EpAPI is not initialized. EP_ERR_INIT Buffer is not large enough. EP_ERR_PARAM_INVALID EpLocalAddressPortGet Reserves port from the port pool and returns it together with a local IP address. Syntax CMAPI PRTPADDR EpLocalAddressPortGet(); Return Value If no errors occurs, this function returns pointer to RTPADDR structure with the first (or default) local IP address used by Rtp Library and reserved UDP port number. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 429 Cisco TSP Media Driver EpLocalAddressGetAll

Page 461 diagram

Page 462

If an error occurs, NULL is returned and a specific error code can be retrieved by calling EpApiGetLastError. Description Error code EpAPI is not initialized. EP_ERR_INIT No UDP port available. RTP_ERR_PORT_NOTAVAIL EpLocalAddressPortGetByFamily Reserves port from the port pool and returns it alone with a local IP address for the specified family. Syntax CMAPI PRTPADDR EpLocalAddressPortGetByFamily( int IPAddressFamily ); Parameters IPAddressFamily IP address family: AF_INET or AF_INET6 Returns: Pointer to RTPADDR structure or NULL. Return Value If no errors occurs, this function returns pointer to RTPADDR structure with the first local IP address for the specified family used by Rtp Library and reserved UDP port number. If an error occurs, NULL is returned and a specific error code can be retrieved by calling EpApiGetLastError. Description Error code EpAPI is not initialized. EP_ERR_INIT No IP address available for specified family RTP_ERR_ADDR_NOTAVAIL No UDP port available. RTP_ERR_PORT_NOTAVAIL EpLocalAddressPortGetByIdx Reserves UDP port from the Rtp Library port pool and returns it in the RTPADDR data structure alone with the IP address of the network interface card specified by the index parameter. Syntax CMAPI PRTPADDR EpLocalAddrPortGetByIdx ( int index ); Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 430 Cisco TSP Media Driver EpLocalAddressPortGetByFamily

Page 462 diagram

Page 463

Parameters index Index in the list of available local network addresses returned by EpLocalAddressGetAll function call. Return Value If no error occurs, this function returns pointer to RTPADDR structure which contains local IP address and reserved UDP port number. If an error occurs, NULL is returned, and a specific error code can be retrieved by calling EpApiGetLastError. Description Error code EpAPI is not initialized. EP_ERR_INIT Invalid index value. EP_ERR_PARAM_INVALID No UDP port available. RTP_ERR_PORT_NOTAVAIL Remarks List of available local network addresses can be obtained by EpLocalAddressGetAll function call. EpLocalAddrPortFree Returns local UDP port previously reserved by EpLocalAddressGet, EpLocalAddressGetByIdx or EpLocalAddressGetByFamily back to the port pool. Syntax CMAPI bool EpLocalAddrPortFree ( PRTPADDR pLocalAddrPort ); Parameters pLocalAddrPort Pointer to RTPADDR data structure which contains port number of previously reserved local UDP port. Return Value If no error occurs, this function returns true. If an error occurs, false is returned, and a specific error code can be retrieved by calling EpApiGetLastError. Description Error code EpAPI is not initialized. EP_ERR_INIT Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 431 Cisco TSP Media Driver EpLocalAddrPortFree

Page 463 diagram

Page 464

Remarks Local UDP could is reserved by EpLocalAddressGet, EpLocalAddressGetByIdx or EpLocalAddressGetByFamily. EpOpenById Creates media endpoint based on TSP data associated with the specified media device identifier. Syntax CMAPI HANDLE EpOpenById ( DWORD deviceId, StreamDirection streamDir, PRTPDATACALLBACK pCallback ); Parameters deviceId Media device identifier obtained by calling TAPI lineGetID() for ciscowave/in or ciscowave/out device class. streamDir Stream direction. This parameter can be one of the following values: • ToApp • ToNwk • Both pCallback Pointer to an application callback function to be called when data buffer is received/sent or an error occurred. Return Value If no errors occurs, this function returns a handle which can be used to reference the endpoint. If an error occurs, NULL is returned, and a specific error code can be retrieved by calling EpApiGetLastError. Description Error code EpAPI is not initialized. EP_ERR_INIT The following describes a possible cause of the error: • Specified device identifier is invalid. • Required data associated with device identifier data is missing • Specified stream direction is invalid EP_ERR_PARAM_INVALID Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 432 Cisco TSP Media Driver EpOpenById

Page 464 diagram

Page 465

Remarks Endpoint is created based on a data associated by TSP with the deviceId. EpClose Close endpoint created by EpOpen. Syntax CMAPI bool EpClose ( HANDLE hEp ); Parameters hEp Endpoint handle returned by EpOpen. Return Value If no error occurs, this function returns true. If an error occurs, false is returned, and a specific error code can be retrieved by calling EpApiGetLastError. Description Error code EpAPI is not initialized. EP_ERR_INIT Specified endpoint handle is invalid. EP_ERR_HANDLE_INVALID EpGetStreamHandle Returns endpoint stream handle for a specified stream type and direction Syntax CMAPI HANDLE EpGetStreamHandle ( HANDLE hEp, StreamType streamType, StreamDirection streamDir ); Parameters hEp Endpoint handle returned by EpOpen. streamType Stream type. This parameter can be one of the following values: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 433 Cisco TSP Media Driver EpClose

Page 465 diagram

Page 466

• STREAM_TYPE_AUDIO • STREAM_TYPE_VIDEO streamDir Stream direction. This parameter can be one of the following values: • ToApp • ToNwk Return Value If no errors occurs, this function returns stream handle which can be used to reference the stream. If an error occurs, NULL is returned, and a specific error code can be retrieved by calling EpApiGetLastError Description Error code EpAPI is not initialized. EP_ERR_INIT Specified endpoint handle is invalid. EP_ERR_HANDLE_INVALID Specified stream type or direction is invalid. EP_ERR_PARAM_INVALID EpStreamStart Enables data flow on a specified stream Syntax CMAPI bool EpStreamStart ( HANDLE hStream, PRTPDATACALLBACK pCallback ); Parameters hStream Stream handle returned by EpGetStreamHandle. pCallback Pointer to an application callback function to be called when data buffer is received/sent or an error occurred. Return Value If no error occurs, this function returns true. If an error occurs, false is returned, and a specific error code can be retrieved by calling EpApiGetLastError. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 434 Cisco TSP Media Driver EpStreamStart

Page 466 diagram

Page 467

Description Error code EpAPI is not initialized. EP_ERR_INIT Specified endpoint handle is invalid. EP_ERR_HANDLE_INVALID Address (protocol-IPaddress-port) is already in use. EP_ERR_ADDR_INUSE Remarks EpStreamStart() should be explicitly called by an application in order to stream data flow (open socket, port). It is not done implicitly by the Rtp Library as it was done before by the Cisco kernel mode wave driver. EpStreamStop Disables data flow on a specified stream. Syntax CMAPI bool EpStreamStop ( HANDLE hStream ); Parameters hStream Stream handle returned by EpGetStreamHandle. Return Value If no errors occurs, this function returns true. If an error occurs, false is returned, and a specific error code can be retrieved by calling EpApiGetLastError. Description Error code EpAPI is not initialized. EP_ERR_INIT Specified stream handle is invalid. EP_ERR_HANDLE_INVALID Remarks EpStreamStop() should be explicitly called by an application in order to disable stream data flow. It is not done implicitly by the Rtp Library as it was done before by the Cisco kernel mode wave driver. EpStreamRead Read data from a stream. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 435 Cisco TSP Media Driver EpStreamStop

Page 467 diagram

Page 468

Syntax CMAPI bool EpStreamRead ( HANDLE hStream, PUCHAR pBuffer, int bufLen, PVOID pAppData, PRTPDATACALLBACK pCallback ); Parameters hStream Stream handle returned by EpGetStreamHandle. pBuffer Pointer to a buffer for incoming data. bufLen Buffer size. pAppData Pointer to an application data area. It will be associated with the buffer and will be passed back to the application callback function as the pAppData parameter. pCallback Pointer to an application callback function to be called when data buffer is received or an error occurred. Return Value If no errors occurs, this function returns true. If an error occurs, false is returned, and a specific error code can be retrieved by calling EpApiGetLastError. Description Error code EpAPI is not initialized. EP_ERR_INIT Specified stream handle is invalid. EP_ERR_HANDLE_INVALID EpStreamWrite Write data to a stream. Syntax CMAPI bool EpStreamWrite ( HANDLE hStream, PUCHAR pBuffer, int bufLen, PVOID pAppData, Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 436 Cisco TSP Media Driver EpStreamWrite

Page 468 diagram

Page 469

PRTPDATACALLBACK pCallback ); Parameters hStream Stream handle returned by EpGetStreamHandle. pBuffer Pointer to a buffer which contains data. bufLen Data length pAppData Pointer to an application data area. It will be associated with the buffer and will be passed back to the application callback function as the pAppData parameter. pCallback Pointer to an application callback function to be called when data buffer has been written or an error occurred. Return Value If no error occurs, this function returns true. If an error occurs, false is returned, and a specific error code can be retrieved by calling EpApiGetLastError. Description Error code EpAPI is not initialized. EP_ERR_INIT Specified stream handle is invalid. EP_ERR_HANDLE_INVALID EpStreamCodecInGet Returns stream inbound codec format information. Syntax CMAPI bool EpStreamCodecInGet ( HANDLE hStream, PWAVEFORMATEX pWaveFormat ); Parameters hStream Stream handle returned by EpGetStreamHandle. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 437 Cisco TSP Media Driver EpStreamCodecInGet

Page 469 diagram

Page 470

pWaveFormat Pointer to a WAVEFORMATEX data structure. Upon successful completion of the request this structure is filled with stream inbound codec format data. Return Value If no error occurs, this function returns true. If an error occurs, false is returned, and a specific error code can be retrieved by calling EpApiGetLastError. Description Error code EpAPI is not initialized. EP_ERR_INIT Specified stream handle is invalid. EP_ERR_HANDLE_INVALID EpStreamCodecInSet Sets stream inbound codec format. Syntax CMAPI bool EpStreamCodecInSet ( HANDLE hStream, PWAVEFORMATEX pWaveFormat, ULONG pktSizeMs ); Parameters hStream Stream handle returned by EpGetStreamHandle. pWaveFormat Pointer to a WAVEFORMATEX data structure which contains codec information. pktSizeMs Packet size in milliseconds. If value 0 (zero) is specified a default value (20) is used. Return Value If no error occurs, this function returns true. If an error occurs, false is returned, and a specific error code can be retrieved by calling EpApiGetLastError. Description Error code EpAPI is not initialized. EP_ERR_INIT Specified stream handle is invalid. EP_ERR_HANDLE_INVALID Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 438 Cisco TSP Media Driver EpStreamCodecInSet

Page 470 diagram

Page 471

EpStreamCodecOutGet Returns stream outbound codec format information. Syntax CMAPI bool EpStreamCodecOutGet ( HANDLE hStream, PWAVEFORMATEX pWaveFormat ); Parameters hStream Stream handle returned by EpGetStreamHandle. pWaveFormat Pointer to a WAVEFORMATEX data structure. Upon successful completion of the request this structure is filled with stream outbound codec format data. Return Value If no error occurs, this function returns true. If an error occurs, false is returned, and a specific error code can be retrieved by calling EpApiGetLastError. Description Error code EpAPI is not initialized. EP_ERR_INIT Specified stream handle is invalid. EP_ERR_HANDLE_INVALID EpStreamCodecOutSet Sets stream outbound codec format. Syntax CMAPI bool EpStreamCodecInSet ( HANDLE hStream, PWAVEFORMATEX pWaveFormat, ULONG pktSizeMs ); Parameters hStream Stream handle returned by EpGetStreamHandle. pWaveFormat Pointer to a WAVEFORMATEX data structure which contains codec information. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 439 Cisco TSP Media Driver EpStreamCodecOutGet

Page 471 diagram

Page 472

pktSizeMs Packet size in milliseconds. If value 0 (zero) is specified a default value (20) is used. Return Value If no error occurs, this function returns true. If an error occurs, false is returned, and a specific error code can be retrieved by calling EpApiGetLastError. Description Error code EpAPI is not initialized. EP_ERR_INIT Specified stream handle is invalid. EP_ERR_HANDLE_INVALID EpApiTraceLevelSet Sets EpApi (Rtp Library) trace level. Syntax CMAPI bool EpApiTraceLevelSet ( int traceLevel ); Parameters traceLevel Required Rtp Library trace level. This parameter can be one of the following values: Table 25: Error Codes for EpApiTraceLevelSet Description Trace level Output only error messages (reported in Windows Event Log). 0 -Error Output alarms and error messages (reported in Windows Event Log). 1 -Alarm Output warnings, alarms and error messages (reported in Windows Event Log). 2 -Warning Output informational messages, alarms, warnings, and error messages (not reported in Windows Event Log). 3 -Info Output debug information, informational messages, alarms, warnings, and error messages (not reported in Windows Event Log). 4 -Debug Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 440 Cisco TSP Media Driver EpApiTraceLevelSet

Page 472 diagram

Page 473

Return Value Current trace level. EpApiGetLastError Retrieves last-error code value. The last-error code is maintained on a per-thread basis. Syntax CMAPI int EpApiGetLastError(); Parameters This function has no parameters. Return Value The return value is the calling thread's last error code. EpApi Error Codes Most of the EpApi functions do not return a specific cause of an error when the function returns but rather set global error code value which can be retrieved by calling EpApiGetLastError function. The following list describes possible error codes returned by EpApiGetLastError function. Errors are listed in numerical order. Table 26: Error Codes for EpApi Description Return code/Value No error occurred. EP_ERR_OK 0 EpAPI is not initialized. EP_ERR_INIT 17002 Invalid parameter. EP_ERR_PARAM_INVALID 17003 Unable to create endpoint with specified IP address family EP_ERR_ADDR_NOTAVAIL 17100 Address (Protocol -IP address -port) is already in use. EP_ERR_ADDR_INUSE 17101 Invalid endpoint or stream handle. EP_ERR_HANDLE_INVALID 17102 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 441 Cisco TSP Media Driver EpApiGetLastError

Page 473 diagram

Page 474

Callback Function An application can define a callback function in order to receive information about such things as operation completions, data transfers, and errors. Callback functions can be specified when an endpoint is created, when a stream callback is opened, and when a stream callback operation is initiated. If a callback operation is not specified a corresponding stream callback is invoked, if defined. If a stream callback is not specified a corresponding callback endpoint is invoked, if defined. If the callback function is defined, it is invoked for every operation that is initiated on a corresponding stream, endpoint, etc. Consideration should be given to the case where a callback function is defined as a method in an object that is dynamically created and destroyed. In that case destruction should not occur until all initiated operations are complete. Note Endpoint Callback Syntax typedef void (WINAPI *PRTPENDPOINTCALLBACK) ( HANDLE hEp, HANDLE hStream, DWORD dwError, PUCHAR pData, DWORD dwDataSize, LPVOID pUserData, bool bIsSilence, StreamDirection streamDir ); Parameters hEp Endpoint handle hStream Rtp stream handle dwError If not 0 (zero), indicates an error pData Endpoint handle dwDataSize Number of bytes received / transferred. pUserData Application data associated with an operation. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 442 Cisco TSP Media Driver Callback Function

Image 1 from page 474

Page 474 content

Page 475

bIsSilence If set to true, indicates that silence has been detected. streamDir Stream direction. Can be one of the following: • ToApp • ToNwk Data Callback Syntax typedef void (WINAPI *PRTPDATACALLBACK) ( HANDLE hStream, DWORD dwError, PUCHAR pData, DWORD dwDataSize, LPVOID pUserData, bool bIsSilence, ); Parameters hStream Rtp stream handle dwError If not 0 (zero), indicates an error pData Endpoint handle dwDataSize Number of bytes received / transferred. pUserData Application data associated with an operation. bIsSilence If set to true, indicates that silence has been detected. Data Structures RTPADDR Basic endpoint data structure which contains all endpoint related data, such as IP address, UDP port number, etc. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 443 Cisco TSP Media Driver Data Structures

Page 475 content

Page 476

typedef struct sRTPAddrInfo { ADDRINFOT info, SOCKADDR_STORAGE addr, SOCKET sock, bool multicast, DWORD dscp, SRTPINFO2 srtp, RTPSIL silence, ULONG pktSizeMs } RTPADDR, *PRTPADDR; Where: info System defined ADDRINFOT structure addr System defined SOCKADDR_STORAGE structure sock System defined SOCKET data (bound socket) multicast If set to true, RTPADDR instance represents multicast address, otherwise unicast. dscp DSCP / QoS data srtp SRTP data silence Silence processing parameters pktSizeMs Packet size in milliseconds RTPSIL Contains silence processing related data for a specific endpoint. It uses the following SilenceType enumeration: typedef enum { Off = 0, Packets = Off + 1, Energy = Packets +1 } SilenceType; typedef struct { SilenceType type, ULONG duration, ULONG threshold, ULONG currentOffset, bool detecting } RTPSIL, *PRPTSIL; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 444 Cisco TSP Media Driver RTPSIL

Page 476 content

Page 477

Where: type Silence detection type as it is defined in SilenceType. duration Duration in milliseconds. threshold Energy threshold. currentOffset Silence offset (G.729). detecting true Silence detection enabled. RTPCODEC typedef struct { WAVEFORMATEX wfe; WORD (WINAPI *formatTag) (); WORD * (WINAPI *supported) (ULONG & nmb); ULONG (WINAPI *fmtBytesToThis) (WORD fmt, ULONG len); ULONG (WINAPI *thisBytesToFmt) (ULONG len, WORD fmt); UCHAR (WINAPI *pad) (); PXLATE xlateTo; PXLATE xlateFrom; PRTPSIL (WINAPI *silenceInit)(PRTPSIL ps, SilenceType type, ULONG duration, ULONG threshold); ULONG (WINAPI *silenceSet) (PRTPSIL, PUCHAR, ULONG); bool (WINAPI *isSilence) (PRTPSIL, ULONG pcktSizeInMs, bool & beenChanged, PUCHAR, ULONG); void (WINAPI *silenceFree)(PRTPSIL); } RTPCODEC, *PRTPCODEC; Trace Options Rtp Library have several logging options to facilitate application debugging and trouble-shooting: Reporting in the Windows Event Log Sending trace data to the OutputDebugString and can be view by any “trace listener”, for example Sysinternals DebugView Providing trace data to an application in the trace callback Trace Level Trace level specifies what messages are to be included in trace output and is defined as follows: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 445 Cisco TSP Media Driver RTPCODEC

Page 477 content

Page 478

Description Trace level Output only error messages (reported in Windows Event Log). 0 -Error Output alarms and error messages (reported in Windows Event Log). 1 -Alarm Output warnings, alarms and error messages (reported in Windows Event Log). 2 -Warning Output informational messages, alarms, warnings, and error messages (not reported in Windows Event Log). 3 -Info Output debug information, informational messages, alarms, warnings, and error messages (not reported in Windows Event Log). 4 -Debug Trace level can be set and modified with the EpApiTraceLevelSet() function. Trace Callback Function An application can set trace callback. The callback function will be invoked by Rtp Library whenever it is ready to record a trace and will be provided with the trace record data. Trace callback can be set and modified when EpApi is initialized. Trace callback function type is declared as follows: Syntax typedef void (WINAPI *PRTPLIBTRACE) ( int level, const _TCHAR *pData ); Parameters level Current trace record level. pData Pointer to the current trace record data. Known Problems or Limitations Below is the list of currently known Rtp Library problems and limitations: • CSCsy13584 – RtpLib: The only supported PCM encoding is 8k16bit, mono • There is no G.729 transcoding available Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 446 Cisco TSP Media Driver Trace Callback Function

Page 478 diagram

Page 479

C H A P T E R 8 Cisco Unified TAPI Examples This chapter provides examples that illustrate how to use the Cisco Unified TAPI implementation. This chapter includes the following subroutines: • MakeCall, on page 447 • OpenLine, on page 448 • CloseLine, on page 451 MakeCall STDMETHODIMP CTACtrl::MakeCall(BSTR destNumber, long pMakeCallReqID, long hLine, BSTR user2user, long translateAddr) { AFX_MANAGE_STATE(AfxGetStaticModuleState()) USES_CONVERSION; tracer->tracef(SDI_LEVEL_ENTRY_EXIT, "CTACtrl::Makecall %s %d %d %s %d\n", T2A((LPTSTR)destNumber), pMakeCallReqID, hLine, T2A((LPTSTR)user2user), translateAddr); //CtPhoneNo m_pno; CtTranslateOutput to; //LPCSTR pszTranslatable; CString sDialable; CString theDestNumber(destNumber); CtCall* pCall; CtLine* pLine = CtLine::FromHandle((HLINE)hLine); if (pLine = = NULL) { tracer->tracef(SDI_LEVEL_ERROR, "CTACtrl::MakeCall : pLine = = NULL\n"); return S_FALSE; } else { pCall = new CtCall(pLine); pCall->AddSink(this); sDialable = theDestNumber; if (translateAddr) { //m_pno.SetWholePhoneNo((LPCSTR)theDestNumber); //pszTranslatable = m_pno.GetTranslatable(); if (TSUCCEEDED(to.TranslateAddress(pCall->GetLine()->GetDeviceID(), Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 447

Image 1 from page 479

Page 479 content

Page 480

(LPCSTR)theDestNumber)) ) { sDialable = to.GetDialableString(); } } TRESULT tr = pCall->MakeCall((LPCSTR)sDialable, 0, this); if( TPENDING(tr) || TSUCCEEDED(tr)) { //GCGC the correct hCall pointer is not being returned yet if (translateAddr) Fire_MakecallReply(hLine, (long)tr, (long)pCall->GetHandle(), sDialable.AllocSysString()); else Fire_MakecallReply(hLine, (long)tr, (long)pCall->GetHandle(),destNumber); return S_OK; } else { //GCGC delete the call that was created above. tracer->tracef(SDI_LEVEL_ERROR, "CTACtrl::MakeCall : pCall->MakeCall failed\n"); delete pCall; return S_FALSE; } } } OpenLine STDMETHODIMP CTACtrl::OpenLine(long lDeviceID, BSTR lineDirNumber, long lPriviledges, long lMediaModes, BSTR receiveIPAddress, long lreceivePort) { USES_CONVERSION; tracer->tracef(SDI_LEVEL_ENTRY_EXIT, "CTACtrl::OpenLine %d %s %d %d %s %d\n", lDeviceID, T2A((LPTSTR)lineDirNumber), lPriviledges, lMediaModes, T2A((LPTSTR)receiveIPAddress), lreceivePort); int lineID; TRESULT tr; CString strReceiveIP(receiveIPAddress); CString strReqAddress(lineDirNumber); //bool bTermMedia = ((!strReceiveIP.IsEmpty()) && (lreceivePort! = 0)); bool bTermMedia = (((lMediaModes & LINEMEDIAMODE_AUTOMATEDVOICE) ! = 0) && (lreceivePort! = 0) && (!strReceiveIP.IsEmpty())); CtLine* pLine; AFX_MANAGE_STATE(AfxGetStaticModuleState()) tracer->tracef(SDI_LEVEL_DETAILED, "TAC: --> OpenLine()\n"); if ((lDeviceID<0) && !strcmp((char *)lineDirNumber, "")) { tracer->tracef(SDI_LEVEL_ERROR, "TCD: error -bad device ID and no dirn to open\n"); return S_FALSE; } lineID = lDeviceID; if (lDeviceID<0) { //search for line ID in list of lines. CtLineDevCaps ldc; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 448 Cisco Unified TAPI Examples OpenLine

Page 480 content

Page 481

int numLines = ::TfxGetNumLines(); for( DWORD nLineID = 0; (int)nLineID < numLines; nLineID++ ) { if( /*ShouldShowLine(nLineID) &&*/ TSUCCEEDED(ldc.GetDevCaps(nLineID)) ) { CtAddressCaps ac; tracer->tracef(SDI_LEVEL_DETAILED, "CTACtrl::OpenLine : Calling ac.GetAddressCaps %d 0\n", nLineID); if ( TSUCCEEDED(ac.GetAddressCaps(nLineID, 0)) ) { // GCGC only one address supported CString strCurrAddress(ac.GetAddress()); if (strReqAddress = = strCurrAddress) { lineID = nLineID; break; } } } else { tracer->tracef(SDI_LEVEL_ERROR, "TAC: error -GetAddressCaps() failed\n"); } } } if (lDeviceID<0) { tracer->tracef(SDI_LEVEL_ERROR, "TAC: error -could not find dirn %s to open line.\n",(LPCSTR)lineDirNumber); return S_FALSE; } // if we are to do media termination; negotiate the extensions version DWORD retExtVersion; if (bTermMedia) { TRESULT tr3; tracer->tracef(SDI_LEVEL_DETAILED, "TAC: lineNegotiateExtVersion -appHandle = %d, deviceID = %d, API ver = %d, HiVer = %d, LoVer = %d\n", CtLine::GetAppHandle(), lineID, CtLine::GetApiVersion(lineID), 0x80000000 | 0x00010000L, 0x80000000 | 0x00020000L ); tr3 = ::lineNegotiateExtVersion(CtLine::GetAppHandle(), lineID, CtLine::GetApiVersion(lineID), 0x80000000 | 0x00010000L, // TAPI v1.3, 0x80000000 | 0x00020000L, &retExtVersion); tracer->tracef(SDI_LEVEL_DETAILED, "TAC: lineNegotiateExtVersion returned: %d\n", tr3); } pLine = new CtLine(); tr = pLine->Open(lineID, this, lPriviledges, lMediaModes); if( TSUCCEEDED(tr)) { if (bTermMedia) { if (retExtVersion = = 0x10000) { CiscoLineDevSpecificUserControlRTPStream dsucr; dsucr.m_RecievePort = lreceivePort; dsucr.m_RecieveIP = ::inet_addr((LPCSTR)strReceiveIP); TRESULT tr2; tr2 = ::lineDevSpecific(pLine->GetHandle(), 0,0, dsucr.lpParams(),dsucr.dwSize()); tracer->tracef(SDI_LEVEL_DETAILED, "TAC: lineDevSpecific returned: %d\n", tr2); } else { Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 449 Cisco Unified TAPI Examples OpenLine

Page 481 content

Page 482

//GCGC here put in the new calls to set the media types! CiscoLineDevSpecificUserControlRTPStream2 dsucr; dsucr.m_RecievePort = lreceivePort; dsucr.m_RecieveIP = ::inet_addr((LPCSTR)strReceiveIP); dsucr.m_MediaCapCount = 4; dsucr.m_MediaCaps[0].MediaPayload = 4; dsucr.m_MediaCaps[0].MaxFramesPerPacket = 30; dsucr.m_MediaCaps[0].G723BitRate = 0; dsucr.m_MediaCaps[1].MediaPayload = 9; dsucr.m_MediaCaps[1].MaxFramesPerPacket = 90; dsucr.m_MediaCaps[1].G723BitRate = 1; dsucr.m_MediaCaps[2].MediaPayload = 9; dsucr.m_MediaCaps[2].MaxFramesPerPacket = 90; dsucr.m_MediaCaps[2].G723BitRate = 2; dsucr.m_MediaCaps[3].MediaPayload = 11; dsucr.m_MediaCaps[3].MaxFramesPerPacket = 90; dsucr.m_MediaCaps[3].G723BitRate = 0; TRESULT tr2; tr2 = ::lineDevSpecific(pLine->GetHandle(), 0,0, dsucr.lpParams(),dsucr.dwSize()); tracer->tracef(SDI_LEVEL_DETAILED, "TAC: lineDevSpecific returned: %d\n", tr2); } } CtAddressCaps ac; LPCSTR pszAddressName; if ( TSUCCEEDED(ac.GetAddressCaps(lineID, 0)) ) { // GCGC only one address supported pszAddressName = ac.GetAddress(); } else { pszAddressName = NULL; tracer->tracef(SDI_LEVEL_ERROR, "TAC: error -GetAddressCaps() failed.\n"); } OpenedLine((long)pLine->GetHandle(), pszAddressName, 0); // now let's try to open the associated phone device // Get the phone from the line DWORDnPhoneID; bool b_phoneFound = false; CtDeviceID did; if((m_bUsesPhones) && TSUCCEEDED(did.GetID("tapi/phone", pLine->GetHandle())) ) { nPhoneID = did.GetDeviceID(); tracer->tracef(SDI_LEVEL_DETAILED, "TAC: Retrieved phone device %d for line.\n",nPhoneID); // check to see if phone device is already open long hPhone; CtPhone* pPhone; if (!m_deviceID2phone.Lookup((long)nPhoneID,hPhone)) { tracer->tracef(SDI_LEVEL_SIGNIFICANT, "TAC: phone device not found in open list, opening it...\n"); pPhone = new CtPhone(); TRESULT tr_phone; tr_phone = pPhone->Open(nPhoneID,this); if (TSUCCEEDED(tr_phone)) { Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 450 Cisco Unified TAPI Examples OpenLine

Page 482 content

Page 483

::phoneSetStatusMessages(pPhone->GetHandle(), PHONESTATE_DISPLAY | PHONESTATE_LAMP | PHONESTATE_HANDSETHOOKSWITCH | PHONESTATE_HEADSETHOOKSWITCH | PHONESTATE_REINIT | PHONESTATE_CAPSCHANGE | PHONESTATE_REMOVED, PHONEBUTTONMODE_KEYPAD | PHONEBUTTONMODE_FEATURE | PHONEBUTTONMODE_CALL | PHONEBUTTONMODE_LOCAL | PHONEBUTTONMODE_DISPLAY, PHONEBUTTONSTATE_UP | PHONEBUTTONSTATE_DOWN); m_phone2line.SetAt((long)pPhone->GetHandle(), (long)pLine->GetHandle()); m_line2phone.SetAt((long)pLine->GetHandle(),(long)pPhone->GetHandle()); m_deviceID2phone.SetAt((long)nPhoneID,(long)pPhone->GetHandle()); m_phoneUseCount.SetAt((long)pPhone->GetHandle(), 1); } else { tracer->tracef(SDI_LEVEL_ERROR, "TAC: error -phoneOpen failed with code %d\n", tr_phone); } } else { pPhone = CtPhone::FromHandle((HPHONE)hPhone); long theCount; if (m_phoneUseCount.Lookup((long)pPhone->GetHandle(),theCount)) m_phoneUseCount.SetAt((long)pPhone->GetHandle(), theCount+1); else { //GCGC this would be an error condition! tracer->tracef(SDI_LEVEL_ERROR, "TAC: error -m_phoneUseCount does not contain phone entry.\n"); } } } else { tracer->tracef(SDI_LEVEL_ERROR, "TAC: error -could not retrieve PhoneID for line.\n"); } tracer->tracef(SDI_LEVEL_DETAILED, "TAC: <--OpenLine()\n"); return S_OK; } else { tracer->tracef(SDI_LEVEL_ERROR, "TAC: error -lineOpen failed: %d\n", tr); tracer->tracef(SDI_LEVEL_DETAILED, "TAC: <--OpenLine()\n"); OpenLineFailed(tr,0); delete pLine; return S_FALSE; } } CloseLine STDMETHODIMP CTACtrl::CloseLine(long hLine) { AFX_MANAGE_STATE(AfxGetStaticModuleState()) tracer->tracef(SDI_LEVEL_ENTRY_EXIT, "CTACtrl::CloseLine %d\n", hLine); CtLine* pLine; pLine = CtLine::FromHandle((HLINE) hLine); if (pLine! = NULL) { // close the line pLine->Close(); // remove it from the list delete pLine; long hPhone; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 451 Cisco Unified TAPI Examples CloseLine

Page 483 content

Page 484

long theCount; if ((m_bUsesPhones) && (m_line2phone.Lookup(hLine,hPhone))) { CtPhone* pPhone = CtPhone::FromHandle((HPHONE)hPhone); if (pPhone! = NULL) { if (m_phoneUseCount.Lookup(hPhone,theCount)) if (theCount>1) { // decrease the number of lines using this phone m_phoneUseCount.SetAt(hPhone,theCount-1); } else { //nobody else is using this phone, so let's remove it. m_deviceID2phone.RemoveKey((long)pPhone->GetDeviceID()); m_phone2line.RemoveKey(hPhone); m_phoneUseCount.RemoveKey(hPhone); //now let's close the phone pPhone->Close(); } } //either way, remove the map entry from line to phone. m_line2phone.RemoveKey(hLine); } return S_OK; } else return S_FALSE; } Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 452 Cisco Unified TAPI Examples CloseLine

Page 484 content

Page 485

A P P E N D I X A Message Sequence Charts This appendix contains message sequences or call scenarios and illustrates a subset of these scenarios that are supported by the Cisco Unified TSP. Be aware that the event order is not guaranteed in all cases and can vary depending on the scenario and the event. This appendix contains the following sections: • Abbreviations, on page 454 • 3XX, on page 455 • Agent Greeting, on page 455 • Agent Zip Tone, on page 471 • Announcement Call, on page 476 • Blind Transfer, on page 479 • Call Control Discovery, on page 481 • CallFwdAll Notification, on page 495 • Calling Party IP Address, on page 499 • Calling Party Normalization, on page 500 • Call PickUp, on page 503 • Call Queuing, on page 510 • Call Recording for SIP or TLS Authenticated calls, on page 541 • CCMEncryption Enhancements, on page 542 • CIUS Session Persistency, on page 543 • Click to Conference, on page 546 • Conference Enhancements, on page 555 • CTI Remote Device, on page 561 • CTI RD Call Forwarding, on page 639 • Video Capabilities and Multimedia Information, on page 640 • Direct Transfer Across Lines, on page 655 • Do Not Disturb-Reject, on page 664 • Drop Any Party, on page 666 • Early Offer, on page 680 • End-To-End Call Trace, on page 692 • EnergyWise Deep Sleep Mode Use Cases, on page 723 • Extension Mobility Cross Cluster, on page 733 • Extension Mobility Memory Optimization Option, on page 739 • External Call Control, on page 744 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 453

Image 1 from page 485

Page 485 content

Page 486

• Forced Authorization and Client Matter Code Scenarios, on page 757 • Gateway Recording, on page 769 • Hunt List, on page 780 • Hunt Pilot Connected Number Feature, on page 835 • Hunt Group Login Status, on page 857 • Intercom, on page 861 • IPv6 Use Cases, on page 863 • Join Across Lines, on page 868 • Logical Partitioning, on page 883 • Manual Outbound Call, on page 886 • Monitoring and Recording, on page 889 • NuRD (Number Matching for Remote Destination) Support, on page 896 • Park Monitoring, on page 896 • Persistent Connection Use Cases, on page 907 • Presentation Indication, on page 921 • Redirect to Device, on page 929 • Redirect Set Original Called (TxToVM), on page 933 • Refer and Replace Scenarios, on page 935 • Secure Conferencing, on page 946 • Secure Monitoring and Recording, on page 951 • Shared Lines-Initiating a New Call Manually, on page 968 • SRTP, on page 973 • Support for Cisco IP Phone 6900 Series, on page 974 • Support for Cisco Unified IP Phone 6900 and 9900 Series Use Cases, on page 984 • Swap or Cancel, on page 988 • Unrestricted Unified CM, on page 1010 • LineHold Enhancement, on page 1012 • Whisper Coaching, on page 1012 Abbreviations The following list gives abbreviations that are used in the CTI events that are shown in each scenario: • NP—Not Present • LR—LastRedirectingParty • CH—CtiCallHandle • GCH—CtiGlobalCallHandle • RIU—RemoteInUse flag • DH—DeviceHandle Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 454 Message Sequence Charts Abbreviations

Page 486 content

Page 487

3XX Application monitors B. Table 27: 3XX CallState/CallInfo @Refer-to-Target (C) CallState/CallInfo @Referree (B) CallState/CallInfo @Referrer (A) Actions TSPI: LINE_APPNEWCALL Reason = LINECALL REASON_REDIRECT A calls external phone that is running SIP, which has CFDUNC set to B Agent Greeting Configuration Customer Phone—IP Phone A with DN 1001. Agent Phone—IP Phone B with DN 1002. Agent Phone—IP Phone C with DN 1002 (shared line) Supervisor Phone—IP Phone D with DN 1003. IVR1—with DN 5555 IVR2—with DN 6666 Procedure Application monitoring all lines on all devices. New extension is negotiated when application opens lines. SRTP is also supported at IVR side, can be variation of following use cases. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 455 Message Sequence Charts 3XX

Page 487 diagram

Page 488

Table 28: StartSendMediaToBIB Success Case Events, requests and responses Action At 1001: CONNECTED Calling = 1001 Called = 1002 Connected = 1002 At 1002: CONNECTED Calling = 1001 Called = 1002 Connected = 1001 Make call from 1001 to 1002, and 1002 answers At 1002: the request is successful Application receives LineCallDevSpecific (SLDSMT_MEDIA_TO_BIB_STARTED) event At 5555: CONNECTED, dwreason = LINECALLREASON_UNKNOWN (unknown) ExtendedCallReason = CtiReasonSendMediaToBIB Calling = CgpnToIVR Called = 5555 Connected = CgpnToIVR CallAttributeBitMask = ServerCall bit will be set At 5555: CONNECTED, dwreason = LINECALLREASON_UNKNOWN (unknown) ExtendedCallReason = CtiReasonSendMediaToBIB Calling = 5555 Called = 5555 Connected = CallAttributeBitMask = ServerCall bit is set Media event sent to application (StartTransmissionEvent) Application issues CCiscoLineDevSpecificStartSendMediaToBIBRequest on 1002 with 5555 and CgpnToIVR (CM feature creates server call to IVR1 5555, 5555 answers call) Server-IVR call is redirected to BIB by feature IVR1 selects/plays agent’s greeting Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 456 Message Sequence Charts Message Sequence Charts

Page 488 diagram

Page 489

Events, requests and responses Action At 1002: Application receives LineCallDevSpecific (SLDSMT_MEDIA_TO_BIB_ENDED,0,0) event At 5555: Call goes IDLE IVR1 drops call after agent greeting completes Table 29: StopSendMediaToBIB Success Case Events, requests and responses Action At 1001: CONNECTED Calling = 1001 Called = 1002 Connected = 1002 At 1002: CONNECTED Calling = 1001 Called = 1002 Connected = 1001 At 5555: CONNECTED Calling = 5555 Called = 5555 Connected = Agent playing is in progress… At 1002: the request is successful Application receives LineCallDevSpecific (SLDSMT_MEDIA_TO_BIB_ENDED,0,0) event At 5555: Call goes IDLE StopTransmissionEvent Application issues CCiscoLineDevSpecificStopSendMediaToBIBRequest on 1002 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 457 Message Sequence Charts Message Sequence Charts

Page 489 diagram

Page 490

Table 30: StartSendMediaToBIB Failure While Monitoring in Progress at Agent Side Events, requests and responses Action At 1001: CONNECTED Calling = 1001 Called = 1002 Connected = 1002 At 1002: CONNECTED Calling = 1001 Called = 1002 Connected = 1001 Make call from 1001 to 1002, and 1002 answers At 1003: CCiscoLineDevSpecificStartCallMonitoring request successful, monitoring is in session Application issues CCiscoLineDevSpecificStartCallMonitoring on 1003 to monitor active call on 1002 At 1002: LINE_REPLY returns with LINEERR_RESOURCEUNAVAIL Application issues CCiscoLineDevSpecificStartSendMediaToBIBRequest on 1002 Table 31: StartSendMediaToBIB Followed by Monitoring Request Events, requests and responses Action At 1001: CONNECTED Calling = 1001 Called = 1002 Connected = 1002 At 1002: CONNECTED Calling = 1001 Called = 1002 Connected = 1001 Make call from 1001 to 1002, and 1002 answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 458 Message Sequence Charts Message Sequence Charts

Page 490 diagram

Page 491

Events, requests and responses Action At 1002: the request is successful Application receives LineCallDevSpecific (SLDSMT_MEDIA_TO_BIB_STARTED) event At 5555: CONNECTED, dwreason = LINECALLREASON_UNKNOWN (unknown) ExtendedCallReason = CtiReasonSendMediaToBIB Calling = CgpnToIVR Called = 5555 Connected = CgpnToIVR CallAttributeBitMask = ServerCall bit will be set At 5555: CONNECTED, dwreason = LINECALLREASON_UNKNOWN (unknown) ExtendedCallReason = CtiReasonSendMediaToBIB Calling = 5555 Called = 5555 Connected = CallAttributeBitMask = ServerCall bit will be set Media event sent to application (StartTransmissionEvent) Application issues CCiscoLineDevSpecificStartSendMediaToBIBRequest on 1002 (CM feature creates server call to IVR1 5555, 5555 answers call) Server-IVR call redirected to BIB IVR1 selects/plays agent’s greeting At 1003: LINE_REPLY returns with LINEERR_RESOURCEUNAVAIL Application issues CCiscoLineDevSpecificStartCallMonitoring on 1003 to monitor active call on 1002 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 459 Message Sequence Charts Message Sequence Charts

Page 491 diagram

Page 492

Table 32: StartSendMediaToBIB While Recording Is in Session Events, requests and responses Action At 1001: CONNECTED Calling = 1001 Called = 1002 Connected = 1002 At 1002: CONNECTED Calling = 1001 Called = 1002 Connected = 1001 Make call from 1001 to 1002, and 1002 answers At 1002: CCiscoLineDevSpecificStartCallRecording will be successful and recording is in session Application sends CCiscoLineDevSpecificStartCallRecording to 1002 At 1002: the request is successful Application receives LineCallDevSpecific (SLDSMT_MEDIA_TO_BIB_STARTED) event At 5555: CONNECTED, dwreason = LINECALLREASON_UNKNOWN (unknown) ExtendedCallReason = CtiReasonSendMediaToBIB Calling = CgpnToIVR Called = 5555 Connected = CgpnToIVR CallAttributeBitMask = ServerCall bit will be set At 5555: CONNECTED, dwreason = LINECALLREASON_UNKNOWN (unknown) ExtendedCallReason = CtiReasonSendMediaToBIB Calling = 5555 Called = 5555 Connected = CallAttributeBitMask = ServerCall bit will be set Media event sent to application (StartTransmissionEvent) Application issues CCiscoLineDevSpecificStartSendMediaToBIBRequest on 1002 (CM feature creates server call to IVR1 5555, 5555 answers call) Server-IVR call redirected to BIB IVR1 selects/plays agent’s greeting Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 460 Message Sequence Charts Message Sequence Charts

Page 492 diagram

Page 493

Events, requests and responses Action At 1002: Application receives LineCallDevSpecific (SLDSMT_MEDIA_TO_BIB_ENDED,0,0) event At 5555: Call goes IDLE IVR1 drops call after agent greeting completes Table 33: StartSendMediaToBIB Followed by Recording Request Events, requests and responses Action At 1001: CONNECTED Calling = 1001 Called = 1002 Connected = 1002 At 1002: CONNECTED Calling = 1001 Called = 1002 Connected = 1001 Make call from 1001 to 1002, and 1002 answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 461 Message Sequence Charts Message Sequence Charts

Page 493 diagram

Page 494

Events, requests and responses Action At 1002: the request is successful Application receives LineCallDevSpecific (SLDSMT_MEDIA_TO_BIB_STARTED) event At 5555: CONNECTED, dwreason = LINECALLREASON_UNKNOWN (unknown) ExtendedCallReason = CtiReasonSendMediaToBIB Calling = CgpnToIVR Called = 5555 Connected = CgpnToIVR CallAttributeBitMask = ServerCall bit will be set At 5555: CONNECTED, dwreason = LINECALLREASON_UNKNOWN (unknown) ExtendedCallReason = CtiReasonSendMediaToBIB Calling = 5555 Called = 5555 Connected = CallAttributeBitMask = ServerCall bit will be set Media event sent to application (StartTransmissionEvent) Application issues CCiscoLineDevSpecificStartSendMediaToBIBRequest on 1002 (CM feature creates server call to IVR1 5555, 5555 answers call) Server-IVR call is redirected to BIB IVR1 selects/plays agent’s greeting At 1002: CCiscoLineDevSpecificStartCallRecording will be successful and recording is in session Application sends CCiscoLineDevSpecificStartCallRecording to 1002 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 462 Message Sequence Charts Message Sequence Charts

Page 494 diagram

Page 495

Table 34: StartSendMediaToBIB Failure While Barge in Session Events, requests and responses Action At 1001: CONNECTED Calling = 1001 Called = 1002 Connected = 1002 At 1002: CONNECTED Calling = 1001 Called = 1002 Connected = 1001 Make call from 1001 to 1002, and 1002 answers At 1002 (device C) Barge call is created. Phone C (1002) barges in At 1002 (B): LINE_REPLY with LINEERR_RESOURCEUNAVAIL Application issues CCiscoLineDevSpecificStartSendMediaToBIBRequest on 1002 (B) Table 35: StartSendMediaToBIB Followed by Barge From Shared Line Events, requests and responses Action At 1001: CONNECTED Calling = 1001 Called = 1002 Connected = 1002 At 1002: CONNECTED Calling = 1001 Called = 1002 Connected = 1001 Make call from 1001 to 1002, and 1002 answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 463 Message Sequence Charts Message Sequence Charts

Page 495 diagram

Page 496

Events, requests and responses Action At 1002: the request is successful Application receives LineCallDevSpecific (SLDSMT_MEDIA_TO_BIB_STARTED) event At 5555: CONNECTED, dwreason = LINECALLREASON_UNKNOWN (unknown) ExtendedCallReason = CtiReasonSendMediaToBIB Calling = CgpnToIVR Called = 5555 Connected = CgpnToIVR CallAttributeBitMask = ServerCall bit will be set At 5555: CONNECTED, dwreason = LINECALLREASON_UNKNOWN (unknown) ExtendedCallReason = CtiReasonSendMediaToBIB Calling = 5555 Called = 5555 Connected = CallAttributeBitMask = ServerCall bit will be set Media event sent to application (StartTransmissionEvent) Application issues CCiscoLineDevSpecificStartSendMediaToBIBRequest on 1002 (CM feature creates server call to IVR1 5555, 5555 answers call) Server-IVR call is redirected to BIB IVR1 selects/plays agent’s greeting Barge will fail on phone C Phone C (1002 shared line) try to barge in Table 36: This Behavior Is Also Seen During Consult Operation. Agent Holds Call While Agent Greeting Is Being Played Events, requests and responses Action At 1001: CONNECTED Calling = 1001 Called = 1002 Connected = 1002 At 1002: CONNECTED Calling = 1001 Called = 1002 Connected = 1001 Make call from 1001 to 1002, and 1002 answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 464 Message Sequence Charts Message Sequence Charts

Page 496 diagram

Page 497

Events, requests and responses Action At 1002: the request is successful Application receives LineCallDevSpecific (SLDSMT_MEDIA_TO_BIB_STARTED) event At 5555: CONNECTED, dwreason = LINECALLREASON_UNKNOWN (unknown) ExtendedCallReason = CtiReasonSendMediaToBIB Calling = CgpnToIVR Called = 5555 Connected = CgpnToIVR CallAttributeBitMask = ServerCall bit will be set At 5555: CONNECTED, dwreason = LINECALLREASON_UNKNOWN (unknown) ExtendedCallReason = CtiReasonSendMediaToBIB Calling = 5555 Called = 5555 Connected = CallAttributeBitMask = ServerCall bit will be set Media event sent to application (StartTransmissionEvent) Application issues CCiscoLineDevSpecificStartSendMediaToBIBRequest on 1002 (CM feature creates server call to IVR1 5555, 5555 answers call) Server-IVR call is redirected to BIB IVR1 selects/plays agent’s greeting At 1002: Application receives LineCallDevSpecific (SLDSMT_MEDIA_TO_BIB_ENDED,0,0) event Call will go on hold With StopReception and StopTransmission event At 5555: Call goes IDLE 1002 put call on hold At 1002: Call will go CONNECTED with StartTransmission and StartReception. 1002 Unhold scenario Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 465 Message Sequence Charts Message Sequence Charts

Page 497 diagram

Page 498

Table 37: Agent Redirects Call While Agent Greeting Is Being Played Events, requests and responses Action At 1001: CONNECTED Calling = 1001 Called = 1002 Connected = 1002 At 1002: CONNECTED Calling = 1001 Called = 1002 Connected = 1001 Make call from 1001 to 1002, and 1002 answers At 1002: the request is successful Application receives LineCallDevSpecific (SLDSMT_MEDIA_TO_BIB_STARTED) event At 5555: CONNECTED, dwreason = LINECALLREASON_UNKNOWN (unknown) ExtendedCallReason = CtiReasonSendMediaToBIB Calling = CgpnToIVR Called = 5555 Connected = CgpnToIVR CallAttributeBitMask = ServerCall bit will be set At 5555: CONNECTED, dwreason = LINECALLREASON_UNKNOWN (unknown) ExtendedCallReason = CtiReasonSendMediaToBIB Calling = 5555 Called = 5555 Connected = CallAttributeBitMask = ServerCall bit will be set Media event sent to application (StartTransmissionEvent) Application issues CCiscoLineDevSpecificStartSendMediaToBIBRequest on 1002 (CM feature creates server call to IVR1 5555, 5555 answers call) Server-IVR call is redirected to BIB IVR1 selects/plays agent’s greeting Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 466 Message Sequence Charts Message Sequence Charts

Page 498 diagram

Page 499

Events, requests and responses Action At 1003: New call from 1002 At 1002: Call goes IDLE No MEDIA_TO_BIB_ENDED event At 5555: Call goes IDLE Application redirects call on 1002 to 1003 Table 38: IVR1 Redirects Call to IVR2 Events, requests and responses Action At 1001: CONNECTED Calling = 1001 Called = 1002 Connected = 1002 At 1002: CONNECTED Calling = 1001 Called = 1002 Connected = 1001 Make call from 1001 to 1002, and 1002 answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 467 Message Sequence Charts Message Sequence Charts

Page 499 diagram

Page 500

Events, requests and responses Action At 1002: the request is successful Application receives LineCallDevSpecific (SLDSMT_MEDIA_TO_BIB_STARTED) event At 5555: CONNECTED, dwreason = LINECALLREASON_UNKNOWN (unknown) ExtendedCallReason = CtiReasonSendMediaToBIB Calling = CgpnToIVR Called = 5555 Connected = CgpnToIVR CallAttributeBitMask = ServerCall bit will be set At 5555: CONNECTED, dwreason = LINECALLREASON_UNKNOWN (unknown) ExtendedCallReason = CtiReasonSendMediaToBIB Calling = 5555 Called = 5555 Connected = CallAttributeBitMask = ServerCall bit will be set Media event sent to application (StartTransmissionEvent) Application issues CCiscoLineDevSpecificStartSendMediaToBIBRequest on 1002 (CM feature creates server call to IVR 5555, 5555 answers call) Server-IVR call is redirected to BIB IVR1 selects/plays agent’s greeting At 5555: Call goes IDLE At 6666: Calling = Called = 6666 Connected = Redirecting = 5555 Redirection = 6666 CallAttributeBitMask = BIBCall (StartTransmissionEvent) Application redirect call on IVR1 to IVR2 IVR2 answers and plays second agent greeting At 1002: Application receives LineCallDevSpecific (SLDSMT_MEDIA_TO_BIB_ENDED,0,0) event At 6666: Call goes IDLE IVR2 drops call after agent greeting completes Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 468 Message Sequence Charts Message Sequence Charts

Page 500 diagram

Page 501

Table 39: Application-2 Opened Line After Agent Greeting Is in Playing Events, requests and responses Action At 1001: CONNECTED Calling = 1001 Called = 1002 Connected = 1002 At 1002: CONNECTED Calling = 1001 Called = 1002 Connected = 1001 Make call from 1001 to 1002, and 1002 answers At 1002: the request is successful Application receives LineCallDevSpecific (SLDSMT_MEDIA_TO_BIB_STARTED) event At 5555: CONNECTED, dwreason = LINECALLREASON_UNKNOWN (unknown) ExtendedCallReason = CtiReasonSendMediaToBIB Calling = CgpnToIVR Called = 5555 Connected = CgpnToIVR CallAttributeBitMask = ServerCall bit will be set At 5555: CONNECTED, dwreason = LINECALLREASON_UNKNOWN (unknown) ExtendedCallReason = CtiReasonSendMediaToBIB Calling = 5555 Called = 5555 Connected = CallAttributeBitMask = ServerCall bit will be set Media event sent to application (StartTransmissionEvent) Application-1 issues CCiscoLineDevSpecificStartSendMediaToBIBRequest on 1002 with 5555 and CgpnToIVR (CM feature creates server call to IVR1 5555, 5555 answers call) Server-IVR call is redirected to BIB by feature IVR1 selects/plays agent’s greeting At 1002 (from application-2): CallAttributeBitMask SendMediaToBIB will be set to indicate agent greeting is playing on the agent line. Application-2 opens agent line from another client CallAttributeBitMask = BIBCall Application 2 opens IVR line Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 469 Message Sequence Charts Message Sequence Charts

Page 501 diagram

Page 502

Table 40: Start Agent Greeting After Conference Is Setup Events, requests and responses Action At 1001: CONNECTED CONFERENCED Calling = 1001, Called = 1002, Connected = 1002 CONFERENCED Calling = 1001, Called = 1003, Connected = 1003At 1002: CONNECTED CONFERENCED Calling = 1001, Called = 1002, Connected = 1001 CONFERENCED Calling = 1002, Called = 1003, Connected = 1003 At 1003: CONNECTED CONFERENCED Calling = 1002, Called = 1003, Connected = 1002 CONFERENCED Calling = 1003, Called = 1001, Connected = 1001 Make call from 1001 to 1002, 1002 answers, 1002 sets up conference to 1003, 1003 answers, and 1002 completes Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 470 Message Sequence Charts Message Sequence Charts

Page 502 diagram

Page 503

Events, requests and responses Action At 1002: the request is successful Application receives LineCallDevSpecific (SLDSMT_MEDIA_TO_BIB_STARTED) event At 5555: CONNECTED, dwreason = LINECALLREASON_UNKNOWN (unknown) ExtendedCallReason = CtiReasonSendMediaToBIB Calling = CgpnToIVR Called = 5555 Connected = CgpnToIVR CallAttributeBitMask = ServerCall bit will be set At 5555: CONNECTED, dwreason = LINECALLREASON_UNKNOWN (unknown) ExtendedCallReason = CtiReasonSendMediaToBIB Calling = 5555 Called = 5555 Connected = CallAttributeBitMask = ServerCall bit will be set Media event sent to application (StartTransmissionEvent) 1001 and 1002 also hears the agent greeting Application issues CCiscoLineDevSpecificStartSendMediaToBIBRequest on 1002 with 5555 and CgpnToIVR (CM feature creates server call to IVR1 5555, 5555 answers call) Server-IVR call is redirected to BIB by feature IVR1 selects/plays agent’s greeting Agent Zip Tone The devices mentioned in the use cases below also apply to SIP TNP phones. Configuration SCCP phones: A (Customer/Remote), B (Agent/Local). All Lines are Opened with Ext Version – 0x000B0000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 471 Message Sequence Charts Agent Zip Tone

Page 503 diagram

Page 504

Table 41: Application Issues the Play Tone Request When the Call Is Established Between Customer and Agent. PlayToneDirection – Remote Expected events Action Zip Tone is played at A. LINE_DEVSPECIFIC Event with dwParam1 = SLDSMT_CALL_TONE_CHANGEDdwParam2= CTONE_ZIP, dwParam3 = 0(local) is reported on A and alsoLINE_DEVSPECIFIC Event with dwParam1 = SLDSMT_CALL_TONE_CHANGEDdwParam2= CTONE_ZIP, dwParam3 = 1(Remote) is reported on B. LineInitialize. LineOpen on A,B The CallToneChangedEvent message flag is Enabled using SLDST_SET_STATUS_MESSAGES request for Line A and B. A calls B;B answers the Call B issues LineDevSpecific (start PlayTone) request with Agent callid and ZIP Tone as input. Table 42: Application Issues the Play Tone Request When the Call Is Established Between Customer and Agent. PlayToneDirection – Local Expected events Action Zip Tone is played at B. Line_DevSpecific (dwparam1 = SLDSMT_CALL_TONE_CHANGED, dwParam2 = CTONE_ZIP, dwParam3 = 0(local) is fired for B indicating Zip Tone has been played on B. LineInitialize. LineOpen on A,B The CallToneChangedEvent message flag is Enabled using SLDST_SET_STATUS_MESSAGES request for Line A and B. A calls B;B answers the Call B issues LineDevSpecific (start PlayTone) request with agent callid and ZIP Tone as input. Table 43: Application Issues the Play Tone Request When the Call Is Established Between Customer and Agent. PlayToneDirection – BothLocalandRemote/NoLocalOrRemote Expected events Action LineDevSpecific (start PlayTone) request fails with error LINEERR_OPERATIONUNAVAIL. LineInitialize. LineOpen on A,B A calls B; B answers the Call B issues LineDevSpecific (start PlayTone) request with agent callid and ZIP Tone as input Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 472 Message Sequence Charts Message Sequence Charts

Page 504 diagram

Page 505

Table 44: Application Issues the Play Tone Request (with Unsupported Tone) When the Call Is Established Between Customer and Agent. PlayToneDirection – Local Expected events Action LineDevSpecific (start PlayTone) request fails with error LINEERR_OPERATIONFAILED. LineInitialize. LineOpen on A,B A calls B; B answers the Call B issues LineDevSpecific (start PlayTone) request with agent callid and ZIP Tone as input Application Issues the Play Tone Request on a CTI Port with PlayToneDirection -Local/Remote Configuration A (Customer/Remote) is SCCP Phone. B (Agent/local) is a CTIport/Route Point Table 45: Application Issues the Play Tone Request on a CTI Port with PlayToneDirection – Local/Remote Expected events Action LineDevSpecific (start PlayTone) request fails with error LINEERR_OPERATIONUNAVAIL. Zip Tone is played at A. Line_DevSpecific (dwparam1 = SLDSMT_CALL_TONE_CHANGED, dwParam2 = CTONE_ZIP, dwParam3 = 0(local)) is fired for A indicating Zip Tone has been played on A And also Line_DevSpecific (dwparam1 = SLDSMT_CALL_TONE_CHANGED, dwParam2 = CTONE_ZIP, dwParam3 = 1(remote) is fired for B LineInitialize. LineOpen on A,B The CallToneChangedEvent message flag is Enabled using SLDST_SET_STATUS_MESSAGES request for Line A. A calls B;B answers the Call B issues the LineDevSpecific (start PlayTone) request with agent callid and ZIP Tone as input, and direction as local. B issues the LineDevSpecific (start PlayTone) request with agent callid and ZIP Tone as input, and direction as remote. Application Issues the Play Tone Request When the Call Is Established Between Customer and Agent (Shared Line). PlayToneDirection -Local Configuration SCCP phones: A (Customer/ Remote), B, B’ (Agent/Local) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 473 Message Sequence Charts Application Issues the Play Tone Request on a CTI Port with PlayToneDirection -Local/Remote

Page 505 diagram

Page 506

Table 46: Application Issues the Play Tone Request When the Call Is Established Between Customer and Agent (Shared Line). PlayToneDirection – Local Expected events Action Zip Tone is played at B. Line_DevSpecific (dwparam1 = SLDSMT_CALL_TONE_CHANGED, dwParam2 = CTONE_ZIP, dwParam3 = 0(local)) is fired for B indicating Zip Tone has been played on B. There is no Zip Tone played at B’and no Zip tone notification on B’. The LineDevSpecific (start PlayTone) request fails with Error LINEERR_OPERATIONFAILED Zip Tone is played at A. Line_DevSpecific (dwparam1 = SLDSMT_CALL_TONE_CHANGED, dwParam2 = CTONE_ZIP, dwParam3 = 0(local))) will be fired for A also Line_DevSpecific (dwparam1 = SLDSMT_CALL_TONE_CHANGED, dwParam2 = CTONE_ZIP, dwParam3 = 1(remote) will be fired for B. There is no Zip Tone played at B’and no Zip tone notification on B’. Zip Tone is played at B and B’. Line_DevSpecific (dwparam1 = SLDSMT_CALL_TONE_CHANGED, dwParam2 = CTONE_ZIP, dwParam3 = 0(local))) is fired for B and B’ also Line_DevSpecific (dwparam1 = SLDSMT_CALL_TONE_CHANGED, dwParam2 = CTONE_ZIP, dwParam3 = 1(remote) is fired for A. LineInitialize. LineOpen on A, B, B’ The CallToneChangedEvent message flag is Enabled using SLDST_SET_STATUS_MESSAGES request for Line B and B’. A calls B;B and B’ starts ringing; B answers the Call B issues the LineDevSpecific (start PlayTone) request with agent callid and ZIP Tone as input. Variants: B’ issues the LineDevSpecific (start PlayTone) request with agent callid and ZIP Tone as input direction remote. B issues the LineDevSpecific (start PlayTone) request with agent callid and ZIP Tone as input direction remote. A issues the LineDevSpecific (start PlayTone) request with agent callid and ZIP Tone as input direction remote. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 474 Message Sequence Charts Message Sequence Charts

Page 506 diagram

Page 507

Table 47: Application Issues the Play Tone Request When the Call Is Established Between Customer and Agent (Intercom Line). PlayToneDirection – Local Expected events Action The LineDevSpecific (start PlayTone) request fails with error LINEERR_OPERATIONUNAVAIL. The LineDevSpecific (start PlayTone) request fails with error LINEERR_OPERATIONUNAVAIL. LineInitialize. Phone A have 2 lines: Line1 is a normal line with X, Line2 is a intercom line (B), SpeedDial DN = D Phone B have 2 lines: Line1 is a normal line with Y, Line2 is a intercom line (D) LineOpen on B,D The CallToneChangedEvent message flag is Enabled using SLDST_SET_STATUS_MESSAGES request for Line B, D B calls D; D starts ringing; D answers the Call D issues the LineDevSpecific (start PlayTone) request with agent(D) callid and ZIP Tone as input. Variant 1: D issues the LineDevSpecific (start PlayTone) request with agent(D) callid and ZIP Tone as input, and direction as remote. Conference Scenario: PlayToneDirection -local. Configuration A, B, and C are SCCP Phones. Table 48: Conference Scenario. PlayToneDirection – Local Expected events Action Zip Tone is played at B. Line_DevSpecific (dwparam1 = SLDSMT_CALL_TONE_CHANGED, dwParam2 = CTONE_ZIP, dwParam3 = 0(local)) is fired for B indicating Zip Tone has been played on B. The LineDevSpecific (start PlayTone) request will be Success. But there will be no Tone played on the Coneference members. Line_DevSpecific (dwparam1 = SLDSMT_CALL_TONE_CHANGED, dwParam2 = CTONE_ZIP, dwParam3 = 1(remote)) is fired for B LineInitialize. LineOpen on A, B, and C The CallToneChangedEvent message flag is Enabled using SLDST_SET_STATUS_MESSAGES request for Line B. A calls B; B answers the call; B sets up the conference with C; B completes the conference. B issues the LineDevSpecific (start PlayTone) request with agent callid and ZIP Tone as input. Variant 1: B issues the LineDevSpecific (start PlayTone) request with agent callid and ZIP Tone as input and direction as Remote Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 475 Message Sequence Charts Conference Scenario: PlayToneDirection -local.

Page 507 diagram

Page 508

Application Issues the Play Tone Request When the Call Is Established Between Customer and Agent Agent Puts the Call on Hold. PlayToneDirection -Remote Configuration A and B are SCCP Phones. Table 49: Application Issues the Play Tone Request When the Call Is Established Between Customer and Agent, Agent Puts the Call on Hold. PlayToneDirection – Remote Expected events Action Zip Tone is played at B. Line_DevSpecific (dwparam1 = SLDSMT_CALL_TONE_CHANGED, dwParam2 = CTONE_ZIP, dwParam3 = 1(remote)) is fired for A also Line_DevSpecific (dwparam1 = SLDSMT_CALL_TONE_CHANGED, dwParam2 = CTONE_ZIP, dwParam3 = 0(local) is fired for B. LineInitialize. LineOpen on A,B The CallToneChangedEvent message flag is Enabled using SLDST_SET_STATUS_MESSAGES request for Line B. A calls B;B answers the Call; B puts the Call on hold A issues the LineDevSpecific (start PlayTone) request with agent callid and ZIP Tone as input. Announcement Call Prerequisites Pre-conditions to all announcement call use cases, unless specified otherwise: • CTIRD (CTI Remote Device -Name: CTIRD-1) • Remote Destinations configured on CTIRD-1: • RD1-(Name: Mobile, Number: 914086271309) • Line-A (DN -1000) - Line-A configured on CTIRD-1 (shared line of Enterprise • DN -1000 configured on EP-1) • EP-1 (Enterprise Phone - SCCP -IP Phone) • Line-A' -DN -1000 configured on EP-1 • Provider is opened ( lineInitializeEx successfully executed) • All relevant lines are opened with Extension version 0x000D0000 and in service Persistent call has been created on A / RD-1. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 476 Message Sequence Charts Application Issues the Play Tone Request When the Call Is Established Between Customer and Agent Agent Puts the Call on Hold. PlayToneDirection -Remote

Page 508 diagram

Page 509

Announcement with ID "WelcomeID" is defined on CUCM. Table 50: Create Announcement Call TAPI Structure TAPI Messages Action LINE_ CALLSTATE hDevice = hCall-2 dwParam1 = 0x40000002 (CLDSMT_ ANNOUNCEMENT_ CALL_ STATE + OFFERING) LINE_ CALLSTATE dwParam1 = 0x40000004 (CLDSMT_ ANNOUNCEMENT_ CALL_ STATE + ACCEPTED) Create Announcement Call: LineMakeCall() on Line-A: lpCallParams: devSpecific = Cisco_ CallParamsDevSpecific { dwCallPriority = 0x00000000; dwDevSpecificFlags = 0x00000004 (Cisco_ CALLPARAMS_ DEVSPECIFICFLAGS_ ANNOUNCEMENTCALL) } CallData = "WelcomeID" LINECALLINFO (hCall-2) dwOrigin = OUTBOUND dwReason = DIRECT CallerID = 5000 CallerIDName= RD5000 CalledID = A ConnectedID = 5000 In DevSpecific portion: CallAttributeType = 0x00008000 ( TSPCallAttribute_ AnnouncementCall) LINE_ CALLSTATE hDevice = hCall-2 dwParam1 = 0x40000100 (CLDSMT_ ANNOUNCEMENT_ CALL_ STATE + CONNECTED) LINE_ CALLDEVSPECIFIC hDevice = hCall-2 dwParam1 = SLDSMT_ ANNOUNCEMENT_ STARTED dwParam2 = 0 dwParam3 = 0 LINE_ CALLDEVSPECIFIC hDevice = hCall-2 dwParam1 = SLDSMT_ ANNOUNCEMENT_ ENDED dwParam2 = 0 dwParam3 = 0 LINE_ CALLSTATE dwParam1

0x40004000 (CLDSMT_ ANNOUNCEMENT_ CALL_ STATE + DIS CONNECTED) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 477 Message Sequence Charts Message Sequence Charts

Page 509 diagram

Page 510

TAPI Structure TAPI Messages Action LINE_ CALLSTATE dwParam1 = 0x40000001 (CLDSMT_ ANNOUNCEMENT_ CALL_ STATE + IDLE ) Persistent call has been created on A / RD-1. Announcement with ID "WelcomeID" is defined on CUCM. Table 51: Drop Announcement Call TAPI Structures TAPI Messages Action LINE_ CALLSTATE hDevice = hCall-2 dwParam1 = 0x40000002 (CLDSMT_ ANNOUNCEMENT_ CALL_ STATE + OFFERING) LINE_ CALLSTATE dwParam1 = 0x40000004 (CLDSMT_ ANNOUNCEMENT_ CALL_ STATE + ACCEPTED) Create Announcement Call: LineMakeCall() on Line-A: lpCallParams: devSpecific = Cisco_ CallParamsDevSpecific { dwCallPriority = 0x00000000; dwDevSpecificFlags = 0x00000004 (Cisco_ CALLPARAMS_ DEVSPECIFICFLAGS_ ANNOUNCEMENTCALL) } CallData = "WelcomeID" LINECALLINFO (hCall-2) dwOrigin = OUTBOUND dwReason = DIRECT CallerID = 5000 CallerIDName = RD5000 CalledID = A ConnectedID = 5000 In DevSpecific portion: CallAttributeType = 0x00008000 ( TSPCallAttribute_ AnnouncementCall) LINE_ CALLSTATE hDevice = hCall-2 dwParam1 = 0x40000100 (CLDSMT_ ANNOUNCEMENT_ CALL_ STATE + CONNECTED) LINE_ CALLDEVSPECIFIC hDevice = hCall-2 dwParam1 = SLDSMT_ ANNOUNCEMENT_ STARTED dwParam2 = 0 dwParam3 = 0 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 478 Message Sequence Charts Message Sequence Charts

Page 510 diagram

Page 511

TAPI Structures TAPI Messages Action LINE_ CALLDEVSPECIFIC hDevice = hCall-2 dwParam1 = SLDSMT_ ANNOUNCEMENT_ ENDED dwParam2 = 0 dwParam3 = 0 LINE_ CALLSTATE dwParam1 = 0x40004000 (CLDSMT_ ANNOUNCEMENT_ CALL_ STATE + DIS CONNECTED) LINE_ CALLSTATE dwParam1 = 0x40000001 (CLDSMT_ ANNOUNCEMENT_ CALL_ STATE + IDLE ) Drop AnnouncementtCall: (while announcement being played) LineDrop() on Line-A: Precondition: No Persistent call on CTIRD-1 Table 52: Negative -Create Announcement Call Failed / No Persistent Call TAPI Structures TAPI Messages Action LINE_ REPLY LINEERR_ NO_ PERSISTENT_ CALL_ EXISTS (0xC0000021) Create Announcement Call: LineMakeCall() on Line-A: lpCallParams: devSpecific = Cisco_ CallParamsDevSpecific { dwCallPriority = 0x00000000; dwDevSpecificFlags = 0x00000004 (Cisco_ CALLPARAMS_ DEVSPECIFICFLAGS_ ANNOUNCEMENTCALL) } CallData = "WelcomeID" Blind Transfer The following table describes the message sequences for Blind Transfer when A calls B, B answers, and A and B are connected. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 479 Message Sequence Charts Blind Transfer

Page 511 diagram

Page 512

Table 53: Message Sequences for Blind Transfer TAPI structures TAPI messages CTI messages Action Party A Party B does a lineBlindTranfser() to blind transfer call from party A to party C TSPI LINECALLINFO dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCalledID = B dwConnectedID = NULL dwRedirectingID = NP dwRedirectionID = NP LINE_CALLINFO hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = CONNECTEDID, REDIRECTINGID, REDIRECTIONID CallPartyInfoChangedEvent, CH = C1, CallingChanged = False, Calling = A, CalledChanged = True, Called = C, OriginalCalled = B, LR = B, Cause = BlindTransfer Party B TSPI LINECALLINFO dwOrigin = INTERNAL dwReason = DIRECT dwCallerID = A dwCalledID = B dwConnectedID = NULL dwRedirectingID = NULL dwRedirectionID = NULL TSPI: LINE_CALLSTATE |hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = IDLE dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C2, State = Idle, Reason = Direct, Calling = A, Called = B, OriginalCalled = B, LR = NULL Party C TSPI LINECALLINFO dwOrigin = INTERNAL dwReason = TRANSFER dwCallerID = A dwCalledID = C dwConnectedID = NULL dwRedirectingID = B dwRedirectionID = C TSPI: LINE_APPNEWCALL hDevice = C dwCallbackInstance = 0 dwParam1 = 0 dwParam2 = hCall-1 dwParam3 = OWNER NewCallEvent, CH = C3, origin = Internal_Inbound, Reason = BlindTransfer, Calling = A, Called = C, OriginalCalled = B, LR = B Party A Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 480 Message Sequence Charts Message Sequence Charts

Page 512 diagram

Page 513

TAPI structures TAPI messages CTI messages Action CallStateChangeEvent, CH = C1, State = Ringback, Reason = Direct, Calling = A, Called = C, OriginalCalled = B, LR = B TSPI LINECALLINFO dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCalledID = B dwConnectedID = NULL dwRedirectingID = B dwRedirectionID = C TSPI: LINE_CALLSTATE, hDevice = hCall-1, dwCallbackInstance = 0, dwParam1 = RINGBACK dwParam2 = 0 dwParam3 = 0 Party C TSPI LINECALLINFO dwOrigin = INTERNAL dwCallerID = A dwCalledID = C dwConnectedID = NULL dwRedirectingID = B dwRedirectionID = C TSPI: LINE_CALLSTATE, hDevice = hCall-1, dwCallbackInstance = 0, dwParam1 = OFFERING dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C3, State = Offering, Reason = BlindTransfer, Calling = A, Called = C, OriginalCalled = B, LR = B Call Control Discovery BasicCallInitiatedFromTAPIFromPhoneAonCluster1toPhoneBonCluster2 Configuration SCCP phone A(1900) are registered to cluster A Phones A are associated with the end-user cluster1 SCCP phone B(1000) registered to cluster B Phones B are associated with the end-user cluster2 CUCM learns a pattern 10XX, plus PSTN failover rule as 0:1408972 from SAF network. TAPI is observing A. Procedure Application monitors A Application sends a lineMakeCall at A to call B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 481 Message Sequence Charts Call Control Discovery

Page 513 diagram

Page 514

TAPI messages CTI messages Action A: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_DIALTONE/ LINECALLSTATE_DIALING) CallerID = A / CalledID = “” A receives NewCallEvent and CallStateChangeEvent (Dialtone/Dialing) A dials 1000, this call first will be intercepted by CCD Requesting Feature, and CCD Requesting feature will extend this call to SIP trunk LineA: LINE_CALLSTATE (LINECALLSTATE_PROCEEDING)/ LINE_CALLINFO CallReason = LINECALLREASON_DIRECT CallerID = A / CalledID = 1000 / ConnectedID = / RedirectingID = / RedirectionID = A receives CallStateChangeEvent (PROCEEDING) SIP trunk rejects this call due to no more bandwidth available CCD Requesting feature will start PSTN failover by directing this caller to 1000’s PSTN failover number, that is, 14089721000. Call is sent out to a PSTN GW Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 482 Message Sequence Charts Message Sequence Charts

Page 514 diagram

Page 515

TAPI messages CTI messages Action A:CPIC event received on party A LineA: LINE_CALLSTATE (LINECALLSTATE_RINGBACK / LINECALLSTATE_CONNECTED) CallReason = LINECALLREASON_DIRECT LINECALLINFO.dwCallID = 0x00400BBA LINECALLINFO.dwOrigin = 0x00000001 LINECALLINFO.dwReason=0x00000001 LINECALLINFO.dwCallerID = 1900(A) LINECALLINFO.dwCallerIDName = LINECALLINFO.dwCalledID = 1000: LINECALLINFO.dwCalledIDName = CCD Pattern LINECALLINFO.dwConnectedID = 1000(B) LINECALLINFO.dwConnectedIDName

LINECALLINFO.dwRedirectionID = 1000 LINECALLINFO.dwRedirectionIDName

LINECALLINFO.dwRedirectingID = 1000 LINECALLINFO.dwRedirectingIDName = CCD Pattern ExtendCallReason = CtiReasonSAF_CCD_PSTNFailover(2B) A receives CPIC and CallStateChangeEvent (Ringback/connected) Provide TSPI_LinegetcallInfo on A connected with B CCD Requesting feature will start PSTN failover by directing this caller to 1000’s PSTN failover number, that is, 14089721000. Call is sent out to a PSTN GW BasicCallInitiatedFromTAPIFromPhoneAonCluster1toPhoneBonCluster2withPSTNFailover Rule Not Set Configuration SCCP phone A are registered to cluster A. Phones A are associated with the end-user “cluster1”. SCCP phone B(1000) registered to cluster B. Phones B are associated with the end-user “cluster2”. CUCM learns a pattern 10XX, plus PSTN failover rule as 0:1408972 from SAF network is not set. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 483 Message Sequence Charts Basic Call Initiated From TAPI From Phone A on Cluster 1 to Phone B on Cluster2 with PSTN Failover Rule Not Set

Page 515 diagram

Page 516

Procedure Application monitors A. Application sends a lineMakeCall at A to call B. TAPI messages CTI messages Action A: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_DIALTONE/ LINECALLSTATE_DIALING) CallerID = A / CalledID = “” A receives NewCallEvent and CallStateChangeEvent (Dialtone/Dialing) A dials 1000, this call first will be intercepted by CCD Requesting Feature, and CCD Requesting feature will extend this call to SIP trunk A:A receives CPIC event LineA: LINE_CALLSTATE (LINECALLSTATE_PROCEEDING)/ LINE_CALLINFO CallReason = LINECALLREASON_DIRECT CallerID = A / CalledID = 1000 / ConnectedID = / RedirectingID = / RedirectionID = A receives CallStateChangeEvent (PROCEEDING) SIP trunk rejects this call due to lack of bandwidth LineA: LINE_CALLSTATE (LINECALLSTATE_Disconnected) EVENT = LINE_CALLSTATE = 2 m_lpfnEventProc = 0xXXX m_htLine = 0x000XXXX htCall = 0x000XXX A receives CallStateChangeEvent (disconnected) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 484 Message Sequence Charts Procedure

Page 516 diagram

Page 517

TAPI messages CTI messages Action dwParam1 = 0x00004000(LINECALLSTATE_DISCONNECTED) dwParam2 = 0x00200000(LINEDISCONNECTMODE_SAFCCD) dwParam3 = 0x00000004 LINECALLINFO.dwCallID = 0x00400BCF LINECALLINFO.dwOrigin = 0x00000001 LINECALLINFO.dwReason=0x00000001 LINECALLINFO.dwCallerID = 1900 LINECALLINFO.dwCallerIDName = LINECALLINFO.dwCalledID = 10XX: LINECALLINFO.dwCalledIDName = CCD Pattern LINECALLINFO.dwConnectedID = LINECALLINFO.dwConnectedIDName

LINECALLINFO.dwRedirectionID=1000: LINECALLINFO.dwRedirectionIDName = CCD Pattern LINECALLINFO.dwRedirectingID=1000: LINECALLINFO.dwRedirectingIDName = CCD Pattern ExtendCallReason = CtiReasonSAF_CCD_PSTNFailover Provide TSPI_linegetcallinfo on the Disconnected call Basic Call Initiated From TAPI From Phone A(1900) and B(1901) on Cluster 1 B Redirects to Phone C(1000) on Cluster2 with PSTN Failover Rule Set Configuration SCCP phone A and B are registered to cluster A. Phones A and B are associated with the end-user cluster1. SCCP phone C(1000) registered to cluster B. Phones C are associated with the end-user cluster2. CUCM learns a pattern 10XX, plus PSTN failover rule as 0:1408972 from SAF network. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 485 Message Sequence Charts Basic Call Initiated From TAPI From Phone A(1900) and B(1901) on Cluster 1 B Redirects to Phone C(1000) on Cluster2 with PSTN Failover Rule Set

Page 517 diagram

Page 518

Procedure Application monitors A and B. Application sends a lineMakeCall at A to call B Table 54: Basic Call Initiated From TAPI From Phone A(1900) and B(1901) on Cluster 1, B Redirects to Phone C(1000) on Cluster2 with PSTN Failover Rule Set TAPI messages CTI messages Action A: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_DIALTONE/ LINECALLSTATE_DIALING, LINECALLSTATE_CONNECTED,) CallerID = A / CalledID = B B: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_OFFERING/ LINECALLSTATE_RINGING, LINECALLSTATE_CONNECTED) CallerID = A / CalledID = B A receives NewCallEvent and CallStateChangeEvent (Dialtone/Dialing/Proceeding /ringback/connected). B receives NewCallEvent and CallStateChangeEvent (offering/ringing/ connected). A dials B B: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_DIALTONE/ LINECALLSTATE_DIALING) B: receives CPIC event LineB: LINE_CALLSTATE (LINECALLSTATE_RINGBACK / LINECALLSTATE_CONNECTED) ExtendCallReason = CtiReasonSAF_CCD_PSTNFailover A, B and C are in conference. B setsupconference, consult call to C(1000), this call first will be intercepted by CCD Requesting Feature, and CCD Requesting feature will extend this call to SIP trunk SIP trunk rejects this call due to no more bandwidth available CCD Requesting feature will start PSTN failover by directing this caller to 1000's PSTN failover number, i.e. 14089721000. Call is sent out to a PSTN GW TSPI_linegetcallinfo on the consult call between B and C. B completes conference. Basic Call Initiated From TAPI From Phone A and B on Cluster 1 B Transfers to Phone C(1000) on Cluster 2 with PSTN Failover Rule Configuration SCCP phone A and B are registered to cluster A. Phones A(1900) and B(1901) are associated with the end-user cluster1. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 486 Message Sequence Charts Procedure

Page 518 diagram

Page 519

SCCP phone C(1000) registered to cluster B. Phones C are associated with the end-user cluster2. CUCM learns a pattern 10XX, plus PSTN failover rule as 0:1408972 from SAF network. Procedure Application monitors A and B. Application sends a lineMakeCall at A to call B. Table 55: Basic Call Initiated From TAPI From Phone A and B on Cluster 1, B Transfers to Phone C(1000) on Cluster 2 with PSTN Failover Rule TAPI messages CTI messages Action A: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_DIALTONE/ LINECALLSTATE_DIALING, LINECALLSTATE_CONNECTED,) B: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_OFFERING/ LINECALLSTATE_RINGING, LINECALLSTATE_CONNECTED) A receives NewCallEvent and CallStateChangeEvent (Dialtone/Dialing/Proceeding /ringback/connected). B receives NewCallEvent and CallStateChangeEvent (offering/ringing/ connected) A(1900) dials B(1901) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 487 Message Sequence Charts Procedure

Page 519 diagram

Page 520

TAPI messages CTI messages Action B: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_DIALTONE/ LINECALLSTATE_DIALING) B: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_DIALTONE/ LINECALLSTATE_DIALING) LINECALLINFO.dwCallID = 0x00400BBA LINECALLINFO.dwOrigin = 0x00000001 LINECALLINFO.dwReason=0x00000001 LINECALLINFO.dwCallerID = 1901(B) LINECALLINFO.dwCallerIDName = LINECALLINFO.dwCalledID = 1000: LINECALLINFO.dwCalledIDName = CCD Pattern LINECALLINFO.dwConnectedID = 1000(C) LINECALLINFO.dwConnectedIDName

LINECALLINFO.dwRedirectionID = 1000 LINECALLINFO.dwRedirectionIDName

LINECALLINFO.dwRedirectingID = 1000 LINECALLINFO.dwRedirectingIDName = CCD Pattern Extendedcallreason = CtiReasonSAF_CCD_PSTNFailover B: LINE_CALLSTATE (LINECALLSTATE_DISCONNECTED) ExtendCallReason = CtiReasonTransferredCall B(1901) setups transfer to C(1000) This call first will be intercepted by CCD Requesting Feature, and CCD Requesting feature will extend this call to SIP trunk SIP trunk rejects this call due to no more bandwidth available CCD Requesting feature will start PSTN failover by directing this caller to 1000’s PSTN failover number, i.e. 14089721000. Call is sent out to a PSTN GW. TSPI_linegetcallinfo on Consult call on B with C. B completes transfer Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 488 Message Sequence Charts Message Sequence Charts

Page 520 diagram

Page 521

Call Initiated From TAPI From Phone A and B on Cluster 1 B Sets Up Conference to Phone C(1000) on Cluster 2 with PSTN Failover Rule Configuration SCCP phone A and B are registered to cluster A Phones A(1900) and B(1901) are associated with the end-user cluster1 SCCP phone C(1000) registered to cluster B Phones C are associated with the end-user cluster2 CUCM learns a pattern 10XX, plus PSTN failover rule as 0:1408972 from SAF network Procedure Application monitors A and B Application sends a lineMakeCall at A to call B Table 56: Call Initiated From TAPI From Phone A and B on Cluster 1, B Sets Up Conference to Phone C(1000) on Cluster 2 with PSTN Failover Rule TAPI messages CTI messages Action A: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_DIALTONE/ LINECALLSTATE_DIALING, LINECALLSTATE_CONNECTED,) CallerID = A / CalledID = B B: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_OFFERING/ LINECALLSTATE_RINGING, LINECALLSTATE_CONNECTED) CallerID = A / CalledID = B A receives NewCallEvent and CallStateChangeEvent (Dialtone/Dialing/Proceeding /ringback/connected) B receives NewCallEvent and CallStateChangeEvent (offering/ringing/ connected) A dials B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 489 Message Sequence Charts Call Initiated From TAPI From Phone A and B on Cluster 1 B Sets Up Conference to Phone C(1000) on Cluster 2 with PSTN Failover Rule

Page 521 diagram

Page 522

TAPI messages CTI messages Action B: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_DIALTONE/ LINECALLSTATE_DIALING) B: receives CPIC event LineB: LINE_CALLSTATE (LINECALLSTATE_RINGBACK / LINECALLSTATE_CONNECTED) ExtendCallReason = CtiReasonSAF_CCD_PSTNFailover A, B and C are in conference B setsupconference, consult call to C(1000), this call first will be intercepted by CCD Requesting Feature, and CCD Requesting feature will extend this call to SIP trunk SIP trunk rejects this call due to no more bandwidth available CCD Requesting feature will start PSTN failover by directing this caller to 1000’s PSTN failover number, that is, 14089721000. Call is sent out to a PSTN GW TSPI_linegetcallinfo on the consult call between B and C B completes conference Basic Call Initiated From TAPI From Phone A on Cluster 1 to Phone B on Cluster 2 Over SAF Trunk Configuration SCCP phone A(1900) are registered to cluster A Phones A are associated with the end-user cluster1 SCCP phone B(1000) registered to cluster B Phones B are associated with the end-user cluster2 CUCM learns a pattern 10XX, no PSTN failover rule as SAF network has unlimited Bandwidth, TAPI is observing A Procedure Application monitors A Application sends a lineMakeCall at A to call B Table 57: Basic Call Initiated From TAPI From Phone A on Cluster 1 to Phone B on Cluster 2 Over SAF Trunk TAPI messages CTI messages Action A: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_DIALTONE/ LINECALLSTATE_DIALING) CallerID = A / CalledID = “” A receives NewCallEvent and CallStateChangeEvent (Dialtone/Dialing) A dials 1000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 490 Message Sequence Charts Basic Call Initiated From TAPI From Phone A on Cluster 1 to Phone B on Cluster 2 Over SAF Trunk

Page 522 diagram

Page 523

TAPI messages CTI messages Action LineA: LINE_CALLSTATE (LINECALLSTATE_PROCEEDING)/ LINE_CALLINFO CallReason = LINECALLREASON_DIRECT CallerID = A / CalledID = 1000 / ConnectedID = / RedirectingID = / RedirectionID = A receives CallStateChangeEvent (PROCEEDING) A:CPIC event received on party A LineA: LINE_CALLSTATE (LINECALLSTATE_RINGBACK / LINECALLSTATE_CONNECTED) CallReason = LINECALLREASON_DIRECT CallerID = A / CalledID = 1000 / ConnectedID = 1000 / RedirectingID = 1000 / RedirectionID = 1000 LINECALLINFO.dwCallID=0x00400FB1 LINECALLINFO.dwOrigin = 0x00000001 LINECALLINFO.dwReason=0x00000001 LINECALLINFO.dwCallerID = 1900 LINECALLINFO.dwCallerIDName = LINECALLINFO.dwCalledID = 1000: LINECALLINFO.dwCalledIDName = CCD Pattern LINECALLINFO.dwConnectedID = 1000 LINECALLINFO.dwConnectedIDName

LINECALLINFO.dwRedirectionID = 1000 LINECALLINFO.dwRedirectionIDName

LINECALLINFO.dwRedirectingID=1000: LINECALLINFO.dwRedirectingIDName = CCD Pattern A receives CallStateChangeEvent (Ringback/connected) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 491 Message Sequence Charts Message Sequence Charts

Page 523 diagram

Page 524

Basic Call Initiated From TAPI From Phone A and B on Cluster 1 B Redirects to Phone C(1000) on Cluster 2 Over SAF Trunk Configuration SCCP phone A and B are registered to cluster A Phones A and B are associated with the end-user cluster1 SCCP phone C(1000) registered to cluster B Phones C are associated with the end-user cluster2 CUCM learns a pattern 10XX, from SAF network as unlimited Bandwidth Procedure Application monitors A and B Application sends a lineMakeCall at A to call B Table 58: Basic Call Initiated From TAPI From Phone A and B on Cluster 1, B Redirects to Phone C(1000) on Cluster 2 Over SAF Trunk TAPI messages CTI messages Action A: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_DIALTONE/ LINECALLSTATE_DIALING, LINECALLSTATE_CONNECTED,) B: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_OFFERING/ LINECALLSTATE_RINGING, LINECALLSTATE_CONNECTED) A receives NewCallEvent and CallStateChangeEvent (Dialtone/Dialing/Proceeding /ringback/connected) B receives NewCallEvent and CallStateChangeEvent (offering/ringing/ connected) A dials B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 492 Message Sequence Charts Basic Call Initiated From TAPI From Phone A and B on Cluster 1 B Redirects to Phone C(1000) on Cluster 2 Over SAF Trunk

Page 524 diagram

Page 525

TAPI messages CTI messages Action B: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_DISCONNECTED) ExtendCallReason = CtiReasonRedirect A:CPIC event received on A LineA: LINE_CALLSTATE (LINECALLSTATE_RINGBACK) LineA: LINE_CALLSTATE (LINECALLSTATE_CONNECTED)/ LINE_CALLINFO CallReason = LINECALLREASON_DIRECT LINECALLINFO.dwCallID=0x00400FB2 LINECALLINFO.dwOrigin = 0x00000001 LINECALLINFO.dwReason=0x00000001 LINECALLINFO.dwCallerID = 1900 LINECALLINFO.dwCallerIDName = LINECALLINFO.dwCalledID = 1901 LINECALLINFO.dwCalledIDName = LINECALLINFO.dwConnectedID = 1000 LINECALLINFO.dwConnectedIDName

LINECALLINFO.dwRedirectionID = 1000 LINECALLINFO.dwRedirectionIDName

LINECALLINFO.dwRedirectingID = 1901 LINECALLINFO.dwRedirectingIDName

ExtendCallReason = CtiReasonRedirect A receives CallStateChangeEvent (Connected) B redirects call to 1000 over ICT trunk TSPI_linegetcallinfo on A Basic Call Initiated From TAPI From Phone A and B on Cluster 1 B Transfers to Phone C(1000) on Cluster 2 Over SAF Trunk Configuration SCCP phone A and B are registered to cluster A Phones A and B are associated with the end-user cluster1 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 493 Message Sequence Charts Basic Call Initiated From TAPI From Phone A and B on Cluster 1 B Transfers to Phone C(1000) on Cluster 2 Over SAF Trunk

Page 525 diagram

Page 526

SCCP phone C(1000) registered to cluster B Phones C are associated with the end-user cluster2 CUCM learns a pattern 10XX, plus PSTN failover rule as 0:1408972 from SAF network, SAF network has unlimited bandwidth. Procedure Application monitors A and B Application sends a lineMakeCall at A to call B Table 59: Basic Call Initiated From TAPI From Phone A and B on Cluster 1, B Transfers to Phone C(1000) on Cluster 2 Over SAF Trunk TAPI messages CTI messages Action A: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_DIALTONE/ LINECALLSTATE_DIALING, LINECALLSTATE_CONNECTED,) B: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_OFFERING/ LINECALLSTATE_RINGING, LINECALLSTATE_CONNECTED) A receives NewCallEvent and CallStateChangeEvent (Dialtone/Dialing/Proceeding /ringback/connected) B receives NewCallEvent and CallStateChangeEvent (offering/ringing/ connected) A calls B B: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_DIALTONE/ LINECALLSTATE_DIALING/Proceeding) LineB: LINE_CALLSTATE (LINECALLSTATE_RINGBACK / LINECALLSTATE_CONNECTED) CallReason = LINECALLREASON_DIRECT B: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_DISCONNECTED) ExtendCallReason = CtiReasonTransferredCall B: receives CPIC event B setup transfers to C(1000), through the ICT(SAF) trunk Complete transfer on B TSPI_linegetcallinfo on disconnected call on B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 494 Message Sequence Charts Procedure

Page 526 diagram

Page 527

TAPI messages CTI messages Action A: LineA: LINE_CALLSTATE (LINECALLSTATE_CONNECTED)/ LINE_CALLINFO CallReason = LINECALLREASON_DIRECT LINECALLINFO.dwCallID=0x00400FB4 LINECALLINFO.dwOrigin = 0x00000001 LINECALLINFO.dwReason=0x00000001 LINECALLINFO.dwCallerID = 1000 LINECALLINFO.dwCallerIDName = LINECALLINFO.dwCalledID = 1901 LINECALLINFO.dwCalledIDName = LINECALLINFO.dwConnectedID = 1000 LINECALLINFO.dwConnectedIDName

LINECALLINFO.dwRedirectionID = 1900 LINECALLINFO.dwRedirectionIDName

LINECALLINFO.dwRedirectingID = 1901 LINECALLINFO.dwRedirectingIDName

ExtendCallReason = CtiReasonTransferredCall A receives CallStateChangeEvent (Connected) TSPI_linegetcallinfo on A CallFwdAll Notification This section describes the CallFwdAll Notification usecases. Application Pressed CFwdAll on TAPI Monitored Device Application opens the line with new ExtVersion 0x000A0000. User presses CFwdAll softkey on A when device is in on-hook condition. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 495 Message Sequence Charts CallFwdAll Notification

Page 527 diagram

Page 528

Expected results CTI events Action LineInitialize LineOpen on A with new ExtVesrion 0x000A0000 NewCallEvent received for A User presses CFwdAll softkey LINECALLINFO::DEVSPECIFIC would contain CallAttributeBitMask 0x00000040 LineGetCallInfo on A TAPI Monitored Device Goes Off Hook Application opens the line with new ExtVersion 0x000A0000. Device goes off hook. Expected results CTI events Action LineInitialize LineOpen on A with new ExtVesrion 0x000A0000 NewCallEvent received for A A goes off-hook LINECALLINFO::DEVSPECIFIC would contain CallAttributeBitMask : 0x00000000 LineGetCallInfo on A Application Monitors Off Hook Device Device goes off hook. Application does a LineInitialize and opens line A with new ExtVersion 0x000A0000 Expected results CTI events Action Device goes offhook ExistingCallEvent received at A LineInitialize LineOpen on A with new ExtVesrion 0x000A0000 LINECALLINFO::DEVSPECIFIC would contain CallType 00000000 LineGetCallInfo on A Application Monitors Device After User Presses CFwdAll User presses CFwdAll softkey on the device. Application does a LineInitialize and opens line A with new ExtVersion 0x000A0000. Expected results CTI events Action User presses CFwdAll softkey on the device Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 496 Message Sequence Charts TAPI Monitored Device Goes Off Hook

Page 528 diagram

Page 529

Expected results CTI events Action ExistingCallEvent received for A LineInitialize LineOpen on A with new ExtVesrion 0x000A0000 LINECALLINFO::DEVSPECIFIC would contain CallAttributeBitMask: 0x00000040 LineGetCallInfo on A User Presses CFwdAll Softkey After Device Is Off Hook TAPI application does a LineInitialize and opens line A with new ExtVersion 0x000A0000. Device goes off hook and user presses CFwdAll softkey. Expected results CTI events Action ExistingCallEvent received for A LineInitialize LineOpen on A with new ExtVesrion 0x000A0000 LINECALLINFO::DEVSPECIFIC would contain CallAttributeBitMask : 0x00000040 NewCallEvent received for A A goes off-hook User presses CFwdAll softkey LINECALLINFO::DEVSPECIFIC would contain CallAttributeBitMask : 0x00000000 LineGetCallInfo on A User Presses CFwdAll Softkey on a Multiline Device TAPI application does LineInitialize and opens all lines-A1 and A2 for the device with new ExtVersion 0x000A0000. User presses the CFwdAll softkey. Expected results CTI events Action LineInitialize LineOpen on A1, LineOPen on A2 with new ExtVesrion 0x000A0000 NewCallEvent received for A1 User presses CFwdAll softkey LINECALLINFO::DEVSPECIFIC would contain CallAttributeBitMask : 0x00000040 LineGetCallInfo on A1 User Presses CFwdAll on a Multiline Device by Selecting a Line TAPI application does a LineInitialize and opens all lines-A1 and A2 for the device with new ExtVersion 0x000A0000. User selects line A2 and presses CFwdAll softkey. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 497 Message Sequence Charts User Presses CFwdAll Softkey After Device Is Off Hook

Page 529 diagram

Page 530

Expected results CTI events Action LineInitialize LineOpen on A1, LineOPen on A2 with new ExtVesrion 0x000A0000 NewCallEvent received for A1 User selects line A2 and presses CFwdAll softkey LINECALLINFO::DEVSPECIFIC would contain CallAttributeBitMask : 0x00000000 LineGetCallInfo on A2 Shared Line Scenario on Pressing CFwdAll Softkey TAPI application does a LineInitialize and opens a shared line A with new ExtVersion 0x000A0000 on devices P and Q. User presses CFwdAll softkey on device P. Expected results CTI events Action LineInitialize LineOpen on A LineOpen on A’ with new ExtVesrion 0x000A0000 NewCallEvent received at A NewCallEvent received at A’ for RIU call On device P, user presses ‘CFwdAll’ softkey LINECALLINFO::DEVSPECIFIC would contain CallAttributeBitMask : 0x00000040 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain CallAttributeBitMask : 0x00000000 LineGetCallInfo on A Cancellation of CFwdAll TAPI application does a LineInitialize and open line A with new ExtVersion 0x000A0000. User sets CFwdAll for line A by pressing CFwdAll softkey followed by CallFwdAll destination number. Later, user presses ‘CFwdAll’ softkey again to cancel CFwdAll setting. Expected results CTI events Action LineInitialize LineOpen on A with new ExtVesrion 0x000A0000 NewCallEvent received for A User presses CFwdAll and enters FwdAll destination Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 498 Message Sequence Charts Shared Line Scenario on Pressing CFwdAll Softkey

Page 530 diagram

Page 531

Expected results CTI events Action LINECALLINFO::DEVSPECIFIC would contain CallAttributeBitMask : 0x00000040 LineGetCallInfo on A NewCallEvent received for A User again presses ‘CFwdAll’ softkey LINECALLINFO::DEVSPECIFIC would contain CallAttributeBitMask : 0x00000080 LineGetCallInfo on A Calling Party IP Address Basic Call TAPI application monitors party B Party A represents an IP phone A calls B IP Address of A is available to TAPI application that is monitoring party B Consultation Transfer TAPI application monitors party C Party B represents an IP phone A talks to B B initiates a consultation transfer call to C IP Address of B is available to TAPI application that is monitoring party C. B Completes the transfer Calling IP address of A is not available to TAPI application that is monitoring party C (not a supported scenario). Consultation Conference TAPI application monitors party C Party B represents an IP phone A talks to B B initiates a consultation conference call to C IP Address of B is available to TAPI application that is monitoring party C. B Completes the conference Calling IP address of A and B is not available to TAPI application that is monitoring party C (not a supported scenario) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 499 Message Sequence Charts Calling Party IP Address

Page 531 diagram

Page 532

Redirect TAPI application monitors party B and party C Party A represents an IP phone A calls B IP Address of A is available to TAPI application that is monitoring party B Party A redirects B to party C Calling IP address is not available to TAPI application that is monitoring party B (not a supported scenario) Calling IP address B is available to TAPI application that is monitoring party C Calling Party Normalization Incoming Call From PSTN to End Point TAPI structures TAPI messages CTI messages Action LINECALLINFO Displayed Calling Party = 5551212, Displayed Called Party = 2000, Displayed Redirection Party = , Displayed Redirected Party = , Globalized Calling Party = +14085551212, Calling Party Number Type = SUBSCRIBER, Called Party Number Type = UNKNOWN, Redirection Party Number Type = , Redirecting Party Number Type = LINE_CALLSTATE = CONNECTED CallStateChangedEvent, UnModified Calling Party = 5551212, UnModified Called Party = 2000, UnModified Original Called Party = 2000, Modified Calling Party = 5551212, Modified Called Party = 2000, Modified Original Called Party = 2000, Globalized Calling party = +14085551212, Calling Party Number Type = SUBSCRIBER, Called Party Number Type = UNKNOWN, Original Called Party Number Type, = UNKNOWN State = Connected, Origin = OutBound, Reason = Direct A Call gets offered from a PSTN number 5551212/<SUBSCRIBER> through a San Jose gateway to a CCM end point 2000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 500 Message Sequence Charts Redirect

Page 532 diagram

Page 533

Incoming Call From National PSTN to CTI-Observed End Point TAPI structures TAPI messages CTI messages Action LINECALLINFO Displayed Calling Party = 9725551212, Displayed Called Party = 2000, Displayed Redirection Party = , Displayed Redirected Party = , Globalized Calling Party = +19725551212, Calling Party Number Type = NATIONAL, Called Party Number Type = UNKNOWN, Redirection Party Number Type = , Redirecting Party Number Type = LINE_CALLSTATE = CONNECTED CallStateChangedEvent, UnModified Calling Party = 9725551212, UnModified Called Party = 2000, UnModified Original Called Party = 2000, Modified Calling Party = 9725551212, Modified Called Party = 2000, Modified Original Called Party = 2000, Globalized Calling party = +19725551212, Calling Party Number Type = NATIONAL, Called Party Number Type = UNKNOWN, Original Called Party Number Type, = UNKNOWN State = Connected, Origin = OutBound, Reason = Direct A Call gets offered from a Dallas PSTN number 5551212/<NATIONAL> through a San Jose gateway to a CCM end point 2000 Incoming Call From International PSTN to CTI-Observed End Point TAPI structures TAPI messages CTI messages Action LINECALLINFO Displayed Calling Party = 011914422221111, Displayed Called Party = 2000, Displayed Redirection Party = , Displayed Redirected Party = , Globalized Calling Party = +914422221111, Calling Party Number Type = INTERNATIONAL, Called Party Number Type = UNKNOWN, Redirection Party Number Type = , Redirecting Party Number Type = LINE_CALLSTATE = CONNECTED CallStateChangedEvent, UnModified Calling Party = 011914422221111, UnModified Called Party = 2000, UnModified Original Called Party = 2000, Modified Calling Party = 011914422221111, Modified Called Party = 2000, Modified Original Called Party = 2000, Globalized Calling party = +914422221111, Calling Party Number Type = INTERNATIONAL, Called Party Number Type = UNKNOWN, Original Called Party Number Type, = UNKNOWN State = Connected, Origin = OutBound, Reason = Direct A Call gets offered from a PSTN number in India 22221111/<INTERNATIONAL> through a San Jose gateway to a CCM end point 2000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 501 Message Sequence Charts Incoming Call From National PSTN to CTI-Observed End Point

Page 533 diagram

Page 534

Outgoing Call From CTI-Observed End Point to PSTN Number TAPI structures TAPI messages CTI messages Action LINECALLINFO Displayed Calling Party = 2000, Displayed Called Party = 5551212, Displayed Redirection Party = , Displayed Redirected Party = , Globalized Calling Party = +14085551212, Calling Party Number Type = UNKNOWN, Called Party Number Type = SUBSCRIBER, Redirection Party Number Type = , Redirecting Party Number Type = LINE_CALLSTATE = CONNECTED CallStateChangedEvent, UnModified Calling Party = 2000, UnModified Called Party = 5551212, UnModified Original Called Party = 5551212, Modified Calling Party = 2000, Modified Called Party = 5551212, Modified Original Called Party = 5551212, Globalized Calling party = +14085551212, Calling Party Number Type = UNKNOWN, Called Party Number Type = SUBSCRIBER, Original Called Party Number Type, = SUBSCRIBER State = Connected, Origin = OutBound, Reason = Direct A Call gets initiated from a CCM end point 2000 through a San Jose gateway to a PSTN number 5551212/<NATIONAL> Outgoing Call From CTI-Observed End Point to National PSTN Number TAPI structures TAPI messages CTI messages Action LINECALLINFO Displayed Calling Party = 2000, Displayed Called Party = 9725551212, Displayed Redirection Party = , Displayed Redirected Party = , Globalized Calling Party = +19725551212, Calling Party Number Type = UNKNOWN, Called Party Number Type = NATIONAL, Redirection Party Number Type = , Redirecting Party Number Type = LINE_CALLSTATE = CONNECTED CallStateChangedEvent, UnModified Calling Party = 2000, UnModified Called Party = 9725551212, UnModified Original Called Party = 9725551212, Modified Calling Party = 2000, Modified Called Party = 9725551212, Modified Original Called Party = 9725551212, Globalized Calling party = +19725551212, Calling Party Number Type = UNKNOWN, Called Party Number Type = NATIONAL, Original Called Party Number Type, = NATIONAL State = Connected, Origin = OutBound, Reason = Direct A Call gets initiated from a CCM end point 2000 through a San Jose gateway to a Dallas PSTN number 9725551212/<NATIONAL> Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 502 Message Sequence Charts Outgoing Call From CTI-Observed End Point to PSTN Number

Page 534 diagram

Page 535

Outgoing Call From CTI-Observed End Point to International PSTN Number TAPI structures TAPI messages CTI messages Action LINECALLINFO Displayed Calling Party = 2000, Displayed Called Party = 011914422221111, Displayed Redirection Party = , Displayed Redirected Party = , Globalized Calling Party = +914422221111, Calling Party Number Type = UNKNOWN, Called Party Number Type = INTERNATIONAL, Redirection Party Number Type = , Redirecting Party Number Type = LINE_CALLSTATE = CONNECTED CallStateChangedEvent, UnModified Calling Party = 2000, UnModified Called Party = 011914422221111, UnModified Original Called Party = 011914422221111, Modified Calling Party = 2000, Modified Called Party = 011914422221111, Modified Original Called Party = 011914422221111, Globalized Calling party = +914422221111, Calling Party Number Type = UNKNOWN, Called Party Number Type = INTERNATIONAL, Original Called Party Number Type, = INTERNATIONAL State = Connected, Origin = OutBound, Reason = Direct A Call gets initiated from a CCM end point 2000 through a San Jose gateway to a PSTN number in India 914422221111/<INTERNATIONAL> Call PickUp Registering CallPickUpGroup for Notification Configuration Service parameter “Auto Call Pickup Enabled” is enabled. Devices/Lines: 1000:P1,1001:P1.1002:P1,4000:P1 and 4001:P1 Pickup group P1:1111 is configured P1:1000, P1:1001, P1:1002 are all in pickup group P1:1111 Expected events Action Line Open Successful LineIntialize OpenLines – 1000:P1 CallPickUp Group DN and Partition Information will be sent to application LineGetDevCaps with Extension Version – 000A0000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 503 Message Sequence Charts Outgoing Call From CTI-Observed End Point to International PSTN Number

Page 535 diagram

Page 536

Expected events Action Line_Reply with success. LINE_CREATE event will sent to Application for P1:1111 Application sends CciscoLineDevSpecificRegisterCallPickupGroupForNotification with DN and Partition info of PickUpGroup P1:1111 LineOpenSuccessful LineInService Event as well LineOpen for P1:1111 DN and Partition information will be pickup Group DN and partition. LineName – “CtiCallPickupDevice” LineType -LINEDEVCAPSDEVSPECIFIC_PICKUPDN -0x00000004 LineInfo UnRegistering CallPickUpGroup for Notification Expected events Action Line Open Successful LineIntialize OpenLines – 1000:P1 CallPickUp Group DN and Partition Information will be sent to application LineGetDevCaps with Extension Version – 000A0000 Line_Reply with success. LINE_CREATE event will sent to Application for P1:1111 Application sends CciscoLineDevSpecificRegisterCallPickupGroupForNotification with DN and Partition info of PickUpGroup P1:1111 Line Open Successful LineOpen for P1:1111 Line_Reply with success. LINE_REMOVE event will be sent to Application for P1:1111 Application sends CciscoLineDevSpecificUnRegisterCallPickupGroupForNotification on new line opened for PickUpGroup P1:1111 Re-Registering CallPickUpGroup for Notification Expected events Action Line Open Successful LineIntialize OpenLines – 1000:P1 CallPickUp Group DN and Partition Information will be sent to application LineGetDevCaps with Extension Version – 000A0000 Line_Reply with success. LINE_CREATE event will sent to Application for P1:1111 Application sends CciscoLineDevSpecificRegisterCallPickupGroupForNotification with DN and Partition info of PickUpGroup P1:1111 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 504 Message Sequence Charts UnRegistering CallPickUpGroup for Notification

Page 536 diagram

Page 537

Expected events Action Line Open Successful LineOpen for P1:1111 Line_Reply with Error “LINEERR_OPERATIONUNAVAIL” Application sends CciscoLineDevSpecificRegisterCallPickupGroupForNotification with DN and Partition info of PickUpGroup P1:1111 Variant : Test the Same with UnRegister Registering/UnRegistering CallPickUpGroup for Notification with Invalid Information Expected events Action Line Open Successful LineIntialize OpenLines – 1000:P1 CallPickUp Group DN and Partition Information will be sent to application LineGetDevCaps with Extension Version – 000A0000 Line_Reply with Error Code “LINEERR_OPERATIONFAILED” Application sends CciscoLineDevSpecificRegisterCallPickupGroupForNotification with InValid DN or Partition Variant : Test the Same with UnRegister CallPickUp After Enabling Auto Call Pickup Enabled Expected events Action Line Open Successful LineIntialize OpenLines – 1000:P1 CallPickUp Group DN and Partition Information will be sent to application LineGetDevCaps with Extension Version – 000A0000 Line_Reply with success. LINE_CREATE event will sent to Application for P1:1111 Application sends CciscoLineDevSpecificRegisterCallPickupGroupForNotification with DN and Partition info of PickUpGroup P1:1111 Line Open Successful LineOpen for P1:1111 LINE_APPNEWCALL LINE_CALLSTATE with State = LINECALLSTATE_UNKNOWN to Application on Line P1:1111 P1:4000 calls P1:1002 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 505 Message Sequence Charts Registering/UnRegistering CallPickUpGroup for Notification with Invalid Information

Page 537 diagram

Page 538

Expected events Action LINE_CALLINFO dwCallState : PickupCallState (0x10000000) dwCallerId : 4000 dwCalledID : 1002 dwCallorigin : Outbound dwCallReason : Direct Check for all fields of Calling and Called Information LineGetCallInfo on new call on P1:1111 Events on P1:1000: LINE_NEWCALL and LINE_CALLSTATE with state = LINECALLSTATE_CONNECTED Call Info : Caller = 4000, Called = 1002, Connected = 4000, dwReason = Direct, dwOrigin = Internal. Note There is no notification at P1:1111 after the call has been pickup. Application sends CciscoLineDevSpecificPickUpCallFromPickupGroup with CallPickup option on P1:1000 First incoming Call will be picked up (i.e call from 4000 will be picked up by 1000) Varaint : P1:4000 calls P1:1002 and P1:4001 calls P1:1002 Application sends CciscoLineDevSpecificPickUpCallFromPickupGroup with CallPickup option on P1:1000 CallPickUp with Auto Call Pickup Enabled Disabled Expected events Action Line Open Successful LineIntialize OpenLines – 1000:P1 CallPickUp Group DN and Partition Information will be sent to application LineGetDevCaps with Extension Version – 000A0000 Line_Reply with success. LINE_CREATE event will sent to Application for P1:1111 Application sends CciscoLineDevSpecificRegisterCallPickupGroupForNotification with DN and Partition info of PickUpGroup P1:1111 LineOpen Successful LineOpen with new DeviceID LINE_APPNEWCALL LINE_CALLSTATE with State = LINECALLSTATE_UNKNOWN to Application on Line P1:1111 P1:4000 calls P1:1002 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 506 Message Sequence Charts CallPickUp with Auto Call Pickup Enabled Disabled

Page 538 diagram

Page 539

Expected events Action LINE_CALLINFO dwCallState : PickupCallState (0x10000000) dwCallerId : 4000 dwCalledID : 1002 dwCallorigin: Internal dwCallReason : Direct Check for all fields of Calling and Called Information LineGetCallInfo Events on P1:1000: Call 1: LINE_NEWCALL and LINE_CALLSTATE with state = LINECALLSTATE_IDLE Note First call will go IDLE state after Proceeding state. Call2: LINE_NEWCALL and LINE_CALLSTATE with state = LINECALLSTATE_OFFERING Once the call is Answered LINE_CALLSTATE with state = LINECALLSTATE_CONNECTED Call Info : Caller = 4000, Called = 1002, Connected = 4000, dwReason = PickUp, dwOrigin = Outbound Note There is no notification at P1:1111 after the call has been pickup. Application sends CciscoLineDevSpecificPickUpCallFromPickupGroup with CallPickup option on P1:1000 CallPickup Request will be successful and the newcall will be created and the call will be in Offering state Varaint : Application sends CciscoLineDevSpecificPickUpCallFromPickupGroup with CallPickup option on P1:1002 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 507 Message Sequence Charts Message Sequence Charts

Page 539 diagram

Page 540

CallPickUp with Multiple Calls Available Expected events Action Line Open Successful LineIntialize OpenLines – 1000:P1 CallPickUp Group DN and Partition Information will be sent to application LineGetDevCaps with Extension Version – 000A0000 Line_Reply with success LINE_CREATE event will sent to Application for P1:1111 Application sends CciscoLineDevSpecificRegisterCallPickupGroupForNotification with DN and Partition info of PickUpGroup P1:1111 LineOpen Successful LineOpen with new DeviceID Call1: LINE_APPNEWCALL LINE_CALLSTATE with State = LINECALLSTATE_UNKNOWN to Application on Line P1:1111 P1:4000 calls P1:1002 Call 2: LINE_APPNEWCALL LINE_CALLSTATE with State = LINECALLSTATE_UNKNOWN to Application on Line P1:1111 P1:4001 calls P1:1001 LINE_CALLINFO dwCallState : PickupCallState (0x10000000) dwCallerId : 4000 dwCalledID : 1002 dwCallorigin: Internal dwCallReason : Direct Check for all fields of Calling and Called Information LINE_CALLINFO dwCallState : PickupCallState (0x10000000) dwCallerId : 4001 dwCalledID : 1001 dwCallorigin: Internal dwCallReason : Direct Check for all fields of Calling and Called Information LineGetCallInfo on Call LineGetCallInfo on Call2 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 508 Message Sequence Charts CallPickUp with Multiple Calls Available

Page 540 diagram

Page 541

Expected events Action Events on P1:1000: Call 3: LINE_NEWCALL and LINE_CALLSTATE with state = LINECALLSTATE_CONNECTED Call Info : Caller = 4000, Called = 1002, Connected = 4000, dwReason = Direct, dwOrigin = Internal Note There is no notification at P1:1111 after the call has been pickup. Application sends CciscoLineDevSpecificPickUpCallFromPickupGroup with CallPickup option on P1:1000 CallPickupGroup Changed for a Device on AdminPage Pickup group P1:9999 is configured Expected events Action Line Open Successful LineIntialize OpenLines – 1000:P1 CallPickUp Group DN and Partition Information will be sent to application LineGetDevCaps with Extension Version – 000A0000 on 1000:P1 Line_Reply with success. LINE_CREATE event will sent to Application for P1:1111 Application sends CciscoLineDevSpecificRegisterCallPickupGroupForNotification with DN and Partition info of PickUpGroup P1:1111 Changed CallPickUp Group DN and Partition Information will be sent to application Now from Admin page change the CallPickupGroup of 1000:P1 line to None or some other group P1:9999 LineGetDevCaps with Extension Version – 000A0000 on 1000:P1 CallPickUpGroup Partition or DN Information Updated Expected events Action Line Open Successful LineIntialize OpenLines – 1000:P1 CallPickUp Group DN and Partition Information will be sent to application LineGetDevCaps with Extension Version – 000A0000 on 1000:P1 Line_Reply with success. LINE_CREATE event will sent to Application for P1:1111 Application sends CciscoLineDevSpecificRegisterCallPickupGroupForNotification with DN and Partition info of PickUpGroup P1:1111 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 509 Message Sequence Charts CallPickupGroup Changed for a Device on AdminPage

Page 541 diagram

Page 542

Expected events Action LineOpen Successful LineOpen with new DeviceID LINE_APPNEWCALL LINE_CALLSTATE with State = LINECALLSTATE_UNKNOWN to Application on Line P1:1111 P1:4000 calls P1:1002 LINE_CALLINFO dwCallState : PickupCallState (0x10000000) dwCallerId : 4000 dwCalledID : 1002 dwCallorigin: Internal dwCallReason : Direct Check for all fields of Calling and Called Information LineGetCallInfo LINE_REMOVE for the line P1:1111 Now From Admin Pages change the Partition or DN information of the Pickup Group Changed CallPickUp Group DN and Partition Information will be sent to application LineGetDevCaps with Extension Version – 000A0000 on 1000:P1 CallPickUpGroup Is Deleted Expected events Action Line Open Successful LineIntialize OpenLines – 1000:P1 Line_Reply with success. LINE_CREATE event will sent to Application for P1:1111 Application sends CciscoLineDevSpecificRegisterCallPickupGroupForNotification with DN and Partition info of PickUpGroup P1:1111 LineOpen Successful LineOpen with new DeviceID LINE_REMOVE for the line P1:1111 Now From Admin Pages Pickup Group 1111:P1 is deleted Call Queuing HP1 is a Huntpilot with the below configuration: "Queue Calls" check box is selected. “Display Line Group Member DN as Connected Party" check box is selected. HP1: LG1 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 510 Message Sequence Charts CallPickUpGroup Is Deleted

Page 542 diagram

Page 543

HP2: LG1 A, B (IP phones/CTI Ports) Table 60: Basic Hunt List Call (HP1 Has at Least One Member Free) Expected events Action At A: LINE_CALLSTATE -RINGBACK At A: LINE_CALLSTATE -CONNECTED CallReason = x1(Direct) ExtendedCallReason = x1(DirectCall) Caller = A Called = HP1, HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED CallReason = x1(Direct) ExtendedCallReason = x1(DirectCall) Caller = A Called = HP1, HuntPilot = HP1 Connected = A HuntPilot = HP1 App initiates call from A to HP1 and call is answered by LG1. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 511 Message Sequence Charts Message Sequence Charts

Page 543 diagram

Page 544

Table 61: Basic Hunt List Call. HP1 Has All Members Busy (LG1) Expected events Action At A: LINE_CALLSTATE -RINGBACK At A: LINE_CALLSTATE -CONNECTED CallReason = x1(Direct) ExtendedCallReason = x2d(CallQueue) Caller = A Called = HP1, HuntPilot = HP1 Connected = HP1 HuntPilot = App initiates call from A to HP1 and call is Queued. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 512 Message Sequence Charts Message Sequence Charts

Page 544 diagram

Page 545

Expected events Action At A: LINE_CALLSTATE -RINGBACK CallReason = x1(Direct) ExtendedCallReason = x2e(CallDeQueue) Caller = A Called = HP1, HuntPilot = HP1 At LG1: LINE_CALLSTATE -ACCEPTED CallReason = x400(unknown) ExtendedCallReason = x2e(CallDeQueue) Caller = A, Called = HP1 HuntPilot = HP1 At A: LINE_CALLSTATE -CONNECTED CallReason = x1(direct) ExtendedCallReason = x2e(CallDeQueue) Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED CallReason = x400(unknown) ExtendedCallReason = x2e(CallDeQueue) Caller = A Called = HP1 HuntPilot = HP1 Connected = A Same as above Call on LG1 goes idle (LG1 is free). Queued call from A is de-queued and offered on LG1. LG1 Answers the call. Variance: Repeat and verify info when Display Line Group Member DN as Connected Party is enabled Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 513 Message Sequence Charts Message Sequence Charts

Page 545 diagram

Page 546

Table 62: Hunt List Call to HP1 When Queue Depth Is Reached. (Maximum Number of Callers Allowed in Queue = 2) Expected events Action At A: LINE_CALLSTATE -DISCONNECTED CallReason = x1(Direct) ExtendedCallReason = x1(DirectCall) Caller = A Called = HP1, HuntPilot = HP1 HP1 has 2 queued calls. App initiates call from A to HP1, call is disconnected Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 514 Message Sequence Charts Message Sequence Charts

Page 546 diagram

Page 547

Expected events Action At A: LINE_CALLSTATE -RINGBACK CallReason = x1(Direct) ExtendedCallReason = x1(DirectCall) Caller = A Called = HP1, HuntPilot = HP1 At B: LINE_CALLSTATE -ACCEPTED CallReason = x400(unknown) ExtendedCallReason = x30(CallDeQueueAgentsBusy) Caller = A, Called = HP1 At A: LINE_CALLSTATE -CONNECTED CallReason = x1(direct) ExtendedCallReason = x1(DirectCall) Caller = A Called = HP1 HuntPilot = HP1 Connected = B At B: LINE_CALLSTATE -CONNECTED CallReason = x400(unknown) ExtendedCallReason = x30(CallDeQueueAgentsBusy) Caller = A Called = HP1 Connected = A Variance: Destination When Queue is Full = B B Answers the call. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 515 Message Sequence Charts Message Sequence Charts

Page 547 diagram

Page 548

Expected events Action At A: LINE_CALLSTATE -RINGBACK CallReason = x1(Direct) ExtendedCallReason = x1(DirectCall) Caller = A Called = HP1, HuntPilot = HP1 At LG1: LINE_CALLSTATE -ACCEPTED CallReason = x400(unknown) ExtendedCallReason = x30(CallDeQueueAgentsBusy) Caller = A, Called = HP1 At A: LINE_CALLSTATE -CONNECTED CallReason = x1(direct) ExtendedCallReason = x1(DirectCall) Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 of HP2 HuntPilot = HP2 At LG1 of HP2: LINE_CALLSTATE -CONNECTED CallReason = x400(unknown) ExtendedCallReason = x30(CallDeQueueAgentsBusy) Caller = A Called = HP1 Connected = A Variance: Destination When Queue is Full = HP2 Call on LG1 of HP2 goes idle (LG1 is free). Queued call from A is de-queued and offered on LG1. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 516 Message Sequence Charts Message Sequence Charts

Page 548 diagram

Page 549

Table 63: Hunt List Call to HP1 and Maximum Wait Time in Queue Is Met Expected events Action At A: LINE_CALLSTATE -RINGBACK At A: LINE_CALLSTATE -CONNECTED CallReason = x1(Direct) ExtendedCallReason = x1(DirectCall) Caller = A Called = HP1, HuntPilot = HP1 Connected = HP1 HuntPilot = At A: LINE_CALLSTATE -DISCONNECTED CallReason = x1(Direct) ExtendedCallReason = x2d(CallQueue) Caller = A Called = HP1, HuntPilot = HP1 HuntMember LG1 of HP1 is busy. App initiates call from A to HP1. Maximum wait time at queue is reached. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 517 Message Sequence Charts Message Sequence Charts

Page 549 diagram

Page 550

Expected events Action At A: LINE_CALLSTATE -RINGBACK CallReason = x1(Direct) ExtendedCallReason = x2d(CallQueue) Caller = A Called = HP1, HuntPilot = HP1 At B: LINE_CALLSTATE -ACCEPTED CallReason = x400(unknown) ExtendedCallReason = x2f(CallDeQueueTimerExpired) Caller = A, Called = HP1 At A: LINE_CALLSTATE -CONNECTED CallReason = x1(direct) ExtendedCallReason = x2d(CallQueue) Caller = A Called = HP1 HuntPilot = HP1 Connected = B At B: LINE_CALLSTATE -CONNECTED CallReason = x400(unknown) ExtendedCallReason = x2f(CallDeQueueTimerExpired) Caller = A Called = HP1 Connected = A Variance: Destination When maximum wait time in Queue expires = B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 518 Message Sequence Charts Message Sequence Charts

Page 550 diagram

Page 551

Expected events Action Variance: Destination maximum wait time in Queue expires = HP2 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 519 Message Sequence Charts Message Sequence Charts

Page 551 diagram

Page 552

Expected events Action At A: LINE_CALLSTATE -RINGBACK CallReason = x1(Direct) ExtendedCallReason = x2d(CallQueue) Caller = A Called = HP1, HuntPilot = HP1 At A: LINE_CALLSTATE -RINGBACK CallReason = x1(Direct) ExtendedCallReason = x2d(CallQueue) Caller = A Called = HP1, HuntPilot = HP1 At LG1: LINE_CALLSTATE -ACCEPTED CallReason = x400(unknown) ExtendedCallReason = x2f(CallDeQueueTimerExpired) Caller = A, Called = HP1 At A: LINE_CALLSTATE -CONNECTED CallReason = x1(direct) ExtendedCallReason = x2d(CallQueue) Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 of HP2 HuntPilot = HP2 At LG1 of HP2: LINE_CALLSTATE -CONNECTED CallReason = x400(unknown) ExtendedCallReason = x2f(CallDeQueueTimerExpired) Caller = A Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 520 Message Sequence Charts Message Sequence Charts

Page 552 diagram

Page 553

Expected events Action Called = HP1 Connected = A Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 521 Message Sequence Charts Message Sequence Charts

Page 553 diagram

Page 554

Table 64: Hunt List Call to HP1 and No Agents Logged In or Registered Expected events Action At A: LINE_CALLSTATE -RINGBACK CallReason = x1(Direct) ExtendedCallReason = x1(DirectCall) Caller = A Called = HP1, HuntPilot = HP1 At B: LINE_CALLSTATE -ACCEPTED CallReason = x400(unknown) ExtendedCallReason = x31(CallDeQueueAgentsUnavailable) Caller = A, Called = HP1 At A: LINE_CALLSTATE -CONNECTED CallReason = x1(Direct) ExtendedCallReason = x1(DirectCall) Caller = A Called = HP1, HuntPilot = HP1 Connected = B HuntPilot = At B: LINE_CALLSTATE -CONNECTED CallReason = x400(unknown) ExtendedCallReason = x31(CallDeQueueAgentsUnavailable) Caller = A Called = HP1 Connected = A App initiates call from A to HP1. (None of the Huntmembers are registered or logged in). Destination When There Are No Agents Logged In or Registered = ' B' Call offered on B. B Answers the call. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 522 Message Sequence Charts Message Sequence Charts

Page 554 diagram

Page 555

Expected events Action At A: LINE_CALLSTATE -RINGBACK CallReason = x1(Direct) ExtendedCallReason = x1(DirectCall) Caller = A Called = HP1, HuntPilot = HP1 At LG1: LINE_CALLSTATE -ACCEPTED CallReason = x400(unknown) ExtendedCallReason = x31(CallDeQueueAgentsUnavailable) Caller = A, Called = HP1 At A: LINE_CALLSTATE -CONNECTED CallReason = x1(Direct) ExtendedCallReason = x1(DirectCall) Caller = A Called = HP1, HuntPilot = HP1 Connected = B HuntPilot = HP2 At B: LINE_CALLSTATE -CONNECTED CallReason = x400(unknown) ExtendedCallReason = x31(CallDeQueueAgentsUnavailable) Caller = A Called = HP1 Connected = A App initiates call from A to HP1. (None of the Huntmembers are registered or logged in). Destination When There Are No Agents Logged In or Registered = 'HP2' Call offered on HP2. HP2 Answers the call. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 523 Message Sequence Charts Message Sequence Charts

Page 555 diagram

Page 556

Table 65: Basic Hunt List Call. A Calls B, and B Redirects/forwards/transfers the Call to HP1 Expected events Action At A: LINE_CALLSTATE -RINGBACK At A: LINE_CALLSTATE -CONNECTED CallReason = x1(Direct) ExtendedCallReason = x1(DirectCall) Caller = A Called = B, Connected = B At B: LINE_CALLSTATE -CONNECTED CallReason = x1(Direct) ExtendedCallReason = x1(DirectCall) Caller = A Called = B, Connected = A App initiates call from A to B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 524 Message Sequence Charts Message Sequence Charts

Page 556 diagram

Page 557

Expected events Action The call on B is transferred to HP1 (Blind transfer). Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 525 Message Sequence Charts Message Sequence Charts

Page 557 diagram

Page 558

Expected events Action At B: LINE_CALLSTATE -IDLE CallReason = x1(Direct) ExtendedCallReason = x7(BlindTransferCall) Caller = A Called = B, HuntPilot = Connected = HuntPilot = At LG1: LINE_CALLSTATE -ACCEPTED CallReason = x100(LINECALLREASON_TRANSFER) ExtendedCallReason = x7(BlindTransferCall) Caller = A Called = HP1, HuntPilot = HP1 Connected = HuntPilot = At A: LINE_CALLSTATE -CONNECTED CallReason = x1(Direct) ExtendedCallReason = x1(DirectCall) Caller = A Called = B, HuntPilot = Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED CallReason = x1(Direct) ExtendedCallReason= x100(LINECALLREASON_TRANSFER) Caller = A Called = HP1, HuntPilot = HP1 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 526 Message Sequence Charts Message Sequence Charts

Page 558 diagram

Page 559

Expected events Action Connected = A HuntPilot = Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 527 Message Sequence Charts Message Sequence Charts

Page 559 diagram

Page 560

Expected events Action Variance: Call on B is redirected to HP1 LG1 Answers the call. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 528 Message Sequence Charts Message Sequence Charts

Page 560 diagram

Page 561

Expected events Action At B: LINE_CALLSTATE -IDLE CallReason = x1(Direct) ExtendedCallReason = x6(Redirect) Caller = A Called = B, HuntPilot = Connected = HuntPilot = At LG1: LINE_CALLSTATE -ACCEPTED CallReason = x40(LINECALLREASON_REDIRECT) ExtendedCallReason = x6(Redirect) Caller = A Called = B, HuntPilot = Connected = HuntPilot = At A: LIN_CALLSTATE -CONNECTED CallReason = x1(Direct) ExtendedCallReason = x1(DirectCall) Caller = A Called = B, HuntPilot = Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED CallReason = x40(LINECALLREASON_REDIRECT) ExtendedCallReason = x6(Redirect) Caller = A, Called = B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 529 Message Sequence Charts Message Sequence Charts

Page 561 diagram

Page 562

Expected events Action HuntPilot = Connected = LG1 HuntPilot = Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 530 Message Sequence Charts Message Sequence Charts

Page 562 diagram

Page 563

Expected events Action Variance: Call on B is forwarded to HP1 (Forward All) LG1 Answers the call. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 531 Message Sequence Charts Message Sequence Charts

Page 563 diagram

Page 564

Expected events Action At A: LINE_CALLSTATE -RING_BACK CallReason = x1(Direct) ExtendedCallReason = x1(DirectCall) Caller = A Called = B, HuntPilot = Connected = HuntPilot = At LG1: LINE_CALLSTATE -ACCEPTED CallReason = x8(LINECALLREASON_FWDUNCOND) ExtendedCallReason = x5(ForwardAllCall) Caller = A Called = B, HuntPilot = Connected = HuntPilot = At A: LIN_CALLSTATE -CONNECTED CallReason = x1(Direct) ExtendedCallReason = x1(DirectCall) Caller = A Called = B, HuntPilot = Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED CallReason = x8(LINECALLREASON_FWDUNCOND) ExtendedCallReason = x5(ForwardAllCall) Caller = A, Called = B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 532 Message Sequence Charts Message Sequence Charts

Page 564 diagram

Page 565

Expected events Action Connected = LG1 Table 66: Basic Hunt List Call. HP1 Has All Members Busy (LG1), Queued Call on A Is Redirected Expected events Action At A: LINE_CALLSTATE -RINGBACK At A: LINE_CALLSTATE -CONNECTED CallReason = x1(Direct) ExtendedCallReason = x2d(CallQueue) Caller = A Called = HP1, HuntPilot = HP1 Connected = HP1 HuntPilot = App initiates call from A to HP1 and call is Queued. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 533 Message Sequence Charts Message Sequence Charts

Page 565 diagram

Page 566

Expected events Action At B: LINE_CALLSTATE -CONNECTED CallReason = x40(LINECALLREASON_REDIRECT) ExtendedCallReason = x6(Redirect) Caller = HP1 Called = B, HuntPilot = Connected = HP1 HuntPilot = At LG1: LINE_CALLSTATE -ACCEPTED CallReason = x400(unknown) ExtendedCallReason = x2e(CallDeQueue) Caller = B, Called = HP1 HuntPilot = HP1 At B: LINE_CALLSTATE -CONNECTED CallReason = x40(LINECALLREASON_REDIRECT) ExtendedCallReason = x2e(CallDeQueue) Caller = B Called = B HuntPilot = Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED CallReason = x400(unknown) ExtendedCallReason = x2e(CallDeQueue) Caller = B Called = HP1 HuntPilot = HP1 Connected = B Queued Call on A is redirected to B. B Answers. Call on LG1 goes idle (LG1 is free). Queued call from B is de-queued and offered on LG1. LG1 Answers the call. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 534 Message Sequence Charts Message Sequence Charts

Page 566 diagram

Page 567

Table 67: Hunt List Call to HP1 and No Agents Logged In or Registered Expected events Action At A: LINE_CALLSTATE -DISCONNECTED CallReason = x1(Direct) ExtendedCallReason = x1(DirectCall) Caller = A Called = HP1, HuntPilot = HP1 App initiates call from A to HP1. (None of the Huntmembers are registered or logged in). Call is disconnected. FailOver or FailBack Scenario Expected events Action Line Open Successful LineIntialize OpenLines – 1000:P1 CallPickUp Group DN and Partition Information will be sent to application LineGetDevCaps with Extension Version – 000A0000 on 1000:P1 Line_Reply with success. LINE_CREATE event will sent to Application for P1:1111 Application sends CciscoLineDevSpecificRegisterCallPickupGroupForNotification with DN and Partition info of PickUpGroup P1:1111 LineOpen Successful LineOpen with new DeviceID LINE_APPNEWCALL LINE_CALLSTATE with State = LINECALLSTATE_UNKNOWN to Application on Line P1:1111 P1:4000 calls P1:1002 LINE_CALLINFO dwCallState : PickupCallState (0x10000000) dwCallerId : 4000 dwCalledID : 1002 dwCallorigin: Internal dwCallReason : Direct Check for all fields of Calling and Called Information LineGetCallInfo Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 535 Message Sequence Charts FailOver or FailBack Scenario

Page 567 diagram

Page 568

Expected events Action OutofService for the line P1:1111 INService for the line P1:1111. Note There will not be any notification for the existing calls. Stop Primary CTI Manager GroupCallPickup Configuration Service parameter “Auto Call Pickup Enabled” is enabled. Pickup group P1:1111 is configured and opened P1:1000, P1:1001, P1:1002 are all in pickup group P1:1111 P1:2000, P1:2001, P1:2002 are all in pickup group P1:2222 P1:4000 and P1:4001 are configured Expected Action Line Open Successful LineIntialize OpenLines – 1000:P1 LineGetDevCaps with Extension Version – 000A0000 on P1:2000CallPickUp Group DN and Partition Information will be sent to application.(P1:2222) LineGetDevCaps with Extension Version – 000A0000 on P1:2000 Line_Reply with success. LINE_CREATE event will sent to Application for P1:1111 Application sends CciscoLineDevSpecificRegisterCallPickupGroupForNotification with DN and Partition info of PickUpGroup P1:1111 LineOpen Successful LineOpen with new DeviceID LINE_APPNEWCALL LINE_CALLSTATE with State = LINECALLSTATE_UNKNOWN to Application on Line P1:1111 P1:4000 calls P1:1002 LINE_CALLINFO dwCallState : PickupCallState (0x10000000) dwCallerId : 4000 dwCalledID : 1002 dwCallorigin: Internal dwCallReason : Direct Check for all fields of Calling and Called Information LineGetCallInfo Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 536 Message Sequence Charts GroupCallPickup

Page 568 diagram

Page 569

Expected Action Application sends CciscoLineDevSpecificPickUpCallFromPickupGroup with GroupCallPickup option and GroupPickUp DN 1111 on P1:2000Events on P1:2000: LINE_NEWCALL and LINE_CALLSTATE with state = LINECALLSTATE_CONNECTED Call Info : Caller = 4000, Called = 1111, Connected = 4000, dwReason = Direct, dwOrigin = Internal Note There is no notification at P1:1111 after the call has been pickup. Application sends CciscoLineDevSpecificPickUpCallFromPickupGroup with GroupCallPickup option and GroupPickUp DN 1111 on P1:2000 OtherCallPickup Configuration Service parameter “Auto Call Pickup Enabled” is enabled. Pickup groups P1:1111, P1:2222, P1:3333 is configured and opened P1:1000, P1:1001, P1:1002 are all in pickup group P1:1111 P1:2000, P1:2001, P1:2002 are all in pickup group P1:2222 P1:3000, P1:3001, P1:3002 are all in pickup group P1:3333 P1:1111, and P1:2222 are sub-groups, in order of priority, of pickup group P1:3333. P1:4000 and P1:4001 are configured. Expected Event Action Line Open Successful LineIntialize OpenLines – 1000:P1 CallPickUp Group DN and Partition Information will be sent to application.(P1:2222) LineGetDevCaps with Extension Version – 000A0000 on P1:2000 Line_Reply with success. LINE_CREATE event will sent to Application for P1:1111 Application sends CciscoLineDevSpecificRegisterCallPickupGroupForNotification with DN and Partition info of PickUpGroup P1:1111 LineOpen Successful LineOpen with new DeviceID Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 537 Message Sequence Charts OtherCallPickup

Page 569 diagram

Page 570

Expected Event Action Call1: LINE_APPNEWCALL LINE_CALLSTATE with State = LINECALLSTATE_UNKNOWN to Application on Line P1:1111 Call 2: LINE_APPNEWCALL LINE_CALLSTATE with State = LINECALLSTATE_UNKNOWN to Application on Line P1:1111 P1:4000 calls P1:2000 P1:4001 calls P1:1000 Events on P1:3000: LINE_NEWCALL and LINE_CALLSTATE with state = LINECALLSTATE_CONNECTED Call Info : Caller = 4001, Called = 1000, Connected = 4001, dwReason = Direct, dwOrigin = Internal Application sends CciscoLineDevSpecificPickUpCallFromPickupGroup with OtherPickup option on P1:3000 Note Group DN is not required DirectCallPickup Expected Event Action Line Open Successful LineIntialize OpenLines – 1000:P1 CallPickUp Group DN and Partition Information will be sent to application.(P1:2222) LineGetDevCaps with Extension Version – 000A0000 on P1:2000 Line_Reply with success. LINE_CREATE event will sent to Application for P1:1111 Application sends CciscoLineDevSpecificRegisterCallPickupGroupForNotification with DN and Partition info of PickUpGroup P1:1111 LineOpen Successful LineOpen with new DeviceID Call1: LINE_APPNEWCALL LINE_CALLSTATE with State = LINECALLSTATE_UNKNOWN to Application on Line P1:1111 Call 2: LINE_APPNEWCALL LINE_CALLSTATE with State = LINECALLSTATE_UNKNOWN to Application on Line P1:1111 P1:4000 calls P1:1002 P1:4001 calls P1:1000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 538 Message Sequence Charts DirectCallPickup

Page 570 diagram

Page 571

Expected Event Action Events on P1:1001: LINE_NEWCALL and LINE_CALLSTATE with state = LINECALLSTATE_CONNECTED Call Info : Caller = 1001, Called = 1000, Connected = 4001, dwReason = Direct, dwOrigin = Internal Application sends CciscoLineDevSpecificPickUpCallFromPickupGroup with DirectCallPickup option with pickup groupDN (1000) on P1:10001 CallPickup (Negative Use Case) Configuration Service parameter Auto Call Pickup Enabled is enabled. P1:2000 is already opened by the application. Pickup groups P1:1111, P1:2222, P1:3333 is configured and opened. P1:1000, P1:1001, P1:1002 are all in pickup group P1:1111 P1:2000, P1:2001, P1:2002 are all in pickup group P1:2222 Expected events Action Line Open Successful LineIntialize OpenLines – 1000:P1 CallPickUp Group DN and Partition Information will be sent to application.(P1:2222) LineGetDevCaps with Extension Version – 000A0000 on P1:2000 Line_Reply with success. LINE_CREATE event will sent to Application for P1:1111 Application sends CciscoLineDevSpecificRegisterCallPickupGroupForNotification with DN and Partition info of PickUpGroup P1:1111 LineOpen Successful LineOpen with new DeviceID Call1: LINE_APPNEWCALL LINE_CALLSTATE with State = LINECALLSTATE_UNKNOWN to Application on Line P1:1111 P1:4000 calls P1:1002 Line_Reply with Error LINEERR_OPERATIONUNAVAIL Application sends CciscoLineDevSpecificPickUpCallFromPickupGroup with CallPickup option on P1:2000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 539 Message Sequence Charts CallPickup (Negative Use Case)

Page 571 diagram

Page 572

GroupCallPickup with SuperSet Call PickupDN Configuration Service parameter Auto Call Pickup Enabled is enabled. Pickup groups P1:1111, P1:2222, P1:3333 is configured and opened. P1:1000, P1:1001, P1:1002 are all in pickup group P1:1111. P1:2000, P1:2001, P1:2002 are all in pickup group P1:2222. P1:3000, P1:3001, P1:3002 are all in pickup group P1:3333. P1:1111, and P1:2222 are sub-groups, in order of priority, of pickup group P1:3333. P1:4000 and P1:4001 are configured. Expected events Action Line Open Successful LineIntialize OpenLines – 1000:P1 CallPickUp Group DN and Partition Information will be sent to application.(P1:2222) LineGetDevCaps with Extension Version – 000A0000 on P1:2000 Line_Reply with success LINE_CREATE event will sent to Application for P1:1111 Application sends CciscoLineDevSpecificRegisterCallPickupGroupForNotification with DN and Partition info of PickUpGroup P1:1111 LineOpen Successful LineOpen with new DeviceID Call1: LINE_APPNEWCALL LINE_CALLSTATE with State = LINECALLSTATE_UNKNOWN to Application on Line P1:1111 Call 2: LINE_APPNEWCALL LINE_CALLSTATE with State = LINECALLSTATE_UNKNOWN to Application on Line P1:1111 P1:4000 calls P1:2000 P1:4001 calls P1:1000 Line_Reply with Error LINEERR_CALLUNAVAIL Application sends CciscoLineDevSpecificPickUpCallFromPickupGroup with GroupPickup option with pickup group(3333) on P1:3000 Group or Direct CallPickup with Invalid DN Expected events Action Line Open Successful LineIntialize OpenLines – 1000:P1 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 540 Message Sequence Charts GroupCallPickup with SuperSet Call PickupDN

Page 572 diagram

Page 573

Expected events Action CallPickUp Group DN and Partition Information will be sent to application.(P1:2222) LineGetDevCaps with Extension Version – 000A0000 on P1:2000 Line_Reply with success. LINE_CREATE event will sent to Application for P1:1111 Application sends CciscoLineDevSpecificRegisterCallPickupGroupForNotification with DN and Partition info of PickUpGroup P1:1111 LineOpen Successful LineOpen with new DeviceID Call1: LINE_APPNEWCALL LINE_CALLSTATE with State = LINECALLSTATE_UNKNOWN to Application on Line P1:1111 P1:4000 calls P1:1002 Line_Reply with Error LINEERR_OPERATIONFAILED Line_Reply with Error LINEERR_INVALLINESTATE Application sends CciscoLineDevSpecificPickUpCallFromPickupGroup with GroupPickup option with pickup group(9999) on P1:3000 Variant -Direct Call Pickup with InValid DN Call Recording for SIP or TLS Authenticated calls Scenario One Recording behavior for an authenticated Phone when Service Parameter Authenticated Phone Recording set to Do not Allow Recording. A is an Authenticated Phone having selective recording configured and Recording Profile assigned to it. Caller A calls B. B answers the call. Events Action Recording fails with error Response= CTIERR_SECURITY_CAPABLITY_MISMATCH as LINEERR_SECURITY_CAPABILITIES_MISMATCH A issues startrecording request by lineDevSpecific Scenario Two Recording behavior for an authenticated Phone when Service Parameter Authenticated Phone Recording set to Allow Recording. A is an Authenticated Phone having selective recording configured and Recording Profile assigned to it. Caller A calls B. B answers the call. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 541 Message Sequence Charts Call Recording for SIP or TLS Authenticated calls

Page 573 diagram

Page 574

Events Action Along with the regular events for call answer, the following events will also be delivered to the call observer: LINE_CALLDEVSPECIFIC hDevice=hCall-1 dwCallbackInstance=0 dwParam1= SLDSMT_RECORDING_ STARTED dwParam2=0 dwParam3=0 A issues startrecording request by lineDevSpecific Recording session gets established between the agent phone and the recorder A is an Authenticated Phone having auto recording configured and Recording Profile assigned to it. Caller A calls B. B answers the call. Events Action Along with the regular events for call answer, the following events will also be delivered to the call observer: LINE_CALLDEVSPECIFIC hDevice=hCall-1 dwCallbackInstance=0 dwParam1= SLDSMT_RECORDING_ STARTED dwParam2=0 dwParam3=0 When B answers CCMEncryption Enhancements Precondition: CTI service Parameter - "Require Public Key encryption" = true/false Table 68: CiscoTSP Connecting to 10.x CUCM TAPI Structures TAPI Messages Action Devices are Enumerated/ Lines are Enumerated PhoneInitializeEx/LineInitializeEx Applications would be able to control /monitor devices/Lines as before no change. Variant: Test the same with Secure CUCM and Secure Connection between CiscoTSP and CTI. Note Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 542 Message Sequence Charts CCMEncryption Enhancements

Image 1 from page 574

Page 574 diagram

Page 575

Precondition: CTI service Parameter - "Require Public Key encryption" = False Table 69: 9.x CiscoTSP Connecting to 10.x CUCM TAPI Structures TAPI Messages Action Devices are Enumerated/ Lines are Enumerated PhoneInitializeEx/LineInitializeEx Applications would be able to control /monitor devices/Lines as before no change Note Precondition: CTI service Parameter - "Require Public Key encryption" = False Table 70: 9.x CiscoTSP Connecting to 10.x CUCM TAPI Structures TAPI Messages Action Notifier will pop-up error message indicating that Provider Init failed. Error - Provider Init failed - Incompatible protocol version Initialization fails and CiscoTSP devices won't be Enumerated. PhoneInitializeEx/LineInitializeEx CIUS Session Persistency Notify the Line Application and Expose the Changed IP Address TAPI structures TAPI messages Action lineDevices are Enumerated lineInitializeEx lineOpen() returns success lineOpen for a lineDevice on the wireless device TAPI100 LINEDEVCAPS::DevSpecific RegisteredIPAddressMode = IPAddress_IPv4_only RegisteredIPv4Address = "10.77.31.250" (FA1F4D0A -Little endian Hex format) lineGetDevCaps() returns success lineGetDevCaps() with DeviceID = DeviceId of TAPI100 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 543 Message Sequence Charts CIUS Session Persistency

Image 1 from page 575

Page 575 diagram

Page 576

TAPI structures TAPI messages Action EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_DEVICE_IPADDRESS Variation result:

Same as above
Same as above The device TAPI100 moves across WiFi networks resulting in change in the IPv4 address from 10.77.31.250 to 10.77.31.176 Variation 1: The device TAPI100 moves from a IPv4 n/w to a Ipv6 n/w with new ip as 2001:db8::1:0:0:1 Variation 2: The device TAPI100 is docked/undocked and hence changes from WAN/LAN to wireless network LINEDEVCAPS::DevSpecific RegisteredIPAddressMode = IPAddress_IPv4_only RegisteredIPv4Address = "10.77.31.176" (B01F4D0A -Little endian Hex format) Variation 1: LINEDEVCAPS::DevSpecific RegisteredIPAddressMode = IPAddress_IPv6_only RegisteredIPv6Address = "2001:db8::1:0:0:1" (Application should use the Offset and size fields of IPv6 address from LINEDEVCAPS to retrieve the value of IPv6 address) Variation 2: LINEDEVCAPS::DevSpecific RegisteredIPAddressMode = IPAddress_IPv4_only RegisteredIPv4Address = "10.77.31.176" lineGetDevCaps() returns success lineGetDevCaps() with DeviceID = DeviceId of TAPI100 Notify the Phone Application and Expose the Changed IP Address TAPI structures TAPI Message Action phoneDevices are Enumerated phoneInitializeEx phoneOpen() returns success phoneOpen for a phoneDevice of wireless device TAPI100 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 544 Message Sequence Charts Notify the Phone Application and Expose the Changed IP Address

Page 576 diagram

Page 577

TAPI structures TAPI Message Action PHONEDEVCAPS::DevSpecific RegisteredIPAddressMode = IPAddress_IPv4_only RegisteredIPv4Address = "10.77.31.250" (FA1F4D0A -Little endian Hex format) phoneGetDevCaps() returns success phoneGetDevCaps() with DeviceID = DeviceId of TAPI100 EVENT = PHONE_DEVSPECIFIC dwParam1 = CPDSMT_PHONE_PROPERTY_ CHANGED_EVENT dwParam2 = PPCT_DEVICE_IPADDRESS Variation result:

Same as above
Same as above The device TAPI100 moves across WiFi networks resulting in change in the IPv4 address from 10.77.31.250 to 10.77.31.176 Variation 1: The deivce TAPI100 moves from a IPv4 n/w to a Ipv6 n/w with new ip as 2001:db8::1:0:0:1 Variation 2: The deivce TAPI100 is docked/undocked and hence changes from WAN/LAN to wireless network PHONEDEVCAPS::DevSpecific RegisteredIPAddressMode = IPAddress_IPv4_only RegisteredIPv4Address = "10.77.31.176" (B01F4D0A -Little endian Hex format) Phone Type = Cisco Cius. Phone Name = Cisco Phone [SEP123456789000] Variation 1: PHONEDEVCAPS::DevSpecific RegisteredIPAddressMode = IPAddress_IPv6_only RegisteredIPv6Address = "2001:db8::1:0:0:1" (Application should use the Offset and size fields of IPv6 address from PHONEDEVCAPS to retrieve the value of IPv6 address) Variation 2: PHONEDEVCAPS::DevSpecific RegisteredIPAddressMode = IPAddress_IPv4_only RegisteredIPv4Address = "10.77.31.176" (B01F4D0A -Little endian Hex format) phoneGetDevCaps() returns success phoneGetDevCaps() with DeviceID = DeviceId of TAPI100 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 545 Message Sequence Charts Message Sequence Charts

Page 577 diagram

Page 578

Click to Conference Third-party conference gets created by using click-2-conference feature: Events Action For A: CONNECTED reason = DIRECT Calling = A, Called = B, Connected = B For B: CONNECTED reason = DIRECT Calling = A, Called = B, Connected = A Use Click-to-Call to create call from A to B, and B answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 546 Message Sequence Charts Click to Conference

Page 578 diagram

Page 579

Events Action For A: CONNECTED reason = DIRECT ExtendedCallReason = DIRECT CONFERENCED Calling = A, Called = B, Connected = B CONFERENCED Calling = A, Called = C, Connected = C For B: CONNECTED reason = DIRECT ExtendedCallReason = DIRECT CONFERENCED Calling = A, Called = B, Connected = A CONFERENCED Calling = B, Called = C, Connected = C For C CONNECTED Reason = UNKNOWN ExtendedCallReason = ClickToConference CONFERENCED Calling = C, Called = A, Connected = A CONFERENCED Calling = C, Called = B, Connected = B Use Click-2-Conference feature to add C into conference, and C answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 547 Message Sequence Charts Message Sequence Charts

Page 579 diagram

Page 580

Creating Four-Party Conference by Using Click-2-Conference Feature Events Action For A: CONNECTED reason = DIRECT Calling = A, Called = B, Connected = B For B: CONNECTED reason = DIRECT Calling = A, Called = B, Connected = A Use Click-to-Call to create call from A to B For A: CONNECTED reason = DIRECT ExtendedCallReason = DIRECT CONFERENCED Calling = A, Called = B, Connected = B CONFERENCED Calling = A, Called = C, Connected = C For B: CONNECTED reason = DIRECT ExtendedCallReason = DIRECT CONFERENCED Calling = A, Called = B, Connected = A CONFERENCED Calling = C, Called = C, Connected = C For C CONNECTED Reason = DIRECT ExtendedCallReason = ClickToConference CONFERENCED Calling = C, Called = A, Connected = A CONFERENCED Calling = C, Called = B, Connected = B Use Click-2-Conference feature to add C into conference Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 548 Message Sequence Charts Message Sequence Charts

Page 580 diagram

Page 581

Events Action Use Click-2-Conference feature to add party D Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 549 Message Sequence Charts Message Sequence Charts

Page 581 diagram

Page 582

Events Action For A: CONNECTED reason = DIRECT ExtendedCallReason = DIRECT CONFERENCED Calling = A, Called = B, Connected = B CONFERENCED Calling = A, Called = C, Connected = C CONFERENCED Calling = A, Called = D, Connected = D For B: CONNECTED reason = DIRECT ExtendedCallReason = DIRECT CONFERENCED Calling = A, Called = B, Connected = A CONFERENCED Calling = B, Called = C, Connected = C CONFERENCED Calling = B, Called = D, Connected = D For C CONNECTED Reason = UNKNOWN ExtendedCallReason = ClickToConference CONFERENCED Calling = C, Called = A, Connected = A CONFERENCED Calling = C, Called = B, Connected = B CONFERENCED Calling = C, Called = D, Connected = D For D CONNECTED Reason = UNKNOWN Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 550 Message Sequence Charts Message Sequence Charts

Page 582 diagram

Page 583

Events Action ExtendedCallReason = ClickToConference CONFERENCED Calling = D, Called = A, Connected = A CONFERENCED Calling = D, Called = B, Connected = B CONFERENCED Calling = D, Called = C, Connected = C Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 551 Message Sequence Charts Message Sequence Charts

Page 583 diagram

Page 584

Drop Party by Using Click-2-Conference Events Action For A: CONNECTED reason = DIRECT ExtendedCallReason = DIRECT CONFERENCED Calling = A, Called = B, Connected = B CONFERENCED Calling = A, Called = C, Connected = C For B: CONNECTED reason = DIRECT ExtendedCallReason = DIRECT CONFERENCED Calling = A, Called = B, Connected = A CONFERENCED Calling = B, Called = C, Connected = C For C CONNECTED Reason = UNKNOWN ExtendedCallReason = ClickToConference CONFERENCED Calling = C, Called = A, Connected = A CONFERENCED Calling = C, Called = B, Connected = B Conference gets created by using Click-2-Conference feature to add C into conference Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 552 Message Sequence Charts Drop Party by Using Click-2-Conference

Page 584 diagram

Page 585

Events Action For A CONNECTED Reason = DIRECT ExtendedCallReason = DIRECT Calling = A, Called = B, Connected = B For B CONNECTED Reason = DIRECT ExtendedCallReason = DIRECT Calling = A, Called = B, Connected = A For C IDLE Drop C from Click-2-Conference feature Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 553 Message Sequence Charts Message Sequence Charts

Page 585 diagram

Page 586

Drop Entire Conference by Using Click-2-Conference Feature Events Action For A: CONNECTED reason = DIRECT ExtendedCallReason = DIRECT CONFERENCED Calling = A, Called = B, Connected = B CONFERENCED Calling = A, Called = C, Connected = C For B: CONNECTED reason = DIRECT ExtendedCallReason = DIRECT CONFERENCED Calling = A, Called = B, Connected = A CONFERENCED Calling = B, Called = C, Connected = C For C CONNECTED Reason = UNKOWN ExtendedCallReason = ClickToConference CONFERENCED Calling = C, Called = A, Connected = A CONFERENCED Calling = C, Called = B, Connected = B Conference gets created by using Click-2-Conference feature to add C into conference For A IDLE For B IDLE For C IDLE Drop entire conference Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 554 Message Sequence Charts Drop Entire Conference by Using Click-2-Conference Feature

Page 586 diagram

Page 587

Conference Enhancements Noncontroller Adding Parties to Conferences A,B, and C exist in a conference that A created. Events Action At A: Conference – Caller = A, Called = B, Connected = B Connected Conference – Caller = A, Called = C, Connected = C At B: Conference – Caller = A, Called = B, Connected = A Connected Conference – Caller = B, Called = C, Connected = C At C: Conference – Caller = B, Called = C, Connected = B Connected Conference – Caller = C, Called = A, Connected = A A,B, and C exist in a conference At A: Conference – Caller = A, Called = B, Connected = B Connected Conference – Caller = A, Called = C, Connected = C At B: Conference – Caller = A, Called = B, Connected = A Connected Conference – Caller = B, Called = C, Connected = C At C: Conference – Caller = B, Called = C, Connected = B OnHoldPendConf Conference – Caller = C, Called = A, Connected = A Connected -Caller = C, Called = D, Connected = D At D: Connected -Caller = C, Called = D, Connected = C C issues a linePrepareAddToConference to D Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 555 Message Sequence Charts Conference Enhancements

Page 587 diagram

Page 588

Events Action At A: Conference – Caller = A, Called = B, Connected = B Connected Conference – Caller = A, Called = C, Connected = C Conference – Caller = A, Called = D, Connected = D At B: Conference – Caller = A, Called = B, Connected = A Connected Conference – Caller = B, Called = C, Connected = C Conference – Caller = B, Called = D, Connected = D At C: Conference – Caller = B, Called = C, Connected = B Connected Conference – Caller = C, Called = A, Connected = A Conference – Caller = C, Called = D, Connected = D At D: Conference – Caller = C, Called = D, Connected = C Connected Conference – Caller = D, Called = A, Connected = A Conference – Caller = D, Called = B, Connected = B C issues a lineAddToConference to D Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 556 Message Sequence Charts Message Sequence Charts

Page 588 diagram

Page 589

Chaining Two Ad Hoc Conferences Using Join TSP CallInfo Actions At A: GCID-1 CONNECTED : Caller = Unknown Caller = Unknown CONFERENCED : Caller = A Called = B CONFERENCED : Caller = A Called = C At B: GCID-1 CONNECTED : Caller = Unknown Caller = Unknown CONFERENCED : Caller = A Called = B CONFERENCED : Caller = B Called = C At C: GCID-1 CONNECTED : Caller = Unknown Caller = Unknown CONFERENCED : Caller = B Called = C CONFERENCED : Caller = C Called = A A calls B, B answers, then B initiates conference to C, C answers, and B completes the conference Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 557 Message Sequence Charts Chaining Two Ad Hoc Conferences Using Join

Page 589 diagram

Page 590

TSP CallInfo Actions C initiates or completes conference to D and E Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 558 Message Sequence Charts Message Sequence Charts

Page 590 diagram

Page 591

TSP CallInfo Actions No Change for A and B At C: -First conference GCID-1 ONHOLD : Caller = Unknown Caller = Unknown CONFERENCED : Caller = A Called = B CONFERENCED : Caller = A Called = C -Second conference GCID-2 CONNECTED : Caller = Unknown Caller = Unknown CONFERENCED : Caller = C Called = D CONFERENCED : Caller = C Called = E At D: GCID-2 CONNECTED : Caller = Unknown Caller = Unknown CONFERENCED : Caller = C Called = D CONFERENCED : Caller = D Called = E At E: GCID-2 CONNECTED : Caller = Unknown Caller = Unknown CONFERENCED : Caller = C Called = E CONFERENCED : Caller = E Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 559 Message Sequence Charts Message Sequence Charts

Page 591 diagram

Page 592

TSP CallInfo Actions Called = D At A: GCID-1 CONNECTED : Caller = Unknown Caller = Unknown CONFERENCED : Caller = A Called = B CONFERENCED : Caller = A Called = C CONFERENCED : Caller = A Called = Conference-2 At B : GCID-1 CONNECTED : Caller = Unknown Caller = Unknown CONFERENCED : Caller = A Called = B CONFERENCED : Caller = B Called = C CONFERENCED : Caller = B Called = Conference-2 At C: -First conference GCID-1 CONNECTED : Caller = Unknown Caller = Unknown CONFERENCED : Caller = B Called = C CONFERENCED : Caller = C Called = A CONFERENCED : Caller = C Called = Conference-2 C initiates JOIN request to join to conference call together, with GCID as the primary call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 560 Message Sequence Charts Message Sequence Charts

Page 592 diagram

Page 593

TSP CallInfo Actions At D: GCID-2 CONNECTED : Caller = Unknown Caller = Unknown CONFERENCED : Caller = D Called = E CONFERENCED : Caller = D Called = Conference-1 At E : GCID-2 CONNECTED : Caller = Unknown Caller = Unknown CONFERENCED : Caller = E Called = D CONFERENCED : Caller = E Called = Conference-1 CTI Remote Device Expose Remote Destination Info for CTI Remote Device in ProviderDeviceLineInfoEvent PreCondition: User has a CTI remote device "CTIRD1" under it control list. CTIRD1 device has 3 remote destinations configured. CTI messages/Events Action CTI acquires the devices which are under control list of the user Application opens the provider. CTI sends ProviderDeviceLineInfoEvent to application and exposes 3 RDs configured on the device as part of "Remote Destination Info" structure. Application sends GetSignleDeviceAndLineInfoRequest to CTI to fetch info for CTIRD1 device. Expose Remote Destination Info for CTI Remote Device in ProviderDeviceRegisteredWithLineInfoNotify PreCondition: User has a CTI remote device "CTIRD1" under it control list. CTIRD1 device has 3 remote destinations configured. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 561 Message Sequence Charts CTI Remote Device

Page 593 diagram

Page 594

CTI messages/Events Action CTI acquires the devices which are under control list of the user Application opens the provider. CTI sends ProviderDeviceLineInfoEvent to application and exposes 3 RDs configured on the device as part of "Remote Destination Info" structure. Application sends GetSignleDeviceAndLineInfoRequest to application to fetch info for CTIRD1 device. CTI sends ProviderDeviceRegisteredWithLineInfoNotify to application and exposes 3 RDs configured on the device as part of "Remote Destination Info" structure. Application resets the device CTIRD1 from the admin page. Expose New Device Type for CTI Remote Device Precondition: CTIRD (CTI Remote Device -Name: CTIRDdrajesh) Remote Destinations configured/will be configured on CTI Remote Device: RD1-CTIRD -(Name: Mobile, Number: 914086271309) RD2-CTIRD -(Name: Office, Number: 914089022131) Line-A (DN -1000) -Line-A configured on CTI Remote Device (shared line of Enterprise DN -1000 configured on Device EP) EP (Enter Prise Phone -SCCP -IP Phone) Line-A' -DN -1000 configured on Device EP CSF (CSF Device -Name: CSFdrajesh) Line-A'' -DN -1000 configured on Device CSF Remote Destination configured on CSF device: RD1-CSF -(Name: CSF-Mobile, Number: 914086271310) RD2-CSF -(Name: CSF-Office, Number: 914089022132) TAPI structures TAPI messages Action Devices are Enumerated PhoneInitializeEx PHONECAPS::PhoneInfo = "CTI Remote Device" PHONECAPS:: PhoneName = "Cisco Phone: [CTIRDdrajesh]" PhoneGetDevCaps() returns success PhoneGetDevCaps() with DeviceID = DeviceId of CTIRD. PHONECAPS::PhoneInfo = "Cisco Unified Client Services Framework" PHONECAPS:: PhoneName = "Cisco Phone: [CSF-drajesh]" PhoneGetDevCaps() returns success PhoneGetDevCaps() with DeviceID = DeviceId of CSF. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 562 Message Sequence Charts Message Sequence Charts

Page 594 diagram

Page 595

Enumerating CTI Remote Devices and Exposing Remote Destination Information to Application Precondition: same as above usecase; RD1-CTIRD and RD1-CSF are configured on respective devices TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LINEDEVCAPS::DevSpecific dwLineTypes = LINEDEVCAPSDEVSPECIFIC_ REMOTEDEVICE (0x00000008) DeviceProtocolType = DeviceProtocolType_CTI_ REMOTE_DEVICE(0x03) Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A on CTIRD. LINEDEVCAPS::DevSpecific dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_SIP (0x02) Remote Destination Info: unicodeRDName = "CSF-Mobile" RDNumber = "91486271310" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A'' on CSF. Add Remote Destination From Admin and Expose Multiple Remote Destination Information to Application Precondition: In addition to above usecase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 563 Message Sequence Charts Message Sequence Charts

Page 595 diagram

Page 596

TAPI structures TAPI messages Action LINEDEVCAPS::DevSpecific dwLineTypes = LINEDEVCAPSDEVSPECIFIC_ REMOTEDEVICE (0x00000008) DeviceProtocolType = DeviceProtocolType_CTI_REMOTE_DEVICE(0x03) Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A on CTIRD. LineOpen() returns Success Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE LineOpen() with ExtVer-0x000C0000 dwDeviceID = LineDeviceID of Line-A on CTIRD EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) Add other Remote Destination RD2-CTIRD on CTI Remote Device from Admin Pages RD2-CTIRD Info -(Name: Office, Number: 4089022131) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 564 Message Sequence Charts Message Sequence Charts

Page 596 diagram

Page 597

TAPI structures TAPI messages Action LINEDEVCAPS::DevSpecific dwLineTypes = LINEDEVCAPSDEVSPECIFIC_ REMOTEDEVICE (0x00000008) DeviceProtocolType = DeviceProtocolType_CTI_REMOTE_ DEVICE(0x03) Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000000 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A on CTIRD. Same as for CTI Remote Device other than dwLineTypes and DeviceProtocolType Info. dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_SIP (0x02) Remote Destination Info: unicodeRDName = "CSF-Mobile" RDNumber = "91486271310" isActiveRD = 0x00000000 unicodeRDName = "CSF-Office" RDNumber = "4089022132" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 Variation : Test the same on CSF device [CSF -Line-A''] Update RD Info (RDName/Number/Both) From Admin -RD Info Change Notification to Application Precondition: continuation from previous UseCase Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 565 Message Sequence Charts Message Sequence Charts

Page 597 diagram

Page 598

TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LINEDEVCAPS::DevSpecific LINEDEVCAPS::DevSpecific dwLineTypes = LINEDEVCAPSDEVSPECIFIC_ REMOTEDEVICE (0x00000008) DeviceProtocolType = DeviceProtocolType_CTI_REMOTE_ DEVICE(0x03) Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000000 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A on CTIRD. LineOpen() returns Success Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE LineOpen() with ExtVer-0x000C0000 dwDeviceID = LineDeviceID of Line-A on CTIRD EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) Update Remote Destination RD2-CTIRD Name on CTI Remote Device "CTIRD" from Admin Pages RD2-CTIRD Info -(Name: Home, Number: 4089022132) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 566 Message Sequence Charts Message Sequence Charts

Page 598 diagram

Page 599

TAPI structures TAPI messages Action LINEDEVCAPS::DevSpecific Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000000 unicodeRDName = "Home" RDNumber = "4089022132" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A on CTIRD. EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) Update Remote Destination RD2-CTIRD Number on CTI Remote Device CTIRD from Admin Pages RD2Info -(Name: Home, Number: 4089021234) LINEDEVCAPS::DevSpecific LineGetDevCaps() returns LineGetDevCaps() with dwDeviceID = Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000000 unicodeRDName = "Home" RDNumber = "4089021234" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 success LineDeviceId of Line-A on CTIRD. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 567 Message Sequence Charts Message Sequence Charts

Page 599 diagram

Page 600

TAPI structures TAPI messages Action EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) Update Remote Destination RD2-CTIRD Name and Number on CTI Remote Device CTIRD from Admin Pages RD2Info -(Name: Office, Number: 4089022131) LINEDEVCAPS::DevSpecific Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000000 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A on CTIRD. Same as for CTI Remote Device other than dwLineTypes and DeviceProtocolType Info with respective RD Info. dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_SIP (0x02) Variation : Test the same on CSF device [CSF -Line-A''] Remove RD From Admin -RD Info Change Notification to Application Precondition: continuation from previous UseCase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 568 Message Sequence Charts Message Sequence Charts

Page 600 diagram

Page 601

TAPI structures TAPI messages Action LINEDEVCAPS::DevSpecific dwLineTypes = LINEDEVCAPSDEVSPECIFIC_ REMOTEDEVICE (0x00000008) DeviceProtocolType = DeviceProtocolType_CTI_REMOTE_ DEVICE(0x03) Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000000 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A on CTIRD. LineOpen() returns Success Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE LineOpen() with ExtVer-0x000C0000 dwDeviceID = LineDeviceID of Line-A EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) Remove Remote Destination RD2-CTIRD on CTI Remote Device CTIRD from Admin Pages RD2Info -(Name: Office, Number: 4089022131) LINEDEVCAPS::DevSpecific Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 569 Message Sequence Charts Message Sequence Charts

Page 601 diagram

Page 602

TAPI structures TAPI messages Action Same as for CTI Remote Device other than dwLineTypes and DeviceProtocolType Info. dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_SIP (0x02) Variation : Test the same on CSF device [CSF -Line-A''] Remote Destination Information on CTI RemoteDevice/CSF Device Which Does Not Have Remote Destination's Configured Precondition: In addition to above usecase CTIRD2 (CTI remote device -doesn't have any RemoteDestination's configured) TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LINEDEVCAPS::DevSpecific dwLineTypes = LINEDEVCAPSDEVSPECIFIC_ REMOTEDEVICE (0x00000008) DeviceProtocolType = DeviceProtocolType_CTI_REMOTE_ DEVICE(0x03) Remote Destination Info is empty RemoteDestinationOffset = 0 RemoteDestinationSize = 0 RemoteDestinationCount = 0 RemoteDestinationElementFixedSize = 0 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-C on CTIRD2. Remote Destination Information on Non CTI RemoteDevice / CSF Device Precondition: In addition to above usecase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 570 Message Sequence Charts Message Sequence Charts

Page 602 diagram

Page 603

TAPI structures TAPI messages Action LINEDEVCAPS::DevSpecific DeviceProtocolType = DeviceProtocolType_SCCP (0x01) Remote Destination Info is empty RemoteDestinationOffset = 0 RemoteDestinationSize = 0 RemoteDestinationCount = 0 RemoteDestinationElementFixedSize = 0 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A' on EP. Add RD From Application -RD Info Change Notification to Application Precondition: Remove All RD's from Admin Page TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LINEDEVCAPS::DevSpecific dwLineTypes = LINEDEVCAPSDEVSPECIFIC_ REMOTEDEVICE (0x00000008) DeviceProtocolType = DeviceProtocolType_CTI_REMOTE_ DEVICE(0x03) Remote Destination Info: RemoteDestinationOffset = 0 RemoteDestinationSize = 0 RemoteDestinationCount = 0 RemoteDestinationElementFixedSize = 0 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A on CTIRD. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 571 Message Sequence Charts Message Sequence Charts

Page 603 diagram

Page 604

TAPI structures TAPI messages Action LineOpen() returns Success Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE LINE_REPLY with success EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) LineOpen() with ExtVer-0x000C0000 dwDeviceID = LineDeviceID of Line-A Add Remote Destination RD2-CTIRD to CTI Remote Device CTIRD: CiscoLineDevSpecific AddRemoteDestination Req m_RDNumber = "4089022131" m_UnicodeRDName = "Office" m_activeRD = 0x00000000 LINEDEVCAPS::DevSpecific Remote Destination Info: unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. Same as for CTI Remote Device other than dwLineTypes and DeviceProtocolType Info. dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_SIP (0x02) Variation : Test the same on CSF device [CSF -Line-A''] Update RD Info (RDNumber/RDName/Both) From Application -RD Info Change Notification to Application Precondition: continuation from previous UseCase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 572 Message Sequence Charts Message Sequence Charts

Page 604 diagram

Page 605

TAPI structures TAPI messages Action LINEDEVCAPS::DevSpecific dwLineTypes = LINEDEVCAPSDEVSPECIFIC_ REMOTEDEVICE (0x00000008) DeviceProtocolType = DeviceProtocolType_CTI_REMOTE_ DEVICE(0x03) Remote Destination Info: unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. LineOpen() returns Success Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE LineOpen() with ExtVer-0x000C0000 dwDeviceID = LineDeviceID of Line-A LINE_REPLY with success EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) Update Remote Destination name of RD2-CTIRD on CTI Remote Device "CTIRD": CiscoLineDevSpecific UpdateRemoteDestination Req m_RDNumber = "4089022131" m_UnicodeRDName = "Office-Change" m_NewRDNumber = "4089022131" m_activeRD = 0x00000000 LINEDEVCAPS::DevSpecific Remote Destination Info: unicodeRDName = "Office-Change" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 573 Message Sequence Charts Message Sequence Charts

Page 605 diagram

Page 606

TAPI structures TAPI messages Action LINE_REPLY with success EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) Update Remote Destination Number of RD2-CTIRD on CTI Remote Device "CTIRD": CiscoLineDevSpecific UpdateRemoteDestination Req m_RDNumber = "4089022131" m_UnicodeRDName = "Office-Change" m_NewRDNumber = "4089020000" m_activeRD = 0x00000000 LINEDEVCAPS::DevSpecific Remote Destination Info: unicodeRDName = "Office-Change" RDNumber = "4089020000" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. LINE_REPLY with success EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) Update Remote Destination Name and Number of RD2-CTIRD on CTI Remote Device "CTIRD": CiscoLineDevSpecific UpdateRemoteDestination Req m_RDNumber = "408902000" m_UnicodeRDName = "Office" m_NewRDNumber = "4089022131" m_activeRD = 0x00000000 LINEDEVCAPS::DevSpecific Remote Destination Info: unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 574 Message Sequence Charts Message Sequence Charts

Page 606 diagram

Page 607

TAPI structures TAPI messages Action Same as for CTI Remote Device other than dwLineTypes and DeviceProtocolType Info. dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_SIP (0x02) Variation : Test the same on CSF device [CSF -Line-A''] Update RD Info (SetActive RD) From Application -RD Info Change Notification to Application Precondition: continuation from previous UseCase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LINEDEVCAPS::DevSpecific dwLineTypes = LINEDEVCAPSDEVSPECIFIC_ REMOTEDEVICE (0x00000008) DeviceProtocolType = DeviceProtocolType_CTI_REMOTE_ DEVICE(0x03) Remote Destination Info: unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A on CTIRD. LineOpen() returns Success Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE LineOpen() with ExtVer-0x000C0000 dwDeviceID = LineDeviceID of Line-A Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 575 Message Sequence Charts Message Sequence Charts

Page 607 diagram

Page 608

TAPI structures TAPI messages Action EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) Set RD2-CTIRD as ActiveRD: Req CiscoLineDevSpecific UpdateRemoteDestination Req m_RDNumber = "4089022131" m_UnicodeRDName = "Office" m_RDNumber = "4089022131" m_activeRD = 0x00000001 LINEDEVCAPS::DevSpecific Remote Destination Info: unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000001 IsMyAppLastToSetActiveRD = 0x00000001 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. LineShutdown success LineShutdown() Active RD will be RESET to False when the Application which has set RD as ACTIVE is shutdown or closed Lines are Enumerated LineInitializeEx LINEDEVCAPS::DevSpecific Remote Destination Info: unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A on CTIRD. Same as for CTI Remote Device other than dwLineTypes and DeviceProtocolType Info. dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_SIP (0x02) Variation : Test the same on CSF device [CSF -Line-A''] Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 576 Message Sequence Charts Message Sequence Charts

Page 608 diagram

Page 609

Add Other RD (RD2-CTIRD with IsActive Set) From Application -RD Info Change Notification to Application Precondition: continuation from previous UseCase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LineOpen() returns Success LineOpen() with ExtVer-0x000C0000 dwDeviceID = LineDeviceID of Line-A on CTIRD Set RD2-CTIRD -"Office" as ACTIVE LINEDEVCAPS::DevSpecific Remote Destination Info: unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000001 IsMyAppLastToSetActiveRD = 0x00000001 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) Add Remote Destination RD1-CTIRD on CTI Remote Device CTIRD with "IsActive" set to true CiscoLineDevSpecific AddRemoteDestination Req m_RDNumber = "914086271309" m_UnicodeRDName = "Mobile" m_activeRD = 0x00000001 LINEDEVCAPS::DevSpecific Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000001 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000001 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A on CTIRD. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 577 Message Sequence Charts Message Sequence Charts

Page 609 diagram

Page 610

TAPI structures TAPI messages Action EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) Variation : Add RD1-CTIRD with IsActive RD = False LINEDEVCAPS::DevSpecific Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000000 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000001 IsMyAppLastToSetActiveRD = 0x00000001 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. Same as for CTI Remote Device other than dwLineTypes and DeviceProtocolType Info. dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_SIP (0x02) Variation : Test the same on CSF device [CSF -Line-A''] Update RD (RD1-CTIRD -Name, Number and Set IsActive) From Application -RD Info Change Notification to Application Precondition: continuation from previous UseCase Variation (RD2 is added with IsActive = false) TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LineOpen() returns Success Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE LineOpen() with ExtVer-0x000C0000 dwDeviceID = LineDeviceID of Line-A Set RD2-CTIRD-"Office" as ACTIVE Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 578 Message Sequence Charts Message Sequence Charts

Page 610 diagram

Page 611

TAPI structures TAPI messages Action LINEDEVCAPS::DevSpecific Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000000 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000001 IsMyAppLastToSetActiveRD = 0x00000001 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A on CTIRD. *** 2 Change Nofitications EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) Update Remote Destination RD1-CTIRD on CTI Remote Device "CTIRD" with IsActive set to true CiscoLineDevSpecific UpdateRemoteDestination Req m_RDNumber = "914086271309" m_UnicodeRDName = "Mobile-t" m_NewRDNumber = "91408627130900" m_activeRD = 0x00000001 LINEDEVCAPS::DevSpecific Remote Destination Info: unicodeRDName = "Mobile-t" RDNumber = "9148627130900" isActiveRD = 0x00000001 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000001 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 579 Message Sequence Charts Message Sequence Charts

Page 611 diagram

Page 612

TAPI structures TAPI messages Action Same as for CTI Remote Device other than dwLineTypes and DeviceProtocolType Info. dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_SIP (0x02) Variation : Test the same on CSF device [CSF -Line-A''] Remove RD (RD1-CTIRD Which Is Active RD) From Application -RD Info Change Notification to Application Precondition: continuation from previous UseCase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LineOpen() returns Success Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE LineOpen() with ExtVer-0x000C0000 dwDeviceID = LineDeviceID of Line-A Set RD1-CTIRD-"Mobile-t" as ACTIVE LINEDEVCAPS::DevSpecific Remote Destination Info: unicodeRDName = "Mobile-t" RDNumber = "91486271309" isActiveRD = 0x00000001 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000001 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) Remove Remote Destination RD1-CTIRD on CTI Remote Device "CTIRD" CiscoLineDevSpecific AddRemoteDestination Req m_RDNumber = "9148627130900" Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 580 Message Sequence Charts Message Sequence Charts

Page 612 diagram

Page 613

TAPI structures TAPI messages Action LINEDEVCAPS::DevSpecific Remote Destination Info: unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. Same as for CTI Remote Device other than dwLineTypes and DeviceProtocolType Info. dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_SIP (0x02) Variation : Test the same on CSF device [CSF -Line-A''] Negative -Add RD From Application -RD Info Change Notification to Application Precondition: continuation from previous UseCase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LINEDEVCAPS::DevSpecific Remote Destination Info: unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A of CTIRD. LineOpen() returns Success Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE LineOpen() with ExtVer-0x000C0000 dwDeviceID = LineDeviceID of Line-A Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 581 Message Sequence Charts Message Sequence Charts

Page 613 diagram

Page 614

TAPI structures TAPI messages Action LineDevSpecific() returns dwRequestID LINE_REPLY lResult = LINEERR_INVALPARAM Add Remote Destination on CTI Remote Device CTIRD Variation 1: Empty RD Number : m_RDNumber = "" CiscoLineDevSpecific AddRemoteDestination Req m_RDNumber = "" m_UnicodeRDName = "" m_activeRD = 0x00000000 LineDevSpecific() returns dwRequestID LINE_REPLY lResult = LINEERR_DUPLICATE_INFORMATION (0xC0000013) Variation 2: RDNumber : same RD Number as any of the existing RD's Name "12345" -RD already configured on CUCM. CiscoLineDevSpecific AddRemoteDestination Req m_RDNumber = "12345" m_UnicodeRDName = "Office" m_activeRD = 0x00000000 LineDevSpecific() returns dwRequestID LINE_REPLY lResult = LINEERR_REMOTE_DESTINATION_LIMIT_EXCEEDED (0xC0000015) Variation 3: Add RD when the user Limit for UserID used for CTI RD is reached. For example : if User has limit set to 4 and then if Remote Device is already configured with 4 Remote Destination and User tries to Add 5th one from Application. CiscoLineDevSpecific AddRemoteDestination Req m_RDNumber = "12345" m_UnicodeRDName = "temp" m_activeRD = 0x00000000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 582 Message Sequence Charts Message Sequence Charts

Page 614 diagram

Page 615

TAPI structures TAPI messages Action LineDevSpecific() returns dwRequestID LINE_REPLY lResult = LINEERR_INVALPARAM Variation 4: RDNumber : Invalid Remote Destination Name [name has unsupported characters, eg-name&] or invalid number [cant configure any of the local device DN as number which is not supported] CiscoLineDevSpecific AddRemoteDestination Req m_RDNumber = "1000" m_UnicodeRDName = "Office&" m_activeRD = 0x00000000 LineDevSpecific() returns dwRequestID LINE_REPLY lResult = LINEERR_ENDUSER_NOT_ASSOCIATED_WITH_DEVICE (0xC000001B) Variation 5: Add RD to a CSF device which doesn't have Owner/END User ID configured CiscoLineDevSpecific AddRemoteDestination Req m_RDNumber = "12345" m_UnicodeRDName = "Office" m_activeRD = 0x00000000 Same as for CTI Remote Device other than dwLineTypes and DeviceProtocolType Info. dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_SIP (0x02) Variation : Test the same on CSF device [CSF -Line-A''] Negative -Update RD From Application -RD Info Change Notification to Application Precondition: continuation from previous UseCase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 583 Message Sequence Charts Message Sequence Charts

Page 615 diagram

Page 616

TAPI structures TAPI messages Action LINEDEVCAPS::DevSpecific Remote Destination Info: unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. LineOpen() returns Success Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE LineOpen() with ExtVer-0x000C0000 dwDeviceID = LineDeviceID of Line-A LineDevSpecific() returns dwRequestID LINE_REPLY lResult = LINEERR_INVALPARAM Update Remote Destination on CTI Remote Device: Variation 1: Empty RD Number : m_RDNumber = "" CiscoLineDevSpecific AddRemoteDestination Req m_RDNumber = "" m_UnicodeRDName = "" m_NewRDNumber = "" m_activeRD = 0x00000000 LineDevSpecific() returns dwRequestID LINE_REPLY lResult = LINEERR_REMOTE_DESTINATION_UNAVAIL (0xC0000014) Variation 2: RDNNumber : RD Number in Request doesn't match with any of the existing RD in the RD List on Device CiscoLineDevSpecific UpdateRemoteDestination Req m_RDNumber = "12345" m_UnicodeRDName = "Temp" m_RDNumber = "12345" m_activeRD = 0x00000000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 584 Message Sequence Charts Message Sequence Charts

Page 616 diagram

Page 617

TAPI structures TAPI messages Action LineDevSpecific() returns dwRequestID LINE_REPLY lResult = LINEERR _DUPLICATE_INFORMATION (0xC0000013) Variation 3: RDNaumber : same RD Number as any of the existing RD's Name *** RDNumber "4086271309" is already configured on other RemoteDestination CiscoLineDevSpecific UpdateRemoteDestination Req m_RDNumber = "4089022131" m_UnicodeRDName = "Office" m_RDNumber = "4086271309" m_activeRD = 0x00000000 Same as for CTI Remote Device other than dwLineTypes and DeviceProtocolType Info. dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_SIP (0x02) Variation : Test the same on CSF device [CSF -Line-A''] Negative -Remove RD From Application -RD Info Change Notification to Application Precondition: continuation from previous UseCase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LINEDEVCAPS::DevSpecific dwLineTypes = LINEDEVCAPSDEVSPECIFIC_ REMOTEDEVICE (0x00000008) DeviceProtocolType = DeviceProtocolType_CTI_ REMOTE_DEVICE(0x03) Remote Destination Info: unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A on CTIRD. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 585 Message Sequence Charts Message Sequence Charts

Page 617 diagram

Page 618

TAPI structures TAPI messages Action LineOpen() returns Success Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE LineOpen() with ExtVer-0x000C0000 dwDeviceID = LineDeviceID of Line-A LineDevSpecific() returns dwRequestID LINE_REPLY lResult = LINEERR_INVALPARAM Remove Remote Destination on CTI Remote Device: Empty RDNumber : CiscoLineDevSpecific AddRemoteDestination Req m_RDNumber = "" LineDevSpecific() returns dwRequestID LINE_REPLY lResult = LINEERR_REMOTE_DESTINATION_UNAVAIL (0xC0000014) Variation 1: RDNumber : RD Number in Request doesn't match with any of the existing RD in the List CiscoLineDevSpecific AddRemoteDestination Req m_RDNumber = "1234567" Same as for CTI Remote Device other than dwLineTypes and DeviceProtocolType Info. dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_SIP (0x02) Test the same on CSF device [CSF -Line-A''] Negative -Add/remove/update RD From Application -on Non-CTI RD /CSF Device Line or Line Is Not Opened with Required Extension Precondition: continuation from previous UseCase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 586 Message Sequence Charts Message Sequence Charts

Page 618 diagram

Page 619

TAPI structures TAPI messages Action LINEDEVCAPS::DevSpecific Remote Destination Info: unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. LineOpen() returns Success Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE LineOpen() with ExtVer-0x000C0000 dwDeviceID = LineDeviceID of Line-A LineDevSpecific() returns dwRequestID LINE_REPLY lResult = LINEERR_OPERATIONUNAVAIL Add/Remove/Update Remote Destination on CTI Remote Device CTIRD Variation 1: Previous step Line is not opened with required ext Version -(0x000C0000 or greater) LineDevSpecific() returns dwRequestID LINE_REPLY lResult = LINEERR_OPERATIONUNAVAIL Variation 2: Req on Line which is not on CTI Remote Device / CSF device LineDevSpecific() returns dwRequestID LINE_REPLY lResult = LINEERR_OPERATIONFAILED Variation 3: Failure of Add/Remove/update Req for any other reasons not captured in above useCases Multiple Apps Setting Active RD Precondition: same as UseCase 1 TAPI structures TAPI messages Action Lines are Enumerated App1 and App2: LineInitializeEx Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 587 Message Sequence Charts Message Sequence Charts

Page 619 diagram

Page 620

TAPI structures TAPI messages Action LINEDEVCAPS::DevSpecific dwLineTypes = LINEDEVCAPSDEVSPECIFIC_ REMOTEDEVICE (0x00000008) DeviceProtocolType = DeviceProtocolType_CTI_ REMOTE_DEVICE(0x03) Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000000 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success App1 and App2: LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. LineOpen() returns Success Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE App1 and App2: LineOpen() with ExtVer-0x000C0000 dwDeviceID = LineDeviceID of Line-A Change Notification to App1 and App2: EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) App1: Update Remote Destination RD2 on CTI Remote Device "CTIRD" with IsActive set to true CiscoLineDevSpecific UpdateRemoteDestination Req m_RDNumber = "914086271309" m_UnicodeRDName = "Mobile" m_NewRDNumber = "914086271309" m_activeRD = 0x00000001 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 588 Message Sequence Charts Message Sequence Charts

Page 620 diagram

Page 621

TAPI structures TAPI messages Action LINEDEVCAPS::DevSpecific dwLineTypes = LINEDEVCAPSDEVSPECIFIC_ REMOTEDEVICE (0x00000008) DeviceProtocolType = DeviceProtocolType_CTI_ REMOTE_DEVICE(0x03) Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000001 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000001 LineGetDevCaps() returns success App1: LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. LINEDEVCAPS::DevSpecific dwLineTypes = LINEDEVCAPSDEVSPECIFIC_ REMOTEDEVICE (0x00000008) DeviceProtocolType = DeviceProtocolType_CTI_ REMOTE_DEVICE(0x03) Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000001 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success App2: LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 589 Message Sequence Charts Message Sequence Charts

Page 621 diagram

Page 622

TAPI structures TAPI messages Action Change Notification to App1 and App2: EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) App2: Update Remote Destination RD2 on CTI Remote Device "CTIRD" with IsActive set to true CiscoLineDevSpecific UpdateRemoteDestination Req m_RDNumber = "914089022131" m_UnicodeRDName = "Office" m_NewRDNumber = "914089022131" m_activeRD = 0x00000001 LINEDEVCAPS::DevSpecific dwLineTypes = LINEDEVCAPSDEVSPECIFIC_ REMOTEDEVICE (0x00000008) DeviceProtocolType = DeviceProtocolType_CTI_ REMOTE_DEVICE(0x03) Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000000 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000001 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success App1: LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 590 Message Sequence Charts Message Sequence Charts

Page 622 diagram

Page 623

Page 623 diagram

Page 624

TAPI structures TAPI messages Action LINEDEVCAPS::DevSpecific dwLineTypes = LINEDEVCAPSDEVSPECIFIC_ REMOTEDEVICE (0x00000008) DeviceProtocolType = DeviceProtocolType_CTI_ REMOTE_DEVICE(0x03) Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000000 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success App1: LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. LineShutdown() returns success No Change Notification to App2 Variant 2: App1: LineShutdown() LINEDEVCAPS::DevSpecific dwLineTypes = LINEDEVCAPSDEVSPECIFIC_ REMOTEDEVICE (0x00000008) DeviceProtocolType = DeviceProtocolType_CTI_ REMOTE_DEVICE(0x03) Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000000 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000001 IsMyAppLastToSetActiveRD = 0x00000001 LineGetDevCaps() returns success App2: LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 592 Message Sequence Charts Message Sequence Charts

Page 624 diagram

Page 625

TAPI structures TAPI messages Action Same as for CTI Remote Device other than dwLineTypes and DeviceProtocolType Info. dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_SIP (0x02) Variation : Test the same on CSF device [CSF -Line-A''] CTI/CCM Manager FailOver Scenario - Active RD Precondition: same as UseCase 1 TSP is configured with Primary and Secondary CTI Manager TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LINEDEVCAPS::DevSpecific dwLineTypes = LINEDEVCAPSDEVSPECIFIC_ REMOTEDEVICE (0x00000008) DeviceProtocolType = DeviceProtocolType_CTI_ REMOTE_DEVICE(0x03) Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000000 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. LineOpen() returns Success Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE LineOpen() with ExtVer-0x000C0000 dwDeviceID = LineDeviceID of Line-A Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 593 Message Sequence Charts Message Sequence Charts

Page 625 diagram

Page 626

TAPI structures TAPI messages Action EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) Update Remote Destination RD1 on CTI Remote Device "CTIRD" with IsActive set to true CiscoLineDevSpecific UpdateRemoteDestination Req m_RDNumber = "914086271309" m_UnicodeRDName = "Mobile" m_NewRDNumber = "914086271309" m_activeRD = 0x00000001 LINEDEVCAPS::DevSpecific Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000001 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000001 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. Event on Line A : Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_OUTOFSERVICE Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE Stop Primary CTI Manager TSP connects to Secondary CTIManager and Active RD configuration is RE-SET by CiscoTSP Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 594 Message Sequence Charts Message Sequence Charts

Page 626 diagram

Page 627

TAPI structures TAPI messages Action LINEDEVCAPS::DevSpecific Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000001 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000001 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. Event on Line A : Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_OUTOFSERVICE Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE Set RD -Mobile to ACTIVE RD and then Stop Call Manager on the node of Secondary CTI Manager ActiveRD configuration is not changed/ not RESET Same as for CTI Remote Device other than dwLineTypes and DeviceProtocolType Info. dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_SIP (0x02) Variation : Test the same on CSF device [CSF -Line-A''] CTI/CCM Manager FailOver Scenario - Active RD Set by Other Application Precondition: same as UseCase 1 TSP is configured with Primary and Secondary CTI Manager Other Application has set the ACTIVE RD on the Device and Application is connected to Secondary CTI Manager TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 595 Message Sequence Charts Message Sequence Charts

Page 627 diagram

Page 628

TAPI structures TAPI messages Action LINEDEVCAPS::DevSpecific Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000001 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. LineOpen() returns Success Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE LineOpen() with ExtVer-0x000C0000 dwDeviceID = LineDeviceID of Line-A Event on Line A : Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_OUTOFSERVICE Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE Stop Primary CTI Manager Active RD configuration is not RESET as the this Application has not set the ACTIVE RD Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 596 Message Sequence Charts Message Sequence Charts

Page 628 diagram

Page 629

TAPI structures TAPI messages Action LINEDEVCAPS::DevSpecific dwLineTypes = LINEDEVCAPSDEVSPECIFIC_ REMOTEDEVICE (0x00000008) DeviceProtocolType = DeviceProtocolType_CTI_ REMOTE_DEVICE(0x03) Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "91486271309" isActiveRD = 0x00000001 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. Event on Line A : Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_OUTOFSERVICE Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE Stop Call Manager on the node of Secondary CTI Manager ActiveRD configuration is not changed/ not RESET Same as for CTI Remote Device other than dwLineTypes and DeviceProtocolType Info. dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_SIP (0x02) Variation : Test the same on CSF device [CSF -Line-A''] Monitoring CSF Device in Soft Phone/Desk Phone Mode Precondition: continuation from previous UseCase Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 597 Message Sequence Charts Message Sequence Charts

Page 629 diagram

Page 630

TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LINEDEVCAPS::DevSpecific dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_SIP (0x02) Remote Destination Info: unicodeRDName = "CSF-Mobile" RDNumber = "4086271309" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A'' on CSF Device. LineOpen() returns Success LineOpen() with ExtVer-0x000C0000 dwDeviceID = LineDeviceID of Line-A" Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE LineSetStatusMessages()on Line-A" with dwLineStates = INSERVICE and OUTOFSERVICE Call Events are reported to Application LineMake Call() or any Incoming Call LineClose and LineShutdown Success Lineclose and ShutDown Monitoring CSF Device Switching Mode From Soft/Desk Phone Mode to Extend Mode Precondition: continuation from previous UseCase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 598 Message Sequence Charts Message Sequence Charts

Page 630 diagram

Page 631

TAPI structures TAPI messages Action LINEDEVCAPS::DevSpecific dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_SIP (0x02) Remote Destination Info: unicodeRDName = "CSF-Mobile" RDNumber = "4086271309" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A" on CSF device. LineOpen() returns Success LineOpen() with ExtVer-0x000C0000 dwDeviceID = LineDeviceID of Line-A" Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE LineSetStatusMessages() on Line-A" with dwLineStates = INSERVICE and OUTOFSERVICE Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_OUTOFSERVICE Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_DEVICE_PROTOCOL_TYPE (0x00008000) From Jabber Client Switch the mode to Extend Mode Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 599 Message Sequence Charts Message Sequence Charts

Page 631 diagram

Page 632

TAPI structures TAPI messages Action LINEDEVCAPS::DevSpecific dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_CTI_ REMOTE_DEVICE (0x03) Remote Destination Info: unicodeRDName = "CSF-Mobile" RDNumber = "4086271309" isActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A". LineClose and LineShutdown Success Lineclose and ShutDown Monitoring CSF Device in Extend Mode, Switches Back to Soft / Desk Phone Mode Precondition: continuation from previous UseCase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LINEDEVCAPS::DevSpecific dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_CTI_ REMOTE_DEVICE (0x03) Remote Destination Info: unicodeRDName = "CSF-Mobile" RDNumber = "4086271309" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A" on CSF device. LineOpen() returns Success LineOpen() with ExtVer-0x000C0000 dwDeviceID = LineDeviceID of Line-A" Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE LineSetStatusMessages()on Line-A" with dwLineStates = INSERVICE and OUTOFSERVICE Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 600 Message Sequence Charts Message Sequence Charts

Page 632 diagram

Page 633

TAPI structures TAPI messages Action Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_OUTOFSERVICE Line INSERVICE EVENT Event = LINE_LINEDEVSTATE dwParam1 = LINEDEVSTATE_INSERVICE EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_DEVICE_PROTOCOL_TYPE (0x00008000) From Jabber Client Switch the mode to Soft Mode Or From Jabber Client Switch the mode to Deskphone Mode LINEDEVCAPS::DevSpecific dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_SIP (0x02) Remote Destination Info: unicodeRDName = "CSF-Mobile" RDNumber = "4086271309" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A". LineClose and LineShutdown Success Lineclose and ShutDown Basic Incoming Call to CTI Remote Device CTI remote device: A (CTI Remote Device -Name: CTIRD1) Remote Destination: RD1 -Remote Destination configured on CTI Remote Device A (Name: Mobile, Number: 914086271309) RD2 -Remote Destination configured on CTI Remote Device A (Name: Office, Number: 914089022131) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 601 Message Sequence Charts Message Sequence Charts

Page 633 diagram

Page 634

Line: Line-A1 (DN -2000) (Alerting Name:2000name, Display Name: CTIRD-2000name) configured on CTI Remote Device A (shared line of Enterprise DN -2000 configured on Device B) Line-A2 (DN -2001) (Alerting Name:2001name, Display Name: CTIRD-2001name) configured on CTI Remote Device A (shared line of Enterprise DN -2001 configured on Device B) Enterprise Phones: B (IP Phone -Name: SEPxxxxxxxx) Line: Line-A1' -DN -2000(Alerting Name: 2000name, Display Name: EP-2000name) configured on Device B Line-A2' -DN -2001(Alerting Name: 2001name, Display Name: EP-2001name) configured on Device B C (IP Phone -Name: SEPxxxxxxxx) Line: Line-C -DN -1000(Alerting Name: 1000name, Display Name: 1000Name) configured on Device C D (IP Phone -Name: SEPxxxxxxxx) Line: Line-D -DN -1001(Alerting Name: 1001name, Display Name: 1001Name) configured on Device D CSF Device: D (CSF Device -Name: CSF-drajesh) Remote Destination: RD-01 -Remote Destination configured on CSF device D (Name: CSF-Mobile, Number: 914086271309) RD-02 -Remote Destination configured on CSF device D (Name: CSF-Office, Number: 914089022131) Line: Line-A'' (DN -2000) -Line-A (Alerting Name: 2000name, Display Name: CSF-2000) configured on CSF device D (shared line of Enterprise DN -2000 configured on Device B) TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 602 Message Sequence Charts Message Sequence Charts

Page 634 diagram

Page 635

TAPI structures TAPI messages Action LINEDEVCAPS::DevSpecific dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_CTI_ REMOTE_DEVICE (0x03) Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "4086271309" isActiveRD = 0x00000000 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. LineOpen() returns Success Open all Lines (A, A' and C) LineOpen() with ExtVer-0x000C0000 LineMakeCall() success Call on C : LINE_CALLSTATE -Param1 = DIALING LINE_CALLSTATE -Param1 = PROCEEDING LINE_CALLSTATE -Param1 = RINGBACK Call on CTI Remote Device : LINE_APPNEWCALL LINE_CALLSTATE -Param1 = OFFERING LINE_CALLSTATE -Param1 = ACCEPTED Call on Enterprise Phone : LINE_APPNEWCALL LINE_CALLSTATE -Param1 = OFFERING LINE_CALLSTATE -Param1 = ACCEPTED LineMakeCall on Line-C with DN (A -DN 2000) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 603 Message Sequence Charts Message Sequence Charts

Page 635 diagram

Page 636

TAPI structures TAPI messages Action After "Delay Before Ringing Timer" expires the call is offered on Remote Destinations and all Remote Destinations Ring LineCallInfo :: dwCallerID = 1000 dwCallerIDName = 1000name dwCalledID = 2000 dwCalledIDName = 2000name DevSpecific :: UnicodeCallerPartyName = 1000name UnicodeCalledPartyName = 2000name UnicodeConnectedPartyName = ModifiedCallingParty = 1000 ModifiedCalledParty = 2000 ModifiedConnectedID = LineGetCallInfo() success LineGetCallInfo() on call on Device C LineCallInfo :: dwCallerID = 1000 dwCallerIDName = 1000name dwCalledID = 2000 dwCalledIDName = 2000name DevSpecific :: UnicodeCallerPartyName = 1000name UnicodeCalledPartyName = 2000name UnicodeConnectedPartyName = ModifiedCallingParty = 1000 ModifiedCalledParty = 2000 ModifiedConnectedID = LineGetCallInfo() success LineGetCallInfo() on call on Device A/B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 604 Message Sequence Charts Message Sequence Charts

Page 636 diagram

Page 637

TAPI structures TAPI messages Action Call on C : LINE_CALLSTATE -Param1 = CONNECTED Call on CTI Remote Device : LINE_CALLSTATE -Param1 = CONNECTED (active) Call on Enterprise Phone : LINE_CALLSTATE - Param1 = CONNECTED Param2 = 0x02 (Inactive) Answer on any of the Remote Destination LineCallInfo :: dwCallerID = 1000 dwCallerIDName = 1000name dwCalledID = 2000 dwCalledIDName = 2000name dwConnectedID = 2000 dwConnectedIDName = CTIRD-2000name DevSpecific :: UnicodeCallerPartyName = 1000name UnicodeCalledPartyName = 2000name UnicodeConnectedPartyName = CTIRD-2000name ModifiedCallingParty = 1000 ModifiedCalledParty = 2000 ModifiedConnectedID = 2000 LineGetCallInfo() success LineGetCallInfo() on call on Device C Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 605 Message Sequence Charts Message Sequence Charts

Page 637 diagram

Page 638

TAPI structures TAPI messages Action LineCallInfo :: dwCallerID = 1000 dwCallerIDName = 1000name dwCalledID = 2000 dwCalledIDName = 2000name dwConnectedID = 2000 dwConnectedIDName = CTIRD-2000name DevSpecific :: UnicodeCallerPartyName = 1000name UnicodeCalledPartyName = 2000name UnicodeConnectedPartyName = CTIRD-2000name ModifiedCallingParty = 1000 ModifiedCalledParty = 2000 ModifiedConnectedID = 2000 LineGetCallInfo() success LineGetCallInfo() on call on Device A/B LineDrop() success Call on C : LINE_CALLSTATE -Param1 = DISCONNECTED LINE_CALLSTATE -Param1 = IDLE Call on CTI Remote Device : LINE_CALLSTATE -Param1 = DISCONNECTED LINE_CALLSTATE -Param1 = IDLE Call on Enterprise Phone : LINE_CALLSTATE - Param1 = CONNECTED Param2 = 0x02 (Inactive) LINE_CALLSTATE -Param1 = IDLE LineDrop() for the call on Device A (CTI-RD) *** Call on Remote Destination is dropped Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 606 Message Sequence Charts Message Sequence Charts

Page 638 diagram

Page 639

TAPI structures TAPI messages Action Call on C : LINE_CALLSTATE -Param1 = CONNECTED Call on CTI Remote Device : LINE_CALLSTATE -Param1 = DISCONNECTED LINE_CALLSTATE -Param1 = IDLE Call on Enterprise Phone : LINE_CALLSTATE - Param1 = CONNECTED Variation : Answer the call on Enterprise Phone (B) LineAnswer() on the call on Device B *** Call on Remote Device/Remote Destination drops Expected Result : All calls go to Disconnected/IDLE State Variation : One of the Remote Destination answers the call before the "Answer Too Soon Timer" Expected result: only Remote Destination which is set ACTIVE rings Call rings immediately and "Delay before Ringing Timer" wouldn't be effective when ACTIVE RD is set. Remote Destination can answer the call Immediately and "Answer Too Soon Timer" wouldn't be effective when ACTIVE RD is set. Variation : Active RD set on CTI Remote Device There won't be second call on Remote Destination, only at Remote Device second call will present and reported to Application. Continuation to above variation On second Incoming Call... Expected result: would be same as observed on CTI Remote Device Variation : Test with CSF Device in Extend Mode DVO Call (Outgoing Call Initiation From CTI Remote Device) Precondition: same as above usecase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 607 Message Sequence Charts Message Sequence Charts

Page 639 diagram

Page 640

TAPI structures TAPI messages Action LINEDEVCAPS::DevSpecific dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_CTI_ REMOTE_DEVICE (0x03) Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "4086271309" isActiveRD = 0x00000000 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. LineOpen() returns Success Open all Lines (A, A' and C) LineOpen() with ExtVer-0x000C0000 LineMakeCall() returns RequestID LINE_REPLY Param1 = RequestID Param2 = LINEERR_OPERATION_FAIL_NO_ACTIVE_RD_SET (0xC0000016) LineMakeCall on Line-A with DN (C -DN 1000) EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) Update Remote Destination RD1 "Mobile"on CTI Remote Device A with IsActive set to true CiscoLineDevSpecific UpdateRemoteDestination Req m_RDNumber = "914086271309" m_UnicodeRDName = "Mobile" m_NewRDNumber = "914086271309" m_activeRD = 0x00000001 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 608 Message Sequence Charts Message Sequence Charts

Page 640 diagram

Page 641

TAPI structures TAPI messages Action LINEDEVCAPS::DevSpecific dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_CTI_ REMOTE_DEVICE (0x03) Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "4086271309" isActiveRD = 0x00000001 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000001 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. LineMakeCall() success Call on CTI Remote Device : LINE_CALLSTATE -Param1 = OFFERING LineMakeCall on Line-A with DN (C -DN 1000) *** Only Remote Destination "Mobile" rings and it rings immediately as the RD is set Active *** No Call presented on EP LineAnswer() fail with Error LINEEE_OPERATIONUNAVAIL Answer the first Call on CTI Remote Device: Answer() on the call on CTIRemote Device(A) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 609 Message Sequence Charts Message Sequence Charts

Page 641 diagram

Page 642

TAPI structures TAPI messages Action LineCallInfo :: dwCallerID = 2000 dwCallerIDName = voiceConnect dwCalledID = 2000 dwCalledIDName = 2000name DevSpecific :: UnicodeCallerPartyName = UnicodeCalledPartyName = 2000name UnicodeConnectedPartyName = ModifiedCallingParty = 2000 ModifiedCalledParty = 2000 ModifiedConnectedID = LineGetCallInfo() success LineGetCallInfo() on call on Device A(CTIRD) Call on C : LINE_CALLSTATE -Param1 = OFFERING LINE_CALLSTATE -Param1 = ACCEPTED Call on CTI Remote Device : LINE_CALLSTATE -Param1 = CONNECTED LINE_CALLSTATE -Param1 = RINGBACK Call on Enterprise Phone : LINE_APPNEWCALL LINE_CALLSTATE -Param1 = ACCEPTED LINE_CALLSTATE - Param1 = CONNECTED Param2 = 0x02 (Inactive) Once Remote Destination answers the call, call will be offered on initial dialed number C Call will be present on Enterprise Phone and call will be Remote In Use Call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 610 Message Sequence Charts Message Sequence Charts

Page 642 diagram

Page 643

TAPI structures TAPI messages Action LineAnswer() success Call on C : LINE_CALLSTATE -Param1 = CONNECTED Call on CTI Remote Device : LINE_CALLSTATE -Param1 = CONNECTED (active) Call on Enterprise Phone : LINE_CALLSTATE - Param1 = CONNECTED Param2 = 0x02 (Inactive) C answers the call LineAnswer() on call on Device-C LineCallInfo :: CallReason = UNKNOWN (0x400) dwCallerID = 2000 dwCallerIDName = 2000name dwCalledID = 1000 dwCalledIDName = 1000name dwConnectedID = 2000 dwConnectedIDName = CTIRD-2000name DevSpecific :: ExtendedCallReason = CtiReasonMobility(0x021 = 33) UnicodeCallerPartyName = 2000name UnicodeCalledPartyName = 1000name UnicodeConnectedPartyName = 2000name ModifiedCallingParty = 2000 ModifiedCalledParty = 1000 ModifiedConnectedID = 2000 LineGetCallInfo() success LineGetCallInfo() on call on Device C Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 611 Message Sequence Charts Message Sequence Charts

Page 643 diagram

Page 644

TAPI structures TAPI messages Action LineCallInfo :: dwCallerID = 2000 dwCallerIDName = 2000name dwCalledID = 2000 dwCalledIDName = 2000name dwConnectedID = 1000 dwConnectedIDName = 1000name DevSpecific :: CallAttributeType = TSPCallAttribute_DVOCall (0x00002000) UnicodeCallerPartyName = 2000name UnicodeCalledPartyName = 2000name UnicodeConnectedPartyName = 1000name ModifiedCallingParty = 2000 ModifiedCalledParty = 2000 ModifiedConnectedID = 1000 LineGetCallInfo() success LineGetCallInfo() on call on Device A/B LineDrop() success Call on C : LINE_CALLSTATE -Param1 = DISCONNECTED LINE_CALLSTATE -Param1 = IDLE Call on CTI Remote Device : LINE_CALLSTATE -Param1 = DISCONNECTED LINE_CALLSTATE -Param1 = IDLE Call on Enterprise Phone : LINE_CALLSTATE - Param1 = CONNECTED Param2 = 0x02 (Inactive) LINE_CALLSTATE -Param1 = IDLE LineDrop() for the call on Device A (CTI-RD) Expected result would be same as observed on CTI Remote Device Variation : Test the same with CSF Device in Extend Mode Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 612 Message Sequence Charts Message Sequence Charts

Page 644 diagram

Page 645

Multiple Calls -Answer/Hold/Resume Precondition: same as above usecase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LINEDEVCAPS::DevSpecific dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_CTI_ REMOTE_DEVICE (0x03) Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "4086271309" isActiveRD = 0x00000000 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000000 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. LineOpen() returns Success Open all Lines (A, A', A'' and C) LineOpen() with ExtVer-0x000C0000 EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) Update Remote Destination RD1 "Mobile"on CTI Remote Device A with IsActive set to true CiscoLineDevSpecific UpdateRemoteDestination Req m_RDNumber = "914086271309" m_UnicodeRDName = "Mobile" m_NewRDNumber = "914086271309" m_activeRD = 0x00000001 Make Call between C and A[Remote Destinaton], either normal incoming or DVO call on CTI Remote Device Call Info is same as above test cases Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 613 Message Sequence Charts Message Sequence Charts

Page 645 diagram

Page 646

TAPI structures TAPI messages Action LineMakeCall() success Call on Device-D : LINE_CALLSTATE -Param1 = OFFERING LINE_CALLSTATE -Param1 = ACCEPTED Second Call on CTI Remote Device[A] [D ' A] : LINE_CALLSTATE -Param1 = OFFERING LINE_CALLSTATE -Param1 = ACCEPTED Second Call on Enterprise Phone[B] [D ' A]: LINE_CALLSTATE -Param1 = OFFERING LINE_CALLSTATE -Param1 = ACCEPTED LineMakeCall on Line-D with DN (A -DN 2000) There won't be second call offered to Remote Destination LineAnswer() returns success Calls on CTI Remote Device : Call1 [C ' A]: LINE_CALLSTATE -Param1 = ONHOLD Call1 [D ' A]: LINE_CALLSTATE -Param1 = CONNECTED Calls on Enterprise Phone[B] : Call1 [C ' A]: LINE_CALLSTATE -Param1 = ONHOLD Call1 [D ' A]: LINE_CALLSTATE - Param1 = CONNECTED Param2 = 0x02 (Inactive) Answer() on the second call on CTIRemote Device(A) Remote Destination and D will be talking/ will have Media connection Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 614 Message Sequence Charts Message Sequence Charts

Page 646 diagram

Page 647

TAPI structures TAPI messages Action LineUnHold() returns success Calls on CTI Remote Device : Call1 [C ' A]: LINE_CALLSTATE -Param1 = CONNECTED Call1 [D ' A]: LINE_CALLSTATE -Param1 = ONHOLD Calls on Enterprise Phone[B] : Call1 [C ' A]: LINE_CALLSTATE - Param1 = CONNECTED Param2 = 0x02 (Inactive) Call1 [D ' A]: LINE_CALLSTATE - Param1 = ONHOLD Resume the first call on CTIRemote Device [A] LineUnhold() on the call [c ' A] on Device A Remote Destination and C will be talking/ will have Media connection LineUnHold() returns success Calls on CTI Remote Device : Call1 [C ' A]: LINE_CALLSTATE -Param1 = CONNECTED Call1 [D ' A]: LINE_CALLSTATE -Param1 = IDLE Calls on Enterprise Phone[B] : Call1 [C ' A]: LINE_CALLSTATE - Param1 = CONNECTED Param2 = 0x02 (Inactive) Call1 [D ' A]: LINE_CALLSTATE - Param1 = CONNECTED Param2 = 0x01(active) Resume the ONHOLD call [D ' A]from Enterprise Phone LineUnHold() on the call [D ' A] on Device B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 615 Message Sequence Charts Message Sequence Charts

Page 647 diagram

Page 648

TAPI structures TAPI messages Action LineDrop() success Call on C : LINE_CALLSTATE -Param1 = DISCONNECTED LINE_CALLSTATE -Param1 = IDLE Call on CTI Remote Device : LINE_CALLSTATE -Param1 = DISCONNECTED LINE_CALLSTATE -Param1 = IDLE Call on Enterprise Phone : LINE_CALLSTATE - Param1 = CONNECTED Param2 = 0x02 (Inactive) LINE_CALLSTATE -Param1 = IDLE LineDrop() for the call on Device A (CTI-RD) Call on Remote Destination will be dropped Expected result would be same as observed on CTI Remote Device Variation : Test the same with CSF Device in Extend Mode Multiple Calls -Multiple Lines -Answer/Hold/Resume Precondition: same as above usecase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LineOpen() returns Success Open all Lines (A, A', A'' and C) LineOpen() with ExtVer-0x000C0000 EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) Update Remote Destination RD1 "Mobile"on CTI Remote Device A with IsActive set to true CiscoLineDevSpecific UpdateRemoteDestination Req m_RDNumber = "914086271309" m_UnicodeRDName = "Mobile" m_NewRDNumber = "914086271309" m_activeRD = 0x00000001 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 616 Message Sequence Charts Message Sequence Charts

Page 648 diagram

Page 649

TAPI structures TAPI messages Action Make Call between C and A[Remote Destinaton], either normal incoming or DVO call on CTI Remote Device Call Info is same above test cases LineMakeCall() success Call on Device-D : LINE_CALLSTATE -Param1 = OFFERING LINE_CALLSTATE -Param1 = ACCEPTED Second Call on CTI Remote Device[A] [D ' A2]: LINE_CALLSTATE -Param1 = OFFERING LINE_CALLSTATE -Param1 = ACCEPTED Second Call on Enterprise Phone[B] [D ' A2]: LINE_CALLSTATE -Param1 = OFFERING LINE_CALLSTATE -Param1 = ACCEPTED LineMakeCall on Line-D with DN (A2 -DN 2001) There won't be second call offered to Remote Destination LineAnswer() returns success Calls on CTI Remote Device : Call1 [C ' A1]: LINE_CALLSTATE -Param1 = ONHOLD Call1 [D ' A2]: LINE_CALLSTATE -Param1 = CONNECTED Calls on Enterprise Phone[B] : Call1 [C ' A1]: LINE_CALLSTATE -Param1 = ONHOLD Call1 [D ' A2]: LINE_CALLSTATE - Param1 = CONNECTED Param2 = 0x02 (Inactive) Answer() on the second call on CTIRemote Device(A) Remote Destination and D will be talking/ will have Media connection Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 617 Message Sequence Charts Message Sequence Charts

Page 649 diagram

Page 650

TAPI structures TAPI messages Action LineUnHold() returns success Calls on CTI Remote Device : Call1 [C ' A1]: LINE_CALLSTATE -Param1 = CONNECTED Call1 [D ' A2]: LINE_CALLSTATE -Param1 = ONHOLD Calls on Enterprise Phone[B] : Call1 [C ' A1]: LINE_CALLSTATE - Param1 = CONNECTED Param2 = 0x02 (Inactive) Call1 [D ' A2]: LINE_CALLSTATE - Param1 = ONHOLD Resume the first call on CTIRemote Device [A] LineUnhold() on the call [c ' A1] on Device A Remote Destination and C will be talking/ will have Media connection LineDrop() success Call on C : LINE_CALLSTATE -Param1 = DISCONNECTED LINE_CALLSTATE -Param1 = IDLE Calls on CTI Remote Device : [C ' A1] : LINE_CALLSTATE -Param1 = DISCONNECTED LINE_CALLSTATE -Param1 = IDLE Call on Enterprise Phone : Call [C ' A1] LINE_CALLSTATE - Param1 = CONNECTED Param2 = 0x02 (Inactive) LINE_CALLSTATE -Param1 = IDLE Drop the Connected Active Call on CTI Remote Device. LineDrop() for the call[C ' A1] on Device A (CTI-RD) Call on Remote Destination will not be dropped as there is other Active/OnHold call on CTI Remote Device As second Call is on OnHold state, Remote Destination will listen Dead Air Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 618 Message Sequence Charts Message Sequence Charts

Page 650 diagram

Page 651

TAPI structures TAPI messages Action LineDrop() success Call on CTI Remote Device : LINE_CALLSTATE -Param1 = DISCONNECTED LINE_CALLSTATE -Param1 = IDLE Drop the onHold call on CTI Remote Device LineDrop() for the call on Device A (CTI-RD) Call on Remote Destination is dropped C and EP call will not be disconnected. On C call will be in Connected state and on EP call will be in OnHold state. Expected result would be same as observed on CTI Remote Device Variation : Test the same with CSF Device in Extend Mode Transfer Precondition: same as above usecase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LineOpen() returns Success Open all Lines (A, A', A'' and C) LineOpen() with ExtVer-0x000C0000 Make Call between C and A1[Remote Destinaton], either normal incoming or DVO call on CTI Remote Device Call Info is same as above test cases LineSetupTransfer returns success Primary Call on CTI Remote Device[A] [C ' A1] : LINE_CALLSTATE -Param1 = OnholdPendingTransfer Consult Call on CTI Remote Device[A] [A1 ' D]: Setup Transfer and Dial D LineSetupTransfer() on the call [C ' A1] on Device A Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 619 Message Sequence Charts Message Sequence Charts

Page 651 diagram

Page 652

TAPI structures TAPI messages Action LINE_CALLSTATE -Param1 = DIALTONE LINE_CALLSTATE -Param1 = DIALING Calls on Enterprise Phone[B] : Call1 [C ' A1]: LINE_CALLSTATE -Param1 = ONHOLD Call1 [A1 ' D]: LINE_CALLSTATE - Param1 = CONNECTED Param2 = 0x02 (Inactive) Consult Call on CTI Remote Device[A] [A1 ' D]: LINE_CALLSTATE -Param1 = PROCEEDING LINE_CALLSTATE -Param1 = RINGBACK LineDial() on Consult call with DN -D Secondary Call on CTI Remote Device: Call1 [A1 ' D]: LINE_CALLSTATE -Param1 = CONNECTED Param2 = 0x01(active) Answer the Call on Device D Remote Destination and D will be talking/ will have Media connection Both the Calls on CTI Remote Device Drop Primary Call on CTI Remote Device : Call1 [C ' A1]: LINE_CALLSTATE -Param1 = DISCONNECTED LINE_CALLSTATE -Param1 = IDLE Secondary Call on CTI Remote Device: Call1 [A ' D]: LINE_CALLSTATE -Param1 = DISCONNECTED LINE_CALLSTATE -Param1 = IDLE Complete Transfer on the Primary Call[C ' A]with [A ' D ] call as consult call LineCompleteTranfer() on the call [c ' A1] on Device A D and C will be talking/ will have Media connection Expected result would be same as observed on CTI Remote Device Variation : Test the same with CSF Device in Extend Mode Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 620 Message Sequence Charts Message Sequence Charts

Page 652 diagram

Page 653

Direct Transfer on Same Line Precondition: same as above usecase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LineOpen() returns Success Open all Lines (A, A', A'' and C) LineOpen() with ExtVer-0x000C0000 Make Call between C and A1[Remote Destinaton], either normal incoming or DVO call on CTI Remote Device Call Info is same above test cases Make Call between D and A1 Call Info is same above Multiple Call across lines test case Both the Calls on CTI Remote Device Drop Primary Call on CTI Remote Device : Call1 [C ' A1]: LINE_CALLSTATE -Param1 = DISCONNECTED LINE_CALLSTATE -Param1 = IDLE Secondary Call on CTI Remote Device: Call1 [A1 ' D]: LINE_CALLSTATE -Param1 = DISCONNECTED LINE_CALLSTATE -Param1 = IDLE DirectTrnasfer on the calls on CTI Remote Device Both Calls on Remote Device and call on Remote Destination drop Both the Calls on CTI Remote Device Drop Primary Call on CTI Remote Device : Call1 [C ' A1]: LINE_CALLSTATE -Param1 = DISCONNECTED LINE_CALLSTATE -Param1 = IDLE Secondary Call on CTI Remote Device: Call1 [A1 ' D]: LINE_CALLSTATE -Param1 = DISCONNECTED LINE_CALLSTATE -Param1 = IDLE DirectTrnasfer on the calls on CTI Remote Device Both Calls on Remote Device and call on Remote Destination drop CciscoLineDevSpecificDirectTransfer on the call [c ' A1] on Device A with ConsultCallID = CallID of [D ' A1] D and C will be talking/ will have Media connection Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 621 Message Sequence Charts Message Sequence Charts

Page 653 diagram

Page 654

TAPI structures TAPI messages Action Expected result would be same as observed on CTI Remote Device Variation : Test the same with CSF Device in Extend Mode Conference -Setupconference/AddtoConference Precondition: same as above usecase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LineOpen() returns Success Open all Lines (A, A', A'' and C) LineOpen() with ExtVer-0x000C0000 Make Call between C and A1[Remote Destinaton], either normal incoming or DVO call on CTI Remote Device Call Info is same above test cases Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 622 Message Sequence Charts Message Sequence Charts

Page 654 diagram

Page 655

TAPI structures TAPI messages Action LineSetupConference returns success Original Call on CTI Remote Device[A] : LINE_CALSTATE = CONFERENCE Conference Parent Call on CTI Remote Device[A] : LINE_APPNEWCALL LINE_CALLSTATE -Param1 = OnholdPendingConference Consult Call on CTI Remote Device[A] : LINE_CALLSTATE -Param1 = DIALTONE LINE_CALLSTATE -Param1 = DIALING Calls on Enterprise Phone[B] : Call1 [C ' A]: LINE_CALLSTATE - Param1 = CONNECTED Param2 = 0x02 (Inactive) Call1 [A ' D]: LINE_CALLSTATE - Param1 = CONNECTED Param2 = 0x02 (Inactive) Consult Call on CTI Remote Device[A] : LINE_CALLSTATE -Param1 = PROCEEDING LINE_CALLSTATE -Param1 = RINGBACK Setup Conference and Dial D LineSetupConference() on the call [C ' A1] on Device A LineDial() on Consult call with DN -D Secondary Call on CTI Remote Device: Call1 [A ' D]: LINE_CALLSTATE -Param1 = CONNECTED LINE_CALLSTATE -Param1 = IDLE Answer the Call on Device D Remote Destination and D will be talking/ will have Media connection Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 623 Message Sequence Charts Message Sequence Charts

Page 655 diagram

Page 656

TAPI structures TAPI messages Action Call model on CTI Remote Device : [C ' A1]-[ Original Call1]-[ state = Conference] [A1 ' Conference]-[ Conference Parent Call]-[State = CONNECTED] [A1 ' D]-[Consult Call]-[state -CONFERENCE] Call Model on Enterprise Phone: Same as CTI Remote Device, all calls are RIU Calls Complete Conference on the Primary Call[C ' A]with [A ' D ] call as consult call LineAddtoConference() on the call [c ' A1] on Device A All 3 parties C, D and CTI Remote Device[Remote Destination] will be in Conference Expected result would be same as observed on CTI Remote Device Variation : Test the same with CSF Device in Extend Mode Join on Same Line Precondition: same as above usecase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LineOpen() returns Success Open all Lines (A, A', A'' and C) LineOpen() with ExtVer-0x000C0000 Make Call between C and A1[Remote Destinaton], either normal incoming or DVO call on CTI Remote Device Call Info is same above test cases Make Call between D and A1 Call Info is same above Multiple Call across lines test case Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 624 Message Sequence Charts Message Sequence Charts

Page 656 diagram

Page 657

TAPI structures TAPI messages Action Original Call on CTI Remote Device[A] [C ' A1]: LINE_CALSTATE = CONFERENCE Conference Parent Call on CTI Remote Device[A] : LINE_APPNEWCALL LINE_CALLSTATE -Param1 = CONNECTED Consult Call on CTI Remote Device[A] [D ' A1]: LINE_CALLSTATE -Param1 = CONFERENCE Conference Model will be created on CTI Remote Device and RIU Conference Model on EP Join on the Primary Call[C ' A1]with [A1 ' D ] call as consult call CCiscoLineDevSpecificJoin() on the call [c ' A1] on Device A with CallIDstoJoin = CallID of Call [D ' A1] CTIRemoteDevice [A -Remote Destination], D and C will be in Conference. Expected result would be same as observed on CTI Remote Device Variation : Test the same with CSF Device in Extend Mode Direct Transfer/Join Across Line on CTI Remote Device Precondition: same as above usecase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LineOpen() returns Success Open all Lines (A, A', A'' and C) LineOpen() with ExtVer-0x000C0000 Make Call between C and A1[Remote Destinaton], either normal incoming or DVO call on CTI Remote Device Call Info is same above test cases Make Call between D and A2 Call Info is same above Multiple Call across lines test case Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 625 Message Sequence Charts Message Sequence Charts

Page 657 diagram

Page 658

TAPI structures TAPI messages Action Line_Reply with error = LINEERR_OPERATIONUNAVAIL Join on the Primary Call[C ' A1]with [A2 ' D ] call as consult call CCiscoLineDevSpecificJoin() on the call [c ' A1] on Device A with CallIDstoJoin = CallID of Call [D ' A2] Or CciscoLineDevSpecificDirectTransfer on the call [c ' A1] on Device A with ConsultCallID = CallID of [D ' A2] Direct Transfer / Join Across Line is not supported on CTI Remote Device LINEERR_OPERATIONUNAVAIL Or PHONEERR_OPERATIONUNAVAIL Depending on the Line/Phone API request. Variation: On any unsupported Feature Request For Example: CallAcceptRequest CallAnswerRequest CallParkRequest LineCallUnParkRequest Expected result would be same as observed on CTI Remote Device Variation : Test the same with CSF Device in Extend Mode Cbarge Precondition: same as above usecase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LineOpen() returns Success Open all Lines (A, A', A'' and C) LineOpen() with ExtVer-0x000C0000 Make Call between C and A1[Remote Destinaton], either normal incoming or DVO call on CTI Remote Device Call Info is same above test cases Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 626 Message Sequence Charts Message Sequence Charts

Page 658 diagram

Page 659

TAPI structures TAPI messages Action Conference Call model on CTI Remote Device : [C ' A1]-[ Original Call1]-[ state = Conference] [A1 ' Conference]-[ Conference Parent Call]-[State = CONNECTED] [A1 ' A1(EP)]-[Consult Call]-[state -CONFERENCE] Call Model on Enterprise Phone: Active Conference Calls: [C ' A1(CTIRD)]-[ Original Call1]-[ state = Conference] [A1(EP) ' Conference]-[ Conference Parent Call]-[State = CONNECTED] [A1(EP) ' A1(CTIRD)]-[Consult Call]-[state -CONFERENCE] RIU Conference Calls: [C ' A1]-[ Original Call1]-[ state = Conference] [A1 ' Conference]-[ Conference Parent Call]-[State = CONNECTED] [A1 ' A1(EP)]-[Consult Call]-[state -CONFERENCE] cBarge from CTI Remote Device is not supported as CTI Remote Device is a Static virtual Device. cBarge from EP [Enterprise phone] *** cBarge will be successful and CTIRemote Device, EP and Caller will be in Conference. *** as CTI Remote Device doesn't report RIU calls, there won't be RIU Conference created on CTI Remote Device reflecting Active Conference Call on EP Barge Operation will fail as CTI Remote Devices doesn't have BIB. Variation: Barge Operation on Enterprise Phone Expected result would be same as observed on CTI Remote Device Variation : Test the same with CSF Device in Extend Mode URI Dialing -Basic Incoming Call to CTI Remote Device Precondition: InAddition to configuration from previous usecases CTI Remote Device: Line: Line-A (DN -2000) (URI Configured -drajesh@cisco.com) C (IP Phone -Name: SEPxxxxxxxx) Line: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 627 Message Sequence Charts Message Sequence Charts

Page 659 diagram

Page 660

Line-C -DN -1000(URI configured -1000@cisco.com) D (IP Phone -Name: SEPxxxxxxxx) Line: Line-D -DN -1001(URI configured -1001@cisco.com) TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LineOpen() returns Success Open all Lines (A, A' and C) LineOpen() with ExtVer-0x000C0000 LineMakeCall() success Call on C : LINE_CALLSTATE -Param1 = DIALING LINE_CALLSTATE -Param1 = PROCEEDING LINE_CALLSTATE -Param1 = RINGBACK Call on CTI Remote Device : LINE_APPNEWCALL LINE_CALLSTATE -Param1 = OFFERING LINE_CALLSTATE -Param1 = ACCEPTED Call on Enterprise Phone : LINE_APPNEWCALL LINE_CALLSTATE -Param1 = OFFERING LINE_CALLSTATE -Param1 = ACCEPTED LineMakeCall on Line-C with URI of CTI Remote Device (DestinationAddress -drajesh@cisco.com) After "Delay Before Ringing Timer" expires the call is offered on Remote Destinations and all Remote Destinations Ring Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 628 Message Sequence Charts Message Sequence Charts

Page 660 diagram

Page 661

TAPI structures TAPI messages Action LineCallInfo :: dwCallerID = 1000 dwCallerIDName = 1000name dwCalledID = 2000 dwCalledIDName = 2000name DevSpecific :: UnicodeCallerPartyName = 1000name UnicodeCalledPartyName = 2000name UnicodeConnectedPartyName = SIP URI Info: Caller : [User | Host | Port | TransportType | URI Type] = [100 | Cisco.com | 0x0 | 0x0 | 0x1] Called : [User | Host | Port | TransportType | URI Type] = [drajesh | Cisco.com | 0x0 | 0x0 | 0x1] Connected : Empty ModifiedCallingParty = 1000 ModifiedCalledParty = 2000 ModifiedConnectedID = LineGetCallInfo() success LineGetCallInfo() on call on Device C Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 629 Message Sequence Charts Message Sequence Charts

Page 661 diagram

Page 662

TAPI structures TAPI messages Action LineCallInfo :: dwCallerID = 1000 dwCallerIDName = 1000name dwCalledID = 2000 dwCalledIDName = 2000name DevSpecific :: UnicodeCallerPartyName = 1000name UnicodeCalledPartyName = 2000name UnicodeConnectedPartyName = SIP URI Info: Caller : [User | Host | Port | TransportType | URI Type] = [100 | Cisco.com | 0x0 | 0x0 | 0x1] Called : [User | Host | Port | TransportType | URI Type] = [drajesh | Cisco.com | 0x0 | 0x0 | 0x1] Connected : Empty ModifiedCallingParty = 1000 ModifiedCalledParty = 2000 ModifiedConnectedID = LineGetCallInfo() success LineGetCallInfo() on call on Device A/B Call on C : LINE_CALLSTATE -Param1 = CONNECTED Call on CTI Remote Device : LINE_CALLSTATE -Param1 = CONNECTED (active) Call on Enterprise Phone : LINE_CALLSTATE - Param1 = CONNECTED Param2 = 0x02 (Inactive) Answer on any of the Remote Destination Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 630 Message Sequence Charts Message Sequence Charts

Page 662 diagram

Page 663

Page 663 diagram

Page 664

Page 664 diagram

Page 665

TAPI structures TAPI messages Action LineDrop() success Call on C : LINE_CALLSTATE -Param1 = DISCONNECTED LINE_CALLSTATE -Param1 = IDLE Call on CTI Remote Device : LINE_CALLSTATE -Param1 = DISCONNECTED LINE_CALLSTATE -Param1 = IDLE Call on Enterprise Phone : LINE_CALLSTATE - Param1 = CONNECTED Param2 = 0x02 (Inactive) LINE_CALLSTATE -Param1 = IDLE LineDrop() for the call on Device A (CTI-RD) Call on Remote Destination is dropped Call on C : LINE_CALLSTATE -Param1 = CONNECTED Call on CTI Remote Device : LINE_CALLSTATE -Param1 = DISCONNECTED LINE_CALLSTATE -Param1 = IDLE Call on Enterprise Phone : LINE_CALLSTATE - Param1 = CONNECTED Variation : Answer the call on Enterprise Phone (B) LineAnswer() on the call on Device B Call on Remote Device/Remote Destination drops URI Dialing -DVO Call (Outgoing Call Initiation From CTI Remote Device) Precondition: same as above usecase TAPI structures TAPI messages Action Lines are Enumerated LineInitializeEx LineOpen() returns Success Open all Lines (A, A' and C) LineOpen() with ExtVer-0x000C0000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 633 Message Sequence Charts Message Sequence Charts

Page 665 diagram

Page 666

TAPI structures TAPI messages Action LineMakeCall() returns RequestID LINE_REPLY Param1 = RequestID Param2 = LINEERR_OPERATION_FAIL_NO_ACTIVE_RD_SET (0xC0000016) LineMakeCall on Line-A with DN (C -DN 1000) EVENT = LINE_DEVSPECIFIC dwParam1 = SLDSMT_LINE_PROPERTY_CHANGED dwParam2 = LPCT_REMOTE_DESTINATION_INFO (0x00004000) Update Remote Destination RD1 "Mobile"on CTI Remote Device A with IsActive set to true CiscoLineDevSpecific UpdateRemoteDestination Req m_RDNumber = "914086271309" m_UnicodeRDName = "Mobile" m_NewRDNumber = "914086271309" m_activeRD = 0x00000001 LINEDEVCAPS::DevSpecific dwLineTypes = (0x00000000) DeviceProtocolType = DeviceProtocolType_CTI_ REMOTE_DEVICE (0x03) Remote Destination Info: unicodeRDName = "Mobile" RDNumber = "4086271309" isActiveRD = 0x00000001 unicodeRDName = "Office" RDNumber = "4089022131" isActiveRD = 0x00000000 IsMyAppLastToSetActiveRD = 0x00000001 LineGetDevCaps() returns success LineGetDevCaps() with dwDeviceID = LineDeviceId of Line-A. LineMakeCall() success Call on CTI Remote Device : LINE_CALLSTATE -Param1 = OFFERING LineMakeCall on Line-A with URI of C (DestinationAddress -1000@cisco.com) *** Only Remote Destination "Mobile" rings and it rings immediately as the RD is set Active *** No Call presented on EP Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 634 Message Sequence Charts Message Sequence Charts

Page 666 diagram

Page 667

TAPI structures TAPI messages Action LineAnswer() fail with Error LINEEE_OPERATIONUNAVAIL Answer the first Call on CTI Remote Device: Answer() on the call on CTIRemote Device(A) LineCallInfo :: dwCallerID = 2000 dwCallerIDName = voiceConnect dwCalledID = 2000 dwCalledIDName = 2000name DevSpecific :: UnicodeCallerPartyName = UnicodeCalledPartyName = 2000name UnicodeConnectedPartyName = SIP URI Info: Caller : [User | Host | Port | TransportType | URI Type] = empty Called : [User | Host | Port | TransportType | URI Type] = [drajesh | Cisco.com | 0x0 | 0x0 | 0x1] Connected : [User | Host | Port | TransportType | URI Type] = empty ModifiedCallingParty = 2000 ModifiedCalledParty = 2000 ModifiedConnectedID = LineGetCallInfo() success LineGetCallInfo() on call on Device A(CTIRD) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 635 Message Sequence Charts Message Sequence Charts

Page 667 diagram

Page 668

TAPI structures TAPI messages Action Call on C : LINE_CALLSTATE -Param1 = OFFERING LINE_CALLSTATE -Param1 = ACCEPTED Call on CTI Remote Device : LINE_CALLSTATE -Param1 = CONNECTED LINE_CALLSTATE -Param1 = RINGBACK Call on Enterprise Phone : LINE_APPNEWCALL LINE_CALLSTATE -Param1 = ACCEPTED LINE_CALLSTATE - Param1 = CONNECTED Param2 = 0x02 (Inactive) Once Remote Destination answers the call, call will be offered on initial dialed number C Call will be present on Enterprise Phone and call will be Remote In Use Call LineAnswer() success Call on C : LINE_CALLSTATE -Param1 = CONNECTED Call on CTI Remote Device : LINE_CALLSTATE -Param1 = CONNECTED (active) Call on Enterprise Phone : LINE_CALLSTATE - Param1 = CONNECTED Param2 = 0x02 (Inactive) C answers the call LineAnswer() on call on Device-C Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 636 Message Sequence Charts Message Sequence Charts

Page 668 diagram

Page 669

Page 669 diagram

Page 670

Page 670 diagram

Page 671

Provider Open request
Issue Line Open on remote device and devices which have the remote destinations
Phone A makes a call to CTIRD Table 72: Use Case 2: Device A Calls CTIRD When Active RD Is Not Set and "Route calls to all remote destinations when client is not connected" Is Disabled. There Is No Call Forward Number Set on the Shared Enterprise Phone Expected Result Scenario Call is disconnected with reason code -USER_BUSY.
Provider Open request
Issue Line Open on remote device and devices which have the remote destinations
Phone A makes a call to CTIRD Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 639 Message Sequence Charts CTI RD Call Forwarding

Page 671 diagram

Page 672

Table 73: Use Case 3: Device A Calls CTIRD When CTI Remote Device Is Observed , Remote Destination Is Not Configured and "Route calls to all remote destinations when client is not connected" Is Enabled (CFNA Is Configured On Enterprise Number to Voice Mail Box) Expected Result Scenario Call will route to voice mail number.

Provider Open request
Issue Line Open on remote device and devices which have the remote destinations
Phone A makes a call to CTIRD Table 74: Use Case 4: Device A Calls CTIRD When CTI Remote Device Is Observed , Remote Destination Is Not Configured and "Route calls to all remote destinations when client is not connected" Is Disabled (CFNA Is Configured On Enterprise Number to Voice Mail Box) Expected Result Scenario Call will route to voice mail number.
Provider Open request
Issue Line Open on remote device and devices which have the remote destinations
Phone A makes a call to CTIRD Table 75: Use Case 5: DeviceA Calls CTIRD When Active RD Is Set and "Route calls to all remote destinations when client is not connected" Is Enabled. Setup: A IP Phone, B CTI-RD, C RDD1, D RDD2. Active RD Is Set to C Expected Result Scenario Incoming calls is routed to active remote destination, such as C.
Provider Open request
Issue Line Open on remote device and devices which have the remote destinations
Phone A makes a call to B
C answers the call Table 76: Use Case 6: Device A Calls CTIRD When Active RD Is Set and "Route calls to all remote destinations when client is not connected" Is Enabled. Setup: A IP Phone, B CTI-RD, C RDD1, D RDD2. Active RD Is Set to C Expected Result Scenario Incoming calls is routed to active remote destination.
Provider Open request
Issue Line Open on remote device and devices which have the remote destinations
Phone A makes a call to B Video Capabilities and Multimedia Information Use cases related to Video Capabilities and Multi-Media Information feature are mentioned below: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 640 Message Sequence Charts Video Capabilities and Multimedia Information

Page 672 diagram

Page 673

Media Capability on Device A (SIP Phone with Camera) Which Is Video-Enabled, Supports Telepresence, and Has 2 Screens Expected events Action LINEGETDEVCAPS::DEVSPECIFIC exposes Video Capability

0x00000001[CiscoDeviceVideoCapability_Enabled] TelepresenceInfo = 1 ScreenCount = 2 LineInitializeEx Issue LineGetDevCaps() with Ext version 0x000D0000 with deviceId for linedevice A LineShutdown Media Capability on Device A (SIP Phone) Which Is Not Video-Enabled, Supports Telepresence, and Has 2 Screens Expected events Action LINEGETDEVCAPS::DEVSPECIFIC exposes Media Capability

0x00000000 [CiscoDeviceVideoCapability_None] TelepresenceInfo = 1 ScreenCount = 2 LineInitializeEx Issue LineGetDevCaps() with Ext version 0x000D0000 with deviceId for linedevice A LineShutdown Media Capability on Device A (CTI Port/Remote Point) Expected events Action LINEGETDEVCAPS::DEVSPECIFIC exposes Media Capability = 0x00000000 [CiscoDeviceVideoCapability_None] TelepresenceInfo = 0 Screen Count = 0 LineInitializeEx Issue LineGetDevCaps() with Ext version 0x000D0000 with deviceId for linedevice A LineShutdown Media Capability on an Acquired Device B Which Is Media-Enabled (super Provider Scenario), Supports Telepresence, and Has 3 Screens Expected events Action LineOpen successful. Device Acquired Successfully. LINE_CREATE message fired. LINEGETDEVCAPS::DEVSPECIFIC exposes Media Capability = 0x00000001 [CiscoDeviceVideoCapability_Enabled] TelepresenceInfo = 1 Screen Count = 3 LineInitializeEx LineOpen with Ext version 0x000D0000 with deviceId for linedevice A Issue CCiscoLineDevSpecificAcquire to Acquire Device B. Issue LineGetDevCaps() with Ext version 0x000D0000 with deviceId for linedevice B LineShutdown Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 641 Message Sequence Charts Message Sequence Charts

Page 673 diagram

Page 674

Media Capability on Device A (ParkDN/Pickupdevice) Expected events Action LINEGETDEVCAPS::DEVSPECIFIC exposes Media Capability = 0x00000000 [CiscoDeviceVideoCapability_None] TelepresenceInfo = 0 Screen Count = 0 LineInitializeEx Issue LineGetDevCaps() with Ext version 0x000D0000 with deviceId for linedevice A LineShutdown Media Capability on Device A (SIP Phone Which Is Unregistered and Is Video-Enabled) Expected events Action LINEGETDEVCAPS::DEVSPECIFIC exposes Media Capability = 0x00000000 [CiscoDeviceVideoCapability_None] TelepresenceInfo = 0 Screen Count = 0 LineInitializeEx Issue LineGetDevCaps() with Ext version 0x000D0000 with deviceId for linedevice A LineShutdown Video Capability on Device B (A Is a SIP Phone with Video-Enabled and B Is SIP Phone with Video-Enabled) , Both Devices Support Telepresence, and Have 3 Screens Expected events Action B : LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapabilities : VideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] TelepresenceInfo = 0x000000001(Telepresence Enabled) Screen Count = 3 CalledPartyVideoCapabilities : VideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] TelepresenceInfo = 0x000000001(Telepresence Enabled) Screen Count = 3 LineInitializeEx A does a LineMakeCall to B, B answers. Issue LineGetcallInfo() with Ext version for linedevice B LineShutdown Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 642 Message Sequence Charts Message Sequence Charts

Page 674 diagram

Page 675

Expected events Action B: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapabilities : VideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] TelepresenceInfo = 0x000000001(Telepresence Enabled) Screen Count = 3 CalledPartyVideoCapabilities : VideoCapStatus = 0x000000000[CiscoDeviceVideoCapability_None] TelepresenceInfo = 0x000000000(Telepresence Disabled) Screen Count = 1 Variation 1: A has video enabled and B has video disabled. A has Telepresence enabled and has 3 screens, B has Telepresence disabled and has 1 screens. B: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapabilities : VideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] TelepresenceInfo = 0x000000000(Telepresence Disabled) Screen Count = 1 CalledPartyVideoCapabilities : VideoCapStatus = 0x000000000[CiscoDeviceVideoCapability_None] TelepresenceInfo = 0x000000000(Telepresence Disabled) Screen Count = 0 Variation 2: A has video enabled,1 scren and B is a CTI Port or Route Point. Video Capability on Device C After Redirect (A Is a SIP Phone Which Is Video-Disabled, B and C Are Video-Enabled) Expected events Action C: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000000[CiscoDeviceVideoCapability_None] CalledPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled LineInitializeEx A does a LineMakeCall to B. B redirects to C, C answers Issue LineGetcallInfo() with Ext version for linedevice C LineShutdown Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 643 Message Sequence Charts Message Sequence Charts

Page 675 diagram

Page 676

Video Capability on Device C After Blindtransfer (A Is a SIP Phone Which Is Video-Disabled, B and C Are Video-Enabled) Expected events Action C: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000000[CiscoDeviceVideoCapability_None] CalledPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled LineInitializeEx A does a LineMakeCall to B. B does a blindtransfers to C, C answers Issue LineGetcallInfo() with Ext version for linedevice C LineShutdown Video Capability on Device C After Consult Transfer (A Is a SIP Phone Which Is Video-Disabled, B and C Are Video-Enabled) Expected events Action C: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] CalledPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled LineInitializeEx A does a LineMakeCall to B. B does a LineSetupTransfer to C, C answers B does a LineCompleteTransfer Issue LineGetcallInfo() with Ext version for linedevice C LineShutdown Video Capability on Device B on an Existing Call (Both A and B Are SIP Phones Which Are Video-Enabled) Expected events Action B: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] CalledPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] A does a Call to B, B answers. LineInitializeEx Issue LineGetcallInfo() with Ext version for linedevice B LineShutdown B: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] CalledPartyVideoCapStatus = 0x000000000[CiscoDeviceVideoCapability_None Variation 1: A has video enabled and B has video disabled. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 644 Message Sequence Charts Message Sequence Charts

Page 676 diagram

Page 677

Expected events Action B: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] CalledPartyVideoCapStatus = 0x000000000[CiscoDeviceVideoCapability_None Variation 2: A has video enabled and B is a CTI Port or Route Point. Dynamic Media Capability Change on Device A (SIP Phone with Camera) Which Is Video-Enabled Expected events Action LINEGETDEVCAPS::DEVSPECIFIC exposes Video Capability

0x00000001[CiscoDeviceVideoCapability_Enabled] TSP will fire SLDSMT_LINE_PROPERTY_CHANGED event to application with dwParam2 = LPCT_DEVICE_VIDEO_INFO(0x00010000). LineInitializeEx LineOpen on A Issue LineGetDevCaps() with Ext version 0x000D0000 with deviceId for linedevice A Change Video Capability of device to Disabled from CUCM Admin page LineShutdown TSP will fire SLDSMT_LINE_PROPERTY_CHANGED event to application with dwParam2 = LPCT_DEVICE_VIDEO_INFO(0x00010000). Variation 1: Intially Device A has Video disabled and then change Video Capability of device to enabled from CUCM Admin page. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 645 Message Sequence Charts Message Sequence Charts

Page 677 diagram

Page 678

Video Capability on Device A and B; Both Are Video-Enabled SIP Phones And, Both Devices Support Telepresence and Has 3 Screens Expected events Action A: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyMultiMediaCapBitMask = 0x00000007 CalledPartyMultiMediaCapBitMask = 0x00000007 CallingPartyMultiMediaCapInfo : VideoCapability = 0x000000001[CiscoDeviceVideoCapability_Enabled] TelepresenceInfo = 0x000000001(Telepresence Enabled) Screen Count = 3 CalledPartyMultiMediaCapInfo : VideoCapability = 0x00000001[CiscoDeviceVideoCapability_Enabled] TelepresenceInfo = 0x00000001(Telepresence Enabled Screen Count = 3 LineInitializeEx LineOpen on A and B A does a LineMakeCall to B, B answers. Issue LineGetcallInfo() with Ext version for linedevice A LineShutdown A: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyMultiMediaCapBitMask = 0x00000007 CalledPartyMultiMediaCapBitMask = 0x00000007 CallingPartyMultiMediaCapInfo : VideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] TelepresenceInfo = 0x000000001(Telepresence Enabled) Screen Count = 3 CalledPartyMultiMediaCapInfo : VideoCapStatus = 0x000000000[CiscoDeviceVideoCapability_None] TelepresenceInfo = 0x000000000(Telepresence Disabled) Screen Count = 1 Variation 1: A has video enabled and B has video disabled. A has Telepresence enabled and has 3 screens, B has Telepresence disabled and has 1 screens. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 646 Message Sequence Charts Message Sequence Charts

Page 678 diagram

Page 679

Expected events Action A: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyMultiMediaCapBitMask = 0x00000007 CalledPartyMultiMediaCapBitMask = 0x00000000 CallingPartyMultiMediaCapInfo : VideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] TelepresenceInfo = 0x000000000(Telepresence Disabled) Screen Count = 0x00000001 CalledPartyMultiMediaCapInfo : VideoCapStatus = 0x000000000[CiscoDeviceVideoCapability_None] TelepresenceInfo = 0x000000000(Telepresence Disabled) Screen Count = 0x00000000 Variation 2: A has video enabled,1 screen and B is a CTI Port or Route Point. Check If the Multimedia Streams Info Has Not Returned on the Call From Both Calling Party and Called Party, If Lines Are Opened with Ext 0x000B0000 (TLS Connections Must Be Disabled, Phone A and B Are Video-Disabled) Expected events Action No CallDevSpecific event returned -SLDSMT_MULTIMEDIA_STREAMSDATA LineInitializeEx LineOpen at A and B with extension version 0x000B0000 A does a LineMakeCall to B / B answers the call Check there is no CallDevSpecific event returned. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 647 Message Sequence Charts Message Sequence Charts

Page 679 diagram

Page 680

Check If the Multimedia Streams Info Has Returned on the Call From Both Calling Party and Called Party, If Lines Are Opened with Ext 0x000D0000 (TLS Connections Must Be Disabled, Phone A and B Are Video-Enabled) Expected events Action LineInitializeEx LineOpen at A and B with extension version 0x000B0000 A does a LineMakeCall to B / B answers the call Check there is CallDevSpecific event returned. LineGetCallInfo on A Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 648 Message Sequence Charts Message Sequence Charts

Page 680 diagram

Page 681

Expected events Action CallDevSpecific event returned -SLDSMT_MULTIMEDIA_STREAMSDATA DevSpecificPart of LINECALLINFO For Party A: Video Stream Information returned for the following: CompressionType = The actual compression type BitRate = The actual bit rate MediaMode = 0x00000000 PacketSize = The actual packet size bSilenceSupressionFlag = 0x00000000 bKeyInfoPresen = 0x00000000 RxRTPDestinationV6Offset = The actual IPV6 address offset RxRTPDestinationV6Size = The actual IPV6 address size RxRTPIPV4Address = The actual IPV4 address RxRTPIPV4Por t = The actual IPV4 port RxIpAddrMode = The actual IPV4 mode TxRTPDestinationV6Offset = The actual IPV6 address offset TxRTPDestinationV6Size = The actual IPV6 address size TxRTPIPV4Address = The actual IPV4 address TxRTPIPV4Port = The actual IPV4 port TxIpAddrMode = The actual IPV4 mode MultiMediaEncryptionKey Information returned is the following AlgorithmID = 0x00000000 TxKeyOffset = 0x00000000 TxKeySize = The actual size RxKeyOffset = The actual offset RxKeySize = The actual size TxSaltOffset = The actual offset TxSaltSize = The actual size RxSaltOffset = The actual offset RxSaltSize = The actual size TxIsMKIPresent = 0x00000000 RxIsMKIPresent = 0x00000000 SecurityIndicator = 0x00000001 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 649 Message Sequence Charts Message Sequence Charts

Page 681 diagram

Page 682

Expected events Action CallDevSpecific event returned -SLDSMT_MULTIMEDIA_STREAMSDATA The value of MediaMode should be changed 0x000000003 CallDevSpecific event returned -SLDSMT_MULTIMEDIA_STREAMSDATA The value of MediaMode should be changed 0x000000000 CallDevSpecific event returned -SLDSMT_MULTIMEDIA_STREAMSDATA The value of MediaMode should be changed 0x000000003 Variation 1: A does a LineMakeCall to B / B answers the call Application does LineHold on B LineGetCallInfo on A and B Application does LineUnHold on B LineGetCallInfo on A and B Application does a LineDrop on B. LineGetCallInfo on A and B Negotiated Video Capability Will Be Reported to the Called Party Accross a Inter Cluster Call (over SIP – ICT Trunk) Using Early Offer (Phone A Is Video-Disabled SIP Phone and Phone B Is Video-Enabled, A Is in Cluster 1 and B Is in Cluster 2) Expected events Action A: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000000[CiscoDeviceVideoCapability_Disabled] CalledPartyVideoCapStatus = 0x000000000[CiscoDeviceVideoCapability_Disabled] B: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000000[CiscoDeviceVideoCapability_Disabled] CalledPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] LineInitializeEx A does a LineMakeCall to B. B answers. LineGetCallInfo on A LineGetCallInfo on B LineShutdown Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 650 Message Sequence Charts Message Sequence Charts

Page 682 diagram

Page 683

Expected events Action A: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] CalledPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] B: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] CalledPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] Variation 1: A and B are SIP Phone and have video enabled. LineGetCallInfo on A LineGetCallInfo on B Multiple Redirect Over SIP Trunk (Phone A, B, and C Are Video-Enabled SIP Phones, Phone D Is Video-Disabled. Phone A Is in Cluster 1 and Phone B, C, and D Are in Cluster 2) Expected events Action B: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] CalledPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] C: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] CalledPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] D: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] CalledPartyVideoCapStatus = 0x000000000[CiscoDeviceVideoCapability_Disabled] LineInitializeEx A does a LineMakeCall to B. LineGetCallInfo on B B redirects the call to C, LineGetCallInfo on C C redirects the call to D, LineGetCallInfo on D LineShutdown Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 651 Message Sequence Charts Message Sequence Charts

Page 683 diagram

Page 684

Redirect Over SIP Trunk (Phone A Is Video-Enabled SIP Phone and Phone B and C Is Video-Disabled, Phone A Is in Cluster 1 and Phone B and C Are in Cluster 2) Expected events Action A: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] CalledPartyVideoCapStatus = 0x000000000[CiscoDeviceVideoCapability_Disabled] C: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000000[CiscoDeviceVideoCapability_Disabled] CalledPartyVideoCapStatus = 0x000000000[CiscoDeviceVideoCapability_Disabled] A: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] CalledPartyVideoCapStatus = 0x000000000[CiscoDeviceVideoCapability_Disabled] C: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] CalledPartyVideoCapStatus = 0x000000000[CiscoDeviceVideoCapability_Disabled] LineInitializeEx A does a LineMakeCall to B. B answers. B redirects to C, C answers. LineGetCallInfo on A LineGetCallInfo on C LineShutdown A and B have video enabled, C has video disabled A does a LineMakeCall to B. B answers. B redirects to C, C answers. LineGetCallInfo on A LineGetCallInfo on C Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 652 Message Sequence Charts Message Sequence Charts

Page 684 diagram

Page 685

Shared Line – Hold and Resume Scenario Over SIP Trunk (Phone A and C Are Video-Enabled SIP Phones and Phone B Is Video-Disabled, Phone A Is in Cluster 1 and Phone B and C Are in Cluster 2. Phone B and C Are Shared Lines) Expected events Action A: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] CalledPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] C: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] CalledPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] A: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] CalledPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] C: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] CalledPartyVideoCapStatus = 0x000000000[CiscoDeviceVideoCapability_Disabled] LineInitializeEx A does a LineMakeCall to B. B answers. B Holds the call. C Unholds the call. LineGetCallInfo on A LineGetCallInfo on C LineShutdown A and B are have video enabled and C has video disabled. A does a LineMakeCall to B. B answers. B Holds the call. C Unholds the call. LineGetCallInfo on A LineGetCallInfo on C Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 653 Message Sequence Charts Message Sequence Charts

Page 685 diagram

Page 686

Multiple Redirect Over H323 ICT Trunk (Phone A, B, C and D Are Video-Enabled SIP Phones, Phone A Is in Cluster 1 and Phone B, C, and D Are in Cluster 2) Expected events Action B: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyMultiMediaCapabilityBitMask = 0x000000001 CalledPartyMultiMediaCapabilityBitMask = 0x000000001 CallingPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] CalledPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] C: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyMultiMediaCapabilityBitMask = 0x000000001 CalledPartyMultiMediaCapabilityBitMask = 0x000000001 CallingPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] CalledPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] D: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyMultiMediaCapabilityBitMask = 0x000000001 CalledPartyMultiMediaCapabilityBitMask = 0x000000001 CallingPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] CalledPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] LineInitializeEx A does a LineMakeCall to B. LineGetCallInfo on B B redirects the call to C. LineGetCallInfo on C C redirects the call to D. LineGetCallInfo on D LineShutdown Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 654 Message Sequence Charts Message Sequence Charts

Page 686 diagram

Page 687

Redirect Over H323 Trunk (Phone A Is Video-Enabled SIP Phone and Phone B and C Are Video-Disabled, Phone A Is in Cluster 1 and Phone B and C Are in Cluster 2) Expected events Action A: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] CalledPartyVideoCapStatus = 0x000000000[CiscoDeviceVideoCapability_Disabled] C: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000000[CiscoDeviceVideoCapability_Disabled] CalledPartyVideoCapStatus = 0x000000000[CiscoDeviceVideoCapability_Disabled] A: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] CalledPartyVideoCapStatus = 0x000000000[CiscoDeviceVideoCapability_Disabled] C: LINEGETCALLINFO::DEVSPECIFIC exposes CallingPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] CalledPartyVideoCapStatus = 0x000000001[CiscoDeviceVideoCapability_Enabled] LineInitializeEx A does a LineMakeCall to B. B answers. B redirects to C, C answers. LineGetCallInfo on A LineGetCallInfo on C LineShutdown A and B have video enabled, C has video disabled A does a LineMakeCall to B. B answers. B redirects to C, C answers. LineGetCallInfo on A LineGetCallInfo on C Direct Transfer Across Lines Use cases related to Direct Transfer Across Lines feature are mentioned below: The device mentioned in the use cases also apply to SCCP device and SIP TNP phones when Direct Transfer is issued from application. Note Direct Transfer Across Lines on RoundTable Phones via Application Device A, B, and C where B is roundtable phone and has line B1 and B2 configured. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 655 Message Sequence Charts Direct Transfer Across Lines

Image 1 from page 687

Page 687 diagram

Page 688

Expected events Action For A: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B1 Connected B1 For B1: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B1, Connected = A For B2: LINE_CALLSTATE param1 = x100, HOLD Caller = C, Called = B2 , Connected = C For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = C, Called = B2, Connected = B2 A ‡B1 is connected, C ‡B2 is on hold For A: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B1 Connected C For B1: Call goes IDLE For B2: Call goes IDLE For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = C, Called = B2, Connected = A Application sends CciscoLineDevSpecificDirectTransfer on B1 with B2 as consult call Direct Transfer on Same Line on RoundTable Phones Via Application Device A, B, C where B is roundtable phone. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 656 Message Sequence Charts Message Sequence Charts

Page 688 diagram

Page 689

Expected events Action For A: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B Connected B For B: Call-1 LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B, Connected = A Call-2 LINE_CALLSTATE param1 = x100, HOLD Caller = C, Called = B, Connected = C For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = C, Called = B, Connected = B A ‡ B (c1) is connected, C ‡ B (c2) is on hold For A: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B Connected C For B: Call-1 and Call-2 will go IDLE For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = C, Called = B, Connected = A Application sends CciscoLineDevSpecificDirectTransfer on B (c1) with c2 as consult call Direct Transfer Across Lines on RoundTable Phones via Application with Call in Offering State Device A, B, C where B is roundtable phone and has line B1 and B2 configured. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 657 Message Sequence Charts Message Sequence Charts

Page 689 diagram

Page 690

Expected events Action For A: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B1 Connected B1 For B1: LINE_CALLSTATE param1 = x100, HOLD Caller = A, Called = B1, Connected = A For B2: LINE_CALLSTATE param1 = x100, RINGBACK Caller = B2, Called = C For C: LINE_CALLSTATE param1 = x100, OFFERING Caller = B2, Called = C A (c1) ‡ B1(c2) is on hold, B2 (c3) ‡ C (c4) is ringing For A: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B Connected C For B1: Call goES IDLE For B2: Call goes IDLE For C: LINE_CALLSTATE param1 = x100, OFFERING Caller = C, Called = B, Application sends CciscoLineDevSpecificDirectTransfer on B1 (c2) with B2 (c3) as consult call Failure of Direct Transfer Calls Across Lines Device A, B, C where B is roundtable phone and has line B1 and B2 configured. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 658 Message Sequence Charts Message Sequence Charts

Page 690 diagram

Page 691

Expected events Action For A: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B1 Connected B1 For B1: LINE_CALLSTATE param1 = x100, HOLD Caller = A, Called = B1, Connected = A For B2: LINE_CALLSTATE param1 = x100, DIALTONE A (c1) ‡ B1(c2) is on hold, Initiate new call (c3) on B2 CciscoLineDevSpecificDirectTransfer gets error as LINEERR_INVALCALLSTATE. Application sends CciscoLineDevSpecificDirectTransfer on B1 (c2) with B2 (c3) as consult call Direct Transfer Calls Across Lines in Conference Scenario Device A, B, C, D and E where C is roundtable phone and has line C1 and C2 configured. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 659 Message Sequence Charts Message Sequence Charts

Page 691 diagram

Page 692

Expected events Action For A: CONNECTED CONFERENCED Caller = A, called = B, connected = B CONFERENCED Caller = A, called = C1, connected = C1 A/B/C1 in conference, B is controller, call on C1 is in hold state. C2 /D/E in conference, D is controller, call on C2 is in connect state. For B: CONNECTED CONFERENCED Caller = A, called = B, connected = B CONFERENCED Caller = B, called = C1, connected = C1 For C1: ONHOLD CONFERENCED Caller = B, called = C1, connected = B CONFERENCED Caller = C1, called = A, connected = A For C2: CONNECTED CONFERENCED Caller = C2, called = D, connected = D CONFERENCED Caller = C2, called = E, connected = E For D: CONNECTED CONFERENCED Caller = D, called = C1, connected = C1 CONFERENCED Caller = D, called = E, connected = E Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 660 Message Sequence Charts Message Sequence Charts

Page 692 diagram

Page 693

Expected events Action For E: CONNECTED CONFERENCED Caller = D, called = E, connected = D CONFERENCED Caller = E, called = C2, connected = C2 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 661 Message Sequence Charts Message Sequence Charts

Page 693 diagram

Page 694

Expected events Action CciscoLineDevSpecificDirectTransfer will succeed. For A: CONNECTED CONFERENCED Caller = A, called = B, connected = B CONFERENCED Caller = A, called = CB-2, connected = CB-2 For B: CONNECTED CONFERENCED Caller = A, called = B, connected = B CONFERENCED Caller = B, called = CB-2, connected = CB-2 For C1: IDLE For C2: IDLE For D: CONNECTED CONFERENCED Caller = D, called = CB-1, connected = CB-1 CONFERENCED Caller = D, called = E, connected = E For E: CONNECTED CONFERENCED Caller = D, called = E, connected = D CONFERENCED Caller = E, called = CB-1, connected = CB-1 Application sends CciscoLineDevSpecificDirectTransfer on C1 with C2-call as consult call Connect Transfer Across Lines on RoundTable Phones Device A, B, C where B is roundtable phone and has line B1 and B2 configured. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 662 Message Sequence Charts Message Sequence Charts

Page 694 diagram

Page 695

Expected events Action For A: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B1 Connected B1 For B1: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B1, Connected = A For B2: LINE_CALLSTATE param1 = x100, HOLD Caller = C, Called = B2, Connected = C For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = C, Called = B2, Connected = B2 A ‡ B1 is connected, C ‡ B2 is on hold For A: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B1 Connected C For B1: Call goes IDLE For B2: Call goes IDLE For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = C, Called = B2, Connected = A User performs connect transfer on B. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 663 Message Sequence Charts Message Sequence Charts

Page 695 diagram

Page 696

Do Not Disturb-Reject Application Enables DND-R on a Phone TAPI structures TAPI messages Action LINE_CALLDEVSPECIFIC hDevice = C dwCallbackInstance = 0 dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_DND_OPTION_STATUS dwParam3 = 2 Phone A enables DND-Reject in the admin pages Normal Feature Priority TAPI structures TAPI messages Action Party A With Phone B DND-R enabled, Phone A calls Phone B with feature priority as Normal LINE_CALLSTATE = IDLE Party B No TAPI messages Feature Priority - Emergency TAPI structures TAPI messages Action Party A With Phone B DND-R enabled, Phone A calls Phone B with feature priority as Emergency Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 664 Message Sequence Charts Do Not Disturb-Reject

Page 696 diagram

Page 697

TAPI structures TAPI messages Action LINECALLINFO (hCall-1) hLine = C dwCallID = T2 dwOrigin = INTERNAL dwCallerID = A dwCalledID = B dwRedirectionID = NP dwRedirectingID = NP LINE_CALLSTATE = CONNECTED dwParam1 = 0x00000100 dwParam2 = 0x00000001 Party B LINECALLINFO (hCall-1) hLine = C dwCallID = T2 dwOrigin = INTERNAL dwCallerID = A dwCalledID = B dwRedirectionID = NP dwRedirectingID = NP LINE_CALLSTATE = CONNECTED dwParam1 = 0x00000100 dwParam2 = 0x00000001 Shared Line Scenario for DND-R TAPI structures TAPI messages Action Party A Phones B and B’ represents shared lines. Phone B’ is DND-R enabled but not B. Phone A calls Phone B with feature priority normal LINECALLINFO (hCall-1) hLine = C dwCallID = T2 dwOrigin = INTERNAL dwCallerID = A dwCalledID = B dwRedirectionID = NP dwRedirectingID = NP LINE_CALLSTATE = CONNECTED dwParam1 = 0x00000100 dwParam2 = 0x00000001 Party B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 665 Message Sequence Charts Message Sequence Charts

Page 697 diagram

Page 698

TAPI structures TAPI messages Action LINECALLINFO (hCall-1) hLine = C dwCallID = T2 dwOrigin = INTERNAL dwCallerID = A dwCalledID = B dwRedirectionID = NP dwRedirectingID = NP LINE_CALLSTATE = CONNECTED dwParam1 = 0x00000100 dwParam2 = 0x00000001 Party B’ LINE_CALLSTATE = CONNECTED dwParam1 = 0x00000100 dwParam2 = 0x00000002 Application Disables DND-R or Changes the Option for DND TAPI structures TAPI messages Action LINE_CALLDEVSPECIFIC hDevice = C dwCallbackInstance = 0 dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_DND_OPTION_STATUS dwParam3 = 1 Phone A changes from DND-Reject to DND-RingerOff. Drop Any Party Use cases related to Drop Any Party feature are mentioned below: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 666 Message Sequence Charts Drop Any Party

Page 698 diagram

Page 699

Conference: Unified CM Service Parameter Advanced Ad Hoc Conference Enabled = False Expected events Action Conference Model: Each line in conference will be having 4 callLegs, 3 conferenced and 1 connected A,B,C and D are in conference; B is conference Controller. CallLegs on A: Connected -to Conference Bridge Conferenced -(Connected Id -B) Conferenced -(Connected Id -C) Conferenced -(Connected Id -D) CallLegs on B: Connected -to Conference Bridge Conferenced -(Connected Id -A) Conferenced -(Connected Id -C) Conferenced -(Connected Id -D) CallLegs on C: Connected -to Conference Bridge Conferenced -(Connected Id -A) Conferenced -(Connected Id -B) Conferenced -(Connected Id -D) CallLegs on D: Connected -to Conference Bridge Conferenced -(Connected Id -A) Conferenced -(Connected Id -B) Conferenced -(Connected Id -C) Application does a LineOpen (B) with new Ext ver. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 667 Message Sequence Charts Message Sequence Charts

Page 699 diagram

Page 700

Expected events Action A is dropped out of conference. CallLegs after the Party is dropped from Conference: Each line in conference will be having 4 callLegs, 2 Conferenced,1 IDLE and 1 connected 1. Application does LineRemoveFromConference on the ‘Conferenced’ callLeg on B which is connected to A. CallLegs on A: All 4 CallLegs will be in IDLE state CallLegs on B: Connected -to Conference Bridge Conferenced -(Connected Id -C) Conferenced -(Connected Id -D) IDLE -( on the conferenced callLeg which was connected to A) CallLegs on C: Connected -to Conference Bridge IDLE -( on the conferenced callLeg which was connected to A) Conferenced -(Connected Id -B) Conferenced -(Connected Id -D) CallLegs on D: Connected -to Conference Bridge IDLE -( on the conferenced callLeg which was connected to A) Conferenced -(Connected Id -B) Conferenced -(Connected Id -C) Note All IDLE CallLegs will have CallStateChange Reason as CtiDropConferee. Application does a LineOpen (A) with new Ext ver. Error Message LINEERR_OPERATIONUNAVAIL will be sent to application 1. Application does LineRemoveFromConference on the ‘Conferenced’ callLeg on A which is connected to B. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 668 Message Sequence Charts Message Sequence Charts

Page 700 diagram

Page 701

Conference: Unified CM Service Parameter Advanced Ad Hoc Conference Enabled = True Expected events Action Conference Model: Each line in conference will be having 4 callLegs, 3 conferenced and 1 connected A,B,C and D are in conference; B is conference Controller. CallLegs on A: Connected -to Conference Bridge Conferenced -(Connected Id -B) Conferenced -(Connected Id -C) Conferenced -(Connected Id -D) CallLegs on B: Connected -to Conference Bridge Conferenced -(Connected Id -A) Conferenced -(Connected Id -C) Conferenced -(Connected Id -D) CallLegs on C: Connected -to Conference Bridge Conferenced -(Connected Id -A) Conferenced -(Connected Id -B) Conferenced -(Connected Id -D) CallLegs on D: Connected -to Conference Bridge Conferenced -(Connected Id -A) Conferenced -(Connected Id -B) Conferenced -(Connected Id -C) Application does a LineOpen (A) with new Ext ver. Application does LineRemoveFromConference on the ‘Conferenced’ callLeg on A which is connected to B. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 669 Message Sequence Charts Message Sequence Charts

Page 701 diagram

Page 702

Expected events Action B is dropped out of conference. CallLegs after the Party is dropped from Conference: Each line in conference will be having 4 callLegs, 2 Conferenced,1 IDLE and 1 connected 1. Drop Ad Hoc Conference = Never CallLegs on B: All 4 CallLegs will be in IDLE state CallLegs on A: Connected -to Conference Bridge Conferenced -(Connected Id -C) Conferenced -(Connected Id -D) IDLE -( on the conferenced callLeg which was connected to B) CallLegs on C: Connected -to Conference Bridge IDLE -( on the conferenced callLeg which was connected to B) Conferenced -(Connected Id -A) Conferenced -(Connected Id -D) CallLegs on D: Connected -to Conference Bridge IDLE -( on the conferenced callLeg which was connected to B) Conferenced -(Connected Id -A) Conferenced -(Connected Id -C) Note All IDLE CallLegs will have CallStateChange Reason as CtiDropConferee. B is dropped out of conference and Conference will be ended. CallLegs after the Party is dropped from Conference: Each line in conference will be having 4 callLegs, all in IDLE state CallLegs on A,B,C and D: All 4 CallLegs will be in IDLE state 1. Drop Ad Hoc Conference = ‘When Conference Controller Leaves’ Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 670 Message Sequence Charts Message Sequence Charts

Page 702 diagram

Page 703

Shared Line-Scenario Expected events Action Conference Model: Lines B and C in conference will be having 4 callLegs, 3 conferenced and 1 connected Lines A and A' will be having 8 CallLegs A,B,C and A' are in conference; A is conference Controller Unified CM Parameter "Drop Ad Hoc Conference = Never" CallLegs on A: Connected -to Conference Bridge (Active) Conferenced -(caller Id -A ;Called Id -B; Connected Id -B) (Active) Conferenced -(caller Id -A ;Called Id -C; Connected Id -C) (Active) Conferenced -(caller Id -A ;Called Id -A' ; Connected Id -A') (Active) Connected -to Conference Bridge (Remote in Use) Conferenced -(caller Id -A' ;Called Id -B; Connected Id -B) (Remote in Use) Conferenced -(caller Id -A' ;Called Id -C; Connected Id -C) (Remote in Use) Conferenced -(caller Id -A' ;Called Id -A; Connected Id -A) (Remote in Use) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 671 Message Sequence Charts Message Sequence Charts

Page 703 diagram

Page 704

Expected events Action CallLegs on A': Connected -to Conference Bridge (Active) Conferenced -(caller Id -A' ;Called Id -B; Connected Id -B) (Active) Conferenced -(caller Id -A' ;Called Id -C; Connected Id -C) (Active) Conferenced -(caller Id -A' ;Called Id -A; Connected Id -A) (Active) Connected -to Conference Bridge (Remote in Use) Conferenced -(caller Id -A ;Called Id -B; Connected Id -B) (Remote in Use) Conferenced -(caller Id -A ;Called Id -C; Connected Id -C) (Remote in Use) Conferenced -(caller Id -A ;Called Id -A'; Connected Id -A') (Remote in Use) CallLegs on B: Connected -to Conference Bridge Conferenced -(caller Id -B ;Called Id -A; Connected Id -A) Conferenced -(caller Id -B ;Called Id -C; Connected Id -C) Conferenced -(caller Id -B ;Called Id -A'; Connected Id -A') CallLegs on C: Connected -to Conference Bridge Conferenced -(caller Id -C ;Called Id -A; Connected Id -A) Conferenced -(caller Id -C ;Called Id -B; Connected Id -B) Conferenced -(caller Id -C ;Called Id -A' ; Connected Id -A') Application does a LineOpen (A) with new Ext ver. Unified CM Parameter ‘Advanced Ad Hoc Conference Enabled = False’ Error LINEERR_INVALCALLSTATE is sent to application. 1. Application does LineRemoveFromConference on the ‘Conferenced’ CallLeg on A which is connected to B and mode is "Inactive or Remote In use". Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 672 Message Sequence Charts Message Sequence Charts

Page 704 diagram

Page 705

Expected events Action B will be dropped out of conference. LINECALLSTATE Event will be sent to Application with state = Idle. 1. Application does LineRemoveFromConference on the ‘Conferenced’ CallLeg on A which is connected to B and mode is ‘Active’. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 673 Message Sequence Charts Message Sequence Charts

Page 705 diagram

Page 706

Expected events Action CallLegs after the Party is dropped from Conference: CallLegs on A: Connected -to Conference Bridge (Active) IDLE -(on the conferenced callLeg which was connected to A -B) Conferenced -(caller Id -A ;Called Id -C; Connected Id -C) (Active) Conferenced -(caller Id -A ;Called Id -A'; Connected Id -A') (Active) Connected -to Conference Bridge (Remote in Use) IDLE -(on the conferenced callLeg which was connected to A' -B) Conferenced -(caller Id -A' ;Called Id -C; Connected Id -C) (Remote in Use) Conferenced -(caller Id -A' ;Called Id -A; Connected Id -A) (Remote in Use) CallLegs on A': Connected -to Conference Bridge (Active) IDLE -(on the conferenced callLeg which was connected to A' -B) Conferenced -(caller Id -A' ;Called Id -C; Connected Id -C) (Active) Conferenced -(caller Id -A' ;Called Id -A; Connected Id -A) (Active) Connected -to Conference Bridge (Remote in Use) IDLE -(on the conferenced callLeg which was connected to A -B) Conferenced -(caller Id -A ;Called Id -C; Connected Id -C) (Remote in Use) Conferenced -(caller Id -A ;Called Id -A'; Connected Id -A') (Remote in Use) CallLegs on B: All 4 CallLegs are in IDLE state CallLegs on C: Connected -to Conference Bridge Conferenced -(caller Id -C ;Called Id -A; Connected Id -A) IDLE -(on the conferenced callLeg which was connected to C Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 674 Message Sequence Charts Message Sequence Charts

Page 706 diagram

Page 707

Expected events Action -B) Conferenced -(caller Id -C ;Called Id -A'; Connected Id -A') Application does a LineOpen (B) with new Ext ver. Unified CM Parameter Advanced Ad Hoc Conference Enabled = True Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 675 Message Sequence Charts Message Sequence Charts

Page 707 diagram

Page 708

Expected events Action A will be dropped out of conference. LINECALLSTATE Event will be sent to Application with state = Idle. 1. Application does LineRemoveFromConference on the ‘Conferenced’ CallLeg on B which is connected to A and mode is "Active". CallLegs after the Party is dropped from Conference: CallLegs on A: IDLE -(on the Connected callLeg which was connected to Conference Bridge,A-CFB) IDLE -(on the conferenced callLeg which is connected to A -B) IDLE -(on the conferenced callLeg which is connected to A -C) IDLE -(on the conferenced callLeg which is connected to A -A') Connected -to Conference Bridge (Remote in Use) Conferenced -(caller Id -A' ;Called Id -C; Connected Id -C) (Remote in Use) Conferenced -(caller Id -A' ;Called Id -B; Connected Id -B) (Remote in Use) CallLegs on A': IDLE -(on the Connected callLeg which was connected to Conference Bridge,A -CFB) IDLE -(on the conferenced callLeg which is connected to A -B) IDLE -(on the conferenced callLeg which is connected to A -C) IDLE -(on the conferenced callLeg which is connected to A -A') Connected -to Conference Bridge Conferenced -(caller Id -A' ;Called Id -C; Connected Id -C) (Active) Conferenced -(caller Id -A' ;Called Id -B; Connected Id -B) (Active) CallLegs on B: Connected -to Conference Bridge Conferenced -(caller Id -B ;Called Id -A; Connected Id -A') IDLE -(on the conferenced callLeg which was connected to B -A) Conferenced -(caller Id -B ;Called Id -C; Connected Id -C) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 676 Message Sequence Charts Message Sequence Charts

Page 708 diagram

Page 709

Expected events Action CallLegs on C: Connected -to Conference Bridge Conferenced -(caller Id -C ;Called Id -A'; Connected Id -A') IDLE -(on the conferenced callLeg which was connected to C -A) Conferenced -(caller Id -C ;Called Id -B; Connected Id -B) Chained Conference Expected events Action B is disconnected and dropped out of Conference. A is now in conference with CB2. LINECALLSTATE Event is sent to Application for Line B with state = Idle. A,B and CB2 are in conference(CB1); B is conference Controller C,D and E are in Conference (CB2); D is conference Controller Unified CM Parameter Advanced Ad Hoc Conference Enabled = True Application does a LineOpen (A) with new Ext ver. 1. Application does LineRemoveFromConference on the Conferenced" CallLeg on A which is connected to B. C-Barge: Unified CM Service Parameter Advanced Ad Hoc Conference Enabled = True. Expected events Action B call A and A'; A answers the call and on A' do c-Barge; A,B and A' will be in conference; A is conference Controller Unified CM Parameter "Drop Ad Hoc Conference = Never" Application does a LineOpen (A) with new Ext ver. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 677 Message Sequence Charts Message Sequence Charts

Page 709 diagram

Page 710

Expected events Action B is dropped out of conference. LINECALLSTATE Event will be sent to Application with state = Idle. CallLegs after the Party is dropped from Conference: CallLegs on A: Connected -(on the conferenced callLeg which was connected to A -A') (Active) Connected -on the conferenced callLeg which was connected to A' -A) (Remote in Use) IDLE -(on the conferenced callLeg which was connected to A -B) IDLE -(on the connected callLeg which is connected to conference Bridge; A -CFB) IDLE -(on the conferenced callLeg which was connected to A' -B) IDLE -(on the connected callLeg which is connected to conference Bridge; A' -CFB) CallLegs on A': Connected -(on the conferenced callLeg which was connected to A' -A) (Active) Connected -on the conferenced callLeg which was connected to A -A') (Remote in Use) IDLE -(on the conferenced callLeg which was connected to A -B) IDLE -(on the connected callLeg which is connected to conference Bridge; A -CFB) IDLE -(on the conferenced callLeg which was connected to A' -B) IDLE -(on the connected callLeg which is connected to conference Bridge; A' -CFB) CallLegs on B: All 4 CallLegs are in IDLE state A' is dropped out of conference. LINECALLSTATE Event will be sent to Application with state = Idle. Application does a LineOpen (A) with new Ext ver. 1. Application does LineRemoveFromConference on the "Conferenced" CallLeg on A which is connected to B and mode is Active Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 678 Message Sequence Charts Message Sequence Charts

Page 710 diagram

Page 711

Expected events Action CallLegs on A': Connected -(on the conferenced callLeg which was connected to A -B) (Remote in Use) IDLE -(on the conferenced callLeg which was connected to A' -B) IDLE -(on the conferenced callLeg which was connected to A -A') (active) IDLE -(on the connected callLeg which is connected to conference Bridge; A -CFB) IDLE -(on the conferenced callLeg which was connected to A' -A) (Remote in Use) IDLE -(on the connected callLeg which is connected to conference Bridge; A' -CFB) CallLegs on B: Connected -(on the conferenced callLeg which was connected to B -A) IDLE -(on the conferenced callLeg which was connected to A' -B) IDLE -(on the connected callLeg which is connected to conference Bridge; B -CFB) CallLegs after the Party is dropped from Conference: CallLegs on A: Connected -(on the conferenced callLeg which was connected to A -B) (Active) IDLE -(on the conferenced callLeg which was connected to A' -B) (Remote in Use) IDLE -(on the conferenced callLeg which was connected to A -A') (active) IDLE -(on the connected callLeg which is connected to conference Bridge; A -CFB) IDLE -(on the conferenced callLeg which was connected to A' -A) (Remote in Use) IDLE -(on the connected callLeg which is connected to conference Bridge; A' -CFB) 1. Application does LineRemoveFromConference on the Conferenced CallLeg on A which is connected to A' and mode is Active. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 679 Message Sequence Charts Message Sequence Charts

Page 711 diagram

Page 712

Early Offer The following section describes how the application dynamically registers for various port with Early Offer Support. Application Dynamically Registers CTI Port with Early Offer Support Configuration A – CTI Port in Cluster1 Cluster1 and Cluster2 connected via SIP trunk SIP trunk Supports Early Offer TSP message to application data Action Line_reply with Success Lines will be Enumerated to Application. lineInitialize Line_Open successful lineOpen() with Extversion – 0x800B0000 for Line A LineSetStatusMessages returns Success LineSetStatusMessages() – with dwLinestates – 0xcc Line_Reply with Success Application sends lineDevSpecific(CciscoLineDevSpecificEnableFeatureSupport) with m_Feature – 0x00000001, m_Feature_Capability - 0x00000001 Line_Reply with Success LineInserviceEvent reports to Application Line_LineDevState dwParam1 = x040, InService Application sends lineDevSpecific(CciscoLineDevSpecificPortRegistrationPerCall) with MediaCaps Info Line_Reply with Success Application sends lineDevSpecific(CCiscoLineDevSpecificSetStatusMsgs) with m_DevSpecificStatusMsgsFlag=DEVSPECIFIC_GET_IP_PORT -0x00000400 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 680 Message Sequence Charts Early Offer

Page 712 diagram

Page 713

TSP message to application data Action A: LINE_CALLSTATE (LINECALLSTATE_PROCEEDING) LINE_DEVSPECIFIC dwParam1 = SLDSMT_RTP_GET_IP_PORT dwParam2 = 0x00000xyy x (ninth Bit from LSB) – 1 – SetRTP (1-App has to set RTP / 0 – App need not set RTP) yy (8 bits) – IPAddressing Mode Application calls LineMakeCall() on A dialing a Party in Cluster2 Call is being routed through the SIP trunk with Early Offer Enabled Line_Reply with Success Application sends lineDevSpecific(CciscoLineDevSpecificSetRTPParamsForCall) with IPAddress and Port Info A: LINE_CALLSTATE (LINECALLSTATE_CONNECTED) LINE_DEVSPECIFIC dwParam1 = compressionType & SLDSMT_OPEN_LOGICAL_CHANNEL dwParam2 = 0x00000xyy x (ninth Bit from LSB) – 0 – SetRTP ( 1-App has to set RTP / 0 – App need not set RTP) yy (8 bits) – IPAddressing Mode Other Party answers the Call A: LINE_CALLSTATE (LINECALLSTATE_HOLD/LINECALLSTATE_CONNECTED) LINE_DEVSPECIFIC dwParam1 = compressionType & SLDSMT_OPEN_LOGICAL_CHANNEL dwParam2 = 0x00000xyy x (ninth Bit from LSB) – 1 – SetRTP ( 1-App has to set RTP / 0 – App need not set RTP) yy (8 bits) – IPAddressing Mode *** Applications have to set the RTP info as the SetRTP flag is set. Hold and unHold the Call Line_Reply with Success Media will be set and Media events will be reported Application sends lineDevSpecific(CciscoLineDevSpecificSetRTPParamsForCall) with IPAddress and Port Info Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 681 Message Sequence Charts Message Sequence Charts

Page 713 diagram

Page 714

TSP message to application data Action Line_Reply with Error LINEERR_OPERATIONUNAVAIL But the Media is setup with the RTP information provided at the SLDSMT_RTP_GET_IP_PORT information request *** Application should not set the RTP Info Again Variant 1: Application sends lineDevSpecific(CciscoLineDevSpecificSetRTPParamsForCall) with IPAddress and Port Info New Notification not reported to Application Call goes to Disconnect State with cause as LINEDISCONNECTMODE_UNKNOWN Variant 2: Application does not set the Filter to receive new Notification using lineDevSpecific (CCiscoLineDevSpecificSetStatusMsgs) and Application does not Set RTP at Proceeding State as there is no Notification Or Application does not set RTP info on New Notification Behavior should be same Variant 3: A – CTI Port is Registered Secure Line_Devspecific fails with Error LINEERR_OPERATIONUNAVAIL Variant 4: Application tried to disable the Early Offer support on the CTI Port that is Dynamically Registered with the Early Offer support Application sends lineDevSpecific(CciscoLineDevSpecificEnableFeatureSupport) with m_Feature – 0x00000001, m_Feature_Capability -0x00000000 Application Dynamically Registers CTI Port Without Early Offer Support Configuration A – CTI Port in Cluster1 Cluster1 and Cluster2 connected via SIP trunk SIP trunk Supports Delayed Offer TSP message to application data Action Line_reply with Success Lines will be Enumerated to Application. lineInitialize Line_Open successful lineOpen() with Extversion – 0x800B0000 for Line A LineSetStatusMessages returns Success LineSetStatusMessages() – with dwLinestates – 0xcc Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 682 Message Sequence Charts Application Dynamically Registers CTI Port Without Early Offer Support

Page 714 diagram

Page 715

TSP message to application data Action Line_Reply with Success LineInserviceEvent reports to Application Line_LineDevState Dwparam1 = x040, InService Application sends lineDevSpecific(CciscoLineDevSpecificPortRegistrationPerCall) with MediaCaps Info A: LINE_CALLSTATE (LINECALLSTATE_PROCEEDING) Application calls LineMakeCall() on A dialing a Party in Cluster2 A: LINE_CALLSTATE (LINECALLSTATE_CONNECTED) LINE_DEVSPECIFIC dwParam1 = compressionType & SLDSMT_OPEN_LOGICAL_CHANNEL dwParam2 = 0x00000xyy x (ninth Bit from LSB) – 1 – SetRTP (1-App has to set RTP / 0 – App need not set RTP) yy (8 bits) -IPAddressingMode Other Party answers the Call Line_Reply with Success Media will be Setup Application sends lineDevSpecific(CciscoLineDevSpecificSetRTPParamsForCall) with IPAddress and Port Inf0 Behavior is same and new SLDSMT_RTP_GET_IP_PORT Notification will not be fired to application. Variant 1: A – SCCP/SIP Phone Application Dynamically Registers IPV6 CTI Port with Early Offer Support Configuration A – CTI Port; CDC – IPV6 Only Cluster1 and Cluster2 connected via SIP trunk SIP trunk Supports Early Offer TSP message to application data Action Line_reply with Success Lines will be Enumerated to Application. lineInitialize Line_Open successful lineOpen() with Extversion – 0x800B0000 for Line A LineSetStatusMessages returns Success LineSetStatusMessages() – with dwLinestates – 0xcc Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 683 Message Sequence Charts Application Dynamically Registers IPV6 CTI Port with Early Offer Support

Page 715 diagram

Page 716

TSP message to application data Action Line_Reply with Success Application sends lineDevSpecific(CciscoLineDevSpecificEnableFeatureSupport) with m_Feature – 0x00000001, m_Feature_Capability - 0x00000001 Line_Reply with Success Line_Reply with Success LineInserviceEvent will be repored to Application Line_LineDevState Dwparam1 = x040, InService Application sends lineDevSpecific(CciscoLineDevSpecificSetIPv6AddressAndMode) with MediaCaps Info Application sends lineDevSpecific(CciscoLineDevSpecificPortRegistrationPerCall) with MediaCaps Info Line_Reply with Success Application sends lineDevSpecific(CCiscoLineDevSpecificSetStatusMsgs) with m_DevSpecificStatusMsgsFlag=DEVSPECIFIC_GET_IP_PORT -0x00000400 A: LINE_CALLSTATE (LINECALLSTATE_PROCEEDING) Note SLDSMT_RTP_GET_IP_PORT Notification for IPV6 CTI Port is not supported. Application has to set the RTP info after OpenLogicalChannel Notification. Application calls LineMakeCall() on A dialing a Party in Cluster2 Call is routed through SIP trunk with Early Offer Enabled A: LINE_CALLSTATE (LINECALLSTATE_CONNECTED) LINE_DEVSPECIFIC dwParam1 = compressionType & SLDSMT_OPEN_LOGICAL_CHANNEL dwParam2 = 0x00000xyy x (ninth Bit from LSB) – 1 – SetRTP (1-App has to set RTP / 0 – App need not set RTP) yy (8 bits )-IPAddressingMode Other Party answers the Call Line_Reply with Success Media will be Setup Application sends lineDevSpecific(CciscoLineDevSpecificSetRTPParamsForCallIPv6) with IPAddress and Port Info Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 684 Message Sequence Charts Message Sequence Charts

Page 716 diagram

Page 717

Mutiple Applications Dynamically Register CTI Port/RP Configuration Cluster1 and Cluster2 connected via SIP trunk SIP trunk Supports Early Offer Applications: • App1 – Dynamically Registers CTI Port/RP with Early Offer Support • App2 – Dynamically Registers CTI Port/RP without Early Offer Support *** App1 and App2 are running on Different Client Machines. TSP message to application data Action Line_reply with Success Lines will be Enumerated to Application. App1 and App2: lineInitialize Line_Open successful App1 and App2: lineOpen() with Extversion – 0x800B0000 for Line A LineSetStatusMessages returns Success App1 and App2: LineSetStatusMessages() – with dwLinestates – 0xcc Line_Reply with Success App1: Application sends lineDevSpecific(CciscoLineDevSpecificEnableFeatureSupport) with m_Feature – 0x00000001, m_Feature_Capability - 0x00000001 Line_Reply with Success LineInserviceEvent reports to the application. App1: Application sends lineDevSpecific(CciscoLineDevSpecificPortRegistrationPerCall) with MediaCaps Info Line_Devspecific fails with Error LINEERR_REGISTER_GETPORT_SUPPORT_MISMATCH App2: Application sends lineDevSpecific(CciscoLineDevSpecificPortRegistrationPerCall) with MediaCaps Info Multiple Applications Dynamically Register CTI Port/RP with Early Offer Support Configuration A – CTI Port in Cluster1 Cluster1 and Cluster2 connected via SIP trunk SIP trunk Supports Early Offer Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 685 Message Sequence Charts Mutiple Applications Dynamically Register CTI Port/RP

Page 717 diagram

Page 718

Applications: • App1 – Dynamically Registers CTI Port/RP with Early Offer Support • App2 – Dynamically Registers CTI Port/RP with Early Offer Support *** App1 and App2 are running on Different Client Machines. TSP Message to application data Action Line_reply with Success Lines will be Enumerated to Application. App1 and App2: lineInitialize Line_Open successful App1 and App2: lineOpen() with Extversion – 0x800B0000 for Line A LineSetStatusMessages returns Success App1 and App2: LineSetStatusMessages() – with dwLinestates – 0xcc Line_Reply with Success App1 and App2: Application sends lineDevSpecific(CciscoLineDevSpecificEnableFeatureSupport) with m_Feature – 0x00000001, m_Feature_Capability - 0x00000001 Line_Reply with Success LineInserviceEvent reports to Application. App1 and App2: Application sends lineDevSpecific(CciscoLineDevSpecificPortRegistrationPerCall) with MediaCaps Info *** Both Applications set with same Capabilities A: LINE_CALLSTATE (LINECALLSTATE_PROCEEDING) App1 and App2: LINE_DEVSPECIFIC dwParam1 = SLDSMT_RTP_GET_IP_PORT dwParam2 = 0x00000xyy x (ninth Bit from LSB) – 1 – SetRTP (1-App has to set RTP / 0 – App need not set RTP) uy (8 bits) – IPAddressing Mode App1: Application calls LineMakeCall() on A dialing a Party in Cluster2 Call is being routed through the SIP trunk with Early Offer Enabled Line_Reply with Success App1: Application sends lineDevSpecific(CciscoLineDevSpecificSetRTPParamsForCall) with IPAddress and Port Info Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 686 Message Sequence Charts Message Sequence Charts

Page 718 diagram

Page 719

TSP Message to application data Action Line_Reply with error LINEERR_OPERATIONUNAVAIL App2: Application sends LineDevSpecific (CciscoLineDevSpecificSetRTPParamsForCall) with IPAddress and Port Info different from the Info App1 has set. A: LINE_CALLSTATE (LINECALLSTATE_CONNECTED) LINE_DEVSPECIFIC dwParam1 = compressionType & SLDSMT_OPEN_LOGICAL_CHANNEL dwParam2 = 0x00000xyy x (ninth Bit from LSB) – 0 – SetRTP (1-App has to set RTP / 0 – App need not set RTP) yy (8 bits) – IPAddressingMode Other Party answers the Call Application Statically Registers CTI Port with Early Offer Support and Then Disable the Early Offer Support Configuration A – CTI Port in Cluster1 Cluster1 and Cluster2 connected via SIP trunk SIP trunk Supports Early Offer TSP Message to application data Action Line_reply with Success Lines will be Enumerated to Application. lineInitialize Line_Open successful lineOpen() with Extversion – 0x800B0000 for Line A LineSetStatusMessages returns Success LineSetStatusMessages() – with dwLinestates – 0xcc Line_Reply with Success Application sends lineDevSpecific(CciscoLineDevSpecificEnableFeatureSupport) with m_Feature – 0x00000001, m_Feature_Capability - 0x00000001 Line_Reply with Success LineInserviceEvent reports to Application Line_LineDevState dwParam1 = x040, InService Application sends lineDevSpecific(CCiscoLineDevSpecificUserControlRTPStream) with MediaCaps Info Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 687 Message Sequence Charts Application Statically Registers CTI Port with Early Offer Support and Then Disable the Early Offer Support

Page 719 diagram

Page 720

TSP Message to application data Action Line_Reply with Success Application sends lineDevSpecific(CCiscoLineDevSpecificSetStatusMsgs) with m_DevSpecificStatusMsgsFlag=DEVSPECIFIC_GET_IP_PORT -0x00000400 A: LINE_CALLSTATE (LINECALLSTATE_PROCEEDING) LINE_DEVSPECIFIC dwParam1 = SLDSMT_RTP_GET_IP_PORT dwParam2 = 0x00000xyy x (ninth Bit from LSB) – 0 – SetRTP (1-App has to set RTP / 0 – App need not set RTP) yy – IPAddressing Mode Application calls LineMakeCall() on A dialing a Party in Cluster 2 Call is being routed through the SIP trunk with Early Offer Enabled A: LINE_CALLSTATE (LINECALLSTATE_CONNECTED) Other Party answers the Call Line_Reply with Success *** Disconnect the Existing Call Application sends lineDevSpecific(CciscoLineDevSpecificEnableFeatureSupport) with m_Feature – 0x00000001, m_Feature_Capability -0x00000000 – to disable the Early Offer support A: LINE_CALLSTATE (LINECALLSTATE_PROCEEDING/ LINECALLSTATE_RINGBACK) Application calls LineMakeCall() on A dialing a Party in Cluster 2 Call is being routed through the SIP trunk with Early Offer Enabled A: LINE_CALLSTATE (LINECALLSTATE_CONNECTED) Other Party answers the Call Application Statically Registers CTI Port with Out Early Offer Support and Then Enables Early Offer Support Configuration A – CTI Port in Cluster1 Cluster1 and Cluster2 connected via SIP trunk SIP trunk Supports Early Offer Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 688 Message Sequence Charts Application Statically Registers CTI Port with Out Early Offer Support and Then Enables Early Offer Support

Page 720 diagram

Page 721

TSP Message to application data Action Line_reply with Success Lines will be Enumerated to Application. lineInitialize Line_Open successful lineOpen() with Extversion – 0x800B0000 for Line A LineSetStatusMessages returns Success LineSetStatusMessages() – with dwLinestates – 0xcc Line_Reply with Success LineInserviceEvent reports to Application Line_LineDevState Dwparam1 = x040, InService Application sends lineDevSpecific(CCiscoLineDevSpecificUserControlRTPStream) with MediaCaps Info Line_Reply with Success Application sends lineDevSpecific(CciscoLineDevSpecificEnableFeatureSupport) with m_Feature – 0x00000001, m_Feature_Capability - 0x00000001 – to enable the Early Offer support Line_Reply with Success Application sends lineDevSpecific(CCiscoLineDevSpecificSetStatusMsgs) with m_DevSpecificStatusMsgsFlag=DEVSPECIFIC_GET_IP_PORT -0x00000400 A: LINE_CALLSTATE (LINECALLSTATE_PROCEEDING) LINE_DEVSPECIFIC dwParam1 = SLDSMT_RTP_GET_IP_PORT dwParam2 = 0x00000xyy x (ninth Bit from LSB) – 0 – SetRTP (1-App has to set RTP / 0 – App need not set RTP) yy – IPAddressing Mode Application calls LineMakeCall() on A dialing a Party in Cluster2 A: LINE_CALLSTATE (LINECALLSTATE_CONNECTED) Media will be set and Media Events will be Reported to Application Other Party answers the Call Behavior is same and new SLDSMT_RTP_GET_IP_PORT Notification will not be fired to application. Variant 1: A – SCCP/SIP Phone Application Registers CTI Port with Legacy Wave Driver and Enables Early Offer Support Configuration A – CTI Port; Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 689 Message Sequence Charts Application Registers CTI Port with Legacy Wave Driver and Enables Early Offer Support

Page 721 diagram

Page 722

Cluster1 and Cluster2 connected via SIP trunk SIP trunk Supports Early Offer TSP Message to application data Action Line_reply with Success Lines will be Enumerated to Application. lineInitialize Line_Open successful lineOpen() with Extversion – 0x000B0000 for Line A LineSetStatusMessages returns Success LineInserviceEvent reports to Application Line_LineDevState Dwparam1 = x040, InService LineSetStatusMessages() – with dwLinestates – 0xcc Line_Devspecific fails with error LINEERR_OPERATIONUNAVAIL Application sends lineDevSpecific(CciscoLineDevSpecificEnableFeatureSupport) with m_Feature – 0x00000001, m_Feature_Capability - 0x00000001 Line_Reply with Success Application sends lineDevSpecific(CCiscoLineDevSpecificSetStatusMsgs) with m_DevSpecificStatusMsgsFlag=DEVSPECIFIC_GET_IP_PORT -0x00000400 A: LINE_CALLSTATE (LINECALLSTATE_PROCEEDING) Application calls LineMakeCall() on A dialing a Party in Cluster2 Call is routed through SIP trunk with Early Offer Enabled A: LINE_CALLSTATE (LINECALLSTATE_CONNECTED) Media will be set and Media Events will be reported to Application Other Party answers the Call Application Registers CTI Port with New Cisco Wave Driver and Enables Early Offer Support Configuration A – CTI Port; Cluster1 and Cluster2 connected via SIP trunk SIP trunk Supports Early Offer TSP Message to application data Action Line_reply with Success Lines will be Enumerated to Application. During Installation of CiscoTSP User has to select New Wave Driver. lineInitialize Line_Open successful lineOpen() with Extversion – 0x000B0000 for Line A Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 690 Message Sequence Charts Application Registers CTI Port with New Cisco Wave Driver and Enables Early Offer Support

Page 722 diagram

Page 723

TSP Message to application data Action LineSetStatusMessages returns Success LineInserviceEvent reports to Application Line_LineDevState Dwparam1 = x040, InService LineSetStatusMessages() – with dwLinestates – 0xcc Line_Reply with Success Application sends lineDevSpecific(CciscoLineDevSpecificEnableFeatureSupport) with m_Feature – 0x00000001, m_Feature_Capability - 0x00000001 Line_Reply with Success Application sends lineDevSpecific(CCiscoLineDevSpecificSetStatusMsgs) with m_DevSpecificStatusMsgsFlag=DEVSPECIFIC_GET_IP_PORT -0x00000400 A: LINE_CALLSTATE (LINECALLSTATE_PROCEEDING) LINE_DEVSPECIFIC dwParam1 = SLDSMT_RTP_GET_IP_PORT dwParam2 = 0x00000xyy x (ninth Bit from LSB) – 0 – SetRTP (1-App has to set RTP / 0 – App need not set RTP) yy – IPAddressing Mode Note On this new Notification, applications has to Open the Port. Application calls LineMakeCall() on A dialing a Party in Cluster2 Call is routed through SIP trunk with Early Offer Enabled A: LINE_CALLSTATE (LINECALLSTATE_CONNECTED) Media will be set and Media Events will be reported to Application Other Party answers the Call Mutiple Applications Statically Register CTI Port Configuration A – CTI Port in Cluster 1 Cluster1 and Cluster2 connected via SIP trunk SIP trunk Supports Early Offer Applications: • App1 – Statically Registers CTI Port/RP with Early Offer Support • App2 – Statically Registers CTI Port/RP without Early Offer Support Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 691 Message Sequence Charts Mutiple Applications Statically Register CTI Port

Page 723 diagram

Page 724

*** App1 and App2 are running on Different Client Machines. TSP Message to application data Action Line_reply with Success Lines will be Enumerated to Application. App1 and App2: Both Connecting to same CTI Manager lineInitialize Line_Open successful App1 and App2: lineOpen() with Extversion – 0x800B0000 for Line A LineSetStatusMessages returns Success App1 and App2: LineSetStatusMessages() – with dwLinestates – 0xcc Line_Reply with Success App1: Application sends lineDevSpecific(CciscoLineDevSpecificEnableFeatureSupport) with m_Feature – 0x00000001, m_Feature_Capability - 0x00000001 Line_Reply with Success LineInserviceEvent reports to Application. App1: Application sends lineDevSpecific(CCiscoLineDevSpecificUserControlRTPStream) with MediaCaps Info to Register A Line_Devspecific fails with Error LINEERR_REGISTER_GETPORT_SUPPORT_MISMATCH App2: Application sends lineDevSpecific(CCiscoLineDevSpecificUserControlRTPStream) with MediaCaps Info to Register A LineReply – success LINE_CLOSE for the CTI Port Variant: App1 and App2 connecting to different Cti Managers App2: (After App1 has already registered CtiPort -A) Application sends lineDevSpecific(CCiscoLineDevSpecificUserControlRTPStream) with MediaCaps Info to register CtiPort A End-To-End Call Trace Direct Call Scenario: Variation 1 Application does a LineInitializ. Application opens all lines with new ExtVersion 0x000A0000. A calls B and B answers the call. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 692 Message Sequence Charts End-To-End Call Trace

Page 724 diagram

Page 725

Expected results CTI events Action LineInitialize LineOpen on A, LineOpen on B with new ExtVesrion 0x000A0000 For A LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 NewCallEvent received for A NewCallEvent received for B A calls B LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B1 LineGetCallInfo on B Direct Call Scenario: Variation 2 A calls B and B answers the call. Application does a LineInitialize. Application opens all lines with new ExtVersion 0x000A0000. Expected results CTI events Action A calls B. B answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 693 Message Sequence Charts Direct Call Scenario: Variation 2

Page 725 diagram

Page 726

Expected results CTI events Action For A LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 ExistingCallEvent received for A ExistingCallEvent received for A LineInitialize LineOpen on A, LineOpen on B with new ExtVesrion 0x000A0000 LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B1 LineGetCallInfo on B Consult Transfer Scenario: Variation 1 Application does a LineInitialize and opens all lines with new ExtVersion 0x000A0000. A calls B and B answers the call. B sets up transfer to C, C answers the call, and B completes the transfer. A is connected to C. Expected results CTI event Action LineInitialize LineOpen on A, LineOpen on B, LineOpen on C with new ExtVesrion 0x000A0000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 694 Message Sequence Charts Consult Transfer Scenario: Variation 1

Page 726 diagram

Page 727

Expected results CTI event Action For A LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 NewCallEvent received for A NewCallEvent received for B A calls B LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B1 LineGetCallInfo on B For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For C LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 NewCallEvent received for B NewCallEvent received for C B SetupTransfer to C Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 695 Message Sequence Charts Message Sequence Charts

Page 727 diagram

Page 728

Expected results CTI event Action LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B2 LineGetCallInfo on B (Consultation call between B and C) LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C1 LineGetCallInfo on C (Consultation call between B and C) For C LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C2 CallGlobalCallHandleChangedEvent received for C C answers the call. B completes transfer. LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A (Call between A and C) LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C2 LineGetCallInfo on C2 (Consultation call between B and C) Consult Transfer Scenario: Variation 2 A calls B and B answers the call. B sets up transfer to C. Application does a LineInitialize and opens all lines with new ExtVersion 0x000A0000. Application completes the transfer. A is connected to C. Expected Results CTI events Action LineInitialize LineOpen on A , LineOpen on B, LineOpen on C with new ExtVesrion 0x000A0000 A calls B and B answers the call. B setups transfer to C and C answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 696 Message Sequence Charts Consult Transfer Scenario: Variation 2

Page 728 diagram

Page 729

Expected Results CTI events Action For A LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 ExistingCallEvent received for A (Primary Call between A and B) LineInitialize LineOpen on A, LineOpen on B, LineOpen on C with new ExtVesrion 0x000A0000 For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For B ExistingCallEvent received for B (Primary Call between A and B) LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For C LINE_CALLDEVSPECIFIC event is received ExistingCallEvent received for B (Consultation Call between B and C) dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 ExistingCallEvent received for C (Consultation Call between B and C) LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A (Primary Call between A and B LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B1 LineGetCallInfo on B (Primary Call between A and B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 697 Message Sequence Charts Message Sequence Charts

Page 729 diagram

Page 730

Expected Results CTI events Action LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B2 LineGetCallInfo on B (Consultation Call between B and C) LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C1 LineGetCallInfo on C (Consultation Call between B and C) For C LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 CallGlobalCallHandleChangedEvent received for C Applications completes Transfer LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C2 LineGetCallInfo on C Blind Transfer Scenario Application does a LineInitialize.Application opens all lines with new ExtVersion 0x000A0000. A calls B and B answers the call. B does lineBlindTransfer to C. A is connected to C. Expected results CTI event Action LineInitialize LineOpen on A, LineOpen on B, LineOpen on C with new ExtVesrion 0x000A0000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 698 Message Sequence Charts Blind Transfer Scenario

Page 730 diagram

Page 731

Expected results CTI event Action For A LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 NewCallEvent received for A NewCallEvent received for B A calls B LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B1 LineGetCallInfo on B For C LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 NewCallEvent received for C B lineBlindTransfer to C LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C1 LineGetCallInfo on C Redirect Scenario Application does a LineInitialize and opens all lines with new ExtVersion 0x000A0000. A calls B and B answers the call. Application redirects B to C; A is connected to C. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 699 Message Sequence Charts Redirect Scenario

Page 731 diagram

Page 732

Expected results CTI events Action LineInitialize LineOpen on A , LineOpen on B with new ExtVesrion 0x000A0000 For A LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 NewCallEvent received for A NewCallEvent received for B A calls B LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B1 LineGetCallInfo on B For C LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 NewCallEvent received for C B redirects call to C.C answers the call LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C1 LineGetCallInfo on C Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 700 Message Sequence Charts Message Sequence Charts

Page 732 diagram

Page 733

Shared Line Scenario Application does a LineInitialize. Application opens all lines with new ExtVersion 0x000A0000. A calls B, B’. B answers the call. Expected results CTI events Action LineInitialize LineOpen on A , LineOpen on B, LineOpen on B’ with new ExtVesrion 0x000A0000 For A LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For B’ LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 NewCallEvent received for A NewCallEvent received for B NewCallEvent received for B’ A calls B LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B1 LineGetCallInfo on B LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B1 LineGetCallInfo on B’ Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 701 Message Sequence Charts Shared Line Scenario

Page 733 diagram

Page 734

Shared Line Scenario with Barge Application does a LineInitialize.Application opens all lines with new ExtVersion 0x000A0000. A calls B, B’. B answers the call. Expected results CTI events Action LineInitialize LineOpen on A , LineOpen on B, LineOpen on B’ with new ExtVesrion 0x000A0000 For A LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For B’ LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 NewCallEvent received for A NewCallEvent received for B NewCallEvent received for B’ A calls B, B’answers the call LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B1 LineGetCallInfo on B LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B1 LineGetCallInfo on B’ Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 702 Message Sequence Charts Shared Line Scenario with Barge

Page 734 diagram

Page 735

Expected results CTI events Action For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B2 For B’ LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B2 For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B3 NewCallEvent received for B NewCallEvent received for B’ CallGlobalCallHandleChangedEvent received for B B’ barges in Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 703 Message Sequence Charts Message Sequence Charts

Page 735 diagram

Page 736

Expected results CTI events Action For B’ LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B3 CallGlobalCallHandleChangedEvent received for B’ LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B3 LineGetCallInfo on B LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B3 LineGetCallInfo on B’ Call Park Scenario: Variation 1 Application does a LineInitialize and opens all lines with new ExtVersion 0x000A0000. A calls B and B answers the call. Application initiates a CallPark on B. A is parked on parkedDn. C calls parkDn and C is connected to A Service Parameter Preserve globalcallid For Parked Calls set to False Expected results CTI events Action LineInitialize LineOpen on A, LineOpen on B, LineOpen on C with new ExtVesrion 0x000A0000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 704 Message Sequence Charts Call Park Scenario: Variation 1

Page 736 diagram

Page 737

Page 737 diagram

Page 738

Expected results CTI events Action For C LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C1 For A LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A2 NewCallEvent received for C CallGlobalCallHandleChangedEvent received for A C dials parkDn LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A2 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C1 LineGetCallInfo on C Call Park Scenario: Variation 2 Application does a LineInitialize.Application opens all lines with new ExtVersion 0x000A0000. A calls B and B answers the call. Application initiates a CallPark on B. A is parked on parkedDn. C calls parkDn and C is connected to A Service Parameter Preserve globalcallid For Parked Calls set to True Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 706 Message Sequence Charts Call Park Scenario: Variation 2

Page 738 diagram

Page 739

Expected results CTI events Action For A LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 NewCallEvent received for A NewCallEvent received for B LineInitialize LineOpen on A, LineOpen on B, LineOpen on C with new ExtVesrion 0x000A0000 LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B1 LineGetCallInfo on B Application initiates linepark on B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 707 Message Sequence Charts Message Sequence Charts

Page 739 diagram

Page 740

Expected results CTI events Action For C LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C1 For C LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C2 NewCallEvent received for C CallGlobalCallHandleChangedEvent received for C C dials parkDn LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C2 LineGetCallInfo on C 3-Party Conference Call Scenario Application does a LineInitialize and opens all lines with new ExtVersion 0x000A0000. A calls B and B answers the call. B sets up conference to C, C answers the call, and B completes conference. A, B and C are in conference. For all conference scenarios, conference call leg’s Unique Call Reference ID is 0. Note Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 708 Message Sequence Charts 3-Party Conference Call Scenario

Image 1 from page 740

Page 740 diagram

Page 741

Expected results CTI events Action For A LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B1 NewCallEvent received for A NewCallEvent received for B LineInitialize LineOpen on A , LineOpen on B, LineOpen on C with new ExtVesrion 0x000A0000 LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B1 LineGetCallInfo on B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 709 Message Sequence Charts Message Sequence Charts

Page 741 diagram

Page 742

Expected results CTI events Action For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B2 For C LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C1 NewCallEvent received for B NewCallEvent received for C B setupConference to C LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B2 LineGetCallInfo on B (Consultation Call between B and C) LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C1 LineGetCallnfo on C (Consultation Call between B and C) For C LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 CallGlobalCallHandleChangedEvent received for C C answers the call. B completes conference LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B1 LineGetCallInfo on B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 710 Message Sequence Charts Message Sequence Charts

Page 742 diagram

Page 743

Expected results CTI events Action LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C2 LineGetCallInfo on C Three-Party Conference Drop Down to Two-Party Call Scenario Application does a LineInitialize and opens all lines with new ExtVersion 0x000A0000. A calls B and B answers the call. B sets up conference with C, C answers the call, and B completes conference. A,B and C in conference. C drops from the conference.A connected to B. Expected results CTI events Action For A LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 NewCallEvent received for A NewCallEvent received for B LineInitialize Call lineNegotiateVersion with LineOpen on A, LineOpen on B, LineOpen on C with new ExtVesrion 0x000A0000 LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B1 LineGetCallInfo on B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 711 Message Sequence Charts Three-Party Conference Drop Down to Two-Party Call Scenario

Page 743 diagram

Page 744

Expected results CTI events Action For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For C LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 NewCallEvent received for B NewCallEvent received for C B setupConference to C LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B2 LineGetCallInfo on B (Consultation Call between B and C) LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C1 LineGetCallnfo on C (Consultation Call between B and C) For C LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 CallGlobalCallHandleChangedEvent received for C C answers the call. B completes conference LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B1 LineGetCallInfo on B LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C2 LineGetCallInfo on C C drops from conference Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 712 Message Sequence Charts Message Sequence Charts

Page 744 diagram

Page 745

Expected results CTI events Action LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B1 LineGetCallInfo on B Conference Chaining Scenario Using Join Application does a LineInitialize and opens all lines with new ExtVersion 0x000A0000. A, B and C are in Conference1. C, D and E are in another Conference2. Application sends CallJoinRequest to join both the conference calls. E drops from the conference. Expected results CTI events Action For A Unique Call Reference ID = ID1 For B Unique Call Reference ID = ID2 For C Unique Call Reference ID = ID3 A, B and C are in conference For C Unique Call Reference ID = ID4 For D Unique Call Reference ID = ID5 For E Unique Call Reference ID = ID6 C, D and E are in conference No change in Unique Call Reference ID after join Application Joins two confeences For D LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 CallGlobalCallHandleChanged received for D E drops from Conference Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 713 Message Sequence Charts Conference Chaining Scenario Using Join

Page 745 diagram

Page 746

Expected results CTI events Action LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference ID1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference ID LineGetCallnfo on B LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference ID3 LineGetCallnfo on C LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference ID7 LineGetCallInfo on D Transfer Call Scenario via QSIP Without Path Replacement Application does a LineInitialize and opens all lines with new ExtVersion 0x000A0000. A in Cluster 1 calls B in Cluster 2, B answers the call, and B sets up transfer to C in Cluster 1. C answers the call and B completes the transfer. A connected to C. Expected results CTI events Action LineInitialize LineOpen on A, LineOpen on B, LineOpen on C with new ExtVesrion 0x000A0000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 714 Message Sequence Charts Transfer Call Scenario via QSIP Without Path Replacement

Page 746 diagram

Page 747

Expected results CTI events Action For A LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B1 NewCallEvent received for A NewCallEvent received for B A calls B LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B1 LineGetCallInfo on B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 715 Message Sequence Charts Message Sequence Charts

Page 747 diagram

Page 748

Expected results CTI events Action For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For C LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 NewCallEvent received for B NewCallEvent received for C B SetupTransfer to C LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B2 LineGetCallInfo on B (Consultation Call between B and C) LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C1 LineGetCallInfo on C (Consultation Call between B and C) C answers the call.B completes transfer. LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C1 LineGetCallInfo on C Transfer Call Scenario via QSIP with Path Replacement Application does a LineInitialize and opens all lines with new ExtVersion 0x000A0000. A in Cluster 1 calls B in Cluster 2, B answers the call and sets up transfer with C in Cluster 1. C answers the call amd B completes the transfer. A connected to C. Expected results CTI events Action LineInitialize LineOpen on A, LineOpen on B, LineOpen on C with new ExtVesrion 0x000A0000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 716 Message Sequence Charts Transfer Call Scenario via QSIP with Path Replacement

Page 748 diagram

Page 749

Expected results CTI events Action For A LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 NewCallEvent received for A NewCallEvent received for B A calls B LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B1 LineGetCallInfo on B For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For C LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 NewCallEvent received for B NewCallEvent received for C B SetupTransfer to C Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 717 Message Sequence Charts Message Sequence Charts

Page 749 diagram

Page 750

Expected results CTI events Action LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B2 LineGetCallInfo on B (Consultation Call between B and C) LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C1 LineGetCallInfo on C (Consultation Call between B and C) For C LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C2 CallGlobalCallHandleChangedEvent received for C C answers the call.B completes transfer LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C2 LineGetCallInfo on C Hunt List Scenario LineGroup LG1,LG2 and LG3 configured with A,B and C. HuntList “Hunt_List” configured with Line Groups LG1,LG2 and LG3. Hunt Pilot “99999” configured with this HuntList. Application does a LineInitialize. Application opens all lines with new ExtVersion 0x000A0000. D calls “99999”. Call is routed through A, B and C. Expected results CTI events Action LineInitialize LineOpen on A , LineOpen on B, LineOpen on C, LineOpen on D with new ExtVesrion 0x000A0000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 718 Message Sequence Charts Hunt List Scenario

Page 750 diagram

Page 751

Expected results CTI events Action For D LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For A LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 NewCallEvent received for D NewCallEvent received for A D calls Hunt Pilot DN.Call is first offered to Phone A, followed by B and then C. For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For C LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 NewCallEvent received for B NewCallEvent received for C LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference D1 LineGetCallInfo on D LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 719 Message Sequence Charts Message Sequence Charts

Page 751 diagram

Page 752

Expected results CTI events Action LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference B1 LineGetCallInfo on B LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C1 LineGetCallInfo on C Call Pickup Scenario: Variation 1 Application does a LineInitialize and opens all lines with new ExtVersion 0x000A0000. B and C in same Call Pickup Group. Service Parameter, Auto Call Pickup Enabled, is set to False. A calls B and C presses the NewCall softkey followed by Call Pickup softkey. Call is redirected to C. Same Behaviour for Group Pickup. Expected results CTI events Action LineInitialize LineOpen on A, LineOpen on B, LineOpen on C with new ExtVesrion 0x000A0000 For A LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 NewCallEvent received for A NewCallEvent received for B A calls B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 720 Message Sequence Charts Call Pickup Scenario: Variation 1

Page 752 diagram

Page 753

Expected results CTI events Action For C LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For C LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 NewCallEvent received for C NewCallEvent received for C C presses NewCall softkey followed by Call Pickup softkey LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C2 LineGetCallInfo on C Call Pickup Scenario: Variation 2 Application does a LineInitialize and opens all lines with new ExtVersion 0x000A0000. B and C are in the same Call Pickup Group. Service Parameter Auto Call Pickup Enabled is set to True. A calls B, C presses NewCall softkey followed by Call Pickup softkey, and call is redirected to C. Same Behaviour for Group Pickup. Expected results CTI events Action LineInitialize LineOpen on A, LineOpen on B, LineOpen on C with new ExtVesrion 0x000A0000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 721 Message Sequence Charts Call Pickup Scenario: Variation 2

Page 753 diagram

Page 754

Expected results CTI events Action For A LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For B LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 NewCallEvent received for A NewCallEvent received for B A calls B For C LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 For C LINE_CALLDEVSPECIFIC event is received dwParam1=SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_UNIQUE_CALL_REF_ID_INFO dwParam3 = 0 NewCallEvent received for C CallGlobalCallHandleChanged received for C C presses NewCall softkey followed by Call Pickup softkey LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference A1 LineGetCallInfo on A LINECALLINFO::DEVSPECIFIC would contain Unique Call Reference C2 LineGetCallInfo on C Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 722 Message Sequence Charts Message Sequence Charts

Page 754 diagram

Page 755

EnergyWise Deep Sleep Mode Use Cases Configuration Line A on Cisco Unified IP Phones Series 9900, 7900, and 6900 phones connect to an EnergyWise Switch, LineNegotiate with supported extension 0x000B0000 or higher, in order to receive the reason code in dwparam2 of LINE_LINEDEVSTATE /PHONE_STATE EVENT. From the Device Administration page, Enable Power save and configure Power On and Power Off timers. Verify EnergyWisePowerSavePlus Reason Code in LINEDEVSTATE Message Verify EnergyWisePowerSavePlus Reason code in LINEDEVSTATE message, whenDevice unregisters when going into Deep sleep. Expected result Action LineInitialize LineOpen on A with ExtVersion xB0000 or higher CiscoTSP Notifies LineInServiceEvent to application: received LINE_LINEDEVSTATE device = xxx cbInst = x0 param1 = LINEDEVSTATE_INSERVICE param2 = x0 param3 = x0 Set Event filters for Inservice and Outofservice events. LinesetstatusMessage with dwlineStates flags LINEDEVSTATE_INSERVICE | LINEDEVSTATE_OUTOFSERVICE Cisco TSP Notifies LineOutOfServiceEvent to application: received LINE_LINEDEVSTATE device = xxx cbInst = x0 param1 = LINEDEVSTATE_OUTOFSERVICE param2 = CiscoLineDevStateOutOfServiceReason_ EnergyWisePowerSavePlus param3 = x0 When Phone A goes to Deep Sleep mode and unregisters Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 723 Message Sequence Charts EnergyWise Deep Sleep Mode Use Cases

Page 755 diagram

Page 756

Expected result Action Cisco TSP Notifies LineInServiceEvent to application: received LINE_LINEDEVSTATE device = xxx cbInst = x0 param1 = LINEDEVSTATE_INSERVICE param2 = x0, param3 = x0 When PowerOntime is reached, Cisco Unified IP Phones Series 7900 device registers back to CUCM. Variance For Cisco Unified IP Phones Series 9900 and 6900, press the Select Key to power up. Verify EnergyWisePowerSavePlus Reason Code in PhoneState Suspend Verify EnergyWisePowerSavePlus Reason code in PhoneState suspend, whenDevice unregisters when in Deep Sleep Mode. Expected result Action PhoneInitialize PhoneOpen on A with ExtVersion xB0000 or higher Set Event filters for Resume and Suspend events. For Example: PhonesetstatusMessage with dwPhoneStates flags PHONESTATE_SUSPEND | PHONESTATE_RESUME Cisco TSP Notifies DeviceOutOfServiceEvent to application through Phone state event. received PHONE_STATE device = xxx cbInst = x0 param1 = PHONESTATE_SUSPEND param2 = CiscoPhoneStateOutOfServiceReason_ EnergyWisePowerSavePlus param3 = x0 Phone A goes to Deep Sleep Mode and unregisters. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 724 Message Sequence Charts Verify EnergyWisePowerSavePlus Reason Code in PhoneState Suspend

Page 756 diagram

Page 757

Expected result Action Cisco TSP Notifies LineInServiceEvent to application: received LINE_LINEDEVSTATE device = xxx cbInst = x0 param1 = LINEDEVSTATE_INSERVICE param2 = x0, param3 = x0 When PowerOntime is reached, Cisco Unified IP Phones Series 7900 device registers back to CUCM. Variance For Cisco Unified IP Phones Series 9900 and 6900, press the Select Key to power up. Verify Reason EnergyWisePowerSavePlus Reason Code in LineDevstate/Phone State Message Verify EnergyWisePowerSavePlus Reason code in LineDevstate/Phone State message, when unregisters after Power save idle time-out. Configure power save idle time-out = 20 mins(default = 1 hour). Expected result Action LineInitialize LineOpen on A with ExtVersion xB0000 or higher Cisco TSP Notifies LineInServiceEvent to application: received LINE_LINEDEVSTATE device = xxx cbInst = x0 param1 = LINEDEVSTATE_INSERVICE param2 = x0 param3 = x0 Set Event filters for Inservice and Outofservice events. LinesetstatusMessage with dwlineStates flags LINEDEVSTATE_INSERVICE | LINEDEVSTATE_OUTOFSERVICE PhoneInitialize PhoneOpen on A with ExtVersion xB0000 or higher Set Event filters for Resume and Suspend events. For Example: PhonesetstatusMessage with dwPhoneStates flags PHONESTATE_SUSPEND | PHONESTATE_RESUME Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 725 Message Sequence Charts Verify Reason EnergyWisePowerSavePlus Reason Code in LineDevstate/Phone State Message

Page 757 diagram

Page 758

Expected result Action Cisco TSP Notifies DeviceOutOfServiceEvent to application through Phone state event. received PHONE_STATE device = xxx cbInst = x0 param1 = PHONESTATE_SUSPEND param2 = CiscoPhoneStateOutOfServiceReason_ EnergyWisePowerSavePlus param3 = x0, Cisco TSP Notifies LineOutOfServiceEvent to application: received LINE_LINEDEVSTATE device = xxx cbInst = x0 param1 = LINEDEVSTATE_OUTOFSERVICE param2 = CiscoLineDevStateOutOfServiceReason_ EnergyWisePowerSavePlus param3 = x0 Phone goes to Deep Sleep Mode and unregisters Cisco TSP Notifies LineInServiceEvent to application: received LINE_LINEDEVSTATE device = xxx cbInst = x0 param1 = LINEDEVSTATE_INSERVICE param2 = x0, param3 = x0, Cisco TSP Notifies DeviceInServiceEvent to application through Phone state Event. received PHONE_STATE device = xxx cbInst = x0 param1 = PHONESTATE_RESUME param2 = x0, param3 = x0, For Cisco Unified IP Phones Series 9900 and 6900, press the Select Key to power up. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 726 Message Sequence Charts Message Sequence Charts

Page 758 diagram

Page 759

Expected result Action Cisco TSP Notifies DeviceOutOfServiceEvent to application through Phone state event. received PHONE_STATE device = xxx cbInst = x0 param1 = PHONESTATE_SUSPEND param2 = CiscoPhoneStateOutOfServiceReason_ EnergyWisePowerSavePlus param3 = x0, Cisco TSP Notifies LineOutOfServiceEvent to application: received LINE_LINEDEVSTATE device = xxx cbInst = x0 param1 = LINEDEVSTATE_OUTOFSERVICE param2 = CiscoLineDevStateOutOfServiceReason_ EnergyWisePowerSavePlus param3 = x0 Power Save idle timer expires and device goes to Deep Sleep and unregisters Verify Call Manager Failure Reason Code in LineDevstate/Phone State Message Verify CallManagerFailure Reason code in LineDevstate/Phone State message, when Device unregisters when Call Manager service is Restarted from serviceability page. Expected result Action LineInitialize LineOpen on A with ExtVersion xB0000 or higher Cisco TSP Notifies LineInServiceEvent to application: received LINE_LINEDEVSTATE device = xxx cbInst = x0 param1 = LINEDEVSTATE_INSERVICE param2 = x0 param3 = x0 Set Event filters for Inservice and Outofservice events. LinesetstatusMessage with dwlineStates flags LINEDEVSTATE_INSERVICE | LINEDEVSTATE_OUTOFSERVICE PhoneInitialize PhoneOpen on A with ExtVersion xB0000 or higher Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 727 Message Sequence Charts Verify Call Manager Failure Reason Code in LineDevstate/Phone State Message

Page 759 diagram

Page 760

Expected result Action Set Event filters for Resume and Suspend events. For Example: PhonesetstatusMessage with dwPhoneStates flags PHONESTATE_SUSPEND | PHONESTATE_RESUME Cisco TSP Notifies DeviceOutOfServiceEvent to application through Phone state event. received PHONE_STATE device = xxx cbInst = x0 param1 = PHONESTATE_SUSPEND param2 = CiscoPhoneStateOutOfServiceReason_CallManagerFailure param3 = x0, Cisco TSP Notifies LineOutOfServiceEvent to application: received LINE_LINEDEVSTATE device = xxx cbInst = x0 param1 = LINEDEVSTATE_OUTOFSERVICE param2 = CiscoLineDevStateOutOfServiceReason_CallManagerFailure param3 = x0 Restart Call Manager services from serviceability page. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 728 Message Sequence Charts Message Sequence Charts

Page 760 diagram

Page 761

Expected result Action Cisco TSP Notifies LineInServiceEvent to application: received LINE_LINEDEVSTATE device = xxx cbInst = x0 param1 = LINEDEVSTATE_INSERVICE param2 = x0, param3 = x0, Cisco TSP Notifies DeviceInServiceEvent to application through Phone state Event. received PHONE_STATE device = xxx cbInst = x0 param1 = PHONESTATE_RESUME param2 = x0, param3 = x0 Call Manager Restart successful and device registers back Verify DeviceUnregister Reason Code in LineDevstate/Phone State Event Verify DeviceUnregister Reason code in LineDevstate/Phone State Event, when Device unregisters by manually unplugging the Ethernet cable from device. Expected result Action LineInitialize LineOpen on A with ExtVersion xB0000 or higher Cisco TSP Notifies LineInServiceEvent to application: received LINE_LINEDEVSTATE device = xxx cbInst = x0 param1 = LINEDEVSTATE_INSERVICE param2 = x0 param3 = x0 Set Event filters for Inservice and Outofservice events. LinesetstatusMessage with dwlineStates flags LINEDEVSTATE_INSERVICE | LINEDEVSTATE_OUTOFSERVICE PhoneInitialize PhoneOpen on A with ExtVersion xB0000 or higher Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 729 Message Sequence Charts Verify DeviceUnregister Reason Code in LineDevstate/Phone State Event

Page 761 diagram

Page 762

Expected result Action Set Event filters for Resume and Suspend events. For Example: PhonesetstatusMessage with dwPhoneStates flags PHONESTATE_SUSPEND | PHONESTATE_RESUME Cisco TSP Notifies DeviceOutOfServiceEvent to application through Phone state event. received PHONE_STATE device = xxx cbInst = x0 param1 = PHONESTATE_SUSPEND param2 = CiscoPhoneStateOutOfServiceReason_DeviceUnregistered param3 = x0, Cisco TSP Notifies LineOutOfServiceEvent to application: received LINE_LINEDEVSTATE device = xxx cbInst = x0 param1 = LINEDEVSTATE_OUTOFSERVICE param2 = CiscoLineDevStateOutOfServiceReason_DeviceUnregistered param3 = x0 Manually unplug the Ethernet cable from device. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 730 Message Sequence Charts Message Sequence Charts

Page 762 diagram

Page 763

Expected result Action Cisco TSP Notifies LineInServiceEvent to application: received LINE_LINEDEVSTATE device = xxx cbInst = x0 param1 = LINEDEVSTATE_INSERVICE param2 = x0, param3 = x0, Cisco TSP Notifies DeviceInServiceEvent to application through Phone state Event. received PHONE_STATE device = xxx cbInst = x0 param1 = PHONESTATE_RESUME param2 = x0, param3 = x0 Device registers back after plugging back to the switch Verify CTILinkFailure Reason Code in LineDevstate/Phone State Message Verify CTILinkFailure Reason code in LineDevstate/Phone State message, when CTIManager services are stopped. Expected result Action LineInitialize LineOpen on A with ExtVersion xB0000 or higher Cisco TSP Notifies LineInServiceEvent to application: received LINE_LINEDEVSTATE device = xxx cbInst = x0 param1 = LINEDEVSTATE_INSERVICE param2 = x0 param3 = x0 Set Event filters for Inservice and Outofservice events. LinesetstatusMessage with dwlineStates flags LINEDEVSTATE_INSERVICE | LINEDEVSTATE_OUTOFSERVICE PhoneInitialize PhoneOpen on A with ExtVersion xB0000 or higher Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 731 Message Sequence Charts Verify CTILinkFailure Reason Code in LineDevstate/Phone State Message

Page 763 diagram

Page 764

Expected result Action Set Event filters for Resume and Suspend events. For Example: PhonesetstatusMessage with dwPhoneStates flags PHONESTATE_SUSPEND | PHONESTATE_RESUME Cisco TSP Notifies DeviceOutOfServiceEvent to application through Phone state event. received PHONE_STATE device = xxx cbInst = x0 param1 = PHONESTATE_SUSPEND param2 = CiscoPhoneStateOutOfServiceReason_CTILinkFailure param3 = x0, Cisco TSP Notifies LineOutOfServiceEvent to application: received LINE_LINEDEVSTATE device = xxx cbInst = x0 param1 = LINEDEVSTATE_OUTOFSERVICE param2 = CiscoLineDevStateOutOfServiceReason_CTILinkFailure param3 = x0 Stop CTI Manager services from serviceability page. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 732 Message Sequence Charts Message Sequence Charts

Page 764 diagram

Page 765

Expected result Action Cisco TSP Notifies LineInServiceEvent to application: received LINE_LINEDEVSTATE device = xxx cbInst = x0 param1 = LINEDEVSTATE_INSERVICE param2 = x0, param3 = x0, Cisco TSP Notifies DeviceInServiceEvent to application through Phone state Event. received PHONE_STATE device = xxx cbInst = x0 param1 = PHONESTATE_RESUME param2 = x0, param3 = x0 Restart CTI Manager services Extension Mobility Cross Cluster Common Configuration • User A has a device profile EM_Profile1 configured with Line1 in Cluster1 (home cluster) • CiscoTSP uses CTIManager on Cluster1 (home cluster) in order to open provider TAPI Application Does LineInitializeEx and EMCC User Logs Into a Device EMCC user logs in to a device Title Testing the scenario where TAPI Application does LineInitializeEx and EMCCUserLogin to a Device Description EM_Profile1 is included in application control list DeviceH is not in application control list Test Setup Step 2: Application receives LINE_CREATE for Line1 Expected Results 1. Open the TAPI Application with User A and do LineInitializeEx. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 733 Message Sequence Charts Extension Mobility Cross Cluster

Page 765 diagram

Page 766

User A EM login to DeviceH on Cluster1. TAPI Application Does LineInitializeEx and EMCCUser Logs Out of a Device EMCC user logs out of a device Title Testing the scenario where TAPI Application does LineInitializeEx and EMCCUserLogs out of a Device Description EM_Profile1 is included in application control list DeviceH is not in application control list Test Setup Step 2: Application receives LINE_REMOVE for Line1 Expected Results 1. Open the TAPI Application with User A and do LineInitializeEx. 2. User A EM logout of a device DeviceH on Cluster1. Application Does PhoneInitializeEx and EMCC User Logs In to a Device EMCC user logs in to a device Title Testing the scenario where TAPI Application does PhoneInitializeEx and EMCCUserLogin to a Device Description EM_Profile1 is included in application control list DeviceH is not in application control list Test Setup Step 2: Application receives PHONE_CREATE for Line1 Expected Results 1. Step1: Open the TAPI Application with User A and do PhoneInitializeEx. 2. Step2: User A EM login to DeviceH on Cluster1. TAPI Application Does PhoneInitializeEx and EMCC User Logs Out of a Device EMCC user logs out of a device Title Testing the scenario where TAPI Application does PhoneInitializeEx and EMCCUserLogs out of a Device Description EM_Profile1 is included in application control list DeviceH is not in application control list Test Setup Step 2: Application receives PHONE _REMOVE for Line1 Expected Results Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 734 Message Sequence Charts TAPI Application Does LineInitializeEx and EMCCUser Logs Out of a Device

Page 766 diagram

Page 767

Step1: Open the TAPI Application with User A and do PhoneInitializeEx. 2. Step2: User A EM logout of a device DeviceH on Cluster1. EMCC User Logs in to a Device From Cluster 2 (Visiting Cluster) EMCC user logs in to a device from cluster 2 (visiting cluster) Title Testing the scenario where EMCCUser Login to a Device from cluster 2 (visiting cluster) Description EM_Profile1 is included in application control list. Test Setup Step 2: Application receives LINE_CREATE for Line1 Expected Results 1. Open the TAPI Application with User A and do LineInitializeEx. 2. User A goes to the Cluster 2(visiting Cluster) and EM login to a device DeviceV. EMCC User Logs Out of a Device From Cluster 2 (Visiting Cluster) EMCC user logs out of a device from cluster 2 (visiting cluster) Title Testing the scenario where EMCCUser LogOut of a Device from cluster 2 (visiting cluster) Description EM_Profile1 is included in application control list. Test Setup Step 2: Application receives LINE_REMOVE for Line1 Expected Results 1. Open the TAPI Application with User A and do LineInitializeEx. 2. After the Execution of the above usecase User A EM logout of a device DeviceV. EMCC User Logs In to a Device with LineH Configured EMCC user logs in to a device with LineH configured Title Testing the scenario where EMCCUserLogin to a Device with LineH configured Description EM_Profile1 is included in application control list DeviceH is included in application control list with LineH configured Test Setup Step 2: • Application receives LINE_REMOVE for LineH • Application receives LINE_CREATE for Line1 Expected Results 1. Open the TAPI Application with User A and do LineInitializeEx. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 735 Message Sequence Charts EMCC User Logs in to a Device From Cluster 2 (Visiting Cluster)

Page 767 diagram

Page 768

User A EM login to a device DeviceH on Cluster1. EMCC User Logs Out of a Device with LineH Configured EMCC user logs out of a device Title Testing the scenario where EMCCUserLogs out of a Device Description EM_Profile1 is included in application control list DeviceH is included in application control list with LineH configured Test Setup Step 2: • Application receives LINE_REMOVE for Line1 • Application receives LINE_CREATE for LineH Expected Results 1. After the Execution of the above usecase User A EM logout of a device DeviceH on Cluster1. EMCC User Logs In to a DeviceH Configured for Multiple Lines (LineH) EMCC user logs in to a DeviceH Title Testing the scenario where EMCCUser Login to a DeviceH which is configured for multiple lines Description EM_Profile1 is included in application control list Test Setup Step 2: • Application receives 2 LINE_REMOVE for LineH • Application receives LINE_CREATE for Line1 Expected Results 1. Open the TAPI Application with User A and do LineInitializeEx. 2. User A goes to the Cluster 2(visiting Cluster) and EM login to a device DeviceH(A device with multiple lines (LineH)). EMCC User Logs In to a Device with LineH Configured and Administrator Removes the Device From Application Control List EMCC user logs in to a device with LineH configured and the administrator removes the device from the Application Control list Title Testing the scenario where EMCCUserLogin to a device with LineH configured and administrator removes the device from the Application Control list Description EM_Profile1 is included in application control list DeviceH is included in application control list with LineH configured Test Setup Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 736 Message Sequence Charts EMCC User Logs Out of a Device with LineH Configured

Page 768 diagram

Page 769

Step 2: • Application receives LINE_REMOVE for LineH • Application receives LINE_CREATE for Line1 Step3: • Application will not receive any events. Expected Results 1. Open the TAPI Application with User A and do LineInitializeEx. 2. User A EM login to a device DeviceH on Cluster1. 3. Administrator removes the DeviceH from application control list. EMCC User Logs In and Out of a Device with LineH Configured and Administrator Removes the Device From Application Control List EMCC user logs in and logs out of a device with LineH configured and Administrator removes the device from the Application Control List Title Testing the scenario where EMCCUserLogin to a Device with LineH configured and Administrator removes the device from the Application Control List Description EM_Profile1 is included in application control list DeviceH is included in application control list with LineH configured Test Setup Step 2: • Application receives LINE_REMOVE for LineH • Application receives LINE_CREATE for Line1 Step3: • Application receives LINE_REMOVE for Line1 • Application receives LINE_CREATE for LineH Step4: • Application receives LINE_REMOVE for LineH Expected Results 1. Open the TAPI Application with User A and do LineInitializeEx. 2. User A EM login to a device DeviceH on Cluster1. 3. User A EM logout of the device DeviceH on Cluster1. 4. Administrator removes the DeviceH from application control list. EMCC User Logs in to a Device with LineH Configured and EM_Profile Not Included in Application Control List EMCC user logs in to a device with LineH configured and administrator removes the device from the Application Control list Title Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 737 Message Sequence Charts EMCC User Logs In and Out of a Device with LineH Configured and Administrator Removes the Device From Application Control List

Page 769 diagram

Page 770

Testing the scenario where EMCCUserLogin to a device with LineH configured and administrator removes the device from the Application Control list Description EM_Profile1 is not included in Application Control list DeviceH is included in Application Control list with LineH configured Test Setup Step 2: • Application receives LINE_REMOVE for LineH • Application receives LINE_CREATE for Line1 Step3: • Application receives no events since EM_Profile1 is not in control list. Step4: • Application receives LINE_REMOVE for LineH Expected Results 1. Open the TAPI Application with User A and do LineInitializeEx. 2. User A EM login to a device DeviceH on Cluster1. 3. Administrator removes the DeviceH from application control list. 4. User A EM logout of the device DeviceH on Cluster1. EMCC User Logs In to a DeviceV and EM_Profile Is Removed by Administrator From Application Control List EMCC user logs in to a DeviceV and administrator removes the EM_Profile from the Application Control list Title Testing the scenario where EMCCUserLogin to a DeviceV and administrator removes the EM_Profile from Application Control list Description EM_Profile1 is included in Application Control list. Test Setup Step 2: • Application receives LINE_CREATE for Line1 Step3: • Application receives LINE_REMOVE for Line1 Expected Results 1. Open the TAPI Application with User A and do LineInitializeEx. 2. User A EM login to a DeviceV (Visiting Device). 3. Administrator removes the EM_Profile1 from application control list. EMCC User Logs In to a Device Then Application Does Provider Open EMCC user logs in to a DeviceV Title Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 738 Message Sequence Charts EMCC User Logs In to a DeviceV and EM_Profile Is Removed by Administrator From Application Control List

Page 770 diagram

Page 771

Testing the scenario where EMCCUserLogin to a DeviceV(cluster2). Then the application does Provider Open Description EM_Profile1 is included in Application Control list DeviceH is not in Application Control list Test Setup Step2: • DeviceV/Line1 will be included in TAPI device/line enumeration Expected Results 1. User A EM login to DeviceV on Cluster2. 2. Open the TAPI Application with User A and do LineInitializeEx. EMCC User Logs In to a DeviceV in Visiting Cluster and Administrator Adds the EM_Profile to Application Control List EMCC user logs in to a DeviceV in Visiting cluster and administrator adds the EM_Profile to the Application Control List Title Testing the scenario where EMCCUserLogin to a DeviceV in Visiting cluster and Administrator adds the EM_Profile to the Application Control list Description EM_Profile1 is not included in Application Control list Test Setup Step 2: • Application will not receive any events as EM_Profile1 not in the Application Control list. Step3: • Application receives LINE_CREATE for Line1 Expected Results 1. Open the TAPI Application with User A and do LineInitializeEx. 2. User B EM login to a DeviceV on Cluster2. 3. Administrator Adds the EM_Profile1 to the application control list. Extension Mobility Memory Optimization Option The following section describes common configuration and use cases for Early Offer Support. Common Configuration The message flow in the following figure is described below: • IP Phone_A is configured in DB with lines Line_A1 and LineA2 • User1 has a device profile EM_Profile1 configured with Line_P11 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 739 Message Sequence Charts EMCC User Logs In to a DeviceV in Visiting Cluster and Administrator Adds the EM_Profile to Application Control List

Page 771 diagram

Page 772

• User2 has a device profile EM_Profile2 configured with lines Line_P21 and Line_P22 Figure 36: EM Memory Optimization Scenario 1 The message flow in the following figure is described below: • Application uses Line_N to receive other-device state notifications Figure 37: EM Memory Optimization Scenario 2 Use Cases Use cases related to the EM Memory Optimization Option feature are mentioned below: • Use Case 1 1. Line_A1 and Line_A2 are not opened 2. EM user with Profile_P1 logs in 3. EM user with Profile_P1 logs out 4. EM user with Profile_P1 logs in The message flow in the following figure is described in steps 1 to 4. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 740 Message Sequence Charts Use Cases

Image 2 from page 772

Page 772 content

Page 773

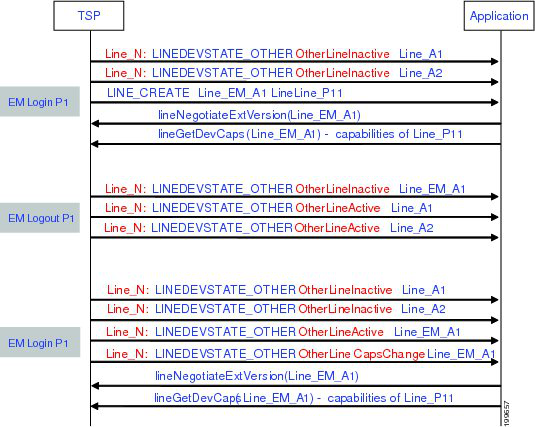

Figure 38: EM Memory Optimization Option Feature Use Case 1 • Use Case 2 1. Line_A1 and Line_A2 has been opened 2. EM user with Profile_P1 logs in 3. Application opens Line_P11 4. EM user with Profile_P1 logs out 5. Application opens Line_A1 The message flow in the following figure is described in steps 1 to 5. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 741 Message Sequence Charts Message Sequence Charts

Image 1 from page 773

Page 773 content

Page 774

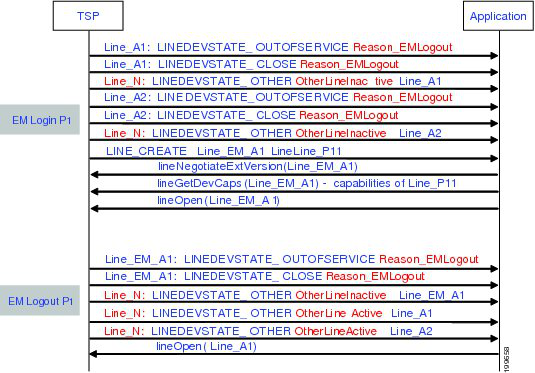

Figure 39: EM Memory Optimization Option Feature Use Case 2 • Use Case 3 1. Line_A1 and Line_A2 are not opened 2. EM user with Profile_P1 logs in 3. EM user with Profile_P1 logs out 4. EM user with Profile_P2 logs in 5. EM user with Profile_P2 logs out The message flow in the following figure is described in steps 1 to 5. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 742 Message Sequence Charts Message Sequence Charts

Image 1 from page 774

Page 774 content

Page 775

Figure 40: EM Memory Optimization Option Feature Use Case 3 • Use Case 4 1. EM user with Profile_P1 logs in 2. Operation request failed on inactive Line_A1 3. EM user with Profile_P1 logs out 4. Operation request failed on inactive Line_P11 with … error code … The message flow in the following figure is described in steps 1 to 4. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 743 Message Sequence Charts Message Sequence Charts

Image 1 from page 775

Page 775 content

Page 776

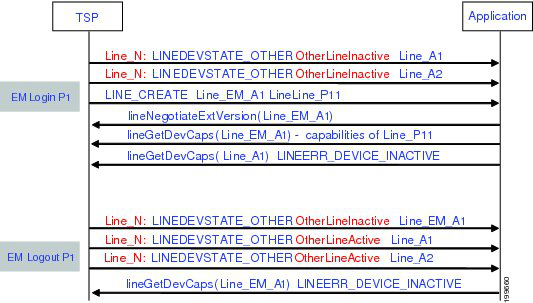

Figure 41: EM Memory Optimization Option Feature Use Case 4 External Call Control BasicCallInitiatedFromTAPIwithExternalCallControlonTranslationPattern and CEPM Returns Reject Configuration Phone A, B are in cluster devices. B matches the translation pattern BXXX which has calling and called party transformation defined to transform A to A1 and B to B1 and External Call Control is also enabled. Procedure Application sends a lineMakeCall at A to call B. Result Dialed number B matches the translation pattern BXXX which has External Call Control enabled. This takes precedence and CUCM requests CEPM to get routing rule for B. CEPM returns Reject. TSP Message to App data Party A LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_DIALTONE/ LINECALLSTATE_DIALING) CallerID = A / CalledID = “” mod Calling = A / mod Called = “” A initiates Call to B A receives NewCallEvent and CallStateChangeEvent (Dialtone/Dialing) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 744 Message Sequence Charts External Call Control

Image 1 from page 776

Page 776 diagram

Page 777

TSP Message to App data Party A: LINE_CALLSTATE (LINECALLSTATE_DISCONNECTED, LINEDISCONNECTMODE_REJECT) CallerID = A / CalledID = “” mod Calling = A / mod Called = “” A receives CallStateChangeEvent (Disconnect) BasicCallInitiatedFromTAPIUsingExternalCallControlonTranslationPatternandCEPMReturns Divert with Modified Calling and Called Parties Configuration Phone A, B are in cluster devices. B matches the translation pattern BXXX which has calling and called party transformation defined to transform A to A1 and B to B1 and External Call Control is also enabled. Procedure Application sends a lineMakeCall at A to call B. Result Dialed number B matches the translation pattern BXXX which has External Call Control enabled. This takes precedence and CUCM requests CEPM to get routing rule for B. CEPM returns divertTo = C, with ModifiedCalling = MA and ModifiedCalled = MB Call will be extended to C (modified calling and modified called in divert to routing directive, overrides the calling and called number transformation configured for translation pattern and the call is diverted to C) TSP Message to App data Party A: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_DIALTONE/ LINECALLSTATE_DIALING) CallerID = A / CalledID = “” mod Calling = A / mod Called = “” A initiates call to B A receives NewCallEvent and CallStateChangeEvent (Dialtone/Dialing) A: LINE_CALLSTATE (LINECALLSTATE_PROCEEDING)/ LINE_CALLINFO CallerID = A / CalledID = B1 mod Calling = A1 / mod Called = B1 A receives CallStateChangeEvent (Proceeding) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 745 Message Sequence Charts Basic Call Initiated From TAPI Using External Call Control on Translation Pattern and CEPM Returns Divert with Modified Calling and Called Parties

Page 777 diagram

Page 778

TSP Message to App data Party A: LINE_CALLSTATE (LINECALLSTATE_RINGBACK)/ LINE_CALLINFO CallerID = A / CalledID = B1 / RedirectingID = MB / RedirectionID = C mod Calling = MA / mod Called = B1 / mod Redirecting = MB / mod Redirection = C C: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_OFFERING/ LINECALLSTATE_ACCEPTED dwReason = LINECALLREASON_UNKNOWN extendCallReason = CtiReasonCallIntercept CallerID = A / CalledID = MB / RedirectingID = MB / RedirectionID = C mod Calling = MA / mod Called = MB / mod Redirecting = MB / mod Redirection = C A receives CallStateChangeEvent (RingBack) C receives NewCallEvent A: LINE_CALLSTATE (LINECALLSTATE_CONNECTED) CallerID = A / CalledID = B1 / ConnectedID = C / RedirectingID = MB / RedirectionID = C mod Calling = MA / mod Called = B1 / mod Connected = C / mod Redirecting = MB / mod Redirection = C C: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_OFFERING/ LINECALLSTATE_ACCEPTED CallerID = A / CalledID = MB / ConnectedID = A / RedirectingID = MB / RedirectionID = C mod Calling = MA / mod Called = MB / mod Connected = MA / mod Redirecting = MB / mod Redirection = C C answers A and C receives Connected Call state Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 746 Message Sequence Charts Message Sequence Charts

Page 778 diagram

Page 779

BasicCallInitiatedFromTAPIUsingExternalCallControlonTranslationPatternandCEPMReturns Continue with Modified Calling and Called Parties Configuration Phone A, B are in cluster devices. B matches the translation pattern BXXX which has calling and called party transformation defined to transform A to A1 and B to B1 and External Call Control is also enabled. Procedure Application sends a lineMakeCall at A to call B. Result Dialed number B matches the translation pattern BXXX which has External Call Control enabled. This takes precedence and CUCM requests CEPM to get routing rule for B. CEPM returns continue with ModifiedCalling = MA and ModifiedCalled = MB Call will be extended to MB (modified calling and modified called in continue routing directive, overrides the calling & called number transformation configured for translation pattern) TSP Message to App Data Party A: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_DIALTONE/ LINECALLSTATE_DIALING) CallerID = A / CalledID = “” mod Calling = A / mod Called = “” A initiates Call to B A receives NewCallEvent and CallStateChangeEvent (Dialtone/Dialing) A: LINE_CALLSTATE (LINECALLSTATE_PROCEEDING)/ LINE_CALLINFO CallerID = A / CalledID = B1 mod Calling = A1 / mod Called = B1 A receives CallStateChangeEvent (Proceeding) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 747 Message Sequence Charts Basic Call Initiated From TAPI Using External Call Control on Translation Pattern and CEPM Returns Continue with Modified Calling and Called Parties

Page 779 diagram

Page 780

TSP Message to App Data Party A: LINE_CALLSTATE (LINECALLSTATE_RINGBACK)/ LINE_CALLINFO CallerID = A / CalledID = B1 mod Calling = MA / mod Called = B1 MB: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_OFFERING/ LINECALLSTATE_ACCEPTED CallerID = A / CalledID = MB mod Calling = MA / mod Called = MB A receives CallStateChangeEvent (RingBack) MB receives NewCallEvent A: LINE_CALLSTATE (LINECALLSTATE_CONNECTED) CallerID = A / CalledID = B1 / ConnectedID = MB mod Calling = MA / mod Called = B1 / mod Connected = MB MB: LINE_CALLSTATE (LINECALLSTATE_CONNECTED) CallerID = A / CalledID = MB / ConnectedID = A mod Calling = MA / mod Called = MB / mod Connected = MA MB answers A and MB receives Connected Call state Conference Call Initiated From TAPI Using External Call Control on Translation Pattern and CEPM Returns Continue with Modified Calling and Called Parties in the Consult Call Configuration Phone A, B, C are in cluster devices. C matches the translation pattern CXXX which has calling and called party transformation defined to transform B to A1 and C to C1 and External Call Control is also enabled. Procedure Application sends a lineMakeCall at A to call B. Application sends a lineSetupConference/lineAddToconference to B to consult conference the call to C. Result Dialed number C matches the translation pattern CXXX which has External Call Control enabled. This takes precedence and CUCM requests CEPM to get routing rule for B. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 748 Message Sequence Charts Conference Call Initiated From TAPI Using External Call Control on Translation Pattern and CEPM Returns Continue with Modified Calling and Called Parties in the Consult Call

Page 780 diagram

Page 781

CEPM returns continue with ModifiedCalling = MB and ModifiedCalled = MC Call will be extended to “MC” (modified calling and modified called in continue routing directive, overrides the calling & called number transformation configured for translation pattern) After conference is complete, the correct number of CONFERENCE calls are see at all the participants. TSP Message to App Data Party A: LINE_CALLSTATE (LINECALLSTATE_CONNECTED) CallerID = A / CalledID = B / ConnectedID = B mod Calling = A / mod Called = B / mod Connected = B B: LINE_CALLSTATE (LINECALLSTATE_CONNECTED) CallerID = A / CalledID = B / ConnectedID = A mod Calling = A / mod Called = B / mod Connected = A A and B receives Connected Call state B: Call-1 LINE_CALLSTATE (LINECALLSTATE_ONHOLDPENDCONF) CallerID = A / CalledID = B / ConnectedID = A mod Calling = A / mod Called = B / mod Connected = A Call-2 LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_PROCEEDING)/ LINE_CALLINFO CallerID = B / CalledID = C1 mod Calling = MB / mod Called = C1 MC: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_OFFERING/ LINECALLSTATE_ACCEPTED) CallerID = B / CalledID = MC mod Calling = MB / mod Called = MC B does a lineSetupConference / lineDial to call C. MC receives NewCallEvent Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 749 Message Sequence Charts Message Sequence Charts

Page 781 diagram

Page 782

TSP Message to App Data Party B: Call-2 LINE_CALLSTATE (LINECALLSTATE_CONNECTED) CallerID = B / CalledID = C1 / ConnectedID = MC mod Calling = MB / mod Called = C1 / mod Connected = MC MC: LINE_CALLSTATE (LINECALLSTATE_CONNECTED) CallerID = B / CalledID = MC / ConnectedID = B mod Calling = MB / mod Called = MC / mod Connected = MB MC answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 750 Message Sequence Charts Message Sequence Charts

Page 782 diagram

Page 783

TSP Message to App Data Party A: CONFERENCE CallerID = A / CalledID = B / ConnectedID = B mod Calling = A / mod Called = B / mod Connected = B CONNECTED CONFERENCE CallerID = A / CalledID = MC / ConnectedID = MC mod Calling = A / mod Called = MC / mod Connected = MC B: CONFERENCE CallerID = A / CalledID = B / ConnectedID = A mod Calling = A / mod Called = B / mod Connected = A CONNECTED CONFERENCE CallerID = B / CalledID = C1 / ConnectedID = MC mod Calling = B/ mod Called = C1 / mod Connected = MC MC: CONFERENCE CallerID = B / CalledID = MC / ConnectedID = B mod Calling = B / mod Called = MC / mod Connected = B CONNECTED CONFERENCE CallerID = MC / CalledID = A / ConnectedID = A mod Calling = MC / mod Called = A / mod Connected = A B1 does a lineAddToConference Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 751 Message Sequence Charts Message Sequence Charts

Page 783 diagram

Page 784

Call Is Redirected to a Hunt List of Chaperones and Chaperone Enables Call Recording and Conferences in the Called Party Configuration Phone A, C1, D are in cluster devices. B matches the translation pattern BXXX where External Call Control is enabled. Application sends a lineMakeCall at A to call B. CEPM determines this calls need to have a chaperone’s supervise. CEPM returns the permit decision with the obligation <divert>, destination HuntPilot C, which is a hunt pilot of chaperones, and a reason string “chaperone”. CUCM redirects the call to the hunt pilot C, and the chaperone member C1 answers the call. After talking to A briefly and discovered that A intended to talk to D, the chaperone C1 starts to establish a conference to D. C1 presses the conference softkey and dials D. CUCM queries CEPM for the call, with calling user C1 with DN C1, and called user D with DN D. CEPM returns the response with permit decision with <continue> call routing directive, since the policy server detects that the caller is the chaperone. CUCM rings D’s phone and D answers the call. C1 presses the conference softkey again, and the conference is established. The chaperone C1 presses the “record” softkey. This triggers the call recording being setup from C1’s IP phone to the recorder. When the call recording is eablished successfully, the recording warning tone is playing to the C1’s phone. The recording warning tone is enabled by setting service parameter Play Recording Notification Tone To Observed Target to True. A and D starts to talk under the supervision of the chaperone. TSP Message to App Data Party A: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_DIALTONE/ LINECALLSTATE_DIALING) CallerID = A / CalledID = “” mod Calling = A / mod Called = “” A initiates Call to B A receives NewCallEvent and CallStateChangeEvent (Dialtone/Dialing) A: LINE_CALLSTATE (LINECALLSTATE_PROCEEDING)/ LINE_CALLINFO CallerID = A / CalledID = B mod Calling = A / mod Called = B A receives CallStateChangeEvent (Proceeding) webmail Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 752 Message Sequence Charts Call Is Redirected to a Hunt List of Chaperones and Chaperone Enables Call Recording and Conferences in the Called Party

Page 784 diagram

Page 785

TSP Message to App Data Party A: LINE_CALLSTATE (LINECALLSTATE_RINGBACK)/ LINE_CALLINFO CallerID = A / CalledID = B / RedirectingID = B / RedirectionID = C mod Calling = A / mod Called = B / mod Redirecting = B / mod Redirection = C C1: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_OFFERING/ LINECALLSTATE_ACCEPTED CallerID = A / CalledID = B / RedirectingID = B / RedirectionID = C mod Calling = A / mod Called = B / mod Redirecting = B / mod Redirection = C LINECALLINFO::DEVSPECIFIC would contain IsChaperoneCall = 0x1 A receives CallStateChangeEvent (RingBack) C1 receives NewCallEvent A: LINE_CALLSTATE (LINECALLSTATE_CONNECTED) CallerID = A / CalledID = B / ConnectedID = C / RedirectingID = B / RedirectionID = C mod Calling = A / mod Called = B / mod Redirecting = B / mod Connected = B / mod Redirection = C C1: LINE_CALLSTATE (LINECALLSTATE_CONNECTED) CallerID = A / CalledID = B / ConnectedID = C / RedirectingID = B / RedirectionID = C mod Calling = A / mod Called = B / mod Redirecting = B / mod Connected = B / mod Redirection = C C1 answers A and C1 receives Connected Call state Line_Reply is returned with an error code of LINEERR_OPERATION_FAIL_CHAPERONE_DEVICE Application issues a lineRedirect on call at C1 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 753 Message Sequence Charts Message Sequence Charts

Page 785 diagram

Page 786

TSP Message to App Data Party C1: Call-1 LINE_CALLSTATE (LINECALLSTATE_ONHOLDPENDCONF) CallerID = A / CalledID = B / ConnectedID = A / RedirectingID = B / RedirectionID = C mod Calling = A / mod Called = B / mod Connected = A / mod Redirecting = B / mod Redirection = C CONNECTED LINECALLINFO::DEVSPECIFIC would contain IsChaperoneCall = 0x1 Call-2 LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_PROCEEDING)/ LINE_CALLINFO CallerID = C1 / CalledID = D mod Calling = C1 / mod Called = D D: LINE_APPNEWCALL, LINE_CALLSTATE (LINECALLSTATE_OFFERING/ LINECALLSTATE_ACCEPTED) CallerID = C1 / CalledID = D mod Calling = C1 / mod Called = D C1 does a lineSetupConference / lineDial to call D. D receives NewCallEvent C1: Call-2 LINE_CALLSTATE (LINECALLSTATE_CONNECTED) CallerID = C1 / CalledID = D / ConnectedID = D mod Calling = C1 / mod Called = D / mod Connected = D D: LINE_CALLSTATE (LINECALLSTATE_CONNECTED) CallerID = C1 / CalledID = D / ConnectedID = C1 mod Calling = C1 / mod Called = D / mod Connected = C1 D answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 754 Message Sequence Charts Message Sequence Charts

Page 786 diagram

Page 787

TSP Message to App Data Party C1 does a lineAddToConference Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 755 Message Sequence Charts Message Sequence Charts

Page 787 diagram

Page 788

TSP Message to App Data Party A: CONFERENCE CallerID = A / CalledID = B / ConnectedID = C / RedirectingID = B / RedirectionID = C mod Calling = A / mod Called = B / mod Redirecting = B / mod Connected = C / mod Redirection = C CONNECTED CONFERENCE CallerID = A / CalledID = D / ConnectedID = D mod Calling = A / mod Called = D / mod Connected = D C1: CONFERENCE CallerID = A / CalledID = B / ConnectedID = A / RedirectingID = B / RedirectionID = C mod Calling = A / mod Called = B / mod Connected = A / mod Redirecting = B / mod Redirection = C CONNECTED LINECALLINFO::DEVSPECIFIC would contain IsChaperoneCall = 0x1 CONFERENCE CallerID = C / CalledID = D / ConnectedID = D mod Calling = C / mod Called = D / mod Connected = D D: CONFERENCE CallerID = C / CalledID = D / ConnectedID = C mod Calling = C / mod Called = D / mod Connected = C CONNECTED CONFERENCE Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 756 Message Sequence Charts Message Sequence Charts

Page 788 diagram

Page 789

TSP Message to App Data Party CallerID = D / CalledID = A / ConnectedID = A mod Calling = D / mod Called = A / mod Connected = A C1: LINE_DEVSPECIFIC(SLDSMT_RECORDING_STARTED, 0, 0) LINE_DEVSPECIFIC(SLDSMT_LINECALLINFO_ DEVSPECIFICDATA, SLDST_CALL_ATTRIBUTE_INFO, 0) CallAttributeTye = ‘Recording’ C1’s CCMCallId Address = R’s DN, Partition = R’s Partition, DeviceName = R’s DeviceName Chaperone C1 starts recording to recording device R Forced Authorization and Client Matter Code Scenarios Manual Call to a Destination That Requires an FAC The following table describes the message sequences for the Forced Authorization and Client Matter Code scenario of Manual Call to a Destination that requires an FAC. Preconditions Party A is Idle. Party B requires an FAC. The scenario remains similar if Party B requires a CMC instead of an FAC. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 757 Message Sequence Charts Forced Authorization and Client Matter Code Scenarios

Page 789 diagram

Page 790

Table 77: Message Sequences for Manual Call to a Destination That Requires an FAC TAPI structures TAPI messages CTI Message Actions LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCalledID = NP dwConnectedID = NP dwRedirectionID = NP dwRedirectionID = NP LINE_APPNEWCALL hDevice = A dwCallbackInstance = 0 dwParam1 = 0 dwParam2 = hCall-1 dwParam3 = OWNER NewCallEvent, CH = C1, GCH = G1, Calling = A, Called = NP, OrigCalled = NP, LR = NP, State = Dialtone, Origin = OutBound, Reason = Direct Party A goes off-hook No change LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = DIALTONE dwParam2 = UNAVAIL dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Dialtone, Cause = CauseNoError, Reason = Direct, Calling = A, Called = NP, OrigCalled = NP, LR = NP Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 758 Message Sequence Charts Message Sequence Charts

Page 790 diagram

Page 791

TAPI structures TAPI messages CTI Message Actions No change LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = DIALING dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Dialing, Cause = CauseNoError, Reason = Direct, Calling = A, Called = NP, OrigCalled = NP, LR = NP Party A dials Party B No change LINE_DEVSPECIFIC hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = SLDSMT_CALL_TONE_CHANGED dwParam2 = CTONE_ZIPZIP dwParam3 = CZIPZIP_FACREQUIRED CallToneChangedEvent, CH = C1, Tone = ZipZip, Feature = FACCMC, FACRequired = True, CMCRequired = False Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 759 Message Sequence Charts Message Sequence Charts

Page 791 diagram

Page 792

TAPI structures TAPI messages CTI Message Actions LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCalledID = B dwConnectedID = NP dwRedirectionID = NP dwRedirectionID = NP LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = PROCEEDING dwParam2 = 0 dwParam3 = 0 LINE_CALLINFO hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = CALLEDID dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Proceeding, Cause = CauseNoError, Reason = Direct, Calling = A, Called = B, OrigCalled = B, LR = NP Party A dials the FAC, and Party B accepts the call No change LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = RINGBACK dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Ringback, Cause = CauseNoError, Reason = Direct, Calling = A, Called = B, OrigCalled = B, LR = NP Manual Call to a Destination That Requires Both FAC and CMC The following table describes the message sequences for the Forced Authorization and Client Matter Code scenario of a manual call to a destination that requires both FAC and CMC. Preconditions Party A is Idle. Party B requires an FAC and a CMC. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 760 Message Sequence Charts Manual Call to a Destination That Requires Both FAC and CMC

Page 792 diagram

Page 793

Table 78: Message Sequences for Manual Call to a Destination That Requires Both FAC and CMC TAPI structures TAPI messages CTI Message Actions LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCalledID = NP dwConnectedID = NP dwRedirectionID = NP dwRedirectionID = NP LINE_APPNEWCALL hDevice = A dwCallbackInstance = 0 dwParam1 = 0 dwParam2 = hCall-1 dwParam3 = OWNER NewCallEvent, CH = C1, GCH = G1, Calling = A, Called = NP, OrigCalled = NP, LR = NP, State = Dialtone, Origin = OutBound, Reason = Direct Party A goes off-hook No change LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = DIALTONE dwParam2 = UNAVAIL dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Dialtone, Cause = CauseNoError, Reason = Direct, Calling = A, Called = NP, OrigCalled = NP, LR = NP Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 761 Message Sequence Charts Message Sequence Charts

Page 793 diagram

Page 794

TAPI structures TAPI messages CTI Message Actions No change LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = DIALING dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Dialing, Cause = CauseNoError, Reason = Direct, Calling = A, Called = NP, OrigCalled = NP, LR = NP Party A dials Party B No change LINE_DEVSPECIFIC hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = SLDSMT_CALL_TONE_CHANGED dwParam2 = CTONE_ZIPZIP dwParam3 = CZIPZIP_FACREQUIRED, CZIPZIP_CMCREQUIRED CallToneChangedEvent, CH = C1, Tone = ZipZip, Feature = FACCMC, FACRequired = True, CMCRequired = True No change LINE_DEVSPECIFIC hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = SLDSMT_CALL_TONE_CHANGED dwParam2 = CTONE_ZIPZIP dwParam3 = CZIPZIP_CMCREQUIRED CallToneChangedEvent, CH = C1, Tone = ZipZip, Feature = FACCMC, FACRequired = False, CMCRequired = True Party A dials the FAC Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 762 Message Sequence Charts Message Sequence Charts

Page 794 diagram

Page 795

TAPI structures TAPI messages CTI Message Actions LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCalledID = B dwConnectedID = NP dwRedirectionID = NP dwRedirectionID = NP LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = PROCEEDING dwParam2 = 0 dwParam3 = 0 LINE_CALLINFO hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = CALLEDID dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Proceeding, Cause = CauseNoError, Reason = Direct, Calling = A, Called = B, OrigCalled = B, LR = NP Party A dials the CMC, and Party B accepts the call No change LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = RINGBACK dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Ringback, Cause = CauseNoError, Reason = Direct, Calling = A, Called = B, OrigCalled = B, LR = NP lineMakeCall to a Destination That Requires an FAC The following table describes the message sequences for the Forced Authorization and Client Matter Code scenario of lineMakeCall to a destination that requires an FAC. Preconditions Party A is Idle. Party B requires an FAC. Note that the scenario is similar if Party requires a CMC instead of an FAC. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 763 Message Sequence Charts lineMakeCall to a Destination That Requires an FAC

Page 795 diagram

Page 796

Table 79: Message Sequences for lineMakeCall to a Destination That Requires an FAC TAPI structures TAPI messages CTI Message Actions LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCalledID = NP dwConnectedID = NP dwRedirectionID = NP dwRedirectionID = NP LINE_CALLINFO hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = ORIGIN dwParam2 = 0 dwParam3 = 0 LINE_CALLINFO hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = REASON, CALLERID dwParam2 = 0 dwParam3 = 0 NewCallEvent, CH = C1, GCH = G1, Calling = A, Called = NP, OrigCalled = NP, LR = NP, State = Dialtone, Origin = OutBound, Reason = Direct Party A does a lineMakeCall() to Party B No change LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = DIALING dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Dialing, Cause = CauseNoError, Reason = Direct, Calling = A, Called = NP, OrigCalled = NP, LR = NP No change LINE_DEVSPECIFIC hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = SLDSMT_CALL_TONE_CHANGED dwParam2 = CTONE_ZIPZIP dwParam3 = CZIPZIP_FACREQUIRED CallToneChangedEvent, CH = C1, Tone = ZipZip, Feature = FACCMC, FACRequired = True, CMCRequired = False Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 764 Message Sequence Charts Message Sequence Charts

Page 796 diagram

Page 797

TAPI structures TAPI messages CTI Message Actions LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCalledID = B dwConnectedID = NP dwRedirectionID = NP dwRedirectionID = NP LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = PROCEEDING dwParam2 = 0 dwParam3 = 0 LINE_CALLINFO hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = CALLEDID dwParam2 = 0 dwParam3 = 0 NewCallEvent, CH = C1, GCH = G1, Calling = A, Called = NP, OrigCalled = NP, LR = NP, State = Dialtone, Origin = OutBound, Reason = Direct Party A does a lineDial() with the FAC in the dial string and Party B accepts the call No change LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = RINGBACK dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Ringback, Cause = CauseNoError, Reason = Direct, Calling = A, Called = B, OrigCalled = B, LR = NP lineMakeCall to a Destination That Requires Both FAC and CMC The following table describes the message sequences for the Forced Authorization and Client Matter Code scenario of lineMakeCall to a destination that requires both FAC and CMC. In this scenario, Party A is Idle and Party B requires both an FAC and a CMC. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 765 Message Sequence Charts lineMakeCall to a Destination That Requires Both FAC and CMC

Page 797 diagram

Page 798

Table 80: Message Sequences for lineMakeCall to a Destination That Requires Both FAC and CMC TAPI structures TAPI messages CTI Message Actions LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCalledID = NP dwConnectedID = NP dwRedirectionID = NP dwRedirectionID = NP LINE_CALLINFO hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = ORIGIN dwParam2 = 0 dwParam3 = 0 LINE_CALLINFO hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = REASON, CALLERID dwParam2 = 0 dwParam3 = 0 NewCallEvent, CH = C1, GCH = G1, Calling = A, Called = NP, OrigCalled = NP, LR = NP, State = Dialtone, Origin = OutBound, Reason = Direct Party A does a lineMakeCall() to Party B No change LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = DIALING dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Dialing, Cause = CauseNoError, Reason = Direct, Calling = A, Called = NP, OrigCalled = NP, LR = NP No change LINE_DEVSPECIFIC hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = SLDSMT_CALL_TONE_CHANGED dwParam2 = CTONE_ZIPZIP dwParam3 = CZIPZIP_FACREQUIRED, CZIPZIP_CMCREQUIRED CallToneChangedEvent, CH = C1, Tone = ZipZip, Feature = FACCMC, FACRequired = True, CMCRequired = True Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 766 Message Sequence Charts Message Sequence Charts

Page 798 diagram

Page 799

TAPI structures TAPI messages CTI Message Actions No change LINE_DEVSPECIFIC hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = SLDSMT_CALL_TONE_CHANGED dwParam2 = CTONE_ZIPZIP dwParam3 = CZIPZIP_CMCREQUIRED CallToneChangedEvent, CH = C1, Tone = ZipZip, Feature = FACCMC, FACRequired = False, CMCRequired = True Party A does a lineDial() with the FAC in the dial string LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCalledID = B dwConnectedID = NP dwRedirectionID = NP dwRedirectionID = NP LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = PROCEEDING dwParam2 = 0 dwParam3 = 0 LINE_CALLINFO hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = CALLEDID dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Proceeding, Cause = CauseNoError, Reason = Direct, Calling = A, Called = B, OrigCalled = B, LR = NP Party A does a lineDial() with the CMC in the dial string and Party B accepts the call No change LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = RINGBACK dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Ringback, Cause = CauseNoError, Reason = Direct, Calling = A, Called = B, OrigCalled = B, LR = NP Timeout Waiting for FAC or Invalid FAC The following table describes the message sequences for the Forced Authorization and Client Matter Code scenario of timeout waiting for FAC or invalid FAC entered. Here, Party A is Idle and Party B requires an FAC. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 767 Message Sequence Charts Timeout Waiting for FAC or Invalid FAC

Page 799 diagram

Page 800

The scenario remains similar if Party B required a CMC instead of a FAC. Table 81: Message Sequences for Timeout Waiting for FAC or Invalid FAC TAPI structures TAPI messages CTI Message Actions LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCalledID = NP dwConnectedID = NP dwRedirectionID = NP dwRedirectionID = NP LINE_CALLINFO hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = ORIGIN dwParam2 = 0 dwParam3 = 0 LINE_CALLINFO hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = REASON, CALLERID dwParam2 = 0 dwParam3 = 0 NewCallEvent, CH = C1, GCH = G1, Calling = A, Called = NP, OrigCalled = NP, LR = NP, State = Dialtone, Origin = OutBound, Reason = Direct Party A does a lineMakeCall() to Party B No change LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = DIALING dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Dialing, Cause = CauseNoError, Reason = Direct, Calling = A, Called = NP, OrigCalled = NP, LR = NP No change LINE_DEVSPECIFIC hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = SLDSMT_CALL_TONE_CHANGED dwParam2 = CTONE_ZIPZIP dwParam3 = CZIPZIP_FACREQUIRED CallToneChangedEvent, CH = C1, Tone = ZipZip, Feature = FACCMC, FACRequired = True, CMCRequired = False Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 768 Message Sequence Charts Message Sequence Charts

Page 800 diagram

Page 801

TAPI structures TAPI messages CTI Message Actions No change LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1=DISCONNECTED dwParam2 = DISCONNECT MODE_FACCMC1 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Disconnected, Cause = CtiNoRouteToDDestination, Reason = FACCMC, Calling = A, Called = NP, OrigCalled = NP, LR = NP T302 timer times out waiting for digits, or Party A does a lineDial() with an invalid FAC No change LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = IDLE dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Idle, Cause = CtiCauseNoError, Reason = Direct, Calling = A, Called = NP, OrigCalled = NP, LR = NP 1 dwParam2 get set to DISCONNECTMODE_FACCMC if the extension version on the line is set to at least 0x00050000. Otherwise, dwParam2 get set to DISCONNECTMODE_UNAVAIL. Gateway Recording Table 82: ClusterID and RecordType in LineGetDevCaps TSP Messages/Events Action Application opens the provider. LINEGETDEVCAPS::DEVSPECIFIC contains Cisco_LineDevCaps_Ext00080000::recordType = configured recording type Cisco_LineDevCaps_Ext000D0000::clusteID = cluster ID of the line Application sends lineGetDevCaps on a line on the CTI Remote Device Setup: A is external caller. CTI RD has remote destination routed externally through a gateway that does not support recording Table 83: External Call to a CTI Remote Device Using Ingress Gateway for Forking with Selective Recording TSP Messages/Events Action Application opens the provider. A calls the CTI RD, remote destination answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 769 Message Sequence Charts Gateway Recording

Page 801 diagram

Page 802

TSP Messages/Events Action TSP sends a LINE_REPLY TSP sends a LineDevSpecific(SLDSMT_RECORDING_STARTED) event LINEGETCALLINFO::DEVSPECIFIC CallAttributeInfo:: PartyDN = Recorder's DN PartyPartition = Recorder's Partition DeviceName = Recorder's Device Name CallAttributeType = CallAttribute_Recorded_UserInitiatedFromApp (8) RecordingAttributeInfo_ExtD0:: ForkingDeviceType = MediaForkingType_GW (2) ForkingDeviceName = trunk name to gateway GatewayCallProtocolReference = Cisco GUID ForkingClusterName = clusterID where media is forked Application issues a CCiscoLineDevSpecificStartCallRecordingwith m_InvocationType = RecordingInvocationType_UserControlledRecording (2) Setup: A is external caller. CTI RD has remote destination routed externally through a gateway that supports recording Table 84: External Call to a CTI Remote Device Using Egress Gateway for Forking with Automatic Recording TSP Messages/Events Action Application opens the provider. TSP sends a LineDevSpecific(SLDSMT_RECORDING_STARTED) event LINEGETCALLINFO::DEVSPECIFIC CallAttributeInfo:: PartyDN = Recorder's DN PartyPartition = Recorder's Partition DeviceName = Recorder's Device Name CallAttributeType = CallAttribute_Recorded_Automatic (6) RecordingAttributeInfo_ExtD0:: ForkingDeviceType = MediaForkingType_GW (2) ForkingDeviceName = trunk name to gateway GatewayCallProtocolReference = Cisco GUID ForkingClusterName = clusterID where media is forked A calls the CTI RD, remote destination answers Setup: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 770 Message Sequence Charts Message Sequence Charts

Page 802 diagram

Page 803

A is external caller. CTI RD has remote destination routed externally through a gateway that supports recording Table 85: Initiate a Recording at CTIRD Follow by Hold and Resume the Call at the CTIRD TSP Messages/Events Action Application opens the provider. TSP sends a LineDevSpecific(SLDSMT_RECORDING_STARTED) event LINEGETCALLINFO::DEVSPECIFIC CallAttributeInfo:: PartyDN = Recorder's DN PartyPartition = Recorder's Partition DeviceName = Recorder's Device Name CallAttributeType = CallAttribute_Recorded_Automatic (6) RecordingAttributeInfo_ExtD0:: ForkingDeviceType = MediaForkingType_GW (2) ForkingDeviceName = trunk name to gateway GatewayCallProtocolReference = Cisco GUID ForkingClusterName = clusterID where media is forked A calls the CTI RD, remote destination answers TSP sends a LineDevSpecific(SLDSMT_RECORDING_ENDED) event CTI RD puts the call on hold TSP sends a LineDevSpecific(SLDSMT_RECORDING_STARTED) event LINEGETCALLINFO::DEVSPECIFIC CallAttributeInfo:: PartyDN = Recorder's DN PartyPartition = Recorder's Partition DeviceName = Recorder's Device Name CallAttributeType = CallAttribute_Recorded_Automatic (6) RecordingAttributeInfo_ExtD0:: ForkingDeviceType = MediaForkingType_GW (2) ForkingDeviceName = trunk name to gateway GatewayCallProtocolReference = Cisco GUID ForkingClusterName = clusterID where media is forked CTI RD resumes the call Setup: A is external caller. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 771 Message Sequence Charts Message Sequence Charts

Page 803 diagram

Page 804

CTI RD has remote destination routed externally through a gateway that supports recording Table 86: Initiate a Recording at CTIRD Follow by Hold and Resume the Call at the Internal Other Party TSP Messages/Events Action Application opens the provider. A calls the CTI RD, remote destination answers TSP sends a LINE_REPLY TSP sends a LineDevSpecific(SLDSMT_RECORDING_STARTED) event LINEGETCALLINFO::DEVSPECIFIC CallAttributeInfo:: PartyDN = Recorder's DN PartyPartition = Recorder's Partition DeviceName = Recorder's Device Name CallAttributeType = CallAttribute_Recorded_UserInitiatedFromApp (8) RecordingAttributeInfo_ExtD0:: ForkingDeviceType = MediaForkingType_GW (2) ForkingDeviceName = trunk name to gateway GatewayCallProtocolReference = Cisco GUID ForkingClusterName = clusterID where media is forked Application issues a CCiscoLineDevSpecificStartCallRecordingwith m_InvocationType = RecordingInvocationType_UserControlledRecording (2) No events pass by TSP, recording continue A puts the call on hold No events pass by TSP, recording continue A resumes the call Setup: A, B are internal callers to the CTI RD CTI RD has remote destination routed externally through a gateway that supports recording Table 87: Initiate a Recording at CTIRD Follow by Internal Other Party Redirects the Call to an Internal 3rd Party TSP Messages/Events Action Application opens the provider. A calls the CTI RD, remote destination answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 772 Message Sequence Charts Message Sequence Charts

Page 804 diagram

Page 805

TSP Messages/Events Action TSP sends a LINE_REPLY TSP sends a LineDevSpecific(SLDSMT_RECORDING_STARTED) event LINEGETCALLINFO::DEVSPECIFIC CallAttributeInfo:: PartyDN = Recorder's DN PartyPartition = Recorder's Partition DeviceName = Recorder's Device Name CallAttributeType = CallAttribute_Recorded_UserInitiatedFromApp (8) RecordingAttributeInfo_ExtD0:: ForkingDeviceType = MediaForkingType_GW (2) ForkingDeviceName = trunk name to gateway GatewayCallProtocolReference = Cisco GUID ForkingClusterName = clusterID where media is forked Application issues a CCiscoLineDevSpecificStartCallRecordingwith m_InvocationType = RecordingInvocationType_UserControlledRecording (2) TSP sends a LineDevSpecific(SLDSMT_RECORDING_ENDED) event A redirects the call to B TSP sends a LineDevSpecific(SLDSMT_RECORDING_STARTED) event LINEGETCALLINFO::DEVSPECIFIC CallAttributeInfo:: PartyDN = Recorder's DN PartyPartition = Recorder's Partition DeviceName = Recorder's Device Name CallAttributeType = CallAttribute_Recorded_UserInitiatedFromApp (8) RecordingAttributeInfo_ExtD0:: ForkingDeviceType = MediaForkingType_GW (2) ForkingDeviceName = trunk name to gateway GatewayCallProtocolReference = Cisco GUID ForkingClusterName = clusterID where media is forked B answers the call Setup: A, B are external callers to the CTI RD through a SIP trunk CTI RD has remote destination routed externally through a gateway that supports recording Table 88: Initiate a Recording at CTIRD Follow by External Other Party Redirects the Call to an External 3rd Party TSP Messages/Events Action Application opens the provider. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 773 Message Sequence Charts Message Sequence Charts

Page 805 diagram

Page 806

TSP Messages/Events Action A calls the CTI RD, remote destination answers TSP sends a LINE_REPLY TSP sends a LineDevSpecific(SLDSMT_RECORDING_STARTED) event LINEGETCALLINFO::DEVSPECIFIC CallAttributeInfo:: PartyDN = Recorder's DN PartyPartition = Recorder's Partition DeviceName = Recorder's Device Name CallAttributeType = CallAttribute_Recorded_UserInitiatedFromApp (8) RecordingAttributeInfo_ExtD0:: ForkingDeviceType = MediaForkingType_GW (2) ForkingDeviceName = trunk name to gateway GatewayCallProtocolReference = Cisco GUID ForkingClusterName = clusterID where media is forked Application issues a CCiscoLineDevSpecificStartCallRecordingwith m_InvocationType = RecordingInvocationType_UserControlledRecording (2) A redirects the call to B TSP sends a LineDevSpecific(SLDSMT_RECORDING_ENDED) event TSP sends a LineDevSpecific(SLDSMT_RECORDING_STARTED) event LINEGETCALLINFO::DEVSPECIFIC CallAttributeInfo:: PartyDN = Recorder's DN PartyPartition = Recorder's Partition DeviceName = Recorder's Device Name CallAttributeType = CallAttribute_Recorded_UserInitiatedFromApp (8) RecordingAttributeInfo_ExtD0:: ForkingDeviceType = MediaForkingType_GW (2) ForkingDeviceName = trunk name to gateway GatewayCallProtocolReference = Cisco GUID ForkingClusterName = clusterID where media is forked B answers the call Setup: A, B are internal callers to the CTI RD Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 774 Message Sequence Charts Message Sequence Charts

Page 806 diagram

Page 807

CTI RD has remote destination routed externally through a gateway that supports recording Table 89: Initiate a Recording at CTIRD Follow by Internal Other Party Transfers the Call to an Internal 3rd Party TSP Messages/Events Action Application opens the provider. A calls the CTI RD, remote destination answers TSP sends a LINE_REPLY TSP sends a LineDevSpecific(SLDSMT_RECORDING_STARTED) event LINEGETCALLINFO::DEVSPECIFIC CallAttributeInfo:: PartyDN = Recorder's DN PartyPartition = Recorder's Partition DeviceName = Recorder's Device Name CallAttributeType = CallAttribute_Recorded_UserInitiatedFromApp (8) RecordingAttributeInfo_ExtD0:: ForkingDeviceType = MediaForkingType_GW (2) ForkingDeviceName = trunk name to gateway GatewayCallProtocolReference = Cisco GUID ForkingClusterName = clusterID where media is forked Application issues a CCiscoLineDevSpecificStartCallRecordingwith m_InvocationType = RecordingInvocationType_UserControlledRecording (2) A setup transfer to B B answers the call TSP sends a LineDevSpecific(SLDSMT_RECORDING_ENDED) event TSP sends a LineDevSpecific(SLDSMT_RECORDING_STARTED) event LINEGETCALLINFO::DEVSPECIFIC CallAttributeInfo:: PartyDN = Recorder's DN PartyPartition = Recorder's Partition DeviceName = Recorder's Device Name CallAttributeType = CallAttribute_Recorded_UserInitiatedFromApp (8) RecordingAttributeInfo_ExtD0:: ForkingDeviceType = MediaForkingType_GW (2) ForkingDeviceName = trunk name to gateway GatewayCallProtocolReference = Cisco GUID ForkingClusterName = clusterID where media is forked A completes the transfer to B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 775 Message Sequence Charts Message Sequence Charts

Page 807 diagram

Page 808

Setup: A, B are external callers to the CTI RD through a SIP trunk CTI RD has remote destination routed externally through a gateway that supports recording Table 90: Initiate a Recording at CTIRD Follow by External Other Party Transfers the Call to an External 3rd Party TSP Messages/Events Action Application opens the provider. A calls the CTI RD, remote destination answers TSP sends a LINE_REPLY TSP sends a LineDevSpecific(SLDSMT_RECORDING_STARTED) event LINEGETCALLINFO::DEVSPECIFIC CallAttributeInfo:: PartyDN = Recorder's DN PartyPartition = Recorder's Partition DeviceName = Recorder's Device Name CallAttributeType = CallAttribute_Recorded_UserInitiatedFromApp (8) RecordingAttributeInfo_ExtD0:: ForkingDeviceType = MediaForkingType_GW (2) ForkingDeviceName = trunk name to gateway GatewayCallProtocolReference = Cisco GUID ForkingClusterName = clusterID where media is forked Application issues a CCiscoLineDevSpecificStartCallRecordingwith m_InvocationType = RecordingInvocationType_UserControlledRecording (2) A setup transfer to B B answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 776 Message Sequence Charts Message Sequence Charts

Page 808 diagram

Page 809

TSP Messages/Events Action TSP sends a LineDevSpecific(SLDSMT_RECORDING_ENDED) event TSP sends a LineDevSpecific(SLDSMT_RECORDING_STARTED) event LINEGETCALLINFO::DEVSPECIFIC CallAttributeInfo:: PartyDN = Recorder's DN PartyPartition = Recorder's Partition DeviceName = Recorder's Device Name CallAttributeType = CallAttribute_Recorded_UserInitiatedFromApp (8) RecordingAttributeInfo_ExtD0:: ForkingDeviceType = MediaForkingType_GW (2) ForkingDeviceName = trunk name to gateway GatewayCallProtocolReference = Cisco GUID ForkingClusterName = clusterID where media is forked A completes the transfer to B Setup: A, B are internal callers to the CTI RD CTI RD has remote destination routed externally through a gateway that supports recording Table 91: Initiate a Recording at CTIRD Follow by Internal Other Party Conferences an Internal 3rd Party CTI Messages/Events Action Application opens the provider. A calls the CTI RD, remote destination answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 777 Message Sequence Charts Message Sequence Charts

Page 809 diagram

Page 810

CTI Messages/Events Action TSP sends a LINE_REPLY TSP sends a LineDevSpecific(SLDSMT_RECORDING_STARTED) event LINEGETCALLINFO::DEVSPECIFIC CallAttributeInfo:: PartyDN = Recorder's DN PartyPartition = Recorder's Partition DeviceName = Recorder's Device Name CallAttributeType = CallAttribute_Recorded_UserInitiatedFromApp (8) RecordingAttributeInfo_ExtD0:: ForkingDeviceType = MediaForkingType_GW (2) ForkingDeviceName = trunk name to gateway GatewayCallProtocolReference = Cisco GUID ForkingClusterName = clusterID where media is forked Application issues a CCiscoLineDevSpecificStartCallRecordingwith m_InvocationType = RecordingInvocationType_UserControlledRecording (2) A setup conference to B B answers the call TSP sends a LineDevSpecific(SLDSMT_RECORDING_ENDED) event TSP sends a LineDevSpecific(SLDSMT_RECORDING_STARTED) event LINEGETCALLINFO::DEVSPECIFIC CallAttributeInfo:: PartyDN = Recorder's DN PartyPartition = Recorder's Partition DeviceName = Recorder's Device Name CallAttributeType = CallAttribute_Recorded_UserInitiatedFromApp (8) RecordingAttributeInfo_ExtD0:: ForkingDeviceType = MediaForkingType_GW (2) ForkingDeviceName = trunk name to gateway GatewayCallProtocolReference = Cisco GUID ForkingClusterName = clusterID where media is forked A completes the conference to B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 778 Message Sequence Charts Message Sequence Charts

Page 810 diagram

Page 811

CTI Messages/Events Action TSP sends a LineDevSpecific(SLDSMT_RECORDING_ENDED) event TSP sends a LineDevSpecific(SLDSMT_RECORDING_STARTED) event LINEGETCALLINFO::DEVSPECIFIC CallAttributeInfo:: PartyDN = Recorder's DN PartyPartition = Recorder's Partition DeviceName = Recorder's Device Name CallAttributeType = CallAttribute_Recorded_UserInitiatedFromApp (8) RecordingAttributeInfo_ExtD0:: ForkingDeviceType = MediaForkingType_GW (2) ForkingDeviceName = trunk name to gateway GatewayCallProtocolReference = Cisco GUID ForkingClusterName = clusterID where media is forked B drops from the conference Setup: A, B are internal callers to the CTI RD CTI RD has remote destination routed externally through a gateway that supports recording Table 92: Initiate a Recording at CTIRD Follow by Restart Recording That Fails CTI Messages/Events Action Application opens the provider. A calls the CTI RD, remote destination answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 779 Message Sequence Charts Message Sequence Charts

Page 811 diagram

Page 812

CTI Messages/Events Action TSP sends a LINE_REPLY TSP sends a LineDevSpecific(SLDSMT_RECORDING_STARTED) event LINEGETCALLINFO::DEVSPECIFIC CallAttributeInfo:: PartyDN = Recorder's DN PartyPartition = Recorder's Partition DeviceName = Recorder's Device Name CallAttributeType = CallAttribute_Recorded_UserInitiatedFromApp (8) RecordingAttributeInfo_ExtD0:: ForkingDeviceType = MediaForkingType_GW (2) ForkingDeviceName = trunk name to gateway GatewayCallProtocolReference = Cisco GUID ForkingClusterName = clusterID where media is forkedforkingClusterID = clusterID where media is forked Application issues a CCiscoLineDevSpecificStartCallRecordingwith m_InvocationType = RecordingInvocationType_UserControlledRecording (2) A setup transfer to B B answers the call There are no recording resource available so TSP sends a LineDevSpecific(SLDSMT_RECORDING_FAILED) event Application needs to restart the recording A completes the transfer to B B setup transfer to C C answers the call No restart of recording by CTI Remote Device. B completes the transfer to C Hunt List Phones -A, B, C and X Hunt Pilots: HP1 Member LG1, LG2, LG3 HP2. Member LG11, LG12, LG13 are CTI port Pickup Group1 : has LG1, lG2, LG3, X Pickup Group2: has HP1, X TSP app opens all lines, otherwise will be stated in use case. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 780 Message Sequence Charts Hunt List

Page 812 diagram

Page 813

Basic Hunt List Call Events, requests and responses Action At A: LINE_CALLSTATE -RINGBACK Caller = A Called = HP1, HuntPilot = HP1 At LG1: LINE_CALLSTATE -ACCEPTED Caller = A, Called = HP1 HuntPilot = HP1 App initiates call from A to HP1 and call is offered to LG1 At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A LG1 answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 781 Message Sequence Charts Basic Hunt List Call

Page 813 diagram

Page 814

Events, requests and responses Action At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG2 HuntPilot = HP1 At LG2: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A LG2 answers the call Variance : perform the test with all HuntList algorithm Top-Down algorithm Circular algorithm Longest Idle Time algorithm Hunt List Call Moved to Next Member Events, requests and responses Action At A: LINE_CALLSTATE -RINGBACK Caller = A Called = HP1, Called Name = HP1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -ACCEPTED Caller = A, Called = HP1, HuntPilot = HP1 App initiates call from A to HP1 and call is offered to LG1 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 782 Message Sequence Charts Hunt List Call Moved to Next Member

Page 814 diagram

Page 815

Events, requests and responses Action Call at LG1 goes IDLE At LG2: LINE_CALLSTATE -ACCEPTED Caller = A, Called = HP1, HuntPilot = HP1 Call moves from LG1 to LG2 At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG2 HuntPilot = HP1 At LG2: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A LG2 answers the call Hunt List Calls FWNA and FWNA Is Not Configured on HuntPilot Events, requests and responses Action At A: LINE_CALLSTATE -RINGBACK Caller = A Called = HP1, HuntPilot = HP1 At LG1: LINE_CALLSTATE -ACCEPTED Caller = A, Called = HP1, HuntPilot = HP1 App initiates call from A to HP1 and call is offered to LG1 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 783 Message Sequence Charts Hunt List Calls FWNA and FWNA Is Not Configured on HuntPilot

Page 815 diagram

Page 816

Events, requests and responses Action Call at LG1 goes IDLE At LG2: LINE_CALLSTATE -ACCEPTED Caller = A, Called = HP1, HuntPilot = HP1 Call moves from LG1 to LG2 Call at LG2 goes IDLE At LG3: LINE_CALLSTATE -ACCEPTED Caller = A, Called = HP1, HuntPilot = HP1 Call moves from LG2 to LG3 At A: call will go IDLE LINEDISCONNECTMODE_NOANSWER? At LG3: call will go IDLE LINEDISCONNECTMODE_NOANSWER ? Call is aborted since LG3 does not answer the call. Hunt List Call FWNA with FWNA to B Events, requests and responses Action At A: LINE_CALLSTATE -RINGBACK Caller = A Called = HP1, HuntPilot = HP1 At LG1: LINE_CALLSTATE -ACCEPTED Caller = A, Called = HP1, HuntPilot = HP1 App initiates call from A to HP1 and call is offered to LG1 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 784 Message Sequence Charts Hunt List Call FWNA with FWNA to B

Page 816 diagram

Page 817

Events, requests and responses Action Call at LG1 goes IDLE At LG2: LINE_CALLSTATE -ACCEPTED Caller = A, Called = HP1, HuntPilot = HP1 Call moves from LG1 to LG2 Call at LG2 goes IDLE At LG3: LINE_CALLSTATE -ACCEPTED Caller = A, Called = HP1, HuntPilot = HP1 Call moves from LG2 to LG3 At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connectedid = B At LG3: call will go IDLE At B: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A Redirecting = HP1 Redirection = B Call is FWNA to B, and B answer Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 785 Message Sequence Charts Message Sequence Charts

Page 817 diagram

Page 818

Hunt List Call Dropped When Hunt List Is Busy and FWB Is Not Configured Events, requests and responses Action At A: Call disconnected after it is initiated. LINEDISCONNECTMODE_BUSY Make LG1, LG2, LG3 busy App initiates call from A to HP1 Hunt List Call Is Forwarded When Hunt List Is Busy and FWB Is Configured to B Events, requests and responses Action At A: LINE_CALLSTATE -RINGBACK Caller = A Called = HP1, Called Name = HP1 HuntPilot = HP1 At B: LINE_CALLSTATE -ACCEPTED Caller = A Called = HP1, HuntPilot = HP1 Redirecting = HP1 Redirection = B Make LG1, LG2, LG3 busy App initiates call from A to HP1 and the call is forwarded to B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 786 Message Sequence Charts Hunt List Call Dropped When Hunt List Is Busy and FWB Is Not Configured

Page 818 diagram

Page 819

HuntList Call Redirected When in ACCEPT State Events, requests and responses Action At A: LINE_CALLSTATE -RINGBACK Caller = A Called = HP1, HuntPilot = HP1 At LG1: LINE_CALLSTATE -ACCEPTED Caller = A Called = HP1, HuntPilot = HP1 App initiates call from A to HP1 and the call is offered at LG1 At A: LINE_CALLSTATE -RINGBACK Caller = A Called = HP1, HuntPilot = HP1 At LG1: Call goes IDLE At B: LINE_CALLSTATE -ACCEPTED Caller = A Called = HP1, HuntPilot = HP1 RedirectingID = HP1 RedirectionID = B LG1 redirects call to B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 787 Message Sequence Charts HuntList Call Redirected When in ACCEPT State

Page 819 diagram

Page 820

Hunt List Call Redirected When in Connected State Table 93: Message Sequence for Hunt List Call Redirected When in Connected State Events, requests and responses Action At A: LINE_CALLSTATE -RINGBACK Caller = A Called = HP1, HuntPilot = HP1 At LG1: LINE_CALLSTATE -ACCEPTED Caller = A Called = HP1, HuntPilot = HP1 App initiates call from A to HP1 and the call is offered at LG1 At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A LG1 answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 788 Message Sequence Charts Hunt List Call Redirected When in Connected State

Page 820 diagram

Page 821

Events, requests and responses Action At A : LINE_CALLSTATE -RINGBACK Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 RedirectingID = LG1 RedirectionID = B At LG1: Call goes IDLE At B: LINE_CALLSTATE -ACCEPTED Caller = A Called = HP1, HuntPilot = HP1 RedirectingID = LG1 RedirectionID = B LG1 redirects call to B Hunt List Call Member Is CTI or RP Port Events, requests and responses Action Similar expectation Same as 8.1, but with CTI port Hunt List Call Moved to Different Line Group Members and Answered by CTI Port Table 94: Message Sequence for Hunt List Call Moved to Different Line Group Members and Answered by CTI Port Events, requests and responses Action Similar expectation Same as 8.2, but with CTI port Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 789 Message Sequence Charts Hunt List Call Member Is CTI or RP Port

Page 821 diagram

Page 822

Hunt List Call Is Redirected to Another Hunt List Events, requests and responses Action At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A App initiates call from A to HP1 and the call is offered at LG1 , and LG1 answers At A: Call goes IDLE At LG1: LINE_CALLSTATE -RINGBACK Caller = LG1 HuntPilot = HP1 Called = HP1 HuntPilot = HP1 RedirectionID = HP2 RedirectingID = A At LG11: LINE_CALLSTATE -ACCEPTED Caller = LG1 HuntPilot = HP1 Called = HP2, HuntPilot = HP2 RedirectionID = HP2 RedirectingID = A A redirects the call to HP2 and call offered to LG11 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 790 Message Sequence Charts Hunt List Call Is Redirected to Another Hunt List

Page 822 diagram

Page 823

Events, requests and responses Action At LG1: LINE_CALLSTATE -CONNECTED Caller = LG1 HuntPilot = HP1 Called = HP1 HuntPilot = HP1 Connected = LG11 HuntPilot = HP2 RedirectingID = A RedirectionID = HP2 At LG11: LINE_CALLSTATE -OFFERING Caller = LG1 HuntPilot = HP1 Called = HP2, HuntPilot = HP2 Connected = LG1 HuntPilot = HP1 RedirectionID = HP2 RedirectingID = A LG11 answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 791 Message Sequence Charts Message Sequence Charts

Page 823 diagram

Page 824

Hunt List Call Is Consult Transferred to Another Line Events, requests and responses Action At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A App initiates call from A to HP1 and the call is offered at LG1 , and LG1 answers At LG1 Call-1 is put on HOLD Call-2 LINE_CALLSTATE -CONNECTED Caller = LG1 Called = B Connected = B At B: LINE_CALLSTATE -CONNECTED Caller = LG1 Called = B Connected = LG1 LG1 setup transfer to B, B answer Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 792 Message Sequence Charts Hunt List Call Is Consult Transferred to Another Line

Page 824 diagram

Page 825

Page 825 diagram

Page 826

Hunt List Call Direct Transferred to Another Line Events, requests and responses Action At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 App initiates call from A to HP1 and the call is offered at LG1 , and LG1 answers At LG1 Call-1 is put on HOLD Call-2 LINE_CALLSTATE -CONNECTED Caller = LG1 Called = B Connected = B At B: LINE_CALLSTATE -CONNECTED Caller = LG1 Called = B Connected = B LG1 calls to B, B answer Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 794 Message Sequence Charts Hunt List Call Direct Transferred to Another Line

Page 826 diagram

Page 827

Events, requests and responses Action At A : LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = B RedirectionID = B RedirectingID = LG1 At LG1: both call goes IDLE At B: LINE_CALLSTATE -CONNECTED Caller = A Called = B Connected = A RedirectionID = B RedirectingID = LG1 LG1 performs Direct Transfer Hunt List Call Is Conferenced to Another Line Events, requests and responses Action At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A App initiates call from A to HP1 and the call is offered at LG1 , and LG1 answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 795 Message Sequence Charts Hunt List Call Is Conferenced to Another Line

Page 827 diagram

Page 828

Events, requests and responses Action At LG1 ONHOLDPENDINGCONF CONFERECED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 CONNECTED Caller = LG1 Called = B Connected = B At B: LINE_CALLSTATE -CONNECTED Caller = LG1 Called = B Connected = B LG1 setup conference to B, B answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 796 Message Sequence Charts Message Sequence Charts

Page 828 diagram

Page 829

Events, requests and responses Action At A: CONNECTED CONFERENCED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 CONFERENCED Caller = A Called = B Connected = B At LG1: CONNECTED CONFERECED Caller = A Called = HP1 HuntPilot = HP1 Connected = A CONFERENCED Caller = LG1 Called = B Connected = B At B: CONNECTED CONFERENCED Caller = LG1 Called = B Connected = LG1 CONFERECED Caller = B Called = A Connected = A LG1 completes conference Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 797 Message Sequence Charts Message Sequence Charts

Page 829 diagram

Page 830

Hunt List Call Is Joined to Another Line Events, requests and responses Action At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A App initiates call from A to HP1 and the call is offered at LG1 , and LG1 answers At LG1 Call-1: ONHOLD Caller = A Called = HP1 HuntPilot = HP1 Connected = A Call-2: CONNECTED Caller = LG1 Called = B Connected = B At B: LINE_CALLSTATE -CONNECTED Caller = LG1 Called = B Connected = B LG1 calls B, B answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 798 Message Sequence Charts Hunt List Call Is Joined to Another Line

Page 830 diagram

Page 831

Events, requests and responses Action At A: CONNECTED CONFERENCED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 CONFERENCED Caller = A Called = B Connected = B At LG1: CONNECTED CONFERECED Caller = A Called = HP1 HuntPilot = HP1 Connected = A CONFERENCED Caller = LG1 Called = B Connected = B At B: CONNECTED CONFERENCED Caller = LG1 Called = B Connected = LG1 CONFERECED Caller = B Called = A Connected = A LG1 performs Join Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 799 Message Sequence Charts Message Sequence Charts

Page 831 diagram

Page 832

Hunt List Call Is Conferenced to Another Hunt List After LG11 Answers Events, requests and responses Action At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A App initiates call from A to HP1 and the call is offered at LG1 , and LG1 answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 800 Message Sequence Charts Hunt List Call Is Conferenced to Another Hunt List After LG11 Answers

Page 832 diagram

Page 833

Events, requests and responses Action At LG1 ONHOLDPENDINGCONF CONFERECED Caller = A Called = HP1 HuntPilot = HP1 Connected = A CONNECTED Caller = LG1 Called = HP2 HuntPilot = HP2 Connected = LG11 HuntPilot = HG2 At LG11: LINE_CALLSTATE -CONNECTED Caller = LG1 Called = HP2 HuntPilot = HP2 Connected = LG1 HuntPilot = HG1 LG1 setup conference to HG2, where alerting on LG11, LG11 answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 801 Message Sequence Charts Message Sequence Charts

Page 833 diagram

Page 834

Events, requests and responses Action At A: CONNECTED CONFERENCED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 CONFERENCED Caller = A Called = HP2 ->LG11 HuntPilot = HP2 Connected = LG11 HuntPilot = HP2 At LG1: CONNECTED CONFERECED Caller = A Called = HP1 HuntPilot = HP1 Connected = A CONFERENCED Caller = LG1 Called = HP2 HuntPilot = HP2 Connected = LG11 HuntPilot = HP2 LG1 completes conference Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 802 Message Sequence Charts Message Sequence Charts

Page 834 diagram

Page 835

Events, requests and responses Action At LG11: CONNECTED CONFERECED Caller = LG1 Called = HP2 HuntPilot = HP2 Connected = LG1 HuntPilot = HG1 HP name = -empty CONFERECED Caller = LG11 Called = A Connected = A HuntListCallConferenced totheSameHuntListandCompletes Conference Before HuntListAgent Answers Events, requests and responses Action At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A App initiates call from A to HP1 and the call is offered at LG1 , and LG1 answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 803 Message Sequence Charts Hunt List Call Conferenced to the Same Hunt List and Completes Conference Before Hunt List Agent Answers

Page 835 diagram

Page 836

Events, requests and responses Action At LG1 ONHOLDPENDINGCONF CONFERECED Caller = A Called = HP1 HuntPilot = HP1 Connected = A RINGBACK Caller = LG1 Called = HP1 HuntPilot = HP1 At LG2: LINE_CALLSTATE -ACCEPTED Caller = LG1 Called = HP2 HuntPilot = HP2 LG1 setup conference to HG1, where alerting on LG2, Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 804 Message Sequence Charts Message Sequence Charts

Page 836 diagram

Page 837

Events, requests and responses Action At A: CONNECTED CONFERENCED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 CONFERENCED Caller = A Called = HP1 HuntPilot = HP1 Connected = HP1 HuntPilot = HP1 At LG1: CONNECTED CONFERECED Caller = A Called = HP1 HuntPilot = HP1 Connected = A CONFERENCED Caller = LG1 Called = HP1 HuntPilot = HP1 Connected = HP1 HuntPilot = HP1 LG1 completes conference Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 805 Message Sequence Charts Message Sequence Charts

Page 837 diagram

Page 838

Events, requests and responses Action At LG2: ACCEPTED CONFERECED Caller = LG1 Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HG1 CONFERECED Caller = LG2 Called = A Connected = A Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 806 Message Sequence Charts Message Sequence Charts

Page 838 diagram

Page 839

Events, requests and responses Action At A: CONNECTED CONFERENCED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 Called Name = LG1 HuntPilot = HP1 CONFERENCED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG2 ConnectedName = LG2 HuntPilot = HP1 At LG1: CONNECTED CONFERECED Caller = A Called = HP1 Connected = A CONFERENCED Caller = LG1 Called = HP1 HuntPilot = HP1 Connected = LG2 HuntPilot = HP1 Called = A Connected = A LG2 answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 807 Message Sequence Charts Message Sequence Charts

Page 839 diagram

Page 840

Events, requests and responses Action At LG2: CONNECTED CONFERECED Caller = LG1 Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HG1 CONFERECED Caller = LG11 Hunt List Basic Call with SharedLine LG1’ is sharedline with LG1 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 808 Message Sequence Charts Hunt List Basic Call with SharedLine

Page 840 diagram

Page 841

Events, requests and responses Action At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A At LG1’: LINE_CALLSTATE -CONNECTED INACTIVE Caller = A Called = HP1 HuntPilot = HP1 Connected = A App initiates call from A to HP1 and the call is offered at LG1 , and LG1 answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 809 Message Sequence Charts Message Sequence Charts

Page 841 diagram

Page 842

Hunt List Basic Call with DND-R Configured on LG1 Events, requests and responses Action At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG2 HuntPilot = HP1 At LG2: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A App initiates call from A to HP1 and the call is offered at LG2 since LG1 has DND enabled.. Then LG2 answers Hunt List Call Put in Conference via Join Operation Events, requests and responses Action At A: Call-1 LINE_CALLSTATE -CONNECTED Caller = B Called = A Connected = B At G: LINE_CALLSTATE -CONNECTED Caller = B Called = A Connected = A B calls A, A answer Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 810 Message Sequence Charts Hunt List Basic Call with DND-R Configured on LG1

Page 842 diagram

Page 843

Events, requests and responses Action At A: Call-1 is on HOLD Call-2 LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A App initiates call from A to HP1 and the call is offered at LG1 , and LG1 answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 811 Message Sequence Charts Message Sequence Charts

Page 843 diagram

Page 844

Events, requests and responses Action Application initiates JOIN calls on A with final call as call-1 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 812 Message Sequence Charts Message Sequence Charts

Page 844 diagram

Page 845

Events, requests and responses Action At A: CONNECTED CONFERENCED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 CONFERENCED Caller = B Called = A Connected = B At LG1: CONNECTED CONFERECED Caller = A Called = HP1 HuntPilot = HP1 Connected = A CONFERENCED Caller = LG1 Called = B Connected = B At B: CONNECTED CONFERENCED Caller = B Called = A Connected = A CONFERECED Caller = B Called = LG1 HuntPilot = HP1 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 813 Message Sequence Charts Message Sequence Charts

Page 845 diagram

Page 846

Events, requests and responses Action Connected = LG1 HuntPilot = HP1 Hunt List Call Is Picked Up From Pickup Group -G-Pickup Auto Pick Pp Is Enabled Events, requests and responses Action At A: LINE_CALLSTATE -RINGBACK Caller = A Called = HP1, HuntPilot = HP1 At LG1: LINE_CALLSTATE -ACCEPTED Caller = A Called = HP1, HuntPilot = HP1 App initiates call from A to HP1 and the call is offered at LG1 Got call pickup notification of call offering at LG1 Line X got notification of the call At A: LINE_CALLSTATE -CONNECTED Caller = X Called = HP1, HuntPilot = HP1 ConnectedID = X At X: LINE_CALLSTATE -PROCEEDING Caller = X Called = PickGroup# LINE_CALLSTATE -CONNECTED Caller = X Called = PickGroup#, ConnectedID = A Line X does group pick from LG1 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 814 Message Sequence Charts Hunt List Call Is Picked Up From Pickup Group -G-Pickup Auto Pick Pp Is Enabled

Page 846 diagram

Page 847

HuntListCallIsPickedUpFromPickupGroupWhenLG1IsinPickupGroup1-AutoPickupDisabled Events, requests and responses Action At A: LINE_CALLSTATE -RINGBACK Caller = A Called = HP1, HuntPilot = HP1 At LG1: LINE_CALLSTATE -ACCEPTED Caller = A Called = HP1, HuntPilot = HP1 App initiates call from A to HP1 and the call is offered at LG1 Got call pickup notification of call offering at LG1 Line X got notification of the call Original pickup call goes IDLE Line X does group pick from LG1 At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1, HuntPilot = HP1 ConnectedID = X At X: new call offered at X from server, and answer LINE_CALLSTATE -CONNECTED Caller = A Called = X ConnectedID = A X got server call about the pickup call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 815 Message Sequence Charts Hunt List Call Is Picked Up From Pickup Group When LG1 Is in Pickup Group 1 -Auto Pickup Disabled

Page 847 diagram

Page 848

Hunt List Call Is Picked Up From Pickup Group When HP2 Is in Pickup Group 2 -Auto Pick Up Enabled Events, requests and responses Action At A: LINE_CALLSTATE -RINGBACK Caller = A Called = HP2, HuntPilot = HP2 At LG11: LINE_CALLSTATE -ACCEPTED Caller = A Called = HP2, HuntPilot = HP2 App initiates call from A to HP2 and the call is offered at LG11 Got call pickup notification of call offering at HP2 Line X got notification of the call At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP2, HuntPilot = HP2 ConnectedID = X At X: LINE_CALLSTATE -CONNECTED Caller = X Called = PickGroup#, ConnectedID = A Line X does group pick from HP2 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 816 Message Sequence Charts Hunt List Call Is Picked Up From Pickup Group When HP2 Is in Pickup Group 2 -Auto Pick Up Enabled

Page 848 diagram

Page 849

Conferenced Hunt List Call Becomes Two-Party Call Events, requests and responses Action At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A App initiates call from A to HP1 and the call is offered at LG1 , and LG1 answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 817 Message Sequence Charts Conferenced Hunt List Call Becomes Two-Party Call

Page 849 diagram

Page 850

Events, requests and responses Action At LG1 ONHOLDPENDINGCONF CONFERECED Caller = A Called = HP1 HuntPilot = HP1 Connected = A CONNECTED Caller = LG1 Called = HP2 HuntPilot = HP2 Connected = LG11 HuntPilot = HG2 At B: LINE_CALLSTATE -CONNECTED Caller = LG1 Called = HP2 HuntPilot = HP2 Connected = LG11 HuntPilot = HG2 LG1 setup conference to HG2, where alerting on LG11, LG11 answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 818 Message Sequence Charts Message Sequence Charts

Page 850 diagram

Page 851

Events, requests and responses Action At A: CONNECTED CONFERENCED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 Called Name = LG1 HuntPilot = HP1 CONFERENCED Caller = A Called = LG11 HuntPilot = HP2 Connected = LG11 HuntPilot = HP2 At LG1: CONNECTED CONFERECED Caller = A Called = HP1 HuntPilot = HP1 CONNECTED Caller = LG1 Called = HP2 HuntPilot = HP2 Connected = LG11 HuntPilot = HP2 LG1 completes conference Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 819 Message Sequence Charts Message Sequence Charts

Page 851 diagram

Page 852

Events, requests and responses Action At LG11: CONNECTED Caller = LG1 Called = HP2 HuntPilot = HP2 Connected = LG11 HuntPilot = HG2 CONFERECED Caller = LG11 Called = A Connected = A At A: Conf Parent call goes IDLE CONFERENCED call to LG11 goes IDLE CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 At LG1: Conf Parent call goes IDLE CONFERENCED call to LG11 goes IDLE CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A At LG11: Calls go IDLE LG11 drops call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 820 Message Sequence Charts Message Sequence Charts

Page 852 diagram

Page 853

Hunt List Broadcast Scenario (Broadcast Option Is Configured on HP1) Events, requests and responses Action At A: LINE_CALLSTATE -RINGBACK Caller = A Called = HP1, HuntPilot = HP1 At LG1: LINE_CALLSTATE -ACCEPTED Caller = A Called = HP1, HuntPilot = HP1 At LG2: LINE_CALLSTATE -ACCEPTED Caller = A Called = HP1, HuntPilot = HP1 At LG3: LINE_CALLSTATE -ACCEPTED Caller = A Called = HP1, HuntPilot = HP1 App initiates call from A to HP1, and call is offered at LG1, LG2 and LG3 HP Broadcast is not supported when interacting with Call PickUp feature. Note Hunt List Call Is Involved in c-Barge Conference LG1’ is sharedline with LG1 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 821 Message Sequence Charts Hunt List Broadcast Scenario (Broadcast Option Is Configured on HP1)

Image 1 from page 853

Page 853 diagram

Page 854

Page 854 diagram

Page 855

Events, requests and responses Action At LG1 ONHOLDPENDINGCONF CONFERECED Caller = A Called = HP1 HuntPilot = HP1 Connected = A CONNECTED Caller = LG1 Called = B Connected = B At LG1’: LINE_CALLSTATE -CONNECTED INACTIVE Caller = A Called = HP1 HuntPilot = HP1 Connected = A LINE_CALLSTATE -CONNECTED INACTIVE CONNECTED Caller = LG1 Called = B Connected = B At B: LINE_CALLSTATE -CONNECTED Caller = LG1 Called = B Connected = B LG1 setup conference to B, B answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 823 Message Sequence Charts Message Sequence Charts

Page 855 diagram

Page 856

Events, requests and responses Action At A: CONNECTED CONFERENCED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 CONFERENCED Caller = A Called = B Called Name = B Connected = B Called Name = B At LG1: CONNECTED CONFERECED Caller = A Called = HP1 HuntPilot = HP1 Connected = A CONFERENCED Caller = LG1 Called = B Connected = B LG1 completes conference Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 824 Message Sequence Charts Message Sequence Charts

Page 856 diagram

Page 857

Events, requests and responses Action At LG1’: CONNECTED INACTIVE CONFERECED Caller = A Called = HP1 HuntPilot = HP1 Connected = A CONFERENCED Caller = LG1 Called = B Connected = B At B: CONNECTED CONFERENCED Caller = LG1 Called = B Connected = LG1 CONFERECED Caller = B Called = A Connected = A Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 825 Message Sequence Charts Message Sequence Charts

Page 857 diagram

Page 858

Events, requests and responses Action At A: CONNECTED CONFERENCED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 CONFERENCED Caller = A Called = B Connected = B CONFERENCED Caller = A Called = LG1’ Connected = LG1’ At LG1: CONNECTED CONFERECED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 CONFERENCED Caller = LG1 Called = B Connected = B CONFERENCED Caller = LG1 Called = LG1’ Connected = LG1’ LG1’ cBarges in Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 826 Message Sequence Charts Message Sequence Charts

Page 858 diagram

Page 859

Events, requests and responses Action CONNECTED INACTIVE CONFERECED Caller = LG1’ Called = LG1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 CONFERENCED Caller = LG1’ Called = B Connected = B CONFERENCED Caller = LG1’ Called = A Connected = A At LG1’: CONNECTED CONFERECED Caller = LG1’ Called = LG1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 CONFERENCED Caller = LG1’ Called = B Connected = B CONFERENCED Caller = LG1’ Called = A Connected = A CONNECTED INACTIVE Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 827 Message Sequence Charts Message Sequence Charts

Page 859 diagram

Page 860

Events, requests and responses Action CONFERECED Caller = A Called = HP1 HuntPilot = HP1 Connected = A CONFERENCED Caller = LG1 Called = B Connected = B CONFERENCED Caller = LG1 Called = LG1’ Connected = LG1’ At B: CONNECTED CONFERENCED Caller = LG1 Called = B Connected = LG1 CONFERECED Caller = B Called = A Connected = A CONFERENCED Caller = B Called = LG1’ Connected = LG1’ Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 828 Message Sequence Charts Message Sequence Charts

Page 860 diagram

Page 861

Hunt List Feature Interact with Four-Party Conference Events, requests and responses Action At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A App initiates call from A to HP1 and the call is offered at LG1 , and LG1 answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 829 Message Sequence Charts Hunt List Feature Interact with Four-Party Conference

Page 861 diagram

Page 862

Events, requests and responses Action At LG1 ONHOLDPENDINGCONF CONFERECED Caller = A Called = HP1 HuntPilot = HP1 Connected = A CONNECTED Caller = LG1 Called = LG11 HuntPilot = HP2 Connected = LG11 HuntPilot = HG2 At LG11: LINE_CALLSTATE -CONNECTED Caller = LG1 Called = HP2 HuntPilot = HP2 Connected = LG1 HuntPilot = HG1 LG1 setup conference to HG2, where alerting on LG11, LG11 answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 830 Message Sequence Charts Message Sequence Charts

Page 862 diagram

Page 863

Events, requests and responses Action At A: CONNECTED CONFERENCED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 CONFERENCED Caller = A Called = HG2 Connected = LG11 HuntPilot = HP2 At LG1: CONNECTED CONFERECED Caller = A Called = HP1 HuntPilot = HP1 Connected = A CONFERECED Caller = LG1 Called = HP2 Connected = LG11 HuntPilot = HP2 At LG11: CONNECTED CONFERECED Caller = LG1 Called = HP2 HuntPilot = HP2 Connected = LG11 HuntPilot = HG2 LG1 completes conference Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 831 Message Sequence Charts Message Sequence Charts

Page 863 diagram

Page 864

Events, requests and responses Action CONFERECED Caller = LG11 Called = A Connected = A At LG1: ONHOLDPENDINGCONFERENCE CONFERECED Caller = A Called = HP1 HuntPilot = HP1 Connected = A CONFERECED Caller = LG1 Called = HP2 Connected = LG11 HuntPilot = HP2 CONNECTED Caller = LG1 Called = X Connected = X At X: CONNECTED Caller = LG1 Called = X Connected = LG1 LG1 setup conference to X, X answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 832 Message Sequence Charts Message Sequence Charts

Page 864 diagram

Page 865

Events, requests and responses Action LG1 completes conference Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 833 Message Sequence Charts Message Sequence Charts

Page 865 diagram

Page 866

Events, requests and responses Action At A: CONNECTED CONFERENCED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 CONFERENCED Caller = A Called = LG11 HuntPilot = HP2 Connected = LG11 HuntPilot = HP2 CONFERENCED Caller = A Called = X Connected = X At LG1: CONNECTED CONFERECED Caller = A Called = HP1 HuntPilot = HP1 Connected = A CONFERECED Caller = LG1 Called = HP2 Connected = LG11 HuntPilot = HP2 CONFERENCED Caller = LG1 Called = X Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 834 Message Sequence Charts Message Sequence Charts

Page 866 diagram

Page 867

Events, requests and responses Action Connected = X At LG11: CONNECTED CONFERECED Caller = LG1 Called = HP2 HuntPilot = HP2 Connected = LG11 HuntPilot = HG1 CONFERECED Caller = LG11 Called = A Connected = A CONFERENCED Caller = LG11 Called = X Connected = X Hunt Pilot Connected Number Feature HP1 and HP2 are 2 Huntpilots with configuration "Display Line Group Member DN as Connected Party" set. HP1: LG1, LG2, LG3(LineGroup/MemberDNs HP2: LG4, LG5, LG6(LineGroups/MemberDNs Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 835 Message Sequence Charts Hunt Pilot Connected Number Feature

Page 867 diagram

Page 868

Table 95: Basic Hunt List Call Expected events Action At A: LINE_CALLSTATE -RINGBACK Caller = A Called = HP1, HuntPilot = HP1 At LG1: LINE_CALLSTATE -ACCEPTED Caller = A, Called = HP1 HuntPilot = HP1 App initiates call from A to HP1 and call is offered to LG1 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 836 Message Sequence Charts Message Sequence Charts

Page 868 diagram

Page 869

Expected events Action At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 CPN: ModifiedCalling = A ModifiedCalled = HP1 Modifiedconnected = LG1 ModifiedRedirectingID = ModifiedRedirectionID = At LG1: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A CPN: ModifiedCalling = A ModifiedCalled = HP1 Modifiedconnected = A ModifiedRedirectingID = ModifiedRedirectionID = LG1 answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 837 Message Sequence Charts Message Sequence Charts

Page 869 diagram

Page 870

Table 96: Hunt List Call Moved to Next Member Expected events Action At A: LINE_CALLSTATE -RINGBACK Caller = A Called = HP1, HuntPilot = HP1 At LG1: LINE_CALLSTATE -ACCEPTED Caller = A, Called = HP1, HuntPilot = HP1 App initiates call from A to HP1 and call is offered to LG1 Call at LG1 goes IDLE At LG2: LINE_CALLSTATE -ACCEPTED Caller = A, Called = HP1, HuntPilot = HP1 Call moves from LG1 to LG2 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 838 Message Sequence Charts Message Sequence Charts

Page 870 diagram

Page 871

Expected events Action At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG2 HuntPilot = HP1 CPN: ModifiedCalling = A ModifiedCalled = HP1 Modifiedconnected = LG2 At LG2: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A CPN: ModifiedCalling = A ModifiedCalled = HP1 Modifiedconnected = A LG2 answers the call Variance : perform the test with all HuntList algorithm Top-Down algorithm Circular algorithm Longest Idle Time algorithm Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 839 Message Sequence Charts Message Sequence Charts

Page 871 diagram

Page 872

Table 97: Hunt List Call Is Redirected When It Is in Connected State Expected events Action At A: LINE_CALLSTATE -RINGBACK Caller = A Called = HP1, HuntPilot = HP1 At LG1: LINE_CALLSTATE -ACCEPTED Caller = A Called = HP1, HuntPilot = HP1 App initiates call from A to HP1 and the call is offered at LG1 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 840 Message Sequence Charts Message Sequence Charts

Page 872 diagram

Page 873

Expected events Action At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 CPN:ModifiedCalling = A ModifiedCalled = HP1 Modifiedconnected = LG1 ModifiedRedirectingID = ModifiedRedirectionID = At LG1: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A CPN :ModifiedCalling = A ModifiedCalled = HP1 Modifiedconnected = LG1 ModifiedRedirectingID = ModifiedRedirectionID = LG1 answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 841 Message Sequence Charts Message Sequence Charts

Page 873 diagram

Page 874

Expected events Action At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 CPN:ModifiedCalling = A ModifiedCalled = HP1 Modifiedconnected = LG1 ModifiedRedirectingID = ModifiedRedirectionID = At LG1: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A CPN :ModifiedCalling = A ModifiedCalled = HP1 Modifiedconnected = LG1 ModifiedRedirectingID = ModifiedRedirectionID = LG1 answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 842 Message Sequence Charts Message Sequence Charts

Page 874 diagram

Page 875

Expected events Action At A : LINE_CALLSTATE -RINGBACK Caller = A Called = HP1 HuntPilot = HP1 Connected = RedirectingID = HP1 RedirectionID = B CPN: ModifiedCalling = A ModifiedCalled = HP1 Modifiedconnected = ModifiedRedirectingID = [LG1] ModifiedRedirectionID = B At LG1: Call goes IDLE At B: LINE_CALLSTATE -ACCEPTED Caller = A Called = HP1, HuntPilot = HP1 RedirectingID = HP1 RedirectionID = B CPN: ModifiedCalling = A ModifiedCalled = [LG1] Modifiedconnected = ModifiedRedirectingID = LG1 ModifiedRedirectionID = B LG1 redirects call to B Table 98: Hunt List Call -member Is CTI / RP Port Expected events Action Similar expectation as of Basic Hunt Call. Same as ,Table 95: Basic Hunt List Call, on page 836 but with CTI port Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 843 Message Sequence Charts Message Sequence Charts

Page 875 diagram

Page 876

Table 99: Hunt List Call Moved to Different Line Group Members and Answered by CTI Port Expected events Action Similar expectation as of Hunt List call moved to next member. Same as ,Table 96: Hunt List Call Moved to Next Member, on page 838 but with CTI port Table 100: Hunt List Call Is Redirected to Another Hunt List Expected events Action At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A App initiates call from A to HP1 and the call is offered at LG1 , and LG1 answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 844 Message Sequence Charts Message Sequence Charts

Page 876 diagram

Page 877

Expected events Action At A: Call goes IDLE At LG1: LINE_CALLSTATE -RINGBACK Caller = LG1 HuntPilot = HP1 Called = HP1 HuntPilot = HP1 RedirectionID = HP2 RedirectingID = A CPN: ModifiedCalling = LG1 ModifiedCalled = HP1 Modifiedconnected = ModifiedRedirectingID = A ModifiedRedirectionID = HP2 At LG11: LINE_CALLSTATE -ACCEPTED Caller = LG1 HuntPilot = HP1 Called = HP2, HuntPilot = HP2 RedirectionID = HP2 RedirectingID = A CPN:ModifiedCalling = LG1 ModifiedCalled = HP2 Modifiedconnected = ModifiedRedirectingID = A ModifiedRedirectionID = HP2 A redirects the call to HP2 and call offered to LG11 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 845 Message Sequence Charts Message Sequence Charts

Page 877 diagram

Page 878

Expected events Action At LG1: LINE_CALLSTATE -CONNECTED Caller = LG1 HuntPilot = HP1 Called = HP1 HuntPilot = HP1 Connected = LG11 HuntPilot = HP2 RedirectingID = A RedirectionID = HP2 CPN: ModifiedCalling = LG1 ModifiedCalled = HP1 Modifiedconnected = LG11 ModifiedRedirectingID = A ModifiedRedirectionID = LG11 At LG11: LINE_CALLSTATE -CONNECTED Caller = LG1 HuntPilot = HP1 Called = HP2, HuntPilot = HP2 Connected = LG1 HuntPilot = HP1 RedirectionID = HP2 RedirectingID = A CPN: ModifiedCalling = LG1 ModifiedCalled = HP2 Modifiedconnected = LG1 ModifiedRedirectingID = A ModifiedRedirectionID = LG11 LG11 answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 846 Message Sequence Charts Message Sequence Charts

Page 878 diagram

Page 879

Table 101: Hunt List Call Is Consult Transferred to Another Line Expected events Action At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A App initiates call from A to HP1 and the call is offered at LG1 , and LG1 answers At LG1 Call-1 is put on HOLD Call-2 LINE_CALLSTATE -CONNECTED Caller = LG1 Called = B Connected = B At B: LINE_CALLSTATE -CONNECTED Caller = LG1 Called = B Connected = LG1 LG1 setup transfer to B, B answer Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 847 Message Sequence Charts Message Sequence Charts

Page 879 diagram

Page 880

Expected events Action At A : LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = B RedirectionID = B RedirectingID = HP1 CPN: ModifiedCalling = A ModifiedCalled = HP1 Modifiedconnected = B ModifiedRedirectingID = LG1 ModifiedRedirectionID = B At LG1: both call goes IDLE At B: LINE_CALLSTATE -CONNECTED Caller = A Called = B Connected = A RedirectionID = B RedirectingID = HP1 CPN: ModifiedCalling = A ModifiedCalled = B Modifiedconnected = A ModifiedRedirectingID = LG1 ModifiedRedirectionID = B LG1 completes transfer Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 848 Message Sequence Charts Message Sequence Charts

Page 880 diagram

Page 881

Table 102: Hunt List Call Is Conferenced to Another Line Expected events Action At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A App initiates call from A to HP1 and the call is offered at LG1 , and LG1 answers At LG1 ONHOLDPENDINGCONF CONFERECED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 CONNECTED Caller = LG1 Called = B Connected = B At B: LINE_CALLSTATE -CONNECTED Caller = LG1 Called = B Connected = B LG1 setup conference to B, B answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 849 Message Sequence Charts Message Sequence Charts

Page 881 diagram

Page 882

Expected events Action At A: CONNECTED CONFERENCED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 CONFERENCED Caller = A Called = B Connected = B At LG1: CONNECTED CONFERECED Caller = A Called = HP1 HuntPilot = HP1 Connected = A CONFERENCED Caller = LG1 Called = B Connected = B At B: CONNECTED CONFERENCED Caller = LG1 Called = B Connected = LG1 CONFERECED Caller = B Called = A Connected = A LG1 completes conference Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 850 Message Sequence Charts Message Sequence Charts

Page 882 diagram

Page 883

Table 103: Hunt List Call Is Conferenced to Another Hunt List After LG11 Answers Expected events Action At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A App initiates call from A to HP1 and the call is offered at LG1 , and LG1 answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 851 Message Sequence Charts Message Sequence Charts

Page 883 diagram

Page 884

Expected events Action At LG1 ONHOLDPENDINGCONF CONFERECED Caller = A Called = HP1 HuntPilot = HP1 Connected = A CONNECTED Caller = LG1 Called = HP2 HuntPilot = HP2 Connected = LG11 HuntPilot = HP2 At LG11: LINE_CALLSTATE -CONNECTED Caller = LG1 Called = HP2 HuntPilot = HP2 Connected = LG1 HuntPilot = HP1 LG1 setup conference to HP2, where alerting on LG11, LG11 answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 852 Message Sequence Charts Message Sequence Charts

Page 884 diagram

Page 885

Expected events Action LG1 completes conference Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 853 Message Sequence Charts Message Sequence Charts

Page 885 diagram

Page 886

Expected events Action At A: CONNECTED CONFERENCED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 CONFERENCED Caller = A Called = LG11 HuntPilot = HP2 Connected = LG11 HuntPilot = HP2 At LG1: CONNECTED CONFERECED [A-LG1] Caller = A Called = HP1 HuntPilot = HP1 Connected = A CONFERENCED[LG1-LG11] Caller = LG1 Called = HP2 HuntPilot = HP2 Connected = LG11 HuntPilot = HP2 At LG11: CONNECTED CONFERECED [LG11-LG1] Caller = LG1 Called = HP2 HuntPilot = HP2 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 854 Message Sequence Charts Message Sequence Charts

Page 886 diagram

Page 887

Expected events Action Connected = LG1 CONFERECED [LG11-A] Caller = LG11 Called = A Connected = A Caller Consult Transfer Call to Another Hunt List Events, requests and responses Action At A: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = LG1 HuntPilot = HP1 At LG1: LINE_CALLSTATE -CONNECTED Caller = A Called = HP1 HuntPilot = HP1 Connected = A App initiates call from A to HP1 and the call is offered at LG1 , and LG1 answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 855 Message Sequence Charts Caller Consult Transfer Call to Another Hunt List

Page 887 diagram

Page 888

Events, requests and responses Action At A Call-1 is put on HOLD Call-2 LINE_CALLSTATE -CONNECTED Caller = A Called = HP2 HuntPilot = HP2 Connected = LG11 HuntPilot = HP2 At LG11: LINE_CALLSTATE -CONNECTED Caller = A Called = HP2 HuntPilot = HP2 Connected = A A setup transfer to HP2, offered at LG11, LG11 anwser Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 856 Message Sequence Charts Message Sequence Charts

Page 888 diagram

Page 889

Events, requests and responses Action At LG1 : LINE_CALLSTATE -CONNECTED Caller = LG1 HuntPilot = HP1 Called = HP1 HuntPilot = HP1 Connected = LG11 HuntPilot = HP2 RedirectionID = LG11 RedirectingID = A At A: both call goes IDLE At LG11: LINE_CALLSTATE -CONNECTED Caller = LG1 HuntPilot = HP1 Called = HP2 HuntPilot = HP2 Connected = LG1 HuntPilot = HP1 RedirectionID = LG11 RedirectingID = A A completes transfer Hunt Group Login Status Use cases related to HuntGroup Login Status with extension feature are mentioned below: Device A, B. Application opens the device and the line and set the HuntGroup log in status from Login(1) to Logout(2) Expected Events Action LineInitialize successful Application does LineInitialize LineOpen on A with new ExtVesrion 0x000E0000 PhoneInitialize Successful Application does PhoneInitialize and PhoneOpen with Extension Version as 0x00030000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 857 Message Sequence Charts Hunt Group Login Status

Page 889 diagram

Page 890

Expected Events Action Phone_State Success Application does phoneSetStatusMessages • dwPhoneStates = 0xffffff • dwButtonModes = 0xc • dwButtonStates = 0x1 PHONE_REPLY with Success The request to set the HuntLog Status is sent using CCiscoPhoneDevSpecificSetHuntGroupLoginStatus PHONE_STATE received with • PHONESTATE_CAPSCHANGE= 0x00400000 • PHONECAPS_DEVSPECIFIC_HUNTGROUP_ LOGIN_STATUS = 1 • HuntGroupLoginStatus = 2 (CCiscoPhoneDevSpecificSetHuntGroupLoginStatus)... • PARAM: hPhone • PARAM: m_HuntGroupLoginStatus = 2 (Logout) • PARAM: returnCode Application opens the device and the line and set the HuntGroup log in status from Login(1) to Login(1) Expected Events Action LineInitialize successful Application does LineInitialize LineOpen on A with new ExtVesrion 0x000E0000 PhoneInitialize Successful Application does PhoneInitialize and PhoneOpen with Extension Version as 0x00030000 PHONE_STATE Success Application does phoneSetStatusMessages: • dwPhoneStates = 0xffffff • dwButtonModes = 0xc • dwButtonStates = 0x1 PHONE_REPLY with Success The request to set the HuntLog Status is sent using CCiscoPhoneDevSpecificSetHuntGroupLoginStatus No event will be sent to the application. (CCiscoPhoneDevSpecificSetHuntGroupLoginStatus)... • PARAM: hPhone • PARAM: m_HuntGroupLoginStatus = 1 (Logout) • PARAM: returnCode Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 858 Message Sequence Charts Message Sequence Charts

Page 890 diagram

Page 891

Application opens the device and the line and get HuntGroupLogin status of the device using LineGetDevCaps Expected Events Action LineInitialize successful Application does LineInitialize LineOpen on A with new ExtVesrion 0x000E0000 PhoneInitialize Successful Application does PhoneInitialize and PhoneOpen with Extension Version as 0x00030000 LineGetDevCaps Successful Application queries the capabilities by using LineGetDevCaps with the extension 0x000E0000 and gets back the HuntGroupLogin Status. Application opens the device and the line and set the HuntGroup Login Status field as any number not falling in the range of(0,1,2) Expected Events Action LineInitialize successful Application does LineInitialize LineOpen on A with new ExtVesrion 0x000E0000 PhoneInitialize Successful Application does PhoneInitialize and PhoneOpen with Extension Version as 0x00030000 PHONE_STATE Success Application does phoneSetStatusMessages • dwPhoneStates = 0xffffff • dwButtonModes = 0xc • dwButtonStates = 0x1 PHONE_REPLY with error The request to set the HuntLog Status is sent using CCiscoPhoneDevSpecificSetHuntGroupLoginStatus LINEERR_INVALPARAM is returned to the application. (CCiscoPhoneDevSpecificSetHuntGroupLoginStatus)... • PARAM: hPhone • PARAM: m_HuntGroupLoginStatus = 5 • PARAM: returnCode Application updates the HuntGroup Login Status on Unsupported Device. Expected Events Action LineInitialize successful Application does LineInitialize LineOpen on A(Cti Route point) with new ExtVersion 0x000E0000 PhoneInitialize Successful Application does PhoneInitialize and PhoneOpen with Extension Version as 0x00030000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 859 Message Sequence Charts Message Sequence Charts

Page 891 diagram

Page 892

Expected Events Action PHONE_STATE Success Application does phoneSetStatusMessages • dwPhoneStates = 0xffffff • dwButtonModes = 0xc • dwButtonStates = 0x1 PHONE_REPLY with error The request to set the HuntLog Status is sent using CCiscoPhoneDevSpecificSetHuntGroupLoginStatus LINEERR_OPERATIONUNAVAIL is returned to the application. (CCiscoPhoneDevSpecificSetHuntGroupLoginStatus)... • PARAM: hPhone • PARAM: m_HuntGroupLoginStatus = 1 • PARAM: returnCode Application calls to Hunt Pilot where the Hunt Member is logged into HuntGroup Login. Phones - A, B, C Hunt Pilot - HP1 Member - LG1 LG1 has the members - Phone B and C. B is Logged out of the huntGroup Expected Events Action LineInitialize successful Application does LineInitialize LineOpen on A with new ExtVesrion 0x000E0000 LineOpen on B with new ExtVesrion 0x000E0000 LineOpen on C with new ExtVesrion 0x000E0000 PhoneInitialize Successful Application does PhoneInitialize and PhoneOpen on B with Extension Version as 0x00030000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 860 Message Sequence Charts Message Sequence Charts

Page 892 diagram

Page 893

Expected Events Action At A: • LINE_CALLSTATE (DIALING) • Caller = A • Called = HP1 • Hunt Pilot= HP1 • LINE_CALLSTATE (PROCEEEDING) Application initiates call from A to HP(hunt pilot) and call is offered to LG1 At C: • LINE_CALLSTATE (OFFERING) • Caller = A • Called = HP1 B does not get the call as it is logged out of the HuntGroup At C: • LINE_CALLSTATE (CONNECTED-ACTIVE) • Caller = A • Called = HP1 • Hunt Pilot= HP1 • Connected = A At A: • LINE_CALLSTATE (CONNECTED-ACTIVE) • Caller = A • Called = HP1 • Hunt Pilot= HP1 • Connected = LG1 C starts to ring and accepts the call. Intercom This configuration gets used for all the following use cases: 1. IPPhone A has two lines, line1 (1000) and line2 (5000). Line2 represents an intercom line. Speeddial to 5001 with label ìAssistant_1î gets configured. 2. IPPhone B has three lines, line1 (1001), line2 (5001), and Line3 (5002). Line2 and Line3 represent intercom lines. Speeddial to 5000 with label ìManager_1î gets configured on line2. Line 3 does not have Speeddial configured for it. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 861 Message Sequence Charts Intercom

Page 893 diagram

Page 894

IPPhone C has two lines, line1 (1002) and line2 (5003). 5003 represents an intercom line that is configured with Speeddial to 5002 with label ìAssistant_5002î. 4. IPPhone D has one line (5004). 5004 represnts an intercom line. 5. CTIPort X has two lines, line1 (2000) and line2 (5555). Line2 represents an intercom line. Speedial to 5001 gets configured with label ìAssistant_1î. 6. Intercom lines (5000 to 5003) exists in same partition = Intercom_Group_1 and they remain reachable from each other. 5004 exists in Intercom_Group_2. 7. Application monitoring all lines on all devices. Assumption: Application initialized and CTI provided the details on speeddial and lines with intercom line on all the devices. Behavior should act the same for phones that are running SCCP, and those that are running SIP. Application Invoking Speeddial Events Action For 5000 receive LINE_CALLSTATE cbInst = x0 param1 = x03000000 param2 = x1, ACTIVE param3 = x0, Receive StartTransmission event For 5001 receive LINE_CALLSTATE cbInst = x0 param1 = x03000000 param2 = x1, ACTIVE param3 = x0, Receive StartReception event Receive zipzip tone with reason as intercom LineOpen on 5000 & 5001 Initiate InterCom Call on 5000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 862 Message Sequence Charts Application Invoking Speeddial

Page 894 diagram

Page 895

Agent Invokes Talkback Events Action For 5000 receive LINE_CALLSTATE device = x10218 param1 = x100, CONNECTED param2 = x1, ACTIVE param3 = x0, Receive StartReception event For 5001 receive LINE_CALLSTATE device = x101f6 cbInst = x0 param1 = x100, CONNECTED param2 = x1, ACTIVE param3 = x0, Receive StartTransmission event Continuing from the previous use case, 5001 initiates LineTalkBack from application on the InterCom call Change the SpeedDial Events Action The new speed dial and label is successfully set for the intercom line Receive LineSpeeddialChangeEvent from CTI Send LINE_DEVSPECIFIC to indicate that speeddial and label changed Open line 5000 LineChangeSpeeddial request (speeddial to 5003, label = “Assistant_5003”) TAPI returns configured speeddial/label that is configured on the line. Application issues LIneGetDevCaps to retrieve speeddial/label that is set on the line IPv6 Use Cases The use cases related to IPv6 are provided below: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 863 Message Sequence Charts Agent Invokes Talkback

Page 895 diagram

Page 896

Register CTI Port with IPv4 When Unified CM Is IPv6 Disabled and Common Device Configuration Is IPv4 Expected result Steps Application is able to register CTI Port with IPv4 address. 1. Enterprise parameter for IPv6 is disabled. IP addressing mode for CTI Port = IPv4 only on common device config page. 2. Open provider and do a LineNegotiateExtensionVersion with the higher bit set on both dwExtLowVersion and dwExtHighVersion 3. Application does a LineOpen with new Ext ver. The lineopen will be delayed till user specifies the Addressing mode 4. Application uses CCiscoLineDevSpecificSetIPAddressMode to set the addressing mode as IPv4. Application uses CciscoLineDevSpecificSendLineOpen to trigger Lineopen. Register CTI Port with IPv6 When Unified CM Is IPv6 Disabled and Common Device Configuration Is IPv6 Expected result Steps Application is not able to register CTI Port. TSP returns error LINEERR_OPERATIONUNAVAIL 1. Enterprise parameter for IPv6 is disabled. IP addressing mode for CTI Port = IPv6 only on common device config page. 2. Open provider and do a LineNegotiateExtensionVersion with the higher bit set on both dwExtLowVersion and dwExtHighVersion 3. Application does a LineOpen with new Ext ver. The lineopen will be delayed till user specifies the Addressing mode 4. Application uses CCiscoLineDevSpecificSetIPAddressMode to set the addressing mode as IPv6. Application uses CciscoLineDevSpecificSendLineOpen to trigger Lineopen. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 864 Message Sequence Charts Message Sequence Charts

Page 896 diagram

Page 897

Register CTI Port with IPv6 When Unified CM Is IPv6 Disabled and Common Device Configuration Is IPv4_v6 Expected result Steps Application is not able to register CTI Port. TSP returns error LINEERR_OPERATIONUNAVAIL 1. Enterprise parameter for IPv6 is disabled. IP addressing mode for CTI Port = IPv4_v6 on common device config page. 2. Open provider and do a LineNegotiateExtensionVersion with the higher bit set on both dwExtLowVersion and dwExtHighVersion 3. Application does a LineOpen with new Ext ver. The lineopen will be delayed till user specifies the Addressing mode 4. Application uses CCiscoLineDevSpecificSetIPAddressMode to set the addressing mode as IPv6. Application uses CciscoLineDevSpecificSendLineOpen to trigger Lineopen. IPv6 Phone A Calls IPv6 Phone B Expected result Steps FireCallState = Offering, Do a GetlineCallInfo. LineCallInfo contains the following in devspecific part, FarEndIPAddress: Blank FarEndIPAddressIpv6: IPv6 address of A Do a GetLinecallInfo, LineCallInfo contains the following in devspecific part, TransmissionRTPDestinationAddress = IPv6 address of B. ReceptionRTPDestinationAddress = IPv6 address of A. Do a GetLinecallInfo, LineCallInfo contains the following in devspecific part, TransmissionRTPDestinationAddress = IPv6 address of A. ReceptionRTPDestinationAddress = IPv6 address of B. 1. Enterprise parameter for IPv6 is enabled. 2. Open two lines A and B 3. Phone A which is IPv6 calls Phone B which is IPv6 4. Events at Phone B 1. While Media is established: • Events on phone A • Event on phone B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 865 Message Sequence Charts Message Sequence Charts

Page 897 diagram

Page 898

IPv4_v6 Phone Calls IPv6 Phone Expected result Steps FireCallState = Offering, Do a GetlineCallInfo. LineCallInfo contains the following in devspecific part, FarEndIPAddress: IPv4 address of A FarEndIPAddressIpv6: IPv6 address of A Do a GetLinecallInfo, LineCallInfo contains the following in devspecific part, TransmissionRTPDestinationAddress = IPv6 address of B. ReceptionRTPDestinationAddress = IPv6 address of A. Do a GetLinecallInfo, LineCallInfo contains the following in devspecific part, TransmissionRTPDestinationAddress = IPv6 address of A. ReceptionRTPDestinationAddress = IPv6 address of B. 1. Enterprise parameter for IPv6 is enabled. 2. Open two lines A and B 3. Phone A which is IPv4_v6 calls Phone B which is IPv6 4. Events at Phone B 1. While Media is established: • Events on phone A • Event on phone B IPv4 Phone Calls IPv6 Phone Expected result Steps FireCallState = Offering, Do a GetlineCallInfo. LineCallInfo contains the following in devspecific part, FarEndIPAddress: IPv4 address of A FarEndIPAddressIpv6: Do a GetLinecallInfo, LineCallInfo contains the following in devspecific part, TransmissionRTPDestinationAddress = IPv4 address of MTP Resource. ReceptionRTPDestinationAddress = IPv4 address of A. Do a GetLinecallInfo, LineCallInfo contains the following in devspecific part, TransmissionRTPDestinationAddress = IPv6 address of MTP Resource. ReceptionRTPDestinationAddress = IPv6 address of B. 1. Enterprise parameter for IPv6 is enabled. 2. Open two lines A and B 3. Phone A which is IPv4 calls Phone B which is IPv6 4. Events at Phone B 1. While Media is established: • Events on phone A • Event on phone B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 866 Message Sequence Charts Message Sequence Charts

Page 898 diagram

Page 899

IPv6 Phone Calls IPv4 Phone Expected result Steps FireCallState = Offering, Do a GetlineCallInfo. LineCallInfo contains the following in devspecific part, FarEndIPAddress: FarEndIPAddressIpv6: IPv6 address of A Do a GetLinecallInfo, LineCallInfo will contain the following in devspecific part, TransmissionRTPDestinationAddress = IPv6 address of MTP Resource. ReceptionRTPDestinationAddress = IPv6 address of A. Do a GetLinecallInfo, LineCallInfo contains the following in devspecific part, TransmissionRTPDestinationAddress = IPv4 address of MTP Resource. ReceptionRTPDestinationAddress = IPv4 address of B. 1. Enterprise parameter for IPv6 is enabled. 2. Open two lines A and B 3. Phone A which is IPv6 only calls Phone B which is IPv4 4. Events at Phone B 1. While Media is established: • Events on phone A • Event on phone B IPv6 Phone Calls IPv4_v6 Phone Expected result Steps Existing Call, Do a GetlineCallInfo. LineCallInfo contains the following in devspecific part, FarEndIPAddress: FarEndIPAddressIpv6: IPv6 address of A Do a GetLinecallInfo, LineCallInfo contains the following in devspecific part, TransmissionRTPDestinationAddress = IPv6 address of MTP Resource. ReceptionRTPDestinationAddress = IPv6 address of A. Do a GetLinecallInfo, LineCallInfo contains the following in devspecific part, TransmissionRTPDestinationAddress = IPv6 address of Phone A. ReceptionRTPDestinationAddress = IPv6 address of B. 1. Enterprise parameter for IPv6 is enabled. 2. Phone A which is IPv6 only calls Phone B which is IPv4_v6 only. 3. Open lines A and B 4. Events at Phone B 1. While Media is established: • Events on phone A • Event on phone B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 867 Message Sequence Charts Message Sequence Charts

Page 899 diagram

Page 900

Common Device Configuration Device Mode Changes From IPv4_v6 to IPv4 Expected result Steps Application receives LineDevSpecific for the opened CTI Ports/RP in the device config indicating that Addressing mode has changed. All lines registered as IPv6 get a LINE_CLOSE Event. Application can then re-register these lines later. User changes the device configuration on common device configuration from IPv4_v6 to IPv4 only Common Device Configuration Device Mode Changes From IPv4 to IPv6 Expected result Steps Application receives LineDevSpecific for the opened CTI Ports/RP in the device config indicating that Addressing mode has changed. All lines registered as IPv4 get a LINE_CLOSE Event. Application can then re-register these lines later. User changes the device configuration on common device configuration from IPv4 only to IPv6 only Join Across Lines Setup Line A on device A Line B1 and B2 on device B Line C on device C Line D on device D Line B1’ on device B1’, B1’ is a shared line with B1 Join Two Calls From Different Lines to B1 Expected events Action For A A ‡ B1 is HOLD LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B1 Connected B1 C ‡ B2 is connected For B1: LINE_CALLSTATE param1 = x100, HOLD Caller = A, Called = B1, Connected = A For B2: LINE_CALLSTATE param1 = x100, CONNECTED Caller = C, Called = B2 , Connected = C For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = C, Called = B2, Connected = B2 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 868 Message Sequence Charts Join Across Lines

Page 900 diagram

Page 901

Expected events Action For B1’: LINE_CALLSTATE param1 = x100, CONNECTED, INACTIVE Caller = A, Called = B1, Connected = A For A Application issues lineDevSpecific(SLDST_JOIN) with the call on B1 as survival call CONNECTED CONFERENCED Caller = A, Called = B1, Connected = B1 CONFERENCED Caller = A Called = C, Connected = C For B1 CONNECTED CONFERENCED Caller = A, Called = B1, Connected = A CONFERENCED Caller = B1 Called = C, Connected = C For B2 Call will go IDLE For C CONNECTED CONFERENCED Caller = C, Called = B2, Connected = B1 (or A) CONFERENCED Caller = C Called = A, Connected = A (or B1) For B1’ CONNECTED INACTIVE CONFERENCED Caller = A, Called = B1, Connected = A CONFERENCED Caller = B1 Called = C, Connected = C Join Three Calls From Different Lines to B1 Expected events Action A ‡ B1 is hold, C ‡ B2 is hold For A: D ‡ B2 is connected LINE_CALLSTATE Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 869 Message Sequence Charts Message Sequence Charts

Page 901 diagram

Page 902

Expected events Action param1 = x100, CONNECTED Caller = A, Called = B1 Connected B1 For B1: LINE_CALLSTATE param1 = x100, HOLD Caller = A, Called = B1, Connected = A For B2: LINE_CALLSTATE for call-1 param1 = x100, HOLD Caller = C, Called = B2 , Connected = C LINE_CALLSTATE for call-2 param1 = x100, CONNECTED Caller = D, Called = B2 , Connected = D For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = C, Called = B2, Connected = B2 For D: LINE_CALLSTATE param1 = x100, CONNECTED Caller = D, Called = B2, Connected = B2 For B1’: LINE_CALLSTATE param1 = x100, HOLD Caller = A, Called = B1, Connected = A For A Application issues lineDevSpecific(SLDST_JOIN) with the call on B1 as survival call CONNECTED CONFERENCED Caller = A, Called = B1, Connected = B1 CONFERENCED Caller = A Called = C, Connected = C CONFERENCED Caller = A Called = D, Connected = D For B1 CONNECTED Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 870 Message Sequence Charts Message Sequence Charts

Page 902 diagram

Page 903

Expected events Action CONFERENCED Caller = A, Called = B1, Connected = A CONFERENCED Caller = B1 Called = C, Connected = C CONFERENCED Caller = B1 Called = D, Connected = D For B2 Call-1 and call-2 will go IDLE For C CONNECTED CONFERENCED Caller = B1, Called = C, Connected = B1 CONFERENCED Caller = C Called = A, Connected = A CONFERENCED Caller = C Called = D, Connected = D For D CONNECTED CONFERENCED Caller = B1, Called = C, Connected = B1 CONFERENCED Caller = D Called = A, Connected = A CONFERENCED Caller = D Called = C, Connected = C For B1’ CONNECTED INACTIVE CONFERENCED Caller = A, Called = B1, Connected = A CONFERENCED Caller = B1 Called = C, Connected = C CONFERENCED Caller = B1 Called = D, Connected = D Join Calls From Different Lines to B1 with Conference Expected events Action For A: A,B1,C in conference where B1 is controller D‡ B2 Connected CONNECTED CONFERENCED Caller = A, Called = B1, Connected = A CONFERENCED Caller = A Called = C, Connected = C Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 871 Message Sequence Charts Message Sequence Charts

Page 903 diagram

Page 904

Expected events Action For B1: CONNECTED CONFERENCED Caller = A, Called = B1, Connected = A CONFERENCED Caller = B1 Called = C, Connected = C For B2: LINE_CALLSTATE for call-1 param1 = x100, CONNECTED Caller = D, Called = B2 , Connected = D For C: CONNECTED CONFERENCED Caller = C, Called = A, Connected = A CONFERENCED Caller = B1 Called = C, Connected = C For D: LINE_CALLSTATE param1 = x100, CONNECTED Caller = D, Called = B2, Connected = B2 For B1’: LINE_CALLSTATE CONNECTED INACTIVE CONFERENCED Caller = A, Called = B1, Connected = A CONFERENCED Caller = B1 Called = C, Connected = C For A Application issues lineDevSpecific(SLDST_JOIN) with the call on B1 as survival call CONNECTED CONFERENCED Caller = A, Called = B1, Connected = B1 CONFERENCED Caller = A Called = C, Connected = C CONFERENCED Caller = A Called = D, Connected = D For B1 CONNECTED Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 872 Message Sequence Charts Message Sequence Charts

Page 904 diagram

Page 905

Expected events Action CONFERENCED Caller = A, Called = B1, Connected = A CONFERENCED Caller = B1 Called = C, Connected = C CONFERENCED Caller = B1 Called = D, Connected = D For B2 Call will go IDLE For C CONNECTED CONFERENCED Caller = B1, Called = C, Connected = B1 CONFERENCED Caller = C Called = A, Connected = A CONFERENCED Caller = C Called = D, Connected = D For D CONNECTED CONFERENCED Caller = B1, Called = C, Connected = B1 CONFERENCED Caller = D Called = A, Connected = A CONFERENCED Caller = D Called = C, Connected = C For B1’ CONNECTED INACTIVE CONFERENCED Caller = A, Called = B1, Connected = A CONFERENCED Caller = B1 Called = C, Connected = C CONFERENCED Caller = B1 Called = D, Connected = D Join Two Calls From Different Lines to B1 While B1 Is Not Monitored by TAPI Expected events Action A ‡ B1 is HOLD, For A: C ‡ B2 is connected LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B1 Connected B1 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 873 Message Sequence Charts Message Sequence Charts

Page 905 diagram

Page 906

Expected events Action For B2: LINE_CALLSTATE param1 = x100, CONNECTED Caller = C, Called = B2 , Connected = C For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = C, Called = B2, Connected = B2 For A User issues join request from phone with the call on B1 as survival call CONNECTED CONFERENCED Caller = A, Called = B1, Connected = B1 CONFERENCED Caller = A Called = C, Connected = C For B2 Call will go IDLE For C CONNECTED CONFERENCED Caller = C, Called = B2, Connected = B1 (or A) CONFERENCED Caller = C Called = A, Connected = A (or B1) Join Two Calls From Different Lines to B2 Expected events Action A ‡ B1 is HOLD, For A: C ‡ B2 is connected LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B1 Connected B1 For B1: LINE_CALLSTATE Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 874 Message Sequence Charts Message Sequence Charts

Page 906 diagram

Page 907

Expected events Action param1 = x100, HOLD Caller = A, Called = B1, Connected = A For B2: LINE_CALLSTATE param1 = x100, CONNECTED Caller = C, Called = B2 , Connected = C For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = C, Called = B2, Connected = B2 For B1’: LINE_CALLSTATE param1 = x100, HOLD Caller = A, Called = B1, Connected = A For A Application issues lineDevSpecific(SLDST_JOIN) with the call on B1 as survival call CONNECTED CONFERENCED Caller = A, Called = B1, Connected = B1 CONFERENCED Caller = A Called = C, Connected = C For B1 CONNECTED CONFERENCED Caller = A, Called = B1, Connected = A CONFERENCED Caller = B1 Called = C, Connected = C ?? For B2 Call will go IDLE For C CONNECTED CONFERENCED Caller = C, Called = B2, Connected = B1 (or A) CONFERENCED Caller = C Called = A, Connected = A (or B1) For B1’ Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 875 Message Sequence Charts Message Sequence Charts

Page 907 diagram

Page 908

Expected events Action CONNECTED INACTIVE CONFERENCED Caller = A, Called = B1, Connected = A CONFERENCED Caller = B1 Called = C, Connected = C Expected events Action For A: A ‡ B1 is HOLD, B1 issues setup conference C ‡ B2 is connected LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B1 Connected B1 For B1: Primary call LINE_CALLSTATE CONNECTED CONFERENCED Caller = A, Called = B1, Connected = B1 Consult call DIALTONE For B2: LINE_CALLSTATE param1 = x100, CONNECTED Caller = C, Called = B2 , Connected = C For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = C, Called = B2, Connected = B2 For B1’: LINE_CALLSTATE param1 = x100, HOLD Caller = A, Called = B1, Connected = A Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 876 Message Sequence Charts Message Sequence Charts

Page 908 diagram

Page 909

Expected events Action For A: Application issues lineDevSpecific(SLDST_JOIN) with the call on B2 as survival call CONNECTED CONFERENCED Caller = A, Called = B1, Connected = B2 CONFERENCED Caller = A Called = C, Connected = C For B1 Both calls will go IDLE For B2 CONNECTED CONFERENCED Caller = B1, Called = A, Connected = A CONFERENCED Caller = C Called = B1, Connected = C For C CONNECTED CONFERENCED Caller = C, Called = B2, Connected = B2 (or A) CONFERENCED Caller = C Called = A, Connected = A (or B2) For B1’ Calls go IDLE B1 Performs a Join Across Line Where B1 Is Already in a Conference Created by A Expected events Action For A: A, B1, C are in a conference created by A Conference – Caller = A, Called = B1, Connected = B1 Connected Conference – Caller = A, Called = C, Connected = C For B1: Conference – Caller = A, Called = B1, Connected = A Connected Conference – Caller = B1, Called = C, Connected = C Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 877 Message Sequence Charts Message Sequence Charts

Page 909 diagram

Page 910

Expected events Action For C: Conference – Caller = B1, Called = C, Connected = B1 Connected Conference – Caller = C, Called = A, Connected = A For A: B2 calls D, D answers Conference – Caller = A, Called = B1, Connected = B1 Connected Conference – Caller = A, Called = C, Connected = C For B1: Conference – Caller = A, Called = B1, Connected = A OnHold Conference – Caller = B1, Called = C, Connected = C For B2: Connected -Caller = B2, Called = D, Connected = D For C: Conference – Caller = B1, Called = C, Connected = B1 Connected Conference – Caller = C, Called = A, Connected = A Connected -Caller = B2, Called = D, Connected = B2 For A: B1 issues a lineDevSpecific(SLDST_JOIN) to join the calls on B1 and B2. Conference – Caller = A, Called = B1, Connected = B1 Connected Conference – Caller = A, Called = C, Connected = C Conference – Caller = A, Called = D, Connected = D For B1: Conference – Caller = A, Called = B1, Connected = B1 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 878 Message Sequence Charts Message Sequence Charts

Page 910 diagram

Page 911

Expected events Action Conference – Caller = A, Called = B1, Connected = A Connected Conference – Caller = B1, Called = C, Connected = C Conference – Caller = B1, Called = D, Connected = D For B2: Call will go IDLE For C: Conference – Caller = B1, Called = C, Connected = B1 Connected Conference – Caller = C, Called = A, Connected = A Conference – Caller = C, Called = D, Connected = D For D: Conference – Caller = B1, Called = D, Connected = B1 Connected Conference – Caller = D, Called = A, Connected = A Conference – Caller = D, Called = C, Connected = C B2 Performs a Join Across Line Where B1 Is Already in a Conference Created by A Expected events Action For A: A,B1,C are in a conference created by A Conference – Caller = A, Called = B1, Connected = B1 Connected Conference – Caller = A, Called = C, Connected = C For B1: Conference – Caller = A, Called = B1, Connected = A Connected Conference – Caller = B1, Called = C, Connected = C For C: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 879 Message Sequence Charts Message Sequence Charts

Page 911 diagram

Page 912

Expected events Action Conference – Caller = B1, Called = C, Connected = B1 Connected Conference – Caller = C, Called = A, Connected = A For A: B2 calls D, D answers Conference – Caller = A, Called = B1, Connected = B1 Connected Conference – Caller = A, Called = C, Connected = C For B1: Conference – Caller = A, Called = B1, Connected = A OnHold Conference – Caller = B1, Called = C, Connected = C For B2: Connected -Caller = B2, Called = D, Connected = D For C: Conference – Caller = B1, Called = C, Connected = B1 Connected Conference – Caller = C, Called = A, Connected = A For D: Connected -Caller = B2, Called = D, Connected = B2 For A: B2 issues a lineDevSpecific(SLDST_JOIN) to join the calls on B1 and B2. Conference – Caller = A, Called = B1, Connected = B2 Connected Conference – Caller = A, Called = C, Connected = C Conference – Caller = A, Called = D, Connected = D For B1: Conference – Caller = A, Called = B1, Connected = A Connected Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 880 Message Sequence Charts Message Sequence Charts

Page 912 diagram

Page 913

Expected events Action Conference – Caller = B1, Called = C, Connected = C Conference – Caller = B1, Called = D, Connected = D For B2: Call will go IDLE For C: Conference – Caller = B2, Called = C, Connected = B2 Connected Conference – Caller = C, Called = A, Connected = A Conference – Caller = C, Called = D, Connected = D For D: Conference – Caller = B2, Called = D, Connected = B2 Connected Conference – Caller = D, Called = A, Connected = A Conference – Caller = D, Called = C, Connected = C B1 Performs a Join Across Line Where B1 Is in One Conference and B2 Is in a Separate Conference Expected events Action For A (GCID-1): A,B1,C are in conference1 D, B2, E are in conference2 Conference – Caller = A, Called = B1, Connected = B1 Connected Conference – Caller = A, Called = C, Connected = C For B1 (GCID-1): Conference – Caller = A, Called = B1, Connected = A OnHold Conference – Caller = B1, Called = C, Connected = C For C (GCID-1): Conference – Caller = B1, Called = C, Connected = B1 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 881 Message Sequence Charts Message Sequence Charts

Page 913 diagram

Page 914

Expected events Action Connected Conference – Caller = C, Called = A, Connected = A For D (GCID-2): Conference – Caller = D, Called = B2, Connected = B2 Connected Conference – Caller = D, Called = E, Connected = E For B2 (GCID-2): Conference – Caller = D, Called = B2, Connected = D Connected Conference – Caller = B2, Called = E, Connected = E For E (GCID-2): Conference – Caller = B2, Called = E, Connected = B2 Connected Conference – Caller = E, Called = D, Connected = D For A: B1 issues a lineDevSpecific(SLDST_JOIN) to join the calls on B1 and B2. Conference – Caller = A, Called = B1, Connected = B1 Connected Conference – Caller = A, Called = C, Connected = C Conference – Caller = A, Called = CFB-2, Connected = CFB-2 For B1: Conference – Caller = A, Called = B1, Connected = A Connected Conference – Caller = B1, Called = C, Connected = C Conference – Caller = B1, Called = CFB-2, Connected = CFB-2 For B2: Call will go IDLE For C: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 882 Message Sequence Charts Message Sequence Charts

Page 914 diagram

Page 915

Expected events Action Conference – Caller = B1, Called = C, Connected = B1 Connected Conference – Caller = C, Called = A, Connected = A Conference – Caller = C, Called = CFB-2, Connected = CFB-2 For D: Connected Conference – Caller = D, Called = E, Connected = E conference – Caller = D, Called = CFB-1, Connected = CFB-1 For E: Connected Conference – Caller = E, Called = D, Connected = D Conference – Caller = E, Called = CFB-1, Connected = CFB-1 Logical Partitioning Use cases related to Logical Partitioning feature are mentioned below: Basic Call Scenario Basic Call scenario ; Logical partitioning Enabled = true Basic Call failure due to Logical partitioning Feature Policy. Description A (VOIP) on one Geolocation A calls B: LineMakeCall on A Dails B (DN) Variant 1: B Geo-Location was not Configured;B(PSTN);Policy Config : Interior to Interior Variant 2: B (PSTN) on another GeoLocation Test Setup Variant 1: Call will be successful; Reason: LP_IGNORE. Variant 2: A goes to Proceeding State and then On A there will be a DISCONNECTED call state will be sent to application with cause as LINEDISCONNECTMODE_UNKNOWN. Expected Results Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 883 Message Sequence Charts Logical Partitioning

Page 915 diagram

Page 916

Redirect Scenario Redirect scenario ; Logical partitioning Enabled = true Redirect Call failure due to Logical partitioning Feature Policy. Description Two Clusters (Cluster1 and Cluster2) configured with logical partition policy that will restrict the VOIP calls from Cluster1 to PSTN calls on Cluster2. (vice versa PSTN to VIOP) A on Cluster1 (VOIP) B on Cluster2 (VOIP) C on Cluster2 (PSTN) A calls B B redirects the call to C Test Setup Operation fails with error code LINEERR_OPERATION_FAIL_PARTITIONING_POLICY. Error code is processed on Cluster2 Expected Results For Forward Operation same behaviour will be observed. Variants Transfer Call Scenario Transfer Call scenario ; Logical partitioning Enabled = true Transfer Call failure due to Logical partitioning Feature Policy. Description A (VOIP) in one GeoLocation (GeoLoc 1) B (VOIP) in another GeoLocation(GeoLoc 2) C (PSTN)in same GeoLocation as B (GeoLoc 2) A calls B SetUpTransfer on B. On Consult Call at B; Dials C. Complete Transfer on B. Test Setup Operation fails with error code "LINEERR_OPERATIONUNAVAIL". Expected Results For Operation Adhoc Conference same behaviour will be observed. Variants Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 884 Message Sequence Charts Message Sequence Charts

Page 916 diagram

Page 917

Join Scenario Join scenario; Logical partitioning Enabled = true Join failure due to Logical partitioning Feature Policy. Description A (VOIP) in one GeoLocation (GeoLoc 1) B (VOIP) in another GeoLocation(GeoLoc 2) C (VOIP)in same GeoLocation as B (GeoLoc 2) D (PSTN) in same GeoLocation as B (GeoLoc 2) B has Three Calls

B -> A
B -> C
B -> D Variant 1: Join on B with B -> A as Primary Call. Variant 2: Join on B with B -> D as Primary Call. Variant 3: Join on B with B -> C as Primary Call. Test Setup Variant 1: A, B and C will be in conference. Variant 2: B, C and D will be in conference. Variant 3:Either A or D will be in conference with B and C. Expected Results Shared Line Scenario CallPickUp scenario ; Logical partitioning Enabled = true CallPickUp Failure due to Logical partitioning Feature Policy. Description A (PSTN) on one Geolocation -GeoLoc1 B (VOIP) on one Geolocation -GeoLoc1 C (VOIP) on one Geolocation -GeoLoc2 A Dails B B Parks the call C does LineUnPark Test Setup Call will be successful on A and A' call will not be present Expected Results Shared line features like barge, cbarge, hold & remote resume should be disabled for calls. Variants Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 885 Message Sequence Charts Message Sequence Charts

Page 917 diagram

Page 918

CallPark: Retrieve Scenario CallPickUp scenario ; Logical partitioning Enabled = true CallPickUp Failure due to Logical partitioning Feature Policy. Description A (PSTN) on one Geolocation -GeoLoc1 B (VOIP) on one Geolocation -GeoLoc1 C (VOIP) on one Geolocation -GeoLoc2 A Dails B B Parks the call C does LineUnPark Test Setup CallUpark Will fail with error code "LINEERR_OPERATIONUNAVAIL". Expected Results Basic Call Scenario Basic Call scenario ; Logical partitioning Enabled = true Basic Call failure due to Logical partitioning Feature Policy. Description A (VOIP) on one Geolocation A calls B: LineMakeCall on A Dails B (DN) Variant 1: B Geo-Location was not Configured;B(PSTN);Policy Config: Interior to Interior Variant 2: B (PSTN) on another GeoLocation Test Setup Variant 1: Call will be successful; Reason: LP_IGNORE. Variant 2: A goes to Proceeding State and then On A there will be a DISCONNECTED call state will be sent to application with cause as LINEDISCONNECTMODE_UNKNOWN. Expected Results Manual Outbound Call The following table describes the message sequences for Manual Outbound Call when party A is idle. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 886 Message Sequence Charts Manual Outbound Call

Page 918 diagram

Page 919

TAPI structures TAPI messages CTI messages Action LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCalledID = NP dwConnectedID = NP dwRedirectionID = NP dwRedirectionID = NP LINE_APPNEWCALL hDevice = A dwCallbackInstance = 0 dwParam1 = 0 dwParam2 = hCall-1 dwParam3 = OWNER NewCallEven CH = C1, GCH = G1, Calling = A, Called = NP, OrigCalled = NP, LR = NP, State = Dialtone, Origin = OutBound, Reason = Direct

Party A goes off-hook No change LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = DIALTONE dwParam2 = UNAVAIL dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Dialtone, Cause = CauseNoError, Reason = Direct, Calling = A, Called = NP, OrigCalled = NP, LR = NP No change LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = DIALING dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Dialing, Cause = CauseNoError, Reason = Direct, Calling = A, Called = NP, OrigCalled = NP, LR = NP
Party A dials Party B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 887 Message Sequence Charts Message Sequence Charts

Page 919 diagram

Page 920

TAPI structures TAPI messages CTI messages Action LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCalledID = B dwConnectedID = NP dwRedirectionID = NP dwRedirectionID = NP LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = PROCEEDING dwParam2 = 0 dwParam3 = 0 LINE_CALLINFO hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = CALLEDID dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Proceeding, Cause = CauseNoError, Reason = Direct, Calling = A, Called = B, OrigCalled = B, LR = NP 3. Party B accepts call No change LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = RINGBACK dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Ringback, Cause = CauseNoError, Reason = Direct, Calling = A, Called = B, OrigCalled = B, LR = NP LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCalledID = B dwConnectedID = B dwRedirectionID = NP dwRedirectionID = NP LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = CONNECTED dwParam2 = ACTIVE dwParam3 = 0 LINE_CALLINFO hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = CONNECTEDID dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Connected, Cause = CauseNoError, Reason = Direct, Calling = A, Called = B, OrigCalled = B, LR = NP 4. Party B answers call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 888 Message Sequence Charts Message Sequence Charts

Page 920 diagram

Page 921

TAPI structures TAPI messages CTI messages Action No change LINE_DEVSPECIFIC hDevice = hCall-1 dwCallBackInstance = 0 dwParam1 = StartReception dwParam2 = IP Address dwParam3 = Port CallStartReceptionEvent, DH = A, CH = C1 No change LINE_DEVSPECIFIC hDevice = hCall-1 dwCallBackInstance = 0 dwParam1 = StartTransmission dwParam2 = IP Address dwParam3 = Port CallStartTransmissionEvent, DH = A, CH = C1 LINE_DEVSPECIFIC events are sent only if the application has requested them by using lineDevSpecific(). Note Monitoring and Recording Monitoring a Call A (agent) and B (customer) get connected. BIB on A gets set to on. TAPI structures TAPI messages CTI messages Action Party C Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 889 Message Sequence Charts Monitoring and Recording

Image 1 from page 921

Page 921 diagram

Page 922

TAPI structures TAPI messages CTI messages Action LINECALLINFO (hCall-1) hLine = C dwCallID = T2 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = C dwCalledID = NP dwConnectedID = NP dwRedirectionID = NP dwRedirectingID = NP LINE_CALLINFO hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = ORIGIN dwParam2 = 0 dwParam3 = 0 LINE_CALLINFO hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = REASON, CALLERID dwParam2 = 0 dwParam3 = 0 NewCallEvent, CH = C3, GCH = G2, Calling = C, Called = NP, OrigCalled = NP, LR = NP, State = Dialtone, Origin = OutBound, Reason = Direct C(supervisor) issues start monitoring req with A’s permanentLineID as input Party C A’s BIB automatically answers LINECALLINFO (hCall-1) hLine = C dwCallID = T2 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = C dwCalledID = A dwConnectedID = A dwRedirectionID = NP dwRedirectingID = NP LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = CONNECTED dwParam2 = ACTIVE dwParam3 = 0 CallStateChangedEvent, CH = C3, State = Connected, Cause = CauseNoError, Reason = Direct, Calling = C, Called = A, OrigCalled = A, LR = NP Party A Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 890 Message Sequence Charts Message Sequence Charts

Page 922 diagram

Page 923

TAPI structures TAPI messages CTI messages Action LINECALLINFO (hCall-2) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = B dwCalledID = A dwConnectedID = B dwRedirectionID = NP dwRedirectingID = NP LINE_CALLDEVSPECIFIC hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = SLDSMT_MONITOR_STARTED dwParam2 = 0 dwParam3 = 0 MonitoringStartedEvent, CH = C1 Party C LINECALLINFO (hCall-1) hLine = C dwCallID = T2 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = C dwCalledID = A dwConnectedID = A dwRedirectionID = NP dwRedirectingID = NP DevSpecifc Data: Type: CallAttribute_SilentMonitorCall_ Target, CI = C1, DN = A’s DN, Partition = A’s Partition, DeviceName = A’s Name LINE_CALLDEVSPECIFIC hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_CALL_ATTRIBUTE_ INFO dwParam3 = 0 LineCallAttributeInfoEvent, CH = C3, Type = 2 (MonitorCall_Target), CI = C1, Address = A’s DN, Partition = A’s Partition, DeviceName = A’s Name Party A Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 891 Message Sequence Charts Message Sequence Charts

Page 923 diagram

Page 924

TAPI structures TAPI messages CTI messages Action LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = INTERNAL dwReason = DIRECT dwCallerID = B dwCalledID = A dwConnectedID = B dwRedirectionID = NP dwRedirectingID = NP DevSpecifc Data: Type: CallAttribute_SilentMonitorCall, CI = C3 DN = C’s DN, Partition = C’s Partition, DeviceName = C’s Name LINE_CALLDEVSPECIFIC hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_CALL_ATTRIBUTE_ INFO dwParam3 = 0 LineCallAttributeInfoEvent, CH = C1, Type = 1 (MonitorCall), CI = C3 Address = C’s DN, Partition = C’s Partition, DeviceName = C’s Name Party C C drops the call LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = IDLE dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C3, State = Idle, Cause = CauseNoError, Reason = Direct, Calling = C, Called = A, OrigCalled = A, LR = NP Party A LINE_CALLDEVSPECIFIC hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = SLDSMT_MONITOR_ENDED dwParam2 = DisconnectMode_Normal dwParam3 = 0 MonitoringEndedEvent, CH = C1 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 892 Message Sequence Charts Message Sequence Charts

Page 924 diagram

Page 925

Automatic Recording Recording type on A (agent phone) is configured as Automatic. D is configured as a Recorder Device. TAPI structures TAPI messages CTI messages Action Party A A recieves a call from B, and A answers the call Recording session gets established between the agent phone and the recorder LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = INTERNAL dwReason = DIRECT dwCallerID = B dwCalledID = A dwConnectedID = B dwRedirectionID = NP dwRedirectingID = NP LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = CONNECTED dwParam2 = ACTIVE dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Connected, Cause = CauseNoError, Reason = Direct, Calling = B, Called = A, OrigCalled = A, LR = NP LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = B dwCalledID = A dwConnectedID = B dwRedirectionID = NP dwRedirectingID = NP LINE_CALLDEVSPECIFIC hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = SLDSMT_RECORDING_ STARTED dwParam2 = 0 dwParam3 = 0 RecordingStartedEvent, CH = C1 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 893 Message Sequence Charts Automatic Recording

Page 925 diagram

Page 926

TAPI structures TAPI messages CTI messages Action LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = B dwCalledID = A dwConnectedID = B dwRedirectionID = NP dwRedirectingID = NP DevSpecifc Data: Type: App Controlled Recording, DN = D’s DN, Partition = D’s Partition, DeviceName = D’s Name LINE_CALLDEVSPECIFIC hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_CALL_ATTRIBUTE_ INFO dwParam3 = 0 LineCallAttributeInfoEvent CH = C1, Type = 3 (Automatic Recording), Address = D’s DN, Partition = D’s Partition, DeviceName = D’s Name Application-Controlled Recording A (C1) and B (C2) connect. Recording Type on A gets configured as ‘Application Based’. D gets configured as a Recorder Device. TAPI structures TAPI messages CTI messages Action Party A A issues start recording request Recording session gets established between the agent phone and the recorder Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 894 Message Sequence Charts Application-Controlled Recording

Page 926 diagram

Page 927

TAPI structures TAPI messages CTI messages Action LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = B dwCalledID = A dwConnectedID = B dwRedirectionID = NP dwRedirectingID = NP LINE_CALLDEVSPECIFIC hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = SLDSMT_RECORDING_ STARTED dwParam2 = 0 dwParam3 = 0 RecordingStartedEvent, CH = C1 LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = B dwCalledID = A dwConnectedID = B dwRedirectionID = NP dwRedirectingID = NP DevSpecifc Data: Type: App Controlled Recording, DN = D’s DN, Partition = D’s Partition, DeviceName = D’s Name LINE_CALLDEVSPECIFIC hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_CALL_ATTRIBUTE_ INFO dwParam3 = 0 LineCallAttributeInfoEvent CH = C1, Type = 4 (App Controlled Recording), Address = D’s DN, Partition = D’s Partition, DeviceName = D’s Name Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 895 Message Sequence Charts Message Sequence Charts

Page 927 diagram

Page 928

TAPI structures TAPI messages CTI messages Action LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = B dwCalledID = A dwConnectedID = B dwRedirectionID = NP dwRedirectingID = NP LINE_CALLDEVSPECIFIC hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = SLDSMT_RECORDING_ ENDED dwParam2 = DisconnectMode_Normal dwParam3 = 0 RecordingEndedEvent, CH = C1 A issues stop monitoring request NuRD (Number Matching for Remote Destination) Support Park Monitoring Use cases related to Park Monitoring feature are mentioned below: Park Monitoring Feature Disabled Setup: The Park Monitoring message flag is disabled by default. Cisco Unified IP phones (future version) running SIP: A(3000), B(3001) All lines are monitered by TSP Expected events Action Application will not be notified about the New Parked call through LINE_NEWCALL event as the park Monitoring flag is disabled. 1. A(3000) calls B(3001) 2. B(3001) receives the call and parks the call Park Monitoring Feature Enabled Setup: Cisco Unified IP phones (future version) running SIP: A(3000), B(3001),C(3002) All lines are monitered by TSP Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 896 Message Sequence Charts NuRD (Number Matching for Remote Destination) Support

Page 928 diagram

Page 929

Expected events Action Park Status Event on B: At Step 3: Application will be notified about the New Parked call through LINE_NEWCALL event At Step 3: Application will receive the LINE_CALLSTATE event with the Park Status = Parked. Application does a LineGetCallInfo. Scenario 1: 1. The Park Monitoring message flag is Enabled using SLDST_SET_STATUS_MESSAGES request for Line B(3001). LineCallInfo will contain the following: hline : LH = 1 dwCallID : CallID dwReason :LINECALLREASON_PARKED dwRedirectingIDName : TransactionIDID = Sub1. dwBearerMode: ParkStatus = 2 dwCallerID : ParkDN = 5555 dwCallerName : ParkDNPartition = P1 dwcalled : ParkedParty = 3000 dwCalledIDName : ParkedPartyPartition = P1. 1. A(3000) calls B(3001) 2. B(3001) receives the call and parks the call at 5555 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 897 Message Sequence Charts Message Sequence Charts

Page 929 diagram

Page 930

Expected events Action Park Status Event on B: At Step 3: Application will receive the LINE_CALLSTATE event with the Park Status = Parked. At Step 4: Application will receive the LINE_CALLSTATE event with the Park Status = Reminder. Application does a LineGetCallInfo. LineCallInfo will contain the following: hline : LH = 1 dwCallID : CallID dwReason :LINECALLREASON_PARKED dwRedirectingIDName : TransactionIDID = Sub1. dwBearerMode: ParkStatus = 3 dwCallerID : ParkDN = 5555 dwCallerName : ParkDNPartition = P1 dwcalled : ParkedParty = 3000 dwCalledIDName : ParkedPartyPartition = P1. Scenario 2: 1. The Park Monitoring message flag is Enabled using SLDST_SET_STATUS_MESSAGES request for Line B(3001). 2. A(3000) calls B(3001) 3. B(3001) receives the call and parks the call at 5555 4. The Park Monitoring Reversion Timer expires while the call is still parked. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 898 Message Sequence Charts Message Sequence Charts

Page 930 diagram

Page 931

Expected events Action Park Status Event on B: At Step 4: Application will receive the LINE_CALLSTATE event with the Park Status = Parked. At Step 5: Application will receive the LINE_CALLSTATE event with the Park Status = Reminder. At Step 6: Application will receive the LINE_CALLSTATE event with the Park Status = Forwarded Application will receive the LINE_CALLSTATE event with callstate IDLE. The reason code CtiReasonforwardedNoRetrieve will be updated in the LINECALLINFO::dwDevSpecificData.ExtendedCallInfo. dwExtendedCallReason = CtiReasonforwardedNoRetrieve. Scenario 3: 1. The Park Monitoring message flag is Enabled using SLDST_SET_STATUS_MESSAGES request for Line B(3001). 2. The Park Monitoring Forward No Retrieve destination configured on B(3001) as C(3002) 3. A(3000) calls B(3001) 4. B(3001) receives the call and parks the call 5. The Park Monitoring Reversion Timer Expires while the call is still parked. 1. The Park Monitoring Forward No Retrieve timer expires and now the call is forwarded to the Park Monitoring Forward No Retrieve Destination C(3002). Application does a LineGetCallInfo. LineCallInfo will contain the following: hline : LH = 1 dwCallID : CallID dwReason :LINECALLREASON_PARKED dwRedirectingIDName : TransactionIDID = Sub1. dwBearerMode: ParkStatus = 6 dwCallerID : ParkDN = 5555 dwCallerName : ParkDNPartition = P1 dwcalled : ParkedParty = 3000 dwCalledIDName : ParkedPartyPartition = P1. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 899 Message Sequence Charts Message Sequence Charts

Page 931 diagram

Page 932

Expected events Action Park Status Event on B: At Step 3: Application will receive the LINE_CALLSTATE event with the Park Status = Parked. At Step 4: Application will receive the LINE_CALLSTATE event with the Park Status = Abandoned. Application will receive the LINE_CALLSTATE event with callstate IDLE. Application does a LineGetCallInfo. Scenario 4:

The Park Monitoring message flag is Enabled using SLDST_SET_STATUS_MESSAGES request for Line B(3001).
A(3000) calls B(3001)
B(3001) receives the call and parks the call
A(3000) hangs up the call. LineCallInfo will contain the following: hline : LH = 1 dwCallID : CallID dwReason :LINECALLREASON_PARKED dwRedirectingIDName TransactionIDID = Sub1. dwBearerMode: ParkStatus = 4 dwCallerID : ParkDN = 5555 dwCallerName : ParkDNPartition = P1 dwcalled : ParkedParty = 3000 dwCalledIDName : ParkedPartyPartition = P1. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 900 Message Sequence Charts Message Sequence Charts

Page 932 diagram

Page 933

Expected events Action Park Status Event on B: At Step 3: Application will receive the LINE_CALLSTATE event with the Park Status = Parked. At Step 4: Application will receive the LINE_CALLSTATE event with the Park Status = Reminder. At Step 5: Application will receive the LINE_CALLSTATE event with the Park Status = Retrieved. Application will receive the LINE_CALLSTATE event with callstate IDLE. Scenario 5: 1. The Park Monitoring message flag is Enabled using SLDST_SET_STATUS_MESSAGES request for Line B(3001). 2. A(3000) calls B(3001) 3. B(3001) receives the call and parks the call 4. The Park Monitoring Reversion Timer Expires while the call is still parked. 5. C(3002) retrieves the call Application does a LineGetCallInfo. hline: LH = 1 dwCallID: CallID dwReason: LINECALLREASON_PARKED dwRedirectingIDName: TransactionIDID = Sub1. dwBearerMode: ParkStatus = 5 dwCallerID: ParkDN = 5555 dwCallerName: ParkDNPartition = P1 dwcalled: ParkedParty = 3000 dwCalledIDName: ParkedPartyPartition = P1. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 901 Message Sequence Charts Message Sequence Charts

Page 933 diagram

Page 934

Expected events Action Park Status Event on B At Step 4: Application will receive the LINE_CALLSTATE event with the Park Status = Parked. At Step 5: Application will receive the LINE_CALLSTATE event with the Park Status = Reminder. At Step 6: Application will receive the LINE_CALLSTATE event with the Park Status = Forwarded. Application will receive the LINE_CALLSTATE event with callstate IDLE. Application does a LineGetCallInfo. Scenario 6: 1. The Park Monitoring message flag is Enabled using SLDST_SET_STATUS_MESSAGES request for Line B(3001). 2. The Park Monitoring Forward No retrieve destination not configured. 3. A(3000) calls B(3001) 4. B(3001) receives the call and parks the call 5. The Park Monitoring Reversion Timer Expires while the call is still parked 6. The Park Monitoring Forward No Retrieve timer expires and the call is forwarded to the Parkers line. LineCallInfo will contain the following: hline: LH = 1 dwCallID: CallID dwReason: LINECALLREASON_PARKED dwRedirectingIDName: TransactionIDID = Sub1. dwBearerMode: ParkStatus = 6 dwCallerID: ParkDN = 5555 dwCallerName: ParkDNPartition = P1 dwcalled: ParkedParty = 3000 dwCalledIDName: ParkedPartyPartition = P1. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 902 Message Sequence Charts Message Sequence Charts

Page 934 diagram

Page 935

Expected events Action Park Status Event on B At Step 5: Application will receive the LINE_CALLSTATE event with the Park Status = Parked. At Step 6: Application will receive the LINE_CALLSTATE event with the Park Status = Reminder. At Step 7: Application will receive the LINE_CALLSTATE event with the Park Status = Forwarded. Application will receive the LINE_CALLSTATE event with callstate IDLE. Scenario 7: 1. The Park Monitoring message flag is Enabled using SLDST_SET_STATUS_MESSAGES request for Line B(3001). 2. The Park Monitoring Forward No retrieve destination configured as self(Parkers Line) 3. A(3000) calls B(3001) 4. B(3001) receives the call and parks the call 5. The Park Monitoring Reversion Timer Expires while the call is still parked 6. The Park Monitoring Reversion Timer Expires while the call is still parked 7. The Park Monitoring Forward No Retrieve timer expires and the call is forwarded to the Parkers line. Application does a LineGetCallInfo. LineCallInfo will contain the following: hline: LH = 1 dwCallID: CallID dwReason: LINECALLREASON_PARKED dwRedirectingIDName: TransactionIDID = Sub1. dwBearerMode: ParkStatus = 6 dwCallerID: ParkDN = 5555 dwCallerName: ParkDNPartition = P1 dwcalled : ParkedParty = 3000 dwCalledIDName : ParkedPartyPartition = P1. Parked Call Exists Setup: Cisco Unified IP phones (future version) running SIP: A(3000), B(3001). B is not monitered by TSP. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 903 Message Sequence Charts Message Sequence Charts

Page 935 diagram

Page 936

Expected events Action Park Status Event on B: At Step 4: Application will be notified about the Parked call through LINE_NEWCALL event.when ever cisco TSP recives the LINE_PARK_STATUS event for already parked call. Application does a LineGetCallInfo. LineCallInfo will contain the following: hline : LH = 1 dwCallID : CallID dwReason :LINECALLREASON_PARKED dwRedirectingIDName TransactionIDID = Sub1. dwBearerMode: ParkStatus = 2 dwCallerID : ParkDN = 5555 dwCallerName : ParkDNPartition = P1 dwcalled : ParkedParty = 3000 dwCalledIDName : ParkedPartyPartition = P1. Scenario 1: 1. The Park Monitoring message flag is Enabled using SLDST_SET_STATUS_MESSAGES request for Line B(3001). 2. A(3000) calls B(3001) 3. B(3001) receives the call and parks the call 4. Now the Line B(3001) is monitered by TSP Shared Line Scenario Setup: A(3000) ,D(3003) are Cisco Unified IP phones (future version) running SIP B(3001) and B'(3001) are shared lines for Cisco Unified IP phones (future version) running SIP C(3002) and C'(3002) are shared lines where C is a Cisco Unified IP phone (future version) running SIP and C' is a Cisco Unified IP Phone 7900 Series running SIP . For the shared lines the events will be delivered to the phone which parks the call .Events will not be delivered to the other phone though the line is shared. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 904 Message Sequence Charts Message Sequence Charts

Page 936 diagram

Page 937

Expected events Action Park Status Event on B: At Step 3: Application will receive the LINE_CALLSTATE event with the Park Status = Parked. At Step 4: Application will receive the LINE_CALLSTATE event with the Park Status = Reminder. Scenario 1: 1. The Park Monitoring message flag is Enabled using SLDST_SET_STATUS_MESSAGES request for Line B(3001). 2. A(3000) calls B(3001) 3. B(3001) and B'(3001) starts ringing. B(3001) receives the call and parks the call 4. Park Monitoring reversion timer expires while the call is still parked. 5. D(3003) retrieves the call At Step 5: Application will receive the LINE_CALLSTATE event with the Park Status = Retrieved Application will receive the LINE_CALLSTATE event with callstate IDLE. Application does a LineGetCallInfo. hline : LH = 1 dwCallID : CallID dwReason :LINECALLREASON_PARKED dwRedirectingIDName :TransactionIDID = Sub1. dwBearerMode: ParkStatus = 5 dwCallerID : ParkDN = 5555 dwCallerName : ParkDNPartition = P1 dwcalled : ParkedParty = 3000 dwCalledIDName : ParkedPartyPartition = P1. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 905 Message Sequence Charts Message Sequence Charts

Page 937 diagram

Page 938

Expected events Action Park Status Event will be sent only to B not B'. At Step 4: Application will receive the LINE_CALLSTATE event with the Park Status = Parked. At Step 5: Application receives the LINE_CALLSTATE event with the Park Status = Reminder. At Step 6: Application receives the LINE_CALLSTATE event with the Park Status = Forwarded. Scenario 2: 1. The Park Monitoring message flag is Enabled using SLDST_SET_STATUS_MESSAGES request for Line B(3001). 2. The Park Monitoring Forward No retrieve destination configured as B(3001) 3. A(3000) calls B(3001) 4. B(3001) and B'(3001) starts ringing. B(3001)receives the call and parks the call 5. The Park Monitoring Reversion Timer Expires while the call is still parked. 6. The Park Monitoring Forward No Retrieve timer expires and call is forwarded to B(3001).Both B(3001) and B'(3001) starts ringing as they are shared lines. Application receive the LINE_CALLSTATE event with callstate IDLE. Application does a LineGetCallInfo. LineCallInfo contains the following: hline : LH = 1 dwCallID : CallID dwReason :LINECALLREASON_PARKED dwRedirectingIDName : TransactionIDID = Sub1. dwBearerMode: ParkStatus = 6 dwCallerID : ParkDN = 5555 dwCallerName : ParkDNPartition = P1 dwcalled : ParkedParty = 3000 dwCalledIDName : ParkedPartyPartition = P1. Park Status Event on C'. At Step 3: Application is notified about the New Parked call through LINE_NEWCALL event as the call is parked by the Normal TNP phone. Scenario 3: 1. The Park Monitoring message flag is Enabled using SLDST_SET_STATUS_MESSAGES request for Line B(3001). 2. A(3000) calls C(3002) 3. C(3002) and C'(3002) starts ringing. C'(3002) receives the call and parks the call 4. D(3003) retrieves the call Park Monitoring Feature Disabled Setup: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 906 Message Sequence Charts Message Sequence Charts

Page 938 diagram

Page 939

The Park Monitoring message flag is Enabled using SLDST_SET_STATUS_MESSAGES request for line B(3001). A(3000), D(3003) is a Cisco Unified IP phones (future version) Application invokes the Line_open () API on provider to monitor ParkDN . Expected events Action Park Status Event on B: At Step 3: Application receives the LINE_NEW_CALL event for PARKDN. At Step 3: Application receives the LINE_PARK_STATUS event with the Park Status = Parked. At Step 4: Application will receive the LINE_CALL_STATE event with the Park Status = Reminder. Application does a LineGetCallInfo. LineCallInfo will contain the following: hline : LH = 1 dwCallID : CallID dwReason :LINECALLREASON_PARKED dwRedirectingIDName :TransactionIDID = Sub1. dwBearerMode: ParkStatus = 3 dwCallerID : ParkDN = 5555 dwCallerName : ParkDNPartition = P1 dwcalled : ParkedParty = 3000 dwCalledIDName : ParkedPartyPartition = P1. Scenario 1: 1. The Park Monitoring message flag is Enabled using SLDST_SET_STATUS_MESSAGES request for Line B(3001). 2. A(3000) calls B(3001) 3. B(3001) receives the call and parks the call 4. The Park Monitoring Reversion Timer Expires while the call is still parked. Persistent Connection Use Cases The following pre-conditions apply to all persistent call use cases, unless specified: • The provider is in IN_SERVICE state. • All addresses and terminals are already in service. • Device A (CTI Remote Device - Name: "CTIRDtapi", Line A1 (dn: 881000)) Remote destination 1 (Name: "rd", Number: "78000") Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 907 Message Sequence Charts Persistent Connection Use Cases

Page 939 diagram

Page 940

• Device B (IP Phone - Name: "SEP001319ACCA26", Line B1 (dn: 1000)) • Device C (IP Phone - Name: "SEP00156247EE60", Line C1 (dn: 2000)) • User1 has in its control list: Devices A, B and C. All devices and lines are observed. Table 104: Call createPersistentCall() on an Address That Is Not Configured to a Remote Terminal Device, i.e. on an IP Phone Call Info Events Action ProvInServiceEv User1 opens Provider and adds a provider observer. Let "ex" be an instance of PlatformException: ((CiscoJtapiException) ex).getErrorCode() = CiscoJtapiException. COMMAND_NOT_IMPLEMENTED_ ON_DEVICE. Caught exception com.cisco.jtapi.PlatformException: Internal callprocessing error :Device does not support the command User1 invokes CiscoAddress. createPersistentCall ("SEP00156247EE60", "5000", "remote") on device C. Table 105: Call createPersistentCall()on an Address That Is Configured to a Remote Terminal Device Where Active RD Is Not Set Call Info Events Action ProvInServiceEv User1 opens Provider and adds a provider observer. Let "ex" be an instance of PlatformException: ((CiscoJtapiException) ex).getErrorCode() = CiscoJtapiException. CTIERR_REMOTE_DEVICE_REQUEST_ FAILED_ ACTIVE_RD_NOT_SET. Caught exception com.cisco.jtapi.PlatformException: The active remote destination is not set. User1 invokes CiscoAddress. createPersistentCall ("CTIRDjtapi", "5000", "remote") on device A. Table 106: Call createPersistentCall() on an Address That Is Configured to a Remote Terminal Device and Where Active RD Is Set. Verify That Persistent Call Is Connected Call Info Events Action ProvInServiceEv User1 opens Provider and adds a provider observer. A.getActiveRemoteDestinations() = CiscoRemoteDestinationInfo[1]. CiscoRemoteDestinationInfo[0]. getRemoteDestinationNumber() = "78000" CiscoRemoteDestinationInfo[0]. getIsActiveRD() = true. CiscoProvTerminalRemote DestinationChangedEv User1 invokes CiscoRemoteTerminal. setActiveRemoteDestination ("78000", true) on device A. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 908 Message Sequence Charts Message Sequence Charts

Page 940 diagram

Page 941

Call Info Events Action CallingAddress = 5000, CalledAddress = 8881000, CurrentCallingAddress = 5000, CurrentCalledAddress = 8881000 GC1: CallActiveEv GC1: ConnCreatedEv 8881000 GC1: ConnInProgressEv 8881000 GC1: CallCtlConnOfferedEv 8881000 GC1: ConnCreatedEv 5000 GC1: ConnConnectedEv 5000 GC1: CallCtlConnEstablishedEv 5000 GC1: ConnAlertingEv 8881000 GC1: CallCtlConnAlertingEv 8881000 GC1: TermConnCreatedEv CTIRDjtapi GC1: TermConnRingingEv CTIRDjtapi GC1: CallCtlTermConnRingingEv CTIRDjtapi User1 invokes CiscoAddress. createPersistentCall ("CTIRDjtapi", "5000", "remote") on device A. CallingAddress = 5000, CalledAddress = 8881000, CurrentCallingAddress = 5000, CurrentCalledAddress = 8881000 GC1: ConnConnectedEv 8881000 GC1: CallCtlConnEstablishedEv 8881000 GC1: TermConnActiveEv CTIRDjtapi GC1: CallCtlTermConnTalkingEv CTIRDjtapi Call answered at remote destination, dn = 78000 ((CiscoAddress. getPersistentConnection("CTIRDjtapi")). getCall()).isPersistentCall() = true. User1 invokes CiscoAddress. getPersistentConnection ("CTIRDjtapi") and verify that the connection for the persistent call is returned and uses that to get the Call object and confirm it is for the persistent call. Provider.getCalls() = null User1 invokes Provider.getCalls() Address.getConnections() on line A = null User1 invokes Address.getConnections() on line A. Terminal.getTerminalConnections() on device A = null User1 invokes Terminal.getTerminal Connections() on device A. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 909 Message Sequence Charts Message Sequence Charts

Page 941 diagram

Page 942

Call Info Events Action GC1: ConnDisconnectedEv 5000 GC1: CallCtlConnDisconnectedEv 5000 GC1: TermConnDroppedEv CTIRDjtapi GC1: CallCtlTermConnDroppedEv CTIRDjtapi GC1: ConnDisconnectedEv 8881000 GC1: CallCtlConnDisconnectedEv 8881000 GC1: CallInvalidEv Disconnect/drop the persistent call. User1 invokes either Call.drop() or Connection.disconnect() Table 107: Call createPersistentCall() on an Address Configured to a Remote Terminal Device Where a Persistent Call Already Exists Call Info Events Actions ProvInServiceEv User1 opens Provider and adds a provider observer. Let "ex" be an instance of PlatformException: ((CiscoJtapiException) ex).getErrorCode() = CiscoJtapiException. CTIERR_PERSISTENT_CALL_EXISTS. Caught exception com.cisco.jtapi.PlatformException: Persistent Call exists. User1 invokes CiscoAddress. createPersistentCall ("CTIRDjtapi", "6000", "remote2") on device A. Table 108: Call createPersistentCall() on an Address That Is Configured to a Remote Terminal Device and Where Active RD Is Set. Verify That Persistent Call Is Connected and Then Have Remote Destination Hang Up Call Info Events Actions ProvInServiceEv User1 opens Provider and adds a provider observer. A.getActiveRemoteDestinations() = CiscoRemoteDestinationInfo[1]. CiscoRemoteDestinationInfo[0]. getRemoteDestinationNumber() = "78000" CiscoRemoteDestinationInfo[0]. getIsActiveRD() = true. CiscoProvTerminalRemote DestinationChangedEv User1 invokes CiscoRemoteTerminal. setActiveRemoteDestination("78000", true) on device A. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 910 Message Sequence Charts Message Sequence Charts

Page 942 diagram

Page 943

Call Info Events Actions CallingAddress = 5000, CalledAddress = 8881000, CurrentCallingAddress = 5000, CurrentCalledAddress = 8881000 GC1: CallActiveEv GC1: ConnCreatedEv 8881000 GC1: ConnInProgressEv 8881000 GC1: CallCtlConnOfferedEv 8881000 GC1: ConnCreatedEv 5000 GC1: ConnConnectedEv 5000 GC1: CallCtlConnEstablishedEv 5000 GC1: ConnAlertingEv 8881000 GC1: CallCtlConnAlertingEv 8881000 GC1: TermConnCreatedEv CTIRDjtapi GC1: TermConnRingingEv CTIRDjtapi GC1: CallCtlTermConnRingingEv CTIRDjtapi User1 invokes CiscoAddress. createPersistentCall ("CTIRDjtapi", "5000", "remote") on device A. CallingAddress = 5000, CalledAddress = 8881000, CurrentCallingAddress = 5000, CurrentCalledAddress = 8881000 GC1: ConnConnectedEv 8881000 GC1: CallCtlConnEstablishedEv 8881000 GC1: TermConnActiveEv CTIRDjtapi GC1: CallCtlTermConnTalkingEv CTIRDjtapi Call answered at remote destination, dn = 78000 GC1: ConnDisconnectedEv 5000 GC1: CallCtlConnDisconnectedEv 5000 GC1: TermConnDroppedEv CTIRDjtapi GC1: CallCtlTermConnDroppedEv CTIRDjtapi GC1: ConnDisconnectedEv 8881000 GC1: CallCtlConnDisconnectedEv 8881000 GC1: CallInvalidEv Remote destination with dn = 78000 hangs up. Table 109: Call createPersistentCall() on an Address That Is Configured to a Remote Terminal Device and Where Active RD = True. Verify That Persistent Call Is Connected. Set Active RD = False and Verify That Persistent Call Is Dropped Call Info Events Actions ProvInServiceEv User1 opens Provider and adds a provider observer. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 911 Message Sequence Charts Message Sequence Charts

Page 943 diagram

Page 944

Call Info Events Actions A.getActiveRemoteDestinations() = CiscoRemoteDestinationInfo[1]. CiscoRemoteDestinationInfo[0]. getRemoteDestinationNumber() = "78000" CiscoRemoteDestinationInfo[0]. getIsActiveRD() = true. CiscoProvTerminal RemoteDestinationChangedEv User1 invokes CiscoRemoteTerminal. setActiveRemoteDestination("78000", true) on device A CallingAddress = 5000, CalledAddress = 8881000, CurrentCallingAddress = 5000, CurrentCalledAddress = 8881000 GC1: CallActiveEv GC1: ConnCreatedEv 8881000 GC1: ConnInProgressEv 8881000 GC1: CallCtlConnOfferedEv 8881000 GC1: ConnCreatedEv 5000 GC1: ConnConnectedEv 5000 GC1: CallCtlConnEstablishedEv 5000 GC1: ConnAlertingEv 8881000 GC1: CallCtlConnAlertingEv 8881000 GC1: TermConnCreatedEv CTIRDjtapi GC1: TermConnRingingEv CTIRDjtapi GC1: CallCtlTermConnRingingEv CTIRDjtapi User1 invokes CiscoAddress. createPersistentCall ("CTIRDjtapi", "5000", "remote") on device A. CallingAddress = 5000, CalledAddress = 8881000, CurrentCallingAddress = 5000, CurrentCalledAddress = 8881000 GC1: ConnConnectedEv 8881000 GC1: CallCtlConnEstablishedEv 8881000 GC1: TermConnActiveEv CTIRDjtapi GC1: CallCtlTermConnTalkingEv CTIRDjtapi Call answered at remote destination, dn = 78000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 912 Message Sequence Charts Message Sequence Charts

Page 944 diagram

Page 945

Call Info Events Actions A.getActiveRemoteDestinations() = CiscoRemoteDestinationInfo[1]. CiscoRemoteDestinationInfo[0]. getRemoteDestinationNumber() = "78000" CiscoRemoteDestinationInfo[0]. getIsActiveRD() = false CiscoProvTerminal RemoteDestinationChangedEv See persistent call gets dropped: GC1: ConnDisconnectedEv 5000 GC1: CallCtlConnDisconnectedEv 5000 GC1: TermConnDroppedEv CTIRDjtapi GC1: CallCtlTermConnDroppedEv CTIRDjtapi GC1: ConnDisconnectedEv 8881000 GC1: CallCtlConnDisconnectedEv 8881000 GC1: CallInvalidEv User1 invokes CiscoRemoteTerminal. setActiveRemoteDestination("78000", false) on device A. Table 110: Call createPersistentCall() on an Address That Is Configured to a Remote Terminal Device and Where Active RD = True. Verify That Persistent Call Is Connected. Make Incoming Customer Call to Same Remote Terminal Device Call Info Events Actions ProvInServiceEv User1 opens Provider and adds a provider observer. A.getActiveRemoteDestinations() = CiscoRemoteDestinationInfo[1]. CiscoRemoteDestinationInfo[0]. getRemoteDestinationNumber() = "78000" CiscoRemoteDestinationInfo[0]. getIsActiveRD() = true. CiscoProvTerminal RemoteDestinationChangedEv User1 invokes CiscoRemoteTerminal. setActiveRemoteDestination("78000", true) on device A. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 913 Message Sequence Charts Message Sequence Charts

Page 945 diagram

Page 946

Page 946 diagram

Page 947

Call Info Events Actions CallingAddress = 1000, CalledAddress = 8881000, CurrentCallingAddress = 1000, CurrentCalledAddress = 8881000 GC2: CallActiveEv GC2: ConnCreatedEv 1000 GC2: ConnConnectedEv 1000 GC2: CallCtlConnInitiatedEv 1000 GC2: TermConnCreatedEv SEP001319ACCA26 GC2: TermConnActiveEv SEP001319ACCA26 GC2: CallCtlTermConnTalkingEv SEP001319ACCA26 GC2: CallCtlConnDialingEv 1000 GC2: CallCtlConnEstablishedEv 1000 GC2: ConnCreatedEv 8881000 GC2: ConnInProgressEv 8881000 GC2: CallCtlConnOfferedEv 8881000 GC2: ConnAlertingEv 8881000 GC2: CallCtlConnAlertingEv 8881000 GC2: TermConnCreatedEv CTIRDjtapi GC2: TermConnRingingEv CTIRDjtapi GC2: CallCtlTermConnRingingEv CTIRDjtapi Call.connect("SEP001319ACCA26", "1000", "8881000") GC2: ConnConnectedEv 8881000 GC2: CallCtlConnEstablishedEv 8881000 GC2: TermConnActiveEv CTIRDjtapi GC2: CallCtlTermConnTalkingEv CTIRDjtapi Call is answered at device A A.getActiveRemoteDestinations() = CiscoRemoteDestinationInfo[1]. CiscoRemoteDestinationInfo[0]. getRemoteDestinationNumber() = "78000" CiscoRemoteDestinationInfo[0]. getIsActiveRD() = false. CiscoProvTerminal RemoteDestinationChangedEv Both persistent call with GC1 and customer call with GC2 are not dropped/disconnected even though active rd = false. User1 invokes CiscoRemoteTerminal. setActiveRemoteDestination("78000", false) on device A. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 915 Message Sequence Charts Message Sequence Charts

Page 947 diagram

Page 948

Call Info Events Actions GC2: TermConnDroppedEv SEP001319ACCA26 GC2: CallCtlTermConnDroppedEv SEP001319ACCA26 GC2: ConnDisconnectedEv 1000 GC2: CallCtlConnDisconnectedEv 1000 GC2: TermConnDroppedEv CTIRDjtapi GC2: CallCtlTermConnDroppedEv CTIRDjtapi GC2: ConnDisconnectedEv 8881000 GC2: CallCtlConnDisconnectedEv 8881000 GC2: CallInvalidEv Since there are no active calls on device A and active rd is now false, the persistent call with GC1 is now dropped/disconnected. GC1: ConnDisconnectedEv 5000 GC1: CallCtlConnDisconnectedEv 5000 GC1: TermConnDroppedEv CTIRDjtapi GC1: CallCtlTermConnDroppedEv CTIRDjtapi GC1: ConnDisconnectedEv 8881000 GC1: CallCtlConnDisconnectedEv 8881000 GC1: CallInvalidEv Customer call with GC2 is disconnected/dropped. User1 invokes either Call.drop() or Connection.disconnect() on the call with GC2. Table 111: Have a Persistent Call and Customer Call Connected. Invoke hold() on the Persistent Call Which Should Be Rejected Call Info Events Actions ProvInServiceEv User1 opens Provider and adds a provider observer. Assume already have a persistent call with GC1 and customer call with GC2. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 916 Message Sequence Charts Message Sequence Charts

Page 948 diagram

Page 949

Call Info Events Actions Let "ex" be an instance of PlatformException: ((CiscoJtapiException) ex).getErrorCode() = CiscoJtapiException. CTIERR_OPERATION_NOT_ALLOWED_ ON_PERSISTENT _CALL. Caught exception com.cisco.jtapi.PlatformException: Operation is not allowed on a Persistent Call. Invoke hold() on the persistent call with GC1. Table 112: Have a Persistent Call and Customer Call Connected. Invoke startRecording() on the Persistent Call Which Should Be Rejected Call Info Events Actions ProvInServiceEv User1 opens Provider and adds a provider observer. Assume already have a persistent call with GC1 and customer call with GC2. Let "ex" be an instance of PlatformException: ((CiscoJtapiException) ex).getErrorCode() = CiscoJtapiException. CTIERR_OPERATION_NOT_ALLOWED_ ON_PERSISTENT _CALL. Caught exception com.cisco.jtapi.PlatformException: Operation is not allowed on a Persistent Call. Invoke startRecording() on the persistent call with GC1. Table 113: Have a Persistent Call and Customer Call Connected. Invoke stopRecording() on the Persistent Call Which Should Be Rejected Call Info Events Actions ProvInServiceEv User1 opens Provider and adds a provider observer. Assume already have a persistent call with GC1 and customer call with GC2. Let "ex" be an instance of PlatformException: ((CiscoJtapiException) ex).getErrorCode() = CiscoJtapiException. CTIERR_OPERATION_NOT_ALLOWED_ ON_PERSISTENT _CALL. Caught exception com.cisco.jtapi.PlatformException: Operation is not allowed on a Persistent Call. Invoke stopRecording() on the persistent call with GC1. Make sure Selective call recording is enabled. Table 114: Have a Persistent Call and Customer Call Connected. Invoke conference() on the Persistent Call Where Persistent Call Is Primary Which Should Be Rejected Call Info Events Actions ProvInServiceEv User1 opens Provider and adds a provider observer. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 917 Message Sequence Charts Message Sequence Charts

Page 949 diagram

Page 950

Call Info Events Actions Assume already have a persistent call with GC1 and customer call with GC2. Let "ex" be an instance of PlatformException: ((CiscoJtapiException) ex).getErrorCode() = CiscoJtapiException. CTIERR_OPERATION_NOT_ALLOWED_ ON_PERSISTENT _CALL. Caught exception com.cisco.jtapi.PlatformException: Operation is not allowed on a Persistent Call. Invoke conference() where persistent call with GC1 is the primary call and customer call with GC2 is the secondary call (jtapi internally calling join() for this). Table 115: Have a Persistent Call and Customer Call Connected. Invoke conference() on the Persistent Call Where Persistent Call Is Secondary Which Should Be Rejected Call Info Events Actions ProvInServiceEv User1 opens Provider and adds a provider observer. Assume already have a persistent call with GC1 and customer call with GC2. Let "ex" be an instance of PlatformException: ((CiscoJtapiException) ex).getErrorCode() = CiscoJtapiException. CTIERR_OPERATION_NOT_ALLOWED_ ON_PERSISTENT _CALL. Caught exception com.cisco.jtapi.PlatformException: Operation is not allowed on a Persistent Call. Invoke conference() where customer call with GC2 is primary call and persistent call with GC1 is secondary call (jtapi internally calling join() for this). Table 116: Have a Persistent Call and Customer Call Connected. Invoke park() on the Persistent Call Which Should Be Rejected Call Info Events Actions ProvInServiceEv User1 opens Provider and adds a provider observer. Assume already have a persistent call with GC1 and customer call with GC2. Let "ex" be an instance of PlatformException: ((CiscoJtapiException) ex).getErrorCode() = CiscoJtapiException. CTIERR_OPERATION_NOT_ALLOWED_ ON_PERSISTENT _CALL. Caught exception com.cisco.jtapi.PlatformException: Operation not allowed. Invoke park(). Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 918 Message Sequence Charts Message Sequence Charts

Page 950 diagram

Page 951

Table 117: Have a Persistent Call and Customer Call Connected. Invoke transfer() on the Persistent Call Where Pc Is Primary Which Should Be Rejected Call Info Events Actions ProvInServiceEv User1 opens Provider and adds a provider observer. Assume already have a persistent call with GC1 and customer call with GC2. Let "ex" be an instance of PlatformException: ((CiscoJtapiException) ex).getErrorCode() = CiscoJtapiException. CTIERR_OPERATION_NOT_ALLOWED_ ON_PERSISTENT _CALL. Caught exception com.cisco.jtapi.PlatformException: Operation is not allowed on a Persistent Call. Invoke transfer(Call) where persistent call with GC1 is primary call and customer call with GC2 is secondary. Table 118: Have a Persistent Call and Customer Call Connected. Invoke transfer() on the Persistent Call Where Pc Is Primary to Another Dn Which Should Be Rejected Call Info Events Actions ProvInServiceEv User1 opens Provider and adds a provider observer. Assume already have a persistent call with GC1 and customer call with GC2. Let "ex" be an instance of PlatformException: ((CiscoJtapiException) ex).getErrorCode() = CiscoJtapiException. CTIERR_OPERATION_NOT_ALLOWED_ ON_PERSISTENT _CALL. Caught exception com.cisco.jtapi.PlatformException: Operation is not allowed on a Persistent Call. Invoke transfer(String address) where persistent call with GC1 is primary call to line C (dn = 2000). Table 119: Have a Persistent Call and Customer Call Connected. Invoke transfer() on the Persistent Call Where Pc Is Secondary Which Should Be Rejected Call Info Events Actions ProvInServiceEv User1 opens Provider and adds a provider observer. Assume already have a persistent call with GC1 and customer call with GC2. Let "ex" be an instance of PlatformException: ((CiscoJtapiException) ex).getErrorCode() = CiscoJtapiException. CTIERR_OPERATION_NOT_ALLOWED_ ON_PERSISTENT _CALL. Caught exception com.cisco.jtapi.PlatformException: Operation is not allowed on a Persistent Call. Invoke transfer(Call) where customer call with GC2 is primary call and persistent call with GC1 is secondary. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 919 Message Sequence Charts Message Sequence Charts

Page 951 diagram

Page 952

Table 120: Have a Persistent Call and Customer Call Connected. Invoke consult() on the Persistent Call Which Should Be Rejected Call Info Events Actions ProvInServiceEv User1 opens Provider and adds a provider observer. Assume already have a persistent call with GC1 and customer call with GC2. Let "ex" be an instance of PlatformException: ((CiscoJtapiException) ex).getErrorCode() = CiscoJtapiException. CTIERR_OPERATION_NOT_ALLOWED_ ON_PERSISTENT _CALL. Caught exception com.cisco.jtapi.PlatformException: Operation is not allowed on a Persistent Call. Make consult call from device A to line C (dn = 2000). Table 121: Have a Persistent Call and Customer Call Connected. Invoke pickup() on the Persistent Call Which Should Be Rejected Call Info Events Actions ProvInServiceEv User1 opens Provider and adds a provider observer. Assume already have a persistent call with GC1 and customer call with GC2. Let "ex" be an instance of PlatformException: ((CiscoJtapiException) ex).getErrorCode() = CiscoJtapiException. CTIERR_OPERATION_NOT_ALLOWED_ ON_PERSISTENT _CALL. Caught exception com.cisco.jtapi.PlatformException: Operation not allowed. Invoke pickup("8881000") on device A. Table 122: Have a Persistent Call and Customer Call Connected. Invoke otherPickup() on the Persistent Call Which Should Be Rejected Call Info Events Actions ProvInServiceEv User1 opens Provider and adds a provider observer. Assume already have a persistent call with GC1 and customer call with GC2. Let "ex" be an instance of PlatformException: ((CiscoJtapiException) ex).getErrorCode() = CiscoJtapiException. CTIERR_OPERATION_NOT_ALLOWED_ ON_PERSISTENT _CALL. Caught exception com.cisco.jtapi.PlatformException: Operation not allowed. Invoke otherPickup("8881000") on device A. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 920 Message Sequence Charts Message Sequence Charts

Page 952 diagram

Page 953

Table 123: Have a Persistent Call and Customer Call Connected. Invoke redirect() on the Persistent Call Which Should Be Rejected Call Info Events Actions ProvInServiceEv User1 opens Provider and adds a provider observer. Assume already have a persistent call with GC1 and customer call with GC2. Let "ex" be an instance of PlatformException: ((CiscoJtapiException) ex).getErrorCode() = CiscoJtapiException. CTIERR_OPERATION_NOT_ALLOWED_ ON_PERSISTENT _CALL. Caught exception com.cisco.jtapi.PlatformException: Operation is not allowed on a Persistent Call. Invoke redirect("2000") on the persistent call. Presentation Indication Making a Call Through Translation Pattern The following table describes the message sequences for the Presentation Indication scenario of making a call through translation pattern. In the Translation Pattern admin pages, both the callerID/Name and ConnectedID/Name get set to "Restricted". TAPI structures TAPI messages CTI messages Action LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCalledID = NP dwConnectedID = NP dwRedirectionID = NP dwRedirectionID = NP LINE_APPNEWCALL hDevice = A dwCallbackInstance = 0 dwParam1 = 0 dwParam2 = hCall-1 dwParam3 = OWNER NewCallEvent, CH = C1, GCH = G1, Calling = A, Called = NP, OrigCalled = NP, LR = NP, State = Dialtone, Origin = OutBound, Reason = Direct Party A goes off-hook Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 921 Message Sequence Charts Presentation Indication

Page 953 diagram

Page 954

TAPI structures TAPI messages CTI messages Action No change LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = DIALTONE dwParam2 = UNAVAIL dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Dialtone, Cause = CauseNoError, Reason = Direct, Calling = A, Called = NP, OrigCalled = NP, LR = NP No change LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = DIALING dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Dialing, Cause = CauseNoError, Reason = Direct, Calling = A, Called = NP, OrigCalled = NP, LR = NP Party A dials Party B through Translation pattern LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCallerIDName = A's Name dwCalledID = B dwCalledIDName = B’s name dwConnectedID = NP dwConnectedIDName = NP dwRedirectionID = NP dwRedirectionIDName = NP dwRedirectionID = NP dwRedirectionIDName = NP LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = PROCEEDING dwParam2 = 0 dwParam3 = 0 LINE_CALLINFO hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = CALLEDID dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Proceeding, Cause = CauseNoError, Reason = Direct, Calling = A, CallingPartyPI = Allowed, Called = B, CalledPartyPI = Restricted, OrigCalled = B, OrigCalledPI = restricted, LR = NP Party B accepts the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 922 Message Sequence Charts Message Sequence Charts

Page 954 diagram

Page 955

TAPI structures TAPI messages CTI messages Action LINECALLINFO (hCall-1) hLine = A dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCalledID = B dwConnectedIDFlags = LINECALLPARTYID_ BLOCKED dwConnectedID = NP dwRedirectionID = NP dwRedirectionIDFlags = LINECALLPARTYID_ BLOCKED dwRedirectionID = NP LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = RINGBACK dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Ringback, Cause = CauseNoError, Reason = Direct, Calling = A, CallingPI = Allowed, Called = B, CalledPI = Restricted, OrigCalled = B, OrigCalledPI = Restricted, LR = NP Party B accepts the call (continued) LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCallerIDName = A's Name dwCalledID = B dwCalledIDName = B’s Name dwConnectedID = A, dwConnectedIDName = A's Name, dwRedirectingID = NP dwRedirectingIDName = NP dwRedirectionIDFlags = LINECALLPARTYID_ BLOCKED dwRedirectionID = NP dwRedirectionIDName = NP LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = CONNECTED dwParam2 = ACTIVE dwParam3 = 0 LINE_CALLINFO hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = CONNECTEDID dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Connected, Cause = CauseNoError, Reason = Direct, Calling = A, CallingPI = Allowed, Called = B, CalledPI = Restricted, OrigCalled = B, OrigCalledPI = Restricted, LR = NP Party B answers the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 923 Message Sequence Charts Message Sequence Charts

Page 955 diagram

Page 956

TAPI structures TAPI messages CTI messages Action No change LINE_DEVSPECIFIC hDevice = hCall-1 dwCallBackInstance = 0 dwParam1 = StartReception dwParam2 = IP Address dwParam3 = Port CallStartReceptionEvent, DH = A, CH = C1 No change LINE_DEVSPECIFIC1 hDevice = hCall-1 dwCallBackInstance = 0 dwParam1 = StartTransmission dwParam2 = IP Address dwParam3 = Port CallStartTransmissionEvent, DH = A, CH = C1 LINE_DEVSPECIFIC events only get sent if the application requested them by using lineDevSpecific(). Note Blind Transfer Through Translation Pattern The following table describes the message sequences for the Presentation Indication scenario of Blind Transfer through Translation Pattern. In this scenario, A calls via translation pattern B, B answers, and A and B are connected. TAPI structures TAPI messages CTI messages Action Party A Party B does a lineBlindTranfser() to blind transfer call from party A to party C via translation pattern Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 924 Message Sequence Charts Blind Transfer Through Translation Pattern

Image 1 from page 956

Page 956 diagram

Page 957

TAPI structures TAPI messages CTI messages Action TSPI LINECALLINFO dwOrigin = OUTBOUND dwReason = DIRECT dwCallerIDFlags = LINECALLPARTYID_ BLOCKED dwCallerID = NP dwCallerIDName = NP dwCalledID = B dwCalledIDName = B’s name dwConnectedIDFlags = LINECALLPARTYID_ BLOCKED dwConnectedID = NP dwConnectedIDName = NP dwRedirectingID = B dwRedirectingIDName = B’s name dwRedirectionIDFlags = LINECALLPARTYID_ BLOCKED dwRedirectionID = NP dwRedirectionIDName = NP LINE_CALLINFO, hDevice = hCall-1, dwCallbackInstance = 0, dwParam1 = CONNECTEDID, REDIRECTINGID, REDIRECTIONID CallPartyInfoChangedEvent, CH = C1, CallingChanged = False, Calling = A, CallingPartyPI = Restricted, CalledChanged = True, Called = C, CalledPartyPI = Restricted, OriginalCalled = NULL, OriginalCalledPI = Restricted, LR = NULL, Cause = BlindTransfer Party B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 925 Message Sequence Charts Message Sequence Charts

Page 957 diagram

Page 958

TAPI structures TAPI messages CTI messages Action TSPI LINECALLINFO dwOrigin = INTERNAL dwReason = DIRECT dwCallerIDFlags = LINECALLPARTYID_ BLOCKED dwCallerID = NP dwCallerIDName = NP dwCalledID = B dwCalledIDName = B’s name dwConnectedIDFlags = LINECALLPARTYID_ BLOCKED dwConnectedID = NP dwConnectedIDName = NP dwRedirectingID = B dwRedirectingIDName = B’s name dwRedirectionIDFlags = LINECALLPARTYID_ BLOCKED dwRedirectionID = NP dwRedirectionIDName = NP TSPI: LINE_CALLSTATE, hDevice = hCall-1, dwCallbackInstance = 0, dwParam1 = IDLE dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C2, State = Idle, Reason = Direct, Calling = A, CallingPartyPI = Restricted, Called = B, CalledPartyPI = Restricted, OriginalCalled = B, OrigCalledPartyPI = Restricted, LR = NULL Party C Party B does a lineBlindTranfser() to blind transfer call from party A to party C via translation pattern (continued) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 926 Message Sequence Charts Message Sequence Charts

Page 958 diagram

Page 959

TAPI structures TAPI messages CTI messages Action TSPI LINECALLINFO dwOrigin = INTERNAL dwReason = TRANSFER dwCallerIDFlags = LINECALLPARTYID_ BLOCKED dwCallerID = NP dwCallerIDName = NP dwCalledID = NP dwCalledIDName = NP dwConnectedIDFlags = LINECALLPARTYID_ BLOCKED dwConnectedID = NP dwConnectedIDName = NP dwRedirectingID = B dwRedirectingIDName = B's name dwRedirectionIDFlags = LINECALLPARTYID_ BLOCKED dwRedirectionID = NP dwRedirectionIDName = NP TSPI: LINE_APPNEWCALL hDevice = C dwCallbackInstance = 0 dwParam1 = 0 dwParam2 = hCall-1 dwParam3 = OWNER NewCallEvent, CH = C3, origin = Internal_Inbound, Reason = BlindTransfer, Calling = A, CallingPartyPI = Restricted, Called = C, CalledPartyPI = Restricted, OriginalCalled = B, OrigCalledPartyPI = Restricted, LR = B, LastRedirectingPartyPI = Restricted Party A Party C is offering Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 927 Message Sequence Charts Message Sequence Charts

Page 959 diagram

Page 960

TAPI structures TAPI messages CTI messages Action TSPI LINECALLINFO dwOrigin = OUTBOUND dwReason = DIRECT dwCallerIDFlags = LINECALLPARTYID_ BLOCKED dwCallerID = NP dwCallerIDName = NP dwCalledID = B dwCalledIDName = B’s name dwConnectedIDFlags = LINECALLPARTYID_ BLOCKED dwConnectedID = NP dwConnectedIDName = NP dwRedirectingID = B dwRedirectingIDName = B’s name dwRedirectionIDFlags = LINECALLPARTYID_ BLOCKED dwRedirectionID = NP dwRedirectionIDName = NP TSPI: LINE_CALLSTATE, hDevice = hCall-1, dwCallbackInstance = 0, dwParam1 = RINGBACK dwParam2 = 0 dwParam3 = 0 CallStateChangeEvent, CH = C1, State = Ringback, Reason = Direct, Calling = A, CallingPartyPI = Restricted, Called = C, CalledPartyPI = Restricted, OriginalCalled = B, OrigCalledPartyPI = Restricted, LR = B, LastRedirectingPartyPI

Restricted Party C Party C is offering (continued) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 928 Message Sequence Charts Message Sequence Charts

Page 960 diagram

Page 961

TAPI structures TAPI messages CTI messages Action TSPI LINECALLINFO dwOrigin = INTERNAL dwCallerIDFlags = LINECALLPARTYID_ BLOCKED dwCallerID = NP dwCallerIDName = NP dwCalledID = NP dwCalledIDName = NP dwConnectedIDFlags = LINECALLPARTYID_ BLOCKED dwConnectedID = NP dwConnectedIDName = NP dwRedirectingID = B dwRedirectingIDName = B's name dwRedirectionIDFlags = LINECALLPARTYID_ BLOCKED dwRedirectionID = NP dwRedirectionIDName = NP TSPI: LINE_CALLSTATE, hDevice = hCall-1, dwCallbackInstance = 0, dwParam1 = OFFERING dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C3, State = Offering, Reason = BlindTransfer, Calling = A, CallingPartyPI = Restricted, Called = C, CalledPartyPI = Restricted, OriginalCalled = B, OrigCalledPartyPI = Restricted, LR = B, LastRedirectingPartyPI

Restricted Redirect to Device The following use cases are related to PSAP Callback Redirect to a device feature. For all use cases, there are four devices: device A, B, C and C'. Devices C and C' share a line. Scenario 1: A calls B and B redirects the call to C, C' with redirectDeviceName as C. Expected Events Action LineInitialize LineOpen on A , LineOpen on B, LineOpen on C LineOpen on C ' with new ExtVersion 0x000D0000 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 929 Message Sequence Charts Redirect to Device

Page 961 diagram

Page 962

Expected Events Action For A: • LINECALLSTATE CONNECTED • Caller = A, Called =B Connected B For B: • LINECALLSTATE CONNECTED • Caller = A, Called =B Connected A A calls B For A: • LINECALLSTATE_RINGBACK For C: • LINECALLSTATE_OFFERING / LINECALLSTATE_ACCEPTED Application sends CciscoLineDevSpecificRedirectEx on B to redirect call to C and C' with the redirectDeviceName as of C. • PARAM: hLine • PARAM: dwAddressID • PARAM: hCall • PARAM: FeaturePriority • PARAM: m_DestDirn • PARAM: m_SetOriginalCalledTo • PARAM: m_FAC • PARAM: m_CMC • PARAM: m_RedirectBitMask • PARAM: m_RedirectDeviceName = C • PARAM: m_ApplicationXMLDataSize • PARAM: m_ApplicationXMLData • PARAM: m_callingSearchSpace • PARAM: returnCode For C: • LINE_CALLSTATE CONNECTED ACTIVE For C': • LINE_CALLSTATECONNECTEDINACTIVE C answers the call Scenario 2: A calls B and B redirects the call to C, C' with invalid device name. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 930 Message Sequence Charts Message Sequence Charts

Page 962 diagram

Page 963

Expected Events Action LineInitialize LineOpen on A , LineOpen on B, LineOpen on C LineOpen on C ' with new ExtVesrion 0x000D0000 For A: • LINECALLSTATE CONNECTED • Caller = A, Called =B Connected B For B: • LINECALLSTATE CONNECTED • Caller = A, Called = B, Connected = A A calls B Line_Reply with Error Code: "LINEERR_ INVALADDRESS" Application sends CciscoLineDevSpecificRedirectEx on B to redirect call with invalid device name. (CciscoLineDevSpecificRedirectEx)... • PARAM: hLine • PARAM: dwAddressID • PARAM: hCall • PARAM: FeaturePriority • PARAM: m_DestDirn • PARAM: m_SetOriginalCalledTo • PARAM: m_FAC • PARAM: m_CMC • PARAM: m_RedirectBitMask • PARAM: m_RedirectDeviceName = invDevice • PARAM: m_ApplicationXMLDataSize • PARAM: m_ApplicationXMLData • PARAM: m_callingSearchSpace • PARAM: returnCode Scenario 3: A calls B and B redirects the call to C,C' with redirectDeviceName as of C and with CallingSearchSpace with the value 2. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 931 Message Sequence Charts Message Sequence Charts

Page 963 diagram

Page 964

Expected Events Action LineInitialize LineOpen on A , LineOpen on B, LineOpen on C LineOpen on C ' with new ExtVesrion 0x000D0000 For A: • LINECALLSTATE CONNECTED • Caller = A, Called =B Connected = B For B: • LINECALLSTATE CONNECTED • Caller = A, Called = B Connected = A A calls B For A: • LINECALLSTATE_RINGBACK For C: • LINECALLSTATE_OFFERING / LINECALLSTATE_ACCEPTED The CallingSearchSpace for device C will be set to the CSS of B (the party which is redirecting). Application sends CciscoLineDevSpecificRedirectEx on B to redirect call to C and C' with the redirectDeviceName as of C. • PARAM: hLine • PARAM: dwAddressID • PARAM: hCall • PARAM: FeaturePriority • PARAM: m_DestDirn • PARAM: m_SetOriginalCalledTo • PARAM: m_FAC • PARAM: m_CMC • PARAM: m_RedirectBitMask • PARAM: m_RedirectDeviceName = C • PARAM: m_ApplicationXMLDataSize • PARAM: m_ApplicationXMLData • PARAM: m_callingSearchSpace=2 • PARAM: returnCode Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 932 Message Sequence Charts Message Sequence Charts

Page 964 diagram

Page 965

Expected Events Action For C: • LINE_CALLSTATE - CONNECTED ACTIVE For C' • LINE_CALLSTATE -CONNECTED INACTIVE C answers the call Redirect Set Original Called (TxToVM) The following table describes the message sequences for Redirece Set Original Called (TxToVM) feature where A calls B, B answers, and A and B are connected. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 933 Message Sequence Charts Redirect Set Original Called (TxToVM)

Page 965 diagram

Page 966

Table 124: Message Sequences for Redirect Set Original Called (TxToVM) TAPI structures TAPI messages CTI messages Action Party A Party B does lineDevSpecific for REDIRECT_SET_ ORIG_CALLED with DestDN = C's VMP and SetOrigCalled = C TSPI LINECALLINFO dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCalledID = C dwConnectedID = NULL dwRedirectingID = NP dwRedirectionID = NP LINE_CALLINFO, hDevice = hCall-1, dwCallbackInstance = 0, dwParam1 = CONNECTEDID, REDIRECTINGID, REDIRECTIONID CallPartyInfoChangedEvent, CH = C1, CallingChanged = False, Calling = A, CalledChanged = True, Called = C, OriginalCalled = NULL, LR = NULL, Cause = Redirect Party B TSPI LINECALLINFO dwOrigin = INTERNAL dwReason = DIRECT dwCallerID = A dwCalledID = B dwConnectedID = NULL dwRedirectingID = NULL dwRedirectionID = NULL TSPI: LINE_CALLSTATE, hDevice = hCall-1, dwCallbackInstance = 0, dwParam1 = IDLE dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C2, State = Idle, reason = DIRECT, Calling = A, Called = B, OriginalCalled = B, LR = NULL Party C's VMP TSPI LINECALLINFO dwOrigin = INTERNAL dwReason = REDIRECT dwCallerID = A dwCalledID = C dwConnectedID = NULL dwRedirectingID = B dwRedirectionID = C's VMP TSPI: LINE_APPNEWCALL hDevice = C dwCallbackInstance = 0 dwParam1 = 0 dwParam2 = hCall-1 dwParam3 = OWNER NewCallEvent, CH = C3, origin = Internal_Inbound, reason = Redirect, Calling = A, Called = C, OriginalCalled = C, LR = B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 934 Message Sequence Charts Message Sequence Charts

Page 966 diagram

Page 967

TAPI structures TAPI messages CTI messages Action Party A Party C is offering TSPI LINECALLINFO dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCalledID = B dwConnectedID = NULL dwRedirectingID = B dwRedirectionID = C's VMP TSPI: LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = RINGBACK dwParam2 = 0 dwParam3 = 0 CallStateChangeEvent, CH = C1, State = Ringback, Reason = Direct, Calling = A, Called = C, OriginalCalled = C, LR = B Party C TSPI LINECALLINFO dwOrigin = INTERNAL dwCallerID = A dwCalledID = C dwConnectedID = NULL dwRedirectingID = B dwRedirectionID = C TSPI: LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = OFFERING dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C3, State = Offering, Reason = Redirect, Calling = A, Called = C, OriginalCalled = C, LR = B Refer and Replace Scenarios In-Dialog Refer -Referrer in Cisco Unified Communications Manager Cluster The following table describes the message sequences for the Refer and Replaces scenario of in-dialog refer where referer is in Cisco Unified Communications Manager cluster. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 935 Message Sequence Charts Refer and Replace Scenarios

Page 967 diagram

Page 968

Table 125: Message Sequences for In-Dialog Refer -Referrer in Cisco Unified Communications CallState/CallInfo @Refer-to-Target (C) CallState/CallInfo @Referree (B) CallState/CallInfo @Referrer (A) Actions A-->B has a call in connected state. The call party information at B should be {calling = A, called = B, LRP = null, origCalled = B, reason = direct} TAPI CallInfo dwCallerID = A dwCalledID = B dwRedirectingID = null dwRedirectionID = null dwConnectedID = A dwReason = Direct dwOrigin = LINECALL ORIGIN_INTERNAL A-->B has a call in connected state. The call party information at A should be {calling = A, called = B, LRP = null, origCalled = B, reason = direct} TAPI CallInfo dwCallerID = A dwCalledID = B dwRedirectingID = null dwRedirectionID = null dwConnectedID = B dwReason = Direct dwOrigin = LINECALL ORIGIN_INTERNAL Referrer (A), Referee (B), and Refer-to-Target (C) exist in Cisco Unified Communications Manager cluster, and CTI is monitoring those lines NewCallEvent should be {calling = B, called = C, LRP = A, origCalled = C, reason = REFER} LINECALLSTATE_OFFERING TAPI CallInfo dwCallerID = B dwCalledID = C dwRedirectingID = A dwRedirectionID = C dwConnectedID = “” dwReason = LINECALL REASON_UNKNOWN with extended REFER dwOrigin = LINECALL ORIGIN_INTERNAL A gets LINECALLSTATE_ UNKNOWN | CLDSMT_ CALL_WAITING_STATE with extended reason = REFER TAPI CallInfo dwCallerID = A dwCalledID = B dwRedirectingID = null dwRedirectionID = null dwConnectedID = B dwReason = Direct dwOrigin = LINECALL ORIGIN_INTERNAL (A) initiates REFER (B) to (C) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 936 Message Sequence Charts Message Sequence Charts

Page 968 diagram

Page 969

CallState/CallInfo @Refer-to-Target (C) CallState/CallInfo @Referree (B) CallState/CallInfo @Referrer (A) Actions LINECALLSTATE_CONNECTED TAPI callInfo dwCallerID = B dwCalledID = C dwRedirectingID = A dwRedirectionID = C dwConnectedID = B dwReason = LINECALL REASON_UNKNOWN with extended REFER dwOrigin = LINECALL ORIGIN_INTERNAL CallPartyInfoChangedEvent @ B with {calling = B, called = C, LRP = A, origCalled = C, reason = REFER} TAPI callInfo dwCallerID = B dwCalledID = B dwRedirectingID = A dwRedirectionID = C dwConnectedID = C dwReason = DIRECT dwOrigin = LINECALL ORIGIN_INTERNAL LINECALLSTATE_IDLE with extended REFER reason C answers the call, and Refer is successful In-Dialog Refer Where ReferToTarget Redirects the Call in Offering State The following table describes the message sequences for the Refer and Replaces scenario of in-dialog refer where ReferToTarget redirects the call in Offering state. Table 126: Message Sequences for In-Dialog Refer Where ReferToTarget Redirects the Call In CallState/CallInfo @Refer-to-Target (C) CallState/CallInfo @Referree (B) CallState/CallInfo @Referrer (A) Actions A-->B has a call in connected state. The call party information at B should be {calling = A, called = B, LRP = null, origCalled = B, reason = direct} TAPI CallInfo dwCallerID = A dwCalledID = B dwRedirectingID = null dwRedirectionID = null dwConnectedID = A dwReason = Direct dwOrigin = LINECALL ORIGIN_INTERNAL A-->B has a call in connected state. The call party information at A should be {calling = A, called = B, LRP = null, origCalled = B, reason = direct} TAPI CallInfo dwCallerID = A dwCalledID = B dwRedirectingID = null dwRedirectionID = null dwConnectedID = B dwReason = Direct dwOrigin = LINECALL ORIGIN_INTERNAL Referrer (A), Referee (B), and Refer-to-Target (C) exist in Cisco Unified Communications Manager cluster, and CTI is monitoring those lines Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 937 Message Sequence Charts In-Dialog Refer Where ReferToTarget Redirects the Call in Offering State

Page 969 diagram

Page 970

CallState/CallInfo @Refer-to-Target (C) CallState/CallInfo @Referree (B) CallState/CallInfo @Referrer (A) Actions NewCallEvent should be {calling = B, called = C, LRP = A, origCalled = C, reason = REFER} LINECALLSTATE_OFFERING TAPI callInfo dwCallerID = B dwCalledID = C dwRedirectingID = A dwRedirectionID = C dwConnectedID = null dwReason = LINECALL REASON_UNKNOWN with extended REFER dwOrigin = LINECALL ORIGIN_INTERNAL B gets CPIC with (calling = B, called = C, ocdpn = C, LRP = A, reason = REFER, call state = Ringback) TAPI CallInfo dwCallerID = B dwCalledID = C dwRedirectingID = A dwRedirectionID = C dwConnectedID = null dwReason = Direct dwOrigin = LINECALL ORIGIN_INTERNAL A gets LINECALLSTATE_ UNKNOWN | CLDSMT_ CALL_WAITING_STATE with extended reason = REFER TAPI CallInfo dwCallerID = A dwCalledID = B dwRedirectingID = null dwRedirectionID = null dwConnectedID = B dwReason = Direct dwOrigin = LINECALL ORIGIN_INTERNAL (A) initiates REFER (B) to (C) IDLE with reason = Redirect TAPI LINECALLSTATE_IDLE D will get NewCallEvent with reason = Redirect call info same as B’s call info. (calling = B, called = D, ocdpn = C, LRP = C, reason = redirect) Offering/accepted/connected CallPartyInfoChangedEvent @ B with {calling = B, called = D, LRP = C, origCalled = C, reason = Redirect} Callstate = connected TAPI callInfo dwCallerID = B dwCalledID = B dwRedirectingID = C dwRedirectionID = D dwConnectedID = D dwReason = DIRECT dwOrigin = LINECALL ORIGIN_INTERNAL LINECALLSTATE_IDLE with extended reason = REFER (REFER considered as successful when D answers) C Redirects the call to D in offering state, and D answers In-Dialog Refer Where Refer Fails or Refer to Target Is Busy The following table describes the message sequences for the Refer and Replaces scenario of in-dialog refer fails or refer to target is busy. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 938 Message Sequence Charts In-Dialog Refer Where Refer Fails or Refer to Target Is Busy

Page 970 diagram

Page 971

Table 127: Message Sequences for In-Dialog Refer Where Refer Fails or Refer to Target Is Busy CallState/CallInfo @Refer-to-Target (C) CallState/CallInfo @Referree (B) CallState/CallInfo @Referrer (A) Actions A-->B has a call in connected state. The call party information at B should be {calling = A, called = B, LRP = null, origCalled = B, reason = direct} TAPI CallInfo dwCallerID = A dwCalledID = B dwRedirectingID = null dwRedirectionID = null dwConnectedID = A dwReason = Direct dwOrigin = LINECALL ORIGIN_INTERNAL A-->B has a call in connected state. The call party information at A should be {calling = A, called = B, LRP = null, origCalled = B, reason = direct} TAPI CallInfo dwCallerID = A dwCalledID = B dwRedirectingID = null dwRedirectionID = null dwConnectedID = B dwReason = Direct dwOrigin = LINECALL ORIGIN_INTERNAL Referrer (A), Referee (B,) and Refer-to-Target (C) exist in Cisco Unified Communications Manager cluster, and CTI is monitoring those lines No change A gets LINECALLSTATE_ UNKNOWN | CLDSMT_ CALL_WAITING_STATE with extended reason = REFER TAPI CallInfo dwCallerID = A dwCalledID = B dwRedirectingID = null dwRedirectionID = null dwConnectedID = B dwReason = Direct dwOrigin = LINECALL ORIGIN_INTERNAL (A) initiates REFER (B) to (C) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 939 Message Sequence Charts Message Sequence Charts

Page 971 diagram

Page 972

CallState/CallInfo @Refer-to-Target (C) CallState/CallInfo @Referree (B) CallState/CallInfo @Referrer (A) Actions If B goes to ringback when call is offered to C (C does not answer finally) it should also receive Connected Call State and CPIC event TAPI CallInfo dwCallerID = A dwCalledID = B dwRedirectingID = null dwRedirectionID = null dwConnectedID = A dwReason = Direct dwOrigin = LINECALL ORIGIN_INTERNAL A gets LINECALLSTATE_CONNECTED with extended reason = REFER (REFER considered as failed) C is busy / C does not answer Out-of-Dialog Refer The following table describes the message sequences for the Refer and Replaces scenario of Out-of-Dialog Refer. Table 128: Message Sequences for Out-of-Dialog Refer CallState/CallInfo @Refer-to-Target (C) CallState/CallInfo @Referree (B) CallState/CallInfo @Referrer (A) Actions There is no preexisting call between A and B. There is no preexisting call between A and B. Referrer (A), Referee (B), and Refer-to-Target (C) exist in Cisco Unified Communications Manager cluster, and CTI is monitoring those lines Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 940 Message Sequence Charts Out-of-Dialog Refer

Page 972 diagram

Page 973

CallState/CallInfo @Refer-to-Target (C) CallState/CallInfo @Referree (B) CallState/CallInfo @Referrer (A) Actions B should get NewCallEvent with call info as {calling = A, called = B, LRP = null, origCalled = B, reason = REFER} TAPI CallInfo dwCallerID = A dwCalledID = B dwRedirectingID = null dwRedirectionID = null dwConnectedID = A dwReason = LINECALL REASON_UNKNOWN with extended REFER dwOrigin = LINECALL ORIGIN_EXTERNAL A initiates REFER B to (C) Call state = connected (media does not flow between A and B when call goes to connected state) TAPI CallInfo (no change) B answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 941 Message Sequence Charts Message Sequence Charts

Page 973 diagram

Page 974

CallState/CallInfo @Refer-to-Target (C) CallState/CallInfo @Referree (B) CallState/CallInfo @Referrer (A) Actions NewCallEvent should be {calling = B, called = C, LRP = A, origCalled = C, reason = REFER} This info is exactly same as though caller (A) performed REDIRECT operation (except the reason is different here). TAPI callInfo dwCallerID = B dwCalledID = C dwRedirectingID = A dwRedirectionID = C dwConnectedID = B dwReason = LINECALL REASON_UNKNOWN with extended REFER dwOrigin = LINECALL ORIGIN_INTERNAL CallPartyInfoChangedEvent @ B with {calling = B, called = C, LRP = A, origCalled = C, reason = REFER} TAPI callInfo dwCallerID = B dwCalledID = B dwRedirectingID = A dwRedirectionID = C dwConnectedID = C dwReason = LINECALL REASON_UNKNOWN with extended REFER dwOrigin = LINECALL ORIGIN_EXTERNAL Cisco Unified Communications Manager redirects the call to C Invite with Replace for Confirmed Dialog The following table describes the message sequences for the Refer and Replaces scenario of invite with replace for confirmed dialog. Here, A, B, and C exist inside Cisco Unified Communications Manager. A confirmed dialog occurs between A and B. C initiates Invite to A with replace B's dialog ID. Table 129: Message Sequences for Invite with Replace for Confirmed Dialog CallState/CallInfo @Refer-to-Target (C) CallState/CallInfo @Referree (B) CallState/CallInfo @Referrer (A) Actions Call State = connected Caller = A, Called = B, Connected = A, Reason = direct, gcid = GC1 Call State = connected, Caller = A, Called = B, Connected = B, Reason = direct, gcid = GC1 Confirmed dialog occurs between A and B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 942 Message Sequence Charts Invite with Replace for Confirmed Dialog

Page 974 diagram

Page 975

CallState/CallInfo @Refer-to-Target (C) CallState/CallInfo @Referree (B) CallState/CallInfo @Referrer (A) Actions NewCall at C gcid = GC2, reason = REPLACEs, Call state = Dialing, Caller = C, Called = null, Reason = REPLACEs C Invites A by replacing B’s dialog CPIC changed Caller = C, Called = A, ocdpn = A, LRP = B, Reason = REPLACEs CallState = connected TAPI callinfo Caller = C, Called = A, Connected = A, Redirecting = B, Redirection = A, reason = UNKNOWN with extended REPLACEs, callID = GC2 Call State = IDLE, extended reason = REPLACEs GCID Changed to GC2, Reason = REPLACEs CPIC Caller = C, Called = A, ocdpn = A, LRP = B Reason = REPLACEs Callstate = connected TAPI callinfo caller = C, called = B, connected = C, redirecting = B, redirection = A, reason = DIRECT with extended REPLACEs, callID = GC2 Cisco Unified Communications Manager joins A and C in a call and disconnects call leg @ B Refer with Replace for All in Cluster The following table describes the message sequences for the Refer and Replaces scenario of refer with replace for all in cluster. Here, a confirmed dialog exists between A and B and A and C. A initiates Refer to C with replace B’s dialog ID. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 943 Message Sequence Charts Refer with Replace for All in Cluster

Page 975 diagram

Page 976

Table 130: Message Sequences for Refer with Replace for All in Cluster CallState/CallInfo @Refer-to-Target (C) CallState/CallInfo @Referree (B) CallState/CallInfo @Referrer (A) Actions Call State = connected Caller = A, Called = C, Connected = A, Reason = direct, gcid = GC1 Call State = connected Caller = A, Called = B, Connected = A, Reason = direct, gcid = GC2 Call State = onhold, GC1, Caller = A, Called = C, Connected = C, Reason = direct CallState = connected, GC2, Caller = A, Called = B, Connected = B, Reason = direct Dialog between A and B and dialog between A and C CPIC Changed from CTI with Caller = B, Called = C, Origcalled = C, LRP = A, Reason = TRANSFER TAPI callinfo caller = B, called = C, connected = B, redirecting = A, redirection = C, reason = direct with extended TRANSFER. callId = GC1 GCID changed from CTI reason = TRANSFER CPIC Changed from CTI Caller = B, Called = C, Origcalled = C, LRP = A, Reason = TRANSFER TAPI callinfo Caller = B, Called = B, Connected = C, Redirecting = A, Redirection = C, Reason = DIRECT with extended reason TRANSFER. CallId = GC1 From CTI (callState = IDLE with reason = TRANSFER) TAPI call state IDLE with Reason = DIRECT with extended reason TRANSFER A completes Refer to C replacing A->B’s dialog (B is referred to target) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 944 Message Sequence Charts Message Sequence Charts

Page 976 diagram

Page 977

Refer with Replace for All in Cluster Replace Dialog Belongs to Another Station The following table describes the message sequences for the Refer and Replaces scenario of refer with replace for all in cluster, where replace dialog belongs to another station. In this scenario: A is Referrer, D is Referee, and C is Refer-to-Target. A confirmed dialog exists between A(d1) and B & C(d2) and D. A initiates Refer to D on (d1) with Replaces (d2). Table 131: Message Sequences for Refer with Replace for All in Cluster, Replace Dialog Belongs to Another Station CallState/CallInfo @Referree (D) CallState/CallInfo @Refer-to-Target (C) CallState/CallInfo @B CallState/CallInfo @Referrer (A) Actions Call State = connected Caller = C, Called = D, Connected = C, Reason = direct, gcid = GC2 Call State = connected Caller = C, Called = D, Connected = D, Reason = direct, gcid = GC2 Call State = connected Caller = A, Called = B, Connected = A, Reason = direct, gcid = GC1 Call State = onhold, Caller = A, Called = B, Connected = B, Reason = direct, gcid = GC1 Dialog between A and B and dialog between C and D GCID changed from CTI to GC1 CPIC Changed from CTI with Caller = B (referee), Called = D, Origcalled = D, LRP = C, Reason = REPLACEs TAPI callinfo caller = B, called = D, connected = B, redirecting = C, redirection = D, reason = DIRECT with extended REPLACEs, callId = GC1 From CTI (callState = IDLE with reason = REPLACEs.) TAPI call state IDLE with reason = DIRECT with extended reason = REPLACEs CPIC Changed from CTI Caller = B, Called = C, Origcalled = D, LRP = C, Reason = REPLACEs TAPI callinfo Caller = B, Called = B, Connected = D, Redirecting = C, Redirection = D, Reason = DIRECT with extended REPLACEs, CallId = GC1 From CTI (callState = IDLE with reason = REFER) TAPI call state IDLE with reason = DIRECT with extended reason = REFER A initiates Refer to D on (d1) with Replaces (d2) Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 945 Message Sequence Charts Refer with Replace for All in Cluster Replace Dialog Belongs to Another Station

Page 977 diagram

Page 978

Secure Conferencing Conference with All Parties as Secure The conference bridge includes security profile. MOH is not configured. A, B, and C get registered as Encrypted. TAPI structures TAPI messages CTI messages Action Party A A calls B; B answers the call LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCalledID = B dwConnectedID = B dwRedirectionID = NP dwRedirectingID = NP Devspecific Data : CallSecurityInfo = Encrypted LINE_CALLDEVSPECIFIC hDevice = A dwCallbackInstance = 0 dwParam1 = SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_CALL_SECURITY_STATUS dwParam3 = 0 CallStateChangedEvent, CH = C1, GCH = G1, Calling = A, Called = B, OrigCalled = B, LR = NP, State = Connected, Origin = OutBound, Reason = Direct SecurityStaus = NotAuthenticated CtiCallSecurityStatusUpdate LH = A, CH = C1 SecurityStaus = Encrypted Party B LINECALLINFO (hCall-1) hLine = B dwCallID = T1 dwOrigin = INTERNAL dwReason = DIRECT dwCallerID = A dwCalledID = B dwConnectedID = A dwRedirectionID = NP dwRedirectingID = NP Devspecific Data : CallSecurityInfo = Encrypted LINE_CALLDEVSPECIFIC hDevice = B dwCallbackInstance = 0 dwParam1 = SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_CALL_SECURITY_STATUS dwParam3 = 0 CallStateChangedEvent, CH = C2, GCH = G1, Calling = A, Called = B, OrigCalled = B, LR = NP, State = Connected, Origin = OutBound, Reason = Direct SecurityStaus = NotAuthenticated CtiCallSecurityStatusUpdate LH = B, CH = C2 SecurityStaus = Encrypted Party B B does lineSetUpConference Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 946 Message Sequence Charts Secure Conferencing

Page 978 diagram

Page 979

TAPI structures TAPI messages CTI messages Action LINECALLINFO (hCall-1) hLine = B dwCallID = T1 dwOrigin = INTERNAL dwReason = DIRECT dwCallerID = A dwCalledID = B dwConnectedID = A dwRedirectionID = NP dwRedirectingID = NP Devspecific Data : CallSecurityInfo = NotAuthenticated LINE_CALLDEVSPECIFIC hDevice = B dwCallbackInstance = 0 dwParam1 = SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_CALL_SECURITY_STATUS dwParam3 = 0 CtiCallSecurityStatusUpdate LH = B, CH = C2 SecurityStaus = NotAuthenticated Party B B calls C; C answers the call LINECALLINFO (hCall-1) hLine = B dwCallID = T2 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = B dwCalledID = C dwConnectedID = C dwRedirectionID = NP dwRedirectingID = NP Devspecific Data : CallSecurityInfo = Encrypted LINE_CALLDEVSPECIFIC hDevice = B dwCallbackInstance = 0 dwParam1 = SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_CALL_SECURITY_STATUS dwParam3 = 0 CallStateChangedEvent, CH = C3, GCH = G2, Calling = A, Called = B, OrigCalled = B, LR = NP, State = Connected, Origin = OutBound, Reason = Direct SecurityStaus = NotAuthenticated CtiCallSecurityStatusUpdate LH = B, CH = C3 SecurityStaus = Encrypted Party C Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 947 Message Sequence Charts Message Sequence Charts

Page 979 diagram

Page 980

TAPI structures TAPI messages CTI messages Action LINECALLINFO (hCall-1) hLine = C dwCallID = T2 dwOrigin = INTERNAL dwReason = DIRECT dwCallerID = B dwCalledID = C dwConnectedID = B dwRedirectionID = NP dwRedirectingID = NP Devspecific Data : CallSecurityInfo = Encrypted LINE_CALLDEVSPECIFIC hDevice = C dwCallbackInstance = 0 dwParam1 = SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_CALL_SECURITY_STATUS dwParam3 = 0 CallStateChangedEvent, CH = C4, GCH = G2, Calling = B, Called = C, OrigCalled = C, LR = NP, State = Connected, Origin = OutBound, Reason = Direct SecurityStaus = NotAuthenticated CtiCallSecurityStatusUpdate LH = C, CH = C4 SecurityStaus = Encrypted Party B B completes conf LINECALLINFO (hCall-1) hLine = B dwCallID = T1 dwOrigin = CONFERENCE dwReason = UNKNOWN dwCallerID = NP dwCalledID = NP dwConnectedID = NP dwRedirectionID = NP dwRedirectingID = NP Devspecific Data : CallSecurityInfo = Encrypted LINE_CALLDEVSPECIFIC hDevice = B dwCallbackInstance = 0 dwParam1 = SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_CALL_SECURITY_STATUS dwParam3 = 0 CtiCallSecurityStatusUpdate LH = B, CH = C2 SecurityStaus = Encrypted Hold or Resume in Secure Conference Conference bridge includes security profile. MOH gets configured. A, B, and C represent secure phones and exist in conference with overall call security status as secure. TAPI structures TAPI messages CTI messages Action Party A A does lineHold Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 948 Message Sequence Charts Hold or Resume in Secure Conference

Page 980 diagram

Page 981

TAPI structures TAPI messages CTI messages Action LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = CONFERENCE dwReason = UNKNOWN dwCallerID = NP dwCalledID = NP dwConnectedID = NP dwRedirectionID = NP dwRedirectionID = NP Devspecific Data : CallSecurityInfo = NotAuthenticated LINE_CALLDEVSPECIFIC hDevice = A dwCallbackInstance = 0 dwParam1 = SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_CALL_SECURITY_STATUS dwParam3 = 0 CtiCallSecurityStatusUpdate, LH = A, CH = C1, SecurityStaus = NotAuthenticated Party B LINECALLINFO (hCall-1) hLine = B dwCallID = T1 dwOrigin = CONFERENCE dwReason = UNKNOWN dwCallerID = NP dwCalledID = NP dwConnectedID = NP dwRedirectionID = NP dwRedirectionID = NP Devspecific Data : CallSecurityInfo = CtiCallSecurityStatusUpdate, LH = A, CH = C1, SecurityStaus = NotAuthenticated LINE_CALLDEVSPECIFIC hDevice = B dwCallbackInstance = 0 dwParam1 = SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_CALL_SECURITY_STATUS dwParam3 = 0 CtiCallSecurityStatusUpdate, LH = B, CH = C2, SecurityStaus = NotAuthenticated Party C Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 949 Message Sequence Charts Message Sequence Charts

Page 981 diagram

Page 982

TAPI structures TAPI messages CTI messages Action LINECALLINFO (hCall-1) hLine = dwCallID = T1 dwOrigin = CONFERENCE dwReason = UNKNOWN dwCallerID = NP dwCalledID = NP dwConnectedID = NP dwRedirectionID = NP dwRedirectionID = NP Devspecific Data : CallSecurityInfo = NotAuthenticated LINE_CALLDEVSPECIFIC hDevice = C dwCallbackInstance = 0 dwParam1 = SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_CALL_SECURITY_STATUS dwParam3 = 0 CtiCallSecurityStatusUpdate, LH = A, CH = C1, SecurityStaus = NotAuthenticated Party A A does lineResume LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = CONFERENCE dwReason = UNKNOWN dwCallerID = NP dwCalledID = NP dwConnectedID = NP dwRedirectionID = NP dwRedirectionID = NP Devspecific Data : CallSecurityInfo = Encrypted LINE_CALLDEVSPECIFIC hDevice = A dwCallbackInstance = 0 dwParam1 = SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_CALL_SECURITY_STATUS dwParam3 = 0 CtiCallSecurityStatusUpdate, LH = A, CH = C1, SecurityStaus = Encrypted Party B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 950 Message Sequence Charts Message Sequence Charts

Page 982 diagram

Page 983

TAPI structures TAPI messages CTI messages Action LINECALLINFO (hCall-1) hLine = B dwCallID = T1 dwOrigin = CONFERENCE dwReason = UNKNOWN dwCallerID = NP dwCalledID = NP dwConnectedID = NP dwRedirectionID = NP dwRedirectionID = NP Devspecific Data : CallSecurityInfo = Encrypted LINE_CALLDEVSPECIFIC hDevice = B dwCallbackInstance = 0 dwParam1 = SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_CALL_SECURITY_STATUS dwParam3 = 0 CtiCallSecurityStatusUpdate, LH = B, CH = C2, SecurityStaus = Encrypted Party C LINECALLINFO (hCall-1) hLine = dwCallID = T1 dwOrigin = CONFERENCE dwReason = UNKNOWN dwCallerID = NP dwCalledID = NP dwConnectedID = NP dwRedirectionID = NP dwRedirectionID = NP Devspecific Data : CallSecurityInfo = Encrypted LINE_CALLDEVSPECIFIC hDevice = C dwCallbackInstance = 0 dwParam1 = SLDSMT_LINECALLINFO_ DEVSPECIFICDATA dwParam2 = SLDST_CALL_SECURITY_STATUS dwParam3 = 0 CtiCallSecurityStatusUpdate, LH = C, CH = C4, SecurityStaus = Encrypted Secure Monitoring and Recording Silent Monitoring Set up: User is in “Allow Monitoring” Group BIB on B is set to ON A, A1 – Customer Phones Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 951 Message Sequence Charts Secure Monitoring and Recording

Page 983 diagram

Page 984

B, B1– Agent phones C, C1 – Supervisor phones All Lines are Opened with Ext Version – 0x000A0000 Expected result Action Silent Monitored Call is created in Non-Secure Mode Line_CallDevSpecific (dwparam1 = MonitoringStarted) will be fired for B. New call will be fired on C Line_CallDevSpecific(dwparam1 = DevSpecificData, dwparam2 = CallAttributeInfo) will be fired to B and C CallReason = LINECALLREASON_DIRECT CallAttributeInfo in devspecific part of LineCallInfo of B will contain C’s info. CallAttributeType = ‘CallAttribute_SilentMonitorCall’ Address = C’s DN, Partition = C’s Partition Device Name = C’s Device Name Transaction ID = XXXX Call Security Status = Not Authenticated CallReason = LINECALLREASON_DIRECT CallAttributeInfo in devspecific part of LineCallInfo of C will contain B’s info Extended Call Reason = “CtiReasonSilentMonitoring” CallAttributeType = CallAttribute_SilentMonitorCall_Target Address = B’s DN, Partition = B’s Partition Device Name = B’s Device Name Transaction ID = XXXX CallSecurityStatus = Not Authenticated LineInitialize. Device A,B and C is Non-Secure LineOpen on A,B and C A calls B;B answers the Call C issues LineDevSpecific (Start Monitoring) with B’s permanent lineID, silent monitoring mode and NoTone as input. LineGetCallInfo on B LineGetCallInfo on C CallReason = LINECALLREASON_UNKNOWN Varaint 1 : Monitor Customer, Agent and Supervisor Lines after Monitoring Session is Started. Note Start Monitoring Lines from Other Application or Close Agent and Supervisor and Reopen the same. LineGetCallInfo on B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 952 Message Sequence Charts Message Sequence Charts

Page 984 diagram

Page 985

Basic Silent Monitoring Scenario in Secure Mode Expected result Action Silent Monitored Call is created in Secure Mode Line_CallDevSpecific (dwparam1 = MonitoringStarted) will be fired for B. New call will be fired on C Line_CallDevSpecific(dwparam1 = DevSpecifcData, dwparam2 = CallAttributeInfo) will be fired to B and C Line_CallDevSpecific(dwparam1 = DevSpecificData, dwparam2 = SLDST_SRTP_INFO, dwParam3 = MEDIA_ENCRYPT_KEYS_AVAILABLE) will be fired for the call on C. SRTP info will be available CallAttributeInfo in devspecific part of LineCallInfo of B will contain C’s info. CallAttributeTye = ‘CallAttribute_SilentMonitorCall’ Address = C’s DN, Partition = C’s Partition Device Name = C’s Device Name Transaction ID = XXXX Call Security Status = Encrypted SRTP info will be available CallAttributeInfo in devspecific part of LineCallInfo of C will contain B’s info CallAttributeTye = CallAttribute_SilentMonitorCall_Target Address = B’s DN, Partition = B’s Partition Device Name = B’s Device Name Transaction ID = XXXX CallSecurityStatus = Encrypted LineInitialize. Device A,B and C is Secure LineOpen on A,B and C A calls B;B answers the Call A to B call is Secure C issues LineDevSpecific (Start Monitoring) with B’s permanent lineID, silent monitoring mode and NoTone as input. LineGetCallInfo on B LineGetCallInfo on C Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 953 Message Sequence Charts Basic Silent Monitoring Scenario in Secure Mode

Page 985 diagram

Page 986

Silent Monitoring Scenario on Non-Secure Call in Secure Mode Expected result Action Monitoring Session will be started and the Media is setup in Secure Mode Events delivered will be same as use case 8.13.6.2. Line_CallDevSpecific (dwparam1 = DevSpecifcData, dwparam2 = OverallSecurityStatus) will be fired to C. SRTP info is not Available security Indicator = MEDIA_NOT_ENCRYPTED CallAttributeInfo in devspecific part of LineCallInfo of B will contain C’s info. CallAttributeTye = ‘CallAttribute_SilentMonitorCall’ Address = C’s DN, Partition = C’s Partition Device Name = C’s Device Name Transaction ID = XXXX Call Security Status = Not Authenticated SRTP info will be available security Indicator = MEDIA_ENCRYPT_KEYS_AVAILABLE CallAttributeInfo in devspecific part of LineCallInfo of C will contain B’s info CallAttributeTye = CallAttribute_SilentMonitorCall_Target Address = B’s DN, Partition = B’s Partition Device Name = B’s Device Name Transaction ID = XXXX CallSecurityStatus = Not Authenticated Same Events as above LineInitialize. Device A is not Secure Device B and C is Secure LineOpen on A,B and C A calls B;B answers the Call A to B call is non Secure C issues LineDevSpecific (Start Monitoring) with B’s permanent lineID, silent monitoring mode and NoTone as input. LineGetCallInfo on B LineGetCallInfo on C Variant : A is Secure Call on A is Hold and Non-Secure MOH is Inserted Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 954 Message Sequence Charts Silent Monitoring Scenario on Non-Secure Call in Secure Mode

Page 986 diagram

Page 987

Silent Monitoring Scenario on Non-Secure Call From Supervisor Which Is Secure Expected result Action Call between B and C will be Non-Secure No SRTP Events will be fired CallAttributeInfo in devspecific part of LineCallInfo of C will contain B’s info security Indicator = MEDIA_NOT_ENCRYPTED CallAttributeTye = CallAttribute_SilentMonitorCall_Target Address = B’s DN, Partition = B’s Partition Device Name = B’s Device Name Transaction ID = XXXX CallSecurityStatus = Not Authenticated LineInitialize. Device A and B is not Secure Device C is Secure LineOpen on A,B and C A calls B;B answers the Call A to B call is non Secure C issues LineDevSpecific (Start Monitoring) with B’s permanent lineID, silent monitoring mode and NoTone as input. LineGetCallInfo on C Silent Monitoring Scenario on Secure Call From Supervisor Which Is Non-Secure Expected result Action • New Call will be Fired on C. • Call on C will go to Disconnected State • Request fails with new Error Code LINEERR_SECURITY_CAPABILITIES_MISMATCH. Note Request fails as the Supervisor Security Capabilities doesn’t meet or exceed the Security status of Agent (B) LineInitialize. Device A and B is Secure Device C is Not Secure LineOpen on A,B and C A calls B;B answers the Call A to B call is Secure C issues LineDevSpecific (Start Monitoring) with B’s permanent lineID, silent monitoring mode and NoTone as input. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 955 Message Sequence Charts Silent Monitoring Scenario on Non-Secure Call From Supervisor Which Is Secure

Page 987 diagram

Page 988

Transfer of Monitored Call From Supervisor to Other Supervisor Expected result Action Call between B and C will be in Secure Mode Line_CallDevSpecific (dwparam1 = MonitoringStarted) will be fired for B. Line_CallDevSpecific(dwparam1 = DevSpecifcData, dwparam2 = CallAttributeInfo) will be fired to B and C SRTP info will be available security Indicator = MEDIA_ENCRYPT_KEYS_AVAILABLE CallAttributeInfo in devspecific part of LineCallInfo of C will contain B’s info CallAttributeTye = CallAttribute_SilentMonitorCall_Target Address = B’s DN, Partition = B’s Partition Device Name = B’s Device Name Transaction ID = XXXX CallSecurityStatus = Encrypted LINE_REPLY (dwRequestId, 0) is returned CallSecurityStatus = Encrypted LineInitialize. Device A,B and C is Secure Device C1 is not Secure LineOpen on A,B,C and C1 A calls B;B answers the Call A to B call is Secure C issues LineDevSpecific (Start Monitoring) with B’s permanent lineID, silent monitoring mode and NoTone as input. LineGetCallInfo on C lineDevSpecifc(CCiscoLineDevSpecificSetStatusMsgs) with DevSpecificStatusMsgsFlag = DEVSPECIFIC_SILENT_MONITORING_TERMINATED on C Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 956 Message Sequence Charts Transfer of Monitored Call From Supervisor to Other Supervisor

Page 988 diagram

Page 989

Expected result Action Transfer is successful and Monitoring Session will be Terminated. Call on C1 will be Disconnected with new Cause Code. Line_CallDevSpecific will be fired for B dwparam1 = SLDSMT_MONITORING_ENDED, dwparam2 = LINEDISCONNECTMODE_INCOMPATIBLE. Line_DevSpecific (dwparam1 = SLDSMT_MONITORING_TERMINATED, dwparam2 = TransactionID – xxxx, dwparam3 = LINEDISCONNECTMODE_INCOMPATIBLE) will be fired for C. Transfer is successful and Monitoring Session will not be disturbed. Line_CallDevSpecific(dwparam1 = DevSpecifcData, dwparam2 = CallAttributeInfo) will be fired to B and C1 SRTP info will be available CallAttributeInfo in devspecific part of LineCallInfo of B will contain C1’s info. CallAttributeTye = ‘CallAttribute_SilentMonitorCall’ Address = C1’s DN, Partition = C1’s Partition Device Name = C1’s Device Name Transaction ID = XXXX Call Security Status = Encrypted SRTP info will be available CallAttributeInfo in devspecific part of LineCallInfo of C will contain B’s info CallAttributeTye = CallAttribute_SilentMonitorCall_Target Address = B’s DN, Partition = B’s Partition Device Name = B’s Device Name Transaction ID = XXXX CallSecurityStatus = Encrypted C Transfers to C1 Variant : C1 is Secure LineGetCallInfo on B LineGetCallInfo on C1 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 957 Message Sequence Charts Message Sequence Charts

Page 989 diagram

Page 990

Transfer of Call From One Customer to Other Expected result Action Line_CallDevSpecific (dwparam1 = MonitoringStarted) will be fired for B. Line_CallDevSpecific(dwparam1 = DevSpecifcData, dwparam2 = CallAttributeInfo) will be fired to B and C Call between B and C will be in Secure Mode Line_CallDevSpecific(dwparam1 = DevSpecificData, dwparam2 = SLDST_SRTP_INFO, dwParam3 = MEDIA_ENCRYPT_KEYS_AVAILABLE) will be fired for the call on C. Transfer is successful and Monitoring Session isn’t disturbed. Line_CallDevSpecific (dwparam1 = DevSpecifcData, dwparam2 = SLDST_SECURITY_STATUS_INFO) will be fired to B and C. SRTP info will not be available CallAttributeInfo in devspecific part of LineCallInfo of B will contain C1’s info. CallAttributeTye = ‘CallAttribute_SilentMonitorCall’ Address = C’s DN, Partition = C’s Partition Device Name = C’s Device Name Transaction ID = XXXX Call Security Status = Not Authenticated SRTP info will be available Security Indicator = MEDIA_ENCRYPT_KEYS_AVAILABLE CallAttributeInfo in devspecific part of LineCallInfo of C will contain B’s info CallAttributeTye = CallAttribute_SilentMonitorCall_Target Address = B’s DN, Partition = B’s Partition Device Name = B’s Device Name Transaction ID = XXXX CallSecurityStatus = Not Authenticated LineInitialize. Device A,B and C is Secure Device A1 is not Secure LineOpen on A,B,C and A1 A calls B;B answers the Call A to B call is Secure C issues LineDevSpecific (Start Monitoring) with B’s permanent lineID, silent monitoring mode and NoTone as input. A Transfers to A1 LineGetCallInfo on B LineGetCallInfo on C Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 958 Message Sequence Charts Transfer of Call From One Customer to Other

Page 990 diagram

Page 991

Park on Supervisor Expected result Action Call between B and C is setup with Secure mode Line_CallDevSpecific (dwparam1 = MonitoringStarted) will be fired for B. Line_CallDevSpecific (dwparam1 = DevSpecifcData, dwparam2 = CallAttributeInfo) will be fired to B and C. Line_CallDevSpecific(dwparam1 = DevSpecificData, dwparam2 = SLDST_SRTP_INFO, dwParam3 = MEDIA_ENCRYPT_KEYS_AVAILABLE) will be fired for the call on C. Park Operation is successful and overCallSecurity Status is degraded to Not-Authenticated LINE_REPLY (dwRequestId, 0) is returned UnPark operation is Successful and Monitoring session is terminated. Call on C1 is disconnected as C1doesn’t have Secure Capabilities. Line_CallDevSpecific will be fired for B dwparam1 = SLDSMT_MONITORING_ENDED dwparam2 = LINEDISCONNECTMODE_INCOMPATIBLE Line_DevSpecific (dwparam1 = SLDSMT_MONITORING_TERMINATED, dwparam2 = TransactionID – xxxx, dwparam3 = LINEDISCONNECTMODE_INCOMPATIBLE) will be fired for C. Terminated Event is not Reported LineInitialize Device A,B and C is Secure Device C1 non secure LineOpen on A,B and C A calls B;B answers the Call A to B call is Secure C issues LineDevSpecific (Start Monitoring) with B’s permanent lineID, silent monitoring mode and NoTone as input C parks the call lineDevSpecifc(CCiscoLineDevSpecificSetStatusMsgs) with DevSpecificStatusMsgsFlag = DEVSPECIFIC_SILENT_MONITORING_TERMINATED on C C1 Unparks the call Varaint : if LineDevSpecific for receiving Terminated Event is not set Silent Monitoring on Conferenced Call Expected result Action Silent Monitoring Call between B and C is setup with Secure mode. Line_CallDevSpecific (dwparam1 = DevSpecifcData, dwparam2 = OverallSecurityStatus) will be fired to C. Call Security Status = Not Authenticated LineInitialize Device A and B1 is not Secure Device C and B is Secure LineOpen on A,B,B1 and C A, B and B1 are in Conference C issues LineDevSpecific (Start Monitoring) with B’s permanent lineID, silent monitoring mode and NoTone as input Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 959 Message Sequence Charts Park on Supervisor

Page 991 diagram

Page 992

Conference on Monitored Call Expected result Action Monitoring Request is successful and the Session is started Conference is created with A , C and C1 Line_CallDevSpecific (dwparam1 = DevSpecifcData, dwparam2 = OverallSecurityStatus) will be fired to C1. Call Security Status = Not Authenticated SRTP info will not be available CallAttributeInfo in devspecific part of LineCallInfo of B will contain CFB’s info. CallAttributeTye = CallAttribute_SilentMonitorCall Call Security Status = Not Authenticated SRTP info will not be available Security Indicator = MEDIA_NOT_ENCRYPT CallAttributeInfo in devspecific part of LineCallInfo of C will contain B’s info CallAttributeTye = CallAttribute_SilentMonitorCall_Target Address = B’s DN, Partition = B’s Partition Device Name = B’s Device Name Transaction ID = XXXX CallSecurityStatus = Not Authenticated SRTP info will not be available Security Indicator = MEDIA_NOT_ENCRYPT CallAttributeInfo in devspecific part of LineCallInfo of C will contain B’s info CallAttributeTye = CallAttribute_SilentMonitorCall_Target Address = B’s DN, Partition = B’s Partition Device Name = B’s Device Name Transaction ID = XXXX CallSecurityStatus = Not Authenticated LineInitialize. Device A, B and C is not Secure Device C1 is Secure LineOpen on A,B,C and D A calls B;B answers the Call C issues LineDevSpecific (Start Monitoring) with B’s permanent lineID, silent monitoring mode and NoTone as input C creates conference with C1 LineGetCallInfo on B LineGetCallInfo on C LineGetCallInfo on C1 Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 960 Message Sequence Charts Conference on Monitored Call

Page 992 diagram

Page 993

Conference on Monitored Call Expected result Action Monitoring Request is successful and the Session is started Monitoring Session is ended and C and C1 will be in direct simple call. Line_CallDevSpecific will be fired for B. dwparam1 = SLDSMT_MONITORING_ENDED, dwparam2 = LINEDISCONNECTMODE_INCOMPATIBLE Line_DevSpecific (dwparam1 = SLDSMT_MONITORING_TERMINATED, dwparam2 = TransactionID – xxxx, Dwparam3 = LINEDISCONNECTMODE_INCOMPATIBLE) will be fired for C LineInitialize Device A, B and C is Secure Device C1 is not Secure LineOpen on A,B,C and C1 A calls B;B answers the Call C issues LineDevSpecific (Start Monitoring) with B’s permanent lineID, silent monitoring mode and NoTone as input lineDevSpecifc (CCiscoLineDevSpecificSetStatusMsgs) with DevSpecificStatusMsgsFlag = DEVSPECIFIC_SILENT_MONITORING_TERMINATED on C C creates and Completes conference with C1 Supervisor Holds the Call Expected result Action Monitoring session is started Media will be stopped Media is started.Call on C will be INACTIVE (RIU Call) Monitoring session is Terminated. Line_CallDevSpecific will be fired for B dwparam1 = SLDSMT_MONITORING_ENDED, dwparam2 = LINEDISCONNECTMODE_INCOMPATIBLE Call on C1 will be Disconnected with new Cause Code LINEDISCONNECTMODE_INCOMPATIBLE Line_DevSpecific (dwparam1 = SLDSMT_MONITORING_TERMINATED, dwparam2 = TransactionID – xxxx, dwparam3 = LINEDISCONNECTMODE_INCOMPATIBLE) will be fired for C LineInitialize Device A, B and C is Secure Device C1 is Secure LineOpen on A,B,C and C1 C and C1 are shared lines A calls B; B answers the Call C issues LineDevSpecific (Start Monitoring) with A’s permanent lineID, silent monitoring mode and NoTone as input C holds the call C1 resumes the call Variant: C1 is not Secure and DEVSPECIFIC_SILENT_MONITORING_TERMINATED filter is enabled on C Recording Set up User is in Allow Recording group A is Customer Device Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 961 Message Sequence Charts Conference on Monitored Call

Page 993 diagram

Page 994

B is Agent C is Recording Device BIB on B is set to on. Recording Type on B is Application Invoked C is configured as the recording device for B Basic Recording Scenario Expected result Action Line_CallDevSpecific (dwparam1 = RecordingStarted) will be fired for B Line_CallDevSpecific(dwparam1 = DevSpecifcData, dwparam2 = CallAttributeInfo) will be fired to on B CallReason = LINECALLREASON_DIRECT Devspecific part will contain the following CallAttributeTye = ‘CallAttribute_RecordedCall’ Address = C’s DN, Partition = C’s Partition Device Name = C’s Device Name Transaction ID = 0 Call Security Status = Not Authenticated LineInitialize Device A,B and C is not-Secure LineOpen on A and B A calls B;B answers the Call B issues LineDevSpecific (Start Recording, BothLocalAndRemote) for A-B call LineGetCallInfo on B CallReason = LINECALLREASON_UNKNOWN Variant 1 : Monitor the Customer and Agent Lines after the Recording Session is Started. LineGetCallInfo on B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 962 Message Sequence Charts Basic Recording Scenario

Page 994 diagram

Page 995

Basic Recording Scenario in Secure Mode Expected result Action Recording session is started in secure mode Line_CallDevSpecific (dwparam1 = RecordingStarted) will be fired for B. Line_CallDevSpecific(dwparam1 = DevSpecifcData, dwparam2 = CallAttributeInfo) will be fired on B SRTP info will be available ( for A-B Call) Devspecific part will contain the following: CallAttributeTye = CallAttribute_RecordedCall Address = C’s DN, Partition = C’s Partition Device Name = C’s Device Name Transaction ID = 0 Call Security Status = Encrypted LineInitialize Device A,B and C is Secure LineOpen on A and B A calls B;B answers the Call A to B call is Secure B issues LineDevSpecific (Start Recording, BothLocalAndRemote) for A-B call LineGetCallInfo on B Recording Scenario on Non-Secure Call in Secure Mode Expected result Action Recording session is started in secure mode Line_CallDevSpecific (dwparam1 = RecordingStarted) will be fired for B. Line_CallDevSpecific(dwparam1 = DevSpecifcData, dwparam2 = CallAttributeInfo) will be fired to B SRTP Info is not available Devspecific part will contain the following: CallAttributeTye = CallAttribute_RecordedCall Address = C’s DN, Partition = C’s Partition Device Name = C’s Device Name Transaction ID = 0 Call Security Status = Not Authenticated LineInitialize Device A is not Secure Device B and C is Secure LineOpen on A and B A calls B;B answers the Call A to B call is non Secure B issues LineDevSpecific (Start Recording, BothLocalAndRemote) for A-B call LineGetCallInfo on B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 963 Message Sequence Charts Basic Recording Scenario in Secure Mode

Page 995 diagram

Page 996

Recording Scenario on Non-Secure Call Using Secure Recording Profile/Device Expected result Action Recording Request will Fail with existing error code LINEERR_OPERATIONFAILED Note Recording Failed as the Recording Device Security Capabilities doesn’t meet or exceed the Security status of B LineInitialize Device A and B is Secure Device C is Not Secure LineOpen on A,B and C A calls B;B answers the Call A to B call is Secure B issues LineDevSpecific (Start Recording, BothLocalAndRemote) for A-B call Recording Scenario When Agent Holds the Call Expected result Action Recording Session is started Line_CallDevSpecific (dwparam1 = RecordingStarted) will be fired for B Call between B and C will be Non-Secure Media between B and C is ended Line_CallDevSpecific (dwparam1 = RecordingEnded) will be fired for B Recording Session will be started Media between B and C is started Line_CallDevSpecific (dwparam1 = RecordingStarted) will be fired for B Recording Session will be started LineInitialize Device A and B is not Secure Device C is Secure LineOpen on A and B A calls B;B answers the Call A to B call is non Secure B issues LineDevSpecific (Start Recording, BothLocalAndRemote) for A-B call LineHold on Call on B B resumes the Call Note Recording option – Automatic Call Recording Enabled B Resumes the Call Recording and Monitoring This section describes Silent Monitoring and Recording on Agent Call in Secure Mode. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 964 Message Sequence Charts Recording Scenario on Non-Secure Call Using Secure Recording Profile/Device

Page 996 diagram

Page 997

Both Silent Monitoring and Recording on Agent Call in Secure Mode Expected result Action Silent Monitored Call is created in Secure Mode C issues LineDevSpecific (Start Monitoring) with B’s permanent lineID, silent monitoring mode and NoTone as inputLine_CallDevSpecific (dwparam1 = MonitoringStarted) will be fired for B. New call will be fired on C Line_CallDevSpecific(dwparam1 = DevSpecifcData, dwparam2 = CallAttributeInfo) will be fired to B and C Line_CallDevSpecific(dwparam1 = DevSpecificData, dwparam2 = SLDST_SRTP_INFO, dwParam3 = MEDIA_ENCRYPT_KEYS_AVAILABLE) will be fired for the call on C SRTP info will be available CallAttributeInfo in devspecific part of LineCallInfo of B will contain C’s info. CallAttributeTye = ‘CallAttribute_SilentMonitorCall’ Address = C’s DN, Partition = C’s Partition Device Name = C’s Device Name Transaction ID = XXXX Call Security Status = Encrypted SRTP info will be available CallAttributeInfo in devspecific part of LineCallInfo of C will contain B’s info CallAttributeTye = CallAttribute_SilentMonitorCall_Target Address = B’s DN, Partition = B’s Partition Device Name = B’s Device Name Transaction ID = XXXX CallSecurityStatus = Encrypted LineInitialize Device A,B,C and D are Secure D is configured as Recording Device on B LineOpen on A,B and C A calls B;B answers the Call A to B call is Secure C issues LineDevSpecific (Start Monitoring) with B’s permanent lineID, silent monitoring mode and NoTone as input LineGetCallInfo on B LineGetCallInfo on C Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 965 Message Sequence Charts Both Silent Monitoring and Recording on Agent Call in Secure Mode

Page 997 diagram

Page 998

Expected result Action Recording session is started in secure mode Line_CallDevSpecific (dwparam1 = RecordingStarted) will be fired for B. Line_CallDevSpecific(dwparam1 = DevSpecifcData, dwparam2 = CallAttributeInfo) will be fired on B SRTP info will be available (SRTP info for the call Between B and A) Devspecific part will contain the following: CallAttributeTye = ‘CallAttribute_SilentMonitorCall’ Address = C’s DN, Partition = C’s Partition Device Name = C’s Device Name Transaction ID = XXXX CallAttributeTye = CallAttribute_RecordedCall Address = D’s DN, Partition = D’s Partition Device Name = D’s Device Name Transaction ID = 0 Call Security Status = Encrypted B issues LineDevSpecific (Start Recording, BothLocalAndRemote) for A-B call LineGetCallInfo on B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 966 Message Sequence Charts Message Sequence Charts

Page 998 diagram

Page 999

Recording Silent Monitored Call on Supervisor Expected result Action Line_CallDevSpecific (dwparam1 = MonitoringStarted) will be fired for B New call will be fired on C (Silent Monitoring call) Line_CallDevSpecific(dwparam1 = DevSpecifcData, dwparam2 = CallAttributeInfo) will be fired to B and C SRTP info will not be available CallAttributeInfo in devspecific part of LineCallInfo of B will contain C’s info. CallAttributeTye = ‘CallAttribute_SilentMonitorCall’ Address = C’s DN, Partition = C’s Partition Device Name = C’s Device Name Transaction ID = XXXX Call Security Status = Unauthenticated SRTP info will not be available Security Indicator = MEDIA_NOT_ENCRYPT CallAttributeInfo in devspecific part of LineCallInfo of C will contain B’s info CallAttributeTye = CallAttribute_SilentMonitorCall_Target Address = B’s DN, Partition = B’s Partition Device Name = B’s Device Name Transaction ID = XXXX CallSecurityStatus = Not Authenticated Recording Session is started Line_CallDevSpecific (dwparam1 = RecordingStarted) will be fired for C Line_CallDevSpecific(dwparam1 = DevSpecifcData, dwparam2 = CallAttributeInfo) will be fired to C LineInitialize Device A and B is not Secure Device C and D is Secure D is the Recording Device D is configured as Recording on C LineOpen on A, B and C A calls B;B answers the Call A to B call is non Secure C issues LineDevSpecific (Start Monitoring) with B’s permanent lineID, silent monitoring mode and NoTone as input LineGetCallInfo on B LineGetCallInfo on C C issues LineDevSpecific (Start Recording, BothLocalAndRemote) for B-C call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 967 Message Sequence Charts Recording Silent Monitored Call on Supervisor

Page 999 diagram

Page 1000

Expected result Action SRTP info will not be available Security Indicator = MEDIA_NOT_ENCRYPT CallAttributeTye = CallAttribute_SilentMonitorCall_Target Address = B’s DN, Partition = B’s Partition Device Name = B’s Device Name Transaction ID = XXXX CallAttributeTye = ‘CallAttribute_RecordedCall’ Address = D’s DN, Partition = D’s Partition Device Name = D’s Device Name Transaction ID = 0 Call Security Status = Not Authenticated LineGetCallInfo on C Shared Lines-Initiating a New Call Manually The following table describes the message sequences for Shared Lines-Initiating a new call manually where Party A and Party A’ represent shared line appearances. Also, Party A and Party A’ are idle. TAPI structures TAPI messages CTI messages Action LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCalledID = NP dwConnectedID = NP dwRedirectionID = NP dwRedirectionID = NP LINE_APPNEWCALL hDevice = A dwCallbackInstance = 0 dwParam1 = 0 dwParam2 = hCall-1 dwParam3 = OWNER NewCallEvent, CH = C1, GCH = G1, Calling = A, Called = NP, OrigCalled = NP, LR = NP, State = Dialtone, Origin = OutBound, Reason = Direct, RIU = false

Party A goes off-hook Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 968 Message Sequence Charts Shared Lines-Initiating a New Call Manually

Page 1000 diagram

Page 1001

Party A goes off-hook LINECALLINFO (hCall-2) hLine = A’ dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A’ dwCalledID = NP dwConnectedID = NP dwRedirectionID = NP dwRedirectionID = NP LINE_APPNEWCALL hDevice = A’ dwCallbackInstance = 0 dwParam1 = 0 dwParam2 = hCall-2 dwParam3 = OWNER NewCallEvent, CH = C1, GCH = G1, Calling = A’, Called = NP, OrigCalled = NP, LR = NP, S tate = Dialtone, Origin = OutBound, Reason = Direct, RIU = true No change LINE_CALLSTATE hDevice = hCall-2 dwCallbackInstance = 0 dwParam1 = CONNECTED dwParam2 = INACTIVE dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Dialtone, Cause = CauseNoError, Reason = Direct, Calling = A, Called = NP, OrigCalled = NP, LR = NP, RIU = true Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 969 Message Sequence Charts Message Sequence Charts

Page 1001 diagram

Page 1002

TAPI structures TAPI messages CTI messages Action Party A 2. Party A dials Party B No change LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = DIALING dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Dialing, Cause = CauseNoError, Reason = Direct, Calling = A, Called = NP, OrigCalled = NP, LR = NP, RIU = false Party A’ None None None Party A 3. Party B accepts call No change Ignored CallPartyInfoChangedEvent, CH = C1, CallingChanged = False, Calling = A, CalledChanged = true, Called = B, Reason = Direct, RIU = false Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 970 Message Sequence Charts Message Sequence Charts

Page 1002 diagram

Page 1003

TAPI structures TAPI messages CTI messages Action LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCalledID = B dwConnectedID = NP dwRedirectionID = NP dwRedirectionID = NP LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = PROCEEDING dwParam2 = 0 dwParam3 = 0 LINE_CALLINFO hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = CALLERID, CALLEDID dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Proceeding, Cause = CauseNoError, Reason = Direct, Calling = A, Called = B, OrigCalled = B, LR = NP, RIU = false No change LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = RINGBACK dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Ringback, Cause = CauseNoError, Reason = Direct, Calling = A, Called = B, OrigCalled = B, LR = NP, RIU = false Party A’ 3. Party B accepts call (continued) No change Ignored CallPartyInfoChangedEvent, CH = C1, CallingChanged = False, Calling = A’, CalledChanged = true, Called = B, Reason = Direct, RIU = true Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 971 Message Sequence Charts Message Sequence Charts

Page 1003 diagram

Page 1004

TAPI structures TAPI messages CTI messages Action LINECALLINFO (hCall-2) hLine = A’ dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A’ dwCalledID = B dwConnectedID = NP dwRedirectionID = NP dwRedirectionID = NP LINE_CALLSTATE hDevice = hCall-2 dwCallbackInstance = 0 dwParam1 = CONNECTED dwParam2 = INACTIVE dwParam3 = 0 LINE_CALLINFO hDevice = hCall-2 dwCallbackInstance = 0 dwParam1 = CALLERID, CALLEDID dwParam2 = 0 dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Proceeding, Cause = CauseNoError, Reason = Direct, Calling = A’, Called = B, OrigCalled = B, LR = NP, RIU = true No change LINE_CALLSTATE hDevice = hCall-2 dwCallbackInstance = 0 dwParam1 = CONNECTED dwParam2 = INACTIVE dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Ringback, Cause = CauseNoError, Reason = Direct, Calling = A’, Called = B, OrigCalled = B, LR = NP, RIU = true Party A 4. Party B answers call LINECALLINFO (hCall-1) hLine = A dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A dwCalledID = B dwConnectedID = B dwRedirectionID = NP dwRedirectionID = NP LINE_CALLSTATE hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = CONNECTED dwParam2 = ACTIVE dwParam3 = 0 LINE_CALLINFO hDevice = hCall-1 dwCallbackInstance = 0 dwParam1 = CONNECTEDID dwParam2 = 0, dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Connected, Cause = CauseNoError, Reason = Direct, Calling = A, Called = B, OrigCalled = B, LR = NP, RIU = false Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 972 Message Sequence Charts Message Sequence Charts

Page 1004 diagram

Page 1005

TAPI structures TAPI messages CTI messages Action Party A’ LINECALLINFO (hCall-2) hLine = A’ dwCallID = T1 dwOrigin = OUTBOUND dwReason = DIRECT dwCallerID = A’ dwCalledID = B dwConnectedID = B dwRedirectionID = NP dwRedirectionID = NP LINE_CALLSTATE hDevice = hCall-2 dwCallbackInstance = 0 dwParam1 = CONNECTED dwParam2 = INACTIVE dwParam3 = 0 LINE_CALLINFO hDevice = hCall-2 dwCallbackInstance = 0 dwParam1 = CONNECTEDID dwParam2 = 0, dwParam3 = 0 CallStateChangedEvent, CH = C1, State = Connected, Cause = CauseNoError, Reason = Direct, Calling = A’, Called = B, OrigCalled = B, LR = NP, RIU = true SRTP Media Terminate by Application (Open Secure CTI Port or RP) • Negotiate version • Sends LineOpen with extension version as 0x8007000 • Send CciscoLineDevSpecificUserSetSRTPAlgorithmID • Send CCiscoLineDevSpecificUserControlRTPStream • Now, the CTI port or RP gets registered as secure port • Make call from secure IP phone to the CTI port or RP port • Answer the call from application • SRTP indication gets reported as LineDevSpecific event • SRTP key information get stored in LINECALLINFO::devSpecifc for retrieval Media Terminate by TSP Wave Driver (Open Secure CTI Port) • Negotiate version • Sends LineOpen with extension version as 0x4007000 • Send CciscoLineDevSpecificUserSetSRTPAlgorithmID • Send CciscoLineDevSpecificSendLineOpen Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 973 Message Sequence Charts SRTP

Page 1005 diagram

Page 1006

• Now, the CTI port gets registered as secure port • Make call from secure IP phone to the CTI port • Answer the call from application • SRTP indication gets reported as LineDevSpecific event • SRTP key information get stored in LINECALLINFO::devSpecifc for retrieval Support for Cisco IP Phone 6900 Series Use cases related to Cisco Unified IP Phone 6900 Series support feature are mentioned below: Monitoring Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 in Roll Over Mode When User Is Added to New User Group Testing Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 behavior when User is added to new user Group. Description A -Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 Phone with Roll Over Mode User is added to New User Group. Application does Line Initialize Test Setup Lines on the Cisco Unified IP Phone 7931 will be enumerated. Application would be able to Open Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 and it would be able to control and perform call operations on phone. Expected Results Monitoring Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 in Roll Over Mode When User Is Added to New User Group Testing Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 behavior when User is added to new user Group. Description A -Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 with Roll Over Mode Step 1: Application does Line Initialize Step 2: User is added to New User Group. Test Setup Step 1: Lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 will not be enumerated Application will not be notified about the device A and it will not be able to monitor. Step 2: Application will be receiving PHONE_CREATE and LINE_CREATE events for the Device and lines on that Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 in Roll Over Mode. Now Applications would be able to Monitor and control Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931. Expected Results Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 974 Message Sequence Charts Support for Cisco IP Phone 6900 Series

Page 1006 diagram

Page 1007

Transfer Operation on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 in Roll Over Mode When User Is Added to New User Group Testing Transfer scenario on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 when User is added to new user Group. Description User is added to New User Group. A,B are two lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 with Roll Over Mode C, D is two SCCP phones. Outbound Roll Over Mode -"Roll Over to any Line" Max Number of Calls: 1 Busy Trigger: 1 Application does Line Initialize; Application opens all the lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931. C calls A,A answers SetupTransfer on A. Variants: Application Opens only Line A on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 Test Setup Call on A will go to OnHold State. New call will be created on Line B. Application then has to complete Transfer using DTAL feature. Variants: Applications would not be able to Complete Transfer from Application as the Line B is not monitored. Expected Results Conference Operation on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 in Roll Over Mode When User Is Added to New User Group Testing Conference scenario on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 when User is added to New User Group. Description Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 975 Message Sequence Charts Message Sequence Charts

Page 1007 diagram

Page 1008

User is added to New User Group. A,B are two lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 with Roll Over Mode C, D are two SCCP phones Outbound Roll Over Mode -"Roll Over to any Line" Max Number of Calls: 1 Busy Trigger: 1 Application does Line Initialize C calls A,A answers SetupConference on A. Test Setup Call on A will go to OnHold State. New call will be created on Line B. Application then has to complete Conference using Join Across Lines feature. Expected Results Transfer/Conference Operation on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 in Roll Over Mode When User Is Added to New User Group Testing Transfer/Conference scenario on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 when User is added to New User Group and different Roll Over Mode. Description User is added to New User Group. A,B are two lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 with Roll Over Mode C, D is two SCCP phones. Outbound Roll Over Mode -"Roll Over to any Line" Max Number of Calls: 2 Busy Trigger: 1 Application does Line Initialize; Application opens all the lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931. C calls A,A answers SetupTransfer on A. Test Setup Call on A will go to OnHoldPendingTransfer/OnHoldPendingConference. New Consult call will be created on Line A. Application then has to complete Transfer using CompleteTransfer or DTAL feature. Expected Results Test the same Scenario with Conference LineCompleteTransfer with Mode as Conference to complete Conference Variants Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 976 Message Sequence Charts Message Sequence Charts

Page 1008 diagram

Page 1009

Transfer/Conference Operation on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 in Roll Over Mode When User Is Added to New User Group Testing Transfer/Conference Scenario on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 When User is added to New User Group and different Roll Over Mode. Description User is added to New User Group. A,B are two lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 with Roll Over Mode C, D is two SCCP phones. Outbound Roll Over Mode -Roll Over to any Line Max Number of Calls: 2 Busy Trigger: 1 Application does Line Initialize; Application opens all the lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931. C calls A,A answers SetupTransfer on A. Test Setup Call on A will go to OnHoldPendingTransfer/OnHoldPendingConference. New Consult call will be created on Line A. Application then has to complete Transfer using CompleteTransfer or DTAL feature. Expected Results Test the same Scenario with Conference LineCompleteTransfer with Mode as Conference to complete Conference Variants Transfer/Conference Operation on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 in Roll Over Mode When User Is Added to New User Group Testing Transfer/Conference Scenario on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 when User is added to New User Group and different Roll Over Mode. Description Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 977 Message Sequence Charts Message Sequence Charts

Page 1009 diagram

Page 1010

User is added to New User Group. A,B are two lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 with Roll Over Mode C, D is two SCCP phones. Lines A and B are configured with Different DN Outbound Roll Over Mode -Roll Over within same DN Max Number of Calls: 1 Busy Trigger: 1 Application does Line Initialize; Application opens all the lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931. C calls A,A answers SetupTransfer on A. Test Setup SetupTransfer Request will fail with error "LINEERR_CALLUNAVAIL". Expected Results Test the same Scenario with SetupConference Variants Transfer/Conference Operation on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 in Roll Over Mode When User Is Added to New User Group Testing Transfer/Conference Scenario on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 when User is added to New User Group and different Roll Over Mode. Description User is added to New User Group. A,B are two lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 with Roll Over Mode C, D is two SCCP phones. Lines A and B are configured with Different DN Outbound Roll Over Mode -Roll Over within same DN Max Number of Calls: 2 Busy Trigger: 1 Application does Line Initialize; Application opens all the lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931. C calls A,A answers SetupTransfer on A. Test Setup Call on A will go to OnHoldPendingTransfer/Conference State. New Consult call will be created on Line A. Application then has to complete Transfer using CompleteTransfer or DTAL feature. Expected Results Test the same Scenario with SetupConference Variants Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 978 Message Sequence Charts Message Sequence Charts

Page 1010 diagram

Page 1011

LineMakeCall Operation on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 in Roll Over Mode When User Is Added to New User Group Testing LineMakeCall Operation on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 when User is added to New User Group and different Roll Over Mode. Description User is added to New User Group. A,B are two lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 with Roll Over Mode C, D is two SCCP phones. Lines A and B are configured with Different DN Outbound Roll Over Mode -Roll Over within same DN" or "Roll Over to Any Line Max Number of Calls: 1 Busy Trigger: 1 Application does Line Initialize; Application opens all the lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931. C calls A,A answers LineMakeCall on A. Test Setup LineMakeCall Operation will fail with error "LINEERR_CALLUNAVAIL". Roll Over Doesn't Happen to second line as the roll over is only for Outbound Calls. Expected Results LineUnPark Operation on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 in Roll Over Mode When User Is Added to New User Group Testing LineUnPark Operation on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 When User is added to New User Group and different Roll Over Mode. Description User is added to New User Group. A,B are two lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 with Roll Over Mode C, D is two SCCP phones. Lines A and B are configured with Different DN Outbound Roll Over Mode -Roll Over within same DN" or "Roll Over to Any Line Max Number of Calls: 1 Busy Trigger: 1 Application does Line Initialize; Application opens all the lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931. C calls A,A answers LineUnPark on A.( tires to retrieve the available Parked Call from Park DN) Test Setup Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 979 Message Sequence Charts Message Sequence Charts

Page 1011 diagram

Page 1012

LineUnPark Operation will fail with error "LINEERR_CALLUNAVAIL". Roll Over Doesn't Happen to second line as the roll over is only for Outbound Calls. Expected Results EM Login/Logout Operation on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 in Roll Over Mode When User Is Added to New User Group Testing EM Log In/Out Operation on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 When User is added to New User Group and different Roll Over Mode. Description User is added to New User Group. A,B are two lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 with Roll Over Mode C, D is two SCCP phones. EM Profile is logged onto the Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931. Test the Use Case from UseCase#1 to UseCase#10 Test Setup Same as the Use Case tested. Expected Results Manual Transfer Operation on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 in Roll Over Mode When User Is Added to New User Group Testing Existing Call Events on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 when User is added to New User Group and different Roll Over Mode. Description User is added to New User Group. A,B are two lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 with Roll Over Mode C, D is two SCCP phones. Outbound Roll Over Mode -Roll Over to any Line Max Number of Calls: 1 Busy Trigger: 1 Application does Line Initialize; Application opens all the lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931. Step 1: From Phone C call A Step 2: Answer the Call on A Step 3: Press Transfer Button on Cisco Unified IP Phone 6900 Series and Dial D. Step 4: Answer the Call on D Step 5: Complete Transfer from Phone A Variant: Monitor Phones after Transfer is completed from Phone. Test Setup Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 980 Message Sequence Charts Message Sequence Charts

Page 1012 diagram

Page 1013

Step 4: Call on Line A will be in OnHold State. Call on Line B will be in Connected State. Note When consult call is created on the same Line; Call will be on ONHOLDPENDINGTRANSFER state. Step 5: Both the calls on A and B will go to IDLE state. C and D will be in Simple Call. Variant: Same as this Use Case Expected Results Manual Conference Operation on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 in Roll Over Mode When User Is Added to New User Group Testing Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 behavior When User is added to New User Group and different Roll Over Mode. Description User is added to New User Group. A,B are two lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 with Roll Over Mode C, D is two SCCP phones. Outbound Roll Over Mode -"Roll Over to any Line" Max Number of Calls: 1 Busy Trigger: 1 Application does Line Initialize; Application opens all the lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931. Step 1: From Phone C call A Step 2: Answer the Call on A Step 3: Press conference Button on Cisco Unified IP Phone 6900 Series and Dial D. Step 4: Answer the Call on D Step 5: Complete Conference from Phone Variant: Monitor Phones after Conference is completed from Phone. Test Setup Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 981 Message Sequence Charts Message Sequence Charts

Page 1013 diagram

Page 1014

Step 4: Call on Line A will be in OnHold State. Call on Line B will be in Connected State. Note When consult call is created on the same Line; Conference Model is created as today on Non-Cisco Unified IP Phone 6900 Series. Step 5: A ,C and D will be in conference Conference model will be created on Line A. Variant: Same as this Use Case. Expected Results Manual Conference Operation on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 in Roll Over Mode When User Is Added to New User Group Testing Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 behavior When User is added to New User Group and different Roll Over Mode. Description User is added to New User Group. A,B are two lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 with Roll Over Mode C, D is two SCCP phones. Outbound Roll Over Mode -"Roll Over to any Line" Max Number of Calls: 1 Busy Trigger: 1 Application does Line Initialize; Application opens all the lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931. Step 1: From Phone C call A Step 2: Answer the Call on A Step 3: Press conference Button on Cisco Unified IP Phone 6900 Series Phone and Dial D. Step 4: Answer the Call on D Step 5: Complete Conference from Phone Variant: Monitor Phones after Conference is completed from Phone. Test Setup Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 982 Message Sequence Charts Message Sequence Charts

Page 1014 diagram

Page 1015

Step 4: Call on Line A will be in OnHold State. Call on Line B will be in Connected State. Note When consult call is created on the same Line; Conference Model is created as today on Non-Cisco Unified IP Phone 6900 Series Phone. Step 5: A ,C and D will be in conference Conference model will be created on Line A. Variant: Same as this Use Case. Expected Results SetupConference Operation on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 in Roll Over Mode When User Is Added to New User Group Testing Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 behavior When User is added to New User Group and different Roll Over Mode. Description User is added to New User Group. A,B are two lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 with Roll Over Mode C, D is two SCCP phones. Outbound Roll Over Mode -"Roll Over to any Line" Max Number of Calls: 1 Busy Trigger : 1 Application does Line Initialize; Application opens all the lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931. C calls A,A answers Step 1: SetupTransfer on A. Step 2: Complete Conference From Phone. Test Setup Step 1: Call on Line A will be in OnHold State. Call on Line B will be in Connected State. Step 5: A ,C and D will be in conference Conference model will be created on Line A. Expected Results BWC on Cisco Unified IP Phone 7931 in Non Roll Over Mode When User Is Removed From New User Group Testing Cisco Unified IP Phone 7931 Phone behavior in Non Roll Over Mode When User is removed from New User Group. Description Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 983 Message Sequence Charts Message Sequence Charts

Page 1015 diagram

Page 1016

User is Removed from New User Group. A,B are two lines on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 with Non-Roll Over Mode C, D is two SCCP phones. Outbound Roll Over Mode -"Non Roll Over Mode" Max Number of Calls: 1 Busy Trigger: 1 Application does Line Initialize Test Setup Lines on the Cisco Unified IP Phone 7931 will be enumerated. Application would be able to Open Cisco Unified IP Phone 7931 with Non-Roll Over Mode and it would be able to control and perform call operations on Phone. Expected Results Acquire Device on Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 in Roll Over Mode When User Is Added to New User Group Testing Behavior of Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 on Super Provider when User is added to new user Group. Description A -Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 with Roll Over Mode User is Added to New User Group. Step 1: Application does Line Initialize Step 2: LineDevSpecific to Acquire Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931. Step 3: User is removed from New User Group. Test Setup Step 2: Application will be receiving PHONE_CREATE and LINE_CREATE events for the Device and lines on that Cisco Unified IP Phone 6900 Series/Cisco Unified IP Phone 7931 in Roll Over Mode. Step 3: Application will be receiving LINE_REMOVE and PHONE_REMOVE for the Cisco Unified IP Phone 7931 and Application will no longer be able to monitor or control that device. Expected Results Support for Cisco Unified IP Phone 6900 and 9900 Series Use Cases The use cases related to Support for Cisco Unified IP Phone 6900 and 9900 Series are provided below: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 984 Message Sequence Charts Support for Cisco Unified IP Phone 6900 and 9900 Series Use Cases

Page 1016 diagram

Page 1017

Check Max Calls Information Events, Requests, and Responses Action LineInitialize successful MaxCalls = 4 in LineDevCaps:DevSpecific Application calls LineInitialize Application calls LineGetDevCaps, and checks Max Calls field. Check Busy Trigger Information . Events, Requests, and Responses Action LineInitialize successful BusyTrigger = 2 in LineDevCaps:DevSpecific Application does LineInitialize Application calls LineGetDevCaps, and checks busy trigger field. Check Line Instance Events, Requests, and Responses Action LineInitialize successful LineInstanceNumber = 1 in LineDevCaps:DevSpecific Application does LineInitialize Application calls LineGetDevCaps, and checks line instance field. Check Line Label . Events, Requests, and Responses Action LineInitialize successful LineLable = label_2000 in LineDevCaps:DevSpecific Application does LineInitialize Application calls LineGetDevCaps, and checks line label field. Check Voice Mail Pilot . Events, Requests, and Responses Action LineInitialize successful VoiceMailPilot = 5000 in LineDevCaps:DevSpecific Application does LineInitialize Application calls LineGetDevCaps, and checks Voice Mail Pilot field. Check Registered IP Address of the Device or Line . Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 985 Message Sequence Charts Message Sequence Charts

Page 1017 diagram

Page 1018

Events, Requests, and Responses Action LineInitialize successful RegisteredIPv4Address & RegisteredIPv6Address available in LineDevCaps:DevSpecific Application does LineInitialize Application calls LineGetDevCaps, and checks IP address field. PhoneInitialize successful RegisteredIPv4Address & RegisteredIPv6Address available in PhoneDevCaps:DevSpecific Variance: Perform PhoneInitialize and check PhoneGetDevCpas to check IP address field. Check Consult Rollover Information of the Line ConsultRollOver is true for the device . Events, Requests, and Responses Action LineInitialize successful ConsultRollOver flag is true in LineDevCaps:DevSpecific Application does LineInitialize Application calls LineGetDevCaps, and checks consult roll over field. PhoneInitialize successful ConsultRollOver flag is true in PhoneDevCaps:DevSpecific. Variance: Perform PhoneInitialize and check PhoneGetDevCpas to check consult roll over field. PhoneInitialize successful ConsultRollOver flag is false in PhoneDevCaps:DevSpecific. Variance: Phone does not support rollover Perform PhoneInitialize and check PhoneGetDevCpas to check consult roll over field. Check JAL or DTAL Information of the Line JAL or DTAL is true for the device. Events, Requests, and Responses Action LineInitialize successful JoinAcrossLine and DirectTransferAcrossLine flag is true in LineDevCaps:DevSpecific. Application does LineInitialize Application calls LineGetDevCaps, and checks JAT/DTAL field. PhoneInitialize successful JoinAcrossLine and DirectTransferAcrossLine flag is true in PhoneDevCaps:DevSpecific. Variance: Perform PhoneInitialize and check PhoneGetDevCpas to check consult roll over field. PhoneInitialize successful JoinAcrossLine and DirectTransferAcrossLine flag is false in PhoneDevCaps:DevSpecific. Variance: Phone does not support jal/dtal Perform PhoneInitialize and check PhoneGetDevCpas to check JAT/DTAL field. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 986 Message Sequence Charts Message Sequence Charts

Page 1018 diagram

Page 1019

Handle Voice Mail Pilot Change Voice Mail Pilot number is changed to 6000. Events, Requests, and Responses Action LineInitialize successful VoiceMailPilot = 5000 in LineDevCaps:DevSpecific Application does LineInitialize Application calls LineGetDevCaps, and checks Voice Mail Pilot field. LineDevSpecific (SLDSMT_LINE_PROPERTY_CHANGED) indicating Voice Mail Pilot is changed. Voice Mail Pilot number is changed to 6000. VoiceMailPilot = 6000 in LineDevCaps:DevSpecific Application calls LineGetDevCaps, and checks Voice Mail Pilot field. Variance: also applies to Line Label Check IP Address When Device Is Unregistered or Registered It is assumed that phone uses static IP address and is already registered. Events, Requests, and Responses Action Initializesuccessful RegisteredIPv4Address & RegisteredIPv6Address available in LineDevCaps:DevSpecific, and RegisteredIPAddressMode is IPAddress_IPv4_IPv6. Application calls LineInitialize Application calls LineGetDevCaps, and checks IP address field. Phone or line goes out of service. LineDevSpecific (SLDSMT_LINE_PROPERTY_CHANGED) indicating registered IP address information is changed. Reset device The same RegisteredIPv4Address & RegisteredIPv6Address available in LineDevCaps:DevSpecific, but RegisteredIPAddressMode is IPAddress_Unknown. Application calls LineGetDevCaps, and checks IP address field. Phone or line back in service. LineDevSpecific (SLDSMT_LINE_PROPERTY_CHANGED) indicating registered IP address information is changed. Device re-registered with CUCM. The same RegisteredIPv4Address and RegisteredIPv6Address available in LineDevCaps:DevSpecific, but RegisteredIPAddressMode is set to IPAddress_IPv4_IPv6. Application calls LineGetDevCaps, and checks IP address field. LineDevSpecific (SLDSMT_LINE_PROPERTY_CHANGED) indicating registered IP address is changed New IPAddress will be in devSpecific when application queries LineGetDevCap. . Variance: Phone uses DHCP and new IP address is obtained for registering. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 987 Message Sequence Charts Message Sequence Charts

Page 1019 diagram

Page 1020

Swap or Cancel Use cases related to Swap or Cancel feature are mentioned below: Connected Transfer Device A, B, C where A is a Cisco Unified IP Phone (future version).. Expected events Action For A: Call-1 LINE_CALLSTATE param1 = x400, HOLD Caller = A, Called = C Connected C Call-2 LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B Connected B For B: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B, Connected = A For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C, Connected = A A ‡ C is on hold A ‡ B is connected, For A: Call-2 LINE_CALLSTATE param1 = x400, HOLD Caller = A, Called = B Connected B Call-3 DIALTONE A press transfer Call-3 goes IDLE A picks "Active Calls" Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 988 Message Sequence Charts Swap or Cancel

Page 1020 diagram

Page 1021

Expected events Action For A: Both calls go IDLE For B1: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B Connected C For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C, Connected = B A picks call (A‡C) and presses transfer to complete transfer Connected Transfer on Phones with Shared Lines Device A, B, C, A' where A and A' are sharedline. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 989 Message Sequence Charts Message Sequence Charts

Page 1021 diagram

Page 1022

Expected events Action For A: Call-1 LINE_CALLSTATE param1 = x400, HOLD Caller = A, Called = C Connected C Call-2 LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B Connected B A ‡ C is on hold A ‡ B is connected, For B: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B, Connected = A For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C, Connected = A For A': Call-1 LINE_CALLSTATE param1 = x400, HOLD Caller = A, Called = C Connected C Call-2 LINE_CALLSTATE param1 = x100, CONNECTED_INACTIVE Caller = A, Called = B Connected B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 990 Message Sequence Charts Message Sequence Charts

Page 1022 diagram

Page 1023

Expected events Action For A and A': All calls go IDLE For B1: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B Connected C For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C, Connected = B User performs connected transfer on Cisco Unified IP phone (future version) Connected Transfer: Initiate From Phone, Complete From CTI Device A, B, C . Expected events Action For A: Call-1 LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B Connected B Call-2 LINE_CALLSTATE param1 = x400, HOLD Caller = A, Called = C Connected C For B: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B, Connected = A For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C, Connected = A A ‡ C is on hold A ‡ B is connected, Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 991 Message Sequence Charts Message Sequence Charts

Page 1023 diagram

Page 1024

Expected events Action For A and A': All calls go IDLE For B1: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B Connected C For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C, Connected = B Application sends either CompleteTransfer or DirectTransfer on A Consult Transfer: Resume Primary Call (Implicit Cancel) Expected events Action For A: Call-1 LINE_CALLSTATE param1 = x100, ONHOLDPENDINGTRANSFER Caller = A, Called = B Connected B Call-2 LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C Connected C For B: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B, Connected = A For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C, Connected = A A ‡ B A setup consult transfers to C And C answer Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 992 Message Sequence Charts Message Sequence Charts

Page 1024 diagram

Page 1025

Page 1025 diagram

Page 1026

Consult Transfer: Swap Calls Expected events Action For A: Call-1 LINE_CALLSTATE param1 = x100, ONHOLDPENDINGTRANSFER Caller = A, Called = B Connected B Call-2 LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C Connected C A ‡B A setup consult transfer to C And C answer For B: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B, Connected = A For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C, Connected = A For A: The scenario will look exactly the same when resume primary call. Call-1 LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B Connected B Call-2 LINE_CALLSTATE param1 = x400, HOLD Caller = A, Called = C Connected C A press Swap Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 994 Message Sequence Charts Message Sequence Charts

Page 1026 diagram

Page 1027

Expected events Action For B: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B, Connected = A For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C, Connected = A For A: Calls go IDLE For B: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B, Connected = C For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C, Connected = B A press "Transfer" to complete transfer Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 995 Message Sequence Charts Message Sequence Charts

Page 1027 diagram

Page 1028

Consult Transfer on Phone: Swap Calls; CTI Sends SetupTransfer on Connected Call Expected events Action For A: Call-1 LINE_CALLSTATE param1 = x100, ONHOLDPENDINGTRANSFER Caller = A, Called = B Connected B Call-2 LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C Connected C A ‡ B A setup consult transfer to C And C answer For B: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B, Connected = A For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C, Connected = A Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 996 Message Sequence Charts Message Sequence Charts

Page 1028 diagram

Page 1029

Expected events Action For A: The scenario will look exactly the same when resume primary call. Call-1 LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B Connected B Call-2 LINE_CALLSTATE param1 = x400, HOLD Caller = A, Called = C Connected C A press Swap For B: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B, Connected = A For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C, Connected = A Request succeeds as phone cancels existing feature plan and allow CTI request to go through. Application calls LineSetupTransfer on A's connected call (A‡B) to initiate transfer Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 997 Message Sequence Charts Message Sequence Charts

Page 1029 diagram

Page 1030

Consult Transfer: Swap and Cancel Expected events Action For A: Call-1 LINE_CALLSTATE param1 = x100, ONHOLDPENDINGTRANSFER Caller = A, Called = B Connected B Call-2 LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C Connected C A ‡ B A setup consult transfer to C And C answer For B: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B, Connected = A For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C, Connected = A Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 998 Message Sequence Charts Message Sequence Charts

Page 1030 diagram

Page 1031

Expected events Action For A: The scenario will look exactly the same when resume primary call. Call-1 LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B Connected B Call-2 LINE_CALLSTATE param1 = x400, HOLD Caller = A, Called = C Connected C For B: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B, Connected = A For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C, Connected = A A press Swap No TSP event since it is handled during swap operation A presses Cancel Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 999 Message Sequence Charts Message Sequence Charts

Page 1031 diagram

Page 1032

RoundTable Connected Conference Expected events Action For A: Call-1 LINE_CALLSTATE param1 = x400, HOLD Caller = A, Called = B Connected B Call-2 LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C Connected C For B: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B, Connected = A For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C, Connected = A A ‡ B A puts call on hold A creates new call to C, C answer For A: Call-1 LINE_CALLSTATE param1 = x400, HOLD Caller = A, Called = B Connected B Call-2 LINE_CALLSTATE param1 = x100, ONHOLDPENDINGCONFENRENCE Caller = A, Called = C Connected C Call-3 DIALTONE A presses "Conference" Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1000 Message Sequence Charts Message Sequence Charts

Page 1032 diagram

Page 1033

Expected events Action For A: CONNECTED CONFERENCED Caller = A, called = B, connected = B CONFERENCED Caller = A, called = C, connected = C Call-3 IDLE For B: For A: CONNECTED CONFERENCED Caller = A, called = B, connected = B CONFERENCED Caller = B, called = C, connected = C For C: For A: CONNECTED CONFERENCED Caller = A, called = C, connected = C CONFERENCED Caller = C, called = B, connected = B A picks active call (A‡ C) on phone UI, and presses "Conference" to complete the conference Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1001 Message Sequence Charts Message Sequence Charts

Page 1033 diagram

Page 1034

RoundTable Connected Conference: Cancel Expected events Action For A: Call-1 LINE_CALLSTATE param1 = x400, HOLD Caller = A, Called = B Connected B Call-2 LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C Connected C For B: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B, Connected = A For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C, Connected = A A ‡ B A puts call on hold A creates new call to C, C answers For A: Call-1 LINE_CALLSTATE param1 = x400, HOLD Caller = A, Called = B Connected B Call-2 LINE_CALLSTATE param1 = x100, CONFERENCED Caller = A, Called = C Connected C Call-3 LINE_CALLSTATE param1 = x100, ONHOLDPENDINGCONFENRENCE Caller = A, Called = C Connected C Call-4 DIALTONE A presses "Conference" Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1002 Message Sequence Charts Message Sequence Charts

Page 1034 diagram

Page 1035

Expected events Action For A: Call-2 LINE_CALLSTATE param1 = x400, HOLD Caller = A, Called = C Connected C Call-3 / Call-4 IDLE A picks "Active Calls" For A: Call-1 LINE_CALLSTATE param1 = x400, HOLD Caller = A, Called = B Connected B Call-2 LINE_CALLSTATE param1 = x400, HOLD Caller = A, Called = C Connected C For B: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B, Connected = A For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C, Connected = A A presses Cancel softkey Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1003 Message Sequence Charts Message Sequence Charts

Page 1035 diagram

Page 1036

Set Up Consult Conference From RT, Then Swap and Complete Conference From RT Expected events Action For A: ONHOLDPENDINGCONF CONFERENCED Caller = A, called = B, connected = B CONNECTED Caller = A, called = C, connected = C A ‡ B A sets up conference to C, C answer For B: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B, Connected = A For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C, Connected = A For A: Call-1 LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B Connected B Call-2 LINE_CALLSTATE param1 = x100, HOLD Caller = A, Called = C Connected C A presses "Swap" Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1004 Message Sequence Charts Message Sequence Charts

Page 1036 diagram

Page 1037

Expected events Action For A: CONNECTED CONFERENCED Caller = A, called = B, connected = B CONFERENCED Caller = A, called = C, connected = C For B: CONNECTED CONFERENCED Caller = A, called = B, connected = B CONFERENCED Caller = B, called = C, connected = C For C: For A: CONNECTED CONFERENCED Caller = A, called = C, connected = C CONFERENCED Caller = C, called = B, connected = B A presses "Conference" to complete conference Set Up Consult Conference From RT, Then Swap and Cancel From Phone with Shared Line Scenario A and A’ are shared lines.. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1005 Message Sequence Charts Message Sequence Charts

Page 1037 diagram

Page 1038

Expected events Action For A: ONHOLDPENDINGCONF CONFERENCED Caller = A, called = B, connected = B CONNECTED Caller = A, called = C, connected = C For A' CONNECTED INACTIVE Caller = A, celled = B, connected = B CONNECTED INACTIVE Caller = A, celled = C, connected = C For B: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B, Connected = A For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C, Connected = A A ‡ B A sets up conference to C, C answers For A: The scenario looks the same when primary call resumes Call-1 LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B Connected B Call-2 LINE_CALLSTATE param1 = x400, HOLD Caller = A, Called = C Connected C A presses "Swap" Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1006 Message Sequence Charts Message Sequence Charts

Page 1038 diagram

Page 1039

Page 1039 diagram

Page 1040

Set Up Consult Conference From RT: Resume Primary Call (Implicit Cancel) Expected events Action For A: ONHOLDPENDINGCONF CONFERENCED Caller = A, called = B, connected = B CONNECTED Caller = A, called = C, connected = C A ‡ B A sets up conference to C, C answer For A' CONNECTED INACTIVE Caller = A, celled = B, connected = B CONNECTED INACTIVE Caller = A, celled = C, connected = C For B: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B, Connected = A For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C, Connected = A Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1008 Message Sequence Charts Message Sequence Charts

Page 1040 diagram

Page 1041

Expected events Action For A: Call-1 LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B Connected B Call-2 LINE_CALLSTATE param1 = x400, HOLD Caller = A, Called = C Connected C A resumes A‡B call For B: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = B, Connected = A For C: LINE_CALLSTATE param1 = x100, CONNECTED Caller = A, Called = C, Connected = A User Is Removed From Standard Supports Connected Xfer/Conf Group Expected events Action RT PHONE/LINE is enumerated to APP User is in Standard Supports Connected Xfer/Conf group RT phone A is in user's control list Application does LineInitialize APP receives PHONE_REMOVE / LINE_REMOVE Remove user from "Standard Supports Connected Xfer/Conf" user group User Is Removed From Standard Supports Connected Xfer/Conf Group Expected events Action RT PHONE/LINE is enumerated to APP User is in Standard Supports Connected Xfer/Conf group RT phone A is in user's control list Application does LineInitialize Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1009 Message Sequence Charts Message Sequence Charts

Page 1041 diagram

Page 1042

Expected events Action APP receives PHONE_REMOVE / LINE_REMOVE Remove user from Standard Supports Connected Xfer/Conf user group User Is Removed From Standard Supports Connected Xfer/Conf Group While Line Is Open Expected events Action RT PHONE/LINE is enumerated to APP user is in "Standard Supports Connected Xfer/Conf" group RT phone A is in user's control list Application does LineInitialize Successful App sends LineOpen to open line on Cisco Unified IP phone (future version) phone TSP sends LINE_CLOSE APP receives LINE_REMOVE Remove user from Standard Supports Connected Xfer/Conf group User Is Added to Standard Supports Connected Xfer/Conf Group Expected events Action RT PHONE/LINE is not enumerated to APP user is not in "Standard Supports Connected Xfer/Conf" group RT phone A is in user's control list Application does LineInitialize APP receives PHONE_CREATE / LINE_CREATE Add user to Standard Supports Connected Xfer/Conf group Unrestricted Unified CM Table 132: Application Tries Secure Connection to Unrestricted Unified CM During Upgrade Events, requests and responses Action LineInitialize successful All lines associated are enumerated. OutOfService Events for all the Devices/Lines. ***TSP will internally try to Connect CTI in Secure mode. As CTI is upgraded to Non-secure, the Connection Fails and applications are not notified. Application has to disable “Secure Connection to CTI Manager” on the Security tab in TSP UI to setup connection to CTI/CUCM. CUCM – Restricted UCM TSP is configured to connect Secure Application calls LineInitialize *** Upgrade CUCM to Unrestricted Unified CM CCM/CTI services restarted Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1010 Message Sequence Charts Unrestricted Unified CM

Page 1042 diagram

Page 1043

Table 133: Application Tries Secure Connection to Unrestricted Unified CM After Upgrade Events, requests and responses Action LineInitialize successful All lines associated are enumerated. LineShutDown successful LineInitialize successful. No lines are enumerated to application. CUCM – Restricted UCM TSP is configured to connect Secure Application calls LineInitialize Application calls LineShutdown *** Upgrade CUCM to Unrestricted UCM Application calls LineInitialize Table 134: Registering Secure CTI Port with Unrestricted Unified CM CTI Manager Events, requests and responses Action LineInitialize successful All lines associated to end users are enumerated. LineReply – with error -LINEERR_OPERATIONUNAVAIL CUCM – Unrestricted UCM Setup Non-Secure Connection Application calls LineInitialize Register CTI Port in Secure Mode • LineOpen – with Ext – 80070000 • LineDevspecific – CciscoLineDevSpecificUserSetSRTPAlgorithmID Table 135: Registering Secure CTI Port with Unrestricted Unified CM CTI Manager Events, requests and responses Action LineInitialize successful All Lines Associated are Enumerated. LineReply – success LINE_CLOSE for the CTI Port Setup: • Node 1 – UnRestricted UCM • Node 2 – Restricted UCM – Secure CTI Port – Device Pool – with Node 1 as High Priority CM. TSP is configured to connect to CTI Manager of Node 2. Set up Secure Connection Application calls LineInitialize Register CTI Port in Secure Mode • LineOpen – with Ext – 80070000 • LineDevspecific – CciscoLineDevSpecificUserSetSRTPAlgorithmID • LineDevSpecific -CCiscoLineDevSpecificUserControlRTPStream Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1011 Message Sequence Charts Message Sequence Charts

Page 1043 diagram

Page 1044

LineHold Enhancement Prerequisites Pre-conditions to all persistent call use cases, unless specified otherwise: • Device A (IP Phone, Line A1 (dn: 1000)) • Device B (IP Phone, Line B1 (dn: 2000)) • The content id corresponding to VoH stream is contentID1 • User1 has in its control list: Devices A and B. All devices and lines are observed • Provider is opened ( lineInitializeEx successfully executed) • All relevant lines are opened with Extension version 0x000D0000 and in service Table 136: Basic Case - Hold with ContentID to Be Played TAPI Structures TAPI Messages Action CallInfo on A: CallerID: 1000 CalledID: 2000 ConnectedID: 2000 At A: LINE_CALLSTATE dwParam1 = 0x00000100 ( CONNECTED) At B: LINE_CALLSTATE dwParam1 = 0x00000100 ( CONNECTED) Create Call: LineMakeCall() on Line-A w ith DestAddress="DN of B" and B answers the Call At A: LINE_CALLSTATE dwParam1 = 0x00000400 (LINECALLSTATE_ONHOLD) Application issues CCiscoLineDevSpecificHoldEx with ContentID = contentID1 on hCall1(call on A1) *** Call will be placed on Hold and VoH stream selected is played to B. Whisper Coaching Setup Customer Phone – IP Phone A Agent Phone – IP Phone B Supervisor Phone – IP Phone C Application monitoring all lines on all devices New extension is negotiated when application opens lines Application Initiates a Whisper Coaching Session Service Parameter Setting: Observed Target = false, Observed Connected Parties = true Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1012 Message Sequence Charts LineHold Enhancement

Page 1044 diagram

Page 1045

Table 137: Application Initiates a Whisper Coaching Session Events, Requests, and Responses Action At A: CONNECTED Calling = A, Called = B, Connected = B At B: CONNECTED Calling = A, Called = B, Connected = A A initiates call to B and B answers At B: LineDevSpecific(SLDST_START_CALL_MONITORING) CONNECTED devSpecific type = CallAttribute_WhisperMonitorCall dn = C, partition = C’s Partition, deviceName = C’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly Note Media events are not received at B. At C: CONNECTED Calling = C, Called = B/B’s Name Connected = “”/Whisper, Redirection = “”/Whisper, Redirecting = “”/Whisper, devSpecific type = CallAttribute_WhisperMonitorCall_Target dn = B, partition = B’s Partition, deviceName = B’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly LineDevSpecific(SLDSMT_START_TRANSMISION) LineDevSpecific(SLDSMT_START_RECEPTION) C issues CciscoLineDevSpecificStartCallMonitoring with: permLineId = B permLineId mode = MonitorMode_Whisper_Coaching tone = PlayToneDirection_LocalOnly Application Updates the Monitoring Mode Service Parameter Setting: Observed Target = true, Observed Connected Parties = false Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1013 Message Sequence Charts Application Updates the Monitoring Mode

Page 1045 diagram

Page 1046

Table 138: Application Updates the Monitoring Mode (Silent to WhisperCoaching) and Then Updates the Monitoring Mode (WhisperCoaching to Silent) Events, Requests, and Responses Action At A: CONNECTED Calling = A, Called = B, Connected = B At B: CONNECTED Calling = A, Called = B, Connected = A A initiates call to B and B answers At B: LineDevSpecific(SLDST_START_CALL_MONITORING) CONNECTED devSpecific type = CallAttribute_SilentMonitorCall dn = C, partition = C’s Partition, deviceName = C’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly At C: CONNECTED Calling = C, Called = B/B’s Name Connected = “”/Whisper, Redirection = “”/Whisper, Redirecting = “”/Whisper, devSpecific type = CallAttribute_SilentMonitorCall_Target dn = B, partition = B’s Partition, deviceName = B’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly LineDevSpecific(SLDSMT_START_RECEPTION) C issues CciscoLineDevSpecificStartCallMonitoring with: permLineId = B permLineId mode = MonitorMode_Silent tone = PlayToneDirection_RemoteOnly Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1014 Message Sequence Charts Message Sequence Charts

Page 1046 diagram

Page 1047

Events, Requests, and Responses Action At B: LineDevSpecific(SLDSMT_MONITORING_MODE_UPDATED, MonitorMode_Whisper_Coaching, PlayToneDirection_RemoteOnly) CONNECTED devSpecific type = CallAttribute_WhisperMonitorCall dn = C, partition = C’s Partition, deviceName = C’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly At C: LineDevSpecific(SLDSMT_START_TRANSMISION) LineDevSpecific(SLDSMT_MONITORING_MODE_UPDATED, MonitorMode_Whisper_Coaching, PlayToneDirection_RemoteOnly) CONNECTED devSpecific type = CallAttribute_WhisperMonitorCall_Target dn = B, partition = B’s Partition, deviceName = B’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly C issues CciscoLineDevSpecificMonitoringUpdateMode with: mode = MonitorMode_Whisper_Coaching tone = PlayToneDirection_BothLocalAndRemote Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1015 Message Sequence Charts Message Sequence Charts

Page 1047 diagram

Page 1048

Events, Requests, and Responses Action At B: LineDevSpecific(SLDSMT_MONITORING_MODE_UPDATED, MonitorMode_Silent, PlayToneDirection_RemoteOnly) CONNECTED devSpecific type = CallAttribute_SilentMonitorCall dn = C, partition = C’s Partition, deviceName = C’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly At C: LineDevSpecific(SLDSMT_STOP_TRANSMISION) LineDevSpecific(SLDSMT_MONITORING_MODE_UPDATED, MonitorMode_Silent, PlayToneDirection_RemoteOnly) CONNECTED devSpecific type = CallAttribute_SilentMonitorCall_Target dn = B, partition = B’s Partition, deviceName = B’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly C issues CciscoLineDevSpecificMonitoringUpdateMode with: mode = MonitorMode_Silent tone = PlayToneDirection_NoLocalOrRemote Agent Holds the Customer Call with Whisper Coaching Then Agent S Shared Line Resumes the Call Additional Setup: Agent shared line IP Phone B Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1016 Message Sequence Charts Agent Holds the Customer Call with Whisper Coaching Then Agent S Shared Line Resumes the Call

Page 1048 diagram

Page 1049

Table 139: Agent Holds the Customer Call with Whisper Coaching, Then Agent’s Shared Line Resumes the Call Events, Requests, and Responses Action At B: ONHOLD devSpecific type = CallAttribute_WhisperMonitorCall dn = C, partition = C’s Partition, deviceName = C’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly At B’: ONHOLD At C: CONNECTED Calling = C, Called = B/B’s Name Connected = “”/Whisper, Redirection = “”/Whisper, Redirecting = “”/Whisper, devSpecific type = CallAttribute_WhisperMonitorCall_Target dn = B, partition = B’s Partition, deviceName = B’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly LineDevSpecific(SLDSMT_STOP_TRANSMISION) LineDevSpecific(SLDSMT_STOP_RECEPTION) A initiates call to B and B answers C issues a CciscoLineDevSpecificStartCallMonitoring with: permLineId = B permLineId mode = MonitorMode_Whisper_Coaching tone = PlayToneDirection_RemoteOnly B holds the call At B: CONNECTED At B’: CONNECTED, INACTIVE At C: LineDevSpecific(SLDSMT_START_TRANSMISION) LineDevSpecific(SLDSMT_START_RECEPTION) B resumes the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1017 Message Sequence Charts Message Sequence Charts

Page 1049 diagram

Page 1050

Events, Requests, and Responses Action At B: CONNECTED, INACTIVE LineDevSpecific(SLDSMT_MONITORING_ENDED) At B’: CONNECTED At C: IDLE B holds the call B resumes the call Agent Transfers a Whisper Coaching Call Monitoring Call Goes Idle at the Supervisor Additional Setup: IP Phone D Table 140: Agent Transfers a Whisper Coaching Call, Monitoring Call Goes Idle at the Supervisor Events, Requests, and Responses Action At B: ONHOLDPENDTRANSFER devSpecific type = CallAttribute_WhisperMonitorCall dn = C, partition = C’s Partition, deviceName = C’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly CONNECTED Calling = B, Called = D, Connected = D At C: CONNECTED Calling = C, Called = B/B’s Name Connected = “”/Whisper, Redirection = “”/Whisper, Redirecting = “”/Whisper, devSpecific type = CallAttribute_WhisperMonitorCall_Target dn = B, partition = B’s Partition, deviceName = B’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly A initiates call to B and B answers C issues a CciscoLineDevSpecificStartCallMonitoring with: permLineId = B permLineId mode = MonitorMode_Whisper_Coaching tone = PlayToneDirection_RemoteOnly B setup transfer to D and D answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1018 Message Sequence Charts Agent Transfers a Whisper Coaching Call Monitoring Call Goes Idle at the Supervisor

Page 1050 diagram

Page 1051

Events, Requests, and Responses Action At B: IDLE IDLE At C: IDLE B complete transfer to D Application Updates the Monitoring Mode (WhisperCoaching to Silent) Additional Setup: IP Phone D Table 141: Application Updates the Monitoring Mode (WhisperCoaching to Silent) After the Agent Conferences the Whisper Coaching Call Events, Requests, and Responses Action At B: CONFERENCE Calling = A, Called = B, Connected = B CONNECTED devSpecific type = CallAttribute_SilentMonitorCall dn = C, partition = C’s Partition, deviceName = C’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly CONFERENCE Calling = B, Called = D, Connected = D At C: CONNECTED Calling = C, Called = B/B’s Name Connected = “”/Whisper, Redirection = “”/Whisper, Redirecting = “”/Whisper, devSpecific type = CallAttribute_SilentMonitorCall_Target dn = B, partition = B’s Partition, deviceName = B’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly A initiates Call to B and B answers C issues a CciscoLineDevSpecificStartCallMonitoring with: permLineId = B permLineId mode = MonitorMode_Silent tone = PlayToneDirection_RemoteOnly B setup conference to D and D answers B complete conference to D Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1019 Message Sequence Charts Application Updates the Monitoring Mode (WhisperCoaching to Silent)

Page 1051 diagram

Page 1052

Events, Requests, and Responses Action At B: LineDevSpecific(SLDSMT_MONITORING_MODE_UPDATED, MonitorMode_Silent, PlayToneDirection_RemoteOnly) CONFERENCE Calling = A, Called = B, Connected = B CONNECTED devSpecific type = CallAttribute_SilentMonitorCall dn = C, partition = C’s Partition, deviceName = C’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly CONFERENCE Calling = B, Called = D, Connected = D At C: LineDevSpecific(SLDSMT_STOP_TRANSMISION) LineDevSpecific(SLDSMT_MONITORING_MODE_UPDATED, MonitorMode_Silent, PlayToneDirection_RemoteOnly) CONNECTED devSpecific type = CallAttribute_SilentMonitorCall_Target dn = B, partition = B’s Partition, deviceName = B’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly C issues a CciscoLineDevSpecificMonitoringUpdateMode with: mode = MonitorMode_Silent tone = PlayToneDirection_RemoteOnly Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1020 Message Sequence Charts Message Sequence Charts

Page 1052 diagram

Page 1053

Events, Requests, and Responses Action At B: CONNECTED devSpecific type = CallAttribute_SilentMonitorCall dn = C, partition = C’s Partition, deviceName = C’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly IDLE IDLE At C: No change in callInfo and no additional events B issues a lineRemoveFromConference to drop D. Supervisor Holds/Resumes the Whisper Coaching Monitoring Session Additional Setup: IP Phone D Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1021 Message Sequence Charts Supervisor Holds/Resumes the Whisper Coaching Monitoring Session

Page 1053 diagram

Page 1054

Table 142: Supervisor Holds/Resumes the Whisper Coaching Monitoring Session Events, Requests, and Responses Action At B: CONNECTED devSpecific type = CallAttribute_WhisperMonitorCall dn = C, partition = C’s Partition, deviceName = C’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly At C: ONHOLD Calling = C, Called = B/B’s Name Connected = “”/Whisper, Redirection = “”/Whisper, Redirecting = “”/Whisper, devSpecific type = CallAttribute_WhisperMonitorCall_Target dn = B, partition = B’s Partition, deviceName = B’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly LineDevSpecific(SLDSMT_STOP_TRANSMISION) LineDevSpecific(SLDSMT_STOP_RECEPTION) A initiates call to B and B answers C issues a CciscoLineDevSpecificStartCallMonitoring with: permLineId = B permLineId mode = MonitorMode_Whisper_Coaching tone = PlayToneDirection_RemoteOnly C holds the call At C: CONNECTED Calling = C, Called = B/B’s Name Connected = “”/Whisper, Redirection = “”/Whisper, Redirecting = “”/Whisper, devSpecific type = CallAttribute_WhisperMonitorCall_Target dn = B, partition = B’s Partition, deviceName = B’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly LineDevSpecific(SLDSMT_START_TRANSMISION) LineDevSpecific(SLDSMT_START_RECEPTION) C resumes the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1022 Message Sequence Charts Message Sequence Charts

Page 1054 diagram

Page 1055

Supervisor Transfers the Whisper Coaching Session to Another Supervisor Additional Setup: Supervisor IP Phone D Table 143: Supervisor Transfers the Whisper Coaching Session to Another Supervisor Events, Requests, and Responses Action At B: CONNECTED devSpecific type = CallAttribute_WhisperMonitorCall dn = C, partition = C’s Partition, deviceName = C’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly At C: ONHOLDPENDTRANSFER Calling = C, Called = B/B’s Name Connected = “”/Whisper, Redirection = “”/Whisper, Redirecting = “”/Whisper, devSpecific type = CallAttribute_WhisperMonitorCall_Target dn = B, partition = B’s Partition, deviceName = B’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly CONNECTED Calling = C, Called = D, Connected = D At D: CONNECTED Calling = C, Called = D, Connected = C A initiates call to B and B answers C issues a CciscoLineDevSpecificStartCallMonitoring with: permLineId = B permLineId mode = MonitorMode_Whisper_Coaching tone = PlayToneDirection_RemoteOnly C setup transfers the call to D, D answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1023 Message Sequence Charts Supervisor Transfers the Whisper Coaching Session to Another Supervisor

Page 1055 diagram

Page 1056

Events, Requests, and Responses Action At B: CONNECTED devSpecific type = CallAttribute_WhisperMonitorCall dn = D, partition = D’s Partition, deviceName = D’s device transactionID = xxxx, tone = PlayToneDirection_RemoteOnly At C: IDLE IDLE At D: CONNECTED Calling = C, Called = D Connected = “”/Whisper, Redirection = “”/Whisper, Redirecting = “”/Whisper, devSpecific type = CallAttribute_WhisperMonitorCall_Target dn = B, partition = B’s Partition, deviceName = B’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly C complete transfers the call Supervisor Conferences the Whisper Coaching Session to Another Supervisor Additional Setup: Supervisor IP Phone D Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1024 Message Sequence Charts Supervisor Conferences the Whisper Coaching Session to Another Supervisor

Page 1056 diagram

Page 1057

Table 144: Supervisor Conferences the Whisper Coaching Session to Another Supervisor Events, Requests, and Responses Action At B: CONNECTED devSpecific type = CallAttribute_WhisperMonitorCall dn = C, partition = C’s Partition, deviceName = C’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly At C: CONFERENCE ONHOLDPENDCONF Calling = C, Called = B/B’s Name Connected = “”/Whisper, Redirection = “”/Whisper, Redirecting = “”/Whisper, devSpecific type = CallAttribute_WhisperMonitorCall_Target dn = B, partition = B’s Partition, deviceName = B’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly CONNECTED Calling = C, Called = D, Connected = D At D: CONNECTED Calling = C, Called = D, Connected = C A initiates call to B and B answers C issues a CciscoLineDevSpecificStartCallMonitoring with: permLineId = B permLineId mode = MonitorMode_Whisper_Coaching tone = PlayToneDirection_RemoteOnly C setup conferences the call to D and D answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1025 Message Sequence Charts Message Sequence Charts

Page 1057 diagram

Page 1058

Events, Requests, and Responses Action At B: CONNECTED devSpecific type = CallAttribute_WhisperMonitorCall dn = CFB, partition = CFB Partition, deviceName = CFB device transactionID = xxxx, tone = PlayToneDirection_RemoteOnly At C: CONFERENCE Calling = C, Called = B/B’s Name, Connected = CFB CONNECTED devSpecific type = CallAttribute_WhisperMonitorCall_Target dn = B, partition = B’s Partition, deviceName = B’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly CONNECTED Calling = C, Called = D, Connected = D At D: CONFERENCE Calling = C, Called = D, Connected = D CONNECTED CONNECTED Calling = D, Called = CFB, Connected = CFB C complete conferences the call Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1026 Message Sequence Charts Message Sequence Charts

Page 1058 diagram

Page 1059

Events, Requests, and Responses Action At B: CONNECTED devSpecific type = CallAttribute_WhisperMonitorCall dn = D, partition = D’s Partition, deviceName = D’s device transactionID = xxxx, tone = PlayToneDirection_RemoteOnly At C: IDLE IDLE IDLE At D: CONNECTED devSpecific type = CallAttribute_WhisperMonitorCall dn = B, partition = B’s Partition, deviceName = B’s device transactionID = xxxx, tone = PlayToneDirection_RemoteOnly C drops the call D issues a CciscoLineDevSpecificMonitoringUpdateMode with: permLineId = B permLineId mode = MonitorMode_Silent tone = PlayToneDirection_RemoteOnly Application Initiates a Whisper Coaching Session Second Application on a Different Client Opens All Lines Additional Setup: Supervisor IP Phone D Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1027 Message Sequence Charts Application Initiates a Whisper Coaching Session Second Application on a Different Client Opens All Lines

Page 1059 diagram

Page 1060

Table 145: Application Initiates a Whisper Coaching Session, Second Application on a Different Client Opens All Lines Events, Requests, and Responses Action At B (Application 1): CONNECTED devSpecific type = CallAttribute_WhisperMonitorCall dn = C, partition = C’s Partition, deviceName = C’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly At C (Application 1): CONNECTED Calling = C, Called = B/B’s Name Connected = “”/Whisper, Redirection = “”/Whisper, Redirecting = “”/Whisper, devSpecific type = CallAttribute_WhisperMonitorCall_Target dn = B, partition = B’s Partition, deviceName = B’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly A initiates Call to B, B answers C issues a CciscoLineDevSpecificStartCallMonitoring with: permLineId = B permLineId mode = MonitorMode_Whisper_Coaching tone = PlayToneDirection_RemoteOnly Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1028 Message Sequence Charts Message Sequence Charts

Page 1060 diagram

Page 1061

Events, Requests, and Responses Action At B (Application 2): CONNECTED devSpecific CallAttributeBitMask = TSPCallAttribute_WhisperMonitorCall type = CallAttribute_WhisperMonitorCall dn = C, partition = C’s Partition, deviceName = C’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly At C (Application 2): CONNECTED CallAttributeBitMask = TSPCallAttribute_WhisperMonitorCall_Target Calling = C, Called = B/B’s Name Connected = “”/Whisper, Redirection = “”/Whisper, Redirecting = “”/Whisper, devSpecific type = CallAttribute_WhisperMonitorCall_Target dn = B, partition = B’s Partition, deviceName = B’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly Second application opens all lines Secure R & M with Whisper Coaching Supports • Overall security status of the monitoring call either silent or whisper must be same. See Secure monitoring use cases. • Overall security status of the monitoring call must not change if monitor mode is updated either from silent to whisper or vice versa. Application Initiates a Secure Whisper Coaching Session Additional Setup: All devices are secure Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1029 Message Sequence Charts Secure R & M with Whisper Coaching Supports

Page 1061 diagram

Page 1062

Table 146: Application Initiates a Secure Whisper Coaching Session Events, Requests, and Responses Action At A: CONNECTED Calling = A, Called = B, Connected = B At B: CONNECTED Calling = A, Called = B, Connected = A A initiates call to B and B answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1030 Message Sequence Charts Message Sequence Charts

Page 1062 diagram

Page 1063

Events, Requests, and Responses Action At B: LineDevSpecific(SLDST_START_CALL_MONITORING) CONNECTED devSpecific type = CallAttribute_WhisperMonitorCall dn = C, partition = C’s Partition, deviceName = C’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly CallSecurityStatus = OverallCallSecurityStatus_Encrypted Note Media events are not received at B and SRTP keys are not available. At C: LineDevSpecific (dwparam1 = DevSpecificData, dwparam2 = SLDST_SRTP_INFO, dwParam3 = MEDIA_ENCRYPT_KEYS_AVAILABLE) SRTP keys are available CONNECTED Calling = C, Called = B/B’s Name Connected = “”/Whisper, Redirection = “”/Whisper, Redirecting = “”/Whisper, devSpecific type = CallAttribute_WhisperMonitorCall_Target dn = B, partition = B’s Partition, deviceName = B’s device transactionId = xxxx, tone = PlayToneDirection_RemoteOnly CallSecurityStatus = OverallCallSecurityStatus_Encrypted LineDevSpecific(SLDSMT_START_TRANSMISION) LineDevSpecific(SLDSMT_START_RECEPTION) C issues a CciscoLineDevSpecificStartCallMonitoring with: permLineId = B permLineId mode = MonitorMode_Whisper_Coaching tone = PlayToneDirection_LocalOnly Application Updates the Monitoring Mode on an Agent Call That Is on Hold The application updates the monitoring mode on an agent call that is on hold as follows: 1. A initiates Call to B and B answers Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1031 Message Sequence Charts Application Updates the Monitoring Mode on an Agent Call That Is on Hold

Page 1063 diagram

Page 1064

C issues a CciscoLineDevSpecificStartCallMonitoring with: • permLineId = B permLineId • mode = MonitorMode_Whisper_Coaching • tone = PlayToneDirection_RemoteOnly 3. B puts the call on hold 4. C issues CciscoLineDevSpecificMonitoringUpdateMode with: • mode = MonitorMode_Silent • tone = PlayToneDirection_RemoteOnly 5. LINE_REPLY returns LINEERR_INVALCALLSTATE Application Initiates Whisper Coaching Where the Agent Is a SIP Device with Older Firmware Version That Does Not Support Media Mixing The application initiates Whisper Coaching where the agent is a SIP device with older firmware version that does not support media mixing as follows: 1. A initiates Call to B and B answers 2. C issues a CciscoLineDevSpecificStartCallMonitoring with: • permLineId = B permLineId • mode = MonitorMode_Whisper_Coaching • tone = PlayToneDirection_RemoteOnly 3. LINE_REPLY returns LINEERR_RESOURCEUNAVAIL Application Updates the Monitoring Mode Where the Agent Is a SIP Device with Older Firmware Version That Does Not Support Media Mixing The application updates the monitoring mode where the agent is a SIP device with older firmware version that does not support media mixing as follows: 1. A initiates Call to Band B answers 2. C issues a CciscoLineDevSpecificStartCallMonitoring with: • permLineId = B permLineId • mode = MonitorMode_Silent • tone = PlayToneDirection_RemoteOnly 3. C issues a CciscoLineDevSpecificMonitoringUpdateMode with: • mode = MonitorMode_Whisper_Coaching • tone = PlayToneDirection_RemoteOnly Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1032 Message Sequence Charts Application Initiates Whisper Coaching Where the Agent Is a SIP Device with Older Firmware Version That Does Not Support Media Mixing

Page 1064 content

Page 1065

LINE_REPLY returns LINEERR_RESOURCEUNAVAIL Application Updates the Monitoring Mode on a Monitoring Call at the Supervisor That Is in a Conference The application updates the monitoring mode on a monitoring call at the supervisor that is in a conference as follows: 1. A initiates Call to Band B answers 2. C issues a CciscoLineDevSpecificStartCallMonitoring with: • permLineId = B permLineId • mode = MonitorMode_Silent • tone = PlayToneDirection_RemoteOnly 3. C setups or completes the call to D and D answers. 4. C issues a CciscoLineDevSpecificMonitoringUpdateMode with: • mode = MonitorMode_Whisper_Coaching • tone = PlayToneDirection_RemoteOnly 5. LINE_REPLY returns LINEERR_OPERATIONUNAVAIL Application Initiates Whisper Coaching on an Agent That Is Already Playing an Agent Greeting The application initiates Whisper Coaching on a agent that already is playing an agent greeting as follows: 1. A initiates Call to Band B answers 2. B issues a CCiscoLineDevSpecificStartSendMediaToBIBRequest with: • DN = IVR DN • timeout = 30 3. C issues a CciscoLineDevSpecificStartCallMonitoring with: • permLineId = B permLineId • mode = MonitorMode_Whisper_Coaching • tone = PlayToneDirection_RemoteOnly 4. LINE_REPLY returns LINEERR_RESOURCEUNAVAIL Application Initiates Agent Greeting on a Call That Already Has a Whisper Coaching Session The application initiates Agent Greeting on a call that already has a Whisper Coaching session as follows: 1. A initiates Call to Band B answers 2. C issues a CciscoLineDevSpecificStartCallMonitoring with: Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1033 Message Sequence Charts Application Updates the Monitoring Mode on a Monitoring Call at the Supervisor That Is in a Conference

Page 1065 content

Page 1066

• permLineId = B permLineId • mode = MonitorMode_Whisper_Coaching • tone = PlayToneDirection_RemoteOnly 3. B issues a CCiscoLineDevSpecificStartSendMediaToBIBRequest with: • DN = IVR DN • timeout = 30 4. LINE_REPLY returns LINEERR_RESOURCEUNAVAIL Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1034 Message Sequence Charts Message Sequence Charts

Page 1066 content

Page 1067

A P P E N D I X B Cisco Unified TAPI Interfaces This appendix contains a listing of APIs that are supported and not supported. • Cisco Unified TAPI Version 2.1 Interfaces, on page 1035 Cisco Unified TAPI Version 2.1 Interfaces Core Package The following table lists each TAPI interface Table 147: Compliance to TAPI 2.1 Comments Cisco TAPI support API/Message/Structure TAPI Line Functions Yes lineAccept Yes lineAddProvider Yes lineAddToConference Yes lineAnswer Yes lineBlindTransfer Yes lineCallbackFunc Yes lineClose No lineCompleteCall Yes lineCompleteTransfer No lineConfigDialog No lineConfigDialogEdit Yes lineConfigProvider Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1035

Image 1 from page 1067

Page 1067 diagram

Page 1068

Comments Cisco TAPI support API/Message/Structure Yes lineDeallocateCall Yes lineDevSpecific Yes lineDevSpecificFeature Yes lineDial Yes lineDrop Yes lineForward No lineGatherDigits Yes lineGenerateDigits Yes lineGenerateTone Yes lineGetAddressCaps Yes lineGetAddressID Yes lineGetAddressStatus No lineGetAppPriority Yes lineGetCallInfo Yes lineGetCallStatus Yes lineGetConfRelatedCalls No lineGetCountry Yes lineGetDevCaps No lineGetDevConfig No lineGetIcon Yes lineGetID Yes lineGetLineDevStatus Yes lineGetMessage Yes lineGetNewCalls Yes lineGetNumRings Yes lineGetProviderList Yes lineGetRequest Yes lineGetStatusMessages Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1036 Cisco Unified TAPI Interfaces Cisco Unified TAPI Interfaces

Page 1068 diagram

Page 1069

Comments Cisco TAPI support API/Message/Structure Yes lineGetTranslateCaps Yes lineHandoff Yes lineHold Yes lineInitialize Yes lineInitializeEx Yes lineMakeCall Yes lineMonitorDigits No lineMonitorMedia Yes lineMonitorTones Yes lineNegotiateAPIVersion Yes lineNegotiateExtVersion Yes lineOpen Yes linePark No linePickup Yes linePrepareAddToConference Yes lineRedirect Yes lineRegisterRequestRecipient No lineReleaseUserUserInfo No lineRemoveFromConference Yes lineRemoveProvider No lineSecureCall No lineSendUserUserInfo Yes lineSetAppPriority No lineSetAppSpecific No lineSetCallData No lineSetCallParams Yes lineSetCallPrivilege No lineSetCallQualityOfService Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1037 Cisco Unified TAPI Interfaces Cisco Unified TAPI Interfaces

Page 1069 diagram

Page 1070

Comments Cisco TAPI support API/Message/Structure No lineSetCallTreatment No lineSetCurrentLocation No lineSetDevConfig No lineSetLineDevStatus No lineSetMediaControl No lineSetMediaMode Yes lineSetNumRings Yes lineSetStatusMessages No lineSetTerminal Yes lineSetTollList Yes lineSetupConference Yes lineSetupTransfer Yes lineShutdown No lineSwapHold Yes lineTranslateAddress Yes lineTranslateDialog No lineUncompleteCall Yes lineUnhold Yes lineUnpark TAPI Line Messages Yes LINE_ADDRESSSTATE Yes LINE_APPNEWCALL Yes LINE_CALLINFO Yes LINE_CALLSTATE Yes LINE_CLOSE Yes LINE_CREATE Yes LINE_DEVSPECIFIC Yes LINE_DEVSPECIFICFEATURE Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1038 Cisco Unified TAPI Interfaces Cisco Unified TAPI Interfaces

Page 1070 diagram

Page 1071

Comments Cisco TAPI support API/Message/Structure Yes LINE_GATHERDIGITS Yes LINE_GENERATE Yes LINE_LINEDEVSTATE Yes LINE_MONITORDIGITS No LINE_MONITORMEDIA Yes LINE_MONITORTONE Yes LINE_REMOVE Yes LINE_REPLY Yes LINE_REQUEST TAPI Line Structures Yes LINEADDRESSCAPS Yes LINEADDRESSSTATUS Yes LINEAPPINFO Yes LINECALLINFO Yes LINECALLLIST Yes LINECALLPARAMS Yes LINECALLSTATUS No LINECALLTREATMENTENTRY Yes LINECARDENTRY Yes LINECOUNTRYENTRY Yes LINECOUNTRYLIST Yes LINEDEVCAPS Yes LINEDEVSTATUS No LINEDIALPARAMS Yes LINEEXTENSIONID Yes LINEFORWARD Yes LINEFORWARDLIST Yes LINEGENERATETONE Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1039 Cisco Unified TAPI Interfaces Cisco Unified TAPI Interfaces

Page 1071 diagram

Page 1072

Comments Cisco TAPI support API/Message/Structure Yes LINEINITIALIZEEXPARAMS Yes LINELOCATIONENTRY No LINEMEDIACONTROLCALLSTATE No LINEMEDIACONTROLDIGIT No LINEMEDIACONTROLMEDIA No LINEMEDIACONTROLTONE Yes LINEMESSAGE Yes LINEMONITORTONE Yes LINEPROVIDERENTRY Yes LINEPROVIDERLIST No LINEREQMEDIACALL Yes LINEREQMAKECALL No LINETERMCAPS Yes LINETRANSLATECAPS Yes LINETRANSLATEOUTPUT TAPI Phone Functions Yes phoneCallbackFunc Yes phoneClose No phoneConfigDialog Yes phoneDevSpecific No phoneGetButtonInfo No phoneGetData Yes phoneGetDevCaps Yes phoneGetDisplay No phoneGetGain No phoneGetHookSwitch No phoneGetIcon No phoneGetID Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1040 Cisco Unified TAPI Interfaces Cisco Unified TAPI Interfaces

Page 1072 diagram

Page 1073

Comments Cisco TAPI support API/Message/Structure No phoneGetLamp Yes phoneGetMessage Yes phoneGetRing No phoneGetStatus Yes phoneGetStatusMessages No phoneGetVolume Yes phoneInitialize Yes phoneInitializeEx Yes phoneNegotiateAPIVersion No phoneNegotiateExtVersion Yes phoneOpen No phoneSetButtonInfo No phoneSetData Yes phoneSetDisplay No phoneSetGain No phoneSetHookSwitch No phoneSetLamp No phoneSetRing Yes phoneSetStatusMessages No phoneSetVolume Yes phoneShutdown TAPI Phone Messages Yes PHONE_BUTTON Yes PHONE_CLOSE Yes PHONE_CREATE No PHONE_DEVSPECIFIC Yes PHONE_REMOVE Yes PHONE_REPLY Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1041 Cisco Unified TAPI Interfaces Cisco Unified TAPI Interfaces

Page 1073 diagram

Page 1074

Comments Cisco TAPI support API/Message/Structure Yes PHONE_STATE TAPI Phone Structures No PHONEBUTTONINFO Yes PHONECAPS No PHONEEXTENSIONID Yes PHONEINITIALIZEEXPARAMS Yes PHONEMESSAGE No PHONESTATUS Yes VARSTRING TAPI Assisted Telephony Functions No tapiRequestDrop No tapiRequestMediaCall TAPI Call Center Functions No lineAgentSpecific No lineGetAgentActivityList No lineGetAgentCaps No lineGetAgentGroupList No lineGetAgentStatus No lineProxyMessage No lineProxyResponse No lineSetAgentActivity No lineSetAgentGroup No lineSetAgentState TAPI Call Center Messages No LINE_AGENTSPECIFIC No LINE_AGENTSTATUS No LINE_PROXYREQUEST TAPI Call Center Structures Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1042 Cisco Unified TAPI Interfaces Cisco Unified TAPI Interfaces

Page 1074 diagram

Page 1075

Comments Cisco TAPI support API/Message/Structure No LINEAGENTACTIVITYENTRY No LINEAGENTACTIVITYLIST No LINEAGENTCAPS No LINEAGENTGROUPENTRY No LINEAGENTGROUPLIST No LINEAGENTSTATUS No LINEPROXYREQUEST Wave Functions Yes waveInAddBuffer Yes waveInClose No waveInGetDevCaps No waveInGetErrorText Yes waveInGetID No waveInGetNumDevs Yes waveInGetPosition No waveInMessage Yes waveInOpen Yes waveInPrepareHeader No waveInProc Yes waveInReset Yes waveInStart No waveInStop Yes waveInUnprepareHeader No waveOutBreakLoop Yes waveOutClose Yes waveOutGetDevCaps No waveOutGetErrorText Yes waveOutGetID Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1043 Cisco Unified TAPI Interfaces Cisco Unified TAPI Interfaces

Page 1075 diagram

Page 1076

Comments Cisco TAPI support API/Message/Structure No waveOutGetNumDevs No waveOutGetPitch No waveOutGetPlaybackRate No waveOutGetPosition No waveOutGetVolume No waveOutMessage Yes waveOutOpen No waveOutPause Yes waveOutPrepareHeader No waveOutProc Yes waveOutReset No waveOutRestart No waveOutSetPitch No waveOutSetPlaybackRate No waveOutSetVolume Yes waveOutUnprepareHeader Yes waveOutWrite Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1044 Cisco Unified TAPI Interfaces Cisco Unified TAPI Interfaces

Page 1076 diagram

Page 1077

A P P E N D I X C Troubleshooting Cisco Unified TAPI This appendix contains information about troubleshooting Cisco Unified Communication manager. It contains the following sections: • TSP Trace of Internal Messages, on page 1045 • TSP Operation Verification, on page 1045 • Version Compatibility, on page 1046 • Cisco TSP Readme, on page 1046 • Unsupported CTI Events for SIP Phones, on page 1046 TSP Trace of Internal Messages Procedure Step 1 Choose Start > Settings > Control Panel and select Phone and Modem Options. Step 2 Click Advanced tab and select the CiscoTSP 0xx and click Configure button. Step 3 Click Trace tab. Select Trace On check box and select 1. TSP Trace to trace the TSP internal messages. Select Error to just log errors in the TSP Select Detailed to log internal messages for debugging purposes. Select 2. CTI Trace to trace the messages sent between CTI and TSP. Select 3. TSPI Trace to trace the requests and events that are sent between TSP and TAPI. Step 4 Set up a Directory that is the path for the trace log. For example, c:\Temp No. of Files: Setting this to a value greater than or equal to 1 enables rolling log files. For example, a value of 10 will cause up to 10 log files to be used in a cyclic fashion. Max lines/file: specifies the maximum number of trace statements that will be written to each log file. For example, a value of 1000 will cause up to 1000 trace statements to be written to each log file. TSP Operation Verification To verify the TSP operation on the machine where the TSP is installed, use the Microsoft Windows Phone Dialer Application. Find this application in the C:\Program Files\Windows NT directory under the name dialer.exe. When the program is run, a dialog box displays that asks which line and address the user wants to use to connect. If there are no lines in the Line drop down list, then a problem may exist between the TSP and Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1045

Image 1 from page 1077

Page 1077 content

Page 1078

the Cisco Unified Communications Manager. If lines are available, choose one of the lines, keep the Address set to zero (0) and click OK. Enter a Number to dial, and a call should be placed to that number. If call is successful, you know that the TSP is operational on the machine where the TSP is installed. If problems are encountered with installation and setup of Remote TSP, this test represents a good way to verify whether the TSP is operating properly and that the problem is with the configuration and setup of Remote TSP. Version Compatibility Cisco recommends that the TSP client should always use the plug-in that is downloaded from corresponding Cisco Unified Communications Manager server. Cisco TSP Readme The Cisco Unified Communications Manager TSP readme file is copied to the client PC when TSP plug-in is installed. Unsupported CTI Events for SIP Phones The following CTI events are not generated for SIP phones. Third party applications that expect these call events should use SCCP phones: • CallOpenLogicalChannelEvent • CallRingEvent • DeviceLampModeChangedEvent • DeviceModeChangedEvent • DeviceDisplayChangedEvent • DeviceFeatureButtonPressedEvent • DeviceKeyPressedEvent • DeviceLampModeChangedEvent • DeviceRingModeChangedEvent Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1046 Troubleshooting Cisco Unified TAPI Version Compatibility

Page 1078 content

Page 1079

A P P E N D I X D Cisco Unified TAPI Operations-by-Release • Cisco Unified TAPI Operations-by-Release, on page 1047 Cisco Unified TAPI Operations-by-Release The following tables list new, changed, and “under consideration or review” features for Cisco Unified TAPI by Cisco Unified Communications Manager release. • API Interfaces • TAPI Line Functions • TAPI Line Messages • TAPI Line Structures • TAPI Phone Functions • TAPI Phone Messages • TAPI Phone Structures Table legend: s: supported, N: not supported, M: Modified, UCR: Under Consideration or Review. Table 148: API Interfaces 10.0 9.1 9.0 8.6 8.5 8.0 7.1.3 7.1.2 7.0 6.1 6.0 5.1 5.0 4.3 4.2 4.1 4.0 3.3 3.2 3.1 TSP Features s s s s s s s s s s s s s s s s s s s s CTI Manager and Support for fault tolerance s s s s s s s s s s s s s s s s s s s s Support for Cisco CallManager Extension Mobility s s s s s s s s s s s s s s s s s s s s Support for Multiple CiscoTSP Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1047

Image 1 from page 1079

Page 1079 diagram

Page 1080

10.0 9.1 9.0 8.6 8.5 8.0 7.1.3 7.1.2 7.0 6.1 6.0 5.1 5.0 4.3 4.2 4.1 4.0 3.3 3.2 3.1 TSP Features s s s s s s s s s s s s s s s s M s s s (Redirect Support for) Blind Transfer s s s s s s s s s s s s s s s s s s s s Support for swap hold and setup transfer with the lineDevSpecific() function s s s s s s s s s s s s s s s s s s s s Support for lineForward() s s s s s s s s s s s s s s s s s s s s Support to Reset the Original Called Party upon Redirect with the lineDevSpecific function s s s s s s s s s s s s s s s s s N N N Support to Set the Original Called Party upon Redirect with the lineDevSpecific function s s s s s s s s s s s s s s s s s s s M Line In-Service or Out-of-Service s s s s s s s s s s s s s s s s s s s N Support for multiple languages in the CiscoTSP installation program and in the CiscoTSP configuration dialogs s s s s s s s s s s s s s s s s s M N N User Deletion from Directory s s s s s s s s s s s s s s s s s s N N Opening Two Lines on One CTI Port Device s s s s s s s s s s s s s s s s s s N N Support for linePark and lineUnpark s s s s s s s s s s s s s s s s s s N N Support for monitoring Call Park Directory Numbers using lineOpen s s s s s s s s s s s s s s s s s M N N Call Reason Enhancements s s s s s s s s s s s s s s s s s s N N Device Data Passthrough s s s s s s s s s s s s s s s s s N N N CiscoTSP Auto Update Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1048 Cisco Unified TAPI Operations-by-Release Cisco Unified TAPI Operations-by-Release

Page 1080 diagram

Page 1081

10.0 9.1 9.0 8.6 8.5 8.0 7.1.3 7.1.2 7.0 6.1 6.0 5.1 5.0 4.3 4.2 4.1 4.0 3.3 3.2 3.1 TSP Features s s s s s s s s s s s s s s s s s N N N Multiple Calls per Line Appearance s s s s s s s s s s s s s s s s s N N N Shared Line Appearance s s s s s s s s s s s s s s s s s N N N Select Calls s s s s s s s s s s s s s s s s M N N N Transfer Changes s s s s s s s s s s s s s s s s s N N N Direct Transfer s s s s s s s s s s s s s s s s M N N N Conference Changes s s s s s s s s s s s s s s s s s N N N Join s s s s s s s s s s s s s s s s s N N N Privacy Release s s s s s s s s s s s s s s s s s N N N Barge and cBarge s s s s s s s s s s s s s s s s s N N N Dynamic Port Registration s s s s s s s s s s s s s s s s s N N N Media Termination at Route Points s s s s s s s s s s s s s s s s s N N N QoS support s s s s s s s s s s s M s s s s s N N N Support for Presentation Indication s s s s s s s s s s s s s s s s N N N N Windows 2003 Support s s s s s s s s s s s s s N N N N N N N Unicode Support s s s s s s s s s s s s N N N N N N N N SRTP support s s s s s s s s s s s s N N N N N N N N Partition Support s s s s s s s s s s s s N N N N N N N N SuperProvider Functionality s s s s s s s s s s s s N N N N N N N N Security (TLS) support s s s s s s s s s s s s s s s s N N N N FAC/CMC Support s s s s s s s s s s s s s s s s N N N N CTI Port Third Party Monitoring s s s s s s s s s s s s N N N N N N N N Alternate Script Support s s s s s s s s s s s s N N N N N N N N SIP Features Refer/Replaces s s s s s s s s s s s s N N N N N N N N SIP URI Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1049 Cisco Unified TAPI Operations-by-Release Cisco Unified TAPI Operations-by-Release

Page 1081 diagram

Page 1082

10.0 9.1 9.0 8.6 8.5 8.0 7.1.3 7.1.2 7.0 6.1 6.0 5.1 5.0 4.3 4.2 4.1 4.0 3.3 3.2 3.1 TSP Features s s s s s s s s s s s s N N N N N N N N SIP phone support s s s s s s s s s s s s N N N N N N N N Change Notification of SupetProvider and CallParkDN Monitoring flags s s s s s s s s s s s s N N N N N N N N 3XX s s s s s s s s s s s N N N N N N N N N Intercom Support s s s s s s s s s s s N N N N N N N N N Secure Conferencing Support s s s s s s s s s s s N N N N N N N N N Monitoring & Recording s s s s s s s s s s s N N N N N N N N N Arabic and Hebrew Language Support s s s s s s s s s s s N N N N N N N N N Do-Not-Disturb Support s s s s s s s s s s s N N s s N N N N N Conference Enhancement s s s s s s s s s s N s s N N N N N N N Join AcrossLine (SCCP) s s s s s s s s s N N N N N N N N N N N Join AcrossLine (SIP) s s s s s s s s s N N N N N N N N N N N Locale Infrastructure Enhancement s s s s s s s s s N N N N N N N N N N N Do-Not-Disturb Rejection s s s s s s s s s N N N N N N N N N N N Call Party Normalization s s s s s s s s s N N N N N N N N N N N Click-To-Conference s s s s s s s s N N N N N N N N N N N N IPv6 Support on Linux s s s s s s s s s s N s N s s N N N N N Windows Vista Support s s s s s s s s N N N N N N N N N N N N Enhanced MWI s s s s s s s s N N N N N N N N N N N N Direct Transfer Across Lines s s s s s s s s N N N N N N N N N N N N Support for > 100DNs s s s s s s s s N N N N N N N N N N N N Swap/Cancel support on Cisco Unified IP Phone 8900 and 9900 Series s s s s s s s s N N N N N N N N N N N N Drop Any Party Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1050 Cisco Unified TAPI Operations-by-Release Cisco Unified TAPI Operations-by-Release

Page 1082 diagram

Page 1083

10.0 9.1 9.0 8.6 8.5 8.0 7.1.3 7.1.2 7.0 6.1 6.0 5.1 5.0 4.3 4.2 4.1 4.0 3.3 3.2 3.1 TSP Features s s s s s s s s N N N N N N N N N N N N Park Reversion s s s s s s s s N N N N N N N N N N N N Conditional Reset s s s s s s s s N N N N N N N N N N N N Logical Partition s s s s s s s s N N N N N N N N N N N N Assisted DPark s s s s s s s s N N N N N N N N N N N N Cisco Unified IP Phone 6900 Series Support s s s s s s s s N N N N N N N N N N N N Device State Server s s s s s s s N N N N N N N N N N N N N Exposing Busy Trigger / Line Number / Voice Mail Pilot / Line Label / New call outbound rollover/ Consult call rollover/JAL/DTAL flag and IP address (IPv4 & IPv6) of the device s s s s s s N N N N N N N N N N N N N N Hunt List Support s s s s s s N N N N N N N N N N N N N N Call Intercept Support s s s s s s N N N N N N N N N N N N N N External Call Control (ECC) Support s s s s s s N N N N N N N N N N N N N N Call Control Discover (CCD) Support s s s s s s N N N N N N N N N N N N N N Extension Mobility Cross Cluster (EMCC) Support s s s s s s N N N N N N N N N N N N N N Call Pickup Support s s s s s s N N N N N N N N N N N N N N End-To-End Call Tracing s s s s s s N N N N N N N N N N N N N N Secure Monitoring Support s s s s s s N N N N N N N N N N N N N N Unified B2B link support s s s s s s N N N N N N N N N N N N N N iSAC Codec Support s s s s s s N N N N N N N N N N N N N N New TSP Client with remote silent installation Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1051 Cisco Unified TAPI Operations-by-Release Cisco Unified TAPI Operations-by-Release

Page 1083 diagram

Page 1084

10.0 9.1 9.0 8.6 8.5 8.0 7.1.3 7.1.2 7.0 6.1 6.0 5.1 5.0 4.3 4.2 4.1 4.0 3.3 3.2 3.1 TSP Features s s s s s s N N N N N N N N N N N N N N New Cisco TSP Wave Driver (Cisco RTP Library) s s s s s N N N N N N N N N N N N N N N Agent Greeting s s s s s N N N N N N N N N N N N N N N Agent Zip Tone s s s s s N N N N N N N N N N N N N N N Early Offer s s s s s N N N N N N N N N N N N N N N Extension Mobility Memory Optimization s s s s s N N N N N N N N N N N N N N N Other-Device State Notification s s s s N N N N N N N N N N N N N N N N Energy Wise s s s s N N N N N N N N N N N N N N N N Whisper Coaching s s s s N N N N N N N N N N N N N N N N FIPS Compliant (UCR 2008 support) s s s s N N N N N N N N N N N N N N N N Password Expiry and Account Lockout (UCR 2008 support) s s s s N N N N N N N N N N N N N N N N Support for Codian SIP MCU s s s s s N N N N N N N N N N N N N N N TSP Native 64Bit support s s s s N N N N N N N N N N N N N N N N TSP Native 64Bit SRTP support s s s s N N N N N N N N N N N N N N N N Support for multiple calls per line on RTLite Phones s N N N N N N N N N N N N N N N N N N N Single Sign On s s s N N N N N N N N N N N N N N N N N URI Dialing s s s N N N N N N N N N N N N N N N N N Recording Enhancement (Device Based Recording) s s s N N N N N N N N N N N N N N N N N Hunt Pilot Connected Number s s s N N N N N N N N N N N N N N N N N Native Queuing s s s N N N N N N N N N N N N N N N N N CIUS Session Persistency Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1052 Cisco Unified TAPI Operations-by-Release Cisco Unified TAPI Operations-by-Release

Page 1084 diagram

Page 1085

10.0 9.1 9.0 8.6 8.5 8.0 7.1.3 7.1.2 7.0 6.1 6.0 5.1 5.0 4.3 4.2 4.1 4.0 3.3 3.2 3.1 TSP Features s s s N N N N N N N N N N N N N N N N N CTI Remote Device (Cisco Extend & Connect) s s N N N N N N N N N N N N N N N N N N CTI Remote Device - Extend Mode for CSF Removed s s N N N N N N N N N N N N N N N N N N CTI Remote Device - ADR (Application Dial Rule) Support s s N N N N N N N N N N N N N N N N N N CTI Remote Device - Remote Destination Reachability Support s s N N N N N N N N N N N N N N N N N N CTI Remote Device - DTMF Support s N N N N N N N N N N N N N N N N N N N CTI Remote Device -Persistent Call s N N N N N N N N N N N N N N N N N N N CTI Remote Device -Announcement Call s N N N N N N N N N N N N N N N N N N N CTI Remote Device -Call Forwarding s N N N N N N N N N N N N N N N N N N N CTI Remote Device - NuRD s N N N N N N N N N N N N N N N N N N N CTI Remote Device - Mobility Interaction Support s N N N N N N N N N N N N N N N N N N N CTI Video Support s N N N N N N N N N N N N N N N N N N N Gateway Recording s N N N N N N N N N N N N N N N N N N N CCMSymmetric Encryption Enhancements -AsymmetricEncryption s N N N N N N N N N N N N N N N N N N N Video on Hold Table 149: TAPI Line Functions 10.0 9.1 9.0 8.6 8.5 8.0 7.1.3 7.1 7.0 6.1 6.0 5.1 5.0 4.3 4.2 4.1 4.0 3.3 3.2 3.1 TAPI Line Functions s s s s s s s s s s s s s s s s M s s s LineAddToConference Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1053 Cisco Unified TAPI Operations-by-Release Cisco Unified TAPI Operations-by-Release

Page 1085 diagram

Page 1086

10.0 9.1 9.0 8.6 8.5 8.0 7.1.3 7.1 7.0 6.1 6.0 5.1 5.0 4.3 4.2 4.1 4.0 3.3 3.2 3.1 TAPI Line Functions s s s s s s s s s s s s s s s s M s s s LineCompleteTransfer s M M M M M s M M s M M s s s M M s s M LineDevSpecific s s s s s s s s s s s s s s s s s s s s LineForward M s s s s s s s s s s s s s s s s s s s LineMakeCall s s s s s s s s s s s s s s s s s s N N LinePark s s s s s s s s s s s s s s s s s s N N LineUnpark s s s s s s s s s s s s s s s s N N N N LineRedirect s s s s s s s s s s s s s s s s N N N N LineBlindTransfer s s s s s s s s s s s N N N N N N N N N LineDevSpecificFeature s s s s s s s s N N N N N N N N N N N N LineRemoveFromConference Table 150: TAPI Line Messages 10.0 9.1 9.0 8.6 8.5 8.0 7.1.3 7.1 7.0 6.1 6.0 5.1 5.0 4.3 4.2 4.1 4.0 3.3 3.2 3.1 TAPI Line Messages s s s s s s s s s s s s s s s s s s s M LINE_ADDRESSSTATE s s s M M M s M M M M M M s s s s s s M LINE_CALLINFO M s s s s s s s s s s s s s s M M s s s LINE_CALLSTATE s s s s s s s s s s s s s s s s s s s s LINE_REMOVE M s M M s M M s s s M M s s s M s s s s LINE_DEVSPECIFIC s s s s s s s s s s s N N N N N N N N N LINE_DEVSPECIFICFEATURE M s s s M M s M s s M M s s s M s s s s LINE_CALLDEVSPECIFIC Table 151: TAPI Line Structures 10.0 9.0 8.6 8.5 8.0 7.1.3 7.1.2 7.0 6.1 6.0 5.1 5.0 4.3 4.2 4.1 4.0 3.3 3.2 3.1 TAPI Line Structures M s s s s s s s s s s s s s M M s s M LINEADDRESSCAPS M s s s s s s s s s s s s s M M s s s LINECALLSTATUS M s s s s s s s s s s s s s s s s s s LINEFORWARD M s s s s s s s s s s s s s s s s s s LINEFORWARDLIST M M s s M M M s s M M M s s s s M s s LINEDEVCAPS Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1054 Cisco Unified TAPI Operations-by-Release Cisco Unified TAPI Operations-by-Release

Page 1086 diagram

Page 1087

10.0 9.0 8.6 8.5 8.0 7.1.3 7.1.2 7.0 6.1 6.0 5.1 5.0 4.3 4.2 4.1 4.0 3.3 3.2 3.1 TAPI Line Structures s s s s s s s s s M s M s s s s s s s LINEDEVSTATUS M s s M M M M M M M M s s s s s s s s LINECALLINFO M s s s s s s s s s s s s s s s s s s LINECALLPARAMs Table 152: TAPI Phone Functions 10.0 9.0 8.6 8.5 8.0 7.1.3 7.1.2 7.0 6.1 6.0 5.1 5.0 4.3 4.2 4.1 4.0 3.3 3.2 3.1 TAPI Phone Functions s s s s s s s s s s s M s s s s s N N PhoneDevSpecific s s s s s s s s s s s s s s s s s N N PhoneGetStatus Table 153: TAPI Phone Messages 10.0 9.0 8.6 8.5 8.0 7.1.3 7.1.2 7.0 6.1 6.0 5.2 5.1 5.0 4.3 4.2 4.1 4.0 3.3 3.2 3.1 TAPI Phone Messages s s s s s s s s s s s s s s s s s s s s PHONE_REMOVE M s s s M M s s s s s s s s s s s s s s PHONE_DEVSPECIFIC Table 154: TAPI Phone Structures 10.0 9.0 8.6 8.5 8.0 7.1.3 7.1.2 7.0 6.1 6.0 5.2 5.1 5.0 4.3 4.2 4.1 4.0 3.3 3.2 3.1 TAPI Phone Structures M s s s M M s s s s s s s s s s s s s s PHONECAPS s s s s s s s s s s s s s s s s s s N N PHONESTATUS Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1055 Cisco Unified TAPI Operations-by-Release Cisco Unified TAPI Operations-by-Release

Page 1087 diagram

Page 1088

Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1056 Cisco Unified TAPI Operations-by-Release Cisco Unified TAPI Operations-by-Release

Page 1088 content

Page 1089

A P P E N D I X E CTI Supported Devices • CTI Supported Devices, on page 1057 CTI Supported Devices For more information about CTI supported devices, see CTI Supported Device Matrix. Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1057

Image 1 from page 1089

Page 1089 content

Page 1090

Cisco Unified TAPI Developers Guide for Cisco Unified Communications Manager, Release 15 and SUs 1058 CTI Supported Devices CTI Supported Devices
